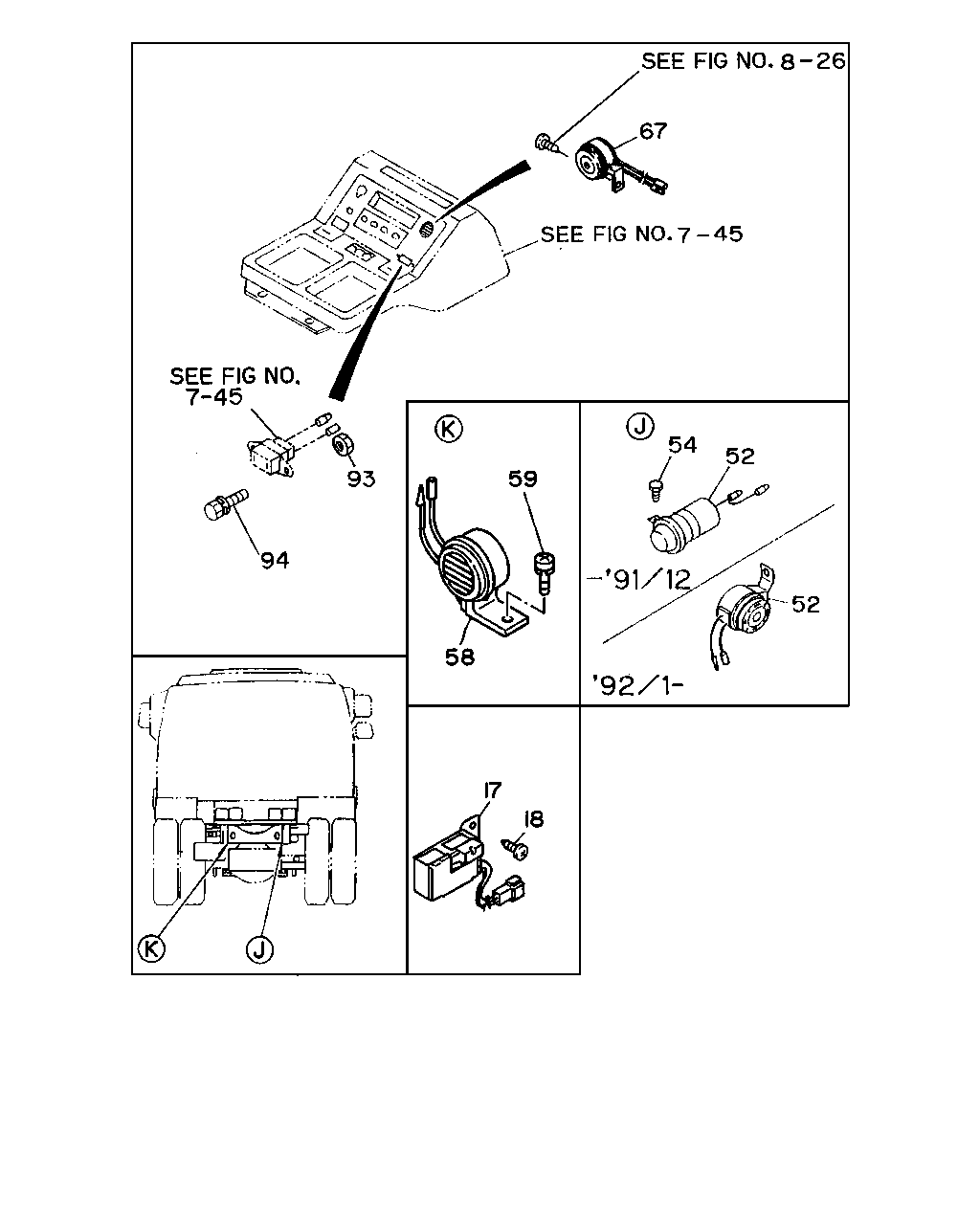

8-28 — CHASSIS ELECTRICAL (#3457) — 97 parça

67 54 52 52 59 93 94 58 17 18

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
17	TIMER; SEAT BELT SAUDI ARABIA EQUIPMENT(WH1)	1-82550-183-1	01	1	9002-9306	●	●
18	SCREW; TIMER SAUDI ARABIA EQUIPMENT(WH1) M5X14 TAPPING W/PL WASHER	0-74100-514-0	02	1	9002-9306	●	●
52	BUZZER; BACK REVERSING WARNING BUZZER<YM9> NIKKO	1-83460-010-0	01	1	9002-9112	●	●	●
52	BUZZER; BACK REVERSING WARNING BUZZER<YM9> NIKKO	8-97061-718-0	01	1	9201-9306	●	●	●
52	BUZZER; BACK REVERSING WARNING BUZZER<YM9> NIKKO	1-83460-052-0	01	1	9307-	●	●	●
54	BOLT; BACK BUZZER REVERSING WARNING BUZZER<YM9> M10X25	9-01911-025-0	01	1	9002-9002	●	●	●
54	BOLT; BACK BUZZER REVERSING WARNING BUZZER<YM9> M10X25 W/LK WASHER	0-50041-025-0	01	1	9003-9006	●	●	●
58	BUZZER; AIR PRESSURE WARNING	1-83460-005-0	01	1	9002-	●	●	●
59	SCREW; BUZZER M5X14 W/PL WASHER	5-09981-050-0	01	1	9002-	●	●	●
67	BUZZER; ENG OVERRUN ENGINE OVERRUN BUZZER<SK4>	1-83460-032-0	01	1	9002-	●	●	●
93	NUT; CONSENT TO BLIND PNL M5 FLANGE	5-09440-003-0	02	1	9002-	●	●	●
94	SCREW; CONSENT TO BLIND PNL	1-09981-282-0	02	1	9002-	●	●	●

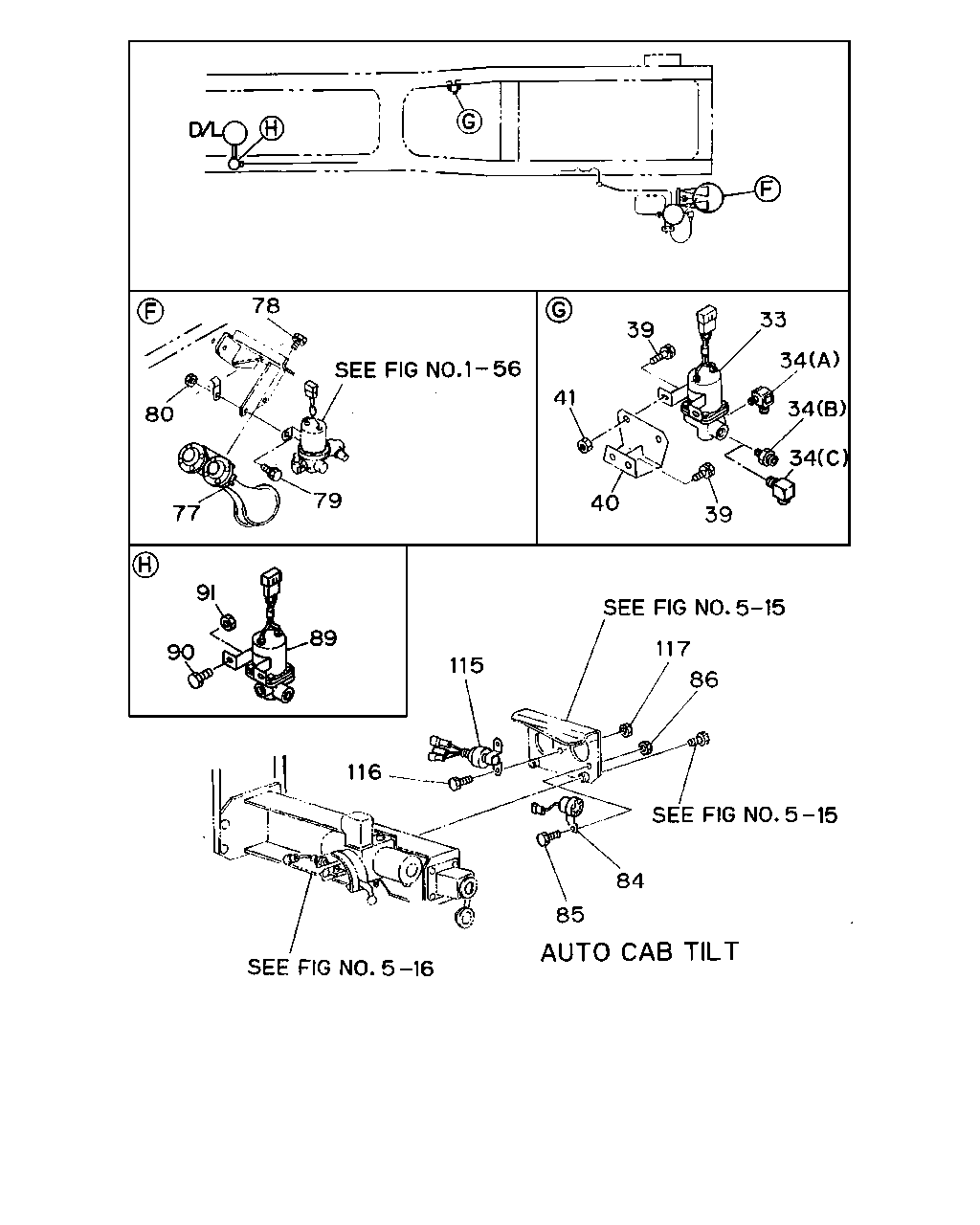

39 40 41 39 33 34 34 34 117 86 115 84 85 116 89 91 90 77 79 80 78

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
33	VALVE; MAG,PTO CONT TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-82563-305-0	01	1	9002-	●	●	●
34	CONNECTOR; MAG VLV,INL PORT (B) M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	9307-	●	●	●
34	CONNECTOR; MAG VLV,INL PORT (B) M20 & PT1/4	9-09902-386-0	01	1	9307-	●	●	●
34	CONNECTOR; MAG VLV,INL PORT 6RB1 STD ENG(07L),12PD1 C ENG(43L) TRANSMISSION SIDE PTO WO/LEVER(SH5) (B) M20 & PT1/4	9-09902-386-0	01	1	9307-	●	●
34	CONNECTOR; MAG VLV,INL PORT 10PD1 STD ENG(40L) FIRE TRUCK<RA9> TRANSMISSION SIDE PTO WO/LEVER(SH5) (B) M20 & PT1/4	9-09902-386-0	01	1	9307-		●
34	CONNECTOR; MAG VLV,INL PORT TRANSMISSION SIDE PTO WO/LEVER(SH5) (A) PT1/4 & M12 ELBOW	1-09650-117-1	01	1	9002-9302	●	●	●
34	CONNECTOR; MAG VLV,INL PORT TRANSMISSION SIDE PTO WO/LEVER(SH5) (A) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	9303-	●	●	●
34	CONNECTOR; MAG VLV,INL PORT TRANSMISSION SIDE PTO WO/LEVER(SH5) (B) M20 & PT1/4	9-09902-386-0	01	1	9002-9306	●	●	●
34	CONNECTOR; MAG VLV,INL PORT 10PD1 STD ENG(40L) TRANSMISSION SIDE PTO WO/LEVER(SH5) EXC. FIRE TRUCK<RA9> (C) M20 & PT1/4 ELBOW	1-09660-681-0	01	1	9307-	●	●
39	BOLT; BRKT,MAG VLV TRANSMISSION SIDE PTO WO/LEVER(SH5) M8X25 W/LK WASHER	9-01900-825-0	02	1	9002-9204			●
39	BOLT; BRKT,MAG VLV TRANSMISSION SIDE PTO WO/LEVER(SH5) M8X25 W/LK WASHER	0-50040-825-0	02	1	9205-9302			●
39	BOLT; BRKT,MAG VLV TRANSMISSION SIDE PTO WO/LEVER(SH5) M8X25 FLANGE	0-28080-825-0	02	1	9303-			●
39	BOLT; BRKT,MAG VLV TRANSMISSION SIDE PTO WO/LEVER(SH5) M8X16 W/LK WASHER	9-01900-816-0	02	1	9002-9204	●	●	●
39	BOLT; BRKT,MAG VLV TRANSMISSION SIDE PTO WO/LEVER(SH5) M8X16 W/LK WASHER	0-50040-816-0	02	1	9205-9302	●	●	●
39	BOLT; BRKT,MAG VLV TRANSMISSION SIDE PTO WO/LEVER(SH5) M8X16 FLANGE	0-28080-816-0	02	1	9303-	●	●	●
39	BOLT; BRKT,MAG VLV TRANSMISSION SIDE PTO WO/LEVER(SH5) M8X30 W/LK WASHER	9-01900-830-0	02	1	9002-9204	●	●
39	BOLT; BRKT,MAG VLV TRANSMISSION SIDE PTO WO/LEVER(SH5) M8X30 W/LK WASHER	0-50040-830-0	02	1	9205-9302	●	●
39	BOLT; BRKT,MAG VLV TRANSMISSION SIDE PTO WO/LEVER(SH5) M8X30 FLANGE	0-28080-830-0	02	1	9303-	●	●
40	BRACKET; MAG VLV TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-47475-361-3	01	1	9002-	●	●	●
41	NUT; BRKT,MAG VLV TRANSMISSION SIDE PTO WO/LEVER(SH5) M8	9-09110-408-0	04	1	9002-	●	●	●
77	HORN ASM	1-83430-017-0	01	1	9002-	●	●	●
78	BOLT; AIR HORN M8X20 W/LK WASHER	9-01900-820-0	02	1	9002-9204	●	●	●
78	BOLT; AIR HORN M8X20 W/LK WASHER	0-50040-820-0	02	1	9205-9302	●	●	●
78	BOLT; AIR HORN M8X20 FLANGE	0-28080-820-0	02	1	9303-	●	●	●
79	BOLT; MAG VLV M8X20 W/LK WASHER	9-01900-820-0	02	1	9002-9204	●	●	●
79	BOLT; MAG VLV M8X20 W/LK WASHER	0-50040-820-0	02	1	9205-9302	●	●	●
79	BOLT; MAG VLV M8X20 FLANGE	0-28080-820-0	02	1	9303-	●	●	●
80	NUT; MAG VLV M8	9-09110-408-0	02	1	9002-	●	●	●
84	BUZZER; POWER CAB TILT AUTO CAB TILT<WV2> NIKKO	1-83460-054-0	01	1	9307-	●	●	●
85	BOLT; BUZZER,POWER CAB TILT AUTO CAB TILT<WV2> M8X20 W/LK&PL WASHER	0-50140-820-0	01	1	9307-	●	●	●
86	NUT; BUZZER AUTO CAB TILT<WV2> M8	9-09110-408-0	01	1	9307-	●	●	●
89	VALVE; MAG,DIFF LOCK	1-82563-301-0	01	1	9002-	●	●	●
90	BOLT; MAG VLV M8X30 W/LK WASHER	9-01900-830-0	02	1	9002-9204	●	●
90	BOLT; MAG VLV M8X30 W/LK WASHER	0-50040-830-0	02	1	9205-9302	●	●
90	BOLT; MAG VLV M8X30 FLANGE	0-28080-830-0	02	1	9303-	●	●
91	NUT; MAG VLV M8	9-09110-408-0	02	1	9002-	●	●
115	RELAY; POWER CAB TILT UNIT AUTO CAB TILT<WV2> NIKKO	1-81171-071-0	01	1	9307-	●	●	●
116	BOLT; RELAY FIX AUTO CAB TILT<WV2> M8X20 W/LK&PL WASHER	0-50140-820-0	02	1	9307-	●	●	●
117	NUT; RELAY FIX AUTO CAB TILT<WV2> M8	9-09110-408-0	02	1	9307-	●	●	●

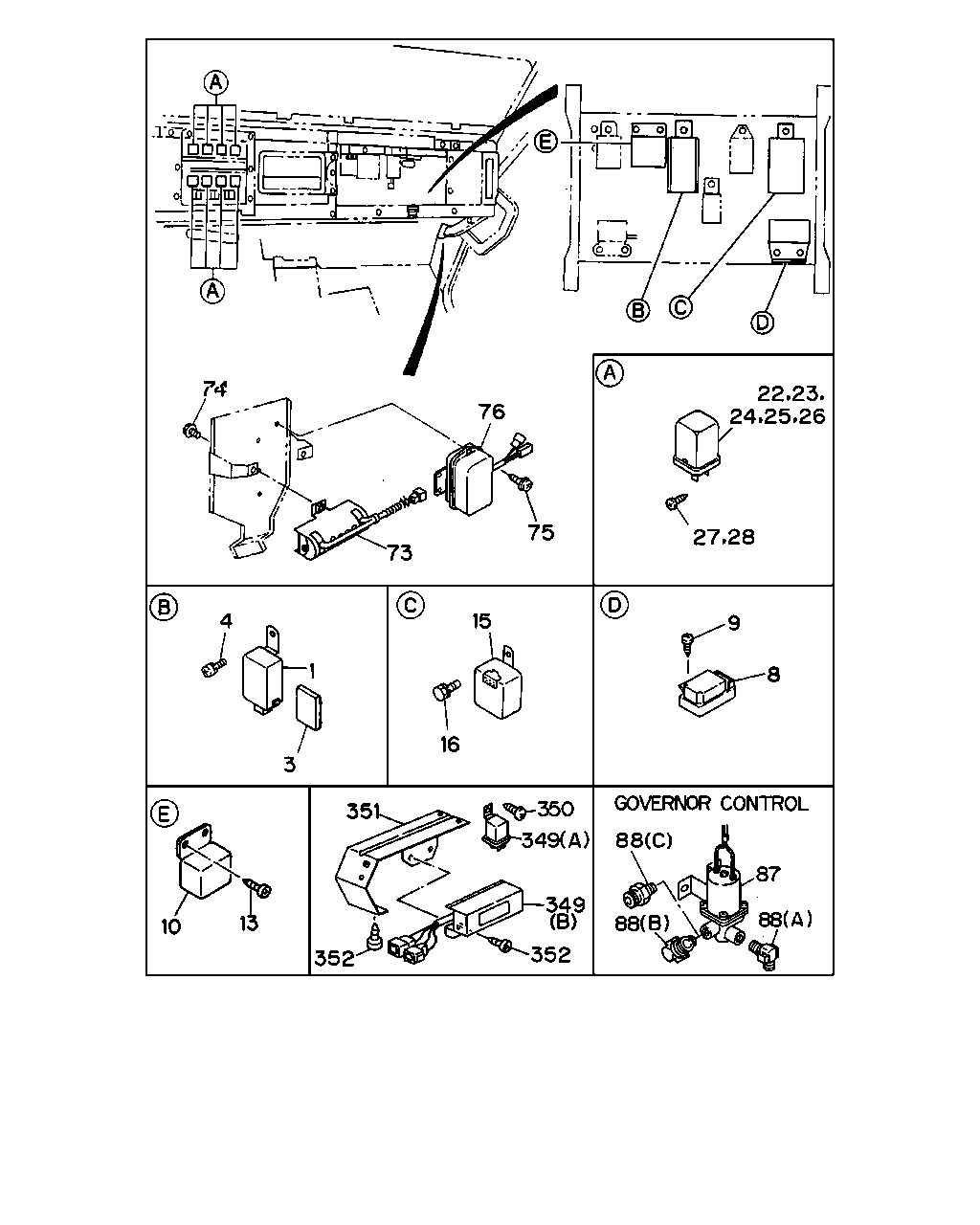

76 75 73 74 4 3 1 16 15 9 8 27 28 22 23 26 25 24 87 88 88 88 350 349 349 352 352 351 13 10

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	UNIT; FLASHER	1-83470-034-1	01	1	9002-9401	●	●	●
1	UNIT; FLASHER	1-83470-034-1	01	1	9402-9509	●		●
1	UNIT; FLASHER EXC. CHINA EQUIPMENT(YT2)	1-83470-034-1	01	1	9402-9509		●
1	UNIT; FLASHER WHEEL BASE 5500MM(55W),WHEEL BASE 6400MM(64W) CHINA EQUIPMENT(YT2)	1-83470-034-1	01	1	9402-9509		●
1	UNIT; FLASHER	1-83470-034-1	01	1	9510-			●
1	UNIT; FLASHER EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2)	1-83470-034-1	01	1	9510-	●	●
1	UNIT; FLASHER WHEEL BASE 5800MM(58W) CHINA EQUIPMENT(YT2)	1-83470-056-0	01	1	9402-9509		●
1	UNIT; FLASHER CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINAEQUIPMENT(YT2)	1-83470-056-1	01	1	9510-	●
1	UNIT; FLASHER WHEEL BASE 5800MM(58W) CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINAEQUIPMENT(YT2)	1-83470-033-1	01	1	9510-		●
3	SEAL; SILENT,RELAY	1-73368-001-0	01	1	9002-	●	●	●
4	SCREW; FLASHER UNIT M5X14 TAPPING W/PL WASHER	0-74100-514-0	01	1	9002-	●	●	●
8	RELAY; WIPER INTERMITTENT WIPER<C13>	1-82550-095-3	01	1	9002-	●	●	●
9	SCREW; WIPER RELAY INTERMITTENT WIPER<C13> M5X14 TAPPING W/PL WASHER	0-74100-514-0	02	1	9002-	●	●	●
10	DETECTOR ASM; FUEL	1-81553-001-0	01	1	9002-	●	●	●
13	BOLT; FUEL DETECTOR M5X14 TAPPING W/PL WASHER	0-74100-514-0	01	1	9203-	●	●	●
15	RELAY; STOP & TAIL WARNING	1-82550-143-2	01	1	9002-	●	●	●
16	SCREW; RELAY M5X14 TAPPING W/PL WASHER	0-74100-514-0	01	1	9002-	●	●	●
22	RELAY; STOP LAMP GREEN	1-82550-146-0	01	1	9002-	●	●	●
23	RELAY; AIR MASTER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) GREEN	1-82550-146-0	01	1	9002-	●	●	●
24	RELAY; LIGHTING GREEN	1-82550-146-0	02	1	9002-	●	●	●
25	RELAY; TAIL LAMP GREEN	1-82550-146-0	01	1	9002-	●	●	●
26	RELAY; CONSENT GREEN	1-82550-146-0	01	1	9002-	●	●	●
27	SCREW; SET,LIGHTING RELAY M5X14 TAPPING W/PL WASHER	0-74100-514-0	02	1	9002-	●	●	●
28	SCREW; SET,TAIL LAMP RELAY M5X14 TAPPING W/PL WASHER	0-74100-514-0	02	1	9002-	●	●	●
73	RESISTOR; RELAY INTAKE HEATER<SL2>	1-81375-004-1	01	1	9002-	●	●	●
74	SCREW; RESISTOR INTAKE HEATER<SL2> M5X14 TAPPING W/PL WASHER	0-74100-514-0	04	1	9002-	●	●	●
75	SCREW; STOP LAMP RELAY M5X14 TAPPING W/PL WASHER	0-74100-514-0	02	1	9002-	●	●	●
76	TIMER; INT HTR INTAKE HEATER<SL2>	1-82550-132-1	01	1	9002-	●	●	●
87	VALVE; MAG,GOV CONT GOVERNOR CONTROL<W69>	1-82563-094-0	01	1	9002-9306		●
87	VALVE; MAG,GOV CONT GOVERNOR CONTROL<W69>	1-82563-402-0	01	1	9307-		●
88	CONNECTOR; MAG VLV 10PD1 STD ENG(40L) GOVERNOR CONTROL<W69> (C) M20 & PT1/4	9-09902-386-0	01	1	9408-	●	●	●
88	CONNECTOR; MAG VLV GOVERNOR CONTROL<W69> (A) PT1/4 & M12 ELBOW	1-09650-117-1	01	1	9002-9302		●
88	CONNECTOR; MAG VLV GOVERNOR CONTROL<W69> (B) M20 & PT1/4 ELBOW	1-09660-137-0	01	1	9002-9302		●
88	CONNECTOR; MAG VLV GOVERNOR CONTROL<W69> (B) M20 & PT1/4 ELBOW	1-09660-681-0	01	1	9303-9407		●
88	CONNECTOR; MAG VLV GOVERNOR CONTROL<W69> L TYPE ENG<90L> (B) M20 & PT1/4 ELBOW	1-09660-681-0	01	1	9408-		●
88	CONNECTOR; MAG VLV GOVERNOR CONTROL<W69> (A) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	9303-		●
349	RELAY; BRK LK POWER BRAKE LOCK SYSTEM(J50) (A) GREEN	1-82550-146-0	01	1	9002-9306	●
349	RELAY; BRK LK POWER BRAKE LOCK SYSTEM(J50) (B) NIKKO	1-82550-155-3	01	1	9002-9306	●
349	RELAY; BRK LK POWER BRAKE LOCK SYSTEM(J50) EXC. RADIO AM & TAPE PLAYER(UM1) (A) GREEN	1-82550-146-0	01	1	9307-	●
349	RELAY; BRK LK POWER BRAKE LOCK SYSTEM(J50) EXC. RADIO AM & TAPE PLAYER(UM1) (B) NIKKO	1-82550-155-3	01	1	9307-	●
350	SCREW; RELAY BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M5X14 TAPPING W/PL WASHER	0-74100-514-0	02	1	9002-	●	●	●
350	SCREW; RELAY POWER BRAKE LOCK SYSTEM(J50) M5X14 TAPPING W/PL WASHER	0-74100-514-0	02	1	9002-	●
350	SCREW; RELAY POWER BRAKE LOCK SYSTEM(J50) M5X10 W/LK WASHER	9-03910-510-0	02	1	9002-9306	●
350	SCREW; RELAY POWER BRAKE LOCK SYSTEM(J50) EXC. RADIO AM & TAPE PLAYER(UM1) M5X10 W/LK WASHER	9-03910-510-0	02	1	9307-	●
351	BRACKET; RELAY,BRK LOCK POWER BRAKE LOCK SYSTEM(J50) EXC. RADIO AM & TAPE PLAYER(UM1)	1-84126-026-0	01	1	9002-	●
352	SCREW; BRKT POWER BRAKE LOCK SYSTEM(J50) M5X10 W/LK WASHER	9-03910-510-0	04	1	9002-	●
