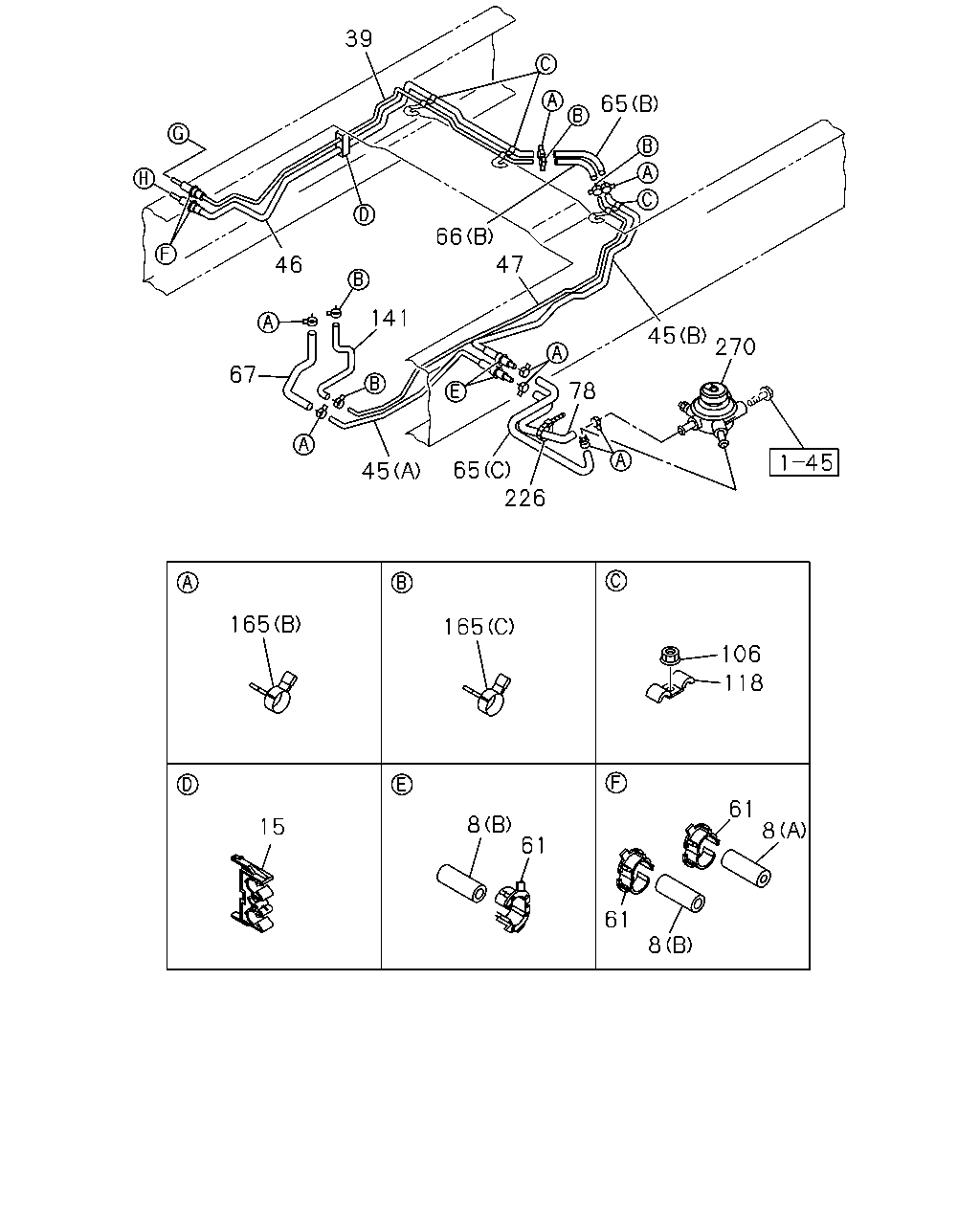

1-41 — FUEL PIPING; CHASSIS (#34569) — 54 parça

39 65 66 47 46 141 45 270 67 78 65 226 45 165 165 106 118 61 8 15 8 61 61 8

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
8	03.162 RUBBER; MTG (A) OD=17 L=50	8-94157-054-1	01	1	0612-
8	03.162 RUBBER; MTG (B) OD=15 L=50	8-97077-629-0	01	1	0612-
8	03.162 RUBBER; MTG (B) OD=15 L=50	8-97077-629-0	02	1	0612-
15	03.162 CLIP; FUEL PIPE 04.930 ID=10X2 OR 12X2 & 6.35	8-97326-157-1	01	1	0612-
39	03.163 PIPE; FUEL TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98038-646-1	01	1	0612-
39	03.163 PIPE; FUEL EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98038-645-1	01	1	0612-
45	03.163 PIPE; FUEL,DELIVERY (A)	8-98027-852-2	01	1	0612-
45	03.163 PIPE; FUEL,DELIVERY TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98027-983-3	01	1	0612-
45	03.163 PIPE; FUEL,DELIVERY EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98027-981-2	01	1	0612-
46	03.163 PIPE; FUEL,TANK SIDE TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98027-980-1	01	1	0612-
46	03.163 PIPE; FUEL,TANK SIDE EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98027-979-1	01	1	0612-
47	03.163 PIPE; FUEL,RETURN TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98027-851-2	01	1	0612-
47	03.163 PIPE; FUEL,RETURN EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98027-850-2	01	1	0612-
61	03.162 GROMMET; PIPE TO FRAME 02.343 ID=17	8-94128-319-2	02	1	0612-
61	03.162 GROMMET; PIPE TO FRAME 02.343 ID=17	8-94128-319-2	02	1	0612-
65	03.163 HOSE; FUEL,DELIVERY PIPE 03.003 (B) L=140 SERVICED BY L=3000	0-01259-300-0	01	1	0612-
65	03.163 HOSE; FUEL,DELIVERY PIPE (C)	8-98027-920-0	01	1	0612-
65	03.163 HOSE; FUEL,DELIVERY PIPE (A)	8-98048-274-0	01	1	0612-
66	03.163 HOSE; FUEL,RETURN PIPE (B) L=140 SERVICED BY L=3000	0-01755-300-0	01	1	0612-0701
66	03.163 HOSE; FUEL,RETURN PIPE (B) L=140 SERVICED BY L=3000	0-01855-300-0	01	1	0702-
66	03.163 HOSE; FUEL,RETURN PIPE (A) L=500 SERVICED BY L=3000	0-01755-300-0	01	1	0612-0701
66	03.163 HOSE; FUEL,RETURN PIPE (A) L=500 SERVICED BY L=3000	0-01855-300-0	01	1	0702-
67	03.163 HOSE; FUEL,DELIVERY	8-98034-028-1	01	1	0612-
78	03.163 HOSE; FUEL,PUMP TO PIPE	8-98027-921-0	01	1	0612-
106	03.162 NUT; FUEL PIPE 01.062 M6 FLANGE	0-91180-106-0	03	1	0612-
118	03.162 CLIP; MTG,FUEL PIPE TO FRT SIDE 00.785 ID=11 & 7 L=15 & 15	1-09700-071-0	03	1	0612-
141	03.163 HOSE; FUEL FILTER TO PIPE	8-98034-029-1	01	1	0612-0701
141	03.163 HOSE; FUEL FILTER TO PIPE	8-98065-058-0	01	1	0702-
165	03.162 CLIP; FUEL HOSE (A) L=140	5-09707-031-1	01	1	0612-
165	03.162 CLIP; FUEL HOSE 04.930 (B) ID=16	8-94238-568-0	02	1	0612-
165	03.162 CLIP; FUEL HOSE 04.930 (B) ID=16	8-94238-568-0	07	1	0612-
165	03.162 CLIP; FUEL HOSE 01.219 (C) ID=12	8-94238-610-0	02	1	0612-
165	03.162 CLIP; FUEL HOSE 01.219 (C) ID=12	8-94238-610-0	04	1	0612-
226	03.890 CLIP; BAND 03.162 L=140	5-09707-031-1	01	1	0612-
270	03.900 PUMP ASM; FUEL	8-98018-187-2	01	1	0612-

8 61 41 66 8 61 165 65 148 65 165 41 41 165 66

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
8	03.162 RUBBER; MTG (A) OD=17 L=50	8-94157-054-1	01	1	0612-
8	03.162 RUBBER; MTG (B) OD=15 L=50	8-97077-629-0	01	1	0612-
8	03.162 RUBBER; MTG (B) OD=15 L=50	8-97077-629-0	02	1	0612-
41	03.162 CLIP; FUEL PIPE,FUEL TANK 01.219 ID=12	8-94238-610-0	02	1	0612-
61	03.162 GROMMET; PIPE TO FRAME 02.343 ID=17	8-94128-319-2	02	1	0612-
61	03.162 GROMMET; PIPE TO FRAME 02.343 ID=17	8-94128-319-2	02	1	0612-
65	03.163 HOSE; FUEL,DELIVERY PIPE 03.003 (B) L=140 SERVICED BY L=3000	0-01259-300-0	01	1	0612-
65	03.163 HOSE; FUEL,DELIVERY PIPE (C)	8-98027-920-0	01	1	0612-
65	03.163 HOSE; FUEL,DELIVERY PIPE (A)	8-98048-274-0	01	1	0612-
66	03.163 HOSE; FUEL,RETURN PIPE (B) L=140 SERVICED BY L=3000	0-01755-300-0	01	1	0612-0701
66	03.163 HOSE; FUEL,RETURN PIPE (B) L=140 SERVICED BY L=3000	0-01855-300-0	01	1	0702-
66	03.163 HOSE; FUEL,RETURN PIPE (A) L=500 SERVICED BY L=3000	0-01755-300-0	01	1	0612-0701
66	03.163 HOSE; FUEL,RETURN PIPE (A) L=500 SERVICED BY L=3000	0-01855-300-0	01	1	0702-
148	03.162 CLIP; HOSE,FUEL 01.762 ID=19	8-94238-569-0	01	1	0612-
165	03.162 CLIP; FUEL HOSE (A) L=140	5-09707-031-1	01	1	0612-
165	03.162 CLIP; FUEL HOSE 04.930 (B) ID=16	8-94238-568-0	02	1	0612-
165	03.162 CLIP; FUEL HOSE 04.930 (B) ID=16	8-94238-568-0	07	1	0612-
165	03.162 CLIP; FUEL HOSE 01.219 (C) ID=12	8-94238-610-0	02	1	0612-
165	03.162 CLIP; FUEL HOSE 01.219 (C) ID=12	8-94238-610-0	04	1	0612-
