Isuzu WW
▶
TRUCKS
▶
NP
▶
51104 - NP/NQR BUS(LHD)EURO4
▶
1 - Fuel Tank, Cooling, Air Intake, Exhaust System
▶
1-40 - FUEL TANK
▶
1-40 — FUEL TANK
(#34568) — 28 parça
◀

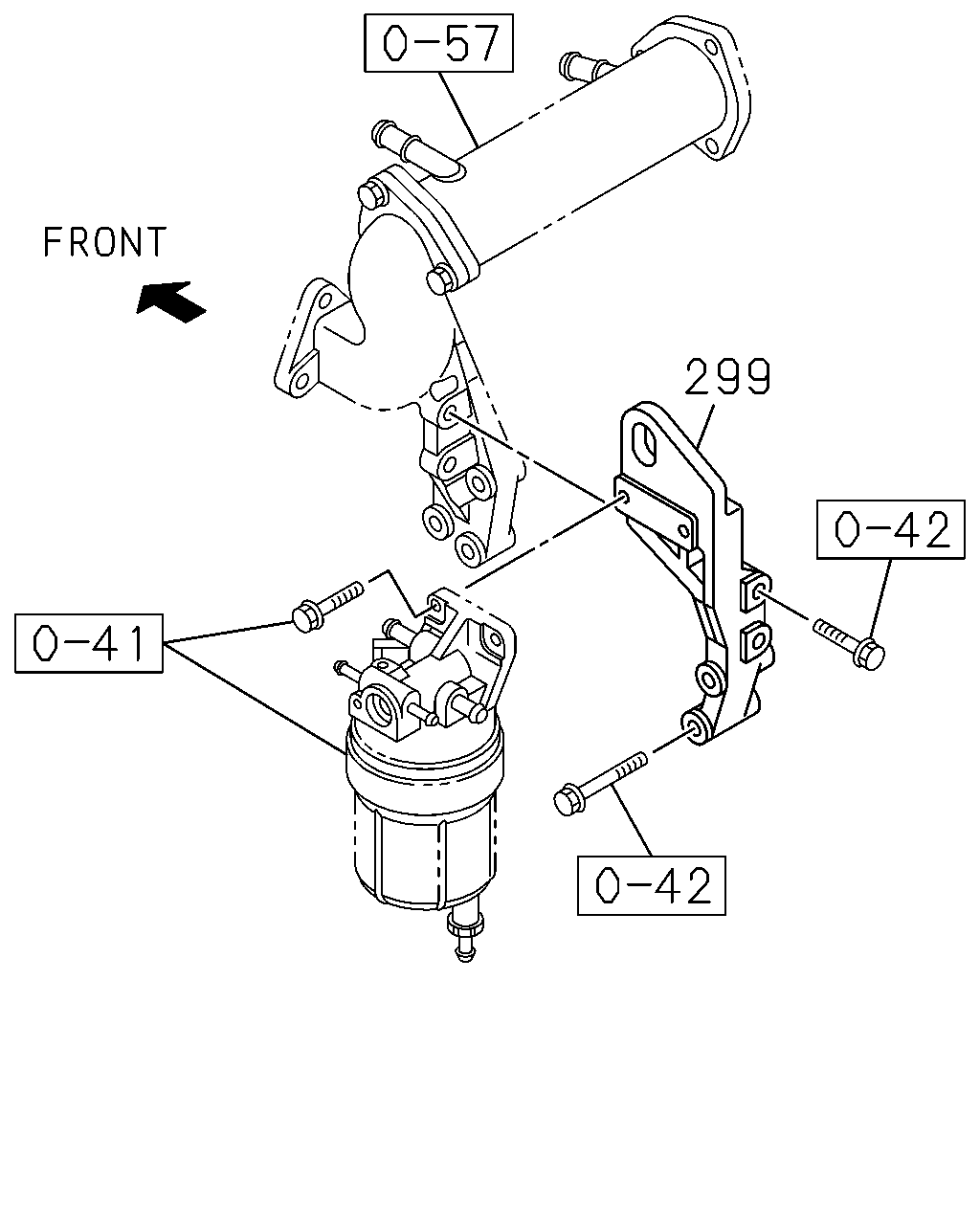

[140A] BRACKET;FUEL FILTER (1 parça)

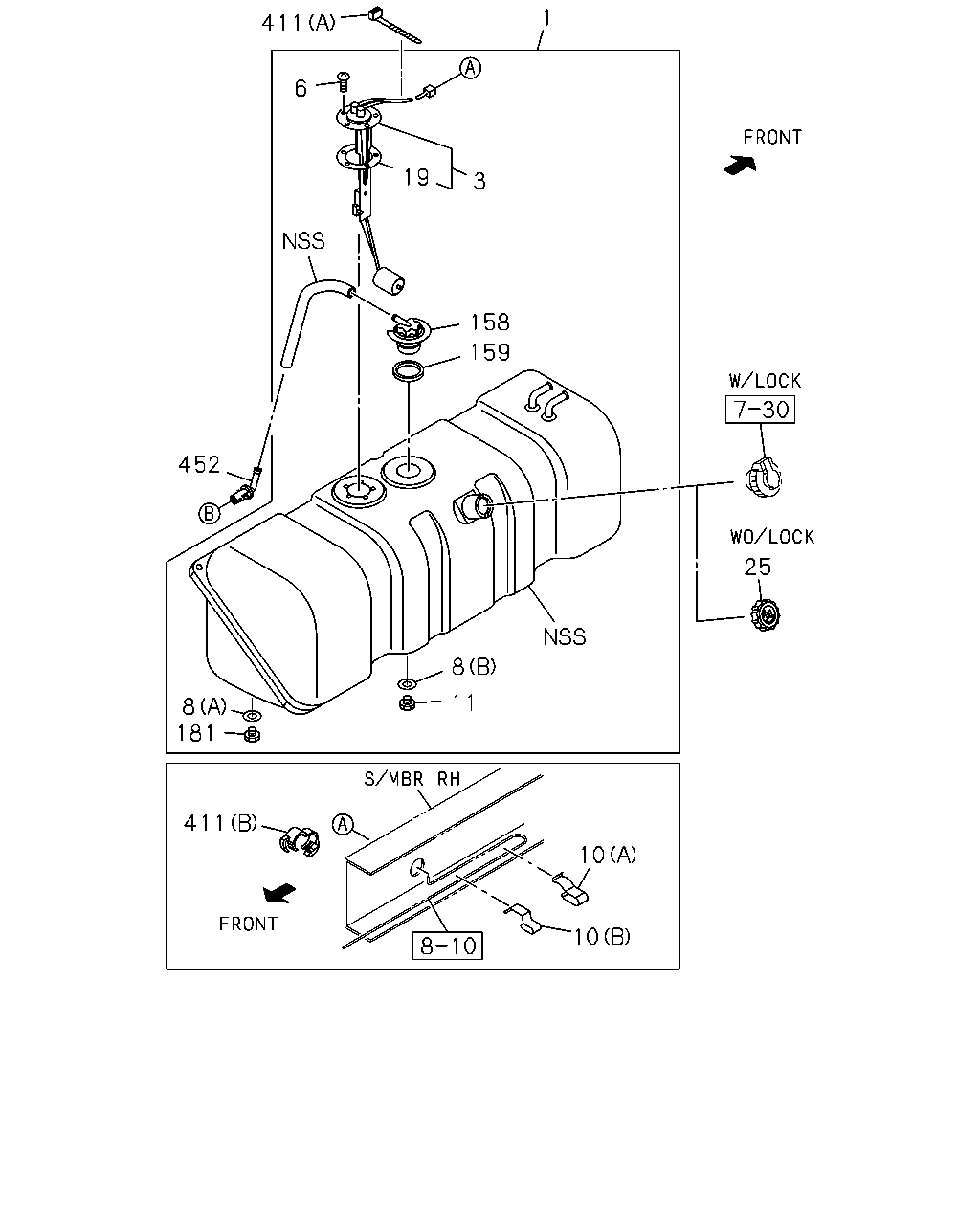

[140A] FUEL TANK AND CLIP (21 parça)
[140A] BRACKET;FUEL TANK (6 parça)
▶
299
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
299
03.162 BRACKET; FUEL FILTER
GENERATOR 24V50A(6QN),GENERATOR 24V80A(7YN)
8-98038-359-2
01
1
0612-
1
411
6
19
3
158
159
452
25
8
11
8
181
411
10
10
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
03.001 TANK; FUEL
1003X375X380 100L
8-97351-658-6
01
1
0612-
3
03.107 UNIT; FUEL TANK,SUB
8-98005-215-0
01
1
0612-0612
3
03.107 UNIT; FUEL TANK,SUB
8-98050-491-0
01
1
0612-
6
03.115 SCREW; TANK UNIT TO SUB FUEL TAN
02.361 M5X10 W/LK WASHER
0-36220-510-0
05
1
0612-
8
03.890 GASKET; DRAIN PLUG,FUEL TANK
08.955 (B) ID=8.2 OD=17
9-09572-008-0
01
1
0612-
8
03.890 GASKET; DRAIN PLUG,FUEL TANK
03.107 (A) ID=14.2 OD=23.0
9-09572-014-0
01
1
0612-
10
03.115 CLIP; SPRING,FUEL TANK UNIT CABL
02.559 (A) T=6.0
5-09709-012-0
AR
1
0612-
10
03.115 CLIP; SPRING,FUEL TANK UNIT CABL
02.483 (A) T=10.5
5-09709-014-0
AR
1
0612-
10
03.115 CLIP; SPRING,FUEL TANK UNIT CABL
02.559 (B) T=6.0
5-09709-024-0
AR
1
0612-
10
03.115 CLIP; SPRING,FUEL TANK UNIT CABL
01.240 (A) T=5.5
5-09709-047-0
AR
1
0612-
10
03.115 CLIP; SPRING,FUEL TANK UNIT CABL
(B) T=9 & 10.5
8-97041-091-0
AR
1
0612-
11
03.890 PLUG; DRAIN,FUEL TANK
02.343 M8X12 FLANGE
0-28050-812-0
01
1
0612-
19
03.112 GASKET; FUEL TANK UNIT
8-97222-756-0
01
1
0612-
25
03.028 CAP; FILLER,FUEL TANK
EXC. FUEL TANK CAP W/LOCK<N05>
8-94258-609-1
01
1
0612-
158
03.164 VALVE; ROLL OVER & FLOAT
8-97179-645-0
01
1
0612-
159
03.015 SEAL; ROLL OVER & FLOAT VALVE
8-97326-488-0
01
1
0612-
181
03.001 PLUG; CONNECTOR
01.453 M14X14
9-09862-156-0
01
1
0612-
411
02.559 CLIP; FUEL TANK UNIT HARNESS
(B) ID=20
8-94241-972-0
01
1
0612-
411
02.559 CLIP; FUEL TANK UNIT HARNESS
(B) ID=20
8-94241-972-0
01
1
0612-
411
02.559 CLIP; FUEL TANK UNIT HARNESS
03.162 (A) L=140
5-09707-031-1
03
1
0612-
452
03.028 BREATHER; FUEL TANK
8-97357-261-0
01
1
0612-
49
49
51
40
40
51
43
42
43
42
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
40
03.022 BELT; SUPPORT,FUEL TANK
8-97169-231-1
02
1
0612-
42
03.023 NUT; SUPPORT BELT
M8 FLANGE
9-09130-408-0
02
1
0612-
43
03.015 BRACKET; FUEL TANK
FRONT
8-97035-517-0
01
1
0612-
43
03.015 BRACKET; FUEL TANK
REAR
8-97181-220-0
01
1
0612-
49
03.023 NUT; BRKT
04.085 M10 FLANGE
0-91180-210-0
08
1
0612-
51
03.023 BOLT; BRKT TO FRAME
07.068 M10X30 FLANGE
0-28661-030-0
07
1
0612-
