Isuzu WW
▶
TRUCKS
▶
NP
▶
51104 - NP/NQR BUS(LHD)EURO4
▶
1 - Fuel Tank, Cooling, Air Intake, Exhaust System
▶
1-31 - AIR DUCT
▶
1-31 — AIR DUCT
(#34566) — 22 parça
◀

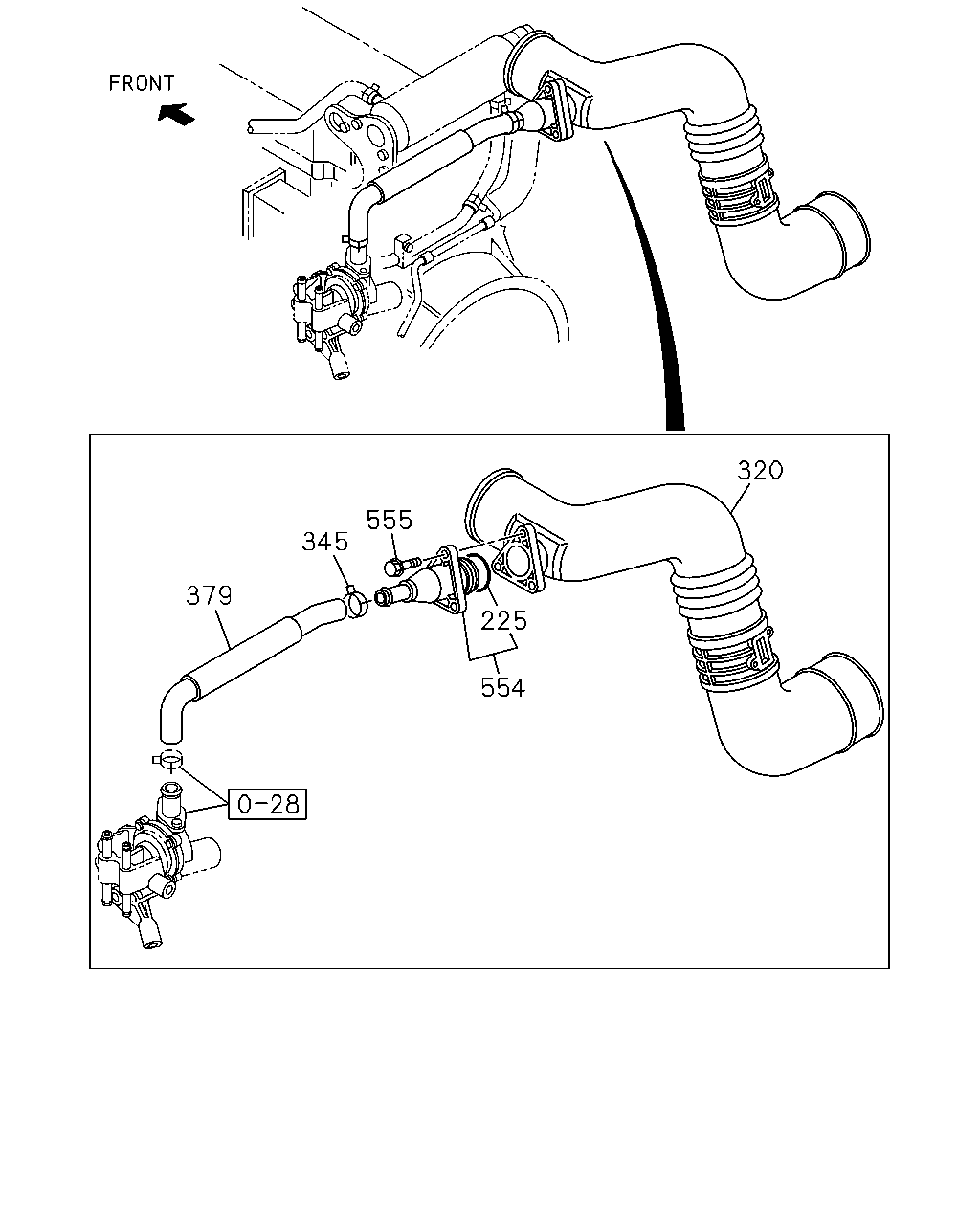

[131A] NO.3 (6 parça)
[131A] NO.2 (7 parça)

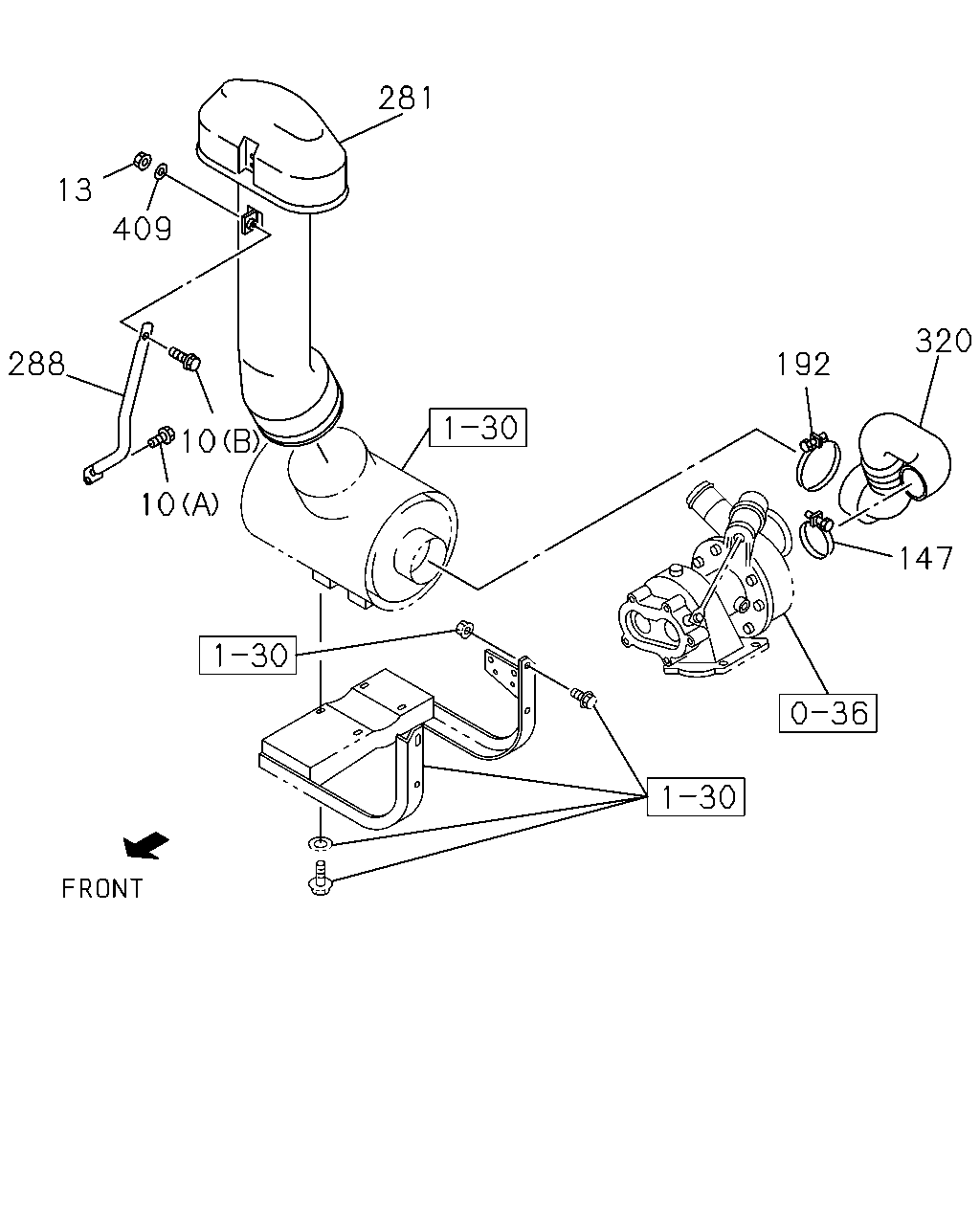

[131A] NO.1 (9 parça)
▶
320
555
345
379
225
554
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
225
03.417 GASKET; AIR PIPE
01.097 ID=43.7
9-09561-344-0
01
1
0612-
320
03.417 HOSE; CONN,ACL
8-98019-689-1
01
1
0612-
345
03.417 CLIP; PCV HOSE
08.846 ID=21.7
8-97203-074-0
01
1
0612-
379
03.675 HOSE; RUBBER
GENERATOR 24V50A(6QN),GENERATOR 24V80A(7YN)
8-98037-922-0
01
1
0612-
554
04.439 FLANGE; PIPE,PCV
8-98038-208-0
01
1
0612-
555
03.407 BOLT; FLANGE,PCV
00.386 M6X20 FLANGE
0-28050-620-0
03
1
0612-
110
505
199
211
110
505
110
345
110
199
211
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
110
03.403 NUT; RUBBER MTG
01.062 M8 FLANGE
0-91180-108-0
04
1
0612-
199
03.417 BRACKET; PIPE
8-98011-753-1
01
1
0612-
199
03.417 BRACKET; PIPE
8-98011-752-1
01
1
0612-
211
03.405 NUT; BRKT
01.840 M8 W/DISHED WASHER
8-97329-625-0
02
1
0612-
345
03.417 CLIP; PCV HOSE
08.846 ID=21.7
8-97203-074-0
01
1
0612-
505
03.406 RUBBER; MTG
03.405
8-94158-155-1
02
1
0612-0612
505
03.406 RUBBER; MTG
03.417
8-98036-826-0
02
1
0612-
281
13
409
320
288
192
10
10
147
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
10
03.417 BOLT; BRKT FIX
06.216 (A) M8X25 FLANGE
0-28650-825-0
02
1
0612-
10
03.417 BOLT; BRKT FIX
01.060 (B) M8X35 FLANGE
0-28650-835-0
01
1
0612-
13
03.417 NUT; BRKT FIX
01.062 M8 FLANGE
0-91180-108-0
01
1
0612-
147
03.417 CLIP; HOSE TO ENG
03.407 ID=77-95
1-09707-198-0
01
1
0612-
192
03.407 CLIP; HOSE
ID=112
9-09915-074-1
01
1
0612-
281
03.417 DUCT; AIR,VERTICAL INT
8-97180-995-0
01
1
0612-
288
03.417 BRACKET; DUCT
8-97183-041-2
01
1
0612-
320
03.417 HOSE; CONN,ACL
8-98019-689-1
01
1
0612-
409
03.417 WASHER; PL,BRKT
04.595 ID=8.4 OD=22
0-91610-708-0
01
1
0612-
