◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NP ▶ 51104 - NP/NQR BUS(LHD)EURO4 ▶ 1 - Fuel Tank, Cooling, Air Intake, Exhaust System ▶ 1-11 - RADIATOR HOSE AND SUB TANK ▶
1-11 — RADIATOR HOSE AND SUB TANK (#34564) — 12 parça
çizim 13640
56 128 56 55
BalonParca AdiParca NoAdetTipApplied Date
55 01.173 HOSE; WATER,RAD OUTLET 8-97330-530-0 01 1 0612-
56 01.166 CLIP; WATER HOSE,RAD
ID=48 		8-98036-282-0 02 1 0612-
128 01.159 HOSE; WATER,RAD INL 8-97330-529-0 01 1 0612-

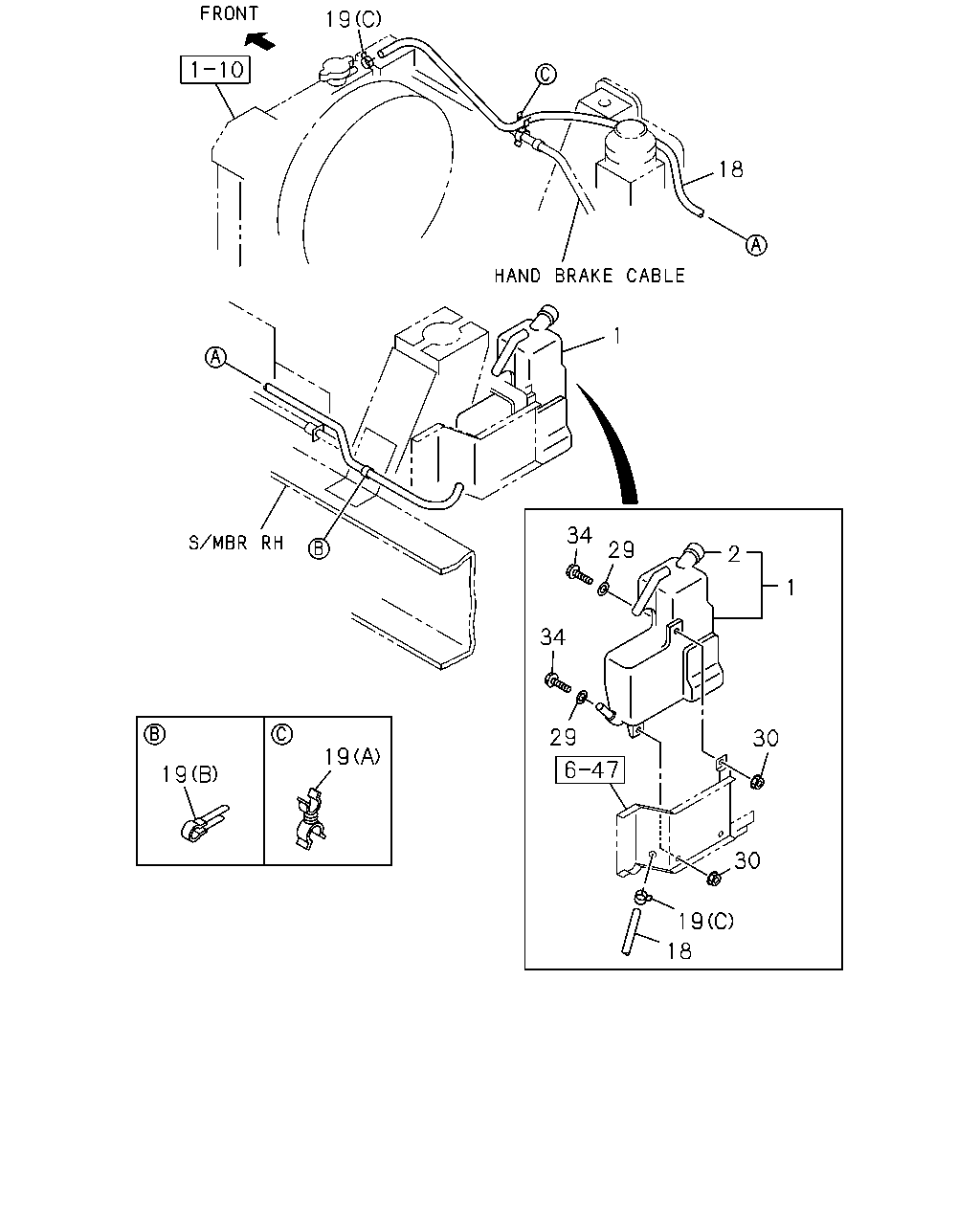

çizim 55655
19 18 1 34 29 2 1 34 29 30 19 19 30 19 18
BalonParca AdiParca NoAdetTipApplied Date
1 01.219 TANK; SURGE,RAD 8-97210-844-0 01 1 0612-
2 01.203 CAP; SURGE TANK 8-97217-796-0 01 1 0612-
18 01.240 HOSE; RAD TO SURGE TANK
L=1330 		8-97358-573-0 01 1 0612-
19 01.240 CLIP; HOSE,SURGE TANK
(B) ID=14 L=47 		5-09700-319-0 02 1 0612-
19 01.240 CLIP; HOSE,SURGE TANK
01.219 (C) ID=12 		8-94238-610-0 02 1 0612-
19 01.240 CLIP; HOSE,SURGE TANK
02.559 (A) ID=10 & 11 		8-94438-996-0 01 1 0612-
29 01.203 WASHER; PL,RESERVE TANK
00.413 ID=6.4 OD=18 		0-91610-706-0 03 1 0612-
30 01.203 NUT
01.062 M6 FLANGE 		0-91180-106-0 03 1 0612-
34 01.203 BOLT; RESERVE TANK
03.162 M6X20 FLANGE 		0-28650-620-0 03 1 0612-
