1 |

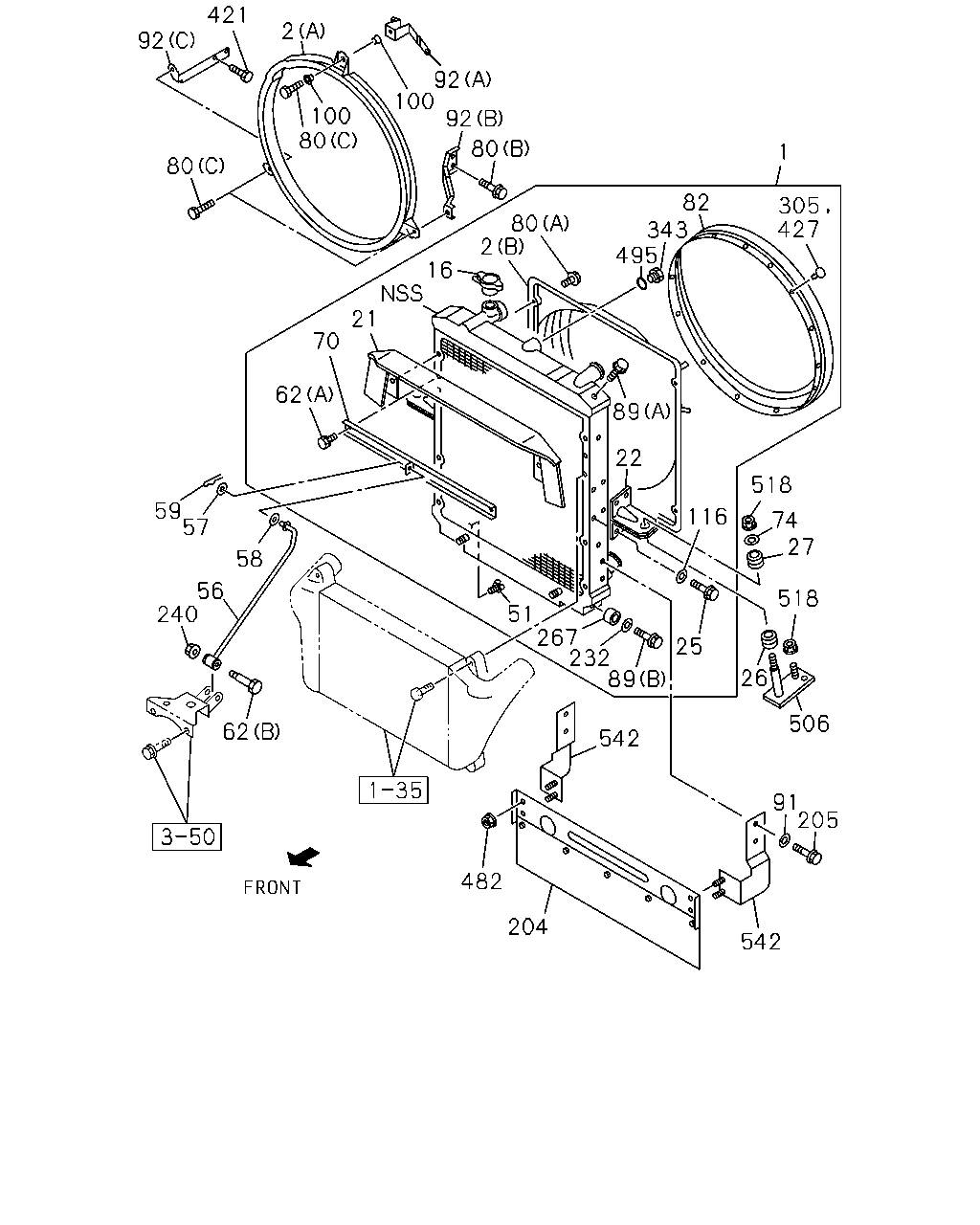

01.219 RADIATOR ASM
TRANSMISSION CONTROL-SMOOTHER(8GF)
|
8-97388-823-0 |
01 |
1 |
0612- |
| |
1 |
01.219 RADIATOR ASM
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)
|
8-97388-822-0 |
01 |
1 |
0612- |
| |
2 |
01.277 GUIDE; FAN
(B)
|
8-97333-268-0 |
01 |
1 |
0612- |
| |
2 |
01.277 GUIDE; FAN
(A)
|
8-97350-995-0 |
01 |
1 |
0612- |
| |
16 |
01.203 CAP; RAD
|
8-97239-187-0 |
01 |
1 |
0612- |
| |
21 |
01.276 SEAL; RAD
01.277
|
8-97332-382-0 |
01 |
1 |
0612- |
| |
22 |
01.270 BRACKET; RAD MTG
|
8-97333-280-0 |
01 |
1 |
0612- |
| |
22 |
01.270 BRACKET; RAD MTG
|
8-97333-281-0 |
01 |
1 |
0612- |
| |
25 |
01.271 BOLT; BRKT
08.900
M8X12 FLANGE
|
0-28080-812-0 |
08 |
1 |
0612- |
| |
26 |
01.270 BUFFER; RAD,LWR
|
8-94249-347-0 |
02 |
1 |
0612- |
| |
27 |
01.270 BUFFER; RAD,UPR
|
8-94249-346-0 |
02 |
1 |
0612- |
| |
51 |
08.951 PLUG; DRAIN
W/GASKET
|
8-97171-437-0 |
01 |
1 |
0612- |
| |
56 |
01.270 STAY; RAD
|
8-97032-802-2 |
01 |
1 |
0612- |
| |
57 |
01.271 WASHER; PL,STAY
17.198
ID=10.5
|
0-91610-510-0 |
01 |
1 |
0612- |
| |
58 |
01.271 WASHER; CURVED,STAY
ID=12
|
8-97011-676-0 |
01 |
1 |
0612- |
| |
59 |
01.271 PIN; SNAP,STAY
L=32.6
|
8-97359-052-0 |
01 |
1 |
0612- |
| |
62 |
01.271 BOLT; STAY
08.900
(A)
M8X12 FLANGE
|
0-28080-812-0 |
02 |
1 |
0612- |
| |
62 |
01.271 BOLT; STAY
(B)
M8X45
|
8-94401-350-0 |
01 |
1 |
0612- |
| |
70 |
01.271 STAY; RAD
|
8-98018-941-0 |
01 |
1 |
0612- |
| |
74 |
01.270 WASHER; PL,CUSHION RUBBER
ID=8.5 OD=36
|
8-97359-049-1 |
02 |
1 |
0612- |
| |
80 |
01.277 BOLT; FAN GUIDE
03.403
(C)
M8X30 FLANGE
|
0-28650-830-0 |
03 |
1 |
0612- |
| |
80 |
01.277 BOLT; FAN GUIDE
(A)
M6X16
|
1-21559-481-0 |
04 |
1 |
0612- |
| |
80 |
01.277 BOLT; FAN GUIDE
GENERATOR 24V80A(7YN)
03.417
(B)
M10X20 FLANGE
|
0-28151-020-0 |
02 |
1 |
0612- |
| |
82 |
01.277 COVER; FAN,RAD
|
8-97332-330-0 |
01 |
1 |
0612- |
| |
89 |
01.277 BOLT
08.900
(A)
M8X12 FLANGE
|
0-28080-812-0 |
02 |
1 |
0612- |
| |
89 |
01.277 BOLT
01.271
(B)
M8X25
|
1-21469-153-0 |
02 |
1 |
0612- |
| |
91 |
01.277 WASHER; PL
00.413
ID=6.4 OD=18
|
0-91610-706-0 |
04 |
1 |
0612- |
| |
92 |
01.277 BRACKET; FAN GUIDE
(B)
|
8-97386-233-0 |
01 |
1 |
0612- |
| |
92 |
01.277 BRACKET; FAN GUIDE
GENERATOR 24V50A(6QN),GENERATOR
24V80A(7YN)
(A)
|
8-97382-827-2 |
01 |
1 |
0612- |
| |
92 |
01.277 BRACKET; FAN GUIDE
GENERATOR 24V80A(7YN)
(C)
|
8-98032-526-0 |
01 |
1 |
0612- |
| |
92 |
01.277 BRACKET; FAN GUIDE
EXC. GENERATOR 24V80A(7YN)
(C)
|
8-97350-997-0 |
01 |
1 |
0612- |
| |
100 |
01.277 RUBBER; MTG
|
1-09337-027-0 |
06 |
1 |
0612- |
| |
116 |
01.270 WASHER; PL,BRKT
16.674
ID=8.4
|
9-09160-508-0 |
08 |
1 |
0612- |
| |
204 |
01.267 GUIDE ASM; AIR
|
8-97332-962-1 |
01 |
1 |
0612- |
| |
205 |
01.267 BOLT; AIR GUIDE
03.671
M6X10 FLANGE
|
0-28050-610-0 |
04 |
1 |
0612- |
| |
232 |
01.540 COLLAR; DIST,CUSHION RUBBER
|
1-87410-723-0 |
02 |
1 |
0612- |
| |
240 |
01.271 NUT; STAY
M8 FLANGE
|
8-94178-701-0 |
01 |
1 |
0612- |
| |
267 |
01.277 RUBBER; CUSHION
|
1-21467-023-0 |
02 |
1 |
0612- |
| |
305 |
01.277 CLIP; FAN COVER TO FAN GUIDE
|
1-09470-009-0 |
12 |
1 |
0612- |
| |
343 |
01.271 PLUG; WATER LEVEL
M18X12
|
1-09604-081-0 |
01 |
1 |
0612- |
| |
421 |
01.277 BOLT; BRKT FAN GUIDE
03.417
M10X20 FLANGE
|
0-28151-020-0 |
02 |
1 |
0612- |
| |
427 |
01.240 CLIP; FAN GUIDE
01.277
|
1-09470-009-0 |
01 |
1 |
0612- |
| |
482 |
01.277 NUT; AIR GUIDE
01.062
M6 FLANGE
|
0-91180-106-0 |
04 |
1 |
0612- |
| |
495 |
01.274 GASKET; SENSOR
01.097
|
1-09623-185-0 |
01 |
1 |
0612- |
| |
506 |
01.277 PLATE; RAD
|
8-97330-527-1 |
02 |
1 |
0612- |
| |
518 |
01.270 NUT
01.062
M8 FLANGE
|
0-91180-108-0 |
02 |
1 |
0612- |
| |
518 |
01.270 NUT
01.062
M8 FLANGE
|
0-91180-108-0 |
02 |
1 |
0612- |
| |
542 |
01.277 BRACKET; AIR GUIDE
|
8-97332-963-0 |
01 |
1 |
0612- |
| |
542 |
01.277 BRACKET; AIR GUIDE
|
8-97332-964-0 |
01 |
1 |
0612- |
