8-26 — ELECTRICAL CONTROL AND OTHER PARTS (#3456) — 39 parça

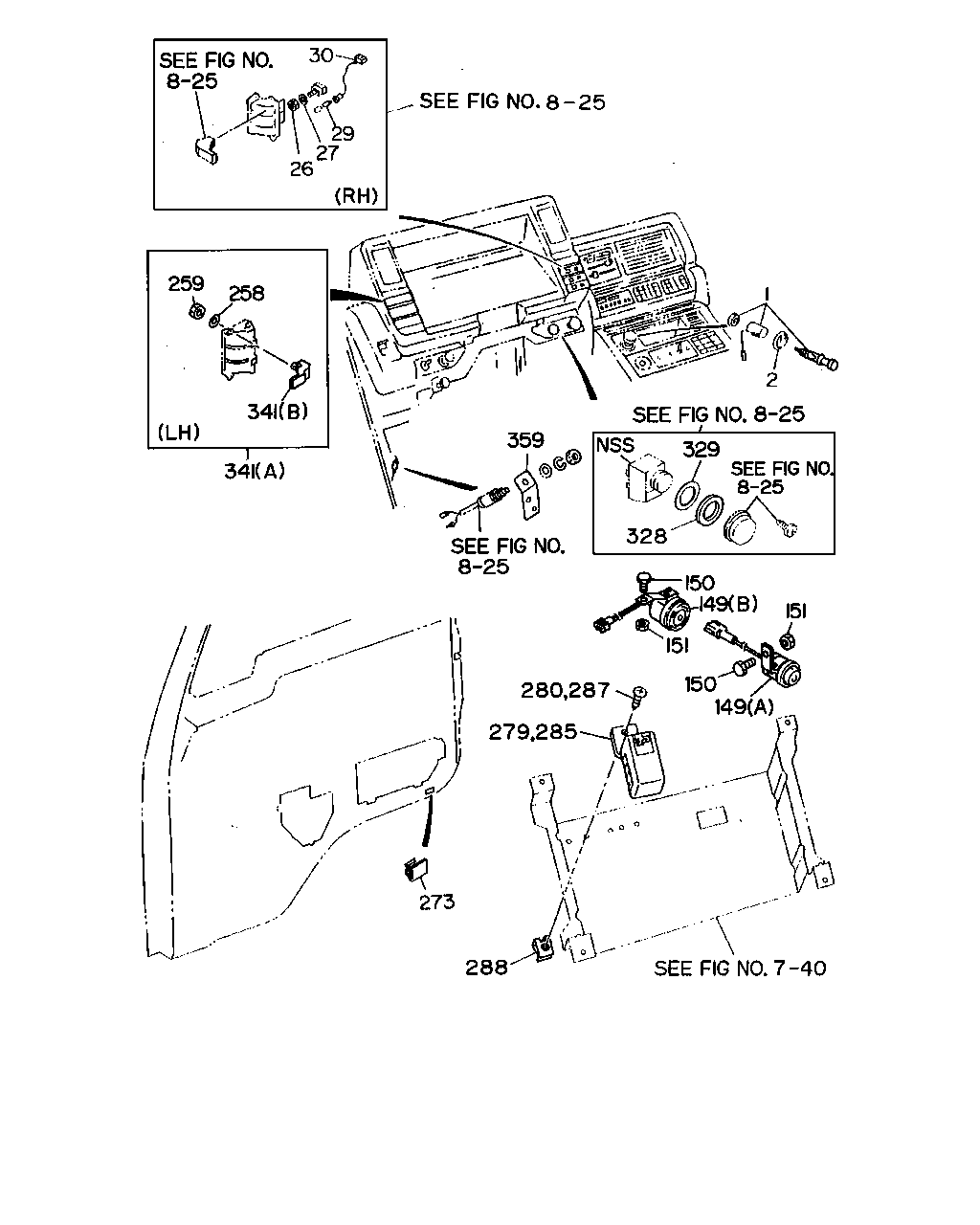

çizim 37194
30 29 27 26 258 259 341 341 359 329 2 1 328 150 149 151 150 149 151 287 280 279 285 273 288
BalonParca AdiParca NoAdetTipApplied Date A B C
1 LIGHTER; CIGAR 1-84190-023-0 01 1 9002- ● ● ●
2 BEZEL; CIGAR LIGHTER 8-94232-213-1 01 1 9002- ● ● ●
26 NUT; METER SW
AIR CONDITIONER MANUAL CONTROL(C60) M12 		1-09400-066-0 03 1 9002- ● ● ●
26 NUT; METER SW
EXC. AIR CONDITIONER MANUAL CONTROL(C60) M12 		1-09400-066-0 02 1 9002- ● ● ●
27 WASHER; WAVE,SW
AIR CONDITIONER MANUAL CONTROL(C60) 		1-09550-006-0 03 1 9002- ● ● ●
27 WASHER; WAVE,SW
EXC. AIR CONDITIONER MANUAL CONTROL(C60) 		1-09550-006-0 02 1 9002- ● ● ●
29 BULB; METER SW
AIR CONDITIONER MANUAL CONTROL(C60) 24V 1.2W 		1-82194-027-0 03 1 9002- ● ● ●
29 BULB; METER SW
EXC. AIR CONDITIONER MANUAL CONTROL(C60) 24V 1.2W 		1-82194-027-0 02 1 9002- ● ● ●
30 CORD ASM; METER SW
AIR CONDITIONER MANUAL CONTROL(C60) 		1-82359-034-0 01 1 9002- ● ● ●
30 CORD ASM; METER SW
EXC. AIR CONDITIONER MANUAL CONTROL(C60) 		1-82359-033-0 01 1 9002- ● ● ●
149 BUZZER; BRK LK
POWER BRAKE LOCK SYSTEM(J50) (A) 		1-83460-048-0 01 1 9002-9301 ●
149 BUZZER; BRK LK
POWER BRAKE LOCK SYSTEM(J50) (B) NIKKO 		1-83460-064-0 01 1 9302- ●
150 BOLT; BUZZER BRK LK
POWER BRAKE LOCK SYSTEM(J50) M10X30 W/LK WASHER 		0-50041-030-0 01 1 9002- ●
151 NUT; BUZZER BRK LK
POWER BRAKE LOCK SYSTEM(J50) M10 		9-09110-510-0 01 1 9002- ●
258 WASHER; WAVE,HOLE COVER 1-09550-006-0 01 1 9002- ● ● ●
259 NUT; HOLE COVER
M12 		1-09400-066-0 01 1 9002- ● ● ●
273 CLIP; HARNESS
POWER WINDOW<A30> 1 SET=5 PIECE 		1-09987-214-0 04 1 9009-9306 ● ● ●
279 BUZZER ASM; SEAT BELT WARNING
SAUDI ARABIA EQUIPMENT(WH1) 12V 		5-83460-004-1 01 1 9002-9306 ● ●
280 SCREW; BUZZER,SEAT BELT
SAUDI ARABIA EQUIPMENT(WH1) M5X14 TAPPING W/PL WASHER 		0-74100-514-0 01 1 9002-9306 ● ●
285 BUZZER ASM; ALARM CLOCK
RADIO CLARION<SK2>,RADIO AM & TAPE PLAYER(UM1) 		1-83460-053-0 01 1 9308- ● ● ●
287 SCREW; BUZZER
RADIO CLARION<SK2>,RADIO AM & TAPE PLAYER(UM1) 		1-09981-388-1 01 1 9308- ● ● ●
288 NUT; SPIRE
RADIO CLARION<SK2>,RADIO AM & TAPE PLAYER(UM1) M5 SPIRE NUT 		8-94279-051-0 01 1 9308- ● ● ●
328 NUT
INTAKE HEATER<SL2> 		1-09449-037-1 01 1 9002- ● ● ●
329 WASHER
INTAKE HEATER<SL2> 		1-09503-100-0 01 1 9002- ● ● ●
341 COVER ASM
(A) 		1-82353-011-0 01 1 9002- ● ● ●
341 COVER ASM
EXC. AIR CONDITIONER MANUAL CONTROL(C60) (B) 		1-82359-059-0 01 1 9002- ● ● ●
359 BRACKET ASM; MAG VLV
FIRE TRUCK<RA9> PTO CONTROL(SV6) 		1-79997-137-0 01 1 9002-9306 ●
359 BRACKET ASM; MAG VLV
FIRE TRUCK<RA9> PTO CONTROL(SV6) 		1-79997-137-0 01 1 9505- ●

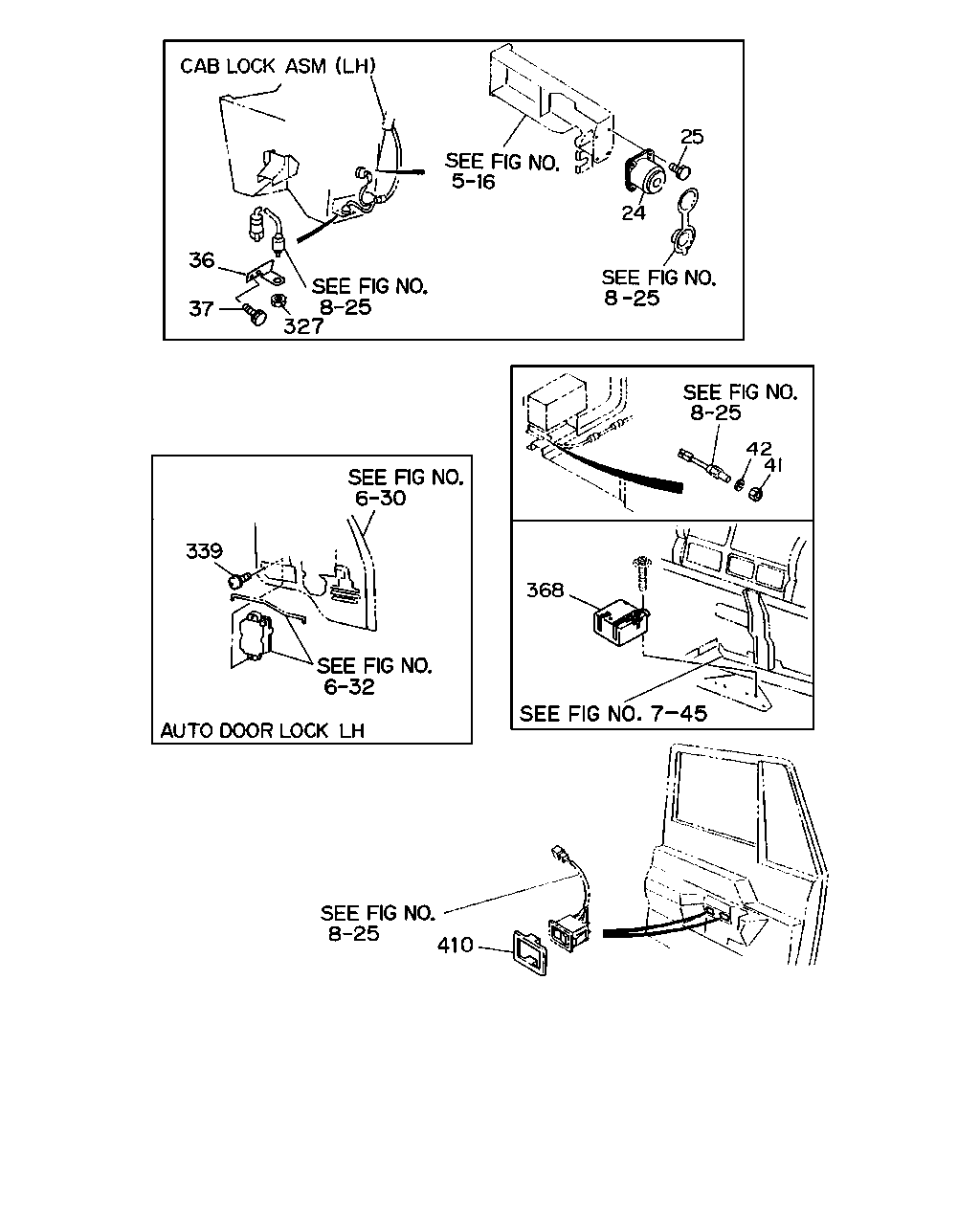

çizim 37214
25 24 327 37 36 339 368 42 41 410
BalonParca AdiParca NoAdetTipApplied Date A B C
24 BOX; SW,CAB TILT
AUTO CAB TILT<WV2> 		1-82389-007-1 01 1 9307- ● ● ●
25 BOLT; SW BOX
AUTO CAB TILT<WV2> M6X20 W/LK&PL WASHER 		0-50140-620-0 04 1 9307- ● ● ●
36 BRACKET; LIMIT SW
AUTO CAB TILT<WV2> 		1-82385-003-0 01 1 9307- ● ● ●
37 BOLT; BRKT FIX
AUTO CAB TILT<WV2> M6X16 W/LK WASHER 		0-50080-616-0 02 1 9307- ● ● ●
41 NUT; SUB STARTER SW 9-82755-020-0 01 1 9002-9306 ● ● ●
42 WASHER; LK,SUB STARTER SW
ID=14.2 		9-09150-514-0 01 1 9002-9306 ● ● ●
327 NUT; SWITCH
AUTO CAB TILT<WV2> M16 		9-99111-416-0 02 1 9307- ● ● ●
339 SCREW; ACTUATOR
AUTO DOOR LOCK<AU4> M4X30 		8-94279-360-0 02 1 9307- ● ● ●
368 CONTROL UNIT; DOOR LOCK
AUTO DOOR LOCK<AU4> 		8-94437-633-1 01 1 9307- ● ● ●
410 BEZEL; SWITCH,POWER WINDOW
POWER WINDOW<A30> 		1-73337-416-0 02 1 9009-9306 ● ● ●
410 BEZEL; SWITCH,POWER WINDOW
POWER WINDOW<A30> 		1-73337-381-0 03 1 9307- ● ● ●
