0-65 — STARTER (#34558) — 29 parça
çizim 13908
51
BalonParca AdiParca NoAdetTipApplied Date
51 02.104 COVER SET; DUST ENGAGE SW STARTE
ASM PART: A = 8-97323-935-2, 97323935 		8-97377-690-0 01 1 -

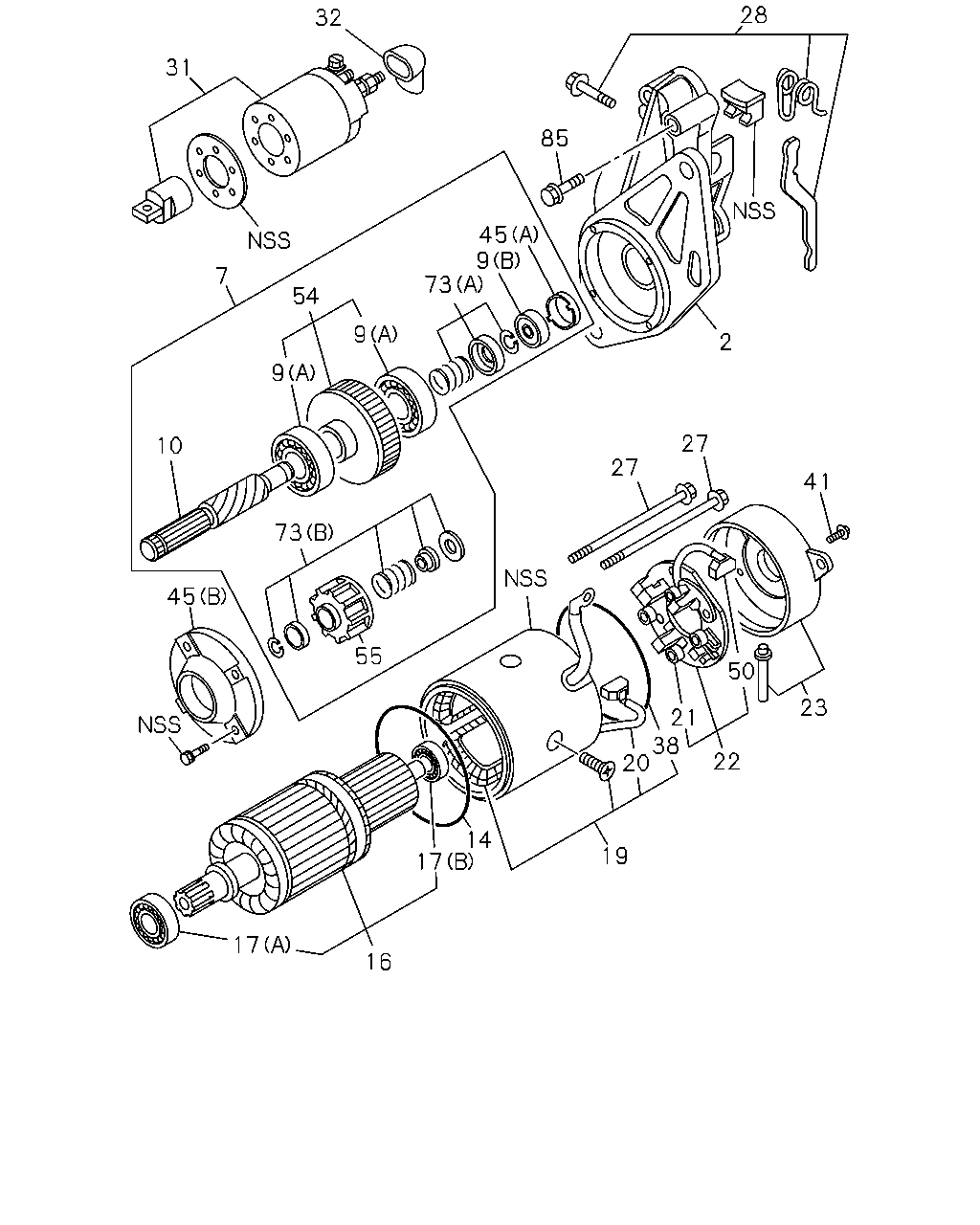

çizim 57680
28 32 31 85 45 9 7 73 54 9 2 9 27 10 27 41 73 45 55 50 23 21 38 20 22 14 17 19 17 16
BalonParca AdiParca NoAdetTipApplied Date
2 02.085 CASE; PINION,STARTER
ASM PART: A = 8-97323-935-2, 97323935 		8-97329-348-0 01 1 -
7 02.086 CLUTCH ASM; PINION,STARTER
ASM PART: A = 8-97323-935-2, 97323935 		8-97230-564-0 01 1 -
9 02.083 BEARING; GEAR SHAFT STARTER
(A) ASM PART: A = 8-97323-935-2, 97323935 		8-97025-673-0 02 1 -
9 02.083 BEARING; GEAR SHAFT STARTER
(B) ASM PART: A = 8-97323-935-2, 97323935 		8-97025-676-0 01 1 -
10 02.086 SHAFT; GEAR STARTER
ASM PART: A = 8-97323-935-2, 97323935 		8-97030-395-0 01 1 -
14 02.087 GASKET; YOKE,STARTER
ASM PART: A = 8-97323-935-2, 97323935 		8-97377-691-0 01 1 -
16 02.043 ARMATURE; STARTER
ASM PART: A = 8-97323-935-2, 97323935 		8-97230-557-0 01 1 -
17 02.083 BEARING; ARMATURE,STARTER
(A) ASM PART: A = 8-97323-935-2, 97323935 		8-94228-436-0 01 1 -
17 02.083 BEARING; ARMATURE,STARTER
(B) ASM PART: A = 8-97323-935-2, 97323935 		8-97030-387-0 01 1 -
19 02.049 COIL; FIELD,STARTER
ASM PART: A = 8-97323-935-2, 97323935 		8-97377-688-0 01 1 -
20 02.051 BRUSH; (+),STARTER
ASM PART: A = 8-97323-935-2, 97323935 		8-97230-560-0 02 1 -
21 02.053 SPRING; BRUSH HOLDER STARTER
ASM PART: A = 8-97323-935-2, 97323935 		8-94152-972-0 04 1 -
22 02.051 HOLDER; BRUSH STARTER
ASM PART: A = 8-97323-935-2, 97323935 		8-97230-562-0 01 1 -
23 02.067 COVER; RR COVER STARTER
ASM PART: A = 8-97323-935-2, 97323935 		8-97377-689-0 01 1 -
27 02.077 BOLT; THROUGH,STARTER
ASM PART: A = 8-97323-935-2, 97323935 		8-97192-423-0 02 1 -
28 02.108 LEVER; SHIFT,STARTER
ASM PART: A = 8-97323-935-2, 97323935 		8-97030-402-0 01 1 -
31 02.100 SWITCH; ENGAGE STARTER
ASM PART: A = 8-97323-935-2, 97323935 		8-97217-569-0 01 1 -
32 02.115 COVER; RUBBER,STARTER
ASM PART: A = 8-97323-935-2, 97323935 		8-97217-570-0 01 1 -
38 02.070 GASKET; RR COVER,STARTER
ASM PART: A = 8-97323-935-2, 97323935 		8-97230-559-0 01 1 -
41 02.067 SCREW; RR COVER,STARTER
ASM PART: A = 8-97323-935-2, 97323935 		8-97117-107-0 02 1 -
45 02.042 RETAINER; BEARING,STARTER
(A) ASM PART: A = 8-97323-935-2, 97323935 		8-94435-567-0 01 1 -
45 02.042 RETAINER; BEARING,STARTER
(B) ASM PART: A = 8-97323-935-2, 97323935 		8-97030-401-0 01 1 -
50 02.051 BRUSH; (-),STARTER
ASM PART: A = 8-97323-935-2, 97323935 		8-97230-563-0 02 1 -
54 02.086 CLUTCH; PINION,STARTER
ASM PART: A = 8-97323-935-2, 97323935 		8-97115-816-0 01 1 -
55 02.086 PINION; CLU,STARTER
ASM PART: A = 8-97323-935-2, 97323935 		8-97230-569-0 01 1 -
73 02.063 STOPPER SET; PINION
(A) ASM PART: A = 8-97323-935-2, 97323935 		8-97030-396-0 01 1 -
73 02.063 STOPPER SET; PINION
(B) ASM PART: A = 8-97323-935-2, 97323935 		8-97030-398-0 01 1 -
85 02.102 BOLT; ENGAGE SW FIX,STARTER
ASM PART: A = 8-97323-935-2, 97323935 		8-94408-500-0 02 1 -
