0-61 — BATTERY AND ENGINE ELECTRICAL PARTS (#34557) — 32 parça

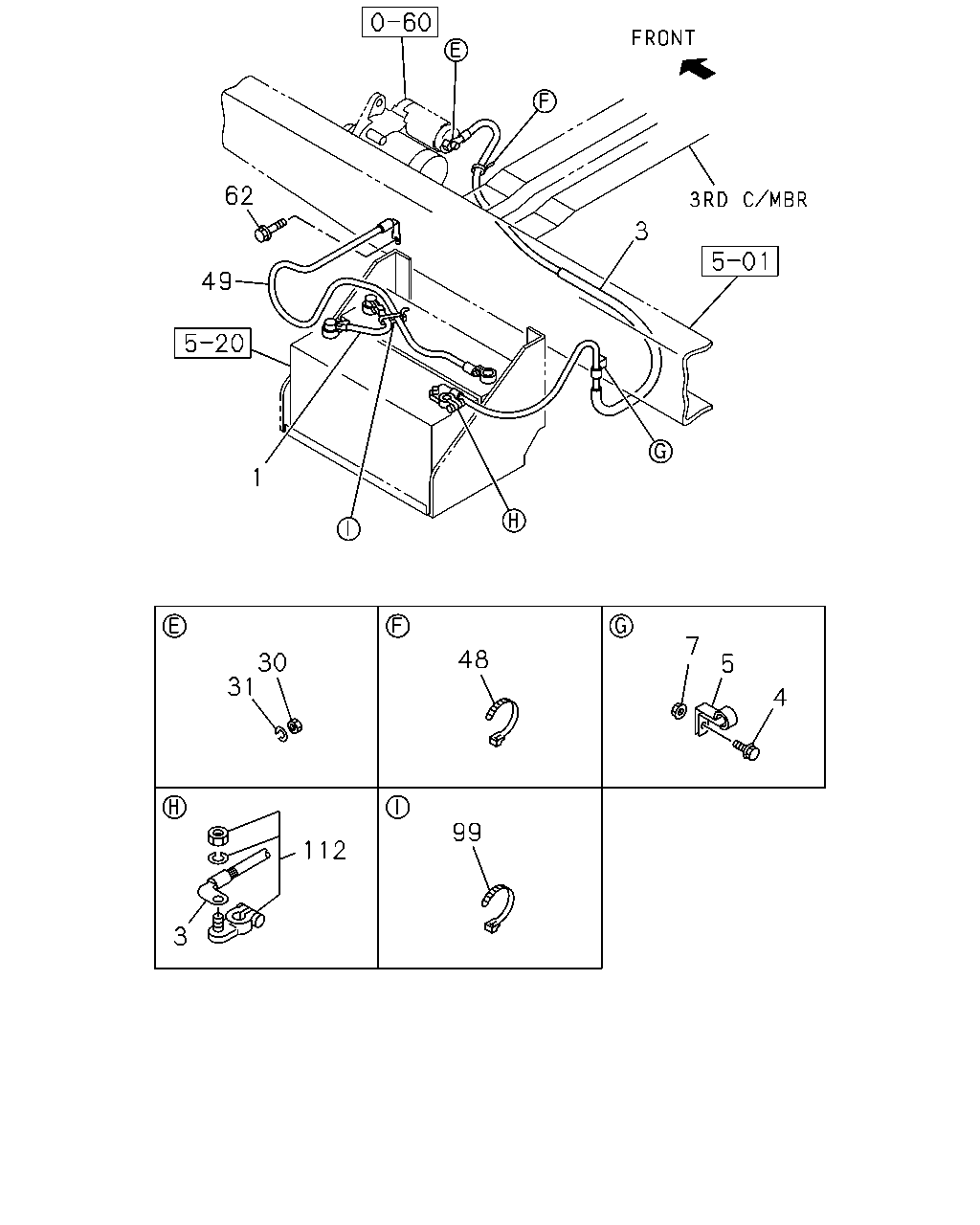

çizim 55874
62 3 49 1 7 48 30 31 5 4 99 112 3
BalonParca AdiParca NoAdetTipApplied Date
1 02.341 CABLE; BATTERY
L=280 		8-97230-719-2 01 1 0612-
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
BATTERY 115E41R<6XD> TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97377-778-2 01 1 0612-
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
BATTERY 115E41R<6XD> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98019-816-0 01 1 0612-
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
EXC. BATTERY 115E41R<6XD>,TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97377-772-1 01 1 0612-
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. BATTERY 115E41R<6XD> 		8-97377-779-1 01 1 0612-
4 02.559 BOLT; BATTERY CABLE
BATTERY 115E41R<6XD> 06.216 M8X25 FLANGE 		0-28650-825-0 01 1 0612-
5 02.559 CLIP; BATTERY CABLE TO BODY
BATTERY 115E41R<6XD> ID=13 L=16 		0-95235-222-0 01 1 0612-
7 02.343 NUT; (+) CABLE
BATTERY 115E41R<6XD> 01.062 M8 FLANGE 		0-91180-108-0 01 1 0612-
30 02.334 NUT; CABLE,STARTER TO BATTERY
M8 		0-91110-508-0 01 1 0612-
31 02.334 WASHER; LK,CABLE,STARTER TO BATT
04.439 ID=8.2 		0-91510-508-0 01 1 0612-
48 02.343 CLIP; CABLE
TRANSMISSION CONTROL-SMOOTHER(8GF) 03.162 L=140 		5-09707-031-1 01 1 0612-
48 02.343 CLIP; CABLE
03.162 L=140 		5-09707-031-1 01 1 0612-
49 02.342 CABLE; BATTERY TO S/MBR,RH
BATTERY 115E41R<6XD> L=770 		8-97350-717-1 01 1 0612-
49 02.342 CABLE; BATTERY TO S/MBR,RH
EXC. BATTERY 115E41R<6XD> L=300 		8-97230-536-1 01 1 0612-
62 02.343 BOLT; EARTH CABLE FIX
M8X25 W/LK&PL WASHER 		8-97087-203-0 01 1 0612-
99 02.343 CLIP; BATTERY CABLE
BATTERY 115E41R<6XD> 03.162 L=140 		5-09707-031-1 01 1 0612-
112 02.343 TERMINAL; BATTERY
<+> 		8-97356-925-1 01 1 0612-
çizim 56411
62 49 3 1 30 31 48 112 61 75 3
BalonParca AdiParca NoAdetTipApplied Date
1 02.341 CABLE; BATTERY
L=280 		8-97230-719-2 01 1 0612-
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
BATTERY 115E41R<6XD> TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97377-778-2 01 1 0612-
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
BATTERY 115E41R<6XD> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98019-816-0 01 1 0612-
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
EXC. BATTERY 115E41R<6XD>,TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97377-772-1 01 1 0612-
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. BATTERY 115E41R<6XD> 		8-97377-779-1 01 1 0612-
30 02.334 NUT; CABLE,STARTER TO BATTERY
M8 		0-91110-508-0 01 1 0612-
31 02.334 WASHER; LK,CABLE,STARTER TO BATT
04.439 ID=8.2 		0-91510-508-0 01 1 0612-
48 02.343 CLIP; CABLE
TRANSMISSION CONTROL-SMOOTHER(8GF) 03.162 L=140 		5-09707-031-1 01 1 0612-
48 02.343 CLIP; CABLE
03.162 L=140 		5-09707-031-1 01 1 0612-
49 02.342 CABLE; BATTERY TO S/MBR,RH
BATTERY 115E41R<6XD> L=770 		8-97350-717-1 01 1 0612-
49 02.342 CABLE; BATTERY TO S/MBR,RH
EXC. BATTERY 115E41R<6XD> L=300 		8-97230-536-1 01 1 0612-
61 02.333 BRACKET; BATTERY CABLE
EXC. BATTERY 115E41R<6XD> 		8-97369-198-1 01 1 0612-
62 02.343 BOLT; EARTH CABLE FIX
M8X25 W/LK&PL WASHER 		8-97087-203-0 01 1 0612-
75 02.333 BOLT; BRKT
EXC. BATTERY 115E41R<6XD> 00.685 M6X25 FLANGE 		0-28650-625-0 01 1 0612-
112 02.343 TERMINAL; BATTERY
<+> 		8-97356-925-1 01 1 0612-
