Isuzu WW
▶
TRUCKS
▶
NP
▶
51104 - NP/NQR BUS(LHD)EURO4
▶
0 - Engine, Emission, Engine Electrical
▶
0-41 - FUEL FILTER AND BRACKET
▶

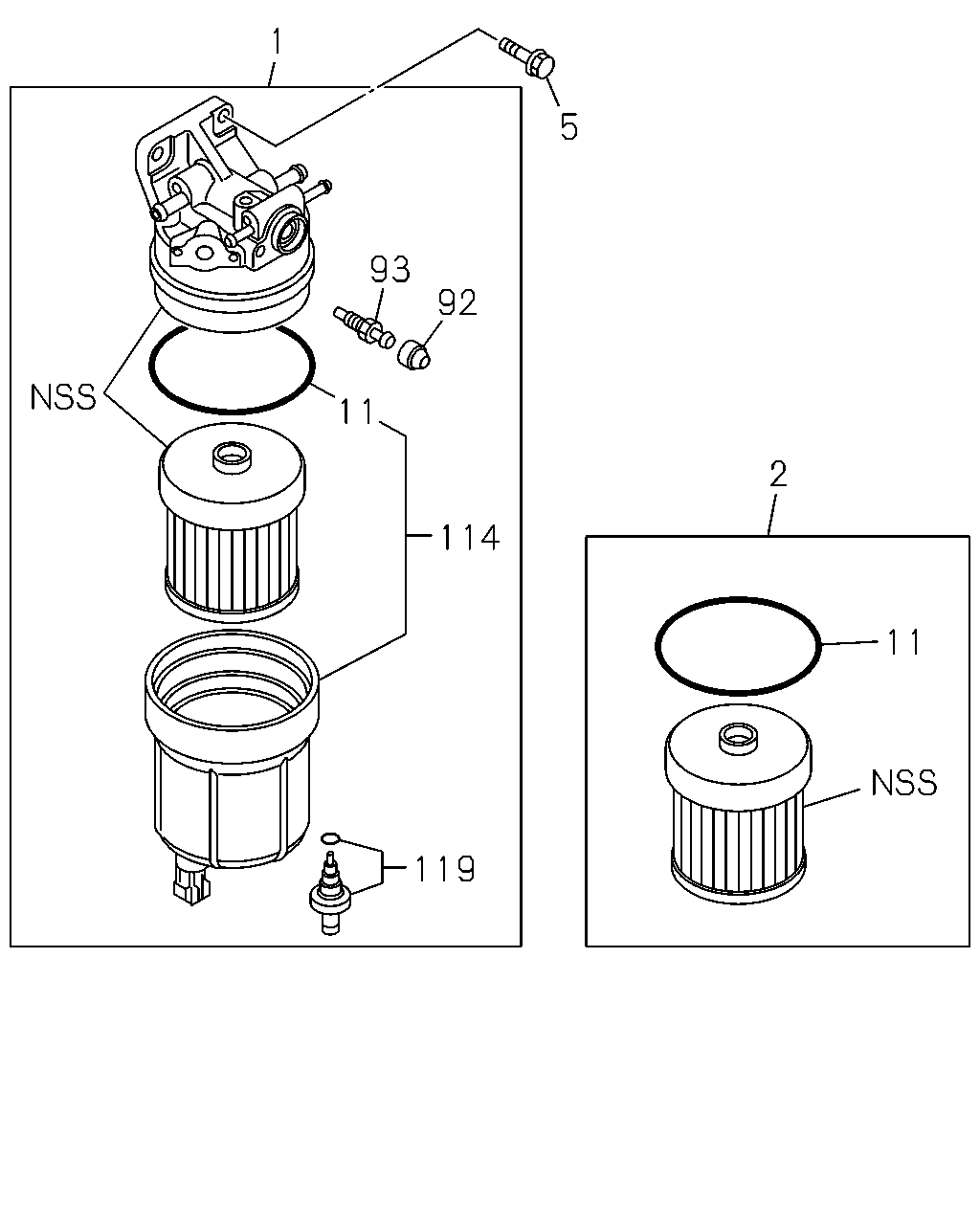

0-41 — FUEL FILTER AND BRACKET
(#34550) — 9 parça
1
5
93
92
11
2
114
11
119
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
03.890 FILTER ASM; FUEL
8-97384-049-2
01
1
0612-0712
1
03.890 FILTER ASM; FUEL
8-98060-050-1
01
1
0801-
2
03.890 ELEMENT KIT; FUEL FILTER
8-98037-011-0
01
1
0612-
5
03.890 BOLT; FUEL FILTER
03.403 M8X30 FLANGE
0-28650-830-0
02
1
0612-
11
03.890 GASKET; CASE TO BODY,FUEL FILTER
8-98037-015-0
01
1
0612-
92
03.417 CAP; FUEL FILTER
8-98034-314-0
01
1
0612-
93
03.890 CONNECTOR; FUEL FILTER
M8X10
8-98034-312-0
01
1
0612-
114
03.890 CASE ASM; FUEL FILTER
8-98039-987-0
01
1
0612-
119
03.890 PLUG; DRAIN,FUEL FILTER
8-98037-095-0
01
1
0612-
