8-25 — SWITCH AND RELAY; INSTRUMENT PANEL (#3455) — 70 parça

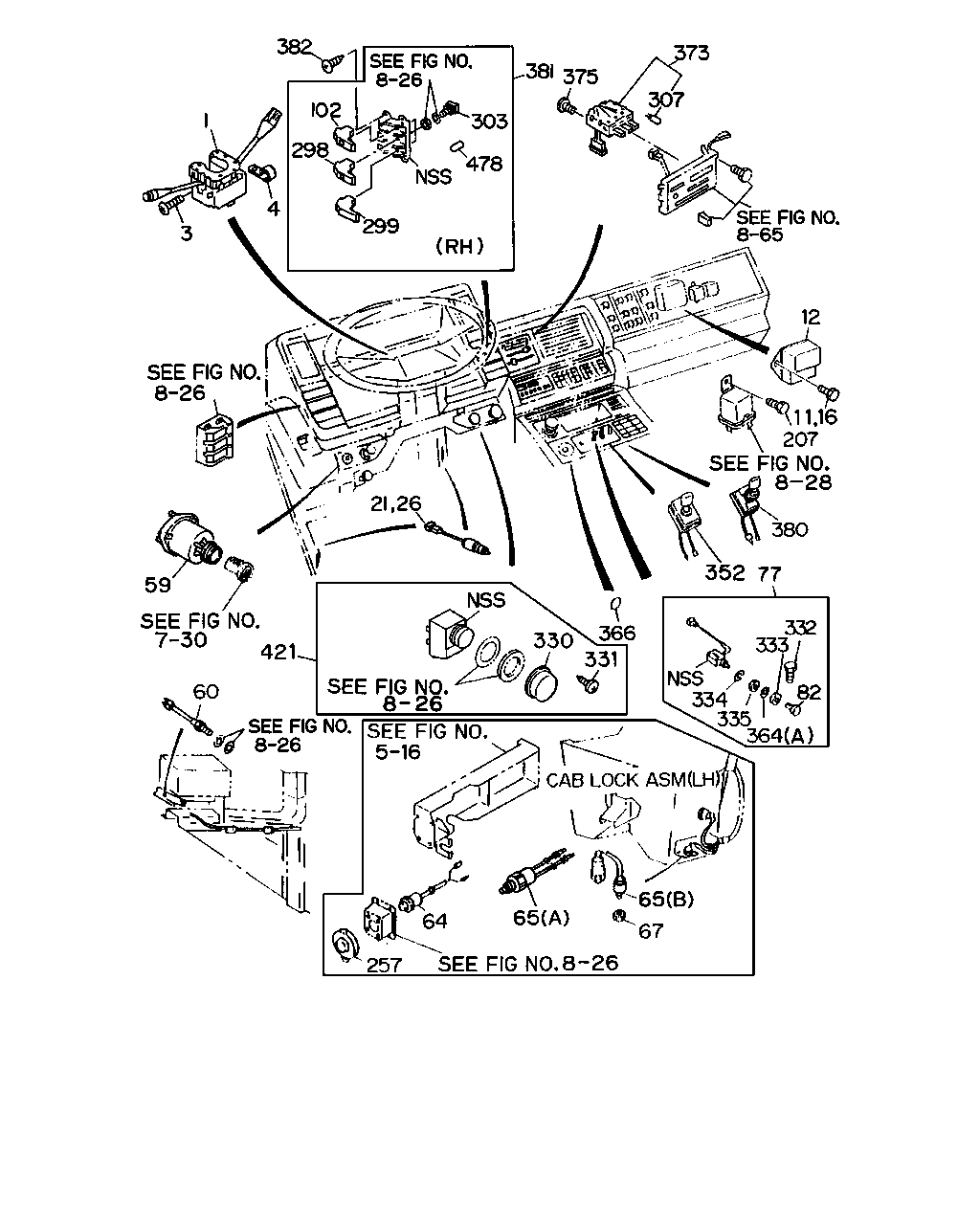

çizim 1966
382 381 375 307 373 303 478 299 298 102 1 3 4 12 11 16 380 207 77 352 333 332 82 364 335 65 67 334 330 331 366 65 64 257 421 59 60 21 26
BalonParca AdiParca NoAdetTipApplied Date A B C
1 SWITCH; COMB
INTERMITTENT WIPER<C13> 		1-82360-241-7 01 1 9002- ● ● ●
1 SWITCH; COMB
EXC. INTERMITTENT WIPER<C13> 		1-82360-240-7 01 1 9002- ● ● ●
3 SCREW; COMB SW
M5X12 TAPPING W/PL WASHER 		0-74105-512-0 03 1 9002- ● ● ●
4 CLIP; COMB SW
ID=13 L=20 		9-09525-232-0 01 1 9002- ● ● ●
11 BOLT; POWER WINDOW
POWER WINDOW<A30> M6X16 W/PL WASHER 		1-09981-438-0 02 1 9109- ● ● ●
12 RELAY; POWER WINDOW
POWER WINDOW<A30> 		1-82550-259-0 01 1 9009-9104 ● ● ●
12 RELAY; POWER WINDOW
POWER WINDOW<A30> 		1-82550-264-0 01 1 9105- ● ● ●
16 SCREW; RELAY,POWER WINDOW
POWER WINDOW<A30> M6X16 W/PL WASHER 		1-09981-176-0 02 1 9009-9108 ● ● ●
21 SWITCH; CLU 1-82380-009-3 01 1 9002- ● ● ●
26 SWITCH; ACCEL 1-82380-009-3 01 1 9002- ● ● ●
59 SWITCH; IGNITION 1-82313-009-1 01 1 9002- ● ● ●
60 SWITCH; STARTER SUB 1-82380-065-0 01 1 9002-9306 ● ● ●
60 SWITCH; STARTER SUB 1-82380-107-1 01 1 9307- ● ● ●
64 SWITCH; CAB TILT MAIN
AUTO CAB TILT<WV2> 		1-82380-108-0 01 1 9307- ● ● ●
65 SWITCH; CAB TILT LK
AUTO CAB TILT<WV2> (A) 		1-82380-115-1 01 1 9307- ● ● ●
65 SWITCH; CAB TILT LK
AUTO CAB TILT<WV2> (B) STAMP NC 		1-82380-125-1 02 1 9307- ● ● ●
67 NUT; SW,CAB TILT
AUTO CAB TILT<WV2> M16 H=18.5 		1-09409-013-0 01 1 9307- ● ● ●
67 NUT; SW,CAB TILT
AUTO CAB TILT<WV2> M16 H=10.0 		9-99111-416-0 01 1 9307- ● ● ●
77 SWITCH; PTO
TRANSMISSION SIDE PTO WO/LEVER(SH5) 		1-82340-193-0 01 1 9002- ● ● ●
82 KNOB; PTO
TRANSMISSION SIDE PTO WO/LEVER(SH5) 		1-82346-057-1 AR 1 9002- ● ● ●
102 KNOB ASM; FOG LAMP 1-82356-031-0 01 1 9002- ● ● ●
207 SCREW; RELAY
AUTO DOOR LOCK<AU4> M5X14 TAPPING W/PL WASHER 		0-74100-514-0 01 1 9307- ● ● ●
257 COVER; HOLE,SW
AUTO CAB TILT<WV2> 		1-82389-008-0 01 1 9307- ● ● ●
298 KNOB ASM; PARKING LAMP 1-82356-028-0 01 1 9002- ● ● ●
299 KNOB ASM; A/C
AIR CONDITIONER MANUAL CONTROL(C60) 		1-82356-083-0 01 1 9002- ● ● ●
303 SWITCH; MICRO
FOG LAMP 		1-82350-127-0 01 1 9002- ● ● ●
303 SWITCH; MICRO
AIR CONDITIONER MANUAL CONTROL(C60) PARKING,AIR CON. 		1-82350-091-0 02 1 9002- ● ● ●
303 SWITCH; MICRO
EXC. AIR CONDITIONER MANUAL CONTROL(C60) PARKING 		1-82350-091-0 01 1 9002- ● ● ●
307 BULB ASM; SW
28V 1.4W 		1-82194-050-0 03 1 9002- ● ● ●
330 KNOB; INT HTR
INTAKE HEATER<SL2> 		1-82336-003-1 01 1 9002- ● ● ●
331 SCREW
INTAKE HEATER<SL2> 		1-09106-002-0 01 1 9002- ● ● ●
332 SCREW; KNOB
TRANSMISSION SIDE PTO WO/LEVER(SH5) 		1-09106-002-0 01 1 9002- ● ● ●
333 NUT; SW
TRANSMISSION SIDE PTO WO/LEVER(SH5) 		1-09449-033-0 01 1 9002- ● ● ●
334 WASHER; LK,SW
TRANSMISSION SIDE PTO WO/LEVER(SH5) ID=12.5 TOOTH LK INT 		9-09151-212-0 01 1 9002- ● ● ●
335 NUT; SW
TRANSMISSION SIDE PTO WO/LEVER(SH5) 		1-09400-035-0 01 1 9002- ● ● ●
352 SWITCH ASM; BRK LK
POWER BRAKE LOCK SYSTEM(J50) 		1-82350-016-1 01 1 9002- ●
364 WASHER; LK
TRANSMISSION SIDE PTO WO/LEVER(SH5) (A) ID=12.5 TOOTH LK INT 		9-09151-212-0 01 1 9002- ● ● ●
364 WASHER; LK
(B) ID=10.5 TOOTH LK INT 		9-09151-210-0 01 1 9002- ● ●
366 SEAL; SW HOLE DIFF LK
OD=36 		1-76778-007-0 01 1 9002-9306 ● ● ●
366 SEAL; SW HOLE DIFF LK
OD=36 		1-76798-018-0 01 1 9307-9502 ● ● ●
366 SEAL; SW HOLE DIFF LK
OD=36 		1-76798-018-0 01 1 9503- ●
373 SWITCH; A/C 1-82380-061-2 01 1 9002- ● ● ●
375 SCREW; A/C SW
M5X14 W/PL WASHER 		5-09981-050-0 02 1 9002- ● ● ●
380 SWITCH; MARKER LAMP
MARKER LAMP THREE AMBER<WD9> 		1-82350-019-1 01 1 9002- ● ● ●
381 SWITCH ASM; METER CLUSTER SIDE
AIR CONDITIONER MANUAL CONTROL(C60) 		1-82350-179-0 01 1 9002- ● ● ●
381 SWITCH ASM; METER CLUSTER SIDE
EXC. AIR CONDITIONER MANUAL CONTROL(C60) 		1-82350-153-0 01 1 9002- ● ● ●
382 SCREW; SW,METER CLUSTER SIDE
M5X14 W/PL WASHER 		5-09981-050-0 08 1 9002- ● ● ●
421 SWITCH ASM; INT HTR
INTAKE HEATER<SL2> 		1-82330-030-0 01 1 9002- ● ● ●
478 CAP; COLLAR 1-82199-008-0 03 1 9002- ● ● ●

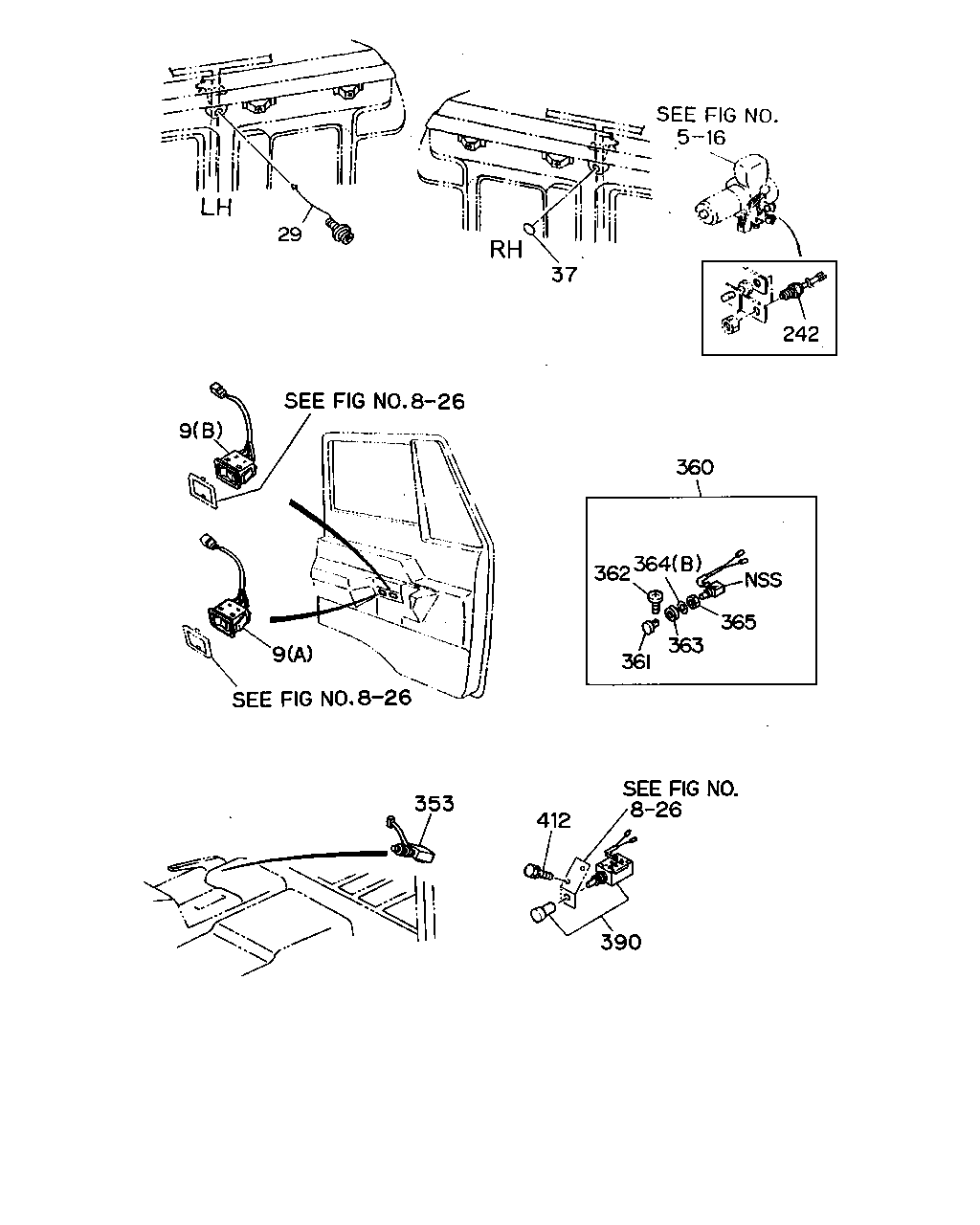

çizim 38255
29 37 242 360 365 363 361 364 362 412 390 353 9 9
BalonParca AdiParca NoAdetTipApplied Date A B C
9 SWITCH; POWER WINDOW
POWER WINDOW<A30> (A) PASSENGER 		8-94316-197-0 02 1 9009-9201 ● ● ●
9 SWITCH; POWER WINDOW
POWER WINDOW<A30> (A) PASSENGER 		1-82380-124-0 02 1 9202- ● ● ●
9 SWITCH; POWER WINDOW
POWER WINDOW<A30> (B) DRIVER 		1-82380-123-0 01 1 9307- ● ● ●
29 SWITCH; DOOR 1-82440-051-3 01 1 9002-9105 ● ● ●
29 SWITCH; DOOR 1-82440-091-0 01 1 9106- ● ● ●
37 SEAL; DOOR SW HOLE
OD=25 BLACK 		1-76798-019-0 01 1 9002- ● ● ●
242 SWITCH
AUTO CAB TILT<WV2> STAMP NO 		1-82380-126-0 01 1 9307- ● ● ●
353 SWITCH ASM; PARKING BRAKE
PARKING BRAKE TRANSMISSION REAR(PJ8) EXC. POWER BRAKE LOCK SYSTEM(J50) 		1-82440-028-0 01 1 9002-9009 ● ● ●
353 SWITCH ASM; PARKING BRAKE
POWER BRAKE LOCK SYSTEM(J50) PARKING BRAKE TRANSMISSION REAR(PJ8) 		1-82440-076-0 01 1 9002-9009 ●
360 SWITCH ASM; DIFF LK 1-82340-143-1 01 1 9002- ● ●
361 KNOB; DIFF LK 1-82346-059-1 01 1 9002- ● ●
362 SCREW; DIFF LK 1-09106-002-0 01 1 9002- ● ●
363 NUT 1-09449-032-0 01 1 9002- ● ●
364 WASHER; LK
TRANSMISSION SIDE PTO WO/LEVER(SH5) (A) ID=12.5 TOOTH LK INT 		9-09151-212-0 01 1 9002- ● ● ●
364 WASHER; LK
(B) ID=10.5 TOOTH LK INT 		9-09151-210-0 01 1 9002- ● ●
365 NUT; DIFF LOCK SW 1-09400-034-0 01 1 9002- ● ●
390 SWITCH ASM; GOV CONT
GOVERNOR CONTROL<W69> 		1-82340-195-0 01 1 9002-9504 ●
390 SWITCH ASM; GOV CONT
GOVERNOR CONTROL<W69> 		1-82380-077-1 01 1 9505- ●
412 BOLT; BRKT SW
FIRE TRUCK<RA9> PTO CONTROL(SV6) M6X16 W/LK&PL WASHER 		9-01960-616-0 02 1 9002-9204 ●
412 BOLT; BRKT SW
FIRE TRUCK<RA9> PTO CONTROL(SV6) M6X16 W/LK&PL WASHER 		0-50140-616-0 02 1 9205-9306 ●
412 BOLT; BRKT SW
FIRE TRUCK<RA9> PTO CONTROL(SV6) M6X16 W/LK&PL WASHER 		0-50140-616-0 02 1 9505- ●
