◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NP ▶ 51104 - NP/NQR BUS(LHD)EURO4 ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-40 - FUEL INJECTION SYSTEM ▶
0-40 — FUEL INJECTION SYSTEM (#34549) — 91 parça

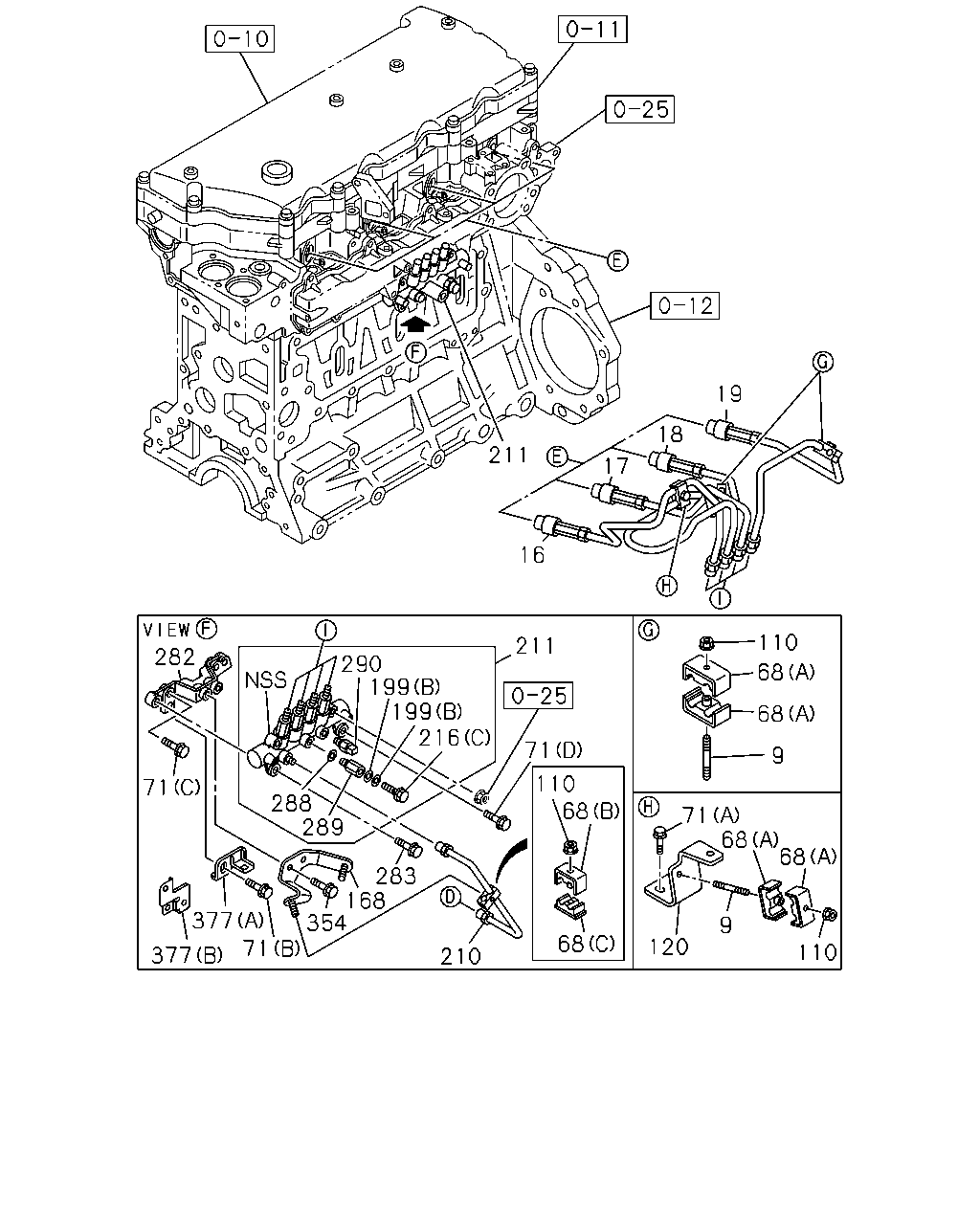

çizim 14035
211 19 18 17 16 282 110 211 290 199 199 216 68 68 71 9 110 68 71 288 289 71 68 68 283 168 377 354 71 9 68 120 110 377 210
BalonParca AdiParca NoAdetTipApplied Date
9 03.340 STUD; CLIP
00.413 M6X35 L=43 		8-97203-278-0 01 1 0802-
9 03.340 STUD; CLIP
03.162 M6X25 L=36 		8-97214-234-1 03 1 0612-0801
9 03.340 STUD; CLIP
00.413 M6X30 L=38 		0-41010-630-0 02 1 0802-
16 03.330 PIPE; INJ NO.1 8-98025-741-0 01 1 0612-0711
16 03.330 PIPE; INJ NO.1 8-98039-934-0 01 1 0712-
17 03.330 PIPE; INJ NO.2 8-98025-742-0 01 1 0612-0711
17 03.330 PIPE; INJ NO.2 8-98039-935-0 01 1 0712-
18 03.330 PIPE; INJ NO.3 8-98025-743-0 01 1 0612-0711
18 03.330 PIPE; INJ NO.3 8-98039-936-0 01 1 0712-
19 03.330 PIPE; INJ NO.4 8-98031-712-0 01 1 0612-0711
19 03.330 PIPE; INJ NO.4 8-98039-937-0 01 1 0712-
68 03.162 CLIP; INJ PIPE
(B) 		1-09701-195-3 01 1 0612-
68 03.162 CLIP; INJ PIPE
(C) 		1-09701-196-2 01 1 0612-
68 03.162 CLIP; INJ PIPE
(A) 		8-97213-481-0 06 1 0612-0711
68 03.162 CLIP; INJ PIPE
(A) 		8-98039-293-0 06 1 0712-
71 03.162 BOLT; BRKT
03.671 (B) M6X10 FLANGE 		0-28050-610-0 03 1 0612-
71 03.162 BOLT; BRKT
02.343 (A) M8X16 FLANGE 		0-28050-816-0 01 1 0612-
71 03.162 BOLT; BRKT
02.277 (C) M8X40 FLANGE 		0-28050-840-0 01 1 0612-
71 03.162 BOLT; BRKT
00.386 (D) M8X50 FLANGE 		0-28050-850-0 01 1 0612-
110 03.330 NUT; CLIP
01.062 M6 FLANGE 		0-91180-106-0 04 1 0612-
120 03.330 BRACKET; INJ PIPE 8-98041-601-0 01 1 0612-
168 03.890 BRACKET; FUEL PIPE 8-98036-175-1 01 1 0612-
199 03.332 GASKET; EYE BOLT
(A) 		1-15619-507-0 02 1 0612-
199 03.332 GASKET; EYE BOLT
(B) 		8-97602-218-0 04 1 0612-
210 03.330 PIPE; INJ,C/R 8-98036-176-1 01 1 0612-
211 03.331 RAIL ASM; COMMON 8-98011-888-1 01 1 0612-
216 03.162 BOLT; EYE
(A) 		5-15759-003-0 01 1 0612-
216 03.162 BOLT; EYE
(B) 		8-97351-388-0 01 1 0612-
216 03.162 BOLT; EYE
(C) 		8-98043-033-0 01 1 0612-
282 03.163 BRACKET; COMMON RAIL 8-97324-194-0 01 1 0612-
283 03.330 BOLT; COMMON RAIL
03.275 M8X25 FLANGE 		0-28050-825-0 01 1 0612-
288 03.331 GASKET
ID=11 OD=16.3 		1-15641-046-0 01 1 0612-
289 03.331 LIMITER; FUEL PRESS 8-98032-549-0 01 1 0612-
290 03.331 SENSOR; PRESS 8-97318-684-0 01 1 0612-
354 03.163 BOLT; FUEL PIPE
02.343 M8X16 FLANGE 		0-28050-816-0 02 1 0612-
354 03.163 BOLT; FUEL PIPE
01.060 M8X35 FLANGE 		0-28650-835-0 02 1 0612-
377 03.332 BRACKET; HARNESS
(A) 		8-97310-438-1 02 1 0612-
377 03.332 BRACKET; HARNESS
(B) 		8-97379-783-1 01 1 0612-

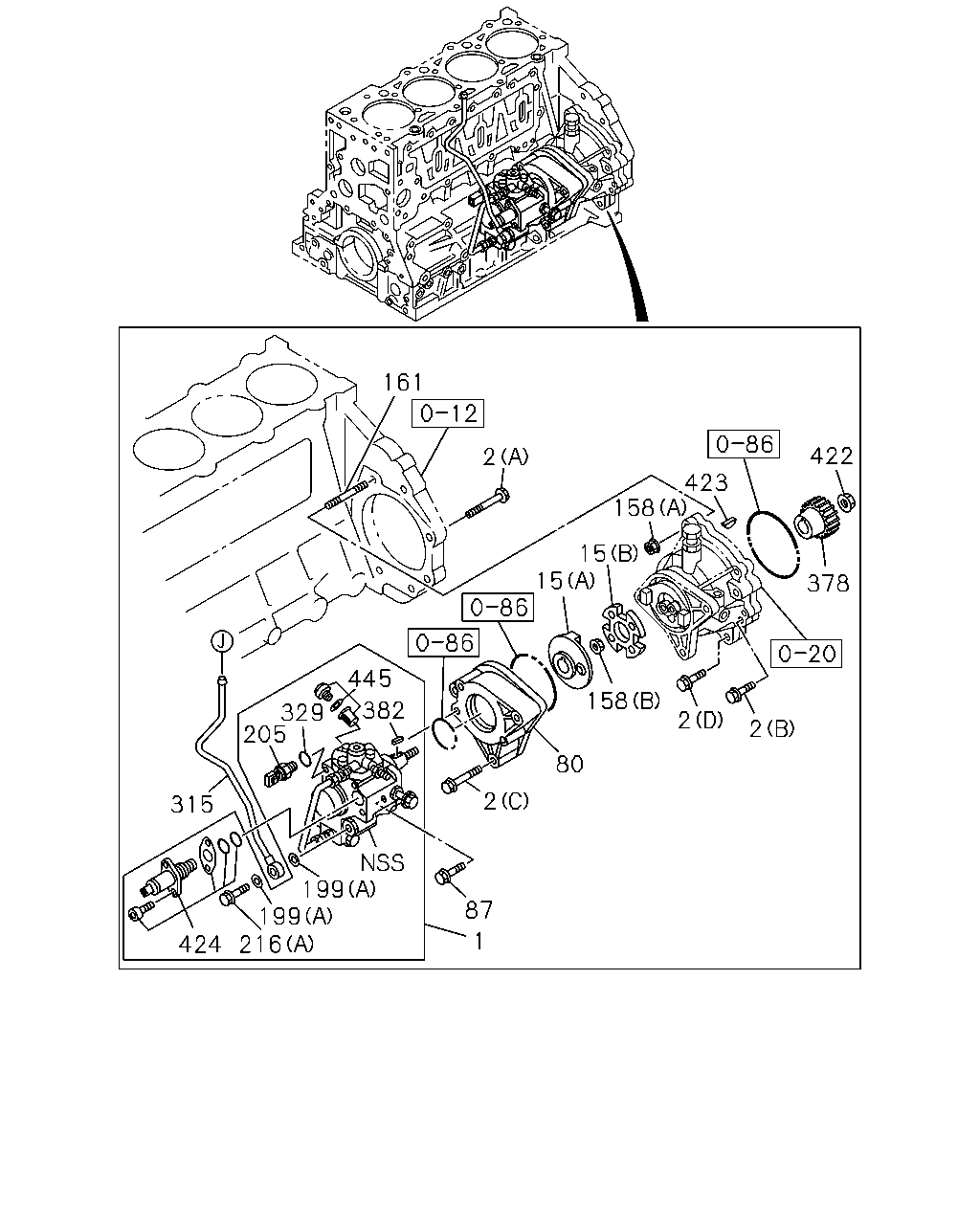

çizim 56502
161 2 422 423 158 15 15 445 382 329 205 199 199 216 424 315 1 87 2 80 158 2 2 378
BalonParca AdiParca NoAdetTipApplied Date
1 03.306 PUMP ASM; INJ 8-97386-557-4 01 1 0612-
2 03.330 BOLT; INJ PUMP
00.685 (C) M10X60 FLANGE 		0-28051-060-0 03 1 0612-
2 03.330 BOLT; INJ PUMP
02.277 (D) M10X70 FLANGE 		0-28151-070-0 01 1 0612-
2 03.330 BOLT; INJ PUMP
00.206 (B) M12X70 FLANGE 		0-28151-270-0 01 1 0612-
2 03.330 BOLT; INJ PUMP
(A) M12X95 FLANGE 		8-94396-485-1 01 1 0612-
15 03.340 COUPLING ASM; INJ PUMP
(A) 		8-97306-054-0 01 1 0612-
15 03.340 COUPLING ASM; INJ PUMP
(B) 		8-97306-059-0 01 1 0612-
80 03.306 BRACKET; PUMP 8-98005-603-1 01 1 0612-0703
80 03.306 BRACKET; PUMP 8-98061-699-0 01 1 0704-
87 03.330 BOLT; PUMP
03.403 M8X30 FLANGE 		0-28650-830-0 03 1 0612-
158 03.330 NUT; INJ PUMP
03.162 (A) M10 FLANGE 		0-91180-110-0 02 1 0612-
158 03.330 NUT; INJ PUMP
07.529 (B) M14 FLANGE 		0-91180-114-0 01 1 0612-
161 03.340 STUD; INJ PUMP
M10X46.5 L=58.5 		8-97363-237-0 02 1 0612-
199 03.332 GASKET; EYE BOLT
(A) 		1-15619-507-0 02 1 0612-
199 03.332 GASKET; EYE BOLT
(B) 		8-97602-218-0 04 1 0612-
205 03.320 SENSOR; FUEL TEMP 8-98023-581-0 01 1 0612-
216 03.162 BOLT; EYE
(A) 		5-15759-003-0 01 1 0612-
216 03.162 BOLT; EYE
(B) 		8-97351-388-0 01 1 0612-
216 03.162 BOLT; EYE
(C) 		8-98043-033-0 01 1 0612-
315 03.163 PIPE; FUEL,SUCTION 8-98036-172-0 01 1 0612-
329 03.335 GASKET; SENSOR,FUEL TEMP
03.304 ID=9.8 OD=11.7 		9-09566-110-0 01 1 0612-
378 03.330 GEAR; PUMP
Z=35 		8-98017-915-0 01 1 0612-
382 03.162 KEY; DRIVE SHAFT 8-97375-384-0 01 1 0612-
422 03.330 NUT; GEAR
06.172 M18 		8-97141-154-0 01 1 0612-
423 03.162 KEY; GEAR
08.960 		9-08055-519-0 01 1 0612-
424 03.332 OVERHAUL KIT; SUPPLY PUMP 8-98101-288-0 01 1 0612-
445 03.330 SCREW; FILTER,INLET 8-98204-986-0 01 1 0612-

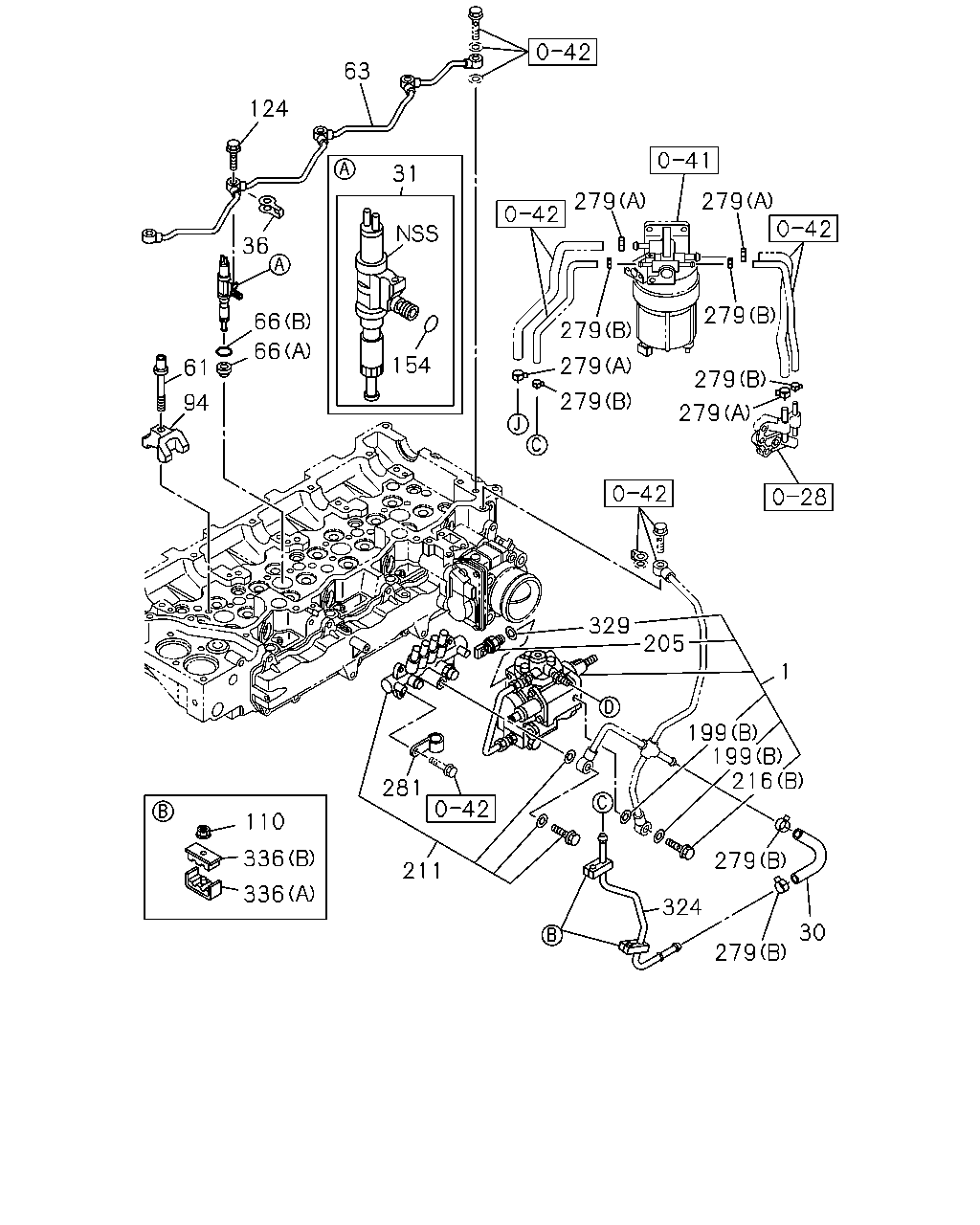

çizim 57891
63 124 31 279 279 36 279 279 66 66 154 279 61 279 279 94 279 329 205 1 199 199 216 281 110 336 279 211 336 324 30 279
BalonParca AdiParca NoAdetTipApplied Date
1 03.306 PUMP ASM; INJ 8-97386-557-4 01 1 0612-
30 03.163 HOSE; RUBBER,FUEL LEAK 8-98036-320-2 01 1 0612-
31 03.332 NOZZLE ASM; INJ 8-97609-788-3 04 1 0612-
36 03.332 GASKET; RETURN PIPE,NOZZLE HOLDE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 03.162 ID=8.3 		8-97600-925-0 04 1 0612-
61 03.332 BOLT; CLAMP NOZZLE HOLDER
M8X54 		8-98008-895-0 04 1 0612-
63 03.163 PIPE; FUEL,NOZZLE LEAK OFF 8-97306-081-0 01 1 0612-
66 03.332 GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 01.609 (B) ID=23.3 		8-94173-412-0 04 1 0612-
66 03.332 GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=9.2 T=8.1 		8-97601-447-2 04 1 0612-
94 03.330 BRACKET; INJ NOZZLE 8-98028-999-0 04 1 0612-
110 03.330 NUT; CLIP
01.062 M6 FLANGE 		0-91180-106-0 04 1 0612-
124 03.162 BOLT; EYE LEAK OFF PIPE
M8X18 EYE-BOLT 		1-09675-037-1 04 1 0612-
154 03.332 GASKET; CONNECTOR
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 06.609 ID=11.0 		9-09561-111-0 04 1 0612-
199 03.332 GASKET; EYE BOLT
(A) 		1-15619-507-0 02 1 0612-
199 03.332 GASKET; EYE BOLT
(B) 		8-97602-218-0 04 1 0612-
205 03.320 SENSOR; FUEL TEMP 8-98023-581-0 01 1 0612-
211 03.331 RAIL ASM; COMMON 8-98011-888-1 01 1 0612-
216 03.162 BOLT; EYE
(A) 		5-15759-003-0 01 1 0612-
216 03.162 BOLT; EYE
(B) 		8-97351-388-0 01 1 0612-
216 03.162 BOLT; EYE
(C) 		8-98043-033-0 01 1 0612-
279 03.162 CLIP; FUEL HOSE
01.097 (A) ID=16 		8-97329-628-0 04 1 0612-
279 03.162 CLIP; FUEL HOSE
01.153 (B) ID=11.5 		8-97375-638-0 06 1 0612-
281 03.162 CLIP
ID=16 H=24 L=20 		0-95207-315-0 01 1 0612-0804
324 03.330 PIPE; FUEL RETURN 8-98036-173-0 01 1 0612-
329 03.335 GASKET; SENSOR,FUEL TEMP
03.304 ID=9.8 OD=11.7 		9-09566-110-0 01 1 0612-
336 03.163 CLIP; FUEL PIPE
01.531 (A) 		8-97603-522-0 02 1 0612-
336 03.163 CLIP; FUEL PIPE
01.531 (B) 		8-97603-523-0 02 1 0612-
