0-20 — TIMING GEAR CASE AND FLYWHEEL HOUSING (#34538) — 56 parça

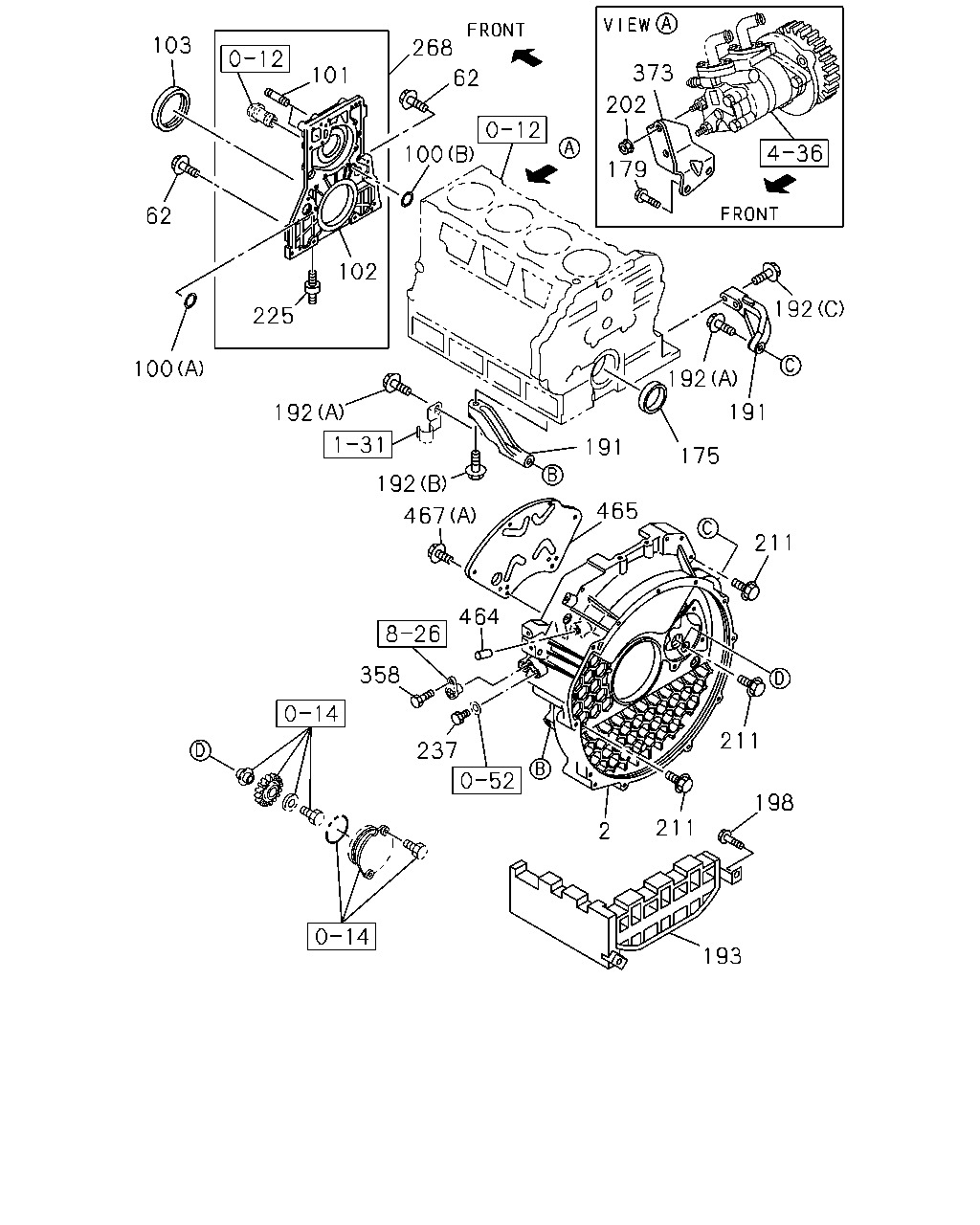

çizim 57879
103 268 373 101 62 202 179 100 62 102 192 225 100 192 191 192 191 175 192 465 467 211 464 358 211 237 198 211 2 193
BalonParca AdiParca NoAdetTipApplied Date
2 00.683 HOUSING; FLYWHEEL 8-97364-901-2 01 1 0612-
62 00.206 BOLT; COVER
06.216 M8X25 FLANGE 		0-28650-825-0 06 1 0612-
62 00.206 BOLT; COVER
03.403 M8X30 FLANGE 		0-28650-830-0 01 1 0612-
62 00.206 BOLT; COVER
GENERATOR 24V50A(6QN) 01.060 M8X35 FLANGE 		0-28650-835-0 05 1 0612-0705
62 00.206 BOLT; COVER
01.060 M8X35 FLANGE 		0-28650-835-0 06 1 0706-
62 00.206 BOLT; COVER
GENERATOR 24V50A(6QN) 01.097 M8X65 FLANGE 		1-09044-072-1 03 1 0612-0705
62 00.206 BOLT; COVER
01.097 M8X65 FLANGE 		1-09044-072-1 02 1 0706-
62 00.206 BOLT; COVER
GENERATOR 24V80A(7YN) 01.060 M8X35 FLANGE 		0-28650-835-0 06 1 0612-0705
62 00.206 BOLT; COVER
GENERATOR 24V80A(7YN) 01.097 M8X65 FLANGE 		1-09044-072-1 02 1 0612-0705
100 00.207 GASKET; FRT COVER
ALSO INCLUDED IN GASKET SET(ENGINE). 00.206 (A) ID=35.1 		8-97028-748-1 01 1 0612-
100 00.207 GASKET; FRT COVER
ALSO INCLUDED IN GASKET SET(ENGINE). 04.439 (B) ID=17.8 		9-09561-318-0 01 1 0612-
101 01.073 STUD; WATER PUMP
01.428 UPPER M8X18 L=30 		0-41010-818-0 01 1 0612-
101 01.073 STUD; WATER PUMP
00.206 LOWER M8X18 L=29 		8-97028-541-0 01 1 0612-
102 00.137 RETAINER; FRT
GENERATOR 24V50A(6QN) 		8-97148-938-1 01 1 0612-0705
102 00.137 RETAINER; FRT
GENERATOR 24V80A(7YN) 		8-98057-152-0 01 1 0612-0705
102 00.137 RETAINER; FRT 8-98039-932-1 01 1 0706-
103 00.213 SEAL; OIL,CR/SHF,FRT
ALSO INCLUDED IN GASKET SET(ENGINE). 		8-97329-780-0 01 1 0612-
175 00.137 SEAL; OIL,CR/SHF,RR
ALSO INCLUDED IN GASKET SET(ENGINE). 		8-97602-379-0 01 1 0612-
179 00.206 BOLT; BRKT
03.417 M10X20 FLANGE 		0-28151-020-0 02 1 0612-
191 00.669 STAY; FLYWHEEL HSG 8-97167-292-0 01 1 0612-
191 00.669 STAY; FLYWHEEL HSG 8-97167-291-0 01 1 0612-
192 00.206 BOLT; STAY TO HSG
00.685 (A) M12X50 FLANGE 		0-28151-250-0 02 1 0612-
192 00.206 BOLT; STAY TO HSG
02.510 (B) M12X100 FLANGE 		0-28151-200-0 01 1 0612-
192 00.206 BOLT; STAY TO HSG
09.171 (C) M10X40 FLANGE 		0-28151-040-0 02 1 0612-
193 01.428 SPACER; STAY TO OIL,PAN 8-97259-536-0 01 1 0612-
198 01.428 BOLT; STAY TO OIL PAN
03.162 M12X20 FLANGE 		0-28151-220-0 02 1 0612-
202 00.206 NUT; BRKT
01.062 M8 FLANGE 		0-91180-108-0 01 1 0612-
211 00.669 BOLT; HSG
00.029 M10X40 FLANGE 		0-28751-040-0 01 1 0612-
211 00.669 BOLT; HSG
M12X70 FLANGE, W/PL WASHER 		8-97114-779-0 11 1 0612-
211 00.669 BOLT; HSG
M12X30 FLANGE 		8-97135-419-0 02 1 0612-
225 01.428 STUD; OIL PAN
M8X16,M8X19 L=39 W/PL WASHER,RUBBER TUBE 		8-97190-392-0 03 1 0612-
237 00.686 PLUG; FLYWHEEL HSG
06.225 M10X12 FLANGE 		0-28051-012-0 01 1 0612-
268 00.206 COVER; FRT
GENERATOR 24V50A(6QN) 		8-97258-865-0 01 1 0612-0705
268 00.206 COVER; FRT 8-98039-931-1 01 1 0706-
268 00.206 COVER; FRT
GENERATOR 24V80A(7YN) 		8-98057-151-0 01 1 0612-0705
358 00.206 BOLT; ADAPTER
09.242 M6X16 FLANGE 		0-28050-616-0 01 1 0612-
373 00.206 BRACKET; PUMP 8-97149-333-0 01 1 0612-
464 00.686 PIPE; PCV,FLYWHEEL HSG
00.669 		8-94373-246-3 01 1 0612-
465 00.686 PLATE; FLYWHEEL HSG 8-97363-823-0 01 1 0612-
467 00.686 BOLT; PLATE
04.895 (B) 		8-98049-523-0 02 1 0612-
467 00.686 BOLT; PLATE
05.815 (A) M6X10 		0-20800-610-0 06 1 0612-0805
467 00.686 BOLT; PLATE
06.321 (A) M6X10 		8-98030-649-0 06 1 0806-

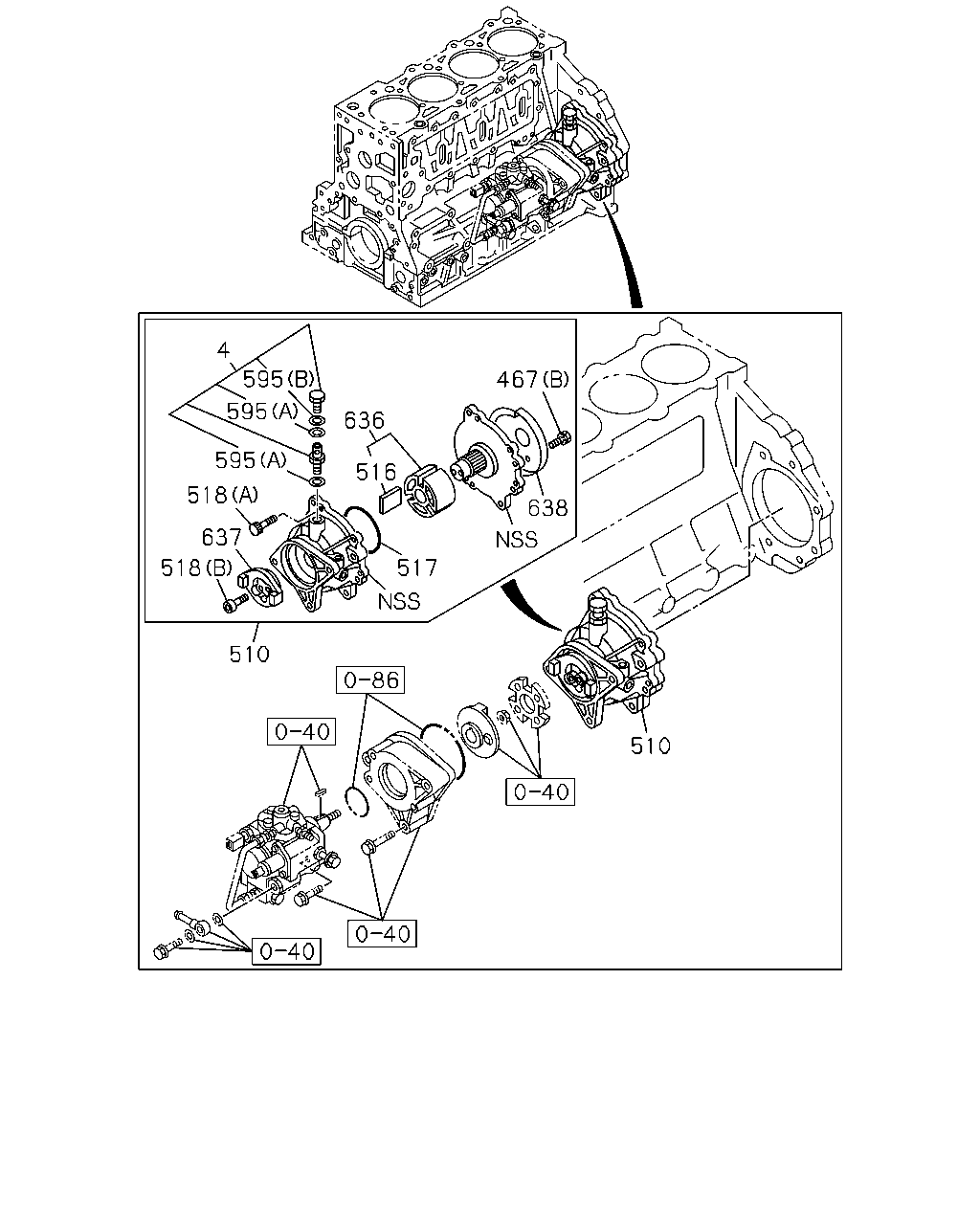

çizim 58752
4 595 467 595 636 595 516 518 638 637 518 517 510 510
BalonParca AdiParca NoAdetTipApplied Date
4 00.213 VALVE ASM; CHECK 8-98049-521-0 01 1 0612-
467 00.686 BOLT; PLATE
04.895 (B) 		8-98049-523-0 02 1 0612-
467 00.686 BOLT; PLATE
05.815 (A) M6X10 		0-20800-610-0 06 1 0612-0805
467 00.686 BOLT; PLATE
06.321 (A) M6X10 		8-98030-649-0 06 1 0806-
510 04.895 PUMP ASM; VACUUM
03.306 		8-97388-589-6 01 1 0612-
516 04.895 VANE; VAC PUMP 8-98051-279-0 03 1 0612-
517 04.895 GASKET; VAC PUMP
ALSO INCLUDED IN GASKET SET(ENGINE). 		8-98051-280-0 01 1 0612-
518 04.895 BOLT; VAC PUMP
01.531 (A) M6X25 W/LK&PL WASHER 		0-50640-625-0 03 1 0612-
518 04.895 BOLT; VAC PUMP
(B) M8X20 		8-98051-277-0 02 1 0612-
595 00.213 GASKET; VLV
ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=12 		8-98018-518-0 01 1 0612-
595 00.213 GASKET; VLV
ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=18 		8-98018-519-0 02 1 0612-
636 00.206 ROTOR & VANE ASM; VAC PUMP 8-98051-281-0 01 1 0612-
637 00.206 COUPLING; VAC PUMP 8-98051-278-0 01 1 0612-
638 00.206 PLATE KIT; VAC PUMP 8-98051-276-0 01 1 0612-
