0-13 — OIL PAN AND LEVEL GAUGE (#34535) — 17 parça

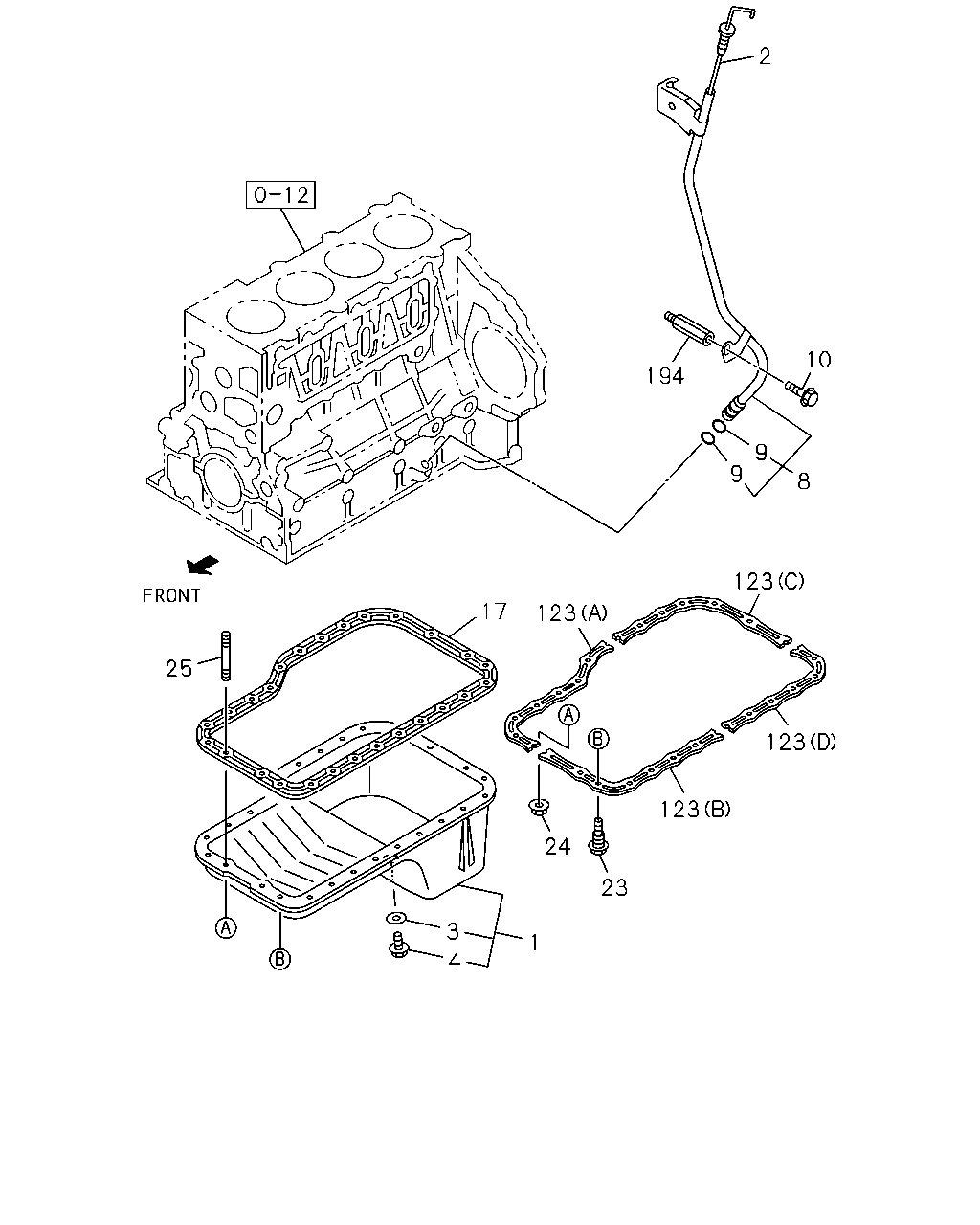

çizim 58691
2 10 194 9 9 8 123 17 123 25 123 123 24 23 3 1 4
BalonParca AdiParca NoAdetTipApplied Date
1 01.426 PAN ASM; OIL 8-97385-243-1 01 1 0612-
2 01.516 GAUGE; OIL LEVEL 8-98034-388-0 01 1 0612-
3 01.456 GASKET; DRAIN PLUG
ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=24 		8-94158-328-0 01 1 0612-
4 01.453 PLUG; DRAIN,OIL
03.001 M14X14 		8-94152-613-0 01 1 0612-
8 01.516 TUBE; GUIDE,OIL LEVEL GAUGE 8-98039-161-0 01 1 0612-
9 01.516 GASKET; GUIDE TUBE,OIL LEVEL GAU
ALSO INCLUDED IN GASKET SET(ENGINE). ID=11 		1-09623-469-0 02 1 0612-
10 01.516 BOLT; GUIDE TUBE
01.531 M8X20 FLANGE 		0-28650-820-0 01 1 0612-
17 01.429 GASKET; OIL PAN
ALSO INCLUDED IN GASKET SET(ENGINE). 		8-97364-386-0 01 1 0612-
23 01.428 BOLT; OIL PAN
M8X12.8 W/PL WASHER,RUBBER TUBE 		8-97190-390-0 13 1 0612-
24 01.453 NUT; OIL PAN
01.062 M8 FLANGE 		0-91180-108-0 13 1 0612-
25 01.453 STUD; OIL PAN
M8X16,M8X17 L=37 W/PL WASHER,RUBBER TUBE 		8-97190-391-0 01 1 0612-
25 01.453 STUD; OIL PAN
01.428 M8X16,M8X19 L=39 W/PL WASHER,RUBBER TUBE 		8-97190-392-0 09 1 0612-
123 01.516 RUBBER; SEAL OIL
(A) 		8-97186-988-0 01 1 0612-
123 01.516 RUBBER; SEAL OIL
(B) 		8-97186-994-0 01 1 0612-
123 01.516 RUBBER; SEAL OIL
(C) 		8-97186-998-0 01 1 0612-
123 01.516 RUBBER; SEAL OIL
(D) 		8-97187-000-0 01 1 0612-
194 01.429 SPACER; GUIDE TUBE 8-97101-215-0 01 1 0612-
