◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPS ▶ 51173 - NPS(SOUTH AFRICA) ▶ 9 - Tools ▶ 9-01 - TOOLS ▶
9-01 — TOOLS (#34533) — 48 parça
çizim 122023
450 450
BalonParca AdiParca NoAdetTipApplied Date A B
450 SEAL; HOLE
(A) OD=36 T=0.05 BLACK SOU 		5-76777-035-0 02 1 1005- ●
450 SEAL; HOLE
(B) OD=20 T=0.05 BLACK 		5-76777-036-0 03 1 1005- ●

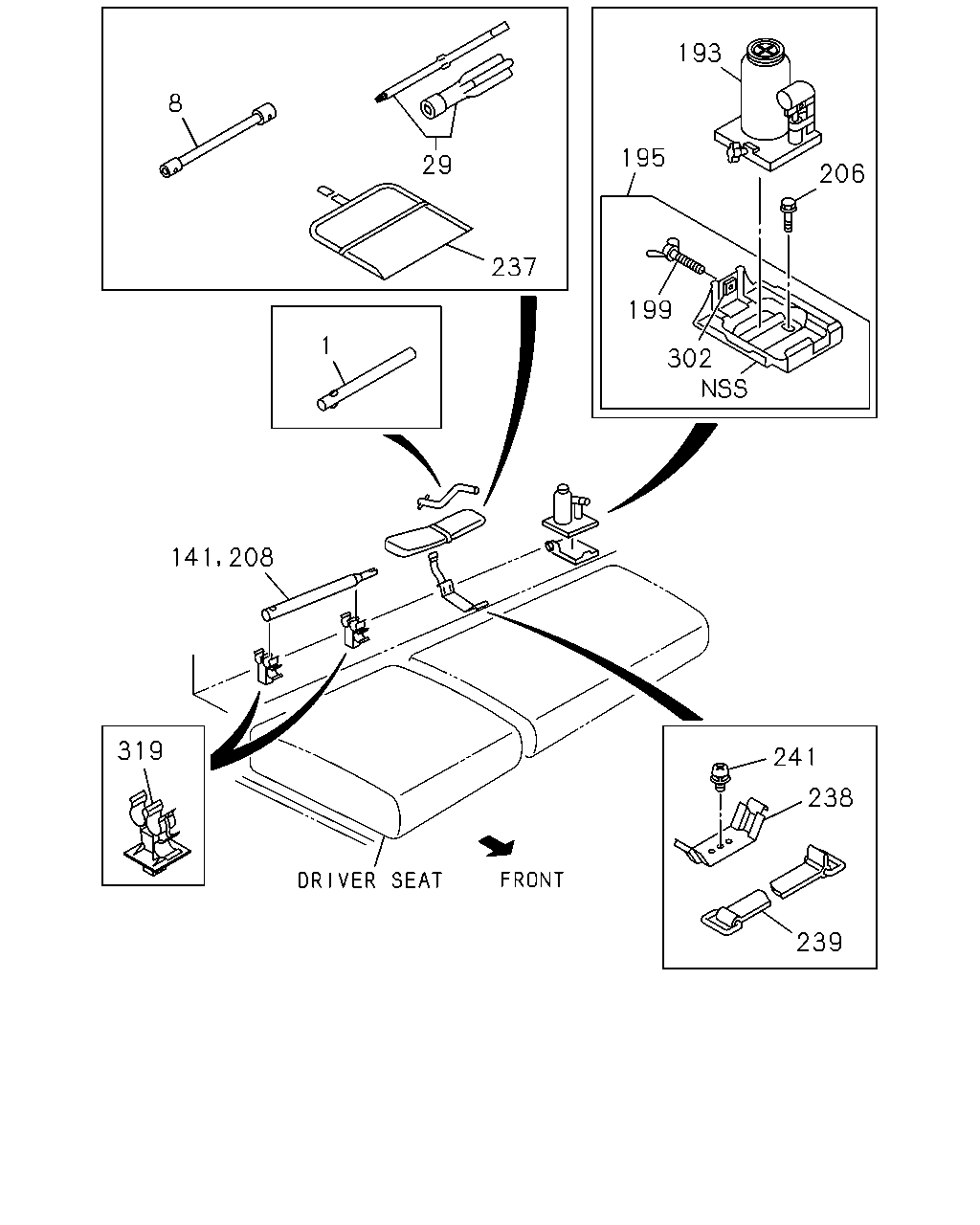

çizim 122040
193 8 195 29 206 237 199 1 302 319 241 238 239 141 208
BalonParca AdiParca NoAdetTipApplied Date A B
1 HANDLE; SPARE TIRE CARRIER
L=280 		1-85515-007-0 01 1 0804-1004 ●
1 HANDLE; SPARE TIRE CARRIER
L=280 		1-85515-007-0 01 1 1005-1108 ● ●
1 HANDLE; SPARE TIRE CARRIER
L=280 		8-98181-251-0 01 1 1109- ● ●
8 WRENCH; WHEEL
FRT&RR 7.5R-16-10 6GSX16-127 6WHL/NUT(CRC),FRT&RR 7.5-16-10 6GSX16-127 6-WHL/NUT DYNAMIC(97V) B=41X21 L=440 SOU 		1-85113-015-1 01 1 0804-0809 ●
8 WRENCH; WHEEL
FRT&RR 7.5R-16-10 6GSX16-127 6WHL/NUT(CRC),FRT&RR 7.5R-16-10 6GSX16-127 6-WHL/NUT(83V) B=41X21 L=440 SOU 		1-85113-015-1 01 1 0810-1004 ●
8 WRENCH; WHEEL
FRT&RR 7.5R-16-10 6GSX16-127 6WHL/NUT(CRC),FRT&RR 7.5R-16-10 6GSX16-127 6-WHL/NUT(83V) B=41X21 L=440 SOU 		1-85113-015-1 01 1 1005- ● ●
29 DRIVER; SCREW
FRT&RR 7.5R-16-10 6GSX16-127 6WHL/NUT(CRC),FRT&RR 7.5-16-10 6GSX16-127 6-WHL/NUT DYNAMIC(97V) <+>,<-> L=160 SOU 		8-94242-798-1 01 1 0804-0809 ●
29 DRIVER; SCREW
FRT&RR 7.5R-16-10 6GSX16-127 6WHL/NUT(CRC),FRT&RR 7.5R-16-10 6GSX16-127 6-WHL/NUT(83V) <+>,<-> L=160 SOU 		8-94242-798-1 01 1 0810-1004 ●
29 DRIVER; SCREW
FRT&RR 7.5R-16-10 6GSX16-127 6WHL/NUT(CRC),FRT&RR 7.5R-16-10 6GSX16-127 6-WHL/NUT(83V) <+>,<-> L=160 SOU 		8-94242-798-1 01 1 1005- ● ●
141 HANDLE; WRENCH
L=580 		1-85515-005-1 01 1 1005-1108 ●
141 HANDLE; WRENCH
L=580 		8-98181-249-0 01 1 1109- ●
193 JACK ASM
5TON 		8-97131-077-2 01 1 0804-0805 ●
193 JACK ASM
5TON 		8-98114-045-0 01 1 0806-0911 ●
193 JACK ASM
FRT&RR 7.5R-16-10 6GSX16-127 6WHL/NUT(CRC),FRT&RR 7.5R-16-10 6GSX16-127 6-WHL/NUT(83V) 5TON 		8-98114-045-0 01 1 0912-1004 ●
193 JACK ASM
FRT&RR 7.5R-16-10 6GSX16-127 6WHL/NUT(CRC),FRT&RR 7.5R-16-10 6GSX16-127 6-WHL/NUT(83V) 5TON 		8-98114-045-0 01 1 1005- ●
193 JACK ASM
5TON 		8-98114-045-0 01 1 1005- ●
195 BRACKET; JACK 8-94273-287-7 01 1 1005- ●
195 BRACKET; JACK 8-98033-737-1 01 1 0804-0805 ●
195 BRACKET; JACK 8-97589-376-2 01 1 0806- ●
199 BOLT; JACK
M8X30 WING 		8-94279-018-1 01 1 1005- ●
199 BOLT; JACK
M8X50 WING 		8-98005-537-0 01 1 0804-0805 ●
199 BOLT; JACK
M8X30 WING 		8-98005-536-0 01 1 0806- ●
206 SCREW; OIL JACK BRKT
M6X16 		0-38050-616-0 01 1 1005- ●
206 SCREW; OIL JACK BRKT
BOLT M8X25 FLANGE SOU 		0-28650-825-0 01 1 0804- ●
208 HANDLE; JACK
L=580 		1-85515-005-1 01 1 0804-1108 ●
208 HANDLE; JACK
L=580 		8-98181-249-0 01 1 1109- ●
237 BAG; TOOL
FRT&RR 7.5R-16-10 6GSX16-127 6WHL/NUT(CRC),FRT&RR 7.5-16-10 6GSX16-127 6-WHL/NUT DYNAMIC(97V) SOU 		8-97130-903-0 01 1 0804-0809 ●
237 BAG; TOOL
FRT&RR 7.5R-16-10 6GSX16-127 6WHL/NUT(CRC),FRT&RR 7.5R-16-10 6GSX16-127 6-WHL/NUT(83V) SOU 		8-97130-903-0 01 1 0810-1004 ●
237 BAG; TOOL
FRT&RR 7.5R-16-10 6GSX16-127 6WHL/NUT(CRC),FRT&RR 7.5R-16-10 6GSX16-127 6-WHL/NUT(83V) SOU 		8-97130-903-1 01 1 1005- ● ●
238 SUPPORT; TOOL BAG
SOU 		8-97994-977-0 01 1 0804- ●
239 BAND; TOOL BAG
L=100 SOU 		5-73997-026-1 01 1 0804-1004 ●
239 BAND; TOOL BAG
L=100 SOU 		5-73997-026-1 01 1 1005- ● ●
241 SCREW; TOOL BAG SUPPORT
M6X16 		0-38050-616-0 01 1 0804- ●
302 NUT; JACK BRKT
SOU 		8-94279-522-0 01 1 1005- ●
302 NUT; JACK BRKT 8-98021-556-0 01 1 0804- ●
319 CLIP; TOOL BAR
SOU 		8-97853-077-2 02 1 0804-1004 ●
319 CLIP; TOOL BAR
SOU 		8-97853-077-2 02 1 1005- ● ●

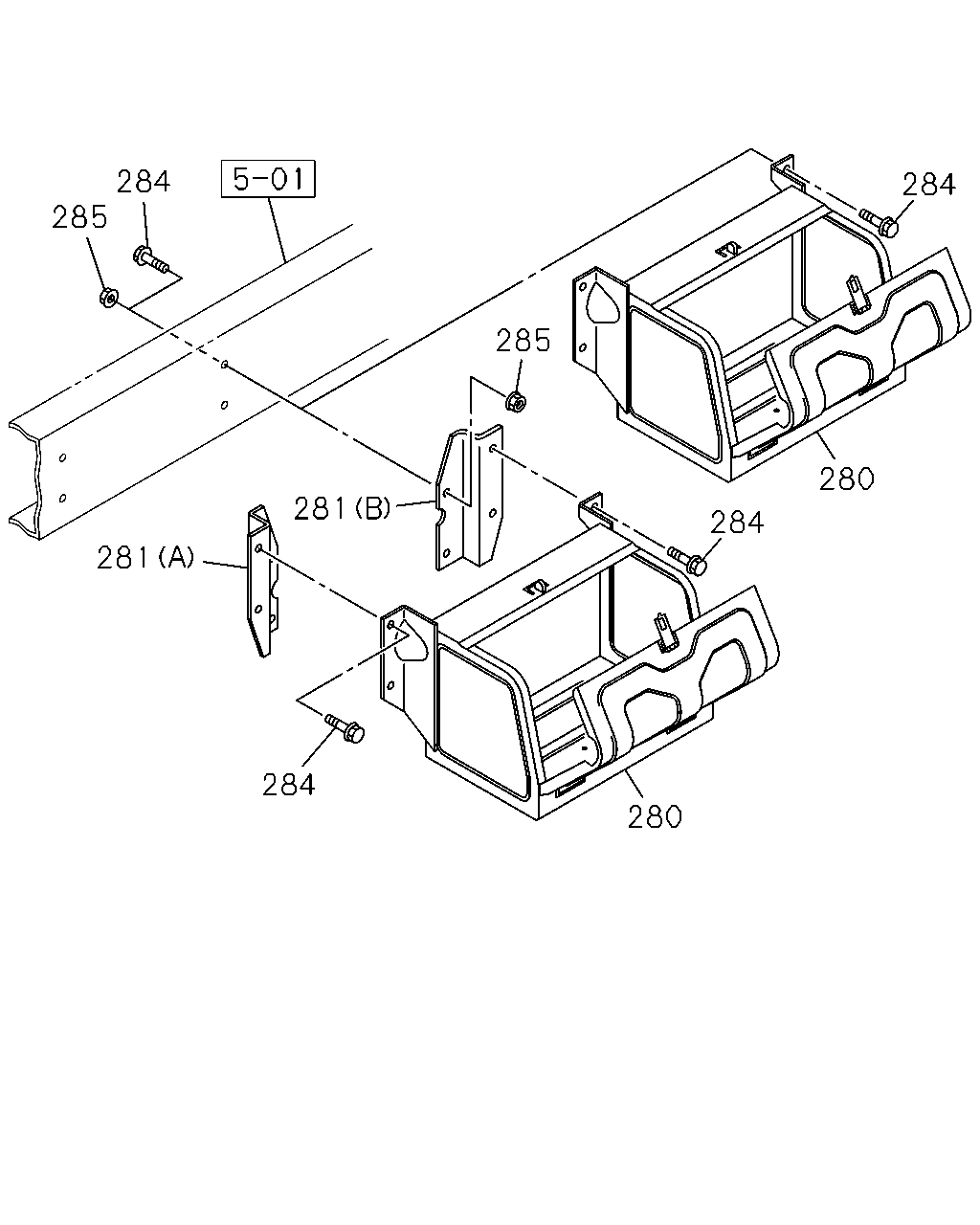

çizim 122066
284 285 284 285 280 281 284 281 284 280
BalonParca AdiParca NoAdetTipApplied Date A B
280 BOX; TOOL
TOOL & STORAGE BOX<VK2> 		8-97384-079-0 01 1 0804-1004 ●
280 BOX; TOOL
TOOL & STORAGE BOX<VK2> 		8-97384-079-0 01 1 1005- ● ●
281 BRACKET; TOOL BOX
TOOL & STORAGE BOX<VK2> (B) 		8-98045-642-1 01 1 1005- ●
281 BRACKET; TOOL BOX
TOOL & STORAGE BOX<VK2> (A) 		8-98130-709-0 01 1 1005- ●
284 BOLT; TOOL BOX
TOOL & STORAGE BOX<VK2> M10X30 FLANGE SOU 		0-28651-030-0 04 1 0804-1004 ●
284 BOLT; TOOL BOX
TOOL & STORAGE BOX<VK2> M10X30 FLANGE SOU 		0-28651-030-0 04 1 1005- ● ●
284 BOLT; TOOL BOX
TOOL & STORAGE BOX<VK2> M10X30 FLANGE SOU 		0-28651-030-0 04 1 1005- ●
285 NUT; TOOL BOX
TOOL & STORAGE BOX<VK2> M10 FLANGE SOU 		0-91180-110-0 04 1 0804-1004 ●
285 NUT; TOOL BOX
TOOL & STORAGE BOX<VK2> M10 FLANGE SOU 		0-91180-110-0 04 1 1005- ● ●
