8-90 — RADIO AND TV (#34532) — 40 parça

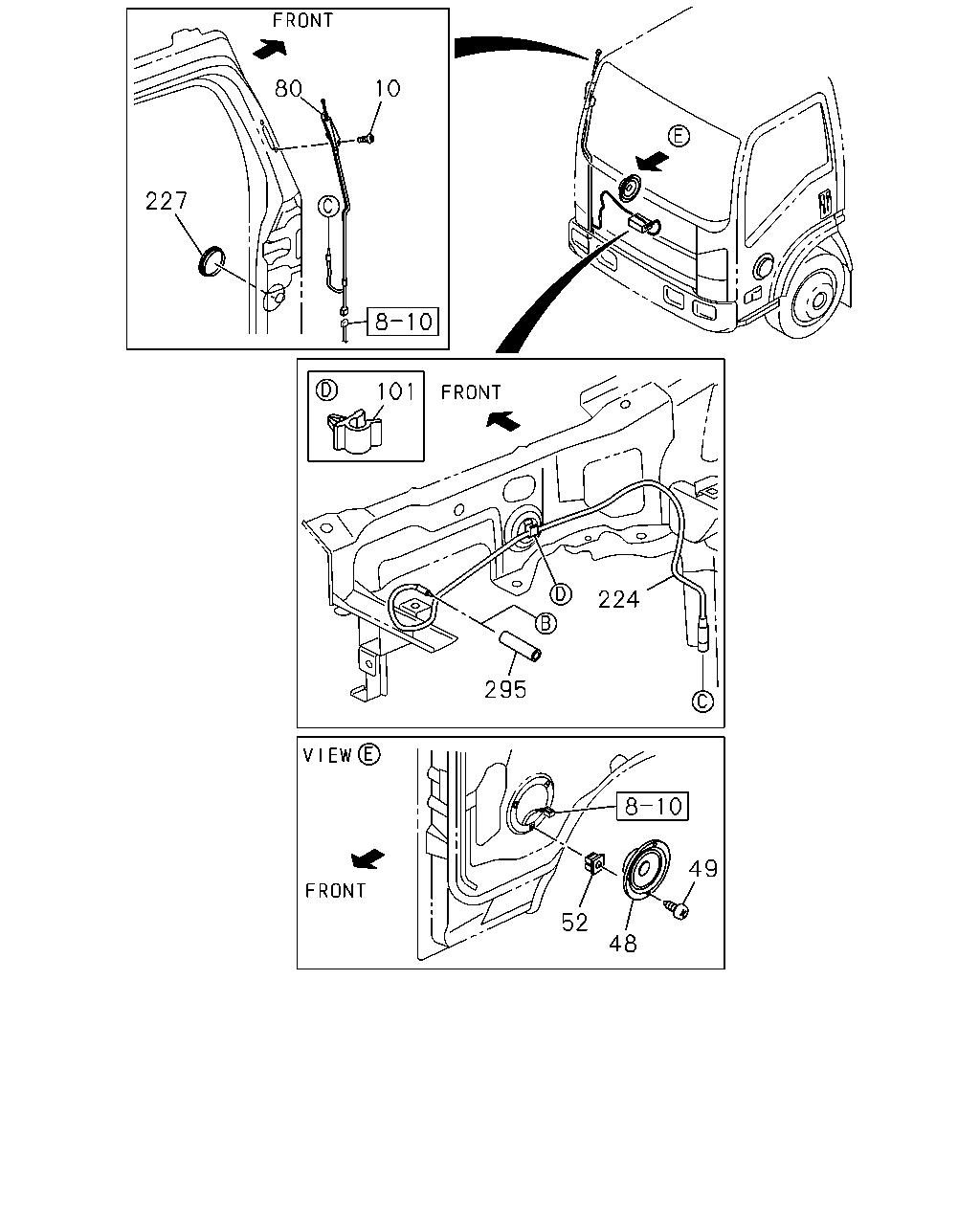

çizim 122030
80 10 227 101 224 295 49 52 48
BalonParca AdiParca NoAdetTipApplied Date A B
10 SCREW; ANTENNA CABLE
M5X11 TAPPING W/TORQUES 		8-98061-742-0 02 1 0804-1004 ●
10 SCREW; ANTENNA CABLE
M5X11 TAPPING W/TORQUES 		8-98061-742-0 02 1 1005- ● ●
48 SPEAKER; AUDIO
2-SPEAKER SYSTEM BASE<U95> 		8-97317-001-1 02 1 0804-1004 ●
48 SPEAKER; AUDIO
2-SPEAKER SYSTEM BASE<U95> 		8-97317-001-1 02 1 1005- ● ●
49 SCREW; SPEAKER
2-SPEAKER SYSTEM BASE<U95> M5X14 TAPPING W/TORQUES 		8-98061-856-0 06 1 0804-1004 ●
49 SCREW; SPEAKER
2-SPEAKER SYSTEM BASE<U95> M5X14 TAPPING W/TORQUES 		8-98061-856-0 06 1 1005- ● ●
52 GROMMET; SCREW,SPEAKER
2-SPEAKER SYSTEM BASE<U95> D=8.6X7.7 L=7.5 SOU 		8-94279-078-0 06 1 0804-1004 ●
52 GROMMET; SCREW,SPEAKER
2-SPEAKER SYSTEM BASE<U95> D=8.6X7.7 L=7.5 SOU 		8-94279-078-0 06 1 1005- ● ●
80 ANTENNA 8-97387-265-3 01 1 0804-1004 ●
80 ANTENNA 8-97387-265-3 01 1 1005- ● ●
101 CLIP; FEEDER TO BRKT
ID=4.8 		8-94128-483-0 01 1 0804-1004 ●
101 CLIP; FEEDER TO BRKT
ID=4.8 		8-94128-483-0 01 1 1005- ● ●
224 CABLE; EXT,FEEDER 8-98029-970-1 01 1 0804-1004 ●
224 CABLE; EXT,FEEDER 8-98029-970-1 01 1 1005- ● ●
227 PROTECTOR; EDGE 8-98053-117-0 01 1 0804-1004 ●
227 PROTECTOR; EDGE 8-98053-117-0 01 1 1005- ● ●
295 INSULATOR; ANTENNA
EXC. RADIO AM/FM STEREO,SEEK/SCAN,CD(UT3),AM/FM RADIO(U69) 		8-98095-617-1 01 1 0804-1004 ●
295 INSULATOR; ANTENNA
EXC. RADIO AM/FM STEREO,SEEK/SCAN,CD(UT3),AM/FM RADIO(U69) 		8-98095-617-1 01 1 1005- ● ●

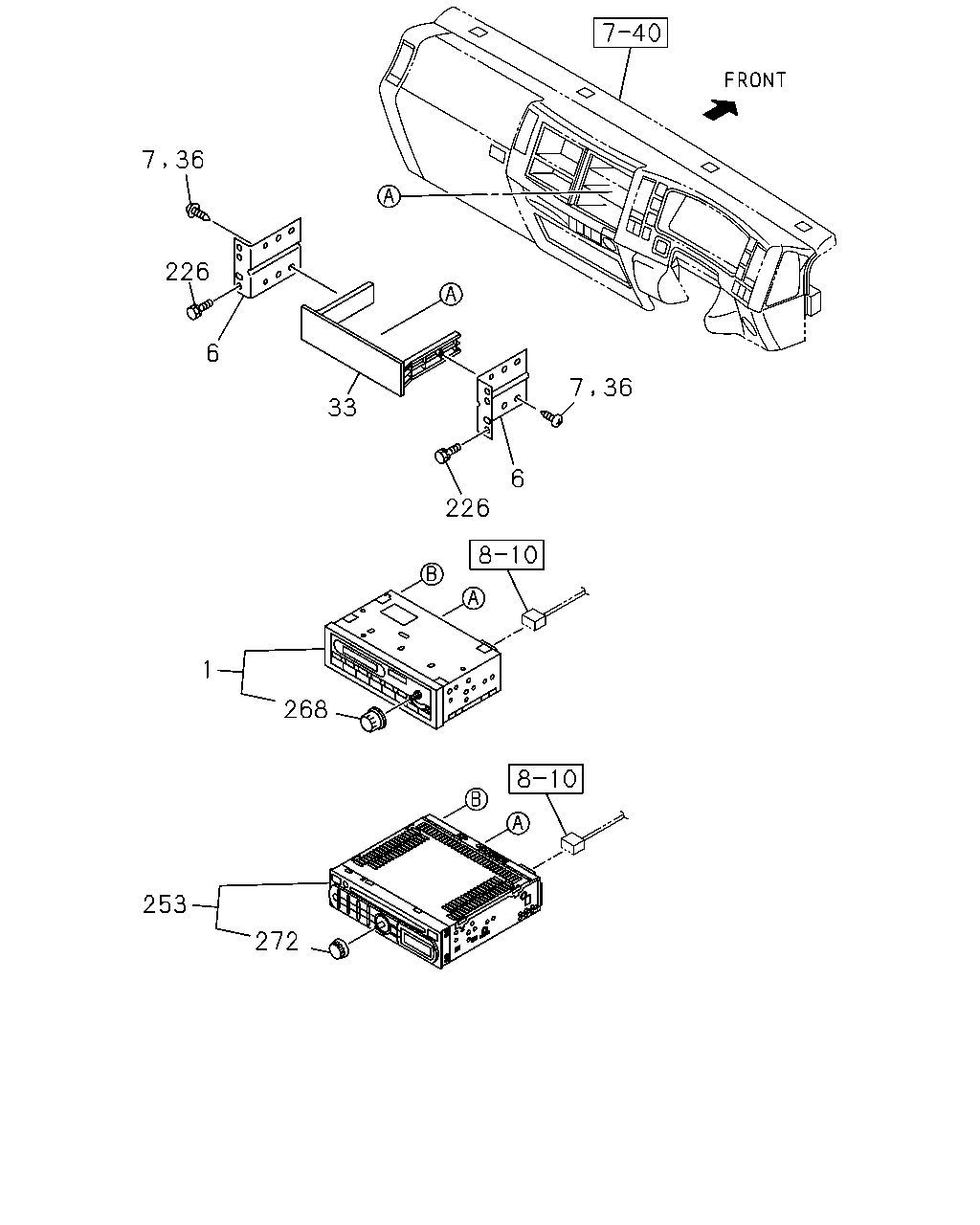

çizim 122043
226 6 33 6 226 1 268 253 272 7 36 7 36
BalonParca AdiParca NoAdetTipApplied Date A B
1 RADIO
AM/FM RADIO(U69) 		8-98032-643-0 01 1 0804-1004 ●
1 RADIO
AM/FM RADIO(U69) 		8-98032-643-0 01 1 1005- ● ●
6 BRACKET; RADIO TO PANEL 8-97585-617-0 02 1 0804-1004 ●
6 BRACKET; RADIO TO PANEL 8-97585-617-0 02 1 1005- ● ●
7 SCREW; RADIO
RADIO AM/FM STEREO,SEEK/SCAN,CD(UT3),AM/FM RADIO(U69) M5X7 HEXALOBULAR SOCKET 		8-98063-767-0 04 1 0804-1004 ●
7 SCREW; RADIO
RADIO AM/FM STEREO,SEEK/SCAN,CD(UT3),AM/FM RADIO(U69) M5X7 HEXALOBULAR SOCKET 		8-98063-767-0 04 1 1005- ● ●
33 COVER; RADIO
EXC. RADIO AM/FM STEREO,SEEK/SCAN,CD(UT3),AM/FM RADIO(U69) BLACK 		8-97407-896-2 01 1 0804-1004 ●
33 COVER; RADIO
EXC. RADIO AM/FM STEREO,SEEK/SCAN,CD(UT3),AM/FM RADIO(U69) BLACK 		8-97407-896-2 01 1 1005- ● ●
36 SCREW; COVER
EXC. RADIO AM/FM STEREO,SEEK/SCAN,CD(UT3),AM/FM RADIO(U69) T25 L=10 HEXALOBULAR 		8-98058-632-0 02 1 0804-1004 ●
36 SCREW; COVER
EXC. RADIO AM/FM STEREO,SEEK/SCAN,CD(UT3),AM/FM RADIO(U69) T25 L=10 HEXALOBULAR 		8-98058-632-0 02 1 1005- ● ●
226 BOLT; BRKT
M5X20 TAPPING HEXALOBULAR 		0-72180-520-0 02 1 0804-1004 ●
226 BOLT; BRKT
M5X20 TAPPING HEXALOBULAR 		0-72180-520-0 02 1 1005-1101 ● ●
226 BOLT; BRKT
M5X20 HEXALOBULAR SOCKET 		8-98177-743-0 02 1 1102-1212 ● ●
226 BOLT; BRKT
M5X20 TAPPING HEXALOBULAR 		0-72180-520-0 02 1 1301- ● ●
253 DECK ASM; RADIO & CD
RADIO AM/FM STEREO,SEEK/SCAN,CD(UT3) TUNER BAND LATIN AMERICA<7DM> 		8-98112-329-0 01 1 0804-1004 ●
253 DECK ASM; RADIO & CD
RADIO AM/FM STEREO,SEEK/SCAN,CD(UT3) TUNER BAND LATIN AMERICA<7DM> 		8-98112-329-0 01 1 1005- ● ●
253 DECK ASM; RADIO & CD
RADIO AM/FM STEREO,SEEK/SCAN,CD(UT3) EXC. TUNER BAND LATIN AMERICA<7DM> 		8-98017-752-0 01 1 0804-1004 ●
253 DECK ASM; RADIO & CD
RADIO AM/FM STEREO,SEEK/SCAN,CD(UT3) EXC. TUNER BAND LATIN AMERICA<7DM> 		8-98017-752-0 01 1 1005- ● ●
268 KNOB; VOL
AM/FM RADIO(U69) CLARION 		8-97375-820-0 01 1 0804-1004 ●
268 KNOB; VOL
AM/FM RADIO(U69) CLARION 		8-97375-820-0 01 1 1005- ● ●
272 KNOB; AUDIO CONTROL
RADIO AM/FM STEREO,SEEK/SCAN,CD(UT3) CLARION 		8-98048-329-0 01 1 0804-1004 ●
272 KNOB; AUDIO CONTROL
RADIO AM/FM STEREO,SEEK/SCAN,CD(UT3) CLARION 		8-98048-329-0 01 1 1005- ● ●
