Sayfa 8-20 - Isuzu EPC

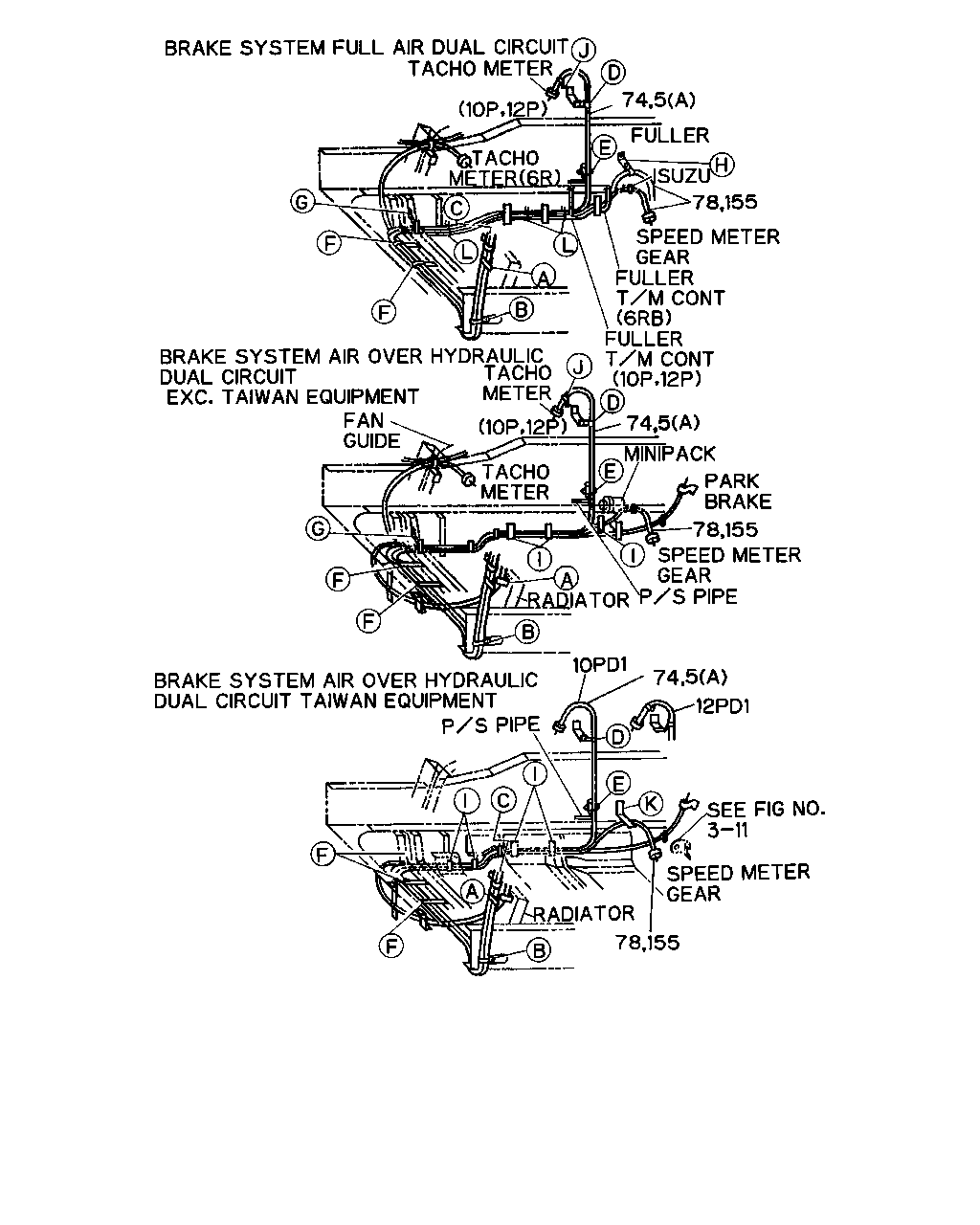

8-20 — METER CABLE (#3453) — 240 parça

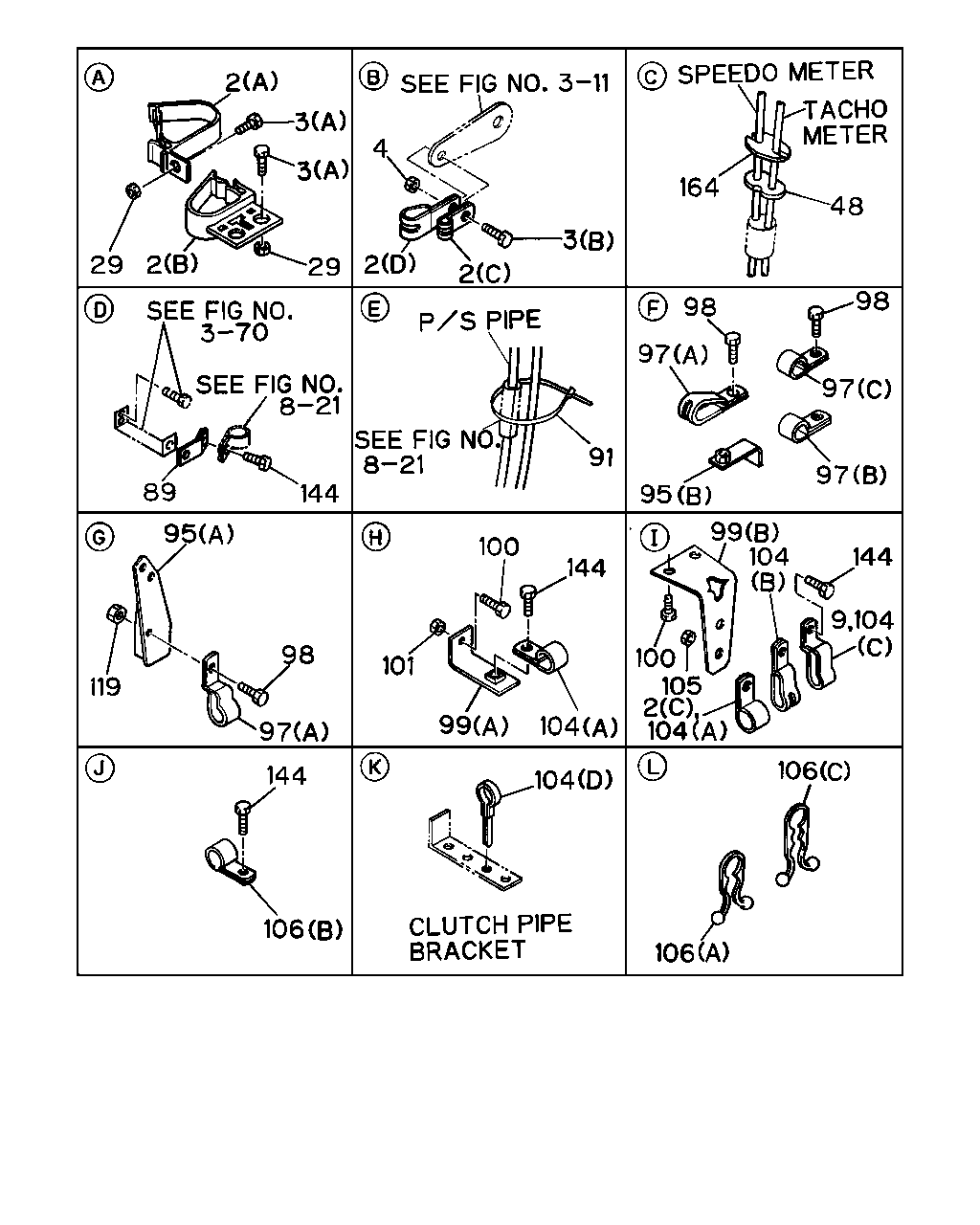

2 3 3 29 2 29 144 89 91 3 2 2 4 164 48 98 98 97 97 97 95 99 144 104 104 9 100 105 2 104 106 106 104 104 144 100 101 99 98 97 144 106 119 95

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
2	CLIP; FLEX SHAFT (C) ID=8 L=31	1-09700-112-1	01	1	9002-	●	●	●
2	CLIP; FLEX SHAFT (D)	1-09701-085-0	01	1	9002-	●	●	●
2	CLIP; FLEX SHAFT REINFORCEMENT BUMPER<VG7> (A)	1-09700-780-1	01	1	9002-	●	●	●
2	CLIP; FLEX SHAFT EXC. REINFORCEMENT BUMPER<VG7> (B)	1-09700-772-2	01	1	9002-	●	●	●
2	CLIP; FLEX SHAFT 10PD1 STD ENG(40L) FIRE ENGINE PACKAGE<WS2> (C) ID=11 L=20	9-09525-035-0	01	1	9308-			●
3	BOLT; FLEX SHAFT,CLIP REINFORCEMENT BUMPER<VG7> (A) M8X20 W/LK&PL WASHER	9-01960-820-0	02	1	9002-9204	●	●	●
3	BOLT; FLEX SHAFT,CLIP REINFORCEMENT BUMPER<VG7> (A) M8X20 W/LK&PL WASHER	0-50140-820-0	02	1	9205-	●	●	●
3	BOLT; FLEX SHAFT,CLIP EXC. REINFORCEMENT BUMPER<VG7> (A) M8X25 W/LK WASHER	9-01900-825-0	01	1	9002-9204	●	●	●
3	BOLT; FLEX SHAFT,CLIP EXC. REINFORCEMENT BUMPER<VG7> (A) M8X25 W/LK WASHER	0-50040-825-0	01	1	9205-9302	●	●	●
3	BOLT; FLEX SHAFT,CLIP EXC. REINFORCEMENT BUMPER<VG7> (A) M8X25 FLANGE	0-28080-825-0	01	1	9303-	●	●	●
3	BOLT; FLEX SHAFT,CLIP 10PD1 STD ENG(40L) (B) M8X20 W/LK WASHER	9-01900-820-0	01	1	9002-9204	●	●	●
3	BOLT; FLEX SHAFT,CLIP 10PD1 STD ENG(40L) (B) M8X20 W/LK WASHER	0-50040-820-0	01	1	9205-9302	●	●	●
3	BOLT; FLEX SHAFT,CLIP 10PD1 STD ENG(40L),12PD1 C ENG(43L) (B) M8X20 FLANGE	0-28080-820-0	01	1	9303-	●	●	●
4	NUT; FLEX SHAFT CLIP M8	9-09110-408-0	01	1	9002-	●	●	●
9	BOLT; CLIP 10PD1 STD ENG(40L) FIRE ENGINE PACKAGE<WS2> M8X20 FLANGE	0-28080-820-0	01	1	9308-			●
29	NUT; CLIP,METER FLEX SHAFT REINFORCEMENT BUMPER<VG7> M8	9-09110-408-0	02	1	9002-	●	●	●
29	NUT; CLIP,METER FLEX SHAFT EXC. REINFORCEMENT BUMPER<VG7> M8	9-09110-408-0	01	1	9002-	●	●	●
48	GROMMET; FLEX SHAFT	1-09333-093-1	01	1	9002-	●	●	●
89	BRACKET; CLIP TACHOMETER 10PD1 STD ENG(40L)	1-83129-037-1	01	1	9002-	●	●	●
91	CLIP; BAND 10PD1 STD ENG(40L),12PD1 C ENG(43L) L=140	5-09707-031-0	01	1	9002-	●	●	●
91	CLIP; BAND CAB SUSPENSION RIGID(W71) EXC. FIRE TRUCK<RA9> L=140	5-09707-031-0	02	1	9002-		●	●
95	BRACKET; CLIP,UNDER MEMBER (A)	1-47465-665-2	01	1	9002-9306	●	●	●
95	BRACKET; CLIP,UNDER MEMBER EXC. ANTI NOISE EQUIPMENT<SV9> (A)	1-47465-665-2	01	1	9307-9310	●	●	●
95	BRACKET; CLIP,UNDER MEMBER (A)	1-47465-665-2	01	1	9311-	●	●	●
95	BRACKET; CLIP,UNDER MEMBER 6RB1 STD ENG(07L) (B)	1-83129-063-0	02	1	9002-		●	●
97	CLIP; SHAFT UNDER MEMBER EXC. ANTI NOISE EQUIPMENT<SV9> (A) L=42 ID=10.5 & 14.5 L=21	1-09701-084-0	01	1	9307-9310	●
97	CLIP; SHAFT UNDER MEMBER PARKING BRAKE TRANSMISSION REAR(PJ8) V TYPE ENG<91L> EXC. ANTI NOISE EQUIPMENT<SV9> (A) L=42 ID=10.5 & 14.5 L=21	1-09701-084-0	01	1	9307-9310		●	●
97	CLIP; SHAFT UNDER MEMBER FULLER M/T<X9B> V TYPE ENG<91L> (A) L=42 ID=10.5 & 14.5 L=21	1-09701-084-0	01	1	9307-9310		●	●
97	CLIP; SHAFT UNDER MEMBER (A) L=42 ID=10.5 & 14.5 L=21	1-09701-084-0	01	1	9311-	●
97	CLIP; SHAFT UNDER MEMBER PARKING BRAKE TRANSMISSION REAR(PJ8) V TYPE ENG<91L> (A) L=42 ID=10.5 & 14.5 L=21	1-09701-084-0	01	1	9311-		●	●
97	CLIP; SHAFT UNDER MEMBER FULLER M/T<X9B> V TYPE ENG<91L> (A) L=42 ID=10.5 & 14.5 L=21	1-09701-084-0	01	1	9311-		●	●
97	CLIP; SHAFT UNDER MEMBER (C) L=32 ID=11X2 L=32	9-09535-066-0	02	1	9002-	●	●	●
97	CLIP; SHAFT UNDER MEMBER V TYPE ENG<91L> ANTI NOISE EQUIPMENT<SV9> (A)	1-09700-962-0	01	1	9307-9310	●	●	●
97	CLIP; SHAFT UNDER MEMBER 10PD1 STD ENG(40L) PARKING BRAKE TRANSMISSION REAR(PJ8) (A) L=42 ID=10.5 & 14.5 L=21	1-09701-084-0	01	1	9002-9306	●	●	●
97	CLIP; SHAFT UNDER MEMBER 10PD1 STD ENG(40L) FULLER M/T<X9B> (A) L=42 ID=10.5 & 14.5 L=21	1-09701-084-0	01	1	9002-9306		●	●
97	CLIP; SHAFT UNDER MEMBER 10PD1 STD ENG(40L) ISUZU M/T<X9A> EXC. PARKING BRAKE TRANSMISSION REAR(PJ8) (C) L=16 T=1.2 ID=11X2 L=16	9-09535-026-0	01	1	9002-9306		●	●
97	CLIP; SHAFT UNDER MEMBER 10PD1 STD ENG(40L) ISUZU M/T<X9A> EXC. PARKING BRAKE TRANSMISSION REAR(PJ8) (C) T=0.8 ID=11X2 L=16	9-09535-025-0	01	1	9307-		●	●
97	CLIP; SHAFT UNDER MEMBER 10PD1 STD ENG(40L) PARKING BRAKE TRANSMISSION REAR(PJ8) (A) L=31 ID=10.5 & 14.5 L=20	1-09701-085-0	01	1	9002-		●	●
97	CLIP; SHAFT UNDER MEMBER 10PD1 STD ENG(40L) FULLER M/T<X9B> (A) L=31 ID=10.5 & 14.5 L=20	1-09701-085-0	01	1	9002-		●	●
97	CLIP; SHAFT UNDER MEMBER 6RB1 STD ENG(07L) ISUZU M/T<X9A> EXC. PARKING BRAKE TRANSMISSION REAR(PJ8) (B) ID=11 L=16	9-09525-026-0	01	1	9002-9306		●	●
97	CLIP; SHAFT UNDER MEMBER 6RB1 STD ENG(07L) ISUZU M/T<X9A> EXC. PARKING BRAKE TRANSMISSION REAR(PJ8) (B) ID=11 L=16	9-09525-025-0	01	1	9307-		●	●
98	BOLT; CLIP M8X25 W/LK WASHER	9-01900-825-0	01	1	9002-9204	●	●	●
98	BOLT; CLIP M8X25 W/LK WASHER	0-50040-825-0	01	1	9205-9302	●	●	●
98	BOLT; CLIP M8X25 W/LK WASHER	9-01900-825-0	02	1	9002-9204	●	●	●
98	BOLT; CLIP M8X25 W/LK WASHER	0-50040-825-0	02	1	9205-9302	●	●	●
98	BOLT; CLIP M8X20 W/LK&PL WASHER	9-01960-820-0	03	1	9002-9204	●	●	●
98	BOLT; CLIP M8X20 W/LK&PL WASHER	0-50140-820-0	03	1	9205-	●	●	●
98	BOLT; CLIP M8X25 FLANGE	0-28080-825-0	01	1	9303-	●	●	●
98	BOLT; CLIP M8X25 FLANGE	0-28080-825-0	02	1	9303-	●	●	●
98	BOLT; CLIP TAIWAN EQUIPMENT(WW5) M8X20 W/LK&PL WASHER	0-50140-820-0	04	1	9307-	●	●	●
98	BOLT; CLIP FULLER M/T<X9B> M8X20 W/LK&PL WASHER	9-01960-820-0	01	1	9010-9204		●	●
98	BOLT; CLIP FULLER M/T<X9B> M8X20 W/LK&PL WASHER	0-50140-820-0	01	1	9205-9306		●	●
98	BOLT; CLIP 6RB1 STD ENG(07L) FULLER M/T<X9B> M8X20 W/LK&PL WASHER	0-50140-820-0	01	1	9307-		●	●
99	BRACKET; FRAME (B)	1-46147-049-1	03	1	9002-9110	●	●	●
99	BRACKET; FRAME (B)	1-46147-183-0	03	1	9111-9306	●	●	●
99	BRACKET; FRAME EXC. ANTI NOISE EQUIPMENT<SV9> (B)	1-46147-183-0	03	1	9307-	●	●	●
99	BRACKET; FRAME FULLER M/T<X9B> (A) L=105 B=25	1-47476-161-0	01	1	9010-9306		●	●
99	BRACKET; FRAME 6RB1 STD ENG(07L) FULLER M/T<X9B> (A) L=105 B=25	1-47476-161-0	01	1	9307-		●	●
100	BOLT; BRKT FRAME M8X20 W/LK WASHER	9-01900-820-0	06	1	9002-9204	●	●	●
100	BOLT; BRKT FRAME M8X20 W/LK WASHER	0-50040-820-0	06	1	9205-9301	●	●	●
100	BOLT; BRKT FRAME M8X20 W/LK WASHER	0-50040-820-0	06	1	9302-9302	●
100	BOLT; BRKT FRAME M8X20 FLANGE	0-28080-820-0	06	1	9303-9306	●
100	BOLT; BRKT FRAME EXC. ANTI NOISE EQUIPMENT<SV9> M8X20 FLANGE	0-28080-820-0	06	1	9307-9312	●	●	●
100	BOLT; BRKT FRAME EXC. ANTI NOISE EQUIPMENT<SV9> M8X25 FLANGE	0-28080-825-0	06	1	9401-	●	●	●
100	BOLT; BRKT FRAME M8X25 FLANGE	0-28080-825-0	06	1	9302-9306		●	●
100	BOLT; BRKT FRAME FULLER M/T<X9B> M8X30 W/LK WASHER	9-01900-830-0	01	1	9010-9204		●	●
100	BOLT; BRKT FRAME FULLER M/T<X9B> M8X30 W/LK WASHER	0-50040-830-0	01	1	9205-9302		●	●
100	BOLT; BRKT FRAME FULLER M/T<X9B> M8X30 FLANGE	0-28080-830-0	01	1	9303-9306		●	●
100	BOLT; BRKT FRAME 6RB1 STD ENG(07L) FULLER M/T<X9B> M8X30 FLANGE	0-28080-830-0	01	1	9307-		●	●
101	NUT; BRKT FRAME FULLER M/T<X9B> M8	9-09110-408-0	01	1	9010-9306		●	●
101	NUT; BRKT FRAME 6RB1 STD ENG(07L) FULLER M/T<X9B> M8	9-09110-408-0	01	1	9307-		●	●
104	CLIP; SHAFT,FRAME ANTI NOISE EQUIPMENT<SV9> (A) ID=24 L=32	1-09700-766-1	03	1	9312-	●
104	CLIP; SHAFT,FRAME ANTI NOISE EQUIPMENT<SV9> V TYPE ENG<91L> (A) ID=24 L=32	1-09700-766-1	03	1	9312-		●	●
104	CLIP; SHAFT,FRAME (D) ID=11 L=41	1-09700-403-0	01	1	9002-9009	●	●	●
104	CLIP; SHAFT,FRAME ISUZU M/T<X9A> (D) ID=11 L=41	1-09700-403-0	01	1	9010-9306	●	●	●
104	CLIP; SHAFT,FRAME ANTI NOISE EQUIPMENT<SV9> (B) ID=10.5 & 14.5 L=21	1-09701-084-0	02	1	9307-9311	●	●	●
104	CLIP; SHAFT,FRAME 10PD1 STD ENG(40L),12PD1 C ENG(43L) PARKING BRAKE TRANSMISSION REAR(PJ8) (B) ID=10.5 & 14.5 L=21	1-09701-084-0	02	1	9307-9311	●	●	●
104	CLIP; SHAFT,FRAME 10PD1 STD ENG(40L) FULLER M/T<X9B> (B) ID=10.5 & 14.5 L=21	1-09701-084-0	02	1	9307-9311		●	●
104	CLIP; SHAFT,FRAME ANTI NOISE EQUIPMENT<SV9> (B) ID=10.5 & 14.5 L=21	1-09701-084-0	01	1	9312-	●
104	CLIP; SHAFT,FRAME ANTI NOISE EQUIPMENT<SV9> V TYPE ENG<91L> (B) ID=10.5 & 14.5 L=21	1-09701-084-0	01	1	9312-		●	●
104	CLIP; SHAFT,FRAME ISUZU M/T<X9A> (D) ID=11 L=41	1-09700-403-0	01	1	9307-	●	●	●
104	CLIP; SHAFT,FRAME TAIWAN EQUIPMENT(WW5) (C)	1-09700-962-0	01	1	9307-	●	●	●
104	CLIP; SHAFT,FRAME V TYPE ENG<91L> EXC. ANTI NOISE EQUIPMENT<SV9> (A) ID=11 L=16	9-09525-025-0	01	1	9307-	●	●	●
104	CLIP; SHAFT,FRAME L TYPE ENG<90L> (A) ID=11 L=16	9-09525-025-0	01	1	9307-		●	●
104	CLIP; SHAFT,FRAME 10PD1 STD ENG(40L) ISUZU M/T<X9A> EXC. PARKING BRAKE TRANSMISSION REAR(PJ8) (A) ID=11 L=16	9-09525-026-0	01	1	9002-9009	●	●	●
104	CLIP; SHAFT,FRAME PARKING BRAKE TRANSMISSION REAR(PJ8) (A) ID=11 L=16	9-09525-026-0	01	1	9002-9009		●	●
104	CLIP; SHAFT,FRAME 10PD1 STD ENG(40L) ISUZU M/T<X9A> EXC. PARKING BRAKE TRANSMISSION REAR(PJ8) (A) ID=11 L=16	9-09525-026-0	01	1	9010-9306	●	●	●
104	CLIP; SHAFT,FRAME PARKING BRAKE TRANSMISSION REAR(PJ8) (A) ID=11 L=16	9-09525-026-0	01	1	9010-9306		●	●
104	CLIP; SHAFT,FRAME FULLER M/T<X9B> (A) ID=11 L=16	9-09525-026-0	01	1	9010-9306		●	●
104	CLIP; SHAFT,FRAME 10PD1 STD ENG(40L) PARKING BRAKE TRANSMISSION REAR(PJ8) (B) ID=10.5 & 14.5 L=21	1-09701-084-0	02	1	9002-9306	●	●	●
104	CLIP; SHAFT,FRAME 10PD1 STD ENG(40L) FULLER M/T<X9B> (B) ID=10.5 & 14.5 L=21	1-09701-084-0	02	1	9002-9306		●	●
104	CLIP; SHAFT,FRAME ISUZU M/T<X9A> V TYPE ENG<91L> EXC. PARKING BRAKE TRANSMISSION REAR(PJ8) (A) ID=11X2 L=16	9-09535-025-0	02	1	9307-9501		●	●
104	CLIP; SHAFT,FRAME BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ANTI NOISE EQUIPMENT<SV9> V TYPE ENG<91L> (A) ID=11X2 L=16	9-09535-025-0	02	1	9307-9501		●	●
104	CLIP; SHAFT,FRAME 10PD1 STD ENG(40L) ISUZU M/T<X9A> EXC. PARKING BRAKE TRANSMISSION REAR(PJ8) (A) ID=11X2 L=16	9-09535-025-0	02	1	9502-		●	●
104	CLIP; SHAFT,FRAME PARKING BRAKE TRANSMISSION REAR(PJ8) V TYPE ENG<91L> EXC. ANTI NOISE EQUIPMENT<SV9> (B) ID=10.5 & 14.5 L=21	1-09701-084-0	02	1	9312-		●	●
104	CLIP; SHAFT,FRAME FULLER M/T<X9B> V TYPE ENG<91L> (B) ID=10.5 & 14.5 L=21	1-09701-084-0	02	1	9312-		●	●
104	CLIP; SHAFT,FRAME 10PD1 STD ENG(40L) FULLER M/T<X9B> (A) ID=10.5 & 14.5 L=20	1-09701-085-0	01	1	9002-9306		●	●
104	CLIP; SHAFT,FRAME 10PD1 STD ENG(40L) ISUZU M/T<X9A> EXC. PARKING BRAKE TRANSMISSION REAR(PJ8) (A) ID=11X2 L=16	9-09535-026-0	02	1	9002-9306		●	●
104	CLIP; SHAFT,FRAME 6RB1 STD ENG(07L) FULLER M/T<X9B> (A) ID=10.5 & 14.5 L=20	1-09701-085-0	03	1	9002-		●	●
104	CLIP; SHAFT,FRAME 6RB1 STD ENG(07L) ISUZU M/T<X9A> EXC. PARKING BRAKE TRANSMISSION REAR(PJ8) (A) ID=11 L=16	9-09525-026-0	03	1	9002-9306		●	●
104	CLIP; SHAFT,FRAME 6RB1 STD ENG(07L) ISUZU M/T<X9A> EXC. PARKING BRAKE TRANSMISSION REAR(PJ8) (A) ID=11 L=16	9-09525-025-0	02	1	9307-		●	●
104	CLIP; SHAFT,FRAME 6RB1 STD ENG(07L) PARKING BRAKE TRANSMISSION REAR(PJ8) (B) ID=10.5 & 14.5 L=20	1-09701-085-0	02	1	9002-		●	●
105	NUT; CLIP M8	9-09110-408-0	04	1	9002-9306	●	●	●
105	NUT; CLIP ANTI NOISE EQUIPMENT<SV9> M8	9-09110-408-0	02	1	9307-9311	●	●	●
105	NUT; CLIP M8	9-09110-408-0	02	1	9307-9311	●
105	NUT; CLIP V TYPE ENG<91L> M8	9-09110-408-0	02	1	9307-9311		●	●
105	NUT; CLIP TAIWAN EQUIPMENT(WW5) M8	9-09110-408-0	03	1	9312-	●	●	●
105	NUT; CLIP 10PD1 STD ENG(40L) M8	9-09110-408-0	02	1	9002-9306	●	●	●
105	NUT; CLIP 10PD1 STD ENG(40L),12PD1 C ENG(43L) M8	9-09110-408-0	02	1	9312-	●	●	●
105	NUT; CLIP FULLER M/T<X9B> M8	9-09110-408-0	01	1	9010-9306		●	●
105	NUT; CLIP M8	9-09110-408-0	04	1	9307-	●	●	●
105	NUT; CLIP 6RB1 STD ENG(07L) FULLER M/T<X9B> M8	9-09110-408-0	01	1	9307-9307		●	●
105	NUT; CLIP FULLER M/T<X9B> L TYPE ENG<90L> M8	9-09110-408-0	01	1	9308-		●	●
105	NUT; CLIP 10PD1 STD ENG(40L) FIRE ENGINE PACKAGE<WS2> M8	9-09110-408-0	01	1	9308-			●
106	CLIP; SPEEDOMETER CABLE 12PD1 C ENG(43L) (B) ID=11 L=28	9-09525-055-0	01	1	9307-		●
106	CLIP; SPEEDOMETER CABLE 10PD1 STD ENG(40L) FULLER M/T<X9B> (A) ID=13.5 & 11	1-09709-123-0	01	1	9002-		●	●
106	CLIP; SPEEDOMETER CABLE 10PD1 STD ENG(40L) FULLER M/T<X9B> (C) ID=13.5 & 9.5 & 11	1-09709-124-0	02	1	9307-		●	●
106	CLIP; SPEEDOMETER CABLE 6RB1 STD ENG(07L) FULLER M/T<X9B> (A) ID=13.5 & 11	1-09709-123-0	03	1	9002-		●	●
119	NUT; BRKT M8	9-09110-408-0	02	1	9002-9306	●	●	●
119	NUT; BRKT EXC. ANTI NOISE EQUIPMENT<SV9> M8	9-09110-408-0	02	1	9307-9310	●	●	●
119	NUT; BRKT M8	9-09110-408-0	02	1	9311-	●	●	●
144	BOLT; CLIP SHAFT M8X20 W/LK WASHER	9-01900-820-0	02	1	9002-9007	●	●	●
144	BOLT; CLIP SHAFT 10PD1 STD ENG(40L) M8X20 W/LK WASHER	9-01900-820-0	02	1	9002-9007	●	●	●
144	BOLT; CLIP SHAFT 10PD1 STD ENG(40L) M8X20 W/LK WASHER	9-01900-820-0	01	1	9008-9204	●	●	●
144	BOLT; CLIP SHAFT 10PD1 STD ENG(40L) M8X20 W/LK WASHER	0-50040-820-0	01	1	9205-9302	●	●	●
144	BOLT; CLIP SHAFT M8X20 W/LK WASHER	9-01900-820-0	02	1	9008-9204	●	●	●
144	BOLT; CLIP SHAFT M8X20 W/LK WASHER	0-50040-820-0	02	1	9205-9302	●	●	●
144	BOLT; CLIP SHAFT 10PD1 STD ENG(40L) M8X20 FLANGE	0-28080-820-0	01	1	9303-	●	●	●
144	BOLT; CLIP SHAFT M8X20 FLANGE	0-28080-820-0	02	1	9303-	●	●	●
164	COVER; GROMMET	1-73997-758-0	01	1	9002-	●	●	●

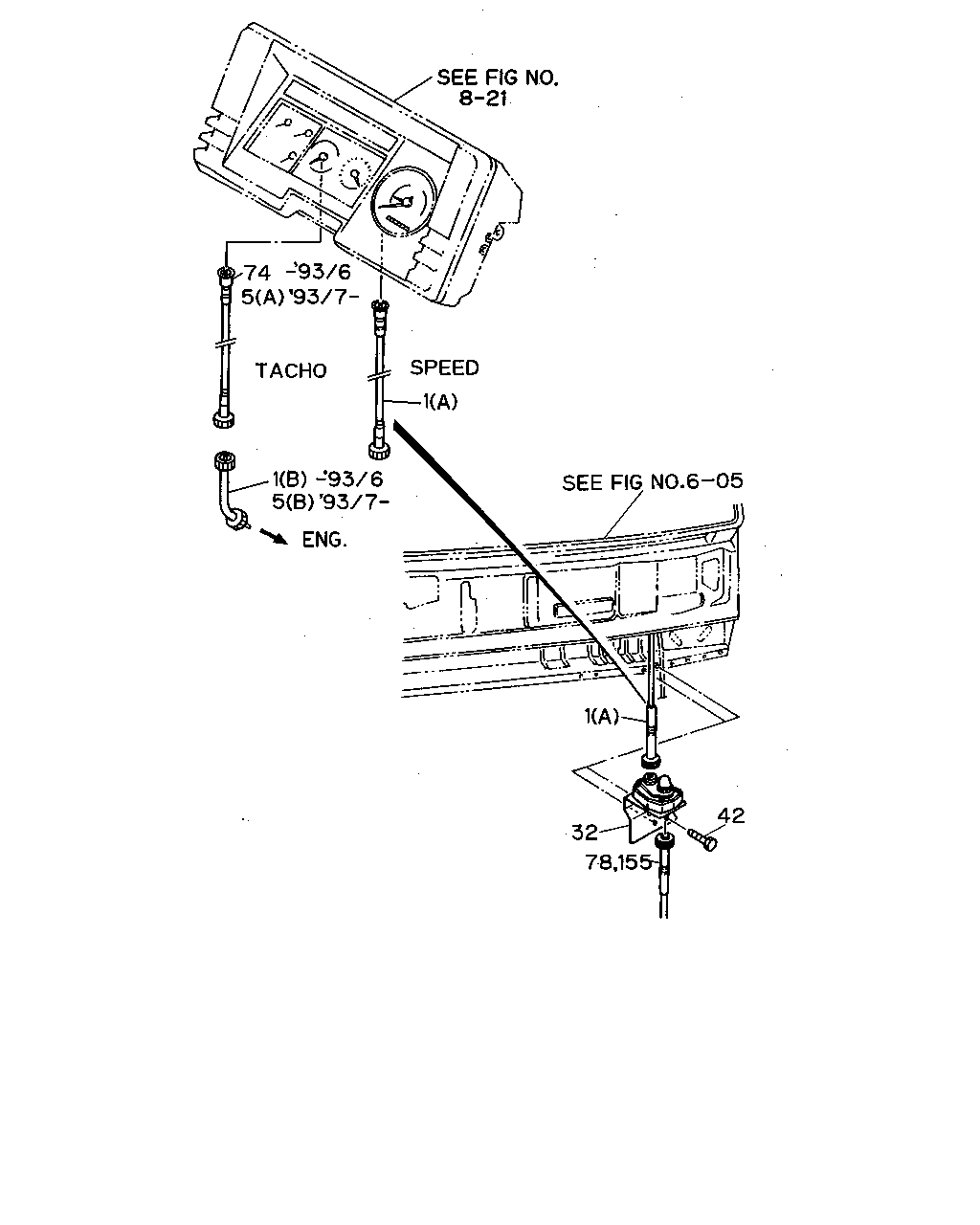

74 5 1 1 5 1 32 78 155 42

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	SHAFT; FLEX,SPD TO CONN TACHOGRAPH 120KM/H<SM8>,TACHOGRAPH MILES/HOUR<UC5> (A) L=1960	1-83123-654-0	01	1	9002-9306	●	●	●
1	SHAFT; FLEX,SPD TO CONN EXC. TACHOGRAPH 120KM/H<SM8>,TACHOGRAPH MILES/HOUR<UC5> (A) L=2020	1-83123-653-0	01	1	9002-9306	●	●	●
1	SHAFT; FLEX,SPD TO CONN 10PD1 STD ENG(40L) (B) L=3230	1-83123-666-0	01	1	9002-9306	●	●	●
1	SHAFT; FLEX,SPD TO CONN 10PD1 STD ENG(40L) ANTI NOISE EQUIPMENT<SV9> MJA7 M/T<X9Q> EXC. TACHOGRAPH 120KM/H<SM8> (A) L=4950	1-83123-624-1	01	1	9307-	●	●	●
1	SHAFT; FLEX,SPD TO CONN MAF6Q M/T(X3U),MJA6A M/T(X6V),RTX11609B M/T FULLER(X8W) TACHOGRAPH 120KM/H<SM8> L TYPE ENG<90L> (A) L=4950	1-83123-624-1	01	1	9307-		●	●
1	SHAFT; FLEX,SPD TO CONN 10PD1 STD ENG(40L) MJA7 M/T<X9Q> EXC. TACHOGRAPH 120KM/H<SM8>,ANTI NOISE EQUIPMENT<SV9> (A) L=4900	1-83123-613-1	01	1	9307-	●	●	●
1	SHAFT; FLEX,SPD TO CONN 10PD1 STD ENG(40L) MAG6 M/T<X9T> MIXER TRUCK<RA2> EXC. TACHOGRAPH 120KM/H<SM8> (A) L=4900	1-83123-613-1	01	1	9307-		●
1	SHAFT; FLEX,SPD TO CONN 10PD1 STD ENG(40L) TACHOGRAPH 120KM/H<SM8> ANTI NOISE EQUIPMENT<SV9> MJA7 M/T<X9Q> (A) L=4900	1-83124-130-0	01	1	9307-	●	●	●
1	SHAFT; FLEX,SPD TO CONN 10PD1 STD ENG(40L) TACHOGRAPH 120KM/H<SM8> MJA7 M/T<X9Q> EXC. ANTI NOISE EQUIPMENT<SV9> (A) L=4850	1-83123-614-1	01	1	9307-	●	●	●
1	SHAFT; FLEX,SPD TO CONN 10PD1 STD ENG(40L) MAG6 M/T<X9T> MIXER TRUCK<RA2> TACHOGRAPH 120KM/H<SM8> (A) L=4850	1-83123-614-1	01	1	9307-		●
1	SHAFT; FLEX,SPD TO CONN 12PD1 C ENG(43L) TACHOGRAPH 120KM/H<SM8> (A) L=5000	1-83123-577-1	01	1	9307-		●
1	SHAFT; FLEX,SPD TO CONN MAF5 M/T<X9P> L TYPE ENG<90L> EXC. FIRE TRUCK<RA9>,TACHOGRAPH 120KM/H<SM8> (A) L=4900	1-83123-625-1	01	1	9307-		●	●
1	SHAFT; FLEX,SPD TO CONN MAF6Q M/T(X3U),MJA6A M/T(X6V),RTX11609B M/T FULLER(X8W) L TYPE ENG<90L> EXC. TACHOGRAPH 120KM/H<SM8> (A) L=5000	1-83123-623-1	01	1	9307-		●	●
1	SHAFT; FLEX,SPD TO CONN 10PD1 STD ENG(40L) MAG6 M/T<X9T> EXC. MIXER TRUCK<RA2>,TACHOGRAPH 120KM/H<SM8> (A) L=4850	1-83123-626-1	01	1	9307-		●	●
1	SHAFT; FLEX,SPD TO CONN 10PD1 STD ENG(40L) MJA6 M/T<X9S>,MAF6 M/T<X9V> EXC. TACHOGRAPH 120KM/H<SM8> (A) L=4800	1-83123-609-1	01	1	9307-		●	●
1	SHAFT; FLEX,SPD TO CONN TACHOGRAPH 120KM/H<SM8> MAF5 M/T<X9P> L TYPE ENG<90L> EXC. FIRE TRUCK<RA9> (A) L=4800	1-83123-609-1	01	1	9307-		●	●
1	SHAFT; FLEX,SPD TO CONN 10PD1 STD ENG(40L) TACHOGRAPH 120KM/H<SM8> MAG6 M/T<X9T> EXC. MIXER TRUCK<RA2> (A) L=4800	1-83123-608-1	01	1	9307-		●	●
1	SHAFT; FLEX,SPD TO CONN 10PD1 STD ENG(40L) TACHOGRAPH 120KM/H<SM8> MJA6 M/T<X9S>,MAF6 M/T<X9V> (A) L=4750	1-83123-610-1	01	1	9307-		●	●
1	SHAFT; FLEX,SPD TO CONN 6RB1 STD ENG(07L) (B) L=1300	1-83123-665-1	01	1	9002-9306		●	●
1	SHAFT; FLEX,SPD TO CONN 6RB1 STD ENG(07L) MJA7 M/T<X9Q> TACHOGRAPH 120KM/H<SM8> (A) L=5050	1-83123-576-1	01	1	9307-		●	●
1	SHAFT; FLEX,SPD TO CONN 12PD1 C ENG(43L) EXC. TACHOGRAPH 120KM/H<SM8> (A) L=5050	1-83123-576-1	01	1	9307-		●
1	SHAFT; FLEX,SPD TO CONN 6RB1 STD ENG(07L) MJA7 M/T<X9Q> EXC. TACHOGRAPH 120KM/H<SM8> (A) L=5100	1-83123-595-1	01	1	9307-		●	●
1	SHAFT; FLEX,SPD TO CONN 10PD1 STD ENG(40L) MAG5P M/T(X7R) TACHOGRAPH 120KM/H<SM8> (A) L=4950	1-83123-590-1	01	1	9307-			●
1	SHAFT; FLEX,SPD TO CONN 6RB1 STD ENG(07L) MAF5 M/T<X9P> FIRE TRUCK<RA9> TACHOGRAPH 120KM/H<SM8> (A) L=5000	1-83123-589-1	01	1	9307-			●
1	SHAFT; FLEX,SPD TO CONN 10PD1 STD ENG(40L) MAG5P M/T(X7R) EXC. TACHOGRAPH 120KM/H<SM8> (A) L=5000	1-83123-589-1	01	1	9307-			●
1	SHAFT; FLEX,SPD TO CONN 6RB1 STD ENG(07L) MAF5 M/T<X9P> FIRE TRUCK<RA9> EXC. TACHOGRAPH 120KM/H<SM8> (A) L=5050	1-83123-596-1	01	1	9307-			●
5	SHAFT; FLEX,TACHOMETER TO ENG ANTI NOISE EQUIPMENT<SV9> (A) L=5400	1-83123-542-4	01	1	9307-	●
5	SHAFT; FLEX,TACHOMETER TO ENG 10PD1 STD ENG(40L) ANTI NOISE EQUIPMENT<SV9> (A) L=5400	1-83123-542-4	01	1	9307-		●	●
5	SHAFT; FLEX,TACHOMETER TO ENG EXC. ANTI NOISE EQUIPMENT<SV9> (A) L=5300	1-83123-521-2	01	1	9307-	●
5	SHAFT; FLEX,TACHOMETER TO ENG 10PD1 STD ENG(40L) EXC. ANTI NOISE EQUIPMENT<SV9> (A) L=5300	1-83123-521-2	01	1	9307-		●	●
5	SHAFT; FLEX,TACHOMETER TO ENG 10PD1 STD ENG(40L),12PD1 C ENG(43L) (B) L=200	1-83123-450-1	01	1	9002-	●	●	●
5	SHAFT; FLEX,TACHOMETER TO ENG 12PD1 C ENG(43L) (A) L=5550	1-83123-523-4	01	1	9307-		●
5	SHAFT; FLEX,TACHOMETER TO ENG 6RB1 STD ENG(07L) (A) L=3400	1-83123-641-1	01	1	9307-		●	●
32	BOX; GEAR,FLEX SHAFT FINAL GEAR 39/7 17.5"(W3Z) FULLER M/T<X9B> RR TIRE 10.00R20<87X>,RR TIRE 10.00-20<96X>	1-83126-177-0	01	1	9002-		●	●
32	BOX; GEAR,FLEX SHAFT FINAL GEAR 39/7 17.5"(W3Z) FULLER M/T<X9B> RR TIRE 11.00R20<85X>,RR TIRE 11.00-20<97X>	1-83126-109-0	01	1	9002-		●	●
32	BOX; GEAR,FLEX SHAFT FINAL GEAR 39/8 17.5"(W4B) FULLER M/T<X9B>	1-83126-107-0	01	1	9002-9601		●	●
32	BOX; GEAR,FLEX SHAFT FINAL GEAR 39/8 17.5"(W4B) FULLER M/T<X9B> RR TIRE 10.00R20<87X>,RR TIRE 10.00-20<96X>	1-83126-110-0	01	1	9602-		●	●
32	BOX; GEAR,FLEX SHAFT FINAL GEAR 39/8 17.5"(W4B) FULLER M/T<X9B> RR TIRE 11.00-20<97X>	1-83126-286-0	01	1	9602-		●	●
32	BOX; GEAR,FLEX SHAFT FINAL GEAR 43/7 17.5"(W3Y) FULLER M/T<X9B> RR TIRE 11.00R20<85X>,RR TIRE 10.00R20<87X>,RR TIRE 10.00-20<96X>,RR TIRE 11.00-20<97X>	1-83126-111-0	01	1	9002-		●	●
42	BOLT; BRKT M8X25 W/LK WASHER	9-01900-825-0	02	1	9002-9204	●	●	●
42	BOLT; BRKT 6RB1 STD ENG(07L) M8X25 W/LK WASHER	9-01900-825-0	02	1	9002-9204		●	●
42	BOLT; BRKT M8X25 W/LK WASHER	0-50040-825-0	02	1	9205-9302	●	●	●
42	BOLT; BRKT 6RB1 STD ENG(07L) M8X25 W/LK WASHER	0-50040-825-0	02	1	9205-9302		●	●
42	BOLT; BRKT M8X25 FLANGE	0-28080-825-0	02	1	9303-	●	●	●
42	BOLT; BRKT 6RB1 STD ENG(07L) M8X25 FLANGE	0-28080-825-0	02	1	9303-		●	●
74	SHAFT; FLEX,METER TO CONN L=2110	1-83123-657-0	01	1	9002-9306	●	●	●
78	SHAFT; FLEX,ENG TO PICKUP 10PD1 STD ENG(40L) FIRE ENGINE PACKAGE<WS2> EXC. TACHOGRAPH 120KM/H<SM8> L=4900	1-83123-613-1	01	1	9307-			●
78	SHAFT; FLEX,ENG TO PICKUP 10PD1 STD ENG(40L) FIRE ENGINE PACKAGE<WS2> EXC. TACHOGRAPH 120KM/H<SM8>,TACHOGRAPH MILES/HOUR<UC5> L=4900	1-83123-613-1	01	1	9002-9306			●
78	SHAFT; FLEX,ENG TO PICKUP 10PD1 STD ENG(40L) TACHOGRAPH 120KM/H<SM8> FIRE ENGINE PACKAGE<WS2> L=4850	1-83123-614-1	01	1	9307-			●
78	SHAFT; FLEX,ENG TO PICKUP 10PD1 STD ENG(40L) TACHOGRAPH 120KM/H<SM8>,TACHOGRAPH MILES/HOUR<UC5> FIRE ENGINE PACKAGE<WS2> L=4850	1-83123-614-1	01	1	9002-9306			●
78	SHAFT; FLEX,ENG TO PICKUP 6RB1 STD ENG(07L) FIRE ENGINE PACKAGE<WS2> EXC. TACHOGRAPH 120KM/H<SM8> L=5100	1-83123-595-1	01	1	9307-			●
78	SHAFT; FLEX,ENG TO PICKUP 6RB1 STD ENG(07L) FIRE ENGINE PACKAGE<WS2> EXC. TACHOGRAPH 120KM/H<SM8>,TACHOGRAPH MILES/HOUR<UC5> L=5100	1-83123-595-1	01	1	9002-9306			●
78	SHAFT; FLEX,ENG TO PICKUP 6RB1 STD ENG(07L) TACHOGRAPH 120KM/H<SM8> FIRE ENGINE PACKAGE<WS2> L=5050	1-83123-596-1	01	1	9307-			●
78	SHAFT; FLEX,ENG TO PICKUP 6RB1 STD ENG(07L) TACHOGRAPH 120KM/H<SM8>,TACHOGRAPH MILES/HOUR<UC5> FIRE ENGINE PACKAGE<WS2> L=5050	1-83123-596-1	01	1	9002-9306			●
155	SHAFT; FLEX,CONN TO TRANS 10PD1 STD ENG(40L) MJA7 M/T<X9Q> L=2960	1-83123-777-0	01	1	9002-9306	●	●	●
155	SHAFT; FLEX,CONN TO TRANS 10PD1 STD ENG(40L) MJA6 M/T<X9S>,MAF6 M/T<X9V> L=2870	1-83123-662-0	01	1	9002-9306		●	●
155	SHAFT; FLEX,CONN TO TRANS 10PD1 STD ENG(40L) RTO11613 M/T FULLER(MV6) FINAL GEAR 39/8 17.5"(W4B) RR TIRE 11.00R20<85X>,RR TIRE 10.00R20<87X>,RR TIRE 10.00-20<96X> L=2960	1-83123-671-0	01	1	9002-9306		●	●
155	SHAFT; FLEX,CONN TO TRANS 10PD1 STD ENG(40L) RTO11613 M/T FULLER(MV6) FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) L=2910	1-83123-664-0	01	1	9002-9306		●	●
155	SHAFT; FLEX,CONN TO TRANS 10PD1 STD ENG(40L) RTO11613 M/T FULLER(MV6) FINAL GEAR 39/8 17.5"(W4B) RR TIRE 11.00-20<97X> L=2910	1-83123-664-0	01	1	9002-9306		●	●
155	SHAFT; FLEX,CONN TO TRANS 10PD1 STD ENG(40L) MAG6 M/T<X9T> L=2910	1-83123-664-0	01	1	9002-9306		●	●
155	SHAFT; FLEX,CONN TO TRANS 10PD1 STD ENG(40L) RT11609A M/T FULLER(PQ4),RTO11609B M/T FULLER(X4Z) FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) L=2810	1-83123-663-0	01	1	9002-9306		●	●
155	SHAFT; FLEX,CONN TO TRANS 10PD1 STD ENG(40L) RT11609A M/T FULLER(PQ4),RTO11609B M/T FULLER(X4Z) FINAL GEAR 39/8 17.5"(W4B) RR TIRE 11.00-20<97X> L=2810	1-83123-663-0	01	1	9002-9306		●	●
155	SHAFT; FLEX,CONN TO TRANS 10PD1 STD ENG(40L) MAF5 M/T<X9P> L=2810	1-83123-663-0	01	1	9002-9306		●	●
155	SHAFT; FLEX,CONN TO TRANS 10PD1 STD ENG(40L) RT11609A M/T FULLER(PQ4),RTO11609B M/T FULLER(X4Z) FINAL GEAR 39/8 17.5"(W4B) RR TIRE 11.00R20<85X>,RR TIRE 10.00R20<87X>,RR TIRE 10.00-20<96X> L=2860	1-83123-670-0	01	1	9002-9306		●	●
155	SHAFT; FLEX,CONN TO TRANS 6RB1 STD ENG(07L) MJA6 M/T<X9S>,MAF6 M/T<X9V> L=3060	1-83123-659-0	01	1	9002-9306		●	●
155	SHAFT; FLEX,CONN TO TRANS 6RB1 STD ENG(07L) MAF5 M/T<X9P> MIXER TRUCK<RA2> L=3060	1-83123-659-0	01	1	9002-9306		●
155	SHAFT; FLEX,CONN TO TRANS 6RB1 STD ENG(07L) MJA7 M/T<X9Q> L=3180	1-83123-854-0	01	1	9002-9306		●	●
155	SHAFT; FLEX,CONN TO TRANS 6RB1 STD ENG(07L) RTO11613 M/T FULLER(MV6) FINAL GEAR 39/8 17.5"(W4B) RR TIRE 11.00R20<85X>,RR TIRE 10.00R20<87X>,RR TIRE 10.00-20<96X> L=3160	1-83123-669-0	01	1	9002-9306		●	●
155	SHAFT; FLEX,CONN TO TRANS 6RB1 STD ENG(07L) RTO11613 M/T FULLER(MV6) FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) L=3110	1-83123-661-0	01	1	9002-9306		●	●
155	SHAFT; FLEX,CONN TO TRANS 6RB1 STD ENG(07L) RTO11613 M/T FULLER(MV6) FINAL GEAR 39/8 17.5"(W4B) RR TIRE 11.00-20<97X> L=3110	1-83123-661-0	01	1	9002-9306		●	●
155	SHAFT; FLEX,CONN TO TRANS 6RB1 STD ENG(07L) RT11609A M/T FULLER(PQ4),RTO11609B M/T FULLER(X4Z),RTX11609B M/T FULLER(X8W) FINAL GEAR 39/8 17.5"(W4B) RR TIRE 11.00-20<97X> L=3010	1-83123-660-0	01	1	9002-9306		●	●
155	SHAFT; FLEX,CONN TO TRANS 6RB1 STD ENG(07L) RT11609A M/T FULLER(PQ4),RTO11609B M/T FULLER(X4Z),RTX11609B M/T FULLER(X8W) FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) L=3010	1-83123-660-0	01	1	9002-9306		●	●
155	SHAFT; FLEX,CONN TO TRANS 6RB1 STD ENG(07L) MAF5 M/T<X9P> EXC. MIXER TRUCK<RA2> L=3010	1-83123-660-0	01	1	9002-9306		●	●
155	SHAFT; FLEX,CONN TO TRANS 6RB1 STD ENG(07L) RT11609A M/T FULLER(PQ4),RTO11609B M/T FULLER(X4Z),RTX11609B M/T FULLER(X8W) FINAL GEAR 39/8 17.5"(W4B) RR TIRE 11.00R20<85X>,RR TIRE 10.00R20<87X>,RR TIRE 10.00-20<96X> L=3060	1-83123-668-0	01	1	9002-9306		●	●

74 5 78 155 74 5 78 155 74 5 78 155

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
5	SHAFT; FLEX,TACHOMETER TO ENG ANTI NOISE EQUIPMENT<SV9> (A) L=5400	1-83123-542-4	01	1	9307-	●
5	SHAFT; FLEX,TACHOMETER TO ENG 10PD1 STD ENG(40L) ANTI NOISE EQUIPMENT<SV9> (A) L=5400	1-83123-542-4	01	1	9307-		●	●
5	SHAFT; FLEX,TACHOMETER TO ENG EXC. ANTI NOISE EQUIPMENT<SV9> (A) L=5300	1-83123-521-2	01	1	9307-	●
5	SHAFT; FLEX,TACHOMETER TO ENG 10PD1 STD ENG(40L) EXC. ANTI NOISE EQUIPMENT<SV9> (A) L=5300	1-83123-521-2	01	1	9307-		●	●
5	SHAFT; FLEX,TACHOMETER TO ENG 10PD1 STD ENG(40L),12PD1 C ENG(43L) (B) L=200	1-83123-450-1	01	1	9002-	●	●	●
5	SHAFT; FLEX,TACHOMETER TO ENG 12PD1 C ENG(43L) (A) L=5550	1-83123-523-4	01	1	9307-		●
5	SHAFT; FLEX,TACHOMETER TO ENG 6RB1 STD ENG(07L) (A) L=3400	1-83123-641-1	01	1	9307-		●	●
74	SHAFT; FLEX,METER TO CONN L=2110	1-83123-657-0	01	1	9002-9306	●	●	●
78	SHAFT; FLEX,ENG TO PICKUP 10PD1 STD ENG(40L) FIRE ENGINE PACKAGE<WS2> EXC. TACHOGRAPH 120KM/H<SM8> L=4900	1-83123-613-1	01	1	9307-			●
78	SHAFT; FLEX,ENG TO PICKUP 10PD1 STD ENG(40L) FIRE ENGINE PACKAGE<WS2> EXC. TACHOGRAPH 120KM/H<SM8>,TACHOGRAPH MILES/HOUR<UC5> L=4900	1-83123-613-1	01	1	9002-9306			●
78	SHAFT; FLEX,ENG TO PICKUP 10PD1 STD ENG(40L) TACHOGRAPH 120KM/H<SM8> FIRE ENGINE PACKAGE<WS2> L=4850	1-83123-614-1	01	1	9307-			●
78	SHAFT; FLEX,ENG TO PICKUP 10PD1 STD ENG(40L) TACHOGRAPH 120KM/H<SM8>,TACHOGRAPH MILES/HOUR<UC5> FIRE ENGINE PACKAGE<WS2> L=4850	1-83123-614-1	01	1	9002-9306			●
78	SHAFT; FLEX,ENG TO PICKUP 6RB1 STD ENG(07L) FIRE ENGINE PACKAGE<WS2> EXC. TACHOGRAPH 120KM/H<SM8> L=5100	1-83123-595-1	01	1	9307-			●
78	SHAFT; FLEX,ENG TO PICKUP 6RB1 STD ENG(07L) FIRE ENGINE PACKAGE<WS2> EXC. TACHOGRAPH 120KM/H<SM8>,TACHOGRAPH MILES/HOUR<UC5> L=5100	1-83123-595-1	01	1	9002-9306			●
78	SHAFT; FLEX,ENG TO PICKUP 6RB1 STD ENG(07L) TACHOGRAPH 120KM/H<SM8> FIRE ENGINE PACKAGE<WS2> L=5050	1-83123-596-1	01	1	9307-			●
78	SHAFT; FLEX,ENG TO PICKUP 6RB1 STD ENG(07L) TACHOGRAPH 120KM/H<SM8>,TACHOGRAPH MILES/HOUR<UC5> FIRE ENGINE PACKAGE<WS2> L=5050	1-83123-596-1	01	1	9002-9306			●
155	SHAFT; FLEX,CONN TO TRANS 10PD1 STD ENG(40L) MJA7 M/T<X9Q> L=2960	1-83123-777-0	01	1	9002-9306	●	●	●
155	SHAFT; FLEX,CONN TO TRANS 10PD1 STD ENG(40L) MJA6 M/T<X9S>,MAF6 M/T<X9V> L=2870	1-83123-662-0	01	1	9002-9306		●	●
155	SHAFT; FLEX,CONN TO TRANS 10PD1 STD ENG(40L) RTO11613 M/T FULLER(MV6) FINAL GEAR 39/8 17.5"(W4B) RR TIRE 11.00R20<85X>,RR TIRE 10.00R20<87X>,RR TIRE 10.00-20<96X> L=2960	1-83123-671-0	01	1	9002-9306		●	●
155	SHAFT; FLEX,CONN TO TRANS 10PD1 STD ENG(40L) RTO11613 M/T FULLER(MV6) FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) L=2910	1-83123-664-0	01	1	9002-9306		●	●
155	SHAFT; FLEX,CONN TO TRANS 10PD1 STD ENG(40L) RTO11613 M/T FULLER(MV6) FINAL GEAR 39/8 17.5"(W4B) RR TIRE 11.00-20<97X> L=2910	1-83123-664-0	01	1	9002-9306		●	●
155	SHAFT; FLEX,CONN TO TRANS 10PD1 STD ENG(40L) MAG6 M/T<X9T> L=2910	1-83123-664-0	01	1	9002-9306		●	●
155	SHAFT; FLEX,CONN TO TRANS 10PD1 STD ENG(40L) RT11609A M/T FULLER(PQ4),RTO11609B M/T FULLER(X4Z) FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) L=2810	1-83123-663-0	01	1	9002-9306		●	●
155	SHAFT; FLEX,CONN TO TRANS 10PD1 STD ENG(40L) RT11609A M/T FULLER(PQ4),RTO11609B M/T FULLER(X4Z) FINAL GEAR 39/8 17.5"(W4B) RR TIRE 11.00-20<97X> L=2810	1-83123-663-0	01	1	9002-9306		●	●
155	SHAFT; FLEX,CONN TO TRANS 10PD1 STD ENG(40L) MAF5 M/T<X9P> L=2810	1-83123-663-0	01	1	9002-9306		●	●
155	SHAFT; FLEX,CONN TO TRANS 10PD1 STD ENG(40L) RT11609A M/T FULLER(PQ4),RTO11609B M/T FULLER(X4Z) FINAL GEAR 39/8 17.5"(W4B) RR TIRE 11.00R20<85X>,RR TIRE 10.00R20<87X>,RR TIRE 10.00-20<96X> L=2860	1-83123-670-0	01	1	9002-9306		●	●
155	SHAFT; FLEX,CONN TO TRANS 6RB1 STD ENG(07L) MJA6 M/T<X9S>,MAF6 M/T<X9V> L=3060	1-83123-659-0	01	1	9002-9306		●	●
155	SHAFT; FLEX,CONN TO TRANS 6RB1 STD ENG(07L) MAF5 M/T<X9P> MIXER TRUCK<RA2> L=3060	1-83123-659-0	01	1	9002-9306		●
155	SHAFT; FLEX,CONN TO TRANS 6RB1 STD ENG(07L) MJA7 M/T<X9Q> L=3180	1-83123-854-0	01	1	9002-9306		●	●
155	SHAFT; FLEX,CONN TO TRANS 6RB1 STD ENG(07L) RTO11613 M/T FULLER(MV6) FINAL GEAR 39/8 17.5"(W4B) RR TIRE 11.00R20<85X>,RR TIRE 10.00R20<87X>,RR TIRE 10.00-20<96X> L=3160	1-83123-669-0	01	1	9002-9306		●	●
155	SHAFT; FLEX,CONN TO TRANS 6RB1 STD ENG(07L) RTO11613 M/T FULLER(MV6) FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) L=3110	1-83123-661-0	01	1	9002-9306		●	●
155	SHAFT; FLEX,CONN TO TRANS 6RB1 STD ENG(07L) RTO11613 M/T FULLER(MV6) FINAL GEAR 39/8 17.5"(W4B) RR TIRE 11.00-20<97X> L=3110	1-83123-661-0	01	1	9002-9306		●	●
155	SHAFT; FLEX,CONN TO TRANS 6RB1 STD ENG(07L) RT11609A M/T FULLER(PQ4),RTO11609B M/T FULLER(X4Z),RTX11609B M/T FULLER(X8W) FINAL GEAR 39/8 17.5"(W4B) RR TIRE 11.00-20<97X> L=3010	1-83123-660-0	01	1	9002-9306		●	●
155	SHAFT; FLEX,CONN TO TRANS 6RB1 STD ENG(07L) RT11609A M/T FULLER(PQ4),RTO11609B M/T FULLER(X4Z),RTX11609B M/T FULLER(X8W) FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) L=3010	1-83123-660-0	01	1	9002-9306		●	●
155	SHAFT; FLEX,CONN TO TRANS 6RB1 STD ENG(07L) MAF5 M/T<X9P> EXC. MIXER TRUCK<RA2> L=3010	1-83123-660-0	01	1	9002-9306		●	●
155	SHAFT; FLEX,CONN TO TRANS 6RB1 STD ENG(07L) RT11609A M/T FULLER(PQ4),RTO11609B M/T FULLER(X4Z),RTX11609B M/T FULLER(X8W) FINAL GEAR 39/8 17.5"(W4B) RR TIRE 11.00R20<85X>,RR TIRE 10.00R20<87X>,RR TIRE 10.00-20<96X> L=3060	1-83123-668-0	01	1	9002-9306		●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
