◀ 🏠 ▶ Isuzu WW ▶ BUSES ▶ LV ▶ 10948 - LV123/423-LHD ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-61 - BATTERY AND ENGINE ELECTRICAL PARTS ▶
0-61 — BATTERY AND ENGINE ELECTRICAL PARTS (#34527) — 143 parça

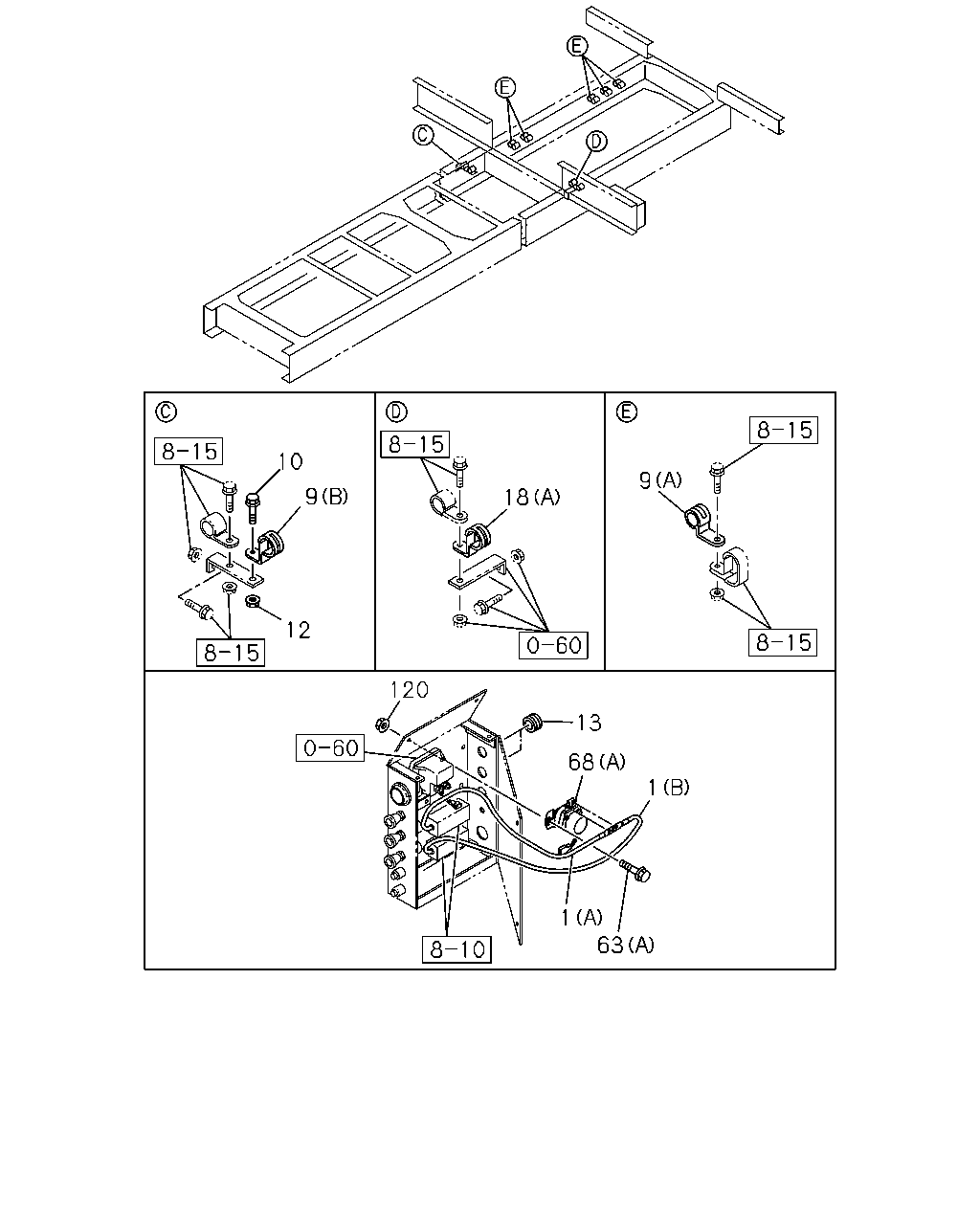

çizim 176790
10 9 9 18 12 120 13 68 1 1 63
BalonParca AdiParca NoAdetTipApplied Date
1 CABLE; BATTERY
ELECTRIC SWITCH BOX ENGINE ROOM<TEK> (A) L=350 		1-82650-275-1 01 1 0404-
1 CABLE; BATTERY
ELECTRIC SWITCH BOX ENGINE ROOM<TEK> (B) L=550 		1-82650-276-1 01 1 0404-
1 CABLE; BATTERY
ELECTRIC SWITCH BOX ENGINE ROOM<TEK> (C) L=4100 		1-82650-372-0 01 1 0404-
1 CABLE; BATTERY
(D) L=450 		1-82650-281-2 01 1 0404-0711
1 CABLE; BATTERY
(D) L=500 		8-97623-077-0 01 1 0712-
9 CLIP; BATTERY CABLE
RR ENG AIR SUSP(LVD0AA) ELECTRIC SWITCH BOX ENGINE ROOM<TEK> (A) ID=14.5 H=23 L=30 		1-09700-859-0 13 1 0404-
9 CLIP; BATTERY CABLE
RR ENG AIR SUSP(LVD0AA) (B) ID=20 H=23 L=27 		1-09700-861-0 02 1 0404-
9 CLIP; BATTERY CABLE
RR ENG LEAF SUSP(LVR0AA) ELECTRIC SWITCH BOX ENGINE ROOM<TEK> (A) ID=14.5 H=23 L=30 		1-09700-859-0 11 1 0404-
9 CLIP; BATTERY CABLE
RR ENG LEAF SUSP(LVR0AA) (B) ID=20 H=23 L=27 		1-09700-861-0 05 1 0404-
10 BOLT; BATTERY CABLE CLIP
RR ENG AIR SUSP(LVD0AA) M8X35 FLANGE 		0-28080-835-0 02 1 0404-0512
10 BOLT; BATTERY CABLE CLIP
RR ENG AIR SUSP(LVD0AA) M8X35 FLANGE 		0-28050-835-0 02 1 0601-
10 BOLT; BATTERY CABLE CLIP
M8X35 FLANGE 		0-28680-835-0 03 1 0404-0512
10 BOLT; BATTERY CABLE CLIP
RR ENG LEAF SUSP(LVR0AA) M8X35 FLANGE 		0-28680-835-0 03 1 0404-0512
10 BOLT; BATTERY CABLE CLIP
M8X35 FLANGE 		0-28650-835-0 03 1 0601-
10 BOLT; BATTERY CABLE CLIP
RR ENG LEAF SUSP(LVR0AA) M8X35 FLANGE 		0-28650-835-0 03 1 0601-
10 BOLT; BATTERY CABLE CLIP
RR ENG LEAF SUSP(LVR0AA) ELECTRIC SWITCH BOX ENGINE ROOM<TEK> M8X25 FLANGE 		0-28680-825-0 05 1 0404-0512
10 BOLT; BATTERY CABLE CLIP
RR ENG LEAF SUSP(LVR0AA) ELECTRIC SWITCH BOX ENGINE ROOM<TEK> M8X25 FLANGE 		0-28650-825-0 05 1 0601-
10 BOLT; BATTERY CABLE CLIP
RR ENG LEAF SUSP(LVR0AA) M8X25 FLANGE 		0-28680-825-0 01 1 0404-0512
10 BOLT; BATTERY CABLE CLIP
RR ENG LEAF SUSP(LVR0AA) M8X25 FLANGE 		0-28650-825-0 01 1 0601-
10 BOLT; BATTERY CABLE CLIP
RR ENG LEAF SUSP(LVR0AA) M8X30 FLANGE 		0-28680-830-0 01 1 0404-0512
10 BOLT; BATTERY CABLE CLIP
RR ENG LEAF SUSP(LVR0AA) M8X30 FLANGE 		0-28650-830-0 01 1 0601-
12 NUT; BATTERY CABLE CLIP
RR ENG AIR SUSP(LVD0AA) M8 FLANGE 		0-91150-108-0 01 1 0404-0602
12 NUT; BATTERY CABLE CLIP
RR ENG AIR SUSP(LVD0AA) M8 FLANGE 		0-91180-108-0 01 1 0603-
12 NUT; BATTERY CABLE CLIP
M8 FLANGE 		0-91150-108-0 03 1 0404-0602
12 NUT; BATTERY CABLE CLIP
M8 FLANGE 		0-91180-108-0 03 1 0603-
12 NUT; BATTERY CABLE CLIP
RR ENG LEAF SUSP(LVR0AA) ELECTRIC SWITCH BOX ENGINE ROOM<TEK> M8 FLANGE 		0-91150-108-0 05 1 0404-0602
12 NUT; BATTERY CABLE CLIP
RR ENG LEAF SUSP(LVR0AA) M8 FLANGE 		0-91150-108-0 05 1 0404-0602
12 NUT; BATTERY CABLE CLIP
RR ENG LEAF SUSP(LVR0AA) ELECTRIC SWITCH BOX ENGINE ROOM<TEK> M8 FLANGE 		0-91180-108-0 05 1 0603-
12 NUT; BATTERY CABLE CLIP
RR ENG LEAF SUSP(LVR0AA) M8 FLANGE 		0-91180-108-0 05 1 0603-
13 GROMMET; BATTERY CABLE
ELECTRIC SWITCH BOX ENGINE ROOM<TEK> ID=26 		1-09333-140-0 02 1 0404-
13 GROMMET; BATTERY CABLE
ID=26 		1-09333-140-0 01 1 0404-
18 CLIP; BATTERY CABLE
(B) ID=24 L=27 		1-09700-809-0 02 1 0404-
18 CLIP; BATTERY CABLE
(A) ID=20 H=23 L=27 		1-09700-861-0 01 1 0404-
18 CLIP; BATTERY CABLE
(A) ID=20 H=23 L=27 		1-09700-861-0 03 1 0404-
63 BOLT; RELAY BATTERY
ELECTRIC SWITCH BOX ENGINE ROOM<TEK> (A) M8X35 W/LK&PL WASHER 		1-09030-025-0 02 1 0404-
63 BOLT; RELAY BATTERY
(B) M8X30 W/LK&PL WASHER 		0-50140-830-0 02 1 0404-0512
63 BOLT; RELAY BATTERY
(B) M8X30 W/LK&PL WASHER 		0-50640-830-0 02 1 0601-
68 RELAY; BATTERY
ELECTRIC SWITCH BOX ENGINE ROOM<TEK> (A) 		1-82550-282-0 01 1 0404-
68 RELAY; BATTERY
(B) 		1-82550-313-0 01 1 0404-
120 NUT; RELAY BATTERY
M8 FLANGE 		0-91150-108-0 02 1 0404-0602
120 NUT; RELAY BATTERY
ELECTRIC SWITCH BOX ENGINE ROOM<TEK> M8 FLANGE 		0-91150-108-0 02 1 0404-0602
120 NUT; RELAY BATTERY
M8 FLANGE 		0-91180-108-0 02 1 0603-
120 NUT; RELAY BATTERY
ELECTRIC SWITCH BOX ENGINE ROOM<TEK> M8 FLANGE 		0-91180-108-0 02 1 0603-

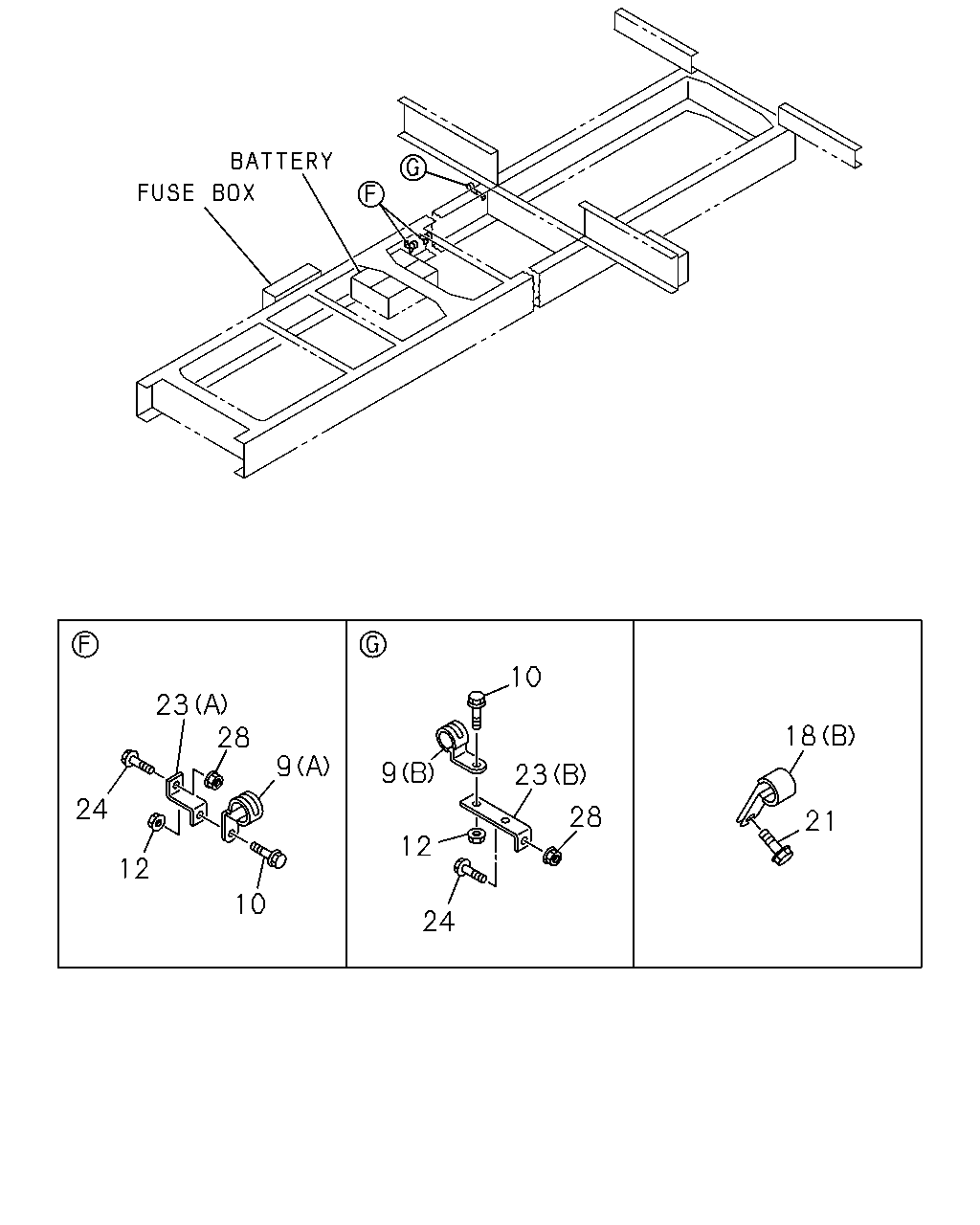

çizim 176792
10 23 28 18 9 9 23 24 28 21 12 12 10 24
BalonParca AdiParca NoAdetTipApplied Date
9 CLIP; BATTERY CABLE
RR ENG AIR SUSP(LVD0AA) ELECTRIC SWITCH BOX ENGINE ROOM<TEK> (A) ID=14.5 H=23 L=30 		1-09700-859-0 13 1 0404-
9 CLIP; BATTERY CABLE
RR ENG AIR SUSP(LVD0AA) (B) ID=20 H=23 L=27 		1-09700-861-0 02 1 0404-
9 CLIP; BATTERY CABLE
RR ENG LEAF SUSP(LVR0AA) ELECTRIC SWITCH BOX ENGINE ROOM<TEK> (A) ID=14.5 H=23 L=30 		1-09700-859-0 11 1 0404-
9 CLIP; BATTERY CABLE
RR ENG LEAF SUSP(LVR0AA) (B) ID=20 H=23 L=27 		1-09700-861-0 05 1 0404-
10 BOLT; BATTERY CABLE CLIP
RR ENG AIR SUSP(LVD0AA) M8X35 FLANGE 		0-28080-835-0 02 1 0404-0512
10 BOLT; BATTERY CABLE CLIP
RR ENG AIR SUSP(LVD0AA) M8X35 FLANGE 		0-28050-835-0 02 1 0601-
10 BOLT; BATTERY CABLE CLIP
M8X35 FLANGE 		0-28680-835-0 03 1 0404-0512
10 BOLT; BATTERY CABLE CLIP
RR ENG LEAF SUSP(LVR0AA) M8X35 FLANGE 		0-28680-835-0 03 1 0404-0512
10 BOLT; BATTERY CABLE CLIP
M8X35 FLANGE 		0-28650-835-0 03 1 0601-
10 BOLT; BATTERY CABLE CLIP
RR ENG LEAF SUSP(LVR0AA) M8X35 FLANGE 		0-28650-835-0 03 1 0601-
10 BOLT; BATTERY CABLE CLIP
RR ENG LEAF SUSP(LVR0AA) ELECTRIC SWITCH BOX ENGINE ROOM<TEK> M8X25 FLANGE 		0-28680-825-0 05 1 0404-0512
10 BOLT; BATTERY CABLE CLIP
RR ENG LEAF SUSP(LVR0AA) ELECTRIC SWITCH BOX ENGINE ROOM<TEK> M8X25 FLANGE 		0-28650-825-0 05 1 0601-
10 BOLT; BATTERY CABLE CLIP
RR ENG LEAF SUSP(LVR0AA) M8X25 FLANGE 		0-28680-825-0 01 1 0404-0512
10 BOLT; BATTERY CABLE CLIP
RR ENG LEAF SUSP(LVR0AA) M8X25 FLANGE 		0-28650-825-0 01 1 0601-
10 BOLT; BATTERY CABLE CLIP
RR ENG LEAF SUSP(LVR0AA) M8X30 FLANGE 		0-28680-830-0 01 1 0404-0512
10 BOLT; BATTERY CABLE CLIP
RR ENG LEAF SUSP(LVR0AA) M8X30 FLANGE 		0-28650-830-0 01 1 0601-
12 NUT; BATTERY CABLE CLIP
RR ENG AIR SUSP(LVD0AA) M8 FLANGE 		0-91150-108-0 01 1 0404-0602
12 NUT; BATTERY CABLE CLIP
RR ENG AIR SUSP(LVD0AA) M8 FLANGE 		0-91180-108-0 01 1 0603-
12 NUT; BATTERY CABLE CLIP
M8 FLANGE 		0-91150-108-0 03 1 0404-0602
12 NUT; BATTERY CABLE CLIP
M8 FLANGE 		0-91180-108-0 03 1 0603-
12 NUT; BATTERY CABLE CLIP
RR ENG LEAF SUSP(LVR0AA) ELECTRIC SWITCH BOX ENGINE ROOM<TEK> M8 FLANGE 		0-91150-108-0 05 1 0404-0602
12 NUT; BATTERY CABLE CLIP
RR ENG LEAF SUSP(LVR0AA) M8 FLANGE 		0-91150-108-0 05 1 0404-0602
12 NUT; BATTERY CABLE CLIP
RR ENG LEAF SUSP(LVR0AA) ELECTRIC SWITCH BOX ENGINE ROOM<TEK> M8 FLANGE 		0-91180-108-0 05 1 0603-
12 NUT; BATTERY CABLE CLIP
RR ENG LEAF SUSP(LVR0AA) M8 FLANGE 		0-91180-108-0 05 1 0603-
18 CLIP; BATTERY CABLE
(B) ID=24 L=27 		1-09700-809-0 02 1 0404-
18 CLIP; BATTERY CABLE
(A) ID=20 H=23 L=27 		1-09700-861-0 01 1 0404-
18 CLIP; BATTERY CABLE
(A) ID=20 H=23 L=27 		1-09700-861-0 03 1 0404-
21 BOLT; CLIP CABLE
M8X20 FLANGE 		0-28680-820-0 02 1 0404-0512
21 BOLT; CLIP CABLE
M8X20 FLANGE 		0-28650-820-0 02 1 0601-
23 BRACKET; CABLE CLIP TO FRAME
RR ENG LEAF SUSP(LVR0AA) ELECTRIC SWITCH BOX ENGINE ROOM<TEK> (A) 		1-47476-200-0 02 1 0404-
23 BRACKET; CABLE CLIP TO FRAME
RR ENG LEAF SUSP(LVR0AA) (B) L=82 B=20 		1-47478-420-0 01 1 0404-1404
23 BRACKET; CABLE CLIP TO FRAME
RR ENG LEAF SUSP(LVR0AA) (B) L=82 B=20 		8-98259-390-0 01 1 1405-
24 BOLT; BRKT TO FRAME
RR ENG LEAF SUSP(LVR0AA) ELECTRIC SWITCH BOX ENGINE ROOM<TEK> M8X35 FLANGE 		0-28680-835-0 01 1 0404-0512
24 BOLT; BRKT TO FRAME
RR ENG LEAF SUSP(LVR0AA) M8X35 FLANGE 		0-28680-835-0 01 1 0404-0512
24 BOLT; BRKT TO FRAME
RR ENG LEAF SUSP(LVR0AA) ELECTRIC SWITCH BOX ENGINE ROOM<TEK> M8X35 FLANGE 		0-28650-835-0 01 1 0601-
24 BOLT; BRKT TO FRAME
RR ENG LEAF SUSP(LVR0AA) M8X35 FLANGE 		0-28650-835-0 01 1 0601-
28 NUT; BRKT TO FRAME
RR ENG LEAF SUSP(LVR0AA) ELECTRIC SWITCH BOX ENGINE ROOM<TEK> M8 FLANGE 		0-91150-108-0 01 1 0404-0602
28 NUT; BRKT TO FRAME
RR ENG LEAF SUSP(LVR0AA) M8 FLANGE 		0-91150-108-0 01 1 0404-0602
28 NUT; BRKT TO FRAME
RR ENG LEAF SUSP(LVR0AA) ELECTRIC SWITCH BOX ENGINE ROOM<TEK> M8 FLANGE 		0-91180-108-0 01 1 0603-
28 NUT; BRKT TO FRAME
RR ENG LEAF SUSP(LVR0AA) M8 FLANGE 		0-91180-108-0 01 1 0603-

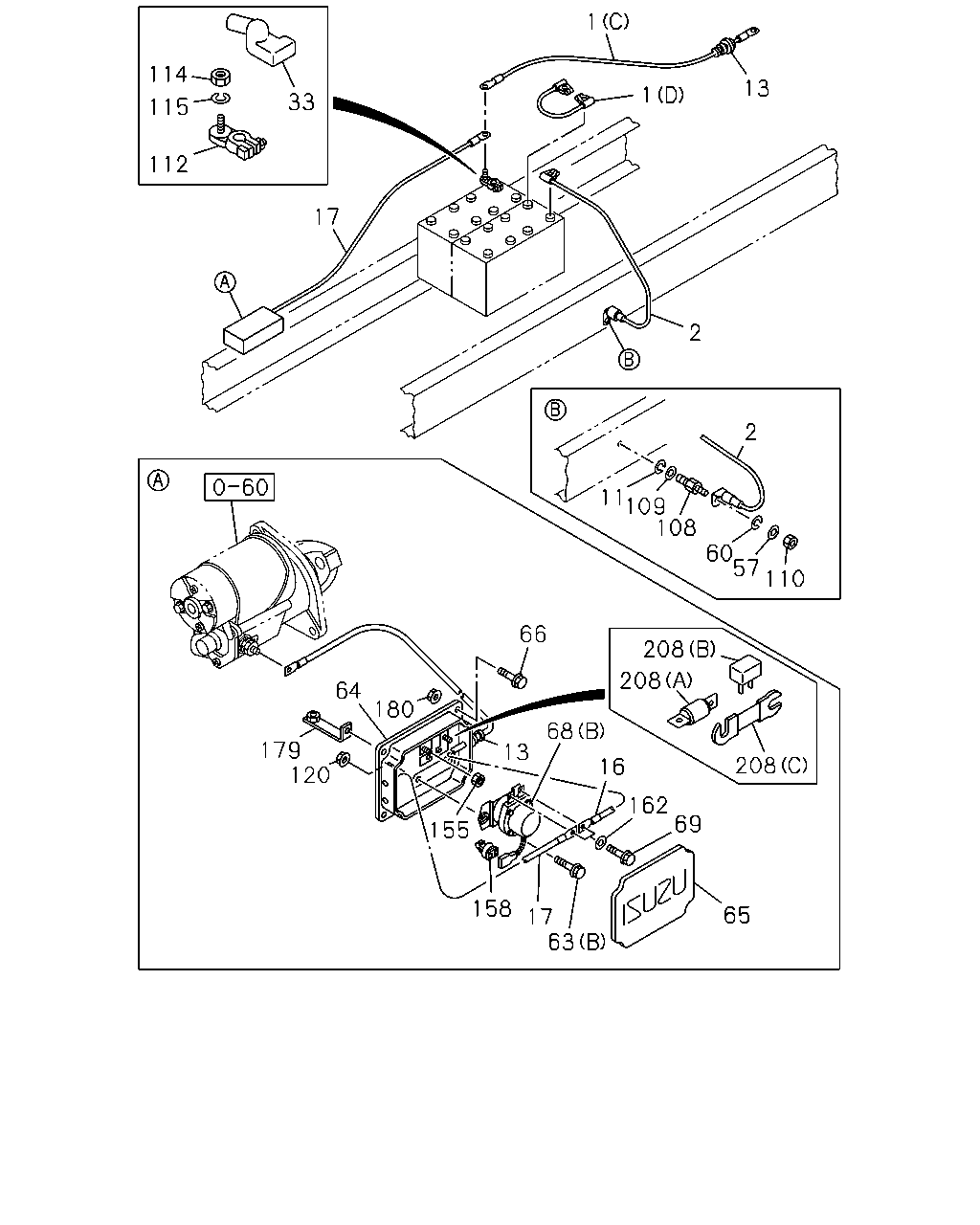

çizim 176793
1 114 13 1 33 115 112 17 2 2 11 109 108 60 57 110 66 208 208 64 180 68 179 120 13 208 16 162 69 155 158 65 17 63
BalonParca AdiParca NoAdetTipApplied Date
1 CABLE; BATTERY
ELECTRIC SWITCH BOX ENGINE ROOM<TEK> (A) L=350 		1-82650-275-1 01 1 0404-
1 CABLE; BATTERY
ELECTRIC SWITCH BOX ENGINE ROOM<TEK> (B) L=550 		1-82650-276-1 01 1 0404-
1 CABLE; BATTERY
ELECTRIC SWITCH BOX ENGINE ROOM<TEK> (C) L=4100 		1-82650-372-0 01 1 0404-
1 CABLE; BATTERY
(D) L=450 		1-82650-281-2 01 1 0404-0711
1 CABLE; BATTERY
(D) L=500 		8-97623-077-0 01 1 0712-
2 CABLE; BATTERY
L=1400 		1-82650-273-0 01 1 0404-0711
2 CABLE; BATTERY
L=1400 		1-82650-408-0 01 1 0712-
11 WASHER; BATTERY CABLE EARTH
ID=8.4 OD=22 		9-09164-708-0 01 1 0404-0605
11 WASHER; BATTERY CABLE EARTH
ID=8.4 OD=22 		0-91614-708-0 01 1 0606-
13 GROMMET; BATTERY CABLE
ELECTRIC SWITCH BOX ENGINE ROOM<TEK> ID=26 		1-09333-140-0 02 1 0404-
13 GROMMET; BATTERY CABLE
ID=26 		1-09333-140-0 01 1 0404-
16 CABLE; STARTER TO RELAY
RR ENG AIR SUSP(LVD0AA) L=6000 		1-82650-374-1 01 1 0404-
16 CABLE; STARTER TO RELAY
RR ENG LEAF SUSP(LVR0AA) L=5600 		1-82652-769-1 01 1 0404-
17 CABLE; BATTERY (+) TO RELAY
L=1700 		1-82650-366-1 01 1 0404-
33 CAP; INSULATOR
BLACK 		1-82699-106-0 01 1 0404-
57 WASHER; PL,BATTERY CABLE
ID=6.4 		9-09164-506-0 01 1 0404-
60 WASHER; LK,BATTERY CABLE
ID=6.1 		9-09150-606-0 01 1 0404-0603
60 WASHER; LK,BATTERY CABLE
ID=6.1 		0-91510-606-0 01 1 0604-
63 BOLT; RELAY BATTERY
ELECTRIC SWITCH BOX ENGINE ROOM<TEK> (A) M8X35 W/LK&PL WASHER 		1-09030-025-0 02 1 0404-
63 BOLT; RELAY BATTERY
(B) M8X30 W/LK&PL WASHER 		0-50140-830-0 02 1 0404-0512
63 BOLT; RELAY BATTERY
(B) M8X30 W/LK&PL WASHER 		0-50640-830-0 02 1 0601-
64 BOX; BATTERY RELAY
ELECTRIC SWITCH BOX ENGINE ROOM<TEK> 		1-82510-565-1 01 1 0404-
64 BOX; BATTERY RELAY
EXC. ELECTRIC SWITCH BOX ENGINE ROOM<TEK> 		1-82510-509-4 01 1 0404-
65 COVER; BATTERY RELAY 1-82510-505-2 01 1 0404-
66 BOLT; COVER,BATTERY RELAY
M8X35 W/LK&PL WASHER 		0-50140-835-0 04 1 0404-0512
66 BOLT; COVER,BATTERY RELAY
M8X35 W/LK&PL WASHER 		0-50640-835-0 04 1 0601-
68 RELAY; BATTERY
ELECTRIC SWITCH BOX ENGINE ROOM<TEK> (A) 		1-82550-282-0 01 1 0404-
68 RELAY; BATTERY
(B) 		1-82550-313-0 01 1 0404-
69 BOLT; CABLE BATTERY
M8X20 W/LK&PL WASHER 		0-50140-820-0 02 1 0404-0512
69 BOLT; CABLE BATTERY
ELECTRIC SWITCH BOX ENGINE ROOM<TEK> M8X20 W/LK&PL WASHER 		0-50140-820-0 02 1 0404-0512
69 BOLT; CABLE BATTERY
M8X20 W/LK&PL WASHER 		0-50640-820-0 02 1 0601-
69 BOLT; CABLE BATTERY
ELECTRIC SWITCH BOX ENGINE ROOM<TEK> M8X20 W/LK&PL WASHER 		0-50640-820-0 02 1 0601-
108 STUD; EARTH BATTERY CABLE
M6X14,M8X17 L=42 		5-09309-006-1 01 1 0404-
109 WASHER; LK,EARTH BATTERY CABLE
ID=8.2 		9-09150-808-0 01 1 0404-0603
109 WASHER; LK,EARTH BATTERY CABLE
ID=8.2 		0-91510-808-0 01 1 0604-
110 NUT; HARNESS TO BATTERY EARTH
M6 FLANGE 		5-09440-004-0 01 1 0404-
112 TERMINAL; BATTERY
<+> 		1-82695-069-1 01 1 0404-0404
112 TERMINAL; BATTERY
<+> 		1-82695-175-0 01 1 0404-
114 NUT; CABLE,BATTERY TERMINAL
M10 		9-09110-510-0 01 1 0404-0512
114 NUT; CABLE,BATTERY TERMINAL
M10 		0-91110-510-0 01 1 0601-
115 WASHER; LK,CABLE,BATTERY
ID=10.2 		9-09150-510-0 01 1 0404-0603
115 WASHER; LK,CABLE,BATTERY
ID=10.2 		0-91510-510-0 01 1 0604-
120 NUT; RELAY BATTERY
M8 FLANGE 		0-91150-108-0 02 1 0404-0602
120 NUT; RELAY BATTERY
ELECTRIC SWITCH BOX ENGINE ROOM<TEK> M8 FLANGE 		0-91150-108-0 02 1 0404-0602
120 NUT; RELAY BATTERY
M8 FLANGE 		0-91180-108-0 02 1 0603-
120 NUT; RELAY BATTERY
ELECTRIC SWITCH BOX ENGINE ROOM<TEK> M8 FLANGE 		0-91180-108-0 02 1 0603-
155 NUT; RELAY,BATTERY
M8 FLANGE 		0-91150-108-0 01 1 0404-0602
155 NUT; RELAY,BATTERY
M8 FLANGE 		0-91180-108-0 01 1 0603-
158 CLIP; RELAY
OD=7 H=1.2 		8-94364-750-0 01 1 0404-
158 CLIP; RELAY
EXC. ELECTRIC SWITCH BOX ENGINE ROOM<TEK> OD=7 H=1.2 		8-94364-750-0 01 1 0404-
162 WASHER; PL,CABLE,BATTERY
ID=8.4 OD=18 		9-09164-608-0 02 1 0404-0605
162 WASHER; PL,CABLE,BATTERY
ELECTRIC SWITCH BOX ENGINE ROOM<TEK> ID=8.4 OD=18 		9-09164-608-0 02 1 0404-0605
162 WASHER; PL,CABLE,BATTERY
ID=8.4 OD=18 		0-91614-608-0 02 1 0606-
162 WASHER; PL,CABLE,BATTERY
ELECTRIC SWITCH BOX ENGINE ROOM<TEK> ID=8.4 OD=18 		0-91614-608-0 02 1 0606-
179 BRACKET; COVER
L=68 		1-47475-525-0 02 1 0404-
180 NUT; COVER
M8 FLANGE 		0-91150-108-0 04 1 0404-0602
180 NUT; COVER
M8 FLANGE 		0-91180-108-0 04 1 0603-
208 FUSE
(A) 80A 		1-82516-031-0 01 1 0404-
208 FUSE
(B) 40A GREEN 		8-94468-662-0 05 1 0404-
208 FUSE
(C) 125A 		9-82941-130-1 01 1 0404-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
