0-60 — ENGINE ELECTRICAL CONTROL PARTS (#34526) — 149 parça

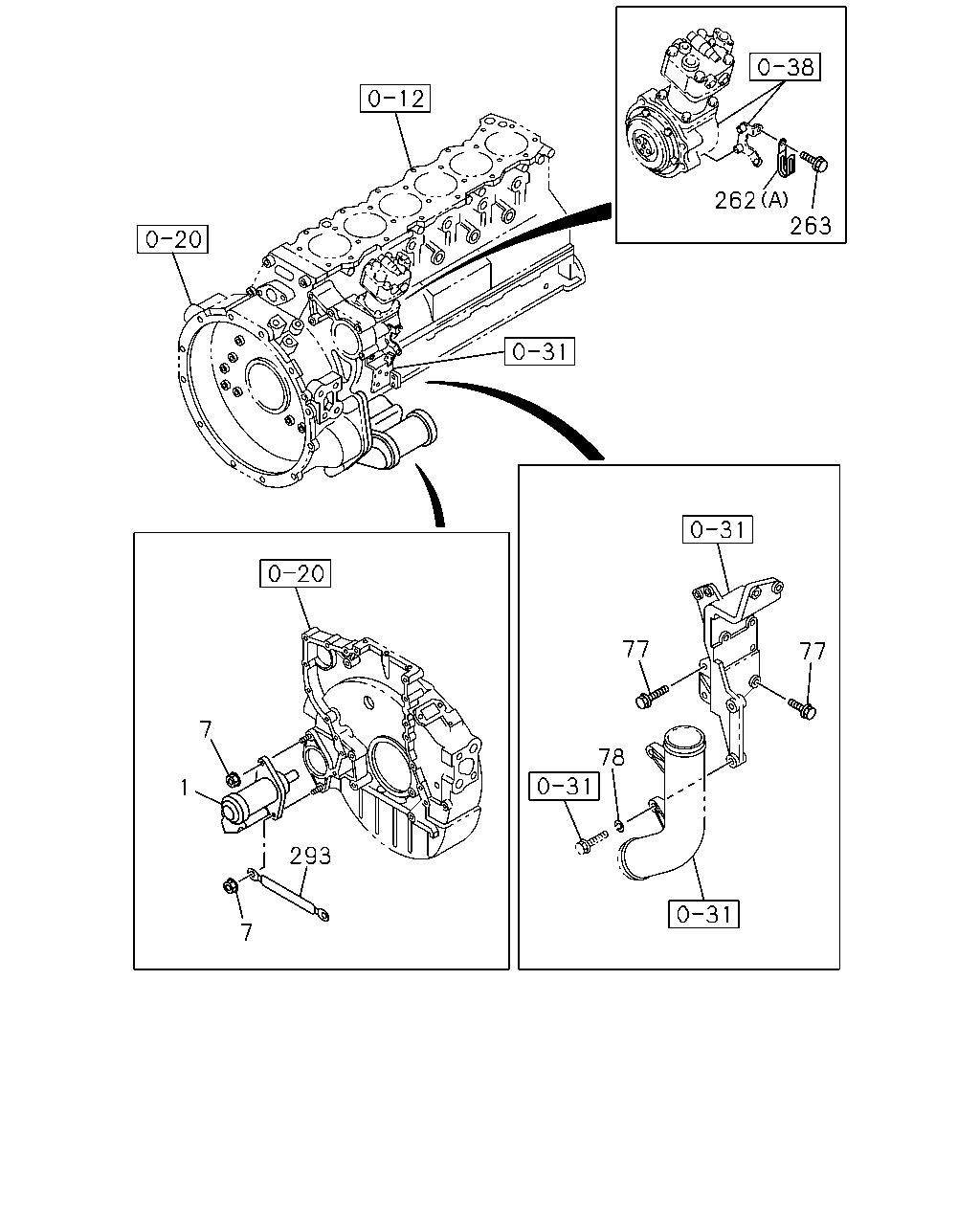

262 263 77 77 7 78 1 293 7

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	STARTER ASM SEE FIG-NO 0-65 FOR COMPONENT. 24V 5.5KW DENSO	1-81100-246-3	01	1	0404-
7	NUT; STARTER M14 FLANGE	0-91150-114-0	02	1	0404-
77	BOLT; BRIDGE BRKT M10X60	0-16806-060-0	02	1	0404-0512
77	BOLT; BRIDGE BRKT M10X60	0-16856-060-0	02	1	0601-
77	BOLT; BRIDGE BRKT M10X25 FLANGE	0-28781-025-0	01	1	0404-0512
77	BOLT; BRIDGE BRKT M10X25 FLANGE	0-28751-025-0	01	1	0601-
77	BOLT; BRIDGE BRKT M10X35 FLANGE	0-28781-035-0	01	1	0404-0512
77	BOLT; BRIDGE BRKT M10X35 FLANGE	0-28751-035-0	01	1	0601-
78	WASHER; LK,BRIDGE BRKT ID=10.2	9-09150-510-0	02	1	0404-0603
78	WASHER; LK,BRIDGE BRKT ID=10.2	0-91510-510-0	02	1	0604-
262	CLIP; HARNESS (B) ID=31 L=35	1-09700-329-1	02	1	0404-
262	CLIP; HARNESS (C) ID=28 L=32	1-09701-107-1	02	1	0404-
262	CLIP; HARNESS (D) L=250	5-09707-030-1	02	1	0404-1205
262	CLIP; HARNESS (D) L=250	8-98216-430-0	02	1	1206-
262	CLIP; HARNESS (C) ID=21 L=47.5	8-94178-108-0	01	1	0404-
262	CLIP; HARNESS (A) ID=18 L=44	8-94225-185-0	01	1	0404-0801
262	CLIP; HARNESS (A) ID=18 L=44	8-97367-985-1	01	1	0802-
262	CLIP; HARNESS (E) ID=19 L=28	9-09525-856-0	01	1	0404-0606
262	CLIP; HARNESS (E) ID=19 L=28	0-95235-856-0	01	1	0607-
263	BOLT; CLIP M8X20 FLANGE	0-28680-820-0	04	1	0404-0512
263	BOLT; CLIP M8X20 FLANGE	0-28650-820-0	04	1	0601-
293	CABLE; STARTER EARTH L=350	1-82650-235-0	01	1	0404-

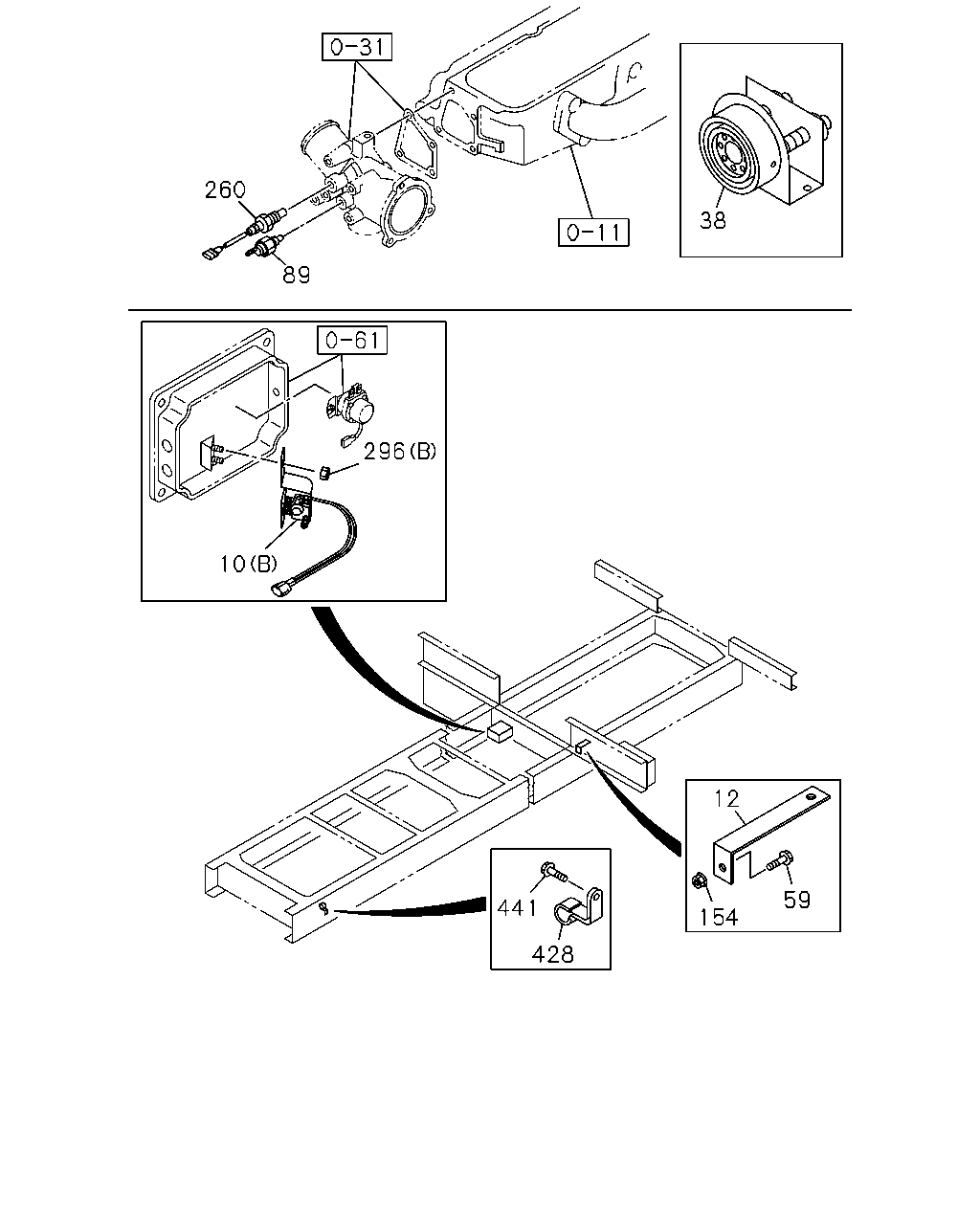

260 38 89 296 10 12 59 441 154 428

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
10	RELAY; STARTER ELECTRIC SWITCH BOX ENGINE ROOM<TEK> (A)	1-81171-096-1	01	1	0404-
10	RELAY; STARTER EXC. ELECTRIC SWITCH BOX ENGINE ROOM<TEK> (B) HITACHI	1-81171-088-0	01	1	0404-
12	BRACKET; STARTER RELAY L=90 B=25	1-47475-530-0	01	1	0404-
38	RESISTOR; CONT,GLOW PLUG GLOW PLUG<KM5>	1-81402-008-0	01	1	0404-
59	BOLT; BRKT,HARNESS CLIP M8X25 FLANGE	0-28680-825-0	01	1	0404-0512
59	BOLT; BRKT,HARNESS CLIP M8X25 FLANGE	0-28650-825-0	01	1	0601-
89	SWITCH; OVER HEAT WARNING	5-82450-020-0	01	1	0404-
154	NUT; BRKT FIX M8 FLANGE	0-91150-108-0	01	1	0404-0602
154	NUT; BRKT FIX EXC. RADIATOR FAN DUCT<WF8> M8 FLANGE	0-91150-108-0	01	1	0404-0602
154	NUT; BRKT FIX M8 FLANGE	0-91180-108-0	01	1	0603-
154	NUT; BRKT FIX EXC. RADIATOR FAN DUCT<WF8> M8 FLANGE	0-91180-108-0	01	1	0603-
260	SENSOR; WATER TEMP	1-80210-005-1	01	1	0404-
296	NUT; RELAY,STARTER ELECTRIC SWITCH BOX ENGINE ROOM<TEK> (A) M6 FLANGE	0-91150-106-0	02	1	0404-0602
296	NUT; RELAY,STARTER ELECTRIC SWITCH BOX ENGINE ROOM<TEK> (A) M6 FLANGE	0-91180-106-0	02	1	0603-
296	NUT; RELAY,STARTER EXC. ELECTRIC SWITCH BOX ENGINE ROOM<TEK> (B) M8 FLANGE	0-91150-108-0	02	1	0404-0602
296	NUT; RELAY,STARTER EXC. ELECTRIC SWITCH BOX ENGINE ROOM<TEK> (B) M8 FLANGE	0-91180-108-0	02	1	0603-
428	CLIP; HARNESS ID=34.5 H=23 L=27.5	1-09700-905-0	01	1	0404-
441	BOLT; HARNESS TO FRAME M8X35 FLANGE	0-28680-835-0	01	1	0404-0512
441	BOLT; HARNESS TO FRAME M8X35 FLANGE	0-28650-835-0	01	1	0601-

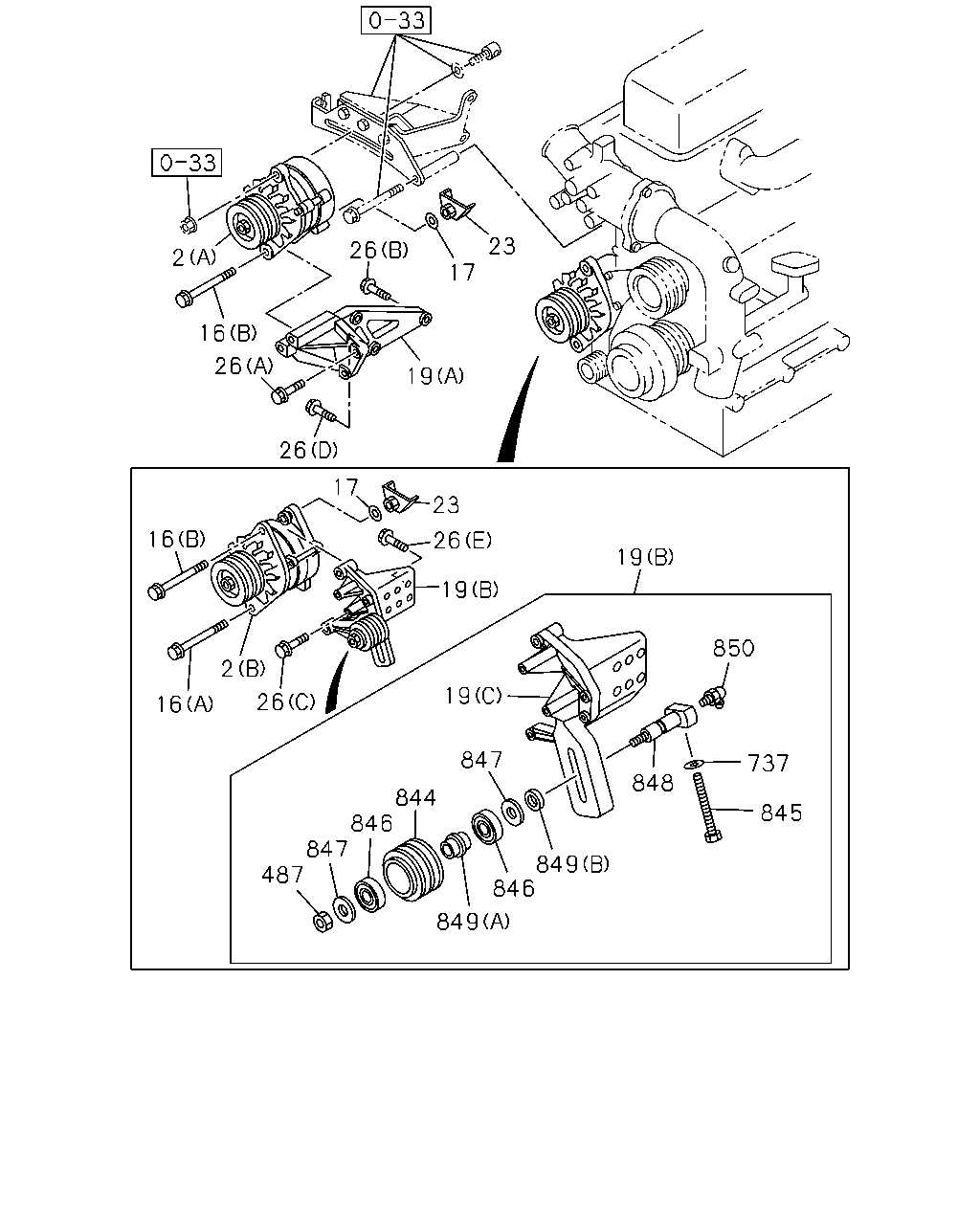

23 26 2 17 16 26 19 26 17 23 16 26 19 19 850 2 19 26 16 847 737 848 844 846 847 487 845 849 846 849

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. (A) 24V 110A MITSUBISHI	1-81200-632-2	01	1	0404-
2	GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR MITSUBISHI 24V-110AX2 6KW(NHT) (B) 24V 110A MITSUBISHI	1-81200-628-1	01	1	0404-
16	BOLT; GEN GENERATOR MITSUBISHI 24V-110A 3KW(NHS) (B) M14X157	1-09000-071-1	01	1	0404-
16	BOLT; GEN GENERATOR MITSUBISHI 24V-110AX2 6KW(NHT) (A) M12X50 FLANGE	0-28181-250-0	01	1	0404-0512
16	BOLT; GEN GENERATOR MITSUBISHI 24V-110AX2 6KW(NHT) (A) M12X50 FLANGE	0-28151-250-0	01	1	0601-
16	BOLT; GEN GENERATOR MITSUBISHI 24V-110AX2 6KW(NHT) (B) M14X157	1-09000-071-1	02	1	0404-
17	WASHER; PL,GEN GENERATOR MITSUBISHI 24V-110A 3KW(NHS) ID=15	9-09160-514-0	01	1	0404-0605
17	WASHER; PL,GEN GENERATOR MITSUBISHI 24V-110A 3KW(NHS) ID=15	0-91610-514-0	01	1	0606-
17	WASHER; PL,GEN GENERATOR MITSUBISHI 24V-110AX2 6KW(NHT) ID=15	9-09160-514-0	02	1	0404-0605
17	WASHER; PL,GEN GENERATOR MITSUBISHI 24V-110AX2 6KW(NHT) ID=15	0-91610-514-0	02	1	0606-
19	BRACKET; GEN (A)	1-19711-107-0	01	1	0404-
19	BRACKET; GEN (C)	1-19711-116-0	01	1	0404-
19	BRACKET; GEN GENERATOR MITSUBISHI 24V-110AX2 6KW(NHT) (B)	1-19711-115-1	01	1	0404-
23	NUT; GEN GENERATOR MITSUBISHI 24V-110A 3KW(NHS) M14 W/BRKT	1-19711-029-0	01	1	0404-
23	NUT; GEN GENERATOR MITSUBISHI 24V-110AX2 6KW(NHT) M14 W/BRKT	1-19711-029-0	02	1	0404-
26	BOLT; GEN BRKT (A) M8X60 FLANGE	0-28080-860-0	02	1	0404-0512
26	BOLT; GEN BRKT (A) M8X60 FLANGE	0-28050-860-0	02	1	0601-
26	BOLT; GEN BRKT (B) M10X50 FLANGE	0-28181-050-0	02	1	0404-0512
26	BOLT; GEN BRKT (B) M10X50 FLANGE	0-28151-050-0	02	1	0601-
26	BOLT; GEN BRKT (C) M10X60 FLANGE	0-28181-060-0	02	1	0404-0512
26	BOLT; GEN BRKT (C) M10X60 FLANGE	0-28151-060-0	02	1	0601-
26	BOLT; GEN BRKT (D) M10X110 FLANGE	0-28186-011-0	01	1	0404-0512
26	BOLT; GEN BRKT (D) M10X110 FLANGE	0-28156-011-0	01	1	0601-
26	BOLT; GEN BRKT (E) M10X40 FLANGE	0-28781-040-0	06	1	0404-0512
26	BOLT; GEN BRKT (E) M10X40 FLANGE	0-28751-040-0	06	1	0601-
487	NUT GENERATOR MITSUBISHI 24V-110AX2 6KW(NHT) M18	9-99111-518-0	01	1	0404-0512
487	NUT GENERATOR MITSUBISHI 24V-110AX2 6KW(NHT) M18	0-91111-518-0	01	1	0601-
737	WASHER; PL GENERATOR MITSUBISHI 24V-110AX2 6KW(NHT) ID=10.5 OD=18	9-09160-510-0	01	1	0404-0605
737	WASHER; PL GENERATOR MITSUBISHI 24V-110AX2 6KW(NHT) ID=10.5	0-91610-510-0	01	1	0606-
844	PULLEY; IDLE GENERATOR MITSUBISHI 24V-110AX2 6KW(NHT)	1-13663-067-0	01	1	0404-
845	BOLT; ADJ GENERATOR MITSUBISHI 24V-110AX2 6KW(NHT) M10X160	1-09000-118-1	01	1	0404-
846	BEARING; IDLE PULLEY GENERATOR MITSUBISHI 24V-110AX2 6KW(NHT)	1-09800-176-0	02	1	0404-0907
846	BEARING; IDLE PULLEY GENERATOR MITSUBISHI 24V-110AX2 6KW(NHT)	8-97633-017-0	02	1	0908-
847	COVER; DUST GENERATOR MITSUBISHI 24V-110AX2 6KW(NHT)	1-13664-009-2	02	1	0404-
848	SPINDLE; IDLE PULLEY GENERATOR MITSUBISHI 24V-110AX2 6KW(NHT)	1-13665-035-0	01	1	0404-
849	SPACER; IDLE PULLEY GENERATOR MITSUBISHI 24V-110AX2 6KW(NHT) (A)	1-13666-007-0	01	1	0404-
849	SPACER; IDLE PULLEY GENERATOR MITSUBISHI 24V-110AX2 6KW(NHT) (B)	1-13666-032-0	01	1	0404-
850	NIPPLE; GREASE,IDLE PULLEY GENERATOR MITSUBISHI 24V-110AX2 6KW(NHT) PT1/8 ELBOW	9-09031-210-0	01	1	0404-0512
850	NIPPLE; GREASE,IDLE PULLEY GENERATOR MITSUBISHI 24V-110AX2 6KW(NHT) PT1/8 ELBOW	0-90301-610-0	01	1	0601-

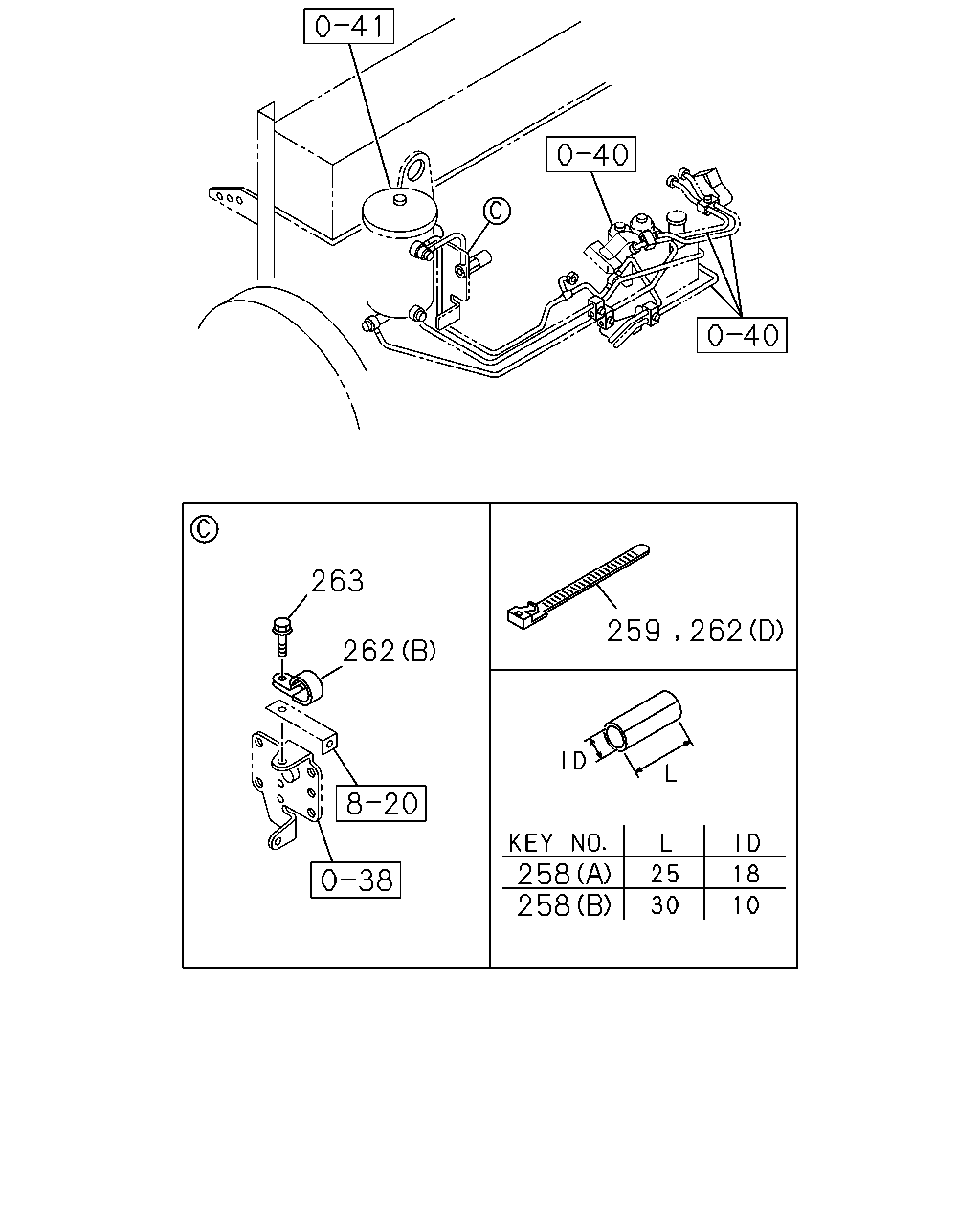

263 259 262 262 258 258

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
258	SLEEVE; RUBBER OIL PIPE (A) ID=18 OD=22 L=25	8-94412-773-0	01	1	0404-
258	SLEEVE; RUBBER OIL PIPE (B) ID=10 OD=14 L=30	9-09956-682-0	01	1	0404-
259	CLIP; BAND,HARNESS TO OIL PIPE L=250	5-09707-030-1	03	1	0404-1205
259	CLIP; BAND,HARNESS TO OIL PIPE L=250	8-98216-430-0	03	1	1206-
259	CLIP; BAND,HARNESS TO OIL PIPE L=140	5-09707-031-1	05	1	0404-1205
259	CLIP; BAND,HARNESS TO OIL PIPE L=140	8-98216-431-0	05	1	1206-
262	CLIP; HARNESS (B) ID=31 L=35	1-09700-329-1	02	1	0404-
262	CLIP; HARNESS (C) ID=28 L=32	1-09701-107-1	02	1	0404-
262	CLIP; HARNESS (D) L=250	5-09707-030-1	02	1	0404-1205
262	CLIP; HARNESS (D) L=250	8-98216-430-0	02	1	1206-
262	CLIP; HARNESS (C) ID=21 L=47.5	8-94178-108-0	01	1	0404-
262	CLIP; HARNESS (A) ID=18 L=44	8-94225-185-0	01	1	0404-0801
262	CLIP; HARNESS (A) ID=18 L=44	8-97367-985-1	01	1	0802-
262	CLIP; HARNESS (E) ID=19 L=28	9-09525-856-0	01	1	0404-0606
262	CLIP; HARNESS (E) ID=19 L=28	0-95235-856-0	01	1	0607-
263	BOLT; CLIP M8X20 FLANGE	0-28680-820-0	04	1	0404-0512
263	BOLT; CLIP M8X20 FLANGE	0-28650-820-0	04	1	0601-

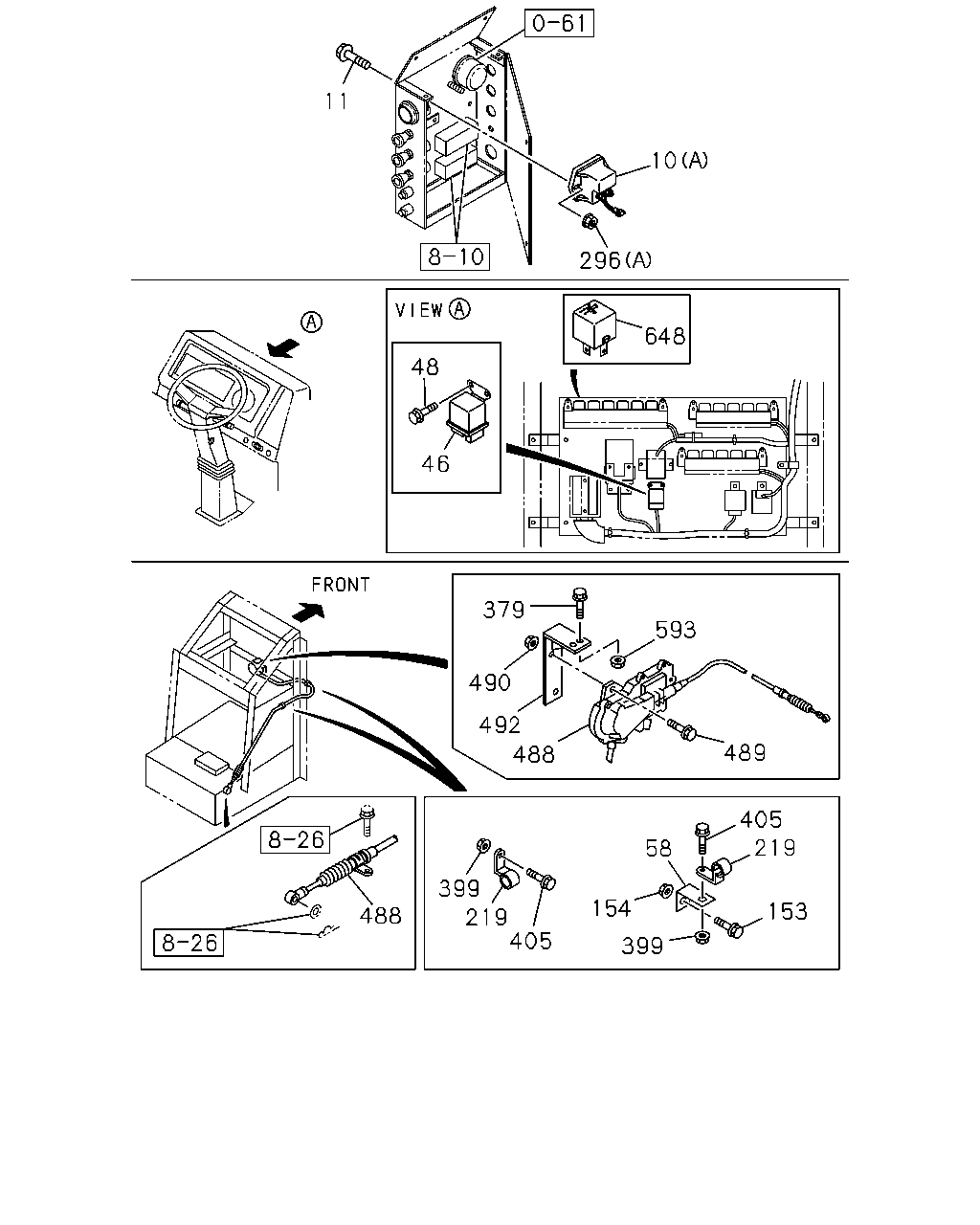

11 10 296 648 48 46 379 593 490 492 489 488 405 219 58 399 154 153 488 219 405 399

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
10	RELAY; STARTER ELECTRIC SWITCH BOX ENGINE ROOM<TEK> (A)	1-81171-096-1	01	1	0404-
10	RELAY; STARTER EXC. ELECTRIC SWITCH BOX ENGINE ROOM<TEK> (B) HITACHI	1-81171-088-0	01	1	0404-
11	BOLT; RELAY STARTER ELECTRIC SWITCH BOX ENGINE ROOM<TEK> M6X20 FLANGE	0-28680-620-0	02	1	0404-0512
11	BOLT; RELAY STARTER ELECTRIC SWITCH BOX ENGINE ROOM<TEK> M6X20 FLANGE	0-28650-620-0	02	1	0601-
46	RELAY; GLOW PLUG GLOW PLUG<KM5>	8-94258-014-0	01	1	0404-
48	BOLT; GLOW PLUG RELAY GLOW PLUG<KM5> M6X16 FLANGE	0-28680-616-0	02	1	0404-0512
48	BOLT; GLOW PLUG RELAY GLOW PLUG<KM5> M6X16 FLANGE	0-28650-616-0	02	1	0601-
58	BRACKET; CLIP EXC. RADIATOR FAN DUCT<WF8>	1-47479-130-0	01	1	0404-
153	BOLT; BRKT FIX EXC. RADIATOR FAN DUCT<WF8> M8X25 FLANGE	0-28680-825-0	01	1	0404-0512
153	BOLT; BRKT FIX EXC. RADIATOR FAN DUCT<WF8> M8X25 FLANGE	0-28650-825-0	01	1	0601-
154	NUT; BRKT FIX M8 FLANGE	0-91150-108-0	01	1	0404-0602
154	NUT; BRKT FIX EXC. RADIATOR FAN DUCT<WF8> M8 FLANGE	0-91150-108-0	01	1	0404-0602
154	NUT; BRKT FIX M8 FLANGE	0-91180-108-0	01	1	0603-
154	NUT; BRKT FIX EXC. RADIATOR FAN DUCT<WF8> M8 FLANGE	0-91180-108-0	01	1	0603-
219	CLIP; ENG STOP CABLE RADIATOR FAN DUCT<WF8> ID=6 H=20 L=20	1-09700-603-0	03	1	0404-
219	CLIP; ENG STOP CABLE EXC. RADIATOR FAN DUCT<WF8> ID=6 H=20 L=20	1-09700-603-0	02	1	0404-
296	NUT; RELAY,STARTER ELECTRIC SWITCH BOX ENGINE ROOM<TEK> (A) M6 FLANGE	0-91150-106-0	02	1	0404-0602
296	NUT; RELAY,STARTER ELECTRIC SWITCH BOX ENGINE ROOM<TEK> (A) M6 FLANGE	0-91180-106-0	02	1	0603-
296	NUT; RELAY,STARTER EXC. ELECTRIC SWITCH BOX ENGINE ROOM<TEK> (B) M8 FLANGE	0-91150-108-0	02	1	0404-0602
296	NUT; RELAY,STARTER EXC. ELECTRIC SWITCH BOX ENGINE ROOM<TEK> (B) M8 FLANGE	0-91180-108-0	02	1	0603-
379	BOLT; BRKT M8X25 FLANGE	0-28680-825-0	02	1	0404-0512
379	BOLT; BRKT M8X25 FLANGE	0-28650-825-0	02	1	0601-
399	NUT; CLIP RADIATOR FAN DUCT<WF8> M8 FLANGE	0-91150-108-0	03	1	0404-0602
399	NUT; CLIP RADIATOR FAN DUCT<WF8> M8 FLANGE	0-91180-108-0	03	1	0603-
399	NUT; CLIP EXC. RADIATOR FAN DUCT<WF8> M8 FLANGE	0-91150-108-0	02	1	0404-0602
399	NUT; CLIP EXC. RADIATOR FAN DUCT<WF8> M8 FLANGE	0-91180-108-0	02	1	0603-
405	BOLT; CLIP,CABLE RADIATOR FAN DUCT<WF8> M8X25 FLANGE	0-28680-825-0	03	1	0404-0512
405	BOLT; CLIP,CABLE RADIATOR FAN DUCT<WF8> M8X25 FLANGE	0-28650-825-0	03	1	0601-
405	BOLT; CLIP,CABLE EXC. RADIATOR FAN DUCT<WF8> M8X25 FLANGE	0-28680-825-0	02	1	0404-0512
405	BOLT; CLIP,CABLE EXC. RADIATOR FAN DUCT<WF8> M8X25 FLANGE	0-28650-825-0	02	1	0601-
488	STOPPER; ENG OD=12.7 L=1500	1-82840-141-3	01	1	0404-
489	BOLT; ENG STOPPER M8X30 FLANGE	0-28680-830-0	02	1	0404-0512
489	BOLT; ENG STOPPER M8X30 FLANGE	0-28650-830-0	02	1	0601-
490	NUT; ENG STOP M8 FLANGE	0-91150-108-0	02	1	0404-0602
490	NUT; ENG STOP M8 FLANGE	0-91180-108-0	02	1	0603-
492	BRACKET; ENG STOPPER	1-47478-982-0	01	1	0404-
593	NUT; BRKT M8 FLANGE	0-91150-108-0	02	1	0404-0602
593	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	0603-
648	RELAY; ENG STOPPER 24V 12.5A PANASONIC	8-97262-933-0	01	1	0404-

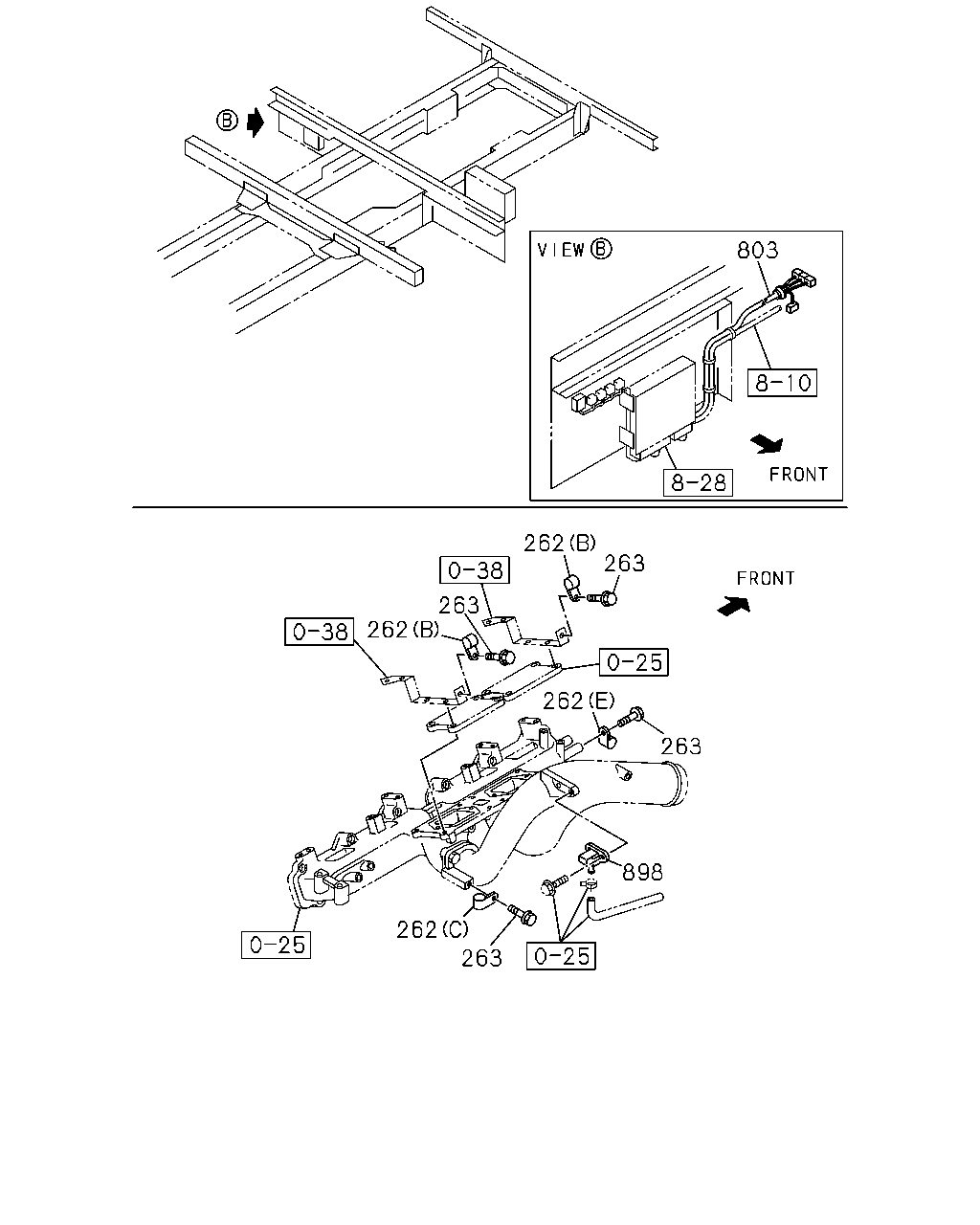

803 262 263 263 262 262 263 898 262 263

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
262	CLIP; HARNESS (B) ID=31 L=35	1-09700-329-1	02	1	0404-
262	CLIP; HARNESS (C) ID=28 L=32	1-09701-107-1	02	1	0404-
262	CLIP; HARNESS (D) L=250	5-09707-030-1	02	1	0404-1205
262	CLIP; HARNESS (D) L=250	8-98216-430-0	02	1	1206-
262	CLIP; HARNESS (C) ID=21 L=47.5	8-94178-108-0	01	1	0404-
262	CLIP; HARNESS (A) ID=18 L=44	8-94225-185-0	01	1	0404-0801
262	CLIP; HARNESS (A) ID=18 L=44	8-97367-985-1	01	1	0802-
262	CLIP; HARNESS (E) ID=19 L=28	9-09525-856-0	01	1	0404-0606
262	CLIP; HARNESS (E) ID=19 L=28	0-95235-856-0	01	1	0607-
263	BOLT; CLIP M8X20 FLANGE	0-28680-820-0	04	1	0404-0512
263	BOLT; CLIP M8X20 FLANGE	0-28650-820-0	04	1	0601-
803	HARNESS; GOVERNOR	1-82641-185-0	01	1	0404-
898	SENSOR; BOOST	1-80220-005-0	01	1	0404-
