0-52 — OIL AND VACUUM PIPING; ENGINE (#34525) — 55 parça

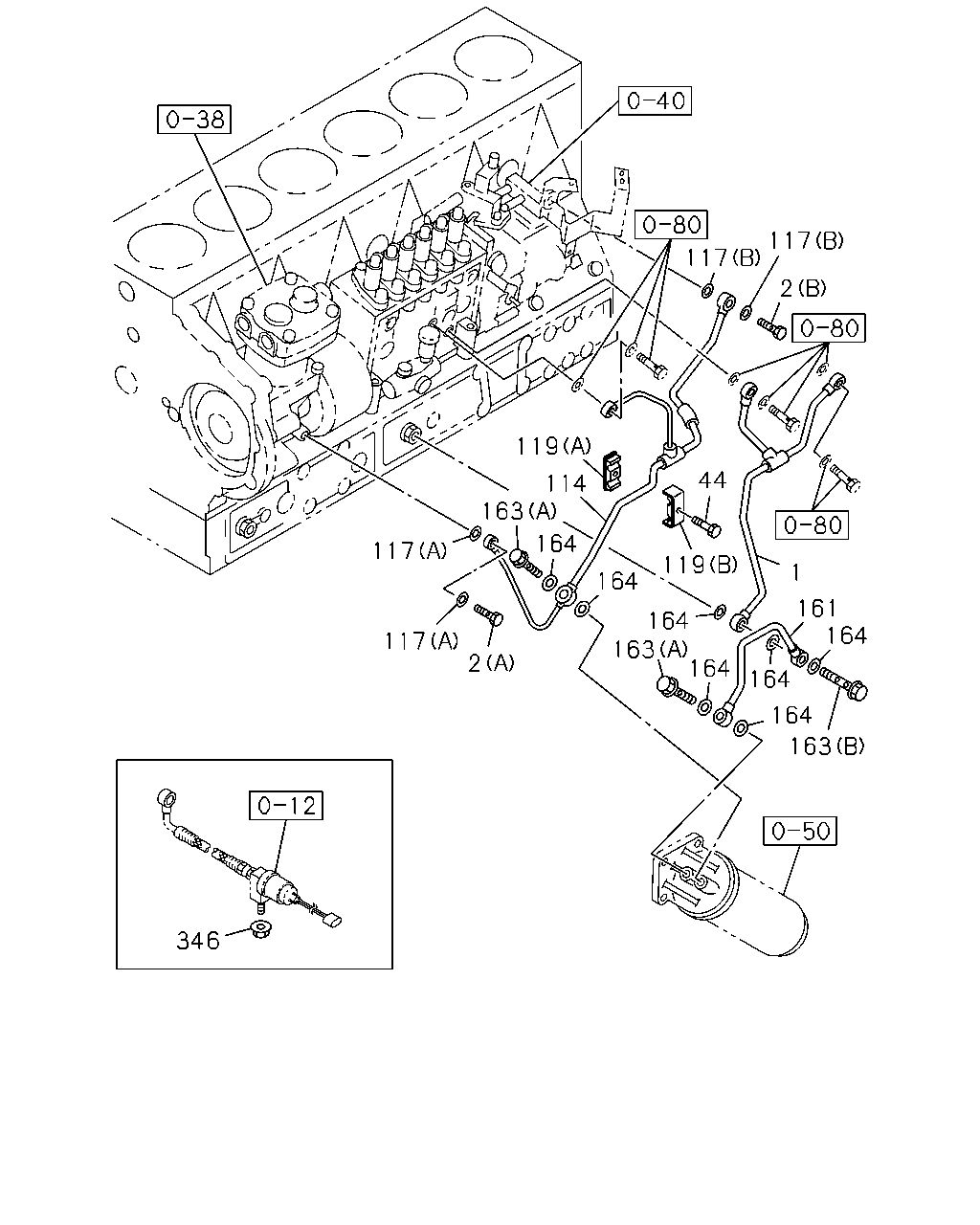

117 117 2 119 44 114 163 164 117 119 1 164 161 164 164 163 164 117 2 164 164 163 346

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	PIPE; OIL,INJ PUMP TO C/BL	1-13313-972-0	01	1	0404-
2	BOLT; EYE,OIL PIPE (A) M10X21 FLANGE	1-09675-077-0	01	1	0404-0805
2	BOLT; EYE,OIL PIPE (A) M10X21 FLANGE	8-97372-238-0	01	1	0806-
2	BOLT; EYE,OIL PIPE (B) M12X27 FLANGE	1-09675-160-0	01	1	0404-0805
2	BOLT; EYE,OIL PIPE (B) M12X27 EYE-BOLT W/FLANGE	8-98037-826-0	01	1	0806-
44	BOLT; CLIP,OIL PIPE M6X35 FLANGE	0-28680-635-0	02	1	0404-0512
44	BOLT; CLIP,OIL PIPE M6X35 FLANGE	0-28650-635-0	02	1	0601-
114	PIPE ASM; OIL,BODY	1-13313-973-0	01	1	0404-
117	GASKET; JOINT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=10.2 OD=15.2	1-09630-083-0	02	1	0404-
117	GASKET; JOINT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=12.2	1-09630-084-0	02	1	0404-1312
117	GASKET; JOINT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=12.2	8-98251-344-0	02	1	1401-
119	CLIP; OIL PIPE,BODY TO CMPR (A)	1-09701-180-0	01	1	0404-
119	CLIP; OIL PIPE,BODY TO CMPR (B) ID=10 & 10 L=25	8-94393-280-3	01	1	0404-
161	PIPE; OIL,PARTIAL FILTER RETURN	1-13313-966-0	01	1	0404-
163	BOLT; EYE,OIL PIPE,PARTIAL FILTER (A) M14X27 FLANGE	1-09675-086-0	02	1	0404-
163	BOLT; EYE,OIL PIPE,PARTIAL FILTER (B) M14X42	1-09675-090-0	01	1	0404-0805
163	BOLT; EYE,OIL PIPE,PARTIAL FILTER (B) M14X43	8-98037-829-0	01	1	0806-
164	GASKET; EYE BOLT,OIL PIPE,FILTER ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=19.2	1-09630-085-0	07	1	0404-1312
164	GASKET; EYE BOLT,OIL PIPE,FILTER ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=19.2	8-98251-345-0	07	1	1401-
346	NUT; CONNECTOR M10 FLANGE	0-91150-110-0	01	1	0404-0602
346	NUT; CONNECTOR M10 FLANGE	0-91180-110-0	01	1	0603-

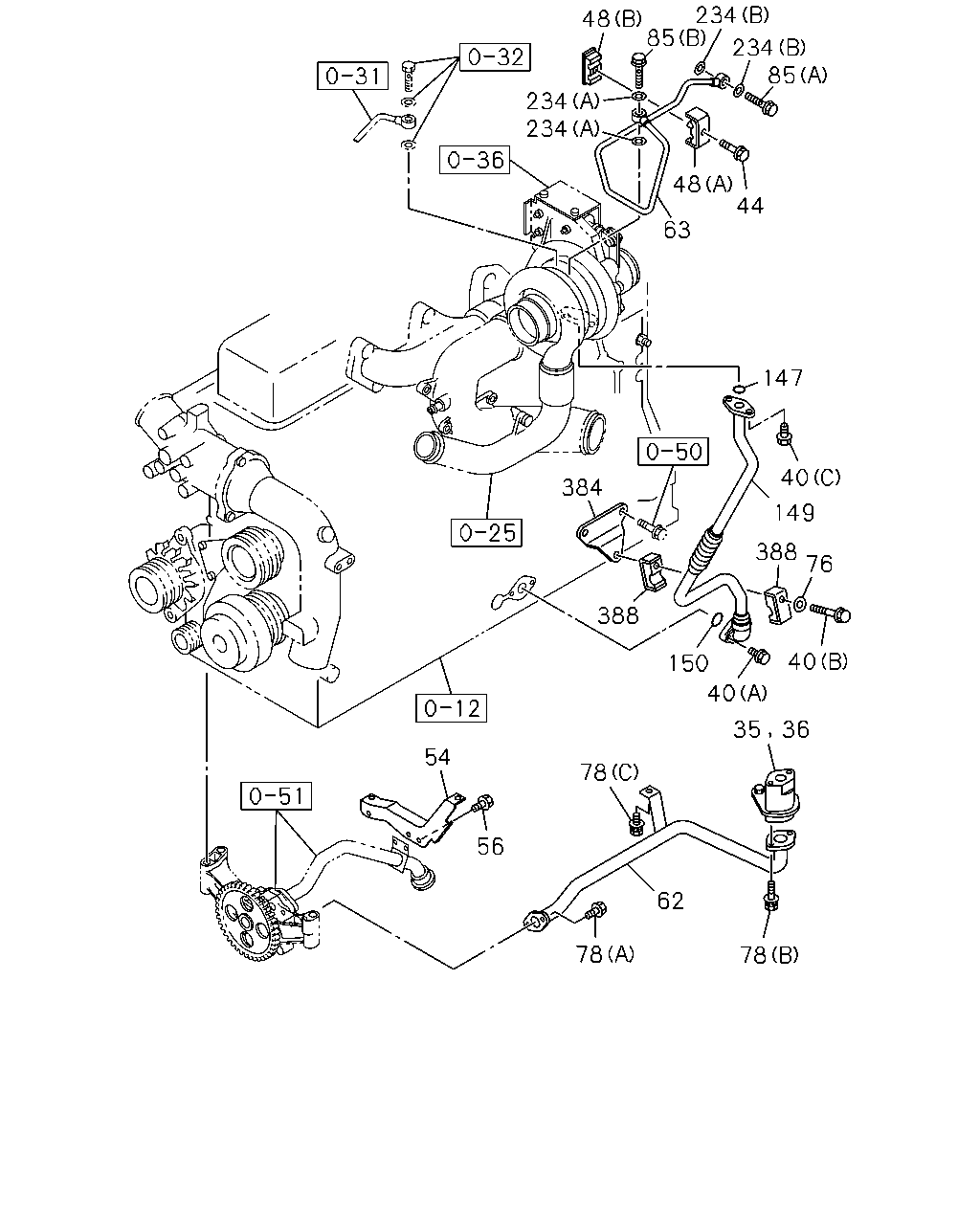

48 234 85 234 85 234 234 48 44 63 147 40 384 149 388 76 388 40 150 40 54 78 56 62 78 78 35 36

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
35	VALVE ASM; DRAIN BACK EXC. OIL FILTER SETTING DOWNWARD<E7V>	1-13260-086-0	01	1	0404-
36	SPACER; DRAIN BACK OIL FILTER SETTING DOWNWARD<E7V>	1-13260-108-0	01	1	0404-
40	BOLT; OIL PIPE (B) M6X50 FLANGE	0-28080-650-0	01	1	0404-0512
40	BOLT; OIL PIPE (B) M6X50 FLANGE	0-28050-650-0	01	1	0601-
40	BOLT; OIL PIPE (A) M8X25 FLANGE	0-28080-825-0	02	1	0404-0512
40	BOLT; OIL PIPE (A) M8X25 FLANGE	0-28050-825-0	02	1	0601-
40	BOLT; OIL PIPE (C) M10X30 FLANGE	0-28781-030-0	02	1	0404-0512
40	BOLT; OIL PIPE (C) M10X30 FLANGE	0-28751-030-0	02	1	0601-
44	BOLT; CLIP,OIL PIPE M6X35 FLANGE	0-28680-635-0	02	1	0404-0512
44	BOLT; CLIP,OIL PIPE M6X35 FLANGE	0-28650-635-0	02	1	0601-
48	CLIP; OIL PIPE (A)	1-09701-228-3	01	1	0404-
48	CLIP; OIL PIPE (B)	1-09701-229-2	01	1	0404-
54	STAY; OIL STRAINER	1-13345-130-1	01	1	0404-
56	BOLT; STAY TO BRKT M8X16 FLANGE	0-28080-816-0	02	1	0404-0512
56	BOLT; STAY TO BRKT M8X16 FLANGE	0-28050-816-0	02	1	0601-
62	PIPE; OIL,PUMP TO C/BL	1-13313-274-0	01	1	0404-
63	PIPE; OIL,TURBOCHARGER FEED	1-13313-958-0	01	1	0404-
76	WASHER; CLIP ID=6.4 OD=18	9-09160-706-0	01	1	0404-0605
76	WASHER; CLIP ID=6.4 OD=18	0-91610-706-0	01	1	0606-
78	BOLT; OIL PIPE,PUMP TO BODY (A) M8X18 FLANGE	0-28080-818-0	02	1	0404-
78	BOLT; OIL PIPE,PUMP TO BODY (B) M8X100 W/LK&PL WASHER	0-50140-800-0	02	1	0404-0906
78	BOLT; OIL PIPE,PUMP TO BODY (B) M8X100 W/LK&PL WASHER	0-50640-800-0	02	1	0907-
78	BOLT; OIL PIPE,PUMP TO BODY (C) M8X16 W/LK&PL WASHER	0-50140-816-0	01	1	0404-0512
78	BOLT; OIL PIPE,PUMP TO BODY (C) M8X16 W/LK&PL WASHER	0-50640-816-0	01	1	0601-
85	BOLT; EYE,OIL PIPE FIX (A) M14X27 FLANGE	1-09675-086-0	01	1	0404-
85	BOLT; EYE,OIL PIPE FIX (B) M10X24	9-09906-205-1	01	1	0404-
147	GASKET; OIL PIPE TO TURBOCHARGER ALSO INCLUDED IN GASKET SET(ENGINE). ID=22.1	8-94399-399-0	01	1	0404-
149	PIPE; OIL RETURN,TURBOCHARGER	1-13313-959-0	01	1	0404-
150	GASKET; OIL PIPE TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE).	1-09623-297-0	01	1	0404-
234	GASKET; EYE BOLT ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=10.2 OD=15.2	1-09630-083-0	02	1	0404-
234	GASKET; EYE BOLT ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=14.2 OD=19.2	1-09630-085-0	02	1	0404-1312
234	GASKET; EYE BOLT ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=14.2 OD=19.2	8-98251-345-0	02	1	1401-
384	BRACKET; CLIP,OIL PIPE,TURBOCHARGER	1-19199-315-0	02	1	0404-
388	CLIP; TURBOCHARGER RETURN PIPE	1-09701-281-1	02	1	0404-
