0-50 — OIL COOLER AND OIL FILTER (#34523) — 146 parça

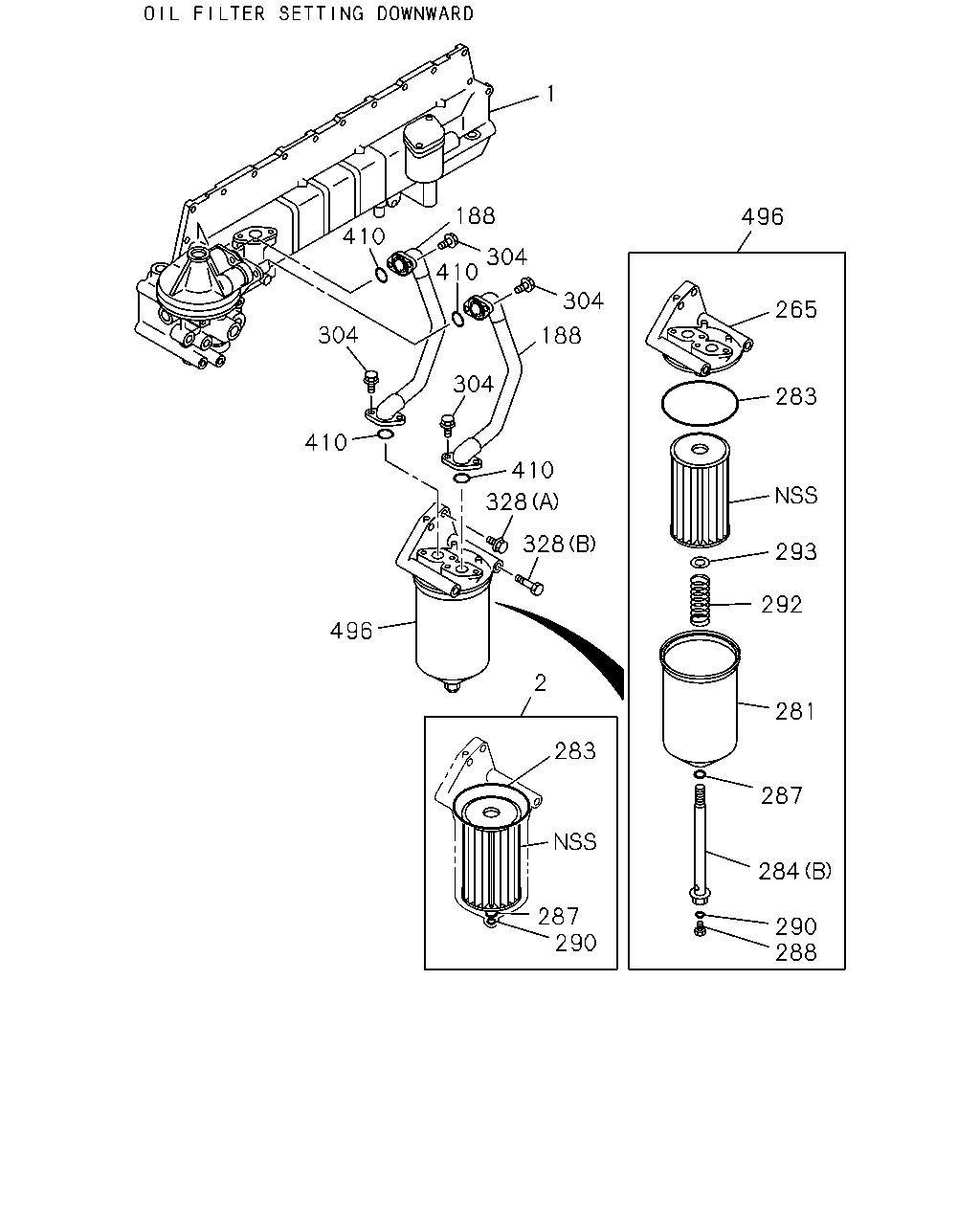

1 188 496 410 304 410 304 265 304 188 304 283 410 410 328 328 293 292 496 2 281 283 287 284 287 290 290 288

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	FILTER & COOLER ASM; OIL OIL FILTER SETTING DOWNWARD<E7V>	1-21700-368-0	01	1	0404-
1	FILTER & COOLER ASM; OIL EXC. OIL FILTER SETTING DOWNWARD<E7V>	1-13200-936-2	01	1	0404-
2	ELEMENT; OIL FILTER OIL FILTER SETTING DOWNWARD<E7V>	1-87810-075-2	01	1	0404-
2	ELEMENT; OIL FILTER EXC. OIL FILTER SETTING DOWNWARD<E7V>	1-13240-168-1	01	1	0404-
188	PIPE; BYPASS OIL FILTER SETTING DOWNWARD<E7V>	1-13312-650-0	02	1	0404-
265	BODY; OIL FILTER OIL FILTER SETTING DOWNWARD<E7V>	1-13212-161-0	01	1	0404-
281	COVER; OIL FILTER OIL FILTER SETTING DOWNWARD<E7V>	1-13211-153-0	01	1	0404-
283	GASKET; BODY TO COVER OIL FILTER SETTING DOWNWARD<E7V> ID=27.7	1-09623-170-0	01	1	0404-
284	BOLT; CENTER,OIL FILTER OIL FILTER SETTING DOWNWARD<E7V> (A)	1-13212-064-1	01	1	0404-
284	BOLT; CENTER,OIL FILTER OIL FILTER SETTING DOWNWARD<E7V> (B)	1-13231-047-0	01	1	0404-
287	GASKET; CENTER BOLT OIL FILTER SETTING DOWNWARD<E7V> ID=15.5	9-09920-694-0	01	1	0404-
288	PLUG; OIL DRAIN OIL FILTER SETTING DOWNWARD<E7V> M10	1-09000-105-0	01	1	0404-
290	GASKET; PLUG,OIL DRAIN OIL FILTER SETTING DOWNWARD<E7V> ID=9.8	1-09623-055-0	02	1	0404-
292	SPRING; ELEMENT OIL FILTER SETTING DOWNWARD<E7V>	9-09941-283-0	02	1	0404-
293	SEAT; SPR OIL FILTER SETTING DOWNWARD<E7V>	1-13219-173-0	02	1	0404-
304	BOLT; PIPE TO COVER OIL FILTER SETTING DOWNWARD<E7V> M8X20 FLANGE	0-28080-820-0	08	1	0404-0512
304	BOLT; PIPE TO COVER OIL FILTER SETTING DOWNWARD<E7V> M8X20 FLANGE	0-28050-820-0	08	1	0601-
328	BOLT; OIL FILTER OIL FILTER SETTING DOWNWARD<E7V> (B) M10X140 FLANGE	0-28186-014-0	02	1	0404-0512
328	BOLT; OIL FILTER OIL FILTER SETTING DOWNWARD<E7V> (B) M10X140 FLANGE	0-28156-014-0	02	1	0601-
328	BOLT; OIL FILTER OIL FILTER SETTING DOWNWARD<E7V> (A) M10X35 FLANGE	0-28781-035-0	01	1	0404-0512
328	BOLT; OIL FILTER OIL FILTER SETTING DOWNWARD<E7V> (A) M10X35 FLANGE	0-28751-035-0	01	1	0601-
410	GASKET OIL FILTER SETTING DOWNWARD<E7V> ID=27.7	1-09623-450-0	04	1	0404-
496	FILTER ASM; OIL OIL FILTER SETTING DOWNWARD<E7V>	1-13200-848-0	01	1	0404-

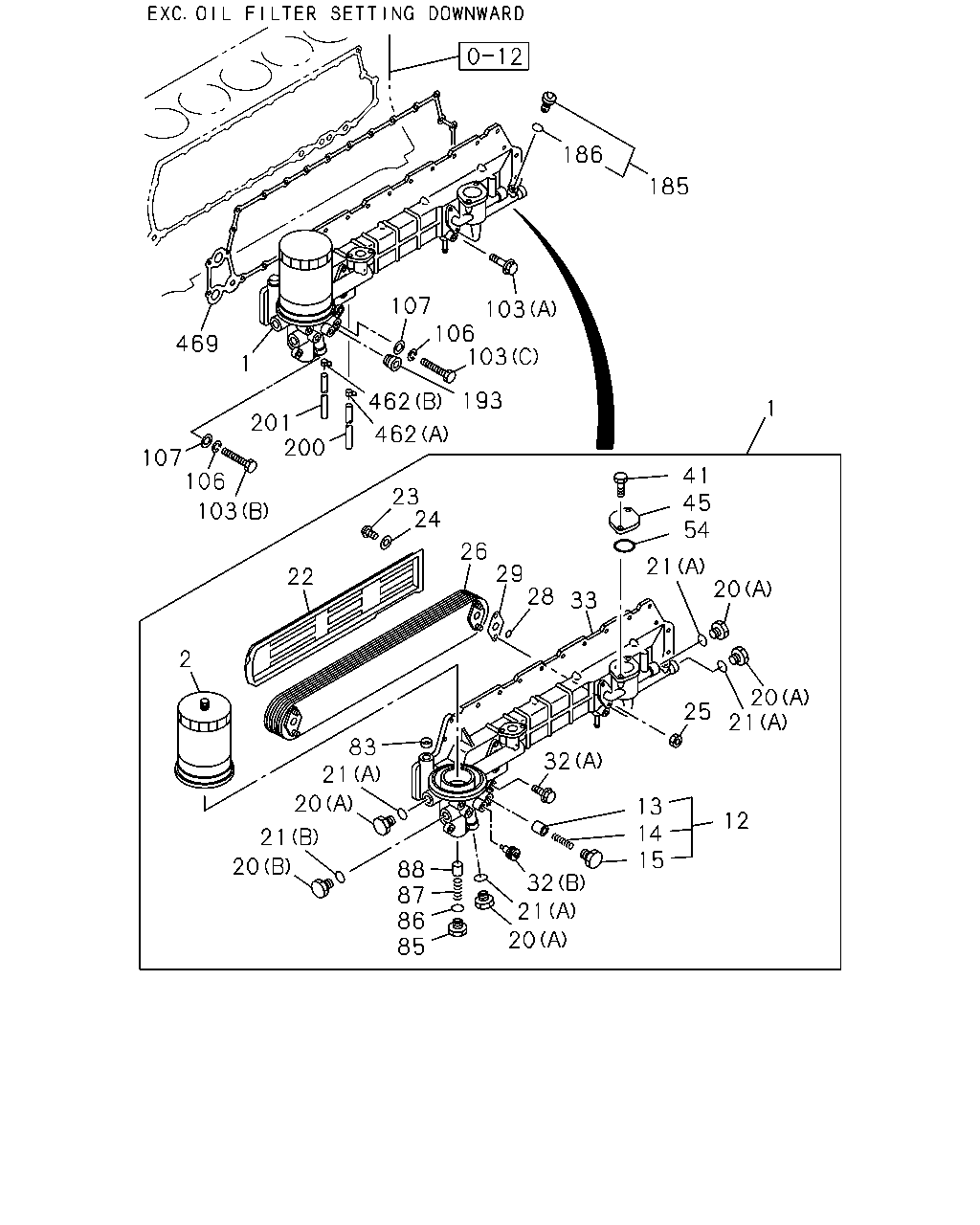

186 185 107 106 103 103 469 1 193 462 1 201 200 462 107 106 41 45 54 23 24 103 26 29 28 21 20 22 33 2 20 21 25 83 21 32 20 13 14 15 12 21 20 88 87 86 85 32 21 20

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	FILTER & COOLER ASM; OIL OIL FILTER SETTING DOWNWARD<E7V>	1-21700-368-0	01	1	0404-
1	FILTER & COOLER ASM; OIL EXC. OIL FILTER SETTING DOWNWARD<E7V>	1-13200-936-2	01	1	0404-
2	ELEMENT; OIL FILTER OIL FILTER SETTING DOWNWARD<E7V>	1-87810-075-2	01	1	0404-
2	ELEMENT; OIL FILTER EXC. OIL FILTER SETTING DOWNWARD<E7V>	1-13240-168-1	01	1	0404-
12	VALVE ASM; BYPASS	1-13260-110-0	01	1	0404-
13	VALVE; RELIEF	9-13262-010-0	01	1	0404-
14	SPRING; RELIEF VLV	1-13263-006-0	01	1	0404-
15	PLUG; RELIEF VLV	1-13219-322-0	01	1	0404-
20	PLUG; COOLER BODY (A) M26	1-13219-153-0	04	1	0404-
20	PLUG; COOLER BODY (B) M24	1-13219-356-0	01	1	0404-
21	GASKET; PLUG (A) M26	1-13219-159-0	04	1	0404-
21	GASKET; PLUG (B) M24	8-94396-755-0	01	1	0404-
22	GUIDE; WATER	1-13219-155-1	01	1	0404-
23	SCREW; WATER GUIDE	1-13219-156-0	07	1	0404-
24	WASHER; WATER GUIDE	1-13219-157-0	07	1	0404-
25	NUT; CORE TO BODY M10 FLANGE	1-13219-324-0	04	1	0404-
26	CORE ASM; OIL COOLER	1-21723-058-0	01	1	0404-
28	GASKET; CORE TO BODY	8-94396-810-0	02	1	0404-
29	GASKET; CORE TO BODY	8-94394-930-0	02	1	0404-
32	PLUG; DRAIN EXC. OIL FILTER SETTING DOWNWARD<E7V> (B)	1-13219-295-1	01	1	0404-
32	PLUG; DRAIN (A)	1-13219-276-0	01	1	0404-
33	HOUSING ASM; COOLER OIL FILTER SETTING DOWNWARD<E7V>	1-13211-323-0	01	1	0404-
33	HOUSING ASM; COOLER EXC. OIL FILTER SETTING DOWNWARD<E7V>	1-13211-308-0	01	1	0404-
41	BOLT; COVER FIX	8-98272-067-0	02	1	0404-
45	COVER; OIL PORT	1-13219-172-0	01	1	0404-
54	GASKET; OIL PIPE	1-13219-162-0	01	1	0404-
83	CUP; SEALING,BODY,OIL COOLER & FILTER OD=20	9-11129-128-0	01	1	0404-
85	PLUG; DRAIN UNIT,OIL FILTER OIL FILTER SETTING DOWNWARD<E7V>	1-13219-252-0	01	1	0404-
85	PLUG; DRAIN UNIT,OIL FILTER EXC. OIL FILTER SETTING DOWNWARD<E7V>	1-13219-146-0	01	1	0404-
86	GASKET; DRAIN UNIT,OIL FILTER	1-13219-147-0	01	1	0404-
87	SPRING; DRAIN UNIT,OIL FILTER EXC. OIL FILTER SETTING DOWNWARD<E7V>	1-13219-148-0	01	1	0404-
88	VALVE; DRAIN UNIT,OIL FILTER EXC. OIL FILTER SETTING DOWNWARD<E7V>	9-13262-009-0	01	1	0404-
103	BOLT; OIL COOLER (A) M8X25 FLANGE	0-28080-825-0	24	1	0404-0512
103	BOLT; OIL COOLER (A) M8X25 FLANGE	0-28050-825-0	24	1	0601-
103	BOLT; OIL COOLER (B) M8X145	1-09000-448-1	02	1	0404-
103	BOLT; OIL COOLER (C) M8X155	9-09801-275-0	02	1	0404-
106	WASHER; LK,OIL COOLER ID=8.2	9-09150-508-0	02	1	0404-0603
106	WASHER; LK,OIL COOLER ID=8.2	0-91510-508-0	02	1	0604-
107	WASHER; PL,OIL COOLER ID=8.4	9-09160-508-0	04	1	0404-0605
107	WASHER; PL,OIL COOLER ID=8.4 OD=16	0-91610-508-0	04	1	0606-
185	VALVE; OIL RELIEF,OIL COOLER	1-13160-034-0	01	1	0404-
186	GASKET; RELIEF VLV,OIL COOLER ALSO INCLUDED IN GASKET SET(ENGINE). ID=27.7	9-09565-228-0	01	1	0404-
193	PLUG; TAPER PT3/8 T=8.0	1-09605-066-0	01	1	0404-
200	PIPE; VINYL,WATER DRAIN L=360 SERVICED BY L=3000	0-03457-300-0	01	1	0404-
201	PIPE; VINYL,OIL DRAIN EXC. OIL FILTER SETTING DOWNWARD<E7V> L=480 SERVICED BY L=10000	9-09914-701-0	01	1	0404-
462	CLIP; HOSE,DRAIN EXC. OIL FILTER SETTING DOWNWARD<E7V> (B) ID=13.5	8-97015-754-1	01	1	0404-
462	CLIP; HOSE,DRAIN (A)	1-09704-100-0	01	1	0404-
469	GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE).	1-11219-177-1	01	1	0404-

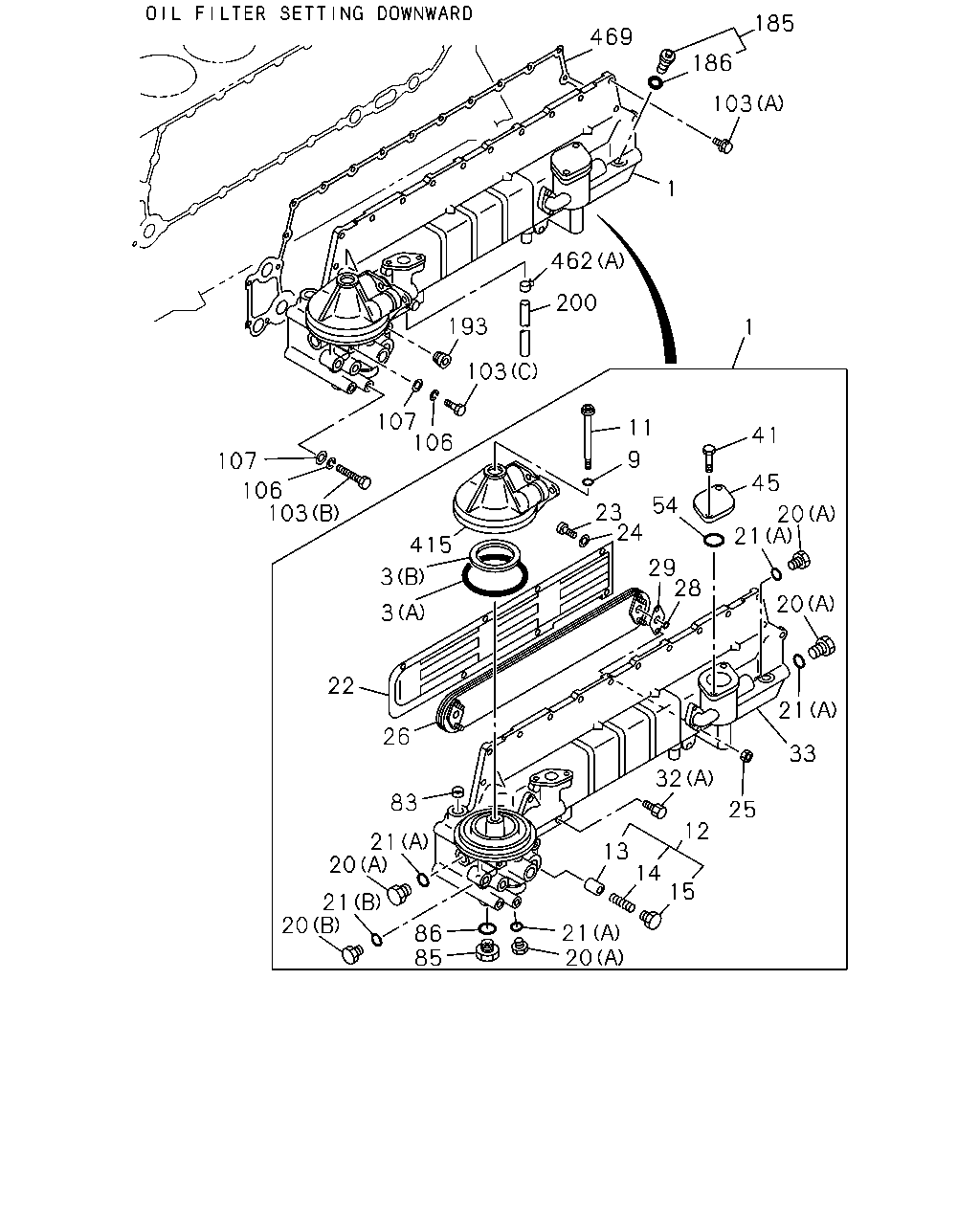

185 469 186 103 1 462 200 193 1 103 107 106 11 41 9 107 45 106 103 54 23 24 20 21 415 29 28 3 20 3 22 21 26 33 32 83 25 12 21 20 13 14 15 21 20 86 85 21 20

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	FILTER & COOLER ASM; OIL OIL FILTER SETTING DOWNWARD<E7V>	1-21700-368-0	01	1	0404-
1	FILTER & COOLER ASM; OIL EXC. OIL FILTER SETTING DOWNWARD<E7V>	1-13200-936-2	01	1	0404-
3	GASKET OIL FILTER SETTING DOWNWARD<E7V> (A)	1-09623-352-0	01	1	0404-
3	GASKET OIL FILTER SETTING DOWNWARD<E7V> (B)	1-09630-109-0	01	1	0404-
9	GASKET; CENTER BOLT ALSO INCLUDED IN GASKET SET(ENGINE). OIL FILTER SETTING DOWNWARD<E7V> ID=15.5	9-09920-694-0	01	1	0404-
11	BOLT; CENTER OIL FILTER SETTING DOWNWARD<E7V>	1-13231-062-0	01	1	0404-
12	VALVE ASM; BYPASS	1-13260-110-0	01	1	0404-
13	VALVE; RELIEF	9-13262-010-0	01	1	0404-
14	SPRING; RELIEF VLV	1-13263-006-0	01	1	0404-
15	PLUG; RELIEF VLV	1-13219-322-0	01	1	0404-
20	PLUG; COOLER BODY (A) M26	1-13219-153-0	04	1	0404-
20	PLUG; COOLER BODY (B) M24	1-13219-356-0	01	1	0404-
21	GASKET; PLUG (A) M26	1-13219-159-0	04	1	0404-
21	GASKET; PLUG (B) M24	8-94396-755-0	01	1	0404-
22	GUIDE; WATER	1-13219-155-1	01	1	0404-
23	SCREW; WATER GUIDE	1-13219-156-0	07	1	0404-
24	WASHER; WATER GUIDE	1-13219-157-0	07	1	0404-
25	NUT; CORE TO BODY M10 FLANGE	1-13219-324-0	04	1	0404-
26	CORE ASM; OIL COOLER	1-21723-058-0	01	1	0404-
28	GASKET; CORE TO BODY	8-94396-810-0	02	1	0404-
29	GASKET; CORE TO BODY	8-94394-930-0	02	1	0404-
32	PLUG; DRAIN EXC. OIL FILTER SETTING DOWNWARD<E7V> (B)	1-13219-295-1	01	1	0404-
32	PLUG; DRAIN (A)	1-13219-276-0	01	1	0404-
33	HOUSING ASM; COOLER OIL FILTER SETTING DOWNWARD<E7V>	1-13211-323-0	01	1	0404-
33	HOUSING ASM; COOLER EXC. OIL FILTER SETTING DOWNWARD<E7V>	1-13211-308-0	01	1	0404-
41	BOLT; COVER FIX	8-98272-067-0	02	1	0404-
45	COVER; OIL PORT	1-13219-172-0	01	1	0404-
54	GASKET; OIL PIPE	1-13219-162-0	01	1	0404-
83	CUP; SEALING,BODY,OIL COOLER & FILTER OD=20	9-11129-128-0	01	1	0404-
85	PLUG; DRAIN UNIT,OIL FILTER OIL FILTER SETTING DOWNWARD<E7V>	1-13219-252-0	01	1	0404-
85	PLUG; DRAIN UNIT,OIL FILTER EXC. OIL FILTER SETTING DOWNWARD<E7V>	1-13219-146-0	01	1	0404-
86	GASKET; DRAIN UNIT,OIL FILTER	1-13219-147-0	01	1	0404-
103	BOLT; OIL COOLER (A) M8X25 FLANGE	0-28080-825-0	24	1	0404-0512
103	BOLT; OIL COOLER (A) M8X25 FLANGE	0-28050-825-0	24	1	0601-
103	BOLT; OIL COOLER (B) M8X145	1-09000-448-1	02	1	0404-
103	BOLT; OIL COOLER (C) M8X155	9-09801-275-0	02	1	0404-
106	WASHER; LK,OIL COOLER ID=8.2	9-09150-508-0	02	1	0404-0603
106	WASHER; LK,OIL COOLER ID=8.2	0-91510-508-0	02	1	0604-
107	WASHER; PL,OIL COOLER ID=8.4	9-09160-508-0	04	1	0404-0605
107	WASHER; PL,OIL COOLER ID=8.4 OD=16	0-91610-508-0	04	1	0606-
185	VALVE; OIL RELIEF,OIL COOLER	1-13160-034-0	01	1	0404-
186	GASKET; RELIEF VLV,OIL COOLER ALSO INCLUDED IN GASKET SET(ENGINE). ID=27.7	9-09565-228-0	01	1	0404-
193	PLUG; TAPER PT3/8 T=8.0	1-09605-066-0	01	1	0404-
200	PIPE; VINYL,WATER DRAIN L=360 SERVICED BY L=3000	0-03457-300-0	01	1	0404-
415	COVER; OIL COOLER OIL FILTER SETTING DOWNWARD<E7V>	1-21722-031-0	01	1	0404-
462	CLIP; HOSE,DRAIN EXC. OIL FILTER SETTING DOWNWARD<E7V> (B) ID=13.5	8-97015-754-1	01	1	0404-
462	CLIP; HOSE,DRAIN (A)	1-09704-100-0	01	1	0404-
469	GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE).	1-11219-177-1	01	1	0404-

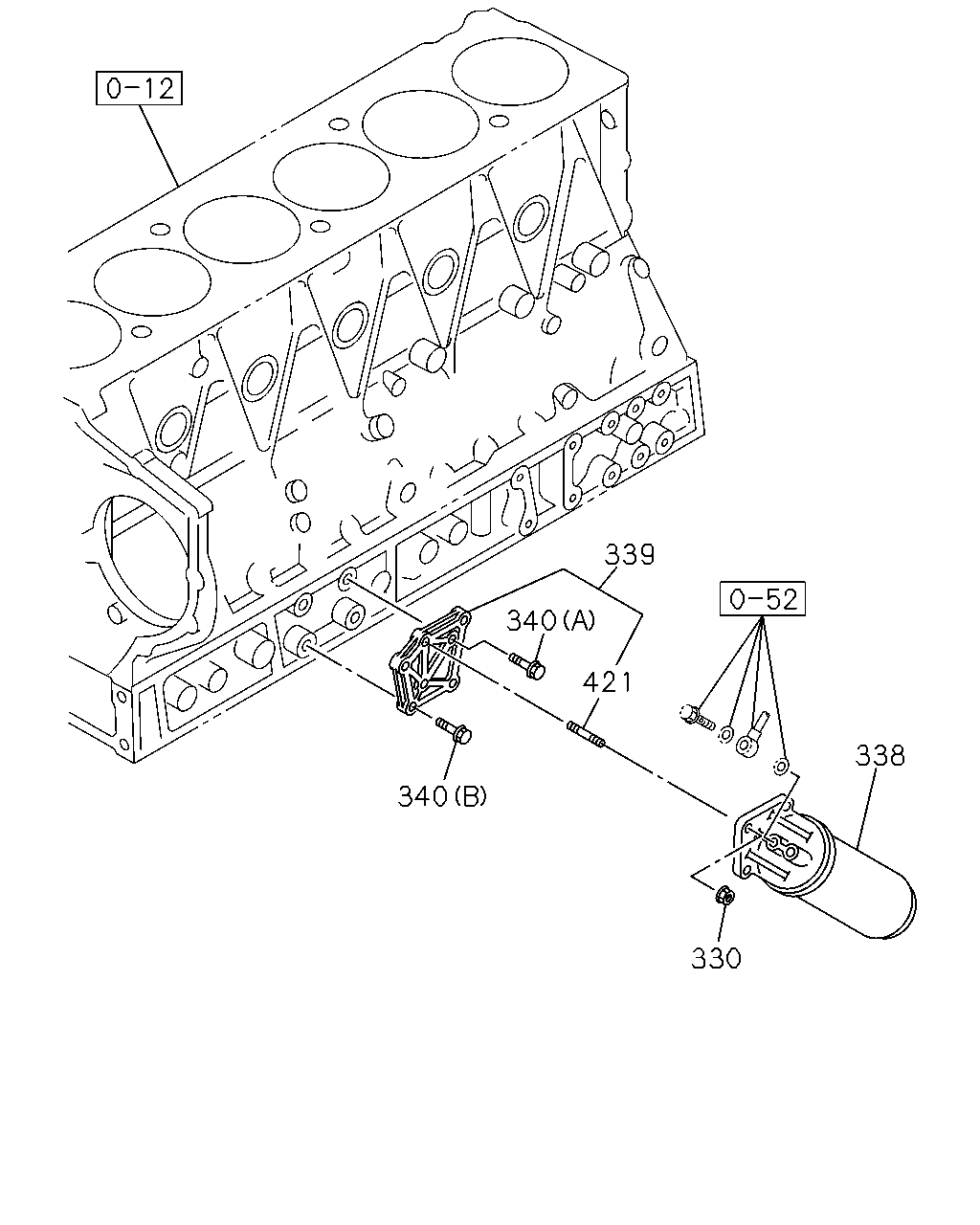

339 340 421 338 340 330

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
330	NUT; OIL FILTER M10 FLANGE	0-91150-210-0	03	1	0404-0602
330	NUT; OIL FILTER M10 FLANGE	0-91180-210-0	03	1	0603-
338	FILTER ASM; OIL PARTIAL OIL FILTER SETTING DOWNWARD<E7V>	1-13200-704-1	01	1	0404-
338	FILTER ASM; OIL PARTIAL EXC. OIL FILTER SETTING DOWNWARD<E7V>	1-13200-744-0	01	1	0404-
339	BRACKET; PARTIAL OIL FILTER	1-19755-175-0	01	1	0404-
340	BOLT; BRKT (A) M10X25 FLANGE	0-28781-025-0	01	1	0404-0512
340	BOLT; BRKT (A) M10X25 FLANGE	0-28751-025-0	01	1	0601-
340	BOLT; BRKT (B) M10X35 FLANGE	0-28781-035-0	03	1	0404-0512
340	BOLT; BRKT (B) M10X35 FLANGE	0-28751-035-0	03	1	0601-
421	STUD; BRKT,OIL FILTER M10X30 L=45	9-04411-030-0	03	1	0404-0604
421	STUD; BRKT,OIL FILTER M10X30 L=45	0-44011-030-0	03	1	0605-

338 390 391 338 390 293 284 280 282 292 132 291 290 391

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
132	PLUG; PARTIAL OIL FILTER OIL FILTER SETTING DOWNWARD<E7V> M10	1-09000-105-0	01	1	0404-
280	CASE ASM; OIL FILTER OIL FILTER SETTING DOWNWARD<E7V>	1-13212-150-0	01	1	0404-
282	GASKET; BODY TO CASE OIL FILTER SETTING DOWNWARD<E7V> ID=27.7	1-09623-170-0	01	1	0404-
284	BOLT; CENTER,OIL FILTER OIL FILTER SETTING DOWNWARD<E7V> (A)	1-13212-064-1	01	1	0404-
284	BOLT; CENTER,OIL FILTER OIL FILTER SETTING DOWNWARD<E7V> (B)	1-13231-047-0	01	1	0404-
290	GASKET; PLUG,OIL DRAIN OIL FILTER SETTING DOWNWARD<E7V> ID=9.8	1-09623-055-0	02	1	0404-
291	GASKET; OIL DRAIN,CENTER BOLT OIL FILTER SETTING DOWNWARD<E7V> ID=15.5	9-09920-694-0	01	1	0404-
292	SPRING; ELEMENT OIL FILTER SETTING DOWNWARD<E7V>	9-09941-283-0	02	1	0404-
293	SEAT; SPR OIL FILTER SETTING DOWNWARD<E7V>	1-13219-173-0	02	1	0404-
338	FILTER ASM; OIL PARTIAL OIL FILTER SETTING DOWNWARD<E7V>	1-13200-704-1	01	1	0404-
338	FILTER ASM; OIL PARTIAL EXC. OIL FILTER SETTING DOWNWARD<E7V>	1-13200-744-0	01	1	0404-
390	BODY; OIL FILTER,PARTIAL OIL FILTER SETTING DOWNWARD<E7V>	1-13212-141-0	01	1	0404-
390	BODY; OIL FILTER,PARTIAL EXC. OIL FILTER SETTING DOWNWARD<E7V>	1-13212-089-2	01	1	0404-
391	CARTRIDGE; OIL FILTER,PARTIAL OIL FILTER SETTING DOWNWARD<E7V>	1-13240-077-1	01	1	0404-
391	CARTRIDGE; OIL FILTER,PARTIAL EXC. OIL FILTER SETTING DOWNWARD<E7V>	1-13240-163-2	01	1	0404-
391	CARTRIDGE; OIL FILTER,PARTIAL EXC. OIL FILTER SETTING DOWNWARD<E7V> BEST VALUE PARTS	1-87610-065-0	01	1	0404-
