Isuzu WW
▶
BUSES
▶
LV
▶
10948 - LV123/423-LHD
▶
0 - Engine, Emission, Engine Electrical
▶
0-42 - FUEL PUMP AND PIPE
▶

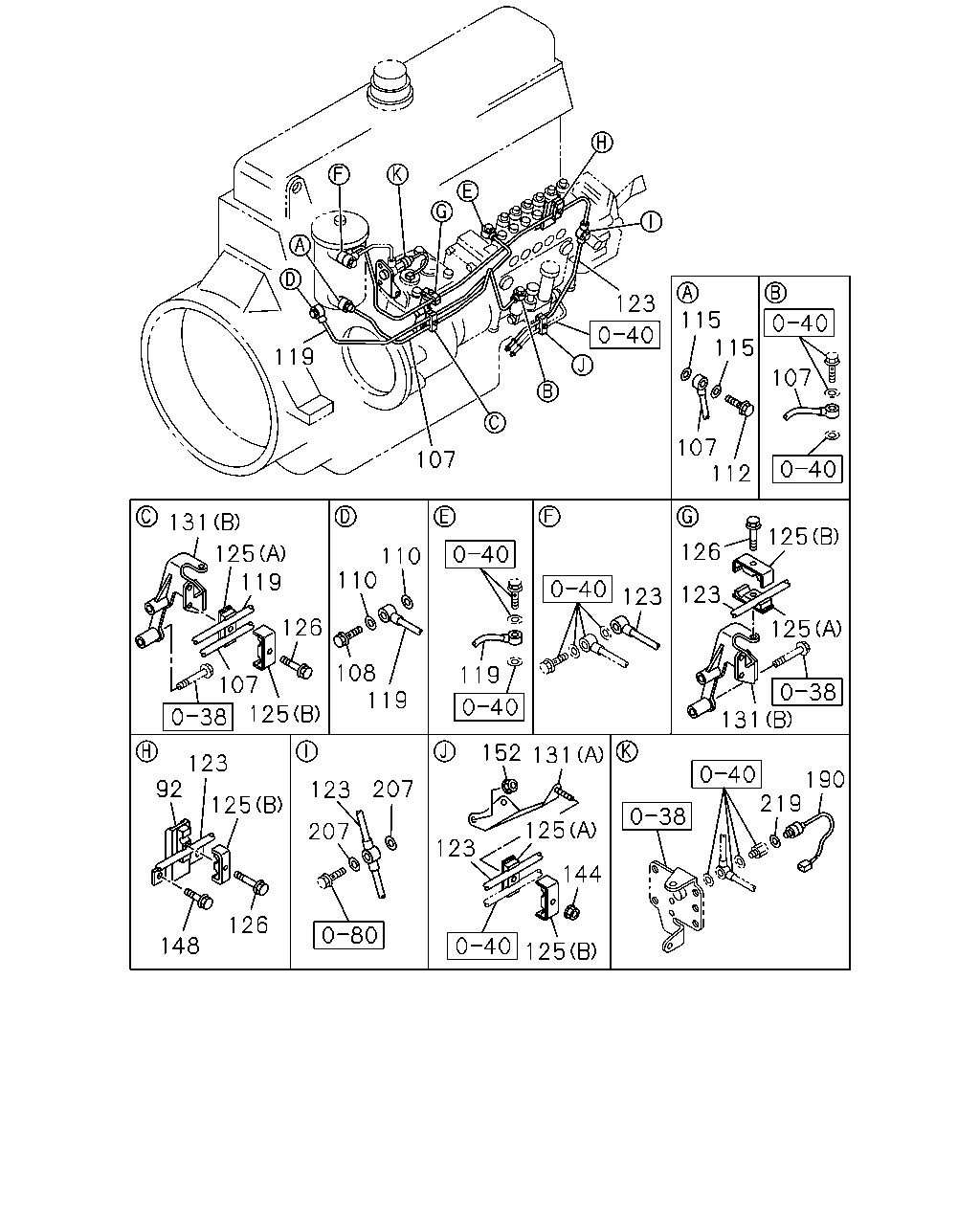

0-42 — FUEL PUMP AND PIPE
(#34522) — 27 parça
123
115
115
119
107
107
112
107
131
125
126
125
119
110
110
123
123
126
125
119
108
119
107
131
125
152
131
123
92
190
219
207
123
125
125
207
123
144
126
148
125
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
92
BRACKET; FUEL PIPE
1-15419-432-0
01
1
0404-
107
PIPE; FUEL,FEED PUMP TO FUEL FILTER
1-15416-764-0
01
1
0404-
108
BOLT; JOINT,FUEL FILTER
M14X27 FLANGE
1-09675-086-0
01
1
0404-
110
GASKET; JOINT BOLT,FUEL PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2
1-09630-085-0
02
1
0404-1312
110
GASKET; JOINT BOLT,FUEL PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2
8-98251-345-0
02
1
1401-
112
BOLT; JOINT,FUEL FILTER
M14X27 FLANGE
1-09675-086-0
01
1
0404-
115
GASKET; JOINT BOLT,FUEL PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2
1-09630-085-0
02
1
0404-1312
115
GASKET; JOINT BOLT,FUEL PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2
8-98251-345-0
02
1
1401-
119
PIPE; FUEL,FUEL FILTER TO INJ PUMP
1-15416-765-0
01
1
0404-
123
PIPE; FUEL,FUEL FILTER LEAK OFF
1-15416-769-0
01
1
0404-
125
CLIP; FUEL PIPE
(A)
1-09701-180-0
04
1
0404-
125
CLIP; FUEL PIPE
(B) ID=10 & 10 L=25
8-94393-280-3
05
1
0404-
126
BOLT; CLIP,FUEL PIPE
M6X35 FLANGE
0-28680-635-0
04
1
0404-0512
126
BOLT; CLIP,FUEL PIPE
M6X35 FLANGE
0-28650-635-0
04
1
0601-
131
BRACKET; FUEL PIPE CLIP
(A)
1-15419-683-0
01
1
0404-
131
BRACKET; FUEL PIPE CLIP
(B)
1-15419-695-0
01
1
0404-
144
NUT; CLIP
M6 FLANGE
0-91150-106-0
01
1
0404-0602
144
NUT; CLIP
M6 FLANGE
0-91180-106-0
01
1
0603-
148
BOLT; BRKT
M10X16 FLANGE
0-28181-016-0
02
1
0404-0512
148
BOLT; BRKT
M10X16 FLANGE
0-28151-016-0
02
1
0601-
152
NUT; BRKT
M8 FLANGE
0-91150-108-0
02
1
0404-0602
152
NUT; BRKT
M8 FLANGE
0-91180-108-0
02
1
0603-
190
SENSOR; FUEL TEMP
1-81535-036-7
01
1
0404-
207
GASKET; EYE BOLT
ID=14.2 OD=19.2
1-09630-085-0
02
1
0404-1312
207
GASKET; EYE BOLT
ID=14.2 OD=19.2
8-98251-345-0
02
1
1401-
219
GASKET; SENSOR
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=12.2
1-09630-084-0
01
1
0404-1312
219
GASKET; SENSOR
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=12.2
8-98251-344-0
01
1
1401-
