Isuzu WW
▶
BUSES
▶
LV
▶
10948 - LV123/423-LHD
▶
0 - Engine, Emission, Engine Electrical
▶
0-41 - FUEL FILTER AND BRACKET
▶

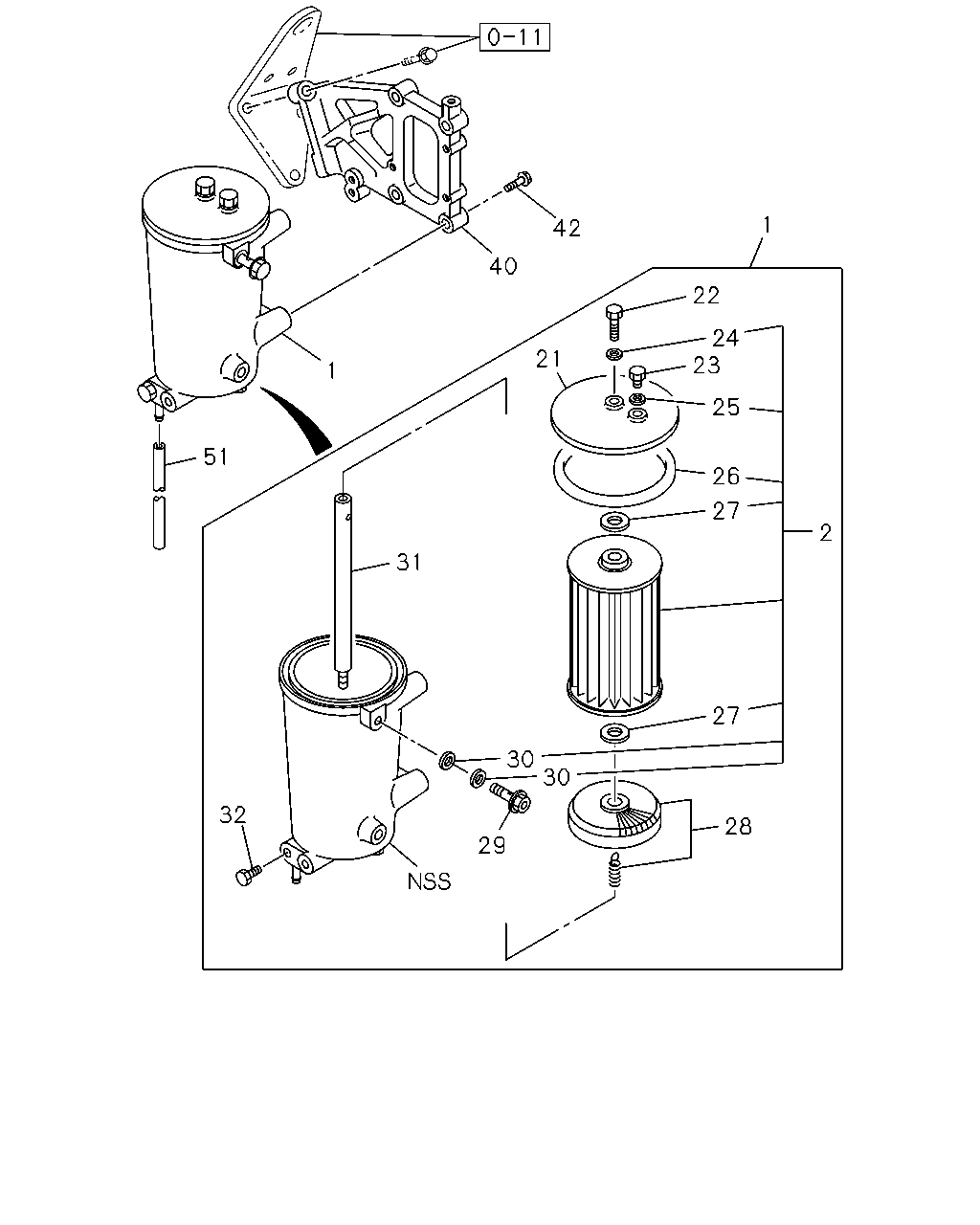

0-41 — FUEL FILTER AND BRACKET
(#34521) — 20 parça
1
42
40
22
24
23
21
1
25
51
26
27
2
31
27
30
30
32
28
29
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
FILTER ASM; FUEL
1-13200-996-1
01
1
0404-1106
1
FILTER ASM; FUEL
8-98175-166-0
01
1
1107-
2
ELEMENT KIT; FUEL FILTER
1-87810-976-0
01
1
0404-1106
2
ELEMENT KIT; FUEL FILTER
8-98174-903-0
02
1
1107-
21
COVER; UPR,FUEL FILTER
1-13212-049-1
01
1
0404-
22
BOLT; CENTER TUBE,COVER
1-13219-045-0
01
1
0404-
23
PLUG; COVER
1-13219-074-0
01
1
0404-
24
GASKET; CENTER TUBE BOLT
ID=10.2 OD=15.2
1-09630-083-0
01
1
0404-
25
GASKET; AIR DRAIN PLUG
ID=10.2 OD=15.2
1-09630-083-0
01
1
0404-
26
GASKET; COVER TO BODY
9-09720-797-0
01
1
0404-
27
GASKET; ELEMENT
1-09630-007-0
02
1
0404-
28
STRAINER; WATER,FUEL FILTER
1-13251-001-0
01
1
0404-
29
VALVE; OVERFLOW
1-13260-115-0
01
1
0404-
30
GASKET; OVERFLOW VLV
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2
1-09630-085-0
02
1
1107-
31
TUBE; CENTER BOLT
1-13231-026-0
01
1
0404-
32
BOLT; DRAIN,FUEL FILTER
1-13219-030-0
01
1
0404-
40
BRACKET; FUEL FILTER
1-13219-352-1
01
1
0404-
42
BOLT; FUEL FILTER
M10X35 FLANGE
0-28681-035-0
04
1
0404-0512
42
BOLT; FUEL FILTER
M10X35 FLANGE
0-28651-035-0
04
1
0601-
51
PIPE; VINYL
L=1000 SERVICED BY L=10000
9-09914-909-0
01
1
0404-
