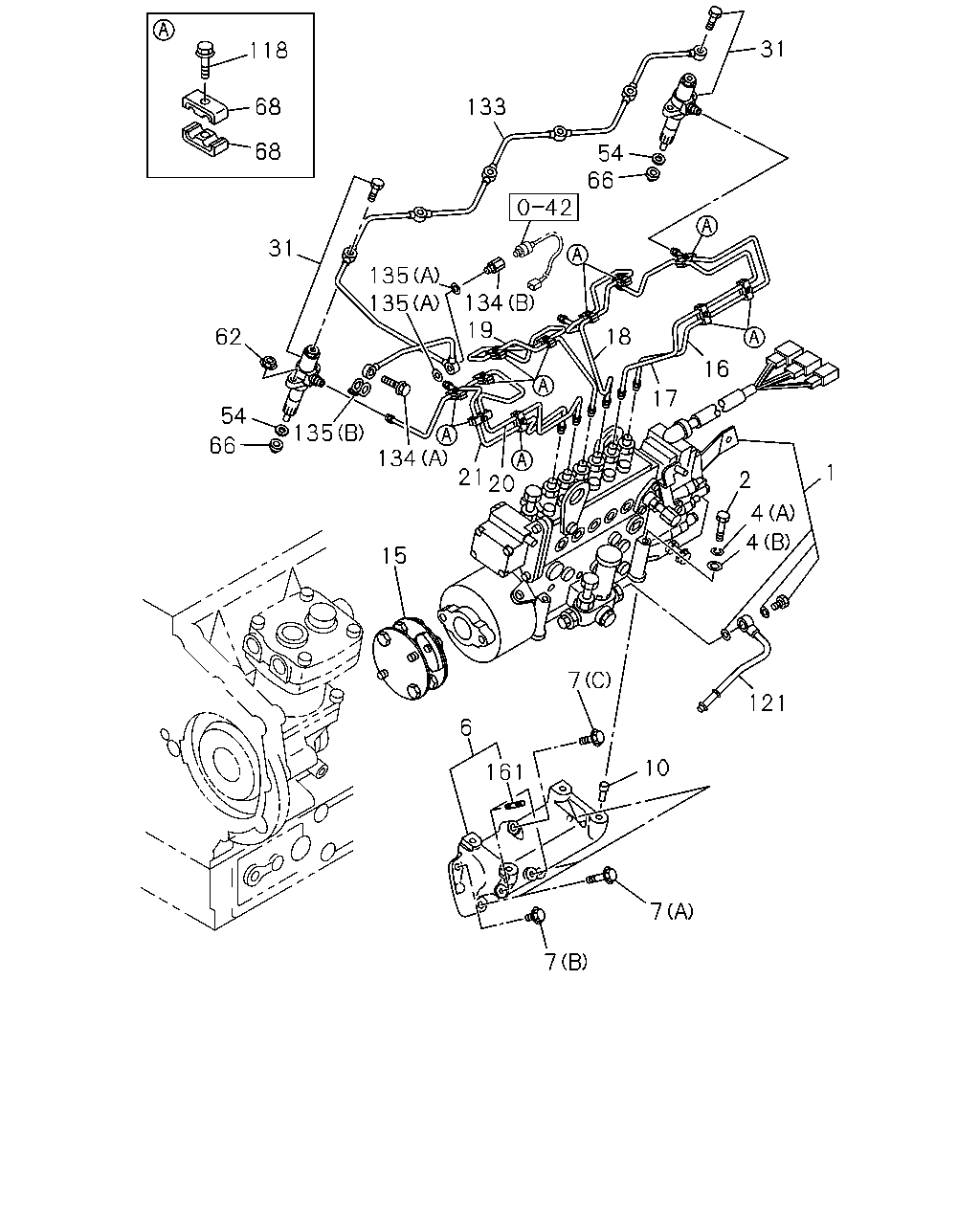

0-40 — FUEL INJECTION SYSTEM (#34520) — 72 parça

31 118 68 133 68 54 66 31 135 135 134 19 18 62 16 17 54 135 66 134 21 20 1 2 4 4 15 7 121 6 10 161 7 7

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT.	1-15603-377-2	01	1	0404-0505
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT.	8-97609-726-0	01	1	0506-0508
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT.	8-97610-929-0	01	1	0509-
2	BOLT; INJ PUMP M10X90	0-16806-090-0	04	1	0404-0512
2	BOLT; INJ PUMP M10X90	0-16856-090-0	04	1	0601-
4	WASHER; INJ PUMP (A) ID=10.2	9-09150-510-0	04	1	0404-0603
4	WASHER; INJ PUMP (A) ID=10.2	0-91510-510-0	04	1	0604-
4	WASHER; INJ PUMP (B) ID=10.5 OD=18	9-09160-510-0	04	1	0404-0605
4	WASHER; INJ PUMP (B) ID=10.5	0-91610-510-0	04	1	0606-
6	BRACKET; INJ PUMP TO C/BL	1-19751-168-0	01	1	0404-0502
6	BRACKET; INJ PUMP TO C/BL	8-97608-455-0	01	1	0503-
7	BOLT; INJ PUMP BRKT (A) M10X60 FLANGE	0-28181-060-0	03	1	0404-0512
7	BOLT; INJ PUMP BRKT (A) M10X60 FLANGE	0-28151-060-0	03	1	0601-
7	BOLT; INJ PUMP BRKT (B) M10X25 FLANGE	0-28781-025-0	01	1	0404-0512
7	BOLT; INJ PUMP BRKT (B) M10X25 FLANGE	0-28751-025-0	01	1	0601-
7	BOLT; INJ PUMP BRKT (C) M10X40 FLANGE	0-28781-040-0	01	1	0404-0512
7	BOLT; INJ PUMP BRKT (C) M10X40 FLANGE	0-28751-040-0	01	1	0601-
10	DOWEL; INJ PUMP OD=14 L=9	9-19759-019-1	02	1	0404-
15	COUPLING ASM; INJ PUMP SEE FIG-NO 0-87 FOR COMPONENT.	1-15780-202-1	01	1	0404-
16	PIPE; INJ NO.1	1-15416-631-0	01	1	0404-
17	PIPE; INJ NO.2	1-15416-632-0	01	1	0404-
18	PIPE; INJ NO.3	1-15416-633-0	01	1	0404-
19	PIPE; INJ NO.4	1-15416-634-0	01	1	0404-
20	PIPE; INJ NO.5	1-15416-635-0	01	1	0404-
21	PIPE; INJ NO.6	1-15416-636-0	01	1	0404-
31	NOZZLE ASM; INJ	1-15300-424-0	06	1	0404-
54	COVER; DUST,NOZZLE HOLDER	9-15339-051-0	06	1	0404-
62	NUT; NOZZLE HOLDER M8 FLANGE	0-91150-108-0	12	1	0404-0602
62	NUT; NOZZLE HOLDER M8 FLANGE	0-91180-108-0	12	1	0603-
66	GASKET; INJ NOZZLE ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	1-15315-013-1	06	1	0404-
68	CLIP; INJ PIPE	1-09701-132-1	22	1	0404-1210
68	CLIP; INJ PIPE	1-09701-240-0	22	1	1211-
118	BOLT; CLIP,INJ PIPE M6X35 FLANGE	0-28680-635-0	11	1	0404-0512
118	BOLT; CLIP,INJ PIPE M6X35 FLANGE	0-28650-635-0	11	1	0601-
121	PIPE; FUEL,FEED PUMP,SUCTION	1-15415-778-0	01	1	0404-
133	PIPE; INJ NOZZLE LEAK OFF	1-15416-728-0	01	1	0404-
134	BOLT; JOINT,LEAK OFF PIPE (A) M8X18 EYE-BOLT	1-09675-037-1	01	1	0404-
134	BOLT; JOINT,LEAK OFF PIPE (B)	1-09675-156-1	01	1	0404-
135	GASKET; JOINT BOLT,LEAK OFF PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=14.2 OD=19.2	1-09630-085-0	02	1	0404-0702
135	GASKET; JOINT BOLT,LEAK OFF PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=14.2 OD=20	8-98065-990-0	02	1	0703-
135	GASKET; JOINT BOLT,LEAK OFF PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=8.6	8-94395-214-0	01	1	0404-1312
135	GASKET; JOINT BOLT,LEAK OFF PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=8.6	8-98246-930-0	01	1	1401-
161	STUD; INJ PUMP M8X20 L=32	9-04110-820-0	02	1	0404-0604
161	STUD; INJ PUMP M8X20 L=32	0-41010-820-0	02	1	0605-

31 32 34 36 36 140 44 43 47 45 138 140 43 272 35

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
31	NOZZLE ASM; INJ	1-15300-424-0	06	1	0404-
32	HOLDER ASM; NOZZLE	1-15330-134-0	06	1	0404-
34	BOLT; EYE,NOZZLE HOLDER M8X18 EYE-BOLT	1-09675-037-1	06	1	0404-
35	NUT; NOZZLE RET,NOZZLE HOLDER	1-15349-134-0	06	1	0404-
36	GASKET; RETURN PIPE,NOZZLE HOLDER ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=8.2 OD=13.2	1-09630-082-0	12	1	0404-
43	SEAT; NOZZLE SPRING,NOZZLE HOLDER (A)	1-15342-002-0	06	1	0404-
43	SEAT; NOZZLE SPRING,NOZZLE HOLDER (B)	1-15342-003-0	06	1	0404-
44	SPRING; NOZZLE,NOZZLE HOLDER	1-15343-005-0	06	1	0404-
45	ROD; PUSH,NOZZLE HOLDER	1-15349-129-0	06	1	0404-
47	SPACER; NOZZLE SPRING,NOZZLE HOLDER	1-15349-157-0	06	1	0404-
138	SPRING; NOZZLE LWR,NOZZLE HOLDER	1-15343-006-0	06	1	0404-
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER (A) T=0.40	1-15349-112-0	AR	1	0404-
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER (A) T=0.50	1-15349-113-0	AR	1	0404-
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER (A) T=0.52	1-15349-114-0	AR	1	0404-
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER (A) T=0.54	1-15349-115-0	AR	1	0404-
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER (A) T=0.56	1-15349-116-0	AR	1	0404-
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER (A) T=0.58	1-15349-117-0	AR	1	0404-
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER (A) T=0.60	1-15349-118-0	AR	1	0404-
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER (A) T=0.70	1-15349-119-0	AR	1	0404-
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER (B) T=0.40	1-15349-120-0	AR	1	0404-
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER (B) T=0.50	1-15349-121-0	AR	1	0404-
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER (B) T=0.52	1-15349-122-0	AR	1	0404-
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER (B) T=0.54	1-15349-123-0	AR	1	0404-
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER (B) T=0.56	1-15349-124-0	AR	1	0404-
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER (B) T=0.58	1-15349-125-0	AR	1	0404-
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER (B) T=0.60	1-15349-126-0	AR	1	0404-
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER (B) T=0.70	1-15349-127-0	AR	1	0404-
272	NOZZLE KIT; INJ	1-15319-032-0	06	1	0404-
