8-15 — FIXING PARTS; WIRING HARNESS (#3452) — 1066 parça

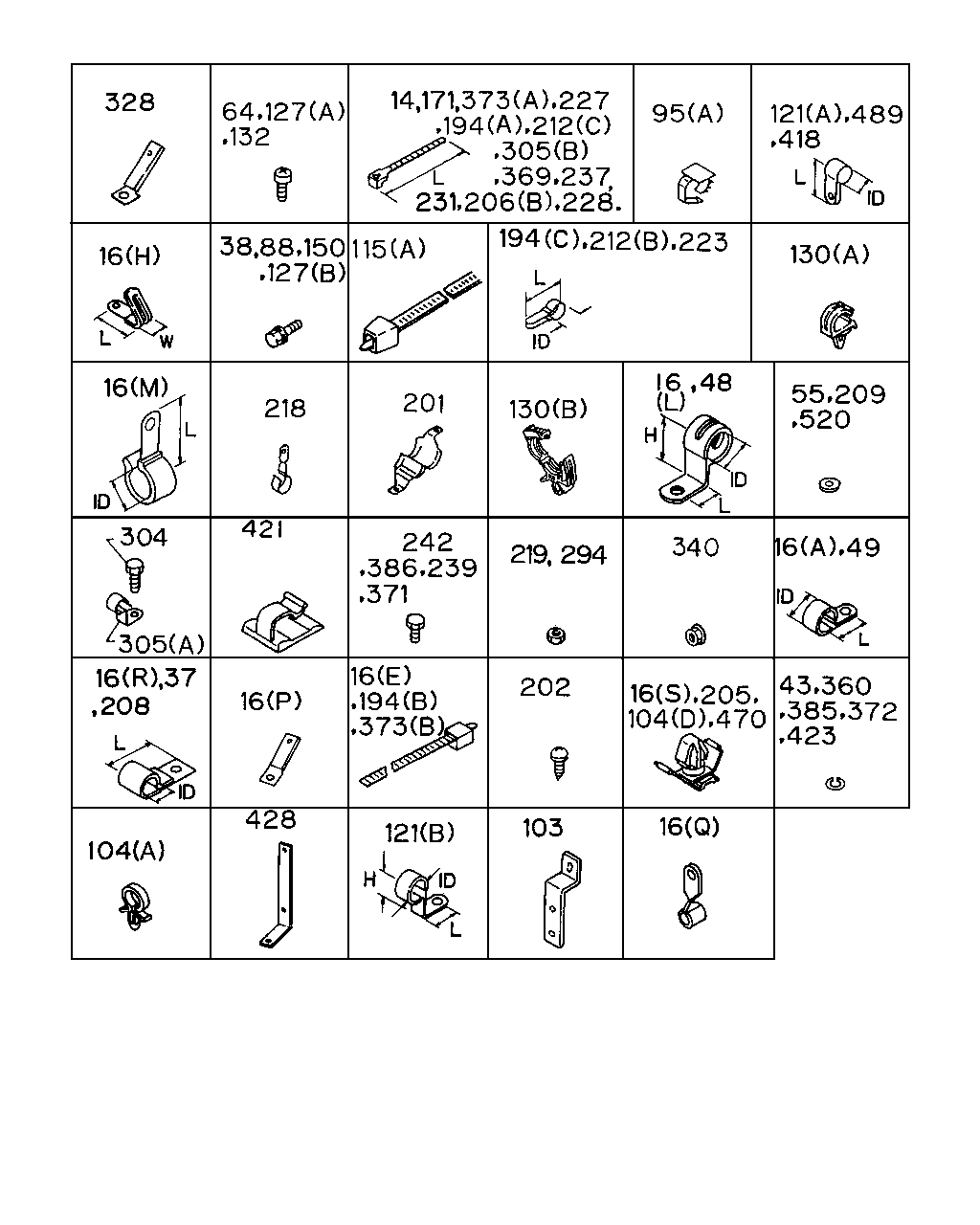

çizim 3838
328 64 127 132 14 171 373 227 194 212 95 305 369 237 231 206 228 121 489 418 130 223 212 194 115 150 127 88 38 16 16 218 201 130 16 48 55 209 16 49 520 340 294 219 242 386 239 371 421 304 305 16 37 208 16 16 194 373 202 16 205 104 470 43 360 372 385 423 16 103 121 428 104
BalonParca AdiParca NoAdetTipApplied Date A B C
14 CLIP; BAND,HARNESS
INTAKE HEATER<SL2> L=100 		5-09707-036-0 01 1 9002- ● ● ●
14 CLIP; BAND,HARNESS
FULLER M/T<X9B> L=140 		5-09707-031-0 02 1 9002- ● ●
14 CLIP; BAND,HARNESS
OIL FILTER CENTRIFUGAL<E6S> L=150 		1-09707-145-0 06 1 9010-9011 ● ●
16 CLIP; HARNESS
WHEEL BASE 5700MM(57W) (D) ID=20 L=50 		9-09917-430-0 25 1 9002- ●
16 CLIP; HARNESS
(D) ID=15 L=45 		1-09700-402-0 02 1 9002-9306 ● ● ●
16 CLIP; HARNESS
AUTO CAB TILT<WV2> (D) ID=14 L=44 		9-09917-427-0 01 1 9307- ● ● ●
16 CLIP; HARNESS
(D) ID=15 L=45 		1-09700-402-0 06 1 9002-9306 ● ● ●
16 CLIP; HARNESS
10PD1 STD ENG(40L),12PD1 C ENG(43L) (C) L=140 		5-09707-031-0 01 1 9307- ● ● ●
16 CLIP; HARNESS
(D) ID=11 L=41 		1-09700-403-0 01 1 9002-9011 ● ● ●
16 CLIP; HARNESS
(D) ID=15 L=65 		1-09700-466-0 02 1 9012- ●
16 CLIP; HARNESS
(B) L=20 H=24 ID=15 H=24 L=20 		1-09700-606-0 01 1 9002- ● ● ●
16 CLIP; HARNESS
(P) 		1-09700-894-0 01 1 9002- ● ● ●
16 CLIP; HARNESS
EXC. INTERMITTENT WIPER<C13> (P) 		1-09700-894-0 01 1 9002- ● ● ●
16 CLIP; HARNESS
(N) ID=28 L=32 		1-09701-107-1 02 1 9002- ● ● ●
16 CLIP; HARNESS
(C) L=219.5 		1-09987-136-0 04 1 9002- ● ● ●
16 CLIP; HARNESS
(J) L=135 		1-09987-143-1 01 1 9002-9201 ● ● ●
16 CLIP; HARNESS
(C) L=175 		8-94155-593-1 01 1 9202-9205 ● ● ●
16 CLIP; HARNESS
(C) L=175 		8-94155-593-1 03 1 9206- ● ● ●
16 CLIP; HARNESS
(N) ID=29 L=35 		5-09700-293-1 01 1 9002-9306 ● ● ●
16 CLIP; HARNESS
(C) L=250 		5-09707-030-0 02 1 9002- ● ● ●
16 CLIP; HARNESS
(C) L=250 		5-09707-030-0 01 1 9002- ● ● ●
16 CLIP; HARNESS
TRANSMISSION SIDE PTO WO/LEVER(SH5) (C) L=250 		5-09707-030-0 01 1 9002- ● ● ●
16 CLIP; HARNESS
CAB SUSPENSION RIGID(W71) EXC. FIRE TRUCK<RA9> (C) L=250 		5-09707-030-0 01 1 9002- ●
16 CLIP; HARNESS
(H) L=36 W=18 L=36 		8-94224-891-1 02 1 9002- ● ● ●
16 CLIP; HARNESS
(N) L=20 ID=11 L=20 		9-09525-032-0 01 1 9002-9410 ● ● ●
16 CLIP; HARNESS
FULLER M/T<X9B> (N) L=20 ID=11 L=20 		9-09525-032-0 01 1 9002-9410 ● ●
16 CLIP; HARNESS
FULLER M/T<X9B> (N) ID=11 L=20 		9-09525-032-0 01 1 9411- ● ●
16 CLIP; HARNESS
(A) L=20 ID=11 L=20 		9-09525-035-0 01 1 9002-9306 ● ● ●
16 CLIP; HARNESS
AUTO CAB TILT<WV2> (C) L=180 		1-09707-162-0 01 1 9307- ● ● ●
16 CLIP; HARNESS
(B) ID=19 H=50 L=25 		9-09916-622-0 01 1 9002-9306 ● ● ●
16 CLIP; HARNESS
(D) ID=25 L=55 		9-09917-573-0 05 1 9002-9306 ● ● ●
16 CLIP; HARNESS
(D) ID=25 L=55 		9-09917-573-0 03 1 9307- ● ● ●
16 CLIP; HARNESS
(E) L=300 		1-09707-001-0 01 1 9007- ● ● ●
16 CLIP; HARNESS
(R) ID=11 L=30 		1-09700-511-0 01 1 9205-9306 ● ● ●
16 CLIP; HARNESS
6RB1 STD ENG(07L) (R) ID=11 L=30 		1-09700-511-0 01 1 9205-9306 ● ●
16 CLIP; HARNESS
6RB1 STD ENG(07L) (R) ID=11 L=30 		1-09700-511-0 01 1 9307-9504 ● ●
16 CLIP; HARNESS
6RB1 STD ENG(07L) (R) ID=11 L=30 		1-09700-511-0 01 1 9505- ● ●
16 CLIP; HARNESS
GOVERNOR CONTROL<W69> (R) ID=11 L=30 		1-09700-511-0 01 1 9505- ●
16 CLIP; HARNESS
(D) ID=15 L=45 		1-09700-402-0 05 1 9307- ● ● ●
16 CLIP; HARNESS
(A) L=20 ID=11 L=20 		9-09525-035-0 01 1 9307-9410 ● ● ●
16 CLIP; HARNESS
(A) L=20 ID=11 L=20 		9-09525-035-0 01 1 9307-9410 ●
16 CLIP; HARNESS
V TYPE ENG<91L> (A) L=20 ID=11 L=20 		9-09525-035-0 01 1 9307-9410 ● ●
16 CLIP; HARNESS
10PD1 STD ENG(40L),12PD1 C ENG(43L) (A) ID=11 L=20 		9-09525-035-0 01 1 9411- ● ● ●
16 CLIP; HARNESS
(A) ID=11 L=20 		9-09525-035-0 02 1 9411- ● ● ●
16 CLIP; HARNESS
AUTO CAB TILT<WV2> (S) OD=9 H=6 		1-09709-178-0 05 1 9307- ● ● ●
16 CLIP; HARNESS
EXC. AUTO CAB TILT<WV2> (N) ID=29 L=35 		5-09700-293-1 01 1 9307- ● ● ●
16 CLIP; HARNESS
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (S) OD=9 H=9.5 		1-09709-179-0 02 1 9002- ● ● ●
16 CLIP; HARNESS
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (D) ID=6 L=36 		9-09917-423-0 06 1 9002- ● ● ●
16 CLIP; HARNESS
TAIWAN EQUIPMENT(WW5) (Q) ID=11 L=40 		8-94123-171-1 01 1 9310- ● ● ●
16 CLIP; HARNESS
EXC. TAIWAN EQUIPMENT(WW5) (D) ID=11 L=41 		1-09700-403-0 03 1 9310- ● ● ●
16 CLIP; HARNESS
(D) ID=11 L=41 		1-09700-403-0 03 1 9310- ● ● ●
16 CLIP; HARNESS
10PD1 STD ENG(40L) (D) ID=11 L=41 		1-09700-403-0 03 1 9002-9007 ● ● ●
16 CLIP; HARNESS
6RB1 STD ENG(07L) INTAKE HEATER<SL2> (D) ID=11 L=41 		1-09700-403-0 03 1 9002-9007 ● ●
16 CLIP; HARNESS
(D) ID=11 L=41 		1-09700-403-0 03 1 9307-9309 ● ● ●
16 CLIP; HARNESS
10PD1 STD ENG(40L) (D) ID=11 L=41 		1-09700-403-0 03 1 9307-9309 ● ● ●
16 CLIP; HARNESS
TAIWAN EQUIPMENT(WW5) (D) ID=11 L=41 		1-09700-403-0 02 1 9310- ● ● ●
16 CLIP; HARNESS
(D) ID=11 L=41 		1-09700-403-0 02 1 9008-9011 ● ● ●
16 CLIP; HARNESS
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (D) ID=11 L=41 		1-09700-403-0 02 1 9008-9011 ●
16 CLIP; HARNESS
10PD1 STD ENG(40L) (D) ID=11 L=41 		1-09700-403-0 03 1 9012-9103 ● ● ●
16 CLIP; HARNESS
6RB1 STD ENG(07L) INTAKE HEATER<SL2> (D) ID=11 L=41 		1-09700-403-0 03 1 9012-9103 ● ●
16 CLIP; HARNESS
(D) ID=11 L=41 		1-09700-403-0 03 1 9104-9306 ● ● ●
16 CLIP; HARNESS
10PD1 STD ENG(40L) (D) ID=11 L=41 		1-09700-403-0 03 1 9104-9306 ● ● ●
16 CLIP; HARNESS
10PD1 STD ENG(40L) (M) ID=15 L=35 		1-09700-507-0 02 1 9002-9008 ● ● ●
16 CLIP; HARNESS
(M) ID=15 L=35 		1-09700-507-0 02 1 9009-9204 ● ● ●
16 CLIP; HARNESS
6RB1 STD ENG(07L) (M) ID=15 L=35 		1-09700-507-0 02 1 9205-9306 ● ●
16 CLIP; HARNESS
10PD1 STD ENG(40L),12PD1 C ENG(43L) (H) L=44 W=14 ID=18 L=44 		8-94225-185-0 02 1 9307-9309 ● ● ●
16 CLIP; HARNESS
10PD1 STD ENG(40L),12PD1 C ENG(43L) (M) ID=15 L=35 		1-09700-507-0 01 1 9310- ● ● ●
16 CLIP; HARNESS
10PD1 STD ENG(40L) (M) ID=15 L=35 		1-09700-507-0 01 1 9002-9204 ● ● ●
16 CLIP; HARNESS
10PD1 STD ENG(40L) (M) ID=15 L=35 		1-09700-507-0 03 1 9205-9306 ● ● ●
16 CLIP; HARNESS
6RB1 STD ENG(07L) (H) L=44 W=14 ID=18 L=44 		8-94225-185-0 01 1 9307-9309 ● ●
16 CLIP; HARNESS
(H) L=44 W=14 ID=18 L=44 		8-94225-185-0 02 1 9310- ● ● ●
16 CLIP; HARNESS
10PD1 STD ENG(40L) (L) ID=21 L=30 H=40 		1-09700-991-1 01 1 9002- ● ● ●
16 CLIP; HARNESS
10PD1 STD ENG(40L) (C) L=140 		5-09707-031-0 01 1 9002-9306 ● ● ●
16 CLIP; HARNESS
10PD1 STD ENG(40L) (D) ID=15 L=45 		1-09700-402-0 01 1 9307- ● ● ●
16 CLIP; HARNESS
10PD1 STD ENG(40L) (A) L=20 ID=11 L=40 		9-09525-075-0 02 1 9002- ● ● ●
16 CLIP; HARNESS
10PD1 STD ENG(40L),12PD1 C ENG(43L) (L) ID=24.5 H=35 L=25 		1-09700-990-0 01 1 9307- ● ● ●
16 CLIP; HARNESS
WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W) (D) ID=20 L=50 		9-09917-430-0 26 1 9002-9306 ● ●
16 CLIP; HARNESS
WHEEL BASE 6600MM(66W) (D) ID=20 L=50 		9-09917-430-0 29 1 9307- ●
16 CLIP; HARNESS
(D) L=61 ID=11 L=61 		1-09700-484-0 03 1 9002-9011 ●
16 CLIP; HARNESS
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (D) L=61 ID=11 L=61 		1-09700-484-0 03 1 9002-9011 ●
16 CLIP; HARNESS
(D) L=61 ID=11 L=61 		1-09700-484-0 03 1 9012- ● ●
16 CLIP; HARNESS
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (D) L=61 ID=11 L=61 		1-09700-484-0 03 1 9012- ●
16 CLIP; HARNESS
(D) ID=20 L=50 		9-09917-430-0 12 1 9002-9306 ●
16 CLIP; HARNESS
(D) ID=20 L=70 		1-09700-485-0 15 1 9307- ●
16 CLIP; HARNESS
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (D) ID=11 L=41 		1-09700-403-0 02 1 9002-9007 ●
16 CLIP; HARNESS
10PD1 STD ENG(40L) (D) ID=11 L=41 		1-09700-403-0 03 1 9008-9011 ● ● ●
16 CLIP; HARNESS
6RB1 STD ENG(07L) INTAKE HEATER<SL2> (D) ID=11 L=41 		1-09700-403-0 03 1 9008-9011 ● ●
16 CLIP; HARNESS
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (D) ID=11 L=41 		1-09700-403-0 02 1 9012-9306 ●
16 CLIP; HARNESS
(M) ID=15 L=35 		1-09700-507-0 01 1 9307-9309 ● ● ●
16 CLIP; HARNESS
12PD1 C ENG(43L) (B) ID=21 H=25.5 L=26 		8-94176-806-0 01 1 9307- ●
16 CLIP; HARNESS
FULLER M/T<X9B> (B) ID=12 H=24 L=20 		1-09700-605-0 02 1 9002- ● ●
16 CLIP; HARNESS
6RB1 STD ENG(07L) (M) ID=15 L=35 		1-09700-507-0 03 1 9002-9008 ● ●
16 CLIP; HARNESS
6RB1 STD ENG(07L) (D) ID=20 L=50 		9-09917-430-0 01 1 9009-9103 ● ●
16 CLIP; HARNESS
6RB1 STD ENG(07L) INTAKE HEATER<SL2> (D) ID=11 L=41 		1-09700-403-0 05 1 9104- ● ●
16 CLIP; HARNESS
6RB1 STD ENG(07L) (B) ID=19 H=50 L=25 		9-09916-622-0 01 1 9307- ● ●
16 CLIP; HARNESS
6RB1 STD ENG(07L) INTAKE HEATER<SL2> (A) L=28 ID=11 L=28 		9-09525-052-0 01 1 9002- ● ●
16 CLIP; HARNESS
(D) L=61 ID=11 L=61 		1-09700-484-0 02 1 9002-9011 ●
16 CLIP; HARNESS
(D) ID=15 L=65 		1-09700-466-0 01 1 9012- ●
16 CLIP; HARNESS
WHEEL BASE 5500MM(55W) (D) L=65 ID=20 L=65 		1-09700-978-0 20 1 9002-9306 ●
16 CLIP; HARNESS
WHEEL BASE 5500MM(55W) (D) ID=20 L=70 		1-09700-485-0 20 1 9307-9511 ●
16 CLIP; HARNESS
WHEEL BASE 5500MM(55W) (D) ID=20 L=70 		1-09700-485-0 23 1 9512- ●
16 CLIP; HARNESS
WHEEL BASE 5800MM(58W) (D) L=65 ID=20 L=65 		1-09700-978-0 25 1 9002-9306 ●
16 CLIP; HARNESS
WHEEL BASE 5800MM(58W) (D) ID=20 L=70 		1-09700-485-0 25 1 9307- ●
37 CLIP; HARNESS,POWER TILT
AUTO CAB TILT<WV2> ID=11 L=30 		1-09700-511-0 01 1 9309- ● ●
38 BOLT; CLIP,HARNESS
M8X20 FLANGE 		0-28010-820-0 01 1 9002-9204 ● ● ●
38 BOLT; CLIP,HARNESS
M8X20 FLANGE 		0-28080-820-0 01 1 9205-9302 ● ● ●
38 BOLT; CLIP,HARNESS
M8X20 FLANGE 		0-28080-820-0 02 1 9303-9410 ● ● ●
38 BOLT; CLIP,HARNESS
FULLER M/T<X9B> M8X20 FLANGE 		0-28080-820-0 02 1 9303-9410 ● ●
38 BOLT; CLIP,HARNESS
M8X20 FLANGE 		0-28080-820-0 03 1 9411- ● ● ●
38 BOLT; CLIP,HARNESS
M8X30 FLANGE 		0-28010-830-0 13 1 9002-9204 ● ● ●
38 BOLT; CLIP,HARNESS
M8X30 FLANGE 		0-28080-830-0 13 1 9205- ● ● ●
38 BOLT; CLIP,HARNESS
M8X30 FLANGE 		0-28010-830-0 08 1 9002-9204 ● ● ●
38 BOLT; CLIP,HARNESS
M8X30 FLANGE 		0-28080-830-0 08 1 9205- ● ● ●
38 BOLT; CLIP,HARNESS
M8X30 FLANGE 		0-28080-830-0 01 1 9002- ● ● ●
38 BOLT; CLIP,HARNESS
6RB1 STD ENG(07L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X30 FLANGE 		0-28080-830-0 01 1 9002- ● ●
38 BOLT; CLIP,HARNESS
EXC. MIXER TRUCK<RA2> M8X30 FLANGE 		0-28080-830-0 01 1 9002- ●
38 BOLT; CLIP,HARNESS
M6X22 W/LK&PL WASHER 		8-94122-770-0 01 1 9002-9212 ● ● ●
38 BOLT; CLIP,HARNESS
M6X16 W/LK&PL WASHER 		8-97086-823-0 01 1 9301-9301 ● ● ●
38 BOLT; CLIP,HARNESS
M6X20 W/LK&PL WASHER 		8-97086-824-0 01 1 9302- ● ● ●
38 BOLT; CLIP,HARNESS
M6X20 W/LK WASHER 		9-01900-620-0 01 1 9002-9204 ● ● ●
38 BOLT; CLIP,HARNESS
FULLER M/T<X9B> M6X20 W/LK WASHER 		9-01900-620-0 01 1 9002-9204 ● ●
38 BOLT; CLIP,HARNESS
M6X20 W/LK WASHER 		0-50040-620-0 01 1 9205-9302 ● ● ●
38 BOLT; CLIP,HARNESS
FULLER M/T<X9B> M6X20 W/LK WASHER 		0-50040-620-0 01 1 9205-9302 ● ●
38 BOLT; CLIP,HARNESS
M6X20 FLANGE 		0-28080-620-0 01 1 9303-9410 ● ● ●
38 BOLT; CLIP,HARNESS
FULLER M/T<X9B> M6X20 FLANGE 		0-28080-620-0 01 1 9303-9410 ● ●
38 BOLT; CLIP,HARNESS
FULLER M/T<X9B> M6X20 FLANGE 		0-28080-620-0 01 1 9411- ● ●
38 BOLT; CLIP,HARNESS
M8X20 W/LK WASHER 		9-01900-820-0 02 1 9002-9202 ● ● ●
38 BOLT; CLIP,HARNESS
10PD1 STD ENG(40L) M8X20 W/LK WASHER 		9-01900-820-0 02 1 9002-9202 ● ● ●
38 BOLT; CLIP,HARNESS
FULLER M/T<X9B> M8X20 W/LK WASHER 		9-01900-820-0 02 1 9002-9202 ● ●
38 BOLT; CLIP,HARNESS
M8X20 W/LK WASHER 		9-01900-820-0 02 1 9203-9204 ● ● ●
38 BOLT; CLIP,HARNESS
M8X20 W/LK WASHER 		0-50040-820-0 02 1 9205-9205 ● ● ●
38 BOLT; CLIP,HARNESS
10PD1 STD ENG(40L) M8X20 W/LK WASHER 		0-50040-820-0 04 1 9205-9302 ● ● ●
38 BOLT; CLIP,HARNESS
10PD1 STD ENG(40L),12PD1 C ENG(43L) M8X20 FLANGE 		0-28080-820-0 04 1 9303- ● ● ●
38 BOLT; CLIP,HARNESS
M8X20 W/LK WASHER 		9-01900-820-0 01 1 9002-9202 ● ● ●
38 BOLT; CLIP,HARNESS
10PD1 STD ENG(40L) M8X20 W/LK WASHER 		9-01900-820-0 02 1 9203-9204 ● ● ●
38 BOLT; CLIP,HARNESS
FULLER M/T<X9B> M8X20 W/LK WASHER 		9-01900-820-0 02 1 9203-9204 ● ●
38 BOLT; CLIP,HARNESS
10PD1 STD ENG(40L) M8X20 W/LK WASHER 		0-50040-820-0 02 1 9205-9205 ● ● ●
38 BOLT; CLIP,HARNESS
FULLER M/T<X9B> M8X20 W/LK WASHER 		0-50040-820-0 02 1 9205-9205 ● ●
38 BOLT; CLIP,HARNESS
M8X20 W/LK WASHER 		0-50040-820-0 01 1 9205-9302 ● ● ●
38 BOLT; CLIP,HARNESS
L TYPE ENG<90L> M8X20 W/LK WASHER 		0-50040-820-0 01 1 9205-9302 ● ●
38 BOLT; CLIP,HARNESS
M10X20 W/LK WASHER 		9-01911-020-0 02 1 9002-9002 ● ● ●
38 BOLT; CLIP,HARNESS
M10X20 W/LK WASHER 		0-50041-020-0 02 1 9003-9106 ● ● ●
38 BOLT; CLIP,HARNESS
M10X25 W/LK WASHER 		0-50041-025-0 02 1 9107- ● ● ●
38 BOLT; CLIP,HARNESS
M12X25 W/LK&PL WASHER 		9-01961-225-0 01 1 9002-9101 ● ● ●
38 BOLT; CLIP,HARNESS
M12X16 FLANGE 		1-09044-079-0 01 1 9102- ● ● ●
38 BOLT; CLIP,HARNESS
10PD1 STD ENG(40L) M8X25 W/LK WASHER 		9-01900-825-0 02 1 9002-9204 ● ● ●
38 BOLT; CLIP,HARNESS
10PD1 STD ENG(40L) M8X25 W/LK WASHER 		0-50040-825-0 02 1 9205-9210 ● ● ●
38 BOLT; CLIP,HARNESS
10PD1 STD ENG(40L) M8X30 W/LK WASHER 		9-01900-830-0 01 1 9002-9003 ● ● ●
38 BOLT; CLIP,HARNESS
M8X30 W/LK WASHER 		9-01900-830-0 01 1 9004-9011 ● ● ●
38 BOLT; CLIP,HARNESS
10PD1 STD ENG(40L) M8X30 W/LK WASHER 		9-01900-830-0 01 1 9004-9011 ● ● ●
38 BOLT; CLIP,HARNESS
M8X30 W/LK WASHER 		9-01900-830-0 02 1 9012-9204 ● ● ●
38 BOLT; CLIP,HARNESS
M8X30 W/LK WASHER 		0-50040-830-0 02 1 9205-9302 ● ● ●
38 BOLT; CLIP,HARNESS
10PD1 STD ENG(40L),12PD1 C ENG(43L) M8X25 FLANGE 		0-28080-825-0 02 1 9211- ● ● ●
38 BOLT; CLIP,HARNESS
M8X30 FLANGE 		0-28010-830-0 02 1 9002-9306 ● ●
38 BOLT; CLIP,HARNESS
MIXER TRUCK<RA2> M8X30 FLANGE 		0-28010-830-0 02 1 9002-9306 ●
38 BOLT; CLIP,HARNESS
M8X30 FLANGE 		0-28080-830-0 02 1 9307- ● ●
38 BOLT; CLIP,HARNESS
MIXER TRUCK<RA2> M8X30 FLANGE 		0-28080-830-0 02 1 9307- ●
38 BOLT; CLIP,HARNESS
M8X30 FLANGE 		0-28010-830-0 04 1 9002-9204 ● ●
38 BOLT; CLIP,HARNESS
M8X30 FLANGE 		0-28080-830-0 04 1 9306- ● ●
38 BOLT; CLIP,HARNESS
FULLER M/T<X9B> M8X20 W/LK WASHER 		0-50040-820-0 02 1 9205-9302 ● ●
38 BOLT; CLIP,HARNESS
FULLER M/T<X9B> M8X20 FLANGE 		0-28080-820-0 02 1 9411- ● ●
38 BOLT; CLIP,HARNESS
6RB1 STD ENG(07L) M8X25 FLANGE 		0-28010-825-0 01 1 9002-9204 ● ●
38 BOLT; CLIP,HARNESS
6RB1 STD ENG(07L) M8X25 FLANGE 		0-28080-825-0 02 1 9205- ● ●
38 BOLT; CLIP,HARNESS
6RB1 STD ENG(07L) M8X25 W/LK WASHER 		9-01900-825-0 01 1 9002-9011 ● ●
38 BOLT; CLIP,HARNESS
6RB1 STD ENG(07L) M8X25 W/LK WASHER 		9-01900-825-0 01 1 9002-9011 ●
38 BOLT; CLIP,HARNESS
6RB1 STD ENG(07L) M8X25 W/LK WASHER 		9-01900-825-0 01 1 9012-9102 ●
38 BOLT; CLIP,HARNESS
6RB1 STD ENG(07L) M8X25 W/LK WASHER 		9-01900-825-0 01 1 9103-9202 ●
38 BOLT; CLIP,HARNESS
6RB1 STD ENG(07L) M8X25 W/LK WASHER 		0-50040-825-0 01 1 9205-9302 ● ●
38 BOLT; CLIP,HARNESS
6RB1 STD ENG(07L) M8X20 FLANGE 		0-28080-820-0 01 1 9303-9306 ● ●
38 BOLT; CLIP,HARNESS
M8X20 FLANGE 		0-28080-820-0 01 1 9307-9309 ● ● ●
38 BOLT; CLIP,HARNESS
M8X20 FLANGE 		0-28080-820-0 01 1 9310- ● ● ●
38 BOLT; CLIP,HARNESS
TAIWAN EQUIPMENT(WW5) M8X20 FLANGE 		0-28080-820-0 01 1 9310- ● ● ●
38 BOLT; CLIP,HARNESS
6RB1 STD ENG(07L) INTAKE HEATER<SL2> M6X16 W/LK WASHER 		9-01910-616-0 01 1 9002-9005 ● ●
38 BOLT; CLIP,HARNESS
6RB1 STD ENG(07L) INTAKE HEATER<SL2> M6X16 W/LK WASHER 		0-50040-616-0 01 1 9006-9302 ● ●
38 BOLT; CLIP,HARNESS
6RB1 STD ENG(07L) INTAKE HEATER<SL2> M6X16 FLANGE 		0-28080-616-0 01 1 9303- ● ●
43 WASHER; LK,HARNESS
6RB1 STD ENG(07L) ID=5.1 		9-09150-505-0 01 1 9002- ● ●
48 CLIP; FRAME HARNESS
L=25 H=23 ID=24.5 H=23 L=25 		1-09700-862-0 13 1 9002-9306 ●
48 CLIP; FRAME HARNESS
6RB1 STD ENG(07L),10PD1 STD ENG(40L) L=25 H=23 ID=24.5 H=23 L=25 		1-09700-862-0 13 1 9002-9306 ● ●
48 CLIP; FRAME HARNESS
L=25 H=23 ID=24.5 H=23 L=25 		1-09700-862-0 02 1 9002- ● ● ●
48 CLIP; FRAME HARNESS
L=25 H=23 ID=24.5 H=23 L=25 		1-09700-862-0 14 1 9002- ● ●
48 CLIP; FRAME HARNESS
6RB1 STD ENG(07L),10PD1 STD ENG(40L) L=25 H=23 ID=24.5 H=23 L=25 		1-09700-862-0 14 1 9002- ●
48 CLIP; FRAME HARNESS
L=27 H=23 ID=20 H=23 L=27 		1-09700-861-0 05 1 9002- ● ● ●
48 CLIP; FRAME HARNESS
H=23 ID=14.5 H=23 L=30 		1-09700-859-0 02 1 9002- ● ●
48 CLIP; FRAME HARNESS
MIXER TRUCK<RA2> H=23 ID=14.5 H=23 L=30 		1-09700-859-0 02 1 9002- ●
48 CLIP; FRAME HARNESS
EXC. MIXER TRUCK<RA2> H=23 ID=14.5 H=23 L=30 		1-09700-859-0 01 1 9002- ●
48 CLIP; FRAME HARNESS
L=25 H=23 ID=24.5 H=23 L=25 		1-09700-862-0 04 1 9002- ● ●
48 CLIP; FRAME HARNESS
6RB1 STD ENG(07L) L=27 H=23 ID=20 H=23 L=27 		1-09700-861-0 01 1 9002-9404 ● ●
48 CLIP; FRAME HARNESS
6RB1 STD ENG(07L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=25 H=23 ID=24.5 H=23 L=25 		1-09700-862-0 01 1 9307- ● ●
49 CLIP; GEN HARNESS
10PD1 STD ENG(40L),12PD1 C ENG(43L) L=20 ID=19 L=20 		9-09525-832-0 01 1 9002- ● ● ●
49 CLIP; GEN HARNESS
6RB1 STD ENG(07L) L=20 ID=16 L=20 		9-09525-532-0 01 1 9002- ● ●
55 WASHER; PL,CLIP
6RB1 STD ENG(07L) ID=5.3 		9-09160-505-0 01 1 9002- ● ●
64 SCREW; CLIP
M5X14 TAPPING W/PL WASHER 		0-74100-514-0 01 1 9002- ● ● ●
64 SCREW; CLIP
INTAKE HEATER<SL2> M5X16 W/LK WASHER 		9-03910-516-0 01 1 9002- ● ● ●
88 BOLT; DOOR HARNESS EARTH
COURTESY LAMP<C97> M6X22 W/LK&PL WASHER 		1-09980-537-0 01 1 9002-9303 ● ● ●
88 BOLT; DOOR HARNESS EARTH
COURTESY LAMP<C97> M6X20 W/LK&PL WASHER 		8-97086-824-0 01 1 9304- ● ● ●
95 CLIP; CABLE
(B) L=135 		1-09987-143-1 02 1 9002-9201 ● ● ●
95 CLIP; CABLE
(B) L=175 		8-94155-593-1 02 1 9202-9205 ● ● ●
95 CLIP; CABLE
(A) 		1-09987-155-0 03 1 9002- ● ● ●
95 CLIP; CABLE
INTAKE HEATER<SL2> (B) L=175 		8-94155-593-1 01 1 9206- ● ● ●
103 BRACKET; HD LAMP HARNESS
POWER WINDOW<A30> 		1-61470-692-0 01 1 9307- ● ● ●
104 CLIP; HEADLAMP HARNESS
(B) ID=9 		5-09707-027-0 02 1 9002- ● ● ●
104 CLIP; HEADLAMP HARNESS
(C) L=112 		8-94232-618-0 09 1 9002-9003 ● ● ●
104 CLIP; HEADLAMP HARNESS
(C) L=142 		8-94232-619-0 09 1 9004- ● ● ●
104 CLIP; HEADLAMP HARNESS
(D) ID=19 L=20 		9-09525-832-0 01 1 9002- ● ● ●
104 CLIP; HEADLAMP HARNESS
(D) ID=19 L=32 		9-09525-862-0 01 1 9002- ● ● ●
104 CLIP; HEADLAMP HARNESS
AUTO CAB TILT<WV2> (A) ID=12 		1-09987-201-0 09 1 9307- ● ● ●
115 CLIP; DOOR HARNESS
COURTESY LAMP<C97> (A) ID=9 		5-09707-027-0 01 1 9002- ● ● ●
115 CLIP; DOOR HARNESS
POWER WINDOW<A30> (B) 1 SET=5 PIECE 		1-09987-214-0 01 1 9009-9306 ● ● ●
115 CLIP; DOOR HARNESS
POWER WINDOW<A30> (B) 1 SET=5 PIECE 		1-09987-214-0 05 1 9307- ● ● ●
121 CLIP; FACIA HARNESS
(A) ID=21 L=28 		1-09700-673-1 01 1 9002- ● ● ●
121 CLIP; FACIA HARNESS
(B) ID=23 L=24 H=23 		1-09700-738-0 03 1 9002- ● ● ●
121 CLIP; FACIA HARNESS
(A) L=16 ID=9 L=16 		9-09524-822-0 02 1 9002- ● ● ●
121 CLIP; FACIA HARNESS
(A) L=20 ID=16 L=20 		9-09525-532-0 01 1 9002- ● ● ●
121 CLIP; FACIA HARNESS
(B) L=20 H=24 ID=16 H=24 L=20 		9-09527-015-0 02 1 9207- ● ● ●
127 SCREW; FACIA HARNESS CLIP
(A) M5X14 TAPPING W/PL WASHER 		0-74100-514-0 02 1 9002- ● ● ●
127 SCREW; FACIA HARNESS CLIP
(B) M6X22 W/LK&PL WASHER 		1-09980-430-0 01 1 9002-9003 ● ● ●
127 SCREW; FACIA HARNESS CLIP
(B) M6X22 W/LK&PL WASHER 		1-09980-584-0 01 1 9004-9303 ● ● ●
127 SCREW; FACIA HARNESS CLIP
(B) M6X20 W/LK&PL WASHER 		8-97086-824-0 01 1 9304- ● ● ●
127 SCREW; FACIA HARNESS CLIP
(B) M6X16 W/LK&PL WASHER 		1-09981-375-0 01 1 9002-9304 ● ● ●
127 SCREW; FACIA HARNESS CLIP
(B) M6X16 W/LK&PL WASHER 		8-97086-823-0 01 1 9305- ● ● ●
127 SCREW; FACIA HARNESS CLIP
(A) M5X14 W/PL WASHER 		5-09981-050-0 02 1 9002- ● ● ●
130 CLIP; WASHER HARNESS
(A) ID=6.5 		8-94206-730-0 01 1 9002-9202 ● ● ●
130 CLIP; WASHER HARNESS
(B) ID=7-10 		8-94472-578-0 01 1 9203-9301 ● ● ●
132 SCREW; HARNESS
TAIWAN EQUIPMENT(WW5) M5X12 W/LK&PL WASHER 		1-09981-464-0 02 1 9211- ● ● ●
150 BOLT; CLIP
M6X16 W/LK&PL WASHER 		1-09980-497-0 03 1 9002- ● ● ●
171 CLIP; STARTER HARNESS
L=140 		5-09707-031-0 01 1 9002-9306 ● ● ●
171 CLIP; STARTER HARNESS
6RB1 STD ENG(07L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=140 		5-09707-031-0 01 1 9002-9306 ● ●
171 CLIP; STARTER HARNESS
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=140 		5-09707-031-0 01 1 9002-9306 ● ●
171 CLIP; STARTER HARNESS
10PD1 STD ENG(40L),12PD1 C ENG(43L) L=140 		5-09707-031-0 05 1 9002- ● ● ●
171 CLIP; STARTER HARNESS
6RB1 STD ENG(07L) L=140 		5-09707-031-0 02 1 9307- ● ●
194 CLIP; BAND
(B) L=180 		1-09707-162-0 03 1 9002- ● ● ●
194 CLIP; BAND
(A) L=140 		5-09707-031-0 01 1 9002- ● ● ●
194 CLIP; BAND
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (C) L=38 ID=8 L=38 		9-09917-424-0 01 1 9002- ● ● ●
194 CLIP; BAND
AUTO CAB TILT<WV2> (B) L=180 		1-09707-162-0 01 1 9307- ● ●
194 CLIP; BAND
L TYPE ENG<90L> (B) L=180 		1-09707-162-0 01 1 9307- ● ●
194 CLIP; BAND
6RB1 STD ENG(07L) (B) L=180 		1-09707-162-0 01 1 9002-9306 ● ●
194 CLIP; BAND
6RB1 STD ENG(07L) (A) L=250 		5-09707-030-0 01 1 9002- ● ●
194 CLIP; BAND
6RB1 STD ENG(07L) INTAKE HEATER<SL2> (A) L=140 		5-09707-031-0 02 1 9002-9103 ● ●
194 CLIP; BAND
6RB1 STD ENG(07L) INTAKE HEATER<SL2> (A) L=250 		5-09707-030-0 03 1 9104- ● ●
201 CLIP; RR COMB CONN
WO/SPONGE RUBBER 		1-09709-103-1 02 1 9002- ● ● ●
202 SCREW; RR COMB LAMP CONN
M6X20 TAPPING W/PL WASHER 		0-74305-620-0 02 1 9002- ● ● ●
205 CLIP; BACK LAMP HARNESS
ID=11 L=41 		1-09700-403-0 01 1 9002- ● ● ●
206 CLIP; FUEL TANK HARNESS
(B) L=140 		5-09707-031-0 02 1 9002- ● ● ●
206 CLIP; FUEL TANK HARNESS
(A) L=16 ID=11 L=16 		9-09525-022-0 01 1 9002-9002 ● ● ●
206 CLIP; FUEL TANK HARNESS
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) L=140 		5-09707-031-0 01 1 9002- ● ●
208 CLIP; HARNESS,MAG VLV
ID=11 L=30 		1-09700-511-0 01 1 9002- ● ● ●
209 WASHER; LK,GEN,EARTH
ID=5.1 		9-09150-505-0 01 1 9002- ● ● ●
212 CLIP; HORN HARNESS
(B) ID=15 L=45 		1-09700-402-0 01 1 9002- ● ● ●
212 CLIP; HORN HARNESS
(C) L=150 		1-09707-145-0 01 1 9002- ● ● ●
212 CLIP; HORN HARNESS
(C) L=250 		5-09707-030-0 01 1 9002- ● ● ●
212 CLIP; HORN HARNESS
(A) ID=11 L=30 		1-09700-511-0 01 1 9307- ● ● ●
218 CLIP; BAND,RR COMB
ID=15 L=42 		1-09700-479-0 02 1 9002- ● ● ●
219 NUT
M8 		9-09110-408-0 13 1 9002-9306 ●
219 NUT
6RB1 STD ENG(07L),10PD1 STD ENG(40L) M8 		9-09110-408-0 13 1 9002-9306 ● ●
219 NUT
M8 		9-09110-408-0 13 1 9002- ●
219 NUT
6RB1 STD ENG(07L),10PD1 STD ENG(40L) M8 		9-09110-408-0 13 1 9002- ● ●
219 NUT
M5 FLANGE 		5-09440-003-0 05 1 9002- ● ● ●
219 NUT
M8 		9-09110-408-0 10 1 9002- ● ● ●
219 NUT
M10 		9-09110-510-0 02 1 9002- ● ● ●
219 NUT
M5 		9-99110-405-0 01 1 9002- ● ● ●
219 NUT
M8 		9-09110-408-0 02 1 9307- ● ● ●
219 NUT
M8 		9-09110-408-0 02 1 9307- ● ●
219 NUT
MIXER TRUCK<RA2> M8 		9-09110-408-0 02 1 9307- ●
219 NUT
M8 		9-09110-408-0 04 1 9307- ● ● ●
219 NUT
10PD1 STD ENG(40L) M8 		9-09110-408-0 04 1 9307- ● ●
219 NUT
6RB1 STD ENG(07L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8 		9-09110-408-0 01 1 9307- ● ●
219 NUT
6RB1 STD ENG(07L) M8 		9-09110-408-0 01 1 9307- ● ●
219 NUT
6RB1 STD ENG(07L) M8 		9-09110-408-0 01 1 9307- ● ●
219 NUT
EXC. MIXER TRUCK<RA2> M8 		9-09110-408-0 01 1 9307- ●
223 CLIP; AIR TANK HARNESS
ID=15 L=45 		1-09700-402-0 05 1 9002- ● ● ●
223 CLIP; AIR TANK HARNESS
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> ID=11 L=41 		1-09700-403-0 01 1 9002- ● ● ●
223 CLIP; AIR TANK HARNESS
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> ID=11 L=41 		1-09700-403-0 02 1 9002- ● ●
227 CLIP; FOG LAMP HARNESS
L=140 		5-09707-031-0 02 1 9002- ● ● ●
228 CLIP; COOLER HARNESS
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR CONDITIONER MANUAL CONTROL(C60) L=140 		5-09707-031-0 05 1 9002- ● ● ●
228 CLIP; COOLER HARNESS
6RB1 STD ENG(07L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR CONDITIONER MANUAL CONTROL(C60) L=140 		5-09707-031-0 05 1 9002- ● ●
231 CLIP; BAND,OIL PRESS
L=250 		5-09707-030-0 01 1 9002- ● ● ●
237 CLIP; BAND,ACL
L=600 		1-09707-107-0 01 1 9002- ● ● ●
237 CLIP; BAND,ACL
L=140 		5-09707-031-0 01 1 9002- ● ● ●
239 BOLT; GRAND
M5X8 		9-92040-508-0 01 1 9002-9204 ● ● ●
239 BOLT; GRAND
M5X8 		0-20800-508-0 01 1 9205- ● ● ●
242 BOLT; BRKT,HARNESS
M8X30 W/LK WASHER 		9-01900-830-0 03 1 9002-9204 ● ● ●
242 BOLT; BRKT,HARNESS
M8X30 W/LK WASHER 		0-50040-830-0 03 1 9205-9302 ● ● ●
242 BOLT; BRKT,HARNESS
M8X30 FLANGE 		0-28080-830-0 03 1 9303- ● ● ●
242 BOLT; BRKT,HARNESS
POWER WINDOW<A30> M6X20 W/LK&PL WASHER 		1-09980-493-0 01 1 9307- ● ● ●
294 NUT
M6 		9-09110-406-0 01 1 9002- ● ● ●
294 NUT
M8 		9-09110-408-0 06 1 9002- ● ● ●
294 NUT
10PD1 STD ENG(40L),12PD1 C ENG(43L) M8 		9-09110-408-0 01 1 9002- ● ● ●
304 BOLT; ENG HARNESS CLIP
10PD1 STD ENG(40L) EXC. ENGINE OIL TEMPERATURE GAUGE<UG3> M10X16 W/LK WASHER 		9-01931-016-0 04 1 9002-9004 ● ● ●
304 BOLT; ENG HARNESS CLIP
10PD1 STD ENG(40L) ENGINE OIL TEMPERATURE GAUGE<UG3> M10X16 W/LK WASHER 		1-09033-012-0 02 1 9005- ●
304 BOLT; ENG HARNESS CLIP
10PD1 STD ENG(40L) EXC. ENGINE OIL TEMPERATURE GAUGE<UG3> M10X16 W/LK WASHER 		1-09033-012-0 04 1 9005- ● ● ●
304 BOLT; ENG HARNESS CLIP
10PD1 STD ENG(40L) ENGINE OIL TEMPERATURE GAUGE<UG3> M10X16 W/LK WASHER 		9-01931-016-0 02 1 9002-9004 ●
305 CLIP; ENG HARNESS
10PD1 STD ENG(40L) EXC. ENGINE OIL TEMPERATURE GAUGE<UG3> (A) ID=11 H=20 L=17.5 		1-09700-562-1 06 1 9002- ● ● ●
305 CLIP; ENG HARNESS
10PD1 STD ENG(40L),12PD1 C ENG(43L) (B) L=140 		5-09707-031-0 02 1 9002- ● ● ●
305 CLIP; ENG HARNESS
10PD1 STD ENG(40L) ENGINE OIL TEMPERATURE GAUGE<UG3> (A) ID=11 H=20 L=17.5 		1-09700-562-1 05 1 9002- ●
328 CLIP; HARNESS,RESISTOR
INTAKE HEATER<SL2> 		1-09700-894-0 01 1 9002- ● ● ●
340 NUT; HARNESS CAB TO FRAME
EXC. AUTO CAB TILT<WV2> M6 FLANGE 		0-91150-106-0 01 1 9307-9309 ● ● ●
360 WASHER; LK,CLIP
ID=5.1 		9-09150-505-0 01 1 9002- ● ● ●
369 CLIP; BAND EDS HARNESS
L=140 		5-09707-031-0 01 1 9002- ● ● ●
371 BOLT; GEN HARNESS
RADIO CLARION<SK2>,RADIO AM & TAPE PLAYER(UM1) EXC. GENERATOR NIKKO 24V-40A 1KW(SC5) M5X8 		0-20800-508-0 01 1 9307- ● ● ●
371 BOLT; GEN HARNESS
L TYPE ENG<90L> M5X8 		0-20800-508-0 01 1 9307- ● ●
371 BOLT; GEN HARNESS
RADIO FUJITUU(SQ2),RADIO AM & TAPE PLAYER(UM1) EXC. GENERATOR NIKKO 24V-40A 1KW(SC5) M5X8 		9-92040-508-0 01 1 9002-9202 ● ● ●
371 BOLT; GEN HARNESS
6RB1 STD ENG(07L) M5X8 		9-92040-508-0 01 1 9002-9202 ● ●
371 BOLT; GEN HARNESS
6RB1 STD ENG(07L) M5X8 		9-92040-508-0 01 1 9203-9204 ● ●
371 BOLT; GEN HARNESS
RADIO FUJITUU(SQ2),RADIO AM & TAPE PLAYER(UM1) EXC. GENERATOR NIKKO 24V-40A 1KW(SC5) M5X8 		0-20800-508-0 01 1 9205-9306 ● ● ●
371 BOLT; GEN HARNESS
SPEAKER SYSTEM FRT 2 SPEAKERS<UX6> EXC. GENERATOR NIKKO 24V-40A 1KW(SC5) M5X8 		0-20800-508-0 01 1 9205-9306 ● ● ●
371 BOLT; GEN HARNESS
6RB1 STD ENG(07L) M5X8 		0-20800-508-0 01 1 9205-9306 ● ●
371 BOLT; GEN HARNESS
10PD1 STD ENG(40L) M6X14 W/LK WASHER 		9-01900-614-0 01 1 9002-9204 ● ● ●
371 BOLT; GEN HARNESS
10PD1 STD ENG(40L) M6X14 W/LK WASHER 		0-50040-614-0 01 1 9205-9302 ● ● ●
371 BOLT; GEN HARNESS
10PD1 STD ENG(40L),12PD1 C ENG(43L) M6X16 FLANGE 		0-28080-616-0 01 1 9303- ● ● ●
372 WASHER; LK GEN HARNESS
RADIO FUJITUU(SQ2),RADIO AM & TAPE PLAYER(UM1) EXC. GENERATOR NIKKO 24V-40A 1KW(SC5) ID=5.1 		9-09150-505-0 01 1 9002-9202 ● ● ●
372 WASHER; LK GEN HARNESS
RADIO FUJITUU(SQ2),RADIO AM & TAPE PLAYER(UM1) EXC. GENERATOR NIKKO 24V-40A 1KW(SC5) ID=5.1 		9-09150-505-0 01 1 9203-9306 ● ● ●
372 WASHER; LK GEN HARNESS
SPEAKER SYSTEM FRT 2 SPEAKERS<UX6> EXC. GENERATOR NIKKO 24V-40A 1KW(SC5) ID=5.1 		9-09150-505-0 01 1 9203-9306 ● ● ●
372 WASHER; LK GEN HARNESS
RADIO CLARION<SK2>,RADIO AM & TAPE PLAYER(UM1) EXC. GENERATOR NIKKO 24V-40A 1KW(SC5) ID=5.1 		9-09150-505-0 01 1 9307- ● ● ●
373 CLIP; BAND,GEN HARNESS
10PD1 STD ENG(40L),12PD1 C ENG(43L) (B) L=300 		1-09707-001-0 02 1 9002- ● ● ●
373 CLIP; BAND,GEN HARNESS
6RB1 STD ENG(07L) (A) L=250 		5-09707-030-0 01 1 9002- ● ●
385 WASHER; LK,CAB EARTH
ID=8.2 		9-09150-508-0 02 1 9002-9212 ● ● ●
386 BOLT; GRAND HARNESS
M8X20 		9-02040-820-0 02 1 9002-9204 ● ● ●
386 BOLT; GRAND HARNESS
M8X20 		0-20800-820-0 02 1 9205-9212 ● ● ●
386 BOLT; GRAND HARNESS
M8X16 W/LK&PL WASHER 		8-97087-055-0 02 1 9301- ● ● ●
418 CLIP; LAMP HARNESS
TAIWAN EQUIPMENT(WW5) L=20 ID=6 		9-09524-532-0 02 1 9211- ● ● ●
421 CLIP; FLOOR HARNESS
EXC. DELUXE CARPET<BF2> ID=7 		1-09987-055-0 01 1 9002-9003 ● ● ●
421 CLIP; FLOOR HARNESS
EXC. DELUXE CARPET<BF2> 1 SET=5 PIECE 		1-09987-214-0 01 1 9004- ● ● ●
423 WASHER; HARNESS,EARTH
ID=6.4 		1-09503-263-0 01 1 9301- ● ● ●
428 BRACKET 1-82699-109-0 01 1 9002- ● ● ●
470 CLIP; HARNESS,LICENSE LAMP
ID=11 L=41 		1-09700-403-0 01 1 9002- ● ● ●
489 CLIP; HARNESS,OIL PRESS SW
10PD1 STD ENG(40L),12PD1 C ENG(43L) ID=11 L=20 		9-09525-035-0 01 1 9002- ● ● ●
520 WASHER; PL,EARTH CABLE
ID=8.4 		1-09503-264-0 01 1 9301-9404 ● ● ●
520 WASHER; PL,EARTH CABLE
ID=8.4 		1-09503-264-0 02 1 9405- ● ● ●

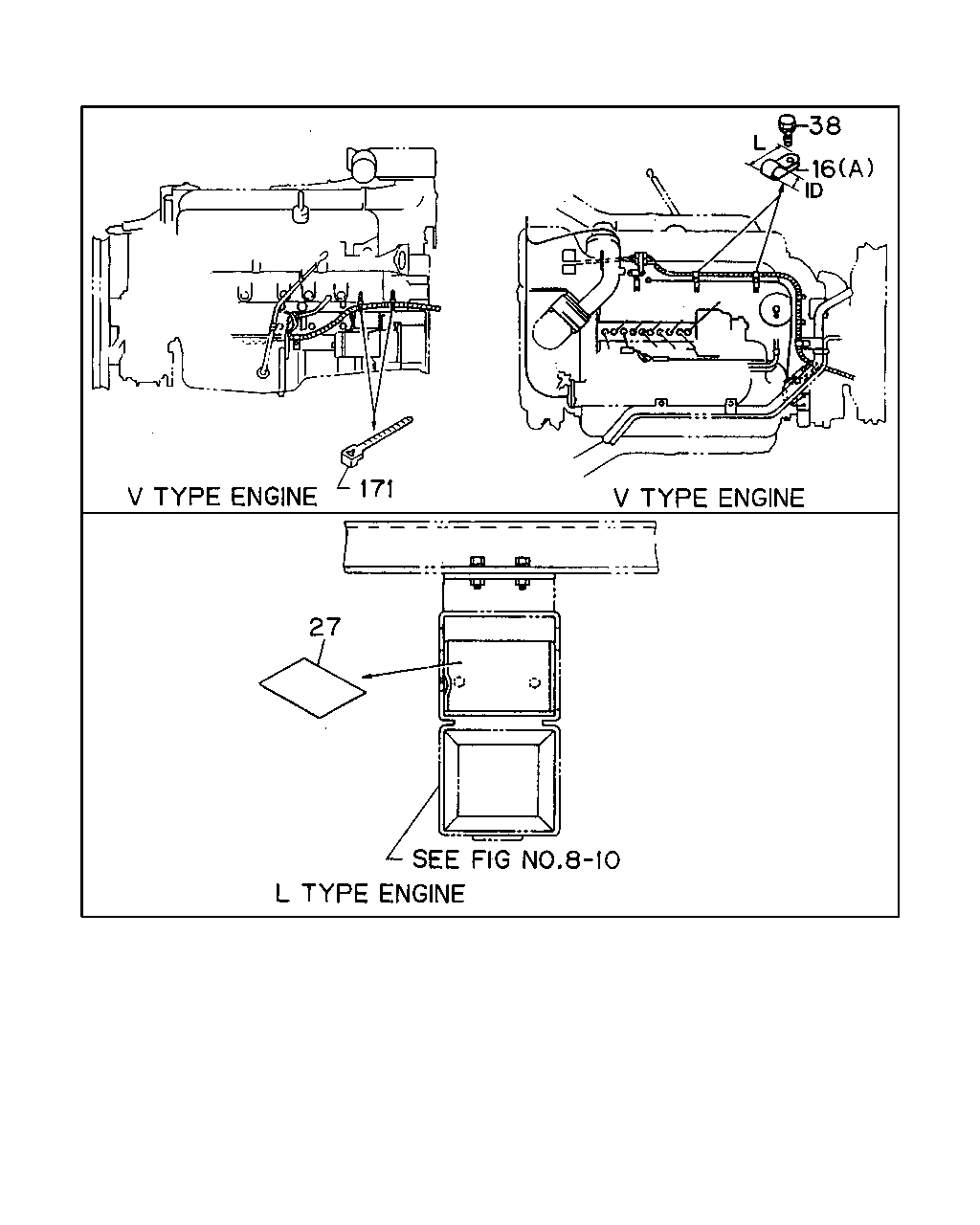

çizim 36032
171 16 38 27
BalonParca AdiParca NoAdetTipApplied Date A B C
16 CLIP; HARNESS
WHEEL BASE 5700MM(57W) (D) ID=20 L=50 		9-09917-430-0 25 1 9002- ●
16 CLIP; HARNESS
(D) ID=15 L=45 		1-09700-402-0 02 1 9002-9306 ● ● ●
16 CLIP; HARNESS
AUTO CAB TILT<WV2> (D) ID=14 L=44 		9-09917-427-0 01 1 9307- ● ● ●
16 CLIP; HARNESS
(D) ID=15 L=45 		1-09700-402-0 06 1 9002-9306 ● ● ●
16 CLIP; HARNESS
10PD1 STD ENG(40L),12PD1 C ENG(43L) (C) L=140 		5-09707-031-0 01 1 9307- ● ● ●
16 CLIP; HARNESS
(D) ID=11 L=41 		1-09700-403-0 01 1 9002-9011 ● ● ●
16 CLIP; HARNESS
(D) ID=15 L=65 		1-09700-466-0 02 1 9012- ●
16 CLIP; HARNESS
(B) L=20 H=24 ID=15 H=24 L=20 		1-09700-606-0 01 1 9002- ● ● ●
16 CLIP; HARNESS
(P) 		1-09700-894-0 01 1 9002- ● ● ●
16 CLIP; HARNESS
EXC. INTERMITTENT WIPER<C13> (P) 		1-09700-894-0 01 1 9002- ● ● ●
16 CLIP; HARNESS
(N) ID=28 L=32 		1-09701-107-1 02 1 9002- ● ● ●
16 CLIP; HARNESS
(C) L=219.5 		1-09987-136-0 04 1 9002- ● ● ●
16 CLIP; HARNESS
(J) L=135 		1-09987-143-1 01 1 9002-9201 ● ● ●
16 CLIP; HARNESS
(C) L=175 		8-94155-593-1 01 1 9202-9205 ● ● ●
16 CLIP; HARNESS
(C) L=175 		8-94155-593-1 03 1 9206- ● ● ●
16 CLIP; HARNESS
(N) ID=29 L=35 		5-09700-293-1 01 1 9002-9306 ● ● ●
16 CLIP; HARNESS
(C) L=250 		5-09707-030-0 02 1 9002- ● ● ●
16 CLIP; HARNESS
(C) L=250 		5-09707-030-0 01 1 9002- ● ● ●
16 CLIP; HARNESS
TRANSMISSION SIDE PTO WO/LEVER(SH5) (C) L=250 		5-09707-030-0 01 1 9002- ● ● ●
16 CLIP; HARNESS
CAB SUSPENSION RIGID(W71) EXC. FIRE TRUCK<RA9> (C) L=250 		5-09707-030-0 01 1 9002- ●
16 CLIP; HARNESS
(H) L=36 W=18 L=36 		8-94224-891-1 02 1 9002- ● ● ●
16 CLIP; HARNESS
(N) L=20 ID=11 L=20 		9-09525-032-0 01 1 9002-9410 ● ● ●
16 CLIP; HARNESS
FULLER M/T<X9B> (N) L=20 ID=11 L=20 		9-09525-032-0 01 1 9002-9410 ● ●
16 CLIP; HARNESS
FULLER M/T<X9B> (N) ID=11 L=20 		9-09525-032-0 01 1 9411- ● ●
16 CLIP; HARNESS
(A) L=20 ID=11 L=20 		9-09525-035-0 01 1 9002-9306 ● ● ●
16 CLIP; HARNESS
AUTO CAB TILT<WV2> (C) L=180 		1-09707-162-0 01 1 9307- ● ● ●
16 CLIP; HARNESS
(B) ID=19 H=50 L=25 		9-09916-622-0 01 1 9002-9306 ● ● ●
16 CLIP; HARNESS
(D) ID=25 L=55 		9-09917-573-0 05 1 9002-9306 ● ● ●
16 CLIP; HARNESS
(D) ID=25 L=55 		9-09917-573-0 03 1 9307- ● ● ●
16 CLIP; HARNESS
(E) L=300 		1-09707-001-0 01 1 9007- ● ● ●
16 CLIP; HARNESS
(R) ID=11 L=30 		1-09700-511-0 01 1 9205-9306 ● ● ●
16 CLIP; HARNESS
6RB1 STD ENG(07L) (R) ID=11 L=30 		1-09700-511-0 01 1 9205-9306 ● ●
16 CLIP; HARNESS
6RB1 STD ENG(07L) (R) ID=11 L=30 		1-09700-511-0 01 1 9307-9504 ● ●
16 CLIP; HARNESS
6RB1 STD ENG(07L) (R) ID=11 L=30 		1-09700-511-0 01 1 9505- ● ●
16 CLIP; HARNESS
GOVERNOR CONTROL<W69> (R) ID=11 L=30 		1-09700-511-0 01 1 9505- ●
16 CLIP; HARNESS
(D) ID=15 L=45 		1-09700-402-0 05 1 9307- ● ● ●
16 CLIP; HARNESS
(A) L=20 ID=11 L=20 		9-09525-035-0 01 1 9307-9410 ● ● ●
16 CLIP; HARNESS
(A) L=20 ID=11 L=20 		9-09525-035-0 01 1 9307-9410 ●
16 CLIP; HARNESS
V TYPE ENG<91L> (A) L=20 ID=11 L=20 		9-09525-035-0 01 1 9307-9410 ● ●
16 CLIP; HARNESS
10PD1 STD ENG(40L),12PD1 C ENG(43L) (A) ID=11 L=20 		9-09525-035-0 01 1 9411- ● ● ●
16 CLIP; HARNESS
(A) ID=11 L=20 		9-09525-035-0 02 1 9411- ● ● ●
16 CLIP; HARNESS
AUTO CAB TILT<WV2> (S) OD=9 H=6 		1-09709-178-0 05 1 9307- ● ● ●
16 CLIP; HARNESS
EXC. AUTO CAB TILT<WV2> (N) ID=29 L=35 		5-09700-293-1 01 1 9307- ● ● ●
16 CLIP; HARNESS
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (S) OD=9 H=9.5 		1-09709-179-0 02 1 9002- ● ● ●
16 CLIP; HARNESS
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (D) ID=6 L=36 		9-09917-423-0 06 1 9002- ● ● ●
16 CLIP; HARNESS
TAIWAN EQUIPMENT(WW5) (Q) ID=11 L=40 		8-94123-171-1 01 1 9310- ● ● ●
16 CLIP; HARNESS
EXC. TAIWAN EQUIPMENT(WW5) (D) ID=11 L=41 		1-09700-403-0 03 1 9310- ● ● ●
16 CLIP; HARNESS
(D) ID=11 L=41 		1-09700-403-0 03 1 9310- ● ● ●
16 CLIP; HARNESS
10PD1 STD ENG(40L) (D) ID=11 L=41 		1-09700-403-0 03 1 9002-9007 ● ● ●
16 CLIP; HARNESS
6RB1 STD ENG(07L) INTAKE HEATER<SL2> (D) ID=11 L=41 		1-09700-403-0 03 1 9002-9007 ● ●
16 CLIP; HARNESS
(D) ID=11 L=41 		1-09700-403-0 03 1 9307-9309 ● ● ●
16 CLIP; HARNESS
10PD1 STD ENG(40L) (D) ID=11 L=41 		1-09700-403-0 03 1 9307-9309 ● ● ●
16 CLIP; HARNESS
TAIWAN EQUIPMENT(WW5) (D) ID=11 L=41 		1-09700-403-0 02 1 9310- ● ● ●
16 CLIP; HARNESS
(D) ID=11 L=41 		1-09700-403-0 02 1 9008-9011 ● ● ●
16 CLIP; HARNESS
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (D) ID=11 L=41 		1-09700-403-0 02 1 9008-9011 ●
16 CLIP; HARNESS
10PD1 STD ENG(40L) (D) ID=11 L=41 		1-09700-403-0 03 1 9012-9103 ● ● ●
16 CLIP; HARNESS
6RB1 STD ENG(07L) INTAKE HEATER<SL2> (D) ID=11 L=41 		1-09700-403-0 03 1 9012-9103 ● ●
16 CLIP; HARNESS
(D) ID=11 L=41 		1-09700-403-0 03 1 9104-9306 ● ● ●
16 CLIP; HARNESS
10PD1 STD ENG(40L) (D) ID=11 L=41 		1-09700-403-0 03 1 9104-9306 ● ● ●
16 CLIP; HARNESS
10PD1 STD ENG(40L) (M) ID=15 L=35 		1-09700-507-0 02 1 9002-9008 ● ● ●
16 CLIP; HARNESS
(M) ID=15 L=35 		1-09700-507-0 02 1 9009-9204 ● ● ●
16 CLIP; HARNESS
6RB1 STD ENG(07L) (M) ID=15 L=35 		1-09700-507-0 02 1 9205-9306 ● ●
16 CLIP; HARNESS
10PD1 STD ENG(40L),12PD1 C ENG(43L) (H) L=44 W=14 ID=18 L=44 		8-94225-185-0 02 1 9307-9309 ● ● ●
16 CLIP; HARNESS
10PD1 STD ENG(40L),12PD1 C ENG(43L) (M) ID=15 L=35 		1-09700-507-0 01 1 9310- ● ● ●
16 CLIP; HARNESS
10PD1 STD ENG(40L) (M) ID=15 L=35 		1-09700-507-0 01 1 9002-9204 ● ● ●
16 CLIP; HARNESS
10PD1 STD ENG(40L) (M) ID=15 L=35 		1-09700-507-0 03 1 9205-9306 ● ● ●
16 CLIP; HARNESS
6RB1 STD ENG(07L) (H) L=44 W=14 ID=18 L=44 		8-94225-185-0 01 1 9307-9309 ● ●
16 CLIP; HARNESS
(H) L=44 W=14 ID=18 L=44 		8-94225-185-0 02 1 9310- ● ● ●
16 CLIP; HARNESS
10PD1 STD ENG(40L) (L) ID=21 L=30 H=40 		1-09700-991-1 01 1 9002- ● ● ●
16 CLIP; HARNESS
10PD1 STD ENG(40L) (C) L=140 		5-09707-031-0 01 1 9002-9306 ● ● ●
16 CLIP; HARNESS
10PD1 STD ENG(40L) (D) ID=15 L=45 		1-09700-402-0 01 1 9307- ● ● ●
16 CLIP; HARNESS
10PD1 STD ENG(40L) (A) L=20 ID=11 L=40 		9-09525-075-0 02 1 9002- ● ● ●
16 CLIP; HARNESS
10PD1 STD ENG(40L),12PD1 C ENG(43L) (L) ID=24.5 H=35 L=25 		1-09700-990-0 01 1 9307- ● ● ●
16 CLIP; HARNESS
WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W) (D) ID=20 L=50 		9-09917-430-0 26 1 9002-9306 ● ●
16 CLIP; HARNESS
WHEEL BASE 6600MM(66W) (D) ID=20 L=50 		9-09917-430-0 29 1 9307- ●
16 CLIP; HARNESS
(D) L=61 ID=11 L=61 		1-09700-484-0 03 1 9002-9011 ●
16 CLIP; HARNESS
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (D) L=61 ID=11 L=61 		1-09700-484-0 03 1 9002-9011 ●
16 CLIP; HARNESS
(D) L=61 ID=11 L=61 		1-09700-484-0 03 1 9012- ● ●
16 CLIP; HARNESS
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (D) L=61 ID=11 L=61 		1-09700-484-0 03 1 9012- ●
16 CLIP; HARNESS
(D) ID=20 L=50 		9-09917-430-0 12 1 9002-9306 ●
16 CLIP; HARNESS
(D) ID=20 L=70 		1-09700-485-0 15 1 9307- ●
16 CLIP; HARNESS
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (D) ID=11 L=41 		1-09700-403-0 02 1 9002-9007 ●
16 CLIP; HARNESS
10PD1 STD ENG(40L) (D) ID=11 L=41 		1-09700-403-0 03 1 9008-9011 ● ● ●
16 CLIP; HARNESS
6RB1 STD ENG(07L) INTAKE HEATER<SL2> (D) ID=11 L=41 		1-09700-403-0 03 1 9008-9011 ● ●
16 CLIP; HARNESS
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (D) ID=11 L=41 		1-09700-403-0 02 1 9012-9306 ●
16 CLIP; HARNESS
(M) ID=15 L=35 		1-09700-507-0 01 1 9307-9309 ● ● ●
16 CLIP; HARNESS
12PD1 C ENG(43L) (B) ID=21 H=25.5 L=26 		8-94176-806-0 01 1 9307- ●
16 CLIP; HARNESS
FULLER M/T<X9B> (B) ID=12 H=24 L=20 		1-09700-605-0 02 1 9002- ● ●
16 CLIP; HARNESS
6RB1 STD ENG(07L) (M) ID=15 L=35 		1-09700-507-0 03 1 9002-9008 ● ●
16 CLIP; HARNESS
6RB1 STD ENG(07L) (D) ID=20 L=50 		9-09917-430-0 01 1 9009-9103 ● ●
16 CLIP; HARNESS
6RB1 STD ENG(07L) INTAKE HEATER<SL2> (D) ID=11 L=41 		1-09700-403-0 05 1 9104- ● ●
16 CLIP; HARNESS
6RB1 STD ENG(07L) (B) ID=19 H=50 L=25 		9-09916-622-0 01 1 9307- ● ●
16 CLIP; HARNESS
6RB1 STD ENG(07L) INTAKE HEATER<SL2> (A) L=28 ID=11 L=28 		9-09525-052-0 01 1 9002- ● ●
16 CLIP; HARNESS
(D) L=61 ID=11 L=61 		1-09700-484-0 02 1 9002-9011 ●
16 CLIP; HARNESS
(D) ID=15 L=65 		1-09700-466-0 01 1 9012- ●
16 CLIP; HARNESS
WHEEL BASE 5500MM(55W) (D) L=65 ID=20 L=65 		1-09700-978-0 20 1 9002-9306 ●
16 CLIP; HARNESS
WHEEL BASE 5500MM(55W) (D) ID=20 L=70 		1-09700-485-0 20 1 9307-9511 ●
16 CLIP; HARNESS
WHEEL BASE 5500MM(55W) (D) ID=20 L=70 		1-09700-485-0 23 1 9512- ●
16 CLIP; HARNESS
WHEEL BASE 5800MM(58W) (D) L=65 ID=20 L=65 		1-09700-978-0 25 1 9002-9306 ●
16 CLIP; HARNESS
WHEEL BASE 5800MM(58W) (D) ID=20 L=70 		1-09700-485-0 25 1 9307- ●
27 PROTECTOR; EDGE
120X150 		1-72370-001-0 01 1 9002- ● ● ●
27 PROTECTOR; EDGE
150X315 		1-72370-002-0 01 1 9002- ● ● ●
38 BOLT; CLIP,HARNESS
M8X20 FLANGE 		0-28010-820-0 01 1 9002-9204 ● ● ●
38 BOLT; CLIP,HARNESS
M8X20 FLANGE 		0-28080-820-0 01 1 9205-9302 ● ● ●
38 BOLT; CLIP,HARNESS
M8X20 FLANGE 		0-28080-820-0 02 1 9303-9410 ● ● ●
38 BOLT; CLIP,HARNESS
FULLER M/T<X9B> M8X20 FLANGE 		0-28080-820-0 02 1 9303-9410 ● ●
38 BOLT; CLIP,HARNESS
M8X20 FLANGE 		0-28080-820-0 03 1 9411- ● ● ●
38 BOLT; CLIP,HARNESS
M8X30 FLANGE 		0-28010-830-0 13 1 9002-9204 ● ● ●
38 BOLT; CLIP,HARNESS
M8X30 FLANGE 		0-28080-830-0 13 1 9205- ● ● ●
38 BOLT; CLIP,HARNESS
M8X30 FLANGE 		0-28010-830-0 08 1 9002-9204 ● ● ●
38 BOLT; CLIP,HARNESS
M8X30 FLANGE 		0-28080-830-0 08 1 9205- ● ● ●
38 BOLT; CLIP,HARNESS
M8X30 FLANGE 		0-28080-830-0 01 1 9002- ● ● ●
38 BOLT; CLIP,HARNESS
6RB1 STD ENG(07L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X30 FLANGE 		0-28080-830-0 01 1 9002- ● ●
38 BOLT; CLIP,HARNESS
EXC. MIXER TRUCK<RA2> M8X30 FLANGE 		0-28080-830-0 01 1 9002- ●
38 BOLT; CLIP,HARNESS
M6X22 W/LK&PL WASHER 		8-94122-770-0 01 1 9002-9212 ● ● ●
38 BOLT; CLIP,HARNESS
M6X16 W/LK&PL WASHER 		8-97086-823-0 01 1 9301-9301 ● ● ●
38 BOLT; CLIP,HARNESS
M6X20 W/LK&PL WASHER 		8-97086-824-0 01 1 9302- ● ● ●
38 BOLT; CLIP,HARNESS
M6X20 W/LK WASHER 		9-01900-620-0 01 1 9002-9204 ● ● ●
38 BOLT; CLIP,HARNESS
FULLER M/T<X9B> M6X20 W/LK WASHER 		9-01900-620-0 01 1 9002-9204 ● ●
38 BOLT; CLIP,HARNESS
M6X20 W/LK WASHER 		0-50040-620-0 01 1 9205-9302 ● ● ●
38 BOLT; CLIP,HARNESS
FULLER M/T<X9B> M6X20 W/LK WASHER 		0-50040-620-0 01 1 9205-9302 ● ●
38 BOLT; CLIP,HARNESS
M6X20 FLANGE 		0-28080-620-0 01 1 9303-9410 ● ● ●
38 BOLT; CLIP,HARNESS
FULLER M/T<X9B> M6X20 FLANGE 		0-28080-620-0 01 1 9303-9410 ● ●
38 BOLT; CLIP,HARNESS
FULLER M/T<X9B> M6X20 FLANGE 		0-28080-620-0 01 1 9411- ● ●
38 BOLT; CLIP,HARNESS
M8X20 W/LK WASHER 		9-01900-820-0 02 1 9002-9202 ● ● ●
38 BOLT; CLIP,HARNESS
10PD1 STD ENG(40L) M8X20 W/LK WASHER 		9-01900-820-0 02 1 9002-9202 ● ● ●
38 BOLT; CLIP,HARNESS
FULLER M/T<X9B> M8X20 W/LK WASHER 		9-01900-820-0 02 1 9002-9202 ● ●
38 BOLT; CLIP,HARNESS
M8X20 W/LK WASHER 		9-01900-820-0 02 1 9203-9204 ● ● ●
38 BOLT; CLIP,HARNESS
M8X20 W/LK WASHER 		0-50040-820-0 02 1 9205-9205 ● ● ●
38 BOLT; CLIP,HARNESS
10PD1 STD ENG(40L) M8X20 W/LK WASHER 		0-50040-820-0 04 1 9205-9302 ● ● ●
38 BOLT; CLIP,HARNESS
10PD1 STD ENG(40L),12PD1 C ENG(43L) M8X20 FLANGE 		0-28080-820-0 04 1 9303- ● ● ●
38 BOLT; CLIP,HARNESS
M8X20 W/LK WASHER 		9-01900-820-0 01 1 9002-9202 ● ● ●
38 BOLT; CLIP,HARNESS
10PD1 STD ENG(40L) M8X20 W/LK WASHER 		9-01900-820-0 02 1 9203-9204 ● ● ●
38 BOLT; CLIP,HARNESS
FULLER M/T<X9B> M8X20 W/LK WASHER 		9-01900-820-0 02 1 9203-9204 ● ●
38 BOLT; CLIP,HARNESS
10PD1 STD ENG(40L) M8X20 W/LK WASHER 		0-50040-820-0 02 1 9205-9205 ● ● ●
38 BOLT; CLIP,HARNESS
FULLER M/T<X9B> M8X20 W/LK WASHER 		0-50040-820-0 02 1 9205-9205 ● ●
38 BOLT; CLIP,HARNESS
M8X20 W/LK WASHER 		0-50040-820-0 01 1 9205-9302 ● ● ●
38 BOLT; CLIP,HARNESS
L TYPE ENG<90L> M8X20 W/LK WASHER 		0-50040-820-0 01 1 9205-9302 ● ●
38 BOLT; CLIP,HARNESS
M10X20 W/LK WASHER 		9-01911-020-0 02 1 9002-9002 ● ● ●
38 BOLT; CLIP,HARNESS
M10X20 W/LK WASHER 		0-50041-020-0 02 1 9003-9106 ● ● ●
38 BOLT; CLIP,HARNESS
M10X25 W/LK WASHER 		0-50041-025-0 02 1 9107- ● ● ●
38 BOLT; CLIP,HARNESS
M12X25 W/LK&PL WASHER 		9-01961-225-0 01 1 9002-9101 ● ● ●
38 BOLT; CLIP,HARNESS
M12X16 FLANGE 		1-09044-079-0 01 1 9102- ● ● ●
38 BOLT; CLIP,HARNESS
10PD1 STD ENG(40L) M8X25 W/LK WASHER 		9-01900-825-0 02 1 9002-9204 ● ● ●
38 BOLT; CLIP,HARNESS
10PD1 STD ENG(40L) M8X25 W/LK WASHER 		0-50040-825-0 02 1 9205-9210 ● ● ●
38 BOLT; CLIP,HARNESS
10PD1 STD ENG(40L) M8X30 W/LK WASHER 		9-01900-830-0 01 1 9002-9003 ● ● ●
38 BOLT; CLIP,HARNESS
M8X30 W/LK WASHER 		9-01900-830-0 01 1 9004-9011 ● ● ●
38 BOLT; CLIP,HARNESS
10PD1 STD ENG(40L) M8X30 W/LK WASHER 		9-01900-830-0 01 1 9004-9011 ● ● ●
38 BOLT; CLIP,HARNESS
M8X30 W/LK WASHER 		9-01900-830-0 02 1 9012-9204 ● ● ●
38 BOLT; CLIP,HARNESS
M8X30 W/LK WASHER 		0-50040-830-0 02 1 9205-9302 ● ● ●
38 BOLT; CLIP,HARNESS
10PD1 STD ENG(40L),12PD1 C ENG(43L) M8X25 FLANGE 		0-28080-825-0 02 1 9211- ● ● ●
38 BOLT; CLIP,HARNESS
M8X30 FLANGE 		0-28010-830-0 02 1 9002-9306 ● ●
38 BOLT; CLIP,HARNESS
MIXER TRUCK<RA2> M8X30 FLANGE 		0-28010-830-0 02 1 9002-9306 ●
38 BOLT; CLIP,HARNESS
M8X30 FLANGE 		0-28080-830-0 02 1 9307- ● ●
38 BOLT; CLIP,HARNESS
MIXER TRUCK<RA2> M8X30 FLANGE 		0-28080-830-0 02 1 9307- ●
38 BOLT; CLIP,HARNESS
M8X30 FLANGE 		0-28010-830-0 04 1 9002-9204 ● ●
38 BOLT; CLIP,HARNESS
M8X30 FLANGE 		0-28080-830-0 04 1 9306- ● ●
38 BOLT; CLIP,HARNESS
FULLER M/T<X9B> M8X20 W/LK WASHER 		0-50040-820-0 02 1 9205-9302 ● ●
38 BOLT; CLIP,HARNESS
FULLER M/T<X9B> M8X20 FLANGE 		0-28080-820-0 02 1 9411- ● ●
38 BOLT; CLIP,HARNESS
6RB1 STD ENG(07L) M8X25 FLANGE 		0-28010-825-0 01 1 9002-9204 ● ●
38 BOLT; CLIP,HARNESS
6RB1 STD ENG(07L) M8X25 FLANGE 		0-28080-825-0 02 1 9205- ● ●
38 BOLT; CLIP,HARNESS
6RB1 STD ENG(07L) M8X25 W/LK WASHER 		9-01900-825-0 01 1 9002-9011 ● ●
38 BOLT; CLIP,HARNESS
6RB1 STD ENG(07L) M8X25 W/LK WASHER 		9-01900-825-0 01 1 9002-9011 ●
38 BOLT; CLIP,HARNESS
6RB1 STD ENG(07L) M8X25 W/LK WASHER 		9-01900-825-0 01 1 9012-9102 ●
38 BOLT; CLIP,HARNESS
6RB1 STD ENG(07L) M8X25 W/LK WASHER 		9-01900-825-0 01 1 9103-9202 ●
38 BOLT; CLIP,HARNESS
6RB1 STD ENG(07L) M8X25 W/LK WASHER 		0-50040-825-0 01 1 9205-9302 ● ●
38 BOLT; CLIP,HARNESS
6RB1 STD ENG(07L) M8X20 FLANGE 		0-28080-820-0 01 1 9303-9306 ● ●
38 BOLT; CLIP,HARNESS
M8X20 FLANGE 		0-28080-820-0 01 1 9307-9309 ● ● ●
38 BOLT; CLIP,HARNESS
M8X20 FLANGE 		0-28080-820-0 01 1 9310- ● ● ●
38 BOLT; CLIP,HARNESS
TAIWAN EQUIPMENT(WW5) M8X20 FLANGE 		0-28080-820-0 01 1 9310- ● ● ●
38 BOLT; CLIP,HARNESS
6RB1 STD ENG(07L) INTAKE HEATER<SL2> M6X16 W/LK WASHER 		9-01910-616-0 01 1 9002-9005 ● ●
38 BOLT; CLIP,HARNESS
6RB1 STD ENG(07L) INTAKE HEATER<SL2> M6X16 W/LK WASHER 		0-50040-616-0 01 1 9006-9302 ● ●
38 BOLT; CLIP,HARNESS
6RB1 STD ENG(07L) INTAKE HEATER<SL2> M6X16 FLANGE 		0-28080-616-0 01 1 9303- ● ●
171 CLIP; STARTER HARNESS
L=140 		5-09707-031-0 01 1 9002-9306 ● ● ●
171 CLIP; STARTER HARNESS
6RB1 STD ENG(07L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=140 		5-09707-031-0 01 1 9002-9306 ● ●
171 CLIP; STARTER HARNESS
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=140 		5-09707-031-0 01 1 9002-9306 ● ●
171 CLIP; STARTER HARNESS
10PD1 STD ENG(40L),12PD1 C ENG(43L) L=140 		5-09707-031-0 05 1 9002- ● ● ●
171 CLIP; STARTER HARNESS
6RB1 STD ENG(07L) L=140 		5-09707-031-0 02 1 9307- ● ●

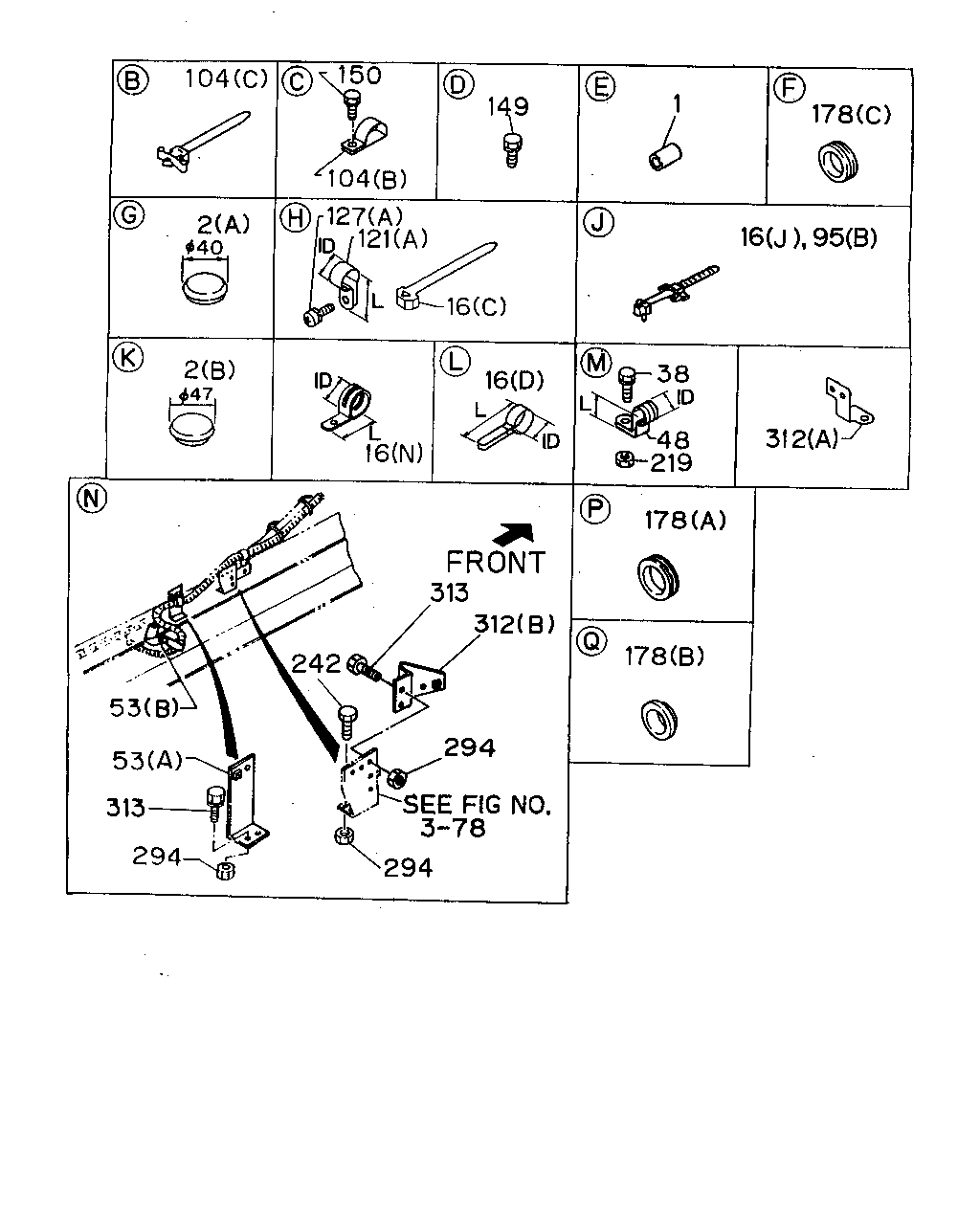

çizim 36160
104 150 104 149 1 178 16 95 312 219 48 38 16 16 2 313 178 178 312 294 294 242 53 53 313 294 127 16 121
BalonParca AdiParca NoAdetTipApplied Date A B C
1 SLEEVE; RUBBER
ID=15 OD=19 L=20 		1-09337-007-0 01 1 9002- ● ● ●
2 GROMMET; CLIP HOLE,HARNESS
EXC. AUTO CAB TILT<WV2> (C) OD=12.8 		1-09983-065-0 07 1 9002- ● ● ●
2 GROMMET; CLIP HOLE,HARNESS
COURTESY LAMP<C97> (B) OD=47 		1-09983-039-1 01 1 9002- ● ● ●
2 GROMMET; CLIP HOLE,HARNESS
COURTESY LAMP<C97> (C) OD=12.8 		1-09983-065-0 01 1 9002- ● ● ●
2 GROMMET; CLIP HOLE,HARNESS
EXC. COURTESY LAMP<C97> (B) OD=47 		1-09983-039-1 02 1 9002- ● ● ●
2 GROMMET; CLIP HOLE,HARNESS
EXC. COURTESY LAMP<C97> (C) OD=12.8 		1-09983-065-0 02 1 9002- ● ● ●
2 GROMMET; CLIP HOLE,HARNESS
EXC. MARKER LAMP THREE AMBER<WD9> (A) ID=20 OD=40 		1-09983-077-0 01 1 9002- ● ●
16 CLIP; HARNESS
WHEEL BASE 5700MM(57W) (D) ID=20 L=50 		9-09917-430-0 25 1 9002- ●
16 CLIP; HARNESS
(D) ID=15 L=45 		1-09700-402-0 02 1 9002-9306 ● ● ●
16 CLIP; HARNESS
AUTO CAB TILT<WV2> (D) ID=14 L=44 		9-09917-427-0 01 1 9307- ● ● ●
16 CLIP; HARNESS
(D) ID=15 L=45 		1-09700-402-0 06 1 9002-9306 ● ● ●
16 CLIP; HARNESS
10PD1 STD ENG(40L),12PD1 C ENG(43L) (C) L=140 		5-09707-031-0 01 1 9307- ● ● ●
16 CLIP; HARNESS
(D) ID=11 L=41 		1-09700-403-0 01 1 9002-9011 ● ● ●
16 CLIP; HARNESS
(D) ID=15 L=65 		1-09700-466-0 02 1 9012- ●
16 CLIP; HARNESS
(B) L=20 H=24 ID=15 H=24 L=20 		1-09700-606-0 01 1 9002- ● ● ●
16 CLIP; HARNESS
(P) 		1-09700-894-0 01 1 9002- ● ● ●
16 CLIP; HARNESS
EXC. INTERMITTENT WIPER<C13> (P) 		1-09700-894-0 01 1 9002- ● ● ●
16 CLIP; HARNESS
(N) ID=28 L=32 		1-09701-107-1 02 1 9002- ● ● ●
16 CLIP; HARNESS
(C) L=219.5 		1-09987-136-0 04 1 9002- ● ● ●
16 CLIP; HARNESS
(J) L=135 		1-09987-143-1 01 1 9002-9201 ● ● ●
16 CLIP; HARNESS
(C) L=175 		8-94155-593-1 01 1 9202-9205 ● ● ●
16 CLIP; HARNESS
(C) L=175 		8-94155-593-1 03 1 9206- ● ● ●
16 CLIP; HARNESS
(N) ID=29 L=35 		5-09700-293-1 01 1 9002-9306 ● ● ●
16 CLIP; HARNESS
(C) L=250 		5-09707-030-0 02 1 9002- ● ● ●
16 CLIP; HARNESS
(C) L=250 		5-09707-030-0 01 1 9002- ● ● ●
16 CLIP; HARNESS
TRANSMISSION SIDE PTO WO/LEVER(SH5) (C) L=250 		5-09707-030-0 01 1 9002- ● ● ●
16 CLIP; HARNESS
CAB SUSPENSION RIGID(W71) EXC. FIRE TRUCK<RA9> (C) L=250 		5-09707-030-0 01 1 9002- ●
16 CLIP; HARNESS
(H) L=36 W=18 L=36 		8-94224-891-1 02 1 9002- ● ● ●
16 CLIP; HARNESS
(N) L=20 ID=11 L=20 		9-09525-032-0 01 1 9002-9410 ● ● ●
16 CLIP; HARNESS
FULLER M/T<X9B> (N) L=20 ID=11 L=20 		9-09525-032-0 01 1 9002-9410 ● ●
16 CLIP; HARNESS
FULLER M/T<X9B> (N) ID=11 L=20 		9-09525-032-0 01 1 9411- ● ●
16 CLIP; HARNESS
(A) L=20 ID=11 L=20 		9-09525-035-0 01 1 9002-9306 ● ● ●
16 CLIP; HARNESS
AUTO CAB TILT<WV2> (C) L=180 		1-09707-162-0 01 1 9307- ● ● ●
16 CLIP; HARNESS
(B) ID=19 H=50 L=25 		9-09916-622-0 01 1 9002-9306 ● ● ●
16 CLIP; HARNESS
(D) ID=25 L=55 		9-09917-573-0 05 1 9002-9306 ● ● ●
16 CLIP; HARNESS
(D) ID=25 L=55 		9-09917-573-0 03 1 9307- ● ● ●
16 CLIP; HARNESS
(E) L=300 		1-09707-001-0 01 1 9007- ● ● ●
16 CLIP; HARNESS
(R) ID=11 L=30 		1-09700-511-0 01 1 9205-9306 ● ● ●
16 CLIP; HARNESS
6RB1 STD ENG(07L) (R) ID=11 L=30 		1-09700-511-0 01 1 9205-9306 ● ●
16 CLIP; HARNESS
6RB1 STD ENG(07L) (R) ID=11 L=30 		1-09700-511-0 01 1 9307-9504 ● ●
16 CLIP; HARNESS
6RB1 STD ENG(07L) (R) ID=11 L=30 		1-09700-511-0 01 1 9505- ● ●
16 CLIP; HARNESS
GOVERNOR CONTROL<W69> (R) ID=11 L=30 		1-09700-511-0 01 1 9505- ●
16 CLIP; HARNESS
(D) ID=15 L=45 		1-09700-402-0 05 1 9307- ● ● ●
16 CLIP; HARNESS
(A) L=20 ID=11 L=20 		9-09525-035-0 01 1 9307-9410 ● ● ●
16 CLIP; HARNESS
(A) L=20 ID=11 L=20 		9-09525-035-0 01 1 9307-9410 ●
16 CLIP; HARNESS
V TYPE ENG<91L> (A) L=20 ID=11 L=20 		9-09525-035-0 01 1 9307-9410 ● ●
16 CLIP; HARNESS
10PD1 STD ENG(40L),12PD1 C ENG(43L) (A) ID=11 L=20 		9-09525-035-0 01 1 9411- ● ● ●
16 CLIP; HARNESS
(A) ID=11 L=20 		9-09525-035-0 02 1 9411- ● ● ●
16 CLIP; HARNESS
AUTO CAB TILT<WV2> (S) OD=9 H=6 		1-09709-178-0 05 1 9307- ● ● ●
16 CLIP; HARNESS
EXC. AUTO CAB TILT<WV2> (N) ID=29 L=35 		5-09700-293-1 01 1 9307- ● ● ●
16 CLIP; HARNESS
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (S) OD=9 H=9.5 		1-09709-179-0 02 1 9002- ● ● ●
16 CLIP; HARNESS
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (D) ID=6 L=36 		9-09917-423-0 06 1 9002- ● ● ●
16 CLIP; HARNESS
TAIWAN EQUIPMENT(WW5) (Q) ID=11 L=40 		8-94123-171-1 01 1 9310- ● ● ●
16 CLIP; HARNESS
EXC. TAIWAN EQUIPMENT(WW5) (D) ID=11 L=41 		1-09700-403-0 03 1 9310- ● ● ●
16 CLIP; HARNESS
(D) ID=11 L=41 		1-09700-403-0 03 1 9310- ● ● ●
16 CLIP; HARNESS
10PD1 STD ENG(40L) (D) ID=11 L=41 		1-09700-403-0 03 1 9002-9007 ● ● ●
16 CLIP; HARNESS
6RB1 STD ENG(07L) INTAKE HEATER<SL2> (D) ID=11 L=41 		1-09700-403-0 03 1 9002-9007 ● ●
16 CLIP; HARNESS
(D) ID=11 L=41 		1-09700-403-0 03 1 9307-9309 ● ● ●
16 CLIP; HARNESS
10PD1 STD ENG(40L) (D) ID=11 L=41 		1-09700-403-0 03 1 9307-9309 ● ● ●
16 CLIP; HARNESS
TAIWAN EQUIPMENT(WW5) (D) ID=11 L=41 		1-09700-403-0 02 1 9310- ● ● ●
16 CLIP; HARNESS
(D) ID=11 L=41 		1-09700-403-0 02 1 9008-9011 ● ● ●
16 CLIP; HARNESS
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (D) ID=11 L=41 		1-09700-403-0 02 1 9008-9011 ●
16 CLIP; HARNESS
10PD1 STD ENG(40L) (D) ID=11 L=41 		1-09700-403-0 03 1 9012-9103 ● ● ●
16 CLIP; HARNESS
6RB1 STD ENG(07L) INTAKE HEATER<SL2> (D) ID=11 L=41 		1-09700-403-0 03 1 9012-9103 ● ●
16 CLIP; HARNESS
(D) ID=11 L=41 		1-09700-403-0 03 1 9104-9306 ● ● ●
16 CLIP; HARNESS
10PD1 STD ENG(40L) (D) ID=11 L=41 		1-09700-403-0 03 1 9104-9306 ● ● ●
16 CLIP; HARNESS
10PD1 STD ENG(40L) (M) ID=15 L=35 		1-09700-507-0 02 1 9002-9008 ● ● ●
16 CLIP; HARNESS
(M) ID=15 L=35 		1-09700-507-0 02 1 9009-9204 ● ● ●
16 CLIP; HARNESS
6RB1 STD ENG(07L) (M) ID=15 L=35 		1-09700-507-0 02 1 9205-9306 ● ●
16 CLIP; HARNESS
10PD1 STD ENG(40L),12PD1 C ENG(43L) (H) L=44 W=14 ID=18 L=44 		8-94225-185-0 02 1 9307-9309 ● ● ●
16 CLIP; HARNESS
10PD1 STD ENG(40L),12PD1 C ENG(43L) (M) ID=15 L=35 		1-09700-507-0 01 1 9310- ● ● ●
16 CLIP; HARNESS
10PD1 STD ENG(40L) (M) ID=15 L=35 		1-09700-507-0 01 1 9002-9204 ● ● ●
16 CLIP; HARNESS
10PD1 STD ENG(40L) (M) ID=15 L=35 		1-09700-507-0 03 1 9205-9306 ● ● ●
16 CLIP; HARNESS
6RB1 STD ENG(07L) (H) L=44 W=14 ID=18 L=44 		8-94225-185-0 01 1 9307-9309 ● ●
16 CLIP; HARNESS
(H) L=44 W=14 ID=18 L=44 		8-94225-185-0 02 1 9310- ● ● ●
16 CLIP; HARNESS
10PD1 STD ENG(40L) (L) ID=21 L=30 H=40 		1-09700-991-1 01 1 9002- ● ● ●
16 CLIP; HARNESS
10PD1 STD ENG(40L) (C) L=140 		5-09707-031-0 01 1 9002-9306 ● ● ●
16 CLIP; HARNESS
10PD1 STD ENG(40L) (D) ID=15 L=45 		1-09700-402-0 01 1 9307- ● ● ●
16 CLIP; HARNESS
10PD1 STD ENG(40L) (A) L=20 ID=11 L=40 		9-09525-075-0 02 1 9002- ● ● ●
16 CLIP; HARNESS
10PD1 STD ENG(40L),12PD1 C ENG(43L) (L) ID=24.5 H=35 L=25 		1-09700-990-0 01 1 9307- ● ● ●
16 CLIP; HARNESS
WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W) (D) ID=20 L=50 		9-09917-430-0 26 1 9002-9306 ● ●
16 CLIP; HARNESS
WHEEL BASE 6600MM(66W) (D) ID=20 L=50 		9-09917-430-0 29 1 9307- ●
16 CLIP; HARNESS
(D) L=61 ID=11 L=61 		1-09700-484-0 03 1 9002-9011 ●
16 CLIP; HARNESS
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (D) L=61 ID=11 L=61 		1-09700-484-0 03 1 9002-9011 ●
16 CLIP; HARNESS
(D) L=61 ID=11 L=61 		1-09700-484-0 03 1 9012- ● ●
16 CLIP; HARNESS
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (D) L=61 ID=11 L=61 		1-09700-484-0 03 1 9012- ●
16 CLIP; HARNESS
(D) ID=20 L=50 		9-09917-430-0 12 1 9002-9306 ●
16 CLIP; HARNESS
(D) ID=20 L=70 		1-09700-485-0 15 1 9307- ●
16 CLIP; HARNESS
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (D) ID=11 L=41 		1-09700-403-0 02 1 9002-9007 ●
16 CLIP; HARNESS
10PD1 STD ENG(40L) (D) ID=11 L=41 		1-09700-403-0 03 1 9008-9011 ● ● ●
16 CLIP; HARNESS
6RB1 STD ENG(07L) INTAKE HEATER<SL2> (D) ID=11 L=41 		1-09700-403-0 03 1 9008-9011 ● ●
16 CLIP; HARNESS
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (D) ID=11 L=41 		1-09700-403-0 02 1 9012-9306 ●
16 CLIP; HARNESS
(M) ID=15 L=35 		1-09700-507-0 01 1 9307-9309 ● ● ●
16 CLIP; HARNESS
12PD1 C ENG(43L) (B) ID=21 H=25.5 L=26 		8-94176-806-0 01 1 9307- ●
16 CLIP; HARNESS
FULLER M/T<X9B> (B) ID=12 H=24 L=20 		1-09700-605-0 02 1 9002- ● ●
16 CLIP; HARNESS
6RB1 STD ENG(07L) (M) ID=15 L=35 		1-09700-507-0 03 1 9002-9008 ● ●
16 CLIP; HARNESS
6RB1 STD ENG(07L) (D) ID=20 L=50 		9-09917-430-0 01 1 9009-9103 ● ●
16 CLIP; HARNESS
6RB1 STD ENG(07L) INTAKE HEATER<SL2> (D) ID=11 L=41 		1-09700-403-0 05 1 9104- ● ●
16 CLIP; HARNESS
6RB1 STD ENG(07L) (B) ID=19 H=50 L=25 		9-09916-622-0 01 1 9307- ● ●
16 CLIP; HARNESS
6RB1 STD ENG(07L) INTAKE HEATER<SL2> (A) L=28 ID=11 L=28 		9-09525-052-0 01 1 9002- ● ●
16 CLIP; HARNESS
(D) L=61 ID=11 L=61 		1-09700-484-0 02 1 9002-9011 ●
16 CLIP; HARNESS
(D) ID=15 L=65 		1-09700-466-0 01 1 9012- ●
16 CLIP; HARNESS
WHEEL BASE 5500MM(55W) (D) L=65 ID=20 L=65 		1-09700-978-0 20 1 9002-9306 ●
16 CLIP; HARNESS
WHEEL BASE 5500MM(55W) (D) ID=20 L=70 		1-09700-485-0 20 1 9307-9511 ●
16 CLIP; HARNESS
WHEEL BASE 5500MM(55W) (D) ID=20 L=70 		1-09700-485-0 23 1 9512- ●
16 CLIP; HARNESS
WHEEL BASE 5800MM(58W) (D) L=65 ID=20 L=65 		1-09700-978-0 25 1 9002-9306 ●
16 CLIP; HARNESS
WHEEL BASE 5800MM(58W) (D) ID=20 L=70 		1-09700-485-0 25 1 9307- ●
38 BOLT; CLIP,HARNESS
M8X20 FLANGE 		0-28010-820-0 01 1 9002-9204 ● ● ●
38 BOLT; CLIP,HARNESS
M8X20 FLANGE 		0-28080-820-0 01 1 9205-9302 ● ● ●
38 BOLT; CLIP,HARNESS
M8X20 FLANGE 		0-28080-820-0 02 1 9303-9410 ● ● ●
38 BOLT; CLIP,HARNESS
FULLER M/T<X9B> M8X20 FLANGE 		0-28080-820-0 02 1 9303-9410 ● ●
38 BOLT; CLIP,HARNESS
M8X20 FLANGE 		0-28080-820-0 03 1 9411- ● ● ●
38 BOLT; CLIP,HARNESS
M8X30 FLANGE 		0-28010-830-0 13 1 9002-9204 ● ● ●
38 BOLT; CLIP,HARNESS
M8X30 FLANGE 		0-28080-830-0 13 1 9205- ● ● ●
38 BOLT; CLIP,HARNESS
M8X30 FLANGE 		0-28010-830-0 08 1 9002-9204 ● ● ●
38 BOLT; CLIP,HARNESS
M8X30 FLANGE 		0-28080-830-0 08 1 9205- ● ● ●
38 BOLT; CLIP,HARNESS
M8X30 FLANGE 		0-28080-830-0 01 1 9002- ● ● ●
38 BOLT; CLIP,HARNESS
6RB1 STD ENG(07L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X30 FLANGE 		0-28080-830-0 01 1 9002- ● ●
38 BOLT; CLIP,HARNESS
EXC. MIXER TRUCK<RA2> M8X30 FLANGE 		0-28080-830-0 01 1 9002- ●
38 BOLT; CLIP,HARNESS
M6X22 W/LK&PL WASHER 		8-94122-770-0 01 1 9002-9212 ● ● ●
38 BOLT; CLIP,HARNESS
M6X16 W/LK&PL WASHER 		8-97086-823-0 01 1 9301-9301 ● ● ●
38 BOLT; CLIP,HARNESS
M6X20 W/LK&PL WASHER 		8-97086-824-0 01 1 9302- ● ● ●
38 BOLT; CLIP,HARNESS
M6X20 W/LK WASHER 		9-01900-620-0 01 1 9002-9204 ● ● ●
38 BOLT; CLIP,HARNESS
FULLER M/T<X9B> M6X20 W/LK WASHER 		9-01900-620-0 01 1 9002-9204 ● ●
38 BOLT; CLIP,HARNESS
M6X20 W/LK WASHER 		0-50040-620-0 01 1 9205-9302 ● ● ●
38 BOLT; CLIP,HARNESS
FULLER M/T<X9B> M6X20 W/LK WASHER 		0-50040-620-0 01 1 9205-9302 ● ●
38 BOLT; CLIP,HARNESS
M6X20 FLANGE 		0-28080-620-0 01 1 9303-9410 ● ● ●
38 BOLT; CLIP,HARNESS
FULLER M/T<X9B> M6X20 FLANGE 		0-28080-620-0 01 1 9303-9410 ● ●
38 BOLT; CLIP,HARNESS
FULLER M/T<X9B> M6X20 FLANGE 		0-28080-620-0 01 1 9411- ● ●
38 BOLT; CLIP,HARNESS
M8X20 W/LK WASHER 		9-01900-820-0 02 1 9002-9202 ● ● ●
38 BOLT; CLIP,HARNESS
10PD1 STD ENG(40L) M8X20 W/LK WASHER 		9-01900-820-0 02 1 9002-9202 ● ● ●
38 BOLT; CLIP,HARNESS
FULLER M/T<X9B> M8X20 W/LK WASHER 		9-01900-820-0 02 1 9002-9202 ● ●
38 BOLT; CLIP,HARNESS
M8X20 W/LK WASHER 		9-01900-820-0 02 1 9203-9204 ● ● ●
38 BOLT; CLIP,HARNESS
M8X20 W/LK WASHER 		0-50040-820-0 02 1 9205-9205 ● ● ●
38 BOLT; CLIP,HARNESS
10PD1 STD ENG(40L) M8X20 W/LK WASHER 		0-50040-820-0 04 1 9205-9302 ● ● ●
38 BOLT; CLIP,HARNESS
10PD1 STD ENG(40L),12PD1 C ENG(43L) M8X20 FLANGE 		0-28080-820-0 04 1 9303- ● ● ●
38 BOLT; CLIP,HARNESS
M8X20 W/LK WASHER 		9-01900-820-0 01 1 9002-9202 ● ● ●
38 BOLT; CLIP,HARNESS
10PD1 STD ENG(40L) M8X20 W/LK WASHER 		9-01900-820-0 02 1 9203-9204 ● ● ●
38 BOLT; CLIP,HARNESS
FULLER M/T<X9B> M8X20 W/LK WASHER 		9-01900-820-0 02 1 9203-9204 ● ●
38 BOLT; CLIP,HARNESS
10PD1 STD ENG(40L) M8X20 W/LK WASHER 		0-50040-820-0 02 1 9205-9205 ● ● ●
38 BOLT; CLIP,HARNESS
FULLER M/T<X9B> M8X20 W/LK WASHER 		0-50040-820-0 02 1 9205-9205 ● ●
38 BOLT; CLIP,HARNESS
M8X20 W/LK WASHER 		0-50040-820-0 01 1 9205-9302 ● ● ●
38 BOLT; CLIP,HARNESS
L TYPE ENG<90L> M8X20 W/LK WASHER 		0-50040-820-0 01 1 9205-9302 ● ●
38 BOLT; CLIP,HARNESS
M10X20 W/LK WASHER 		9-01911-020-0 02 1 9002-9002 ● ● ●
38 BOLT; CLIP,HARNESS
M10X20 W/LK WASHER 		0-50041-020-0 02 1 9003-9106 ● ● ●
38 BOLT; CLIP,HARNESS
M10X25 W/LK WASHER 		0-50041-025-0 02 1 9107- ● ● ●
38 BOLT; CLIP,HARNESS
M12X25 W/LK&PL WASHER 		9-01961-225-0 01 1 9002-9101 ● ● ●
38 BOLT; CLIP,HARNESS
M12X16 FLANGE 		1-09044-079-0 01 1 9102- ● ● ●
38 BOLT; CLIP,HARNESS
10PD1 STD ENG(40L) M8X25 W/LK WASHER 		9-01900-825-0 02 1 9002-9204 ● ● ●
38 BOLT; CLIP,HARNESS
10PD1 STD ENG(40L) M8X25 W/LK WASHER 		0-50040-825-0 02 1 9205-9210 ● ● ●
38 BOLT; CLIP,HARNESS
10PD1 STD ENG(40L) M8X30 W/LK WASHER 		9-01900-830-0 01 1 9002-9003 ● ● ●
38 BOLT; CLIP,HARNESS
M8X30 W/LK WASHER 		9-01900-830-0 01 1 9004-9011 ● ● ●
38 BOLT; CLIP,HARNESS
10PD1 STD ENG(40L) M8X30 W/LK WASHER 		9-01900-830-0 01 1 9004-9011 ● ● ●
38 BOLT; CLIP,HARNESS
M8X30 W/LK WASHER 		9-01900-830-0 02 1 9012-9204 ● ● ●
38 BOLT; CLIP,HARNESS
M8X30 W/LK WASHER 		0-50040-830-0 02 1 9205-9302 ● ● ●
38 BOLT; CLIP,HARNESS
10PD1 STD ENG(40L),12PD1 C ENG(43L) M8X25 FLANGE 		0-28080-825-0 02 1 9211- ● ● ●
38 BOLT; CLIP,HARNESS
M8X30 FLANGE 		0-28010-830-0 02 1 9002-9306 ● ●
38 BOLT; CLIP,HARNESS
MIXER TRUCK<RA2> M8X30 FLANGE 		0-28010-830-0 02 1 9002-9306 ●
38 BOLT; CLIP,HARNESS
M8X30 FLANGE 		0-28080-830-0 02 1 9307- ● ●
38 BOLT; CLIP,HARNESS
MIXER TRUCK<RA2> M8X30 FLANGE 		0-28080-830-0 02 1 9307- ●
38 BOLT; CLIP,HARNESS
M8X30 FLANGE 		0-28010-830-0 04 1 9002-9204 ● ●
38 BOLT; CLIP,HARNESS
M8X30 FLANGE 		0-28080-830-0 04 1 9306- ● ●
38 BOLT; CLIP,HARNESS
FULLER M/T<X9B> M8X20 W/LK WASHER 		0-50040-820-0 02 1 9205-9302 ● ●
38 BOLT; CLIP,HARNESS
FULLER M/T<X9B> M8X20 FLANGE 		0-28080-820-0 02 1 9411- ● ●
38 BOLT; CLIP,HARNESS
6RB1 STD ENG(07L) M8X25 FLANGE 		0-28010-825-0 01 1 9002-9204 ● ●
38 BOLT; CLIP,HARNESS
6RB1 STD ENG(07L) M8X25 FLANGE 		0-28080-825-0 02 1 9205- ● ●
38 BOLT; CLIP,HARNESS
6RB1 STD ENG(07L) M8X25 W/LK WASHER 		9-01900-825-0 01 1 9002-9011 ● ●
38 BOLT; CLIP,HARNESS
6RB1 STD ENG(07L) M8X25 W/LK WASHER 		9-01900-825-0 01 1 9002-9011 ●
38 BOLT; CLIP,HARNESS
6RB1 STD ENG(07L) M8X25 W/LK WASHER 		9-01900-825-0 01 1 9012-9102 ●
38 BOLT; CLIP,HARNESS
6RB1 STD ENG(07L) M8X25 W/LK WASHER 		9-01900-825-0 01 1 9103-9202 ●
38 BOLT; CLIP,HARNESS
6RB1 STD ENG(07L) M8X25 W/LK WASHER 		0-50040-825-0 01 1 9205-9302 ● ●
38 BOLT; CLIP,HARNESS
6RB1 STD ENG(07L) M8X20 FLANGE 		0-28080-820-0 01 1 9303-9306 ● ●
38 BOLT; CLIP,HARNESS
M8X20 FLANGE 		0-28080-820-0 01 1 9307-9309 ● ● ●
38 BOLT; CLIP,HARNESS
M8X20 FLANGE 		0-28080-820-0 01 1 9310- ● ● ●
38 BOLT; CLIP,HARNESS
TAIWAN EQUIPMENT(WW5) M8X20 FLANGE 		0-28080-820-0 01 1 9310- ● ● ●
38 BOLT; CLIP,HARNESS
6RB1 STD ENG(07L) INTAKE HEATER<SL2> M6X16 W/LK WASHER 		9-01910-616-0 01 1 9002-9005 ● ●
38 BOLT; CLIP,HARNESS
6RB1 STD ENG(07L) INTAKE HEATER<SL2> M6X16 W/LK WASHER 		0-50040-616-0 01 1 9006-9302 ● ●
38 BOLT; CLIP,HARNESS
6RB1 STD ENG(07L) INTAKE HEATER<SL2> M6X16 FLANGE 		0-28080-616-0 01 1 9303- ● ●
48 CLIP; FRAME HARNESS
L=25 H=23 ID=24.5 H=23 L=25 		1-09700-862-0 13 1 9002-9306 ●
48 CLIP; FRAME HARNESS
6RB1 STD ENG(07L),10PD1 STD ENG(40L) L=25 H=23 ID=24.5 H=23 L=25 		1-09700-862-0 13 1 9002-9306 ● ●
48 CLIP; FRAME HARNESS
L=25 H=23 ID=24.5 H=23 L=25 		1-09700-862-0 02 1 9002- ● ● ●
48 CLIP; FRAME HARNESS
L=25 H=23 ID=24.5 H=23 L=25 		1-09700-862-0 14 1 9002- ● ●
48 CLIP; FRAME HARNESS
6RB1 STD ENG(07L),10PD1 STD ENG(40L) L=25 H=23 ID=24.5 H=23 L=25 		1-09700-862-0 14 1 9002- ●
48 CLIP; FRAME HARNESS
L=27 H=23 ID=20 H=23 L=27 		1-09700-861-0 05 1 9002- ● ● ●
48 CLIP; FRAME HARNESS
H=23 ID=14.5 H=23 L=30 		1-09700-859-0 02 1 9002- ● ●
48 CLIP; FRAME HARNESS
MIXER TRUCK<RA2> H=23 ID=14.5 H=23 L=30 		1-09700-859-0 02 1 9002- ●
48 CLIP; FRAME HARNESS
EXC. MIXER TRUCK<RA2> H=23 ID=14.5 H=23 L=30 		1-09700-859-0 01 1 9002- ●
48 CLIP; FRAME HARNESS
L=25 H=23 ID=24.5 H=23 L=25 		1-09700-862-0 04 1 9002- ● ●
48 CLIP; FRAME HARNESS
6RB1 STD ENG(07L) L=27 H=23 ID=20 H=23 L=27 		1-09700-861-0 01 1 9002-9404 ● ●
48 CLIP; FRAME HARNESS
6RB1 STD ENG(07L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=25 H=23 ID=24.5 H=23 L=25 		1-09700-862-0 01 1 9307- ● ●
53 BRACKET; HARNESS
(B) 		1-82699-199-0 01 1 9002- ● ● ●
53 BRACKET; HARNESS
(A) 		1-82699-390-2 01 1 9002- ● ● ●
95 CLIP; CABLE
(B) L=135 		1-09987-143-1 02 1 9002-9201 ● ● ●
95 CLIP; CABLE
(B) L=175 		8-94155-593-1 02 1 9202-9205 ● ● ●
95 CLIP; CABLE
(A) 		1-09987-155-0 03 1 9002- ● ● ●
95 CLIP; CABLE
INTAKE HEATER<SL2> (B) L=175 		8-94155-593-1 01 1 9206- ● ● ●
104 CLIP; HEADLAMP HARNESS
(B) ID=9 		5-09707-027-0 02 1 9002- ● ● ●
104 CLIP; HEADLAMP HARNESS
(C) L=112 		8-94232-618-0 09 1 9002-9003 ● ● ●
104 CLIP; HEADLAMP HARNESS
(C) L=142 		8-94232-619-0 09 1 9004- ● ● ●
104 CLIP; HEADLAMP HARNESS
(D) ID=19 L=20 		9-09525-832-0 01 1 9002- ● ● ●
104 CLIP; HEADLAMP HARNESS
(D) ID=19 L=32 		9-09525-862-0 01 1 9002- ● ● ●
104 CLIP; HEADLAMP HARNESS
AUTO CAB TILT<WV2> (A) ID=12 		1-09987-201-0 09 1 9307- ● ● ●
121 CLIP; FACIA HARNESS
(A) ID=21 L=28 		1-09700-673-1 01 1 9002- ● ● ●
121 CLIP; FACIA HARNESS
(B) ID=23 L=24 H=23 		1-09700-738-0 03 1 9002- ● ● ●
121 CLIP; FACIA HARNESS
(A) L=16 ID=9 L=16 		9-09524-822-0 02 1 9002- ● ● ●
121 CLIP; FACIA HARNESS
(A) L=20 ID=16 L=20 		9-09525-532-0 01 1 9002- ● ● ●
121 CLIP; FACIA HARNESS
(B) L=20 H=24 ID=16 H=24 L=20 		9-09527-015-0 02 1 9207- ● ● ●
127 SCREW; FACIA HARNESS CLIP
(A) M5X14 TAPPING W/PL WASHER 		0-74100-514-0 02 1 9002- ● ● ●
127 SCREW; FACIA HARNESS CLIP
(B) M6X22 W/LK&PL WASHER 		1-09980-430-0 01 1 9002-9003 ● ● ●
127 SCREW; FACIA HARNESS CLIP
(B) M6X22 W/LK&PL WASHER 		1-09980-584-0 01 1 9004-9303 ● ● ●
127 SCREW; FACIA HARNESS CLIP
(B) M6X20 W/LK&PL WASHER 		8-97086-824-0 01 1 9304- ● ● ●
127 SCREW; FACIA HARNESS CLIP
(B) M6X16 W/LK&PL WASHER 		1-09981-375-0 01 1 9002-9304 ● ● ●
127 SCREW; FACIA HARNESS CLIP
(B) M6X16 W/LK&PL WASHER 		8-97086-823-0 01 1 9305- ● ● ●
127 SCREW; FACIA HARNESS CLIP
(A) M5X14 W/PL WASHER 		5-09981-050-0 02 1 9002- ● ● ●
149 BOLT; HEADLAMP HARNESS EARTH
M6X22 W/LK&PL WASHER 		1-09980-537-0 01 1 9002-9303 ● ● ●
149 BOLT; HEADLAMP HARNESS EARTH
M6X20 W/LK&PL WASHER 		8-97086-824-0 01 1 9304- ● ● ●
150 BOLT; CLIP
M6X16 W/LK&PL WASHER 		1-09980-497-0 03 1 9002- ● ● ●
178 GROMMET; HARNESS
(A) ID=24 OD=30 T=17 		9-09956-092-1 01 1 9002-9302 ●
178 GROMMET; HARNESS
(A) ID=19 OD=23 T=18 		9-09956-130-1 02 1 9002- ●
178 GROMMET; HARNESS
(B) ID=19 OD=23 T=24 		1-09332-103-0 01 1 9002-9003 ● ● ●
178 GROMMET; HARNESS
(B) ID=19 OD=23 T=24 		1-09332-103-0 01 1 9002-9003 ● ●
178 GROMMET; HARNESS
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) ID=19 OD=23 T=24 		1-09332-103-0 01 1 9002-9003 ● ●
178 GROMMET; HARNESS
(B) ID=19 OD=23 T=24 		1-09332-103-0 01 1 9004-9306 ● ● ●
178 GROMMET; HARNESS
6RB1 STD ENG(07L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) ID=19 OD=23 T=24 		1-09332-103-0 01 1 9004-9306 ● ●
178 GROMMET; HARNESS
(A) ID=15 OD=26 		9-09956-181-0 02 1 9002-9306 ● ● ●
178 GROMMET; HARNESS
(C) ID=15 OD=20 T=26 		1-09332-132-0 01 1 9003- ● ● ●
178 GROMMET; HARNESS
(C) ID=28 OD=35 T=25 		1-09332-011-1 01 1 9307- ● ● ●
178 GROMMET; HARNESS
AUTO CAB TILT<WV2> (C) ID=28 OD=35 T=25 		1-09332-011-1 01 1 9307- ● ●
178 GROMMET; HARNESS
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (C) ID=28 OD=35 T=25 		1-09332-011-1 01 1 9307- ● ●
178 GROMMET; HARNESS
(A) ID=24 OD=30 T=22 		1-09332-104-0 01 1 9307- ● ● ●
178 GROMMET; HARNESS
(A) ID=24 OD=30 T=22 		1-09332-104-0 01 1 9307- ● ● ●
178 GROMMET; HARNESS
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) ID=24 OD=30 T=22 		1-09332-104-0 01 1 9307- ● ●
178 GROMMET; HARNESS
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) V TYPE ENG<91L> (A) ID=24 OD=30 T=22 		1-09332-104-0 01 1 9307- ●
178 GROMMET; HARNESS
(A) ID=15 OD=26 		9-09956-181-0 02 1 9307- ● ● ●
178 GROMMET; HARNESS
(A) ID=24 OD=30 T=22 		1-09332-104-0 01 1 9002-9003 ● ●
178 GROMMET; HARNESS
(A) ID=24 OD=30 T=22 		1-09332-104-0 01 1 9004-9306 ● ●
178 GROMMET; HARNESS
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) ID=24 OD=30 T=22 		1-09332-104-0 01 1 9004-9306 ● ●
178 GROMMET; HARNESS
10PD1 STD ENG(40L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) ID=24 OD=30 T=22 		1-09332-104-0 01 1 9004-9306 ●
178 GROMMET; HARNESS
AUTO CAB TILT<WV2> (A) ID=28 OD=35 T=12 		9-09956-725-0 01 1 9307- ● ●
178 GROMMET; HARNESS
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (C) ID=28 OD=35 T=25 		1-09332-011-1 01 1 9004-9302 ● ●
178 GROMMET; HARNESS
(C) ID=28 OD=35 T=25 		1-09332-011-1 01 1 9303-9306 ● ● ●
178 GROMMET; HARNESS
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (C) ID=28 OD=35 T=25 		1-09332-011-1 01 1 9303-9306 ● ●
178 GROMMET; HARNESS
6RB1 STD ENG(07L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) ID=19 OD=23 T=24 		1-09332-103-0 01 1 9307- ● ●
219 NUT
M8 		9-09110-408-0 13 1 9002-9306 ●
219 NUT
6RB1 STD ENG(07L),10PD1 STD ENG(40L) M8 		9-09110-408-0 13 1 9002-9306 ● ●
219 NUT
M8 		9-09110-408-0 13 1 9002- ●
219 NUT
6RB1 STD ENG(07L),10PD1 STD ENG(40L) M8 		9-09110-408-0 13 1 9002- ● ●
219 NUT
M5 FLANGE 		5-09440-003-0 05 1 9002- ● ● ●
219 NUT
M8 		9-09110-408-0 10 1 9002- ● ● ●
219 NUT
M10 		9-09110-510-0 02 1 9002- ● ● ●
219 NUT
M5 		9-99110-405-0 01 1 9002- ● ● ●
219 NUT
M8 		9-09110-408-0 02 1 9307- ● ● ●
219 NUT
M8 		9-09110-408-0 02 1 9307- ● ●
219 NUT
MIXER TRUCK<RA2> M8 		9-09110-408-0 02 1 9307- ●
219 NUT
M8 		9-09110-408-0 04 1 9307- ● ● ●
219 NUT
10PD1 STD ENG(40L) M8 		9-09110-408-0 04 1 9307- ● ●
219 NUT
6RB1 STD ENG(07L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8 		9-09110-408-0 01 1 9307- ● ●
219 NUT
6RB1 STD ENG(07L) M8 		9-09110-408-0 01 1 9307- ● ●
219 NUT
6RB1 STD ENG(07L) M8 		9-09110-408-0 01 1 9307- ● ●
219 NUT
EXC. MIXER TRUCK<RA2> M8 		9-09110-408-0 01 1 9307- ●
242 BOLT; BRKT,HARNESS
M8X30 W/LK WASHER 		9-01900-830-0 03 1 9002-9204 ● ● ●
242 BOLT; BRKT,HARNESS
M8X30 W/LK WASHER 		0-50040-830-0 03 1 9205-9302 ● ● ●
242 BOLT; BRKT,HARNESS
M8X30 FLANGE 		0-28080-830-0 03 1 9303- ● ● ●
242 BOLT; BRKT,HARNESS
POWER WINDOW<A30> M6X20 W/LK&PL WASHER 		1-09980-493-0 01 1 9307- ● ● ●
294 NUT
M6 		9-09110-406-0 01 1 9002- ● ● ●
294 NUT
M8 		9-09110-408-0 06 1 9002- ● ● ●
294 NUT
10PD1 STD ENG(40L),12PD1 C ENG(43L) M8 		9-09110-408-0 01 1 9002- ● ● ●
312 BRACKET; CLIP HARNESS
(C) L=95 		1-82699-085-0 01 1 9002- ● ● ●
312 BRACKET; CLIP HARNESS
10PD1 STD ENG(40L) (C) L=95 		1-82699-085-0 01 1 9002- ● ● ●
312 BRACKET; CLIP HARNESS
(B) 		1-82699-141-1 01 1 9002- ● ● ●
312 BRACKET; CLIP HARNESS
10PD1 STD ENG(40L) (A) 		1-82699-348-0 01 1 9002- ● ● ●
313 BOLT; BRKT
M6X20 W/LK WASHER 		9-01900-620-0 01 1 9002-9204 ● ● ●
313 BOLT; BRKT
M6X20 W/LK WASHER 		0-50040-620-0 01 1 9205-9302 ● ● ●
313 BOLT; BRKT
M6X20 FLANGE 		0-28080-620-0 01 1 9303- ● ● ●
313 BOLT; BRKT
M8X16 W/LK WASHER 		9-01900-816-0 02 1 9002-9204 ● ● ●
313 BOLT; BRKT
M8X16 W/LK WASHER 		0-50040-816-0 02 1 9205-9302 ● ● ●
313 BOLT; BRKT
M8X16 FLANGE 		0-28080-816-0 02 1 9303-9306 ● ● ●
313 BOLT; BRKT
M8X20 FLANGE 		0-28080-820-0 03 1 9307-9411 ● ● ●
313 BOLT; BRKT
M8X20 FLANGE 		0-28080-820-0 02 1 9412- ● ● ●
313 BOLT; BRKT
M8X20 W/LK WASHER 		9-01900-820-0 01 1 9002-9204 ● ● ●
313 BOLT; BRKT
M8X20 W/LK WASHER 		0-50040-820-0 01 1 9205-9302 ● ● ●
313 BOLT; BRKT
10PD1 STD ENG(40L) M8X30 W/LK WASHER 		9-01900-830-0 01 1 9002-9204 ● ● ●
313 BOLT; BRKT
10PD1 STD ENG(40L) M8X30 W/LK WASHER 		0-50040-830-0 01 1 9205-9302 ● ● ●
313 BOLT; BRKT
10PD1 STD ENG(40L),12PD1 C ENG(43L) M8X30 FLANGE 		0-28080-830-0 01 1 9303-9411 ● ● ●
313 BOLT; BRKT
M8X30 FLANGE 		0-28080-830-0 01 1 9412- ● ● ●
313 BOLT; BRKT
10PD1 STD ENG(40L) M8X30 FLANGE 		0-28080-830-0 01 1 9412- ● ● ●
çizim 37022
16 212 38 16 312 16 16 16 237 206 206 64 16 16
BalonParca AdiParca NoAdetTipApplied Date A B C
16 CLIP; HARNESS
WHEEL BASE 5700MM(57W) (D) ID=20 L=50 		9-09917-430-0 25 1 9002- ●
16 CLIP; HARNESS
(D) ID=15 L=45 		1-09700-402-0 02 1 9002-9306 ● ● ●
16 CLIP; HARNESS
AUTO CAB TILT<WV2> (D) ID=14 L=44 		9-09917-427-0 01 1 9307- ● ● ●
16 CLIP; HARNESS
(D) ID=15 L=45 		1-09700-402-0 06 1 9002-9306 ● ● ●
16 CLIP; HARNESS
10PD1 STD ENG(40L),12PD1 C ENG(43L) (C) L=140 		5-09707-031-0 01 1 9307- ● ● ●
16 CLIP; HARNESS
(D) ID=11 L=41 		1-09700-403-0 01 1 9002-9011 ● ● ●
16 CLIP; HARNESS
(D) ID=15 L=65 		1-09700-466-0 02 1 9012- ●
16 CLIP; HARNESS
(B) L=20 H=24 ID=15 H=24 L=20 		1-09700-606-0 01 1 9002- ● ● ●
16 CLIP; HARNESS
(P) 		1-09700-894-0 01 1 9002- ● ● ●
16 CLIP; HARNESS
EXC. INTERMITTENT WIPER<C13> (P) 		1-09700-894-0 01 1 9002- ● ● ●
16 CLIP; HARNESS
(N) ID=28 L=32 		1-09701-107-1 02 1 9002- ● ● ●
16 CLIP; HARNESS
(C) L=219.5 		1-09987-136-0 04 1 9002- ● ● ●
16 CLIP; HARNESS
(J) L=135 		1-09987-143-1 01 1 9002-9201 ● ● ●
16 CLIP; HARNESS
(C) L=175 		8-94155-593-1 01 1 9202-9205 ● ● ●
16 CLIP; HARNESS
(C) L=175 		8-94155-593-1 03 1 9206- ● ● ●
16 CLIP; HARNESS
(N) ID=29 L=35 		5-09700-293-1 01 1 9002-9306 ● ● ●
16 CLIP; HARNESS
(C) L=250 		5-09707-030-0 02 1 9002- ● ● ●
16 CLIP; HARNESS
(C) L=250 		5-09707-030-0 01 1 9002- ● ● ●
16 CLIP; HARNESS
TRANSMISSION SIDE PTO WO/LEVER(SH5) (C) L=250 		5-09707-030-0 01 1 9002- ● ● ●
16 CLIP; HARNESS
CAB SUSPENSION RIGID(W71) EXC. FIRE TRUCK<RA9> (C) L=250 		5-09707-030-0 01 1 9002- ●
16 CLIP; HARNESS
(H) L=36 W=18 L=36 		8-94224-891-1 02 1 9002- ● ● ●
16 CLIP; HARNESS
(N) L=20 ID=11 L=20 		9-09525-032-0 01 1 9002-9410 ● ● ●
16 CLIP; HARNESS
FULLER M/T<X9B> (N) L=20 ID=11 L=20 		9-09525-032-0 01 1 9002-9410 ● ●
16 CLIP; HARNESS
FULLER M/T<X9B> (N) ID=11 L=20 		9-09525-032-0 01 1 9411- ● ●
16 CLIP; HARNESS
(A) L=20 ID=11 L=20 		9-09525-035-0 01 1 9002-9306 ● ● ●
16 CLIP; HARNESS
AUTO CAB TILT<WV2> (C) L=180 		1-09707-162-0 01 1 9307- ● ● ●
16 CLIP; HARNESS
(B) ID=19 H=50 L=25 		9-09916-622-0 01 1 9002-9306 ● ● ●
16 CLIP; HARNESS
(D) ID=25 L=55 		9-09917-573-0 05 1 9002-9306 ● ● ●
16 CLIP; HARNESS
(D) ID=25 L=55 		9-09917-573-0 03 1 9307- ● ● ●
16 CLIP; HARNESS
(E) L=300 		1-09707-001-0 01 1 9007- ● ● ●
16 CLIP; HARNESS
(R) ID=11 L=30 		1-09700-511-0 01 1 9205-9306 ● ● ●
16 CLIP; HARNESS
6RB1 STD ENG(07L) (R) ID=11 L=30 		1-09700-511-0 01 1 9205-9306 ● ●
16 CLIP; HARNESS
6RB1 STD ENG(07L) (R) ID=11 L=30 		1-09700-511-0 01 1 9307-9504 ● ●
16 CLIP; HARNESS
6RB1 STD ENG(07L) (R) ID=11 L=30 		1-09700-511-0 01 1 9505- ● ●
16 CLIP; HARNESS
GOVERNOR CONTROL<W69> (R) ID=11 L=30 		1-09700-511-0 01 1 9505- ●
16 CLIP; HARNESS
(D) ID=15 L=45 		1-09700-402-0 05 1 9307- ● ● ●
16 CLIP; HARNESS
(A) L=20 ID=11 L=20 		9-09525-035-0 01 1 9307-9410 ● ● ●
16 CLIP; HARNESS
(A) L=20 ID=11 L=20 		9-09525-035-0 01 1 9307-9410 ●
16 CLIP; HARNESS
V TYPE ENG<91L> (A) L=20 ID=11 L=20 		9-09525-035-0 01 1 9307-9410 ● ●
16 CLIP; HARNESS
10PD1 STD ENG(40L),12PD1 C ENG(43L) (A) ID=11 L=20 		9-09525-035-0 01 1 9411- ● ● ●
16 CLIP; HARNESS
(A) ID=11 L=20 		9-09525-035-0 02 1 9411- ● ● ●
16 CLIP; HARNESS
AUTO CAB TILT<WV2> (S) OD=9 H=6 		1-09709-178-0 05 1 9307- ● ● ●
16 CLIP; HARNESS
EXC. AUTO CAB TILT<WV2> (N) ID=29 L=35 		5-09700-293-1 01 1 9307- ● ● ●
16 CLIP; HARNESS
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (S) OD=9 H=9.5 		1-09709-179-0 02 1 9002- ● ● ●
16 CLIP; HARNESS
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (D) ID=6 L=36 		9-09917-423-0 06 1 9002- ● ● ●
16 CLIP; HARNESS
TAIWAN EQUIPMENT(WW5) (Q) ID=11 L=40 		8-94123-171-1 01 1 9310- ● ● ●
16 CLIP; HARNESS
EXC. TAIWAN EQUIPMENT(WW5) (D) ID=11 L=41 		1-09700-403-0 03 1 9310- ● ● ●
16 CLIP; HARNESS
(D) ID=11 L=41 		1-09700-403-0 03 1 9310- ● ● ●
16 CLIP; HARNESS
10PD1 STD ENG(40L) (D) ID=11 L=41 		1-09700-403-0 03 1 9002-9007 ● ● ●
16 CLIP; HARNESS
6RB1 STD ENG(07L) INTAKE HEATER<SL2> (D) ID=11 L=41 		1-09700-403-0 03 1 9002-9007 ● ●
16 CLIP; HARNESS
(D) ID=11 L=41 		1-09700-403-0 03 1 9307-9309 ● ● ●
16 CLIP; HARNESS
10PD1 STD ENG(40L) (D) ID=11 L=41 		1-09700-403-0 03 1 9307-9309 ● ● ●
16 CLIP; HARNESS
TAIWAN EQUIPMENT(WW5) (D) ID=11 L=41 		1-09700-403-0 02 1 9310- ● ● ●
16 CLIP; HARNESS
(D) ID=11 L=41 		1-09700-403-0 02 1 9008-9011 ● ● ●
16 CLIP; HARNESS
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (D) ID=11 L=41 		1-09700-403-0 02 1 9008-9011 ●
16 CLIP; HARNESS
10PD1 STD ENG(40L) (D) ID=11 L=41 		1-09700-403-0 03 1 9012-9103 ● ● ●
16 CLIP; HARNESS
6RB1 STD ENG(07L) INTAKE HEATER<SL2> (D) ID=11 L=41 		1-09700-403-0 03 1 9012-9103 ● ●
16 CLIP; HARNESS
(D) ID=11 L=41 		1-09700-403-0 03 1 9104-9306 ● ● ●
16 CLIP; HARNESS
10PD1 STD ENG(40L) (D) ID=11 L=41 		1-09700-403-0 03 1 9104-9306 ● ● ●
16 CLIP; HARNESS
10PD1 STD ENG(40L) (M) ID=15 L=35 		1-09700-507-0 02 1 9002-9008 ● ● ●
16 CLIP; HARNESS
(M) ID=15 L=35 		1-09700-507-0 02 1 9009-9204 ● ● ●
16 CLIP; HARNESS
6RB1 STD ENG(07L) (M) ID=15 L=35 		1-09700-507-0 02 1 9205-9306 ● ●
16 CLIP; HARNESS
10PD1 STD ENG(40L),12PD1 C ENG(43L) (H) L=44 W=14 ID=18 L=44 		8-94225-185-0 02 1 9307-9309 ● ● ●
16 CLIP; HARNESS
10PD1 STD ENG(40L),12PD1 C ENG(43L) (M) ID=15 L=35 		1-09700-507-0 01 1 9310- ● ● ●
16 CLIP; HARNESS
10PD1 STD ENG(40L) (M) ID=15 L=35 		1-09700-507-0 01 1 9002-9204 ● ● ●
16 CLIP; HARNESS
10PD1 STD ENG(40L) (M) ID=15 L=35 		1-09700-507-0 03 1 9205-9306 ● ● ●
16 CLIP; HARNESS
6RB1 STD ENG(07L) (H) L=44 W=14 ID=18 L=44 		8-94225-185-0 01 1 9307-9309 ● ●
16 CLIP; HARNESS
(H) L=44 W=14 ID=18 L=44 		8-94225-185-0 02 1 9310- ● ● ●
16 CLIP; HARNESS
10PD1 STD ENG(40L) (L) ID=21 L=30 H=40 		1-09700-991-1 01 1 9002- ● ● ●
16 CLIP; HARNESS
10PD1 STD ENG(40L) (C) L=140 		5-09707-031-0 01 1 9002-9306 ● ● ●
16 CLIP; HARNESS
10PD1 STD ENG(40L) (D) ID=15 L=45 		1-09700-402-0 01 1 9307- ● ● ●
16 CLIP; HARNESS
10PD1 STD ENG(40L) (A) L=20 ID=11 L=40 		9-09525-075-0 02 1 9002- ● ● ●
16 CLIP; HARNESS
10PD1 STD ENG(40L),12PD1 C ENG(43L) (L) ID=24.5 H=35 L=25 		1-09700-990-0 01 1 9307- ● ● ●
16 CLIP; HARNESS
WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W) (D) ID=20 L=50 		9-09917-430-0 26 1 9002-9306 ● ●
16 CLIP; HARNESS
WHEEL BASE 6600MM(66W) (D) ID=20 L=50 		9-09917-430-0 29 1 9307- ●
16 CLIP; HARNESS
(D) L=61 ID=11 L=61 		1-09700-484-0 03 1 9002-9011 ●
16 CLIP; HARNESS
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (D) L=61 ID=11 L=61 		1-09700-484-0 03 1 9002-9011 ●
16 CLIP; HARNESS
(D) L=61 ID=11 L=61 		1-09700-484-0 03 1 9012- ● ●
16 CLIP; HARNESS
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (D) L=61 ID=11 L=61 		1-09700-484-0 03 1 9012- ●
16 CLIP; HARNESS
(D) ID=20 L=50 		9-09917-430-0 12 1 9002-9306 ●
16 CLIP; HARNESS
(D) ID=20 L=70 		1-09700-485-0 15 1 9307- ●
16 CLIP; HARNESS
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (D) ID=11 L=41 		1-09700-403-0 02 1 9002-9007 ●
16 CLIP; HARNESS
10PD1 STD ENG(40L) (D) ID=11 L=41 		1-09700-403-0 03 1 9008-9011 ● ● ●
16 CLIP; HARNESS
6RB1 STD ENG(07L) INTAKE HEATER<SL2> (D) ID=11 L=41 		1-09700-403-0 03 1 9008-9011 ● ●
16 CLIP; HARNESS
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (D) ID=11 L=41 		1-09700-403-0 02 1 9012-9306 ●
16 CLIP; HARNESS
(M) ID=15 L=35 		1-09700-507-0 01 1 9307-9309 ● ● ●
16 CLIP; HARNESS
12PD1 C ENG(43L) (B) ID=21 H=25.5 L=26 		8-94176-806-0 01 1 9307- ●
16 CLIP; HARNESS
FULLER M/T<X9B> (B) ID=12 H=24 L=20 		1-09700-605-0 02 1 9002- ● ●
16 CLIP; HARNESS
6RB1 STD ENG(07L) (M) ID=15 L=35 		1-09700-507-0 03 1 9002-9008 ● ●
16 CLIP; HARNESS
6RB1 STD ENG(07L) (D) ID=20 L=50 		9-09917-430-0 01 1 9009-9103 ● ●
16 CLIP; HARNESS
6RB1 STD ENG(07L) INTAKE HEATER<SL2> (D) ID=11 L=41 		1-09700-403-0 05 1 9104- ● ●
16 CLIP; HARNESS
6RB1 STD ENG(07L) (B) ID=19 H=50 L=25 		9-09916-622-0 01 1 9307- ● ●
16 CLIP; HARNESS
6RB1 STD ENG(07L) INTAKE HEATER<SL2> (A) L=28 ID=11 L=28 		9-09525-052-0 01 1 9002- ● ●
16 CLIP; HARNESS
(D) L=61 ID=11 L=61 		1-09700-484-0 02 1 9002-9011 ●
16 CLIP; HARNESS
(D) ID=15 L=65 		1-09700-466-0 01 1 9012- ●
16 CLIP; HARNESS
WHEEL BASE 5500MM(55W) (D) L=65 ID=20 L=65 		1-09700-978-0 20 1 9002-9306 ●
16 CLIP; HARNESS
WHEEL BASE 5500MM(55W) (D) ID=20 L=70 		1-09700-485-0 20 1 9307-9511 ●
16 CLIP; HARNESS
WHEEL BASE 5500MM(55W) (D) ID=20 L=70 		1-09700-485-0 23 1 9512- ●
16 CLIP; HARNESS
WHEEL BASE 5800MM(58W) (D) L=65 ID=20 L=65 		1-09700-978-0 25 1 9002-9306 ●
16 CLIP; HARNESS
WHEEL BASE 5800MM(58W) (D) ID=20 L=70 		1-09700-485-0 25 1 9307- ●
38 BOLT; CLIP,HARNESS
M8X20 FLANGE 		0-28010-820-0 01 1 9002-9204 ● ● ●
38 BOLT; CLIP,HARNESS
M8X20 FLANGE 		0-28080-820-0 01 1 9205-9302 ● ● ●
38 BOLT; CLIP,HARNESS
M8X20 FLANGE 		0-28080-820-0 02 1 9303-9410 ● ● ●
38 BOLT; CLIP,HARNESS
FULLER M/T<X9B> M8X20 FLANGE 		0-28080-820-0 02 1 9303-9410 ● ●
38 BOLT; CLIP,HARNESS
M8X20 FLANGE 		0-28080-820-0 03 1 9411- ● ● ●
38 BOLT; CLIP,HARNESS
M8X30 FLANGE 		0-28010-830-0 13 1 9002-9204 ● ● ●
38 BOLT; CLIP,HARNESS
M8X30 FLANGE 		0-28080-830-0 13 1 9205- ● ● ●
38 BOLT; CLIP,HARNESS
M8X30 FLANGE 		0-28010-830-0 08 1 9002-9204 ● ● ●
38 BOLT; CLIP,HARNESS
M8X30 FLANGE 		0-28080-830-0 08 1 9205- ● ● ●
38 BOLT; CLIP,HARNESS
M8X30 FLANGE 		0-28080-830-0 01 1 9002- ● ● ●
38 BOLT; CLIP,HARNESS
6RB1 STD ENG(07L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X30 FLANGE 		0-28080-830-0 01 1 9002- ● ●
38 BOLT; CLIP,HARNESS
EXC. MIXER TRUCK<RA2> M8X30 FLANGE 		0-28080-830-0 01 1 9002- ●
38 BOLT; CLIP,HARNESS
M6X22 W/LK&PL WASHER 		8-94122-770-0 01 1 9002-9212 ● ● ●
38 BOLT; CLIP,HARNESS
M6X16 W/LK&PL WASHER 		8-97086-823-0 01 1 9301-9301 ● ● ●
38 BOLT; CLIP,HARNESS
M6X20 W/LK&PL WASHER 		8-97086-824-0 01 1 9302- ● ● ●
38 BOLT; CLIP,HARNESS
M6X20 W/LK WASHER 		9-01900-620-0 01 1 9002-9204 ● ● ●
38 BOLT; CLIP,HARNESS
FULLER M/T<X9B> M6X20 W/LK WASHER 		9-01900-620-0 01 1 9002-9204 ● ●
38 BOLT; CLIP,HARNESS
M6X20 W/LK WASHER 		0-50040-620-0 01 1 9205-9302 ● ● ●
38 BOLT; CLIP,HARNESS
FULLER M/T<X9B> M6X20 W/LK WASHER 		0-50040-620-0 01 1 9205-9302 ● ●
38 BOLT; CLIP,HARNESS
M6X20 FLANGE 		0-28080-620-0 01 1 9303-9410 ● ● ●
38 BOLT; CLIP,HARNESS
FULLER M/T<X9B> M6X20 FLANGE 		0-28080-620-0 01 1 9303-9410 ● ●
38 BOLT; CLIP,HARNESS
FULLER M/T<X9B> M6X20 FLANGE 		0-28080-620-0 01 1 9411- ● ●
38 BOLT; CLIP,HARNESS
M8X20 W/LK WASHER 		9-01900-820-0 02 1 9002-9202 ● ● ●
38 BOLT; CLIP,HARNESS
10PD1 STD ENG(40L) M8X20 W/LK WASHER 		9-01900-820-0 02 1 9002-9202 ● ● ●
38 BOLT; CLIP,HARNESS
FULLER M/T<X9B> M8X20 W/LK WASHER 		9-01900-820-0 02 1 9002-9202 ● ●
38 BOLT; CLIP,HARNESS
M8X20 W/LK WASHER 		9-01900-820-0 02 1 9203-9204 ● ● ●
38 BOLT; CLIP,HARNESS
M8X20 W/LK WASHER 		0-50040-820-0 02 1 9205-9205 ● ● ●
38 BOLT; CLIP,HARNESS
10PD1 STD ENG(40L) M8X20 W/LK WASHER 		0-50040-820-0 04 1 9205-9302 ● ● ●
38 BOLT; CLIP,HARNESS
10PD1 STD ENG(40L),12PD1 C ENG(43L) M8X20 FLANGE 		0-28080-820-0 04 1 9303- ● ● ●
38 BOLT; CLIP,HARNESS
M8X20 W/LK WASHER 		9-01900-820-0 01 1 9002-9202 ● ● ●
38 BOLT; CLIP,HARNESS
10PD1 STD ENG(40L) M8X20 W/LK WASHER 		9-01900-820-0 02 1 9203-9204 ● ● ●
38 BOLT; CLIP,HARNESS
FULLER M/T<X9B> M8X20 W/LK WASHER 		9-01900-820-0 02 1 9203-9204 ● ●
38 BOLT; CLIP,HARNESS
10PD1 STD ENG(40L) M8X20 W/LK WASHER 		0-50040-820-0 02 1 9205-9205 ● ● ●
38 BOLT; CLIP,HARNESS
FULLER M/T<X9B> M8X20 W/LK WASHER 		0-50040-820-0 02 1 9205-9205 ● ●
38 BOLT; CLIP,HARNESS
M8X20 W/LK WASHER 		0-50040-820-0 01 1 9205-9302 ● ● ●
38 BOLT; CLIP,HARNESS
L TYPE ENG<90L> M8X20 W/LK WASHER 		0-50040-820-0 01 1 9205-9302 ● ●
38 BOLT; CLIP,HARNESS
M10X20 W/LK WASHER 		9-01911-020-0 02 1 9002-9002 ● ● ●
38 BOLT; CLIP,HARNESS
M10X20 W/LK WASHER 		0-50041-020-0 02 1 9003-9106 ● ● ●
38 BOLT; CLIP,HARNESS
M10X25 W/LK WASHER 		0-50041-025-0 02 1 9107- ● ● ●
38 BOLT; CLIP,HARNESS
M12X25 W/LK&PL WASHER 		9-01961-225-0 01 1 9002-9101 ● ● ●
38 BOLT; CLIP,HARNESS
M12X16 FLANGE 		1-09044-079-0 01 1 9102- ● ● ●
38 BOLT; CLIP,HARNESS
10PD1 STD ENG(40L) M8X25 W/LK WASHER 		9-01900-825-0 02 1 9002-9204 ● ● ●
38 BOLT; CLIP,HARNESS
10PD1 STD ENG(40L) M8X25 W/LK WASHER 		0-50040-825-0 02 1 9205-9210 ● ● ●
38 BOLT; CLIP,HARNESS
10PD1 STD ENG(40L) M8X30 W/LK WASHER 		9-01900-830-0 01 1 9002-9003 ● ● ●
38 BOLT; CLIP,HARNESS
M8X30 W/LK WASHER 		9-01900-830-0 01 1 9004-9011 ● ● ●
38 BOLT; CLIP,HARNESS
10PD1 STD ENG(40L) M8X30 W/LK WASHER 		9-01900-830-0 01 1 9004-9011 ● ● ●
38 BOLT; CLIP,HARNESS
M8X30 W/LK WASHER 		9-01900-830-0 02 1 9012-9204 ● ● ●
38 BOLT; CLIP,HARNESS
M8X30 W/LK WASHER 		0-50040-830-0 02 1 9205-9302 ● ● ●
38 BOLT; CLIP,HARNESS
10PD1 STD ENG(40L),12PD1 C ENG(43L) M8X25 FLANGE 		0-28080-825-0 02 1 9211- ● ● ●
38 BOLT; CLIP,HARNESS
M8X30 FLANGE 		0-28010-830-0 02 1 9002-9306 ● ●
38 BOLT; CLIP,HARNESS
MIXER TRUCK<RA2> M8X30 FLANGE 		0-28010-830-0 02 1 9002-9306 ●
38 BOLT; CLIP,HARNESS
M8X30 FLANGE 		0-28080-830-0 02 1 9307- ● ●
38 BOLT; CLIP,HARNESS
MIXER TRUCK<RA2> M8X30 FLANGE 		0-28080-830-0 02 1 9307- ●
38 BOLT; CLIP,HARNESS
M8X30 FLANGE 		0-28010-830-0 04 1 9002-9204 ● ●
38 BOLT; CLIP,HARNESS
M8X30 FLANGE 		0-28080-830-0 04 1 9306- ● ●
38 BOLT; CLIP,HARNESS
FULLER M/T<X9B> M8X20 W/LK WASHER 		0-50040-820-0 02 1 9205-9302 ● ●
38 BOLT; CLIP,HARNESS
FULLER M/T<X9B> M8X20 FLANGE 		0-28080-820-0 02 1 9411- ● ●
38 BOLT; CLIP,HARNESS
6RB1 STD ENG(07L) M8X25 FLANGE 		0-28010-825-0 01 1 9002-9204 ● ●
38 BOLT; CLIP,HARNESS
6RB1 STD ENG(07L) M8X25 FLANGE 		0-28080-825-0 02 1 9205- ● ●
38 BOLT; CLIP,HARNESS
6RB1 STD ENG(07L) M8X25 W/LK WASHER 		9-01900-825-0 01 1 9002-9011 ● ●
38 BOLT; CLIP,HARNESS
6RB1 STD ENG(07L) M8X25 W/LK WASHER 		9-01900-825-0 01 1 9002-9011 ●
38 BOLT; CLIP,HARNESS
6RB1 STD ENG(07L) M8X25 W/LK WASHER 		9-01900-825-0 01 1 9012-9102 ●
38 BOLT; CLIP,HARNESS
6RB1 STD ENG(07L) M8X25 W/LK WASHER 		9-01900-825-0 01 1 9103-9202 ●
38 BOLT; CLIP,HARNESS
6RB1 STD ENG(07L) M8X25 W/LK WASHER 		0-50040-825-0 01 1 9205-9302 ● ●
38 BOLT; CLIP,HARNESS
6RB1 STD ENG(07L) M8X20 FLANGE 		0-28080-820-0 01 1 9303-9306 ● ●
38 BOLT; CLIP,HARNESS
M8X20 FLANGE 		0-28080-820-0 01 1 9307-9309 ● ● ●
38 BOLT; CLIP,HARNESS
M8X20 FLANGE 		0-28080-820-0 01 1 9310- ● ● ●
38 BOLT; CLIP,HARNESS
TAIWAN EQUIPMENT(WW5) M8X20 FLANGE 		0-28080-820-0 01 1 9310- ● ● ●
38 BOLT; CLIP,HARNESS
6RB1 STD ENG(07L) INTAKE HEATER<SL2> M6X16 W/LK WASHER 		9-01910-616-0 01 1 9002-9005 ● ●
38 BOLT; CLIP,HARNESS
6RB1 STD ENG(07L) INTAKE HEATER<SL2> M6X16 W/LK WASHER 		0-50040-616-0 01 1 9006-9302 ● ●
38 BOLT; CLIP,HARNESS
6RB1 STD ENG(07L) INTAKE HEATER<SL2> M6X16 FLANGE 		0-28080-616-0 01 1 9303- ● ●
64 SCREW; CLIP
M5X14 TAPPING W/PL WASHER 		0-74100-514-0 01 1 9002- ● ● ●
64 SCREW; CLIP
INTAKE HEATER<SL2> M5X16 W/LK WASHER 		9-03910-516-0 01 1 9002- ● ● ●
206 CLIP; FUEL TANK HARNESS
(B) L=140 		5-09707-031-0 02 1 9002- ● ● ●
206 CLIP; FUEL TANK HARNESS
(A) L=16 ID=11 L=16 		9-09525-022-0 01 1 9002-9002 ● ● ●
206 CLIP; FUEL TANK HARNESS
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) L=140 		5-09707-031-0 01 1 9002- ● ●
212 CLIP; HORN HARNESS
(B) ID=15 L=45 		1-09700-402-0 01 1 9002- ● ● ●
212 CLIP; HORN HARNESS
(C) L=150 		1-09707-145-0 01 1 9002- ● ● ●
212 CLIP; HORN HARNESS
(C) L=250 		5-09707-030-0 01 1 9002- ● ● ●
212 CLIP; HORN HARNESS
(A) ID=11 L=30 		1-09700-511-0 01 1 9307- ● ● ●
237 CLIP; BAND,ACL
L=600 		1-09707-107-0 01 1 9002- ● ● ●
237 CLIP; BAND,ACL
L=140 		5-09707-031-0 01 1 9002- ● ● ●
312 BRACKET; CLIP HARNESS
(C) L=95 		1-82699-085-0 01 1 9002- ● ● ●
312 BRACKET; CLIP HARNESS
10PD1 STD ENG(40L) (C) L=95 		1-82699-085-0 01 1 9002- ● ● ●
312 BRACKET; CLIP HARNESS
(B) 		1-82699-141-1 01 1 9002- ● ● ●
312 BRACKET; CLIP HARNESS
10PD1 STD ENG(40L) (A) 		1-82699-348-0 01 1 9002- ● ● ●
çizim 38998
57 59 139 38 2 119 115
BalonParca AdiParca NoAdetTipApplied Date A B C
2 GROMMET; CLIP HOLE,HARNESS
EXC. AUTO CAB TILT<WV2> (C) OD=12.8 		1-09983-065-0 07 1 9002- ● ● ●
2 GROMMET; CLIP HOLE,HARNESS
COURTESY LAMP<C97> (B) OD=47 		1-09983-039-1 01 1 9002- ● ● ●
2 GROMMET; CLIP HOLE,HARNESS
COURTESY LAMP<C97> (C) OD=12.8 		1-09983-065-0 01 1 9002- ● ● ●
2 GROMMET; CLIP HOLE,HARNESS
EXC. COURTESY LAMP<C97> (B) OD=47 		1-09983-039-1 02 1 9002- ● ● ●
2 GROMMET; CLIP HOLE,HARNESS
EXC. COURTESY LAMP<C97> (C) OD=12.8 		1-09983-065-0 02 1 9002- ● ● ●
2 GROMMET; CLIP HOLE,HARNESS
EXC. MARKER LAMP THREE AMBER<WD9> (A) ID=20 OD=40 		1-09983-077-0 01 1 9002- ● ●
38 BOLT; CLIP,HARNESS
M8X20 FLANGE 		0-28010-820-0 01 1 9002-9204 ● ● ●
38 BOLT; CLIP,HARNESS
M8X20 FLANGE 		0-28080-820-0 01 1 9205-9302 ● ● ●
38 BOLT; CLIP,HARNESS
M8X20 FLANGE 		0-28080-820-0 02 1 9303-9410 ● ● ●
38 BOLT; CLIP,HARNESS
FULLER M/T<X9B> M8X20 FLANGE 		0-28080-820-0 02 1 9303-9410 ● ●
38 BOLT; CLIP,HARNESS
M8X20 FLANGE 		0-28080-820-0 03 1 9411- ● ● ●
38 BOLT; CLIP,HARNESS
M8X30 FLANGE 		0-28010-830-0 13 1 9002-9204 ● ● ●
38 BOLT; CLIP,HARNESS
M8X30 FLANGE 		0-28080-830-0 13 1 9205- ● ● ●
38 BOLT; CLIP,HARNESS
M8X30 FLANGE 		0-28010-830-0 08 1 9002-9204 ● ● ●
38 BOLT; CLIP,HARNESS
M8X30 FLANGE 		0-28080-830-0 08 1 9205- ● ● ●
38 BOLT; CLIP,HARNESS
M8X30 FLANGE 		0-28080-830-0 01 1 9002- ● ● ●
38 BOLT; CLIP,HARNESS
6RB1 STD ENG(07L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X30 FLANGE 		0-28080-830-0 01 1 9002- ● ●
38 BOLT; CLIP,HARNESS
EXC. MIXER TRUCK<RA2> M8X30 FLANGE 		0-28080-830-0 01 1 9002- ●
38 BOLT; CLIP,HARNESS
M6X22 W/LK&PL WASHER 		8-94122-770-0 01 1 9002-9212 ● ● ●
38 BOLT; CLIP,HARNESS
M6X16 W/LK&PL WASHER 		8-97086-823-0 01 1 9301-9301 ● ● ●
38 BOLT; CLIP,HARNESS
M6X20 W/LK&PL WASHER 		8-97086-824-0 01 1 9302- ● ● ●
38 BOLT; CLIP,HARNESS
M6X20 W/LK WASHER 		9-01900-620-0 01 1 9002-9204 ● ● ●
38 BOLT; CLIP,HARNESS
FULLER M/T<X9B> M6X20 W/LK WASHER 		9-01900-620-0 01 1 9002-9204 ● ●
38 BOLT; CLIP,HARNESS
M6X20 W/LK WASHER 		0-50040-620-0 01 1 9205-9302 ● ● ●
38 BOLT; CLIP,HARNESS
FULLER M/T<X9B> M6X20 W/LK WASHER 		0-50040-620-0 01 1 9205-9302 ● ●
38 BOLT; CLIP,HARNESS
M6X20 FLANGE 		0-28080-620-0 01 1 9303-9410 ● ● ●
38 BOLT; CLIP,HARNESS
FULLER M/T<X9B> M6X20 FLANGE 		0-28080-620-0 01 1 9303-9410 ● ●
38 BOLT; CLIP,HARNESS
FULLER M/T<X9B> M6X20 FLANGE 		0-28080-620-0 01 1 9411- ● ●
38 BOLT; CLIP,HARNESS
M8X20 W/LK WASHER 		9-01900-820-0 02 1 9002-9202 ● ● ●
38 BOLT; CLIP,HARNESS
10PD1 STD ENG(40L) M8X20 W/LK WASHER 		9-01900-820-0 02 1 9002-9202 ● ● ●
38 BOLT; CLIP,HARNESS
FULLER M/T<X9B> M8X20 W/LK WASHER 		9-01900-820-0 02 1 9002-9202 ● ●
38 BOLT; CLIP,HARNESS
M8X20 W/LK WASHER 		9-01900-820-0 02 1 9203-9204 ● ● ●
38 BOLT; CLIP,HARNESS
M8X20 W/LK WASHER 		0-50040-820-0 02 1 9205-9205 ● ● ●
38 BOLT; CLIP,HARNESS
10PD1 STD ENG(40L) M8X20 W/LK WASHER 		0-50040-820-0 04 1 9205-9302 ● ● ●
38 BOLT; CLIP,HARNESS
10PD1 STD ENG(40L),12PD1 C ENG(43L) M8X20 FLANGE 		0-28080-820-0 04 1 9303- ● ● ●
38 BOLT; CLIP,HARNESS
M8X20 W/LK WASHER 		9-01900-820-0 01 1 9002-9202 ● ● ●
38 BOLT; CLIP,HARNESS
10PD1 STD ENG(40L) M8X20 W/LK WASHER 		9-01900-820-0 02 1 9203-9204 ● ● ●
38 BOLT; CLIP,HARNESS
FULLER M/T<X9B> M8X20 W/LK WASHER 		9-01900-820-0 02 1 9203-9204 ● ●
38 BOLT; CLIP,HARNESS
10PD1 STD ENG(40L) M8X20 W/LK WASHER 		0-50040-820-0 02 1 9205-9205 ● ● ●
38 BOLT; CLIP,HARNESS
FULLER M/T<X9B> M8X20 W/LK WASHER 		0-50040-820-0 02 1 9205-9205 ● ●
38 BOLT; CLIP,HARNESS
M8X20 W/LK WASHER 		0-50040-820-0 01 1 9205-9302 ● ● ●
38 BOLT; CLIP,HARNESS
L TYPE ENG<90L> M8X20 W/LK WASHER 		0-50040-820-0 01 1 9205-9302 ● ●
38 BOLT; CLIP,HARNESS
M10X20 W/LK WASHER 		9-01911-020-0 02 1 9002-9002 ● ● ●
38 BOLT; CLIP,HARNESS
M10X20 W/LK WASHER 		0-50041-020-0 02 1 9003-9106 ● ● ●
38 BOLT; CLIP,HARNESS
M10X25 W/LK WASHER 		0-50041-025-0 02 1 9107- ● ● ●
38 BOLT; CLIP,HARNESS
M12X25 W/LK&PL WASHER 		9-01961-225-0 01 1 9002-9101 ● ● ●
38 BOLT; CLIP,HARNESS
M12X16 FLANGE 		1-09044-079-0 01 1 9102- ● ● ●
38 BOLT; CLIP,HARNESS
10PD1 STD ENG(40L) M8X25 W/LK WASHER 		9-01900-825-0 02 1 9002-9204 ● ● ●
38 BOLT; CLIP,HARNESS
10PD1 STD ENG(40L) M8X25 W/LK WASHER 		0-50040-825-0 02 1 9205-9210 ● ● ●
38 BOLT; CLIP,HARNESS
10PD1 STD ENG(40L) M8X30 W/LK WASHER 		9-01900-830-0 01 1 9002-9003 ● ● ●
38 BOLT; CLIP,HARNESS
M8X30 W/LK WASHER 		9-01900-830-0 01 1 9004-9011 ● ● ●
38 BOLT; CLIP,HARNESS
10PD1 STD ENG(40L) M8X30 W/LK WASHER 		9-01900-830-0 01 1 9004-9011 ● ● ●
38 BOLT; CLIP,HARNESS
M8X30 W/LK WASHER 		9-01900-830-0 02 1 9012-9204 ● ● ●
38 BOLT; CLIP,HARNESS
M8X30 W/LK WASHER 		0-50040-830-0 02 1 9205-9302 ● ● ●
38 BOLT; CLIP,HARNESS
10PD1 STD ENG(40L),12PD1 C ENG(43L) M8X25 FLANGE 		0-28080-825-0 02 1 9211- ● ● ●
38 BOLT; CLIP,HARNESS
M8X30 FLANGE 		0-28010-830-0 02 1 9002-9306 ● ●
38 BOLT; CLIP,HARNESS
MIXER TRUCK<RA2> M8X30 FLANGE 		0-28010-830-0 02 1 9002-9306 ●
38 BOLT; CLIP,HARNESS
M8X30 FLANGE 		0-28080-830-0 02 1 9307- ● ●
38 BOLT; CLIP,HARNESS
MIXER TRUCK<RA2> M8X30 FLANGE 		0-28080-830-0 02 1 9307- ●
38 BOLT; CLIP,HARNESS
M8X30 FLANGE 		0-28010-830-0 04 1 9002-9204 ● ●
38 BOLT; CLIP,HARNESS
M8X30 FLANGE 		0-28080-830-0 04 1 9306- ● ●
38 BOLT; CLIP,HARNESS
FULLER M/T<X9B> M8X20 W/LK WASHER 		0-50040-820-0 02 1 9205-9302 ● ●
38 BOLT; CLIP,HARNESS
FULLER M/T<X9B> M8X20 FLANGE 		0-28080-820-0 02 1 9411- ● ●
38 BOLT; CLIP,HARNESS
6RB1 STD ENG(07L) M8X25 FLANGE 		0-28010-825-0 01 1 9002-9204 ● ●
38 BOLT; CLIP,HARNESS
6RB1 STD ENG(07L) M8X25 FLANGE 		0-28080-825-0 02 1 9205- ● ●
38 BOLT; CLIP,HARNESS
6RB1 STD ENG(07L) M8X25 W/LK WASHER 		9-01900-825-0 01 1 9002-9011 ● ●
38 BOLT; CLIP,HARNESS
6RB1 STD ENG(07L) M8X25 W/LK WASHER 		9-01900-825-0 01 1 9002-9011 ●
38 BOLT; CLIP,HARNESS
6RB1 STD ENG(07L) M8X25 W/LK WASHER 		9-01900-825-0 01 1 9012-9102 ●
38 BOLT; CLIP,HARNESS
6RB1 STD ENG(07L) M8X25 W/LK WASHER 		9-01900-825-0 01 1 9103-9202 ●
38 BOLT; CLIP,HARNESS
6RB1 STD ENG(07L) M8X25 W/LK WASHER 		0-50040-825-0 01 1 9205-9302 ● ●
38 BOLT; CLIP,HARNESS
6RB1 STD ENG(07L) M8X20 FLANGE 		0-28080-820-0 01 1 9303-9306 ● ●
38 BOLT; CLIP,HARNESS
M8X20 FLANGE 		0-28080-820-0 01 1 9307-9309 ● ● ●
38 BOLT; CLIP,HARNESS
M8X20 FLANGE 		0-28080-820-0 01 1 9310- ● ● ●
38 BOLT; CLIP,HARNESS
TAIWAN EQUIPMENT(WW5) M8X20 FLANGE 		0-28080-820-0 01 1 9310- ● ● ●
38 BOLT; CLIP,HARNESS
6RB1 STD ENG(07L) INTAKE HEATER<SL2> M6X16 W/LK WASHER 		9-01910-616-0 01 1 9002-9005 ● ●
38 BOLT; CLIP,HARNESS
6RB1 STD ENG(07L) INTAKE HEATER<SL2> M6X16 W/LK WASHER 		0-50040-616-0 01 1 9006-9302 ● ●
38 BOLT; CLIP,HARNESS
6RB1 STD ENG(07L) INTAKE HEATER<SL2> M6X16 FLANGE 		0-28080-616-0 01 1 9303- ● ●
57 CLIP; INST HARNESS,SW CLU 1-09987-161-0 01 1 9002- ● ● ●
59 BRACKET; FRAME HARNESS 1-82699-076-3 01 1 9002- ● ● ●
115 CLIP; DOOR HARNESS
COURTESY LAMP<C97> (A) ID=9 		5-09707-027-0 01 1 9002- ● ● ●
115 CLIP; DOOR HARNESS
POWER WINDOW<A30> (B) 1 SET=5 PIECE 		1-09987-214-0 01 1 9009-9306 ● ● ●
115 CLIP; DOOR HARNESS
POWER WINDOW<A30> (B) 1 SET=5 PIECE 		1-09987-214-0 05 1 9307- ● ● ●
119 SCREW; DOOR HARNESS EARTH
COURTESY LAMP<C97> M4X13 		1-09981-148-0 01 1 9002-9008 ● ● ●
119 SCREW; DOOR HARNESS EARTH
POWER WINDOW<A30> M4X13 		1-09981-148-0 02 1 9009- ● ● ●
119 SCREW; DOOR HARNESS EARTH
COURTESY LAMP<C97> EXC. POWER WINDOW<A30> M4X13 		1-09981-148-0 01 1 9009- ● ● ●
139 BOLT; BRKT
M6X20 		1-09980-279-0 02 1 9002- ● ● ●
139 BOLT; BRKT
10PD1 STD ENG(40L) M10X20 W/LK WASHER 		0-50051-020-0 01 1 9002- ● ● ●
139 BOLT; BRKT
12PD1 C ENG(43L) M10X18 FLANGE 		0-28181-018-0 01 1 9307- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
