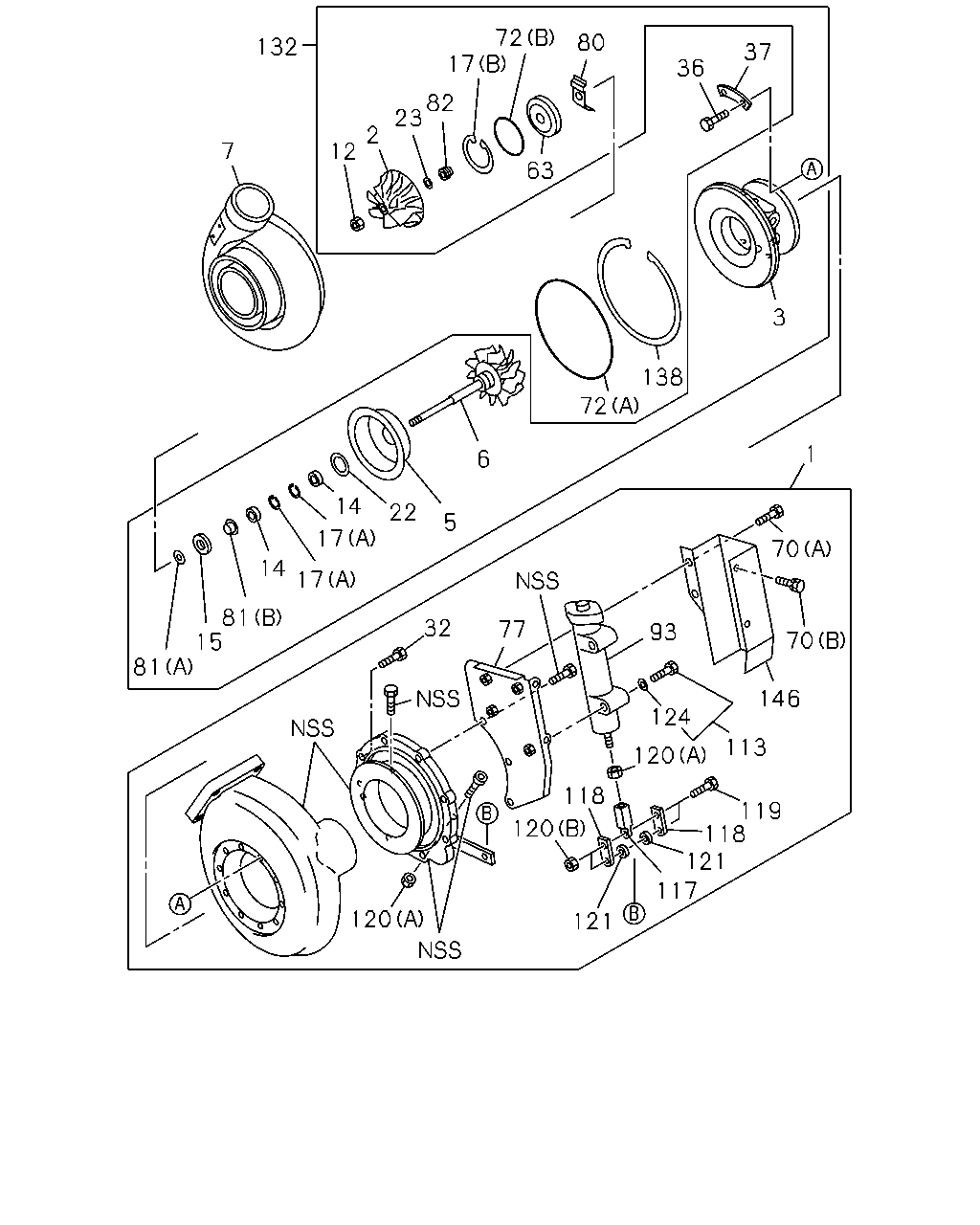

1 |
HOUSING; TURBINE,TURBOCHARGER
ASM PART: A = 1-14400-414-3
|
1-14415-129-0 |
01 |
1 |
- |
| |
2 |
IMPELLER; TURBOCHARGER
ASM PART: A = 1-14400-414-3
|
1-14451-070-0 |
01 |
1 |
- |
| |
3 |
HOUSING; BRG,TURBOCHARGER
ASM PART: A = 1-14400-414-3
|
1-14411-069-0 |
01 |
1 |
- |
| |
5 |
PROTECTOR; HEAT,TURBOCHARGER
ASM PART: A = 1-14400-414-3
|
1-14419-166-0 |
01 |
1 |
- |
| |
6 |
SHAFT; TURBINE,TURBOCHARGER
ASM PART: A = 1-14400-414-3
|
1-14450-057-0 |
01 |
1 |
- |
| |
7 |
HOUSING; BLOWER,TURBOCHARGER
ASM PART: A = 1-14400-414-3
|
1-14414-115-0 |
01 |
1 |
- |
| |
12 |
NUT; LK,TURBINE SHAFT TO IMPELLER,TC
ASM PART: A = 1-14400-414-3
|
1-14459-057-0 |
01 |
1 |
- |
| |
14 |
BEARING; JOURNAL,TURBOCHARGER
ASM PART: A = 1-14400-414-3
|
1-14411-065-0 |
02 |
1 |
- |
| |
15 |
BEARING; THRUST,TURBOCHARGER
ASM PART: A = 1-14400-414-3
|
1-14411-060-0 |
01 |
1 |
- |
| |
17 |
RING; JOURNAL BRG,TURBOCHARGER
(B) ASM PART: A = 1-14400-414-3
|
1-14419-117-0 |
01 |
1 |
- |
| |
17 |
RING; JOURNAL BRG,TURBOCHARGER
(A) ASM PART: A = 1-14400-414-3
|
1-14459-062-0 |
02 |
1 |
- |
| |
22 |
RING; SEAL,TURBINE SIDE,TURBOCHARGER
ASM PART: A = 1-14400-414-3
|
1-14459-063-0 |
01 |
1 |
- |
| |
23 |
RING; SEAL,BLOWER SIDE,TURBOCHARGER
ASM PART: A = 1-14400-414-3
|
1-14459-059-0 |
01 |
1 |
- |
| |
32 |
BOLT; TURBINE HSG COVER,TURBOCHARGER
ASM PART: A = 1-14400-414-3
|
1-14379-123-0 |
08 |
1 |
- |
| |
36 |
BOLT; LK PLATE,TURBINE HSG,TURBOCHARGE
ASM PART: A = 1-14400-414-3
|
1-14419-165-0 |
10 |
1 |
- |
| |
37 |
PLATE; LK,TURBINE HSG,TURBOCHARGER
ASM PART: A = 1-14400-414-3
|
1-14421-032-0 |
05 |
1 |
- |
| |
63 |
INSERT; IMPELLER,TURBOCHARGER
ASM PART: A = 1-14400-414-3
|
1-14425-040-0 |
01 |
1 |
- |
| |
70 |
BOLT; HEAT PROTECTOR,TURBOCHARGER
(A) ASM PART: A = 1-14400-414-3
|
1-14379-103-0 |
02 |
1 |
- |
| |
70 |
BOLT; HEAT PROTECTOR,TURBOCHARGER
(B) ASM PART: A = 1-14400-414-3
|
1-14379-112-0 |
02 |
1 |
- |
| |
72 |
GASKET; BRG HSG,TURBOCHARGER
(A) ASM PART: A = 1-14400-414-3
|
1-14414-107-0 |
01 |
1 |
- |
| |
72 |
GASKET; BRG HSG,TURBOCHARGER
(B) ASM PART: A = 1-14400-414-3
|
1-14419-118-0 |
01 |
1 |
- |
| |
77 |
BRACKET; SUPPORT,TURBOCHARGER
ASM PART: A = 1-14400-414-3
|
1-22196-356-0 |
01 |
1 |
- |
| |
80 |
DEFLECTOR; OIL,TURBOCHARGER
ASM PART: A = 1-14400-414-3
|
1-14419-147-0 |
01 |
1 |
- |
| |
81 |
RING; THRUST,TURBOCHARGER
(A) ASM PART: A = 1-14400-414-3
|
1-14459-060-0 |
01 |
1 |
- |
| |
81 |
RING; THRUST,TURBOCHARGER
(B) ASM PART: A = 1-14400-414-3
|
1-14459-061-0 |
01 |
1 |
- |
| |
82 |
SLEEVE; SPACER,TURBOCHARGER
ASM PART: A = 1-14400-414-3
|
1-14455-047-0 |
01 |
1 |
- |
| |
93 |
CYLINDER; AIR,TURBOCHARGER
ASM PART: A = 1-14400-414-3
|
1-22190-624-1 |
01 |
1 |
- |
| |
113 |
BOLT; AIR CYL
ASM PART: A = 1-14400-414-3
|
1-14379-105-0 |
02 |
1 |
- |
| |
117 |
JOINT; TURBOCHARGER CONT
ASM PART: A = 1-14400-414-3
|
1-14379-108-0 |
01 |
1 |
- |
| |
118 |
LINK; TURBOCHARGER CONT
ASM PART: A = 1-14400-414-3
|
1-14379-126-0 |
02 |
1 |
- |
| |
119 |
BOLT; CONT LINK
ASM PART: A = 1-14400-414-3
|
1-14379-124-0 |
02 |
1 |
- |
| |
120 |
NUT; CONT LINK
(A) ASM PART: A = 1-14400-414-3
|
1-14379-113-0 |
03 |
1 |
- |
| |
120 |
NUT; CONT LINK
(B) ASM PART: A = 1-14400-414-3
|
1-14379-125-0 |
02 |
1 |
- |
| |
121 |
COLLAR; CONT LINK
ASM PART: A = 1-14400-414-3
|
1-14379-127-0 |
02 |
1 |
- |
| |
124 |
WASHER; CONT LINK
ASM PART: A = 1-14400-414-3
|
1-14379-104-0 |
02 |
1 |
- |
| |
132 |
CARTRIDGE; TURBO
ASM PART: A = 1-14400-414-3
|
1-14425-039-0 |
01 |
1 |
- |
| |
138 |
RING; SNAP,BLOWER HSG
ASM PART: A = 1-14400-414-3
|
1-14459-056-0 |
01 |
1 |
- |
| |
146 |
PROTECTOR; HEAT,AIR CYL
ASM PART: A = 1-14400-414-3
|
1-14181-347-0 |
01 |
1 |
- |
