Isuzu WW
▶
BUSES
▶
LV
▶
10948 - LV123/423-LHD
▶
0 - Engine, Emission, Engine Electrical
▶
0-36 - TURBOCHARGER SYSTEM
▶
0-36 — TURBOCHARGER SYSTEM
(#34516) — 37 parça
◀

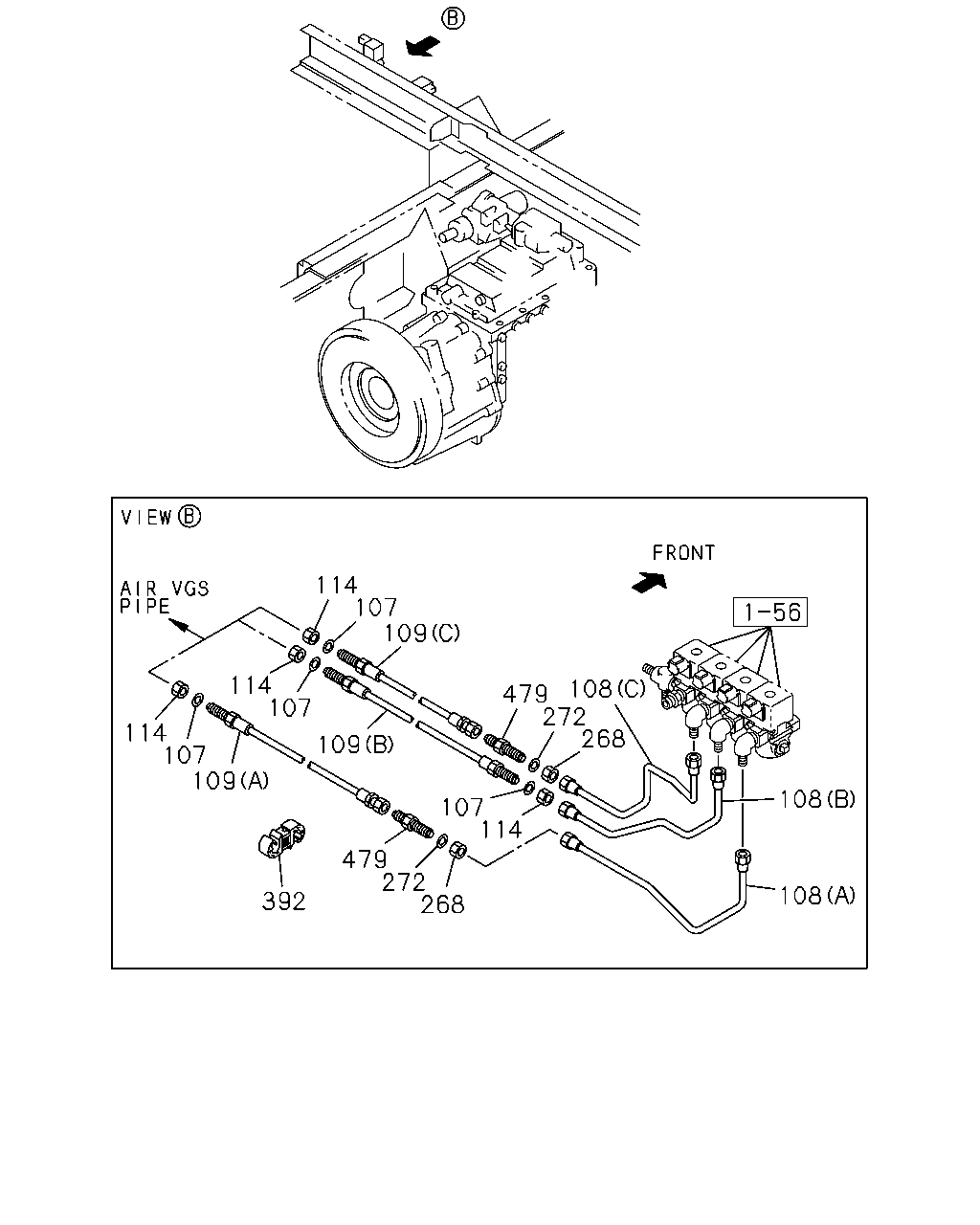

[036A] NO.2 (15 parça)
[036A] NO.1 (22 parça)
▶
114
107
109
114
107
108
479
272
268
114
107
109
109
108
107
114
479
272
268
108
392
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
107
WASHER; LK
ID=12.2
9-09150-512-0
04
1
0404-0603
107
WASHER; LK
ID=12.2
0-91510-512-0
04
1
0604-
108
PIPE ASM; AIR MAG VLV
(A)
1-49122-969-0
01
1
0404-
108
PIPE ASM; AIR MAG VLV
(B)
1-49122-970-0
01
1
0404-
108
PIPE ASM; AIR MAG VLV
(C)
1-49122-971-0
01
1
0404-
109
HOSE; FLEX,MAG VLV
(C) L=500
1-09363-693-0
01
1
0404-
109
HOSE; FLEX,MAG VLV
(B) L=480
1-09363-883-0
01
1
0404-
109
HOSE; FLEX,MAG VLV
(A) L=380
1-09363-884-0
01
1
0404-
114
NUT; FLEX HOSE
M12
9-09840-280-0
04
1
0404-
268
NUT; FLEX TUBE
M12
9-09840-280-0
02
1
0404-
272
WASHER; LK,FLEX HOSE
ID=12.2
9-09150-512-0
02
1
0404-0603
272
WASHER; LK,FLEX HOSE
ID=12.2
0-91510-512-0
02
1
0604-
392
CLIP; FLEX HOSE
ID=10 & 10
1-09709-277-1
02
1
0404-
479
UNION; FLEX TUBE
M12 L=56.5
9-09223-106-1
02
1
0404-0607
479
UNION; FLEX TUBE
M12 L=56.5
0-92113-106-0
02
1
0608-
2
16
1
214
97
148
66
97
11
11
76
69
68
69
76
22
76
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
TURBOCHARGER ASM
SEE FIG-NO 0-37 FOR COMPONENT.
1-14400-414-4
01
1
0404-
2
GASKET; TURBOCHARGER TO EXH MANIF
ALSO INCLUDED IN GASKET SET(ENG. & HEAD)
1-14145-140-1
01
1
0404-
11
NUT; TURBOCHARGER
M10
1-09420-005-0
08
1
0404-
16
ADAPTER; EXH PIPE
1-14144-650-0
01
1
0404-
22
DUCT; INL,ACL TO TURBOCHARGER
1-14134-398-3
01
1
0404-
66
STUD; EXH PIPE
1-09302-165-0
02
1
0404-0501
66
STUD; EXH PIPE
M12X90 L=110
1-09302-035-0
02
1
0502-
68
HOSE; RUBBER,TURBOCHARGER TO INL COVER
1-09361-124-0
01
1
0404-
69
CLIP; RUBBER HOSE,TURBOCHARGER
ID=68-85
1-09707-202-0
02
1
0404-0808
69
CLIP; RUBBER HOSE,TURBOCHARGER
ID=68-85
8-94320-428-0
02
1
0809-
76
BOLT; AIR DUCT
(A) M10X60 FLANGE
0-28081-060-0
01
1
0404-0512
76
BOLT; AIR DUCT
(A) M10X60 FLANGE
0-28051-060-0
01
1
0601-
76
BOLT; AIR DUCT
(B) M10X80 FLANGE
0-28081-080-0
02
1
0404-0512
76
BOLT; AIR DUCT
(B) M10X80 FLANGE
0-28051-080-0
02
1
0601-
97
CLIP; HOSE,TURBOCHARGER,INL
ID=104-139
1-09707-200-0
04
1
0404-0809
97
CLIP; HOSE,TURBOCHARGER,INL
ID=104-139
1-09707-200-0
02
1
0810-0812
97
CLIP; HOSE,TURBOCHARGER,INL
ID=104-142
1-09707-155-0
02
1
0901-
97
CLIP; HOSE,TURBOCHARGER,INL
ID=104-142
1-09707-155-0
02
1
0809-0810
148
HOSE; TURBOCHARGER,INL
1-09361-135-0
01
1
0404-0503
148
HOSE; TURBOCHARGER,INL
1-09360-988-0
01
1
0504-
214
BAND; "V",TURBOCHARGER TO EXH PIPE
1-09709-094-1
01
1
0404-0609
214
BAND; "V",TURBOCHARGER TO EXH PIPE
8-98059-890-0
01
1
0610-
