10948 - LV123/423-LHD
▶
0 - Engine, Emission, Engine Electrical
▶
0-32 - WATER PIPING; ENGINE
▶
0-32 — WATER PIPING; ENGINE
(#34514) — 21 parça
◀

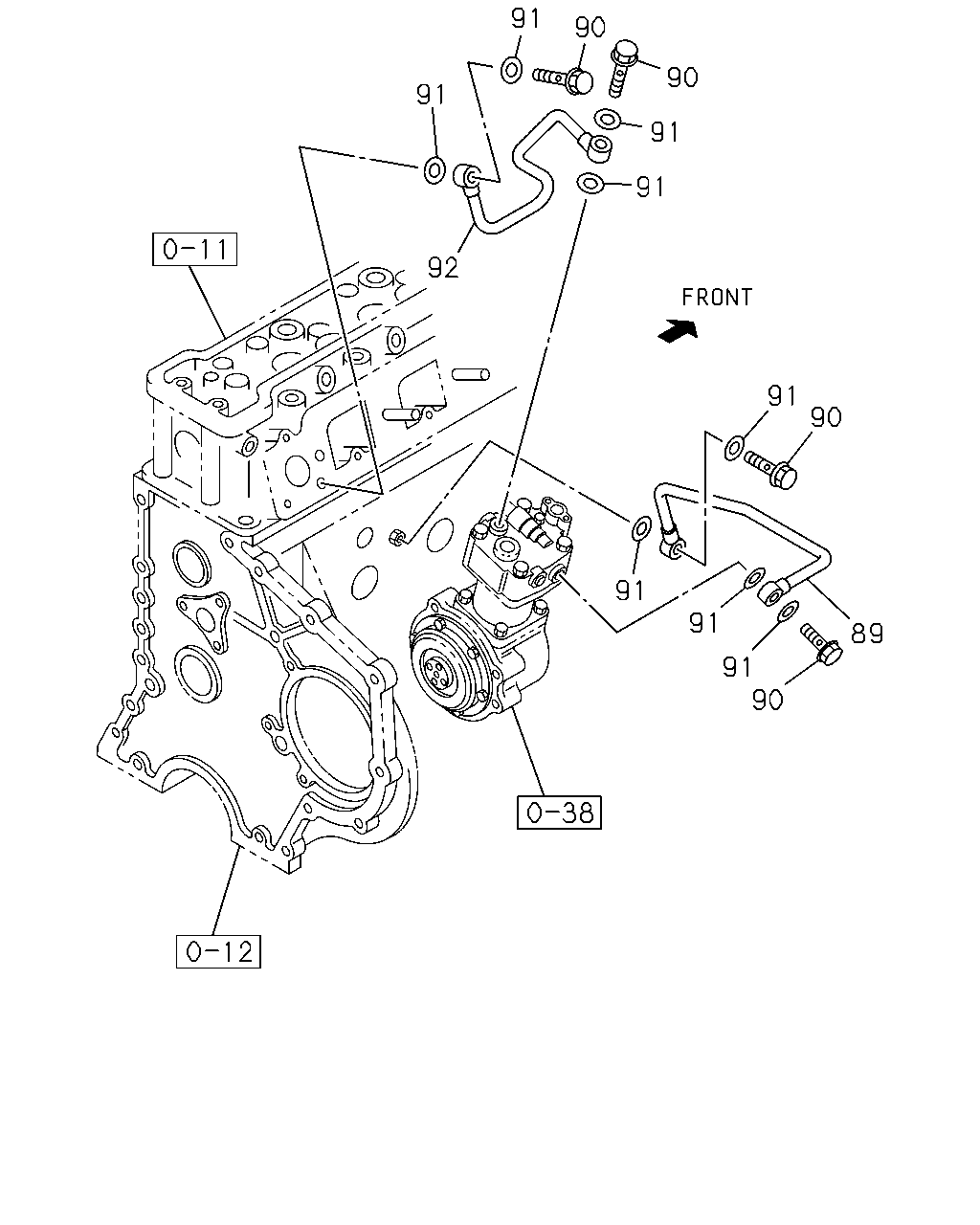

[032A] NO.2 (5 parça)
[032A] NO.1 (16 parça)
▶
91
90
90
91
91
91
92
91
90
91
91
89
91
90
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
89
PIPE; WATER,AIR CMPR,IN
1-13721-857-0
01
1
0404-
90
BOLT; EYE,WATER PIPE,AIR CMPR
M14X27 EYE-BOLT
1-09675-193-0
04
1
0404-
91
GASKET; WATER PIPE,AIR CMPR
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2
1-09630-085-0
08
1
0404-1312
91
GASKET; WATER PIPE,AIR CMPR
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2
8-98251-345-0
08
1
1401-
92
PIPE; WATER,AIR CMPR,OUT
1-13721-900-0
01
1
0404-
33
127
127
94
33
94
126
126
126
94
73
126
94
63
33
33
94
126
126
127
126
126
127
135
124
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
33
BOLT; BRKT
(A) M8X16 FLANGE
0-28080-816-0
02
1
0404-0512
33
BOLT; BRKT
(A) M8X16 FLANGE
0-28050-816-0
02
1
0601-
33
BOLT; BRKT
(B) M6X40 FLANGE
0-28680-640-0
03
1
0404-0512
33
BOLT; BRKT
(B) M6X40 FLANGE
0-28650-640-0
03
1
0601-
63
BRACKET; WATER PIPE
1-13319-057-0
01
1
0404-
73
PROTECTOR; HEAT,WATER PIPE
1-14181-325-0
01
1
0404-
94
CLIP; WATER PIPE
(A)
1-09701-230-1
02
1
0404-
94
CLIP; WATER PIPE
(B)
1-09701-231-1
02
1
0404-
94
CLIP; WATER PIPE
(C)
1-09701-265-1
01
1
0404-
124
PIPE; WATER,C/BL TO THERMOSTAT HSG
1-13721-948-0
01
1
0404-
126
GASKET; CAP NUT
ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=19.2
1-09630-085-0
08
1
0404-1312
126
GASKET; CAP NUT
ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=19.2
8-98251-345-0
08
1
1401-
127
BOLT; EYE
(B) M14X27 FLANGE
1-09675-192-0
01
1
0404-
127
BOLT; EYE
(A) M14X27 EYE-BOLT
1-09675-193-0
03
1
0404-
135
BOLT; STAY,THERMOSTAT HSG
M8X25 FLANGE
0-28080-825-0
01
1
0404-0512
135
BOLT; STAY,THERMOSTAT HSG
M8X25 FLANGE
0-28050-825-0
01
1
0601-
