Isuzu WW
▶
BUSES
▶
LV
▶
10948 - LV123/423-LHD
▶
0 - Engine, Emission, Engine Electrical
▶
0-30 - WATER PUMP AND CORROSION RESISTOR
▶

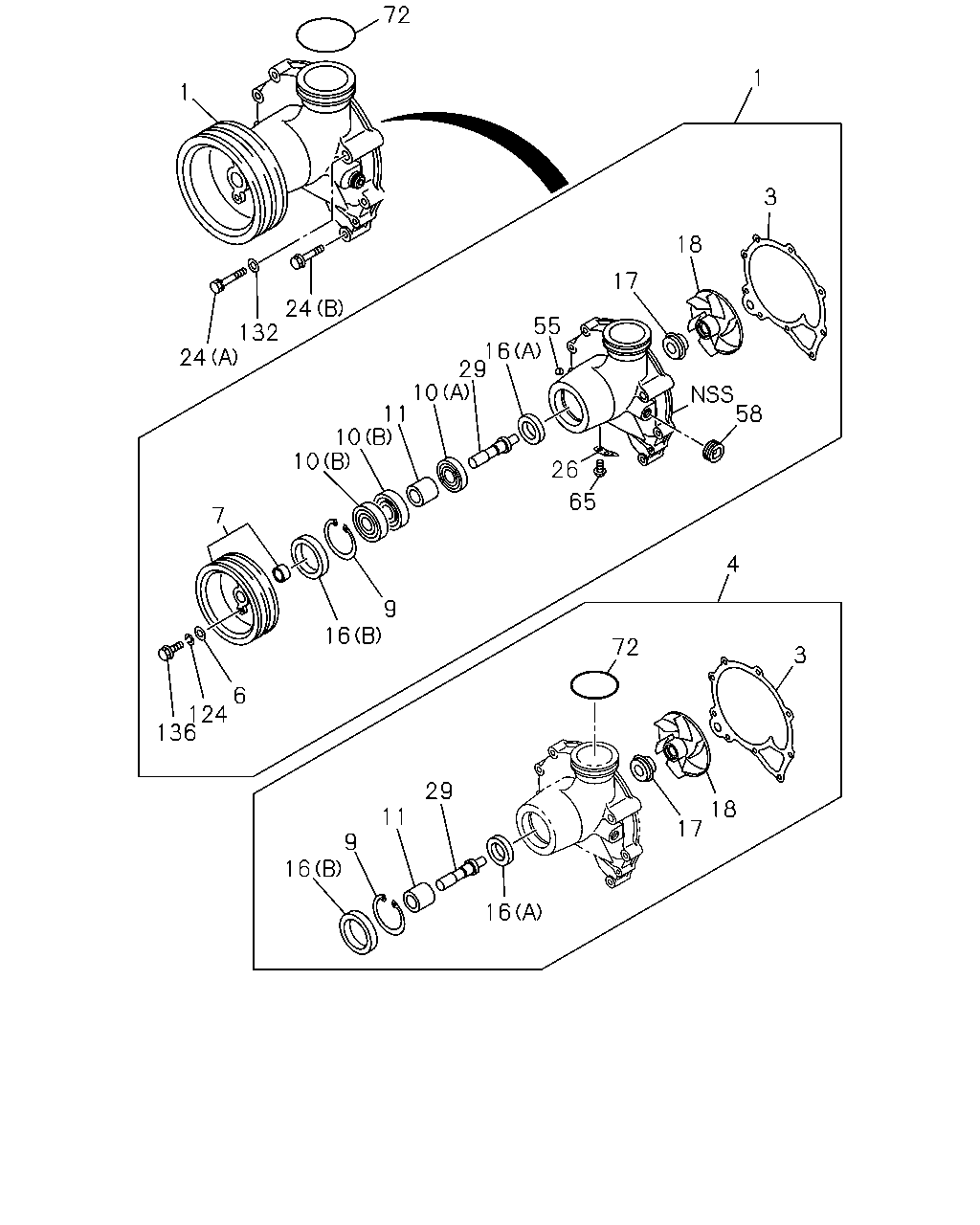

0-30 — WATER PUMP AND CORROSION RESISTOR
(#34512) — 32 parça
72
1
1
3
18
17
24
132
55
16
29
10
24
58
11
10
10
26
65
7
4
9
16
72
3
6
124
136
29
18
11
17
9
16
16
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
PUMP ASM; WATER,W/GASKET
1-13650-158-0
01
1
0404-0405
1
PUMP ASM; WATER,W/GASKET
8-97605-169-0
01
1
0406-
3
GASKET; PUMP TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE).
1-13614-018-1
01
1
0404-
4
REPAIR KIT; WATER PUMP
1-87811-884-1
01
1
0404-
7
PULLEY; WATER PUMP
1-13641-213-0
01
1
0404-
9
RING; SNAP,WATER PUMP
ID=57.9
9-09180-162-0
01
1
0404-
10
BEARING; WATER PUMP
(B)
1-09800-155-0
02
1
0404-
10
BEARING; WATER PUMP
(A)
1-09800-196-0
01
1
0404-
11
SPACER; BRG,WATER PUMP
1-13634-035-0
01
1
0404-
16
SEAL; OIL,WATER PUMP
(A)
1-09625-388-0
01
1
0404-
16
SEAL; OIL,WATER PUMP
(B)
1-09625-389-0
01
1
0404-
17
SEAL UNIT; WATER PUMP
8-94392-090-0
01
1
0404-
18
IMPELLER; WATER PUMP
1-13621-056-0
01
1
0404-
20
COVER; WATER PUMP
1-13612-049-0
01
1
0404-
23
WASHER; PL,WATER PUMP
ID=10.5 OD=22
9-09160-610-0
02
1
0404-
24
BOLT; WATER PUMP
(A) M10X95
0-16806-095-0
02
1
0404-
24
BOLT; WATER PUMP
(B) M8X35 W/LK&PL WASHER
0-50140-835-0
01
1
0404-0512
24
BOLT; WATER PUMP
(B) M8X35 W/LK&PL WASHER
0-50640-835-0
01
1
0601-
24
BOLT; WATER PUMP
(B) M8X45 W/LK&PL WASHER
0-50140-845-0
06
1
0404-0906
24
BOLT; WATER PUMP
(B) M8X45 W/LK&PL WASHER
0-50640-845-0
06
1
0907-
29
SHAFT; WATER PUMP
1-13631-081-0
01
1
0404-
55
NOZZLE; OIL FEED,WATER PUMP
1-13619-046-0
01
1
0404-
58
PLUG; HTR
(B) PT3/8 T=8.0
1-09605-066-0
01
1
0406-
58
PLUG; HTR
(A) PT3/4
9-09204-526-0
02
1
0404-0405
58
PLUG; HTR
(A) PT3/4
9-09204-526-0
01
1
0406-
65
SCREW; COVER,WATER PUMP
M4X8 W/LK WASHER
9-03910-408-0
02
1
0404-0405
65
SCREW; COVER,WATER PUMP
M4X8 W/LK WASHER
0-36220-408-0
02
1
0406-
72
GASKET; PUMP TO THERMO HSG
ALSO INCLUDED IN GASKET SET(ENGINE).
1-09623-342-0
01
1
0404-
81
WASHER; LK
ID=10.2
9-09150-510-0
02
1
0404-
119
BOLT; PUMP COVER
M10X16
0-23801-016-0
02
1
0404-
132
WASHER; PL,WATER PUMP
ID=10.5 OD=18
9-09160-510-0
02
1
0404-0605
132
WASHER; PL,WATER PUMP
ID=10.5
0-91610-510-0
02
1
0606-
