Isuzu WW
▶
BUSES
▶
LV
▶
10948 - LV123/423-LHD
▶
0 - Engine, Emission, Engine Electrical
▶
0-27 - EXHAUST MANIFOLD
▶

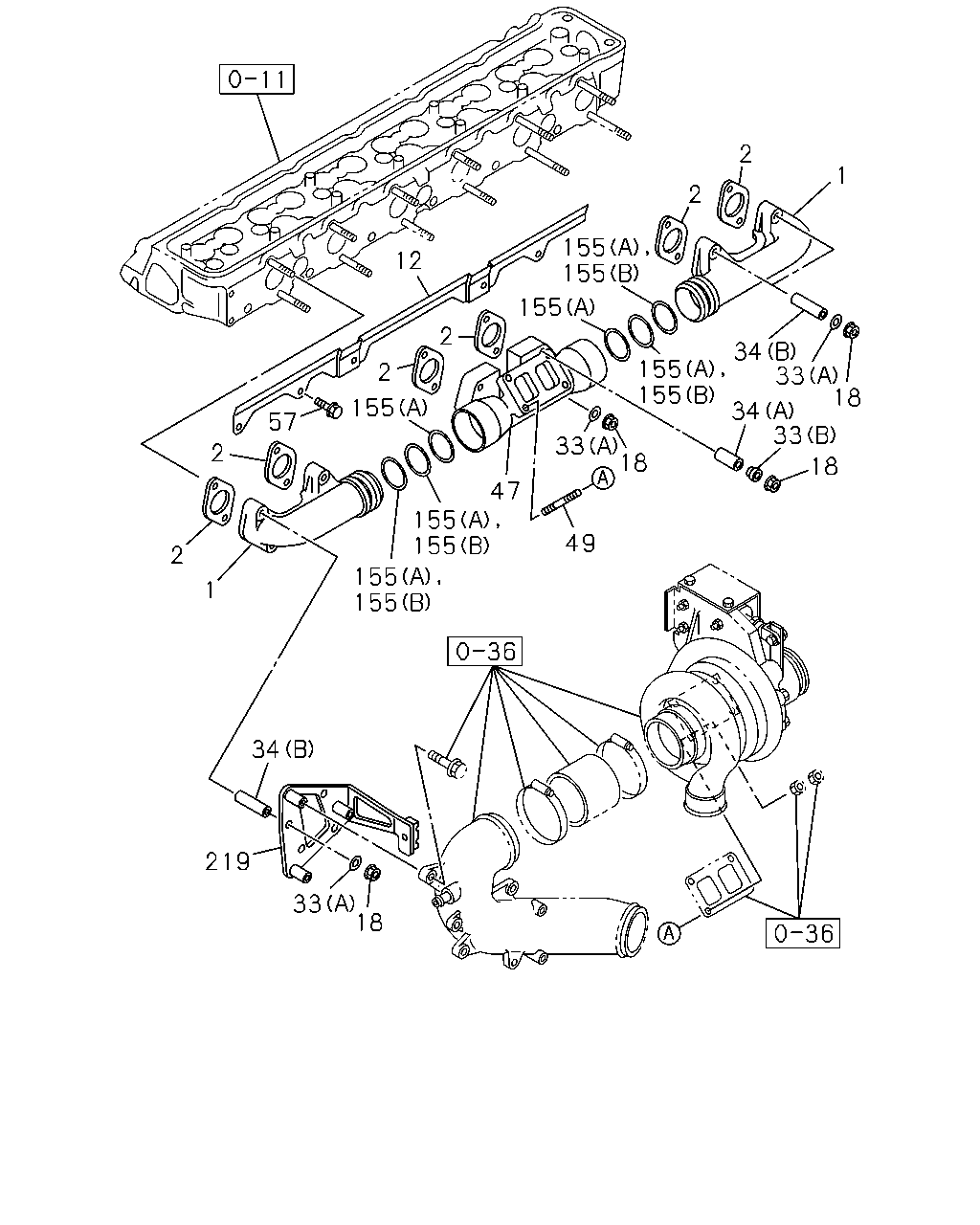

0-27 — EXHAUST MANIFOLD
(#34510) — 24 parça
2
1
2
155
155
12
155
2
34
155
33
155
2
18
155
34
33
18
57
33
2
18
47
155
155
49
2
155
155
1
34
219
33
18
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
MANIFOLD; EXHAUST
1-14141-685-4
02
1
0404-
2
GASKET; EXH MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD)
1-14145-144-1
06
1
0404-
12
PROTECTOR; HEAT,TURBOCHARGER,EXH MANIF
1-14181-236-0
01
1
0404-
18
NUT; EXH MANIF
M10 FLANGE
0-91150-210-0
12
1
0404-0602
18
NUT; EXH MANIF
M10 FLANGE
0-91180-210-0
12
1
0603-
33
WASHER; EXH MANIF
(A) T=2.2
1-09556-015-0
12
1
0404-
33
WASHER; EXH MANIF
(B) T=5.5
1-14149-042-0
03
1
0404-
34
COLLAR; DIST,EXH MANIF
(A) L=43
1-14149-048-1
03
1
0404-
34
COLLAR; DIST,EXH MANIF
(B) L=83
1-14149-134-0
08
1
0404-
47
MANIFOLD; EXH,CENTER
1-14141-994-0
01
1
0404-
49
STUD; CENTER MANIF TO TURBOCHARGER
M10X25 L=47
1-09302-167-1
04
1
0404-0408
49
STUD; CENTER MANIF TO TURBOCHARGER
M10X25 L=47
8-97378-071-0
04
1
0409-
57
BOLT; HEAT PROTECTOR,EXH MANIF
M8X16 FLANGE
0-28080-816-0
02
1
0404-0512
57
BOLT; HEAT PROTECTOR,EXH MANIF
M8X16 FLANGE
0-28050-816-0
02
1
0601-
57
BOLT; HEAT PROTECTOR,EXH MANIF
M10X16 FLANGE
0-28181-016-0
01
1
0404-0512
57
BOLT; HEAT PROTECTOR,EXH MANIF
M10X16 FLANGE
0-28151-016-0
01
1
0601-
57
BOLT; HEAT PROTECTOR,EXH MANIF
M8X16 FLANGE
0-28080-816-0
02
1
0404-0512
57
BOLT; HEAT PROTECTOR,EXH MANIF
M8X16 FLANGE
0-28050-816-0
02
1
0601-
57
BOLT; HEAT PROTECTOR,EXH MANIF
M10X16 FLANGE
0-28181-016-0
01
1
0404-0512
57
BOLT; HEAT PROTECTOR,EXH MANIF
M10X16 FLANGE
0-28151-016-0
01
1
0601-
155
RING; SEAL,EXH MANIF
(B)
1-14149-184-0
04
1
0502-
155
RING; SEAL,EXH MANIF
(A)
1-14149-151-0
06
1
0404-0501
155
RING; SEAL,EXH MANIF
(A)
1-14149-151-0
02
1
0502-
219
BRACKET; DUCT
1-14149-244-0
01
1
0404-
