Isuzu WW
▶
BUSES
▶
LV
▶
10948 - LV123/423-LHD
▶
0 - Engine, Emission, Engine Electrical
▶
0-13 - OIL PAN AND LEVEL GAUGE
▶

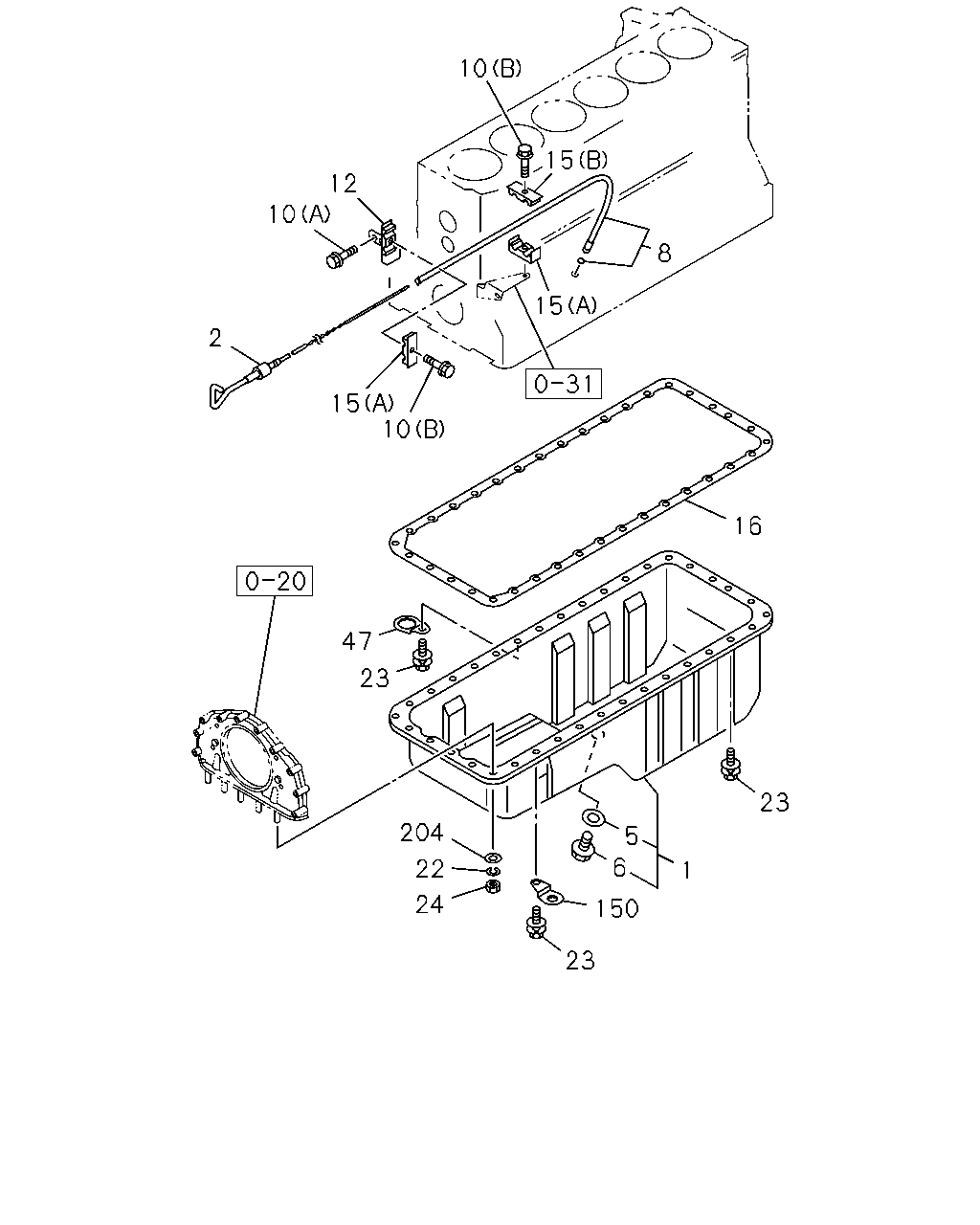

0-13 — OIL PAN AND LEVEL GAUGE
(#34504) — 26 parça
10
15
12
10
8
15
2
15
10
16
47
23
23
204
5
6
22
1
24
150
23
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
PAN ASM; OIL
1-11360-708-3
01
1
0404-
2
GAUGE; OIL LEVEL
1-11760-438-0
01
1
0404-
5
GASKET; PLUG,OIL DRAIN
ALSO INCLUDED IN GASKET SET(ENGINE). ID=26.8
1-09623-058-0
01
1
0404-
6
PLUG; OIL DRAIN
M24X17 FLANGE
1-09604-022-0
01
1
0404-
8
TUBE; GUIDE,OIL LEVEL GAUGE
1-11766-592-0
01
1
0404-0502
8
TUBE; GUIDE,OIL LEVEL GAUGE
8-97607-462-0
01
1
0503-
10
BOLT; GUIDE TUBE
(A) M8X16 FLANGE
0-28080-816-0
02
1
0404-0512
10
BOLT; GUIDE TUBE
(A) M8X16 FLANGE
0-28050-816-0
02
1
0601-
10
BOLT; GUIDE TUBE
(B) M6X35 FLANGE
0-28680-635-0
02
1
0404-0512
10
BOLT; GUIDE TUBE
(B) M6X35 FLANGE
0-28650-635-0
02
1
0601-
12
BRACKET; TUBE,OIL LEVEL GAUGE
1-11769-195-0
01
1
0404-
15
CLIP; GUIDE TUBE
(A)
1-09701-193-1
02
1
0404-
15
CLIP; GUIDE TUBE
(B)
1-09701-194-1
01
1
0404-
16
GASKET; OIL PAN TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE).
1-11367-129-1
01
1
0404-1103
16
GASKET; OIL PAN TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE).
8-98187-258-0
01
1
1104-
22
WASHER; LK,OIL PAN
ID=8.2
9-09150-508-0
06
1
0404-0603
22
WASHER; LK,OIL PAN
ID=8.2
0-91510-508-0
06
1
0604-
23
BOLT; OIL PAN
M8X22 W/LK&PL WASHER
0-50140-822-0
30
1
0404-0906
23
BOLT; OIL PAN
M8X22 W/LK&PL WASHER
0-50640-822-0
30
1
0907-
24
NUT; OIL PAN
M8
9-09110-408-0
06
1
0404-0512
24
NUT; OIL PAN
M8
0-91110-508-0
06
1
0601-
47
CLIP; HOSE,AIR BREATHER
1-11229-014-0
01
1
0404-
150
CLIP; WATER,OIL DRAIN
OIL FILTER SETTING DOWNWARD<E7V>
9-11229-070-0
01
1
0404-
150
CLIP; WATER,OIL DRAIN
EXC. OIL FILTER SETTING DOWNWARD<E7V>
9-11229-070-0
02
1
0404-
204
WASHER; PL,OIL PAN
ID=8.4
9-09160-508-0
06
1
0404-0605
204
WASHER; PL,OIL PAN
ID=8.4 OD=16
0-91610-508-0
06
1
0606-
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
