Sayfa 9-01 - Isuzu EPC

9-01 — TOOLS (#34498) — 275 parça

274 271 268 209 285 281 280 283 282 284

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
209	CLIP; JACK HANDLE	1-73638-011-1	02	1	9604-0004	●	●	●	●	●
209	CLIP; JACK HANDLE	1-73638-011-1	02	1	0005-0708	●		●	●
209	CLIP; JACK HANDLE	8-98053-799-0	02	1	0709-	●		●	●
268	SCREW; CLIP M6X12 W/LK WASHER	9-03910-612-0	02	1	9604-0604	●		●	●
268	SCREW; CLIP M6X12 W/LK WASHER	0-36220-612-0	02	1	0605-	●		●	●
268	SCREW; CLIP M5X16 W/LK&PL WASHER	8-94279-400-0	02	1	9604-0004		●			●
271	CLIP; TIRE HANGER	1-73638-012-1	02	1	9604-0004	●	●	●	●	●
271	CLIP; TIRE HANGER	1-73638-012-1	02	1	0005-0708	●		●	●
271	CLIP; TIRE HANGER	8-98053-800-0	02	1	0709-	●		●	●
274	SCREW; CLIP M6X12 W/LK WASHER	9-03910-612-0	02	1	9604-0604	●		●	●
274	SCREW; CLIP M6X12 W/LK WASHER	0-36220-612-0	02	1	0605-	●		●	●
274	SCREW; CLIP M5X16 W/LK&PL WASHER	8-94279-400-0	02	1	9604-0004		●			●
280	BOX; TOOL KEY LOCK TOOL BOX<RC5>	1-85561-006-2	01	1	9604-0004	●	●	●	●	●
280	BOX; TOOL KEY LOCK TOOL BOX<RC5>	1-85561-006-3	01	1	0005-	●		●	●
281	BRACKET; TOOL BOX KEY LOCK TOOL BOX<RC5>	1-53459-665-2	02	1	9604-0004	●	●	●	●	●
281	BRACKET; TOOL BOX KEY LOCK TOOL BOX<RC5>	1-53459-665-2	02	1	0005-	●		●	●
282	NUT; BRKT KEY LOCK TOOL BOX<RC5> M10	9-09110-510-0	04	1	9604-9606	●	●	●	●	●
282	NUT; BRKT KEY LOCK TOOL BOX<RC5> M10 FLANGE	0-91150-210-0	04	1	9607-0004	●	●	●	●	●
282	NUT; BRKT KEY LOCK TOOL BOX<RC5> M10 FLANGE	0-91150-210-0	04	1	0005-0602	●		●	●
282	NUT; BRKT KEY LOCK TOOL BOX<RC5> M10 FLANGE	0-91180-210-0	04	1	0603-	●		●	●
283	WASHER; LK,BRKT KEY LOCK TOOL BOX<RC5> ID=10.2	9-09150-510-0	04	1	9604-9606	●	●	●	●	●
284	BOLT; TOOL BOX KEY LOCK TOOL BOX<RC5> M10X20 W/LK WASHER	0-50041-020-0	04	1	9604-9606	●	●	●	●	●
284	BOLT; TOOL BOX KEY LOCK TOOL BOX<RC5> M10X20 FLANGE	0-28681-020-0	04	1	9607-0004	●	●	●	●	●
284	BOLT; TOOL BOX KEY LOCK TOOL BOX<RC5> M10X20 FLANGE	0-28681-020-0	04	1	0005-0512	●		●	●
284	BOLT; TOOL BOX KEY LOCK TOOL BOX<RC5> M10X20 FLANGE	0-28651-020-0	04	1	0601-	●		●	●
285	NUT; TOOL BOX KEY LOCK TOOL BOX<RC5> M10	9-09110-510-0	04	1	9604-9606	●	●	●	●	●
285	NUT; TOOL BOX KEY LOCK TOOL BOX<RC5> M10 FLANGE	0-91150-210-0	04	1	9607-0004	●	●	●	●	●
285	NUT; TOOL BOX KEY LOCK TOOL BOX<RC5> M10 FLANGE	0-91150-210-0	04	1	0005-0602	●		●	●
285	NUT; TOOL BOX KEY LOCK TOOL BOX<RC5> M10 FLANGE	0-91180-210-0	04	1	0603-	●		●	●

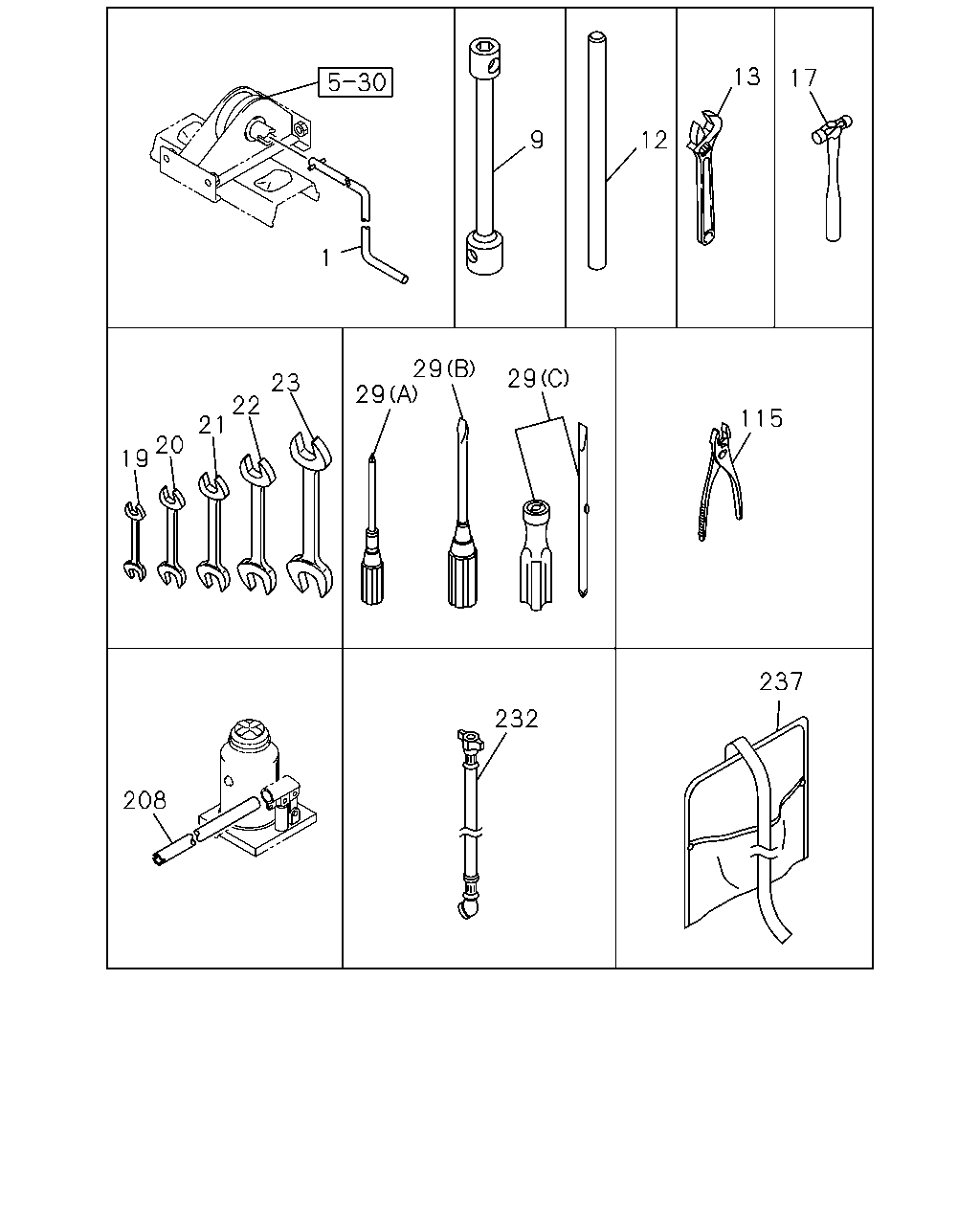

13 17 9 12 1 29 29 23 22 21 29 115 20 19 237 232 208

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
1	HANDLE; SPARE TIRE CARRIER SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE TIRE CARRIER LIFTING TYPE VAR1<SY8>	9-23110-018-0	01	1	9604-9608	●	●	●		●
1	HANDLE; SPARE TIRE CARRIER SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE WHEELCARRIER FRAME SIDE<P13>,SPARE TIRE CARRIER LIF TING TYPE VAR1<SY8>	9-23110-018-0	01	1	9604-9608				●
1	HANDLE; SPARE TIRE CARRIER SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE TIRE CARRIER LIFTING TYPE VAR1<SY8>	9-23110-018-0	01	1	9609-0004	●	●			●
1	HANDLE; SPARE TIRE CARRIER SPARE TIRE CARRIER LIFTING TYPE VAR1<SY8>	9-23110-018-0	01	1	9609-0004			●
1	HANDLE; SPARE TIRE CARRIER SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE WHEELCARRIER FRAME SIDE<P13>,SPARE TIRE CARRIER LIF TING TYPE VAR1<SY8>	9-23110-018-0	01	1	9609-0004				●
1	HANDLE; SPARE TIRE CARRIER SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE TIRE CARRIER LIFTING TYPE VAR1<SY8>	9-23110-018-0	01	1	0005-	●
1	HANDLE; SPARE TIRE CARRIER SPARE TIRE CARRIER LIFTING TYPE VAR1<SY8>	9-23110-018-0	01	1	0005-			●
1	HANDLE; SPARE TIRE CARRIER SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE WHEELCARRIER FRAME SIDE<P13>,SPARE TIRE CARRIER LIF TING TYPE VAR1<SY8>	9-23110-018-0	01	1	0005-				●
9	WRENCH; WHEEL PIN B=41X21 L=440	1-85113-015-1	01	1	9604-0004	●	●	●	●	●
9	WRENCH; WHEEL PIN B=41X21 L=440	1-85113-015-1	01	1	0005-0208	●		●	●
9	WRENCH; WHEEL PIN TOOL A KIT<SK9>,TOOL B KIT<SL1> B=41X21 L=440	1-85113-015-1	01	1	0209-1601	●		●	●
9	WRENCH; WHEEL PIN TOOL A KIT<SK9>,TOOL B KIT<SL1> B=41X21 L=445	8-98316-703-0	01	1	1602-	●		●	●
12	HANDLE; WRENCH,WHEEL PIN OD=25 L=480	1-85116-011-0	01	1	9604-0004	●	●	●	●	●
12	HANDLE; WRENCH,WHEEL PIN OD=25 L=480	1-85116-011-0	01	1	0005-0208	●		●	●
12	HANDLE; WRENCH,WHEEL PIN TOOL A KIT<SK9>,TOOL B KIT<SL1> OD=25 L=480	1-85116-011-0	01	1	0209-1501	●		●	●
12	HANDLE; WRENCH,WHEEL PIN TOOL A KIT<SK9>,TOOL B KIT<SL1> OD=25 L=480	8-98257-407-0	01	1	1502-	●		●	●
13	WRENCH; MONKEY L=255	1-85117-002-1	01	1	9604-0004	●	●	●	●	●
13	WRENCH; MONKEY L=255	1-85117-002-1	01	1	0005-0208	●		●	●
13	WRENCH; MONKEY TOOL B KIT<SL1> L=255	1-85117-002-1	01	1	0209-0211	●		●	●
13	WRENCH; MONKEY TOOL B KIT<SL1> L=247	1-85117-006-0	01	1	0212-1407	●		●	●
13	WRENCH; MONKEY TOOL B KIT<SL1> L=255	8-98270-303-0	01	1	1408-	●		●	●
17	HAMMER	9-85121-406-0	01	1	9604-0004	●	●	●	●	●
17	HAMMER	9-85121-406-0	01	1	0005-0208	●		●	●
17	HAMMER TOOL B KIT<SL1>	9-85121-406-0	01	1	0209-	●		●	●
19	WRENCH; 7X8 7X8	9-09592-107-0	01	1	9604-0004	●	●	●	●	●
19	WRENCH; 7X8 7X8	9-09592-107-0	01	1	0005-0208	●		●	●
19	WRENCH; 7X8 TOOL B KIT<SL1> 7X8	9-09592-107-0	01	1	0209-	●		●	●
20	WRENCH; 10X12 10X12	9-09592-110-0	01	1	9604-0004	●	●	●	●	●
20	WRENCH; 10X12 10X12	9-09592-110-0	01	1	0005-0208	●		●	●
20	WRENCH; 10X12 TOOL B KIT<SL1> 10X12	9-09592-110-0	01	1	0209-0607	●		●	●
20	WRENCH; 10X12 TOOL B KIT<SL1> 10X12	0-95902-510-0	01	1	0608-	●		●	●
21	WRENCH; 14X17 14X17	9-09592-114-0	01	1	9604-0004	●	●	●	●	●
21	WRENCH; 14X17 14X17	9-09592-114-0	01	1	0005-0208	●		●	●
21	WRENCH; 14X17 TOOL B KIT<SL1> 14X17	9-09592-114-0	01	1	0209-0607	●		●	●
21	WRENCH; 14X17 TOOL B KIT<SL1> 14X17	0-95902-514-0	01	1	0608-	●		●	●
22	WRENCH; 19X22 19X22	9-99592-119-0	01	1	9604-0004	●	●	●	●	●
22	WRENCH; 19X22 19X22	9-99592-119-0	01	1	0005-0208	●		●	●
22	WRENCH; 19X22 TOOL B KIT<SL1> 19X22	9-99592-119-0	01	1	0209-0607	●		●	●
22	WRENCH; 19X22 TOOL B KIT<SL1> 19X22	0-95902-519-0	01	1	0608-	●		●	●
23	WRENCH; 24X27 24X27	9-09592-124-0	01	1	9604-0004	●	●	●	●	●
23	WRENCH; 24X27 24X27	9-09592-124-0	01	1	0005-0208	●		●	●
23	WRENCH; 24X27 TOOL B KIT<SL1> 24X27	9-09592-124-0	01	1	0209-0607	●		●	●
23	WRENCH; 24X27 TOOL B KIT<SL1> 24X27	0-95902-524-0	01	1	0608-	●		●	●
29	DRIVER; SCREW TOOL A KIT<SK9> (C) <+>,<-> L=160	8-94242-798-1	01	1	0209-	●		●	●
29	DRIVER; SCREW (A) <+> L=205	9-09595-022-0	01	1	9604-0004	●	●	●	●	●
29	DRIVER; SCREW (A) <+> L=205	9-09595-022-0	01	1	0005-0208	●		●	●
29	DRIVER; SCREW TOOL B KIT<SL1> (A) <+> L=205	9-09595-022-0	01	1	0209-	●		●	●
29	DRIVER; SCREW (A) <+> L=275	9-09595-023-0	01	1	9604-0004	●	●	●	●	●
29	DRIVER; SCREW (A) <+> L=275	9-09595-023-0	01	1	0005-0208	●		●	●
29	DRIVER; SCREW TOOL B KIT<SL1> (A) <+> L=275	9-09595-023-0	01	1	0209-	●		●	●
29	DRIVER; SCREW (B) <-> L=205	9-09595-126-0	01	1	9604-0004	●	●	●	●	●
29	DRIVER; SCREW (B) <-> L=205	9-09595-126-0	01	1	0005-0208	●		●	●
29	DRIVER; SCREW TOOL B KIT<SL1> (B) <-> L=205	9-09595-126-0	01	1	0209-	●		●	●
29	DRIVER; SCREW (B) <-> L=325	9-09595-129-0	01	1	9604-0004	●	●	●	●	●
29	DRIVER; SCREW (B) <-> L=325	9-09595-129-0	01	1	0005-0208	●		●	●
29	DRIVER; SCREW TOOL B KIT<SL1> (B) <-> L=325	9-09595-129-0	01	1	0209-	●		●	●
115	PLIER	5-85171-001-0	01	1	9604-0004	●	●	●	●	●
115	PLIER	5-85171-001-0	01	1	0005-0208	●		●	●
115	PLIER TOOL B KIT<SL1>	5-85171-001-0	01	1	0209-0212	●		●	●
115	PLIER TOOL B KIT<SL1>	5-85171-002-0	01	1	0301-1410	●		●	●
115	PLIER TOOL B KIT<SL1>	8-98282-845-0	01	1	1411-	●		●	●
208	HANDLE; JACK L=600	1-85515-008-0	01	1	9604-0004	●	●	●	●	●
208	HANDLE; JACK L=600	1-85515-008-0	01	1	0005-0105	●		●	●
208	HANDLE; JACK L=600	1-85515-009-0	01	1	0106-1107	●		●	●
208	HANDLE; JACK L=600	8-98181-437-0	01	1	1108-	●		●	●
232	HOSE; AIR,AIR CHARGE TIRE INFLATOR DEVICE(SG4)	1-09360-245-1	01	1	9604-0004	●	●	●	●	●
232	HOSE; AIR,AIR CHARGE TIRE INFLATOR DEVICE(SG4)	1-09360-245-1	01	1	0005-	●		●	●
237	BAG; TOOL	8-97130-902-0	01	1	9604-0004	●	●	●	●	●
237	BAG; TOOL	8-97130-902-0	01	1	0005-0208	●		●	●
237	BAG; TOOL TOOL A KIT<SK9>,TOOL B KIT<SL1>	8-97130-902-1	01	1	0209-	●		●	●

163 163 163 163 166 167 169 170 177 172 174 171 180 179 178

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
163	TOOL; SETTING MLD6D M/T(X5Q) (B) L=195	1-85221-162-1	01	1	0005-0405				●
163	TOOL; SETTING MLD6Q M/T(X5J),MLD6D M/T(X5Q) (B) L=195	1-85221-162-1	01	1	0406-				●
163	TOOL; SETTING MLD6D M/T(X5Q) (C) L=150	1-85221-163-0	01	1	0005-0405				●
163	TOOL; SETTING MLD6Q M/T(X5J),MLD6D M/T(X5Q) (C) L=150	1-85221-163-0	01	1	0406-				●
163	TOOL; SETTING (A) L=220	9-85221-323-0	01	1	9604-0004	●	●	●
163	TOOL; SETTING MBJ5J M/T(Y1Y) (A) L=220	9-85221-323-0	01	1	9604-0004				●	●
163	TOOL; SETTING (D) OD=120	1-85221-164-0	01	1	9604-0004	●	●	●	●	●
163	TOOL; SETTING (B) L=150	9-85221-248-0	01	1	9604-0004	●	●	●	●	●
163	TOOL; SETTING (E) L=350	9-85221-310-0	01	1	9604-0004	●	●	●	●	●
163	TOOL; SETTING MLD6D M/T(X5Q) (B) L=195	1-85221-162-1	01	1	9604-0004				●	●
163	TOOL; SETTING MLD6D M/T(X5Q) (C) L=150	1-85221-163-0	01	1	9604-0004				●	●
166	ALIGNER; CLU RELEASE LEVER L=9	1-85253-011-0	01	1	9604-9609	●	●	●	●	●
166	ALIGNER; CLU RELEASE LEVER L=6	1-85253-023-0	01	1	9610-0004	●	●	●	●	●
166	ALIGNER; CLU RELEASE LEVER L=6	1-85253-023-0	01	1	0005-	●		●
166	ALIGNER; CLU RELEASE LEVER MBJ5J M/T(Y1Y) L=6	1-85253-023-0	01	1	0005-				●
167	ALIGNER; CLU PILOT L=185	1-85253-008-0	01	1	9604-0004	●	●	●	●	●
167	ALIGNER; CLU PILOT L=185	1-85253-008-0	01	1	0005-0405	●		●	●
167	ALIGNER; CLU PILOT L=185	1-85253-008-0	01	1	0406-	●		●
167	ALIGNER; CLU PILOT 14" CLUTCH(WF6) L=185	1-85253-008-0	01	1	0406-				●
169	BRACKET; SPLINE YOKE	9-85221-243-1	01	1	9604-0004			●	●	●
170	HANDLE; TURNING,FINAL	9-85251-121-0	01	1	9604-0004			●	●	●
171	PULLER ASM; PINION BRG	9-85210-172-0	01	1	9604-0004			●	●	●
172	PULLER ASM; BRG DIFF PILOT	9-85210-173-0	01	1	9604-0004			●	●	●
174	PULLER ASM; MAIN CLU SHAFT	9-85210-148-0	01	1	9604-0004	●	●	●	●	●
174	PULLER ASM; MAIN CLU SHAFT	9-85210-148-0	01	1	0005-0405	●		●
174	PULLER ASM; MAIN CLU SHAFT MLD6D M/T(X5Q),MBJ5J M/T(Y1Y)	9-85210-148-0	01	1	0005-0405				●
174	PULLER ASM; MAIN CLU SHAFT	9-85210-148-0	01	1	0406-	●		●	●
177	SETTING TOOL KIT	9-85220-040-0	01	1	9604-0004	●	●	●	●	●
178	BAR; TRANS GUIDE	9-85291-203-0	01	1	9604-0004	●	●	●	●	●
178	BAR; TRANS GUIDE	9-85291-203-0	01	1	0005-	●		●	●
179	PULLER; SPD METER GEAR	9-85210-181-0	01	1	9604-0004	●	●	●	●	●
180	PULLER; FRT & RR HUB	1-85210-002-0	01	1	9604-0004			●	●	●

186 182 189 193 230

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
182	REMOVER ASM	9-85210-095-0	01	1	9604-0004	●	●	●	●	●
186	ADJUSTER; BRAKE TOOL A KIT<SK9>	1-47165-066-0	01	1	0209-	●		●	●
186	ADJUSTER; BRAKE	1-85261-001-0	01	1	9604-0004	●	●	●	●	●
186	ADJUSTER; BRAKE	1-85261-001-0	01	1	0005-0208	●		●	●
186	ADJUSTER; BRAKE TOOL B KIT<SL1>	1-85261-001-0	01	1	0209-	●		●	●
189	TUBE; AIR BREATHER L=460	9-85291-414-0	01	1	9604-0004	●	●	●	●	●
189	TUBE; AIR BREATHER L=460	9-85291-414-0	01	1	0005-0208	●		●	●
189	TUBE; AIR BREATHER TOOL B KIT<SL1> L=460	9-85291-414-0	01	1	0209-	●		●	●
193	JACK ASM 10TON	1-85510-013-1	01	1	9604-0004	●	●	●	●	●
193	JACK ASM 10TON	1-85510-013-1	01	1	0005-0208	●		●	●
193	JACK ASM TOOL A KIT<SK9>,TOOL B KIT<SL1> 10TON	1-85510-013-1	01	1	0209-0504	●		●	●
193	JACK ASM TOOL A KIT<SK9>,TOOL B KIT<SL1> 10TON	8-97607-599-0	01	1	0505-	●		●	●
230	PUMP; GREASE	1-85556-007-2	01	1	9604-0004	●	●	●	●	●
230	PUMP; GREASE	1-85556-007-2	01	1	0005-0208	●		●	●
230	PUMP; GREASE TOOL B KIT<SL1>	1-85556-007-5	01	1	0209-	●		●	●

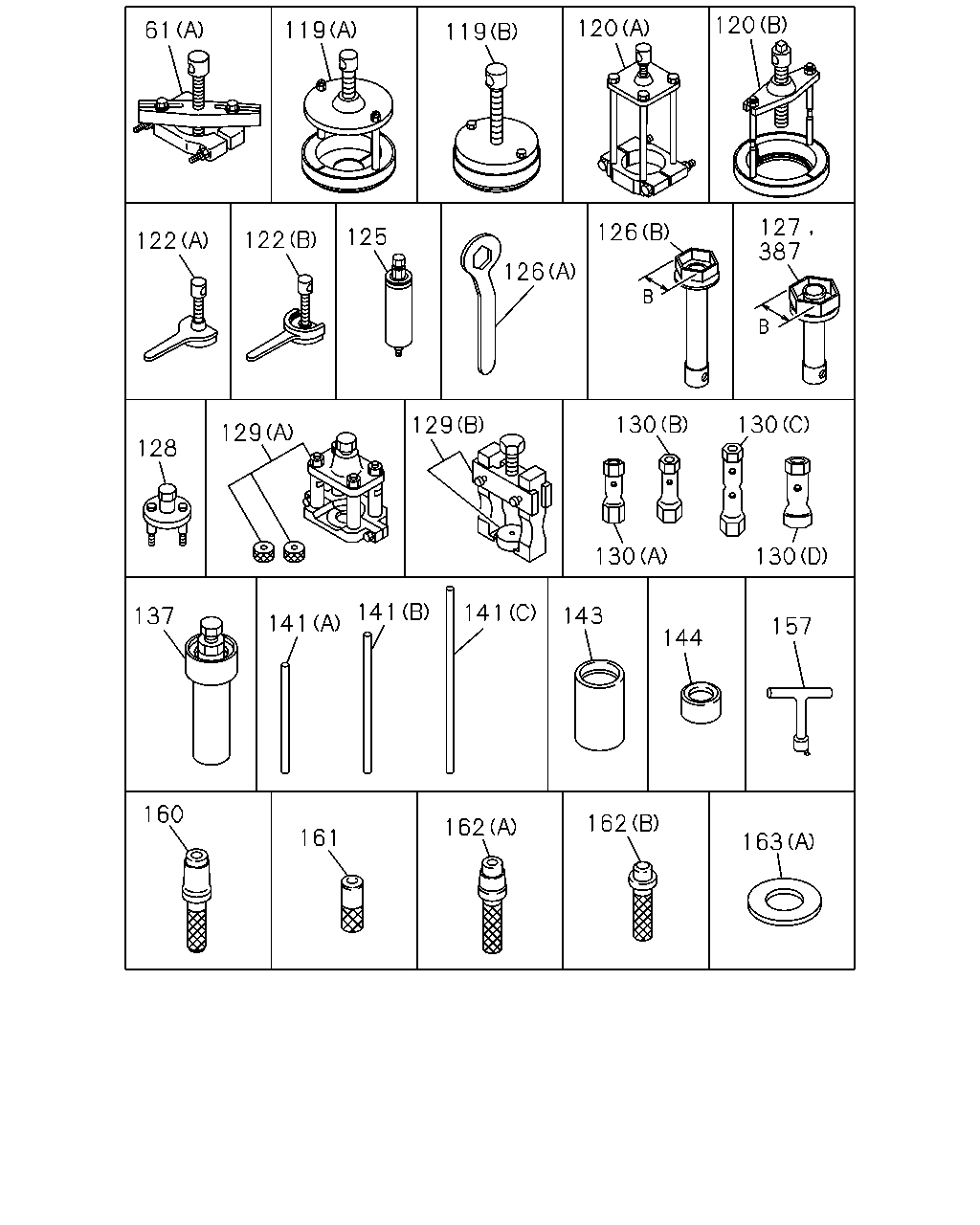

120 120 119 61 119 127 387 126 125 122 122 126 130 130 129 129 128 130 130 141 141 143 137 141 157 144 160 162 162 161 163

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
61	PULLER ASM; PILOT BRG (A)	1-85210-050-0	01	1	9604-0004	●	●	●	●	●
61	PULLER ASM; PILOT BRG (A)	1-85210-050-0	01	1	0005-	●		●	●
61	PULLER ASM; PILOT BRG (B)	9-85210-157-0	01	1	9604-0004	●	●	●	●	●
119	PULLER ASM; TOP GEAR BRG (B)	9-85210-186-0	01	1	9604-0004	●	●	●	●	●
119	PULLER ASM; TOP GEAR BRG MLD6D M/T(X5Q) (A)	9-85210-185-0	01	1	9604-0004				●	●
120	PULLER ASM; MAIN REAR BRG (A)	9-85210-169-0	01	1	9604-0004	●	●	●
120	PULLER ASM; MAIN REAR BRG MBJ5J M/T(Y1Y) (A)	9-85210-169-0	01	1	9604-0004				●	●
120	PULLER ASM; MAIN REAR BRG (A)	9-85210-169-0	01	1	0005-0405	●		●
120	PULLER ASM; MAIN REAR BRG MBJ5J M/T(Y1Y) (A)	9-85210-169-0	01	1	0005-0405				●
120	PULLER ASM; MAIN REAR BRG (A)	9-85210-169-0	01	1	0406-	●		●
120	PULLER ASM; MAIN REAR BRG MLD6Q M/T(X5J),MBJ5J M/T(Y1Y) (A)	9-85210-169-0	01	1	0406-				●
120	PULLER ASM; MAIN REAR BRG MLD6D M/T(X5Q) (B)	9-85210-192-0	01	1	9604-0004				●	●
122	PULLER ASM; COUNTER FRT (A)	9-85210-168-0	01	1	9604-0004	●	●	●
122	PULLER ASM; COUNTER FRT MBJ5J M/T(Y1Y) (A)	9-85210-168-0	01	1	9604-0004				●	●
122	PULLER ASM; COUNTER FRT (A)	9-85210-168-0	01	1	0005-0405	●		●
122	PULLER ASM; COUNTER FRT MBJ5J M/T(Y1Y) (A)	9-85210-168-0	01	1	0005-0405				●
122	PULLER ASM; COUNTER FRT (A)	9-85210-168-0	01	1	0406-	●		●
122	PULLER ASM; COUNTER FRT MLD6Q M/T(X5J),MBJ5J M/T(Y1Y) (A)	9-85210-168-0	01	1	0406-				●
122	PULLER ASM; COUNTER FRT MLD6D M/T(X5Q) (B)	9-85210-129-1	01	1	9604-0004				●	●
125	PULLER ASM; KING PIN L=360	9-85210-151-0	01	1	9604-0004			●	●	●
126	WRENCH; FRT HUB BRG NUT (A) L=257 B=63	9-85111-373-0	01	1	9604-9908			●	●	●
126	WRENCH; FRT HUB BRG NUT (B) B=98 L=435	1-85113-027-0	01	1	9909-0004			●	●	●
126	WRENCH; FRT HUB BRG NUT (B) B=98 L=435	1-85113-027-0	01	1	0005-	●		●	●
127	WRENCH ASM; HUB BRG NUT B=98 L=305	9-85113-533-0	01	1	9604-0004			●	●	●
128	PULLER ASM; STRG WHEEL	9-85210-099-0	01	1	9604-0004			●	●	●
128	PULLER ASM; STRG WHEEL	9-85210-099-0	01	1	0005-	●		●	●
129	PULLER ASM; PITMAN ARM (A)	9-85210-147-0	01	1	9604-0004			●	●	●
129	PULLER ASM; PITMAN ARM (B)	1-85210-011-0	01	1	0005-			●	●
130	WRENCH; BOX (D) B=46 & 54 L=165	9-85112-320-0	01	1	9604-0004			●	●	●
130	WRENCH; BOX (A) B=32 & 41 L=150	9-85112-322-0	01	1	9604-0004			●	●	●
130	WRENCH; BOX (C) B=36 & 41 L=200	9-85112-330-0	01	1	9604-0004			●	●	●
130	WRENCH; BOX (B) B=41 & 46 L=165	9-85113-401-0	01	1	9604-0004			●	●	●
137	PLIER; SHOE,RETURN SPRING	1-85210-025-0	01	1	9604-0004			●	●	●
137	PLIER; SHOE,RETURN SPRING	1-85210-025-0	01	1	0005-			●	●
141	HANDLE; WRENCH (C) OD=25 L=480	1-85116-011-0	01	1	0005-1501	●		●	●
141	HANDLE; WRENCH (C) OD=25 L=480	8-98257-407-0	01	1	1502-	●		●	●
141	HANDLE; WRENCH (C)	1-53619-083-1	01	1	9604-9606	●	●
141	HANDLE; WRENCH (C) OD=25 L=480	1-85116-011-0	01	1	9607-0004	●	●
141	HANDLE; WRENCH (B) OD=19 L=400	9-85114-306-0	01	1	9604-0004			●	●	●
141	HANDLE; WRENCH (A) OD=16 L=300	9-85114-307-0	01	1	9604-0004			●	●	●
143	GUIDE; BOOT,TIE ROD END	1-85229-011-0	01	1	0005-	●		●	●
144	BASE; BOOT GUIDE,TIE ROD END	1-85229-012-0	01	1	0005-	●		●	●
157	REPLACER KIT; RETURN SPR ID=16	1-85237-002-0	01	1	9604-0004			●	●	●
157	REPLACER KIT; RETURN SPR ID=16	1-85237-002-0	01	1	0005-			●	●
160	REMOVER; NEEDLE BRG L=228	1-85238-010-0	01	1	9604-0004			●	●	●
161	REMOVER; TIE ROD ARM	9-85141-603-0	01	1	9604-0004			●	●	●
162	SETTING TOOL; NEEDLE BRG (B) L=181	1-85238-008-0	01	1	9604-0004			●	●	●
162	SETTING TOOL; NEEDLE BRG (A) L=213	1-85238-009-0	01	1	9604-0004			●	●	●
163	TOOL; SETTING MLD6D M/T(X5Q) (B) L=195	1-85221-162-1	01	1	0005-0405				●
163	TOOL; SETTING MLD6Q M/T(X5J),MLD6D M/T(X5Q) (B) L=195	1-85221-162-1	01	1	0406-				●
163	TOOL; SETTING MLD6D M/T(X5Q) (C) L=150	1-85221-163-0	01	1	0005-0405				●
163	TOOL; SETTING MLD6Q M/T(X5J),MLD6D M/T(X5Q) (C) L=150	1-85221-163-0	01	1	0406-				●
163	TOOL; SETTING (A) L=220	9-85221-323-0	01	1	9604-0004	●	●	●
163	TOOL; SETTING MBJ5J M/T(Y1Y) (A) L=220	9-85221-323-0	01	1	9604-0004				●	●
163	TOOL; SETTING (D) OD=120	1-85221-164-0	01	1	9604-0004	●	●	●	●	●
163	TOOL; SETTING (B) L=150	9-85221-248-0	01	1	9604-0004	●	●	●	●	●
163	TOOL; SETTING (E) L=350	9-85221-310-0	01	1	9604-0004	●	●	●	●	●
163	TOOL; SETTING MLD6D M/T(X5Q) (B) L=195	1-85221-162-1	01	1	9604-0004				●	●
163	TOOL; SETTING MLD6D M/T(X5Q) (C) L=150	1-85221-163-0	01	1	9604-0004				●	●
387	WRENCH; HUB BRG NUT B=98 L=305	9-85113-533-2	01	1	0005-	●		●	●

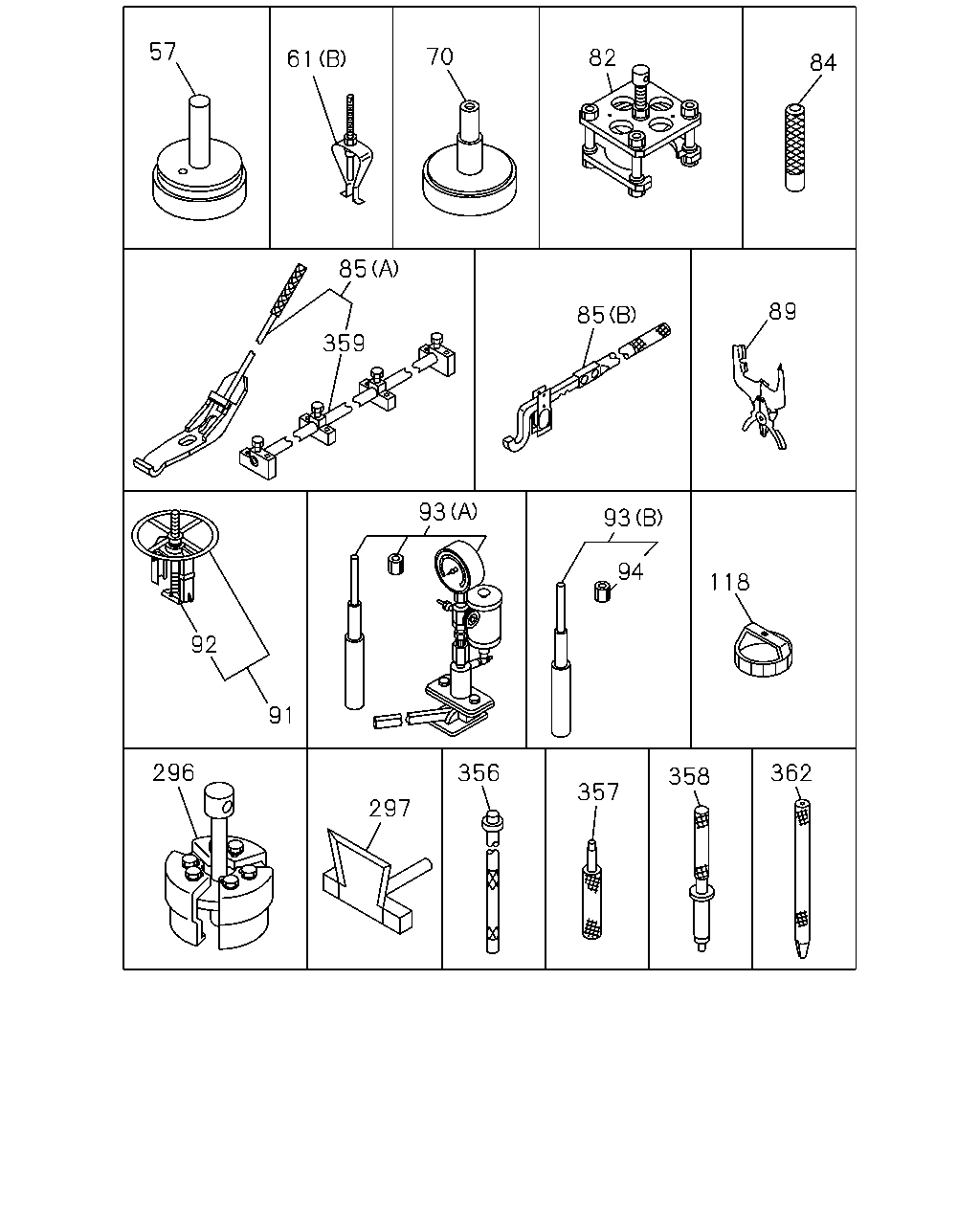

57 70 82 61 84 85 89 85 359 93 93 94 118 92 91 296 356 362 358 357 297

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
57	TOOL; SETTING CRANK GEAR ID=134.5	8-94396-819-0	01	1	9604-0004	●	●	●	●	●
61	PULLER ASM; PILOT BRG (A)	1-85210-050-0	01	1	9604-0004	●	●	●	●	●
61	PULLER ASM; PILOT BRG (A)	1-85210-050-0	01	1	0005-	●		●	●
61	PULLER ASM; PILOT BRG (B)	9-85210-157-0	01	1	9604-0004	●	●	●	●	●
70	TOOL; SETTING,OIL SEAL	8-94396-856-0	01	1	9604-0004	●	●	●	●	●
82	PULLER ASM; CR/SHF GEAR	8-94396-818-0	01	1	9604-0004	●	●	●	●	●
84	REPLACER; VALVE SEAL	8-94396-815-0	01	1	9604-9904	●	●	●	●	●
84	REPLACER; VALVE SEAL	8-94396-815-0	01	1	9905-0004	●	●	●		●
84	REPLACER; VALVE SEAL EXC. EURO2 SPECIFICATION<THN>	8-94396-815-0	01	1	9905-0004				●
84	REPLACER; VALVE SEAL	8-94396-815-0	01	1	0005-0010	●		●
84	REPLACER; VALVE SEAL EXC. EURO2 SPECIFICATION<THN>	8-94396-815-0	01	1	0005-0010				●
84	REPLACER; VALVE SEAL	8-94396-815-0	01	1	0011-	●		●
84	REPLACER; VALVE SEAL 6HH1 STD ENG(65L) EXC. EURO2 SPECIFICATION<THN>	8-94396-815-0	01	1	0011-				●
84	REPLACER; VALVE SEAL EURO2 SPECIFICATION<THN>	8-94391-525-0	01	1	9905-0004				●
85	REPLACER ASM; VALVE SPR (A)	8-94396-861-0	01	1	9604-9904	●	●	●	●	●
85	REPLACER ASM; VALVE SPR (A)	8-94396-861-0	01	1	9905-0004	●	●	●		●
85	REPLACER ASM; VALVE SPR EXC. EURO2 SPECIFICATION<THN> (A)	8-94396-861-0	01	1	9905-0004				●
85	REPLACER ASM; VALVE SPR EURO2 SPECIFICATION<THN> (B)	8-94391-528-0	01	1	9905-0010				●
85	REPLACER ASM; VALVE SPR 6HH1 STD ENG(65L) EURO2 SPECIFICATION<THN> (B)	8-94391-528-0	01	1	0011-0405				●
85	REPLACER ASM; VALVE SPR 6HH1 STD 4VALVE ENG(1A6) (B)	8-94391-528-0	01	1	0011-0405				●
85	REPLACER ASM; VALVE SPR 6HH1 STD ENG(65L) EURO2 SPECIFICATION<THN> (B)	8-94391-528-0	01	1	0406-				●
85	REPLACER ASM; VALVE SPR 6HK1 TCC ENG(81L) (B)	8-94391-528-0	01	1	0406-				●
89	TOOL; PISTON RING	1-85221-029-0	01	1	9604-0004	●	●	●	●	●
91	REPLACER ASM; CYL LINER	8-94396-849-0	01	1	9604-9904	●	●	●	●	●
91	REPLACER ASM; CYL LINER	8-94396-849-0	01	1	9905-0004	●	●	●		●
91	REPLACER ASM; CYL LINER EXC. EURO2 SPECIFICATION<THN>	8-94396-849-0	01	1	9905-0004				●
91	REPLACER ASM; CYL LINER	8-94396-849-0	01	1	0005-0010	●		●
91	REPLACER ASM; CYL LINER EXC. EURO2 SPECIFICATION<THN>	8-94396-849-0	01	1	0005-0010				●
91	REPLACER ASM; CYL LINER	8-94396-849-0	01	1	0011-	●		●
91	REPLACER ASM; CYL LINER 6HH1 STD ENG(65L) EXC. EURO2 SPECIFICATION<THN>	8-94396-849-0	01	1	0011-				●
91	REPLACER ASM; CYL LINER EURO2 SPECIFICATION<THN>	8-94391-526-0	01	1	9905-0004				●
92	ANKLE; REPLACER,CYL LINER	8-94396-821-0	01	1	9604-9904	●	●	●	●	●
92	ANKLE; REPLACER,CYL LINER	8-94396-821-0	01	1	9905-0004	●	●	●		●
92	ANKLE; REPLACER,CYL LINER EXC. EURO2 SPECIFICATION<THN>	8-94396-821-0	01	1	9905-0004				●
92	ANKLE; REPLACER,CYL LINER	8-94396-821-0	01	1	0005-0010	●		●
92	ANKLE; REPLACER,CYL LINER EXC. EURO2 SPECIFICATION<THN>	8-94396-821-0	01	1	0005-0010				●
92	ANKLE; REPLACER,CYL LINER	8-94396-821-0	01	1	0011-	●		●
92	ANKLE; REPLACER,CYL LINER 6HH1 STD ENG(65L) EXC. EURO2 SPECIFICATION<THN>	8-94396-821-0	01	1	0011-				●
92	ANKLE; REPLACER,CYL LINER EURO2 SPECIFICATION<THN>	8-94391-554-0	01	1	9905-0004				●
93	SETTING KIT; VALVE GUIDE (A)	1-85220-001-0	01	1	9604-9909	●	●	●	●	●
93	SETTING KIT; VALVE GUIDE (A)	1-85220-001-0	01	1	9910-0004	●	●	●		●
93	SETTING KIT; VALVE GUIDE EXC. EURO2 SPECIFICATION<THN> (A)	1-85220-001-0	01	1	9910-0004				●
93	SETTING KIT; VALVE GUIDE (A)	1-85220-001-0	01	1	0005-0010	●		●
93	SETTING KIT; VALVE GUIDE EXC. EURO2 SPECIFICATION<THN> (A)	1-85220-001-0	01	1	0005-0010				●
93	SETTING KIT; VALVE GUIDE (A)	1-85220-001-0	01	1	0011-	●		●
93	SETTING KIT; VALVE GUIDE 6HH1 STD ENG(65L) EXC. EURO2 SPECIFICATION<THN> (A)	1-85220-001-0	01	1	0011-				●
93	SETTING KIT; VALVE GUIDE EURO2 SPECIFICATION<THN> (B)	8-97600-910-0	01	1	9910-0004				●
94	RING; VALVE GUIDE SET EURO2 SPECIFICATION<THN>	8-97600-912-0	01	1	9910-0004				●
118	WRENCH; OIL FILTER EXC. PARTIAL OIL FILTER ELEMENT TYPE<KC1>	1-85221-097-0	01	1	9604-9912	●	●	●	●	●
118	WRENCH; OIL FILTER	1-85221-097-0	01	1	0001-0004	●	●	●	●	●
296	REPLACER; SLINGER	8-94396-858-0	01	1	9604-0004	●	●	●	●	●
297	CUTTER; SEAL,OIL PAN	8-94393-112-0	01	1	9604-0004	●	●	●	●	●
356	TOOL; SETTING,OIL SEAL,CYL HEAD 6HK1 TCC ENG(81L) AIR CONDITIONER MANUAL CONTROL<C60>	8-94391-527-0	01	1	0406-				●
357	REPLACER; NOZZLE SLEEVE EURO2 SPECIFICATION<THN>	8-94391-555-0	01	1	9905-0010				●
357	REPLACER; NOZZLE SLEEVE 6HH1 STD ENG(65L) EURO2 SPECIFICATION<THN>	8-94391-555-0	01	1	0011-0405				●
357	REPLACER; NOZZLE SLEEVE 6HH1 STD 4VALVE ENG(1A6)	8-94391-555-0	01	1	0011-0405				●
357	REPLACER; NOZZLE SLEEVE 6HH1 STD ENG(65L) EURO2 SPECIFICATION<THN>	8-94391-555-0	01	1	0406-				●
357	REPLACER; NOZZLE SLEEVE 6HK1 TCC ENG(81L)	8-94391-555-0	01	1	0406-				●
358	PLACER; NOZZLE SLEEVE EURO2 SPECIFICATION<THN>	8-94391-556-0	01	1	9905-0010				●
358	PLACER; NOZZLE SLEEVE 6HH1 STD ENG(65L) EURO2 SPECIFICATION<THN>	8-94391-556-0	01	1	0011-0405				●
358	PLACER; NOZZLE SLEEVE 6HH1 STD 4VALVE ENG(1A6)	8-94391-556-0	01	1	0011-0405				●
358	PLACER; NOZZLE SLEEVE 6HH1 STD ENG(65L) EURO2 SPECIFICATION<THN>	8-94391-556-0	01	1	0406-				●
358	PLACER; NOZZLE SLEEVE 6HK1 TCC ENG(81L)	8-94391-556-0	01	1	0406-				●
359	PIVOT EURO2 SPECIFICATION<THN>	8-94396-862-0	01	1	9905-0010				●
359	PIVOT 6HH1 STD ENG(65L) EURO2 SPECIFICATION<THN>	8-94396-862-0	01	1	0011-0405				●
359	PIVOT 6HH1 STD 4VALVE ENG(1A6)	8-94396-862-0	01	1	0011-0405				●
359	PIVOT 6HH1 STD ENG(65L) EURO2 SPECIFICATION<THN>	8-94396-862-0	01	1	0406-				●
359	PIVOT 6HK1 TCC ENG(81L)	8-94396-862-0	01	1	0406-				●
362	PLACER; GUIDE BRIDGE EURO2 SPECIFICATION<THN>	8-94392-014-0	01	1	9905-0004				●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
