Sayfa 8-75 - Isuzu EPC

8-75 — CONDENSER (#34495) — 169 parça

30 150 1 150 79 35 35 150 30 35 150 35 79 1 79 35

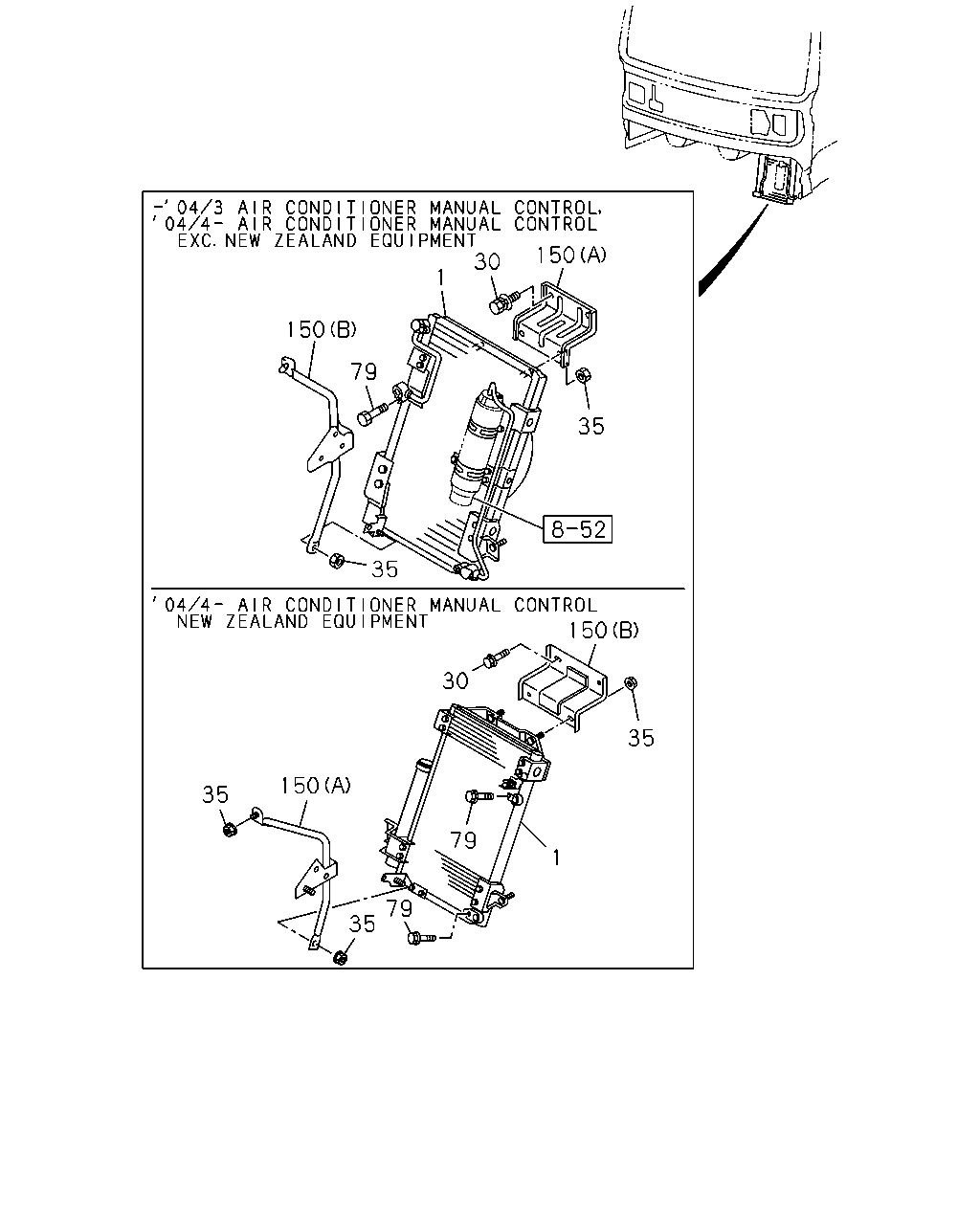

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	CONDENSER; A/C AIR CONDITIONER MANUAL CONTROL<C60> NEW ZEALAND EQUIPMENT(PK5)	1-83534-250-3	01	1	0404-	●
1	CONDENSER; A/C AIR CONDITIONER MANUAL CONTROL<C60>	1-83534-211-2	01	1	0311-0403	●	●
1	CONDENSER; A/C AIR CONDITIONER MANUAL CONTROL<C60>	1-83534-211-2	01	1	0404-		●
1	CONDENSER; A/C AIR CONDITIONER MANUAL CONTROL<C60> EXC. NEW ZEALAND EQUIPMENT(PK5)	1-83534-211-2	01	1	0404-	●
30	BOLT; CONDENSER,A/C AIR CONDITIONER MANUAL CONTROL<C60> M8X24.5 W/LK&PL WASHER	8-94279-208-0	02	1	0311-0904	●	●
30	BOLT; CONDENSER,A/C AIR CONDITIONER MANUAL CONTROL<C60> M8X24.5 W/LK&PL WASHER	8-98059-720-0	02	1	0905-	●	●
35	NUT; CONDENSER,A/C AIR CONDITIONER MANUAL CONTROL<C60> M8 FLANGE	0-91150-108-0	05	1	0311-0602	●	●
35	NUT; CONDENSER,A/C AIR CONDITIONER MANUAL CONTROL<C60> M8 FLANGE	0-91180-108-0	05	1	0603-	●	●
79	BOLT; CONDENSER BRKT AIR CONDITIONER MANUAL CONTROL<C60> NEW ZEALAND EQUIPMENT(PK5) M6X25 FLANGE	0-28080-625-0	02	1	0404-0512	●
79	BOLT; CONDENSER BRKT AIR CONDITIONER MANUAL CONTROL<C60> NEW ZEALAND EQUIPMENT(PK5) M6X25 FLANGE	0-28050-625-0	02	1	0601-	●
79	BOLT; CONDENSER BRKT AIR CONDITIONER MANUAL CONTROL<C60> M8X35	8-97103-452-0	01	1	0311-0403	●	●
79	BOLT; CONDENSER BRKT AIR CONDITIONER MANUAL CONTROL<C60> M8X35	8-97103-452-0	01	1	0404-		●
79	BOLT; CONDENSER BRKT AIR CONDITIONER MANUAL CONTROL<C60> EXC. NEW ZEALAND EQUIPMENT(PK5) M8X35	8-97103-452-0	01	1	0404-	●
150	BRACKET; CONDENSER,MTG AIR CONDITIONER MANUAL CONTROL<C60> NEW ZEALAND EQUIPMENT(PK5) (B)	1-83571-986-0	01	1	0404-	●
150	BRACKET; CONDENSER,MTG AIR CONDITIONER MANUAL CONTROL<C60> NEW ZEALAND EQUIPMENT(PK5) (A)	1-83573-099-2	01	1	0404-	●
150	BRACKET; CONDENSER,MTG AIR CONDITIONER MANUAL CONTROL<C60> (B)	1-83571-785-2	01	1	0311-0403	●	●
150	BRACKET; CONDENSER,MTG AIR CONDITIONER MANUAL CONTROL<C60> (B)	1-83571-785-2	01	1	0404-		●
150	BRACKET; CONDENSER,MTG AIR CONDITIONER MANUAL CONTROL<C60> EXC. NEW ZEALAND EQUIPMENT(PK5) (B)	1-83571-785-2	01	1	0404-	●
150	BRACKET; CONDENSER,MTG AIR CONDITIONER MANUAL CONTROL<C60> (A)	1-83571-786-1	01	1	0311-0403	●	●
150	BRACKET; CONDENSER,MTG AIR CONDITIONER MANUAL CONTROL<C60> (A)	1-83571-786-1	01	1	0404-		●
150	BRACKET; CONDENSER,MTG AIR CONDITIONER MANUAL CONTROL<C60> EXC. NEW ZEALAND EQUIPMENT(PK5) (A)	1-83571-786-1	01	1	0404-	●

1 187 129 188 65 11 4 15 29 12 18 65 9 5 187 201 9 22 26 60 29 27 27 29

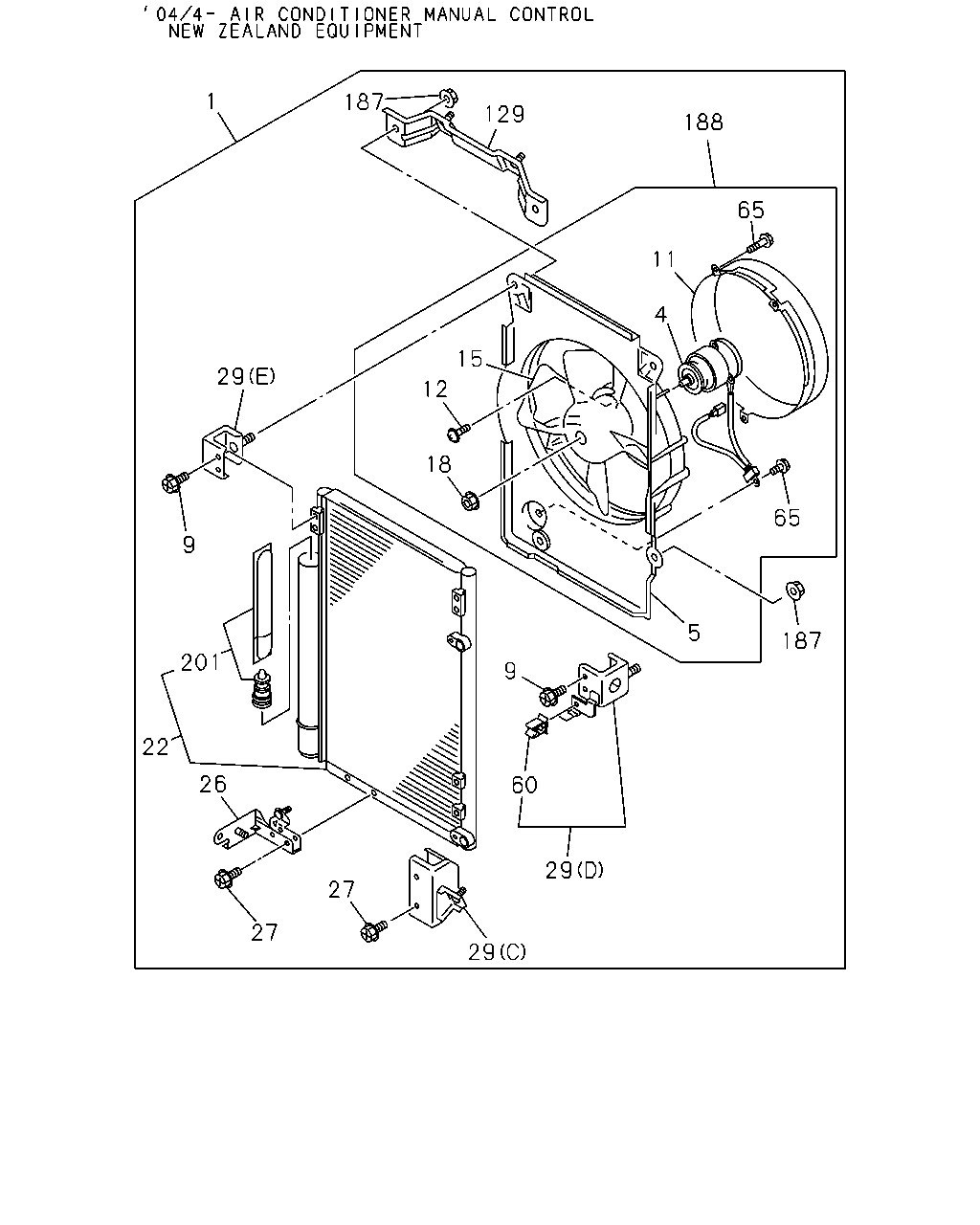

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	CONDENSER; A/C AIR CONDITIONER MANUAL CONTROL<C60> NEW ZEALAND EQUIPMENT(PK5)	1-83534-250-3	01	1	0404-	●
1	CONDENSER; A/C AIR CONDITIONER MANUAL CONTROL<C60>	1-83534-211-2	01	1	0311-0403	●	●
1	CONDENSER; A/C AIR CONDITIONER MANUAL CONTROL<C60>	1-83534-211-2	01	1	0404-		●
1	CONDENSER; A/C AIR CONDITIONER MANUAL CONTROL<C60> EXC. NEW ZEALAND EQUIPMENT(PK5)	1-83534-211-2	01	1	0404-	●
4	MOTOR ASM; FAN AIR CONDITIONER MANUAL CONTROL<C60> NEW ZEALAND EQUIPMENT(PK5)	1-83561-139-3	01	1	0404-0703	●
4	MOTOR ASM; FAN AIR CONDITIONER MANUAL CONTROL<C60> NEW ZEALAND EQUIPMENT(PK5)	8-98014-458-0	01	1	0704-	●
4	MOTOR ASM; FAN AIR CONDITIONER MANUAL CONTROL<C60>	1-83561-156-1	01	1	0311-0403	●	●
4	MOTOR ASM; FAN AIR CONDITIONER MANUAL CONTROL<C60>	1-83561-156-1	01	1	0404-		●
4	MOTOR ASM; FAN AIR CONDITIONER MANUAL CONTROL<C60> EXC. NEW ZEALAND EQUIPMENT(PK5)	1-83561-156-1	01	1	0404-	●
5	SHROUD; FAN MOTOR AIR CONDITIONER MANUAL CONTROL<C60> NEW ZEALAND EQUIPMENT(PK5)	1-83539-380-0	01	1	0404-	●
5	SHROUD; FAN MOTOR AIR CONDITIONER MANUAL CONTROL<C60>	1-83539-343-0	01	1	0311-0403	●	●
5	SHROUD; FAN MOTOR AIR CONDITIONER MANUAL CONTROL<C60>	1-83539-343-0	01	1	0404-		●
5	SHROUD; FAN MOTOR AIR CONDITIONER MANUAL CONTROL<C60> EXC. NEW ZEALAND EQUIPMENT(PK5)	1-83539-343-0	01	1	0404-	●
9	BOLT; BRKT AIR CONDITIONER MANUAL CONTROL<C60> NEW ZEALAND EQUIPMENT(PK5) M6X14	1-83539-382-0	04	1	0404-	●
11	COVER; SHROUD AIR CONDITIONER MANUAL CONTROL<C60> NEW ZEALAND EQUIPMENT(PK5)	1-83539-381-0	01	1	0404-	●
12	BOLT; FAN MOTOR AIR CONDITIONER MANUAL CONTROL<C60> NEW ZEALAND EQUIPMENT(PK5)	1-83539-314-0	03	1	0404-	●
15	FAN; MOTOR AIR CONDITIONER MANUAL CONTROL<C60> NEW ZEALAND EQUIPMENT(PK5)	1-83561-140-0	01	1	0404-	●
15	FAN; MOTOR AIR CONDITIONER MANUAL CONTROL<C60>	1-83561-158-0	01	1	0311-0403	●	●
15	FAN; MOTOR AIR CONDITIONER MANUAL CONTROL<C60>	1-83561-158-0	01	1	0404-		●
15	FAN; MOTOR AIR CONDITIONER MANUAL CONTROL<C60> EXC. NEW ZEALAND EQUIPMENT(PK5)	1-83561-158-0	01	1	0404-	●
18	NUT; FAN,CENTER AIR CONDITIONER MANUAL CONTROL<C60> NEW ZEALAND EQUIPMENT(PK5)	1-83539-313-0	01	1	0404-	●
18	NUT; FAN,CENTER AIR CONDITIONER MANUAL CONTROL<C60>	8-97018-672-0	01	1	0311-0403	●	●
18	NUT; FAN,CENTER AIR CONDITIONER MANUAL CONTROL<C60>	8-97018-672-0	01	1	0404-		●
18	NUT; FAN,CENTER AIR CONDITIONER MANUAL CONTROL<C60> EXC. NEW ZEALAND EQUIPMENT(PK5)	8-97018-672-0	01	1	0404-	●
22	CONDENSER ASM; A/C AIR CONDITIONER MANUAL CONTROL<C60> NEW ZEALAND EQUIPMENT(PK5)	1-83534-261-0	01	1	0404-1409	●
22	CONDENSER ASM; A/C AIR CONDITIONER MANUAL CONTROL<C60> NEW ZEALAND EQUIPMENT(PK5)	8-98275-189-0	01	1	1410-	●
22	CONDENSER ASM; A/C AIR CONDITIONER MANUAL CONTROL<C60>	1-83534-224-0	01	1	0311-0403	●	●
22	CONDENSER ASM; A/C AIR CONDITIONER MANUAL CONTROL<C60>	1-83534-224-0	01	1	0404-		●
22	CONDENSER ASM; A/C AIR CONDITIONER MANUAL CONTROL<C60> EXC. NEW ZEALAND EQUIPMENT(PK5)	1-83534-224-0	01	1	0404-	●
26	BRACKET; LOW AIR CONDITIONER MANUAL CONTROL<C60> NEW ZEALAND EQUIPMENT(PK5)	1-83573-281-0	01	1	0404-	●
27	BOLT; BRKT,LOW SIDE AIR CONDITIONER MANUAL CONTROL<C60> NEW ZEALAND EQUIPMENT(PK5) M6X14	1-83539-382-0	02	1	0404-	●
27	BOLT; BRKT,LOW SIDE AIR CONDITIONER MANUAL CONTROL<C60> NEW ZEALAND EQUIPMENT(PK5) M5X25	8-97178-770-0	02	1	0404-	●
27	BOLT; BRKT,LOW SIDE AIR CONDITIONER MANUAL CONTROL<C60>	1-83579-975-0	02	1	0311-0403	●	●
27	BOLT; BRKT,LOW SIDE AIR CONDITIONER MANUAL CONTROL<C60>	1-83579-975-0	02	1	0404-		●
27	BOLT; BRKT,LOW SIDE AIR CONDITIONER MANUAL CONTROL<C60> EXC. NEW ZEALAND EQUIPMENT(PK5)	1-83579-975-0	02	1	0404-	●
29	BRACKET; SIDE AIR CONDITIONER MANUAL CONTROL<C60> NEW ZEALAND EQUIPMENT(PK5) (E)	1-83573-278-0	01	1	0404-	●
29	BRACKET; SIDE AIR CONDITIONER MANUAL CONTROL<C60> NEW ZEALAND EQUIPMENT(PK5) (D)	1-83573-279-0	01	1	0404-	●
29	BRACKET; SIDE AIR CONDITIONER MANUAL CONTROL<C60> NEW ZEALAND EQUIPMENT(PK5) (C)	1-83573-280-0	01	1	0404-	●
29	BRACKET; SIDE AIR CONDITIONER MANUAL CONTROL<C60> (A)	1-83539-227-1	01	1	0311-0403	●	●
29	BRACKET; SIDE AIR CONDITIONER MANUAL CONTROL<C60> (A)	1-83539-227-1	01	1	0404-		●
29	BRACKET; SIDE AIR CONDITIONER MANUAL CONTROL<C60> EXC. NEW ZEALAND EQUIPMENT(PK5) (A)	1-83539-227-1	01	1	0404-	●
29	BRACKET; SIDE AIR CONDITIONER MANUAL CONTROL<C60> (B)	1-83539-348-1	01	1	0311-0403	●	●
29	BRACKET; SIDE AIR CONDITIONER MANUAL CONTROL<C60> (B)	1-83539-348-1	01	1	0404-		●
29	BRACKET; SIDE AIR CONDITIONER MANUAL CONTROL<C60> EXC. NEW ZEALAND EQUIPMENT(PK5) (B)	1-83539-348-1	01	1	0404-	●
60	CLIP; PIPE AIR CONDITIONER MANUAL CONTROL<C60> NEW ZEALAND EQUIPMENT(PK5)	1-83574-266-0	01	1	0404-	●
60	CLIP; PIPE AIR CONDITIONER MANUAL CONTROL<C60>	1-83539-234-0	01	1	0311-0403	●	●
60	CLIP; PIPE AIR CONDITIONER MANUAL CONTROL<C60>	1-83539-234-0	01	1	0404-		●
60	CLIP; PIPE AIR CONDITIONER MANUAL CONTROL<C60> EXC. NEW ZEALAND EQUIPMENT(PK5)	1-83539-234-0	01	1	0404-	●
65	BOLT; SHROUD AIR CONDITIONER MANUAL CONTROL<C60> NEW ZEALAND EQUIPMENT(PK5) M6X16	8-97096-525-0	04	1	0404-	●
65	BOLT; SHROUD AIR CONDITIONER MANUAL CONTROL<C60>	8-97117-796-0	03	1	0311-0403	●	●
65	BOLT; SHROUD AIR CONDITIONER MANUAL CONTROL<C60>	8-97117-796-0	03	1	0404-		●
65	BOLT; SHROUD AIR CONDITIONER MANUAL CONTROL<C60> EXC. NEW ZEALAND EQUIPMENT(PK5)	8-97117-796-0	03	1	0404-	●
129	BRACKET; UPR AIR CONDITIONER MANUAL CONTROL<C60> NEW ZEALAND EQUIPMENT(PK5)	1-83573-129-0	01	1	0404-	●
129	BRACKET; UPR AIR CONDITIONER MANUAL CONTROL<C60>	1-83539-347-1	01	1	0311-0403	●	●
129	BRACKET; UPR AIR CONDITIONER MANUAL CONTROL<C60>	1-83539-347-1	01	1	0404-		●
129	BRACKET; UPR AIR CONDITIONER MANUAL CONTROL<C60> EXC. NEW ZEALAND EQUIPMENT(PK5)	1-83539-347-1	01	1	0404-	●
187	NUT; SHROUD AIR CONDITIONER MANUAL CONTROL<C60> NEW ZEALAND EQUIPMENT(PK5) M6	1-83539-354-0	04	1	0404-	●
188	BLOWER ASM; SHROUD AIR CONDITIONER MANUAL CONTROL<C60> NEW ZEALAND EQUIPMENT(PK5)	1-83561-184-1	01	1	0404-	●
201	DRYER ASM; CONDENSER AIR CONDITIONER MANUAL CONTROL<C60> NEW ZEALAND EQUIPMENT(PK5)	1-83535-097-0	01	1	0404-1409	●
201	DRYER ASM; CONDENSER AIR CONDITIONER MANUAL CONTROL<C60> NEW ZEALAND EQUIPMENT(PK5)	8-98282-482-0	01	1	1410-	●

1 4 169 59 5 169 65 59 12 43 106 22 13 15 55 127 169 18 59 19 100 60 43 27 29 29

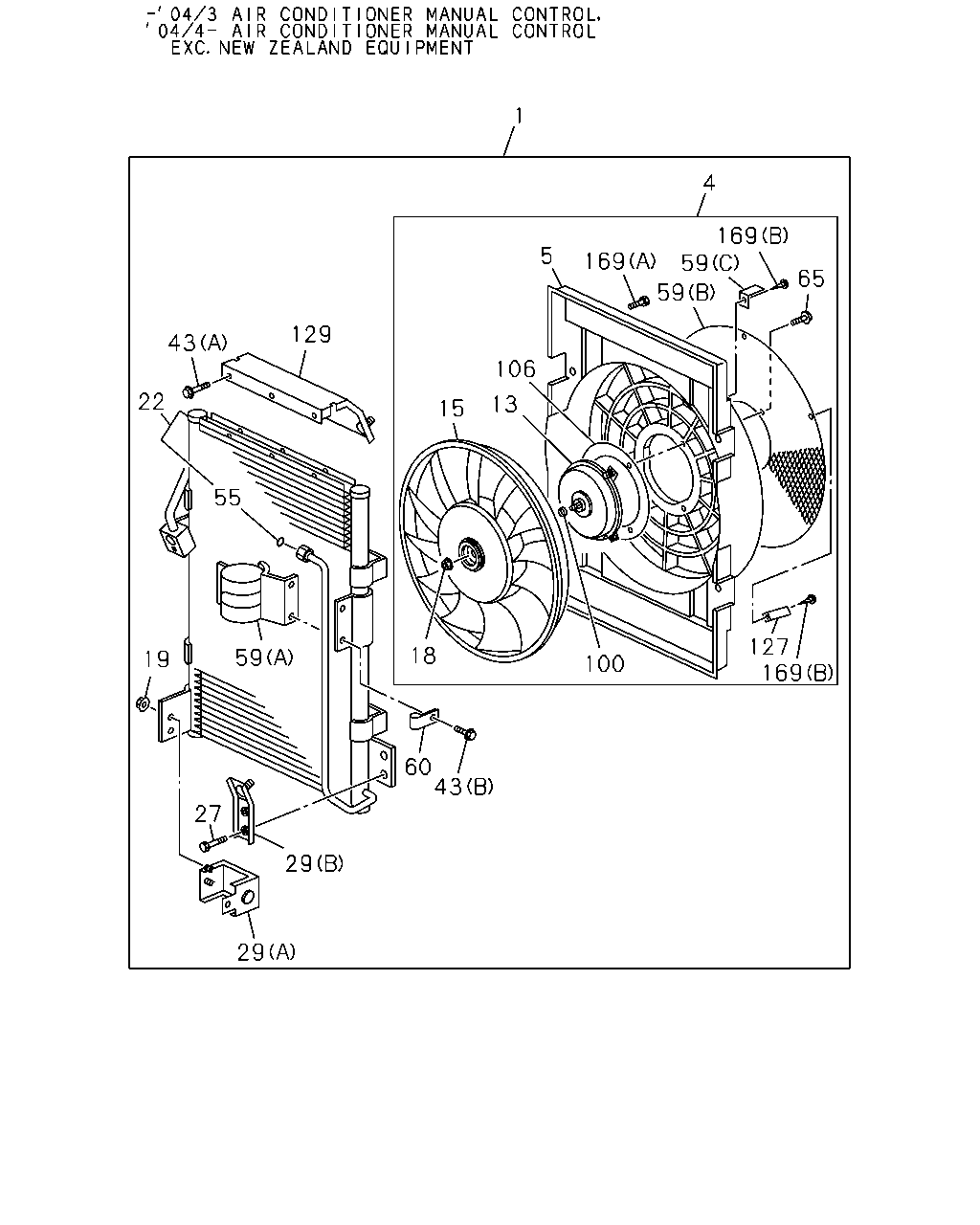

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	CONDENSER; A/C AIR CONDITIONER MANUAL CONTROL<C60> NEW ZEALAND EQUIPMENT(PK5)	1-83534-250-3	01	1	0404-	●
1	CONDENSER; A/C AIR CONDITIONER MANUAL CONTROL<C60>	1-83534-211-2	01	1	0311-0403	●	●
1	CONDENSER; A/C AIR CONDITIONER MANUAL CONTROL<C60>	1-83534-211-2	01	1	0404-		●
1	CONDENSER; A/C AIR CONDITIONER MANUAL CONTROL<C60> EXC. NEW ZEALAND EQUIPMENT(PK5)	1-83534-211-2	01	1	0404-	●
4	MOTOR ASM; FAN AIR CONDITIONER MANUAL CONTROL<C60> NEW ZEALAND EQUIPMENT(PK5)	1-83561-139-3	01	1	0404-0703	●
4	MOTOR ASM; FAN AIR CONDITIONER MANUAL CONTROL<C60> NEW ZEALAND EQUIPMENT(PK5)	8-98014-458-0	01	1	0704-	●
4	MOTOR ASM; FAN AIR CONDITIONER MANUAL CONTROL<C60>	1-83561-156-1	01	1	0311-0403	●	●
4	MOTOR ASM; FAN AIR CONDITIONER MANUAL CONTROL<C60>	1-83561-156-1	01	1	0404-		●
4	MOTOR ASM; FAN AIR CONDITIONER MANUAL CONTROL<C60> EXC. NEW ZEALAND EQUIPMENT(PK5)	1-83561-156-1	01	1	0404-	●
5	SHROUD; FAN MOTOR AIR CONDITIONER MANUAL CONTROL<C60> NEW ZEALAND EQUIPMENT(PK5)	1-83539-380-0	01	1	0404-	●
5	SHROUD; FAN MOTOR AIR CONDITIONER MANUAL CONTROL<C60>	1-83539-343-0	01	1	0311-0403	●	●
5	SHROUD; FAN MOTOR AIR CONDITIONER MANUAL CONTROL<C60>	1-83539-343-0	01	1	0404-		●
5	SHROUD; FAN MOTOR AIR CONDITIONER MANUAL CONTROL<C60> EXC. NEW ZEALAND EQUIPMENT(PK5)	1-83539-343-0	01	1	0404-	●
12	BOLT; FAN MOTOR AIR CONDITIONER MANUAL CONTROL<C60> NEW ZEALAND EQUIPMENT(PK5)	1-83539-314-0	03	1	0404-	●
13	MOTOR; FAN AIR CONDITIONER MANUAL CONTROL<C60>	1-83561-157-1	01	1	0311-0403	●	●
13	MOTOR; FAN AIR CONDITIONER MANUAL CONTROL<C60>	1-83561-157-1	01	1	0404-		●
13	MOTOR; FAN AIR CONDITIONER MANUAL CONTROL<C60> EXC. NEW ZEALAND EQUIPMENT(PK5)	1-83561-157-1	01	1	0404-	●
15	FAN; MOTOR AIR CONDITIONER MANUAL CONTROL<C60> NEW ZEALAND EQUIPMENT(PK5)	1-83561-140-0	01	1	0404-	●
15	FAN; MOTOR AIR CONDITIONER MANUAL CONTROL<C60>	1-83561-158-0	01	1	0311-0403	●	●
15	FAN; MOTOR AIR CONDITIONER MANUAL CONTROL<C60>	1-83561-158-0	01	1	0404-		●
15	FAN; MOTOR AIR CONDITIONER MANUAL CONTROL<C60> EXC. NEW ZEALAND EQUIPMENT(PK5)	1-83561-158-0	01	1	0404-	●
18	NUT; FAN,CENTER AIR CONDITIONER MANUAL CONTROL<C60> NEW ZEALAND EQUIPMENT(PK5)	1-83539-313-0	01	1	0404-	●
18	NUT; FAN,CENTER AIR CONDITIONER MANUAL CONTROL<C60>	8-97018-672-0	01	1	0311-0403	●	●
18	NUT; FAN,CENTER AIR CONDITIONER MANUAL CONTROL<C60>	8-97018-672-0	01	1	0404-		●
18	NUT; FAN,CENTER AIR CONDITIONER MANUAL CONTROL<C60> EXC. NEW ZEALAND EQUIPMENT(PK5)	8-97018-672-0	01	1	0404-	●
19	NUT; BRKT AIR CONDITIONER MANUAL CONTROL<C60>	1-83539-235-0	02	1	0311-0403	●	●
19	NUT; BRKT AIR CONDITIONER MANUAL CONTROL<C60>	1-83539-235-0	02	1	0404-		●
19	NUT; BRKT AIR CONDITIONER MANUAL CONTROL<C60> EXC. NEW ZEALAND EQUIPMENT(PK5)	1-83539-235-0	02	1	0404-	●
22	CONDENSER ASM; A/C AIR CONDITIONER MANUAL CONTROL<C60> NEW ZEALAND EQUIPMENT(PK5)	1-83534-261-0	01	1	0404-1409	●
22	CONDENSER ASM; A/C AIR CONDITIONER MANUAL CONTROL<C60> NEW ZEALAND EQUIPMENT(PK5)	8-98275-189-0	01	1	1410-	●
22	CONDENSER ASM; A/C AIR CONDITIONER MANUAL CONTROL<C60>	1-83534-224-0	01	1	0311-0403	●	●
22	CONDENSER ASM; A/C AIR CONDITIONER MANUAL CONTROL<C60>	1-83534-224-0	01	1	0404-		●
22	CONDENSER ASM; A/C AIR CONDITIONER MANUAL CONTROL<C60> EXC. NEW ZEALAND EQUIPMENT(PK5)	1-83534-224-0	01	1	0404-	●
27	BOLT; BRKT,LOW SIDE AIR CONDITIONER MANUAL CONTROL<C60> NEW ZEALAND EQUIPMENT(PK5) M6X14	1-83539-382-0	02	1	0404-	●
27	BOLT; BRKT,LOW SIDE AIR CONDITIONER MANUAL CONTROL<C60> NEW ZEALAND EQUIPMENT(PK5) M5X25	8-97178-770-0	02	1	0404-	●
27	BOLT; BRKT,LOW SIDE AIR CONDITIONER MANUAL CONTROL<C60>	1-83579-975-0	02	1	0311-0403	●	●
27	BOLT; BRKT,LOW SIDE AIR CONDITIONER MANUAL CONTROL<C60>	1-83579-975-0	02	1	0404-		●
27	BOLT; BRKT,LOW SIDE AIR CONDITIONER MANUAL CONTROL<C60> EXC. NEW ZEALAND EQUIPMENT(PK5)	1-83579-975-0	02	1	0404-	●
29	BRACKET; SIDE AIR CONDITIONER MANUAL CONTROL<C60> NEW ZEALAND EQUIPMENT(PK5) (E)	1-83573-278-0	01	1	0404-	●
29	BRACKET; SIDE AIR CONDITIONER MANUAL CONTROL<C60> NEW ZEALAND EQUIPMENT(PK5) (D)	1-83573-279-0	01	1	0404-	●
29	BRACKET; SIDE AIR CONDITIONER MANUAL CONTROL<C60> NEW ZEALAND EQUIPMENT(PK5) (C)	1-83573-280-0	01	1	0404-	●
29	BRACKET; SIDE AIR CONDITIONER MANUAL CONTROL<C60> (A)	1-83539-227-1	01	1	0311-0403	●	●
29	BRACKET; SIDE AIR CONDITIONER MANUAL CONTROL<C60> (A)	1-83539-227-1	01	1	0404-		●
29	BRACKET; SIDE AIR CONDITIONER MANUAL CONTROL<C60> EXC. NEW ZEALAND EQUIPMENT(PK5) (A)	1-83539-227-1	01	1	0404-	●
29	BRACKET; SIDE AIR CONDITIONER MANUAL CONTROL<C60> (B)	1-83539-348-1	01	1	0311-0403	●	●
29	BRACKET; SIDE AIR CONDITIONER MANUAL CONTROL<C60> (B)	1-83539-348-1	01	1	0404-		●
29	BRACKET; SIDE AIR CONDITIONER MANUAL CONTROL<C60> EXC. NEW ZEALAND EQUIPMENT(PK5) (B)	1-83539-348-1	01	1	0404-	●
43	BOLT; BRKT,CONDENSER AIR CONDITIONER MANUAL CONTROL<C60> (B)	1-83579-975-0	02	1	0311-0403	●	●
43	BOLT; BRKT,CONDENSER AIR CONDITIONER MANUAL CONTROL<C60> (B)	1-83579-975-0	02	1	0404-		●
43	BOLT; BRKT,CONDENSER AIR CONDITIONER MANUAL CONTROL<C60> EXC. NEW ZEALAND EQUIPMENT(PK5) (B)	1-83579-975-0	02	1	0404-	●
43	BOLT; BRKT,CONDENSER AIR CONDITIONER MANUAL CONTROL<C60> (A)	8-97018-671-0	03	1	0311-0403	●	●
43	BOLT; BRKT,CONDENSER AIR CONDITIONER MANUAL CONTROL<C60> (A)	8-97018-671-0	03	1	0404-		●
43	BOLT; BRKT,CONDENSER AIR CONDITIONER MANUAL CONTROL<C60> EXC. NEW ZEALAND EQUIPMENT(PK5) (A)	8-97018-671-0	03	1	0404-	●
55	GASKET; PIPE AIR CONDITIONER MANUAL CONTROL<C60>	8-97161-776-0	01	1	0311-0403	●	●
55	GASKET; PIPE AIR CONDITIONER MANUAL CONTROL<C60>	8-97161-776-0	01	1	0404-		●
55	GASKET; PIPE AIR CONDITIONER MANUAL CONTROL<C60> EXC. NEW ZEALAND EQUIPMENT(PK5)	8-97161-776-0	01	1	0404-	●
59	BRACKET; CONDENSER AIR CONDITIONER MANUAL CONTROL<C60> (A)	1-83539-228-2	01	1	0311-0403	●	●
59	BRACKET; CONDENSER AIR CONDITIONER MANUAL CONTROL<C60> (A)	1-83539-228-2	01	1	0404-		●
59	BRACKET; CONDENSER AIR CONDITIONER MANUAL CONTROL<C60> EXC. NEW ZEALAND EQUIPMENT(PK5) (A)	1-83539-228-2	01	1	0404-	●
59	BRACKET; CONDENSER AIR CONDITIONER MANUAL CONTROL<C60> (B)	1-83539-344-0	01	1	0311-0403	●	●
59	BRACKET; CONDENSER AIR CONDITIONER MANUAL CONTROL<C60> (B)	1-83539-344-0	01	1	0404-		●
59	BRACKET; CONDENSER AIR CONDITIONER MANUAL CONTROL<C60> EXC. NEW ZEALAND EQUIPMENT(PK5) (B)	1-83539-344-0	01	1	0404-	●
59	BRACKET; CONDENSER AIR CONDITIONER MANUAL CONTROL<C60> (C)	1-83539-346-0	01	1	0311-0403	●	●
59	BRACKET; CONDENSER AIR CONDITIONER MANUAL CONTROL<C60> (C)	1-83539-346-0	01	1	0404-		●
59	BRACKET; CONDENSER AIR CONDITIONER MANUAL CONTROL<C60> EXC. NEW ZEALAND EQUIPMENT(PK5) (C)	1-83539-346-0	01	1	0404-	●
60	CLIP; PIPE AIR CONDITIONER MANUAL CONTROL<C60> NEW ZEALAND EQUIPMENT(PK5)	1-83574-266-0	01	1	0404-	●
60	CLIP; PIPE AIR CONDITIONER MANUAL CONTROL<C60>	1-83539-234-0	01	1	0311-0403	●	●
60	CLIP; PIPE AIR CONDITIONER MANUAL CONTROL<C60>	1-83539-234-0	01	1	0404-		●
60	CLIP; PIPE AIR CONDITIONER MANUAL CONTROL<C60> EXC. NEW ZEALAND EQUIPMENT(PK5)	1-83539-234-0	01	1	0404-	●
65	BOLT; SHROUD AIR CONDITIONER MANUAL CONTROL<C60> NEW ZEALAND EQUIPMENT(PK5) M6X16	8-97096-525-0	04	1	0404-	●
65	BOLT; SHROUD AIR CONDITIONER MANUAL CONTROL<C60>	8-97117-796-0	03	1	0311-0403	●	●
65	BOLT; SHROUD AIR CONDITIONER MANUAL CONTROL<C60>	8-97117-796-0	03	1	0404-		●
65	BOLT; SHROUD AIR CONDITIONER MANUAL CONTROL<C60> EXC. NEW ZEALAND EQUIPMENT(PK5)	8-97117-796-0	03	1	0404-	●
100	COLLAR; FAN MOTOR AIR CONDITIONER MANUAL CONTROL<C60>	1-83539-349-0	01	1	0311-0403	●	●
100	COLLAR; FAN MOTOR AIR CONDITIONER MANUAL CONTROL<C60>	1-83539-349-0	01	1	0404-		●
100	COLLAR; FAN MOTOR AIR CONDITIONER MANUAL CONTROL<C60> EXC. NEW ZEALAND EQUIPMENT(PK5)	1-83539-349-0	01	1	0404-	●
106	BRACKET; FAN MOTOR AIR CONDITIONER MANUAL CONTROL<C60>	1-83539-345-0	01	1	0311-0403	●	●
106	BRACKET; FAN MOTOR AIR CONDITIONER MANUAL CONTROL<C60>	1-83539-345-0	01	1	0404-		●
106	BRACKET; FAN MOTOR AIR CONDITIONER MANUAL CONTROL<C60> EXC. NEW ZEALAND EQUIPMENT(PK5)	1-83539-345-0	01	1	0404-	●
127	CLIP; SHROUD AIR CONDITIONER MANUAL CONTROL<C60>	8-94158-260-0	01	1	0311-0403	●	●
127	CLIP; SHROUD AIR CONDITIONER MANUAL CONTROL<C60>	8-94158-260-0	01	1	0404-		●
127	CLIP; SHROUD AIR CONDITIONER MANUAL CONTROL<C60> EXC. NEW ZEALAND EQUIPMENT(PK5)	8-94158-260-0	01	1	0404-	●
169	SCREW; SHROUD AIR CONDITIONER MANUAL CONTROL<C60> (B)	1-83579-974-0	08	1	0311-0403	●	●
169	SCREW; SHROUD AIR CONDITIONER MANUAL CONTROL<C60> (B)	1-83579-974-0	08	1	0404-		●
169	SCREW; SHROUD AIR CONDITIONER MANUAL CONTROL<C60> EXC. NEW ZEALAND EQUIPMENT(PK5) (B)	1-83579-974-0	08	1	0404-	●
169	SCREW; SHROUD AIR CONDITIONER MANUAL CONTROL<C60> (A)	1-83579-975-0	04	1	0311-0403	●	●
169	SCREW; SHROUD AIR CONDITIONER MANUAL CONTROL<C60> (A)	1-83579-975-0	04	1	0404-		●
169	SCREW; SHROUD AIR CONDITIONER MANUAL CONTROL<C60> EXC. NEW ZEALAND EQUIPMENT(PK5) (A)	1-83579-975-0	04	1	0404-	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
