8-74 — EVAPORATOR (#34494) — 35 parça

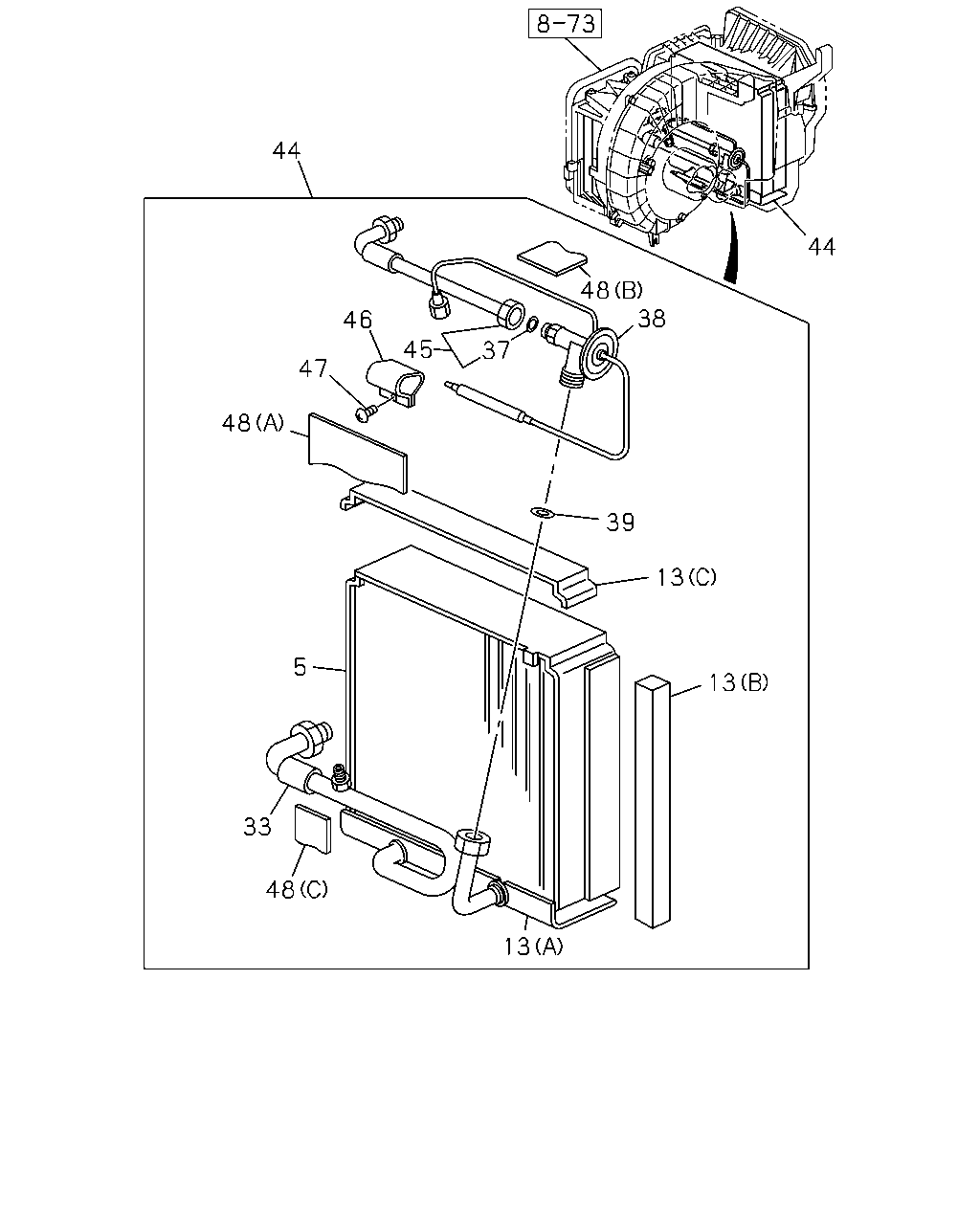

44 44 48 38 46 45 37 47 48 39 13 5 13 33 48 13

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
5	EVAPORATOR AIR CONDITIONER MANUAL CONTROL<C60> NEW ZEALAND EQUIPMENT(PK5)	1-83562-097-0	01	1	0404-	●
5	EVAPORATOR AIR CONDITIONER MANUAL CONTROL<C60>	1-83562-095-0	01	1	0311-0403	●	●
5	EVAPORATOR AIR CONDITIONER MANUAL CONTROL<C60>	1-83562-095-0	01	1	0404-		●
5	EVAPORATOR AIR CONDITIONER MANUAL CONTROL<C60> EXC. NEW ZEALAND EQUIPMENT(PK5)	1-83562-095-0	01	1	0404-	●
13	SEAL; EVAP AIR CONDITIONER MANUAL CONTROL<C60> NEW ZEALAND EQUIPMENT(PK5) (A)	1-83579-959-0	01	1	0404-	●
13	SEAL; EVAP AIR CONDITIONER MANUAL CONTROL<C60> NEW ZEALAND EQUIPMENT(PK5) (C)	1-83579-960-0	01	1	0404-	●
13	SEAL; EVAP AIR CONDITIONER MANUAL CONTROL<C60> (A)	1-83579-669-1	01	1	0311-0403	●	●
13	SEAL; EVAP AIR CONDITIONER MANUAL CONTROL<C60> (A)	1-83579-669-1	01	1	0404-		●
13	SEAL; EVAP AIR CONDITIONER MANUAL CONTROL<C60> EXC. NEW ZEALAND EQUIPMENT(PK5) (A)	1-83579-669-1	01	1	0404-	●
13	SEAL; EVAP AIR CONDITIONER MANUAL CONTROL<C60> (B)	1-83579-938-0	01	1	0311-	●	●
13	SEAL; EVAP AIR CONDITIONER MANUAL CONTROL<C60> (C)	1-83579-939-0	01	1	0311-0403	●	●
13	SEAL; EVAP AIR CONDITIONER MANUAL CONTROL<C60> (C)	1-83579-939-0	01	1	0404-		●
13	SEAL; EVAP AIR CONDITIONER MANUAL CONTROL<C60> EXC. NEW ZEALAND EQUIPMENT(PK5) (C)	1-83579-939-0	01	1	0404-	●
33	LINING; EVAP AIR CONDITIONER MANUAL CONTROL<C60>	1-83579-653-0	01	1	0311-	●	●
37	GASKET; EVAP AIR CONDITIONER MANUAL CONTROL<C60> ID=6.07	8-94461-902-0	01	1	0311-	●	●
38	VALVE; EXPANSION AIR CONDITIONER MANUAL CONTROL<C60> NEW ZEALAND EQUIPMENT(PK5)	1-83569-189-0	01	1	0404-	●
38	VALVE; EXPANSION AIR CONDITIONER MANUAL CONTROL<C60>	1-83569-158-0	01	1	0311-0403	●	●
38	VALVE; EXPANSION AIR CONDITIONER MANUAL CONTROL<C60>	1-83569-158-0	01	1	0404-		●
38	VALVE; EXPANSION AIR CONDITIONER MANUAL CONTROL<C60> EXC. NEW ZEALAND EQUIPMENT(PK5)	1-83569-158-0	01	1	0404-	●
39	GASKET; EVAP AIR CONDITIONER MANUAL CONTROL<C60>	8-94481-717-0	01	1	0311-	●	●
44	EVAPORATOR ASM; A/C AIR CONDITIONER MANUAL CONTROL<C60> NEW ZEALAND EQUIPMENT(PK5)	1-83562-099-0	01	1	0404-	●
44	EVAPORATOR ASM; A/C AIR CONDITIONER MANUAL CONTROL<C60>	1-83562-094-1	01	1	0311-0403	●	●
44	EVAPORATOR ASM; A/C AIR CONDITIONER MANUAL CONTROL<C60>	1-83562-094-1	01	1	0404-		●
44	EVAPORATOR ASM; A/C AIR CONDITIONER MANUAL CONTROL<C60> EXC. NEW ZEALAND EQUIPMENT(PK5)	1-83562-094-1	01	1	0404-	●
45	PIPE; EXPANSION VLV AIR CONDITIONER MANUAL CONTROL<C60> NEW ZEALAND EQUIPMENT(PK5)	1-83567-682-0	01	1	0404-	●
45	PIPE; EXPANSION VLV AIR CONDITIONER MANUAL CONTROL<C60>	1-83567-681-1	01	1	0311-0403	●	●
45	PIPE; EXPANSION VLV AIR CONDITIONER MANUAL CONTROL<C60>	1-83567-681-1	01	1	0404-		●
45	PIPE; EXPANSION VLV AIR CONDITIONER MANUAL CONTROL<C60> EXC. NEW ZEALAND EQUIPMENT(PK5)	1-83567-681-1	01	1	0404-	●
46	CLIP; EXPANSION VLV AIR CONDITIONER MANUAL CONTROL<C60>	1-83574-214-0	01	1	0311-	●	●
47	SCREW; EVAP AIR CONDITIONER MANUAL CONTROL<C60>	8-97130-601-0	01	1	0311-	●	●
48	INSULATOR; EVAP AIR CONDITIONER MANUAL CONTROL<C60> (A)	1-83579-784-0	01	1	0311-	●	●
48	INSULATOR; EVAP AIR CONDITIONER MANUAL CONTROL<C60> (B)	1-83579-969-0	01	1	0311-	●	●
48	INSULATOR; EVAP AIR CONDITIONER MANUAL CONTROL<C60> (C)	1-83579-970-0	01	1	0311-0403	●	●
48	INSULATOR; EVAP AIR CONDITIONER MANUAL CONTROL<C60> (C)	1-83579-970-0	01	1	0404-		●
48	INSULATOR; EVAP AIR CONDITIONER MANUAL CONTROL<C60> EXC. NEW ZEALAND EQUIPMENT(PK5) (C)	1-83579-970-0	01	1	0404-	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
