8-50 — AIR CONDITIONING SYSTEM; FRONT (#34489) — 52 parça

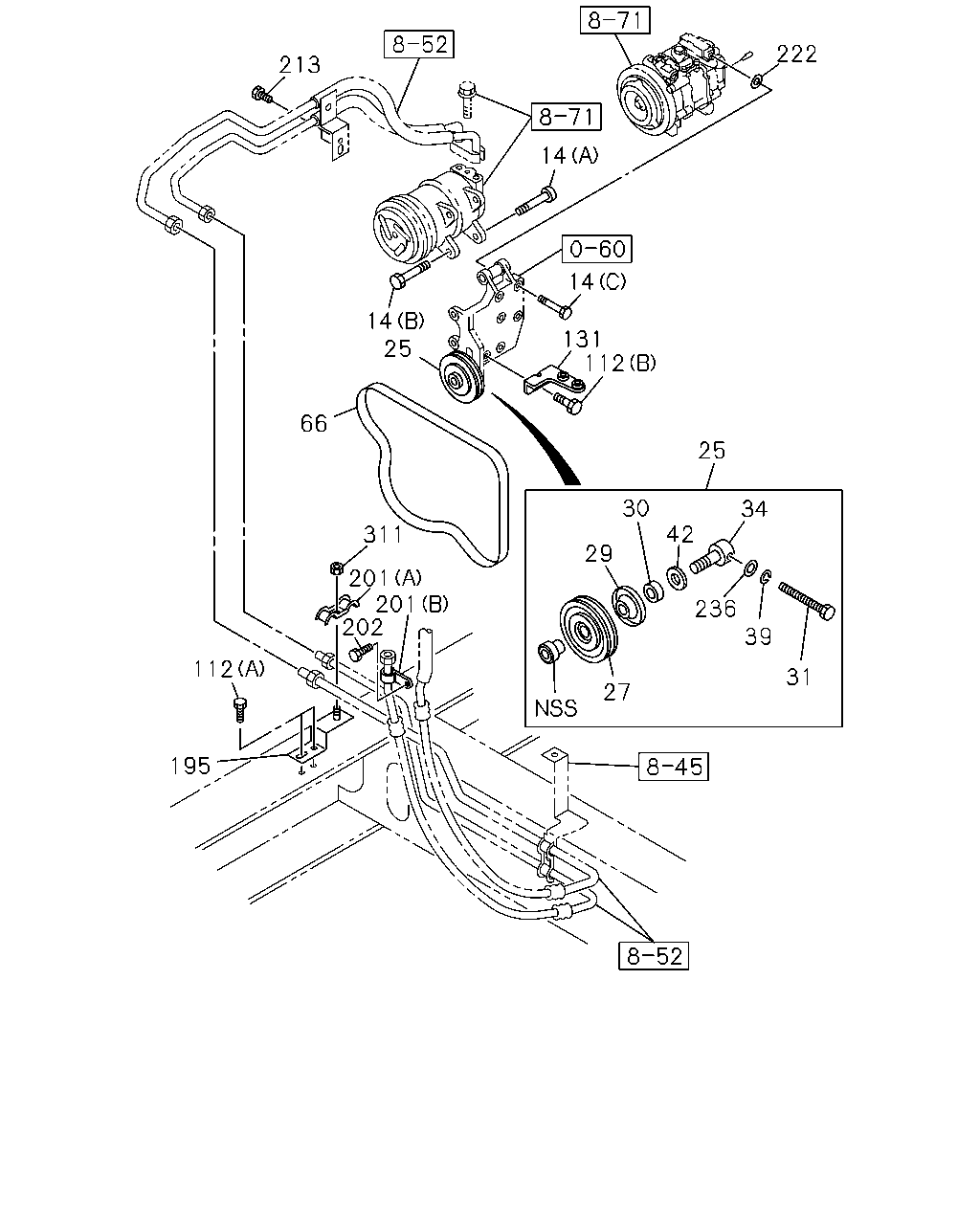

çizim 153057
222 213 14 14 14 25 131 112 66 25 30 34 42 311 29 201 201 202 236 39 112 31 27 195
BalonParca AdiParca NoAdetTipApplied Date A B
14 BOLT; CMPR
AIR CONDITIONER MANUAL CONTROL<C60> (A) M10X45 FLANGE 		0-28081-045-0 02 1 0403-0405 ● ●
14 BOLT; CMPR
AIR CONDITIONER MANUAL CONTROL<C60> (A) M10X45 FLANGE 		0-28081-045-0 02 1 0406-0512 ●
14 BOLT; CMPR
6HH1 STD ENG(65L) AIR CONDITIONER MANUAL CONTROL<C60> (A) M10X45 FLANGE 		0-28081-045-0 02 1 0406-0512 ●
14 BOLT; CMPR
AIR CONDITIONER MANUAL CONTROL<C60> (A) M10X45 FLANGE 		0-28051-045-0 02 1 0601- ●
14 BOLT; CMPR
6HH1 STD ENG(65L) AIR CONDITIONER MANUAL CONTROL<C60> (A) M10X45 FLANGE 		0-28051-045-0 02 1 0601- ●
14 BOLT; CMPR
AIR CONDITIONER MANUAL CONTROL<C60> (B) M10X35 FLANGE 		0-28681-035-0 02 1 0403-0405 ● ●
14 BOLT; CMPR
AIR CONDITIONER MANUAL CONTROL<C60> (B) M10X35 FLANGE 		0-28681-035-0 02 1 0406-0512 ●
14 BOLT; CMPR
6HH1 STD ENG(65L) AIR CONDITIONER MANUAL CONTROL<C60> (B) M10X35 FLANGE 		0-28681-035-0 02 1 0406-0512 ●
14 BOLT; CMPR
AIR CONDITIONER MANUAL CONTROL<C60> (B) M10X35 FLANGE 		0-28651-035-0 02 1 0601- ●
14 BOLT; CMPR
6HH1 STD ENG(65L) AIR CONDITIONER MANUAL CONTROL<C60> (B) M10X35 FLANGE 		0-28651-035-0 02 1 0601- ●
14 BOLT; CMPR
6HK1 TCC ENG(81L) AIR CONDITIONER MANUAL CONTROL<C60> (C) M8X80 FLANGE 		0-28080-880-0 04 1 0406-0512 ●
14 BOLT; CMPR
6HK1 TCC ENG(81L) AIR CONDITIONER MANUAL CONTROL<C60> (C) M8X80 FLANGE 		0-28050-880-0 04 1 0601- ●
25 PULLEY ASM; IDLER,CMPR
AIR CONDITIONER MANUAL CONTROL<C60> 		8-94399-957-0 01 1 0403- ● ●
27 PULLEY; IDLE,A/C
AIR CONDITIONER MANUAL CONTROL<C60> 		1-83579-116-0 01 1 0403- ● ●
29 COVER; DUST,IDLE PULLEY
AIR CONDITIONER MANUAL CONTROL<C60> 		9-13369-603-0 01 1 0403- ● ●
30 COLLAR; IDLE PULLEY
AIR CONDITIONER MANUAL CONTROL<C60> 		1-83579-144-0 01 1 0403- ● ●
31 BOLT; ADJ,IDLE PULLEY
AIR CONDITIONER MANUAL CONTROL<C60> 		1-83579-143-0 01 1 0403- ● ●
34 SHAFT; IDLE PULLEY
AIR CONDITIONER MANUAL CONTROL<C60> 		1-83579-236-0 01 1 0403- ● ●
39 WASHER; LK,ADJ BOLT
AIR CONDITIONER MANUAL CONTROL<C60> ID=8.2 		9-09150-608-0 01 1 0403- ● ●
42 WASHER; PULLEY
AIR CONDITIONER MANUAL CONTROL<C60> 		8-97014-636-0 01 1 0403- ● ●
66 BELT; A/C CMPR
AIR CONDITIONER MANUAL CONTROL<C60> L=1061 		1-13671-127-0 01 1 0403-0405 ● ●
66 BELT; A/C CMPR
AIR CONDITIONER MANUAL CONTROL<C60> L=1061 		1-13671-127-0 01 1 0406- ●
66 BELT; A/C CMPR
6HH1 STD ENG(65L) AIR CONDITIONER MANUAL CONTROL<C60> L=1061 		1-13671-127-0 01 1 0406- ●
66 BELT; A/C CMPR
6HK1 TCC ENG(81L) AIR CONDITIONER MANUAL CONTROL<C60> L=1110 		8-94395-172-0 01 1 0406- ●
112 BOLT; STAY
AIR CONDITIONER MANUAL CONTROL<C60> (A) M8X25 FLANGE 		0-28680-825-0 02 1 0311-0512 ● ●
112 BOLT; STAY
AIR CONDITIONER MANUAL CONTROL<C60> (A) M8X25 FLANGE 		0-28650-825-0 02 1 0601- ● ●
112 BOLT; STAY
6HH1 STD 4VALVE ENG(1A6) (B) M8X16 FLANGE 		0-28080-816-0 02 1 0011-0402 ●
112 BOLT; STAY
AIR CONDITIONER MANUAL CONTROL<C60> (B) M8X16 FLANGE 		0-28080-816-0 02 1 0403-0405 ● ●
112 BOLT; STAY
6HH1 STD 4VALVE ENG(1A6) (B) M8X16 FLANGE 		0-28080-816-0 02 1 0403-0405 ●
112 BOLT; STAY
AIR CONDITIONER MANUAL CONTROL<C60> (B) M8X16 FLANGE 		0-28080-816-0 02 1 0406-0512 ● ●
112 BOLT; STAY
AIR CONDITIONER MANUAL CONTROL<C60> (B) M8X16 FLANGE 		0-28050-816-0 02 1 0601- ● ●
131 STAY; CMPR BRKT
6HH1 STD 4VALVE ENG(1A6) 		8-94393-451-0 01 1 0011-0402 ●
131 STAY; CMPR BRKT
AIR CONDITIONER MANUAL CONTROL<C60> 		8-94393-451-0 01 1 0403-0405 ● ●
131 STAY; CMPR BRKT
6HH1 STD 4VALVE ENG(1A6) 		8-94393-451-0 01 1 0403-0405 ●
131 STAY; CMPR BRKT
AIR CONDITIONER MANUAL CONTROL<C60> 		8-94393-451-0 01 1 0406- ● ●
195 STAY; CLIP
AIR CONDITIONER MANUAL CONTROL<C60> 		1-83573-172-0 01 1 0311- ● ●
201 CLIP; HOSE,CMPR TO EVAP
AIR CONDITIONER MANUAL CONTROL<C60> (A) ID=12.2 & 16.2 		1-83574-190-0 01 1 0311- ● ●
201 CLIP; HOSE,CMPR TO EVAP
AIR CONDITIONER MANUAL CONTROL<C60> (B) ID=19 L=20 		9-09525-836-0 01 1 0311-0606 ● ●
201 CLIP; HOSE,CMPR TO EVAP
AIR CONDITIONER MANUAL CONTROL<C60> (B) ID=19 L=20 		0-95235-836-0 01 1 0607- ● ●
202 BOLT; CLIP,FLEX HOSE
AIR CONDITIONER MANUAL CONTROL<C60> M8X25 FLANGE 		0-28680-825-0 01 1 0311-0512 ● ●
202 BOLT; CLIP,FLEX HOSE
AIR CONDITIONER MANUAL CONTROL<C60> M8X25 FLANGE 		0-28650-825-0 01 1 0601- ● ●
213 BOLT; FLEX HOSE TO CMPR
AIR CONDITIONER MANUAL CONTROL<C60> CAB COOLER COMPRESSOR<WS4> M6X25 FLANGE 		0-28080-625-0 02 1 0406-0512 ●
213 BOLT; FLEX HOSE TO CMPR
AIR CONDITIONER MANUAL CONTROL<C60> CAB COOLER COMPRESSOR<WS4> M6X25 FLANGE 		0-28050-625-0 02 1 0601- ●
213 BOLT; FLEX HOSE TO CMPR
AIR CONDITIONER MANUAL CONTROL<C60> M10X45 FLANGE 		0-28081-045-0 01 1 0311-0403 ● ●
213 BOLT; FLEX HOSE TO CMPR
AIR CONDITIONER MANUAL CONTROL<C60> CAB COOLER COMPRESSOR HEAVY DUTY<E2Q> M10X45 FLANGE 		0-28081-045-0 01 1 0404-0512 ● ●
213 BOLT; FLEX HOSE TO CMPR
AIR CONDITIONER MANUAL CONTROL<C60> CAB COOLER COMPRESSOR HEAVY DUTY<E2Q> M10X45 FLANGE 		0-28051-045-0 01 1 0601- ● ●
213 BOLT; FLEX HOSE TO CMPR
AIR CONDITIONER MANUAL CONTROL<C60> M8X25 FLANGE 		0-28680-825-0 02 1 0311-0512 ● ●
213 BOLT; FLEX HOSE TO CMPR
AIR CONDITIONER MANUAL CONTROL<C60> M8X25 FLANGE 		0-28650-825-0 02 1 0601- ● ●
222 GASKET; CONNECTOR
6HK1 TCC ENG(81L) AIR CONDITIONER MANUAL CONTROL<C60> ID=8.4 OD=19 		5-11779-001-0 04 1 0406- ●
236 WASHER; PL,ADJ BOLT
AIR CONDITIONER MANUAL CONTROL<C60> 		1-09503-216-0 01 1 0403- ● ●
311 NUT; HOSE CLIP
AIR CONDITIONER MANUAL CONTROL<C60> M8 FLANGE 		0-91150-108-0 01 1 0311-0602 ● ●
311 NUT; HOSE CLIP
AIR CONDITIONER MANUAL CONTROL<C60> M8 FLANGE 		0-91180-108-0 01 1 0603- ● ●
