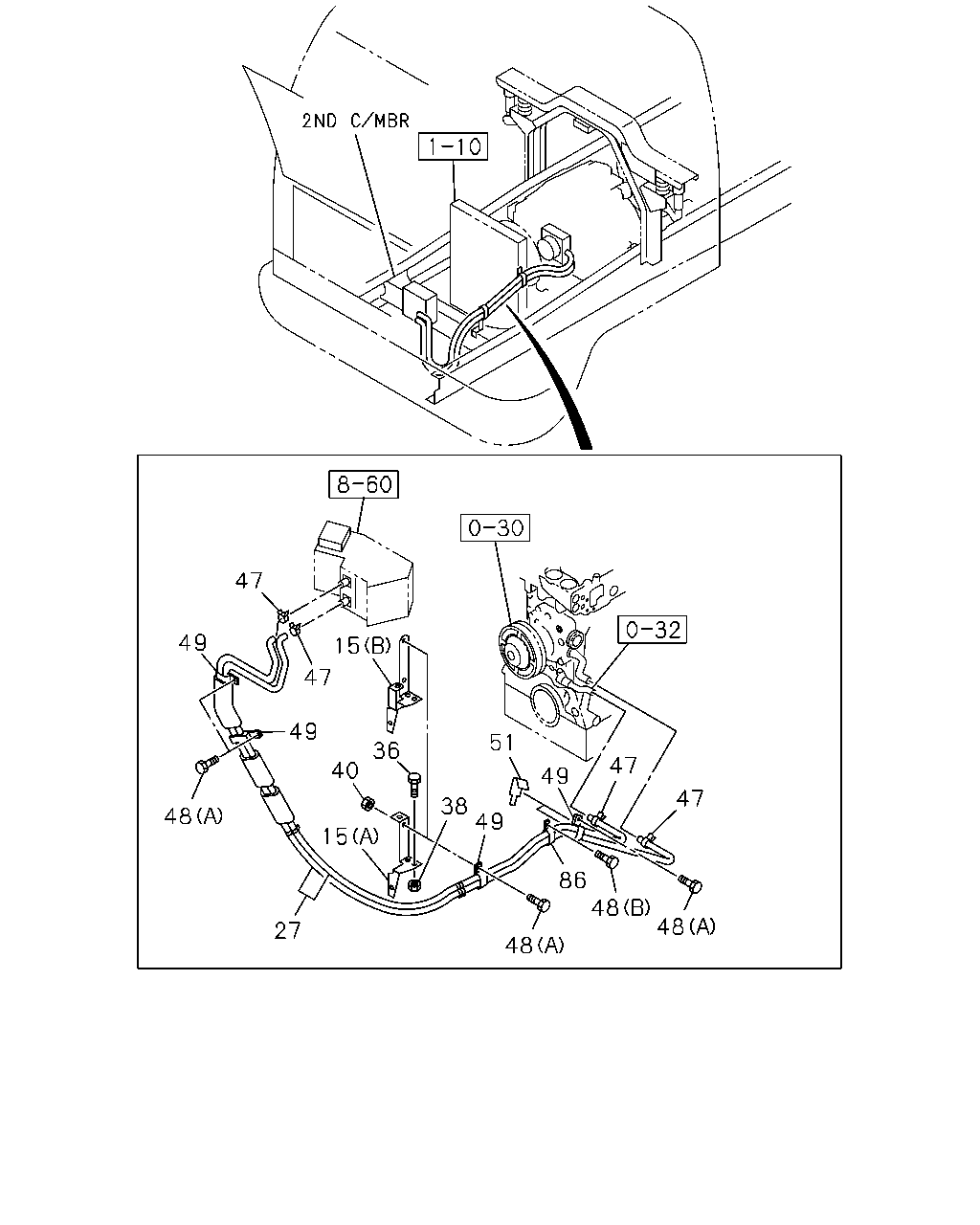

8-45 — HEATER PIPING (#34488) — 97 parça

47 49 15 47 49 51 36 47 40 49 47 38 49 48 15 86 48 48 27 48

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
15	BRACKET; WATER HOSE HEATER & DEFROSTER<C41> (A)	1-83571-844-1	01	1	9604-9807	●	●	●	●	●
15	BRACKET; WATER HOSE (A)	1-83571-844-1	01	1	9808-0004	●	●	●	●	●
15	BRACKET; WATER HOSE (A)	1-83571-844-1	01	1	0005-0010	●		●	●
15	BRACKET; WATER HOSE 6HH1 STD ENG(65L),6HH1 N ENG(66L) (A)	1-83571-844-2	01	1	0011-0405	●
15	BRACKET; WATER HOSE (A)	1-83571-844-2	01	1	0011-0405			●
15	BRACKET; WATER HOSE 6HH1 STD ENG(65L) (A)	1-83571-844-2	01	1	0011-0405				●
15	BRACKET; WATER HOSE (A)	1-83571-844-2	01	1	0406-	●		●
15	BRACKET; WATER HOSE 6HH1 STD ENG(65L) (A)	1-83571-844-2	01	1	0406-				●
15	BRACKET; WATER HOSE 6HH1 STD 4VALVE ENG(1A6) (A)	1-83573-070-1	01	1	0011-0405				●
15	BRACKET; WATER HOSE 6HK1 TCC ENG(81L) (B)	1-83573-252-0	01	1	0406-				●
27	HOSE; WATER,HTR UNIT TO WATER PIPE 6HK1 TCC ENG(81L) HEATER & DEFROSTER<C41>,AIR CONDITIONER MANUAL CONTROL<C60>	1-83565-790-0	01	1	0406-				●
27	HOSE; WATER,HTR UNIT TO WATER PIPE HEATER & DEFROSTER<C41>	1-83565-586-6	01	1	9604-9912	●	●	●	●	●
27	HOSE; WATER,HTR UNIT TO WATER PIPE HEATER & DEFROSTER<C41>	1-83565-748-0	01	1	0001-0004	●	●	●	●	●
27	HOSE; WATER,HTR UNIT TO WATER PIPE HEATER & DEFROSTER<C41>	1-83565-748-0	01	1	0005-0310	●		●	●
27	HOSE; WATER,HTR UNIT TO WATER PIPE HEATER & DEFROSTER<C41>	1-83565-748-0	01	1	0311-0403	●
27	HOSE; WATER,HTR UNIT TO WATER PIPE HEATER & DEFROSTER<C41>,AIR CONDITIONER MANUAL CONTROL<C60>	1-83565-748-0	01	1	0311-0403			●	●
27	HOSE; WATER,HTR UNIT TO WATER PIPE HEATER & DEFROSTER<C41>	1-83565-748-0	01	1	0404-0405	●
27	HOSE; WATER,HTR UNIT TO WATER PIPE HEATER & DEFROSTER<C41>,AIR CONDITIONER MANUAL CONTROL<C60>	1-83565-748-0	01	1	0404-0405			●	●
27	HOSE; WATER,HTR UNIT TO WATER PIPE HEATER & DEFROSTER<C41>	1-83565-748-0	01	1	0406-	●
27	HOSE; WATER,HTR UNIT TO WATER PIPE HEATER & DEFROSTER<C41>,AIR CONDITIONER MANUAL CONTROL<C60>	1-83565-748-0	01	1	0406-			●
27	HOSE; WATER,HTR UNIT TO WATER PIPE 6HH1 STD ENG(65L) HEATER & DEFROSTER<C41>,AIR CONDITIONER MANUAL CONTROL<C60>	1-83565-748-0	01	1	0406-				●
36	BOLT; BRKT HEATER & DEFROSTER<C41> M8X20 FLANGE	0-28080-820-0	02	1	9604-9606	●	●	●	●	●
36	BOLT; BRKT HEATER & DEFROSTER<C41> M8X25 FLANGE	0-28680-825-0	02	1	9607-9807	●	●	●	●	●
36	BOLT; BRKT M8X25 FLANGE	0-28680-825-0	02	1	9808-0004	●	●	●	●	●
36	BOLT; BRKT M8X25 FLANGE	0-28680-825-0	02	1	0005-0008	●		●	●
36	BOLT; BRKT M8X20 FLANGE	0-28680-820-0	02	1	0009-0512	●		●	●
36	BOLT; BRKT M8X20 FLANGE	0-28650-820-0	02	1	0601-	●		●	●
38	NUT; BRKT M8 FLANGE	0-91150-108-0	02	1	9808-0004	●	●	●	●	●
38	NUT; BRKT M8 FLANGE	0-91150-108-0	02	1	0005-0602	●		●	●
38	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	0603-	●		●	●
40	NUT; CLIP HEATER & DEFROSTER<C41> M8	9-09110-408-0	01	1	9604-9606	●	●	●	●	●
40	NUT; CLIP HEATER & DEFROSTER<C41> M8 FLANGE	0-91150-108-0	01	1	9607-0004	●	●	●	●	●
40	NUT; CLIP HEATER & DEFROSTER<C41> M8 FLANGE	0-91150-108-0	01	1	0005-0310	●		●	●
40	NUT; CLIP HEATER & DEFROSTER<C41> M8 FLANGE	0-91150-108-0	01	1	0311-0602	●
40	NUT; CLIP HEATER & DEFROSTER<C41>,AIR CONDITIONER MANUAL CONTROL<C60> M8 FLANGE	0-91150-108-0	01	1	0311-0602			●	●
40	NUT; CLIP HEATER & DEFROSTER<C41> M8 FLANGE	0-91180-108-0	01	1	0603-	●
40	NUT; CLIP HEATER & DEFROSTER<C41>,AIR CONDITIONER MANUAL CONTROL<C60> M8 FLANGE	0-91180-108-0	01	1	0603-			●	●
47	CLAMP; WATER HOSE,HTR HEATER & DEFROSTER<C41> ID=22	8-94382-401-0	04	1	9604-0004	●	●	●	●	●
47	CLAMP; WATER HOSE,HTR HEATER & DEFROSTER<C41> ID=22	8-94382-401-0	04	1	0005-0310	●		●	●
47	CLAMP; WATER HOSE,HTR HEATER & DEFROSTER<C41> ID=22	8-94382-401-0	04	1	0311-0611	●
47	CLAMP; WATER HOSE,HTR HEATER & DEFROSTER<C41>,AIR CONDITIONER MANUAL CONTROL<C60> ID=22	8-94382-401-0	04	1	0311-0611			●	●
47	CLAMP; WATER HOSE,HTR HEATER & DEFROSTER<C41> ID=22	8-97359-141-0	04	1	0612-	●
47	CLAMP; WATER HOSE,HTR HEATER & DEFROSTER<C41>,AIR CONDITIONER MANUAL CONTROL<C60> ID=22	8-97359-141-0	04	1	0612-			●	●
48	BOLT; CLIP FIX HEATER & DEFROSTER<C41> (A) M8X20 FLANGE	0-28080-820-0	02	1	9604-9606	●	●	●	●	●
48	BOLT; CLIP FIX HEATER & DEFROSTER<C41> (A) M8X20 FLANGE	0-28680-820-0	01	1	9607-9801	●	●	●	●	●
48	BOLT; CLIP FIX HEATER & DEFROSTER<C41> (A) M8X20 FLANGE	0-28680-820-0	02	1	9802-9901	●	●	●	●	●
48	BOLT; CLIP FIX HEATER & DEFROSTER<C41> (A) M8X20 FLANGE	0-28680-820-0	01	1	9902-0004	●	●	●	●	●
48	BOLT; CLIP FIX HEATER & DEFROSTER<C41> (A) M8X20 FLANGE	0-28680-820-0	01	1	0005-0310	●		●	●
48	BOLT; CLIP FIX HEATER & DEFROSTER<C41> (A) M8X20 FLANGE	0-28680-820-0	01	1	0311-0405	●
48	BOLT; CLIP FIX HEATER & DEFROSTER<C41>,AIR CONDITIONER MANUAL CONTROL<C60> (A) M8X20 FLANGE	0-28680-820-0	01	1	0311-0405			●	●
48	BOLT; CLIP FIX HEATER & DEFROSTER<C41> (A) M8X20 FLANGE	0-28680-820-0	02	1	0406-0512	●
48	BOLT; CLIP FIX HEATER & DEFROSTER<C41>,AIR CONDITIONER MANUAL CONTROL<C60> (A) M8X20 FLANGE	0-28680-820-0	02	1	0406-0512			●	●
48	BOLT; CLIP FIX HEATER & DEFROSTER<C41> (A) M8X20 FLANGE	0-28650-820-0	02	1	0601-	●
48	BOLT; CLIP FIX HEATER & DEFROSTER<C41>,AIR CONDITIONER MANUAL CONTROL<C60> (A) M8X20 FLANGE	0-28650-820-0	02	1	0601-			●	●
48	BOLT; CLIP FIX HEATER & DEFROSTER<C41> (B) M8X16 W/LK&PL WASHER	1-09980-498-0	01	1	9604-0004	●	●	●	●	●
48	BOLT; CLIP FIX HEATER & DEFROSTER<C41> (B) M8X16 W/LK&PL WASHER	1-09980-498-0	01	1	0005-0310	●		●	●
48	BOLT; CLIP FIX HEATER & DEFROSTER<C41> (B) M8X16 W/LK&PL WASHER	1-09980-498-0	01	1	0311-	●
48	BOLT; CLIP FIX HEATER & DEFROSTER<C41>,AIR CONDITIONER MANUAL CONTROL<C60> (B) M8X16 W/LK&PL WASHER	1-09980-498-0	01	1	0311-			●	●
48	BOLT; CLIP FIX HEATER & DEFROSTER<C41> (A) M8X25 FLANGE	0-28680-825-0	01	1	9607-9801	●	●	●	●	●
48	BOLT; CLIP FIX HEATER & DEFROSTER<C41> (A) M8X20 FLANGE	0-28680-820-0	02	1	9902-0004	●	●	●	●	●
48	BOLT; CLIP FIX HEATER & DEFROSTER<C41> (A) M8X20 FLANGE	0-28680-820-0	02	1	0005-0310	●		●	●
48	BOLT; CLIP FIX HEATER & DEFROSTER<C41> (A) M8X20 FLANGE	0-28680-820-0	02	1	0311-0405	●
48	BOLT; CLIP FIX HEATER & DEFROSTER<C41>,AIR CONDITIONER MANUAL CONTROL<C60> (A) M8X20 FLANGE	0-28680-820-0	02	1	0311-0405			●	●
48	BOLT; CLIP FIX HEATER & DEFROSTER<C41> (A) M8X20 FLANGE	0-28680-820-0	01	1	0406-0512	●
48	BOLT; CLIP FIX HEATER & DEFROSTER<C41>,AIR CONDITIONER MANUAL CONTROL<C60> (A) M8X20 FLANGE	0-28680-820-0	01	1	0406-0512			●	●
48	BOLT; CLIP FIX 6HK1 TCC ENG(81L) HEATER & DEFROSTER<C41>,AIR CONDITIONER MANUAL CONTROL<C60> (A) M8X20 FLANGE	0-28680-820-0	01	1	0406-0512				●
48	BOLT; CLIP FIX HEATER & DEFROSTER<C41> (A) M8X20 FLANGE	0-28650-820-0	01	1	0601-	●
48	BOLT; CLIP FIX HEATER & DEFROSTER<C41>,AIR CONDITIONER MANUAL CONTROL<C60> (A) M8X20 FLANGE	0-28650-820-0	01	1	0601-			●	●
48	BOLT; CLIP FIX 6HK1 TCC ENG(81L) HEATER & DEFROSTER<C41>,AIR CONDITIONER MANUAL CONTROL<C60> (A) M8X20 FLANGE	0-28650-820-0	01	1	0601-				●
49	CLIP; WATER HOSE,HTR HEATER & DEFROSTER<C41> ID=24X2 L=25	1-09700-710-0	02	1	9604-9901	●	●	●	●	●
49	CLIP; WATER HOSE,HTR HEATER & DEFROSTER<C41> ID=24X2 L=25	1-09700-710-0	01	1	9902-0004	●	●	●	●	●
49	CLIP; WATER HOSE,HTR HEATER & DEFROSTER<C41> ID=24X2 L=25	1-09700-710-0	01	1	0005-0310	●		●	●
49	CLIP; WATER HOSE,HTR HEATER & DEFROSTER<C41> ID=24X2 L=25	1-09700-710-0	01	1	0311-0405	●
49	CLIP; WATER HOSE,HTR HEATER & DEFROSTER<C41>,AIR CONDITIONER MANUAL CONTROL<C60> ID=24X2 L=25	1-09700-710-0	01	1	0311-0405			●	●
49	CLIP; WATER HOSE,HTR HEATER & DEFROSTER<C41> ID=24X2 L=25	1-09700-710-0	02	1	0406-	●
49	CLIP; WATER HOSE,HTR HEATER & DEFROSTER<C41>,AIR CONDITIONER MANUAL CONTROL<C60> ID=24X2 L=25	1-09700-710-0	02	1	0406-			●	●
49	CLIP; WATER HOSE,HTR HEATER & DEFROSTER<C41> ID=24X2 L=25	1-09700-710-0	02	1	9902-0004	●	●	●	●	●
49	CLIP; WATER HOSE,HTR HEATER & DEFROSTER<C41> ID=24X2 L=25	1-09700-710-0	02	1	0005-0310	●		●	●
49	CLIP; WATER HOSE,HTR HEATER & DEFROSTER<C41> ID=24X2 L=25	1-09700-710-0	02	1	0311-0405	●
49	CLIP; WATER HOSE,HTR HEATER & DEFROSTER<C41>,AIR CONDITIONER MANUAL CONTROL<C60> ID=24X2 L=25	1-09700-710-0	02	1	0311-0405			●	●
49	CLIP; WATER HOSE,HTR HEATER & DEFROSTER<C41> ID=24X2 L=25	1-09700-710-0	01	1	0406-	●
49	CLIP; WATER HOSE,HTR HEATER & DEFROSTER<C41>,AIR CONDITIONER MANUAL CONTROL<C60> ID=24X2 L=25	1-09700-710-0	01	1	0406-			●	●
49	CLIP; WATER HOSE,HTR 6HK1 TCC ENG(81L) HEATER & DEFROSTER<C41>,AIR CONDITIONER MANUAL CONTROL<C60> ID=24X2 L=25	1-09700-710-0	01	1	0406-				●
51	CLIP; WATER HOSE,HTR HEATER & DEFROSTER<C41> L=170	1-83574-139-0	01	1	9604-0004	●	●	●	●	●
51	CLIP; WATER HOSE,HTR HEATER & DEFROSTER<C41> L=170	1-83574-139-0	01	1	0005-0310	●		●	●
51	CLIP; WATER HOSE,HTR HEATER & DEFROSTER<C41> L=170	1-83574-139-0	01	1	0311-0405	●
51	CLIP; WATER HOSE,HTR HEATER & DEFROSTER<C41>,AIR CONDITIONER MANUAL CONTROL<C60> L=170	1-83574-139-0	01	1	0311-0405			●	●
51	CLIP; WATER HOSE,HTR HEATER & DEFROSTER<C41> L=170	1-83574-139-0	01	1	0406-1205	●
51	CLIP; WATER HOSE,HTR HEATER & DEFROSTER<C41>,AIR CONDITIONER MANUAL CONTROL<C60> L=170	1-83574-139-0	01	1	0406-1205			●	●
51	CLIP; WATER HOSE,HTR 6HK1 TCC ENG(81L) HEATER & DEFROSTER<C41>,AIR CONDITIONER MANUAL CONTROL<C60> L=170	1-83574-139-0	01	1	0406-1205				●
51	CLIP; WATER HOSE,HTR HEATER & DEFROSTER<C41> L=170	8-98166-021-0	01	1	1206-	●
51	CLIP; WATER HOSE,HTR HEATER & DEFROSTER<C41>,AIR CONDITIONER MANUAL CONTROL<C60> L=170	8-98166-021-0	01	1	1206-			●	●
51	CLIP; WATER HOSE,HTR 6HK1 TCC ENG(81L) HEATER & DEFROSTER<C41>,AIR CONDITIONER MANUAL CONTROL<C60> L=170	8-98166-021-0	01	1	1206-				●
86	CLIP; HTR HOSE HEATER & DEFROSTER<C41>	1-83571-049-1	01	1	9604-0004	●	●	●	●	●
86	CLIP; HTR HOSE HEATER & DEFROSTER<C41>	1-83571-049-1	01	1	0005-0310	●		●	●
86	CLIP; HTR HOSE HEATER & DEFROSTER<C41>	1-83571-049-1	01	1	0311-	●
86	CLIP; HTR HOSE HEATER & DEFROSTER<C41>,AIR CONDITIONER MANUAL CONTROL<C60>	1-83571-049-1	01	1	0311-			●	●
