Sayfa 8-40 - Isuzu EPC

8-40 — HEATER SYSTEM (#34487) — 171 parça

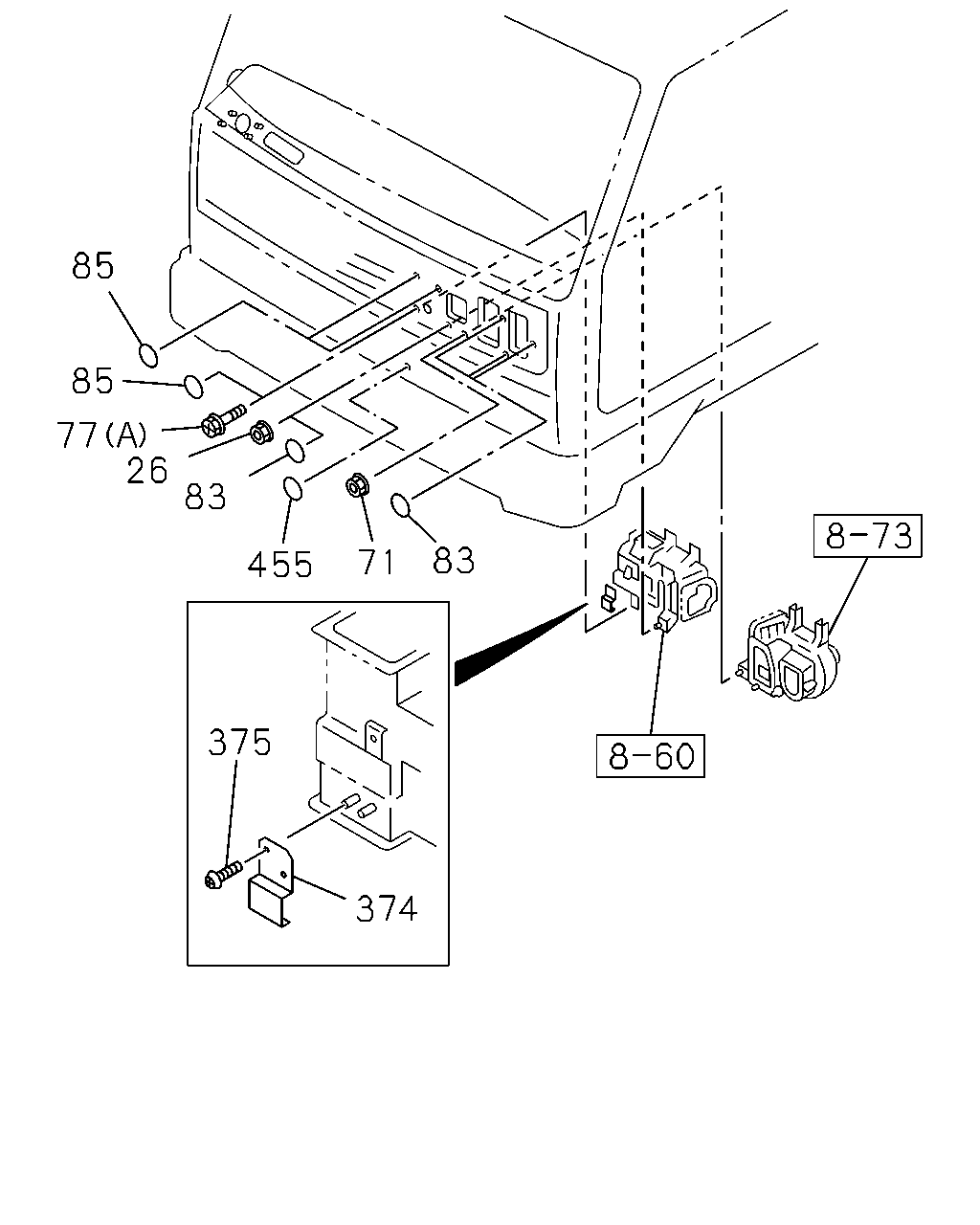

85 85 77 26 83 83 71 455 375 374

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
26	NUT; HTR HEATER & DEFROSTER<C41>,VENTILATOR & DEFROSTER WO/HEATER<SAZ> M6 FLANGE W/RUBBER	1-09984-180-0	02	1	9604-0004	●	●	●	●	●
26	NUT; HTR HEATER & DEFROSTER<C41>,VENTILATOR & DEFROSTER WO/HEATER<SAZ> M6 FLANGE W/RUBBER	1-09984-180-0	02	1	0005-0310	●		●	●
26	NUT; HTR HEATER & DEFROSTER<C41>,VENTILATOR & DEFROSTER WO/HEATER<SAZ> M6 FLANGE W/RUBBER	1-09984-180-0	02	1	0311-	●
26	NUT; HTR HEATER & DEFROSTER<C41>,AIR CONDITIONER MANUAL CONTROL<C60>,VENTILATOR & DEFROSTER WO/HEATER<SAZ> M6 FLANGE W/RUBBER	1-09984-180-0	02	1	0311-			●	●
71	NUT; BLOWER UNIT TO DASH HEATER & DEFROSTER<C41>,VENTILATOR & DEFROSTER WO/HEATER<SAZ> M6 FLANGE W/RUBBER	1-09984-180-0	04	1	9604-0004	●	●	●	●	●
71	NUT; BLOWER UNIT TO DASH HEATER & DEFROSTER<C41>,VENTILATOR & DEFROSTER WO/HEATER<SAZ> M6 FLANGE W/RUBBER	1-09984-180-0	04	1	0005-0310	●		●	●
71	NUT; BLOWER UNIT TO DASH HEATER & DEFROSTER<C41>,VENTILATOR & DEFROSTER WO/HEATER<SAZ> M6 FLANGE W/RUBBER	1-09984-180-0	04	1	0311-	●
71	NUT; BLOWER UNIT TO DASH HEATER & DEFROSTER<C41>,AIR CONDITIONER MANUAL CONTROL<C60>,VENTILATOR & DEFROSTER WO/HEATER<SAZ> M6 FLANGE W/RUBBER	1-09984-180-0	04	1	0311-			●	●
77	BOLT; HTR UNIT HEATER & DEFROSTER<C41>,VENTILATOR & DEFROSTER WO/HEATER<SAZ> (A) M6X16	1-09980-598-0	02	1	9604-0004	●	●	●	●	●
77	BOLT; HTR UNIT HEATER & DEFROSTER<C41>,VENTILATOR & DEFROSTER WO/HEATER<SAZ> (A) M6X16	1-09980-598-1	02	1	0005-0310	●		●	●
77	BOLT; HTR UNIT HEATER & DEFROSTER<C41>,VENTILATOR & DEFROSTER WO/HEATER<SAZ> (A) M6X16	1-09980-598-1	02	1	0311-	●
77	BOLT; HTR UNIT HEATER & DEFROSTER<C41>,AIR CONDITIONER MANUAL CONTROL<C60>,VENTILATOR & DEFROSTER WO/HEATER<SAZ> (A) M6X16	1-09980-598-1	02	1	0311-			●	●
77	BOLT; HTR UNIT HEATER & DEFROSTER<C41>,VENTILATOR & DEFROSTER WO/HEATER<SAZ> (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	9604-0004	●	●	●	●	●
77	BOLT; HTR UNIT HEATER & DEFROSTER<C41>,VENTILATOR & DEFROSTER WO/HEATER<SAZ> (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	0005-0310	●		●	●
77	BOLT; HTR UNIT HEATER & DEFROSTER<C41>,VENTILATOR & DEFROSTER WO/HEATER<SAZ> (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	0311-	●
77	BOLT; HTR UNIT HEATER & DEFROSTER<C41>,AIR CONDITIONER MANUAL CONTROL<C60>,VENTILATOR & DEFROSTER WO/HEATER<SAZ> (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	0311-			●	●
83	SEAL; COVER,HTR HOLE EXC. HEATER & DEFROSTER<C41>,VENTILATOR & DEFROSTER WO/HEATER<SAZ> OD=25 BLACK	1-76798-019-0	04	1	9604-0004	●	●	●	●	●
83	SEAL; COVER,HTR HOLE EXC. HEATER & DEFROSTER<C41>,VENTILATOR & DEFROSTER WO/HEATER<SAZ> OD=25 BLACK	1-76798-019-0	04	1	0005-0310	●		●	●
83	SEAL; COVER,HTR HOLE EXC. HEATER & DEFROSTER<C41>,VENTILATOR & DEFROSTER WO/HEATER<SAZ> OD=25 BLACK	1-76798-019-0	04	1	0311-	●
83	SEAL; COVER,HTR HOLE EXC. HEATER & DEFROSTER<C41>,AIR CONDITIONER MANUAL CONTROL<C60>,VENTILATOR & DEFROSTER WO/HEATER<SAZ> OD=25 BLACK	1-76798-019-0	04	1	0311-			●	●
85	SEAL; HTR UNIT EXC. HEATER & DEFROSTER<C41>,VENTILATOR & DEFROSTER WO/HEATER<SAZ> OD=25 BLACK	1-76798-019-0	04	1	9604-0004	●	●	●	●	●
85	SEAL; HTR UNIT EXC. HEATER & DEFROSTER<C41>,VENTILATOR & DEFROSTER WO/HEATER<SAZ> OD=25 BLACK	1-76798-019-0	04	1	0005-0310	●		●	●
85	SEAL; HTR UNIT EXC. HEATER & DEFROSTER<C41>,VENTILATOR & DEFROSTER WO/HEATER<SAZ> OD=25 BLACK	1-76798-019-0	04	1	0311-	●
85	SEAL; HTR UNIT EXC. HEATER & DEFROSTER<C41>,AIR CONDITIONER MANUAL CONTROL<C60>,VENTILATOR & DEFROSTER WO/HEATER<SAZ> OD=25 BLACK	1-76798-019-0	04	1	0311-			●	●
374	HOLDER; DUCT HEATER & DEFROSTER<C41>	1-76398-012-1	01	1	9604-0004	●	●	●	●	●
374	HOLDER; DUCT HEATER & DEFROSTER<C41>	1-76398-012-1	01	1	0005-0310	●		●	●
374	HOLDER; DUCT HEATER & DEFROSTER<C41>	1-76398-012-1	01	1	0311-	●
374	HOLDER; DUCT HEATER & DEFROSTER<C41>,AIR CONDITIONER MANUAL CONTROL<C60>	1-76398-012-1	01	1	0311-			●	●
375	SCREW; HOLDER HEATER & DEFROSTER<C41> M5X14	8-94279-325-0	02	1	9604-0004	●	●	●	●	●
375	SCREW; HOLDER HEATER & DEFROSTER<C41> M5X14	8-94279-325-0	02	1	0005-0310	●		●	●
375	SCREW; HOLDER HEATER & DEFROSTER<C41> M5X14	8-94279-325-0	02	1	0311-	●
375	SCREW; HOLDER HEATER & DEFROSTER<C41>,AIR CONDITIONER MANUAL CONTROL<C60> M5X14	8-94279-325-0	02	1	0311-			●	●
455	SEAL; CLIP HOLE EXC. HEATER & DEFROSTER<C41> OD=25 BLACK	1-76798-019-0	01	1	9902-0004	●	●	●	●	●
455	SEAL; CLIP HOLE EXC. HEATER & DEFROSTER<C41> OD=25 BLACK	1-76798-019-0	01	1	0005-0310	●		●	●
455	SEAL; CLIP HOLE EXC. HEATER & DEFROSTER<C41> OD=25 BLACK	1-76798-019-0	01	1	0311-	●
455	SEAL; CLIP HOLE EXC. HEATER & DEFROSTER<C41>,AIR CONDITIONER MANUAL CONTROL<C60> OD=25 BLACK	1-76798-019-0	01	1	0311-			●	●

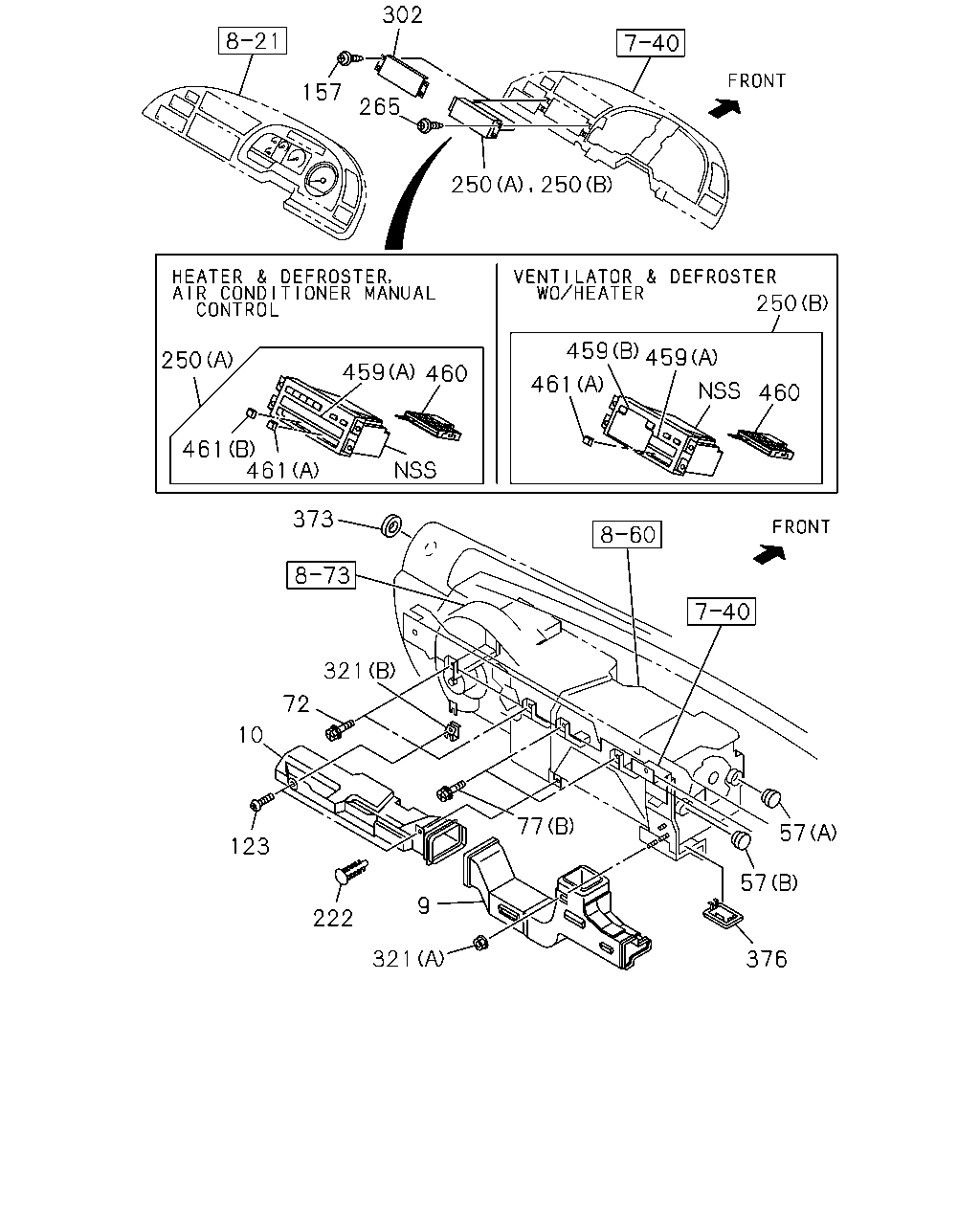

302 157 265 250 250 459 459 250 459 460 461 460 461 461 373 321 72 10 77 57 123 57 9 222 321 376 250

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
9	DUCT; HTR AIR,FOOT CENTER HEATER & DEFROSTER<C41>	1-76378-370-3	01	1	9604-9801	●	●	●	●	●
9	DUCT; HTR AIR,FOOT CENTER HEATER & DEFROSTER<C41>	1-76378-409-0	01	1	9802-0004	●	●	●	●	●
9	DUCT; HTR AIR,FOOT CENTER HEATER & DEFROSTER<C41>	1-76378-409-0	01	1	0005-0006	●		●	●
9	DUCT; HTR AIR,FOOT CENTER HEATER & DEFROSTER<C41>	1-76378-426-2	01	1	0007-0310	●		●	●
9	DUCT; HTR AIR,FOOT CENTER HEATER & DEFROSTER<C41>	1-76378-426-2	01	1	0311-	●
9	DUCT; HTR AIR,FOOT CENTER HEATER & DEFROSTER<C41>,AIR CONDITIONER MANUAL CONTROL<C60>	1-76378-426-2	01	1	0311-			●	●
10	DUCT; HTR AIR,ASSIST FOOT HEATER & DEFROSTER<C41>	1-76378-278-7	01	1	9604-9801	●	●	●	●	●
10	DUCT; HTR AIR,ASSIST FOOT HEATER & DEFROSTER<C41>	1-76378-413-0	01	1	9802-0004	●	●	●	●	●
10	DUCT; HTR AIR,ASSIST FOOT HEATER & DEFROSTER<C41>	1-76378-413-0	01	1	0005-0310	●		●	●
10	DUCT; HTR AIR,ASSIST FOOT HEATER & DEFROSTER<C41>	1-76378-413-0	01	1	0311-	●
10	DUCT; HTR AIR,ASSIST FOOT HEATER & DEFROSTER<C41>,AIR CONDITIONER MANUAL CONTROL<C60>	1-76378-413-0	01	1	0311-			●	●
57	COVER; INL DUCT HEATER & DEFROSTER<C41>,VENTILATOR & DEFROSTER WO/HEATER<SAZ> (A)	1-83579-617-0	02	1	9604-0004	●	●	●	●	●
57	COVER; INL DUCT (A)	1-83579-617-0	02	1	9604-0004		●			●
57	COVER; INL DUCT HEATER & DEFROSTER<C41>,VENTILATOR & DEFROSTER WO/HEATER<SAZ> (A)	1-83579-617-0	02	1	0005-0310	●		●	●
57	COVER; INL DUCT HEATER & DEFROSTER<C41>,VENTILATOR & DEFROSTER WO/HEATER<SAZ> (A)	1-83579-617-0	02	1	0311-	●
57	COVER; INL DUCT HEATER & DEFROSTER<C41>,AIR CONDITIONER MANUAL CONTROL<C60>,VENTILATOR & DEFROSTER WO/HEATER<SAZ> (A)	1-83579-617-0	02	1	0311-			●	●
57	COVER; INL DUCT HEATER & DEFROSTER<C41>,VENTILATOR & DEFROSTER WO/HEATER<SAZ> (B)	1-83579-618-0	01	1	9604-0004	●	●	●	●	●
57	COVER; INL DUCT (B)	1-83579-618-0	01	1	9604-0004		●			●
57	COVER; INL DUCT HEATER & DEFROSTER<C41>,VENTILATOR & DEFROSTER WO/HEATER<SAZ> (B)	1-83579-618-0	01	1	0005-0310	●		●	●
57	COVER; INL DUCT HEATER & DEFROSTER<C41>,VENTILATOR & DEFROSTER WO/HEATER<SAZ> (B)	1-83579-618-0	01	1	0311-	●
57	COVER; INL DUCT HEATER & DEFROSTER<C41>,AIR CONDITIONER MANUAL CONTROL<C60>,VENTILATOR & DEFROSTER WO/HEATER<SAZ> (B)	1-83579-618-0	01	1	0311-			●	●
72	BOLT; BLOWER UNIT HEATER & DEFROSTER<C41>,VENTILATOR & DEFROSTER WO/HEATER<SAZ> M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	9604-0004	●	●	●	●	●
72	BOLT; BLOWER UNIT HEATER & DEFROSTER<C41>,VENTILATOR & DEFROSTER WO/HEATER<SAZ> M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	0005-0310	●		●	●
72	BOLT; BLOWER UNIT HEATER & DEFROSTER<C41>,VENTILATOR & DEFROSTER WO/HEATER<SAZ> M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	0311-	●
72	BOLT; BLOWER UNIT HEATER & DEFROSTER<C41>,AIR CONDITIONER MANUAL CONTROL<C60>,VENTILATOR & DEFROSTER WO/HEATER<SAZ> M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	0311-			●	●
77	BOLT; HTR UNIT HEATER & DEFROSTER<C41>,VENTILATOR & DEFROSTER WO/HEATER<SAZ> (A) M6X16	1-09980-598-0	02	1	9604-0004	●	●	●	●	●
77	BOLT; HTR UNIT HEATER & DEFROSTER<C41>,VENTILATOR & DEFROSTER WO/HEATER<SAZ> (A) M6X16	1-09980-598-1	02	1	0005-0310	●		●	●
77	BOLT; HTR UNIT HEATER & DEFROSTER<C41>,VENTILATOR & DEFROSTER WO/HEATER<SAZ> (A) M6X16	1-09980-598-1	02	1	0311-	●
77	BOLT; HTR UNIT HEATER & DEFROSTER<C41>,AIR CONDITIONER MANUAL CONTROL<C60>,VENTILATOR & DEFROSTER WO/HEATER<SAZ> (A) M6X16	1-09980-598-1	02	1	0311-			●	●
77	BOLT; HTR UNIT HEATER & DEFROSTER<C41>,VENTILATOR & DEFROSTER WO/HEATER<SAZ> (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	9604-0004	●	●	●	●	●
77	BOLT; HTR UNIT HEATER & DEFROSTER<C41>,VENTILATOR & DEFROSTER WO/HEATER<SAZ> (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	0005-0310	●		●	●
77	BOLT; HTR UNIT HEATER & DEFROSTER<C41>,VENTILATOR & DEFROSTER WO/HEATER<SAZ> (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	0311-	●
77	BOLT; HTR UNIT HEATER & DEFROSTER<C41>,AIR CONDITIONER MANUAL CONTROL<C60>,VENTILATOR & DEFROSTER WO/HEATER<SAZ> (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	0311-			●	●
123	SCREW; DUCT HEATER & DEFROSTER<C41> M5X14	8-94279-325-0	02	1	9604-0004	●	●	●	●	●
123	SCREW; DUCT HEATER & DEFROSTER<C41> M5X14	8-94279-325-0	02	1	0005-0310	●		●	●
123	SCREW; DUCT HEATER & DEFROSTER<C41> M5X14	8-94279-325-0	02	1	0311-	●
123	SCREW; DUCT HEATER & DEFROSTER<C41>,AIR CONDITIONER MANUAL CONTROL<C60> M5X14	8-94279-325-0	02	1	0311-			●	●
123	SCREW; DUCT HEATER & DEFROSTER<C41>,VENTILATOR & DEFROSTER WO/HEATER<SAZ> M5X14	8-94279-325-0	08	1	9604-0004	●	●	●	●	●
123	SCREW; DUCT HEATER & DEFROSTER<C41>,VENTILATOR & DEFROSTER WO/HEATER<SAZ> M5X14	8-94279-325-0	08	1	0005-0310	●		●	●
123	SCREW; DUCT HEATER & DEFROSTER<C41>,VENTILATOR & DEFROSTER WO/HEATER<SAZ> M5X14	8-94279-325-0	08	1	0311-	●
123	SCREW; DUCT HEATER & DEFROSTER<C41>,AIR CONDITIONER MANUAL CONTROL<C60>,VENTILATOR & DEFROSTER WO/HEATER<SAZ> M5X14	8-94279-325-0	08	1	0311-			●	●
157	SCREW EXC. HEATER & DEFROSTER<C41>,VENTILATOR & DEFROSTER WO/HEATER<SAZ> M6X20 TAPPING W/PL WASHER	0-74110-620-0	01	1	9604-0004	●	●	●	●	●
157	SCREW EXC. HEATER & DEFROSTER<C41>,VENTILATOR & DEFROSTER WO/HEATER<SAZ> M6X20 TAPPING W/PL WASHER	0-74110-620-0	01	1	0005-0310	●		●	●
157	SCREW EXC. HEATER & DEFROSTER<C41>,VENTILATOR & DEFROSTER WO/HEATER<SAZ> M6X20 TAPPING W/PL WASHER	0-74110-620-0	01	1	0311-0604	●
157	SCREW EXC. HEATER & DEFROSTER<C41>,AIR CONDITIONER MANUAL CONTROL<C60>,VENTILATOR & DEFROSTER WO/HEATER<SAZ> M6X20 TAPPING W/PL WASHER	0-74110-620-0	01	1	0311-0604			●	●
157	SCREW EXC. HEATER & DEFROSTER<C41>,VENTILATOR & DEFROSTER WO/HEATER<SAZ> M6X20 TAPPING W/PL WASHER	0-74160-620-0	01	1	0605-	●
157	SCREW EXC. HEATER & DEFROSTER<C41>,AIR CONDITIONER MANUAL CONTROL<C60>,VENTILATOR & DEFROSTER WO/HEATER<SAZ> M6X20 TAPPING W/PL WASHER	0-74160-620-0	01	1	0605-			●	●
222	FASTENER; DUCT HEATER & DEFROSTER<C41> ID=6 OD=16 L=18	8-94178-705-0	01	1	9802-0004	●	●	●	●	●
222	FASTENER; DUCT HEATER & DEFROSTER<C41> ID=6 OD=16 L=18	8-94178-705-0	01	1	0005-0310	●		●	●
222	FASTENER; DUCT HEATER & DEFROSTER<C41> ID=6 OD=16 L=18	8-94178-705-0	01	1	0311-	●
222	FASTENER; DUCT HEATER & DEFROSTER<C41>,AIR CONDITIONER MANUAL CONTROL<C60> ID=6 OD=16 L=18	8-94178-705-0	01	1	0311-			●	●
250	CONTROL ASM; A/C HEATER & DEFROSTER<C41> (A)	1-83543-033-2	01	1	9604-9909	●	●	●	●	●
250	CONTROL ASM; A/C HEATER & DEFROSTER<C41> (A)	1-83543-050-0	01	1	9910-0004	●	●	●	●	●
250	CONTROL ASM; A/C HEATER & DEFROSTER<C41> (A)	1-83543-050-0	01	1	0005-0310	●		●	●
250	CONTROL ASM; A/C HEATER & DEFROSTER<C41> (A)	1-83543-050-0	01	1	0311-	●
250	CONTROL ASM; A/C HEATER & DEFROSTER<C41>,AIR CONDITIONER MANUAL CONTROL<C60> (A)	1-83543-050-0	01	1	0311-			●	●
250	CONTROL ASM; A/C VENTILATOR & DEFROSTER WO/HEATER<SAZ> (B)	1-83543-034-1	01	1	9604-0004	●	●	●	●	●
250	CONTROL ASM; A/C VENTILATOR & DEFROSTER WO/HEATER<SAZ> (B)	1-83543-034-1	01	1	0005-	●		●	●
265	SCREW; A/C CONT UNIT HEATER & DEFROSTER<C41>,VENTILATOR & DEFROSTER WO/HEATER<SAZ> M6X20 TAPPING W/PL WASHER	0-74110-620-0	01	1	9604-0004	●	●	●	●	●
265	SCREW; A/C CONT UNIT HEATER & DEFROSTER<C41>,VENTILATOR & DEFROSTER WO/HEATER<SAZ> M6X20 TAPPING W/PL WASHER	0-74110-620-0	01	1	0005-0310	●		●	●
265	SCREW; A/C CONT UNIT HEATER & DEFROSTER<C41>,VENTILATOR & DEFROSTER WO/HEATER<SAZ> M6X20 TAPPING W/PL WASHER	0-74110-620-0	01	1	0311-0604	●
265	SCREW; A/C CONT UNIT HEATER & DEFROSTER<C41>,AIR CONDITIONER MANUAL CONTROL<C60>,VENTILATOR & DEFROSTER WO/HEATER<SAZ> M6X20 TAPPING W/PL WASHER	0-74110-620-0	01	1	0311-0604			●	●
265	SCREW; A/C CONT UNIT HEATER & DEFROSTER<C41>,VENTILATOR & DEFROSTER WO/HEATER<SAZ> M6X20 TAPPING W/PL WASHER	0-74160-620-0	01	1	0605-	●
265	SCREW; A/C CONT UNIT HEATER & DEFROSTER<C41>,AIR CONDITIONER MANUAL CONTROL<C60>,VENTILATOR & DEFROSTER WO/HEATER<SAZ> M6X20 TAPPING W/PL WASHER	0-74160-620-0	01	1	0605-			●	●
302	COVER; AIR HOLE EXC. HEATER & DEFROSTER<C41>,VENTILATOR & DEFROSTER WO/HEATER<SAZ>	1-72438-140-1	01	1	9604-0004	●	●	●	●	●
302	COVER; AIR HOLE EXC. HEATER & DEFROSTER<C41>,VENTILATOR & DEFROSTER WO/HEATER<SAZ>	1-72438-140-1	01	1	0005-0310	●		●	●
302	COVER; AIR HOLE EXC. HEATER & DEFROSTER<C41>,VENTILATOR & DEFROSTER WO/HEATER<SAZ>	1-72438-140-1	01	1	0311-	●
302	COVER; AIR HOLE EXC. HEATER & DEFROSTER<C41>,AIR CONDITIONER MANUAL CONTROL<C60>,VENTILATOR & DEFROSTER WO/HEATER<SAZ>	1-72438-140-1	01	1	0311-			●	●
321	NUT; DUCT FIX HEATER & DEFROSTER<C41> (A) M6 FLANGE	0-91150-106-0	01	1	9604-0004	●	●	●	●	●
321	NUT; DUCT FIX HEATER & DEFROSTER<C41> (A) M6 FLANGE	0-91150-106-0	01	1	0005-0310	●		●	●
321	NUT; DUCT FIX HEATER & DEFROSTER<C41> (A) M6 FLANGE	0-91150-106-0	01	1	0311-0602	●
321	NUT; DUCT FIX HEATER & DEFROSTER<C41>,AIR CONDITIONER MANUAL CONTROL<C60> (A) M6 FLANGE	0-91150-106-0	01	1	0311-0602			●	●
321	NUT; DUCT FIX HEATER & DEFROSTER<C41> (A) M6 FLANGE	0-91180-106-0	01	1	0603-	●
321	NUT; DUCT FIX HEATER & DEFROSTER<C41>,AIR CONDITIONER MANUAL CONTROL<C60> (A) M6 FLANGE	0-91180-106-0	01	1	0603-			●	●
321	NUT; DUCT FIX HEATER & DEFROSTER<C41> (B) M5	1-09984-150-0	01	1	9604-0004	●	●	●	●	●
321	NUT; DUCT FIX HEATER & DEFROSTER<C41> (B) M5	1-09984-150-0	01	1	0005-0310	●		●	●
321	NUT; DUCT FIX HEATER & DEFROSTER<C41> (B) M5	1-09984-150-0	01	1	0311-0409	●
321	NUT; DUCT FIX HEATER & DEFROSTER<C41>,AIR CONDITIONER MANUAL CONTROL<C60> (B) M5	1-09984-150-0	01	1	0311-0409			●	●
321	NUT; DUCT FIX HEATER & DEFROSTER<C41> (B) M5	1-09984-196-0	01	1	0410-	●
321	NUT; DUCT FIX HEATER & DEFROSTER<C41>,AIR CONDITIONER MANUAL CONTROL<C60> (B) M5	1-09984-196-0	01	1	0410-			●	●
373	RUBBER; JOINT	1-76378-291-0	02	1	9604-0004	●	●	●	●	●
373	RUBBER; JOINT	1-76378-291-0	02	1	0005-	●		●	●
376	COVER; BED HEATER HEATER & DEFROSTER<C41>,VENTILATOR & DEFROSTER WO/HEATER<SAZ>	1-83579-599-2	01	1	9604-9702	●	●	●	●	●
459	PANEL; CONTROL ASM,A/C HEATER & DEFROSTER<C41>,VENTILATOR & DEFROSTER WO/HEATER<SAZ> (A)	1-83549-013-0	01	1	0005-0310	●		●	●
459	PANEL; CONTROL ASM,A/C HEATER & DEFROSTER<C41>,VENTILATOR & DEFROSTER WO/HEATER<SAZ> (A)	1-83549-013-0	01	1	0311-	●
459	PANEL; CONTROL ASM,A/C HEATER & DEFROSTER<C41>,AIR CONDITIONER MANUAL CONTROL<C60>,VENTILATOR & DEFROSTER WO/HEATER<SAZ> (A)	1-83549-013-0	01	1	0311-			●	●
459	PANEL; CONTROL ASM,A/C VENTILATOR & DEFROSTER WO/HEATER<SAZ> (B)	1-83549-017-0	01	1	0005-	●		●	●
460	SWITCH; CONTROL ASM,A/C HEATER & DEFROSTER<C41>,VENTILATOR & DEFROSTER WO/HEATER<SAZ>	1-82489-006-0	01	1	0005-0310	●		●	●
460	SWITCH; CONTROL ASM,A/C HEATER & DEFROSTER<C41>,VENTILATOR & DEFROSTER WO/HEATER<SAZ>	1-82489-006-0	01	1	0311-	●
460	SWITCH; CONTROL ASM,A/C HEATER & DEFROSTER<C41>,AIR CONDITIONER MANUAL CONTROL<C60>,VENTILATOR & DEFROSTER WO/HEATER<SAZ>	1-82489-006-0	01	1	0311-			●	●
461	KNOB; CONTROL ASM,A/C HEATER & DEFROSTER<C41> (B)	1-83549-015-0	01	1	0005-0310	●		●	●
461	KNOB; CONTROL ASM,A/C HEATER & DEFROSTER<C41> (B)	1-83549-015-0	01	1	0311-	●
461	KNOB; CONTROL ASM,A/C HEATER & DEFROSTER<C41>,AIR CONDITIONER MANUAL CONTROL<C60> (B)	1-83549-015-0	01	1	0311-			●	●
461	KNOB; CONTROL ASM,A/C HEATER & DEFROSTER<C41>,VENTILATOR & DEFROSTER WO/HEATER<SAZ> (A)	1-83549-016-0	01	1	0005-0310	●		●	●
461	KNOB; CONTROL ASM,A/C HEATER & DEFROSTER<C41>,VENTILATOR & DEFROSTER WO/HEATER<SAZ> (A)	1-83549-016-0	01	1	0311-	●
461	KNOB; CONTROL ASM,A/C HEATER & DEFROSTER<C41>,AIR CONDITIONER MANUAL CONTROL<C60>,VENTILATOR & DEFROSTER WO/HEATER<SAZ> (A)	1-83549-016-0	01	1	0311-			●	●

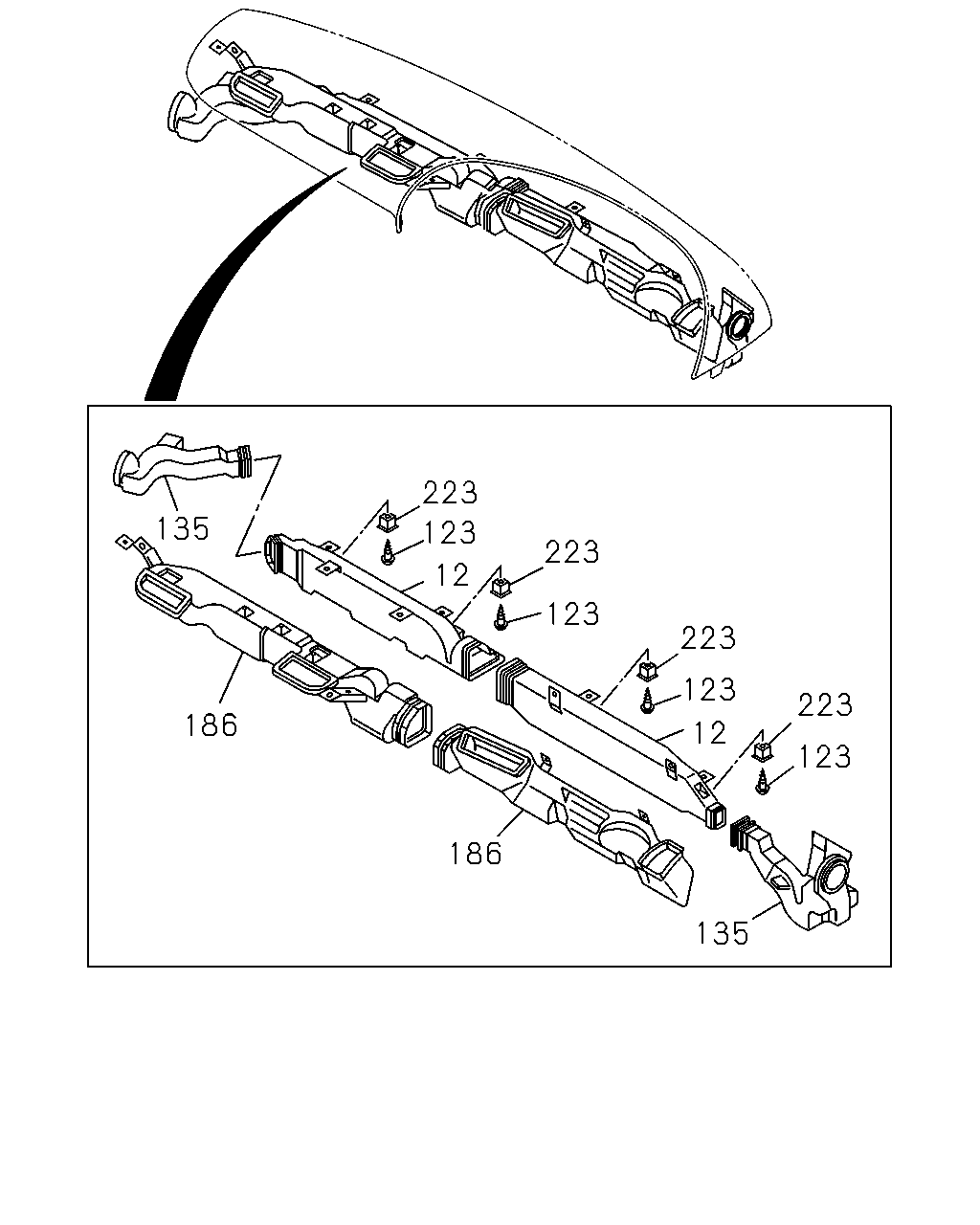

223 135 123 223 12 123 223 123 223 186 12 123 186 135

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
12	NOZZLE; DEFROSTER HEATER & DEFROSTER<C41>,VENTILATOR & DEFROSTER WO/HEATER<SAZ>	1-76378-321-6	01	1	9805-0004	●	●	●	●	●
12	NOZZLE; DEFROSTER HEATER & DEFROSTER<C41>,VENTILATOR & DEFROSTER WO/HEATER<SAZ>	1-76378-321-6	01	1	0005-0310	●		●	●
12	NOZZLE; DEFROSTER HEATER & DEFROSTER<C41>,VENTILATOR & DEFROSTER WO/HEATER<SAZ>	1-76378-321-6	01	1	0311-	●
12	NOZZLE; DEFROSTER HEATER & DEFROSTER<C41>,AIR CONDITIONER MANUAL CONTROL<C60>,VENTILATOR & DEFROSTER WO/HEATER<SAZ>	1-76378-321-6	01	1	0311-			●	●
12	NOZZLE; DEFROSTER HEATER & DEFROSTER<C41>,VENTILATOR & DEFROSTER WO/HEATER<SAZ>	1-76377-172-6	01	1	9805-0004	●	●	●	●	●
12	NOZZLE; DEFROSTER HEATER & DEFROSTER<C41>,VENTILATOR & DEFROSTER WO/HEATER<SAZ>	1-76377-172-6	01	1	0005-0310	●		●	●
12	NOZZLE; DEFROSTER HEATER & DEFROSTER<C41>,VENTILATOR & DEFROSTER WO/HEATER<SAZ>	1-76377-172-7	01	1	0311-	●
12	NOZZLE; DEFROSTER HEATER & DEFROSTER<C41>,AIR CONDITIONER MANUAL CONTROL<C60>,VENTILATOR & DEFROSTER WO/HEATER<SAZ>	1-76377-172-7	01	1	0311-			●	●
123	SCREW; DUCT HEATER & DEFROSTER<C41> M5X14	8-94279-325-0	02	1	9604-0004	●	●	●	●	●
123	SCREW; DUCT HEATER & DEFROSTER<C41> M5X14	8-94279-325-0	02	1	0005-0310	●		●	●
123	SCREW; DUCT HEATER & DEFROSTER<C41> M5X14	8-94279-325-0	02	1	0311-	●
123	SCREW; DUCT HEATER & DEFROSTER<C41>,AIR CONDITIONER MANUAL CONTROL<C60> M5X14	8-94279-325-0	02	1	0311-			●	●
123	SCREW; DUCT HEATER & DEFROSTER<C41>,VENTILATOR & DEFROSTER WO/HEATER<SAZ> M5X14	8-94279-325-0	08	1	9604-0004	●	●	●	●	●
123	SCREW; DUCT HEATER & DEFROSTER<C41>,VENTILATOR & DEFROSTER WO/HEATER<SAZ> M5X14	8-94279-325-0	08	1	0005-0310	●		●	●
123	SCREW; DUCT HEATER & DEFROSTER<C41>,VENTILATOR & DEFROSTER WO/HEATER<SAZ> M5X14	8-94279-325-0	08	1	0311-	●
123	SCREW; DUCT HEATER & DEFROSTER<C41>,AIR CONDITIONER MANUAL CONTROL<C60>,VENTILATOR & DEFROSTER WO/HEATER<SAZ> M5X14	8-94279-325-0	08	1	0311-			●	●
135	HOSE; DEFROSTER HEATER & DEFROSTER<C41>,VENTILATOR & DEFROSTER WO/HEATER<SAZ>	1-76378-253-4	01	1	9805-0004	●	●	●	●	●
135	HOSE; DEFROSTER HEATER & DEFROSTER<C41>,VENTILATOR & DEFROSTER WO/HEATER<SAZ>	1-76378-253-4	01	1	0005-0310	●		●	●
135	HOSE; DEFROSTER HEATER & DEFROSTER<C41>,VENTILATOR & DEFROSTER WO/HEATER<SAZ>	1-76378-253-4	01	1	0311-	●
135	HOSE; DEFROSTER HEATER & DEFROSTER<C41>,AIR CONDITIONER MANUAL CONTROL<C60>,VENTILATOR & DEFROSTER WO/HEATER<SAZ>	1-76378-253-4	01	1	0311-			●	●
135	HOSE; DEFROSTER HEATER & DEFROSTER<C41>,VENTILATOR & DEFROSTER WO/HEATER<SAZ>	1-76378-252-7	01	1	9805-0004	●	●	●	●	●
135	HOSE; DEFROSTER HEATER & DEFROSTER<C41>,VENTILATOR & DEFROSTER WO/HEATER<SAZ>	1-76378-252-7	01	1	0005-0310	●		●	●
135	HOSE; DEFROSTER HEATER & DEFROSTER<C41>,VENTILATOR & DEFROSTER WO/HEATER<SAZ>	1-76378-252-7	01	1	0311-	●
135	HOSE; DEFROSTER HEATER & DEFROSTER<C41>,AIR CONDITIONER MANUAL CONTROL<C60>,VENTILATOR & DEFROSTER WO/HEATER<SAZ>	1-76378-252-7	01	1	0311-			●	●
186	DUCT; VENTILATOR HEATER & DEFROSTER<C41>,VENTILATOR & DEFROSTER WO/HEATER<SAZ>	1-76378-322-9	01	1	9805-9903	●	●	●	●	●
186	DUCT; VENTILATOR HEATER & DEFROSTER<C41>,VENTILATOR & DEFROSTER WO/HEATER<SAZ>	1-76378-418-0	01	1	9904-0004	●	●	●	●	●
186	DUCT; VENTILATOR HEATER & DEFROSTER<C41>,VENTILATOR & DEFROSTER WO/HEATER<SAZ>	1-76378-418-0	01	1	0005-0310	●		●	●
186	DUCT; VENTILATOR HEATER & DEFROSTER<C41>,VENTILATOR & DEFROSTER WO/HEATER<SAZ>	1-76378-418-0	01	1	0311-	●
186	DUCT; VENTILATOR HEATER & DEFROSTER<C41>,AIR CONDITIONER MANUAL CONTROL<C60>,VENTILATOR & DEFROSTER WO/HEATER<SAZ>	1-76378-418-0	01	1	0311-			●	●
186	DUCT; VENTILATOR HEATER & DEFROSTER<C41>,VENTILATOR & DEFROSTER WO/HEATER<SAZ>	1-76377-173-6	01	1	9805-0004	●	●	●	●	●
186	DUCT; VENTILATOR HEATER & DEFROSTER<C41>,VENTILATOR & DEFROSTER WO/HEATER<SAZ>	1-76377-173-6	01	1	0005-0310	●		●	●
186	DUCT; VENTILATOR HEATER & DEFROSTER<C41>,VENTILATOR & DEFROSTER WO/HEATER<SAZ>	1-76377-173-6	01	1	0311-0710	●
186	DUCT; VENTILATOR HEATER & DEFROSTER<C41>,AIR CONDITIONER MANUAL CONTROL<C60>,VENTILATOR & DEFROSTER WO/HEATER<SAZ>	1-76377-173-6	01	1	0311-0710			●	●
186	DUCT; VENTILATOR HEATER & DEFROSTER<C41>,VENTILATOR & DEFROSTER WO/HEATER<SAZ>	1-76377-246-0	01	1	0711-	●
186	DUCT; VENTILATOR HEATER & DEFROSTER<C41>,AIR CONDITIONER MANUAL CONTROL<C60>,VENTILATOR & DEFROSTER WO/HEATER<SAZ>	1-76377-246-0	01	1	0711-			●	●
223	GROMMET; SCREW HEATER & DEFROSTER<C41>,VENTILATOR & DEFROSTER WO/HEATER<SAZ> D=7.8X7.8 L 13 M6 NATURAL	8-94279-084-2	04	1	9604-0004	●	●	●	●	●
223	GROMMET; SCREW HEATER & DEFROSTER<C41>,VENTILATOR & DEFROSTER WO/HEATER<SAZ> D=7.8X7.8 L 13 M6 NATURAL	8-94279-084-2	04	1	0005-0310	●		●	●
223	GROMMET; SCREW HEATER & DEFROSTER<C41>,VENTILATOR & DEFROSTER WO/HEATER<SAZ> D=7.8X7.8 L 13 M6 NATURAL	8-94279-084-2	04	1	0311-	●
223	GROMMET; SCREW HEATER & DEFROSTER<C41>,AIR CONDITIONER MANUAL CONTROL<C60>,VENTILATOR & DEFROSTER WO/HEATER<SAZ> D=7.8X7.8 L 13 M6 NATURAL	8-94279-084-2	04	1	0311-			●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
