Sayfa 8-28 - Isuzu EPC

8-28 — CHASSIS ELECTRICAL (#34486) — 364 parça

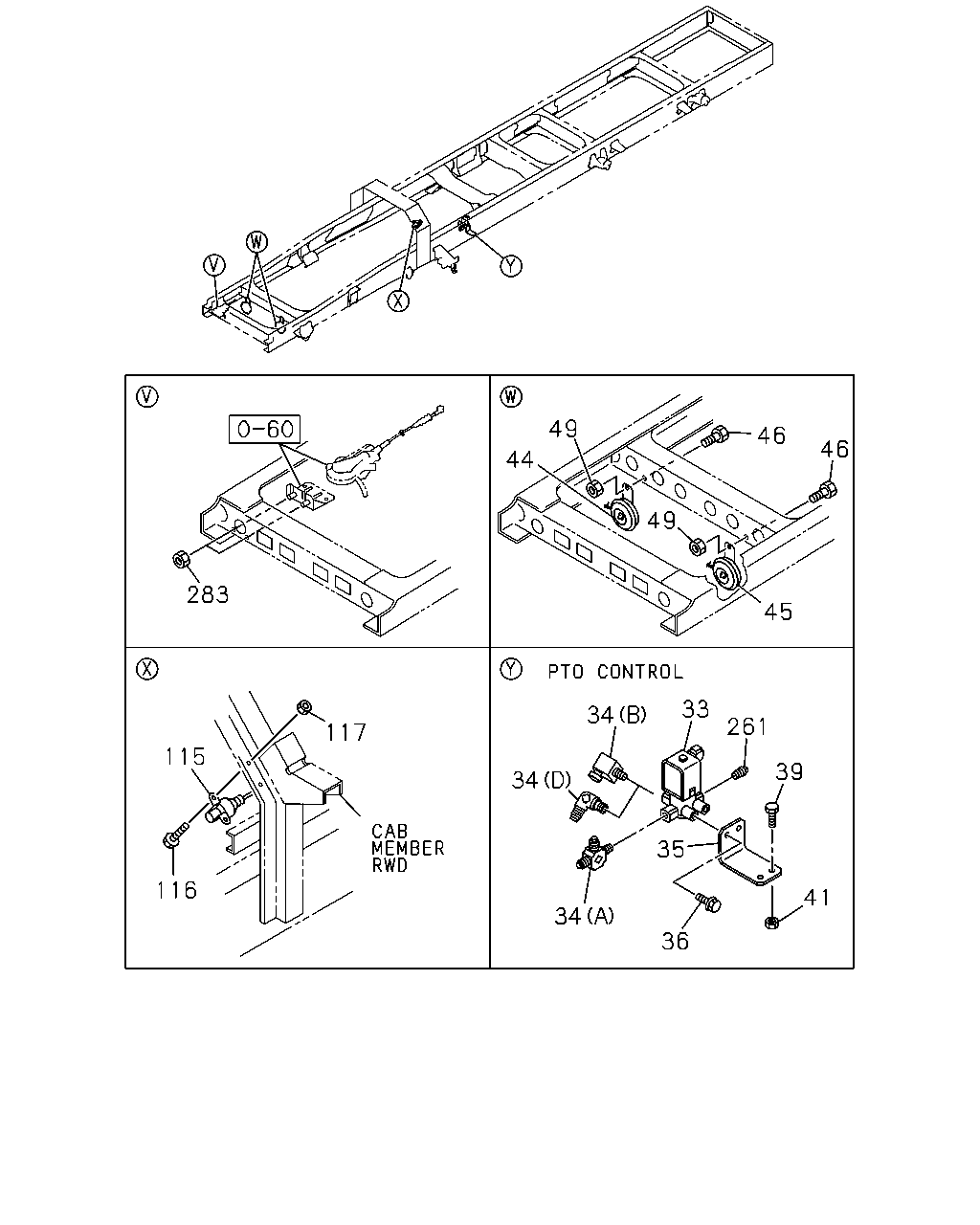

49 46 46 44 49 283 45 33 34 261 117 115 39 34 35 116 41 34 36

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
33	VALVE; MAG,PTO CONT PTO CONTROL<SV6>	1-82563-600-4	01	1	9604-0004	●	●	●	●	●
33	VALVE; MAG,PTO CONT PTO CONTROL<SV6>	1-82563-600-5	01	1	0005-	●		●	●
34	CONNECTOR; MAG VLV,INL PORT TRANSFER TF56<BFK> (C) M12 & PT1/4 STRAIGHT	1-09650-074-1	02	1	0406-				●
34	CONNECTOR; MAG VLV,INL PORT (C) M12 & PT1/4 STRAIGHT	1-09650-074-1	03	1	9604-0004	●	●	●	●	●

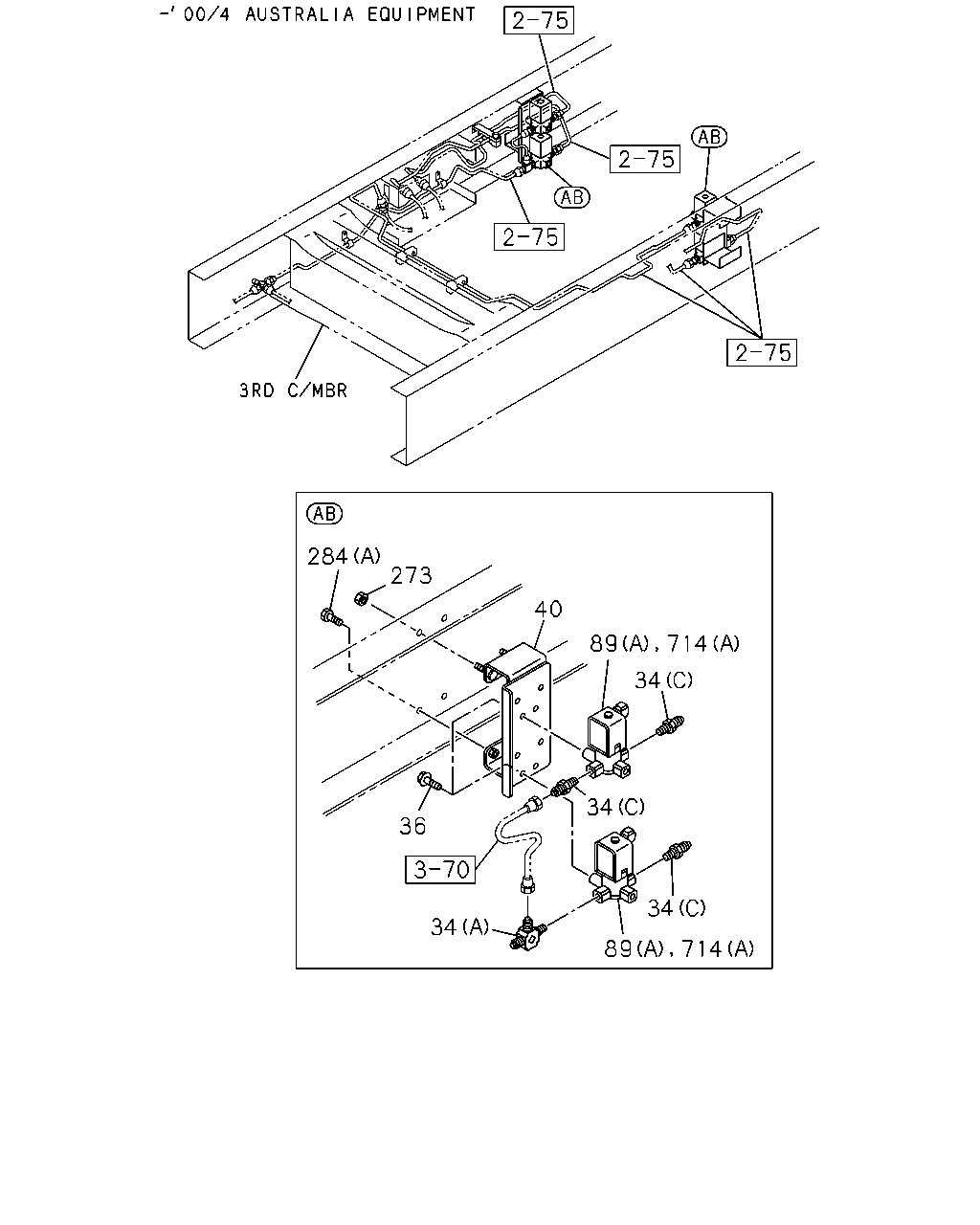

34	CONNECTOR; MAG VLV,INL PORT AUSTRALIA EQUIPMENT(RR3) (C) M12 & PT1/4 STRAIGHT	1-09650-074-1	03	1	9604-0004	●	●		●	●
34	CONNECTOR; MAG VLV,INL PORT (C) M12 & PT1/4 STRAIGHT	1-09650-074-1	03	1	0005-0405	●		●	●
34	CONNECTOR; MAG VLV,INL PORT (C) M12 & PT1/4 STRAIGHT	1-09650-074-1	03	1	0406-	●		●

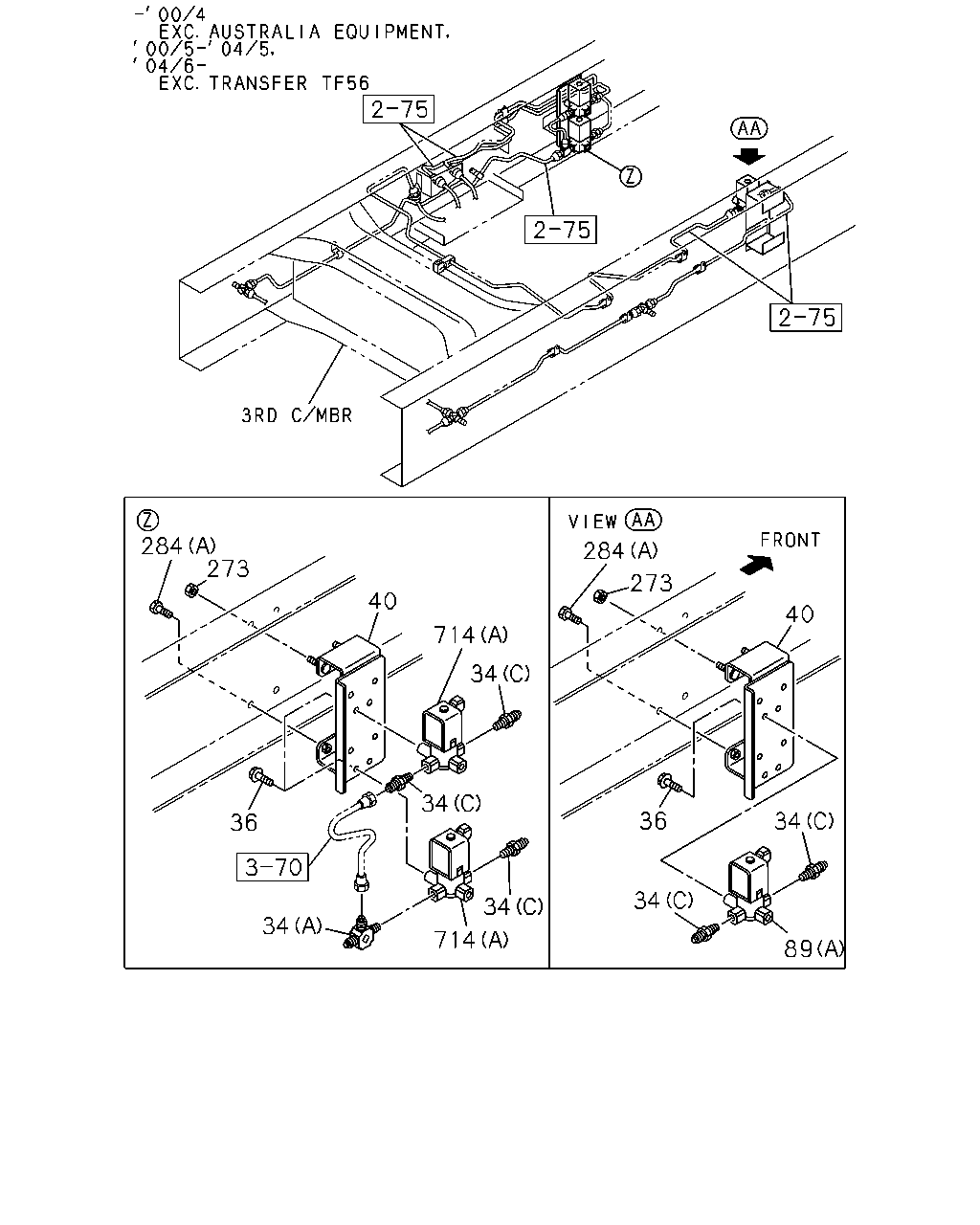

34	CONNECTOR; MAG VLV,INL PORT EXC. TRANSFER TF56<BFK> (C) M12 & PT1/4 STRAIGHT	1-09650-074-1	03	1	0406-				●
34	CONNECTOR; MAG VLV,INL PORT (A) M12X2 & PT1/4 3WAY	1-09656-230-1	01	1	9604-0004	●	●	●	●	●
34	CONNECTOR; MAG VLV,INL PORT PTO CONTROL<SV6> (A) M12X2 & PT1/4 3WAY	1-09656-230-1	01	1	9604-0004	●	●	●	●	●
34	CONNECTOR; MAG VLV,INL PORT AUSTRALIA EQUIPMENT(RR3) (A) M12X2 & PT1/4 3WAY	1-09656-230-1	01	1	9604-0004	●	●		●	●
34	CONNECTOR; MAG VLV,INL PORT (A) M12X2 & PT1/4 3WAY	1-09656-230-1	01	1	0005-0405	●		●	●
34	CONNECTOR; MAG VLV,INL PORT PTO CONTROL<SV6> (A) M12X2 & PT1/4 3WAY	1-09656-230-1	01	1	0005-0405	●		●	●
34	CONNECTOR; MAG VLV,INL PORT PTO CONTROL<SV6> (A) M12X2 & PT1/4 3WAY	1-09656-230-1	01	1	0406-	●		●	●
34	CONNECTOR; MAG VLV,INL PORT (A) M12X2 & PT1/4 3WAY	1-09656-230-1	01	1	0406-	●		●
34	CONNECTOR; MAG VLV,INL PORT EXC. TRANSFER TF56<BFK> (A) M12X2 & PT1/4 3WAY	1-09656-230-1	01	1	0406-				●
34	CONNECTOR; MAG VLV,INL PORT PTO CONTROL<SV6> (B) M20 & PT1/4 ELBOW	1-09660-681-0	01	1	9604-9803	●	●	●	●	●
34	CONNECTOR; MAG VLV,INL PORT PTO CONTROL<SV6> (D) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	9804-0004	●	●	●	●	●
34	CONNECTOR; MAG VLV,INL PORT PTO CONTROL<SV6> (D) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	0005-	●		●	●
34	CONNECTOR; MAG VLV,INL PORT EXC. AUSTRALIA EQUIPMENT(RR3) (C) M12 & PT1/4 STRAIGHT	1-09650-074-1	02	1	9604-0004	●			●
34	CONNECTOR; MAG VLV,INL PORT (C) M12 & PT1/4 STRAIGHT	1-09650-074-1	02	1	9604-0004			●
35	BRACKET; MAG VLV,PTO CONT PTO CONTROL<SV6>	1-47477-267-0	01	1	9604-0004	●	●	●	●	●
35	BRACKET; MAG VLV,PTO CONT PTO CONTROL<SV6>	1-47477-267-0	01	1	0005-	●		●	●
36	BOLT; MAG VLV,PTO CONT M8X20 FLANGE	0-28080-820-0	04	1	9604-9810	●	●	●	●	●
36	BOLT; MAG VLV,PTO CONT AUSTRALIA EQUIPMENT(RR3) M8X20 FLANGE	0-28080-820-0	04	1	9604-9810	●	●		●	●
36	BOLT; MAG VLV,PTO CONT M8X20 FLANGE	0-28680-820-0	04	1	9811-0004	●	●	●	●	●
36	BOLT; MAG VLV,PTO CONT AUSTRALIA EQUIPMENT(RR3) M8X20 FLANGE	0-28680-820-0	04	1	9811-0004	●	●		●	●
36	BOLT; MAG VLV,PTO CONT M8X20 FLANGE	0-28680-820-0	04	1	0005-0405	●		●	●
36	BOLT; MAG VLV,PTO CONT M8X20 FLANGE	0-28680-820-0	04	1	0406-0512	●		●
36	BOLT; MAG VLV,PTO CONT EXC. TRANSFER TF56<BFK> M8X20 FLANGE	0-28680-820-0	04	1	0406-0512				●
36	BOLT; MAG VLV,PTO CONT M8X20 FLANGE	0-28650-820-0	04	1	0601-	●		●
36	BOLT; MAG VLV,PTO CONT EXC. TRANSFER TF56<BFK> M8X20 FLANGE	0-28650-820-0	04	1	0601-				●
36	BOLT; MAG VLV,PTO CONT PTO CONTROL<SV6> M8X20 FLANGE	0-28080-820-0	02	1	9604-9606	●	●	●	●	●
36	BOLT; MAG VLV,PTO CONT EXC. AUSTRALIA EQUIPMENT(RR3) M8X20 FLANGE	0-28080-820-0	02	1	9604-9606	●			●
36	BOLT; MAG VLV,PTO CONT M8X20 FLANGE	0-28080-820-0	02	1	9604-9606			●
36	BOLT; MAG VLV,PTO CONT EXC. AUSTRALIA EQUIPMENT(RR3) M8X20 FLANGE	0-28080-820-0	02	1	9607-9810	●			●
36	BOLT; MAG VLV,PTO CONT M8X20 FLANGE	0-28080-820-0	02	1	9607-9810			●
36	BOLT; MAG VLV,PTO CONT PTO CONTROL<SV6> M8X20 FLANGE	0-28680-820-0	02	1	9607-9810	●	●	●	●	●
36	BOLT; MAG VLV,PTO CONT PTO CONTROL<SV6> M8X20 FLANGE	0-28680-820-0	02	1	9811-0004	●	●	●	●	●
36	BOLT; MAG VLV,PTO CONT EXC. AUSTRALIA EQUIPMENT(RR3) M8X20 FLANGE	0-28680-820-0	02	1	9811-0004	●			●
36	BOLT; MAG VLV,PTO CONT M8X20 FLANGE	0-28680-820-0	02	1	9811-0004			●
36	BOLT; MAG VLV,PTO CONT PTO CONTROL<SV6> M8X20 FLANGE	0-28680-820-0	02	1	0005-0512	●		●	●
36	BOLT; MAG VLV,PTO CONT PTO CONTROL<SV6> M8X20 FLANGE	0-28650-820-0	02	1	0601-	●		●	●
39	BOLT; BRKT,MAG VLV PTO CONTROL<SV6> M8X25 FLANGE	0-28080-825-0	02	1	9604-9606	●	●	●	●	●
39	BOLT; BRKT,MAG VLV PTO CONTROL<SV6> M8X25 FLANGE	0-28680-825-0	02	1	9607-9608	●	●	●	●	●
39	BOLT; BRKT,MAG VLV PTO CONTROL<SV6> M8X30 FLANGE	0-28680-830-0	02	1	9609-0004	●	●	●	●	●
39	BOLT; BRKT,MAG VLV PTO CONTROL<SV6> M8X30 FLANGE	0-28680-830-0	02	1	0005-0512	●		●	●
39	BOLT; BRKT,MAG VLV PTO CONTROL<SV6> M8X30 FLANGE	0-28650-830-0	02	1	0601-	●		●	●
41	NUT; BRKT,MAG VLV PTO CONTROL<SV6> M8	9-09110-408-0	02	1	9604-9606	●	●	●	●	●
41	NUT; BRKT,MAG VLV PTO CONTROL<SV6> M8 FLANGE	0-91150-108-0	02	1	9607-0004	●	●	●	●	●
41	NUT; BRKT,MAG VLV PTO CONTROL<SV6> M8 FLANGE	0-91150-108-0	02	1	0005-0602	●		●	●
41	NUT; BRKT,MAG VLV PTO CONTROL<SV6> M8 FLANGE	0-91180-108-0	02	1	0603-	●		●	●
44	HORN; HIGH NOTE	1-83410-057-1	01	1	9604-0004	●	●	●	●	●
44	HORN; HIGH NOTE	1-83410-057-1	01	1	0005-0210	●		●	●
44	HORN; HIGH NOTE	1-83410-065-1	01	1	0211-	●		●	●
45	HORN; LOW NOTE	1-83410-058-1	01	1	9604-0004	●	●	●	●	●
45	HORN; LOW NOTE	1-83410-058-1	01	1	0005-0210	●		●	●
45	HORN; LOW NOTE	1-83410-064-1	01	1	0211-	●		●	●
46	BOLT; HORN TO BODY M8X25 FLANGE	0-28080-825-0	02	1	9604-9606	●	●	●	●	●
46	BOLT; HORN TO BODY M8X25 FLANGE	0-28680-825-0	02	1	9607-0004	●	●	●	●	●
46	BOLT; HORN TO BODY M8X25 FLANGE	0-28680-825-0	02	1	0005-0512	●		●	●
46	BOLT; HORN TO BODY M8X25 FLANGE	0-28650-825-0	02	1	0601-	●		●	●
49	NUT; HORN TO BODY M8 FLANGE	5-09440-005-0	02	1	9604-9606	●	●	●	●	●
49	NUT; HORN TO BODY M8 FLANGE	0-91150-108-0	02	1	9607-0004	●	●	●	●	●
49	NUT; HORN TO BODY M8 FLANGE	0-91150-108-0	02	1	0005-0602	●		●	●
49	NUT; HORN TO BODY M8 FLANGE	0-91180-108-0	02	1	0603-	●		●	●
115	RELAY; POWER CAB TILT UNIT NIKKO	1-81171-063-0	01	1	9604-0004		●			●
115	RELAY; POWER CAB TILT UNIT HITACHI	1-81171-086-0	01	1	9904-9907		●			●
115	RELAY; POWER CAB TILT UNIT EXC. NIKKO<Y70> HITACHI	1-81171-086-0	01	1	9908-0004		●			●
116	BOLT; RELAY FIX M8X20 FLANGE	0-28080-820-0	02	1	9604-9606		●			●
116	BOLT; RELAY FIX M8X25 FLANGE	0-28680-825-0	02	1	9607-0004		●			●
117	NUT; RELAY FIX M8	9-09110-408-0	02	1	9604-9606		●			●
117	NUT; RELAY FIX M8 FLANGE	0-91150-108-0	02	1	9607-0004		●			●

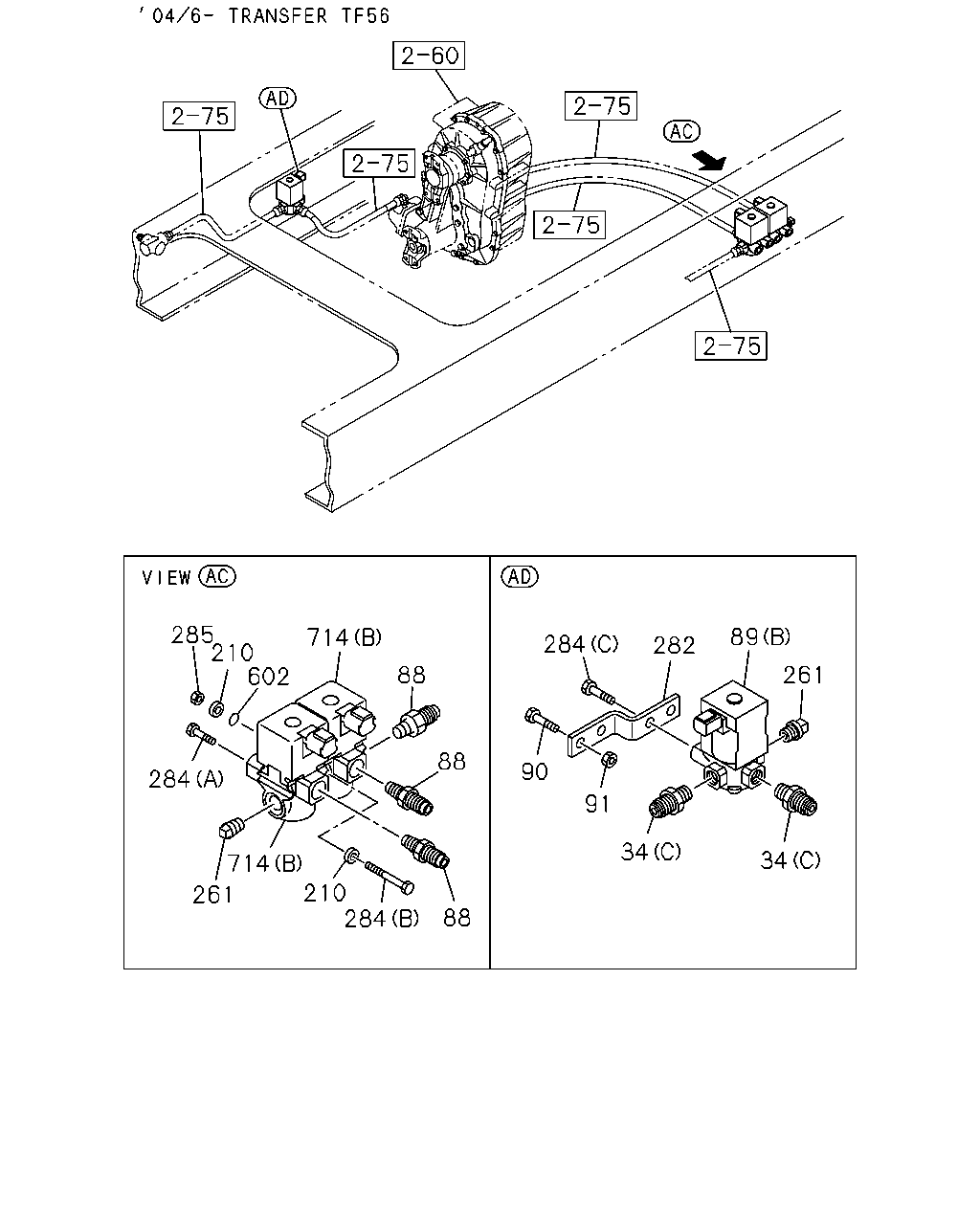

261	PLUG; MAG VLV TRANSFER TF56<BFK> PT1/4	9-99204-513-0	02	1	0406-				●
261	PLUG; MAG VLV PTO CONTROL<SV6> PT1/4	9-99204-513-0	01	1	9604-0004	●	●	●	●	●
261	PLUG; MAG VLV PTO CONTROL<SV6> PT1/4	9-99204-513-0	01	1	0005-	●		●	●
283	NUT; BRKT M8 FLANGE	5-09440-005-0	02	1	9604-9606	●	●	●	●	●
283	NUT; BRKT M8 FLANGE	0-91150-108-0	02	1	9607-0004	●	●	●	●	●
283	NUT; BRKT M8 FLANGE	0-91150-108-0	02	1	0005-0405	●		●	●
283	NUT; BRKT 6HH1 STD 4VALVE ENG(1A6),6HH1 STD ENG(65L), 6HH1N ENG(66L) M8 FLANGE	0-91150-108-0	02	1	0406-0602	●		●	●
283	NUT; BRKT 6HH1 STD 4VALVE ENG(1A6),6HH1 STD ENG(65L), 6HH1N ENG(66L) M8 FLANGE	0-91180-108-0	02	1	0603-	●		●	●

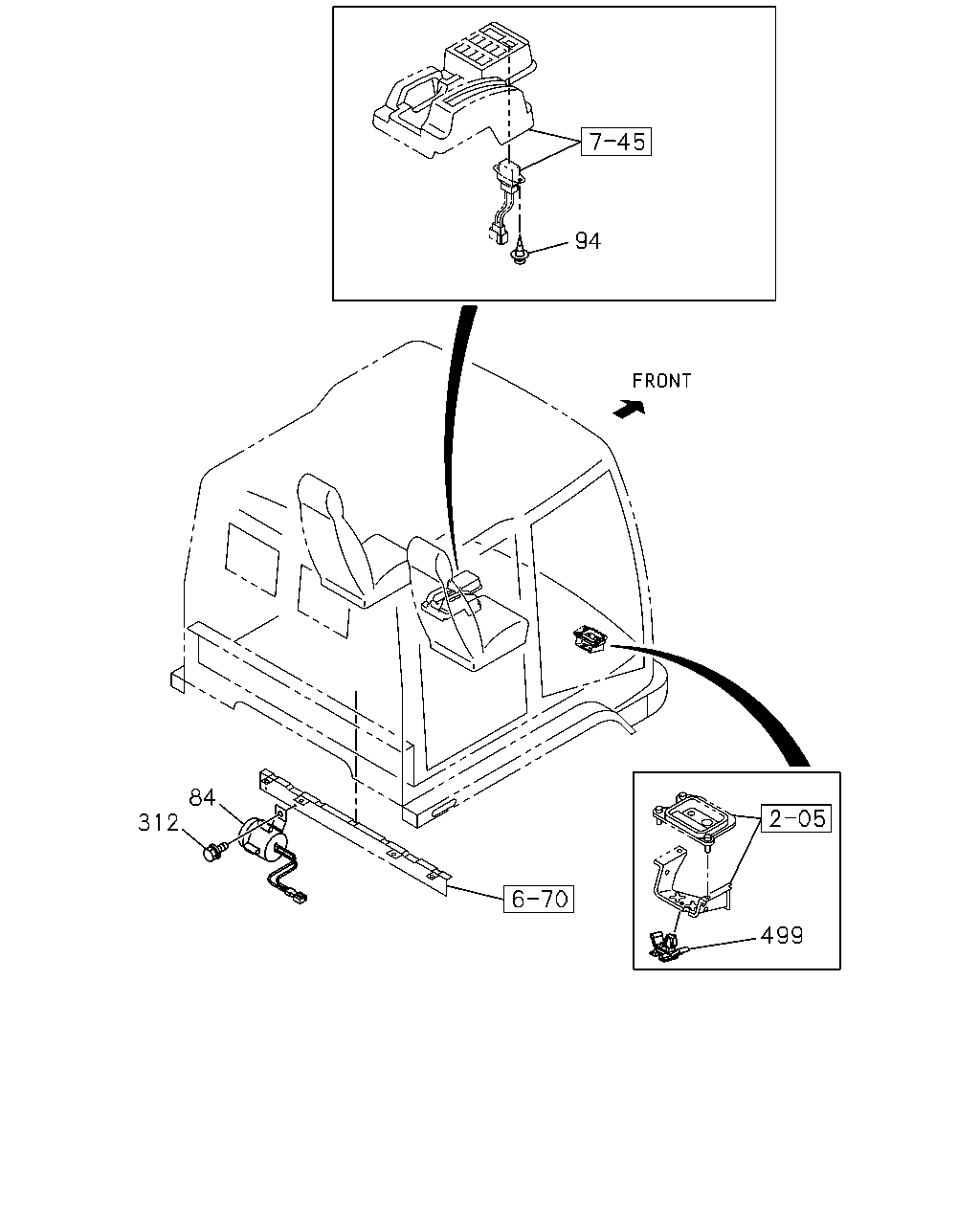

94 84 312 499

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
84	BUZZER; POWER CAB TILT NIKKO	1-83460-054-0	01	1	9604-0004		●			●
84	BUZZER; POWER CAB TILT METRO DENSO	1-83460-096-1	01	1	9904-9907		●			●
84	BUZZER; POWER CAB TILT EXC. NIKKO<Y70> METRO DENSO	1-83460-096-2	01	1	9908-0004		●			●
94	SCREW; CONSENT TO BLIND PNL M5X12 TAPPING W/PL WASHER	0-74110-512-0	02	1	9604-9810	●	●	●	●	●
94	SCREW; CONSENT TO BLIND PNL M5X10 TAPPING W/PL WASHER	0-74110-510-0	02	1	9811-0004	●	●	●	●	●
94	SCREW; CONSENT TO BLIND PNL M5X10 TAPPING W/PL WASHER	0-74110-510-0	02	1	0005-0604	●		●	●
94	SCREW; CONSENT TO BLIND PNL M5X10 TAPPING W/PL WASHER	0-74160-510-0	02	1	0605-	●		●	●
312	BOLT; BUZZER M8X20.5 W/LK&PL WASHER	8-94279-207-0	01	1	9604-0004		●			●
499	CLIP; SWITCH 6HH1 STD 4VALVE ENG(1A6) NEW ZEALAND EQUIPMENT(PK5) OD=9 H=6	1-09709-178-0	01	1	0304-0405				●
499	CLIP; SWITCH 6HK1 TCC ENG(81L) NEW ZEALAND EQUIPMENT(PK5) OD=9 H=6	1-09709-178-0	01	1	0406-				●

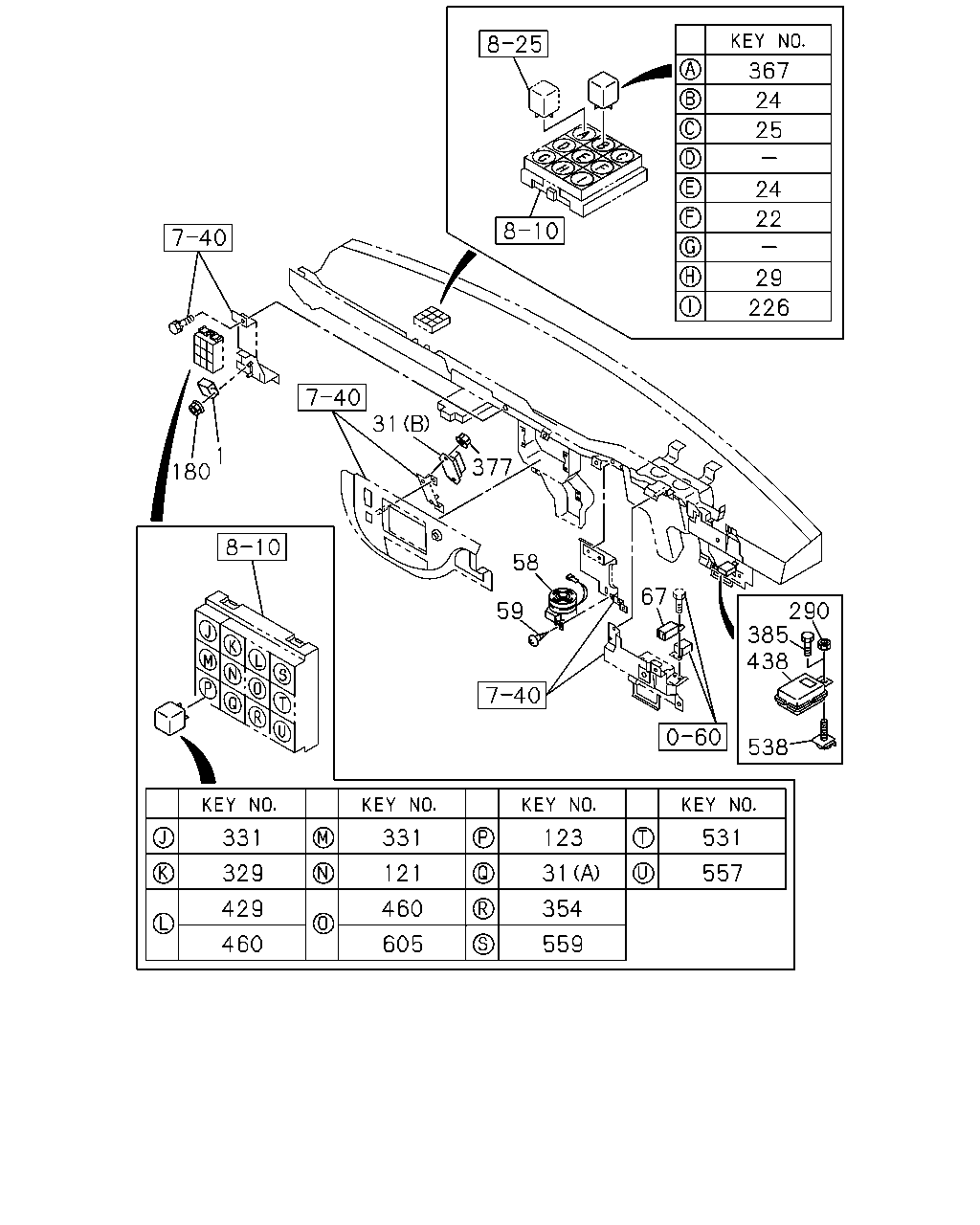

367 24 25 24 22 29 226 31 1 180 377 58 67 290 385 438 59 538 331 331 123 531 329 121 31 557 429 460 354 460 605 559

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
1	UNIT; FLASHER	1-83470-060-0	01	1	9604-0004	●	●	●	●	●
1	UNIT; FLASHER	1-83470-060-1	01	1	0005-	●		●	●
22	RELAY; STOP LAMP 24V 12.5A MITUBA	8-97062-815-1	01	1	9604-0004	●	●	●	●	●
22	RELAY; STOP LAMP 24V 12.5A MITUBA	8-97062-815-1	01	1	0005-0111	●		●	●
22	RELAY; STOP LAMP 24V 12.5A PANASONIC	8-97262-933-0	01	1	0112-0405	●		●	●
22	RELAY; STOP LAMP 24V 12.5A PANASONIC	8-97262-933-0	01	1	0406-	●		●	●
24	RELAY; LIGHTING 24V 12.5A MITUBA	8-97062-815-1	02	1	9604-0004	●	●	●	●	●
24	RELAY; LIGHTING 24V 12.5A MITUBA	8-97062-815-1	02	1	0005-0111	●		●	●
24	RELAY; LIGHTING 24V 12.5A PANASONIC	8-97262-933-0	02	1	0112-0405	●		●	●
24	RELAY; LIGHTING 24V 12.5A PANASONIC	8-97262-933-0	02	1	0406-	●		●	●
25	RELAY; TAIL LAMP 24V 12.5A MITUBA	8-97062-815-1	01	1	9604-0004	●	●	●	●	●
25	RELAY; TAIL LAMP 24V 12.5A MITUBA	8-97062-815-1	01	1	0005-0111	●		●	●
25	RELAY; TAIL LAMP 24V 12.5A PANASONIC	8-97262-933-0	01	1	0112-0405	●		●	●
25	RELAY; TAIL LAMP 24V 12.5A PANASONIC	8-97262-933-0	01	1	0406-	●		●	●
29	RELAY; HORN 24V 12.5A MITUBA	8-97062-815-1	01	1	9604-0004	●	●	●	●	●
29	RELAY; HORN 24V 12.5A MITUBA	8-97062-815-1	01	1	0005-0111	●		●	●
29	RELAY; HORN 24V 12.5A PANASONIC	8-97262-933-0	01	1	0112-0405	●		●	●
29	RELAY; HORN 24V 12.5A PANASONIC	8-97262-933-0	01	1	0406-	●		●	●
31	RELAY; PTO CONT PTO CONTROL<SV6> (B) 24V	1-82550-187-1	01	1	9604-0004	●	●	●	●	●
31	RELAY; PTO CONT PTO CONTROL<SV6> (B) 24V	1-82550-187-1	01	1	0005-	●		●	●
31	RELAY; PTO CONT PTO CONTROL<SV6> (A) 24V 12.5A MITUBA	8-97062-815-1	01	1	9604-0004	●	●	●	●	●
31	RELAY; PTO CONT PTO CONTROL<SV6> (A) 24V 12.5A MITUBA	8-97062-815-1	01	1	0005-0111	●		●	●
31	RELAY; PTO CONT PTO CONTROL<SV6> (A) 24V 12.5A PANASONIC	8-97262-933-0	01	1	0112-	●		●	●
58	BUZZER; AIR PRESSURE WARNING 6HK1 TCC ENG(81L) METRO DENSO	1-83460-075-0	01	1	0406-0612				●
58	BUZZER; AIR PRESSURE WARNING 6HK1 TCC ENG(81L) METRO DENSO	8-98069-859-0	01	1	0701-				●
58	BUZZER; AIR PRESSURE WARNING NIKKO	1-83460-056-0	01	1	9604-0004	●	●	●	●	●
58	BUZZER; AIR PRESSURE WARNING NIKKO	1-83460-056-0	01	1	0005-0006	●		●	●
58	BUZZER; AIR PRESSURE WARNING METRO DENSO	1-83460-074-1	01	1	0007-0405	●		●	●
58	BUZZER; AIR PRESSURE WARNING 6HH1 STD 4VALVE ENG(1A6),6HH1 STD ENG(65L), 6HH1N ENG(66L) METRO DENSO	1-83460-074-1	01	1	0406-0612	●		●	●
58	BUZZER; AIR PRESSURE WARNING 6HH1 STD 4VALVE ENG(1A6),6HH1 STD ENG(65L), 6HH1N ENG(66L) METRO DENSO	8-98069-865-0	01	1	0701-	●		●	●
58	BUZZER; AIR PRESSURE WARNING METRO DENSO	1-83460-074-0	01	1	9904-9907	●	●	●	●	●
58	BUZZER; AIR PRESSURE WARNING EXC. NIKKO<Y70> METRO DENSO	1-83460-074-1	01	1	9908-0004	●	●	●	●	●
58	BUZZER; AIR PRESSURE WARNING EXC. NIKKO<Y70> METRO DENSO	1-83460-074-1	01	1	0005-0006	●		●	●
59	SCREW; BUZZER M5X14	8-94279-325-0	01	1	9604-0004	●	●	●	●	●
59	SCREW; BUZZER M5X14	8-94279-325-0	01	1	0005-	●		●	●
67	BUZZER; ENG OVERRUN ENGINE OVERRUN BUZZER<SK4>	1-83460-051-1	01	1	9604-				●
121	RELAY; PARKING BRK 24V 12.5A MITUBA	8-97062-815-1	01	1	9604-0004	●	●		●	●
121	RELAY; PARKING BRK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 24V 12.5A MITUBA	8-97062-815-1	01	1	0005-0111				●
121	RELAY; PARKING BRK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 24V 12.5A PANASONIC	8-97262-933-0	01	1	0112-				●
123	RELAY; HTR HEATER & DEFROSTER<C41>,VENTILATOR & DEFROSTER WO/HEATER<SAZ> 24V 12.5A MITUBA	8-97062-815-1	01	1	9604-0004	●	●	●	●	●
123	RELAY; HTR HEATER & DEFROSTER<C41>,VENTILATOR & DEFROSTER WO/HEATER<SAZ> 24V 12.5A MITUBA	8-97062-815-1	01	1	0005-0111	●		●	●
123	RELAY; HTR HEATER & DEFROSTER<C41>,VENTILATOR & DEFROSTER WO/HEATER<SAZ> 24V 12.5A PANASONIC	8-97262-933-0	01	1	0112-0310	●		●	●
123	RELAY; HTR HEATER & DEFROSTER<C41>,VENTILATOR & DEFROSTER WO/HEATER<SAZ> 24V 12.5A PANASONIC	8-97262-933-0	01	1	0311-	●
123	RELAY; HTR HEATER & DEFROSTER<C41>,AIR CONDITIONER MANUAL CONTROL<C60>,VENTILATOR & DEFROSTER WO/HEATER<SAZ> 24V 12.5A PANASONIC	8-97262-933-0	01	1	0311-			●	●
180	NUT; FLASHER UNIT M6 FLANGE	0-91150-106-0	01	1	9604-0004	●	●	●	●	●
180	NUT; FLASHER UNIT M6 FLANGE	0-91150-106-0	01	1	0005-0602	●		●	●
180	NUT; FLASHER UNIT M6 FLANGE	0-91180-106-0	01	1	0603-	●		●	●
226	RELAY; EXH BRK 24V 12.5A MITUBA	8-97062-815-1	01	1	9604-0004	●	●	●	●	●
226	RELAY; EXH BRK 24V 12.5A MITUBA	8-97062-815-1	01	1	0005-0111	●		●	●
226	RELAY; EXH BRK 24V 12.5A PANASONIC	8-97262-933-0	01	1	0112-0405	●		●	●
226	RELAY; EXH BRK 24V 12.5A PANASONIC	8-97262-933-0	01	1	0406-	●		●	●
290	NUT M6 FLANGE	0-91150-106-0	01	1	9604-9609	●	●	●	●	●
290	NUT HEATER & DEFROSTER<C41>,VENTILATOR & DEFROSTER WO/HEATER<SAZ> M6 FLANGE	0-91150-106-0	01	1	9610-0004	●	●	●	●	●
290	NUT HEATER & DEFROSTER<C41>,VENTILATOR & DEFROSTER WO/HEATER<SAZ> M6 FLANGE	0-91150-106-0	01	1	0005-0310	●		●	●
290	NUT HEATER & DEFROSTER<C41>,VENTILATOR & DEFROSTER WO/HEATER<SAZ> M6 FLANGE	0-91150-106-0	01	1	0311-0602	●
290	NUT HEATER & DEFROSTER<C41>,AIR CONDITIONER MANUAL CONTROL<C60>,VENTILATOR & DEFROSTER WO/HEATER<SAZ> M6 FLANGE	0-91150-106-0	01	1	0311-0602			●	●
290	NUT HEATER & DEFROSTER<C41>,VENTILATOR & DEFROSTER WO/HEATER<SAZ> M6 FLANGE	0-91180-106-0	01	1	0603-	●
290	NUT HEATER & DEFROSTER<C41>,AIR CONDITIONER MANUAL CONTROL<C60>,VENTILATOR & DEFROSTER WO/HEATER<SAZ> M6 FLANGE	0-91180-106-0	01	1	0603-			●	●
329	RELAY; BACK LAMP AUSTRALIA EQUIPMENT(RR3) 24V 12.5A MITUBA	8-97062-815-1	01	1	9604-0004	●	●		●	●
331	RELAY; A/C AIR CONDITIONER MANUAL CONTROL<C60> 24V 12.5A PANASONIC	8-97262-933-0	02	1	0311-			●	●
354	RELAY; BRAKE FLUID CHECK AUSTRALIA EQUIPMENT(RR3) 24V 12.5A MITUBA	8-97062-815-1	01	1	9604-0004	●	●		●	●
367	RELAY; NEUTRAL 6HK1 TCC ENG(81L) 24V 12.5A PANASONIC	8-97262-933-0	01	1	0406-				●
377	NUT; RELAY PTO CONTROL<SV6> M6 FLANGE	0-91150-106-0	02	1	9604-0004	●	●	●	●	●
377	NUT; RELAY PTO CONTROL<SV6> M6 FLANGE	0-91150-106-0	02	1	0005-0602	●		●	●
377	NUT; RELAY PTO CONTROL<SV6> M6 FLANGE	0-91180-106-0	02	1	0603-	●		●	●
385	BOLT; CONT UNIT EXC. HEATER & DEFROSTER<C41>,VENTILATOR & DEFROSTER WO/HEATER<SAZ> M6X19.5 W/LK&PL WASHER	8-94279-201-0	01	1	9610-0004	●	●	●	●	●
385	BOLT; CONT UNIT EXC. HEATER & DEFROSTER<C41>,VENTILATOR & DEFROSTER WO/HEATER<SAZ> M6X19.5 W/LK&PL WASHER	8-94279-201-0	01	1	0005-0310	●		●	●
385	BOLT; CONT UNIT EXC. HEATER & DEFROSTER<C41>,VENTILATOR & DEFROSTER WO/HEATER<SAZ> M6X19.5 W/LK&PL WASHER	8-94279-201-0	01	1	0311-	●
385	BOLT; CONT UNIT EXC. HEATER & DEFROSTER<C41>,AIR CONDITIONER MANUAL CONTROL<C60>,VENTILATOR & DEFROSTER WO/HEATER<SAZ> M6X19.5 W/LK&PL WASHER	8-94279-201-0	01	1	0311-			●	●
429	RELAY; POWER CUT EURO2 SPECIFICATION<THN> 24V 12.5A MITUBA	8-97062-815-1	01	1	9905-0010				●
429	RELAY; POWER CUT 6HH1 STD 4VALVE ENG(1A6) EXC. EURO2 SPECIFICATION<THN> 24V 12.5A MITUBA	8-97062-815-1	01	1	0011-0111				●
429	RELAY; POWER CUT EURO2 SPECIFICATION<THN> 24V 12.5A MITUBA	8-97062-815-1	01	1	0011-0111				●
429	RELAY; POWER CUT 6HH1 STD 4VALVE ENG(1A6) EXC. EURO2 SPECIFICATION<THN> 24V 12.5A PANASONIC	8-97262-933-0	01	1	0112-0405				●
429	RELAY; POWER CUT EURO2 SPECIFICATION<THN> 24V 12.5A PANASONIC	8-97262-933-0	01	1	0112-0405				●
429	RELAY; POWER CUT EURO2 SPECIFICATION<THN> 24V 12.5A PANASONIC	8-97262-933-0	01	1	0406-				●
438	UNIT; SPD CONTROL	1-82550-271-0	01	1	9604-0004	●	●	●	●	●
438	UNIT; SPD CONTROL	1-82550-271-0	01	1	0005-	●		●	●
460	RELAY; IVES AUSTRALIA EQUIPMENT(RR3) 24V 12.5A MITUBA	8-97062-815-1	02	1	9604-0004	●	●		●	●
531	RELAY; MAIN 6HH1 STD 4VALVE ENG(1A6) 24V 12.5A MITUBA	8-97062-815-1	01	1	0011-0111				●
531	RELAY; MAIN 6HH1 STD 4VALVE ENG(1A6) 24V 12.5A PANASONIC	8-97262-933-0	01	1	0112-0405				●
531	RELAY; MAIN 6HK1 TCC ENG(81L) 24V 12.5A PANASONIC	8-97262-933-0	01	1	0406-				●
538	CLIP; CONT UNIT	8-97806-845-2	01	1	9604-9609	●	●	●	●	●
538	CLIP; CONT UNIT HEATER & DEFROSTER<C41>,VENTILATOR & DEFROSTER WO/HEATER<SAZ>	8-97806-845-2	01	1	9610-0004	●	●	●	●	●
538	CLIP; CONT UNIT HEATER & DEFROSTER<C41>,VENTILATOR & DEFROSTER WO/HEATER<SAZ>	8-97806-845-2	01	1	0005-0310	●		●	●
538	CLIP; CONT UNIT HEATER & DEFROSTER<C41>,VENTILATOR & DEFROSTER WO/HEATER<SAZ>	8-97806-845-2	01	1	0311-	●
538	CLIP; CONT UNIT HEATER & DEFROSTER<C41>,AIR CONDITIONER MANUAL CONTROL<C60>,VENTILATOR & DEFROSTER WO/HEATER<SAZ>	8-97806-845-2	01	1	0311-			●	●
557	RELAY; WASHER 6HK1 TCC ENG(81L) 24V 12.5A PANASONIC	8-97262-933-0	01	1	0406-				●
559	RELAY; MAG VLV 6HH1 STD 4VALVE ENG(1A6) 24V 12.5A MITUBA	8-97062-815-1	01	1	0011-0111				●
559	RELAY; MAG VLV 6HH1 STD 4VALVE ENG(1A6) 24V 12.5A PANASONIC	8-97262-933-0	01	1	0112-0405				●
605	RELAY; PCV 6HK1 TCC ENG(81L) 24V 12.5A PANASONIC	8-97262-933-0	01	1	0406-				●

284 273 40 89 714 34 34 36 34 34 89 714

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
34	CONNECTOR; MAG VLV,INL PORT TRANSFER TF56<BFK> (C) M12 & PT1/4 STRAIGHT	1-09650-074-1	02	1	0406-				●
34	CONNECTOR; MAG VLV,INL PORT (C) M12 & PT1/4 STRAIGHT	1-09650-074-1	03	1	9604-0004	●	●	●	●	●
34	CONNECTOR; MAG VLV,INL PORT AUSTRALIA EQUIPMENT(RR3) (C) M12 & PT1/4 STRAIGHT	1-09650-074-1	03	1	9604-0004	●	●		●	●
34	CONNECTOR; MAG VLV,INL PORT (C) M12 & PT1/4 STRAIGHT	1-09650-074-1	03	1	0005-0405	●		●	●
34	CONNECTOR; MAG VLV,INL PORT (C) M12 & PT1/4 STRAIGHT	1-09650-074-1	03	1	0406-	●		●
34	CONNECTOR; MAG VLV,INL PORT EXC. TRANSFER TF56<BFK> (C) M12 & PT1/4 STRAIGHT	1-09650-074-1	03	1	0406-				●
34	CONNECTOR; MAG VLV,INL PORT (A) M12X2 & PT1/4 3WAY	1-09656-230-1	01	1	9604-0004	●	●	●	●	●
34	CONNECTOR; MAG VLV,INL PORT PTO CONTROL<SV6> (A) M12X2 & PT1/4 3WAY	1-09656-230-1	01	1	9604-0004	●	●	●	●	●
34	CONNECTOR; MAG VLV,INL PORT AUSTRALIA EQUIPMENT(RR3) (A) M12X2 & PT1/4 3WAY	1-09656-230-1	01	1	9604-0004	●	●		●	●
34	CONNECTOR; MAG VLV,INL PORT (A) M12X2 & PT1/4 3WAY	1-09656-230-1	01	1	0005-0405	●		●	●
34	CONNECTOR; MAG VLV,INL PORT PTO CONTROL<SV6> (A) M12X2 & PT1/4 3WAY	1-09656-230-1	01	1	0005-0405	●		●	●
34	CONNECTOR; MAG VLV,INL PORT PTO CONTROL<SV6> (A) M12X2 & PT1/4 3WAY	1-09656-230-1	01	1	0406-	●		●	●
34	CONNECTOR; MAG VLV,INL PORT (A) M12X2 & PT1/4 3WAY	1-09656-230-1	01	1	0406-	●		●
34	CONNECTOR; MAG VLV,INL PORT EXC. TRANSFER TF56<BFK> (A) M12X2 & PT1/4 3WAY	1-09656-230-1	01	1	0406-				●
34	CONNECTOR; MAG VLV,INL PORT PTO CONTROL<SV6> (B) M20 & PT1/4 ELBOW	1-09660-681-0	01	1	9604-9803	●	●	●	●	●
34	CONNECTOR; MAG VLV,INL PORT PTO CONTROL<SV6> (D) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	9804-0004	●	●	●	●	●
34	CONNECTOR; MAG VLV,INL PORT PTO CONTROL<SV6> (D) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	0005-	●		●	●
34	CONNECTOR; MAG VLV,INL PORT EXC. AUSTRALIA EQUIPMENT(RR3) (C) M12 & PT1/4 STRAIGHT	1-09650-074-1	02	1	9604-0004	●			●
34	CONNECTOR; MAG VLV,INL PORT (C) M12 & PT1/4 STRAIGHT	1-09650-074-1	02	1	9604-0004			●
36	BOLT; MAG VLV,PTO CONT M8X20 FLANGE	0-28080-820-0	04	1	9604-9810	●	●	●	●	●
36	BOLT; MAG VLV,PTO CONT AUSTRALIA EQUIPMENT(RR3) M8X20 FLANGE	0-28080-820-0	04	1	9604-9810	●	●		●	●
36	BOLT; MAG VLV,PTO CONT M8X20 FLANGE	0-28680-820-0	04	1	9811-0004	●	●	●	●	●
36	BOLT; MAG VLV,PTO CONT AUSTRALIA EQUIPMENT(RR3) M8X20 FLANGE	0-28680-820-0	04	1	9811-0004	●	●		●	●
36	BOLT; MAG VLV,PTO CONT M8X20 FLANGE	0-28680-820-0	04	1	0005-0405	●		●	●
36	BOLT; MAG VLV,PTO CONT M8X20 FLANGE	0-28680-820-0	04	1	0406-0512	●		●
36	BOLT; MAG VLV,PTO CONT EXC. TRANSFER TF56<BFK> M8X20 FLANGE	0-28680-820-0	04	1	0406-0512				●
36	BOLT; MAG VLV,PTO CONT M8X20 FLANGE	0-28650-820-0	04	1	0601-	●		●
36	BOLT; MAG VLV,PTO CONT EXC. TRANSFER TF56<BFK> M8X20 FLANGE	0-28650-820-0	04	1	0601-				●
36	BOLT; MAG VLV,PTO CONT PTO CONTROL<SV6> M8X20 FLANGE	0-28080-820-0	02	1	9604-9606	●	●	●	●	●
36	BOLT; MAG VLV,PTO CONT EXC. AUSTRALIA EQUIPMENT(RR3) M8X20 FLANGE	0-28080-820-0	02	1	9604-9606	●			●
36	BOLT; MAG VLV,PTO CONT M8X20 FLANGE	0-28080-820-0	02	1	9604-9606			●
36	BOLT; MAG VLV,PTO CONT EXC. AUSTRALIA EQUIPMENT(RR3) M8X20 FLANGE	0-28080-820-0	02	1	9607-9810	●			●
36	BOLT; MAG VLV,PTO CONT M8X20 FLANGE	0-28080-820-0	02	1	9607-9810			●
36	BOLT; MAG VLV,PTO CONT PTO CONTROL<SV6> M8X20 FLANGE	0-28680-820-0	02	1	9607-9810	●	●	●	●	●
36	BOLT; MAG VLV,PTO CONT PTO CONTROL<SV6> M8X20 FLANGE	0-28680-820-0	02	1	9811-0004	●	●	●	●	●
36	BOLT; MAG VLV,PTO CONT EXC. AUSTRALIA EQUIPMENT(RR3) M8X20 FLANGE	0-28680-820-0	02	1	9811-0004	●			●
36	BOLT; MAG VLV,PTO CONT M8X20 FLANGE	0-28680-820-0	02	1	9811-0004			●
36	BOLT; MAG VLV,PTO CONT PTO CONTROL<SV6> M8X20 FLANGE	0-28680-820-0	02	1	0005-0512	●		●	●
36	BOLT; MAG VLV,PTO CONT PTO CONTROL<SV6> M8X20 FLANGE	0-28650-820-0	02	1	0601-	●		●	●
40	BRACKET; MAG VLV	1-47477-327-2	02	1	9604-0004	●	●	●	●	●
40	BRACKET; MAG VLV	1-47477-327-2	01	1	0005-0405	●		●	●
40	BRACKET; MAG VLV	1-47477-327-2	01	1	0406-	●		●
40	BRACKET; MAG VLV EXC. TRANSFER TF56<BFK>	1-47477-327-2	01	1	0406-				●
89	VALVE; MAG,DIFF LOCK TRANSFER TF56<BFK> (B)	1-82563-871-2	01	1	0406-				●
89	VALVE; MAG,DIFF LOCK AUSTRALIA EQUIPMENT(RR3) (A)	1-82563-598-4	02	1	9604-0004	●	●		●	●
89	VALVE; MAG,DIFF LOCK EXC. AUSTRALIA EQUIPMENT(RR3) (A)	1-82563-598-4	01	1	9604-0004	●			●
89	VALVE; MAG,DIFF LOCK (A)	1-82563-598-4	01	1	9604-0004			●
273	NUT; MAG VLV M8	9-09110-408-0	06	1	9604-9606	●	●	●	●	●
273	NUT; MAG VLV M8 FLANGE	0-91150-108-0	06	1	9607-0004	●	●	●	●	●
273	NUT; MAG VLV M8 FLANGE	0-91150-108-0	06	1	0005-0405	●		●	●
273	NUT; MAG VLV M8 FLANGE	0-91150-108-0	06	1	0406-0602	●		●
273	NUT; MAG VLV EXC. TRANSFER TF56<BFK> M8 FLANGE	0-91150-108-0	06	1	0406-0602				●
273	NUT; MAG VLV M8 FLANGE	0-91180-108-0	06	1	0603-	●		●
273	NUT; MAG VLV EXC. TRANSFER TF56<BFK> M8 FLANGE	0-91180-108-0	06	1	0603-				●
284	BOLT; MAG VLV TRANSFER TF56<BFK> (B) M6X50 FLANGE	0-28080-650-0	01	1	0406-0512				●
284	BOLT; MAG VLV TRANSFER TF56<BFK> (B) M6X50 FLANGE	0-28050-650-0	01	1	0601-				●
284	BOLT; MAG VLV TRANSFER TF56<BFK> (C) M8X20 FLANGE	0-28680-820-0	02	1	0406-0512				●
284	BOLT; MAG VLV TRANSFER TF56<BFK> (C) M8X20 FLANGE	0-28650-820-0	02	1	0601-				●
284	BOLT; MAG VLV (A) M8X25 FLANGE	0-28080-825-0	02	1	9604-9606	●	●	●	●	●
284	BOLT; MAG VLV (A) M8X25 FLANGE	0-28680-825-0	02	1	9607-0004	●	●	●	●	●
284	BOLT; MAG VLV (A) M8X25 FLANGE	0-28680-825-0	02	1	0005-0512	●		●	●
284	BOLT; MAG VLV (A) M8X25 FLANGE	0-28650-825-0	02	1	0601-	●		●	●
714	VALVE; MAG,TRANS,LOW TO HIGH TRANSFER TF56<BFK> (B)	1-82563-871-2	02	1	0406-				●
714	VALVE; MAG,TRANS,LOW TO HIGH (A)	1-82563-598-4	02	1	9604-0004	●	●	●	●	●
714	VALVE; MAG,TRANS,LOW TO HIGH (A)	1-82563-598-5	02	1	0005-0405	●		●	●
714	VALVE; MAG,TRANS,LOW TO HIGH (A)	1-82563-598-5	02	1	0406-	●		●
714	VALVE; MAG,TRANS,LOW TO HIGH EXC. TRANSFER TF56<BFK> (A)	1-82563-598-5	02	1	0406-				●

284 273 284 273 40 40 714 34 34 36 34 36 34 34 34 714 89

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
34	CONNECTOR; MAG VLV,INL PORT TRANSFER TF56<BFK> (C) M12 & PT1/4 STRAIGHT	1-09650-074-1	02	1	0406-				●
34	CONNECTOR; MAG VLV,INL PORT (C) M12 & PT1/4 STRAIGHT	1-09650-074-1	03	1	9604-0004	●	●	●	●	●
34	CONNECTOR; MAG VLV,INL PORT AUSTRALIA EQUIPMENT(RR3) (C) M12 & PT1/4 STRAIGHT	1-09650-074-1	03	1	9604-0004	●	●		●	●
34	CONNECTOR; MAG VLV,INL PORT (C) M12 & PT1/4 STRAIGHT	1-09650-074-1	03	1	0005-0405	●		●	●
34	CONNECTOR; MAG VLV,INL PORT (C) M12 & PT1/4 STRAIGHT	1-09650-074-1	03	1	0406-	●		●
34	CONNECTOR; MAG VLV,INL PORT EXC. TRANSFER TF56<BFK> (C) M12 & PT1/4 STRAIGHT	1-09650-074-1	03	1	0406-				●
34	CONNECTOR; MAG VLV,INL PORT (A) M12X2 & PT1/4 3WAY	1-09656-230-1	01	1	9604-0004	●	●	●	●	●
34	CONNECTOR; MAG VLV,INL PORT PTO CONTROL<SV6> (A) M12X2 & PT1/4 3WAY	1-09656-230-1	01	1	9604-0004	●	●	●	●	●
34	CONNECTOR; MAG VLV,INL PORT AUSTRALIA EQUIPMENT(RR3) (A) M12X2 & PT1/4 3WAY	1-09656-230-1	01	1	9604-0004	●	●		●	●
34	CONNECTOR; MAG VLV,INL PORT (A) M12X2 & PT1/4 3WAY	1-09656-230-1	01	1	0005-0405	●		●	●
34	CONNECTOR; MAG VLV,INL PORT PTO CONTROL<SV6> (A) M12X2 & PT1/4 3WAY	1-09656-230-1	01	1	0005-0405	●		●	●
34	CONNECTOR; MAG VLV,INL PORT PTO CONTROL<SV6> (A) M12X2 & PT1/4 3WAY	1-09656-230-1	01	1	0406-	●		●	●
34	CONNECTOR; MAG VLV,INL PORT (A) M12X2 & PT1/4 3WAY	1-09656-230-1	01	1	0406-	●		●
34	CONNECTOR; MAG VLV,INL PORT EXC. TRANSFER TF56<BFK> (A) M12X2 & PT1/4 3WAY	1-09656-230-1	01	1	0406-				●
34	CONNECTOR; MAG VLV,INL PORT PTO CONTROL<SV6> (B) M20 & PT1/4 ELBOW	1-09660-681-0	01	1	9604-9803	●	●	●	●	●
34	CONNECTOR; MAG VLV,INL PORT PTO CONTROL<SV6> (D) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	9804-0004	●	●	●	●	●
34	CONNECTOR; MAG VLV,INL PORT PTO CONTROL<SV6> (D) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	0005-	●		●	●
34	CONNECTOR; MAG VLV,INL PORT EXC. AUSTRALIA EQUIPMENT(RR3) (C) M12 & PT1/4 STRAIGHT	1-09650-074-1	02	1	9604-0004	●			●
34	CONNECTOR; MAG VLV,INL PORT (C) M12 & PT1/4 STRAIGHT	1-09650-074-1	02	1	9604-0004			●
36	BOLT; MAG VLV,PTO CONT M8X20 FLANGE	0-28080-820-0	04	1	9604-9810	●	●	●	●	●
36	BOLT; MAG VLV,PTO CONT AUSTRALIA EQUIPMENT(RR3) M8X20 FLANGE	0-28080-820-0	04	1	9604-9810	●	●		●	●
36	BOLT; MAG VLV,PTO CONT M8X20 FLANGE	0-28680-820-0	04	1	9811-0004	●	●	●	●	●
36	BOLT; MAG VLV,PTO CONT AUSTRALIA EQUIPMENT(RR3) M8X20 FLANGE	0-28680-820-0	04	1	9811-0004	●	●		●	●
36	BOLT; MAG VLV,PTO CONT M8X20 FLANGE	0-28680-820-0	04	1	0005-0405	●		●	●
36	BOLT; MAG VLV,PTO CONT M8X20 FLANGE	0-28680-820-0	04	1	0406-0512	●		●
36	BOLT; MAG VLV,PTO CONT EXC. TRANSFER TF56<BFK> M8X20 FLANGE	0-28680-820-0	04	1	0406-0512				●
36	BOLT; MAG VLV,PTO CONT M8X20 FLANGE	0-28650-820-0	04	1	0601-	●		●
36	BOLT; MAG VLV,PTO CONT EXC. TRANSFER TF56<BFK> M8X20 FLANGE	0-28650-820-0	04	1	0601-				●
36	BOLT; MAG VLV,PTO CONT PTO CONTROL<SV6> M8X20 FLANGE	0-28080-820-0	02	1	9604-9606	●	●	●	●	●
36	BOLT; MAG VLV,PTO CONT EXC. AUSTRALIA EQUIPMENT(RR3) M8X20 FLANGE	0-28080-820-0	02	1	9604-9606	●			●
36	BOLT; MAG VLV,PTO CONT M8X20 FLANGE	0-28080-820-0	02	1	9604-9606			●
36	BOLT; MAG VLV,PTO CONT EXC. AUSTRALIA EQUIPMENT(RR3) M8X20 FLANGE	0-28080-820-0	02	1	9607-9810	●			●
36	BOLT; MAG VLV,PTO CONT M8X20 FLANGE	0-28080-820-0	02	1	9607-9810			●
36	BOLT; MAG VLV,PTO CONT PTO CONTROL<SV6> M8X20 FLANGE	0-28680-820-0	02	1	9607-9810	●	●	●	●	●
36	BOLT; MAG VLV,PTO CONT PTO CONTROL<SV6> M8X20 FLANGE	0-28680-820-0	02	1	9811-0004	●	●	●	●	●
36	BOLT; MAG VLV,PTO CONT EXC. AUSTRALIA EQUIPMENT(RR3) M8X20 FLANGE	0-28680-820-0	02	1	9811-0004	●			●
36	BOLT; MAG VLV,PTO CONT M8X20 FLANGE	0-28680-820-0	02	1	9811-0004			●
36	BOLT; MAG VLV,PTO CONT PTO CONTROL<SV6> M8X20 FLANGE	0-28680-820-0	02	1	0005-0512	●		●	●
36	BOLT; MAG VLV,PTO CONT PTO CONTROL<SV6> M8X20 FLANGE	0-28650-820-0	02	1	0601-	●		●	●
40	BRACKET; MAG VLV	1-47477-327-2	02	1	9604-0004	●	●	●	●	●
40	BRACKET; MAG VLV	1-47477-327-2	01	1	0005-0405	●		●	●
40	BRACKET; MAG VLV	1-47477-327-2	01	1	0406-	●		●
40	BRACKET; MAG VLV EXC. TRANSFER TF56<BFK>	1-47477-327-2	01	1	0406-				●
89	VALVE; MAG,DIFF LOCK TRANSFER TF56<BFK> (B)	1-82563-871-2	01	1	0406-				●
89	VALVE; MAG,DIFF LOCK AUSTRALIA EQUIPMENT(RR3) (A)	1-82563-598-4	02	1	9604-0004	●	●		●	●
89	VALVE; MAG,DIFF LOCK EXC. AUSTRALIA EQUIPMENT(RR3) (A)	1-82563-598-4	01	1	9604-0004	●			●
89	VALVE; MAG,DIFF LOCK (A)	1-82563-598-4	01	1	9604-0004			●
273	NUT; MAG VLV M8	9-09110-408-0	06	1	9604-9606	●	●	●	●	●
273	NUT; MAG VLV M8 FLANGE	0-91150-108-0	06	1	9607-0004	●	●	●	●	●
273	NUT; MAG VLV M8 FLANGE	0-91150-108-0	06	1	0005-0405	●		●	●
273	NUT; MAG VLV M8 FLANGE	0-91150-108-0	06	1	0406-0602	●		●
273	NUT; MAG VLV EXC. TRANSFER TF56<BFK> M8 FLANGE	0-91150-108-0	06	1	0406-0602				●
273	NUT; MAG VLV M8 FLANGE	0-91180-108-0	06	1	0603-	●		●
273	NUT; MAG VLV EXC. TRANSFER TF56<BFK> M8 FLANGE	0-91180-108-0	06	1	0603-				●
284	BOLT; MAG VLV TRANSFER TF56<BFK> (B) M6X50 FLANGE	0-28080-650-0	01	1	0406-0512				●
284	BOLT; MAG VLV TRANSFER TF56<BFK> (B) M6X50 FLANGE	0-28050-650-0	01	1	0601-				●
284	BOLT; MAG VLV TRANSFER TF56<BFK> (C) M8X20 FLANGE	0-28680-820-0	02	1	0406-0512				●
284	BOLT; MAG VLV TRANSFER TF56<BFK> (C) M8X20 FLANGE	0-28650-820-0	02	1	0601-				●
284	BOLT; MAG VLV (A) M8X25 FLANGE	0-28080-825-0	02	1	9604-9606	●	●	●	●	●
284	BOLT; MAG VLV (A) M8X25 FLANGE	0-28680-825-0	02	1	9607-0004	●	●	●	●	●
284	BOLT; MAG VLV (A) M8X25 FLANGE	0-28680-825-0	02	1	0005-0512	●		●	●
284	BOLT; MAG VLV (A) M8X25 FLANGE	0-28650-825-0	02	1	0601-	●		●	●
714	VALVE; MAG,TRANS,LOW TO HIGH TRANSFER TF56<BFK> (B)	1-82563-871-2	02	1	0406-				●
714	VALVE; MAG,TRANS,LOW TO HIGH (A)	1-82563-598-4	02	1	9604-0004	●	●	●	●	●
714	VALVE; MAG,TRANS,LOW TO HIGH (A)	1-82563-598-5	02	1	0005-0405	●		●	●
714	VALVE; MAG,TRANS,LOW TO HIGH (A)	1-82563-598-5	02	1	0406-	●		●
714	VALVE; MAG,TRANS,LOW TO HIGH EXC. TRANSFER TF56<BFK> (A)	1-82563-598-5	02	1	0406-				●

285 210 602 89 714 284 282 88 261 88 90 284 91 34 34 714 210 284 261 88

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
34	CONNECTOR; MAG VLV,INL PORT TRANSFER TF56<BFK> (C) M12 & PT1/4 STRAIGHT	1-09650-074-1	02	1	0406-				●
34	CONNECTOR; MAG VLV,INL PORT (C) M12 & PT1/4 STRAIGHT	1-09650-074-1	03	1	9604-0004	●	●	●	●	●
34	CONNECTOR; MAG VLV,INL PORT AUSTRALIA EQUIPMENT(RR3) (C) M12 & PT1/4 STRAIGHT	1-09650-074-1	03	1	9604-0004	●	●		●	●
34	CONNECTOR; MAG VLV,INL PORT (C) M12 & PT1/4 STRAIGHT	1-09650-074-1	03	1	0005-0405	●		●	●
34	CONNECTOR; MAG VLV,INL PORT (C) M12 & PT1/4 STRAIGHT	1-09650-074-1	03	1	0406-	●		●
34	CONNECTOR; MAG VLV,INL PORT EXC. TRANSFER TF56<BFK> (C) M12 & PT1/4 STRAIGHT	1-09650-074-1	03	1	0406-				●
34	CONNECTOR; MAG VLV,INL PORT (A) M12X2 & PT1/4 3WAY	1-09656-230-1	01	1	9604-0004	●	●	●	●	●
34	CONNECTOR; MAG VLV,INL PORT PTO CONTROL<SV6> (A) M12X2 & PT1/4 3WAY	1-09656-230-1	01	1	9604-0004	●	●	●	●	●
34	CONNECTOR; MAG VLV,INL PORT AUSTRALIA EQUIPMENT(RR3) (A) M12X2 & PT1/4 3WAY	1-09656-230-1	01	1	9604-0004	●	●		●	●
34	CONNECTOR; MAG VLV,INL PORT (A) M12X2 & PT1/4 3WAY	1-09656-230-1	01	1	0005-0405	●		●	●
34	CONNECTOR; MAG VLV,INL PORT PTO CONTROL<SV6> (A) M12X2 & PT1/4 3WAY	1-09656-230-1	01	1	0005-0405	●		●	●
34	CONNECTOR; MAG VLV,INL PORT PTO CONTROL<SV6> (A) M12X2 & PT1/4 3WAY	1-09656-230-1	01	1	0406-	●		●	●
34	CONNECTOR; MAG VLV,INL PORT (A) M12X2 & PT1/4 3WAY	1-09656-230-1	01	1	0406-	●		●
34	CONNECTOR; MAG VLV,INL PORT EXC. TRANSFER TF56<BFK> (A) M12X2 & PT1/4 3WAY	1-09656-230-1	01	1	0406-				●
34	CONNECTOR; MAG VLV,INL PORT PTO CONTROL<SV6> (B) M20 & PT1/4 ELBOW	1-09660-681-0	01	1	9604-9803	●	●	●	●	●
34	CONNECTOR; MAG VLV,INL PORT PTO CONTROL<SV6> (D) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	9804-0004	●	●	●	●	●
34	CONNECTOR; MAG VLV,INL PORT PTO CONTROL<SV6> (D) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	0005-	●		●	●
34	CONNECTOR; MAG VLV,INL PORT EXC. AUSTRALIA EQUIPMENT(RR3) (C) M12 & PT1/4 STRAIGHT	1-09650-074-1	02	1	9604-0004	●			●
34	CONNECTOR; MAG VLV,INL PORT (C) M12 & PT1/4 STRAIGHT	1-09650-074-1	02	1	9604-0004			●
88	CONNECTOR; MAG VLV TRANSFER TF56<BFK> M12 & PT1/4 STRAIGHT	1-09650-074-1	03	1	0406-				●
89	VALVE; MAG,DIFF LOCK TRANSFER TF56<BFK> (B)	1-82563-871-2	01	1	0406-				●
89	VALVE; MAG,DIFF LOCK AUSTRALIA EQUIPMENT(RR3) (A)	1-82563-598-4	02	1	9604-0004	●	●		●	●
89	VALVE; MAG,DIFF LOCK EXC. AUSTRALIA EQUIPMENT(RR3) (A)	1-82563-598-4	01	1	9604-0004	●			●
89	VALVE; MAG,DIFF LOCK (A)	1-82563-598-4	01	1	9604-0004			●
90	BOLT; MAG VLV TRANSFER TF56<BFK> M8X25 FLANGE	0-28680-825-0	02	1	0406-0512				●
90	BOLT; MAG VLV TRANSFER TF56<BFK> M8X25 FLANGE	0-28650-825-0	02	1	0601-				●
91	NUT; MAG VLV TRANSFER TF56<BFK> M8 FLANGE	0-91150-108-0	02	1	0406-0602				●
91	NUT; MAG VLV TRANSFER TF56<BFK> M8 FLANGE	0-91180-108-0	02	1	0603-				●
210	WASHER; PL,BRKT TRANSFER TF56<BFK>	1-82569-266-0	02	1	0406-				●
261	PLUG; MAG VLV TRANSFER TF56<BFK> PT1/4	9-99204-513-0	02	1	0406-				●
261	PLUG; MAG VLV PTO CONTROL<SV6> PT1/4	9-99204-513-0	01	1	9604-0004	●	●	●	●	●
261	PLUG; MAG VLV PTO CONTROL<SV6> PT1/4	9-99204-513-0	01	1	0005-	●		●	●
282	BRACKET; MAG VLV TRANSFER TF56<BFK>	1-82569-278-0	01	1	0406-				●
284	BOLT; MAG VLV TRANSFER TF56<BFK> (B) M6X50 FLANGE	0-28080-650-0	01	1	0406-0512				●
284	BOLT; MAG VLV TRANSFER TF56<BFK> (B) M6X50 FLANGE	0-28050-650-0	01	1	0601-				●
284	BOLT; MAG VLV TRANSFER TF56<BFK> (C) M8X20 FLANGE	0-28680-820-0	02	1	0406-0512				●
284	BOLT; MAG VLV TRANSFER TF56<BFK> (C) M8X20 FLANGE	0-28650-820-0	02	1	0601-				●
284	BOLT; MAG VLV (A) M8X25 FLANGE	0-28080-825-0	02	1	9604-9606	●	●	●	●	●
284	BOLT; MAG VLV (A) M8X25 FLANGE	0-28680-825-0	02	1	9607-0004	●	●	●	●	●
284	BOLT; MAG VLV (A) M8X25 FLANGE	0-28680-825-0	02	1	0005-0512	●		●	●
284	BOLT; MAG VLV (A) M8X25 FLANGE	0-28650-825-0	02	1	0601-	●		●	●
285	NUT; MAG VLV TRANSFER TF56<BFK> M6 FLANGE	0-91150-106-0	01	1	0406-0602				●
285	NUT; MAG VLV TRANSFER TF56<BFK> M6 FLANGE	0-91180-106-0	01	1	0603-				●
602	GASKET; MAG VLV TRANSFER TF56<BFK> ID=16.8	9-09565-117-0	01	1	0406-				●
714	VALVE; MAG,TRANS,LOW TO HIGH TRANSFER TF56<BFK> (B)	1-82563-871-2	02	1	0406-				●
714	VALVE; MAG,TRANS,LOW TO HIGH (A)	1-82563-598-4	02	1	9604-0004	●	●	●	●	●
714	VALVE; MAG,TRANS,LOW TO HIGH (A)	1-82563-598-5	02	1	0005-0405	●		●	●
714	VALVE; MAG,TRANS,LOW TO HIGH (A)	1-82563-598-5	02	1	0406-	●		●
714	VALVE; MAG,TRANS,LOW TO HIGH EXC. TRANSFER TF56<BFK> (A)	1-82563-598-5	02	1	0406-				●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
