◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FSS ▶ 10716 - FSS/FTS-RHD ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-26 - ELECTRICAL CONTROL AND OTHER PARTS ▶
8-26 — ELECTRICAL CONTROL AND OTHER PARTS (#34485) — 164 parça

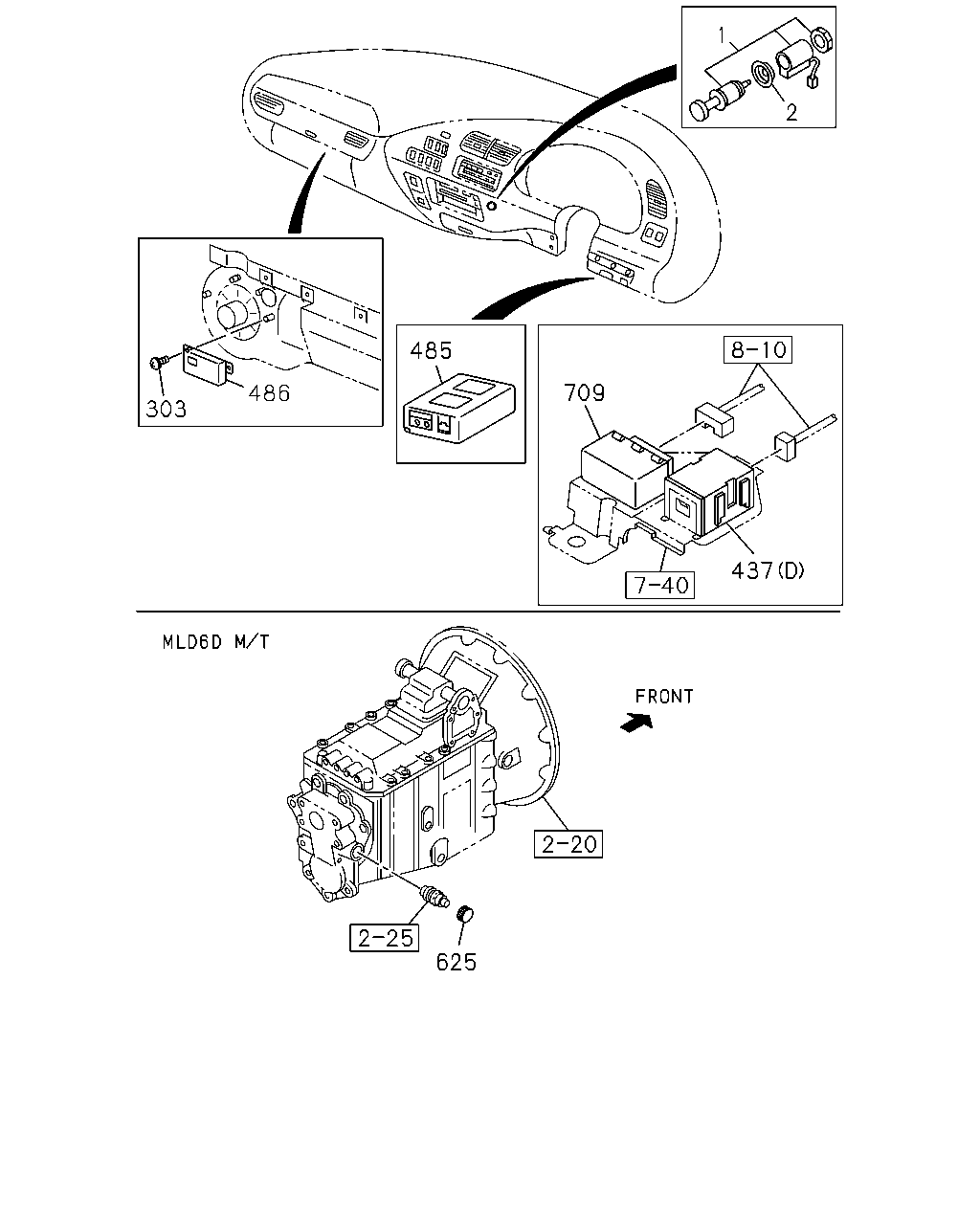

çizim 152997
1 2 485 709 486 303 437 625
BalonParca AdiParca NoAdetTipApplied Date A B C D E
1 LIGHTER; CIGAR 8-97064-970-1 01 1 9604-0004 ● ● ● ● ●
1 LIGHTER; CIGAR 8-97064-970-1 01 1 0005-0108 ● ● ●
1 LIGHTER; CIGAR 8-97320-325-0 01 1 0109-0405 ● ● ●
1 LIGHTER; CIGAR 8-97320-325-0 01 1 0406- ● ● ●
2 BEZEL; CIGAR LIGHTER 1-73998-883-2 01 1 9604-0004 ● ● ● ● ●
2 BEZEL; CIGAR LIGHTER 1-73998-883-2 01 1 0005- ● ● ●
303 SCREW; CONT UNIT
MIR STAY O/S W/REMOTE<TBA> M5X14 		8-94279-325-0 01 1 9911- ●
437 CONVERTER; DC
ELEC OUTLET 12V<TAW> (C) METRO DENSO 		8-98046-423-0 01 1 0604- ●
437 CONVERTER; DC
LIGHTING SYSTEM-JAPANESE STANDARDS<JBZ> HEADLAMPS LEVELING SYSTEM MANUAL<TAS> (D) KOITO 		8-97359-129-0 01 1 0602- ●
437 CONVERTER; DC
ELEC OUTLET 12V<TAW> (B) 		1-84122-005-0 01 1 9807-0004 ● ● ● ●
437 CONVERTER; DC
ELEC OUTLET 12V<TAW> (B) 		1-84122-005-0 01 1 0005-0006 ●
437 CONVERTER; DC
ELEC OUTLET 12V<TAW> (A) 		1-84122-037-0 01 1 9905-9907 ● ● ● ●
437 CONVERTER; DC
ELEC OUTLET 12V<TAW> EXC. NIKKO<Y70> (A) 		1-84122-037-1 01 1 9908-0004 ● ● ● ●
437 CONVERTER; DC
ELEC OUTLET 12V<TAW> EXC. NIKKO<Y70> (A) 		1-84122-037-1 01 1 0005-0006 ●
437 CONVERTER; DC
ELEC OUTLET 12V<TAW> (A) 		1-84122-037-1 01 1 0007-0008 ●
437 CONVERTER; DC
ELEC OUTLET 12V<TAW> EXC. NIKKO<Y70> (A) 		1-84122-037-1 01 1 0007-0008 ●
437 CONVERTER; DC
ELEC OUTLET 12V<TAW> (C) MITSUBISHI 		1-84122-034-1 01 1 0009-0603 ●
437 CONVERTER; DC
ELEC OUTLET 12V<TAW> EXC. NIKKO<Y70> (C) MITSUBISHI 		1-84122-034-1 01 1 0009-0603 ●
437 CONVERTER; DC
ELEC OUTLET 12V<TAW> EXC. NIKKO<Y70> (C) MITSUBISHI 		1-84122-034-1 01 1 0604- ●
485 CONTROL UNIT; SPEED SENSOR 1-82540-065-0 01 1 9604-0004 ● ● ● ● ●
485 CONTROL UNIT; SPEED SENSOR 1-80190-038-1 01 1 0005-0402 ● ● ●
485 CONTROL UNIT; SPEED SENSOR 1-80190-149-0 01 1 0403-0410 ● ● ●
485 CONTROL UNIT; SPEED SENSOR 1-80190-158-0 01 1 0411- ● ● ●
486 CONTROL UNIT; MIRROR
MIR STAY O/S W/REMOTE<TBA> 		1-82540-046-0 01 1 9804- ●
625 CAP; SPEED SENSOR
MLD6D M/T(X5Q) 		1-83129-133-0 01 1 9709-0004 ● ●
625 CAP; SPEED SENSOR
MLD6D M/T(X5Q) 		1-83129-133-0 01 1 0005-0405 ●
625 CAP; SPEED SENSOR
MLD6Q M/T(X5J),MLD6D M/T(X5Q) 		1-83129-133-0 01 1 0406- ●
709 RESISTOR; HD LAMP LEVELING
LIGHTING SYSTEM-JAPANESE STANDARDS<JBZ> HEADLAMPS LEVELING SYSTEM MANUAL<TAS> 		8-97359-130-1 01 1 0602- ●

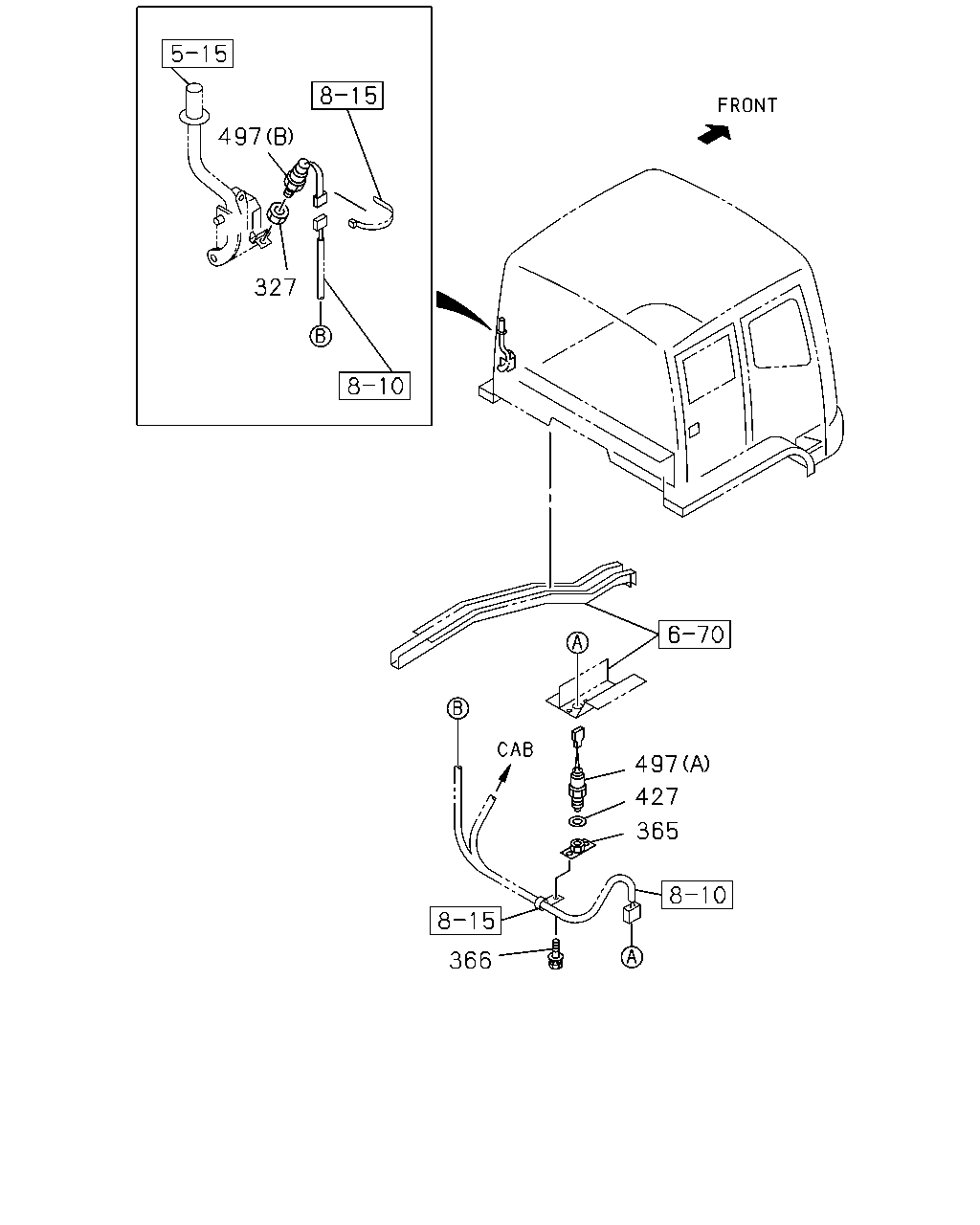

çizim 153006
497 327 497 427 365 366
BalonParca AdiParca NoAdetTipApplied Date A B C D E
327 NUT; SWITCH
M16 		9-99111-416-0 02 1 9604-0004 ● ●
365 PLATE ASM; SW,CAB TILT 1-71998-393-1 01 1 9604-0004 ● ●
366 BOLT; PLATE,SW,CAB TILT
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 9604-0004 ● ●
427 WASHER; PL,SWITCH
ID=17 		9-09160-516-0 01 1 9604-0004 ● ●
497 SWITCH; CAB TILT
(A) STAMP NC 		1-82380-125-1 01 1 9604-0004 ● ●
497 SWITCH; CAB TILT
(B) STAMP NO 		1-82380-126-0 01 1 9604-0004 ● ●

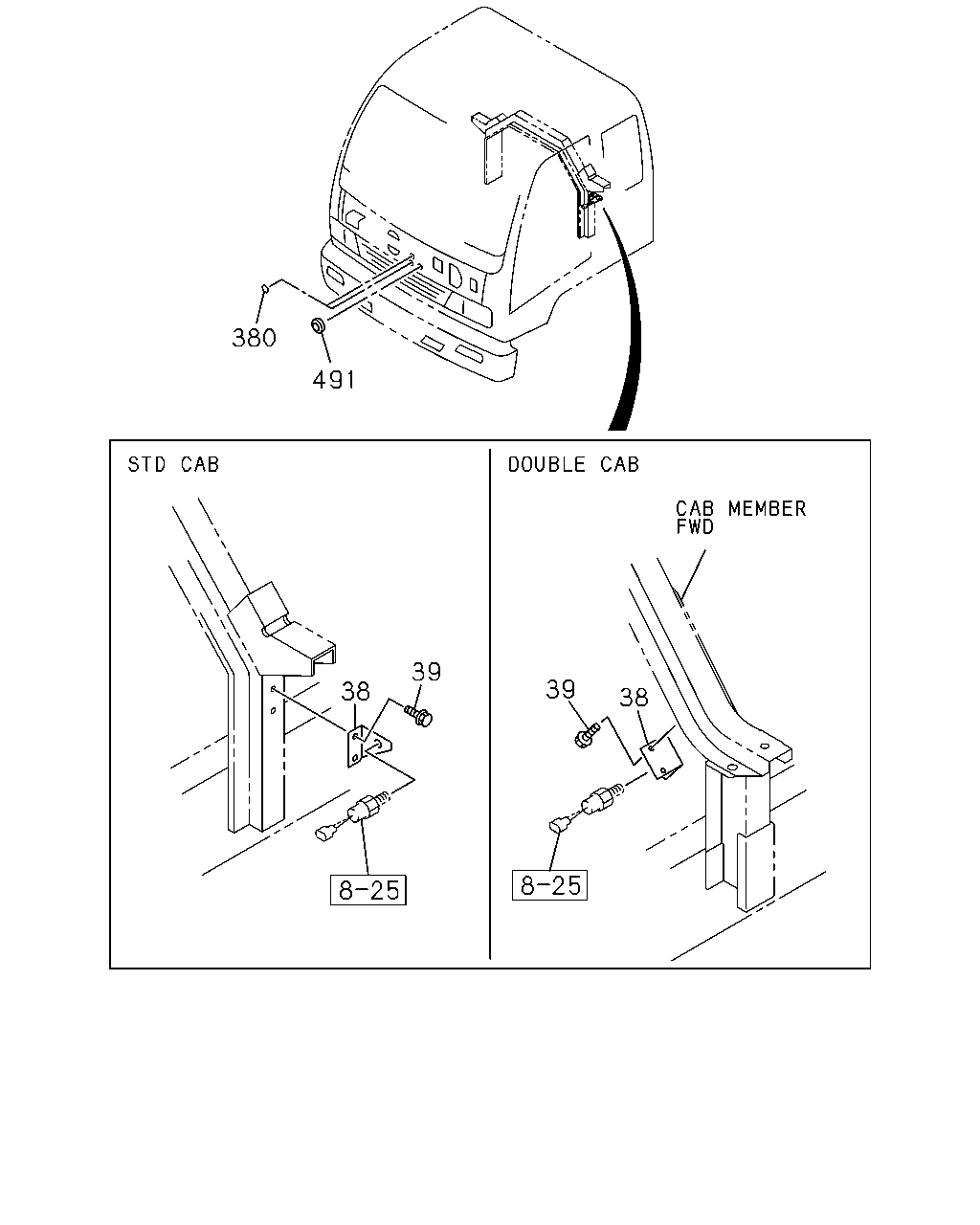

çizim 153012
380 491 39 39 38 38
BalonParca AdiParca NoAdetTipApplied Date A B C D E
38 BRACKET; SW,STARTER SUB
AUSTRALIA EQUIPMENT(RR3) 		1-82699-351-0 01 1 9604-0004 ●
38 BRACKET; SW,STARTER SUB
NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) 		1-82699-351-0 01 1 9604-0004 ●
38 BRACKET; SW,STARTER SUB
NEW ZEALAND EQUIPMENT(PK5) 		1-82698-232-0 01 1 0005-0211 ●
38 BRACKET; SW,STARTER SUB
NEW ZEALAND EQUIPMENT(PK5) EXC. STARTER SWITCH DELETION<E5D> 		1-82698-232-0 01 1 0212- ●
38 BRACKET; SW,STARTER SUB 1-82699-370-0 01 1 9604-0004 ● ●
39 BOLT; BRKT,STARTER SUB SW
AUSTRALIA EQUIPMENT(RR3) M8X20 FLANGE 		0-28080-820-0 02 1 9604-9606 ● ● ●
39 BOLT; BRKT,STARTER SUB SW
NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) M8X20 FLANGE 		0-28080-820-0 02 1 9604-9606 ●
39 BOLT; BRKT,STARTER SUB SW
AUSTRALIA EQUIPMENT(RR3) M8X25 FLANGE 		0-28680-825-0 02 1 9607-9801 ● ● ●
39 BOLT; BRKT,STARTER SUB SW
NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) M8X25 FLANGE 		0-28680-825-0 02 1 9607-9801 ●
39 BOLT; BRKT,STARTER SUB SW
AUSTRALIA EQUIPMENT(RR3) M8X20 FLANGE 		0-28680-820-0 02 1 9802-0004 ● ● ●
39 BOLT; BRKT,STARTER SUB SW
NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) M8X20 FLANGE 		0-28680-820-0 02 1 9802-0004 ●
39 BOLT; BRKT,STARTER SUB SW
NEW ZEALAND EQUIPMENT(PK5) M8X20 FLANGE 		0-28680-820-0 02 1 0005-0211 ●
39 BOLT; BRKT,STARTER SUB SW
NEW ZEALAND EQUIPMENT(PK5) EXC. STARTER SWITCH DELETION<E5D> M8X20 FLANGE 		0-28680-820-0 02 1 0212-0512 ●
39 BOLT; BRKT,STARTER SUB SW
NEW ZEALAND EQUIPMENT(PK5) EXC. STARTER SWITCH DELETION<E5D> M8X20 FLANGE 		0-28650-820-0 02 1 0601- ●
380 SEAL
6HH1 STD ENG(65L),6HH1 N ENG(66L) OD=25 BLACK 		1-76798-019-0 02 1 0201-0405 ●
380 SEAL
OD=25 BLACK 		1-76798-019-0 02 1 0201-0405 ●
380 SEAL
6HH1 STD ENG(65L) OD=25 BLACK 		1-76798-019-0 02 1 0201-0405 ●
380 SEAL
OD=25 BLACK 		1-76798-019-0 02 1 0406- ● ●
380 SEAL
6HH1 STD ENG(65L) OD=25 BLACK 		1-76798-019-0 02 1 0406- ●
491 PLUG; HOLE,CONT UNIT
OD=54.5 		1-73907-309-0 01 1 9604-9904 ● ● ● ● ●
491 PLUG; HOLE,CONT UNIT
OD=54.5 		1-73907-309-0 01 1 9905-0004 ● ● ● ●
491 PLUG; HOLE,CONT UNIT
OD=54.5 		1-73907-309-0 01 1 9905-0004 ● ●
491 PLUG; HOLE,CONT UNIT
EXC. EURO2 SPECIFICATION<THN> OD=54.5 		1-73907-309-0 01 1 9905-0004 ●
491 PLUG; HOLE,CONT UNIT
OD=54.5 		1-73907-309-0 01 1 0005-0201 ● ●
491 PLUG; HOLE,CONT UNIT
EXC. EURO2 SPECIFICATION<THN> OD=54.5 		1-73907-309-0 01 1 0005-0201 ●
491 PLUG; HOLE,CONT UNIT
6HH1 STD ENG(65L),6HH1 N ENG(66L) OD=54.5 		1-73907-309-0 01 1 0202-0405 ●
491 PLUG; HOLE,CONT UNIT
OD=54.5 		1-73907-309-0 01 1 0202-0405 ●
491 PLUG; HOLE,CONT UNIT
6HH1 STD 4VALVE ENG(1A6) EMISSION SYSTEM ECE REQUIREMENTS<SFV>,EURO2 SPECIFICATION<THN> OD=54.5 		1-73907-309-0 01 1 0202-0405 ●
491 PLUG; HOLE,CONT UNIT
6HH1 STD ENG(65L) EXC. EURO2 SPECIFICATION<THN> OD=54.5 		1-73907-309-0 01 1 0202-0405 ●
491 PLUG; HOLE,CONT UNIT
OD=54.5 		1-73907-309-0 01 1 0406- ● ●
491 PLUG; HOLE,CONT UNIT
6HH1 STD ENG(65L) EXC. EURO2 SPECIFICATION<THN> OD=54.5 		1-73907-309-0 01 1 0406- ●
491 PLUG; HOLE,CONT UNIT
6HK1 TCC ENG(81L) OD=54.5 		1-73907-309-0 01 1 0406- ●

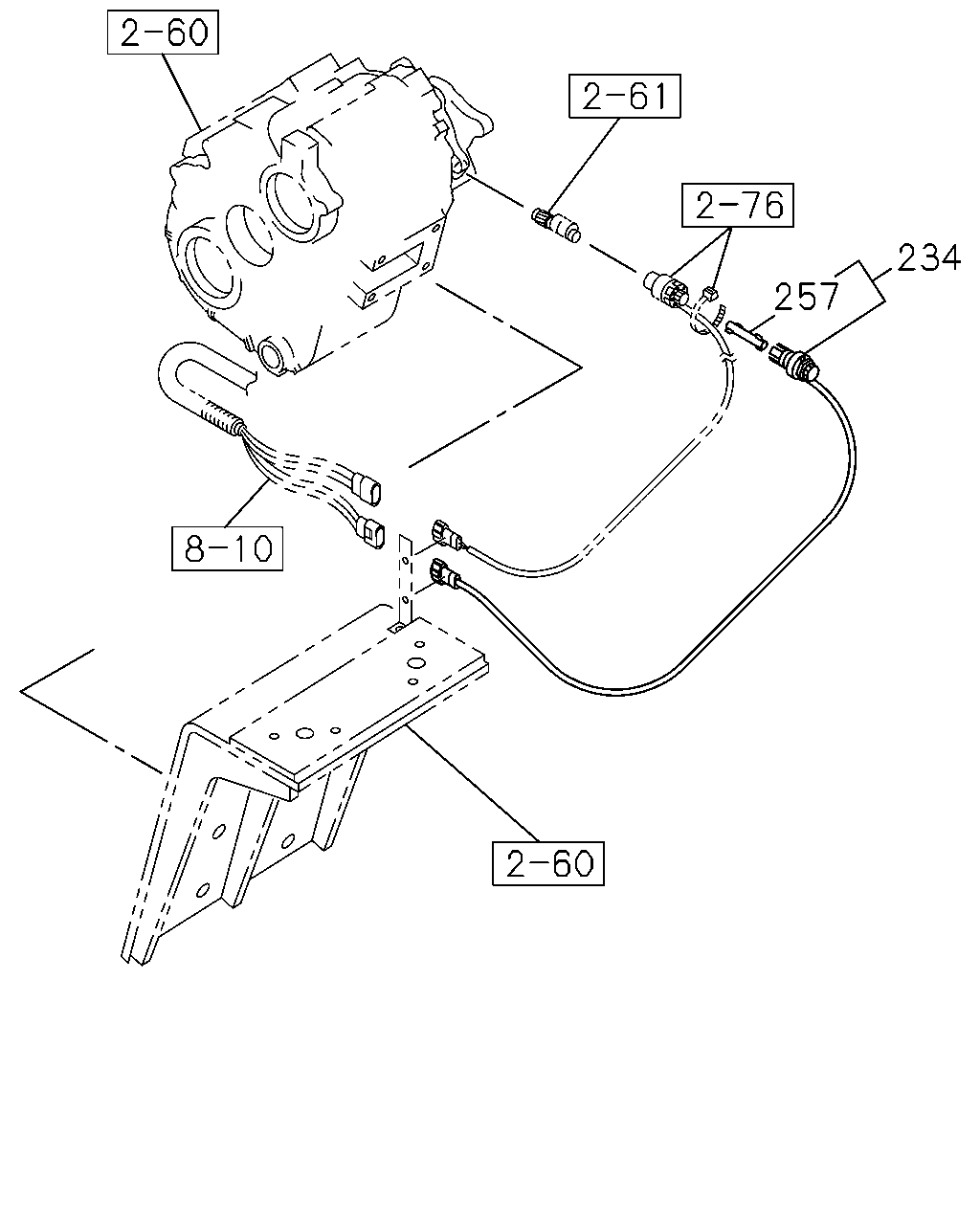

çizim 153014
234 257
BalonParca AdiParca NoAdetTipApplied Date A B C D E
234 SENSOR; VEHICLE SPD 1-83127-241-1 01 1 9604-9803 ● ● ● ● ●
257 KEY; SPEED SENSOR 1-83129-126-0 01 1 9604-9803 ● ● ● ● ●

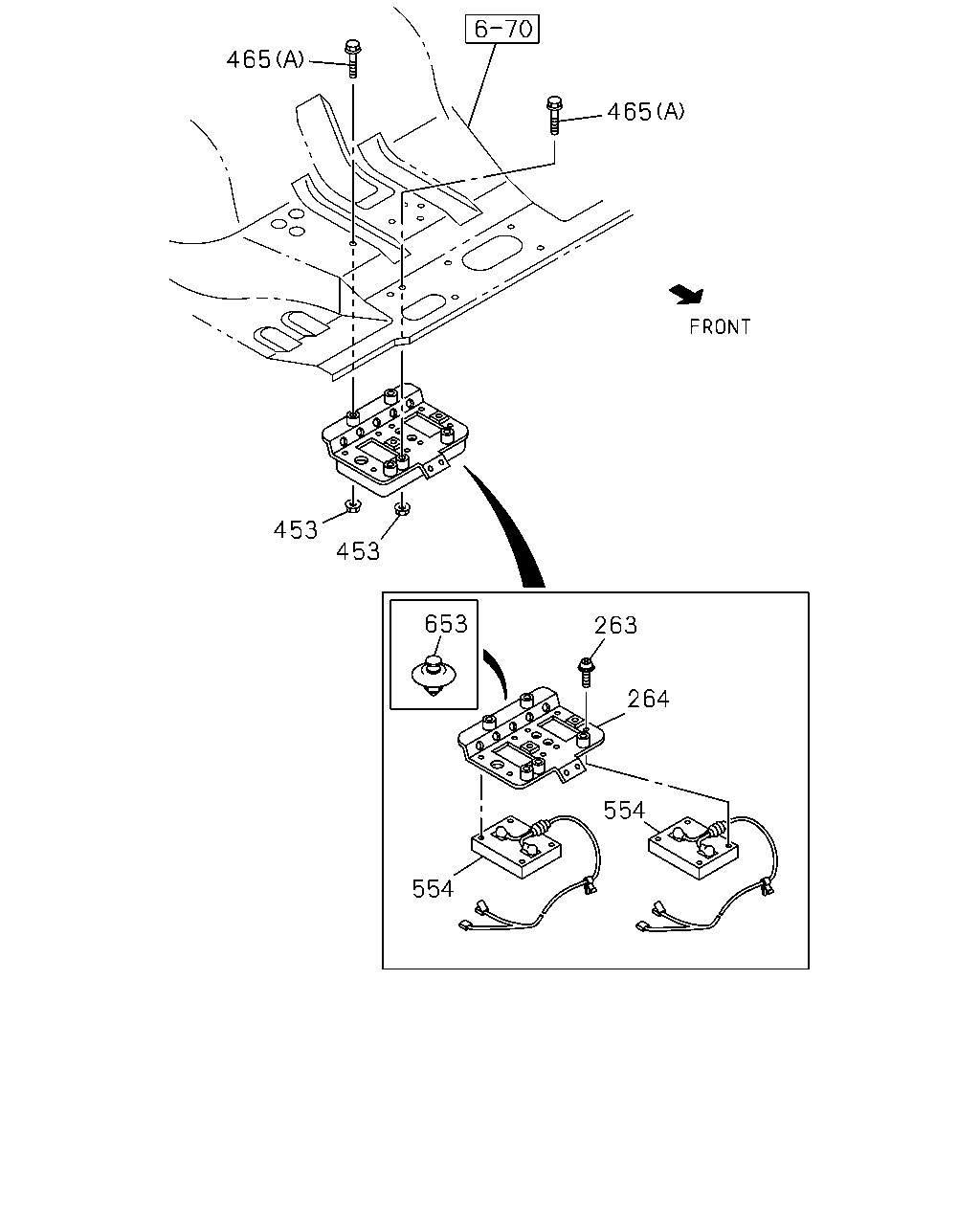

çizim 153015
465 465 453 453 653 263 264 554 554
BalonParca AdiParca NoAdetTipApplied Date A B C D E
263 BOLT; CONT UNIT
HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> M6X12 W/LK&PL WASHER 		8-94279-200-0 08 1 0212- ●
264 BRACKET; CONT UNIT
HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> 		1-82547-037-5 01 1 0212- ●
453 NUT; BRKT
HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> M8 FLANGE 		0-91150-108-0 04 1 0212-0602 ●
453 NUT; BRKT
HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> M8 FLANGE 		0-91180-108-0 04 1 0603- ●
465 BOLT; CLIP
6HK1 TCC ENG(81L) (B) SCREW M6X12 TAPPING W/PL WASHER 		0-74100-612-0 01 1 0406- ●
465 BOLT; CLIP
HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> (A) M8X20 FLANGE 		0-28680-820-0 03 1 0212-0512 ●
465 BOLT; CLIP
HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> (A) M8X20 FLANGE 		0-28650-820-0 03 1 0601- ●
465 BOLT; CLIP
HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> (A) M8X30 W/LK&PL WASHER 		8-94279-210-0 01 1 0212- ●
554 CONTROL UNIT; HEAD LAMP
HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> 		1-80150-076-6 01 1 0212- ●
554 CONTROL UNIT; HEAD LAMP
HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> 		1-80150-077-5 01 1 0212- ●
653 CLIP; BRKT
HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> D8X13.5 		1-09987-248-1 01 1 0212- ●

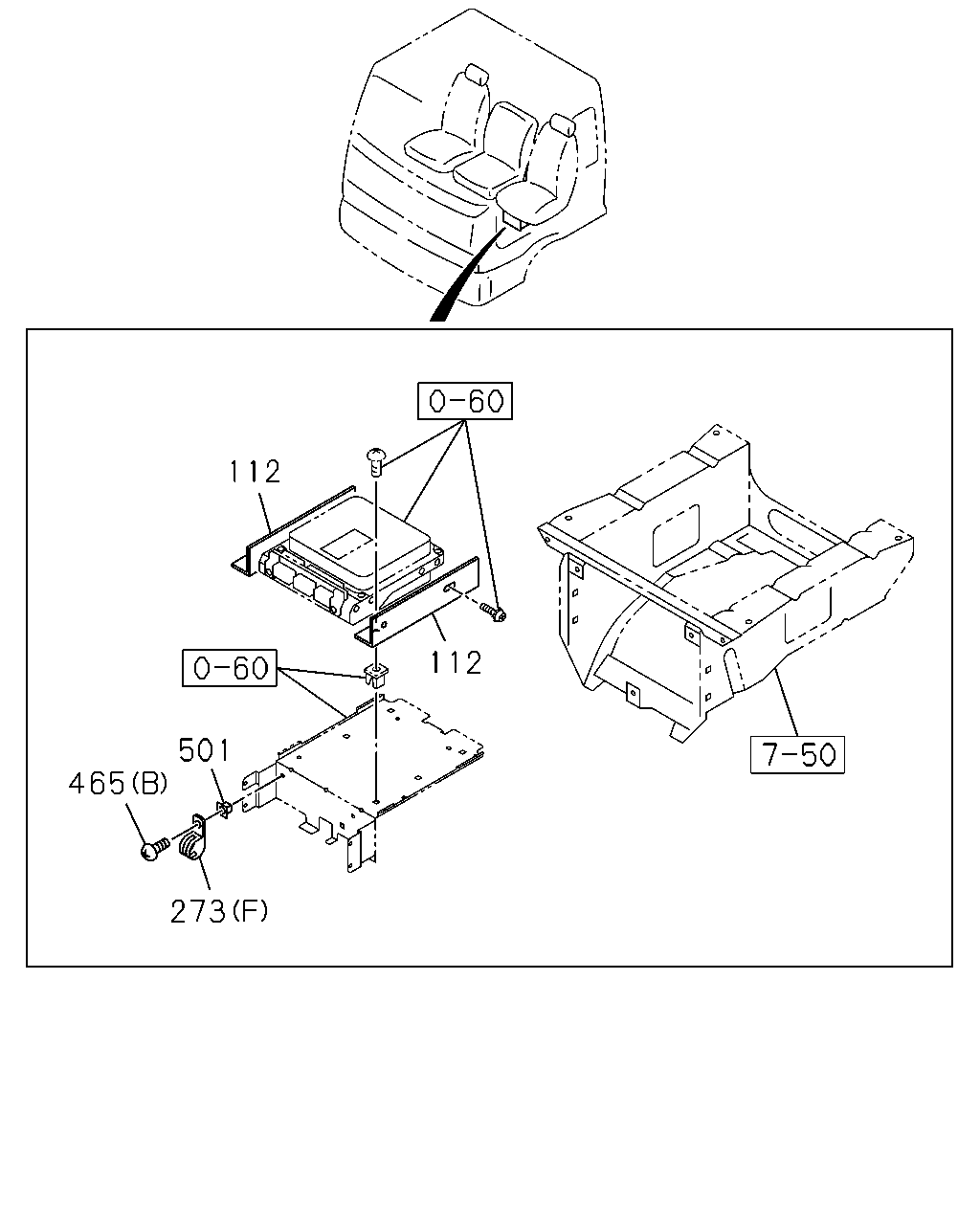

çizim 153019
112 112 501 465 273
BalonParca AdiParca NoAdetTipApplied Date A B C D E
112 BRACKET; CONT UNIT
EMIS SYSTEM '98 US FEDERAL REQUIREMENT<NDZ> 		1-75558-566-0 02 1 0406- ●
273 CLIP; HARNESS
6HK1 TCC ENG(81L) (F) ID=35 L=35 		1-09700-726-0 01 1 0406- ●
273 CLIP; HARNESS
HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> (G) ID=12-16 & 12-16 		1-09709-191-0 03 1 0212- ●
273 CLIP; HARNESS
HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> (A) ID=6-10 & 10-14 		1-09709-201-1 01 1 0212- ●
273 CLIP; HARNESS
HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> (B) ID=11.5 & 14.5 		8-94314-293-0 01 1 0212- ●
273 CLIP; HARNESS
HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> (C) 		8-97101-436-0 01 1 0212- ●
273 CLIP; HARNESS
HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> (D) ID=11 L=50 		9-09525-085-0 01 1 0212-0606 ●
273 CLIP; HARNESS
HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> (D) ID=11 L=50 		0-95235-085-0 01 1 0607- ●
273 CLIP; HARNESS
HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> (E) ID=16 L=20 		9-09525-536-0 03 1 0212-0606 ●
273 CLIP; HARNESS
HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> (E) ID=16 L=20 		0-95235-536-0 03 1 0607- ●
465 BOLT; CLIP
6HK1 TCC ENG(81L) (B) SCREW M6X12 TAPPING W/PL WASHER 		0-74100-612-0 01 1 0406- ●
465 BOLT; CLIP
HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> (A) M8X20 FLANGE 		0-28680-820-0 03 1 0212-0512 ●
465 BOLT; CLIP
HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> (A) M8X20 FLANGE 		0-28650-820-0 03 1 0601- ●
465 BOLT; CLIP
HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> (A) M8X30 W/LK&PL WASHER 		8-94279-210-0 01 1 0212- ●
501 GROMMET; SCREW
6HK1 TCC ENG(81L) D=9.7X9.7 L=8 		8-94222-314-0 01 1 0406- ●

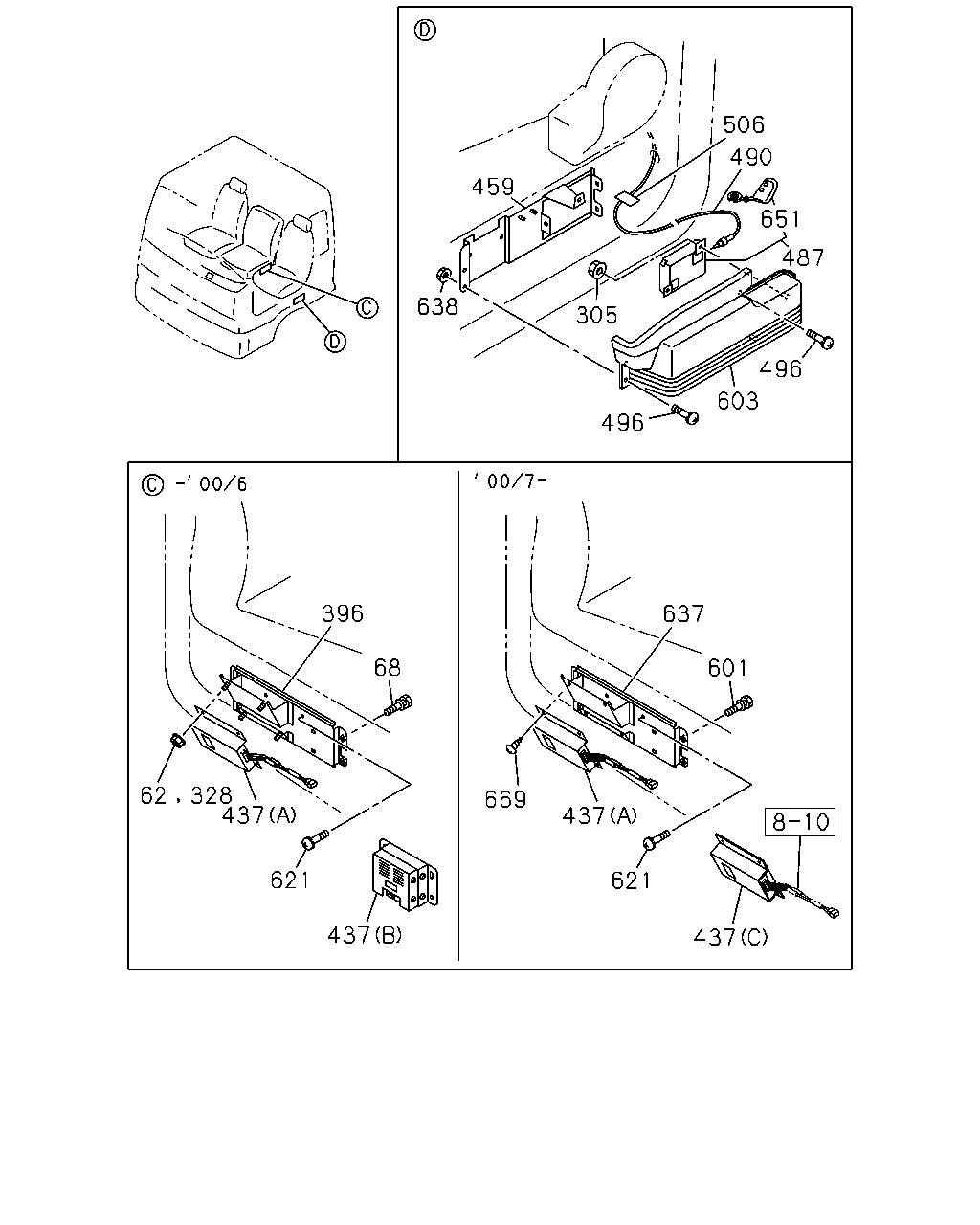

çizim 153021
506 490 459 651 487 638 305 496 603 496 396 637 68 601 437 669 437 621 621 437 437 62 328
BalonParca AdiParca NoAdetTipApplied Date A B C D E
62 NUT; BRKT
ELEC OUTLET 12V<TAW> M6 FLANGE 		0-91150-106-0 02 1 9811-0004 ● ● ● ●
62 NUT; BRKT
ELEC OUTLET 12V<TAW> M6 FLANGE 		0-91150-106-0 02 1 0005-0602 ●
62 NUT; BRKT
ELEC OUTLET 12V<TAW> M6 FLANGE 		0-91180-106-0 02 1 0603- ●
68 BOLT; BRKT
HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> M8X20 FLANGE 		0-28680-820-0 01 1 0212-0512 ●
68 BOLT; BRKT
HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> M8X20 FLANGE 		0-28650-820-0 01 1 0601- ●
68 BOLT; BRKT
ELEC OUTLET 12V<TAW> M6X12 W/LK&PL WASHER 		8-94279-200-0 04 1 9905-9907 ● ● ● ●
68 BOLT; BRKT
ELEC OUTLET 12V<TAW> EXC. NIKKO<Y70> M6X12 W/LK&PL WASHER 		8-94279-200-0 04 1 9908-0004 ● ● ● ●
68 BOLT; BRKT
ELEC OUTLET 12V<TAW> EXC. NIKKO<Y70> M6X12 W/LK&PL WASHER 		8-94279-200-0 02 1 0005-0006 ●
305 NUT; CONT UNIT
REMOTE CONT DOOR LOCK<SLG> M6 FLANGE 		0-91180-106-0 02 1 0212-0809 ●
328 NUT
ELEC OUTLET 12V<TAW> M6 FLANGE 		0-91150-106-0 04 1 9905-9907 ● ● ● ●
328 NUT
ELEC OUTLET 12V<TAW> EXC. NIKKO<Y70> M6 FLANGE 		0-91150-106-0 04 1 9908-9911 ● ● ● ●
396 BRACKET
ELEC OUTLET 12V<TAW> 		1-75557-483-0 01 1 9905-9907 ● ● ● ●
396 BRACKET
ELEC OUTLET 12V<TAW> EXC. NIKKO<Y70> 		1-75557-483-1 01 1 9908-0004 ● ● ● ●
396 BRACKET
ELEC OUTLET 12V<TAW> EXC. NIKKO<Y70> 		1-75557-483-1 01 1 0005-0006 ●
437 CONVERTER; DC
ELEC OUTLET 12V<TAW> (C) METRO DENSO 		8-98046-423-0 01 1 0604- ●
437 CONVERTER; DC
LIGHTING SYSTEM-JAPANESE STANDARDS<JBZ> HEADLAMPS LEVELING SYSTEM MANUAL<TAS> (D) KOITO 		8-97359-129-0 01 1 0602- ●
437 CONVERTER; DC
ELEC OUTLET 12V<TAW> (B) 		1-84122-005-0 01 1 9807-0004 ● ● ● ●
437 CONVERTER; DC
ELEC OUTLET 12V<TAW> (B) 		1-84122-005-0 01 1 0005-0006 ●
437 CONVERTER; DC
ELEC OUTLET 12V<TAW> (A) 		1-84122-037-0 01 1 9905-9907 ● ● ● ●
437 CONVERTER; DC
ELEC OUTLET 12V<TAW> EXC. NIKKO<Y70> (A) 		1-84122-037-1 01 1 9908-0004 ● ● ● ●
437 CONVERTER; DC
ELEC OUTLET 12V<TAW> EXC. NIKKO<Y70> (A) 		1-84122-037-1 01 1 0005-0006 ●
437 CONVERTER; DC
ELEC OUTLET 12V<TAW> (A) 		1-84122-037-1 01 1 0007-0008 ●
437 CONVERTER; DC
ELEC OUTLET 12V<TAW> EXC. NIKKO<Y70> (A) 		1-84122-037-1 01 1 0007-0008 ●
437 CONVERTER; DC
ELEC OUTLET 12V<TAW> (C) MITSUBISHI 		1-84122-034-1 01 1 0009-0603 ●
437 CONVERTER; DC
ELEC OUTLET 12V<TAW> EXC. NIKKO<Y70> (C) MITSUBISHI 		1-84122-034-1 01 1 0009-0603 ●
437 CONVERTER; DC
ELEC OUTLET 12V<TAW> EXC. NIKKO<Y70> (C) MITSUBISHI 		1-84122-034-1 01 1 0604- ●
459 BRACKET; CONTROL BOX
ELEC OUTLET 12V<TAW> 		1-75558-488-5 01 1 9811-0004 ● ● ● ●
459 BRACKET; CONTROL BOX
ELEC OUTLET 12V<TAW> 		1-75558-488-5 01 1 0005- ●
487 CONTROL UNIT; DOOR LOCK,AUTO REMOTE
REMOTE CONT DOOR LOCK<SLG> 		1-86855-033-2 01 1 0212-0809 ●
490 ANTENNA; AUTO REMOTE DOOR LOCK
REMOTE CONT DOOR LOCK<SLG> 		1-86855-023-1 01 1 0212-0809 ●
496 SCREW; COVER
ELEC OUTLET 12V<TAW> M6X16 W/LK&PL WASHER 		8-94279-402-0 03 1 9811-0004 ● ● ● ●
496 SCREW; COVER
ELEC OUTLET 12V<TAW> M6X16 W/LK&PL WASHER 		8-94279-402-0 03 1 0005-0703 ●
496 SCREW; COVER
ELEC OUTLET 12V<TAW> M6X12 W/LK&PL WASHER 		0-36230-612-0 03 1 0704- ●
506 TAPE; ANTENNA
REMOTE CONT DOOR LOCK<SLG> 100X30 		1-74998-068-0 06 1 0803-0809 ●
601 BOLT; DC-DC CONVERTER
ELEC OUTLET 12V<TAW> M6X12 W/LK&PL WASHER 		8-94279-200-0 02 1 0007-0703 ●
601 BOLT; DC-DC CONVERTER
ELEC OUTLET 12V<TAW> SCREW M6X12 W/LK&PL WASHER 		0-36230-612-0 02 1 0704- ●
603 COVER; CONT UNIT,SEAT STAND
ELEC OUTLET 12V<TAW> 		1-72538-160-2 01 1 9811-0004 ● ● ● ●
603 COVER; CONT UNIT,SEAT STAND
ELEC OUTLET 12V<TAW> 		1-72538-160-3 01 1 0005-0810 ●
603 COVER; CONT UNIT,SEAT STAND
ELEC OUTLET 12V<TAW> 		8-97589-725-0 01 1 0811- ●
621 SCREW
ELEC OUTLET 12V<TAW> EXC. NIKKO<Y70> M6X12 W/PL WASHER 		1-09981-380-0 04 1 9912-0004 ● ● ● ●
621 SCREW
ELEC OUTLET 12V<TAW> EXC. NIKKO<Y70> M6X12 W/PL WASHER 		1-09981-380-0 04 1 0005-0006 ●
637 BRACKET; DC-DC CONVERTER
ELEC OUTLET 12V<TAW> 		1-75557-483-1 01 1 0007- ●
638 NUT; DC-DC CONVERTER
ELEC OUTLET 12V<TAW> M6 FLANGE 		0-91150-106-0 04 1 9811-0004 ● ● ● ●
638 NUT; DC-DC CONVERTER
ELEC OUTLET 12V<TAW> M6 FLANGE 		0-91150-106-0 04 1 0005-0602 ●
638 NUT; DC-DC CONVERTER
ELEC OUTLET 12V<TAW> M6 FLANGE 		0-91180-106-0 04 1 0603- ●
651 TRANSMITTER; DOOR LOCK,AUTO REMOTE
REMOTE CONT DOOR LOCK<SLG> 		1-86860-008-0 01 1 0212-0809 ●
669 SCREW; DC-DC CONVERTER
ELEC OUTLET 12V<TAW> M6X12 W/PL WASHER 		1-09981-380-0 04 1 0007- ●

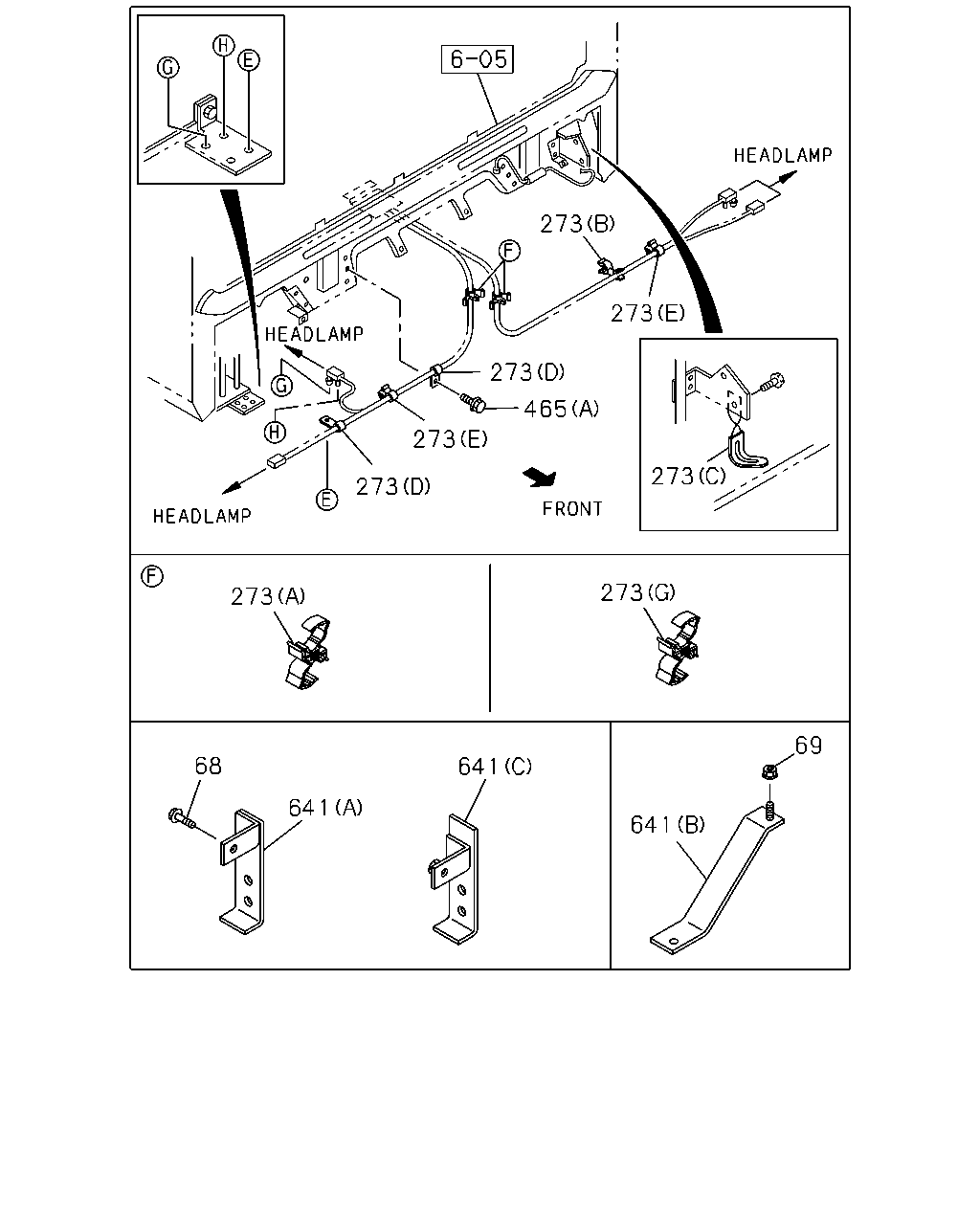

çizim 153044
273 273 273 465 273 273 273 273 273 69 68 641 641 641
BalonParca AdiParca NoAdetTipApplied Date A B C D E
68 BOLT; BRKT
HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> M8X20 FLANGE 		0-28680-820-0 01 1 0212-0512 ●
68 BOLT; BRKT
HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> M8X20 FLANGE 		0-28650-820-0 01 1 0601- ●
68 BOLT; BRKT
ELEC OUTLET 12V<TAW> M6X12 W/LK&PL WASHER 		8-94279-200-0 04 1 9905-9907 ● ● ● ●
68 BOLT; BRKT
ELEC OUTLET 12V<TAW> EXC. NIKKO<Y70> M6X12 W/LK&PL WASHER 		8-94279-200-0 04 1 9908-0004 ● ● ● ●
68 BOLT; BRKT
ELEC OUTLET 12V<TAW> EXC. NIKKO<Y70> M6X12 W/LK&PL WASHER 		8-94279-200-0 02 1 0005-0006 ●
69 NUT; BRKT
HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> M8 FLANGE 		0-91150-108-0 01 1 0212-0602 ●
69 NUT; BRKT
HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> M8 FLANGE 		0-91180-108-0 01 1 0603- ●
273 CLIP; HARNESS
6HK1 TCC ENG(81L) (F) ID=35 L=35 		1-09700-726-0 01 1 0406- ●
273 CLIP; HARNESS
HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> (G) ID=12-16 & 12-16 		1-09709-191-0 03 1 0212- ●
273 CLIP; HARNESS
HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> (A) ID=6-10 & 10-14 		1-09709-201-1 01 1 0212- ●
273 CLIP; HARNESS
HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> (B) ID=11.5 & 14.5 		8-94314-293-0 01 1 0212- ●
273 CLIP; HARNESS
HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> (C) 		8-97101-436-0 01 1 0212- ●
273 CLIP; HARNESS
HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> (D) ID=11 L=50 		9-09525-085-0 01 1 0212-0606 ●
273 CLIP; HARNESS
HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> (D) ID=11 L=50 		0-95235-085-0 01 1 0607- ●
273 CLIP; HARNESS
HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> (E) ID=16 L=20 		9-09525-536-0 03 1 0212-0606 ●
273 CLIP; HARNESS
HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> (E) ID=16 L=20 		0-95235-536-0 03 1 0607- ●
465 BOLT; CLIP
6HK1 TCC ENG(81L) (B) SCREW M6X12 TAPPING W/PL WASHER 		0-74100-612-0 01 1 0406- ●
465 BOLT; CLIP
HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> (A) M8X20 FLANGE 		0-28680-820-0 03 1 0212-0512 ●
465 BOLT; CLIP
HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> (A) M8X20 FLANGE 		0-28650-820-0 03 1 0601- ●
465 BOLT; CLIP
HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> (A) M8X30 W/LK&PL WASHER 		8-94279-210-0 01 1 0212- ●
641 BRACKET; CLIP,HARNESS
HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> (B) 		1-82698-072-2 01 1 0212- ●
641 BRACKET; CLIP,HARNESS
HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> (A) 		1-82698-073-1 01 1 0212-0309 ●
641 BRACKET; CLIP,HARNESS
HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> (C) 		1-82698-503-0 01 1 0310- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
