8-15 — FIXING PARTS; WIRING HARNESS (#34482) — 849 parça

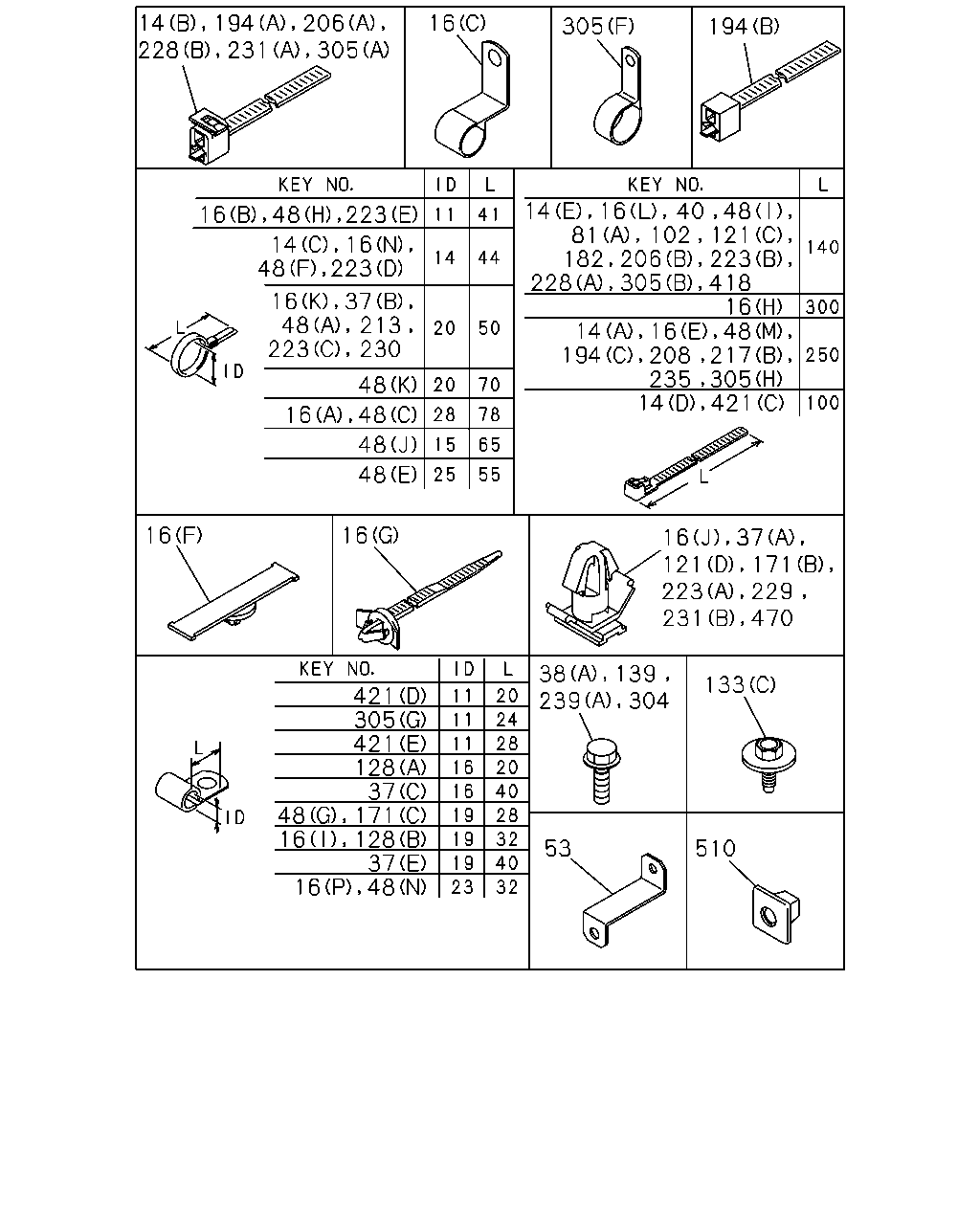

çizim 152996
14 16 305 194 48 16 48 48 48 16 16 38 139 133 53 510 194 206 228 231 305 16 48 223 14 16 223 48 16 37 48 213 223 230 239 304 14 16 40 48 121 102 81 182 208 223 418 305 228 16 14 16 48 217 208 194 235 305 14 421 37 16 121 171 229 223 231 470 421 305 421 128 37 48 171 16 128 37 16 48
BalonParca AdiParca NoAdetTipApplied Date A B C D E
14 CLIP; BAND,HARNESS
6HK1 TCC ENG(81L) AIR CONDITIONER MANUAL CONTROL<C60> (E) L=140 		5-09707-031-1 02 1 0406-1205 ●
14 CLIP; BAND,HARNESS
6HK1 TCC ENG(81L) AIR CONDITIONER MANUAL CONTROL<C60> (E) L=140 		8-98216-431-0 02 1 1206- ●
14 CLIP; BAND,HARNESS
(E) L=140 		5-09707-031-1 01 1 0203-0206 ● ● ●
14 CLIP; BAND,HARNESS
(C) ID=14 L=44 		9-09917-427-0 02 1 9604-9803 ● ● ● ● ●
14 CLIP; BAND,HARNESS
(B) L=180 		1-09707-162-1 01 1 9804-0004 ● ● ● ● ●
14 CLIP; BAND,HARNESS
(B) L=180 		1-09707-162-1 01 1 0005- ● ● ●
14 CLIP; BAND,HARNESS
(A) L=250 		5-09707-030-1 01 1 0002-0004 ● ● ● ● ●
14 CLIP; BAND,HARNESS
(A) L=250 		5-09707-030-1 01 1 0005-0010 ● ● ●
14 CLIP; BAND,HARNESS
(A) L=250 		5-09707-030-1 01 1 0011-1205 ● ●
14 CLIP; BAND,HARNESS
6HH1 STD ENG(65L) EXC. EURO2 SPECIFICATION<THN> (A) L=250 		5-09707-030-1 01 1 0011-1205 ●
14 CLIP; BAND,HARNESS
(A) L=250 		8-98216-430-0 01 1 1206- ● ●
14 CLIP; BAND,HARNESS
6HH1 STD ENG(65L) EXC. EURO2 SPECIFICATION<THN> (A) L=250 		8-98216-430-0 01 1 1206- ●
14 CLIP; BAND,HARNESS
EURO2 SPECIFICATION<THN> (D) L=100 		5-09707-036-1 01 1 9907-9910 ●
16 CLIP; HARNESS
(A) ID=28 L=78 		1-09700-858-0 01 1 0404-0405 ● ● ●
16 CLIP; HARNESS
6HH1 STD 4VALVE ENG(1A6),6HH1 STD ENG(65L), 6HH1N ENG(66L) (A) ID=28 L=78 		1-09700-858-0 01 1 0406- ● ● ●
16 CLIP; HARNESS
POWER WINDOW<A30> REMOTE CONT DOOR LOCK<SLG> (F) LH DOOR HARNESS 		8-97229-356-0 03 1 0212- ●
16 CLIP; HARNESS
EXC. POWER WINDOW<A30> (G) L=175 		8-97110-167-0 02 1 9604-9608 ●
16 CLIP; HARNESS
(G) L=175 		8-97110-167-0 02 1 9604-9608 ●
16 CLIP; HARNESS
EXC. POWER WINDOW<A30> (G) L=175 		8-97110-167-0 02 1 9609-9803 ● ●
16 CLIP; HARNESS
(G) L=175 		8-97110-167-0 02 1 9609-9803 ● ● ●
16 CLIP; HARNESS
EXC. POWER WINDOW<A30> (G) L=175 		8-97110-167-0 02 1 9804-0004 ●
16 CLIP; HARNESS
(G) L=175 		8-97110-167-0 02 1 9804-0004 ● ●
16 CLIP; HARNESS
(G) L=175 		8-97110-167-0 02 1 0005-0101 ●
16 CLIP; HARNESS
(G) L=175 		8-97110-167-0 02 1 0102-0211 ●
16 CLIP; HARNESS
POWER WINDOW<A30> (G) L=175 		8-97110-167-0 02 1 0102-0211 ●
16 CLIP; HARNESS
(G) L=175 		8-97110-167-0 02 1 0212-0404 ●
16 CLIP; HARNESS
POWER WINDOW<A30> REMOTE CONT DOOR LOCK<SLG> (G) L=175 		8-97110-167-0 02 1 0212-0404 ●
16 CLIP; HARNESS
POWER WINDOW<A30> (G) L=175 		8-97110-167-0 02 1 0212-0404 ●
16 CLIP; HARNESS
(G) L=175 		8-97110-167-0 02 1 0405- ●
16 CLIP; HARNESS
POWER WINDOW<A30> (G) L=175 		8-97110-167-0 02 1 0405- ●
16 CLIP; HARNESS
(B) ID=11 L=41 		1-09700-403-0 03 1 9604-9803 ● ● ● ● ●
16 CLIP; HARNESS
(B) ID=11 L=41 		1-09700-403-0 05 1 9804-0004 ● ● ● ● ●
16 CLIP; HARNESS
(B) ID=11 L=41 		1-09700-403-0 05 1 0005-0110 ● ● ●
16 CLIP; HARNESS
(B) ID=11 L=41 		1-09700-403-0 07 1 0111-0401 ● ● ●
16 CLIP; HARNESS
(B) ID=11 L=41 		1-09700-403-0 08 1 0402-0403 ● ● ●
16 CLIP; HARNESS
(B) ID=11 L=41 		1-09700-403-0 02 1 0404-0405 ● ● ●
16 CLIP; HARNESS
(B) ID=11 L=41 		1-09700-403-0 06 1 0406- ● ● ●
16 CLIP; HARNESS
(A) ID=28 L=78 		1-09700-858-0 01 1 9604-0004 ● ● ● ● ●
16 CLIP; HARNESS
(A) ID=28 L=78 		1-09700-858-0 01 1 0005-0403 ● ● ●
16 CLIP; HARNESS
(B) ID=11 L=41 		1-09700-403-0 06 1 0404-0405 ● ● ●
16 CLIP; HARNESS
(B) ID=11 L=41 		1-09700-403-0 02 1 0406- ● ●
16 CLIP; HARNESS
EXC. TRANSFER TF56<BFK> (B) ID=11 L=41 		1-09700-403-0 02 1 0406- ●
16 CLIP; HARNESS
(D) ID=34.5 H=23 L=27.5 		1-09700-905-0 01 1 9604-0004 ● ● ● ● ●
16 CLIP; HARNESS
(D) ID=34.5 H=23 L=27.5 		1-09700-905-0 01 1 0005- ● ● ●
16 CLIP; HARNESS
(C) ID=19 H=33 L=45 		1-09701-045-0 01 1 9604-9801 ● ● ● ● ●
16 CLIP; HARNESS
(D) ID=19 H=21 L=50 		1-09700-910-1 01 1 9802-0004 ● ● ● ● ●
16 CLIP; HARNESS
(D) ID=19 H=21 L=50 		1-09700-910-1 01 1 0005-0405 ● ● ●
16 CLIP; HARNESS
6HH1 STD 4VALVE ENG(1A6),6HH1 STD ENG(65L), 6HH1N ENG(66L) (D) ID=19 H=21 L=50 		1-09700-910-1 01 1 0406- ● ● ●
16 CLIP; HARNESS
(H) L=300 		1-09707-001-1 01 1 9604-0004 ● ● ● ● ●
16 CLIP; HARNESS
(H) L=300 		1-09707-001-1 01 1 0005- ● ● ●
16 CLIP; HARNESS
(J) OD=9 H=6 		1-09709-178-0 02 1 9604-0004 ● ● ● ● ●
16 CLIP; HARNESS
(J) OD=9 H=6 		1-09709-178-0 02 1 0005- ● ● ●
16 CLIP; HARNESS
(E) L=250 		5-09707-030-1 01 1 9604-0004 ● ● ● ● ●
16 CLIP; HARNESS
AUSTRALIA EQUIPMENT(RR3) (E) L=250 		5-09707-030-1 01 1 9604-0004 ● ● ● ●
16 CLIP; HARNESS
(E) L=250 		5-09707-030-1 01 1 0005-0405 ● ● ●
16 CLIP; HARNESS
(L) L=140 		5-09707-031-1 01 1 0406- ● ●
16 CLIP; HARNESS
EXC. TRANSFER TF56<BFK> (L) L=140 		5-09707-031-1 01 1 0406- ●
16 CLIP; HARNESS
(L) L=140 		5-09707-031-0 01 1 9604-9803 ● ● ● ● ●
16 CLIP; HARNESS
(L) L=140 		5-09707-031-1 03 1 9804-0004 ● ● ● ● ●
16 CLIP; HARNESS
(L) L=140 		5-09707-031-1 03 1 0005-0110 ● ● ●
16 CLIP; HARNESS
(L) L=140 		5-09707-031-1 01 1 0111-0405 ● ● ●
16 CLIP; HARNESS
(E) L=250 		5-09707-030-1 01 1 0406- ● ● ●
16 CLIP; HARNESS
TRANSFER TF56<BFK> NEW ZEALAND EQUIPMENT(PK5) (E) L=250 		5-09707-030-1 01 1 0406- ●
16 CLIP; HARNESS
(I) ID=19 L=32 		9-09525-866-0 01 1 9604-0004 ● ● ● ● ●
16 CLIP; HARNESS
(I) ID=19 L=32 		9-09525-866-0 01 1 0005-0606 ● ● ●
16 CLIP; HARNESS
(I) ID=19 L=32 		0-95235-866-0 01 1 0607- ● ● ●
16 CLIP; HARNESS
(K) ID=20 L=50 		9-09917-430-0 04 1 9604-9803 ● ● ● ● ●
16 CLIP; HARNESS
(K) ID=20 L=50 		9-09917-430-0 01 1 9804-0004 ● ● ● ● ●
16 CLIP; HARNESS
(K) ID=20 L=50 		9-09917-430-0 01 1 0005-0301 ● ● ●
16 CLIP; HARNESS
(K) ID=20 L=50 		9-09917-430-0 03 1 9804-0004 ● ● ● ● ●
16 CLIP; HARNESS
(K) ID=20 L=50 		9-09917-430-0 03 1 0005- ● ● ●
16 CLIP; HARNESS
POWER WINDOW<A30> (F) L=55 		8-94432-655-0 06 1 9604-0004 ● ●
16 CLIP; HARNESS
POWER WINDOW<A30> (F) L=55 		8-94432-655-0 06 1 0005-0101 ●
16 CLIP; HARNESS
POWER WINDOW<A30> EXC. REMOTE CONT DOOR LOCK<SLG> (F) L=55 		8-94432-655-0 03 1 0405- ●
16 CLIP; HARNESS
POWER WINDOW<A30> DOOR WITH UNDER VIEW WINDOW<YD8> (F) L=55 		8-94432-655-0 03 1 0405- ●
16 CLIP; HARNESS
POWER WINDOW<A30> (F) RH DOOR HARNESS L=55 		8-94432-655-0 03 1 0212- ●
16 CLIP; HARNESS
POWER WINDOW<A30> EXC. REMOTE CONT DOOR LOCK<SLG> (F) LH DOOR HARNESS L=55 		8-94432-655-0 03 1 0212- ●
16 CLIP; HARNESS
POWER WINDOW<A30> (G) L=175 		8-97110-167-0 04 1 9604-9904 ● ●
16 CLIP; HARNESS
POWER WINDOW<A30> (G) L=175 		8-97110-167-0 06 1 9905-0004 ● ●
16 CLIP; HARNESS
POWER WINDOW<A30> (G) L=175 		8-97110-167-0 06 1 0005-0101 ●
16 CLIP; HARNESS
POWER WINDOW<A30> (G) L=175 		8-97110-167-0 04 1 0102-0404 ●
16 CLIP; HARNESS
POWER WINDOW<A30> DOOR WITH UNDER VIEW WINDOW<YD8> (G) L=175 		8-97110-167-0 04 1 0405- ●
16 CLIP; HARNESS
EURO2 SPECIFICATION<THN> (M) ID=25 L=50 		1-09701-019-0 01 1 9905-0306 ●
16 CLIP; HARNESS
EURO2 SPECIFICATION<THN> (P) ID=23 L=32 		1-09700-346-0 01 1 0307- ●
16 CLIP; HARNESS
EURO2 SPECIFICATION<THN> (M) ID=24 L=40 		1-09701-139-0 01 1 9905- ●
16 CLIP; HARNESS
EURO2 SPECIFICATION<THN> (C) ID=25 H=30 L=35 		1-09700-875-0 02 1 9911-0003 ●
16 CLIP; HARNESS
EURO2 SPECIFICATION<THN> (C) ID=25 H=30 L=35 		1-09700-875-0 01 1 0004-0006 ●
16 CLIP; HARNESS
EURO2 SPECIFICATION<THN> (M) ID=24 L=32 		1-09700-766-1 01 1 0004-0010 ●
16 CLIP; HARNESS
6HH1 STD ENG(65L) EURO2 SPECIFICATION<THN> (M) ID=24 L=32 		1-09700-766-1 01 1 0011-0101 ●
16 CLIP; HARNESS
6HH1 STD 4VALVE ENG(1A6) NEW ZEALAND EQUIPMENT(PK5) (M) ID=24 L=32 		1-09700-766-1 01 1 0102-0405 ●
16 CLIP; HARNESS
6HH1 STD ENG(65L) EURO2 SPECIFICATION<THN> (M) ID=24 L=32 		1-09700-766-1 01 1 0102-0405 ●
16 CLIP; HARNESS
6HH1 STD ENG(65L) EURO2 SPECIFICATION<THN> (M) ID=24 L=32 		1-09700-766-1 01 1 0406- ●
16 CLIP; HARNESS
6HH1 STD 4VALVE ENG(1A6) (B) ID=11 L=41 		1-09700-403-0 01 1 0011-0405 ●
16 CLIP; HARNESS
6HK1 TCC ENG(81L) (D) ID=18 H=23 L=28 		1-09700-860-0 01 1 0406- ●
16 CLIP; HARNESS
6HH1 STD 4VALVE ENG(1A6) (M) ID=26 L=27 		1-09701-006-0 01 1 0011-0405 ●
16 CLIP; HARNESS
6HK1 TCC ENG(81L) (M) ID=26 L=27 		1-09701-006-0 02 1 0406- ●
16 CLIP; HARNESS
6HH1 STD 4VALVE ENG(1A6) (N) ID=14 L=44 		9-09917-427-0 01 1 0011-0405 ●
16 CLIP; HARNESS
6HK1 TCC ENG(81L) (D) ID=35 H=45 L=33 		1-09701-047-0 01 1 0406- ●
16 CLIP; HARNESS
6HH1 STD 4VALVE ENG(1A6) NEW ZEALAND EQUIPMENT(PK5) (O) ID=12 & 16.5 		8-94400-865-0 01 1 0102-0405 ●
16 CLIP; HARNESS
TRANSFER TF56<BFK> NEW ZEALAND EQUIPMENT(PK5) (B) ID=11 L=41 		1-09700-403-0 01 1 0406- ●
37 CLIP; HARNESS,POWER TILT
(D) ID=18 L=50 		1-09700-302-1 01 1 9604-9609 ● ● ● ● ●
37 CLIP; HARNESS,POWER TILT
(D) ID=18 L=50 		1-09700-302-1 01 1 9610-9803 ● ●
37 CLIP; HARNESS,POWER TILT
(C) ID=16 L=40 		9-09525-575-0 02 1 9804-0004 ● ●
37 CLIP; HARNESS,POWER TILT
(A) OD=9 H=6 		1-09709-178-0 02 1 9604-9609 ● ● ● ● ●
37 CLIP; HARNESS,POWER TILT
(A) OD=9 H=6 		1-09709-178-0 02 1 9610-0004 ● ●
37 CLIP; HARNESS,POWER TILT
(C) ID=16 L=40 		9-09525-575-0 01 1 9604-9803 ● ● ● ● ●
37 CLIP; HARNESS,POWER TILT
(E) ID=19 L=40 		9-09525-875-0 02 1 9604-9609 ● ● ● ● ●
37 CLIP; HARNESS,POWER TILT
(E) ID=19 L=40 		9-09525-875-0 02 1 9610-9803 ● ●
37 CLIP; HARNESS,POWER TILT
(E) ID=19 L=40 		9-09525-875-0 01 1 9804-0004 ● ●
37 CLIP; HARNESS,POWER TILT
(B) ID=20 L=50 		9-09917-430-0 01 1 9604-9609 ● ● ● ● ●
37 CLIP; HARNESS,POWER TILT
(B) ID=20 L=50 		9-09917-430-0 01 1 9610-9803 ● ●
38 BOLT; CLIP,HARNESS
(A) M8X16 FLANGE 		0-28080-816-0 04 1 9604-0004 ● ● ● ● ●
38 BOLT; CLIP,HARNESS
(A) M8X16 FLANGE 		0-28080-816-0 04 1 0005-0512 ● ● ●
38 BOLT; CLIP,HARNESS
(A) M8X16 FLANGE 		0-28050-816-0 04 1 0601- ● ● ●
38 BOLT; CLIP,HARNESS
(A) M8X20 FLANGE 		0-28080-820-0 04 1 9604-9606 ● ● ● ● ●
38 BOLT; CLIP,HARNESS
(A) M8X20 FLANGE 		0-28680-820-0 04 1 9607-9609 ● ● ● ● ●
38 BOLT; CLIP,HARNESS
(A) M8X20 FLANGE 		0-28680-820-0 01 1 9610-9803 ● ● ● ● ●
38 BOLT; CLIP,HARNESS
(A) M8X20 FLANGE 		0-28680-820-0 02 1 9804-9904 ● ● ● ● ●
38 BOLT; CLIP,HARNESS
(A) M8X20 FLANGE 		0-28680-820-0 02 1 9905-0004 ● ● ● ● ●
38 BOLT; CLIP,HARNESS
EURO2 SPECIFICATION<THN> (A) M8X20 FLANGE 		0-28680-820-0 02 1 9905-0004 ●
38 BOLT; CLIP,HARNESS
(A) M8X20 FLANGE 		0-28680-820-0 02 1 0005-0010 ● ● ●
38 BOLT; CLIP,HARNESS
EURO2 SPECIFICATION<THN> (A) M8X20 FLANGE 		0-28680-820-0 02 1 0005-0010 ●
38 BOLT; CLIP,HARNESS
(A) M8X20 FLANGE 		0-28680-820-0 02 1 0011-0512 ● ● ●
38 BOLT; CLIP,HARNESS
6HH1 STD ENG(65L) EURO2 SPECIFICATION<THN> (A) M8X20 FLANGE 		0-28680-820-0 02 1 0011-0512 ●
38 BOLT; CLIP,HARNESS
(A) M8X20 FLANGE 		0-28650-820-0 02 1 0601- ● ● ●
38 BOLT; CLIP,HARNESS
6HH1 STD ENG(65L) EURO2 SPECIFICATION<THN> (A) M8X20 FLANGE 		0-28650-820-0 02 1 0601- ●
38 BOLT; CLIP,HARNESS
(A) M8X25 FLANGE 		0-28080-825-0 05 1 9604-9606 ● ● ● ● ●
38 BOLT; CLIP,HARNESS
(A) M8X25 FLANGE 		0-28680-825-0 02 1 9607-9607 ● ● ● ● ●
38 BOLT; CLIP,HARNESS
(A) M8X25 FLANGE 		0-28680-825-0 02 1 9607-9803 ● ● ● ● ●
38 BOLT; CLIP,HARNESS
(A) M8X25 FLANGE 		0-28680-825-0 01 1 9804-0004 ● ● ● ● ●
38 BOLT; CLIP,HARNESS
(A) M8X25 FLANGE 		0-28680-825-0 01 1 0005-0405 ● ● ●
38 BOLT; CLIP,HARNESS
(A) M8X25 FLANGE 		0-28680-825-0 01 1 0406-0512 ● ● ●
38 BOLT; CLIP,HARNESS
6HK1 TCC ENG(81L) (A) M8X25 FLANGE 		0-28680-825-0 01 1 0406-0512 ●
38 BOLT; CLIP,HARNESS
(A) M8X25 FLANGE 		0-28650-825-0 01 1 0601- ● ● ●
38 BOLT; CLIP,HARNESS
6HK1 TCC ENG(81L) (A) M8X25 FLANGE 		0-28650-825-0 01 1 0601- ●
38 BOLT; CLIP,HARNESS
(B) M8X20 W/LK&PL WASHER 		8-97086-825-0 01 1 9604-0001 ● ● ● ● ●
38 BOLT; CLIP,HARNESS
(B) M8X25 W/LK&PL WASHER 		0-50140-825-0 02 1 9607-9702 ● ● ● ● ●
38 BOLT; CLIP,HARNESS
(B) M8X30 W/LK&PL WASHER 		0-50140-830-0 02 1 9703-0004 ● ● ● ● ●

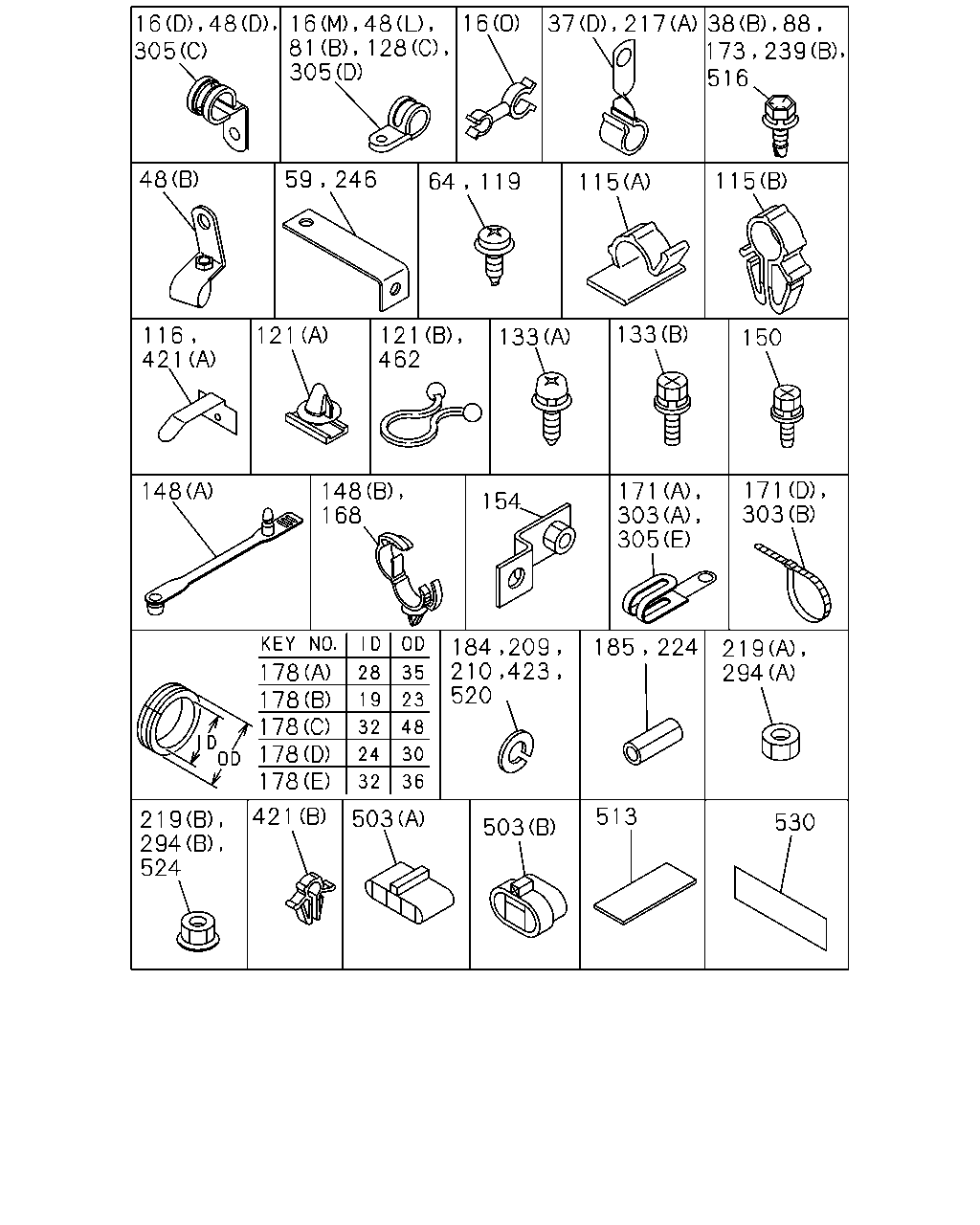

38 BOLT; CLIP,HARNESS
(B) M8X30 W/LK&PL WASHER 		0-50140-830-0 02 1 0005-0512 ● ● ●
38 BOLT; CLIP,HARNESS
(B) M8X30 W/LK&PL WASHER 		0-50640-830-0 02 1 0601- ● ● ●
38 BOLT; CLIP,HARNESS
(A) M8X30 FLANGE 		0-28680-830-0 02 1 9607-0004 ● ● ● ● ●
38 BOLT; CLIP,HARNESS
(A) M8X30 FLANGE 		0-28680-830-0 02 1 0005-0512 ● ● ●
38 BOLT; CLIP,HARNESS
(A) M8X30 FLANGE 		0-28650-830-0 02 1 0601- ● ● ●
38 BOLT; CLIP,HARNESS
(B) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 04 1 9604-0004 ● ●
38 BOLT; CLIP,HARNESS
(A) M8X20 FLANGE 		0-28680-820-0 03 1 9610-9803 ● ●
38 BOLT; CLIP,HARNESS
(A) M8X25 FLANGE 		0-28680-825-0 03 1 9804-9904 ● ●
38 BOLT; CLIP,HARNESS
(A) M8X25 FLANGE 		0-28680-825-0 03 1 9905-0004 ● ●
38 BOLT; CLIP,HARNESS
EURO2 SPECIFICATION<THN> (A) M8X25 FLANGE 		0-28680-825-0 03 1 9905-0004 ●
38 BOLT; CLIP,HARNESS
EURO2 SPECIFICATION<THN> (A) M8X25 FLANGE 		0-28680-825-0 03 1 0005-0512 ●
38 BOLT; CLIP,HARNESS
EURO2 SPECIFICATION<THN> (A) M8X25 FLANGE 		0-28650-825-0 03 1 0601- ●
38 BOLT; CLIP,HARNESS
(A) M8X30 FLANGE 		0-28680-830-0 01 1 9804-0004 ● ●
38 BOLT; CLIP,HARNESS
EURO2 SPECIFICATION<THN> (B) M8X16 W/LK&PL WASHER 		8-97087-055-0 01 1 9905-9907 ●
38 BOLT; CLIP,HARNESS
(B) M8X16 W/LK&PL WASHER 		8-97087-055-0 01 1 9908-0001 ● ● ● ● ●
38 BOLT; CLIP,HARNESS
EURO2 SPECIFICATION<THN> (B) M8X16 W/LK&PL WASHER 		8-97087-055-0 01 1 9908-0001 ●
38 BOLT; CLIP,HARNESS
(B) M8X20 W/LK&PL WASHER 		8-97086-825-0 01 1 0002-0004 ● ● ● ● ●
38 BOLT; CLIP,HARNESS
EURO2 SPECIFICATION<THN> (B) M8X20 W/LK&PL WASHER 		8-97086-825-0 01 1 0002-0004 ●
38 BOLT; CLIP,HARNESS
(B) M8X20 W/LK&PL WASHER 		8-97086-825-0 01 1 0005-0010 ● ● ●
38 BOLT; CLIP,HARNESS
EURO2 SPECIFICATION<THN> (B) M8X20 W/LK&PL WASHER 		8-97086-825-0 01 1 0005-0010 ●
38 BOLT; CLIP,HARNESS
(B) M8X20 W/LK&PL WASHER 		8-97086-825-0 01 1 0011-0405 ● ● ●
38 BOLT; CLIP,HARNESS
6HH1 STD 4VALVE ENG(1A6) EXC. EURO2 SPECIFICATION<THN> (B) M8X20 W/LK&PL WASHER 		8-97086-825-0 01 1 0011-0405 ●
38 BOLT; CLIP,HARNESS
EURO2 SPECIFICATION<THN> (B) M8X20 W/LK&PL WASHER 		8-97086-825-0 01 1 0011-0405 ●
38 BOLT; CLIP,HARNESS
(B) M8X20 W/LK&PL WASHER 		8-97086-825-0 01 1 0406-1201 ● ● ●
38 BOLT; CLIP,HARNESS
6HK1 TCC ENG(81L) EXC. EURO2 SPECIFICATION<THN> (B) M8X20 W/LK&PL WASHER 		8-97086-825-0 01 1 0406-1201 ●
38 BOLT; CLIP,HARNESS
EURO2 SPECIFICATION<THN> (B) M8X20 W/LK&PL WASHER 		8-97086-825-0 01 1 0406-1201 ●
38 BOLT; CLIP,HARNESS
(B) M8X18.5 W/PL WASHER 		8-98141-255-0 01 1 1202- ● ● ●
38 BOLT; CLIP,HARNESS
6HK1 TCC ENG(81L) EXC. EURO2 SPECIFICATION<THN> (B) M8X18.5 W/PL WASHER 		8-98141-255-0 01 1 1202- ●
38 BOLT; CLIP,HARNESS
EURO2 SPECIFICATION<THN> (B) M8X18.5 W/PL WASHER 		8-98141-255-0 01 1 1202- ●
38 BOLT; CLIP,HARNESS
EURO2 SPECIFICATION<THN> (A) M8X16 FLANGE 		0-28080-816-0 02 1 9911-0006 ●
38 BOLT; CLIP,HARNESS
EURO2 SPECIFICATION<THN> (A) M8X16 FLANGE 		0-28080-816-0 01 1 0007-0010 ●
38 BOLT; CLIP,HARNESS
6HH1 STD ENG(65L) EURO2 SPECIFICATION<THN> (A) M8X16 FLANGE 		0-28080-816-0 01 1 0011-0101 ●
38 BOLT; CLIP,HARNESS
6HH1 STD 4VALVE ENG(1A6) NEW ZEALAND EQUIPMENT(PK5) (A) M8X16 FLANGE 		0-28080-816-0 01 1 0102-0405 ●
38 BOLT; CLIP,HARNESS
6HH1 STD ENG(65L) EURO2 SPECIFICATION<THN> (A) M8X16 FLANGE 		0-28080-816-0 01 1 0102-0405 ●
38 BOLT; CLIP,HARNESS
6HK1 TCC ENG(81L) NEW ZEALAND EQUIPMENT(PK5) (A) M8X16 FLANGE 		0-28080-816-0 01 1 0406-0512 ●
38 BOLT; CLIP,HARNESS
6HH1 STD ENG(65L) EURO2 SPECIFICATION<THN> (A) M8X16 FLANGE 		0-28080-816-0 01 1 0406-0512 ●
38 BOLT; CLIP,HARNESS
6HK1 TCC ENG(81L) NEW ZEALAND EQUIPMENT(PK5) (A) M8X16 FLANGE 		0-28050-816-0 01 1 0601- ●
38 BOLT; CLIP,HARNESS
6HH1 STD ENG(65L) EURO2 SPECIFICATION<THN> (A) M8X16 FLANGE 		0-28050-816-0 01 1 0601- ●
38 BOLT; CLIP,HARNESS
EURO2 SPECIFICATION<THN> (A) M8X20 FLANGE 		0-28080-820-0 02 1 0007-0010 ●
38 BOLT; CLIP,HARNESS
6HH1 STD 4VALVE ENG(1A6) (A) M8X20 FLANGE 		0-28080-820-0 01 1 0011-0405 ●
38 BOLT; CLIP,HARNESS
6HK1 TCC ENG(81L) (A) M8X20 FLANGE 		0-28080-820-0 02 1 0406-0512 ●
38 BOLT; CLIP,HARNESS
6HH1 STD ENG(65L) EURO2 SPECIFICATION<THN> (A) M8X20 FLANGE 		0-28080-820-0 02 1 0406-0512 ●
38 BOLT; CLIP,HARNESS
6HK1 TCC ENG(81L) (A) M8X20 FLANGE 		0-28050-820-0 02 1 0601- ●
38 BOLT; CLIP,HARNESS
6HH1 STD ENG(65L) EURO2 SPECIFICATION<THN> (A) M8X20 FLANGE 		0-28050-820-0 02 1 0601- ●
38 BOLT; CLIP,HARNESS
6HH1 STD 4VALVE ENG(1A6) (A) M8X20 FLANGE 		0-28080-820-0 02 1 0011-0405 ●
38 BOLT; CLIP,HARNESS
6HH1 STD ENG(65L) EURO2 SPECIFICATION<THN> (A) M8X20 FLANGE 		0-28080-820-0 02 1 0011-0405 ●
38 BOLT; CLIP,HARNESS
6HH1 STD 4VALVE ENG(1A6) (A) M8X20 FLANGE 		0-28680-820-0 01 1 0011-0405 ●
40 CLIP; BAND,SW,CAB TILT
L=140 		5-09707-031-1 01 1 9604-0004 ● ●
48 CLIP; FRAME HARNESS
6HK1 TCC ENG(81L) (H) ID=11 L=41 		1-09700-403-0 02 1 0406- ●
48 CLIP; FRAME HARNESS
6HK1 TCC ENG(81L) NEW ZEALAND EQUIPMENT(PK5) (K) ID=20 L=70 		1-09700-485-0 01 1 0406- ●
48 CLIP; FRAME HARNESS
6HK1 TCC ENG(81L) NEW ZEALAND EQUIPMENT(PK5) (C) ID=28 L=78 		1-09700-858-0 01 1 0406- ●
48 CLIP; FRAME HARNESS
EXC. AUSTRALIA EQUIPMENT(RR3) (A) ID=20 L=50 		9-09917-430-0 13 1 9804-0004 ●
48 CLIP; FRAME HARNESS
(A) ID=20 L=50 		9-09917-430-0 13 1 9804-0004 ●
48 CLIP; FRAME HARNESS
(A) ID=20 L=50 		9-09917-430-0 14 1 0005- ●
48 CLIP; FRAME HARNESS
(C) ID=28 L=78 		1-09700-858-0 09 1 9604-9803 ● ● ● ● ●
48 CLIP; FRAME HARNESS
(C) ID=28 L=78 		1-09700-858-0 05 1 9804-0004 ● ●
48 CLIP; FRAME HARNESS
(C) ID=28 L=78 		1-09700-858-0 05 1 0005- ●
48 CLIP; FRAME HARNESS
(D) ID=34.5 H=23 L=27.5 		1-09700-905-0 01 1 9604-0004 ● ● ● ● ●
48 CLIP; FRAME HARNESS
(D) ID=34.5 H=23 L=27.5 		1-09700-905-0 01 1 0005- ● ● ●
48 CLIP; FRAME HARNESS
(B) ID=17.4 L=34 W/NUT 		9-09917-403-0 04 1 9604-9608 ● ● ● ● ●
48 CLIP; FRAME HARNESS
(H) ID=11 L=41 		1-09700-403-0 04 1 9609-9803 ● ● ● ● ●
48 CLIP; FRAME HARNESS
(I) L=140 		5-09707-031-1 01 1 9804-0004 ● ● ● ● ●
48 CLIP; FRAME HARNESS
(I) L=140 		5-09707-031-1 01 1 0005-0006 ● ● ●
48 CLIP; FRAME HARNESS
(A) ID=20 L=50 		9-09917-430-0 02 1 0007-0405 ● ●
48 CLIP; FRAME HARNESS
(A) ID=20 L=50 		9-09917-430-0 02 1 0406- ● ●
48 CLIP; FRAME HARNESS
6HK1 TCC ENG(81L) (A) ID=20 L=50 		9-09917-430-0 02 1 0406- ●
48 CLIP; FRAME HARNESS
(F) ID=14 L=44 		9-09917-427-0 02 1 9604-0004 ● ● ● ● ●
48 CLIP; FRAME HARNESS
(F) ID=14 L=44 		9-09917-427-0 02 1 0005-0006 ● ● ●
48 CLIP; FRAME HARNESS
(F) ID=14 L=44 		9-09917-427-0 01 1 0007-0403 ● ●
48 CLIP; FRAME HARNESS
6HH1 STD ENG(65L),6HH1 N ENG(66L) (F) ID=14 L=44 		9-09917-427-0 01 1 0404-0405 ●
48 CLIP; FRAME HARNESS
6HH1 STD 4VALVE ENG(1A6),6HH1 STD ENG(65L) (F) ID=14 L=44 		9-09917-427-0 01 1 0404-0405 ●
48 CLIP; FRAME HARNESS
6HH1 STD ENG(65L),6HH1 N ENG(66L) (F) ID=14 L=44 		9-09917-427-0 01 1 0406- ●
48 CLIP; FRAME HARNESS
6HH1 STD ENG(65L) (F) ID=14 L=44 		9-09917-427-0 01 1 0406- ●
48 CLIP; FRAME HARNESS
(A) ID=20 L=50 		9-09917-430-0 04 1 9604-9609 ● ● ● ● ●
48 CLIP; FRAME HARNESS
(A) ID=20 L=50 		9-09917-430-0 19 1 9610-9803 ● ● ● ● ●
48 CLIP; FRAME HARNESS
AUSTRALIA EQUIPMENT(RR3) (A) ID=20 L=50 		9-09917-430-0 15 1 9804-0004 ●
48 CLIP; FRAME HARNESS
(A) ID=20 L=50 		9-09917-430-0 15 1 9804-0004 ● ●
48 CLIP; FRAME HARNESS
(A) ID=20 L=50 		9-09917-430-0 13 1 0005- ●
48 CLIP; FRAME HARNESS
(E) ID=25 L=55 		9-09917-573-0 02 1 9604-9803 ● ● ● ● ●
48 CLIP; FRAME HARNESS
(J) ID=15 L=65 		1-09700-466-0 02 1 9804-0004 ● ●
48 CLIP; FRAME HARNESS
(J) ID=15 L=65 		1-09700-466-0 02 1 0005- ●
48 CLIP; FRAME HARNESS
(G) ID=19 L=28 		9-09525-856-0 01 1 9607-0004 ● ● ● ● ●
48 CLIP; FRAME HARNESS
(G) ID=19 L=28 		9-09525-856-0 01 1 0005-0606 ● ● ●
48 CLIP; FRAME HARNESS
(G) ID=19 L=28 		0-95235-856-0 01 1 0607- ● ● ●
48 CLIP; FRAME HARNESS
(A) ID=20 L=50 		9-09917-430-0 03 1 9804-0004 ● ● ● ● ●
48 CLIP; FRAME HARNESS
(A) ID=20 L=50 		9-09917-430-0 03 1 9804-0004 ● ●
48 CLIP; FRAME HARNESS
(A) ID=20 L=50 		9-09917-430-0 03 1 0005-0008 ● ● ●
48 CLIP; FRAME HARNESS
(K) ID=20 L=70 		1-09700-485-0 03 1 0009- ● ● ●
48 CLIP; FRAME HARNESS
(H) ID=11 L=41 		1-09700-403-0 04 1 9804- ● ● ●
48 CLIP; FRAME HARNESS
(A) ID=20 L=50 		9-09917-430-0 17 1 9804-0004 ●
48 CLIP; FRAME HARNESS
NEW ZEALAND EQUIPMENT(PK5) (A) ID=20 L=50 		9-09917-430-0 16 1 0005-0405 ●
48 CLIP; FRAME HARNESS
TRANSFER TF56<BFK> NEW ZEALAND EQUIPMENT(PK5) (A) ID=20 L=50 		9-09917-430-0 03 1 0406- ●
48 CLIP; FRAME HARNESS
(H) ID=11 L=41 		1-09700-403-0 03 1 9804-0004 ● ●
48 CLIP; FRAME HARNESS
EXC. NEW ZEALAND EQUIPMENT(PK5) (A) ID=20 L=50 		9-09917-430-0 17 1 0005-0405 ●
48 CLIP; FRAME HARNESS
TRANSFER TF56<BFK> NEW ZEALAND EQUIPMENT(PK5) (A) ID=20 L=50 		9-09917-430-0 17 1 0406- ●
48 CLIP; FRAME HARNESS
EXC. NEW ZEALAND EQUIPMENT(PK5) (A) ID=20 L=50 		9-09917-430-0 17 1 0406- ●
48 CLIP; FRAME HARNESS
(L) ID=26 L=27 		1-09701-006-0 01 1 9804-0004 ● ●
48 CLIP; FRAME HARNESS
(J) ID=15 L=65 		1-09700-466-0 01 1 9804-0004 ● ● ●
48 CLIP; FRAME HARNESS
(J) ID=15 L=65 		1-09700-466-0 01 1 0005-0405 ● ●
48 CLIP; FRAME HARNESS
(J) ID=15 L=65 		1-09700-466-0 01 1 0406- ● ●
48 CLIP; FRAME HARNESS
6HK1 TCC ENG(81L) NEW ZEALAND EQUIPMENT(PK5) (J) ID=15 L=65 		1-09700-466-0 01 1 0406- ●
48 CLIP; FRAME HARNESS
(C) ID=28 L=78 		1-09700-858-0 04 1 9804-0004 ● ● ●
48 CLIP; FRAME HARNESS
(C) ID=28 L=78 		1-09700-858-0 04 1 0005- ● ●
48 CLIP; FRAME HARNESS
EURO2 SPECIFICATION<THN> (D) ID=25 H=30 L=35 		1-09700-875-0 01 1 9905-0006 ●
48 CLIP; FRAME HARNESS
EURO2 SPECIFICATION<THN> (D) ID=24 H=40 L=24 		1-09701-243-0 03 1 0007-0010 ●
48 CLIP; FRAME HARNESS
6HH1 STD 4VALVE ENG(1A6) EXC. EURO2 SPECIFICATION<THN> (D) ID=24 H=40 L=24 		1-09701-243-1 03 1 0011-0405 ●
48 CLIP; FRAME HARNESS
EURO2 SPECIFICATION<THN> (D) ID=24 H=40 L=24 		1-09701-243-1 03 1 0011-0405 ●
48 CLIP; FRAME HARNESS
EURO2 SPECIFICATION<THN> (D) ID=24 H=40 L=24 		1-09701-243-1 03 1 0406- ●
48 CLIP; FRAME HARNESS
EURO2 SPECIFICATION<THN> (L) ID=25 L=50 		1-09700-976-0 01 1 9905-0010 ●
48 CLIP; FRAME HARNESS
6HH1 STD ENG(65L) EURO2 SPECIFICATION<THN> (L) ID=25 L=50 		1-09700-976-0 01 1 0011-0306 ●
48 CLIP; FRAME HARNESS
6HH1 STD ENG(65L) EURO2 SPECIFICATION<THN> (N) ID=23 L=32 		1-09700-346-0 01 1 0307- ●
48 CLIP; FRAME HARNESS
EURO2 SPECIFICATION<THN> (M) L=250 		5-09707-030-1 01 1 9905- ●
48 CLIP; FRAME HARNESS
6HH1 STD 4VALVE ENG(1A6) EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV>, EURO2 SPECIFICATION<THN> (F) ID=14 L=44 		9-09917-427-0 02 1 0011-0405 ●
48 CLIP; FRAME HARNESS
NEW ZEALAND EQUIPMENT(PK5) EXC. TRANSFER TF56<BFK> (A) ID=20 L=50 		9-09917-430-0 16 1 0406- ●
48 CLIP; FRAME HARNESS
(K) ID=20 L=70 		1-09700-485-0 01 1 9804-0004 ●
53 BRACKET; HARNESS
EURO2 SPECIFICATION<THN> 		1-47476-812-1 01 1 9905- ●
81 CLIP; HARNESS
6HK1 TCC ENG(81L) (B) ID=26 L=26 		1-09701-236-0 01 1 0406- ●
81 CLIP; HARNESS
(A) L=140 		5-09707-031-1 02 1 9604-0004 ● ● ● ● ●
81 CLIP; HARNESS
(A) L=140 		5-09707-031-1 02 1 0005- ● ● ●
102 CLIP; BAND
L=140 		5-09707-031-1 01 1 0112- ● ● ●
121 CLIP; FACIA HARNESS
(C) L=140 		5-09707-031-1 02 1 0405- ● ● ●
121 CLIP; FACIA HARNESS
(B) ID=11.5 		1-09709-083-0 02 1 9604-0004 ● ●
121 CLIP; FACIA HARNESS
(A) OD=7 H=1.2 		8-94364-750-0 02 1 9604-0404 ●
121 CLIP; FACIA HARNESS
EXC. POWER WINDOW<A30> (A) OD=7 H=1.2 		8-94364-750-0 02 1 9604-0404 ●
121 CLIP; FACIA HARNESS
(D) OD=6.8 H=5 		8-97082-051-0 02 1 0405- ●
128 CLIP; COMB SW HARNESS,STRG COLUMN
(A) ID=16 L=20 		9-09525-535-0 01 1 9604-0004 ● ● ● ● ●
128 CLIP; COMB SW HARNESS,STRG COLUMN
(A) ID=16 L=20 		9-09525-535-0 01 1 0005-0606 ● ● ●
128 CLIP; COMB SW HARNESS,STRG COLUMN
(A) ID=16 L=20 		0-95235-535-0 01 1 0607- ● ● ●
128 CLIP; COMB SW HARNESS,STRG COLUMN
(B) ID=19 L=32 		9-09525-862-0 01 1 9604-0004 ● ● ● ● ●
128 CLIP; COMB SW HARNESS,STRG COLUMN
(B) ID=19 L=32 		9-09525-862-0 01 1 0005-0011 ● ● ●
128 CLIP; COMB SW HARNESS,STRG COLUMN
(C) ID=14.5 L=30 		9-09916-893-1 01 1 0012- ● ● ●
133 SCREW; HARNESS CLIP,STRG COLUMN
(A) M6X16 W/LK&PL WASHER 		8-94279-402-0 01 1 9604-0004 ● ● ● ● ●
133 SCREW; HARNESS CLIP,STRG COLUMN
(A) M6X16 W/LK&PL WASHER 		8-94279-402-0 01 1 0005-0110 ● ● ●
133 SCREW; HARNESS CLIP,STRG COLUMN
(C) M6X12 W/PL WASHER 		8-97806-950-0 01 1 0111- ● ● ●
133 SCREW; HARNESS CLIP,STRG COLUMN
(B) M6X12 W/LK&PL WASHER 		8-94279-200-0 01 1 0107-0210 ● ● ●
139 BOLT; BRKT
M8X25 FLANGE 		0-28080-825-0 02 1 9604-9606 ● ● ● ● ●
139 BOLT; BRKT
M8X30 FLANGE 		0-28680-830-0 02 1 9607-9803 ● ● ● ● ●
139 BOLT; BRKT
M8X30 FLANGE 		0-28680-830-0 01 1 9804-0004 ● ● ● ● ●
139 BOLT; BRKT
M8X30 FLANGE 		0-28680-830-0 01 1 0005-0512 ● ● ●
139 BOLT; BRKT
M8X30 FLANGE 		0-28650-830-0 01 1 0601- ● ● ●
139 BOLT; BRKT
M8X20 FLANGE 		0-28680-820-0 01 1 0005-0512 ● ● ●
139 BOLT; BRKT
M8X20 FLANGE 		0-28650-820-0 01 1 0601- ● ● ●
171 CLIP; STARTER HARNESS
6HK1 TCC ENG(81L) NEW ZEALAND EQUIPMENT(PK5) (C) ID=19 L=28 		9-09525-856-0 01 1 0406-0606 ●
171 CLIP; STARTER HARNESS
6HK1 TCC ENG(81L) NEW ZEALAND EQUIPMENT(PK5) (C) ID=19 L=28 		0-95235-856-0 01 1 0607- ●
171 CLIP; STARTER HARNESS
(B) OD=9 H=6 		1-09709-178-0 02 1 9604-0004 ● ● ● ● ●
171 CLIP; STARTER HARNESS
(B) OD=9 H=6 		1-09709-178-0 02 1 0005- ● ● ●
171 CLIP; STARTER HARNESS
(A) ID=18 L=44 		8-94225-185-0 01 1 9604-0004 ● ● ● ● ●
171 CLIP; STARTER HARNESS
(A) ID=18 L=44 		8-94225-185-0 01 1 0005-0801 ● ● ●
171 CLIP; STARTER HARNESS
(A) ID=18 L=44 		8-97367-985-1 01 1 0802- ● ● ●
171 CLIP; STARTER HARNESS
(C) ID=19 L=28 		9-09525-856-0 04 1 9604-0004 ● ● ● ● ●
171 CLIP; STARTER HARNESS
(C) ID=19 L=28 		9-09525-856-0 04 1 0005-0606 ● ● ●
171 CLIP; STARTER HARNESS
(C) ID=19 L=28 		0-95235-856-0 04 1 0607- ● ● ●
171 CLIP; STARTER HARNESS
(D) L=300 		1-09707-001-1 01 1 9810-0004 ● ●
171 CLIP; STARTER HARNESS
(D) L=300 		1-09707-001-1 01 1 0005- ● ● ●
182 CLIP; HARNESS,OIL FILTER
L=140 		5-09707-031-0 01 1 9604-9803 ● ● ● ● ●
194 CLIP; BAND
TRANSFER TF56<BFK> (C) L=250 		5-09707-030-1 01 1 0406- ●
194 CLIP; BAND
(A) L=180 		1-09707-162-0 05 1 9604-9609 ● ● ● ● ●
194 CLIP; BAND
(A) L=180 		1-09707-162-1 04 1 9610-0004 ● ● ● ● ●
194 CLIP; BAND
(A) L=180 		1-09707-162-1 04 1 0005- ● ● ●
194 CLIP; BAND
(A) L=180 		1-09707-162-1 01 1 9610-0004 ● ●
194 CLIP; BAND
(B) L=300 		1-09707-001-1 02 1 9804-0004 ● ●
206 CLIP; FUEL TANK HARNESS
(A) L=180 		1-09707-162-0 01 1 9604-9803 ● ● ● ● ●
206 CLIP; FUEL TANK HARNESS
(B) L=140 		5-09707-031-1 02 1 9604-0004 ● ● ● ● ●
206 CLIP; FUEL TANK HARNESS
(B) L=140 		5-09707-031-1 02 1 0005- ● ● ●
208 CLIP; HARNESS,MAG VLV
L=250 		5-09707-030-0 01 1 9604-9803 ● ● ● ● ●
213 CLIP; END CROSS HARNESS
ID=20 L=50 		9-09917-430-0 03 1 9604-0004 ● ● ● ● ●
213 CLIP; END CROSS HARNESS
ID=20 L=50 		9-09917-430-0 03 1 0005- ● ● ●
217 CLIP; RR BODY HARNESS
(A) ID=15 L=70 		1-09700-980-0 02 1 9604-0004 ● ● ● ● ●
217 CLIP; RR BODY HARNESS
(A) ID=15 L=70 		1-09700-980-0 02 1 0005-0208 ● ● ●
217 CLIP; RR BODY HARNESS
(B) L=250 		5-09707-030-1 02 1 9604-0004 ● ● ● ● ●
217 CLIP; RR BODY HARNESS
(B) L=250 		5-09707-030-1 02 1 0005- ● ● ●
223 CLIP; AIR TANK HARNESS
(A) OD=9 H=6 		1-09709-178-0 03 1 9604-9803 ● ● ● ● ●
223 CLIP; AIR TANK HARNESS
(A) OD=9 H=6 		1-09709-178-0 01 1 9804-0004 ● ● ● ● ●
223 CLIP; AIR TANK HARNESS
(A) OD=9 H=6 		1-09709-178-0 01 1 0005- ● ● ●
223 CLIP; AIR TANK HARNESS
(B) L=140 		5-09707-031-1 01 1 9604-0004 ● ● ● ● ●
223 CLIP; AIR TANK HARNESS
(B) L=140 		5-09707-031-1 01 1 0005- ● ● ●
223 CLIP; AIR TANK HARNESS
(C) ID=20 L=50 		9-09917-430-0 06 1 9604-9909 ● ● ● ● ●
223 CLIP; AIR TANK HARNESS
(C) ID=20 L=50 		9-09917-430-0 06 1 9910-0004 ● ●
223 CLIP; AIR TANK HARNESS
(C) ID=20 L=50 		9-09917-430-0 06 1 0005- ● ● ●
223 CLIP; AIR TANK HARNESS
(D) ID=14 L=44 		9-09917-427-0 02 1 9910-0004 ● ● ●
223 CLIP; AIR TANK HARNESS
(C) ID=20 L=50 		9-09917-430-0 04 1 9910-0004 ● ● ●
223 CLIP; AIR TANK HARNESS
DUAL AIR GAUGE<UG2> (E) ID=11 L=41 		1-09700-403-0 01 1 9910-0004 ● ●
228 CLIP; COOLER HARNESS
AIR CONDITIONER MANUAL CONTROL<C60> (B) L=180 		1-09707-162-1 01 1 0311-0405 ● ●
228 CLIP; COOLER HARNESS
(A) L=140 		5-09707-031-1 01 1 9804-0004 ● ● ● ●
228 CLIP; COOLER HARNESS
EXC. THAILAND EQUIPMENT(PM9) (A) L=140 		5-09707-031-1 01 1 9804-0004 ●
228 CLIP; COOLER HARNESS
(A) L=140 		5-09707-031-1 01 1 0005-0310 ● ●
228 CLIP; COOLER HARNESS
EXC. THAILAND EQUIPMENT(PM9) (A) L=140 		5-09707-031-1 01 1 0005-0310 ●
228 CLIP; COOLER HARNESS
(A) L=140 		5-09707-031-1 01 1 0311-0405 ●
228 CLIP; COOLER HARNESS
EXC. AIR CONDITIONER MANUAL CONTROL<C60> (A) L=140 		5-09707-031-1 01 1 0311-0405 ●
228 CLIP; COOLER HARNESS
EXC. AIR CONDITIONER MANUAL CONTROL<C60>, THAILAND EQUIPMENT(PM9) (A) L=140 		5-09707-031-1 01 1 0311-0405 ●
228 CLIP; COOLER HARNESS
(A) L=140 		5-09707-031-1 01 1 0406- ● ●
228 CLIP; COOLER HARNESS
EXC. THAILAND EQUIPMENT(PM9) (A) L=140 		5-09707-031-1 01 1 0406- ●
229 CLIP; STARTER SUB SW HARNESS
OD=9 H=6 		1-09709-178-0 01 1 9604-0004 ● ● ● ● ●
229 CLIP; STARTER SUB SW HARNESS
OD=9 H=6 		1-09709-178-0 01 1 0005- ● ● ●
230 CLIP; C/MBR HARNESS
ID=20 L=50 		9-09917-430-0 02 1 9604-0004 ● ● ● ● ●
230 CLIP; C/MBR HARNESS
ID=20 L=50 		9-09917-430-0 02 1 0005- ● ● ●
231 CLIP; BAND,OIL PRESS
6HH1 STD 4VALVE ENG(1A6) (B) OD=9 H=6 		1-09709-178-0 01 1 0208-0405 ●
231 CLIP; BAND,OIL PRESS
(A) L=180 		1-09707-162-1 01 1 9604-0004 ● ● ● ● ●
231 CLIP; BAND,OIL PRESS
(A) L=180 		1-09707-162-1 01 1 0005- ● ● ●
235 CLIP; HARNESS,SPD SENSOR,SSPS
L=250 		5-09707-030-1 01 1 9604-0004 ● ● ● ● ●
235 CLIP; HARNESS,SPD SENSOR,SSPS
L=250 		5-09707-030-1 01 1 0005- ● ● ●
239 BOLT; GRAND
(A) M5X8 		0-20800-508-0 01 1 9604-0004 ● ● ● ● ●
239 BOLT; GRAND
(A) M5X8 		0-20800-508-0 01 1 0005- ● ● ●
239 BOLT; GRAND
(B) M6X14 W/LK&PL WASHER 		8-97086-822-0 02 1 9604-9803 ● ● ● ● ●
239 BOLT; GRAND
(B) M6X14 W/LK&PL WASHER 		8-97086-822-0 01 1 9804-0004 ● ● ● ● ●
239 BOLT; GRAND
(B) M6X14 W/LK&PL WASHER 		8-97086-822-0 02 1 0005-1007 ● ● ●
239 BOLT; GRAND
(B) M6X14 W/PL WASHER 		8-98164-836-0 02 1 1008- ● ● ●
239 BOLT; GRAND
(B) M8X20 W/LK&PL WASHER 		8-97086-825-0 01 1 9604-9907 ● ● ● ● ●
239 BOLT; GRAND
(B) M8X16 W/LK&PL WASHER 		8-97087-055-0 01 1 9908-0004 ● ● ● ● ●
239 BOLT; GRAND
(B) M8X16 W/LK&PL WASHER 		8-97087-055-0 01 1 0005-1201 ● ● ●
239 BOLT; GRAND
(B) M8X14 W/PL WASHER 		8-98164-837-0 01 1 1202- ● ● ●
304 BOLT; ENG HARNESS CLIP
6HK1 TCC ENG(81L) AIR CONDITIONER MANUAL CONTROL<C60> M8X12 FLANGE 		0-28080-812-0 04 1 0406-0512 ●
304 BOLT; ENG HARNESS CLIP
6HK1 TCC ENG(81L) AIR CONDITIONER MANUAL CONTROL<C60> M8X12 FLANGE 		0-28050-812-0 04 1 0601- ●
304 BOLT; ENG HARNESS CLIP
6HK1 TCC ENG(81L) AIR CONDITIONER MANUAL CONTROL<C60> M8X16 FLANGE 		0-28080-816-0 04 1 0406-0512 ●
304 BOLT; ENG HARNESS CLIP
6HK1 TCC ENG(81L) AIR CONDITIONER MANUAL CONTROL<C60> M8X16 FLANGE 		0-28050-816-0 04 1 0601- ●
304 BOLT; ENG HARNESS CLIP
EURO2 SPECIFICATION<THN> M8X16 FLANGE 		0-28080-816-0 02 1 9907-9910 ●
305 CLIP; ENG HARNESS
6HK1 TCC ENG(81L) AIR CONDITIONER MANUAL CONTROL<C60> (E) ID=18 L=44 		8-94225-185-0 03 1 0406-0801 ●
305 CLIP; ENG HARNESS
6HK1 TCC ENG(81L) AIR CONDITIONER MANUAL CONTROL<C60> (E) ID=18 L=44 		8-97367-985-1 03 1 0802- ●
305 CLIP; ENG HARNESS
6HK1 TCC ENG(81L) AIR CONDITIONER MANUAL CONTROL<C60> (F) ID=11 L=20 		9-09525-035-0 01 1 0406-0606 ●
305 CLIP; ENG HARNESS
6HK1 TCC ENG(81L) AIR CONDITIONER MANUAL CONTROL<C60> (F) ID=11 L=20 		0-95235-035-0 01 1 0607- ●
305 CLIP; ENG HARNESS
6HK1 TCC ENG(81L) AIR CONDITIONER MANUAL CONTROL<C60> (G) ID=11 L=24 		9-09525-045-0 01 1 0406-0606 ●
305 CLIP; ENG HARNESS
6HK1 TCC ENG(81L) AIR CONDITIONER MANUAL CONTROL<C60> (G) ID=11 L=24 		0-95235-045-0 01 1 0607- ●
305 CLIP; ENG HARNESS
(A) L=180 		1-09707-162-0 01 1 9604-9803 ● ● ● ● ●
305 CLIP; ENG HARNESS
(A) L=180 		1-09707-162-1 01 1 9804-9904 ● ● ● ● ●
305 CLIP; ENG HARNESS
AUSTRALIA EQUIPMENT(RR3) (A) L=180 		1-09707-162-1 01 1 9804-9904 ● ● ● ●
305 CLIP; ENG HARNESS
(A) L=180 		1-09707-162-1 01 1 9905-0001 ● ● ● ●
305 CLIP; ENG HARNESS
EXC. EURO2 SPECIFICATION<THN> (A) L=180 		1-09707-162-1 01 1 9905-0001 ●
305 CLIP; ENG HARNESS
(A) L=180 		1-09707-162-1 01 1 0002-0004 ● ● ● ● ●
305 CLIP; ENG HARNESS
(A) L=180 		1-09707-162-1 01 1 0005- ● ● ●
305 CLIP; ENG HARNESS
EXC. TACHOMETER<UD7> (B) L=140 		5-09707-031-1 01 1 9804-9904 ● ● ● ● ●
305 CLIP; ENG HARNESS
EXC. TACHOMETER<UD7> (B) L=140 		5-09707-031-1 01 1 9905-0001 ● ● ● ●
305 CLIP; ENG HARNESS
EURO2 SPECIFICATION<THN> (B) L=140 		5-09707-031-1 01 1 9905-0001 ●
305 CLIP; ENG HARNESS
EXC. EURO2 SPECIFICATION<THN>,TACHOMETER<UD7> (B) L=140 		5-09707-031-1 01 1 9905-0001 ●
305 CLIP; ENG HARNESS
EXC. TACHOMETER<UD7> (B) L=140 		5-09707-031-1 01 1 0002-0004 ● ● ● ●
305 CLIP; ENG HARNESS
EXC. EURO2 SPECIFICATION<THN>,TACHOMETER<UD7> (B) L=140 		5-09707-031-1 01 1 0002-0004 ●
305 CLIP; ENG HARNESS
EXC. TACHOMETER<UD7> (B) L=140 		5-09707-031-1 01 1 0005- ● ●
305 CLIP; ENG HARNESS
EXC. EURO2 SPECIFICATION<THN>,TACHOMETER<UD7> (B) L=140 		5-09707-031-1 01 1 0005- ●
305 CLIP; ENG HARNESS
EURO2 SPECIFICATION<THN> (C) ID=23 H=30 L=35 		1-09700-743-0 01 1 9907-9910 ●
305 CLIP; ENG HARNESS
EURO2 SPECIFICATION<THN> (H) L=250 		5-09707-030-1 02 1 9911-0010 ●
305 CLIP; ENG HARNESS
6HH1 STD ENG(65L) EURO2 SPECIFICATION<THN> (H) L=250 		5-09707-030-1 02 1 0011- ●
305 CLIP; ENG HARNESS
EURO2 SPECIFICATION<THN> (C) ID=31 H=30 L=35 		1-09700-994-0 01 1 9907-9910 ●
305 CLIP; ENG HARNESS
6HH1 STD 4VALVE ENG(1A6) NEW ZEALAND EQUIPMENT(PK5) (H) L=250 		5-09707-030-1 01 1 0102-0405 ●
305 CLIP; ENG HARNESS
6HK1 TCC ENG(81L) AIR CONDITIONER MANUAL CONTROL<C60> (D) ID=24 L=32 		1-09700-766-1 03 1 0406- ●
418 CLIP; LAMP HARNESS
RADIO CLARION(SK2) L=140 		5-09707-031-1 01 1 0703- ● ● ●
421 CLIP; FLOOR HARNESS
(A) L=20 SET=10 PIECE 		1-09987-246-2 07 1 9604-0004 ● ● ● ● ●
421 CLIP; FLOOR HARNESS
(A) L=20 SET=10 PIECE 		1-09987-246-2 07 1 0005-0101 ● ● ●
421 CLIP; FLOOR HARNESS
(A) L=20 SET=10 PIECE 		1-09987-246-2 01 1 0102- ● ● ●
421 CLIP; FLOOR HARNESS
(B) ID=9 		5-09707-027-0 02 1 9604-0004 ● ●
421 CLIP; FLOOR HARNESS
(C) L=100 		5-09707-036-1 01 1 9604-0004 ● ●
421 CLIP; FLOOR HARNESS
(D) ID=11 L=20 		9-09525-032-0 03 1 9604-0004 ● ●
421 CLIP; FLOOR HARNESS
(E) ID=11 L=28 		9-09525-052-0 04 1 9604-0004 ● ●
470 CLIP; HARNESS,LICENSE LAMP
OD=9 H=6 		1-09709-178-0 01 1 9604-0004 ● ● ● ● ●
470 CLIP; HARNESS,LICENSE LAMP
OD=9 H=6 		1-09709-178-0 01 1 0005- ● ● ●
510 GROMMET; SCREW
EURO2 SPECIFICATION<THN> D=9.7X9.7 L=8 		8-94222-314-0 01 1 0005- ●
çizim 153000
358 313 312 294
BalonParca AdiParca NoAdetTipApplied Date A B C D E
294 NUT
(A) M8 		9-09110-408-0 02 1 9604-9606 ● ● ● ● ●
294 NUT
(B) M8 FLANGE 		0-91150-108-0 02 1 9607-9803 ● ● ● ● ●
294 NUT
(B) M8 FLANGE 		0-91150-108-0 01 1 9804-0004 ● ● ● ● ●
294 NUT
(B) M8 FLANGE 		0-91150-108-0 01 1 0005-0602 ● ● ●
294 NUT
(B) M8 FLANGE 		0-91180-108-0 01 1 0603- ● ● ●
294 NUT
(B) M8 FLANGE 		0-91150-108-0 02 1 9804-0004 ● ●
312 BRACKET; CLIP HARNESS 1-82699-557-0 01 1 9804-0004 ● ●
313 BOLT; BRKT
M8X25 FLANGE 		0-28680-825-0 02 1 9804-0004 ● ●
358 BOLT; EARTH
M8X20 W/LK&PL WASHER 		8-97086-825-0 01 1 9604-9609 ● ● ● ● ●
358 BOLT; EARTH
M8X20 W/LK&PL WASHER 		8-97086-825-0 01 1 9610-0004 ● ●
çizim 153009
16 48 305 16 48 81 128 305 16 37 217 38 88 239 173 516 115 115 119 64 246 59 48 116 421 121 121 462 133 133 150 171 303 171 303 305 154 148 168 148 219 294 524 184 209 210 423 520 503 421 503 513 530 185 224 219 294 178 178 178 178 178
BalonParca AdiParca NoAdetTipApplied Date A B C D E
16 CLIP; HARNESS
(A) ID=28 L=78 		1-09700-858-0 01 1 0404-0405 ● ● ●
16 CLIP; HARNESS
6HH1 STD 4VALVE ENG(1A6),6HH1 STD ENG(65L), 6HH1N ENG(66L) (A) ID=28 L=78 		1-09700-858-0 01 1 0406- ● ● ●
16 CLIP; HARNESS
POWER WINDOW<A30> REMOTE CONT DOOR LOCK<SLG> (F) LH DOOR HARNESS 		8-97229-356-0 03 1 0212- ●
16 CLIP; HARNESS
EXC. POWER WINDOW<A30> (G) L=175 		8-97110-167-0 02 1 9604-9608 ●
16 CLIP; HARNESS
(G) L=175 		8-97110-167-0 02 1 9604-9608 ●
16 CLIP; HARNESS
EXC. POWER WINDOW<A30> (G) L=175 		8-97110-167-0 02 1 9609-9803 ● ●
16 CLIP; HARNESS
(G) L=175 		8-97110-167-0 02 1 9609-9803 ● ● ●
16 CLIP; HARNESS
EXC. POWER WINDOW<A30> (G) L=175 		8-97110-167-0 02 1 9804-0004 ●
16 CLIP; HARNESS
(G) L=175 		8-97110-167-0 02 1 9804-0004 ● ●
16 CLIP; HARNESS
(G) L=175 		8-97110-167-0 02 1 0005-0101 ●
16 CLIP; HARNESS
(G) L=175 		8-97110-167-0 02 1 0102-0211 ●
16 CLIP; HARNESS
POWER WINDOW<A30> (G) L=175 		8-97110-167-0 02 1 0102-0211 ●
16 CLIP; HARNESS
(G) L=175 		8-97110-167-0 02 1 0212-0404 ●
16 CLIP; HARNESS
POWER WINDOW<A30> REMOTE CONT DOOR LOCK<SLG> (G) L=175 		8-97110-167-0 02 1 0212-0404 ●
16 CLIP; HARNESS
POWER WINDOW<A30> (G) L=175 		8-97110-167-0 02 1 0212-0404 ●
16 CLIP; HARNESS
(G) L=175 		8-97110-167-0 02 1 0405- ●
16 CLIP; HARNESS
POWER WINDOW<A30> (G) L=175 		8-97110-167-0 02 1 0405- ●
16 CLIP; HARNESS
(B) ID=11 L=41 		1-09700-403-0 03 1 9604-9803 ● ● ● ● ●
16 CLIP; HARNESS
(B) ID=11 L=41 		1-09700-403-0 05 1 9804-0004 ● ● ● ● ●
16 CLIP; HARNESS
(B) ID=11 L=41 		1-09700-403-0 05 1 0005-0110 ● ● ●
16 CLIP; HARNESS
(B) ID=11 L=41 		1-09700-403-0 07 1 0111-0401 ● ● ●
16 CLIP; HARNESS
(B) ID=11 L=41 		1-09700-403-0 08 1 0402-0403 ● ● ●
16 CLIP; HARNESS
(B) ID=11 L=41 		1-09700-403-0 02 1 0404-0405 ● ● ●
16 CLIP; HARNESS
(B) ID=11 L=41 		1-09700-403-0 06 1 0406- ● ● ●
16 CLIP; HARNESS
(A) ID=28 L=78 		1-09700-858-0 01 1 9604-0004 ● ● ● ● ●
16 CLIP; HARNESS
(A) ID=28 L=78 		1-09700-858-0 01 1 0005-0403 ● ● ●
16 CLIP; HARNESS
(B) ID=11 L=41 		1-09700-403-0 06 1 0404-0405 ● ● ●
16 CLIP; HARNESS
(B) ID=11 L=41 		1-09700-403-0 02 1 0406- ● ●
16 CLIP; HARNESS
EXC. TRANSFER TF56<BFK> (B) ID=11 L=41 		1-09700-403-0 02 1 0406- ●
16 CLIP; HARNESS
(D) ID=34.5 H=23 L=27.5 		1-09700-905-0 01 1 9604-0004 ● ● ● ● ●
16 CLIP; HARNESS
(D) ID=34.5 H=23 L=27.5 		1-09700-905-0 01 1 0005- ● ● ●
16 CLIP; HARNESS
(C) ID=19 H=33 L=45 		1-09701-045-0 01 1 9604-9801 ● ● ● ● ●
16 CLIP; HARNESS
(D) ID=19 H=21 L=50 		1-09700-910-1 01 1 9802-0004 ● ● ● ● ●
16 CLIP; HARNESS
(D) ID=19 H=21 L=50 		1-09700-910-1 01 1 0005-0405 ● ● ●
16 CLIP; HARNESS
6HH1 STD 4VALVE ENG(1A6),6HH1 STD ENG(65L), 6HH1N ENG(66L) (D) ID=19 H=21 L=50 		1-09700-910-1 01 1 0406- ● ● ●
16 CLIP; HARNESS
(H) L=300 		1-09707-001-1 01 1 9604-0004 ● ● ● ● ●
16 CLIP; HARNESS
(H) L=300 		1-09707-001-1 01 1 0005- ● ● ●
16 CLIP; HARNESS
(J) OD=9 H=6 		1-09709-178-0 02 1 9604-0004 ● ● ● ● ●
16 CLIP; HARNESS
(J) OD=9 H=6 		1-09709-178-0 02 1 0005- ● ● ●
16 CLIP; HARNESS
(E) L=250 		5-09707-030-1 01 1 9604-0004 ● ● ● ● ●
16 CLIP; HARNESS
AUSTRALIA EQUIPMENT(RR3) (E) L=250 		5-09707-030-1 01 1 9604-0004 ● ● ● ●
16 CLIP; HARNESS
(E) L=250 		5-09707-030-1 01 1 0005-0405 ● ● ●
16 CLIP; HARNESS
(L) L=140 		5-09707-031-1 01 1 0406- ● ●
16 CLIP; HARNESS
EXC. TRANSFER TF56<BFK> (L) L=140 		5-09707-031-1 01 1 0406- ●
16 CLIP; HARNESS
(L) L=140 		5-09707-031-0 01 1 9604-9803 ● ● ● ● ●
16 CLIP; HARNESS
(L) L=140 		5-09707-031-1 03 1 9804-0004 ● ● ● ● ●
16 CLIP; HARNESS
(L) L=140 		5-09707-031-1 03 1 0005-0110 ● ● ●
16 CLIP; HARNESS
(L) L=140 		5-09707-031-1 01 1 0111-0405 ● ● ●
16 CLIP; HARNESS
(E) L=250 		5-09707-030-1 01 1 0406- ● ● ●
16 CLIP; HARNESS
TRANSFER TF56<BFK> NEW ZEALAND EQUIPMENT(PK5) (E) L=250 		5-09707-030-1 01 1 0406- ●
16 CLIP; HARNESS
(I) ID=19 L=32 		9-09525-866-0 01 1 9604-0004 ● ● ● ● ●
16 CLIP; HARNESS
(I) ID=19 L=32 		9-09525-866-0 01 1 0005-0606 ● ● ●
16 CLIP; HARNESS
(I) ID=19 L=32 		0-95235-866-0 01 1 0607- ● ● ●
16 CLIP; HARNESS
(K) ID=20 L=50 		9-09917-430-0 04 1 9604-9803 ● ● ● ● ●
16 CLIP; HARNESS
(K) ID=20 L=50 		9-09917-430-0 01 1 9804-0004 ● ● ● ● ●
16 CLIP; HARNESS
(K) ID=20 L=50 		9-09917-430-0 01 1 0005-0301 ● ● ●
16 CLIP; HARNESS
(K) ID=20 L=50 		9-09917-430-0 03 1 9804-0004 ● ● ● ● ●
16 CLIP; HARNESS
(K) ID=20 L=50 		9-09917-430-0 03 1 0005- ● ● ●
16 CLIP; HARNESS
POWER WINDOW<A30> (F) L=55 		8-94432-655-0 06 1 9604-0004 ● ●
16 CLIP; HARNESS
POWER WINDOW<A30> (F) L=55 		8-94432-655-0 06 1 0005-0101 ●
16 CLIP; HARNESS
POWER WINDOW<A30> EXC. REMOTE CONT DOOR LOCK<SLG> (F) L=55 		8-94432-655-0 03 1 0405- ●
16 CLIP; HARNESS
POWER WINDOW<A30> DOOR WITH UNDER VIEW WINDOW<YD8> (F) L=55 		8-94432-655-0 03 1 0405- ●
16 CLIP; HARNESS
POWER WINDOW<A30> (F) RH DOOR HARNESS L=55 		8-94432-655-0 03 1 0212- ●
16 CLIP; HARNESS
POWER WINDOW<A30> EXC. REMOTE CONT DOOR LOCK<SLG> (F) LH DOOR HARNESS L=55 		8-94432-655-0 03 1 0212- ●
16 CLIP; HARNESS
POWER WINDOW<A30> (G) L=175 		8-97110-167-0 04 1 9604-9904 ● ●
16 CLIP; HARNESS
POWER WINDOW<A30> (G) L=175 		8-97110-167-0 06 1 9905-0004 ● ●
16 CLIP; HARNESS
POWER WINDOW<A30> (G) L=175 		8-97110-167-0 06 1 0005-0101 ●
16 CLIP; HARNESS
POWER WINDOW<A30> (G) L=175 		8-97110-167-0 04 1 0102-0404 ●
16 CLIP; HARNESS
POWER WINDOW<A30> DOOR WITH UNDER VIEW WINDOW<YD8> (G) L=175 		8-97110-167-0 04 1 0405- ●
16 CLIP; HARNESS
EURO2 SPECIFICATION<THN> (M) ID=25 L=50 		1-09701-019-0 01 1 9905-0306 ●
16 CLIP; HARNESS
EURO2 SPECIFICATION<THN> (P) ID=23 L=32 		1-09700-346-0 01 1 0307- ●
16 CLIP; HARNESS
EURO2 SPECIFICATION<THN> (M) ID=24 L=40 		1-09701-139-0 01 1 9905- ●
16 CLIP; HARNESS
EURO2 SPECIFICATION<THN> (C) ID=25 H=30 L=35 		1-09700-875-0 02 1 9911-0003 ●
16 CLIP; HARNESS
EURO2 SPECIFICATION<THN> (C) ID=25 H=30 L=35 		1-09700-875-0 01 1 0004-0006 ●
16 CLIP; HARNESS
EURO2 SPECIFICATION<THN> (M) ID=24 L=32 		1-09700-766-1 01 1 0004-0010 ●
16 CLIP; HARNESS
6HH1 STD ENG(65L) EURO2 SPECIFICATION<THN> (M) ID=24 L=32 		1-09700-766-1 01 1 0011-0101 ●
16 CLIP; HARNESS
6HH1 STD 4VALVE ENG(1A6) NEW ZEALAND EQUIPMENT(PK5) (M) ID=24 L=32 		1-09700-766-1 01 1 0102-0405 ●
16 CLIP; HARNESS
6HH1 STD ENG(65L) EURO2 SPECIFICATION<THN> (M) ID=24 L=32 		1-09700-766-1 01 1 0102-0405 ●
16 CLIP; HARNESS
6HH1 STD ENG(65L) EURO2 SPECIFICATION<THN> (M) ID=24 L=32 		1-09700-766-1 01 1 0406- ●
16 CLIP; HARNESS
6HH1 STD 4VALVE ENG(1A6) (B) ID=11 L=41 		1-09700-403-0 01 1 0011-0405 ●
16 CLIP; HARNESS
6HK1 TCC ENG(81L) (D) ID=18 H=23 L=28 		1-09700-860-0 01 1 0406- ●
16 CLIP; HARNESS
6HH1 STD 4VALVE ENG(1A6) (M) ID=26 L=27 		1-09701-006-0 01 1 0011-0405 ●
16 CLIP; HARNESS
6HK1 TCC ENG(81L) (M) ID=26 L=27 		1-09701-006-0 02 1 0406- ●
16 CLIP; HARNESS
6HH1 STD 4VALVE ENG(1A6) (N) ID=14 L=44 		9-09917-427-0 01 1 0011-0405 ●
16 CLIP; HARNESS
6HK1 TCC ENG(81L) (D) ID=35 H=45 L=33 		1-09701-047-0 01 1 0406- ●
16 CLIP; HARNESS
6HH1 STD 4VALVE ENG(1A6) NEW ZEALAND EQUIPMENT(PK5) (O) ID=12 & 16.5 		8-94400-865-0 01 1 0102-0405 ●
16 CLIP; HARNESS
TRANSFER TF56<BFK> NEW ZEALAND EQUIPMENT(PK5) (B) ID=11 L=41 		1-09700-403-0 01 1 0406- ●
37 CLIP; HARNESS,POWER TILT
(D) ID=18 L=50 		1-09700-302-1 01 1 9604-9609 ● ● ● ● ●
37 CLIP; HARNESS,POWER TILT
(D) ID=18 L=50 		1-09700-302-1 01 1 9610-9803 ● ●
37 CLIP; HARNESS,POWER TILT
(C) ID=16 L=40 		9-09525-575-0 02 1 9804-0004 ● ●
37 CLIP; HARNESS,POWER TILT
(A) OD=9 H=6 		1-09709-178-0 02 1 9604-9609 ● ● ● ● ●
37 CLIP; HARNESS,POWER TILT
(A) OD=9 H=6 		1-09709-178-0 02 1 9610-0004 ● ●
37 CLIP; HARNESS,POWER TILT
(C) ID=16 L=40 		9-09525-575-0 01 1 9604-9803 ● ● ● ● ●
37 CLIP; HARNESS,POWER TILT
(E) ID=19 L=40 		9-09525-875-0 02 1 9604-9609 ● ● ● ● ●
37 CLIP; HARNESS,POWER TILT
(E) ID=19 L=40 		9-09525-875-0 02 1 9610-9803 ● ●
37 CLIP; HARNESS,POWER TILT
(E) ID=19 L=40 		9-09525-875-0 01 1 9804-0004 ● ●
37 CLIP; HARNESS,POWER TILT
(B) ID=20 L=50 		9-09917-430-0 01 1 9604-9609 ● ● ● ● ●
37 CLIP; HARNESS,POWER TILT
(B) ID=20 L=50 		9-09917-430-0 01 1 9610-9803 ● ●
38 BOLT; CLIP,HARNESS
(A) M8X16 FLANGE 		0-28080-816-0 04 1 9604-0004 ● ● ● ● ●
38 BOLT; CLIP,HARNESS
(A) M8X16 FLANGE 		0-28080-816-0 04 1 0005-0512 ● ● ●
38 BOLT; CLIP,HARNESS
(A) M8X16 FLANGE 		0-28050-816-0 04 1 0601- ● ● ●
38 BOLT; CLIP,HARNESS
(A) M8X20 FLANGE 		0-28080-820-0 04 1 9604-9606 ● ● ● ● ●
38 BOLT; CLIP,HARNESS
(A) M8X20 FLANGE 		0-28680-820-0 04 1 9607-9609 ● ● ● ● ●
38 BOLT; CLIP,HARNESS
(A) M8X20 FLANGE 		0-28680-820-0 01 1 9610-9803 ● ● ● ● ●
38 BOLT; CLIP,HARNESS
(A) M8X20 FLANGE 		0-28680-820-0 02 1 9804-9904 ● ● ● ● ●
38 BOLT; CLIP,HARNESS
(A) M8X20 FLANGE 		0-28680-820-0 02 1 9905-0004 ● ● ● ● ●
38 BOLT; CLIP,HARNESS
EURO2 SPECIFICATION<THN> (A) M8X20 FLANGE 		0-28680-820-0 02 1 9905-0004 ●
38 BOLT; CLIP,HARNESS
(A) M8X20 FLANGE 		0-28680-820-0 02 1 0005-0010 ● ● ●
38 BOLT; CLIP,HARNESS
EURO2 SPECIFICATION<THN> (A) M8X20 FLANGE 		0-28680-820-0 02 1 0005-0010 ●
38 BOLT; CLIP,HARNESS
(A) M8X20 FLANGE 		0-28680-820-0 02 1 0011-0512 ● ● ●
38 BOLT; CLIP,HARNESS
6HH1 STD ENG(65L) EURO2 SPECIFICATION<THN> (A) M8X20 FLANGE 		0-28680-820-0 02 1 0011-0512 ●
38 BOLT; CLIP,HARNESS
(A) M8X20 FLANGE 		0-28650-820-0 02 1 0601- ● ● ●
38 BOLT; CLIP,HARNESS
6HH1 STD ENG(65L) EURO2 SPECIFICATION<THN> (A) M8X20 FLANGE 		0-28650-820-0 02 1 0601- ●
38 BOLT; CLIP,HARNESS
(A) M8X25 FLANGE 		0-28080-825-0 05 1 9604-9606 ● ● ● ● ●
38 BOLT; CLIP,HARNESS
(A) M8X25 FLANGE 		0-28680-825-0 02 1 9607-9607 ● ● ● ● ●
38 BOLT; CLIP,HARNESS
(A) M8X25 FLANGE 		0-28680-825-0 02 1 9607-9803 ● ● ● ● ●
38 BOLT; CLIP,HARNESS
(A) M8X25 FLANGE 		0-28680-825-0 01 1 9804-0004 ● ● ● ● ●
38 BOLT; CLIP,HARNESS
(A) M8X25 FLANGE 		0-28680-825-0 01 1 0005-0405 ● ● ●
38 BOLT; CLIP,HARNESS
(A) M8X25 FLANGE 		0-28680-825-0 01 1 0406-0512 ● ● ●
38 BOLT; CLIP,HARNESS
6HK1 TCC ENG(81L) (A) M8X25 FLANGE 		0-28680-825-0 01 1 0406-0512 ●
38 BOLT; CLIP,HARNESS
(A) M8X25 FLANGE 		0-28650-825-0 01 1 0601- ● ● ●
38 BOLT; CLIP,HARNESS
6HK1 TCC ENG(81L) (A) M8X25 FLANGE 		0-28650-825-0 01 1 0601- ●
38 BOLT; CLIP,HARNESS
(B) M8X20 W/LK&PL WASHER 		8-97086-825-0 01 1 9604-0001 ● ● ● ● ●
38 BOLT; CLIP,HARNESS
(B) M8X25 W/LK&PL WASHER 		0-50140-825-0 02 1 9607-9702 ● ● ● ● ●
38 BOLT; CLIP,HARNESS
(B) M8X30 W/LK&PL WASHER 		0-50140-830-0 02 1 9703-0004 ● ● ● ● ●
38 BOLT; CLIP,HARNESS
(B) M8X30 W/LK&PL WASHER 		0-50140-830-0 02 1 0005-0512 ● ● ●
38 BOLT; CLIP,HARNESS
(B) M8X30 W/LK&PL WASHER 		0-50640-830-0 02 1 0601- ● ● ●
38 BOLT; CLIP,HARNESS
(A) M8X30 FLANGE 		0-28680-830-0 02 1 9607-0004 ● ● ● ● ●
38 BOLT; CLIP,HARNESS
(A) M8X30 FLANGE 		0-28680-830-0 02 1 0005-0512 ● ● ●
38 BOLT; CLIP,HARNESS
(A) M8X30 FLANGE 		0-28650-830-0 02 1 0601- ● ● ●
38 BOLT; CLIP,HARNESS
(B) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 04 1 9604-0004 ● ●
38 BOLT; CLIP,HARNESS
(A) M8X20 FLANGE 		0-28680-820-0 03 1 9610-9803 ● ●
38 BOLT; CLIP,HARNESS
(A) M8X25 FLANGE 		0-28680-825-0 03 1 9804-9904 ● ●
38 BOLT; CLIP,HARNESS
(A) M8X25 FLANGE 		0-28680-825-0 03 1 9905-0004 ● ●
38 BOLT; CLIP,HARNESS
EURO2 SPECIFICATION<THN> (A) M8X25 FLANGE 		0-28680-825-0 03 1 9905-0004 ●
38 BOLT; CLIP,HARNESS
EURO2 SPECIFICATION<THN> (A) M8X25 FLANGE 		0-28680-825-0 03 1 0005-0512 ●
38 BOLT; CLIP,HARNESS
EURO2 SPECIFICATION<THN> (A) M8X25 FLANGE 		0-28650-825-0 03 1 0601- ●
38 BOLT; CLIP,HARNESS
(A) M8X30 FLANGE 		0-28680-830-0 01 1 9804-0004 ● ●
38 BOLT; CLIP,HARNESS
EURO2 SPECIFICATION<THN> (B) M8X16 W/LK&PL WASHER 		8-97087-055-0 01 1 9905-9907 ●
38 BOLT; CLIP,HARNESS
(B) M8X16 W/LK&PL WASHER 		8-97087-055-0 01 1 9908-0001 ● ● ● ● ●
38 BOLT; CLIP,HARNESS
EURO2 SPECIFICATION<THN> (B) M8X16 W/LK&PL WASHER 		8-97087-055-0 01 1 9908-0001 ●
38 BOLT; CLIP,HARNESS
(B) M8X20 W/LK&PL WASHER 		8-97086-825-0 01 1 0002-0004 ● ● ● ● ●
38 BOLT; CLIP,HARNESS
EURO2 SPECIFICATION<THN> (B) M8X20 W/LK&PL WASHER 		8-97086-825-0 01 1 0002-0004 ●
38 BOLT; CLIP,HARNESS
(B) M8X20 W/LK&PL WASHER 		8-97086-825-0 01 1 0005-0010 ● ● ●
38 BOLT; CLIP,HARNESS
EURO2 SPECIFICATION<THN> (B) M8X20 W/LK&PL WASHER 		8-97086-825-0 01 1 0005-0010 ●
38 BOLT; CLIP,HARNESS
(B) M8X20 W/LK&PL WASHER 		8-97086-825-0 01 1 0011-0405 ● ● ●
38 BOLT; CLIP,HARNESS
6HH1 STD 4VALVE ENG(1A6) EXC. EURO2 SPECIFICATION<THN> (B) M8X20 W/LK&PL WASHER 		8-97086-825-0 01 1 0011-0405 ●
38 BOLT; CLIP,HARNESS
EURO2 SPECIFICATION<THN> (B) M8X20 W/LK&PL WASHER 		8-97086-825-0 01 1 0011-0405 ●
38 BOLT; CLIP,HARNESS
(B) M8X20 W/LK&PL WASHER 		8-97086-825-0 01 1 0406-1201 ● ● ●
38 BOLT; CLIP,HARNESS
6HK1 TCC ENG(81L) EXC. EURO2 SPECIFICATION<THN> (B) M8X20 W/LK&PL WASHER 		8-97086-825-0 01 1 0406-1201 ●
38 BOLT; CLIP,HARNESS
EURO2 SPECIFICATION<THN> (B) M8X20 W/LK&PL WASHER 		8-97086-825-0 01 1 0406-1201 ●
38 BOLT; CLIP,HARNESS
(B) M8X18.5 W/PL WASHER 		8-98141-255-0 01 1 1202- ● ● ●
38 BOLT; CLIP,HARNESS
6HK1 TCC ENG(81L) EXC. EURO2 SPECIFICATION<THN> (B) M8X18.5 W/PL WASHER 		8-98141-255-0 01 1 1202- ●
38 BOLT; CLIP,HARNESS
EURO2 SPECIFICATION<THN> (B) M8X18.5 W/PL WASHER 		8-98141-255-0 01 1 1202- ●
38 BOLT; CLIP,HARNESS
EURO2 SPECIFICATION<THN> (A) M8X16 FLANGE 		0-28080-816-0 02 1 9911-0006 ●
38 BOLT; CLIP,HARNESS
EURO2 SPECIFICATION<THN> (A) M8X16 FLANGE 		0-28080-816-0 01 1 0007-0010 ●
38 BOLT; CLIP,HARNESS
6HH1 STD ENG(65L) EURO2 SPECIFICATION<THN> (A) M8X16 FLANGE 		0-28080-816-0 01 1 0011-0101 ●
38 BOLT; CLIP,HARNESS
6HH1 STD 4VALVE ENG(1A6) NEW ZEALAND EQUIPMENT(PK5) (A) M8X16 FLANGE 		0-28080-816-0 01 1 0102-0405 ●
38 BOLT; CLIP,HARNESS
6HH1 STD ENG(65L) EURO2 SPECIFICATION<THN> (A) M8X16 FLANGE 		0-28080-816-0 01 1 0102-0405 ●
38 BOLT; CLIP,HARNESS
6HK1 TCC ENG(81L) NEW ZEALAND EQUIPMENT(PK5) (A) M8X16 FLANGE 		0-28080-816-0 01 1 0406-0512 ●
38 BOLT; CLIP,HARNESS
6HH1 STD ENG(65L) EURO2 SPECIFICATION<THN> (A) M8X16 FLANGE 		0-28080-816-0 01 1 0406-0512 ●
38 BOLT; CLIP,HARNESS
6HK1 TCC ENG(81L) NEW ZEALAND EQUIPMENT(PK5) (A) M8X16 FLANGE 		0-28050-816-0 01 1 0601- ●
38 BOLT; CLIP,HARNESS
6HH1 STD ENG(65L) EURO2 SPECIFICATION<THN> (A) M8X16 FLANGE 		0-28050-816-0 01 1 0601- ●
38 BOLT; CLIP,HARNESS
EURO2 SPECIFICATION<THN> (A) M8X20 FLANGE 		0-28080-820-0 02 1 0007-0010 ●
38 BOLT; CLIP,HARNESS
6HH1 STD 4VALVE ENG(1A6) (A) M8X20 FLANGE 		0-28080-820-0 01 1 0011-0405 ●
38 BOLT; CLIP,HARNESS
6HK1 TCC ENG(81L) (A) M8X20 FLANGE 		0-28080-820-0 02 1 0406-0512 ●
38 BOLT; CLIP,HARNESS
6HH1 STD ENG(65L) EURO2 SPECIFICATION<THN> (A) M8X20 FLANGE 		0-28080-820-0 02 1 0406-0512 ●
38 BOLT; CLIP,HARNESS
6HK1 TCC ENG(81L) (A) M8X20 FLANGE 		0-28050-820-0 02 1 0601- ●
38 BOLT; CLIP,HARNESS
6HH1 STD ENG(65L) EURO2 SPECIFICATION<THN> (A) M8X20 FLANGE 		0-28050-820-0 02 1 0601- ●
38 BOLT; CLIP,HARNESS
6HH1 STD 4VALVE ENG(1A6) (A) M8X20 FLANGE 		0-28080-820-0 02 1 0011-0405 ●
38 BOLT; CLIP,HARNESS
6HH1 STD ENG(65L) EURO2 SPECIFICATION<THN> (A) M8X20 FLANGE 		0-28080-820-0 02 1 0011-0405 ●
38 BOLT; CLIP,HARNESS
6HH1 STD 4VALVE ENG(1A6) (A) M8X20 FLANGE 		0-28680-820-0 01 1 0011-0405 ●
48 CLIP; FRAME HARNESS
6HK1 TCC ENG(81L) (H) ID=11 L=41 		1-09700-403-0 02 1 0406- ●
48 CLIP; FRAME HARNESS
6HK1 TCC ENG(81L) NEW ZEALAND EQUIPMENT(PK5) (K) ID=20 L=70 		1-09700-485-0 01 1 0406- ●
48 CLIP; FRAME HARNESS
6HK1 TCC ENG(81L) NEW ZEALAND EQUIPMENT(PK5) (C) ID=28 L=78 		1-09700-858-0 01 1 0406- ●
48 CLIP; FRAME HARNESS
EXC. AUSTRALIA EQUIPMENT(RR3) (A) ID=20 L=50 		9-09917-430-0 13 1 9804-0004 ●
48 CLIP; FRAME HARNESS
(A) ID=20 L=50 		9-09917-430-0 13 1 9804-0004 ●
48 CLIP; FRAME HARNESS
(A) ID=20 L=50 		9-09917-430-0 14 1 0005- ●
48 CLIP; FRAME HARNESS
(C) ID=28 L=78 		1-09700-858-0 09 1 9604-9803 ● ● ● ● ●
48 CLIP; FRAME HARNESS
(C) ID=28 L=78 		1-09700-858-0 05 1 9804-0004 ● ●
48 CLIP; FRAME HARNESS
(C) ID=28 L=78 		1-09700-858-0 05 1 0005- ●
48 CLIP; FRAME HARNESS
(D) ID=34.5 H=23 L=27.5 		1-09700-905-0 01 1 9604-0004 ● ● ● ● ●
48 CLIP; FRAME HARNESS
(D) ID=34.5 H=23 L=27.5 		1-09700-905-0 01 1 0005- ● ● ●
48 CLIP; FRAME HARNESS
(B) ID=17.4 L=34 W/NUT 		9-09917-403-0 04 1 9604-9608 ● ● ● ● ●
48 CLIP; FRAME HARNESS
(H) ID=11 L=41 		1-09700-403-0 04 1 9609-9803 ● ● ● ● ●
48 CLIP; FRAME HARNESS
(I) L=140 		5-09707-031-1 01 1 9804-0004 ● ● ● ● ●
48 CLIP; FRAME HARNESS
(I) L=140 		5-09707-031-1 01 1 0005-0006 ● ● ●
48 CLIP; FRAME HARNESS
(A) ID=20 L=50 		9-09917-430-0 02 1 0007-0405 ● ●
48 CLIP; FRAME HARNESS
(A) ID=20 L=50 		9-09917-430-0 02 1 0406- ● ●
48 CLIP; FRAME HARNESS
6HK1 TCC ENG(81L) (A) ID=20 L=50 		9-09917-430-0 02 1 0406- ●
48 CLIP; FRAME HARNESS
(F) ID=14 L=44 		9-09917-427-0 02 1 9604-0004 ● ● ● ● ●
48 CLIP; FRAME HARNESS
(F) ID=14 L=44 		9-09917-427-0 02 1 0005-0006 ● ● ●
48 CLIP; FRAME HARNESS
(F) ID=14 L=44 		9-09917-427-0 01 1 0007-0403 ● ●
48 CLIP; FRAME HARNESS
6HH1 STD ENG(65L),6HH1 N ENG(66L) (F) ID=14 L=44 		9-09917-427-0 01 1 0404-0405 ●
48 CLIP; FRAME HARNESS
6HH1 STD 4VALVE ENG(1A6),6HH1 STD ENG(65L) (F) ID=14 L=44 		9-09917-427-0 01 1 0404-0405 ●
48 CLIP; FRAME HARNESS
6HH1 STD ENG(65L),6HH1 N ENG(66L) (F) ID=14 L=44 		9-09917-427-0 01 1 0406- ●
48 CLIP; FRAME HARNESS
6HH1 STD ENG(65L) (F) ID=14 L=44 		9-09917-427-0 01 1 0406- ●
48 CLIP; FRAME HARNESS
(A) ID=20 L=50 		9-09917-430-0 04 1 9604-9609 ● ● ● ● ●
48 CLIP; FRAME HARNESS
(A) ID=20 L=50 		9-09917-430-0 19 1 9610-9803 ● ● ● ● ●
48 CLIP; FRAME HARNESS
AUSTRALIA EQUIPMENT(RR3) (A) ID=20 L=50 		9-09917-430-0 15 1 9804-0004 ●
48 CLIP; FRAME HARNESS
(A) ID=20 L=50 		9-09917-430-0 15 1 9804-0004 ● ●
48 CLIP; FRAME HARNESS
(A) ID=20 L=50 		9-09917-430-0 13 1 0005- ●
48 CLIP; FRAME HARNESS
(E) ID=25 L=55 		9-09917-573-0 02 1 9604-9803 ● ● ● ● ●
48 CLIP; FRAME HARNESS
(J) ID=15 L=65 		1-09700-466-0 02 1 9804-0004 ● ●
48 CLIP; FRAME HARNESS
(J) ID=15 L=65 		1-09700-466-0 02 1 0005- ●
48 CLIP; FRAME HARNESS
(G) ID=19 L=28 		9-09525-856-0 01 1 9607-0004 ● ● ● ● ●
48 CLIP; FRAME HARNESS
(G) ID=19 L=28 		9-09525-856-0 01 1 0005-0606 ● ● ●
48 CLIP; FRAME HARNESS
(G) ID=19 L=28 		0-95235-856-0 01 1 0607- ● ● ●
48 CLIP; FRAME HARNESS
(A) ID=20 L=50 		9-09917-430-0 03 1 9804-0004 ● ● ● ● ●
48 CLIP; FRAME HARNESS
(A) ID=20 L=50 		9-09917-430-0 03 1 9804-0004 ● ●
48 CLIP; FRAME HARNESS
(A) ID=20 L=50 		9-09917-430-0 03 1 0005-0008 ● ● ●
48 CLIP; FRAME HARNESS
(K) ID=20 L=70 		1-09700-485-0 03 1 0009- ● ● ●
48 CLIP; FRAME HARNESS
(H) ID=11 L=41 		1-09700-403-0 04 1 9804- ● ● ●
48 CLIP; FRAME HARNESS
(A) ID=20 L=50 		9-09917-430-0 17 1 9804-0004 ●
48 CLIP; FRAME HARNESS
NEW ZEALAND EQUIPMENT(PK5) (A) ID=20 L=50 		9-09917-430-0 16 1 0005-0405 ●
48 CLIP; FRAME HARNESS
TRANSFER TF56<BFK> NEW ZEALAND EQUIPMENT(PK5) (A) ID=20 L=50 		9-09917-430-0 03 1 0406- ●
48 CLIP; FRAME HARNESS
(H) ID=11 L=41 		1-09700-403-0 03 1 9804-0004 ● ●
48 CLIP; FRAME HARNESS
EXC. NEW ZEALAND EQUIPMENT(PK5) (A) ID=20 L=50 		9-09917-430-0 17 1 0005-0405 ●
48 CLIP; FRAME HARNESS
TRANSFER TF56<BFK> NEW ZEALAND EQUIPMENT(PK5) (A) ID=20 L=50 		9-09917-430-0 17 1 0406- ●
48 CLIP; FRAME HARNESS
EXC. NEW ZEALAND EQUIPMENT(PK5) (A) ID=20 L=50 		9-09917-430-0 17 1 0406- ●
48 CLIP; FRAME HARNESS
(L) ID=26 L=27 		1-09701-006-0 01 1 9804-0004 ● ●
48 CLIP; FRAME HARNESS
(J) ID=15 L=65 		1-09700-466-0 01 1 9804-0004 ● ● ●
48 CLIP; FRAME HARNESS
(J) ID=15 L=65 		1-09700-466-0 01 1 0005-0405 ● ●
48 CLIP; FRAME HARNESS
(J) ID=15 L=65 		1-09700-466-0 01 1 0406- ● ●
48 CLIP; FRAME HARNESS
6HK1 TCC ENG(81L) NEW ZEALAND EQUIPMENT(PK5) (J) ID=15 L=65 		1-09700-466-0 01 1 0406- ●
48 CLIP; FRAME HARNESS
(C) ID=28 L=78 		1-09700-858-0 04 1 9804-0004 ● ● ●
48 CLIP; FRAME HARNESS
(C) ID=28 L=78 		1-09700-858-0 04 1 0005- ● ●
48 CLIP; FRAME HARNESS
EURO2 SPECIFICATION<THN> (D) ID=25 H=30 L=35 		1-09700-875-0 01 1 9905-0006 ●
48 CLIP; FRAME HARNESS
EURO2 SPECIFICATION<THN> (D) ID=24 H=40 L=24 		1-09701-243-0 03 1 0007-0010 ●
48 CLIP; FRAME HARNESS
6HH1 STD 4VALVE ENG(1A6) EXC. EURO2 SPECIFICATION<THN> (D) ID=24 H=40 L=24 		1-09701-243-1 03 1 0011-0405 ●
48 CLIP; FRAME HARNESS
EURO2 SPECIFICATION<THN> (D) ID=24 H=40 L=24 		1-09701-243-1 03 1 0011-0405 ●
48 CLIP; FRAME HARNESS
EURO2 SPECIFICATION<THN> (D) ID=24 H=40 L=24 		1-09701-243-1 03 1 0406- ●
48 CLIP; FRAME HARNESS
EURO2 SPECIFICATION<THN> (L) ID=25 L=50 		1-09700-976-0 01 1 9905-0010 ●
48 CLIP; FRAME HARNESS
6HH1 STD ENG(65L) EURO2 SPECIFICATION<THN> (L) ID=25 L=50 		1-09700-976-0 01 1 0011-0306 ●
48 CLIP; FRAME HARNESS
6HH1 STD ENG(65L) EURO2 SPECIFICATION<THN> (N) ID=23 L=32 		1-09700-346-0 01 1 0307- ●
48 CLIP; FRAME HARNESS
EURO2 SPECIFICATION<THN> (M) L=250 		5-09707-030-1 01 1 9905- ●
48 CLIP; FRAME HARNESS
6HH1 STD 4VALVE ENG(1A6) EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV>, EURO2 SPECIFICATION<THN> (F) ID=14 L=44 		9-09917-427-0 02 1 0011-0405 ●
48 CLIP; FRAME HARNESS
NEW ZEALAND EQUIPMENT(PK5) EXC. TRANSFER TF56<BFK> (A) ID=20 L=50 		9-09917-430-0 16 1 0406- ●
48 CLIP; FRAME HARNESS
(K) ID=20 L=70 		1-09700-485-0 01 1 9804-0004 ●
59 BRACKET; FRAME HARNESS
L=95 		1-82699-085-0 01 1 9604-0004 ● ● ● ● ●
59 BRACKET; FRAME HARNESS
L=95 		1-82699-085-0 01 1 0005- ● ● ●
64 SCREW; CLIP
EURO2 SPECIFICATION<THN> M6X12 TAPPING W/PL WASHER 		0-74100-612-0 01 1 0005- ●
81 CLIP; HARNESS
6HK1 TCC ENG(81L) (B) ID=26 L=26 		1-09701-236-0 01 1 0406- ●
81 CLIP; HARNESS
(A) L=140 		5-09707-031-1 02 1 9604-0004 ● ● ● ● ●
81 CLIP; HARNESS
(A) L=140 		5-09707-031-1 02 1 0005- ● ● ●
88 BOLT; DOOR HARNESS EARTH
POWER WINDOW<A30> M8X25 W/LK&PL WASHER 		8-97087-203-0 02 1 9604-9806 ● ●
88 BOLT; DOOR HARNESS EARTH
M8X25 W/LK&PL WASHER 		8-97087-203-0 02 1 9807-9807 ● ● ● ● ●
88 BOLT; DOOR HARNESS EARTH
POWER WINDOW<A30> M8X25 W/LK&PL WASHER 		8-97087-203-0 02 1 9808-0004 ● ●
88 BOLT; DOOR HARNESS EARTH
POWER WINDOW<A30> M8X25 W/LK&PL WASHER 		8-97087-203-0 02 1 0005-1007 ●
88 BOLT; DOOR HARNESS EARTH
POWER WINDOW<A30> M8X18.5 W/PL WASHER 		8-98141-255-0 02 1 1008- ●
88 BOLT; DOOR HARNESS EARTH
EXC. POWER WINDOW<A30> M8X25 W/LK&PL WASHER 		8-97087-203-0 01 1 9604-9804 ● ●
88 BOLT; DOOR HARNESS EARTH
M8X25 W/LK&PL WASHER 		8-97087-203-0 01 1 9604-9804 ● ● ●
115 CLIP; DOOR HARNESS
(A) ID=15 		1-09987-115-0 06 1 9604-0004 ● ●
115 CLIP; DOOR HARNESS
(B) ID=12 		1-09987-201-0 06 1 9604-0004 ● ●
116 CLIP; ROOF HARNESS
HIGH ROOF<S2F> L=20 SET=10 PIECE 		1-09987-246-2 02 1 9604-0004 ● ●
116 CLIP; ROOF HARNESS
HIGH ROOF<S2F> L=20 SET=10 PIECE 		1-09987-246-2 02 1 0005-0009 ●
116 CLIP; ROOF HARNESS
HIGH ROOF<S2F> L=20 SET=10 PIECE 		1-09987-246-2 03 1 0010-1409 ●
116 CLIP; ROOF HARNESS
HIGH ROOF<S2F> L=20 SET=10 PIECE 		1-09987-246-2 04 1 1410- ●
116 CLIP; ROOF HARNESS
LOW ROOF<6XQ> L=20 SET=10 PIECE 		1-09987-246-2 05 1 9604-0009 ● ●
116 CLIP; ROOF HARNESS
L=20 SET=10 PIECE 		1-09987-246-2 05 1 9604-0009 ●
116 CLIP; ROOF HARNESS
LOW ROOF<6XQ> L=20 SET=10 PIECE 		1-09987-246-2 06 1 0010-0104 ● ●
116 CLIP; ROOF HARNESS
L=20 SET=10 PIECE 		1-09987-246-2 06 1 0010-0104 ●
116 CLIP; ROOF HARNESS
L=20 SET=10 PIECE 		1-09987-246-2 06 1 0105-0112 ● ●
116 CLIP; ROOF HARNESS
LOW ROOF<6XQ> L=20 SET=10 PIECE 		1-09987-246-2 06 1 0105-0112 ●
116 CLIP; ROOF HARNESS
L=20 SET=10 PIECE 		1-09987-246-2 05 1 0201-1409 ● ●
116 CLIP; ROOF HARNESS
LOW ROOF<6XQ> L=20 SET=10 PIECE 		1-09987-246-2 05 1 0201-1409 ●
116 CLIP; ROOF HARNESS
L=20 SET=10 PIECE 		1-09987-246-2 06 1 1410- ● ●
116 CLIP; ROOF HARNESS
LOW ROOF<6XQ> L=20 SET=10 PIECE 		1-09987-246-2 06 1 1410- ●
116 CLIP; ROOF HARNESS
L=20 SET=10 PIECE 		1-09987-246-2 04 1 9604-0004 ● ●
119 SCREW; DOOR HARNESS EARTH
POWER WINDOW<A30> M5X14 W/PL WASHER 		8-94447-551-0 02 1 9604-0004 ● ●
119 SCREW; DOOR HARNESS EARTH
POWER WINDOW<A30> M5X14 W/PL WASHER 		8-94447-551-0 02 1 0005- ●
121 CLIP; FACIA HARNESS
(C) L=140 		5-09707-031-1 02 1 0405- ● ● ●
121 CLIP; FACIA HARNESS
(B) ID=11.5 		1-09709-083-0 02 1 9604-0004 ● ●
121 CLIP; FACIA HARNESS
(A) OD=7 H=1.2 		8-94364-750-0 02 1 9604-0404 ●
121 CLIP; FACIA HARNESS
EXC. POWER WINDOW<A30> (A) OD=7 H=1.2 		8-94364-750-0 02 1 9604-0404 ●
121 CLIP; FACIA HARNESS
(D) OD=6.8 H=5 		8-97082-051-0 02 1 0405- ●
128 CLIP; COMB SW HARNESS,STRG COLUMN
(A) ID=16 L=20 		9-09525-535-0 01 1 9604-0004 ● ● ● ● ●
128 CLIP; COMB SW HARNESS,STRG COLUMN
(A) ID=16 L=20 		9-09525-535-0 01 1 0005-0606 ● ● ●
128 CLIP; COMB SW HARNESS,STRG COLUMN
(A) ID=16 L=20 		0-95235-535-0 01 1 0607- ● ● ●
128 CLIP; COMB SW HARNESS,STRG COLUMN
(B) ID=19 L=32 		9-09525-862-0 01 1 9604-0004 ● ● ● ● ●
128 CLIP; COMB SW HARNESS,STRG COLUMN
(B) ID=19 L=32 		9-09525-862-0 01 1 0005-0011 ● ● ●
128 CLIP; COMB SW HARNESS,STRG COLUMN
(C) ID=14.5 L=30 		9-09916-893-1 01 1 0012- ● ● ●
133 SCREW; HARNESS CLIP,STRG COLUMN
(A) M6X16 W/LK&PL WASHER 		8-94279-402-0 01 1 9604-0004 ● ● ● ● ●
133 SCREW; HARNESS CLIP,STRG COLUMN
(A) M6X16 W/LK&PL WASHER 		8-94279-402-0 01 1 0005-0110 ● ● ●
133 SCREW; HARNESS CLIP,STRG COLUMN
(C) M6X12 W/PL WASHER 		8-97806-950-0 01 1 0111- ● ● ●
133 SCREW; HARNESS CLIP,STRG COLUMN
(B) M6X12 W/LK&PL WASHER 		8-94279-200-0 01 1 0107-0210 ● ● ●
148 CLIP; BAND,HEADLAMP HARNESS
(A) L=85 		8-94232-611-0 01 1 9604-0004 ● ● ● ● ●
148 CLIP; BAND,HEADLAMP HARNESS
(A) L=85 		8-94232-611-0 01 1 0005- ● ● ●
148 CLIP; BAND,HEADLAMP HARNESS
(B) ID=6 & 10-13 		8-97069-515-0 01 1 9604-0004 ● ● ● ● ●
148 CLIP; BAND,HEADLAMP HARNESS
(B) ID=6 & 10-13 		8-97069-515-0 01 1 0005- ● ● ●
150 BOLT; CLIP
6HK1 TCC ENG(81L) M8X20.5 W/LK&PL WASHER 		8-94279-207-0 01 1 0406-0608 ●
150 BOLT; CLIP
6HK1 TCC ENG(81L) M8X24.5 W/LK&PL WASHER 		8-94279-208-0 01 1 0609-0904 ●
150 BOLT; CLIP
6HK1 TCC ENG(81L) M8X24.5 W/LK&PL WASHER 		8-98059-720-0 01 1 0905- ●
154 BRACKET; STARTER EARTH CABLE 1-47465-518-0 01 1 0301- ● ●
154 BRACKET; STARTER EARTH CABLE
6HH1 STD ENG(65L) EXC. EURO2 SPECIFICATION<THN> 		1-47465-518-0 01 1 0301- ●
154 BRACKET; STARTER EARTH CABLE 1-47465-518-0 01 1 9604-0003 ● ● ● ● ●
168 CLIP; DASH HARNESS
ID=6 & 10-13 		8-97069-515-0 05 1 9604-0004 ● ● ● ● ●
168 CLIP; DASH HARNESS
ID=6 & 10-13 		8-97069-515-0 05 1 0005- ● ● ●
171 CLIP; STARTER HARNESS
6HK1 TCC ENG(81L) NEW ZEALAND EQUIPMENT(PK5) (C) ID=19 L=28 		9-09525-856-0 01 1 0406-0606 ●
171 CLIP; STARTER HARNESS
6HK1 TCC ENG(81L) NEW ZEALAND EQUIPMENT(PK5) (C) ID=19 L=28 		0-95235-856-0 01 1 0607- ●
171 CLIP; STARTER HARNESS
(B) OD=9 H=6 		1-09709-178-0 02 1 9604-0004 ● ● ● ● ●
171 CLIP; STARTER HARNESS
(B) OD=9 H=6 		1-09709-178-0 02 1 0005- ● ● ●
171 CLIP; STARTER HARNESS
(A) ID=18 L=44 		8-94225-185-0 01 1 9604-0004 ● ● ● ● ●
171 CLIP; STARTER HARNESS
(A) ID=18 L=44 		8-94225-185-0 01 1 0005-0801 ● ● ●
171 CLIP; STARTER HARNESS
(A) ID=18 L=44 		8-97367-985-1 01 1 0802- ● ● ●
171 CLIP; STARTER HARNESS
(C) ID=19 L=28 		9-09525-856-0 04 1 9604-0004 ● ● ● ● ●
171 CLIP; STARTER HARNESS
(C) ID=19 L=28 		9-09525-856-0 04 1 0005-0606 ● ● ●
171 CLIP; STARTER HARNESS
(C) ID=19 L=28 		0-95235-856-0 04 1 0607- ● ● ●
171 CLIP; STARTER HARNESS
(D) L=300 		1-09707-001-1 01 1 9810-0004 ● ●
171 CLIP; STARTER HARNESS
(D) L=300 		1-09707-001-1 01 1 0005- ● ● ●
173 BOLT; STARTER EARTH
M10X25 W/LK&PL WASHER 		8-97087-205-0 01 1 9604-0004 ● ● ● ● ●
173 BOLT; STARTER EARTH
M10X25 W/LK&PL WASHER 		8-97087-205-0 01 1 0005- ● ● ●
178 GROMMET; HARNESS
(B) ID=19 OD=23 T=24 		1-09332-103-0 01 1 9604-9803 ● ● ● ● ●
178 GROMMET; HARNESS
(B) ID=19 OD=23 T=24 		1-09332-103-0 01 1 9804-0004 ● ● ●
178 GROMMET; HARNESS
(B) ID=19 OD=23 T=24 		1-09332-103-0 01 1 0005-0812 ● ●
178 GROMMET; HARNESS
NEW ZEALAND EQUIPMENT(PK5) (B) ID=19 OD=23 T=24 		1-09332-103-0 01 1 0901- ●
178 GROMMET; HARNESS
(D) ID=24 OD=30 T=17 		9-09956-092-1 01 1 9604-9803 ● ● ● ● ●
178 GROMMET; HARNESS
(A) ID=28 OD=35 T=17 		9-09956-256-1 01 1 9804-0004 ● ● ●
178 GROMMET; HARNESS
(A) ID=28 OD=35 T=17 		9-09956-256-1 01 1 9804-0004 ●
178 GROMMET; HARNESS
(A) ID=28 OD=35 T=17 		9-09956-256-2 01 1 0005-0812 ●
178 GROMMET; HARNESS
(A) ID=28 OD=35 T=17 		9-09956-256-2 01 1 0901- ● ●
178 GROMMET; HARNESS
EXC. NEW ZEALAND EQUIPMENT(PK5) (A) ID=28 OD=35 T=17 		9-09956-256-2 01 1 0901- ●
178 GROMMET; HARNESS
(A) ID=28 OD=35 T=17 		9-09956-256-1 02 1 9604-0004 ● ● ● ● ●
178 GROMMET; HARNESS
(A) ID=28 OD=35 T=17 		9-09956-256-2 02 1 0005- ● ● ●
178 GROMMET; HARNESS
LOW ROOF<6XQ> (C) ID=32 OD=48 T=5 		9-09575-232-0 01 1 9604-0104 ● ●
178 GROMMET; HARNESS
(C) ID=32 OD=48 T=5 		9-09575-232-0 01 1 9604-0104 ●
178 GROMMET; HARNESS
(C) ID=32 OD=48 T=5 		9-09575-232-0 01 1 0105- ● ●
178 GROMMET; HARNESS
LOW ROOF<6XQ> (C) ID=32 OD=48 T=5 		9-09575-232-0 01 1 0105- ●
178 GROMMET; HARNESS
6HH1 STD 4VALVE ENG(1A6) (E) ID=32 OD=36 L=50 		1-09337-023-0 01 1 0011-0405 ●
184 WASHER; PL,STARTER EARTH
ID=10.5 OD=22 T=2.0 		1-09503-265-0 01 1 9804-0004 ● ● ● ● ●
184 WASHER; PL,STARTER EARTH
ID=10.5 OD=22 T=2.0 		1-09503-265-0 01 1 0005- ● ● ●
185 SLEEVE; RUBBER
ID=9 OD=14 L=35 		8-94127-043-0 01 1 9604-9803 ● ● ● ● ●
209 WASHER; LK,GEN,EARTH
ID=5.1 		9-09150-505-0 01 1 9604-0004 ● ● ● ● ●
209 WASHER; LK,GEN,EARTH
ID=5.1 		9-09150-505-0 01 1 0005-0603 ● ● ●
209 WASHER; LK,GEN,EARTH
ID=5.1 		0-91510-505-0 01 1 0604- ● ● ●
210 WASHER; PL,GEN
ID=8.4 		1-09503-264-0 01 1 9804-0004 ● ● ● ● ●
210 WASHER; PL,GEN
ID=8.4 		1-09503-264-0 01 1 0005- ● ● ●
217 CLIP; RR BODY HARNESS
(A) ID=15 L=70 		1-09700-980-0 02 1 9604-0004 ● ● ● ● ●
217 CLIP; RR BODY HARNESS
(A) ID=15 L=70 		1-09700-980-0 02 1 0005-0208 ● ● ●
217 CLIP; RR BODY HARNESS
(B) L=250 		5-09707-030-1 02 1 9604-0004 ● ● ● ● ●
217 CLIP; RR BODY HARNESS
(B) L=250 		5-09707-030-1 02 1 0005- ● ● ●
219 NUT
(A) M6 		9-09110-406-0 02 1 9604-9606 ● ● ● ● ●
219 NUT
(B) M8 FLANGE 		0-91150-108-0 04 1 9607-9609 ● ● ● ● ●
219 NUT
(B) M8 FLANGE 		0-91150-108-0 06 1 9610-9803 ● ● ● ● ●
219 NUT
(B) M8 FLANGE 		0-91150-108-0 05 1 9804-0004 ● ● ● ● ●
219 NUT
(B) M8 FLANGE 		0-91150-108-0 05 1 0005-0602 ● ● ●
219 NUT
(B) M8 FLANGE 		0-91180-108-0 05 1 0603- ● ● ●
219 NUT
(A) M8 		9-09110-408-0 03 1 9604-9609 ● ● ● ● ●
219 NUT
(B) M8 FLANGE 		0-91150-108-0 01 1 9804-0004 ● ●
219 NUT
EURO2 SPECIFICATION<THN> (B) M8 FLANGE 		0-91150-108-0 04 1 9905-0405 ●
219 NUT
6HK1 TCC ENG(81L) (B) M8 FLANGE 		0-91150-108-0 04 1 0406-0602 ●
219 NUT
EURO2 SPECIFICATION<THN> (B) M8 FLANGE 		0-91150-108-0 04 1 0406-0602 ●
219 NUT
6HK1 TCC ENG(81L) (B) M8 FLANGE 		0-91180-108-0 04 1 0603- ●
219 NUT
EURO2 SPECIFICATION<THN> (B) M8 FLANGE 		0-91180-108-0 04 1 0603- ●
219 NUT
6HH1 STD 4VALVE ENG(1A6) (B) M8 FLANGE 		0-91150-108-0 01 1 0011-0405 ●
224 SLEEVE; RUBBER,HARNESS
EURO2 SPECIFICATION<THN> ID=17 OD=21 L=40 		1-09337-012-0 01 1 9911-0010 ●
224 SLEEVE; RUBBER,HARNESS
6HH1 STD ENG(65L) EURO2 SPECIFICATION<THN> ID=17 OD=21 L=40 		1-09337-012-0 01 1 0011-0101 ●
224 SLEEVE; RUBBER,HARNESS
6HH1 STD 4VALVE ENG(1A6) NEW ZEALAND EQUIPMENT(PK5) ID=17 OD=21 L=40 		1-09337-012-0 01 1 0102-0405 ●
224 SLEEVE; RUBBER,HARNESS
6HH1 STD ENG(65L) EURO2 SPECIFICATION<THN> ID=17 OD=21 L=40 		1-09337-012-0 01 1 0102-0405 ●
224 SLEEVE; RUBBER,HARNESS
6HH1 STD ENG(65L) EURO2 SPECIFICATION<THN> ID=17 OD=21 L=40 		1-09337-012-0 01 1 0406- ●
239 BOLT; GRAND
(A) M5X8 		0-20800-508-0 01 1 9604-0004 ● ● ● ● ●
239 BOLT; GRAND
(A) M5X8 		0-20800-508-0 01 1 0005- ● ● ●
239 BOLT; GRAND
(B) M6X14 W/LK&PL WASHER 		8-97086-822-0 02 1 9604-9803 ● ● ● ● ●
239 BOLT; GRAND
(B) M6X14 W/LK&PL WASHER 		8-97086-822-0 01 1 9804-0004 ● ● ● ● ●
239 BOLT; GRAND
(B) M6X14 W/LK&PL WASHER 		8-97086-822-0 02 1 0005-1007 ● ● ●
239 BOLT; GRAND
(B) M6X14 W/PL WASHER 		8-98164-836-0 02 1 1008- ● ● ●
239 BOLT; GRAND
(B) M8X20 W/LK&PL WASHER 		8-97086-825-0 01 1 9604-9907 ● ● ● ● ●
239 BOLT; GRAND
(B) M8X16 W/LK&PL WASHER 		8-97087-055-0 01 1 9908-0004 ● ● ● ● ●
239 BOLT; GRAND
(B) M8X16 W/LK&PL WASHER 		8-97087-055-0 01 1 0005-1201 ● ● ●
239 BOLT; GRAND
(B) M8X14 W/PL WASHER 		8-98164-837-0 01 1 1202- ● ● ●
246 BRACKET; CLIP,SPD SENSOR
TRANSFER TF56<BFK> L=95 		1-82699-085-0 01 1 0406- ●
246 BRACKET; CLIP,SPD SENSOR
L=55 		1-47475-304-0 01 1 0005-0405 ● ● ●
246 BRACKET; CLIP,SPD SENSOR
L=55 		1-47475-304-0 01 1 0406- ● ●
246 BRACKET; CLIP,SPD SENSOR
EXC. TRANSFER TF56<BFK> L=55 		1-47475-304-0 01 1 0406- ●
294 NUT
(A) M8 		9-09110-408-0 02 1 9604-9606 ● ● ● ● ●
294 NUT
(B) M8 FLANGE 		0-91150-108-0 02 1 9607-9803 ● ● ● ● ●
294 NUT
(B) M8 FLANGE 		0-91150-108-0 01 1 9804-0004 ● ● ● ● ●
294 NUT
(B) M8 FLANGE 		0-91150-108-0 01 1 0005-0602 ● ● ●
294 NUT
(B) M8 FLANGE 		0-91180-108-0 01 1 0603- ● ● ●
294 NUT
(B) M8 FLANGE 		0-91150-108-0 02 1 9804-0004 ● ●
303 CLIP; HARNESS POWER TILT RELAY
(A) ID=18 L=44 		8-94225-185-0 01 1 9604-9609 ● ● ● ● ●
303 CLIP; HARNESS POWER TILT RELAY
(A) ID=18 L=44 		8-94225-185-0 01 1 9610-0004 ● ●
303 CLIP; HARNESS POWER TILT RELAY
(B) L=300 		1-09707-001-1 01 1 9811-0004 ● ●
305 CLIP; ENG HARNESS
6HK1 TCC ENG(81L) AIR CONDITIONER MANUAL CONTROL<C60> (E) ID=18 L=44 		8-94225-185-0 03 1 0406-0801 ●
305 CLIP; ENG HARNESS
6HK1 TCC ENG(81L) AIR CONDITIONER MANUAL CONTROL<C60> (E) ID=18 L=44 		8-97367-985-1 03 1 0802- ●
305 CLIP; ENG HARNESS
6HK1 TCC ENG(81L) AIR CONDITIONER MANUAL CONTROL<C60> (F) ID=11 L=20 		9-09525-035-0 01 1 0406-0606 ●
305 CLIP; ENG HARNESS
6HK1 TCC ENG(81L) AIR CONDITIONER MANUAL CONTROL<C60> (F) ID=11 L=20 		0-95235-035-0 01 1 0607- ●
305 CLIP; ENG HARNESS
6HK1 TCC ENG(81L) AIR CONDITIONER MANUAL CONTROL<C60> (G) ID=11 L=24 		9-09525-045-0 01 1 0406-0606 ●
305 CLIP; ENG HARNESS
6HK1 TCC ENG(81L) AIR CONDITIONER MANUAL CONTROL<C60> (G) ID=11 L=24 		0-95235-045-0 01 1 0607- ●
305 CLIP; ENG HARNESS
(A) L=180 		1-09707-162-0 01 1 9604-9803 ● ● ● ● ●
305 CLIP; ENG HARNESS
(A) L=180 		1-09707-162-1 01 1 9804-9904 ● ● ● ● ●
305 CLIP; ENG HARNESS
AUSTRALIA EQUIPMENT(RR3) (A) L=180 		1-09707-162-1 01 1 9804-9904 ● ● ● ●
305 CLIP; ENG HARNESS
(A) L=180 		1-09707-162-1 01 1 9905-0001 ● ● ● ●
305 CLIP; ENG HARNESS
EXC. EURO2 SPECIFICATION<THN> (A) L=180 		1-09707-162-1 01 1 9905-0001 ●
305 CLIP; ENG HARNESS
(A) L=180 		1-09707-162-1 01 1 0002-0004 ● ● ● ● ●
305 CLIP; ENG HARNESS
(A) L=180 		1-09707-162-1 01 1 0005- ● ● ●
305 CLIP; ENG HARNESS
EXC. TACHOMETER<UD7> (B) L=140 		5-09707-031-1 01 1 9804-9904 ● ● ● ● ●
305 CLIP; ENG HARNESS
EXC. TACHOMETER<UD7> (B) L=140 		5-09707-031-1 01 1 9905-0001 ● ● ● ●
305 CLIP; ENG HARNESS
EURO2 SPECIFICATION<THN> (B) L=140 		5-09707-031-1 01 1 9905-0001 ●
305 CLIP; ENG HARNESS
EXC. EURO2 SPECIFICATION<THN>,TACHOMETER<UD7> (B) L=140 		5-09707-031-1 01 1 9905-0001 ●
305 CLIP; ENG HARNESS
EXC. TACHOMETER<UD7> (B) L=140 		5-09707-031-1 01 1 0002-0004 ● ● ● ●
305 CLIP; ENG HARNESS
EXC. EURO2 SPECIFICATION<THN>,TACHOMETER<UD7> (B) L=140 		5-09707-031-1 01 1 0002-0004 ●
305 CLIP; ENG HARNESS
EXC. TACHOMETER<UD7> (B) L=140 		5-09707-031-1 01 1 0005- ● ●
305 CLIP; ENG HARNESS
EXC. EURO2 SPECIFICATION<THN>,TACHOMETER<UD7> (B) L=140 		5-09707-031-1 01 1 0005- ●
305 CLIP; ENG HARNESS
EURO2 SPECIFICATION<THN> (C) ID=23 H=30 L=35 		1-09700-743-0 01 1 9907-9910 ●
305 CLIP; ENG HARNESS
EURO2 SPECIFICATION<THN> (H) L=250 		5-09707-030-1 02 1 9911-0010 ●
305 CLIP; ENG HARNESS
6HH1 STD ENG(65L) EURO2 SPECIFICATION<THN> (H) L=250 		5-09707-030-1 02 1 0011- ●
305 CLIP; ENG HARNESS
EURO2 SPECIFICATION<THN> (C) ID=31 H=30 L=35 		1-09700-994-0 01 1 9907-9910 ●
305 CLIP; ENG HARNESS
6HH1 STD 4VALVE ENG(1A6) NEW ZEALAND EQUIPMENT(PK5) (H) L=250 		5-09707-030-1 01 1 0102-0405 ●
305 CLIP; ENG HARNESS
6HK1 TCC ENG(81L) AIR CONDITIONER MANUAL CONTROL<C60> (D) ID=24 L=32 		1-09700-766-1 03 1 0406- ●
421 CLIP; FLOOR HARNESS
(A) L=20 SET=10 PIECE 		1-09987-246-2 07 1 9604-0004 ● ● ● ● ●
421 CLIP; FLOOR HARNESS
(A) L=20 SET=10 PIECE 		1-09987-246-2 07 1 0005-0101 ● ● ●
421 CLIP; FLOOR HARNESS
(A) L=20 SET=10 PIECE 		1-09987-246-2 01 1 0102- ● ● ●
421 CLIP; FLOOR HARNESS
(B) ID=9 		5-09707-027-0 02 1 9604-0004 ● ●
421 CLIP; FLOOR HARNESS
(C) L=100 		5-09707-036-1 01 1 9604-0004 ● ●
421 CLIP; FLOOR HARNESS
(D) ID=11 L=20 		9-09525-032-0 03 1 9604-0004 ● ●
421 CLIP; FLOOR HARNESS
(E) ID=11 L=28 		9-09525-052-0 04 1 9604-0004 ● ●
423 WASHER; HARNESS,EARTH
ID=8.4 		1-09503-264-0 01 1 9804-9904 ● ● ● ● ●
423 WASHER; HARNESS,EARTH
ID=8.4 		1-09503-264-0 01 1 9905-0001 ● ● ● ● ●
423 WASHER; HARNESS,EARTH
EURO2 SPECIFICATION<THN> ID=8.4 		1-09503-264-0 01 1 9905-0001 ●
462 CLIP; HARNESS,HTR
AUSTRALIA EQUIPMENT(RR3) ID=20 		1-09709-068-0 02 1 9910-0004 ● ● ● ●
462 CLIP; HARNESS,HTR
ID=20 		1-09709-068-0 02 1 0005- ● ● ●
503 CONNECTOR
STARTER SWITCH DELETION<E5D> NEW ZEALAND EQUIPMENT(PK5) (B) 		1-82690-666-0 01 1 0212- ●
503 CONNECTOR
(A) 		1-82690-668-0 01 1 0102-0310 ● ●
503 CONNECTOR
(A) 		1-82690-668-0 01 1 0102-0310 ● ●
503 CONNECTOR
EXC. THAILAND EQUIPMENT(PM9) (A) 		1-82690-668-0 01 1 0102-0310 ●
503 CONNECTOR
EXC. AIR DRYER<PS7> (A) 		1-82690-668-0 01 1 0102-0310 ●
503 CONNECTOR
(A) 		1-82690-668-0 01 1 0311- ● ●
503 CONNECTOR
(A) 		1-82690-668-0 01 1 0311- ●
503 CONNECTOR
EXC. AIR CONDITIONER MANUAL CONTROL<C60> (A) 		1-82690-668-0 01 1 0311- ●
503 CONNECTOR
EXC. AIR CONDITIONER MANUAL CONTROL<C60>, THAILAND EQUIPMENT(PM9) (A) 		1-82690-668-0 01 1 0311- ●
503 CONNECTOR
EXC. AIR DRYER<PS7> (A) 		1-82690-668-0 01 1 0311- ●
513 TAPE; SOFT,HARNESS
SPEAKER SYSTEM RR 2 SPEAKERS<TLS> T=3.2 100X30 		1-72498-014-1 07 1 9804-9903 ● ●
513 TAPE; SOFT,HARNESS
SPEAKER SYSTEM RR 2 SPEAKERS<TLS> T=3.2 100X30 		1-72498-014-1 08 1 9904-9904 ● ●
513 TAPE; SOFT,HARNESS
SPEAKER SYSTEM RR 2 SPEAKERS<TLS> T=3.2 100X40 		1-72498-022-0 08 1 9905-0004 ● ●
513 TAPE; SOFT,HARNESS
T=3.0 100X30 		1-74998-068-0 02 1 9604-0004 ● ●
516 BOLT; HARNESS
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 9604-0004 ● ● ● ● ●
516 BOLT; HARNESS
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 0005- ● ● ●
520 WASHER; PL,EARTH CABLE
ID=8.4 		1-09503-264-0 01 1 9604-0004 ● ● ● ● ●
520 WASHER; PL,EARTH CABLE
ID=8.4 		1-09503-264-0 01 1 0005- ● ● ●
524 NUT; HARNESS
M6 FLANGE 		0-91150-106-0 01 1 9604-0004 ● ● ● ● ●
524 NUT; HARNESS
M6 FLANGE 		0-91150-106-0 01 1 0005-0602 ● ● ●
524 NUT; HARNESS
M6 FLANGE 		0-91180-106-0 01 1 0603- ● ● ●
530 SEAL; HARNESS
180X40 		1-72498-019-1 06 1 0102- ● ● ●
530 SEAL; HARNESS
ELEC OUTLET 12V<TAW> EXC. NIKKO<Y70> 180X40 		1-72498-019-0 01 1 0006-0006 ●
530 SEAL; HARNESS
ELEC OUTLET 12V<TAW> 180X40 		1-72498-019-1 01 1 0007- ●
530 SEAL; HARNESS
LAMPS FOUR ROOF MARKER<PJ5> 207X55 		1-73317-438-0 02 1 0005- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
