◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CXM ▶ 10669 - CXM/CXZ LHD ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-01 - LAMP; FRONT AND FRONT SIDE ▶
8-01 — LAMP; FRONT AND FRONT SIDE (#3448) — 156 parça
çizim 36101
79 82 80 84 83 70 67 68 68 68 76 78 75 60 75
BalonParca AdiParca NoAdetTipApplied Date A B C
60 LAMP ASM; FRT COMB 1-82210-163-0 01 1 9002-9306 ● ● ●
60 LAMP ASM; FRT COMB 1-82210-164-0 01 1 9002-9306 ● ● ●
60 LAMP ASM; FRT COMB
DECAL ISUZU FRONT PANEL<TAM> 		1-82210-190-0 01 1 9307- ● ● ●
60 LAMP ASM; FRT COMB
DECAL ISUZU FRONT PANEL<TAM> 		1-82210-189-0 01 1 9307- ● ● ●
60 LAMP ASM; FRT COMB
EXC. DECAL ISUZU FRONT PANEL<TAM> 		1-82210-163-0 01 1 9307-9509 ● ● ●
60 LAMP ASM; FRT COMB
EXC. DECAL ISUZU FRONT PANEL<TAM> 		1-82210-163-0 01 1 9510- ●
60 LAMP ASM; FRT COMB
EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), DECAL ISUZU FRONT PANEL<TAM>,CHINA EQUIPMENT(YT2) 		1-82210-163-0 01 1 9510- ● ●
60 LAMP ASM; FRT COMB
EXC. DECAL ISUZU FRONT PANEL<TAM> 		1-82210-164-0 01 1 9307-9509 ● ● ●
60 LAMP ASM; FRT COMB
EXC. DECAL ISUZU FRONT PANEL<TAM> 		1-82210-164-0 01 1 9510- ●
60 LAMP ASM; FRT COMB
EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), DECAL ISUZU FRONT PANEL<TAM>,CHINA EQUIPMENT(YT2) 		1-82210-164-0 01 1 9510- ● ●
60 LAMP ASM; FRT COMB
CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINAEQUIPMENT(YT2) EXC. DECAL ISUZU FRONT PANEL<TAM> 		1-82210-166-0 01 1 9510- ● ●
60 LAMP ASM; FRT COMB
CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINAEQUIPMENT(YT2) EXC. DECAL ISUZU FRONT PANEL<TAM> 		1-82210-165-0 01 1 9510- ● ●
67 GASKET; FRT COMB LAMP 1-82216-010-0 01 1 9002-9306 ● ● ●
67 GASKET; FRT COMB LAMP 1-82216-009-0 01 1 9002-9306 ● ● ●
67 GASKET; FRT COMB LAMP
DECAL ISUZU FRONT PANEL<TAM> 		1-82216-030-0 01 1 9307- ● ● ●
67 GASKET; FRT COMB LAMP
DECAL ISUZU FRONT PANEL<TAM> 		1-82216-029-0 01 1 9307- ● ● ●
67 GASKET; FRT COMB LAMP
EXC. DECAL ISUZU FRONT PANEL<TAM> 		1-82216-010-0 01 1 9307- ● ● ●
67 GASKET; FRT COMB LAMP
EXC. DECAL ISUZU FRONT PANEL<TAM> 		1-82216-009-0 01 1 9307- ● ● ●
68 BULB; FRT COMB LAMP
(A) 24V 25W 		9-82691-347-0 04 1 9002-9509 ● ● ●
68 BULB; FRT COMB LAMP
(A) 24V 25W 		9-82691-347-0 04 1 9510- ●
68 BULB; FRT COMB LAMP
EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2) (A) 24V 25W 		9-82691-347-0 04 1 9510- ● ●
68 BULB; FRT COMB LAMP
(B) 24V 3W 		9-82691-603-0 02 1 9002-9509 ● ● ●
68 BULB; FRT COMB LAMP
(B) 24V 3W 		9-82691-603-0 02 1 9510- ●
68 BULB; FRT COMB LAMP
EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2) (B) 24V 3W 		9-82691-603-0 02 1 9510- ● ●
68 BULB; FRT COMB LAMP
(C) 24V 10/4W 		9-82691-607-0 02 1 9002-9509 ● ● ●
68 BULB; FRT COMB LAMP
(C) 24V 10/4W 		9-82691-607-0 02 1 9510- ●
68 BULB; FRT COMB LAMP
EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2) (C) 24V 10/4W 		9-82691-607-0 02 1 9510- ● ●
68 BULB; FRT COMB LAMP
CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINAEQUIPMENT(YT2) EXC. DECAL ISUZU FRONT PANEL<TAM> (A) 24V 21W 		1-82194-036-0 04 1 9510- ● ●
68 BULB; FRT COMB LAMP
CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINAEQUIPMENT(YT2) EXC. DECAL ISUZU FRONT PANEL<TAM> (B) 24V 5W 		1-82194-039-0 02 1 9510- ● ●
70 GROMMET; SCREW,FRT COMB LAMP
EXC. DECAL ISUZU FRONT PANEL<TAM> 		8-94279-039-0 08 1 9002- ● ● ●
75 SCREW; FRT COMB LAMP
(A) 		1-82219-001-0 08 1 9002- ● ● ●
75 SCREW; FRT COMB LAMP
(B) 		1-82219-002-0 04 1 9002- ● ● ●
76 LENS; FRT COMB LAMP 1-82215-038-0 01 1 9002- ● ● ●
76 LENS; FRT COMB LAMP 1-82215-037-0 01 1 9002- ● ● ●
78 LENS ASM; FRT COMB 1-82215-028-0 01 1 9002-9509 ● ● ●
78 LENS ASM; FRT COMB 1-82215-028-0 01 1 9510- ●
78 LENS ASM; FRT COMB
EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2) 		1-82215-028-0 01 1 9510- ● ●
78 LENS ASM; FRT COMB 1-82215-029-0 01 1 9002-9509 ● ● ●
78 LENS ASM; FRT COMB 1-82215-029-0 01 1 9510- ●
78 LENS ASM; FRT COMB
EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2) 		1-82215-029-0 01 1 9510- ● ●
78 LENS ASM; FRT COMB
CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINAEQUIPMENT(YT2) EXC. DECAL ISUZU FRONT PANEL<TAM> 		1-82215-034-0 01 1 9510- ● ●
78 LENS ASM; FRT COMB
CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINAEQUIPMENT(YT2) EXC. DECAL ISUZU FRONT PANEL<TAM> 		1-82215-035-0 01 1 9510- ● ●
79 LAMP; MARKER,ROOF
MARKER LAMP THREE AMBER<WD9> 		1-82210-123-0 03 1 9002- ● ● ●
80 BULB; MARKER LAMP
MARKER LAMP THREE AMBER<WD9> 24V 12W 		1-82194-004-0 03 1 9002- ● ● ●
82 SCREW; MARKER LAMP
MARKER LAMP THREE AMBER<WD9> 		1-82259-004-0 06 1 9002- ● ● ●
83 LENS; MARKER LAMP
MARKER LAMP THREE AMBER<WD9> 		1-82215-036-0 03 1 9002- ● ● ●
84 GASKET; MARKER LAMP
MARKER LAMP THREE AMBER<WD9> 		1-82256-002-0 03 1 9002- ● ● ●

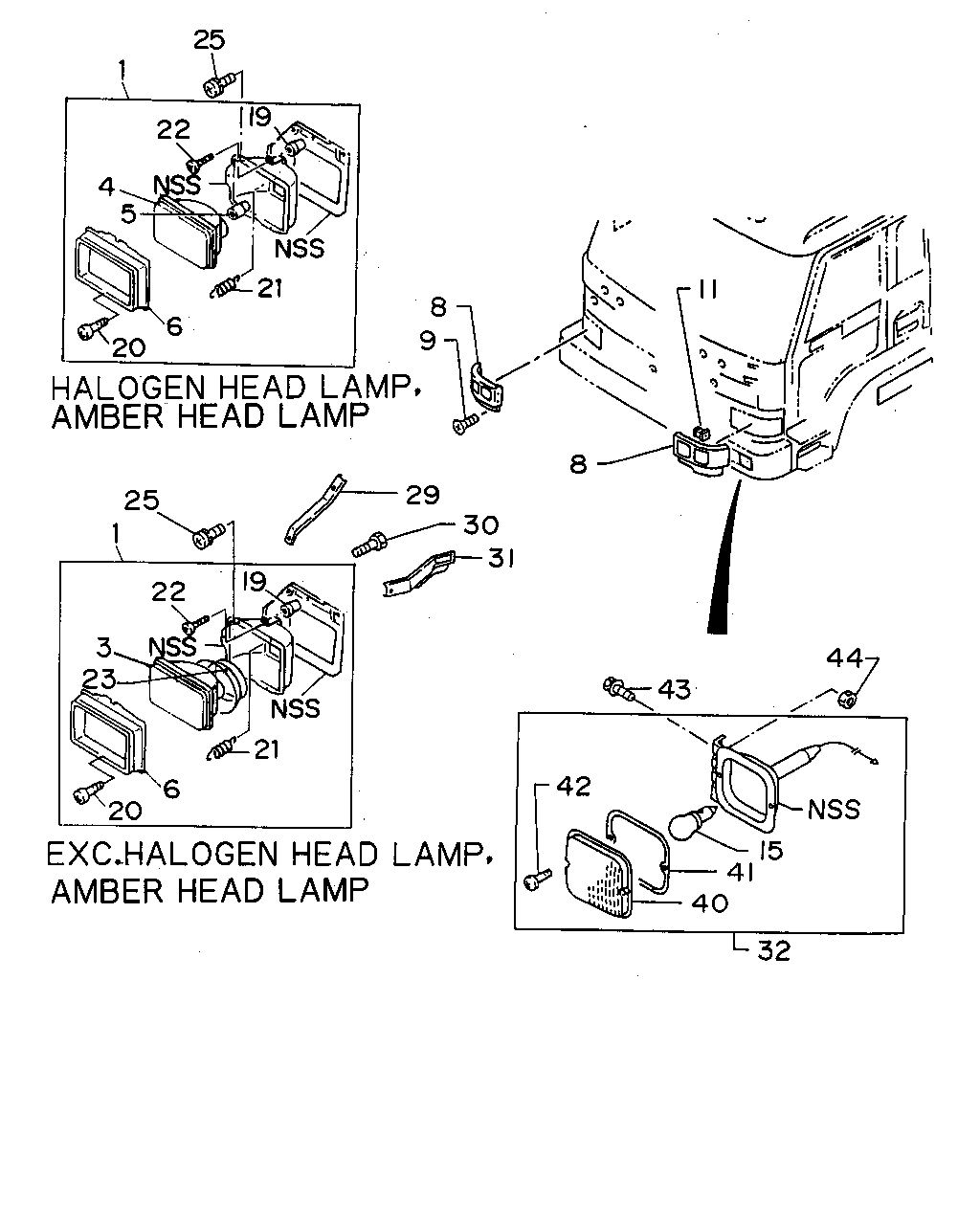

çizim 36106
25 1 22 4 21 5 6 20 8 9 8 11 44 43 31 30 29 25 1 22 19 3 23 21 6 20 42 40 41 15 32 19
BalonParca AdiParca NoAdetTipApplied Date A B C
1 LAMP ASM; HEAD
HALOGEN HEADLAMPS<TT5> INNER 24V70W 		1-82110-257-1 01 1 9002-9509 ● ● ●
1 LAMP ASM; HEAD
HALOGEN HEADLAMPS<TT5> EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2) INNER 24V70W 		1-82110-257-2 01 1 9510- ● ● ●
1 LAMP ASM; HEAD
CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINAEQUIPMENT(YT2) INNER 24V70W 		1-82110-257-2 01 1 9510- ● ●
1 LAMP ASM; HEAD
HALOGEN HEADLAMPS<TT5> OUTER 24V75/70W 		1-82110-261-1 01 1 9002-9509 ● ● ●
1 LAMP ASM; HEAD
HALOGEN HEADLAMPS<TT5> OUTER 24V75/70W 		1-82110-261-2 01 1 9510- ●
1 LAMP ASM; HEAD
CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINAEQUIPMENT(YT2) OUTER 24V75/70W 		1-82110-261-2 01 1 9510- ● ●
1 LAMP ASM; HEAD
HALOGEN HEADLAMPS<TT5> EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2) OUTER 24V75/70W 		1-82110-261-2 01 1 9510- ● ●
1 LAMP ASM; HEAD
HALOGEN HEADLAMPS<TT5> INNER 24V70W 		1-82110-256-1 01 1 9002-9509 ● ● ●
1 LAMP ASM; HEAD
HALOGEN HEADLAMPS<TT5> EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2) INNER 24V70W 		1-82110-256-2 01 1 9510- ● ● ●
1 LAMP ASM; HEAD
CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINAEQUIPMENT(YT2) INNER 24V70W 		1-82110-256-2 01 1 9510- ● ●
1 LAMP ASM; HEAD
HALOGEN HEADLAMPS<TT5> OUTER 24V75/70W 		1-82110-259-1 01 1 9002-9509 ● ● ●
1 LAMP ASM; HEAD
HALOGEN HEADLAMPS<TT5> OUTER 24V75/70W 		1-82110-259-2 01 1 9510- ●
1 LAMP ASM; HEAD
CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINAEQUIPMENT(YT2) OUTER 24V75/70W 		1-82110-259-2 01 1 9510- ● ●
1 LAMP ASM; HEAD
HALOGEN HEADLAMPS<TT5> EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2) OUTER 24V75/70W 		1-82110-259-2 01 1 9510- ● ●
1 LAMP ASM; HEAD
EXC. HALOGEN HEADLAMPS<TT5>,AMBER HEADLAMPS<T75> INNER 24V55W 		1-82110-251-2 01 1 9002-9509 ● ● ●
1 LAMP ASM; HEAD
EXC. HALOGEN HEADLAMPS<TT5>,AMBER HEADLAMPS<T75> INNER 24V55W 		1-82110-251-3 01 1 9510- ●
1 LAMP ASM; HEAD
EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), HALOGEN HEADLAMPS<TT5>,AMBER HEADLAMPS<T75>, CHINAEQUIPMENT(YT2) INNER 24V55W 		1-82110-251-3 01 1 9510- ● ●
1 LAMP ASM; HEAD
EXC. HALOGEN HEADLAMPS<TT5>,AMBER HEADLAMPS<T75> OUTER 24V50/65W 		1-82110-255-3 01 1 9002-9509 ● ● ●
1 LAMP ASM; HEAD
EXC. HALOGEN HEADLAMPS<TT5>,AMBER HEADLAMPS<T75> OUTER 24V50/65W 		1-82110-255-4 01 1 9510- ●
1 LAMP ASM; HEAD
EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), HALOGEN HEADLAMPS<TT5>,AMBER HEADLAMPS<T75>, CHINAEQUIPMENT(YT2) OUTER 24V50/65W 		1-82110-255-4 01 1 9510- ● ●
1 LAMP ASM; HEAD
EXC. HALOGEN HEADLAMPS<TT5>,AMBER HEADLAMPS<T75> INNER 24V55W 		1-82110-250-2 01 1 9002-9509 ● ● ●
1 LAMP ASM; HEAD
EXC. HALOGEN HEADLAMPS<TT5>,AMBER HEADLAMPS<T75> INNER 24V55W 		1-82110-250-3 01 1 9510- ●
1 LAMP ASM; HEAD
EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), HALOGEN HEADLAMPS<TT5>,AMBER HEADLAMPS<T75>, CHINAEQUIPMENT(YT2) INNER 24V55W 		1-82110-250-3 01 1 9510- ● ●
1 LAMP ASM; HEAD
EXC. HALOGEN HEADLAMPS<TT5>,AMBER HEADLAMPS<T75> OUTER 24V50/65W 		1-82110-253-3 01 1 9002-9509 ● ● ●
1 LAMP ASM; HEAD
EXC. HALOGEN HEADLAMPS<TT5>,AMBER HEADLAMPS<T75> OUTER 24V50/65W 		1-82110-253-4 01 1 9510- ●
1 LAMP ASM; HEAD
EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), HALOGEN HEADLAMPS<TT5>,AMBER HEADLAMPS<T75>, CHINAEQUIPMENT(YT2) OUTER 24V50/65W 		1-82110-253-4 01 1 9510- ● ●
1 LAMP ASM; HEAD
AMBER HEADLAMPS<T75> INNER 24V55/50W 		1-82110-263-1 01 1 9002-9509 ● ●
1 LAMP ASM; HEAD
AMBER HEADLAMPS<T75> EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2) INNER 24V55/50W 		1-82110-263-2 01 1 9510- ● ●
1 LAMP ASM; HEAD
AMBER HEADLAMPS<T75> OUTER 24V55/50W 		1-82110-265-1 01 1 9002-9509 ● ●
1 LAMP ASM; HEAD
AMBER HEADLAMPS<T75> EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2) OUTER 24V55/50W 		1-82110-265-2 01 1 9510- ● ●
1 LAMP ASM; HEAD
AMBER HEADLAMPS<T75> INNER 24V55/50W 		1-82110-262-1 01 1 9002-9509 ● ●
1 LAMP ASM; HEAD
AMBER HEADLAMPS<T75> EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2) INNER 24V55/50W 		1-82110-262-2 01 1 9510- ● ●
1 LAMP ASM; HEAD
AMBER HEADLAMPS<T75> OUTER 24V55/50W 		1-82110-264-1 01 1 9002-9509 ● ●
1 LAMP ASM; HEAD
AMBER HEADLAMPS<T75> EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2) OUTER 24V55/50W 		1-82110-264-2 01 1 9510- ● ●
3 SEALED BEAM; HEADLAMP
EXC. HALOGEN HEADLAMPS<TT5>,AMBER HEADLAMPS<T75> INNER 24V55W 		1-82191-023-0 02 1 9002-9509 ● ● ●
3 SEALED BEAM; HEADLAMP
EXC. HALOGEN HEADLAMPS<TT5>,AMBER HEADLAMPS<T75> INNER 24V55W 		1-82191-023-0 02 1 9510- ●
3 SEALED BEAM; HEADLAMP
EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), HALOGEN HEADLAMPS<TT5>,AMBER HEADLAMPS<T75>, CHINAEQUIPMENT(YT2) INNER 24V55W 		1-82191-023-0 02 1 9510- ● ●
3 SEALED BEAM; HEADLAMP
EXC. HALOGEN HEADLAMPS<TT5>,AMBER HEADLAMPS<T75> OUTER 24V50/65W 		1-82191-024-0 02 1 9002-9509 ● ● ●
3 SEALED BEAM; HEADLAMP
EXC. HALOGEN HEADLAMPS<TT5>,AMBER HEADLAMPS<T75> OUTER 24V50/65W 		1-82191-024-0 02 1 9510- ●
3 SEALED BEAM; HEADLAMP
EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), HALOGEN HEADLAMPS<TT5>,AMBER HEADLAMPS<T75>, CHINAEQUIPMENT(YT2) OUTER 24V50/65W 		1-82191-024-0 02 1 9510- ● ●
4 HEADLAMP UNIT
HALOGEN HEADLAMPS<TT5> INNER 24V70W 		1-82191-032-0 02 1 9002-9509 ● ● ●
4 HEADLAMP UNIT
HALOGEN HEADLAMPS<TT5> EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2) INNER 24V70W 		1-82191-032-0 02 1 9510- ● ● ●
4 HEADLAMP UNIT
CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINAEQUIPMENT(YT2) INNER 24V70W 		1-82191-032-0 02 1 9510- ● ●
4 HEADLAMP UNIT
HALOGEN HEADLAMPS<TT5> OUTER 24V75/70W 		1-82191-037-0 02 1 9002-9509 ● ● ●
4 HEADLAMP UNIT
HALOGEN HEADLAMPS<TT5> OUTER 24V75/70W 		1-82191-037-0 02 1 9510- ●
4 HEADLAMP UNIT
CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINAEQUIPMENT(YT2) OUTER 24V75/70W 		1-82191-037-0 02 1 9510- ● ●
4 HEADLAMP UNIT
HALOGEN HEADLAMPS<TT5> EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2) OUTER 24V75/70W 		1-82191-037-0 02 1 9510- ● ●
4 HEADLAMP UNIT
AMBER HEADLAMPS<T75> INNER 24V55/50W 		8-94101-736-0 02 1 9002-9509 ● ●
4 HEADLAMP UNIT
AMBER HEADLAMPS<T75> EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2) INNER 24V55/50W 		8-94101-736-0 02 1 9510- ● ●
4 HEADLAMP UNIT
AMBER HEADLAMPS<T75> OUTER 24V55/50W 		8-94101-742-0 02 1 9002-9509 ● ●
4 HEADLAMP UNIT
AMBER HEADLAMPS<T75> EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2) OUTER 24V55/50W 		8-94101-742-0 02 1 9510- ● ●
5 BULB; HEADLAMP
HALOGEN HEADLAMPS<TT5> 24V 75/70W 		1-82193-006-0 02 1 9002-9509 ● ● ●
5 BULB; HEADLAMP
HALOGEN HEADLAMPS<TT5> 24V 75/70W 		1-82193-006-0 02 1 9510- ●
5 BULB; HEADLAMP
CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINAEQUIPMENT(YT2) 24V 75/70W 		1-82193-006-0 02 1 9510- ● ●
5 BULB; HEADLAMP
HALOGEN HEADLAMPS<TT5> EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2) 24V 75/70W 		1-82193-006-0 02 1 9510- ● ●
5 BULB; HEADLAMP
HALOGEN HEADLAMPS<TT5> 24V 70W 		1-82193-007-0 02 1 9002-9509 ● ● ●
5 BULB; HEADLAMP
HALOGEN HEADLAMPS<TT5> EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2) 24V 70W 		1-82193-007-0 02 1 9510- ● ● ●
5 BULB; HEADLAMP
CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINAEQUIPMENT(YT2) 24V 70W 		1-82193-007-0 02 1 9510- ● ●
5 BULB; HEADLAMP
AMBER HEADLAMPS<T75> 24V 55/50W 		5-82193-004-0 04 1 9002-9509 ● ●
5 BULB; HEADLAMP
AMBER HEADLAMPS<T75> EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2) 24V 55/50W 		5-82193-004-0 04 1 9510- ● ●
6 RIM; HEADLAMP
INNER 24V 70W 		1-82114-018-0 02 1 9002-9509 ● ● ●
6 RIM; HEADLAMP
EXC. AMBER HEADLAMPS<T75> INNER 24V 70W 		1-82114-018-0 02 1 9510- ●
6 RIM; HEADLAMP
INNER 24V 70W 		1-82114-018-0 02 1 9510- ● ●
6 RIM; HEADLAMP
OUTER 24V 75/70W 		1-82114-019-0 02 1 9002-9509 ● ● ●
6 RIM; HEADLAMP
EXC. AMBER HEADLAMPS<T75> OUTER 24V 75/70W 		1-82114-019-0 02 1 9510- ●
6 RIM; HEADLAMP
OUTER 24V 75/70W 		1-82114-019-0 02 1 9510- ● ●
8 RIM; HEADLAMP
HEAD LAMP GUARD<SJC> EXC. TROPICAL ZONE KIT(WB6) 		1-71117-148-0 01 1 9002- ● ● ●
8 RIM; HEADLAMP
HEAD LAMP GUARD<SJC> EXC. TROPICAL ZONE KIT(WB6) 		1-71117-147-0 01 1 9002- ● ● ●
8 RIM; HEADLAMP
EXC. HEAD LAMP GUARD<SJC>,TROPICAL ZONE KIT(WB6) 		1-71117-124-2 01 1 9002- ● ● ●
8 RIM; HEADLAMP
EXC. HEAD LAMP GUARD<SJC>,TROPICAL ZONE KIT(WB6) 		1-71117-123-2 01 1 9002- ● ● ●
8 RIM; HEADLAMP
HEAD LAMP GUARD<SJC> TROPICAL ZONE KIT(WB6) 		1-71117-150-0 01 1 9002- ● ●
8 RIM; HEADLAMP
HEAD LAMP GUARD<SJC> TROPICAL ZONE KIT(WB6) 		1-71117-149-0 01 1 9002- ● ●
8 RIM; HEADLAMP
TROPICAL ZONE KIT(WB6) EXC. HEAD LAMP GUARD<SJC> PLATED 		1-71117-126-2 01 1 9002- ● ●
8 RIM; HEADLAMP
TROPICAL ZONE KIT(WB6) EXC. HEAD LAMP GUARD<SJC> PLATED 		1-71117-125-2 01 1 9002- ● ●
9 SCREW; HEADLAMP RIM
M5X20 		1-09164-019-0 08 1 9002- ● ● ●
11 GROMMET; SCREW,HEADLAMP RIM 1-09983-081-0 08 1 9002- ● ● ●
15 BULB; FOG LAMP
24V 40W 		1-82194-024-0 02 1 9002- ● ● ●
19 NUT; HEADLAMP
EXC. HALOGEN HEADLAMPS<TT5>,AMBER HEADLAMPS<T75> 		1-82119-056-0 08 1 9002- ● ● ●
19 NUT; HEADLAMP
AMBER HEADLAMPS<T75> 		1-82119-056-0 08 1 9002-9509 ● ●
19 NUT; HEADLAMP
AMBER HEADLAMPS<T75> EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2) 		1-82119-056-0 08 1 9510- ● ●
20 SCREW; HEADLAMP
EXC. HALOGEN HEADLAMPS<TT5>,AMBER HEADLAMPS<T75> 		1-82119-090-0 16 1 9002-9205 ● ● ●
20 SCREW; HEADLAMP
EXC. HALOGEN HEADLAMPS<TT5>,AMBER HEADLAMPS<T75> 		1-82119-104-0 16 1 9206- ● ● ●
20 SCREW; HEADLAMP
AMBER HEADLAMPS<T75> 		1-82119-090-0 16 1 9002-9205 ● ●
20 SCREW; HEADLAMP
AMBER HEADLAMPS<T75> 		1-82119-104-0 16 1 9206-9509 ● ●
20 SCREW; HEADLAMP
AMBER HEADLAMPS<T75> EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2) 		1-82119-104-0 16 1 9510- ● ●
21 SPRING; ADJ HEADLAMP
EXC. HALOGEN HEADLAMPS<TT5>,AMBER HEADLAMPS<T75> 		1-82119-021-0 04 1 9002- ● ● ●
21 SPRING; ADJ HEADLAMP
AMBER HEADLAMPS<T75> 		1-82119-021-0 04 1 9002-9509 ● ●
21 SPRING; ADJ HEADLAMP
AMBER HEADLAMPS<T75> EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2) 		1-82119-021-0 04 1 9510- ● ●
22 SCREW; ADJ,HEADLAMP
EXC. HALOGEN HEADLAMPS<TT5>,AMBER HEADLAMPS<T75> 		1-82119-030-0 08 1 9002-9205 ● ● ●
22 SCREW; ADJ,HEADLAMP
EXC. HALOGEN HEADLAMPS<TT5>,AMBER HEADLAMPS<T75> 		1-82119-095-0 08 1 9206- ● ● ●
22 SCREW; ADJ,HEADLAMP
AMBER HEADLAMPS<T75> 		1-82119-030-0 08 1 9002-9205 ● ●
22 SCREW; ADJ,HEADLAMP
AMBER HEADLAMPS<T75> 		1-82119-095-0 08 1 9206-9509 ● ●
22 SCREW; ADJ,HEADLAMP
AMBER HEADLAMPS<T75> EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2) 		1-82119-095-0 08 1 9510- ● ●
23 COVER; BULB,HEADLAMP
EXC. HALOGEN HEADLAMPS<TT5>,AMBER HEADLAMPS<T75> 		1-82119-013-0 04 1 9002-9509 ● ● ●
23 COVER; BULB,HEADLAMP
EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), HALOGEN HEADLAMPS<TT5>,AMBER HEADLAMPS<T75>, CHINAEQUIPMENT(YT2) 		1-82119-013-0 04 1 9510- ● ● ●
25 SCREW; LAMP
M5X12 W/LK&PL WASHER 		1-09981-464-0 16 1 9002- ● ● ●
29 STAY ASM; HD LAMP PANEL FRT 1-65671-005-0 02 1 9002- ● ● ●
30 BOLT; STAY
M6X16 W/LK&PL WASHER 		1-09980-492-0 06 1 9002- ● ● ●
30 BOLT; STAY
M6X20 W/LK&PL WASHER 		1-09980-493-0 02 1 9002- ● ● ●
31 STAY ASM; HD LAMP PANEL RR 1-65670-731-2 01 1 9002- ● ● ●
31 STAY ASM; HD LAMP PANEL RR 1-65670-730-2 01 1 9002- ● ● ●
32 LAMP ASM; FOG 1-82110-296-0 01 1 9002- ● ● ●
32 LAMP ASM; FOG 1-82110-295-0 01 1 9002- ● ● ●
40 LENS; FOG LAMP 1-82235-007-0 02 1 9002- ● ● ●
41 GASKET; LENS,FOG LAMP 1-82236-006-0 02 1 9002- ● ● ●
42 SCREW; LENS,FOG LAMP 1-82119-058-0 04 1 9002- ● ● ●
43 BOLT; FOG LAMP
M8X20 W/LK&PL WASHER 		9-01960-820-0 04 1 9002-9204 ● ● ●
43 BOLT; FOG LAMP
M8X20 W/LK&PL WASHER 		0-50140-820-0 04 1 9205- ● ● ●
44 NUT; FOG LAMP
M8 FLANGE 		5-09440-005-0 04 1 9002- ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
