◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FSS ▶ 10716 - FSS/FTS-RHD ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-01 - LAMP; FRONT AND FRONT SIDE ▶
8-01 — LAMP; FRONT AND FRONT SIDE (#34478) — 968 parça

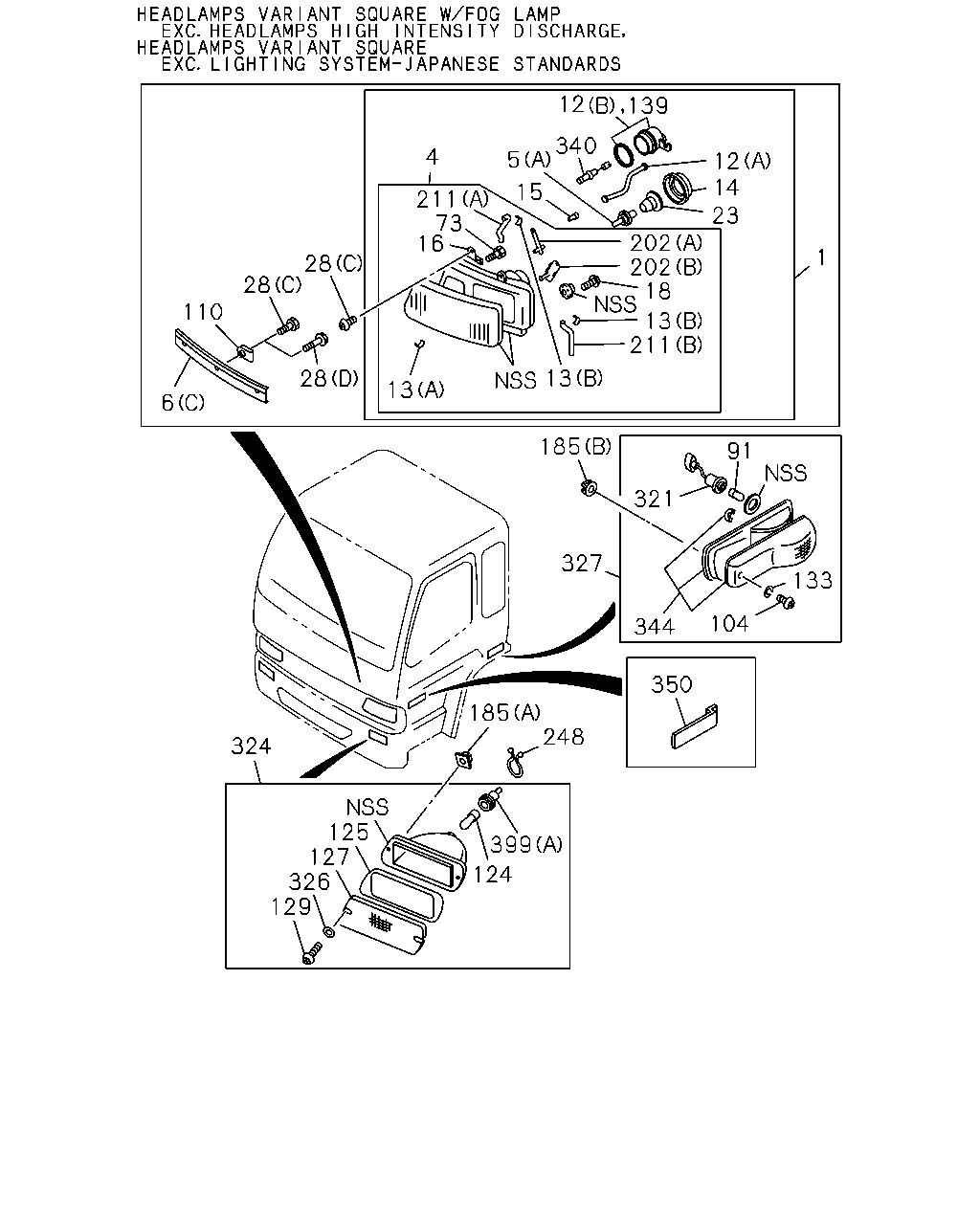

çizim 152976
139 340 4 5 12 14 23 202 202 18 15 211 73 16 1 28 28 110 13 211 13 28 13 6 185 91 321 133 327 104 344 350 185 248 324 125 127 326 129 399 124
BalonParca AdiParca NoAdetTipApplied Date A B C D E
1 LAMP ASM; HEAD
LIGHTING SYSTEM-JAPANESE STANDARDS<JBZ> HEADLAMPS VARIANT SQUARE<TEA> 		1-86830-379-1 01 1 0602- ●
1 LAMP ASM; HEAD
LIGHTING SYSTEM-JAPANESE STANDARDS<JBZ> HEADLAMPS VARIANT SQUARE<TEA> 		1-86830-380-1 01 1 0602- ●
1 LAMP ASM; HEAD
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> 		1-82110-424-3 01 1 0212-0509 ●
1 LAMP ASM; HEAD
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> 		8-97609-425-0 01 1 0510-0510 ●
1 LAMP ASM; HEAD
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> 		8-98028-865-1 01 1 0510- ●
1 LAMP ASM; HEAD
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> 		1-82110-425-3 01 1 0212-0509 ●
1 LAMP ASM; HEAD
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> 		8-97609-426-0 01 1 0510-0510 ●
1 LAMP ASM; HEAD
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> 		8-98028-866-1 01 1 0510- ●
1 LAMP ASM; HEAD
HEADLAMPS VARIANT SQUARE<TEA> 		1-86830-122-3 01 1 9604-0004 ● ● ● ●
1 LAMP ASM; HEAD
HEADLAMPS VARIANT SQUARE<TEA> 		1-86830-122-4 01 1 0005-0601 ● ● ●
1 LAMP ASM; HEAD
HEADLAMPS VARIANT SQUARE<TEA> 		1-86830-122-4 01 1 0602- ● ●
1 LAMP ASM; HEAD
HEADLAMPS VARIANT SQUARE<TEA> EXC. LIGHTING SYSTEM-JAPANESE STANDARDS<JBZ> 		1-86830-122-4 01 1 0602- ●
1 LAMP ASM; HEAD
HEADLAMPS VARIANT SQUARE<TEA> 		1-86830-121-3 01 1 9604-0004 ● ● ● ●
1 LAMP ASM; HEAD
HEADLAMPS VARIANT SQUARE<TEA> 		1-86830-121-4 01 1 0005-0601 ● ● ●
1 LAMP ASM; HEAD
HEADLAMPS VARIANT SQUARE<TEA> 		1-86830-121-4 01 1 0602- ● ●
1 LAMP ASM; HEAD
HEADLAMPS VARIANT SQUARE<TEA> EXC. LIGHTING SYSTEM-JAPANESE STANDARDS<JBZ> 		1-86830-121-4 01 1 0602- ●
1 LAMP ASM; HEAD
HEADLAMPS RECTANGULAR<TR4> 		1-86830-169-1 01 1 9604-0407 ● ● ●
1 LAMP ASM; HEAD
HEADLAMPS RECTANGULAR<TR4> 		1-86830-168-1 01 1 9604-0407 ● ● ●
1 LAMP ASM; HEAD
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> 		1-86830-178-5 01 1 9604-0004 ●
1 LAMP ASM; HEAD
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> 		1-86830-178-6 01 1 0005-0210 ● ● ●
1 LAMP ASM; HEAD
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> 		1-86830-359-0 01 1 0211-0211 ● ● ●
1 LAMP ASM; HEAD
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> 		1-86830-359-0 01 1 0212- ● ●
1 LAMP ASM; HEAD
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> EXC. HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> 		1-86830-359-0 01 1 0212- ●
1 LAMP ASM; HEAD
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> 		1-86830-177-5 01 1 9604-0004 ●
1 LAMP ASM; HEAD
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> 		1-86830-177-6 01 1 0005-0210 ● ● ●
1 LAMP ASM; HEAD
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> 		1-86830-358-0 01 1 0211-0211 ● ● ●
1 LAMP ASM; HEAD
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> 		1-86830-358-0 01 1 0212- ● ●
1 LAMP ASM; HEAD
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> EXC. HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> 		1-86830-358-0 01 1 0212- ●
4 HEADLAMP UNIT
LIGHTING SYSTEM-JAPANESE STANDARDS<JBZ> HEADLAMPS VARIANT SQUARE<TEA> 		1-82119-222-0 01 1 0602- ●
4 HEADLAMP UNIT
LIGHTING SYSTEM-JAPANESE STANDARDS<JBZ> HEADLAMPS VARIANT SQUARE<TEA> 		1-82119-223-0 01 1 0602- ●
4 HEADLAMP UNIT
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> 		1-82119-177-1 01 1 0212- ●
4 HEADLAMP UNIT
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> 		1-82119-178-1 01 1 0212- ●
4 HEADLAMP UNIT
HEADLAMPS VARIANT SQUARE<TEA> 		1-86830-194-1 01 1 9604-0004 ● ● ● ●
4 HEADLAMP UNIT
HEADLAMPS VARIANT SQUARE<TEA> 		1-86830-194-1 01 1 0005-0601 ● ● ●
4 HEADLAMP UNIT
HEADLAMPS VARIANT SQUARE<TEA> 		1-86830-194-1 01 1 0602- ● ●
4 HEADLAMP UNIT
HEADLAMPS VARIANT SQUARE<TEA> EXC. LIGHTING SYSTEM-JAPANESE STANDARDS<JBZ> 		1-86830-194-1 01 1 0602- ●
4 HEADLAMP UNIT
HEADLAMPS VARIANT SQUARE<TEA> 		1-86830-193-1 01 1 9604-0004 ● ● ● ●
4 HEADLAMP UNIT
HEADLAMPS VARIANT SQUARE<TEA> 		1-86830-193-1 01 1 0005-0601 ● ● ●
4 HEADLAMP UNIT
HEADLAMPS VARIANT SQUARE<TEA> 		1-86830-193-1 01 1 0602- ● ●
4 HEADLAMP UNIT
HEADLAMPS VARIANT SQUARE<TEA> EXC. LIGHTING SYSTEM-JAPANESE STANDARDS<JBZ> 		1-86830-193-1 01 1 0602- ●
4 HEADLAMP UNIT
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> 		1-86830-190-1 01 1 9604-0004 ●
4 HEADLAMP UNIT
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> 		1-86830-190-1 01 1 0005-0210 ● ● ●
4 HEADLAMP UNIT
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> 		1-82119-200-0 01 1 0211-0211 ● ● ●
4 HEADLAMP UNIT
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> 		1-82119-200-0 01 1 0212- ● ●
4 HEADLAMP UNIT
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> EXC. HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> 		1-82119-200-0 01 1 0212- ●
4 HEADLAMP UNIT
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> 		1-86830-189-1 01 1 9604-0004 ●
4 HEADLAMP UNIT
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> 		1-86830-189-1 01 1 0005-0210 ● ● ●
4 HEADLAMP UNIT
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> 		1-82119-199-0 01 1 0211-0211 ● ● ●
4 HEADLAMP UNIT
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> 		1-82119-199-0 01 1 0212- ● ●
4 HEADLAMP UNIT
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> EXC. HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> 		1-82119-199-0 01 1 0212- ●
5 BULB; HEADLAMP
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> (B) 85V 35W 		1-82194-092-0 02 1 0212- ●
5 BULB; HEADLAMP
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> (C) 24V 70W 		8-94405-658-0 02 1 0212- ●
5 BULB; HEADLAMP
HEADLAMPS VARIANT SQUARE<TEA> (A) 24V 75/70W 		8-94405-657-0 02 1 9712-0004 ● ● ● ●
5 BULB; HEADLAMP
HEADLAMPS VARIANT SQUARE<TEA> (A) 24V 75/70W 		8-94405-657-0 02 1 0005-0601 ● ● ●
5 BULB; HEADLAMP
HEADLAMPS VARIANT SQUARE<TEA> (A) 24V 75/70W 		8-94405-657-0 02 1 0602- ● ●
5 BULB; HEADLAMP
HEADLAMPS VARIANT SQUARE<TEA> EXC. LIGHTING SYSTEM-JAPANESE STANDARDS<JBZ> (A) 24V 75/70W 		8-94405-657-0 02 1 0602- ●
5 BULB; HEADLAMP
HEADLAMPS VARIANT SQUARE<TEA> (A) 24V 75/70W 		1-82194-063-0 02 1 9604-9711 ● ● ●
5 BULB; HEADLAMP
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANTSQUARE W/FOG LAMP<TEB> (A) 24V 75/70W 		1-82194-063-0 02 1 9604-9711 ●
5 BULB; HEADLAMP
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> (A) 24V 75/70W 		1-82194-063-0 02 1 9712-0004 ●
5 BULB; HEADLAMP
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> (A) 24V 75/70W 		1-82194-063-0 02 1 0005-0211 ● ● ●
5 BULB; HEADLAMP
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> (A) 24V 75/70W 		1-82194-063-0 02 1 0212-0601 ● ●
5 BULB; HEADLAMP
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> EXC. HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> (A) 24V 75/70W 		1-82194-063-0 02 1 0212-0601 ●
5 BULB; HEADLAMP
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> (A) 24V 75/70W 		1-82194-063-0 02 1 0602- ● ●
5 BULB; HEADLAMP
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> EXC. HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> (A) 24V 75/70W 		1-82194-063-0 02 1 0602- ●
5 BULB; HEADLAMP
LIGHTING SYSTEM-JAPANESE STANDARDS<JBZ> HEADLAMPS VARIANT SQUARE<TEA> (A) 24V 75/70W 		1-82194-063-0 02 1 0602- ●
6 RIM; HEADLAMP
WEST MALAYSIA EQUIPMENT(SEQ) (C) 		1-71118-805-1 01 1 9804-9911 ●
6 RIM; HEADLAMP
WEST MALAYSIA EQUIPMENT(SEQ) (C) 		1-71118-804-1 01 1 9804-9911 ●
6 RIM; HEADLAMP
HEADLAMPS VARIANT SQUARE<TEA> (D) 		1-86830-006-5 01 1 9604- ● ● ●
6 RIM; HEADLAMP
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANTSQUARE W/FOG LAMP<TEB> (D) 		1-86830-006-5 01 1 9604- ●
6 RIM; HEADLAMP
HEADLAMPS VARIANT SQUARE<TEA> (D) 		1-86830-005-5 01 1 9604- ● ● ●
6 RIM; HEADLAMP
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANTSQUARE W/FOG LAMP<TEB> (D) 		1-86830-005-5 01 1 9604- ●
6 RIM; HEADLAMP
HEADLAMPS RECTANGULAR<TR4> (B) 		8-94165-573-0 04 1 9604-0407 ● ● ●
6 RIM; HEADLAMP
HEADLAMPS RECTANGULAR<TR4> (A) 		1-71118-746-1 01 1 9604-9803 ● ● ●
6 RIM; HEADLAMP
HEADLAMPS RECTANGULAR<TR4> EXC. WEST MALAYSIA EQUIPMENT(SEQ) (A) 		1-71118-745-1 01 1 9804-9911 ● ● ●
6 RIM; HEADLAMP
HEADLAMPS RECTANGULAR<TR4> (A) 		1-71118-745-1 01 1 9912-0407 ● ● ●
6 RIM; HEADLAMP
HEADLAMPS RECTANGULAR<TR4> (A) 		1-71118-745-1 01 1 9604-9803 ● ● ●
6 RIM; HEADLAMP
HEADLAMPS RECTANGULAR<TR4> EXC. WEST MALAYSIA EQUIPMENT(SEQ) (A) 		1-71118-746-1 01 1 9804-9911 ● ● ●
6 RIM; HEADLAMP
HEADLAMPS RECTANGULAR<TR4> (A) 		1-71118-746-1 01 1 9912-0407 ● ● ●
12 HARNESS; HEADLAMP
HEADLAMPS VARIANT SQUARE<TEA> (B) 		1-86830-199-0 02 1 0005- ● ● ●
12 HARNESS; HEADLAMP
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> (A) 		1-82118-013-0 02 1 0212- ●
12 HARNESS; HEADLAMP
HEADLAMPS VARIANT SQUARE<TEA> (B) 		1-86830-199-0 02 1 9604-0004 ● ● ● ●
12 HARNESS; HEADLAMP
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> (A) 		1-86830-145-0 02 1 9604-0004 ●
12 HARNESS; HEADLAMP
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> (A) 		1-86830-145-0 02 1 0005-0211 ● ● ●
12 HARNESS; HEADLAMP
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> (A) 		1-86830-145-0 02 1 0212- ● ●
12 HARNESS; HEADLAMP
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> EXC. HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> (A) 		1-86830-145-0 02 1 0212- ●
13 CLIP; HEADLAMP
LIGHTING SYSTEM-JAPANESE STANDARDS<JBZ> HEADLAMPS VARIANT SQUARE<TEA> (B) 		1-82119-084-0 02 1 0602- ●
13 CLIP; HEADLAMP
HEADLAMPS VARIANT SQUARE<TEA> (B) 		1-82119-084-0 04 1 9604-0004 ● ● ●
13 CLIP; HEADLAMP
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANTSQUARE W/FOG LAMP<TEB> (B) 		1-82119-084-0 04 1 9604-0004 ●
13 CLIP; HEADLAMP
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANTSQUARE W/FOG LAMP<TEB> (B) 		1-82119-084-0 04 1 0005-0601 ● ● ●
13 CLIP; HEADLAMP
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANTSQUARE W/FOG LAMP<TEB> (B) 		1-82119-084-0 04 1 0602- ● ●
13 CLIP; HEADLAMP
HEADLAMPS VARIANT SQUARE<TEA> EXC. LIGHTING SYSTEM-JAPANESE STANDARDS<JBZ> (B) 		1-82119-084-0 04 1 0602- ●
13 CLIP; HEADLAMP
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> (B) 		1-82119-084-0 04 1 0602- ●
13 CLIP; HEADLAMP
HEADLAMPS VARIANT SQUARE<TEA> (A) 		8-94381-588-0 14 1 9604-0004 ● ● ●
13 CLIP; HEADLAMP
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANTSQUARE W/FOG LAMP<TEB> (A) 		8-94381-588-0 14 1 9604-0004 ●
13 CLIP; HEADLAMP
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANTSQUARE W/FOG LAMP<TEB> (A) 		8-94381-588-0 14 1 0005- ● ● ●
14 CAP; BULB,LAMP
HEADLAMPS VARIANT SQUARE<TEA> 		1-86830-148-0 02 1 9604-0004 ● ● ●
14 CAP; BULB,LAMP
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANTSQUARE W/FOG LAMP<TEB> 		1-86830-148-0 02 1 9604-0004 ●
14 CAP; BULB,LAMP
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANTSQUARE W/FOG LAMP<TEB> 		1-86830-148-0 02 1 0005-0211 ● ● ●
14 CAP; BULB,LAMP
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANTSQUARE W/FOG LAMP<TEB> 		1-86830-148-0 02 1 0212- ● ●
14 CAP; BULB,LAMP
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> EXC. HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> 		1-86830-148-0 02 1 0212- ●
14 CAP; BULB,LAMP
HEADLAMPS VARIANT SQUARE<TEA> 		1-86830-148-0 02 1 0212- ●
14 CAP; BULB,LAMP
HEADLAMPS RECTANGULAR<TR4> 		1-82219-030-0 02 1 9609-0407 ● ● ●
15 BULB; FOG LAMP
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> 24V 55W 		1-82194-079-0 02 1 9604-0004 ●
15 BULB; FOG LAMP
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> 24V 55W 		1-82194-079-0 02 1 0005- ● ● ●
16 BRACKET; HEADLAMP
HEADLAMPS VARIANT SQUARE<TEA> 		1-86830-076-0 01 1 9604-0004 ● ● ●
16 BRACKET; HEADLAMP
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANTSQUARE W/FOG LAMP<TEB> 		1-86830-076-0 01 1 9604-0004 ●
16 BRACKET; HEADLAMP
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANTSQUARE W/FOG LAMP<TEB> 		1-86830-076-0 01 1 0005- ● ● ●
16 BRACKET; HEADLAMP
HEADLAMPS VARIANT SQUARE<TEA> 		1-86830-075-0 01 1 9604-0004 ● ● ●
16 BRACKET; HEADLAMP
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANTSQUARE W/FOG LAMP<TEB> 		1-86830-075-0 01 1 9604-0004 ●
16 BRACKET; HEADLAMP
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANTSQUARE W/FOG LAMP<TEB> 		1-86830-075-0 01 1 0005- ● ● ●
18 SCREW; GEAR CASE
HEADLAMPS VARIANT SQUARE<TEA> M4X16 TAPPING 		1-82119-067-0 08 1 9604-0004 ● ● ●
18 SCREW; GEAR CASE
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANTSQUARE W/FOG LAMP<TEB> M4X16 TAPPING 		1-82119-067-0 08 1 9604-0004 ●
18 SCREW; GEAR CASE
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANTSQUARE W/FOG LAMP<TEB> M4X16 TAPPING 		1-82119-067-0 08 1 0005- ● ● ●
23 COVER; BULB,HEADLAMP
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> 		1-82119-150-0 02 1 0212- ●
23 COVER; BULB,HEADLAMP
HEADLAMPS VARIANT SQUARE<TEA> 		1-86830-147-0 02 1 9604-0004 ● ● ●
23 COVER; BULB,HEADLAMP
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANTSQUARE W/FOG LAMP<TEB> 		1-86830-147-0 02 1 9604-0004 ●
23 COVER; BULB,HEADLAMP
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANTSQUARE W/FOG LAMP<TEB> 		1-86830-147-0 02 1 0005-0211 ● ● ●
23 COVER; BULB,HEADLAMP
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANTSQUARE W/FOG LAMP<TEB> 		1-86830-147-0 02 1 0212- ● ●
23 COVER; BULB,HEADLAMP
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> EXC. HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> 		1-86830-147-0 02 1 0212- ●
23 COVER; BULB,HEADLAMP
HEADLAMPS VARIANT SQUARE<TEA> 		1-86830-147-0 02 1 0212- ●
28 BOLT; HEADLAMP
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANTSQUARE W/FOG LAMP<TEB> (D) M6X16 FLANGE 		0-28650-616-0 04 1 0709- ● ● ●
28 BOLT; HEADLAMP
HEADLAMPS VARIANT SQUARE<TEA> (C) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 14 1 9604-0004 ● ● ●
28 BOLT; HEADLAMP
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANTSQUARE W/FOG LAMP<TEB> (C) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 14 1 9604-0004 ●
28 BOLT; HEADLAMP
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANTSQUARE W/FOG LAMP<TEB> (C) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 14 1 0005-0708 ● ● ●

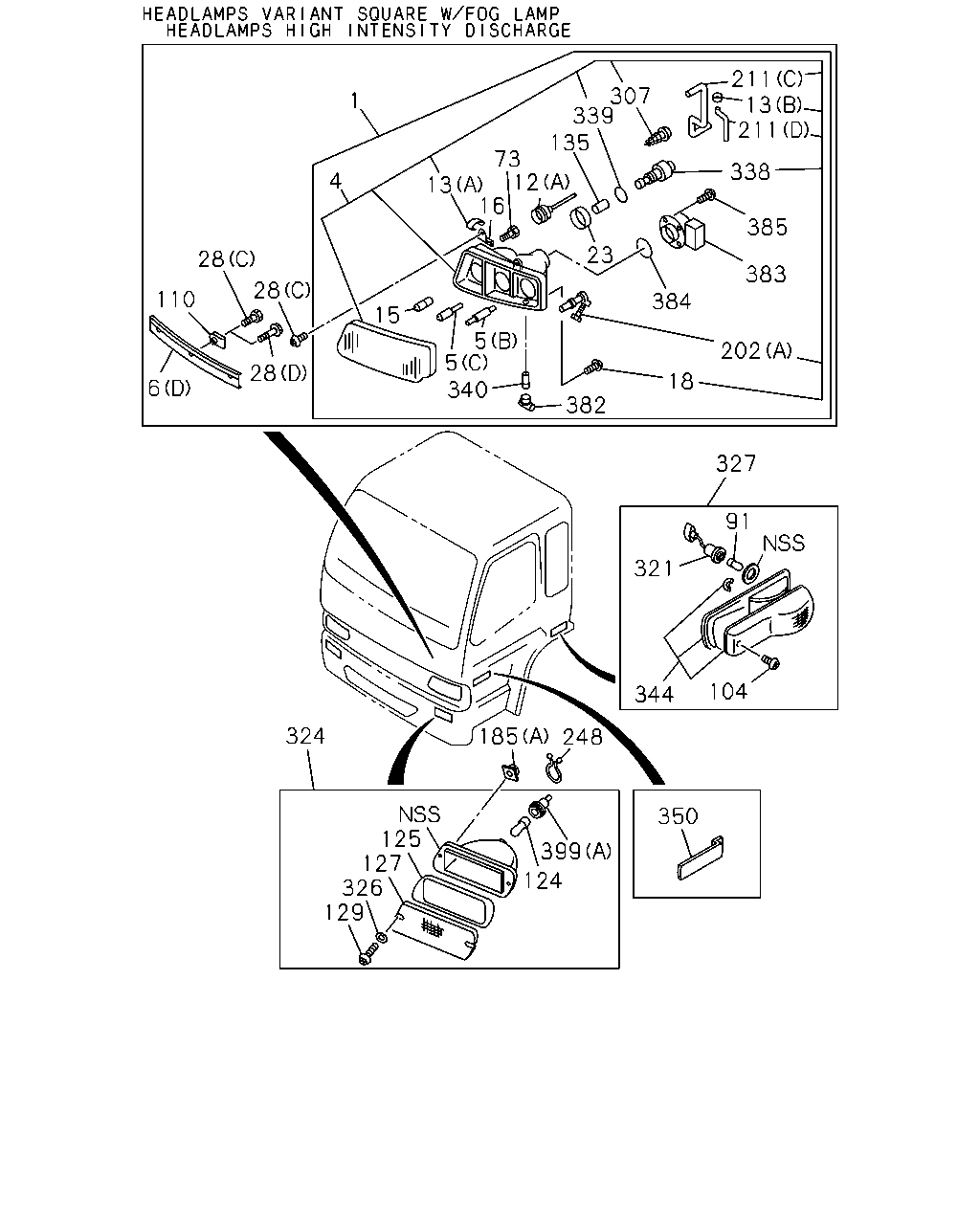

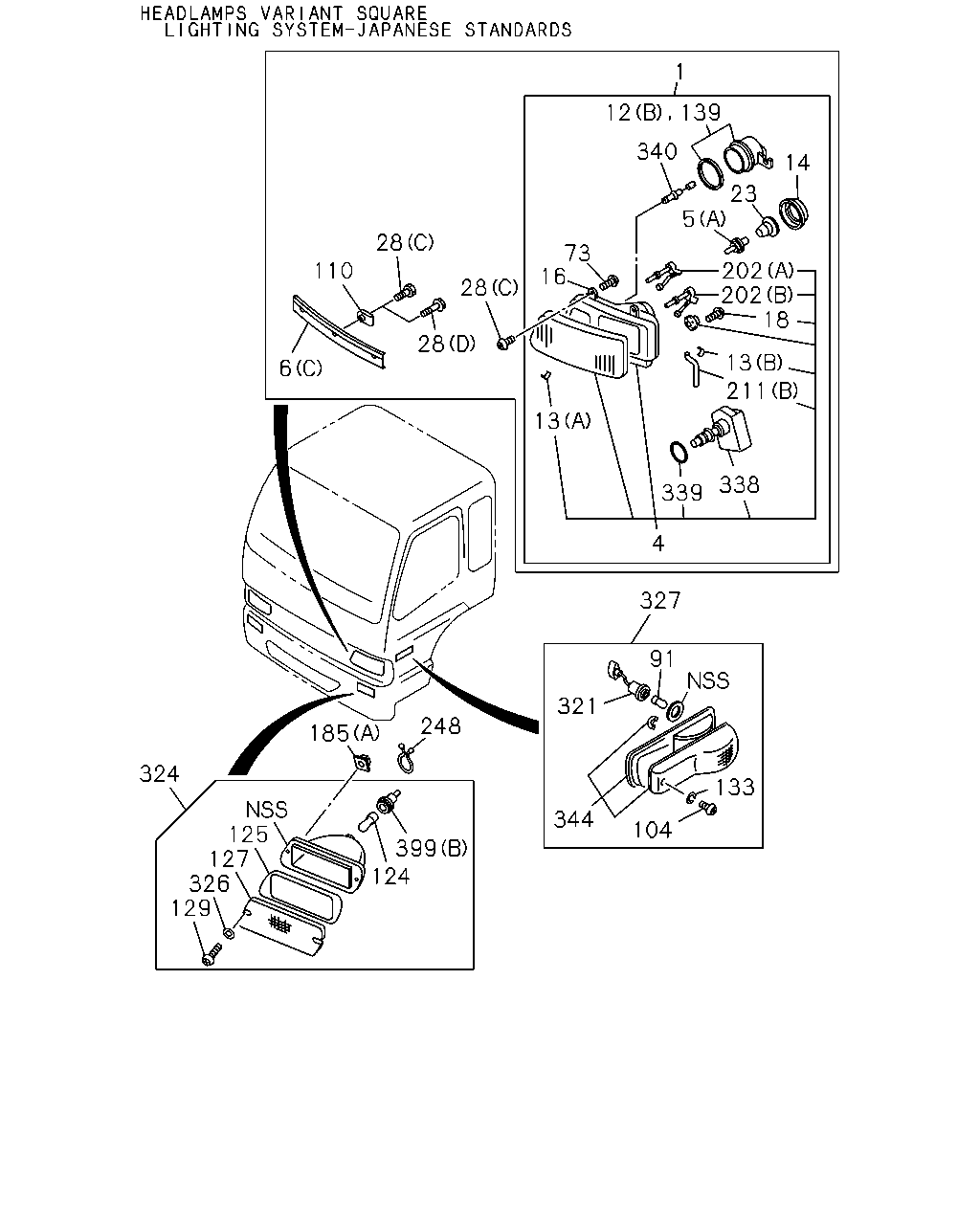

28 BOLT; HEADLAMP
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANTSQUARE W/FOG LAMP<TEB> (C) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 10 1 0709- ● ● ●
28 BOLT; HEADLAMP

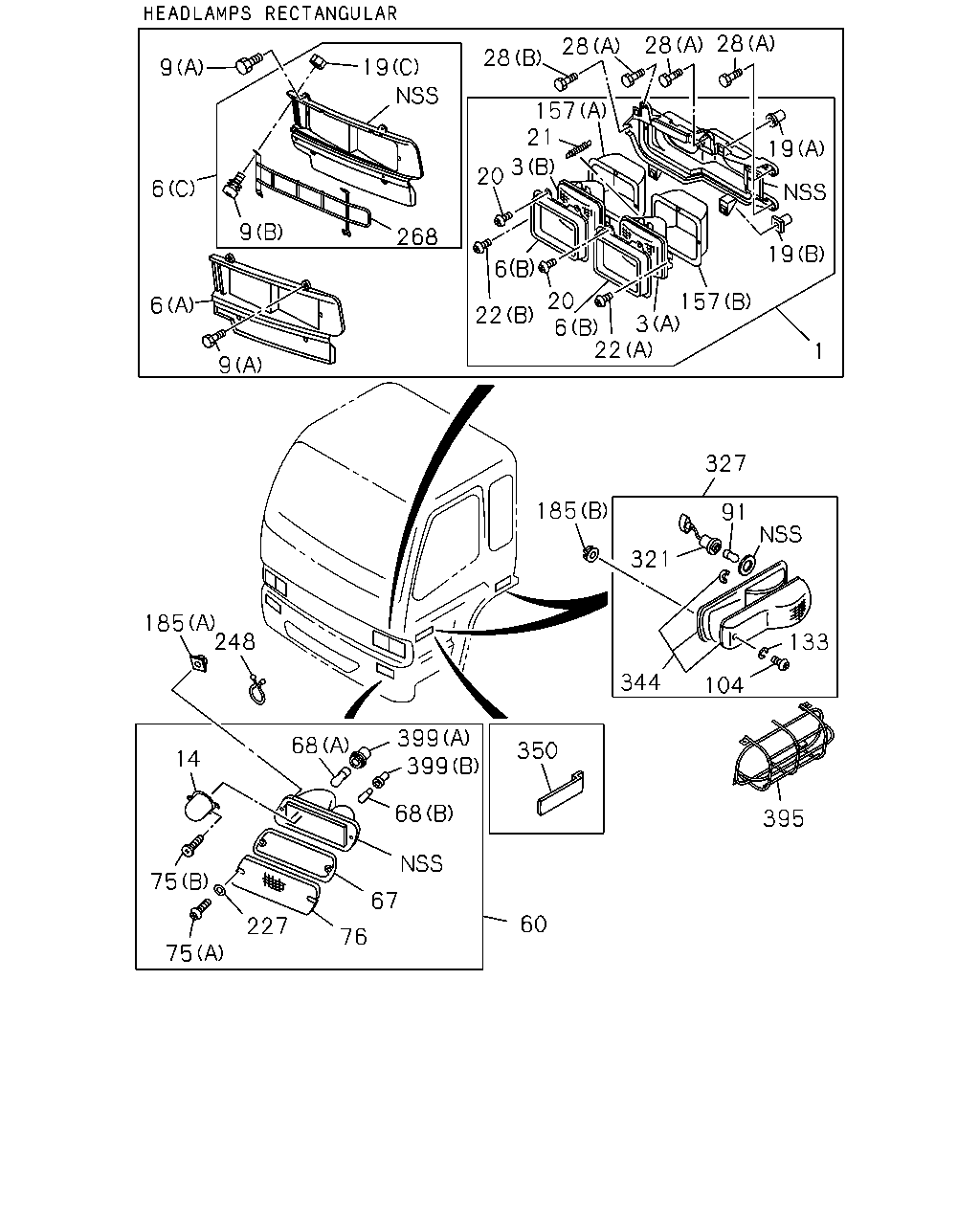

HEADLAMPS RECTANGULAR<TR4> (A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 08 1 9604-0407 ● ● ●
28 BOLT; HEADLAMP
HEADLAMPS RECTANGULAR<TR4> (B) M8X24.5 W/LK&PL WASHER 		8-94279-208-0 02 1 9604-0407 ● ● ●
73 BOLT; BRKT,HEADLAMP
HEADLAMPS VARIANT SQUARE<TEA> 		8-94332-050-0 04 1 9604-0004 ● ● ●
73 BOLT; BRKT,HEADLAMP
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANTSQUARE W/FOG LAMP<TEB> 		8-94332-050-0 04 1 9604-0004 ●
73 BOLT; BRKT,HEADLAMP
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANTSQUARE W/FOG LAMP<TEB> 		8-94332-050-0 04 1 0005- ● ● ●
91 BULB; SIDE TURN SIGNAL
LIGHTING SYSTEM-JAPANESE STANDARDS<JBZ> 24V 10W 		1-82194-037-0 02 1 0602- ●
91 BULB; SIDE TURN SIGNAL
24V 10W 		1-82194-037-0 02 1 9604-9809 ● ● ● ● ●
91 BULB; SIDE TURN SIGNAL
AUSTRALIA EQUIPMENT(RR3) 24V 10W 		1-82194-037-0 02 1 9810-0004 ● ● ● ●
91 BULB; SIDE TURN SIGNAL
EXC. AUSTRALIA EQUIPMENT(RR3) 24V 12W 		1-82194-030-0 02 1 9810-0004 ● ● ● ●
91 BULB; SIDE TURN SIGNAL
24V 12W 		1-82194-030-0 02 1 9810-0004 ●
91 BULB; SIDE TURN SIGNAL
24V 12W 		1-82194-030-0 02 1 0005-0601 ● ● ●
91 BULB; SIDE TURN SIGNAL
24V 12W 		1-82194-030-0 02 1 0602- ● ●
91 BULB; SIDE TURN SIGNAL
EXC. LIGHTING SYSTEM-JAPANESE STANDARDS<JBZ> 24V 12W 		1-82194-030-0 02 1 0602- ●
104 SCREW; SIDE TURN SIGNAL 1-86830-149-0 02 1 9604-0004 ● ● ● ● ●
104 SCREW; SIDE TURN SIGNAL 1-86830-149-0 02 1 0005- ● ● ●
110 CLIP; RIM,HEADLAMP
HEADLAMPS VARIANT SQUARE<TEA> 		1-86830-213-0 04 1 9604-0004 ● ● ●
110 CLIP; RIM,HEADLAMP
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANTSQUARE W/FOG LAMP<TEB> 		1-86830-213-0 04 1 9604-0004 ●
110 CLIP; RIM,HEADLAMP
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANTSQUARE W/FOG LAMP<TEB> 		1-86830-213-1 04 1 0005- ● ● ●
124 BULB; FRT TURN SIGNAL
HEADLAMPS VARIANT SQUARE<TEA> 24V 21W 		1-82194-036-0 02 1 9604-0004 ● ● ●
124 BULB; FRT TURN SIGNAL
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANTSQUARE W/FOG LAMP<TEB> 24V 21W 		1-82194-036-0 02 1 9604-0004 ●
124 BULB; FRT TURN SIGNAL
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANTSQUARE W/FOG LAMP<TEB> 24V 21W 		1-82194-036-0 02 1 0005- ● ● ●
125 GASKET; FRT TURN SIGNAL
HEADLAMPS VARIANT SQUARE<TEA> 		1-82216-033-0 02 1 9604-0004 ● ● ●
125 GASKET; FRT TURN SIGNAL
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANTSQUARE W/FOG LAMP<TEB> 		1-82216-033-0 02 1 9604-0004 ●
125 GASKET; FRT TURN SIGNAL
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANTSQUARE W/FOG LAMP<TEB> 		1-82216-033-0 02 1 0005- ● ● ●
127 LENS; FRT TURN SIGNAL
HEADLAMPS VARIANT SQUARE<TEA> ORANGE 		1-82215-065-0 01 1 9604-0004 ● ● ●
127 LENS; FRT TURN SIGNAL
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANTSQUARE W/FOG LAMP<TEB> ORANGE 		1-82215-065-0 01 1 9604-0004 ●
127 LENS; FRT TURN SIGNAL
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANTSQUARE W/FOG LAMP<TEB> ORANGE 		1-82215-065-0 01 1 0005- ● ● ●
127 LENS; FRT TURN SIGNAL
HEADLAMPS VARIANT SQUARE<TEA> ORANGE 		1-82215-064-0 01 1 9604-0004 ● ● ●
127 LENS; FRT TURN SIGNAL
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANTSQUARE W/FOG LAMP<TEB> ORANGE 		1-82215-064-0 01 1 9604-0004 ●
127 LENS; FRT TURN SIGNAL
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANTSQUARE W/FOG LAMP<TEB> ORANGE 		1-82215-064-0 01 1 0005- ● ● ●
129 SCREW; FRT TURN SIGNAL
HEADLAMPS VARIANT SQUARE<TEA> 		1-82219-026-0 04 1 9604-0004 ● ● ●
129 SCREW; FRT TURN SIGNAL
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANTSQUARE W/FOG LAMP<TEB> 		1-82219-026-0 04 1 9604-0004 ●
129 SCREW; FRT TURN SIGNAL
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANTSQUARE W/FOG LAMP<TEB> 		1-82219-026-0 04 1 0005- ● ● ●
133 WASHER; PL,SIDE FLASHER LAMP 1-86830-150-0 02 1 9604-0004 ● ● ● ● ●
133 WASHER; PL,SIDE FLASHER LAMP 1-86830-150-0 02 1 0005-0206 ● ● ●
139 COVER; HEADLAMP
HEADLAMPS VARIANT SQUARE<TEA> 		1-82119-224-0 02 1 0005- ● ● ●
185 GROMMET; SCREW
(A) D=9.7X9.7 L=8 		8-94222-314-0 04 1 9604-0004 ● ● ● ● ●
185 GROMMET; SCREW
(A) D=9.7X9.7 L=8 		8-94222-314-0 04 1 0005- ● ● ●
185 GROMMET; SCREW
(B) D=8.6X7.7 L=7.5 		8-94279-078-0 02 1 9604-9604 ● ●
185 GROMMET; SCREW
(B) D=8.6X7.7 L=7.5 		1-09983-177-0 02 1 9605-9807 ● ●

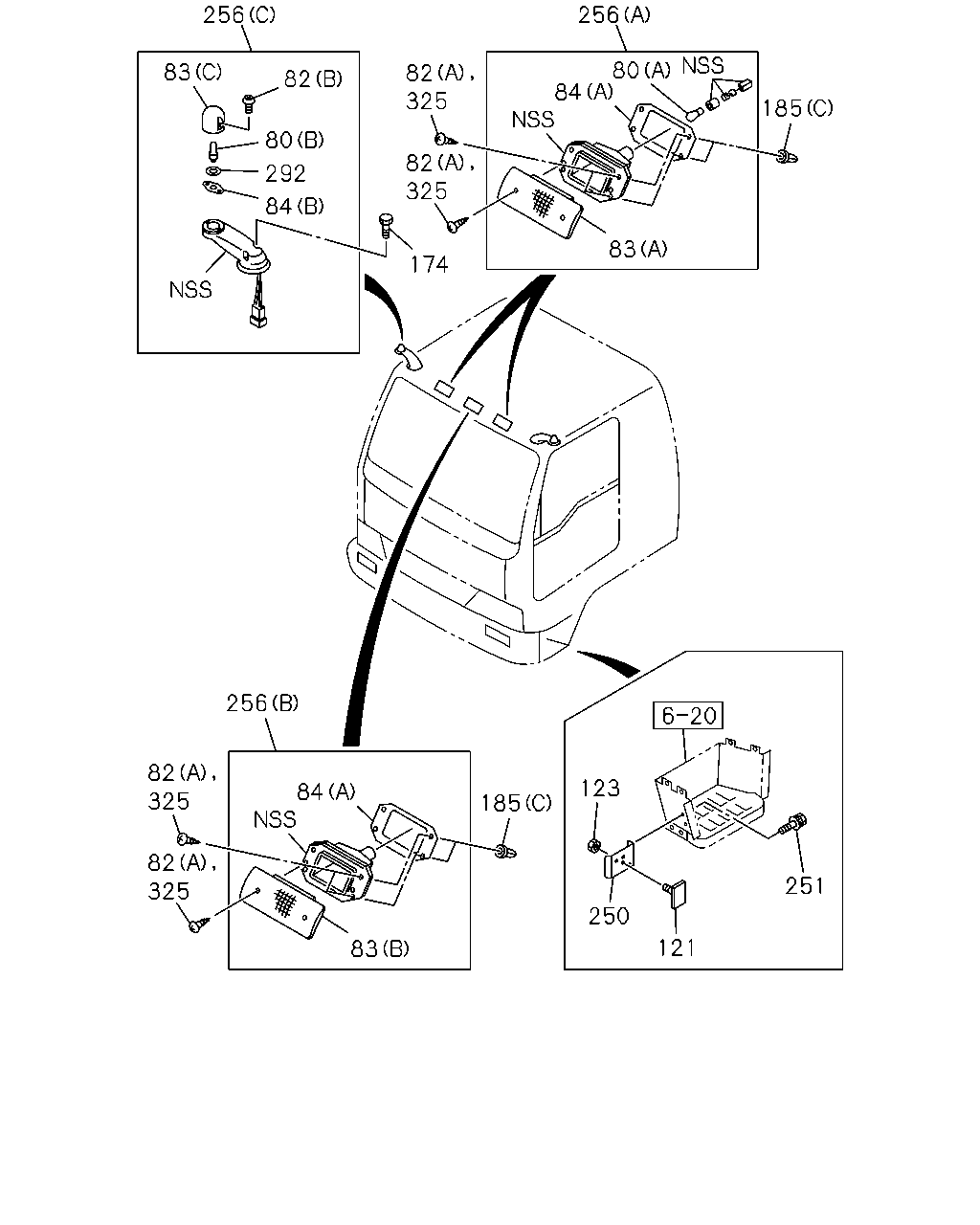

185 GROMMET; SCREW
LAMPS FOUR ROOF MARKER<PJ5> HIGH ROOF<S2F> (C) M5 SCREW GROMMET 		1-09983-131-0 12 1 9604- ●
185 GROMMET; SCREW
LAMPS FOUR ROOF MARKER<PJ5> (C) M5 SCREW GROMMET 		1-09983-131-0 12 1 9604- ●
202 GEAR UNIT; HEADLAMP
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> (A) 		1-86830-139-0 04 1 0212- ●
202 GEAR UNIT; HEADLAMP
HEADLAMPS VARIANT SQUARE<TEA> (A) OUTER 		1-86830-139-0 02 1 9604-0004 ● ● ●
202 GEAR UNIT; HEADLAMP
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANTSQUARE W/FOG LAMP<TEB> (A) OUTER 		1-86830-139-0 02 1 9604-0004 ●
202 GEAR UNIT; HEADLAMP
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANTSQUARE W/FOG LAMP<TEB> (A) OUTER 		1-86830-139-0 02 1 0005-0211 ● ● ●
202 GEAR UNIT; HEADLAMP
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANTSQUARE W/FOG LAMP<TEB> (A) OUTER 		1-86830-139-0 02 1 0212- ● ●
202 GEAR UNIT; HEADLAMP
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> EXC. HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> (A) OUTER 		1-86830-139-0 02 1 0212- ●
202 GEAR UNIT; HEADLAMP
HEADLAMPS VARIANT SQUARE<TEA> (A) OUTER 		1-86830-139-0 02 1 0212- ●
202 GEAR UNIT; HEADLAMP
HEADLAMPS VARIANT SQUARE<TEA> (B) INNER 		1-86830-140-0 02 1 9604-0004 ● ● ●
202 GEAR UNIT; HEADLAMP
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANTSQUARE W/FOG LAMP<TEB> (B) INNER 		1-86830-140-0 02 1 9604-0004 ●
202 GEAR UNIT; HEADLAMP
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANTSQUARE W/FOG LAMP<TEB> (B) INNER 		1-86830-140-0 02 1 0005-0211 ● ● ●
202 GEAR UNIT; HEADLAMP
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANTSQUARE W/FOG LAMP<TEB> (B) INNER 		1-86830-140-0 02 1 0212- ● ●
202 GEAR UNIT; HEADLAMP
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> EXC. HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> (B) INNER 		1-86830-140-0 02 1 0212- ●
202 GEAR UNIT; HEADLAMP
HEADLAMPS VARIANT SQUARE<TEA> (B) INNER 		1-86830-140-0 02 1 0212- ●
211 TUBE; HEADLAMP
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> (D) 		1-86830-415-0 01 1 0510- ●
211 TUBE; HEADLAMP
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> (D) 		1-86830-416-0 01 1 0510- ●
211 TUBE; HEADLAMP
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> (C) 		1-86830-328-0 02 1 0212- ●
211 TUBE; HEADLAMP
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> (C) 		1-86830-329-0 02 1 0212- ●
211 TUBE; HEADLAMP
HEADLAMPS VARIANT SQUARE<TEA> (A) 		1-86830-142-0 01 1 9604-9911 ● ● ●
211 TUBE; HEADLAMP
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANTSQUARE W/FOG LAMP<TEB> (A) 		1-86830-142-0 01 1 9604-9911 ●
211 TUBE; HEADLAMP
HEADLAMPS VARIANT SQUARE<TEA> (A) 		1-86830-329-0 01 1 9912-0004 ● ● ●
211 TUBE; HEADLAMP
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANTSQUARE W/FOG LAMP<TEB> (A) 		1-86830-329-0 01 1 9912-0004 ●
211 TUBE; HEADLAMP
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANTSQUARE W/FOG LAMP<TEB> (A) 		1-86830-329-0 01 1 0005-0105 ● ● ●
211 TUBE; HEADLAMP
HEADLAMPS VARIANT SQUARE<TEA> (B) 		1-86830-144-0 01 1 9604-9911 ● ● ●
211 TUBE; HEADLAMP
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANTSQUARE W/FOG LAMP<TEB> (B) 		1-86830-144-0 01 1 9604-9911 ●
211 TUBE; HEADLAMP
HEADLAMPS VARIANT SQUARE<TEA> (B) 		1-86830-331-0 01 1 9912-0004 ● ● ●
211 TUBE; HEADLAMP
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANTSQUARE W/FOG LAMP<TEB> (B) 		1-86830-331-0 01 1 9912-0004 ●
211 TUBE; HEADLAMP
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANTSQUARE W/FOG LAMP<TEB> (B) 		1-86830-331-0 01 1 0005-0211 ● ● ●
211 TUBE; HEADLAMP
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANTSQUARE W/FOG LAMP<TEB> (B) 		1-86830-331-0 01 1 0212- ● ●
211 TUBE; HEADLAMP
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> EXC. HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> (B) 		1-86830-331-0 01 1 0212- ●
211 TUBE; HEADLAMP
HEADLAMPS VARIANT SQUARE<TEA> (B) 		1-86830-331-0 01 1 0212- ●
211 TUBE; HEADLAMP
HEADLAMPS VARIANT SQUARE<TEA> (A) 		1-86830-141-0 01 1 9604-9911 ● ● ●
211 TUBE; HEADLAMP
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANTSQUARE W/FOG LAMP<TEB> (A) 		1-86830-141-0 01 1 9604-9911 ●
211 TUBE; HEADLAMP
HEADLAMPS VARIANT SQUARE<TEA> (A) 		1-86830-328-0 01 1 9912-0004 ● ● ●
211 TUBE; HEADLAMP
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANTSQUARE W/FOG LAMP<TEB> (A) 		1-86830-328-0 01 1 9912-0004 ●
211 TUBE; HEADLAMP
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANTSQUARE W/FOG LAMP<TEB> (A) 		1-86830-328-0 01 1 0005-0105 ● ● ●
211 TUBE; HEADLAMP
HEADLAMPS VARIANT SQUARE<TEA> (B) 		1-86830-143-0 01 1 9604-9911 ● ● ●
211 TUBE; HEADLAMP
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANTSQUARE W/FOG LAMP<TEB> (B) 		1-86830-143-0 01 1 9604-9911 ●
211 TUBE; HEADLAMP
HEADLAMPS VARIANT SQUARE<TEA> (B) 		1-86830-330-0 01 1 9912-0004 ● ● ●
211 TUBE; HEADLAMP
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANTSQUARE W/FOG LAMP<TEB> (B) 		1-86830-330-0 01 1 9912-0004 ●
211 TUBE; HEADLAMP
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANTSQUARE W/FOG LAMP<TEB> (B) 		1-86830-330-0 01 1 0005-0211 ● ● ●
211 TUBE; HEADLAMP
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANTSQUARE W/FOG LAMP<TEB> (B) 		1-86830-330-0 01 1 0212- ● ●
211 TUBE; HEADLAMP
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> EXC. HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> (B) 		1-86830-330-0 01 1 0212- ●
211 TUBE; HEADLAMP
HEADLAMPS VARIANT SQUARE<TEA> (B) 		1-86830-330-0 01 1 0212- ●
248 CLIP; HARNESS
VENTILATOR & DEFROSTER WO/HEATER<SAZ> ID=11.5 		1-09709-083-0 01 1 9604-0004 ● ● ● ● ●
248 CLIP; HARNESS
VENTILATOR & DEFROSTER WO/HEATER<SAZ> ID=11.5 		1-09709-083-0 01 1 0005- ● ● ●
321 HARNESS; SIDE FLASHER LAMP 1-86830-253-0 02 1 9604-0004 ● ● ● ● ●
321 HARNESS; SIDE FLASHER LAMP 1-86830-253-0 02 1 0005- ● ● ●
324 LAMP; FRT FLASHER
HEADLAMPS VARIANT SQUARE<TEA> 		1-82210-203-1 01 1 9604-0004 ● ● ●
324 LAMP; FRT FLASHER
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANTSQUARE W/FOG LAMP<TEB> 		1-82210-203-1 01 1 9604-0004 ●
324 LAMP; FRT FLASHER
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANTSQUARE W/FOG LAMP<TEB> 		1-82210-203-1 01 1 0005- ● ● ●
324 LAMP; FRT FLASHER
HEADLAMPS VARIANT SQUARE<TEA> 		1-82210-202-1 01 1 9604-0004 ● ● ●
324 LAMP; FRT FLASHER
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANTSQUARE W/FOG LAMP<TEB> 		1-82210-202-1 01 1 9604-0004 ●
324 LAMP; FRT FLASHER
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANTSQUARE W/FOG LAMP<TEB> 		1-82210-202-1 01 1 0005- ● ● ●
326 WASHER; PL,FRT TURN SIGNAL
HEADLAMPS VARIANT SQUARE<TEA> 		1-82216-032-0 04 1 9604-0004 ● ● ●
326 WASHER; PL,FRT TURN SIGNAL
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANTSQUARE W/FOG LAMP<TEB> 		1-82216-032-0 04 1 9604-0004 ●
326 WASHER; PL,FRT TURN SIGNAL
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANTSQUARE W/FOG LAMP<TEB> 		1-82216-032-0 04 1 0005- ● ● ●
327 LAMP ASM; SIDE TURN SIGNAL
LIGHTING SYSTEM-JAPANESE STANDARDS<JBZ> 		1-86830-264-2 01 1 0602- ●
327 LAMP ASM; SIDE TURN SIGNAL
LIGHTING SYSTEM-JAPANESE STANDARDS<JBZ> 		1-86830-265-2 01 1 0602- ●
327 LAMP ASM; SIDE TURN SIGNAL 1-86830-263-0 01 1 9604-9809 ● ● ● ● ●
327 LAMP ASM; SIDE TURN SIGNAL
AUSTRALIA EQUIPMENT(RR3) 		1-86830-263-0 01 1 9810-0004 ● ● ● ●
327 LAMP ASM; SIDE TURN SIGNAL 1-86830-262-0 01 1 9604-9809 ● ● ● ● ●
327 LAMP ASM; SIDE TURN SIGNAL
AUSTRALIA EQUIPMENT(RR3) 		1-86830-262-0 01 1 9810-0004 ● ● ● ●
327 LAMP ASM; SIDE TURN SIGNAL
EXC. AUSTRALIA EQUIPMENT(RR3) 		1-86830-011-5 01 1 9810-0004 ● ● ● ●
327 LAMP ASM; SIDE TURN SIGNAL 1-86830-011-5 01 1 9810-0004 ●
327 LAMP ASM; SIDE TURN SIGNAL 1-86830-011-6 01 1 0005-0601 ● ● ●
327 LAMP ASM; SIDE TURN SIGNAL 1-86830-011-6 01 1 0602- ● ●
327 LAMP ASM; SIDE TURN SIGNAL
EXC. LIGHTING SYSTEM-JAPANESE STANDARDS<JBZ> 		1-86830-011-6 01 1 0602- ●
327 LAMP ASM; SIDE TURN SIGNAL
EXC. AUSTRALIA EQUIPMENT(RR3) 		1-86830-007-5 01 1 9810-0004 ● ● ● ●
327 LAMP ASM; SIDE TURN SIGNAL 1-86830-007-5 01 1 9810-0004 ●
327 LAMP ASM; SIDE TURN SIGNAL 1-86830-007-6 01 1 0005-0601 ● ● ●
327 LAMP ASM; SIDE TURN SIGNAL 1-86830-007-6 01 1 0602- ● ●
327 LAMP ASM; SIDE TURN SIGNAL
EXC. LIGHTING SYSTEM-JAPANESE STANDARDS<JBZ> 		1-86830-007-6 01 1 0602- ●
340 BULB; POSITION
HEADLAMPS VARIANT SQUARE<TEA> 24V 5W 		1-82194-042-0 02 1 9604-0004 ● ● ●
340 BULB; POSITION
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANTSQUARE W/FOG LAMP<TEB> 24V 5W 		1-82194-042-0 02 1 9604-0004 ●
340 BULB; POSITION
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANTSQUARE W/FOG LAMP<TEB> 24V 5W 		1-82194-042-0 02 1 0005- ● ● ●
344 LAMP UNIT; SIDE TURN SIGNAL
LIGHTING SYSTEM-JAPANESE STANDARDS<JBZ> 		1-86830-266-2 01 1 0602- ●
344 LAMP UNIT; SIDE TURN SIGNAL
LIGHTING SYSTEM-JAPANESE STANDARDS<JBZ> 		1-86830-267-1 01 1 0602- ●
344 LAMP UNIT; SIDE TURN SIGNAL 1-86830-241-0 01 1 9604-0004 ● ● ● ● ●
344 LAMP UNIT; SIDE TURN SIGNAL 1-86830-241-1 01 1 0005-0601 ● ● ●
344 LAMP UNIT; SIDE TURN SIGNAL 1-86830-241-1 01 1 0602- ● ●
344 LAMP UNIT; SIDE TURN SIGNAL
EXC. LIGHTING SYSTEM-JAPANESE STANDARDS<JBZ> 		1-86830-241-1 01 1 0602- ●
344 LAMP UNIT; SIDE TURN SIGNAL 1-86830-240-0 01 1 9604-0004 ● ● ● ● ●
344 LAMP UNIT; SIDE TURN SIGNAL 1-86830-240-1 01 1 0005-0601 ● ● ●
344 LAMP UNIT; SIDE TURN SIGNAL 1-86830-240-1 01 1 0602- ● ●
344 LAMP UNIT; SIDE TURN SIGNAL
EXC. LIGHTING SYSTEM-JAPANESE STANDARDS<JBZ> 		1-86830-240-1 01 1 0602- ●
350 COVER; SIDE TURN HOLE 1-79998-944-1 01 1 9604-0209 ● ●
350 COVER; SIDE TURN HOLE 1-79996-607-0 01 1 0210- ● ●
350 COVER; SIDE TURN HOLE 1-79998-943-1 01 1 9604-0209 ● ●
350 COVER; SIDE TURN HOLE 1-79996-606-0 01 1 0210- ● ●
399 SOCKET; TURN SIGNAL
(A) 		1-82219-034-0 02 1 9604-0407 ● ● ● ● ●
399 SOCKET; TURN SIGNAL
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANTSQUARE W/FOG LAMP<TEB> (A) 		1-82219-034-0 02 1 0408- ● ● ●
399 SOCKET; TURN SIGNAL
HEADLAMPS RECTANGULAR<TR4> (B) 		1-82219-033-0 02 1 9604-0407 ● ● ●
çizim 152977
211 13 211 307 339 135 1 73 12 338 4 13 16 385 23 28 383 28 110 384 15 5 5 340 202 28 18 6 382 327 91 321 104 344 324 185 248 125 127 326 129 350 399 124
BalonParca AdiParca NoAdetTipApplied Date A B C D E
1 LAMP ASM; HEAD
LIGHTING SYSTEM-JAPANESE STANDARDS<JBZ> HEADLAMPS VARIANT SQUARE<TEA> 		1-86830-379-1 01 1 0602- ●
1 LAMP ASM; HEAD
LIGHTING SYSTEM-JAPANESE STANDARDS<JBZ> HEADLAMPS VARIANT SQUARE<TEA> 		1-86830-380-1 01 1 0602- ●
1 LAMP ASM; HEAD
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> 		1-82110-424-3 01 1 0212-0509 ●
1 LAMP ASM; HEAD
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> 		8-97609-425-0 01 1 0510-0510 ●
1 LAMP ASM; HEAD
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> 		8-98028-865-1 01 1 0510- ●
1 LAMP ASM; HEAD
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> 		1-82110-425-3 01 1 0212-0509 ●
1 LAMP ASM; HEAD
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> 		8-97609-426-0 01 1 0510-0510 ●
1 LAMP ASM; HEAD
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> 		8-98028-866-1 01 1 0510- ●
1 LAMP ASM; HEAD
HEADLAMPS VARIANT SQUARE<TEA> 		1-86830-122-3 01 1 9604-0004 ● ● ● ●
1 LAMP ASM; HEAD
HEADLAMPS VARIANT SQUARE<TEA> 		1-86830-122-4 01 1 0005-0601 ● ● ●
1 LAMP ASM; HEAD
HEADLAMPS VARIANT SQUARE<TEA> 		1-86830-122-4 01 1 0602- ● ●
1 LAMP ASM; HEAD
HEADLAMPS VARIANT SQUARE<TEA> EXC. LIGHTING SYSTEM-JAPANESE STANDARDS<JBZ> 		1-86830-122-4 01 1 0602- ●
1 LAMP ASM; HEAD
HEADLAMPS VARIANT SQUARE<TEA> 		1-86830-121-3 01 1 9604-0004 ● ● ● ●
1 LAMP ASM; HEAD
HEADLAMPS VARIANT SQUARE<TEA> 		1-86830-121-4 01 1 0005-0601 ● ● ●
1 LAMP ASM; HEAD
HEADLAMPS VARIANT SQUARE<TEA> 		1-86830-121-4 01 1 0602- ● ●
1 LAMP ASM; HEAD
HEADLAMPS VARIANT SQUARE<TEA> EXC. LIGHTING SYSTEM-JAPANESE STANDARDS<JBZ> 		1-86830-121-4 01 1 0602- ●
1 LAMP ASM; HEAD
HEADLAMPS RECTANGULAR<TR4> 		1-86830-169-1 01 1 9604-0407 ● ● ●
1 LAMP ASM; HEAD
HEADLAMPS RECTANGULAR<TR4> 		1-86830-168-1 01 1 9604-0407 ● ● ●
1 LAMP ASM; HEAD
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> 		1-86830-178-5 01 1 9604-0004 ●
1 LAMP ASM; HEAD
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> 		1-86830-178-6 01 1 0005-0210 ● ● ●
1 LAMP ASM; HEAD
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> 		1-86830-359-0 01 1 0211-0211 ● ● ●
1 LAMP ASM; HEAD
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> 		1-86830-359-0 01 1 0212- ● ●
1 LAMP ASM; HEAD
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> EXC. HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> 		1-86830-359-0 01 1 0212- ●
1 LAMP ASM; HEAD
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> 		1-86830-177-5 01 1 9604-0004 ●
1 LAMP ASM; HEAD
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> 		1-86830-177-6 01 1 0005-0210 ● ● ●
1 LAMP ASM; HEAD
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> 		1-86830-358-0 01 1 0211-0211 ● ● ●
1 LAMP ASM; HEAD
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> 		1-86830-358-0 01 1 0212- ● ●
1 LAMP ASM; HEAD
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> EXC. HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> 		1-86830-358-0 01 1 0212- ●
4 HEADLAMP UNIT
LIGHTING SYSTEM-JAPANESE STANDARDS<JBZ> HEADLAMPS VARIANT SQUARE<TEA> 		1-82119-222-0 01 1 0602- ●
4 HEADLAMP UNIT
LIGHTING SYSTEM-JAPANESE STANDARDS<JBZ> HEADLAMPS VARIANT SQUARE<TEA> 		1-82119-223-0 01 1 0602- ●
4 HEADLAMP UNIT
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> 		1-82119-177-1 01 1 0212- ●
4 HEADLAMP UNIT
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> 		1-82119-178-1 01 1 0212- ●
4 HEADLAMP UNIT
HEADLAMPS VARIANT SQUARE<TEA> 		1-86830-194-1 01 1 9604-0004 ● ● ● ●
4 HEADLAMP UNIT
HEADLAMPS VARIANT SQUARE<TEA> 		1-86830-194-1 01 1 0005-0601 ● ● ●
4 HEADLAMP UNIT
HEADLAMPS VARIANT SQUARE<TEA> 		1-86830-194-1 01 1 0602- ● ●
4 HEADLAMP UNIT
HEADLAMPS VARIANT SQUARE<TEA> EXC. LIGHTING SYSTEM-JAPANESE STANDARDS<JBZ> 		1-86830-194-1 01 1 0602- ●
4 HEADLAMP UNIT
HEADLAMPS VARIANT SQUARE<TEA> 		1-86830-193-1 01 1 9604-0004 ● ● ● ●
4 HEADLAMP UNIT
HEADLAMPS VARIANT SQUARE<TEA> 		1-86830-193-1 01 1 0005-0601 ● ● ●
4 HEADLAMP UNIT
HEADLAMPS VARIANT SQUARE<TEA> 		1-86830-193-1 01 1 0602- ● ●
4 HEADLAMP UNIT
HEADLAMPS VARIANT SQUARE<TEA> EXC. LIGHTING SYSTEM-JAPANESE STANDARDS<JBZ> 		1-86830-193-1 01 1 0602- ●
4 HEADLAMP UNIT
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> 		1-86830-190-1 01 1 9604-0004 ●
4 HEADLAMP UNIT
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> 		1-86830-190-1 01 1 0005-0210 ● ● ●
4 HEADLAMP UNIT
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> 		1-82119-200-0 01 1 0211-0211 ● ● ●
4 HEADLAMP UNIT
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> 		1-82119-200-0 01 1 0212- ● ●
4 HEADLAMP UNIT
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> EXC. HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> 		1-82119-200-0 01 1 0212- ●
4 HEADLAMP UNIT
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> 		1-86830-189-1 01 1 9604-0004 ●
4 HEADLAMP UNIT
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> 		1-86830-189-1 01 1 0005-0210 ● ● ●
4 HEADLAMP UNIT
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> 		1-82119-199-0 01 1 0211-0211 ● ● ●
4 HEADLAMP UNIT
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> 		1-82119-199-0 01 1 0212- ● ●
4 HEADLAMP UNIT
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> EXC. HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> 		1-82119-199-0 01 1 0212- ●
5 BULB; HEADLAMP
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> (B) 85V 35W 		1-82194-092-0 02 1 0212- ●
5 BULB; HEADLAMP
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> (C) 24V 70W 		8-94405-658-0 02 1 0212- ●
5 BULB; HEADLAMP
HEADLAMPS VARIANT SQUARE<TEA> (A) 24V 75/70W 		8-94405-657-0 02 1 9712-0004 ● ● ● ●
5 BULB; HEADLAMP
HEADLAMPS VARIANT SQUARE<TEA> (A) 24V 75/70W 		8-94405-657-0 02 1 0005-0601 ● ● ●
5 BULB; HEADLAMP
HEADLAMPS VARIANT SQUARE<TEA> (A) 24V 75/70W 		8-94405-657-0 02 1 0602- ● ●
5 BULB; HEADLAMP
HEADLAMPS VARIANT SQUARE<TEA> EXC. LIGHTING SYSTEM-JAPANESE STANDARDS<JBZ> (A) 24V 75/70W 		8-94405-657-0 02 1 0602- ●
5 BULB; HEADLAMP
HEADLAMPS VARIANT SQUARE<TEA> (A) 24V 75/70W 		1-82194-063-0 02 1 9604-9711 ● ● ●
5 BULB; HEADLAMP
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANTSQUARE W/FOG LAMP<TEB> (A) 24V 75/70W 		1-82194-063-0 02 1 9604-9711 ●
5 BULB; HEADLAMP
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> (A) 24V 75/70W 		1-82194-063-0 02 1 9712-0004 ●
5 BULB; HEADLAMP
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> (A) 24V 75/70W 		1-82194-063-0 02 1 0005-0211 ● ● ●
5 BULB; HEADLAMP
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> (A) 24V 75/70W 		1-82194-063-0 02 1 0212-0601 ● ●
5 BULB; HEADLAMP
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> EXC. HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> (A) 24V 75/70W 		1-82194-063-0 02 1 0212-0601 ●
5 BULB; HEADLAMP
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> (A) 24V 75/70W 		1-82194-063-0 02 1 0602- ● ●
5 BULB; HEADLAMP
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> EXC. HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> (A) 24V 75/70W 		1-82194-063-0 02 1 0602- ●
5 BULB; HEADLAMP
LIGHTING SYSTEM-JAPANESE STANDARDS<JBZ> HEADLAMPS VARIANT SQUARE<TEA> (A) 24V 75/70W 		1-82194-063-0 02 1 0602- ●
6 RIM; HEADLAMP
WEST MALAYSIA EQUIPMENT(SEQ) (C) 		1-71118-805-1 01 1 9804-9911 ●
6 RIM; HEADLAMP
WEST MALAYSIA EQUIPMENT(SEQ) (C) 		1-71118-804-1 01 1 9804-9911 ●
6 RIM; HEADLAMP
HEADLAMPS VARIANT SQUARE<TEA> (D) 		1-86830-006-5 01 1 9604- ● ● ●
6 RIM; HEADLAMP
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANTSQUARE W/FOG LAMP<TEB> (D) 		1-86830-006-5 01 1 9604- ●
6 RIM; HEADLAMP
HEADLAMPS VARIANT SQUARE<TEA> (D) 		1-86830-005-5 01 1 9604- ● ● ●
6 RIM; HEADLAMP
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANTSQUARE W/FOG LAMP<TEB> (D) 		1-86830-005-5 01 1 9604- ●
6 RIM; HEADLAMP
HEADLAMPS RECTANGULAR<TR4> (B) 		8-94165-573-0 04 1 9604-0407 ● ● ●
6 RIM; HEADLAMP
HEADLAMPS RECTANGULAR<TR4> (A) 		1-71118-746-1 01 1 9604-9803 ● ● ●
6 RIM; HEADLAMP
HEADLAMPS RECTANGULAR<TR4> EXC. WEST MALAYSIA EQUIPMENT(SEQ) (A) 		1-71118-745-1 01 1 9804-9911 ● ● ●
6 RIM; HEADLAMP
HEADLAMPS RECTANGULAR<TR4> (A) 		1-71118-745-1 01 1 9912-0407 ● ● ●
6 RIM; HEADLAMP
HEADLAMPS RECTANGULAR<TR4> (A) 		1-71118-745-1 01 1 9604-9803 ● ● ●
6 RIM; HEADLAMP
HEADLAMPS RECTANGULAR<TR4> EXC. WEST MALAYSIA EQUIPMENT(SEQ) (A) 		1-71118-746-1 01 1 9804-9911 ● ● ●
6 RIM; HEADLAMP
HEADLAMPS RECTANGULAR<TR4> (A) 		1-71118-746-1 01 1 9912-0407 ● ● ●
12 HARNESS; HEADLAMP
HEADLAMPS VARIANT SQUARE<TEA> (B) 		1-86830-199-0 02 1 0005- ● ● ●
12 HARNESS; HEADLAMP
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> (A) 		1-82118-013-0 02 1 0212- ●
12 HARNESS; HEADLAMP
HEADLAMPS VARIANT SQUARE<TEA> (B) 		1-86830-199-0 02 1 9604-0004 ● ● ● ●
12 HARNESS; HEADLAMP
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> (A) 		1-86830-145-0 02 1 9604-0004 ●
12 HARNESS; HEADLAMP
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> (A) 		1-86830-145-0 02 1 0005-0211 ● ● ●
12 HARNESS; HEADLAMP
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> (A) 		1-86830-145-0 02 1 0212- ● ●
12 HARNESS; HEADLAMP
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> EXC. HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> (A) 		1-86830-145-0 02 1 0212- ●
13 CLIP; HEADLAMP
LIGHTING SYSTEM-JAPANESE STANDARDS<JBZ> HEADLAMPS VARIANT SQUARE<TEA> (B) 		1-82119-084-0 02 1 0602- ●
13 CLIP; HEADLAMP
HEADLAMPS VARIANT SQUARE<TEA> (B) 		1-82119-084-0 04 1 9604-0004 ● ● ●
13 CLIP; HEADLAMP
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANTSQUARE W/FOG LAMP<TEB> (B) 		1-82119-084-0 04 1 9604-0004 ●
13 CLIP; HEADLAMP
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANTSQUARE W/FOG LAMP<TEB> (B) 		1-82119-084-0 04 1 0005-0601 ● ● ●
13 CLIP; HEADLAMP
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANTSQUARE W/FOG LAMP<TEB> (B) 		1-82119-084-0 04 1 0602- ● ●
13 CLIP; HEADLAMP
HEADLAMPS VARIANT SQUARE<TEA> EXC. LIGHTING SYSTEM-JAPANESE STANDARDS<JBZ> (B) 		1-82119-084-0 04 1 0602- ●
13 CLIP; HEADLAMP
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> (B) 		1-82119-084-0 04 1 0602- ●
13 CLIP; HEADLAMP
HEADLAMPS VARIANT SQUARE<TEA> (A) 		8-94381-588-0 14 1 9604-0004 ● ● ●
13 CLIP; HEADLAMP
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANTSQUARE W/FOG LAMP<TEB> (A) 		8-94381-588-0 14 1 9604-0004 ●
13 CLIP; HEADLAMP
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANTSQUARE W/FOG LAMP<TEB> (A) 		8-94381-588-0 14 1 0005- ● ● ●
15 BULB; FOG LAMP
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> 24V 55W 		1-82194-079-0 02 1 9604-0004 ●
15 BULB; FOG LAMP
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> 24V 55W 		1-82194-079-0 02 1 0005- ● ● ●
16 BRACKET; HEADLAMP
HEADLAMPS VARIANT SQUARE<TEA> 		1-86830-076-0 01 1 9604-0004 ● ● ●
16 BRACKET; HEADLAMP
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANTSQUARE W/FOG LAMP<TEB> 		1-86830-076-0 01 1 9604-0004 ●
16 BRACKET; HEADLAMP
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANTSQUARE W/FOG LAMP<TEB> 		1-86830-076-0 01 1 0005- ● ● ●
16 BRACKET; HEADLAMP
HEADLAMPS VARIANT SQUARE<TEA> 		1-86830-075-0 01 1 9604-0004 ● ● ●
16 BRACKET; HEADLAMP
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANTSQUARE W/FOG LAMP<TEB> 		1-86830-075-0 01 1 9604-0004 ●
16 BRACKET; HEADLAMP
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANTSQUARE W/FOG LAMP<TEB> 		1-86830-075-0 01 1 0005- ● ● ●
18 SCREW; GEAR CASE
HEADLAMPS VARIANT SQUARE<TEA> M4X16 TAPPING 		1-82119-067-0 08 1 9604-0004 ● ● ●
18 SCREW; GEAR CASE
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANTSQUARE W/FOG LAMP<TEB> M4X16 TAPPING 		1-82119-067-0 08 1 9604-0004 ●
18 SCREW; GEAR CASE
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANTSQUARE W/FOG LAMP<TEB> M4X16 TAPPING 		1-82119-067-0 08 1 0005- ● ● ●
23 COVER; BULB,HEADLAMP
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> 		1-82119-150-0 02 1 0212- ●
23 COVER; BULB,HEADLAMP
HEADLAMPS VARIANT SQUARE<TEA> 		1-86830-147-0 02 1 9604-0004 ● ● ●
23 COVER; BULB,HEADLAMP
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANTSQUARE W/FOG LAMP<TEB> 		1-86830-147-0 02 1 9604-0004 ●
23 COVER; BULB,HEADLAMP
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANTSQUARE W/FOG LAMP<TEB> 		1-86830-147-0 02 1 0005-0211 ● ● ●
23 COVER; BULB,HEADLAMP
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANTSQUARE W/FOG LAMP<TEB> 		1-86830-147-0 02 1 0212- ● ●
23 COVER; BULB,HEADLAMP
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> EXC. HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> 		1-86830-147-0 02 1 0212- ●
23 COVER; BULB,HEADLAMP
HEADLAMPS VARIANT SQUARE<TEA> 		1-86830-147-0 02 1 0212- ●
28 BOLT; HEADLAMP
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANTSQUARE W/FOG LAMP<TEB> (D) M6X16 FLANGE 		0-28650-616-0 04 1 0709- ● ● ●
28 BOLT; HEADLAMP
HEADLAMPS VARIANT SQUARE<TEA> (C) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 14 1 9604-0004 ● ● ●
28 BOLT; HEADLAMP
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANTSQUARE W/FOG LAMP<TEB> (C) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 14 1 9604-0004 ●
28 BOLT; HEADLAMP
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANTSQUARE W/FOG LAMP<TEB> (C) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 14 1 0005-0708 ● ● ●
28 BOLT; HEADLAMP
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANTSQUARE W/FOG LAMP<TEB> (C) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 10 1 0709- ● ● ●
28 BOLT; HEADLAMP
HEADLAMPS RECTANGULAR<TR4> (A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 08 1 9604-0407 ● ● ●
28 BOLT; HEADLAMP
HEADLAMPS RECTANGULAR<TR4> (B) M8X24.5 W/LK&PL WASHER 		8-94279-208-0 02 1 9604-0407 ● ● ●
73 BOLT; BRKT,HEADLAMP
HEADLAMPS VARIANT SQUARE<TEA> 		8-94332-050-0 04 1 9604-0004 ● ● ●
73 BOLT; BRKT,HEADLAMP
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANTSQUARE W/FOG LAMP<TEB> 		8-94332-050-0 04 1 9604-0004 ●
73 BOLT; BRKT,HEADLAMP
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANTSQUARE W/FOG LAMP<TEB> 		8-94332-050-0 04 1 0005- ● ● ●
91 BULB; SIDE TURN SIGNAL
LIGHTING SYSTEM-JAPANESE STANDARDS<JBZ> 24V 10W 		1-82194-037-0 02 1 0602- ●
91 BULB; SIDE TURN SIGNAL
24V 10W 		1-82194-037-0 02 1 9604-9809 ● ● ● ● ●
91 BULB; SIDE TURN SIGNAL
AUSTRALIA EQUIPMENT(RR3) 24V 10W 		1-82194-037-0 02 1 9810-0004 ● ● ● ●
91 BULB; SIDE TURN SIGNAL
EXC. AUSTRALIA EQUIPMENT(RR3) 24V 12W 		1-82194-030-0 02 1 9810-0004 ● ● ● ●
91 BULB; SIDE TURN SIGNAL
24V 12W 		1-82194-030-0 02 1 9810-0004 ●
91 BULB; SIDE TURN SIGNAL
24V 12W 		1-82194-030-0 02 1 0005-0601 ● ● ●
91 BULB; SIDE TURN SIGNAL
24V 12W 		1-82194-030-0 02 1 0602- ● ●
91 BULB; SIDE TURN SIGNAL
EXC. LIGHTING SYSTEM-JAPANESE STANDARDS<JBZ> 24V 12W 		1-82194-030-0 02 1 0602- ●
104 SCREW; SIDE TURN SIGNAL 1-86830-149-0 02 1 9604-0004 ● ● ● ● ●
104 SCREW; SIDE TURN SIGNAL 1-86830-149-0 02 1 0005- ● ● ●
110 CLIP; RIM,HEADLAMP
HEADLAMPS VARIANT SQUARE<TEA> 		1-86830-213-0 04 1 9604-0004 ● ● ●
110 CLIP; RIM,HEADLAMP
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANTSQUARE W/FOG LAMP<TEB> 		1-86830-213-0 04 1 9604-0004 ●
110 CLIP; RIM,HEADLAMP
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANTSQUARE W/FOG LAMP<TEB> 		1-86830-213-1 04 1 0005- ● ● ●
124 BULB; FRT TURN SIGNAL
HEADLAMPS VARIANT SQUARE<TEA> 24V 21W 		1-82194-036-0 02 1 9604-0004 ● ● ●
124 BULB; FRT TURN SIGNAL
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANTSQUARE W/FOG LAMP<TEB> 24V 21W 		1-82194-036-0 02 1 9604-0004 ●
124 BULB; FRT TURN SIGNAL
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANTSQUARE W/FOG LAMP<TEB> 24V 21W 		1-82194-036-0 02 1 0005- ● ● ●
125 GASKET; FRT TURN SIGNAL
HEADLAMPS VARIANT SQUARE<TEA> 		1-82216-033-0 02 1 9604-0004 ● ● ●
125 GASKET; FRT TURN SIGNAL
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANTSQUARE W/FOG LAMP<TEB> 		1-82216-033-0 02 1 9604-0004 ●
125 GASKET; FRT TURN SIGNAL
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANTSQUARE W/FOG LAMP<TEB> 		1-82216-033-0 02 1 0005- ● ● ●
127 LENS; FRT TURN SIGNAL
HEADLAMPS VARIANT SQUARE<TEA> ORANGE 		1-82215-065-0 01 1 9604-0004 ● ● ●
127 LENS; FRT TURN SIGNAL
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANTSQUARE W/FOG LAMP<TEB> ORANGE 		1-82215-065-0 01 1 9604-0004 ●
127 LENS; FRT TURN SIGNAL
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANTSQUARE W/FOG LAMP<TEB> ORANGE 		1-82215-065-0 01 1 0005- ● ● ●
127 LENS; FRT TURN SIGNAL
HEADLAMPS VARIANT SQUARE<TEA> ORANGE 		1-82215-064-0 01 1 9604-0004 ● ● ●
127 LENS; FRT TURN SIGNAL
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANTSQUARE W/FOG LAMP<TEB> ORANGE 		1-82215-064-0 01 1 9604-0004 ●
127 LENS; FRT TURN SIGNAL
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANTSQUARE W/FOG LAMP<TEB> ORANGE 		1-82215-064-0 01 1 0005- ● ● ●
129 SCREW; FRT TURN SIGNAL
HEADLAMPS VARIANT SQUARE<TEA> 		1-82219-026-0 04 1 9604-0004 ● ● ●
129 SCREW; FRT TURN SIGNAL
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANTSQUARE W/FOG LAMP<TEB> 		1-82219-026-0 04 1 9604-0004 ●
129 SCREW; FRT TURN SIGNAL
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANTSQUARE W/FOG LAMP<TEB> 		1-82219-026-0 04 1 0005- ● ● ●
135 ADAPTER; HEADLAMP
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> 		1-82119-149-0 02 1 0212- ●
185 GROMMET; SCREW
(A) D=9.7X9.7 L=8 		8-94222-314-0 04 1 9604-0004 ● ● ● ● ●
185 GROMMET; SCREW
(A) D=9.7X9.7 L=8 		8-94222-314-0 04 1 0005- ● ● ●
185 GROMMET; SCREW
(B) D=8.6X7.7 L=7.5 		8-94279-078-0 02 1 9604-9604 ● ●
185 GROMMET; SCREW
(B) D=8.6X7.7 L=7.5 		1-09983-177-0 02 1 9605-9807 ● ●
185 GROMMET; SCREW
LAMPS FOUR ROOF MARKER<PJ5> HIGH ROOF<S2F> (C) M5 SCREW GROMMET 		1-09983-131-0 12 1 9604- ●
185 GROMMET; SCREW
LAMPS FOUR ROOF MARKER<PJ5> (C) M5 SCREW GROMMET 		1-09983-131-0 12 1 9604- ●
202 GEAR UNIT; HEADLAMP
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> (A) 		1-86830-139-0 04 1 0212- ●
202 GEAR UNIT; HEADLAMP
HEADLAMPS VARIANT SQUARE<TEA> (A) OUTER 		1-86830-139-0 02 1 9604-0004 ● ● ●
202 GEAR UNIT; HEADLAMP
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANTSQUARE W/FOG LAMP<TEB> (A) OUTER 		1-86830-139-0 02 1 9604-0004 ●
202 GEAR UNIT; HEADLAMP
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANTSQUARE W/FOG LAMP<TEB> (A) OUTER 		1-86830-139-0 02 1 0005-0211 ● ● ●
202 GEAR UNIT; HEADLAMP
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANTSQUARE W/FOG LAMP<TEB> (A) OUTER 		1-86830-139-0 02 1 0212- ● ●
202 GEAR UNIT; HEADLAMP
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> EXC. HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> (A) OUTER 		1-86830-139-0 02 1 0212- ●
202 GEAR UNIT; HEADLAMP
HEADLAMPS VARIANT SQUARE<TEA> (A) OUTER 		1-86830-139-0 02 1 0212- ●
202 GEAR UNIT; HEADLAMP
HEADLAMPS VARIANT SQUARE<TEA> (B) INNER 		1-86830-140-0 02 1 9604-0004 ● ● ●
202 GEAR UNIT; HEADLAMP
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANTSQUARE W/FOG LAMP<TEB> (B) INNER 		1-86830-140-0 02 1 9604-0004 ●
202 GEAR UNIT; HEADLAMP
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANTSQUARE W/FOG LAMP<TEB> (B) INNER 		1-86830-140-0 02 1 0005-0211 ● ● ●
202 GEAR UNIT; HEADLAMP
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANTSQUARE W/FOG LAMP<TEB> (B) INNER 		1-86830-140-0 02 1 0212- ● ●
202 GEAR UNIT; HEADLAMP
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> EXC. HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> (B) INNER 		1-86830-140-0 02 1 0212- ●
202 GEAR UNIT; HEADLAMP
HEADLAMPS VARIANT SQUARE<TEA> (B) INNER 		1-86830-140-0 02 1 0212- ●
211 TUBE; HEADLAMP
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> (D) 		1-86830-415-0 01 1 0510- ●
211 TUBE; HEADLAMP
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> (D) 		1-86830-416-0 01 1 0510- ●
211 TUBE; HEADLAMP
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> (C) 		1-86830-328-0 02 1 0212- ●
211 TUBE; HEADLAMP
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> (C) 		1-86830-329-0 02 1 0212- ●
211 TUBE; HEADLAMP
HEADLAMPS VARIANT SQUARE<TEA> (A) 		1-86830-142-0 01 1 9604-9911 ● ● ●
211 TUBE; HEADLAMP
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANTSQUARE W/FOG LAMP<TEB> (A) 		1-86830-142-0 01 1 9604-9911 ●
211 TUBE; HEADLAMP
HEADLAMPS VARIANT SQUARE<TEA> (A) 		1-86830-329-0 01 1 9912-0004 ● ● ●
211 TUBE; HEADLAMP
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANTSQUARE W/FOG LAMP<TEB> (A) 		1-86830-329-0 01 1 9912-0004 ●
211 TUBE; HEADLAMP
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANTSQUARE W/FOG LAMP<TEB> (A) 		1-86830-329-0 01 1 0005-0105 ● ● ●
211 TUBE; HEADLAMP
HEADLAMPS VARIANT SQUARE<TEA> (B) 		1-86830-144-0 01 1 9604-9911 ● ● ●
211 TUBE; HEADLAMP
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANTSQUARE W/FOG LAMP<TEB> (B) 		1-86830-144-0 01 1 9604-9911 ●
211 TUBE; HEADLAMP
HEADLAMPS VARIANT SQUARE<TEA> (B) 		1-86830-331-0 01 1 9912-0004 ● ● ●
211 TUBE; HEADLAMP
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANTSQUARE W/FOG LAMP<TEB> (B) 		1-86830-331-0 01 1 9912-0004 ●
211 TUBE; HEADLAMP
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANTSQUARE W/FOG LAMP<TEB> (B) 		1-86830-331-0 01 1 0005-0211 ● ● ●
211 TUBE; HEADLAMP
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANTSQUARE W/FOG LAMP<TEB> (B) 		1-86830-331-0 01 1 0212- ● ●
211 TUBE; HEADLAMP
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> EXC. HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> (B) 		1-86830-331-0 01 1 0212- ●
211 TUBE; HEADLAMP
HEADLAMPS VARIANT SQUARE<TEA> (B) 		1-86830-331-0 01 1 0212- ●
211 TUBE; HEADLAMP
HEADLAMPS VARIANT SQUARE<TEA> (A) 		1-86830-141-0 01 1 9604-9911 ● ● ●
211 TUBE; HEADLAMP
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANTSQUARE W/FOG LAMP<TEB> (A) 		1-86830-141-0 01 1 9604-9911 ●
211 TUBE; HEADLAMP
HEADLAMPS VARIANT SQUARE<TEA> (A) 		1-86830-328-0 01 1 9912-0004 ● ● ●
211 TUBE; HEADLAMP
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANTSQUARE W/FOG LAMP<TEB> (A) 		1-86830-328-0 01 1 9912-0004 ●
211 TUBE; HEADLAMP
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANTSQUARE W/FOG LAMP<TEB> (A) 		1-86830-328-0 01 1 0005-0105 ● ● ●
211 TUBE; HEADLAMP
HEADLAMPS VARIANT SQUARE<TEA> (B) 		1-86830-143-0 01 1 9604-9911 ● ● ●
211 TUBE; HEADLAMP
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANTSQUARE W/FOG LAMP<TEB> (B) 		1-86830-143-0 01 1 9604-9911 ●
211 TUBE; HEADLAMP
HEADLAMPS VARIANT SQUARE<TEA> (B) 		1-86830-330-0 01 1 9912-0004 ● ● ●
211 TUBE; HEADLAMP
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANTSQUARE W/FOG LAMP<TEB> (B) 		1-86830-330-0 01 1 9912-0004 ●
211 TUBE; HEADLAMP
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANTSQUARE W/FOG LAMP<TEB> (B) 		1-86830-330-0 01 1 0005-0211 ● ● ●
211 TUBE; HEADLAMP
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANTSQUARE W/FOG LAMP<TEB> (B) 		1-86830-330-0 01 1 0212- ● ●
211 TUBE; HEADLAMP
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> EXC. HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> (B) 		1-86830-330-0 01 1 0212- ●
211 TUBE; HEADLAMP
HEADLAMPS VARIANT SQUARE<TEA> (B) 		1-86830-330-0 01 1 0212- ●
248 CLIP; HARNESS
VENTILATOR & DEFROSTER WO/HEATER<SAZ> ID=11.5 		1-09709-083-0 01 1 9604-0004 ● ● ● ● ●
248 CLIP; HARNESS
VENTILATOR & DEFROSTER WO/HEATER<SAZ> ID=11.5 		1-09709-083-0 01 1 0005- ● ● ●
307 SCREW; TAPPING,HEAD LAMP
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> M4X16 TAPPING 		1-82119-067-0 02 1 0212- ●
321 HARNESS; SIDE FLASHER LAMP 1-86830-253-0 02 1 9604-0004 ● ● ● ● ●
321 HARNESS; SIDE FLASHER LAMP 1-86830-253-0 02 1 0005- ● ● ●
324 LAMP; FRT FLASHER
HEADLAMPS VARIANT SQUARE<TEA> 		1-82210-203-1 01 1 9604-0004 ● ● ●
324 LAMP; FRT FLASHER
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANTSQUARE W/FOG LAMP<TEB> 		1-82210-203-1 01 1 9604-0004 ●
324 LAMP; FRT FLASHER
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANTSQUARE W/FOG LAMP<TEB> 		1-82210-203-1 01 1 0005- ● ● ●
324 LAMP; FRT FLASHER
HEADLAMPS VARIANT SQUARE<TEA> 		1-82210-202-1 01 1 9604-0004 ● ● ●
324 LAMP; FRT FLASHER
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANTSQUARE W/FOG LAMP<TEB> 		1-82210-202-1 01 1 9604-0004 ●
324 LAMP; FRT FLASHER
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANTSQUARE W/FOG LAMP<TEB> 		1-82210-202-1 01 1 0005- ● ● ●
326 WASHER; PL,FRT TURN SIGNAL
HEADLAMPS VARIANT SQUARE<TEA> 		1-82216-032-0 04 1 9604-0004 ● ● ●
326 WASHER; PL,FRT TURN SIGNAL
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANTSQUARE W/FOG LAMP<TEB> 		1-82216-032-0 04 1 9604-0004 ●
326 WASHER; PL,FRT TURN SIGNAL
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANTSQUARE W/FOG LAMP<TEB> 		1-82216-032-0 04 1 0005- ● ● ●
327 LAMP ASM; SIDE TURN SIGNAL
LIGHTING SYSTEM-JAPANESE STANDARDS<JBZ> 		1-86830-264-2 01 1 0602- ●
327 LAMP ASM; SIDE TURN SIGNAL
LIGHTING SYSTEM-JAPANESE STANDARDS<JBZ> 		1-86830-265-2 01 1 0602- ●
327 LAMP ASM; SIDE TURN SIGNAL 1-86830-263-0 01 1 9604-9809 ● ● ● ● ●
327 LAMP ASM; SIDE TURN SIGNAL
AUSTRALIA EQUIPMENT(RR3) 		1-86830-263-0 01 1 9810-0004 ● ● ● ●
327 LAMP ASM; SIDE TURN SIGNAL 1-86830-262-0 01 1 9604-9809 ● ● ● ● ●
327 LAMP ASM; SIDE TURN SIGNAL
AUSTRALIA EQUIPMENT(RR3) 		1-86830-262-0 01 1 9810-0004 ● ● ● ●
327 LAMP ASM; SIDE TURN SIGNAL
EXC. AUSTRALIA EQUIPMENT(RR3) 		1-86830-011-5 01 1 9810-0004 ● ● ● ●
327 LAMP ASM; SIDE TURN SIGNAL 1-86830-011-5 01 1 9810-0004 ●
327 LAMP ASM; SIDE TURN SIGNAL 1-86830-011-6 01 1 0005-0601 ● ● ●
327 LAMP ASM; SIDE TURN SIGNAL 1-86830-011-6 01 1 0602- ● ●
327 LAMP ASM; SIDE TURN SIGNAL
EXC. LIGHTING SYSTEM-JAPANESE STANDARDS<JBZ> 		1-86830-011-6 01 1 0602- ●
327 LAMP ASM; SIDE TURN SIGNAL
EXC. AUSTRALIA EQUIPMENT(RR3) 		1-86830-007-5 01 1 9810-0004 ● ● ● ●
327 LAMP ASM; SIDE TURN SIGNAL 1-86830-007-5 01 1 9810-0004 ●
327 LAMP ASM; SIDE TURN SIGNAL 1-86830-007-6 01 1 0005-0601 ● ● ●
327 LAMP ASM; SIDE TURN SIGNAL 1-86830-007-6 01 1 0602- ● ●
327 LAMP ASM; SIDE TURN SIGNAL
EXC. LIGHTING SYSTEM-JAPANESE STANDARDS<JBZ> 		1-86830-007-6 01 1 0602- ●
338 LEVELING; HEADLAMP
LIGHTING SYSTEM-JAPANESE STANDARDS<JBZ> HEADLAMPS VARIANT SQUARE<TEA> 		8-98010-256-0 02 1 0602- ●
338 LEVELING; HEADLAMP
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> 		1-86830-138-0 02 1 0212- ●
339 GASKET; LEVELING
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> 		1-86830-158-0 02 1 0212-0601 ●
339 GASKET; LEVELING
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> 		1-86830-158-0 02 1 0602- ●
339 GASKET; LEVELING
LIGHTING SYSTEM-JAPANESE STANDARDS<JBZ> HEADLAMPS VARIANT SQUARE<TEA> 		1-86830-158-0 02 1 0602- ●
340 BULB; POSITION
HEADLAMPS VARIANT SQUARE<TEA> 24V 5W 		1-82194-042-0 02 1 9604-0004 ● ● ●
340 BULB; POSITION
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANTSQUARE W/FOG LAMP<TEB> 24V 5W 		1-82194-042-0 02 1 9604-0004 ●
340 BULB; POSITION
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANTSQUARE W/FOG LAMP<TEB> 24V 5W 		1-82194-042-0 02 1 0005- ● ● ●
344 LAMP UNIT; SIDE TURN SIGNAL
LIGHTING SYSTEM-JAPANESE STANDARDS<JBZ> 		1-86830-266-2 01 1 0602- ●
344 LAMP UNIT; SIDE TURN SIGNAL
LIGHTING SYSTEM-JAPANESE STANDARDS<JBZ> 		1-86830-267-1 01 1 0602- ●
344 LAMP UNIT; SIDE TURN SIGNAL 1-86830-241-0 01 1 9604-0004 ● ● ● ● ●
344 LAMP UNIT; SIDE TURN SIGNAL 1-86830-241-1 01 1 0005-0601 ● ● ●
344 LAMP UNIT; SIDE TURN SIGNAL 1-86830-241-1 01 1 0602- ● ●
344 LAMP UNIT; SIDE TURN SIGNAL
EXC. LIGHTING SYSTEM-JAPANESE STANDARDS<JBZ> 		1-86830-241-1 01 1 0602- ●
344 LAMP UNIT; SIDE TURN SIGNAL 1-86830-240-0 01 1 9604-0004 ● ● ● ● ●
344 LAMP UNIT; SIDE TURN SIGNAL 1-86830-240-1 01 1 0005-0601 ● ● ●
344 LAMP UNIT; SIDE TURN SIGNAL 1-86830-240-1 01 1 0602- ● ●
344 LAMP UNIT; SIDE TURN SIGNAL
EXC. LIGHTING SYSTEM-JAPANESE STANDARDS<JBZ> 		1-86830-240-1 01 1 0602- ●
350 COVER; SIDE TURN HOLE 1-79998-944-1 01 1 9604-0209 ● ●
350 COVER; SIDE TURN HOLE 1-79996-607-0 01 1 0210- ● ●
350 COVER; SIDE TURN HOLE 1-79998-943-1 01 1 9604-0209 ● ●
350 COVER; SIDE TURN HOLE 1-79996-606-0 01 1 0210- ● ●
382 PLUG; SOCKET,HEADLAMP
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> 		1-82119-193-1 02 1 0212- ●
383 STARTER ASM; DISCHARGE,HEADLAMP
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> 		1-82119-179-1 01 1 0212- ●
383 STARTER ASM; DISCHARGE,HEADLAMP
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> 		1-82119-180-1 01 1 0212- ●
384 GASKET; DISCHARGE,HEADLAMP
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> 		1-82119-152-0 02 1 0212- ●
385 SCREW; DISCHARGE,HEADLAMP
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> 		1-82119-153-0 06 1 0212-0509 ●
385 SCREW; DISCHARGE,HEADLAMP
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> 		1-82119-203-0 06 1 0510- ●
399 SOCKET; TURN SIGNAL
(A) 		1-82219-034-0 02 1 9604-0407 ● ● ● ● ●
399 SOCKET; TURN SIGNAL
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANTSQUARE W/FOG LAMP<TEB> (A) 		1-82219-034-0 02 1 0408- ● ● ●
399 SOCKET; TURN SIGNAL
HEADLAMPS RECTANGULAR<TR4> (B) 		1-82219-033-0 02 1 9604-0407 ● ● ●
çizim 152983
1 12 139 340 14 23 5 28 73 16 110 202 202 18 28 28 13 211 6 13 338 339 4 327 91 321 248 185 133 324 125 127 326 129 344 104 399 124
BalonParca AdiParca NoAdetTipApplied Date A B C D E
1 LAMP ASM; HEAD
LIGHTING SYSTEM-JAPANESE STANDARDS<JBZ> HEADLAMPS VARIANT SQUARE<TEA> 		1-86830-379-1 01 1 0602- ●
1 LAMP ASM; HEAD
LIGHTING SYSTEM-JAPANESE STANDARDS<JBZ> HEADLAMPS VARIANT SQUARE<TEA> 		1-86830-380-1 01 1 0602- ●
1 LAMP ASM; HEAD
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> 		1-82110-424-3 01 1 0212-0509 ●
1 LAMP ASM; HEAD
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> 		8-97609-425-0 01 1 0510-0510 ●
1 LAMP ASM; HEAD
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> 		8-98028-865-1 01 1 0510- ●
1 LAMP ASM; HEAD
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> 		1-82110-425-3 01 1 0212-0509 ●
1 LAMP ASM; HEAD
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> 		8-97609-426-0 01 1 0510-0510 ●
1 LAMP ASM; HEAD
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> 		8-98028-866-1 01 1 0510- ●
1 LAMP ASM; HEAD
HEADLAMPS VARIANT SQUARE<TEA> 		1-86830-122-3 01 1 9604-0004 ● ● ● ●
1 LAMP ASM; HEAD
HEADLAMPS VARIANT SQUARE<TEA> 		1-86830-122-4 01 1 0005-0601 ● ● ●
1 LAMP ASM; HEAD
HEADLAMPS VARIANT SQUARE<TEA> 		1-86830-122-4 01 1 0602- ● ●
1 LAMP ASM; HEAD
HEADLAMPS VARIANT SQUARE<TEA> EXC. LIGHTING SYSTEM-JAPANESE STANDARDS<JBZ> 		1-86830-122-4 01 1 0602- ●
1 LAMP ASM; HEAD
HEADLAMPS VARIANT SQUARE<TEA> 		1-86830-121-3 01 1 9604-0004 ● ● ● ●
1 LAMP ASM; HEAD
HEADLAMPS VARIANT SQUARE<TEA> 		1-86830-121-4 01 1 0005-0601 ● ● ●
1 LAMP ASM; HEAD
HEADLAMPS VARIANT SQUARE<TEA> 		1-86830-121-4 01 1 0602- ● ●
1 LAMP ASM; HEAD
HEADLAMPS VARIANT SQUARE<TEA> EXC. LIGHTING SYSTEM-JAPANESE STANDARDS<JBZ> 		1-86830-121-4 01 1 0602- ●
1 LAMP ASM; HEAD
HEADLAMPS RECTANGULAR<TR4> 		1-86830-169-1 01 1 9604-0407 ● ● ●
1 LAMP ASM; HEAD
HEADLAMPS RECTANGULAR<TR4> 		1-86830-168-1 01 1 9604-0407 ● ● ●
1 LAMP ASM; HEAD
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> 		1-86830-178-5 01 1 9604-0004 ●
1 LAMP ASM; HEAD
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> 		1-86830-178-6 01 1 0005-0210 ● ● ●
1 LAMP ASM; HEAD
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> 		1-86830-359-0 01 1 0211-0211 ● ● ●
1 LAMP ASM; HEAD
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> 		1-86830-359-0 01 1 0212- ● ●
1 LAMP ASM; HEAD
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> EXC. HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> 		1-86830-359-0 01 1 0212- ●
1 LAMP ASM; HEAD
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> 		1-86830-177-5 01 1 9604-0004 ●
1 LAMP ASM; HEAD
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> 		1-86830-177-6 01 1 0005-0210 ● ● ●
1 LAMP ASM; HEAD
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> 		1-86830-358-0 01 1 0211-0211 ● ● ●
1 LAMP ASM; HEAD
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> 		1-86830-358-0 01 1 0212- ● ●
1 LAMP ASM; HEAD
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> EXC. HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> 		1-86830-358-0 01 1 0212- ●
4 HEADLAMP UNIT
LIGHTING SYSTEM-JAPANESE STANDARDS<JBZ> HEADLAMPS VARIANT SQUARE<TEA> 		1-82119-222-0 01 1 0602- ●
4 HEADLAMP UNIT
LIGHTING SYSTEM-JAPANESE STANDARDS<JBZ> HEADLAMPS VARIANT SQUARE<TEA> 		1-82119-223-0 01 1 0602- ●
4 HEADLAMP UNIT
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> 		1-82119-177-1 01 1 0212- ●
4 HEADLAMP UNIT
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> 		1-82119-178-1 01 1 0212- ●
4 HEADLAMP UNIT
HEADLAMPS VARIANT SQUARE<TEA> 		1-86830-194-1 01 1 9604-0004 ● ● ● ●
4 HEADLAMP UNIT
HEADLAMPS VARIANT SQUARE<TEA> 		1-86830-194-1 01 1 0005-0601 ● ● ●
4 HEADLAMP UNIT
HEADLAMPS VARIANT SQUARE<TEA> 		1-86830-194-1 01 1 0602- ● ●
4 HEADLAMP UNIT
HEADLAMPS VARIANT SQUARE<TEA> EXC. LIGHTING SYSTEM-JAPANESE STANDARDS<JBZ> 		1-86830-194-1 01 1 0602- ●
4 HEADLAMP UNIT
HEADLAMPS VARIANT SQUARE<TEA> 		1-86830-193-1 01 1 9604-0004 ● ● ● ●
4 HEADLAMP UNIT
HEADLAMPS VARIANT SQUARE<TEA> 		1-86830-193-1 01 1 0005-0601 ● ● ●
4 HEADLAMP UNIT
HEADLAMPS VARIANT SQUARE<TEA> 		1-86830-193-1 01 1 0602- ● ●
4 HEADLAMP UNIT
HEADLAMPS VARIANT SQUARE<TEA> EXC. LIGHTING SYSTEM-JAPANESE STANDARDS<JBZ> 		1-86830-193-1 01 1 0602- ●
4 HEADLAMP UNIT
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> 		1-86830-190-1 01 1 9604-0004 ●
4 HEADLAMP UNIT
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> 		1-86830-190-1 01 1 0005-0210 ● ● ●
4 HEADLAMP UNIT
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> 		1-82119-200-0 01 1 0211-0211 ● ● ●
4 HEADLAMP UNIT
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> 		1-82119-200-0 01 1 0212- ● ●
4 HEADLAMP UNIT
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> EXC. HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> 		1-82119-200-0 01 1 0212- ●
4 HEADLAMP UNIT
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> 		1-86830-189-1 01 1 9604-0004 ●
4 HEADLAMP UNIT
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> 		1-86830-189-1 01 1 0005-0210 ● ● ●
4 HEADLAMP UNIT
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> 		1-82119-199-0 01 1 0211-0211 ● ● ●
4 HEADLAMP UNIT
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> 		1-82119-199-0 01 1 0212- ● ●
4 HEADLAMP UNIT
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> EXC. HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> 		1-82119-199-0 01 1 0212- ●
5 BULB; HEADLAMP
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> (B) 85V 35W 		1-82194-092-0 02 1 0212- ●
5 BULB; HEADLAMP
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> (C) 24V 70W 		8-94405-658-0 02 1 0212- ●
5 BULB; HEADLAMP
HEADLAMPS VARIANT SQUARE<TEA> (A) 24V 75/70W 		8-94405-657-0 02 1 9712-0004 ● ● ● ●
5 BULB; HEADLAMP
HEADLAMPS VARIANT SQUARE<TEA> (A) 24V 75/70W 		8-94405-657-0 02 1 0005-0601 ● ● ●
5 BULB; HEADLAMP
HEADLAMPS VARIANT SQUARE<TEA> (A) 24V 75/70W 		8-94405-657-0 02 1 0602- ● ●
5 BULB; HEADLAMP
HEADLAMPS VARIANT SQUARE<TEA> EXC. LIGHTING SYSTEM-JAPANESE STANDARDS<JBZ> (A) 24V 75/70W 		8-94405-657-0 02 1 0602- ●
5 BULB; HEADLAMP
HEADLAMPS VARIANT SQUARE<TEA> (A) 24V 75/70W 		1-82194-063-0 02 1 9604-9711 ● ● ●
5 BULB; HEADLAMP
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANTSQUARE W/FOG LAMP<TEB> (A) 24V 75/70W 		1-82194-063-0 02 1 9604-9711 ●
5 BULB; HEADLAMP
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> (A) 24V 75/70W 		1-82194-063-0 02 1 9712-0004 ●
5 BULB; HEADLAMP
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> (A) 24V 75/70W 		1-82194-063-0 02 1 0005-0211 ● ● ●
5 BULB; HEADLAMP
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> (A) 24V 75/70W 		1-82194-063-0 02 1 0212-0601 ● ●
5 BULB; HEADLAMP
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> EXC. HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> (A) 24V 75/70W 		1-82194-063-0 02 1 0212-0601 ●
5 BULB; HEADLAMP
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> (A) 24V 75/70W 		1-82194-063-0 02 1 0602- ● ●
5 BULB; HEADLAMP
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> EXC. HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> (A) 24V 75/70W 		1-82194-063-0 02 1 0602- ●
5 BULB; HEADLAMP
LIGHTING SYSTEM-JAPANESE STANDARDS<JBZ> HEADLAMPS VARIANT SQUARE<TEA> (A) 24V 75/70W 		1-82194-063-0 02 1 0602- ●
6 RIM; HEADLAMP
WEST MALAYSIA EQUIPMENT(SEQ) (C) 		1-71118-805-1 01 1 9804-9911 ●
6 RIM; HEADLAMP
WEST MALAYSIA EQUIPMENT(SEQ) (C) 		1-71118-804-1 01 1 9804-9911 ●
6 RIM; HEADLAMP
HEADLAMPS VARIANT SQUARE<TEA> (D) 		1-86830-006-5 01 1 9604- ● ● ●
6 RIM; HEADLAMP
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANTSQUARE W/FOG LAMP<TEB> (D) 		1-86830-006-5 01 1 9604- ●
6 RIM; HEADLAMP
HEADLAMPS VARIANT SQUARE<TEA> (D) 		1-86830-005-5 01 1 9604- ● ● ●
6 RIM; HEADLAMP
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANTSQUARE W/FOG LAMP<TEB> (D) 		1-86830-005-5 01 1 9604- ●
6 RIM; HEADLAMP
HEADLAMPS RECTANGULAR<TR4> (B) 		8-94165-573-0 04 1 9604-0407 ● ● ●
6 RIM; HEADLAMP
HEADLAMPS RECTANGULAR<TR4> (A) 		1-71118-746-1 01 1 9604-9803 ● ● ●
6 RIM; HEADLAMP
HEADLAMPS RECTANGULAR<TR4> EXC. WEST MALAYSIA EQUIPMENT(SEQ) (A) 		1-71118-745-1 01 1 9804-9911 ● ● ●
6 RIM; HEADLAMP
HEADLAMPS RECTANGULAR<TR4> (A) 		1-71118-745-1 01 1 9912-0407 ● ● ●
6 RIM; HEADLAMP
HEADLAMPS RECTANGULAR<TR4> (A) 		1-71118-745-1 01 1 9604-9803 ● ● ●
6 RIM; HEADLAMP
HEADLAMPS RECTANGULAR<TR4> EXC. WEST MALAYSIA EQUIPMENT(SEQ) (A) 		1-71118-746-1 01 1 9804-9911 ● ● ●
6 RIM; HEADLAMP
HEADLAMPS RECTANGULAR<TR4> (A) 		1-71118-746-1 01 1 9912-0407 ● ● ●
12 HARNESS; HEADLAMP
HEADLAMPS VARIANT SQUARE<TEA> (B) 		1-86830-199-0 02 1 0005- ● ● ●
12 HARNESS; HEADLAMP
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> (A) 		1-82118-013-0 02 1 0212- ●
12 HARNESS; HEADLAMP
HEADLAMPS VARIANT SQUARE<TEA> (B) 		1-86830-199-0 02 1 9604-0004 ● ● ● ●
12 HARNESS; HEADLAMP
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> (A) 		1-86830-145-0 02 1 9604-0004 ●
12 HARNESS; HEADLAMP
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> (A) 		1-86830-145-0 02 1 0005-0211 ● ● ●
12 HARNESS; HEADLAMP
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> (A) 		1-86830-145-0 02 1 0212- ● ●
12 HARNESS; HEADLAMP
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> EXC. HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> (A) 		1-86830-145-0 02 1 0212- ●
13 CLIP; HEADLAMP
LIGHTING SYSTEM-JAPANESE STANDARDS<JBZ> HEADLAMPS VARIANT SQUARE<TEA> (B) 		1-82119-084-0 02 1 0602- ●
13 CLIP; HEADLAMP
HEADLAMPS VARIANT SQUARE<TEA> (B) 		1-82119-084-0 04 1 9604-0004 ● ● ●
13 CLIP; HEADLAMP
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANTSQUARE W/FOG LAMP<TEB> (B) 		1-82119-084-0 04 1 9604-0004 ●
13 CLIP; HEADLAMP
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANTSQUARE W/FOG LAMP<TEB> (B) 		1-82119-084-0 04 1 0005-0601 ● ● ●
13 CLIP; HEADLAMP
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANTSQUARE W/FOG LAMP<TEB> (B) 		1-82119-084-0 04 1 0602- ● ●
13 CLIP; HEADLAMP
HEADLAMPS VARIANT SQUARE<TEA> EXC. LIGHTING SYSTEM-JAPANESE STANDARDS<JBZ> (B) 		1-82119-084-0 04 1 0602- ●
13 CLIP; HEADLAMP
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> (B) 		1-82119-084-0 04 1 0602- ●
13 CLIP; HEADLAMP
HEADLAMPS VARIANT SQUARE<TEA> (A) 		8-94381-588-0 14 1 9604-0004 ● ● ●
13 CLIP; HEADLAMP
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANTSQUARE W/FOG LAMP<TEB> (A) 		8-94381-588-0 14 1 9604-0004 ●
13 CLIP; HEADLAMP
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANTSQUARE W/FOG LAMP<TEB> (A) 		8-94381-588-0 14 1 0005- ● ● ●
14 CAP; BULB,LAMP
HEADLAMPS VARIANT SQUARE<TEA> 		1-86830-148-0 02 1 9604-0004 ● ● ●
14 CAP; BULB,LAMP
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANTSQUARE W/FOG LAMP<TEB> 		1-86830-148-0 02 1 9604-0004 ●
14 CAP; BULB,LAMP
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANTSQUARE W/FOG LAMP<TEB> 		1-86830-148-0 02 1 0005-0211 ● ● ●
14 CAP; BULB,LAMP
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANTSQUARE W/FOG LAMP<TEB> 		1-86830-148-0 02 1 0212- ● ●
14 CAP; BULB,LAMP
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> EXC. HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> 		1-86830-148-0 02 1 0212- ●
14 CAP; BULB,LAMP
HEADLAMPS VARIANT SQUARE<TEA> 		1-86830-148-0 02 1 0212- ●
14 CAP; BULB,LAMP
HEADLAMPS RECTANGULAR<TR4> 		1-82219-030-0 02 1 9609-0407 ● ● ●
16 BRACKET; HEADLAMP
HEADLAMPS VARIANT SQUARE<TEA> 		1-86830-076-0 01 1 9604-0004 ● ● ●
16 BRACKET; HEADLAMP
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANTSQUARE W/FOG LAMP<TEB> 		1-86830-076-0 01 1 9604-0004 ●
16 BRACKET; HEADLAMP
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANTSQUARE W/FOG LAMP<TEB> 		1-86830-076-0 01 1 0005- ● ● ●
16 BRACKET; HEADLAMP
HEADLAMPS VARIANT SQUARE<TEA> 		1-86830-075-0 01 1 9604-0004 ● ● ●
16 BRACKET; HEADLAMP
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANTSQUARE W/FOG LAMP<TEB> 		1-86830-075-0 01 1 9604-0004 ●
16 BRACKET; HEADLAMP
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANTSQUARE W/FOG LAMP<TEB> 		1-86830-075-0 01 1 0005- ● ● ●
18 SCREW; GEAR CASE
HEADLAMPS VARIANT SQUARE<TEA> M4X16 TAPPING 		1-82119-067-0 08 1 9604-0004 ● ● ●
18 SCREW; GEAR CASE
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANTSQUARE W/FOG LAMP<TEB> M4X16 TAPPING 		1-82119-067-0 08 1 9604-0004 ●
18 SCREW; GEAR CASE
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANTSQUARE W/FOG LAMP<TEB> M4X16 TAPPING 		1-82119-067-0 08 1 0005- ● ● ●
23 COVER; BULB,HEADLAMP
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> 		1-82119-150-0 02 1 0212- ●
23 COVER; BULB,HEADLAMP
HEADLAMPS VARIANT SQUARE<TEA> 		1-86830-147-0 02 1 9604-0004 ● ● ●
23 COVER; BULB,HEADLAMP
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANTSQUARE W/FOG LAMP<TEB> 		1-86830-147-0 02 1 9604-0004 ●
23 COVER; BULB,HEADLAMP
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANTSQUARE W/FOG LAMP<TEB> 		1-86830-147-0 02 1 0005-0211 ● ● ●
23 COVER; BULB,HEADLAMP
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANTSQUARE W/FOG LAMP<TEB> 		1-86830-147-0 02 1 0212- ● ●
23 COVER; BULB,HEADLAMP
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> EXC. HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> 		1-86830-147-0 02 1 0212- ●
23 COVER; BULB,HEADLAMP
HEADLAMPS VARIANT SQUARE<TEA> 		1-86830-147-0 02 1 0212- ●
28 BOLT; HEADLAMP
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANTSQUARE W/FOG LAMP<TEB> (D) M6X16 FLANGE 		0-28650-616-0 04 1 0709- ● ● ●
28 BOLT; HEADLAMP
HEADLAMPS VARIANT SQUARE<TEA> (C) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 14 1 9604-0004 ● ● ●
28 BOLT; HEADLAMP
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANTSQUARE W/FOG LAMP<TEB> (C) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 14 1 9604-0004 ●
28 BOLT; HEADLAMP
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANTSQUARE W/FOG LAMP<TEB> (C) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 14 1 0005-0708 ● ● ●
28 BOLT; HEADLAMP
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANTSQUARE W/FOG LAMP<TEB> (C) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 10 1 0709- ● ● ●
28 BOLT; HEADLAMP
HEADLAMPS RECTANGULAR<TR4> (A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 08 1 9604-0407 ● ● ●
28 BOLT; HEADLAMP
HEADLAMPS RECTANGULAR<TR4> (B) M8X24.5 W/LK&PL WASHER 		8-94279-208-0 02 1 9604-0407 ● ● ●
73 BOLT; BRKT,HEADLAMP
HEADLAMPS VARIANT SQUARE<TEA> 		8-94332-050-0 04 1 9604-0004 ● ● ●
73 BOLT; BRKT,HEADLAMP
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANTSQUARE W/FOG LAMP<TEB> 		8-94332-050-0 04 1 9604-0004 ●
73 BOLT; BRKT,HEADLAMP
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANTSQUARE W/FOG LAMP<TEB> 		8-94332-050-0 04 1 0005- ● ● ●
91 BULB; SIDE TURN SIGNAL
LIGHTING SYSTEM-JAPANESE STANDARDS<JBZ> 24V 10W 		1-82194-037-0 02 1 0602- ●
91 BULB; SIDE TURN SIGNAL
24V 10W 		1-82194-037-0 02 1 9604-9809 ● ● ● ● ●
91 BULB; SIDE TURN SIGNAL
AUSTRALIA EQUIPMENT(RR3) 24V 10W 		1-82194-037-0 02 1 9810-0004 ● ● ● ●
91 BULB; SIDE TURN SIGNAL
EXC. AUSTRALIA EQUIPMENT(RR3) 24V 12W 		1-82194-030-0 02 1 9810-0004 ● ● ● ●
91 BULB; SIDE TURN SIGNAL
24V 12W 		1-82194-030-0 02 1 9810-0004 ●
91 BULB; SIDE TURN SIGNAL
24V 12W 		1-82194-030-0 02 1 0005-0601 ● ● ●
91 BULB; SIDE TURN SIGNAL
24V 12W 		1-82194-030-0 02 1 0602- ● ●
91 BULB; SIDE TURN SIGNAL
EXC. LIGHTING SYSTEM-JAPANESE STANDARDS<JBZ> 24V 12W 		1-82194-030-0 02 1 0602- ●
104 SCREW; SIDE TURN SIGNAL 1-86830-149-0 02 1 9604-0004 ● ● ● ● ●
104 SCREW; SIDE TURN SIGNAL 1-86830-149-0 02 1 0005- ● ● ●
110 CLIP; RIM,HEADLAMP
HEADLAMPS VARIANT SQUARE<TEA> 		1-86830-213-0 04 1 9604-0004 ● ● ●
110 CLIP; RIM,HEADLAMP
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANTSQUARE W/FOG LAMP<TEB> 		1-86830-213-0 04 1 9604-0004 ●
110 CLIP; RIM,HEADLAMP
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANTSQUARE W/FOG LAMP<TEB> 		1-86830-213-1 04 1 0005- ● ● ●
124 BULB; FRT TURN SIGNAL
HEADLAMPS VARIANT SQUARE<TEA> 24V 21W 		1-82194-036-0 02 1 9604-0004 ● ● ●
124 BULB; FRT TURN SIGNAL
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANTSQUARE W/FOG LAMP<TEB> 24V 21W 		1-82194-036-0 02 1 9604-0004 ●
124 BULB; FRT TURN SIGNAL
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANTSQUARE W/FOG LAMP<TEB> 24V 21W 		1-82194-036-0 02 1 0005- ● ● ●
125 GASKET; FRT TURN SIGNAL
HEADLAMPS VARIANT SQUARE<TEA> 		1-82216-033-0 02 1 9604-0004 ● ● ●
125 GASKET; FRT TURN SIGNAL
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANTSQUARE W/FOG LAMP<TEB> 		1-82216-033-0 02 1 9604-0004 ●
125 GASKET; FRT TURN SIGNAL
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANTSQUARE W/FOG LAMP<TEB> 		1-82216-033-0 02 1 0005- ● ● ●
127 LENS; FRT TURN SIGNAL
HEADLAMPS VARIANT SQUARE<TEA> ORANGE 		1-82215-065-0 01 1 9604-0004 ● ● ●
127 LENS; FRT TURN SIGNAL
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANTSQUARE W/FOG LAMP<TEB> ORANGE 		1-82215-065-0 01 1 9604-0004 ●
127 LENS; FRT TURN SIGNAL
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANTSQUARE W/FOG LAMP<TEB> ORANGE 		1-82215-065-0 01 1 0005- ● ● ●
127 LENS; FRT TURN SIGNAL
HEADLAMPS VARIANT SQUARE<TEA> ORANGE 		1-82215-064-0 01 1 9604-0004 ● ● ●
127 LENS; FRT TURN SIGNAL
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANTSQUARE W/FOG LAMP<TEB> ORANGE 		1-82215-064-0 01 1 9604-0004 ●
127 LENS; FRT TURN SIGNAL
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANTSQUARE W/FOG LAMP<TEB> ORANGE 		1-82215-064-0 01 1 0005- ● ● ●
129 SCREW; FRT TURN SIGNAL
HEADLAMPS VARIANT SQUARE<TEA> 		1-82219-026-0 04 1 9604-0004 ● ● ●
129 SCREW; FRT TURN SIGNAL
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANTSQUARE W/FOG LAMP<TEB> 		1-82219-026-0 04 1 9604-0004 ●
129 SCREW; FRT TURN SIGNAL
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANTSQUARE W/FOG LAMP<TEB> 		1-82219-026-0 04 1 0005- ● ● ●
133 WASHER; PL,SIDE FLASHER LAMP 1-86830-150-0 02 1 9604-0004 ● ● ● ● ●
133 WASHER; PL,SIDE FLASHER LAMP 1-86830-150-0 02 1 0005-0206 ● ● ●
139 COVER; HEADLAMP
HEADLAMPS VARIANT SQUARE<TEA> 		1-82119-224-0 02 1 0005- ● ● ●
185 GROMMET; SCREW
(A) D=9.7X9.7 L=8 		8-94222-314-0 04 1 9604-0004 ● ● ● ● ●
185 GROMMET; SCREW
(A) D=9.7X9.7 L=8 		8-94222-314-0 04 1 0005- ● ● ●
185 GROMMET; SCREW
(B) D=8.6X7.7 L=7.5 		8-94279-078-0 02 1 9604-9604 ● ●
185 GROMMET; SCREW
(B) D=8.6X7.7 L=7.5 		1-09983-177-0 02 1 9605-9807 ● ●
185 GROMMET; SCREW
LAMPS FOUR ROOF MARKER<PJ5> HIGH ROOF<S2F> (C) M5 SCREW GROMMET 		1-09983-131-0 12 1 9604- ●
185 GROMMET; SCREW
LAMPS FOUR ROOF MARKER<PJ5> (C) M5 SCREW GROMMET 		1-09983-131-0 12 1 9604- ●
202 GEAR UNIT; HEADLAMP
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> (A) 		1-86830-139-0 04 1 0212- ●
202 GEAR UNIT; HEADLAMP
HEADLAMPS VARIANT SQUARE<TEA> (A) OUTER 		1-86830-139-0 02 1 9604-0004 ● ● ●
202 GEAR UNIT; HEADLAMP
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANTSQUARE W/FOG LAMP<TEB> (A) OUTER 		1-86830-139-0 02 1 9604-0004 ●
202 GEAR UNIT; HEADLAMP
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANTSQUARE W/FOG LAMP<TEB> (A) OUTER 		1-86830-139-0 02 1 0005-0211 ● ● ●
202 GEAR UNIT; HEADLAMP
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANTSQUARE W/FOG LAMP<TEB> (A) OUTER 		1-86830-139-0 02 1 0212- ● ●
202 GEAR UNIT; HEADLAMP
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> EXC. HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> (A) OUTER 		1-86830-139-0 02 1 0212- ●
202 GEAR UNIT; HEADLAMP
HEADLAMPS VARIANT SQUARE<TEA> (A) OUTER 		1-86830-139-0 02 1 0212- ●
202 GEAR UNIT; HEADLAMP
HEADLAMPS VARIANT SQUARE<TEA> (B) INNER 		1-86830-140-0 02 1 9604-0004 ● ● ●
202 GEAR UNIT; HEADLAMP
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANTSQUARE W/FOG LAMP<TEB> (B) INNER 		1-86830-140-0 02 1 9604-0004 ●
202 GEAR UNIT; HEADLAMP
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANTSQUARE W/FOG LAMP<TEB> (B) INNER 		1-86830-140-0 02 1 0005-0211 ● ● ●
202 GEAR UNIT; HEADLAMP
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANTSQUARE W/FOG LAMP<TEB> (B) INNER 		1-86830-140-0 02 1 0212- ● ●
202 GEAR UNIT; HEADLAMP
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> EXC. HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> (B) INNER 		1-86830-140-0 02 1 0212- ●
202 GEAR UNIT; HEADLAMP
HEADLAMPS VARIANT SQUARE<TEA> (B) INNER 		1-86830-140-0 02 1 0212- ●
211 TUBE; HEADLAMP
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> (D) 		1-86830-415-0 01 1 0510- ●
211 TUBE; HEADLAMP
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> (D) 		1-86830-416-0 01 1 0510- ●
211 TUBE; HEADLAMP
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> (C) 		1-86830-328-0 02 1 0212- ●
211 TUBE; HEADLAMP
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> (C) 		1-86830-329-0 02 1 0212- ●
211 TUBE; HEADLAMP
HEADLAMPS VARIANT SQUARE<TEA> (A) 		1-86830-142-0 01 1 9604-9911 ● ● ●
211 TUBE; HEADLAMP
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANTSQUARE W/FOG LAMP<TEB> (A) 		1-86830-142-0 01 1 9604-9911 ●
211 TUBE; HEADLAMP
HEADLAMPS VARIANT SQUARE<TEA> (A) 		1-86830-329-0 01 1 9912-0004 ● ● ●
211 TUBE; HEADLAMP
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANTSQUARE W/FOG LAMP<TEB> (A) 		1-86830-329-0 01 1 9912-0004 ●
211 TUBE; HEADLAMP
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANTSQUARE W/FOG LAMP<TEB> (A) 		1-86830-329-0 01 1 0005-0105 ● ● ●
211 TUBE; HEADLAMP
HEADLAMPS VARIANT SQUARE<TEA> (B) 		1-86830-144-0 01 1 9604-9911 ● ● ●
211 TUBE; HEADLAMP
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANTSQUARE W/FOG LAMP<TEB> (B) 		1-86830-144-0 01 1 9604-9911 ●
211 TUBE; HEADLAMP
HEADLAMPS VARIANT SQUARE<TEA> (B) 		1-86830-331-0 01 1 9912-0004 ● ● ●
211 TUBE; HEADLAMP
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANTSQUARE W/FOG LAMP<TEB> (B) 		1-86830-331-0 01 1 9912-0004 ●
211 TUBE; HEADLAMP
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANTSQUARE W/FOG LAMP<TEB> (B) 		1-86830-331-0 01 1 0005-0211 ● ● ●
211 TUBE; HEADLAMP
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANTSQUARE W/FOG LAMP<TEB> (B) 		1-86830-331-0 01 1 0212- ● ●
211 TUBE; HEADLAMP
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> EXC. HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> (B) 		1-86830-331-0 01 1 0212- ●
211 TUBE; HEADLAMP
HEADLAMPS VARIANT SQUARE<TEA> (B) 		1-86830-331-0 01 1 0212- ●
211 TUBE; HEADLAMP
HEADLAMPS VARIANT SQUARE<TEA> (A) 		1-86830-141-0 01 1 9604-9911 ● ● ●
211 TUBE; HEADLAMP
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANTSQUARE W/FOG LAMP<TEB> (A) 		1-86830-141-0 01 1 9604-9911 ●
211 TUBE; HEADLAMP
HEADLAMPS VARIANT SQUARE<TEA> (A) 		1-86830-328-0 01 1 9912-0004 ● ● ●
211 TUBE; HEADLAMP
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANTSQUARE W/FOG LAMP<TEB> (A) 		1-86830-328-0 01 1 9912-0004 ●
211 TUBE; HEADLAMP
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANTSQUARE W/FOG LAMP<TEB> (A) 		1-86830-328-0 01 1 0005-0105 ● ● ●
211 TUBE; HEADLAMP
HEADLAMPS VARIANT SQUARE<TEA> (B) 		1-86830-143-0 01 1 9604-9911 ● ● ●
211 TUBE; HEADLAMP
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANTSQUARE W/FOG LAMP<TEB> (B) 		1-86830-143-0 01 1 9604-9911 ●
211 TUBE; HEADLAMP
HEADLAMPS VARIANT SQUARE<TEA> (B) 		1-86830-330-0 01 1 9912-0004 ● ● ●
211 TUBE; HEADLAMP
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANTSQUARE W/FOG LAMP<TEB> (B) 		1-86830-330-0 01 1 9912-0004 ●
211 TUBE; HEADLAMP
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANTSQUARE W/FOG LAMP<TEB> (B) 		1-86830-330-0 01 1 0005-0211 ● ● ●
211 TUBE; HEADLAMP
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANTSQUARE W/FOG LAMP<TEB> (B) 		1-86830-330-0 01 1 0212- ● ●
211 TUBE; HEADLAMP
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> EXC. HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> (B) 		1-86830-330-0 01 1 0212- ●
211 TUBE; HEADLAMP
HEADLAMPS VARIANT SQUARE<TEA> (B) 		1-86830-330-0 01 1 0212- ●
248 CLIP; HARNESS
VENTILATOR & DEFROSTER WO/HEATER<SAZ> ID=11.5 		1-09709-083-0 01 1 9604-0004 ● ● ● ● ●
248 CLIP; HARNESS
VENTILATOR & DEFROSTER WO/HEATER<SAZ> ID=11.5 		1-09709-083-0 01 1 0005- ● ● ●
321 HARNESS; SIDE FLASHER LAMP 1-86830-253-0 02 1 9604-0004 ● ● ● ● ●
321 HARNESS; SIDE FLASHER LAMP 1-86830-253-0 02 1 0005- ● ● ●
324 LAMP; FRT FLASHER
HEADLAMPS VARIANT SQUARE<TEA> 		1-82210-203-1 01 1 9604-0004 ● ● ●
324 LAMP; FRT FLASHER
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANTSQUARE W/FOG LAMP<TEB> 		1-82210-203-1 01 1 9604-0004 ●
324 LAMP; FRT FLASHER
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANTSQUARE W/FOG LAMP<TEB> 		1-82210-203-1 01 1 0005- ● ● ●
324 LAMP; FRT FLASHER
HEADLAMPS VARIANT SQUARE<TEA> 		1-82210-202-1 01 1 9604-0004 ● ● ●
324 LAMP; FRT FLASHER
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANTSQUARE W/FOG LAMP<TEB> 		1-82210-202-1 01 1 9604-0004 ●
324 LAMP; FRT FLASHER
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANTSQUARE W/FOG LAMP<TEB> 		1-82210-202-1 01 1 0005- ● ● ●
326 WASHER; PL,FRT TURN SIGNAL
HEADLAMPS VARIANT SQUARE<TEA> 		1-82216-032-0 04 1 9604-0004 ● ● ●
326 WASHER; PL,FRT TURN SIGNAL
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANTSQUARE W/FOG LAMP<TEB> 		1-82216-032-0 04 1 9604-0004 ●
326 WASHER; PL,FRT TURN SIGNAL
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANTSQUARE W/FOG LAMP<TEB> 		1-82216-032-0 04 1 0005- ● ● ●
327 LAMP ASM; SIDE TURN SIGNAL
LIGHTING SYSTEM-JAPANESE STANDARDS<JBZ> 		1-86830-264-2 01 1 0602- ●
327 LAMP ASM; SIDE TURN SIGNAL
LIGHTING SYSTEM-JAPANESE STANDARDS<JBZ> 		1-86830-265-2 01 1 0602- ●
327 LAMP ASM; SIDE TURN SIGNAL 1-86830-263-0 01 1 9604-9809 ● ● ● ● ●
327 LAMP ASM; SIDE TURN SIGNAL
AUSTRALIA EQUIPMENT(RR3) 		1-86830-263-0 01 1 9810-0004 ● ● ● ●
327 LAMP ASM; SIDE TURN SIGNAL 1-86830-262-0 01 1 9604-9809 ● ● ● ● ●
327 LAMP ASM; SIDE TURN SIGNAL
AUSTRALIA EQUIPMENT(RR3) 		1-86830-262-0 01 1 9810-0004 ● ● ● ●
327 LAMP ASM; SIDE TURN SIGNAL
EXC. AUSTRALIA EQUIPMENT(RR3) 		1-86830-011-5 01 1 9810-0004 ● ● ● ●
327 LAMP ASM; SIDE TURN SIGNAL 1-86830-011-5 01 1 9810-0004 ●
327 LAMP ASM; SIDE TURN SIGNAL 1-86830-011-6 01 1 0005-0601 ● ● ●
327 LAMP ASM; SIDE TURN SIGNAL 1-86830-011-6 01 1 0602- ● ●
327 LAMP ASM; SIDE TURN SIGNAL
EXC. LIGHTING SYSTEM-JAPANESE STANDARDS<JBZ> 		1-86830-011-6 01 1 0602- ●
327 LAMP ASM; SIDE TURN SIGNAL
EXC. AUSTRALIA EQUIPMENT(RR3) 		1-86830-007-5 01 1 9810-0004 ● ● ● ●
327 LAMP ASM; SIDE TURN SIGNAL 1-86830-007-5 01 1 9810-0004 ●
327 LAMP ASM; SIDE TURN SIGNAL 1-86830-007-6 01 1 0005-0601 ● ● ●
327 LAMP ASM; SIDE TURN SIGNAL 1-86830-007-6 01 1 0602- ● ●
327 LAMP ASM; SIDE TURN SIGNAL
EXC. LIGHTING SYSTEM-JAPANESE STANDARDS<JBZ> 		1-86830-007-6 01 1 0602- ●
338 LEVELING; HEADLAMP
LIGHTING SYSTEM-JAPANESE STANDARDS<JBZ> HEADLAMPS VARIANT SQUARE<TEA> 		8-98010-256-0 02 1 0602- ●
338 LEVELING; HEADLAMP
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> 		1-86830-138-0 02 1 0212- ●
339 GASKET; LEVELING
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> 		1-86830-158-0 02 1 0212-0601 ●
339 GASKET; LEVELING
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> 		1-86830-158-0 02 1 0602- ●
339 GASKET; LEVELING
LIGHTING SYSTEM-JAPANESE STANDARDS<JBZ> HEADLAMPS VARIANT SQUARE<TEA> 		1-86830-158-0 02 1 0602- ●
340 BULB; POSITION
HEADLAMPS VARIANT SQUARE<TEA> 24V 5W 		1-82194-042-0 02 1 9604-0004 ● ● ●
340 BULB; POSITION
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANTSQUARE W/FOG LAMP<TEB> 24V 5W 		1-82194-042-0 02 1 9604-0004 ●
340 BULB; POSITION
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANTSQUARE W/FOG LAMP<TEB> 24V 5W 		1-82194-042-0 02 1 0005- ● ● ●
344 LAMP UNIT; SIDE TURN SIGNAL
LIGHTING SYSTEM-JAPANESE STANDARDS<JBZ> 		1-86830-266-2 01 1 0602- ●
344 LAMP UNIT; SIDE TURN SIGNAL
LIGHTING SYSTEM-JAPANESE STANDARDS<JBZ> 		1-86830-267-1 01 1 0602- ●
344 LAMP UNIT; SIDE TURN SIGNAL 1-86830-241-0 01 1 9604-0004 ● ● ● ● ●
344 LAMP UNIT; SIDE TURN SIGNAL 1-86830-241-1 01 1 0005-0601 ● ● ●
344 LAMP UNIT; SIDE TURN SIGNAL 1-86830-241-1 01 1 0602- ● ●
344 LAMP UNIT; SIDE TURN SIGNAL
EXC. LIGHTING SYSTEM-JAPANESE STANDARDS<JBZ> 		1-86830-241-1 01 1 0602- ●
344 LAMP UNIT; SIDE TURN SIGNAL 1-86830-240-0 01 1 9604-0004 ● ● ● ● ●
344 LAMP UNIT; SIDE TURN SIGNAL 1-86830-240-1 01 1 0005-0601 ● ● ●
344 LAMP UNIT; SIDE TURN SIGNAL 1-86830-240-1 01 1 0602- ● ●
344 LAMP UNIT; SIDE TURN SIGNAL
EXC. LIGHTING SYSTEM-JAPANESE STANDARDS<JBZ> 		1-86830-240-1 01 1 0602- ●
399 SOCKET; TURN SIGNAL
(A) 		1-82219-034-0 02 1 9604-0407 ● ● ● ● ●
399 SOCKET; TURN SIGNAL
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANTSQUARE W/FOG LAMP<TEB> (A) 		1-82219-034-0 02 1 0408- ● ● ●
399 SOCKET; TURN SIGNAL
HEADLAMPS RECTANGULAR<TR4> (B) 		1-82219-033-0 02 1 9604-0407 ● ● ●
çizim 152986
28 28 28 28 19 9 157 21 19 3 20 6 9 268 19 6 20 6 3 22 157 6 22 1 9 327 185 91 321 133 185 248 344 104 399 399 68 350 14 68 395 75 67 60 227 76 75
BalonParca AdiParca NoAdetTipApplied Date A B C D E
1 LAMP ASM; HEAD
LIGHTING SYSTEM-JAPANESE STANDARDS<JBZ> HEADLAMPS VARIANT SQUARE<TEA> 		1-86830-379-1 01 1 0602- ●
1 LAMP ASM; HEAD
LIGHTING SYSTEM-JAPANESE STANDARDS<JBZ> HEADLAMPS VARIANT SQUARE<TEA> 		1-86830-380-1 01 1 0602- ●
1 LAMP ASM; HEAD
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> 		1-82110-424-3 01 1 0212-0509 ●
1 LAMP ASM; HEAD
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> 		8-97609-425-0 01 1 0510-0510 ●
1 LAMP ASM; HEAD
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> 		8-98028-865-1 01 1 0510- ●
1 LAMP ASM; HEAD
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> 		1-82110-425-3 01 1 0212-0509 ●
1 LAMP ASM; HEAD
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> 		8-97609-426-0 01 1 0510-0510 ●
1 LAMP ASM; HEAD
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> 		8-98028-866-1 01 1 0510- ●
1 LAMP ASM; HEAD
HEADLAMPS VARIANT SQUARE<TEA> 		1-86830-122-3 01 1 9604-0004 ● ● ● ●
1 LAMP ASM; HEAD
HEADLAMPS VARIANT SQUARE<TEA> 		1-86830-122-4 01 1 0005-0601 ● ● ●
1 LAMP ASM; HEAD
HEADLAMPS VARIANT SQUARE<TEA> 		1-86830-122-4 01 1 0602- ● ●
1 LAMP ASM; HEAD
HEADLAMPS VARIANT SQUARE<TEA> EXC. LIGHTING SYSTEM-JAPANESE STANDARDS<JBZ> 		1-86830-122-4 01 1 0602- ●
1 LAMP ASM; HEAD
HEADLAMPS VARIANT SQUARE<TEA> 		1-86830-121-3 01 1 9604-0004 ● ● ● ●
1 LAMP ASM; HEAD
HEADLAMPS VARIANT SQUARE<TEA> 		1-86830-121-4 01 1 0005-0601 ● ● ●
1 LAMP ASM; HEAD
HEADLAMPS VARIANT SQUARE<TEA> 		1-86830-121-4 01 1 0602- ● ●
1 LAMP ASM; HEAD
HEADLAMPS VARIANT SQUARE<TEA> EXC. LIGHTING SYSTEM-JAPANESE STANDARDS<JBZ> 		1-86830-121-4 01 1 0602- ●
1 LAMP ASM; HEAD
HEADLAMPS RECTANGULAR<TR4> 		1-86830-169-1 01 1 9604-0407 ● ● ●
1 LAMP ASM; HEAD
HEADLAMPS RECTANGULAR<TR4> 		1-86830-168-1 01 1 9604-0407 ● ● ●
1 LAMP ASM; HEAD
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> 		1-86830-178-5 01 1 9604-0004 ●
1 LAMP ASM; HEAD
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> 		1-86830-178-6 01 1 0005-0210 ● ● ●
1 LAMP ASM; HEAD
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> 		1-86830-359-0 01 1 0211-0211 ● ● ●
1 LAMP ASM; HEAD
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> 		1-86830-359-0 01 1 0212- ● ●
1 LAMP ASM; HEAD
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> EXC. HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> 		1-86830-359-0 01 1 0212- ●
1 LAMP ASM; HEAD
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> 		1-86830-177-5 01 1 9604-0004 ●
1 LAMP ASM; HEAD
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> 		1-86830-177-6 01 1 0005-0210 ● ● ●
1 LAMP ASM; HEAD
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> 		1-86830-358-0 01 1 0211-0211 ● ● ●
1 LAMP ASM; HEAD
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> 		1-86830-358-0 01 1 0212- ● ●
1 LAMP ASM; HEAD
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> EXC. HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> 		1-86830-358-0 01 1 0212- ●
3 SEALED BEAM; HEADLAMP
HEADLAMPS RECTANGULAR<TR4> (A) 24V 65/50W 		1-82113-011-0 02 1 9604-0407 ● ● ●
3 SEALED BEAM; HEADLAMP
HEADLAMPS RECTANGULAR<TR4> (B) 24V 55W 		8-94111-276-0 02 1 9604-0407 ● ● ●
6 RIM; HEADLAMP
WEST MALAYSIA EQUIPMENT(SEQ) (C) 		1-71118-805-1 01 1 9804-9911 ●
6 RIM; HEADLAMP
WEST MALAYSIA EQUIPMENT(SEQ) (C) 		1-71118-804-1 01 1 9804-9911 ●
6 RIM; HEADLAMP
HEADLAMPS VARIANT SQUARE<TEA> (D) 		1-86830-006-5 01 1 9604- ● ● ●
6 RIM; HEADLAMP
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANTSQUARE W/FOG LAMP<TEB> (D) 		1-86830-006-5 01 1 9604- ●
6 RIM; HEADLAMP
HEADLAMPS VARIANT SQUARE<TEA> (D) 		1-86830-005-5 01 1 9604- ● ● ●
6 RIM; HEADLAMP
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANTSQUARE W/FOG LAMP<TEB> (D) 		1-86830-005-5 01 1 9604- ●
6 RIM; HEADLAMP
HEADLAMPS RECTANGULAR<TR4> (B) 		8-94165-573-0 04 1 9604-0407 ● ● ●
6 RIM; HEADLAMP
HEADLAMPS RECTANGULAR<TR4> (A) 		1-71118-746-1 01 1 9604-9803 ● ● ●
6 RIM; HEADLAMP
HEADLAMPS RECTANGULAR<TR4> EXC. WEST MALAYSIA EQUIPMENT(SEQ) (A) 		1-71118-745-1 01 1 9804-9911 ● ● ●
6 RIM; HEADLAMP
HEADLAMPS RECTANGULAR<TR4> (A) 		1-71118-745-1 01 1 9912-0407 ● ● ●
6 RIM; HEADLAMP
HEADLAMPS RECTANGULAR<TR4> (A) 		1-71118-745-1 01 1 9604-9803 ● ● ●
6 RIM; HEADLAMP
HEADLAMPS RECTANGULAR<TR4> EXC. WEST MALAYSIA EQUIPMENT(SEQ) (A) 		1-71118-746-1 01 1 9804-9911 ● ● ●
6 RIM; HEADLAMP
HEADLAMPS RECTANGULAR<TR4> (A) 		1-71118-746-1 01 1 9912-0407 ● ● ●
9 SCREW; HEADLAMP RIM
WEST MALAYSIA EQUIPMENT(SEQ) (B) M5X12 W/LK&PL WASHER 		1-09981-464-0 08 1 9804-9910 ●
9 SCREW; HEADLAMP RIM
WEST MALAYSIA EQUIPMENT(SEQ) (B) M5X16 W/LK&PL WASHER 		8-94279-400-0 08 1 9911-9911 ●
9 SCREW; HEADLAMP RIM
HEADLAMPS RECTANGULAR<TR4> (A) M4X20 TAPPING W/PL WASHER 		0-74110-420-0 08 1 9604-0407 ● ● ●
14 CAP; BULB,LAMP
HEADLAMPS VARIANT SQUARE<TEA> 		1-86830-148-0 02 1 9604-0004 ● ● ●
14 CAP; BULB,LAMP
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANTSQUARE W/FOG LAMP<TEB> 		1-86830-148-0 02 1 9604-0004 ●
14 CAP; BULB,LAMP
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANTSQUARE W/FOG LAMP<TEB> 		1-86830-148-0 02 1 0005-0211 ● ● ●
14 CAP; BULB,LAMP
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANTSQUARE W/FOG LAMP<TEB> 		1-86830-148-0 02 1 0212- ● ●
14 CAP; BULB,LAMP
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> EXC. HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> 		1-86830-148-0 02 1 0212- ●
14 CAP; BULB,LAMP
HEADLAMPS VARIANT SQUARE<TEA> 		1-86830-148-0 02 1 0212- ●
14 CAP; BULB,LAMP
HEADLAMPS RECTANGULAR<TR4> 		1-82219-030-0 02 1 9609-0407 ● ● ●
19 NUT; HEADLAMP
WEST MALAYSIA EQUIPMENT(SEQ) (C) M5 FLANGE 		5-09440-003-0 08 1 9804-9911 ●
19 NUT; HEADLAMP
HEADLAMPS RECTANGULAR<TR4> (A) 		1-82119-117-0 08 1 9604-0407 ● ● ●
19 NUT; HEADLAMP
HEADLAMPS RECTANGULAR<TR4> (B) 		8-97044-618-0 08 1 9604-0407 ● ● ●
20 SCREW; HEADLAMP
HEADLAMPS RECTANGULAR<TR4> M4X8 		8-94165-886-0 16 1 9604-0407 ● ● ●
21 SPRING; ADJ HEADLAMP
HEADLAMPS RECTANGULAR<TR4> 		1-82119-120-0 04 1 9604-0407 ● ● ●
22 SCREW; ADJ,HEADLAMP
HEADLAMPS RECTANGULAR<TR4> (A) 		1-82119-118-0 07 1 9604-0407 ● ● ●
22 SCREW; ADJ,HEADLAMP
HEADLAMPS RECTANGULAR<TR4> (B) 		1-82119-119-0 01 1 9604-0407 ● ● ●
28 BOLT; HEADLAMP
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANTSQUARE W/FOG LAMP<TEB> (D) M6X16 FLANGE 		0-28650-616-0 04 1 0709- ● ● ●
28 BOLT; HEADLAMP
HEADLAMPS VARIANT SQUARE<TEA> (C) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 14 1 9604-0004 ● ● ●
28 BOLT; HEADLAMP
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANTSQUARE W/FOG LAMP<TEB> (C) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 14 1 9604-0004 ●
28 BOLT; HEADLAMP
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANTSQUARE W/FOG LAMP<TEB> (C) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 14 1 0005-0708 ● ● ●
28 BOLT; HEADLAMP
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANTSQUARE W/FOG LAMP<TEB> (C) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 10 1 0709- ● ● ●
28 BOLT; HEADLAMP
HEADLAMPS RECTANGULAR<TR4> (A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 08 1 9604-0407 ● ● ●
28 BOLT; HEADLAMP
HEADLAMPS RECTANGULAR<TR4> (B) M8X24.5 W/LK&PL WASHER 		8-94279-208-0 02 1 9604-0407 ● ● ●
60 LAMP ASM; FRT COMB
HEADLAMPS RECTANGULAR<TR4> 		1-82210-211-0 01 1 9604-9608 ● ● ●
60 LAMP ASM; FRT COMB
HEADLAMPS RECTANGULAR<TR4> 		1-82210-221-0 01 1 9609-0407 ● ● ●
60 LAMP ASM; FRT COMB
HEADLAMPS RECTANGULAR<TR4> 		1-82210-210-0 01 1 9604-9608 ● ● ●
60 LAMP ASM; FRT COMB
HEADLAMPS RECTANGULAR<TR4> 		1-82210-220-0 01 1 9609-0407 ● ● ●
67 GASKET; FRT COMB LAMP
HEADLAMPS RECTANGULAR<TR4> 		1-82216-033-0 02 1 9604-0407 ● ● ●
68 BULB; FRT COMB LAMP
HEADLAMPS RECTANGULAR<TR4> (A) 24V 21W 		1-82194-036-0 02 1 9604-0407 ● ● ●
68 BULB; FRT COMB LAMP
HEADLAMPS RECTANGULAR<TR4> (B) 24V 5W 		8-94135-397-0 02 1 9604-0407 ● ● ●
75 SCREW; FRT COMB LAMP
HEADLAMPS RECTANGULAR<TR4> (A) 		1-82219-026-0 04 1 9604-0407 ● ● ●
75 SCREW; FRT COMB LAMP
HEADLAMPS RECTANGULAR<TR4> (B) 		1-82219-031-0 04 1 9609-0407 ● ● ●
76 LENS; FRT COMB LAMP
HEADLAMPS RECTANGULAR<TR4> 		1-82215-065-0 01 1 9604-9608 ● ● ●
76 LENS; FRT COMB LAMP
HEADLAMPS RECTANGULAR<TR4> 		1-82215-071-0 01 1 9609-0407 ● ● ●
76 LENS; FRT COMB LAMP
HEADLAMPS RECTANGULAR<TR4> 		1-82215-064-0 01 1 9604-9608 ● ● ●
76 LENS; FRT COMB LAMP
HEADLAMPS RECTANGULAR<TR4> 		1-82215-070-0 01 1 9609-0407 ● ● ●
91 BULB; SIDE TURN SIGNAL
LIGHTING SYSTEM-JAPANESE STANDARDS<JBZ> 24V 10W 		1-82194-037-0 02 1 0602- ●
91 BULB; SIDE TURN SIGNAL
24V 10W 		1-82194-037-0 02 1 9604-9809 ● ● ● ● ●
91 BULB; SIDE TURN SIGNAL
AUSTRALIA EQUIPMENT(RR3) 24V 10W 		1-82194-037-0 02 1 9810-0004 ● ● ● ●
91 BULB; SIDE TURN SIGNAL
EXC. AUSTRALIA EQUIPMENT(RR3) 24V 12W 		1-82194-030-0 02 1 9810-0004 ● ● ● ●
91 BULB; SIDE TURN SIGNAL
24V 12W 		1-82194-030-0 02 1 9810-0004 ●
91 BULB; SIDE TURN SIGNAL
24V 12W 		1-82194-030-0 02 1 0005-0601 ● ● ●
91 BULB; SIDE TURN SIGNAL
24V 12W 		1-82194-030-0 02 1 0602- ● ●
91 BULB; SIDE TURN SIGNAL
EXC. LIGHTING SYSTEM-JAPANESE STANDARDS<JBZ> 24V 12W 		1-82194-030-0 02 1 0602- ●
104 SCREW; SIDE TURN SIGNAL 1-86830-149-0 02 1 9604-0004 ● ● ● ● ●
104 SCREW; SIDE TURN SIGNAL 1-86830-149-0 02 1 0005- ● ● ●
133 WASHER; PL,SIDE FLASHER LAMP 1-86830-150-0 02 1 9604-0004 ● ● ● ● ●
133 WASHER; PL,SIDE FLASHER LAMP 1-86830-150-0 02 1 0005-0206 ● ● ●
157 RING; MTG,HEADLAMP
HEADLAMPS RECTANGULAR<TR4> (B) 		1-82119-032-0 01 1 9604-0407 ● ● ●
157 RING; MTG,HEADLAMP
HEADLAMPS RECTANGULAR<TR4> (A) 		1-82119-033-0 01 1 9604-0407 ● ● ●
157 RING; MTG,HEADLAMP
HEADLAMPS RECTANGULAR<TR4> (A) 		1-82119-031-0 01 1 9604-0407 ● ● ●
157 RING; MTG,HEADLAMP
HEADLAMPS RECTANGULAR<TR4> (B) 		1-82119-034-0 01 1 9604-0407 ● ● ●
185 GROMMET; SCREW
(A) D=9.7X9.7 L=8 		8-94222-314-0 04 1 9604-0004 ● ● ● ● ●
185 GROMMET; SCREW
(A) D=9.7X9.7 L=8 		8-94222-314-0 04 1 0005- ● ● ●
185 GROMMET; SCREW
(B) D=8.6X7.7 L=7.5 		8-94279-078-0 02 1 9604-9604 ● ●
185 GROMMET; SCREW
(B) D=8.6X7.7 L=7.5 		1-09983-177-0 02 1 9605-9807 ● ●
185 GROMMET; SCREW
LAMPS FOUR ROOF MARKER<PJ5> HIGH ROOF<S2F> (C) M5 SCREW GROMMET 		1-09983-131-0 12 1 9604- ●
185 GROMMET; SCREW
LAMPS FOUR ROOF MARKER<PJ5> (C) M5 SCREW GROMMET 		1-09983-131-0 12 1 9604- ●
227 SEAT; SET SCREW,FRT COMB LAMP
HEADLAMPS RECTANGULAR<TR4> 		1-82216-032-0 04 1 9604-0407 ● ● ●
248 CLIP; HARNESS
VENTILATOR & DEFROSTER WO/HEATER<SAZ> ID=11.5 		1-09709-083-0 01 1 9604-0004 ● ● ● ● ●
248 CLIP; HARNESS
VENTILATOR & DEFROSTER WO/HEATER<SAZ> ID=11.5 		1-09709-083-0 01 1 0005- ● ● ●
268 PROTECTOR; HD LAMP
WEST MALAYSIA EQUIPMENT(SEQ) 		1-71268-373-0 01 1 9804-9911 ●
268 PROTECTOR; HD LAMP
WEST MALAYSIA EQUIPMENT(SEQ) 		1-71268-372-0 01 1 9804-9911 ●
321 HARNESS; SIDE FLASHER LAMP 1-86830-253-0 02 1 9604-0004 ● ● ● ● ●
321 HARNESS; SIDE FLASHER LAMP 1-86830-253-0 02 1 0005- ● ● ●
327 LAMP ASM; SIDE TURN SIGNAL
LIGHTING SYSTEM-JAPANESE STANDARDS<JBZ> 		1-86830-264-2 01 1 0602- ●
327 LAMP ASM; SIDE TURN SIGNAL
LIGHTING SYSTEM-JAPANESE STANDARDS<JBZ> 		1-86830-265-2 01 1 0602- ●
327 LAMP ASM; SIDE TURN SIGNAL 1-86830-263-0 01 1 9604-9809 ● ● ● ● ●
327 LAMP ASM; SIDE TURN SIGNAL
AUSTRALIA EQUIPMENT(RR3) 		1-86830-263-0 01 1 9810-0004 ● ● ● ●
327 LAMP ASM; SIDE TURN SIGNAL 1-86830-262-0 01 1 9604-9809 ● ● ● ● ●
327 LAMP ASM; SIDE TURN SIGNAL
AUSTRALIA EQUIPMENT(RR3) 		1-86830-262-0 01 1 9810-0004 ● ● ● ●
327 LAMP ASM; SIDE TURN SIGNAL
EXC. AUSTRALIA EQUIPMENT(RR3) 		1-86830-011-5 01 1 9810-0004 ● ● ● ●
327 LAMP ASM; SIDE TURN SIGNAL 1-86830-011-5 01 1 9810-0004 ●
327 LAMP ASM; SIDE TURN SIGNAL 1-86830-011-6 01 1 0005-0601 ● ● ●
327 LAMP ASM; SIDE TURN SIGNAL 1-86830-011-6 01 1 0602- ● ●
327 LAMP ASM; SIDE TURN SIGNAL
EXC. LIGHTING SYSTEM-JAPANESE STANDARDS<JBZ> 		1-86830-011-6 01 1 0602- ●
327 LAMP ASM; SIDE TURN SIGNAL
EXC. AUSTRALIA EQUIPMENT(RR3) 		1-86830-007-5 01 1 9810-0004 ● ● ● ●
327 LAMP ASM; SIDE TURN SIGNAL 1-86830-007-5 01 1 9810-0004 ●
327 LAMP ASM; SIDE TURN SIGNAL 1-86830-007-6 01 1 0005-0601 ● ● ●
327 LAMP ASM; SIDE TURN SIGNAL 1-86830-007-6 01 1 0602- ● ●
327 LAMP ASM; SIDE TURN SIGNAL
EXC. LIGHTING SYSTEM-JAPANESE STANDARDS<JBZ> 		1-86830-007-6 01 1 0602- ●
344 LAMP UNIT; SIDE TURN SIGNAL
LIGHTING SYSTEM-JAPANESE STANDARDS<JBZ> 		1-86830-266-2 01 1 0602- ●
344 LAMP UNIT; SIDE TURN SIGNAL
LIGHTING SYSTEM-JAPANESE STANDARDS<JBZ> 		1-86830-267-1 01 1 0602- ●
344 LAMP UNIT; SIDE TURN SIGNAL 1-86830-241-0 01 1 9604-0004 ● ● ● ● ●
344 LAMP UNIT; SIDE TURN SIGNAL 1-86830-241-1 01 1 0005-0601 ● ● ●
344 LAMP UNIT; SIDE TURN SIGNAL 1-86830-241-1 01 1 0602- ● ●
344 LAMP UNIT; SIDE TURN SIGNAL
EXC. LIGHTING SYSTEM-JAPANESE STANDARDS<JBZ> 		1-86830-241-1 01 1 0602- ●
344 LAMP UNIT; SIDE TURN SIGNAL 1-86830-240-0 01 1 9604-0004 ● ● ● ● ●
344 LAMP UNIT; SIDE TURN SIGNAL 1-86830-240-1 01 1 0005-0601 ● ● ●
344 LAMP UNIT; SIDE TURN SIGNAL 1-86830-240-1 01 1 0602- ● ●
344 LAMP UNIT; SIDE TURN SIGNAL
EXC. LIGHTING SYSTEM-JAPANESE STANDARDS<JBZ> 		1-86830-240-1 01 1 0602- ●
350 COVER; SIDE TURN HOLE 1-79998-944-1 01 1 9604-0209 ● ●
350 COVER; SIDE TURN HOLE 1-79996-607-0 01 1 0210- ● ●
350 COVER; SIDE TURN HOLE 1-79998-943-1 01 1 9604-0209 ● ●
350 COVER; SIDE TURN HOLE 1-79996-606-0 01 1 0210- ● ●
395 PROTECTOR; SIDE TURN LAMP
WEST MALAYSIA EQUIPMENT(SEQ) 		1-71268-374-0 02 1 9804-9911 ●
399 SOCKET; TURN SIGNAL
(A) 		1-82219-034-0 02 1 9604-0407 ● ● ● ● ●
399 SOCKET; TURN SIGNAL
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANTSQUARE W/FOG LAMP<TEB> (A) 		1-82219-034-0 02 1 0408- ● ● ●
399 SOCKET; TURN SIGNAL
HEADLAMPS RECTANGULAR<TR4> (B) 		1-82219-033-0 02 1 9604-0407 ● ● ●
çizim 153060
256 256 80 83 82 325 82 84 185 80 82 325 292 84 83 174 256 82 325 123 84 185 82 325 251 250 121 83
BalonParca AdiParca NoAdetTipApplied Date A B C D E
80 BULB; MARKER LAMP
LAMPS TWO ROOF MARKER<TEC> (B) 12V 5W 		1-82194-053-0 02 1 9604-0004 ● ● ●
80 BULB; MARKER LAMP
LAMPS FOUR ROOF MARKER<PJ5>,LAMPS TWO ROOF MARKER<TEC> (B) 12V 5W 		1-82194-053-0 02 1 9604-0004 ●
80 BULB; MARKER LAMP
LAMPS FOUR ROOF MARKER<PJ5> (B) 12V 5W 		1-82194-053-0 02 1 0005- ●
80 BULB; MARKER LAMP
LAMPS FOUR ROOF MARKER<PJ5> (A) 24V 12W 		9-82691-302-0 02 1 9604- ●
82 SCREW; MARKER LAMP
LAMPS TWO ROOF MARKER<TEC> (B) 		1-82219-011-0 04 1 9604-0004 ● ● ●
82 SCREW; MARKER LAMP
LAMPS FOUR ROOF MARKER<PJ5>,LAMPS TWO ROOF MARKER<TEC> (B) 		1-82219-011-0 04 1 9604-0004 ●
82 SCREW; MARKER LAMP
LAMPS FOUR ROOF MARKER<PJ5> (B) 		1-82219-011-0 04 1 0005- ●
82 SCREW; MARKER LAMP
LAMPS FOUR ROOF MARKER<PJ5> (A) M5X20 TAPPING 		0-71090-520-0 18 1 9604- ●
83 LENS; MARKER LAMP
LAMPS TWO ROOF MARKER<TEC> (C) 		1-82215-046-0 02 1 9604-0004 ● ● ● ●
83 LENS; MARKER LAMP
LAMPS FOUR ROOF MARKER<PJ5> (C) 		1-82215-048-0 02 1 9604- ●
83 LENS; MARKER LAMP
LAMPS FOUR ROOF MARKER<PJ5> (A) 		1-82215-068-0 02 1 9604- ●
83 LENS; MARKER LAMP
LAMPS FOUR ROOF MARKER<PJ5> (B) 		1-82215-069-0 01 1 9604- ●
84 GASKET; MARKER LAMP
LAMPS TWO ROOF MARKER<TEC> (B) 		1-86830-288-0 04 1 9604-0004 ● ● ●
84 GASKET; MARKER LAMP
LAMPS FOUR ROOF MARKER<PJ5>,LAMPS TWO ROOF MARKER<TEC> (B) 		1-86830-288-0 04 1 9604-0004 ●
84 GASKET; MARKER LAMP
LAMPS FOUR ROOF MARKER<PJ5> (B) 		1-86830-288-0 04 1 0005- ●
84 GASKET; MARKER LAMP
LAMPS FOUR ROOF MARKER<PJ5> (A) 		1-86830-153-0 03 1 9604- ●
121 REFLECTOR; REFLEX
LIGHTING SYSTEM-JAPANESE STANDARDS<JBZ> 		1-82290-061-0 02 1 0602- ●
121 REFLECTOR; REFLEX
AUSTRALIA EQUIPMENT(RR3) 		1-82290-061-0 02 1 9604-0004 ● ● ● ●
123 NUT; REFLECTOR
LIGHTING SYSTEM-JAPANESE STANDARDS<JBZ> M6 		0-91110-506-0 02 1 0602- ●
123 NUT; REFLECTOR
AUSTRALIA EQUIPMENT(RR3) M6 		9-09110-406-0 02 1 9604-0004 ● ● ● ●
174 BOLT
LAMPS TWO ROOF MARKER<TEC> M6X25 W/PL WASHER 		1-09039-006-1 04 1 9604-0004 ● ● ●
174 BOLT
LAMPS FOUR ROOF MARKER<PJ5>,LAMPS TWO ROOF MARKER<TEC> M6X25 W/PL WASHER 		1-09039-006-1 04 1 9604-0004 ●
174 BOLT
LAMPS FOUR ROOF MARKER<PJ5> M6X25 W/PL WASHER 		1-09039-006-1 04 1 0005-0906 ●
174 BOLT
LAMPS FOUR ROOF MARKER<PJ5> M6X25 W/PL WASHER 		8-98064-173-0 04 1 0907- ●
185 GROMMET; SCREW
(A) D=9.7X9.7 L=8 		8-94222-314-0 04 1 9604-0004 ● ● ● ● ●
185 GROMMET; SCREW
(A) D=9.7X9.7 L=8 		8-94222-314-0 04 1 0005- ● ● ●
185 GROMMET; SCREW
(B) D=8.6X7.7 L=7.5 		8-94279-078-0 02 1 9604-9604 ● ●
185 GROMMET; SCREW
(B) D=8.6X7.7 L=7.5 		1-09983-177-0 02 1 9605-9807 ● ●
185 GROMMET; SCREW
LAMPS FOUR ROOF MARKER<PJ5> HIGH ROOF<S2F> (C) M5 SCREW GROMMET 		1-09983-131-0 12 1 9604- ●
185 GROMMET; SCREW
LAMPS FOUR ROOF MARKER<PJ5> (C) M5 SCREW GROMMET 		1-09983-131-0 12 1 9604- ●
250 BRACKET ASM
LIGHTING SYSTEM-JAPANESE STANDARDS<JBZ> 		1-71996-160-0 01 1 0602- ●
250 BRACKET ASM
LIGHTING SYSTEM-JAPANESE STANDARDS<JBZ> 		1-71996-161-0 01 1 0602- ●
250 BRACKET ASM
AUSTRALIA EQUIPMENT(RR3) 		1-71996-139-1 02 1 9604-0004 ● ● ●
250 BRACKET ASM
AUSTRALIA EQUIPMENT(RR3) 		1-71996-161-0 01 1 9604-0004 ●
250 BRACKET ASM
AUSTRALIA EQUIPMENT(RR3) 		1-71996-160-0 01 1 9604-0004 ●
251 SCREW; BRKT FIX
AUSTRALIA EQUIPMENT(RR3) M6X20 W/LK&PL WASHER 		8-94279-203-0 04 1 9604-0004 ● ● ● ●
256 LAMP; MARKER
LAMPS TWO ROOF MARKER<TEC> (C) 		1-86830-293-0 01 1 9604-0004 ● ● ● ●
256 LAMP; MARKER
LAMPS TWO ROOF MARKER<TEC> (C) 		1-86830-292-0 01 1 9604-0004 ● ● ● ●
256 LAMP; MARKER
LAMPS FOUR ROOF MARKER<PJ5> (B) 		1-86830-131-0 01 1 9604- ●
256 LAMP; MARKER
LAMPS FOUR ROOF MARKER<PJ5> (A) 		1-86830-170-0 02 1 9604- ●
256 LAMP; MARKER
LAMPS FOUR ROOF MARKER<PJ5> (C) 		1-86830-295-0 01 1 9604- ●
256 LAMP; MARKER
LAMPS FOUR ROOF MARKER<PJ5> (C) 		1-86830-294-0 01 1 9604- ●
292 WASHER; MARKER LAMP
LAMPS TWO ROOF MARKER<TEC> 		1-82219-012-0 04 1 9604-0004 ● ● ●
292 WASHER; MARKER LAMP
LAMPS FOUR ROOF MARKER<PJ5>,LAMPS TWO ROOF MARKER<TEC> 		1-82219-012-0 04 1 9604-0004 ●
292 WASHER; MARKER LAMP
LAMPS FOUR ROOF MARKER<PJ5> 		1-82219-012-0 04 1 0005- ●
325 SCREW; SPD INDICATOR LAMP
LAMPS FOUR ROOF MARKER<PJ5> HIGH ROOF<S2F> M5X20 TAPPING 		0-71090-520-0 18 1 9604- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
