7-70 — SEPARATER AND BED (#34477) — 610 parça

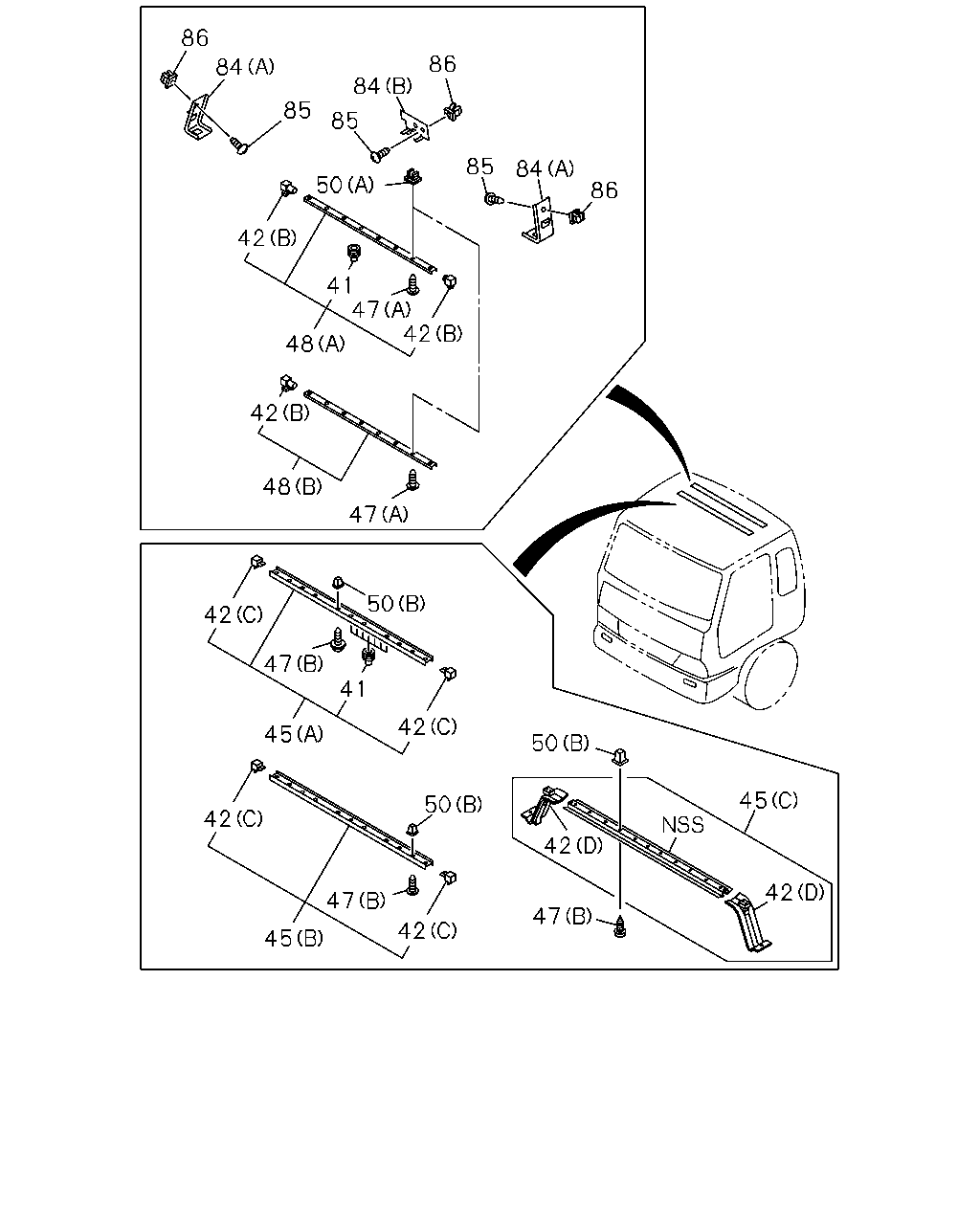

çizim 152965
86 86 84 84 85 85 85 84 50 86 42 41 47 42 48 42 48 47 50 42 47 41 42 45 50 45 50 42 42 42 47 47 42 45
BalonParca AdiParca NoAdetTipApplied Date A B C D E
41 HOOK; CURTAIN RAIL
WINDOW CURTAIN ROUND<BW4> H=14.5 WHITE 		1-73996-398-0 08 1 0005- ●
41 HOOK; CURTAIN RAIL
CURTAIN SLEEPER COMPARTMENT<E25> LOW ROOF<6XQ> H=14.5 DARK GRAY 		1-73996-105-0 13 1 9604-9704 ● ● ●
41 HOOK; CURTAIN RAIL
WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25> HIGH ROOF<S2F> H=14.5 DARK GRAY 		1-73996-105-0 13 1 9604-9704 ● ●
41 HOOK; CURTAIN RAIL
CURTAIN SLEEPER COMPARTMENT<E25> LOW ROOF<6XQ> H=14.5 DARK GRAY 		1-73996-105-0 13 1 9705-0004 ● ● ●
41 HOOK; CURTAIN RAIL
CURTAIN SLEEPER COMPARTMENT<E25> LOW ROOF<6XQ> H=14.5 WHITE 		1-73996-398-0 13 1 0005-0006 ● ● ●
41 HOOK; CURTAIN RAIL
CURTAIN SLEEPER COMPARTMENT<E25> LOW ROOF<6XQ> H=14.5 WHITE 		1-73996-398-0 14 1 0007-0104 ● ● ●
41 HOOK; CURTAIN RAIL
WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25> HIGH ROOF<S2F> H=14.5 WHITE 		1-73996-398-0 14 1 0007-0104 ●
41 HOOK; CURTAIN RAIL
CURTAIN SLEEPER COMPARTMENT<E25> H=14.5 WHITE 		1-73996-398-0 14 1 0105- ● ●
41 HOOK; CURTAIN RAIL
WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25> HIGH ROOF<S2F> H=14.5 WHITE 		1-73996-398-0 14 1 0105- ●
41 HOOK; CURTAIN RAIL
CURTAIN SLEEPER COMPARTMENT<E25> LOW ROOF<6XQ> H=14.5 WHITE 		1-73996-398-0 14 1 0105- ●
41 HOOK; CURTAIN RAIL
WINDOW CURTAIN ROUND<BW4> H=14.5 DARK GRAY 		1-73996-105-0 08 1 9604-0004 ● ●
41 HOOK; CURTAIN RAIL
WINDOW CURTAIN ROUND<BW4> HIGH ROOF<S2F> H=14.5 DARK GRAY 		1-73996-105-0 32 1 9604-0004 ● ●
41 HOOK; CURTAIN RAIL
WINDOW CURTAIN ROUND<BW4> HIGH ROOF<S2F> H=14.5 WHITE 		1-73996-398-0 32 1 0005- ●
41 HOOK; CURTAIN RAIL
WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25> HIGH ROOF<S2F> H=14.5 DARK GRAY 		1-73996-105-0 12 1 9705-9803 ● ●
41 HOOK; CURTAIN RAIL
WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25> HIGH ROOF<S2F> H=14.5 DARK GRAY 		1-73996-105-0 14 1 9804-0004 ● ●
41 HOOK; CURTAIN RAIL
WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25> HIGH ROOF<S2F> H=14.5 WHITE 		1-73996-398-0 14 1 0005-0006 ●
42 STOPPER; CURTAIN RAIL
LOW ROOF<6XQ> (A) 		1-73908-193-0 02 1 9604-0004 ● ● ●
42 STOPPER; CURTAIN RAIL
HIGH ROOF<S2F> EXC. WINDOW CURTAIN ROUND<BW4> (A) 		1-73908-193-0 02 1 9604-0004 ● ●
42 STOPPER; CURTAIN RAIL
(A) 		1-73908-193-0 02 1 9604-0004 ● ●
42 STOPPER; CURTAIN RAIL
LOW ROOF<6XQ> (A) 		1-73996-393-0 02 1 0005-0104 ● ● ●
42 STOPPER; CURTAIN RAIL
HIGH ROOF<S2F> EXC. WINDOW CURTAIN ROUND<BW4> (A) 		1-73996-393-0 02 1 0005-0104 ●
42 STOPPER; CURTAIN RAIL
(A) 		1-73996-393-0 02 1 0105- ● ●
42 STOPPER; CURTAIN RAIL
HIGH ROOF<S2F> EXC. WINDOW CURTAIN ROUND<BW4> (A) 		1-73996-393-0 02 1 0105- ●
42 STOPPER; CURTAIN RAIL
LOW ROOF<6XQ> (A) 		1-73996-393-0 02 1 0105- ●
42 STOPPER; CURTAIN RAIL
HIGH ROOF<S2F> (C) 		1-73907-279-2 02 1 9604-9803 ● ●
42 STOPPER; CURTAIN RAIL
HIGH ROOF<S2F> (D) 		1-73907-449-2 02 1 9804-0004 ● ●
42 STOPPER; CURTAIN RAIL
HIGH ROOF<S2F> (D) 		1-73996-402-0 02 1 0005- ●
42 STOPPER; CURTAIN RAIL
LOW ROOF<6XQ> (C) 		1-73907-403-1 02 1 9604-0004 ● ●
42 STOPPER; CURTAIN RAIL
(C) 		1-73907-403-1 02 1 9604-0004 ●
42 STOPPER; CURTAIN RAIL
LOW ROOF<6XQ> (C) 		1-73907-657-0 02 1 0005-0104 ● ●
42 STOPPER; CURTAIN RAIL
(C) 		1-73907-657-0 02 1 0005-0104 ●
42 STOPPER; CURTAIN RAIL
(C) 		1-73907-657-0 02 1 0105- ● ●
42 STOPPER; CURTAIN RAIL
LOW ROOF<6XQ> (C) 		1-73907-657-0 02 1 0105- ●
42 STOPPER; CURTAIN RAIL
WINDOW CURTAIN ROUND<BW4> (B) 		1-73996-146-2 02 1 9604-0004 ● ●
42 STOPPER; CURTAIN RAIL
WINDOW CURTAIN ROUND<BW4> (B) 		1-73996-399-0 02 1 0005- ●
42 STOPPER; CURTAIN RAIL
WINDOW CURTAIN ROUND<BW4> HIGH ROOF<S2F> (A) 		1-73908-193-0 04 1 9604-0004 ● ●
42 STOPPER; CURTAIN RAIL
WINDOW CURTAIN ROUND<BW4> HIGH ROOF<S2F> (A) 		1-73996-393-0 04 1 0005- ●
42 STOPPER; CURTAIN RAIL
EXC. WINDOW CURTAIN ROUND<BW4> (B) 		1-73996-146-2 01 1 9604-0004 ● ●
42 STOPPER; CURTAIN RAIL
(B) 		1-73996-146-2 01 1 9604-0004 ●
42 STOPPER; CURTAIN RAIL
(B) 		1-73996-399-0 01 1 0005- ● ●
42 STOPPER; CURTAIN RAIL
EXC. WINDOW CURTAIN ROUND<BW4> (B) 		1-73996-399-0 01 1 0005- ●
45 RAIL; CURTAIN,FRT
CURTAIN SLEEPER COMPARTMENT<E25> LOW ROOF<6XQ> (A) 		1-73908-150-0 01 1 9604-0004 ● ● ●
45 RAIL; CURTAIN,FRT
CURTAIN SLEEPER COMPARTMENT<E25> LOW ROOF<6XQ> (A) 		1-73908-374-2 01 1 0005-0104 ● ● ●
45 RAIL; CURTAIN,FRT
CURTAIN SLEEPER COMPARTMENT<E25> (A) 		1-73908-374-2 01 1 0105- ● ●
45 RAIL; CURTAIN,FRT
CURTAIN SLEEPER COMPARTMENT<E25> LOW ROOF<6XQ> (A) 		1-73908-374-2 01 1 0105- ●
45 RAIL; CURTAIN,FRT
LOW ROOF<6XQ> EXC. CURTAIN SLEEPER COMPARTMENT<E25> (B) 		1-73908-148-0 01 1 9604-0004 ● ● ●
45 RAIL; CURTAIN,FRT
LOW ROOF<6XQ> EXC. CURTAIN SLEEPER COMPARTMENT<E25> (B) 		1-73908-373-1 01 1 0005-0104 ● ● ●
45 RAIL; CURTAIN,FRT
EXC. CURTAIN SLEEPER COMPARTMENT<E25> (B) 		1-73908-373-1 01 1 0105- ● ●
45 RAIL; CURTAIN,FRT
LOW ROOF<6XQ> EXC. CURTAIN SLEEPER COMPARTMENT<E25> (B) 		1-73908-373-1 01 1 0105- ●
45 RAIL; CURTAIN,FRT
HIGH ROOF<S2F> EXC. WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25> (B) 		1-73908-110-0 01 1 9604-9803 ● ●
45 RAIL; CURTAIN,FRT
HIGH ROOF<S2F> EXC. WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25> (C) 		1-73996-303-3 01 1 9804-0004 ● ●
45 RAIL; CURTAIN,FRT
HIGH ROOF<S2F> EXC. WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25> (C) 		1-73996-369-1 01 1 0005- ●
45 RAIL; CURTAIN,FRT
WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25> HIGH ROOF<S2F> (A) 		1-73996-101-4 01 1 9604-9803 ● ●
45 RAIL; CURTAIN,FRT
WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25> HIGH ROOF<S2F> (C) 		1-73908-262-0 01 1 9804-0004 ● ●
45 RAIL; CURTAIN,FRT
WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25> HIGH ROOF<S2F> (C) 		1-73996-370-1 01 1 0005- ●
45 RAIL; CURTAIN,FRT
(D) 		1-73996-323-0 01 1 9604-9803 ● ●
45 RAIL; CURTAIN,FRT
(D) 		1-73996-339-0 01 1 9804-0004 ● ●
47 SCREW; CURTAIN RAIL
HIGH ROOF<S2F> (A) M5X20 		5-09981-059-0 21 1 9604-9703 ● ●
47 SCREW; CURTAIN RAIL
HIGH ROOF<S2F> (A) M5X20 		5-09981-059-0 30 1 9704-9803 ● ●
47 SCREW; CURTAIN RAIL
HIGH ROOF<S2F> (A) M5X20 		5-09981-059-0 19 1 9804-0004 ● ●
47 SCREW; CURTAIN RAIL
HIGH ROOF<S2F> (A) M5X20 		5-09981-059-0 19 1 0005- ●
47 SCREW; CURTAIN RAIL
HIGH ROOF<S2F> (B) M5X25 		5-09981-093-0 09 1 9604-9703 ● ●
47 SCREW; CURTAIN RAIL
(B) M5X25 		5-09981-093-0 09 1 9604-9703 ● ●
47 SCREW; CURTAIN RAIL
LOW ROOF<6XQ> (A) M5X20 		5-09981-059-0 17 1 9604-0104 ● ●
47 SCREW; CURTAIN RAIL
(A) M5X20 		5-09981-059-0 17 1 9604-0104 ●
47 SCREW; CURTAIN RAIL
(A) M5X20 		5-09981-059-0 17 1 0105- ● ●
47 SCREW; CURTAIN RAIL
LOW ROOF<6XQ> (A) M5X20 		5-09981-059-0 17 1 0105- ●
47 SCREW; CURTAIN RAIL
LOW ROOF<6XQ> (B) M5X25 		5-09981-093-0 07 1 9604-9803 ● ●
47 SCREW; CURTAIN RAIL
(B) M5X25 		5-09981-093-0 07 1 9604-9803 ●
47 SCREW; CURTAIN RAIL
(B) M5X25 		5-09981-093-0 07 1 9804-0211 ● ● ●
47 SCREW; CURTAIN RAIL
(B) M5X25 		5-09981-093-0 08 1 0212-0212 ● ● ●
47 SCREW; CURTAIN RAIL
(B) M5X25 		5-09981-093-0 07 1 0212- ● ● ●
47 SCREW; CURTAIN RAIL
(C) M4X16 TAPPING 		1-09981-477-0 15 1 9604-0004 ● ●
47 SCREW; CURTAIN RAIL
(A) M5X20 		5-09981-059-0 10 1 9604-9703 ● ●
47 SCREW; CURTAIN RAIL
(A) M5X20 		5-09981-059-0 19 1 9704-9803 ● ●
47 SCREW; CURTAIN RAIL
(A) M5X20 		5-09981-059-0 13 1 9804-0004 ● ●
48 RAIL; CURTAIN,BACK
WINDOW CURTAIN ROUND<BW4> (A) 		1-73996-106-3 01 1 9604-0004 ● ●
48 RAIL; CURTAIN,BACK
WINDOW CURTAIN ROUND<BW4> (A) 		1-73996-386-1 01 1 0005- ●
48 RAIL; CURTAIN,BACK
EXC. WINDOW CURTAIN ROUND<BW4> (B) 		8-94265-811-0 01 1 9604-0004 ● ●
48 RAIL; CURTAIN,BACK
(B) 		8-94265-811-0 01 1 9604-0004 ●
48 RAIL; CURTAIN,BACK
(B) 		1-73996-385-1 01 1 0005- ● ●
48 RAIL; CURTAIN,BACK
EXC. WINDOW CURTAIN ROUND<BW4> (B) 		1-73996-385-1 01 1 0005- ●
48 RAIL; CURTAIN,BACK
(C) 		1-73996-328-0 01 1 9604-0004 ● ●
50 GROMMET; SCREW,CURTAIN RAIL
HIGH ROOF<S2F> (B) D=8X8 L=13 M5 		1-09983-159-0 09 1 9604-9803 ● ●
50 GROMMET; SCREW,CURTAIN RAIL
(B) D=8X8 L=13 M5 		1-09983-159-0 09 1 9604-9803 ● ●
50 GROMMET; SCREW,CURTAIN RAIL
LOW ROOF<6XQ> (B) D=8X8 L=13 M5 		1-09983-159-0 07 1 9804-0004 ● ● ●
50 GROMMET; SCREW,CURTAIN RAIL
WINDOW CURTAIN ROUND<BW4> HIGH ROOF<S2F> (B) D=8X8 L=13 M5 		1-09983-159-0 07 1 9804-0004 ● ●
50 GROMMET; SCREW,CURTAIN RAIL
LOW ROOF<6XQ> (B) D=8X8 L=13 M5 		1-09983-159-0 07 1 0005-0104 ● ● ●
50 GROMMET; SCREW,CURTAIN RAIL
WINDOW CURTAIN ROUND<BW4> HIGH ROOF<S2F> (B) D=8X8 L=13 M5 		1-09983-159-0 07 1 0005-0104 ●
50 GROMMET; SCREW,CURTAIN RAIL
(B) D=8X8 L=13 M5 		1-09983-159-0 07 1 0105-0211 ● ●
50 GROMMET; SCREW,CURTAIN RAIL
WINDOW CURTAIN ROUND<BW4> HIGH ROOF<S2F> (B) D=8X8 L=13 M5 		1-09983-159-0 07 1 0105-0211 ●
50 GROMMET; SCREW,CURTAIN RAIL
LOW ROOF<6XQ> (B) D=8X8 L=13 M5 		1-09983-159-0 07 1 0105-0211 ●
50 GROMMET; SCREW,CURTAIN RAIL
(B) D=8X8 L=13 M5 		1-09983-159-0 15 1 0212-0212 ● ●
50 GROMMET; SCREW,CURTAIN RAIL
HIGH ROOF<S2F> EXC. WINDOW CURTAIN ROUND<BW4> (B) D=8X8 L=13 M5 		1-09983-159-0 15 1 0212-0212 ●
50 GROMMET; SCREW,CURTAIN RAIL
LOW ROOF<6XQ> (B) D=8X8 L=13 M5 		1-09983-159-0 15 1 0212-0212 ●
50 GROMMET; SCREW,CURTAIN RAIL
(B) D=8X8 L=13 M5 		1-09983-159-0 07 1 0212- ● ●
50 GROMMET; SCREW,CURTAIN RAIL
WINDOW CURTAIN ROUND<BW4> HIGH ROOF<S2F> (B) D=8X8 L=13 M5 		1-09983-159-0 07 1 0212- ●
50 GROMMET; SCREW,CURTAIN RAIL
LOW ROOF<6XQ> (B) D=8X8 L=13 M5 		1-09983-159-0 07 1 0212- ●
50 GROMMET; SCREW,CURTAIN RAIL
HIGH ROOF<S2F> (A) D=8X8 L=7.5 M5 YELLOW 		8-94279-740-0 21 1 9604-9708 ● ●
50 GROMMET; SCREW,CURTAIN RAIL
HIGH ROOF<S2F> (A) D=8.6X7.7 L=7.5 		8-94279-078-0 21 1 9709-9803 ● ●
50 GROMMET; SCREW,CURTAIN RAIL
WINDOW CURTAIN ROUND<BW4> HIGH ROOF<S2F> (A) D=8.6X7.7 L=7.5 		8-94279-078-0 25 1 9804-0004 ● ●
50 GROMMET; SCREW,CURTAIN RAIL
WINDOW CURTAIN ROUND<BW4> HIGH ROOF<S2F> (A) D=8.6X7.7 L=7.5 		8-94279-078-0 25 1 0005- ●
50 GROMMET; SCREW,CURTAIN RAIL
HIGH ROOF<S2F> EXC. WINDOW CURTAIN ROUND<BW4> (A) D=8.6X7.7 L=7.5 		8-94279-078-0 11 1 9804-0004 ● ●
50 GROMMET; SCREW,CURTAIN RAIL
HIGH ROOF<S2F> EXC. WINDOW CURTAIN ROUND<BW4> (A) D=8.6X7.7 L=7.5 		8-94279-078-0 11 1 0005- ●
50 GROMMET; SCREW,CURTAIN RAIL
LOW ROOF<6XQ> (B) D=8X8 L=13 M5 		1-09983-159-0 07 1 9604-9803 ● ●
50 GROMMET; SCREW,CURTAIN RAIL
(B) D=8X8 L=13 M5 		1-09983-159-0 07 1 9604-9803 ●
50 GROMMET; SCREW,CURTAIN RAIL
HIGH ROOF<S2F> EXC. WINDOW CURTAIN ROUND<BW4> (B) D=8X8 L=13 M5 		1-09983-159-0 15 1 9804-0004 ● ●
50 GROMMET; SCREW,CURTAIN RAIL
HIGH ROOF<S2F> EXC. WINDOW CURTAIN ROUND<BW4> (B) D=8X8 L=13 M5 		1-09983-159-0 15 1 0005-0211 ●
50 GROMMET; SCREW,CURTAIN RAIL
WINDOW CURTAIN ROUND<BW4> HIGH ROOF<S2F> (B) D=8X8 L=13 M5 		1-09983-159-0 07 1 0212-0212 ●
50 GROMMET; SCREW,CURTAIN RAIL
HIGH ROOF<S2F> EXC. WINDOW CURTAIN ROUND<BW4> (B) D=8X8 L=13 M5 		1-09983-159-0 15 1 0212- ●
50 GROMMET; SCREW,CURTAIN RAIL
LOW ROOF<6XQ> (A) D=8X8 L=7.5 M5 YELLOW 		8-94279-740-0 17 1 9604-9708 ● ●
50 GROMMET; SCREW,CURTAIN RAIL
(A) D=8X8 L=7.5 M5 YELLOW 		8-94279-740-0 17 1 9604-9708 ●
50 GROMMET; SCREW,CURTAIN RAIL
LOW ROOF<6XQ> (A) D=8.6X7.7 L=7.5 		8-94279-078-0 17 1 9709-0104 ● ●
50 GROMMET; SCREW,CURTAIN RAIL
(A) D=8.6X7.7 L=7.5 		8-94279-078-0 17 1 9709-0104 ●
50 GROMMET; SCREW,CURTAIN RAIL
(A) D=8.6X7.7 L=7.5 		8-94279-078-0 17 1 0105- ● ●
50 GROMMET; SCREW,CURTAIN RAIL
LOW ROOF<6XQ> (A) D=8.6X7.7 L=7.5 		8-94279-078-0 17 1 0105- ●
50 GROMMET; SCREW,CURTAIN RAIL
(A) D=8X8 L=7.5 M5 YELLOW 		8-94279-740-0 10 1 9604-9708 ● ●
50 GROMMET; SCREW,CURTAIN RAIL
(A) D=8.6X7.7 L=7.5 		8-94279-078-0 10 1 9709-9803 ● ●
50 GROMMET; SCREW,CURTAIN RAIL
(A) D=8.6X7.7 L=7.5 		8-94279-078-0 09 1 9804-0004 ● ●
50 GROMMET; SCREW,CURTAIN RAIL
(B) D=8X8 L=13 M5 		1-09983-159-0 04 1 9804-0004 ● ●
84 BRACKET; CURTAIN RAIL
(A) 		1-73998-986-2 02 1 9604- ● ● ●
84 BRACKET; CURTAIN RAIL
HIGH ROOF<S2F> (B) 		1-73998-987-4 02 1 9604-9803 ● ●
84 BRACKET; CURTAIN RAIL
SPEAKER SYSTEM RR 2 SPEAKERS<TLS> (B) 		1-73998-987-4 03 1 9804-0004 ● ●
84 BRACKET; CURTAIN RAIL
(B) 		1-73998-987-4 07 1 0005- ● ● ●
84 BRACKET; CURTAIN RAIL
LOW ROOF<6XQ> (B) 		1-73998-987-4 07 1 9604-9803 ● ●
84 BRACKET; CURTAIN RAIL
(B) 		1-73998-987-4 07 1 9604-9803 ●
84 BRACKET; CURTAIN RAIL
EXC. SPEAKER SYSTEM RR 2 SPEAKERS<TLS> (B) 		1-73998-987-4 07 1 9804-0004 ● ●
84 BRACKET; CURTAIN RAIL
(B) 		1-73998-987-4 07 1 9804-0004 ●
85 SCREW; BRKT
HIGH ROOF<S2F> M5X20 		5-09981-059-0 04 1 9604-9803 ● ●
85 SCREW; BRKT
SPEAKER SYSTEM RR 2 SPEAKERS<TLS> M5X20 		5-09981-059-0 03 1 9804-0004 ● ●
85 SCREW; BRKT
M5X20 		5-09981-059-0 07 1 0005-0405 ● ● ●
85 SCREW; BRKT
M5X20 		5-09981-059-0 02 1 0406- ● ● ●
85 SCREW; BRKT
LOW ROOF<6XQ> M5X20 		5-09981-059-0 09 1 9604-9803 ● ●
85 SCREW; BRKT
M5X20 		5-09981-059-0 09 1 9604-9803 ●
85 SCREW; BRKT
M5X20 		5-09981-059-0 02 1 9804-0405 ● ● ●
85 SCREW; BRKT
M5X20 		5-09981-059-0 07 1 0406- ● ● ●
85 SCREW; BRKT
EXC. SPEAKER SYSTEM RR 2 SPEAKERS<TLS> M5X20 		5-09981-059-0 07 1 9804-0004 ● ●
85 SCREW; BRKT
M5X20 		5-09981-059-0 07 1 9804-0004 ●
86 GROMMET; SCREW,BRKT
HIGH ROOF<S2F> D=8X8 L=7.5 M5 YELLOW 		8-94279-740-0 04 1 9604-9708 ● ●
86 GROMMET; SCREW,BRKT
HIGH ROOF<S2F> D=8.6X7.7 L=7.5 		8-94279-078-0 04 1 9709-9803 ● ●
86 GROMMET; SCREW,BRKT
SPEAKER SYSTEM RR 2 SPEAKERS<TLS> D=8.6X7.7 L=7.5 		8-94279-078-0 03 1 9804-0004 ● ●
86 GROMMET; SCREW,BRKT
LOW ROOF<6XQ> D=8X8 L=7.5 M5 YELLOW 		8-94279-740-0 09 1 9604-9708 ● ●
86 GROMMET; SCREW,BRKT
D=8X8 L=7.5 M5 YELLOW 		8-94279-740-0 09 1 9604-9708 ●
86 GROMMET; SCREW,BRKT
LOW ROOF<6XQ> D=8.6X7.7 L=7.5 		8-94279-078-0 09 1 9709-9803 ● ●
86 GROMMET; SCREW,BRKT
D=8.6X7.7 L=7.5 		8-94279-078-0 09 1 9709-9803 ●
86 GROMMET; SCREW,BRKT
D=8.6X7.7 L=7.5 		8-94279-078-0 02 1 9804- ● ● ●
86 GROMMET; SCREW,BRKT
EXC. SPEAKER SYSTEM RR 2 SPEAKERS<TLS> D=8.6X7.7 L=7.5 		8-94279-078-0 07 1 9804-0004 ● ●
86 GROMMET; SCREW,BRKT
D=8.6X7.7 L=7.5 		8-94279-078-0 07 1 9804-0004 ●
86 GROMMET; SCREW,BRKT
D=8.6X7.7 L=7.5 		8-94279-078-0 07 1 0005- ● ● ●

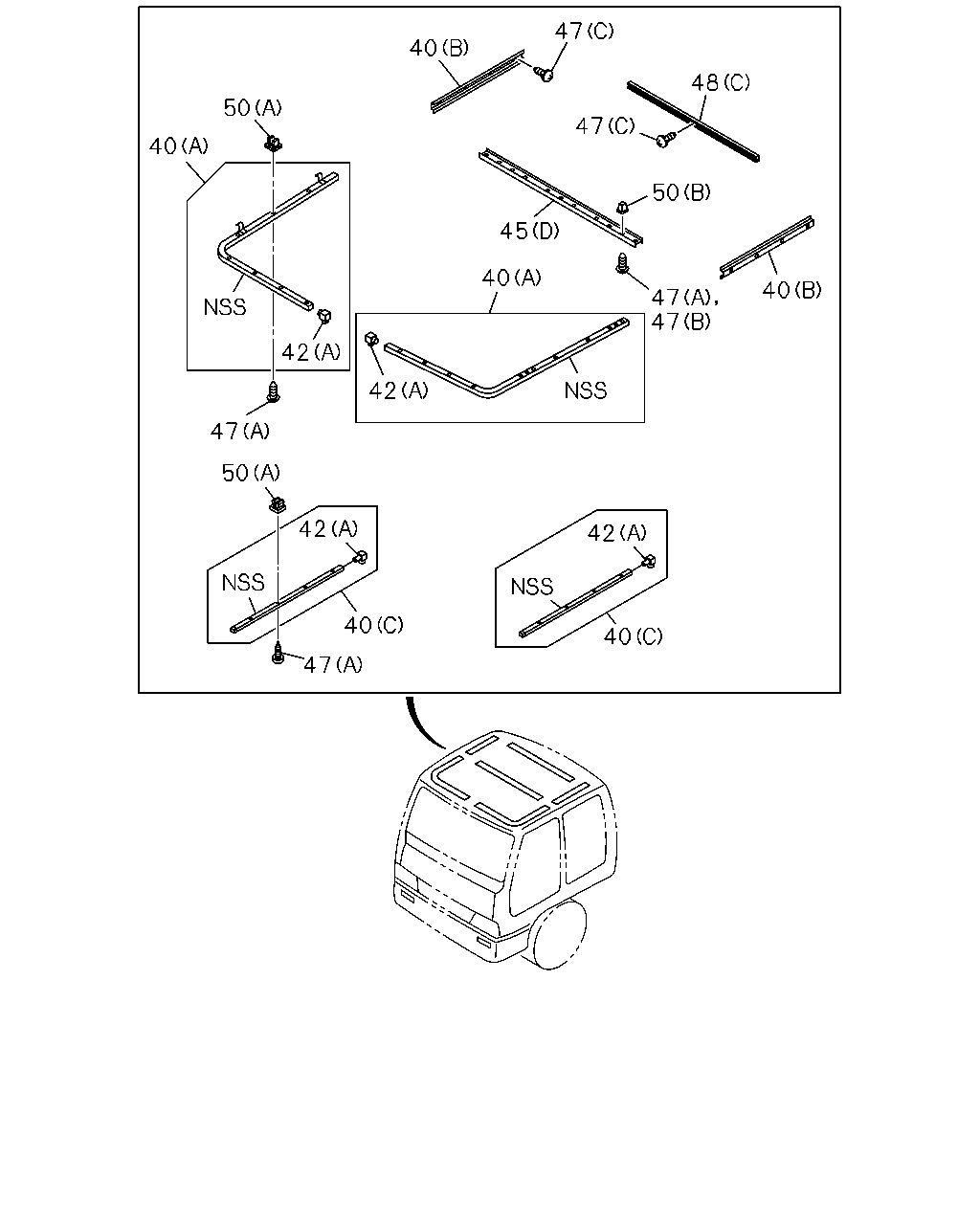

çizim 152972
47 40 48 50 47 40 50 45 40 40 47 47 42 42 47 50 42 42 40 40 47
BalonParca AdiParca NoAdetTipApplied Date A B C D E
40 RAIL; CURTAIN,SIDE
LOW ROOF<6XQ> (D) 		1-73996-380-1 01 1 0005-0104 ● ●
40 RAIL; CURTAIN,SIDE
(D) 		1-73996-380-1 01 1 0005-0104 ●
40 RAIL; CURTAIN,SIDE
(D) 		1-73996-380-1 01 1 0105- ● ●
40 RAIL; CURTAIN,SIDE
LOW ROOF<6XQ> (D) 		1-73996-380-1 01 1 0105- ●
40 RAIL; CURTAIN,SIDE
HIGH ROOF<S2F> EXC. WINDOW CURTAIN ROUND<BW4> (C) 		1-73996-334-1 02 1 9804-0004 ● ●
40 RAIL; CURTAIN,SIDE
HIGH ROOF<S2F> EXC. WINDOW CURTAIN ROUND<BW4> (C) 		1-73996-378-1 02 1 0005- ●
40 RAIL; CURTAIN,SIDE
LOW ROOF<6XQ> (D) 		1-73908-220-0 01 1 9604-0004 ● ●
40 RAIL; CURTAIN,SIDE
(D) 		1-73908-220-0 01 1 9604-0004 ●
40 RAIL; CURTAIN,SIDE
LOW ROOF<6XQ> (D) 		1-73908-219-0 01 1 9604-0004 ● ●
40 RAIL; CURTAIN,SIDE
(D) 		1-73908-219-0 01 1 9604-0004 ●
40 RAIL; CURTAIN,SIDE
LOW ROOF<6XQ> (D) 		1-73996-379-0 01 1 0005-0104 ● ●
40 RAIL; CURTAIN,SIDE
(D) 		1-73996-379-0 01 1 0005-0104 ●
40 RAIL; CURTAIN,SIDE
(D) 		1-73996-379-0 01 1 0105- ● ●
40 RAIL; CURTAIN,SIDE
LOW ROOF<6XQ> (D) 		1-73996-379-0 01 1 0105- ●
40 RAIL; CURTAIN,SIDE
HIGH ROOF<S2F> EXC. WINDOW CURTAIN ROUND<BW4> (B) 		1-73908-109-1 01 1 9604-9803 ● ●
40 RAIL; CURTAIN,SIDE
WINDOW CURTAIN ROUND<BW4> HIGH ROOF<S2F> (A) 		1-73908-154-1 01 1 9604-0004 ● ●
40 RAIL; CURTAIN,SIDE
WINDOW CURTAIN ROUND<BW4> HIGH ROOF<S2F> (A) 		1-73996-368-1 01 1 0005- ●
40 RAIL; CURTAIN,SIDE
HIGH ROOF<S2F> EXC. WINDOW CURTAIN ROUND<BW4> (B) 		1-73908-108-1 01 1 9604-9803 ● ●
40 RAIL; CURTAIN,SIDE
WINDOW CURTAIN ROUND<BW4> HIGH ROOF<S2F> (A) 		1-73908-153-1 01 1 9604-0004 ● ●
40 RAIL; CURTAIN,SIDE
WINDOW CURTAIN ROUND<BW4> HIGH ROOF<S2F> (A) 		1-73996-367-1 01 1 0005- ●
40 RAIL; CURTAIN,SIDE
(B) 		1-73996-325-0 01 1 9604-0004 ● ●
40 RAIL; CURTAIN,SIDE
(A) 		1-73996-327-0 01 1 9604-9803 ● ●
40 RAIL; CURTAIN,SIDE
(B) 		1-73996-324-0 01 1 9604-0004 ● ●
40 RAIL; CURTAIN,SIDE
(A) 		1-73996-326-0 01 1 9604-9803 ● ●
40 RAIL; CURTAIN,SIDE
(C) 		1-73996-335-0 02 1 9804-0004 ● ●
42 STOPPER; CURTAIN RAIL
LOW ROOF<6XQ> (A) 		1-73908-193-0 02 1 9604-0004 ● ● ●
42 STOPPER; CURTAIN RAIL
HIGH ROOF<S2F> EXC. WINDOW CURTAIN ROUND<BW4> (A) 		1-73908-193-0 02 1 9604-0004 ● ●
42 STOPPER; CURTAIN RAIL
(A) 		1-73908-193-0 02 1 9604-0004 ● ●
42 STOPPER; CURTAIN RAIL
LOW ROOF<6XQ> (A) 		1-73996-393-0 02 1 0005-0104 ● ● ●
42 STOPPER; CURTAIN RAIL
HIGH ROOF<S2F> EXC. WINDOW CURTAIN ROUND<BW4> (A) 		1-73996-393-0 02 1 0005-0104 ●
42 STOPPER; CURTAIN RAIL
(A) 		1-73996-393-0 02 1 0105- ● ●
42 STOPPER; CURTAIN RAIL
HIGH ROOF<S2F> EXC. WINDOW CURTAIN ROUND<BW4> (A) 		1-73996-393-0 02 1 0105- ●
42 STOPPER; CURTAIN RAIL
LOW ROOF<6XQ> (A) 		1-73996-393-0 02 1 0105- ●
42 STOPPER; CURTAIN RAIL
HIGH ROOF<S2F> (C) 		1-73907-279-2 02 1 9604-9803 ● ●
42 STOPPER; CURTAIN RAIL
HIGH ROOF<S2F> (D) 		1-73907-449-2 02 1 9804-0004 ● ●
42 STOPPER; CURTAIN RAIL
HIGH ROOF<S2F> (D) 		1-73996-402-0 02 1 0005- ●
42 STOPPER; CURTAIN RAIL
LOW ROOF<6XQ> (C) 		1-73907-403-1 02 1 9604-0004 ● ●
42 STOPPER; CURTAIN RAIL
(C) 		1-73907-403-1 02 1 9604-0004 ●
42 STOPPER; CURTAIN RAIL
LOW ROOF<6XQ> (C) 		1-73907-657-0 02 1 0005-0104 ● ●
42 STOPPER; CURTAIN RAIL
(C) 		1-73907-657-0 02 1 0005-0104 ●
42 STOPPER; CURTAIN RAIL
(C) 		1-73907-657-0 02 1 0105- ● ●
42 STOPPER; CURTAIN RAIL
LOW ROOF<6XQ> (C) 		1-73907-657-0 02 1 0105- ●
42 STOPPER; CURTAIN RAIL
WINDOW CURTAIN ROUND<BW4> (B) 		1-73996-146-2 02 1 9604-0004 ● ●
42 STOPPER; CURTAIN RAIL
WINDOW CURTAIN ROUND<BW4> (B) 		1-73996-399-0 02 1 0005- ●
42 STOPPER; CURTAIN RAIL
WINDOW CURTAIN ROUND<BW4> HIGH ROOF<S2F> (A) 		1-73908-193-0 04 1 9604-0004 ● ●
42 STOPPER; CURTAIN RAIL
WINDOW CURTAIN ROUND<BW4> HIGH ROOF<S2F> (A) 		1-73996-393-0 04 1 0005- ●
42 STOPPER; CURTAIN RAIL
EXC. WINDOW CURTAIN ROUND<BW4> (B) 		1-73996-146-2 01 1 9604-0004 ● ●
42 STOPPER; CURTAIN RAIL
(B) 		1-73996-146-2 01 1 9604-0004 ●
42 STOPPER; CURTAIN RAIL
(B) 		1-73996-399-0 01 1 0005- ● ●
42 STOPPER; CURTAIN RAIL
EXC. WINDOW CURTAIN ROUND<BW4> (B) 		1-73996-399-0 01 1 0005- ●
45 RAIL; CURTAIN,FRT
CURTAIN SLEEPER COMPARTMENT<E25> LOW ROOF<6XQ> (A) 		1-73908-150-0 01 1 9604-0004 ● ● ●
45 RAIL; CURTAIN,FRT
CURTAIN SLEEPER COMPARTMENT<E25> LOW ROOF<6XQ> (A) 		1-73908-374-2 01 1 0005-0104 ● ● ●
45 RAIL; CURTAIN,FRT
CURTAIN SLEEPER COMPARTMENT<E25> (A) 		1-73908-374-2 01 1 0105- ● ●
45 RAIL; CURTAIN,FRT
CURTAIN SLEEPER COMPARTMENT<E25> LOW ROOF<6XQ> (A) 		1-73908-374-2 01 1 0105- ●
45 RAIL; CURTAIN,FRT
LOW ROOF<6XQ> EXC. CURTAIN SLEEPER COMPARTMENT<E25> (B) 		1-73908-148-0 01 1 9604-0004 ● ● ●
45 RAIL; CURTAIN,FRT
LOW ROOF<6XQ> EXC. CURTAIN SLEEPER COMPARTMENT<E25> (B) 		1-73908-373-1 01 1 0005-0104 ● ● ●
45 RAIL; CURTAIN,FRT
EXC. CURTAIN SLEEPER COMPARTMENT<E25> (B) 		1-73908-373-1 01 1 0105- ● ●
45 RAIL; CURTAIN,FRT
LOW ROOF<6XQ> EXC. CURTAIN SLEEPER COMPARTMENT<E25> (B) 		1-73908-373-1 01 1 0105- ●
45 RAIL; CURTAIN,FRT
HIGH ROOF<S2F> EXC. WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25> (B) 		1-73908-110-0 01 1 9604-9803 ● ●
45 RAIL; CURTAIN,FRT
HIGH ROOF<S2F> EXC. WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25> (C) 		1-73996-303-3 01 1 9804-0004 ● ●
45 RAIL; CURTAIN,FRT
HIGH ROOF<S2F> EXC. WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25> (C) 		1-73996-369-1 01 1 0005- ●
45 RAIL; CURTAIN,FRT
WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25> HIGH ROOF<S2F> (A) 		1-73996-101-4 01 1 9604-9803 ● ●
45 RAIL; CURTAIN,FRT
WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25> HIGH ROOF<S2F> (C) 		1-73908-262-0 01 1 9804-0004 ● ●
45 RAIL; CURTAIN,FRT
WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25> HIGH ROOF<S2F> (C) 		1-73996-370-1 01 1 0005- ●
45 RAIL; CURTAIN,FRT
(D) 		1-73996-323-0 01 1 9604-9803 ● ●
45 RAIL; CURTAIN,FRT
(D) 		1-73996-339-0 01 1 9804-0004 ● ●
47 SCREW; CURTAIN RAIL
HIGH ROOF<S2F> (A) M5X20 		5-09981-059-0 21 1 9604-9703 ● ●
47 SCREW; CURTAIN RAIL
HIGH ROOF<S2F> (A) M5X20 		5-09981-059-0 30 1 9704-9803 ● ●
47 SCREW; CURTAIN RAIL
HIGH ROOF<S2F> (A) M5X20 		5-09981-059-0 19 1 9804-0004 ● ●
47 SCREW; CURTAIN RAIL
HIGH ROOF<S2F> (A) M5X20 		5-09981-059-0 19 1 0005- ●
47 SCREW; CURTAIN RAIL
HIGH ROOF<S2F> (B) M5X25 		5-09981-093-0 09 1 9604-9703 ● ●
47 SCREW; CURTAIN RAIL
(B) M5X25 		5-09981-093-0 09 1 9604-9703 ● ●
47 SCREW; CURTAIN RAIL
LOW ROOF<6XQ> (A) M5X20 		5-09981-059-0 17 1 9604-0104 ● ●
47 SCREW; CURTAIN RAIL
(A) M5X20 		5-09981-059-0 17 1 9604-0104 ●
47 SCREW; CURTAIN RAIL
(A) M5X20 		5-09981-059-0 17 1 0105- ● ●
47 SCREW; CURTAIN RAIL
LOW ROOF<6XQ> (A) M5X20 		5-09981-059-0 17 1 0105- ●
47 SCREW; CURTAIN RAIL
LOW ROOF<6XQ> (B) M5X25 		5-09981-093-0 07 1 9604-9803 ● ●
47 SCREW; CURTAIN RAIL
(B) M5X25 		5-09981-093-0 07 1 9604-9803 ●
47 SCREW; CURTAIN RAIL
(B) M5X25 		5-09981-093-0 07 1 9804-0211 ● ● ●
47 SCREW; CURTAIN RAIL
(B) M5X25 		5-09981-093-0 08 1 0212-0212 ● ● ●
47 SCREW; CURTAIN RAIL
(B) M5X25 		5-09981-093-0 07 1 0212- ● ● ●
47 SCREW; CURTAIN RAIL
(C) M4X16 TAPPING 		1-09981-477-0 15 1 9604-0004 ● ●
47 SCREW; CURTAIN RAIL
(A) M5X20 		5-09981-059-0 10 1 9604-9703 ● ●
47 SCREW; CURTAIN RAIL
(A) M5X20 		5-09981-059-0 19 1 9704-9803 ● ●
47 SCREW; CURTAIN RAIL
(A) M5X20 		5-09981-059-0 13 1 9804-0004 ● ●
48 RAIL; CURTAIN,BACK
WINDOW CURTAIN ROUND<BW4> (A) 		1-73996-106-3 01 1 9604-0004 ● ●
48 RAIL; CURTAIN,BACK
WINDOW CURTAIN ROUND<BW4> (A) 		1-73996-386-1 01 1 0005- ●
48 RAIL; CURTAIN,BACK
EXC. WINDOW CURTAIN ROUND<BW4> (B) 		8-94265-811-0 01 1 9604-0004 ● ●
48 RAIL; CURTAIN,BACK
(B) 		8-94265-811-0 01 1 9604-0004 ●
48 RAIL; CURTAIN,BACK
(B) 		1-73996-385-1 01 1 0005- ● ●
48 RAIL; CURTAIN,BACK
EXC. WINDOW CURTAIN ROUND<BW4> (B) 		1-73996-385-1 01 1 0005- ●
48 RAIL; CURTAIN,BACK
(C) 		1-73996-328-0 01 1 9604-0004 ● ●
50 GROMMET; SCREW,CURTAIN RAIL
HIGH ROOF<S2F> (B) D=8X8 L=13 M5 		1-09983-159-0 09 1 9604-9803 ● ●
50 GROMMET; SCREW,CURTAIN RAIL
(B) D=8X8 L=13 M5 		1-09983-159-0 09 1 9604-9803 ● ●
50 GROMMET; SCREW,CURTAIN RAIL
LOW ROOF<6XQ> (B) D=8X8 L=13 M5 		1-09983-159-0 07 1 9804-0004 ● ● ●
50 GROMMET; SCREW,CURTAIN RAIL
WINDOW CURTAIN ROUND<BW4> HIGH ROOF<S2F> (B) D=8X8 L=13 M5 		1-09983-159-0 07 1 9804-0004 ● ●
50 GROMMET; SCREW,CURTAIN RAIL
LOW ROOF<6XQ> (B) D=8X8 L=13 M5 		1-09983-159-0 07 1 0005-0104 ● ● ●
50 GROMMET; SCREW,CURTAIN RAIL
WINDOW CURTAIN ROUND<BW4> HIGH ROOF<S2F> (B) D=8X8 L=13 M5 		1-09983-159-0 07 1 0005-0104 ●
50 GROMMET; SCREW,CURTAIN RAIL
(B) D=8X8 L=13 M5 		1-09983-159-0 07 1 0105-0211 ● ●
50 GROMMET; SCREW,CURTAIN RAIL
WINDOW CURTAIN ROUND<BW4> HIGH ROOF<S2F> (B) D=8X8 L=13 M5 		1-09983-159-0 07 1 0105-0211 ●
50 GROMMET; SCREW,CURTAIN RAIL
LOW ROOF<6XQ> (B) D=8X8 L=13 M5 		1-09983-159-0 07 1 0105-0211 ●
50 GROMMET; SCREW,CURTAIN RAIL
(B) D=8X8 L=13 M5 		1-09983-159-0 15 1 0212-0212 ● ●
50 GROMMET; SCREW,CURTAIN RAIL
HIGH ROOF<S2F> EXC. WINDOW CURTAIN ROUND<BW4> (B) D=8X8 L=13 M5 		1-09983-159-0 15 1 0212-0212 ●
50 GROMMET; SCREW,CURTAIN RAIL
LOW ROOF<6XQ> (B) D=8X8 L=13 M5 		1-09983-159-0 15 1 0212-0212 ●
50 GROMMET; SCREW,CURTAIN RAIL
(B) D=8X8 L=13 M5 		1-09983-159-0 07 1 0212- ● ●
50 GROMMET; SCREW,CURTAIN RAIL
WINDOW CURTAIN ROUND<BW4> HIGH ROOF<S2F> (B) D=8X8 L=13 M5 		1-09983-159-0 07 1 0212- ●
50 GROMMET; SCREW,CURTAIN RAIL
LOW ROOF<6XQ> (B) D=8X8 L=13 M5 		1-09983-159-0 07 1 0212- ●
50 GROMMET; SCREW,CURTAIN RAIL
HIGH ROOF<S2F> (A) D=8X8 L=7.5 M5 YELLOW 		8-94279-740-0 21 1 9604-9708 ● ●
50 GROMMET; SCREW,CURTAIN RAIL
HIGH ROOF<S2F> (A) D=8.6X7.7 L=7.5 		8-94279-078-0 21 1 9709-9803 ● ●
50 GROMMET; SCREW,CURTAIN RAIL
WINDOW CURTAIN ROUND<BW4> HIGH ROOF<S2F> (A) D=8.6X7.7 L=7.5 		8-94279-078-0 25 1 9804-0004 ● ●
50 GROMMET; SCREW,CURTAIN RAIL
WINDOW CURTAIN ROUND<BW4> HIGH ROOF<S2F> (A) D=8.6X7.7 L=7.5 		8-94279-078-0 25 1 0005- ●
50 GROMMET; SCREW,CURTAIN RAIL
HIGH ROOF<S2F> EXC. WINDOW CURTAIN ROUND<BW4> (A) D=8.6X7.7 L=7.5 		8-94279-078-0 11 1 9804-0004 ● ●
50 GROMMET; SCREW,CURTAIN RAIL
HIGH ROOF<S2F> EXC. WINDOW CURTAIN ROUND<BW4> (A) D=8.6X7.7 L=7.5 		8-94279-078-0 11 1 0005- ●
50 GROMMET; SCREW,CURTAIN RAIL
LOW ROOF<6XQ> (B) D=8X8 L=13 M5 		1-09983-159-0 07 1 9604-9803 ● ●
50 GROMMET; SCREW,CURTAIN RAIL
(B) D=8X8 L=13 M5 		1-09983-159-0 07 1 9604-9803 ●
50 GROMMET; SCREW,CURTAIN RAIL
HIGH ROOF<S2F> EXC. WINDOW CURTAIN ROUND<BW4> (B) D=8X8 L=13 M5 		1-09983-159-0 15 1 9804-0004 ● ●
50 GROMMET; SCREW,CURTAIN RAIL
HIGH ROOF<S2F> EXC. WINDOW CURTAIN ROUND<BW4> (B) D=8X8 L=13 M5 		1-09983-159-0 15 1 0005-0211 ●
50 GROMMET; SCREW,CURTAIN RAIL
WINDOW CURTAIN ROUND<BW4> HIGH ROOF<S2F> (B) D=8X8 L=13 M5 		1-09983-159-0 07 1 0212-0212 ●
50 GROMMET; SCREW,CURTAIN RAIL
HIGH ROOF<S2F> EXC. WINDOW CURTAIN ROUND<BW4> (B) D=8X8 L=13 M5 		1-09983-159-0 15 1 0212- ●
50 GROMMET; SCREW,CURTAIN RAIL
LOW ROOF<6XQ> (A) D=8X8 L=7.5 M5 YELLOW 		8-94279-740-0 17 1 9604-9708 ● ●
50 GROMMET; SCREW,CURTAIN RAIL
(A) D=8X8 L=7.5 M5 YELLOW 		8-94279-740-0 17 1 9604-9708 ●
50 GROMMET; SCREW,CURTAIN RAIL
LOW ROOF<6XQ> (A) D=8.6X7.7 L=7.5 		8-94279-078-0 17 1 9709-0104 ● ●
50 GROMMET; SCREW,CURTAIN RAIL
(A) D=8.6X7.7 L=7.5 		8-94279-078-0 17 1 9709-0104 ●
50 GROMMET; SCREW,CURTAIN RAIL
(A) D=8.6X7.7 L=7.5 		8-94279-078-0 17 1 0105- ● ●
50 GROMMET; SCREW,CURTAIN RAIL
LOW ROOF<6XQ> (A) D=8.6X7.7 L=7.5 		8-94279-078-0 17 1 0105- ●
50 GROMMET; SCREW,CURTAIN RAIL
(A) D=8X8 L=7.5 M5 YELLOW 		8-94279-740-0 10 1 9604-9708 ● ●
50 GROMMET; SCREW,CURTAIN RAIL
(A) D=8.6X7.7 L=7.5 		8-94279-078-0 10 1 9709-9803 ● ●
50 GROMMET; SCREW,CURTAIN RAIL
(A) D=8.6X7.7 L=7.5 		8-94279-078-0 09 1 9804-0004 ● ●
50 GROMMET; SCREW,CURTAIN RAIL
(B) D=8X8 L=13 M5 		1-09983-159-0 04 1 9804-0004 ● ●

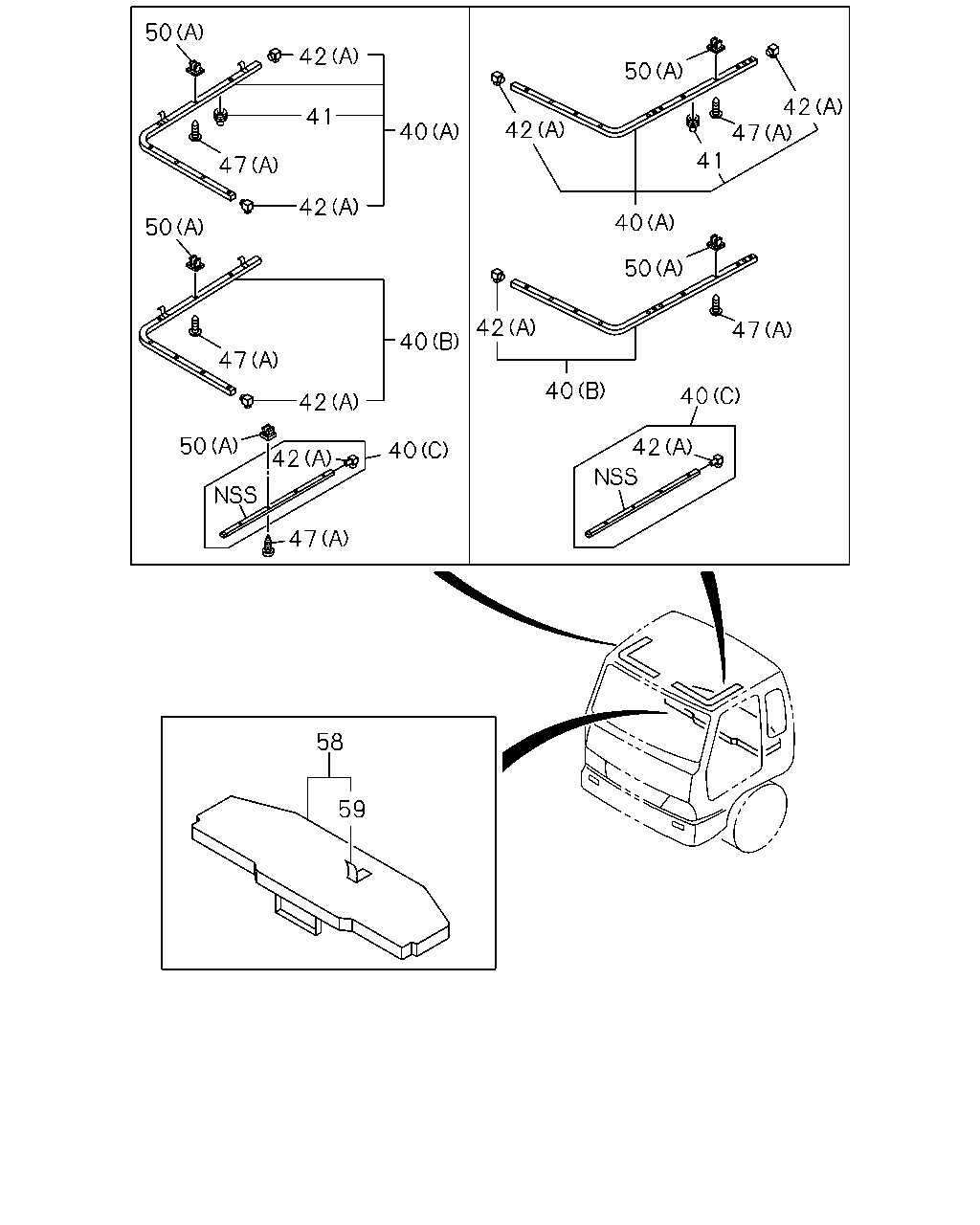

çizim 152979
50 42 50 42 41 42 40 47 41 47 42 40 50 50 42 47 40 47 40 40 42 50 42 40 42 47 58 59
BalonParca AdiParca NoAdetTipApplied Date A B C D E
40 RAIL; CURTAIN,SIDE
LOW ROOF<6XQ> (D) 		1-73996-380-1 01 1 0005-0104 ● ●
40 RAIL; CURTAIN,SIDE
(D) 		1-73996-380-1 01 1 0005-0104 ●
40 RAIL; CURTAIN,SIDE
(D) 		1-73996-380-1 01 1 0105- ● ●
40 RAIL; CURTAIN,SIDE
LOW ROOF<6XQ> (D) 		1-73996-380-1 01 1 0105- ●
40 RAIL; CURTAIN,SIDE
HIGH ROOF<S2F> EXC. WINDOW CURTAIN ROUND<BW4> (C) 		1-73996-334-1 02 1 9804-0004 ● ●
40 RAIL; CURTAIN,SIDE
HIGH ROOF<S2F> EXC. WINDOW CURTAIN ROUND<BW4> (C) 		1-73996-378-1 02 1 0005- ●
40 RAIL; CURTAIN,SIDE
LOW ROOF<6XQ> (D) 		1-73908-220-0 01 1 9604-0004 ● ●
40 RAIL; CURTAIN,SIDE
(D) 		1-73908-220-0 01 1 9604-0004 ●
40 RAIL; CURTAIN,SIDE
LOW ROOF<6XQ> (D) 		1-73908-219-0 01 1 9604-0004 ● ●
40 RAIL; CURTAIN,SIDE
(D) 		1-73908-219-0 01 1 9604-0004 ●
40 RAIL; CURTAIN,SIDE
LOW ROOF<6XQ> (D) 		1-73996-379-0 01 1 0005-0104 ● ●
40 RAIL; CURTAIN,SIDE
(D) 		1-73996-379-0 01 1 0005-0104 ●
40 RAIL; CURTAIN,SIDE
(D) 		1-73996-379-0 01 1 0105- ● ●
40 RAIL; CURTAIN,SIDE
LOW ROOF<6XQ> (D) 		1-73996-379-0 01 1 0105- ●
40 RAIL; CURTAIN,SIDE
HIGH ROOF<S2F> EXC. WINDOW CURTAIN ROUND<BW4> (B) 		1-73908-109-1 01 1 9604-9803 ● ●
40 RAIL; CURTAIN,SIDE
WINDOW CURTAIN ROUND<BW4> HIGH ROOF<S2F> (A) 		1-73908-154-1 01 1 9604-0004 ● ●
40 RAIL; CURTAIN,SIDE
WINDOW CURTAIN ROUND<BW4> HIGH ROOF<S2F> (A) 		1-73996-368-1 01 1 0005- ●
40 RAIL; CURTAIN,SIDE
HIGH ROOF<S2F> EXC. WINDOW CURTAIN ROUND<BW4> (B) 		1-73908-108-1 01 1 9604-9803 ● ●
40 RAIL; CURTAIN,SIDE
WINDOW CURTAIN ROUND<BW4> HIGH ROOF<S2F> (A) 		1-73908-153-1 01 1 9604-0004 ● ●
40 RAIL; CURTAIN,SIDE
WINDOW CURTAIN ROUND<BW4> HIGH ROOF<S2F> (A) 		1-73996-367-1 01 1 0005- ●
40 RAIL; CURTAIN,SIDE
(B) 		1-73996-325-0 01 1 9604-0004 ● ●
40 RAIL; CURTAIN,SIDE
(A) 		1-73996-327-0 01 1 9604-9803 ● ●
40 RAIL; CURTAIN,SIDE
(B) 		1-73996-324-0 01 1 9604-0004 ● ●
40 RAIL; CURTAIN,SIDE
(A) 		1-73996-326-0 01 1 9604-9803 ● ●
40 RAIL; CURTAIN,SIDE
(C) 		1-73996-335-0 02 1 9804-0004 ● ●
41 HOOK; CURTAIN RAIL
WINDOW CURTAIN ROUND<BW4> H=14.5 WHITE 		1-73996-398-0 08 1 0005- ●
41 HOOK; CURTAIN RAIL
CURTAIN SLEEPER COMPARTMENT<E25> LOW ROOF<6XQ> H=14.5 DARK GRAY 		1-73996-105-0 13 1 9604-9704 ● ● ●
41 HOOK; CURTAIN RAIL
WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25> HIGH ROOF<S2F> H=14.5 DARK GRAY 		1-73996-105-0 13 1 9604-9704 ● ●
41 HOOK; CURTAIN RAIL
CURTAIN SLEEPER COMPARTMENT<E25> LOW ROOF<6XQ> H=14.5 DARK GRAY 		1-73996-105-0 13 1 9705-0004 ● ● ●
41 HOOK; CURTAIN RAIL
CURTAIN SLEEPER COMPARTMENT<E25> LOW ROOF<6XQ> H=14.5 WHITE 		1-73996-398-0 13 1 0005-0006 ● ● ●
41 HOOK; CURTAIN RAIL
CURTAIN SLEEPER COMPARTMENT<E25> LOW ROOF<6XQ> H=14.5 WHITE 		1-73996-398-0 14 1 0007-0104 ● ● ●
41 HOOK; CURTAIN RAIL
WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25> HIGH ROOF<S2F> H=14.5 WHITE 		1-73996-398-0 14 1 0007-0104 ●
41 HOOK; CURTAIN RAIL
CURTAIN SLEEPER COMPARTMENT<E25> H=14.5 WHITE 		1-73996-398-0 14 1 0105- ● ●
41 HOOK; CURTAIN RAIL
WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25> HIGH ROOF<S2F> H=14.5 WHITE 		1-73996-398-0 14 1 0105- ●
41 HOOK; CURTAIN RAIL
CURTAIN SLEEPER COMPARTMENT<E25> LOW ROOF<6XQ> H=14.5 WHITE 		1-73996-398-0 14 1 0105- ●
41 HOOK; CURTAIN RAIL
WINDOW CURTAIN ROUND<BW4> H=14.5 DARK GRAY 		1-73996-105-0 08 1 9604-0004 ● ●
41 HOOK; CURTAIN RAIL
WINDOW CURTAIN ROUND<BW4> HIGH ROOF<S2F> H=14.5 DARK GRAY 		1-73996-105-0 32 1 9604-0004 ● ●
41 HOOK; CURTAIN RAIL
WINDOW CURTAIN ROUND<BW4> HIGH ROOF<S2F> H=14.5 WHITE 		1-73996-398-0 32 1 0005- ●
41 HOOK; CURTAIN RAIL
WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25> HIGH ROOF<S2F> H=14.5 DARK GRAY 		1-73996-105-0 12 1 9705-9803 ● ●
41 HOOK; CURTAIN RAIL
WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25> HIGH ROOF<S2F> H=14.5 DARK GRAY 		1-73996-105-0 14 1 9804-0004 ● ●
41 HOOK; CURTAIN RAIL
WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25> HIGH ROOF<S2F> H=14.5 WHITE 		1-73996-398-0 14 1 0005-0006 ●
42 STOPPER; CURTAIN RAIL
LOW ROOF<6XQ> (A) 		1-73908-193-0 02 1 9604-0004 ● ● ●
42 STOPPER; CURTAIN RAIL
HIGH ROOF<S2F> EXC. WINDOW CURTAIN ROUND<BW4> (A) 		1-73908-193-0 02 1 9604-0004 ● ●
42 STOPPER; CURTAIN RAIL
(A) 		1-73908-193-0 02 1 9604-0004 ● ●
42 STOPPER; CURTAIN RAIL
LOW ROOF<6XQ> (A) 		1-73996-393-0 02 1 0005-0104 ● ● ●
42 STOPPER; CURTAIN RAIL
HIGH ROOF<S2F> EXC. WINDOW CURTAIN ROUND<BW4> (A) 		1-73996-393-0 02 1 0005-0104 ●
42 STOPPER; CURTAIN RAIL
(A) 		1-73996-393-0 02 1 0105- ● ●
42 STOPPER; CURTAIN RAIL
HIGH ROOF<S2F> EXC. WINDOW CURTAIN ROUND<BW4> (A) 		1-73996-393-0 02 1 0105- ●
42 STOPPER; CURTAIN RAIL
LOW ROOF<6XQ> (A) 		1-73996-393-0 02 1 0105- ●
42 STOPPER; CURTAIN RAIL
HIGH ROOF<S2F> (C) 		1-73907-279-2 02 1 9604-9803 ● ●
42 STOPPER; CURTAIN RAIL
HIGH ROOF<S2F> (D) 		1-73907-449-2 02 1 9804-0004 ● ●
42 STOPPER; CURTAIN RAIL
HIGH ROOF<S2F> (D) 		1-73996-402-0 02 1 0005- ●
42 STOPPER; CURTAIN RAIL
LOW ROOF<6XQ> (C) 		1-73907-403-1 02 1 9604-0004 ● ●
42 STOPPER; CURTAIN RAIL
(C) 		1-73907-403-1 02 1 9604-0004 ●
42 STOPPER; CURTAIN RAIL
LOW ROOF<6XQ> (C) 		1-73907-657-0 02 1 0005-0104 ● ●
42 STOPPER; CURTAIN RAIL
(C) 		1-73907-657-0 02 1 0005-0104 ●
42 STOPPER; CURTAIN RAIL
(C) 		1-73907-657-0 02 1 0105- ● ●
42 STOPPER; CURTAIN RAIL
LOW ROOF<6XQ> (C) 		1-73907-657-0 02 1 0105- ●
42 STOPPER; CURTAIN RAIL
WINDOW CURTAIN ROUND<BW4> (B) 		1-73996-146-2 02 1 9604-0004 ● ●
42 STOPPER; CURTAIN RAIL
WINDOW CURTAIN ROUND<BW4> (B) 		1-73996-399-0 02 1 0005- ●
42 STOPPER; CURTAIN RAIL
WINDOW CURTAIN ROUND<BW4> HIGH ROOF<S2F> (A) 		1-73908-193-0 04 1 9604-0004 ● ●
42 STOPPER; CURTAIN RAIL
WINDOW CURTAIN ROUND<BW4> HIGH ROOF<S2F> (A) 		1-73996-393-0 04 1 0005- ●
42 STOPPER; CURTAIN RAIL
EXC. WINDOW CURTAIN ROUND<BW4> (B) 		1-73996-146-2 01 1 9604-0004 ● ●
42 STOPPER; CURTAIN RAIL
(B) 		1-73996-146-2 01 1 9604-0004 ●
42 STOPPER; CURTAIN RAIL
(B) 		1-73996-399-0 01 1 0005- ● ●
42 STOPPER; CURTAIN RAIL
EXC. WINDOW CURTAIN ROUND<BW4> (B) 		1-73996-399-0 01 1 0005- ●
47 SCREW; CURTAIN RAIL
HIGH ROOF<S2F> (A) M5X20 		5-09981-059-0 21 1 9604-9703 ● ●
47 SCREW; CURTAIN RAIL
HIGH ROOF<S2F> (A) M5X20 		5-09981-059-0 30 1 9704-9803 ● ●
47 SCREW; CURTAIN RAIL
HIGH ROOF<S2F> (A) M5X20 		5-09981-059-0 19 1 9804-0004 ● ●
47 SCREW; CURTAIN RAIL
HIGH ROOF<S2F> (A) M5X20 		5-09981-059-0 19 1 0005- ●
47 SCREW; CURTAIN RAIL
HIGH ROOF<S2F> (B) M5X25 		5-09981-093-0 09 1 9604-9703 ● ●
47 SCREW; CURTAIN RAIL
(B) M5X25 		5-09981-093-0 09 1 9604-9703 ● ●
47 SCREW; CURTAIN RAIL
LOW ROOF<6XQ> (A) M5X20 		5-09981-059-0 17 1 9604-0104 ● ●
47 SCREW; CURTAIN RAIL
(A) M5X20 		5-09981-059-0 17 1 9604-0104 ●
47 SCREW; CURTAIN RAIL
(A) M5X20 		5-09981-059-0 17 1 0105- ● ●
47 SCREW; CURTAIN RAIL
LOW ROOF<6XQ> (A) M5X20 		5-09981-059-0 17 1 0105- ●
47 SCREW; CURTAIN RAIL
LOW ROOF<6XQ> (B) M5X25 		5-09981-093-0 07 1 9604-9803 ● ●
47 SCREW; CURTAIN RAIL
(B) M5X25 		5-09981-093-0 07 1 9604-9803 ●
47 SCREW; CURTAIN RAIL
(B) M5X25 		5-09981-093-0 07 1 9804-0211 ● ● ●
47 SCREW; CURTAIN RAIL
(B) M5X25 		5-09981-093-0 08 1 0212-0212 ● ● ●
47 SCREW; CURTAIN RAIL
(B) M5X25 		5-09981-093-0 07 1 0212- ● ● ●
47 SCREW; CURTAIN RAIL
(C) M4X16 TAPPING 		1-09981-477-0 15 1 9604-0004 ● ●
47 SCREW; CURTAIN RAIL
(A) M5X20 		5-09981-059-0 10 1 9604-9703 ● ●
47 SCREW; CURTAIN RAIL
(A) M5X20 		5-09981-059-0 19 1 9704-9803 ● ●
47 SCREW; CURTAIN RAIL
(A) M5X20 		5-09981-059-0 13 1 9804-0004 ● ●
50 GROMMET; SCREW,CURTAIN RAIL
HIGH ROOF<S2F> (B) D=8X8 L=13 M5 		1-09983-159-0 09 1 9604-9803 ● ●
50 GROMMET; SCREW,CURTAIN RAIL
(B) D=8X8 L=13 M5 		1-09983-159-0 09 1 9604-9803 ● ●
50 GROMMET; SCREW,CURTAIN RAIL
LOW ROOF<6XQ> (B) D=8X8 L=13 M5 		1-09983-159-0 07 1 9804-0004 ● ● ●
50 GROMMET; SCREW,CURTAIN RAIL
WINDOW CURTAIN ROUND<BW4> HIGH ROOF<S2F> (B) D=8X8 L=13 M5 		1-09983-159-0 07 1 9804-0004 ● ●
50 GROMMET; SCREW,CURTAIN RAIL
LOW ROOF<6XQ> (B) D=8X8 L=13 M5 		1-09983-159-0 07 1 0005-0104 ● ● ●
50 GROMMET; SCREW,CURTAIN RAIL
WINDOW CURTAIN ROUND<BW4> HIGH ROOF<S2F> (B) D=8X8 L=13 M5 		1-09983-159-0 07 1 0005-0104 ●
50 GROMMET; SCREW,CURTAIN RAIL
(B) D=8X8 L=13 M5 		1-09983-159-0 07 1 0105-0211 ● ●
50 GROMMET; SCREW,CURTAIN RAIL
WINDOW CURTAIN ROUND<BW4> HIGH ROOF<S2F> (B) D=8X8 L=13 M5 		1-09983-159-0 07 1 0105-0211 ●
50 GROMMET; SCREW,CURTAIN RAIL
LOW ROOF<6XQ> (B) D=8X8 L=13 M5 		1-09983-159-0 07 1 0105-0211 ●
50 GROMMET; SCREW,CURTAIN RAIL
(B) D=8X8 L=13 M5 		1-09983-159-0 15 1 0212-0212 ● ●
50 GROMMET; SCREW,CURTAIN RAIL
HIGH ROOF<S2F> EXC. WINDOW CURTAIN ROUND<BW4> (B) D=8X8 L=13 M5 		1-09983-159-0 15 1 0212-0212 ●
50 GROMMET; SCREW,CURTAIN RAIL
LOW ROOF<6XQ> (B) D=8X8 L=13 M5 		1-09983-159-0 15 1 0212-0212 ●
50 GROMMET; SCREW,CURTAIN RAIL
(B) D=8X8 L=13 M5 		1-09983-159-0 07 1 0212- ● ●
50 GROMMET; SCREW,CURTAIN RAIL
WINDOW CURTAIN ROUND<BW4> HIGH ROOF<S2F> (B) D=8X8 L=13 M5 		1-09983-159-0 07 1 0212- ●
50 GROMMET; SCREW,CURTAIN RAIL
LOW ROOF<6XQ> (B) D=8X8 L=13 M5 		1-09983-159-0 07 1 0212- ●
50 GROMMET; SCREW,CURTAIN RAIL
HIGH ROOF<S2F> (A) D=8X8 L=7.5 M5 YELLOW 		8-94279-740-0 21 1 9604-9708 ● ●
50 GROMMET; SCREW,CURTAIN RAIL
HIGH ROOF<S2F> (A) D=8.6X7.7 L=7.5 		8-94279-078-0 21 1 9709-9803 ● ●
50 GROMMET; SCREW,CURTAIN RAIL
WINDOW CURTAIN ROUND<BW4> HIGH ROOF<S2F> (A) D=8.6X7.7 L=7.5 		8-94279-078-0 25 1 9804-0004 ● ●
50 GROMMET; SCREW,CURTAIN RAIL
WINDOW CURTAIN ROUND<BW4> HIGH ROOF<S2F> (A) D=8.6X7.7 L=7.5 		8-94279-078-0 25 1 0005- ●
50 GROMMET; SCREW,CURTAIN RAIL
HIGH ROOF<S2F> EXC. WINDOW CURTAIN ROUND<BW4> (A) D=8.6X7.7 L=7.5 		8-94279-078-0 11 1 9804-0004 ● ●
50 GROMMET; SCREW,CURTAIN RAIL
HIGH ROOF<S2F> EXC. WINDOW CURTAIN ROUND<BW4> (A) D=8.6X7.7 L=7.5 		8-94279-078-0 11 1 0005- ●
50 GROMMET; SCREW,CURTAIN RAIL
LOW ROOF<6XQ> (B) D=8X8 L=13 M5 		1-09983-159-0 07 1 9604-9803 ● ●
50 GROMMET; SCREW,CURTAIN RAIL
(B) D=8X8 L=13 M5 		1-09983-159-0 07 1 9604-9803 ●
50 GROMMET; SCREW,CURTAIN RAIL
HIGH ROOF<S2F> EXC. WINDOW CURTAIN ROUND<BW4> (B) D=8X8 L=13 M5 		1-09983-159-0 15 1 9804-0004 ● ●
50 GROMMET; SCREW,CURTAIN RAIL
HIGH ROOF<S2F> EXC. WINDOW CURTAIN ROUND<BW4> (B) D=8X8 L=13 M5 		1-09983-159-0 15 1 0005-0211 ●
50 GROMMET; SCREW,CURTAIN RAIL
WINDOW CURTAIN ROUND<BW4> HIGH ROOF<S2F> (B) D=8X8 L=13 M5 		1-09983-159-0 07 1 0212-0212 ●
50 GROMMET; SCREW,CURTAIN RAIL
HIGH ROOF<S2F> EXC. WINDOW CURTAIN ROUND<BW4> (B) D=8X8 L=13 M5 		1-09983-159-0 15 1 0212- ●
50 GROMMET; SCREW,CURTAIN RAIL
LOW ROOF<6XQ> (A) D=8X8 L=7.5 M5 YELLOW 		8-94279-740-0 17 1 9604-9708 ● ●
50 GROMMET; SCREW,CURTAIN RAIL
(A) D=8X8 L=7.5 M5 YELLOW 		8-94279-740-0 17 1 9604-9708 ●
50 GROMMET; SCREW,CURTAIN RAIL
LOW ROOF<6XQ> (A) D=8.6X7.7 L=7.5 		8-94279-078-0 17 1 9709-0104 ● ●
50 GROMMET; SCREW,CURTAIN RAIL
(A) D=8.6X7.7 L=7.5 		8-94279-078-0 17 1 9709-0104 ●
50 GROMMET; SCREW,CURTAIN RAIL
(A) D=8.6X7.7 L=7.5 		8-94279-078-0 17 1 0105- ● ●
50 GROMMET; SCREW,CURTAIN RAIL
LOW ROOF<6XQ> (A) D=8.6X7.7 L=7.5 		8-94279-078-0 17 1 0105- ●
50 GROMMET; SCREW,CURTAIN RAIL
(A) D=8X8 L=7.5 M5 YELLOW 		8-94279-740-0 10 1 9604-9708 ● ●
50 GROMMET; SCREW,CURTAIN RAIL
(A) D=8.6X7.7 L=7.5 		8-94279-078-0 10 1 9709-9803 ● ●
50 GROMMET; SCREW,CURTAIN RAIL
(A) D=8.6X7.7 L=7.5 		8-94279-078-0 09 1 9804-0004 ● ●
50 GROMMET; SCREW,CURTAIN RAIL
(B) D=8X8 L=13 M5 		1-09983-159-0 04 1 9804-0004 ● ●
58 BED; MAT
MATTRESS SLEEPER CAB<E40> 		1-75116-294-1 01 1 9604-0003 ● ● ●
58 BED; MAT
MATTRESS SLEEPER CAB<E40> 		1-75116-519-0 01 1 0004-0004 ● ● ●
58 BED; MAT
MATTRESS SLEEPER CAB<E40> 		1-75116-531-1 01 1 0005- ● ● ●
59 COVER ASM; TRIM,BED MAT
MATTRESS SLEEPER CAB<E40> 		1-75116-316-0 01 1 9604-0003 ● ● ●
59 COVER ASM; TRIM,BED MAT
MATTRESS SLEEPER CAB<E40> 		1-75116-666-0 01 1 0004-0004 ● ● ●
59 COVER ASM; TRIM,BED MAT
MATTRESS SLEEPER CAB<E40> 		1-75116-700-1 01 1 0005- ● ● ●

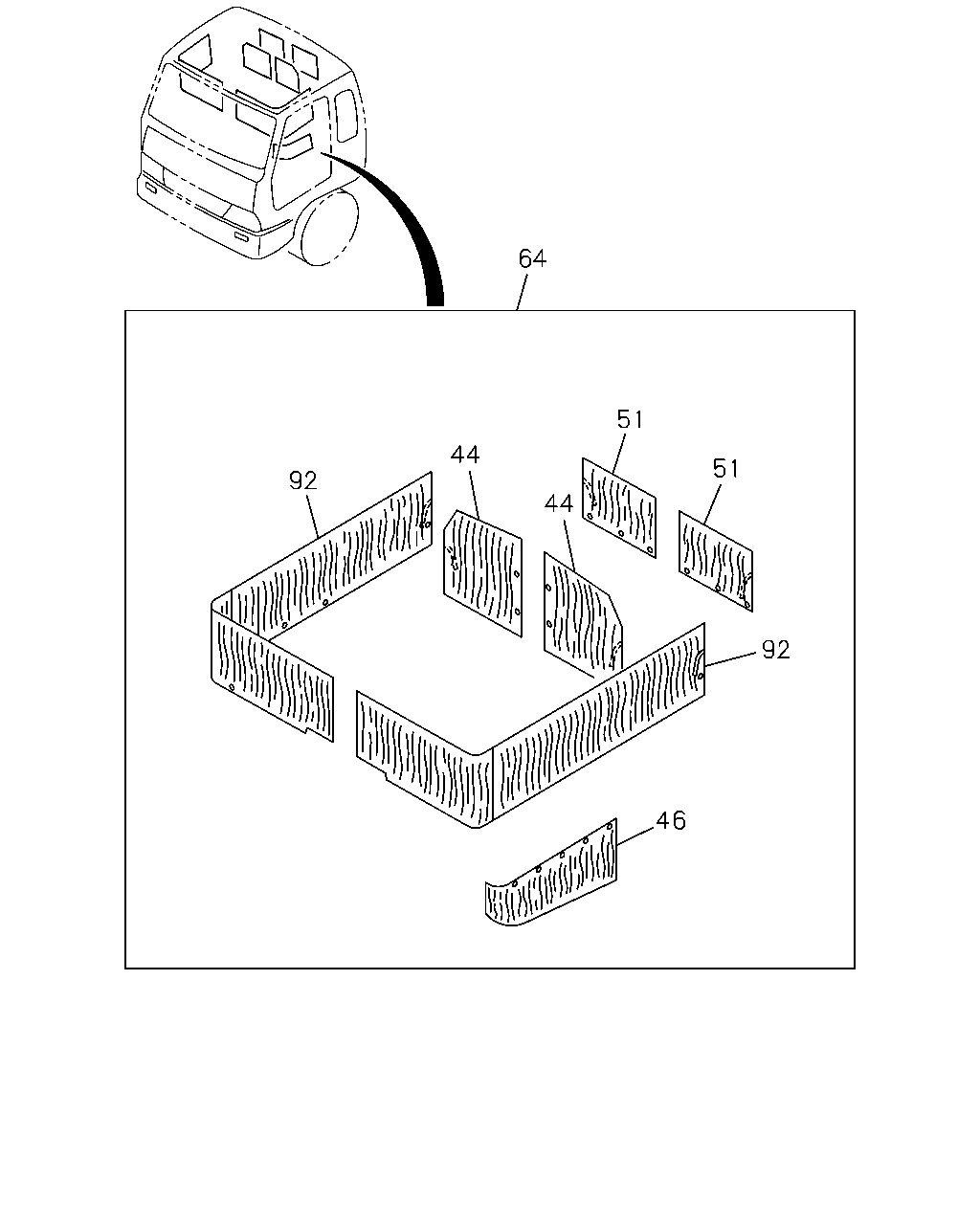

çizim 152984
64 51 44 51 92 44 92 46
BalonParca AdiParca NoAdetTipApplied Date A B C D E
44 CURTAIN ASM; CABIN CENTER
WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25> 		1-73908-208-0 01 1 9604-0004 ● ●
44 CURTAIN ASM; CABIN CENTER
CURTAIN SLEEPER COMPARTMENT<E25> 		1-73908-208-0 01 1 9604-0004 ●
44 CURTAIN ASM; CABIN CENTER
CURTAIN SLEEPER COMPARTMENT<E25> 		1-73908-208-1 01 1 0005- ● ●
44 CURTAIN ASM; CABIN CENTER
WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25> 		1-73908-208-1 01 1 0005- ●
44 CURTAIN ASM; CABIN CENTER
WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25> 		1-73908-207-0 01 1 9604-0004 ● ●
44 CURTAIN ASM; CABIN CENTER
CURTAIN SLEEPER COMPARTMENT<E25> 		1-73908-207-0 01 1 9604-0004 ●
44 CURTAIN ASM; CABIN CENTER
CURTAIN SLEEPER COMPARTMENT<E25> 		1-73908-207-1 01 1 0005- ● ●
44 CURTAIN ASM; CABIN CENTER
WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25> 		1-73908-207-1 01 1 0005- ●
46 CURTAIN ASM; DOOR
WINDOW CURTAIN ROUND<BW4> 		1-73907-303-0 01 1 0005- ●
46 CURTAIN ASM; DOOR
WINDOW CURTAIN ROUND<BW4> 		1-73907-303-0 01 1 9604-0004 ● ●
51 CURTAIN; BACK
WINDOW CURTAIN ROUND<BW4> 		1-73908-211-1 01 1 0005- ●
51 CURTAIN; BACK
WINDOW CURTAIN ROUND<BW4> 		1-73908-212-1 01 1 0005- ●
51 CURTAIN; BACK
WINDOW CURTAIN ROUND<BW4> 		1-73908-212-0 01 1 9604-0004 ● ●
51 CURTAIN; BACK
WINDOW CURTAIN ROUND<BW4> 		1-73908-211-0 01 1 9604-0004 ● ●
64 CURTAIN KIT
WINDOW CURTAIN ROUND<BW4> 		1-73908-205-0 01 1 9604-0004 ● ●
64 CURTAIN KIT
WINDOW CURTAIN ROUND<BW4> 		1-73908-205-1 01 1 0005- ●
92 CURTAIN ASM; ROUND
WINDOW CURTAIN ROUND<BW4> 		1-73908-215-1 01 1 0005- ●
92 CURTAIN ASM; ROUND
WINDOW CURTAIN ROUND<BW4> 		1-73908-216-1 01 1 0005- ●
92 CURTAIN ASM; ROUND
WINDOW CURTAIN ROUND<BW4> 		1-73908-216-0 01 1 9604-0004 ● ●
92 CURTAIN ASM; ROUND
WINDOW CURTAIN ROUND<BW4> 		1-73908-215-0 01 1 9604-0004 ● ●

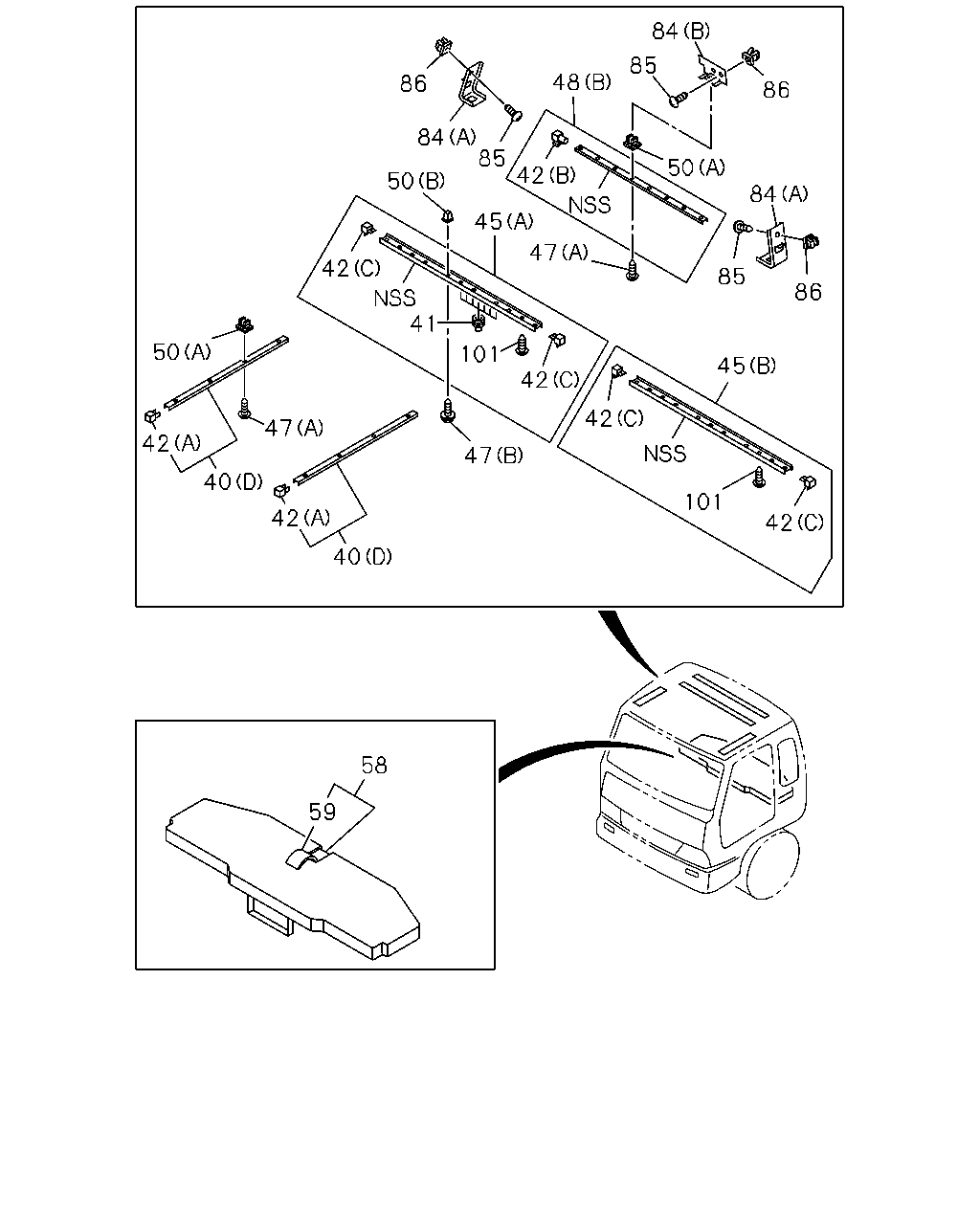

çizim 153002
84 85 48 86 86 84 85 50 42 50 84 45 47 42 85 86 41 50 101 45 42 42 47 42 47 40 101 42 42 40 58 59
BalonParca AdiParca NoAdetTipApplied Date A B C D E
40 RAIL; CURTAIN,SIDE
LOW ROOF<6XQ> (D) 		1-73996-380-1 01 1 0005-0104 ● ●
40 RAIL; CURTAIN,SIDE
(D) 		1-73996-380-1 01 1 0005-0104 ●
40 RAIL; CURTAIN,SIDE
(D) 		1-73996-380-1 01 1 0105- ● ●
40 RAIL; CURTAIN,SIDE
LOW ROOF<6XQ> (D) 		1-73996-380-1 01 1 0105- ●
40 RAIL; CURTAIN,SIDE
HIGH ROOF<S2F> EXC. WINDOW CURTAIN ROUND<BW4> (C) 		1-73996-334-1 02 1 9804-0004 ● ●
40 RAIL; CURTAIN,SIDE
HIGH ROOF<S2F> EXC. WINDOW CURTAIN ROUND<BW4> (C) 		1-73996-378-1 02 1 0005- ●
40 RAIL; CURTAIN,SIDE
LOW ROOF<6XQ> (D) 		1-73908-220-0 01 1 9604-0004 ● ●
40 RAIL; CURTAIN,SIDE
(D) 		1-73908-220-0 01 1 9604-0004 ●
40 RAIL; CURTAIN,SIDE
LOW ROOF<6XQ> (D) 		1-73908-219-0 01 1 9604-0004 ● ●
40 RAIL; CURTAIN,SIDE
(D) 		1-73908-219-0 01 1 9604-0004 ●
40 RAIL; CURTAIN,SIDE
LOW ROOF<6XQ> (D) 		1-73996-379-0 01 1 0005-0104 ● ●
40 RAIL; CURTAIN,SIDE
(D) 		1-73996-379-0 01 1 0005-0104 ●
40 RAIL; CURTAIN,SIDE
(D) 		1-73996-379-0 01 1 0105- ● ●
40 RAIL; CURTAIN,SIDE
LOW ROOF<6XQ> (D) 		1-73996-379-0 01 1 0105- ●
40 RAIL; CURTAIN,SIDE
HIGH ROOF<S2F> EXC. WINDOW CURTAIN ROUND<BW4> (B) 		1-73908-109-1 01 1 9604-9803 ● ●
40 RAIL; CURTAIN,SIDE
WINDOW CURTAIN ROUND<BW4> HIGH ROOF<S2F> (A) 		1-73908-154-1 01 1 9604-0004 ● ●
40 RAIL; CURTAIN,SIDE
WINDOW CURTAIN ROUND<BW4> HIGH ROOF<S2F> (A) 		1-73996-368-1 01 1 0005- ●
40 RAIL; CURTAIN,SIDE
HIGH ROOF<S2F> EXC. WINDOW CURTAIN ROUND<BW4> (B) 		1-73908-108-1 01 1 9604-9803 ● ●
40 RAIL; CURTAIN,SIDE
WINDOW CURTAIN ROUND<BW4> HIGH ROOF<S2F> (A) 		1-73908-153-1 01 1 9604-0004 ● ●
40 RAIL; CURTAIN,SIDE
WINDOW CURTAIN ROUND<BW4> HIGH ROOF<S2F> (A) 		1-73996-367-1 01 1 0005- ●
40 RAIL; CURTAIN,SIDE
(B) 		1-73996-325-0 01 1 9604-0004 ● ●
40 RAIL; CURTAIN,SIDE
(A) 		1-73996-327-0 01 1 9604-9803 ● ●
40 RAIL; CURTAIN,SIDE
(B) 		1-73996-324-0 01 1 9604-0004 ● ●
40 RAIL; CURTAIN,SIDE
(A) 		1-73996-326-0 01 1 9604-9803 ● ●
40 RAIL; CURTAIN,SIDE
(C) 		1-73996-335-0 02 1 9804-0004 ● ●
41 HOOK; CURTAIN RAIL
WINDOW CURTAIN ROUND<BW4> H=14.5 WHITE 		1-73996-398-0 08 1 0005- ●
41 HOOK; CURTAIN RAIL
CURTAIN SLEEPER COMPARTMENT<E25> LOW ROOF<6XQ> H=14.5 DARK GRAY 		1-73996-105-0 13 1 9604-9704 ● ● ●
41 HOOK; CURTAIN RAIL
WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25> HIGH ROOF<S2F> H=14.5 DARK GRAY 		1-73996-105-0 13 1 9604-9704 ● ●
41 HOOK; CURTAIN RAIL
CURTAIN SLEEPER COMPARTMENT<E25> LOW ROOF<6XQ> H=14.5 DARK GRAY 		1-73996-105-0 13 1 9705-0004 ● ● ●
41 HOOK; CURTAIN RAIL
CURTAIN SLEEPER COMPARTMENT<E25> LOW ROOF<6XQ> H=14.5 WHITE 		1-73996-398-0 13 1 0005-0006 ● ● ●
41 HOOK; CURTAIN RAIL
CURTAIN SLEEPER COMPARTMENT<E25> LOW ROOF<6XQ> H=14.5 WHITE 		1-73996-398-0 14 1 0007-0104 ● ● ●
41 HOOK; CURTAIN RAIL
WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25> HIGH ROOF<S2F> H=14.5 WHITE 		1-73996-398-0 14 1 0007-0104 ●
41 HOOK; CURTAIN RAIL
CURTAIN SLEEPER COMPARTMENT<E25> H=14.5 WHITE 		1-73996-398-0 14 1 0105- ● ●
41 HOOK; CURTAIN RAIL
WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25> HIGH ROOF<S2F> H=14.5 WHITE 		1-73996-398-0 14 1 0105- ●
41 HOOK; CURTAIN RAIL
CURTAIN SLEEPER COMPARTMENT<E25> LOW ROOF<6XQ> H=14.5 WHITE 		1-73996-398-0 14 1 0105- ●
41 HOOK; CURTAIN RAIL
WINDOW CURTAIN ROUND<BW4> H=14.5 DARK GRAY 		1-73996-105-0 08 1 9604-0004 ● ●
41 HOOK; CURTAIN RAIL
WINDOW CURTAIN ROUND<BW4> HIGH ROOF<S2F> H=14.5 DARK GRAY 		1-73996-105-0 32 1 9604-0004 ● ●
41 HOOK; CURTAIN RAIL
WINDOW CURTAIN ROUND<BW4> HIGH ROOF<S2F> H=14.5 WHITE 		1-73996-398-0 32 1 0005- ●
41 HOOK; CURTAIN RAIL
WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25> HIGH ROOF<S2F> H=14.5 DARK GRAY 		1-73996-105-0 12 1 9705-9803 ● ●
41 HOOK; CURTAIN RAIL
WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25> HIGH ROOF<S2F> H=14.5 DARK GRAY 		1-73996-105-0 14 1 9804-0004 ● ●
41 HOOK; CURTAIN RAIL
WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25> HIGH ROOF<S2F> H=14.5 WHITE 		1-73996-398-0 14 1 0005-0006 ●
42 STOPPER; CURTAIN RAIL
LOW ROOF<6XQ> (A) 		1-73908-193-0 02 1 9604-0004 ● ● ●
42 STOPPER; CURTAIN RAIL
HIGH ROOF<S2F> EXC. WINDOW CURTAIN ROUND<BW4> (A) 		1-73908-193-0 02 1 9604-0004 ● ●
42 STOPPER; CURTAIN RAIL
(A) 		1-73908-193-0 02 1 9604-0004 ● ●
42 STOPPER; CURTAIN RAIL
LOW ROOF<6XQ> (A) 		1-73996-393-0 02 1 0005-0104 ● ● ●
42 STOPPER; CURTAIN RAIL
HIGH ROOF<S2F> EXC. WINDOW CURTAIN ROUND<BW4> (A) 		1-73996-393-0 02 1 0005-0104 ●
42 STOPPER; CURTAIN RAIL
(A) 		1-73996-393-0 02 1 0105- ● ●
42 STOPPER; CURTAIN RAIL
HIGH ROOF<S2F> EXC. WINDOW CURTAIN ROUND<BW4> (A) 		1-73996-393-0 02 1 0105- ●
42 STOPPER; CURTAIN RAIL
LOW ROOF<6XQ> (A) 		1-73996-393-0 02 1 0105- ●
42 STOPPER; CURTAIN RAIL
HIGH ROOF<S2F> (C) 		1-73907-279-2 02 1 9604-9803 ● ●
42 STOPPER; CURTAIN RAIL
HIGH ROOF<S2F> (D) 		1-73907-449-2 02 1 9804-0004 ● ●
42 STOPPER; CURTAIN RAIL
HIGH ROOF<S2F> (D) 		1-73996-402-0 02 1 0005- ●
42 STOPPER; CURTAIN RAIL
LOW ROOF<6XQ> (C) 		1-73907-403-1 02 1 9604-0004 ● ●
42 STOPPER; CURTAIN RAIL
(C) 		1-73907-403-1 02 1 9604-0004 ●
42 STOPPER; CURTAIN RAIL
LOW ROOF<6XQ> (C) 		1-73907-657-0 02 1 0005-0104 ● ●
42 STOPPER; CURTAIN RAIL
(C) 		1-73907-657-0 02 1 0005-0104 ●
42 STOPPER; CURTAIN RAIL
(C) 		1-73907-657-0 02 1 0105- ● ●
42 STOPPER; CURTAIN RAIL
LOW ROOF<6XQ> (C) 		1-73907-657-0 02 1 0105- ●
42 STOPPER; CURTAIN RAIL
WINDOW CURTAIN ROUND<BW4> (B) 		1-73996-146-2 02 1 9604-0004 ● ●
42 STOPPER; CURTAIN RAIL
WINDOW CURTAIN ROUND<BW4> (B) 		1-73996-399-0 02 1 0005- ●
42 STOPPER; CURTAIN RAIL
WINDOW CURTAIN ROUND<BW4> HIGH ROOF<S2F> (A) 		1-73908-193-0 04 1 9604-0004 ● ●
42 STOPPER; CURTAIN RAIL
WINDOW CURTAIN ROUND<BW4> HIGH ROOF<S2F> (A) 		1-73996-393-0 04 1 0005- ●
42 STOPPER; CURTAIN RAIL
EXC. WINDOW CURTAIN ROUND<BW4> (B) 		1-73996-146-2 01 1 9604-0004 ● ●
42 STOPPER; CURTAIN RAIL
(B) 		1-73996-146-2 01 1 9604-0004 ●
42 STOPPER; CURTAIN RAIL
(B) 		1-73996-399-0 01 1 0005- ● ●
42 STOPPER; CURTAIN RAIL
EXC. WINDOW CURTAIN ROUND<BW4> (B) 		1-73996-399-0 01 1 0005- ●
45 RAIL; CURTAIN,FRT
CURTAIN SLEEPER COMPARTMENT<E25> LOW ROOF<6XQ> (A) 		1-73908-150-0 01 1 9604-0004 ● ● ●
45 RAIL; CURTAIN,FRT
CURTAIN SLEEPER COMPARTMENT<E25> LOW ROOF<6XQ> (A) 		1-73908-374-2 01 1 0005-0104 ● ● ●
45 RAIL; CURTAIN,FRT
CURTAIN SLEEPER COMPARTMENT<E25> (A) 		1-73908-374-2 01 1 0105- ● ●
45 RAIL; CURTAIN,FRT
CURTAIN SLEEPER COMPARTMENT<E25> LOW ROOF<6XQ> (A) 		1-73908-374-2 01 1 0105- ●
45 RAIL; CURTAIN,FRT
LOW ROOF<6XQ> EXC. CURTAIN SLEEPER COMPARTMENT<E25> (B) 		1-73908-148-0 01 1 9604-0004 ● ● ●
45 RAIL; CURTAIN,FRT
LOW ROOF<6XQ> EXC. CURTAIN SLEEPER COMPARTMENT<E25> (B) 		1-73908-373-1 01 1 0005-0104 ● ● ●
45 RAIL; CURTAIN,FRT
EXC. CURTAIN SLEEPER COMPARTMENT<E25> (B) 		1-73908-373-1 01 1 0105- ● ●
45 RAIL; CURTAIN,FRT
LOW ROOF<6XQ> EXC. CURTAIN SLEEPER COMPARTMENT<E25> (B) 		1-73908-373-1 01 1 0105- ●
45 RAIL; CURTAIN,FRT
HIGH ROOF<S2F> EXC. WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25> (B) 		1-73908-110-0 01 1 9604-9803 ● ●
45 RAIL; CURTAIN,FRT
HIGH ROOF<S2F> EXC. WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25> (C) 		1-73996-303-3 01 1 9804-0004 ● ●
45 RAIL; CURTAIN,FRT
HIGH ROOF<S2F> EXC. WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25> (C) 		1-73996-369-1 01 1 0005- ●
45 RAIL; CURTAIN,FRT
WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25> HIGH ROOF<S2F> (A) 		1-73996-101-4 01 1 9604-9803 ● ●
45 RAIL; CURTAIN,FRT
WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25> HIGH ROOF<S2F> (C) 		1-73908-262-0 01 1 9804-0004 ● ●
45 RAIL; CURTAIN,FRT
WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25> HIGH ROOF<S2F> (C) 		1-73996-370-1 01 1 0005- ●
45 RAIL; CURTAIN,FRT
(D) 		1-73996-323-0 01 1 9604-9803 ● ●
45 RAIL; CURTAIN,FRT
(D) 		1-73996-339-0 01 1 9804-0004 ● ●
47 SCREW; CURTAIN RAIL
HIGH ROOF<S2F> (A) M5X20 		5-09981-059-0 21 1 9604-9703 ● ●
47 SCREW; CURTAIN RAIL
HIGH ROOF<S2F> (A) M5X20 		5-09981-059-0 30 1 9704-9803 ● ●
47 SCREW; CURTAIN RAIL
HIGH ROOF<S2F> (A) M5X20 		5-09981-059-0 19 1 9804-0004 ● ●
47 SCREW; CURTAIN RAIL
HIGH ROOF<S2F> (A) M5X20 		5-09981-059-0 19 1 0005- ●
47 SCREW; CURTAIN RAIL
HIGH ROOF<S2F> (B) M5X25 		5-09981-093-0 09 1 9604-9703 ● ●
47 SCREW; CURTAIN RAIL
(B) M5X25 		5-09981-093-0 09 1 9604-9703 ● ●
47 SCREW; CURTAIN RAIL
LOW ROOF<6XQ> (A) M5X20 		5-09981-059-0 17 1 9604-0104 ● ●
47 SCREW; CURTAIN RAIL
(A) M5X20 		5-09981-059-0 17 1 9604-0104 ●
47 SCREW; CURTAIN RAIL
(A) M5X20 		5-09981-059-0 17 1 0105- ● ●
47 SCREW; CURTAIN RAIL
LOW ROOF<6XQ> (A) M5X20 		5-09981-059-0 17 1 0105- ●
47 SCREW; CURTAIN RAIL
LOW ROOF<6XQ> (B) M5X25 		5-09981-093-0 07 1 9604-9803 ● ●
47 SCREW; CURTAIN RAIL
(B) M5X25 		5-09981-093-0 07 1 9604-9803 ●
47 SCREW; CURTAIN RAIL
(B) M5X25 		5-09981-093-0 07 1 9804-0211 ● ● ●
47 SCREW; CURTAIN RAIL
(B) M5X25 		5-09981-093-0 08 1 0212-0212 ● ● ●
47 SCREW; CURTAIN RAIL
(B) M5X25 		5-09981-093-0 07 1 0212- ● ● ●
47 SCREW; CURTAIN RAIL
(C) M4X16 TAPPING 		1-09981-477-0 15 1 9604-0004 ● ●
47 SCREW; CURTAIN RAIL
(A) M5X20 		5-09981-059-0 10 1 9604-9703 ● ●
47 SCREW; CURTAIN RAIL
(A) M5X20 		5-09981-059-0 19 1 9704-9803 ● ●
47 SCREW; CURTAIN RAIL
(A) M5X20 		5-09981-059-0 13 1 9804-0004 ● ●
48 RAIL; CURTAIN,BACK
WINDOW CURTAIN ROUND<BW4> (A) 		1-73996-106-3 01 1 9604-0004 ● ●
48 RAIL; CURTAIN,BACK
WINDOW CURTAIN ROUND<BW4> (A) 		1-73996-386-1 01 1 0005- ●
48 RAIL; CURTAIN,BACK
EXC. WINDOW CURTAIN ROUND<BW4> (B) 		8-94265-811-0 01 1 9604-0004 ● ●
48 RAIL; CURTAIN,BACK
(B) 		8-94265-811-0 01 1 9604-0004 ●
48 RAIL; CURTAIN,BACK
(B) 		1-73996-385-1 01 1 0005- ● ●
48 RAIL; CURTAIN,BACK
EXC. WINDOW CURTAIN ROUND<BW4> (B) 		1-73996-385-1 01 1 0005- ●
48 RAIL; CURTAIN,BACK
(C) 		1-73996-328-0 01 1 9604-0004 ● ●
50 GROMMET; SCREW,CURTAIN RAIL
HIGH ROOF<S2F> (B) D=8X8 L=13 M5 		1-09983-159-0 09 1 9604-9803 ● ●
50 GROMMET; SCREW,CURTAIN RAIL
(B) D=8X8 L=13 M5 		1-09983-159-0 09 1 9604-9803 ● ●
50 GROMMET; SCREW,CURTAIN RAIL
LOW ROOF<6XQ> (B) D=8X8 L=13 M5 		1-09983-159-0 07 1 9804-0004 ● ● ●
50 GROMMET; SCREW,CURTAIN RAIL
WINDOW CURTAIN ROUND<BW4> HIGH ROOF<S2F> (B) D=8X8 L=13 M5 		1-09983-159-0 07 1 9804-0004 ● ●
50 GROMMET; SCREW,CURTAIN RAIL
LOW ROOF<6XQ> (B) D=8X8 L=13 M5 		1-09983-159-0 07 1 0005-0104 ● ● ●
50 GROMMET; SCREW,CURTAIN RAIL
WINDOW CURTAIN ROUND<BW4> HIGH ROOF<S2F> (B) D=8X8 L=13 M5 		1-09983-159-0 07 1 0005-0104 ●
50 GROMMET; SCREW,CURTAIN RAIL
(B) D=8X8 L=13 M5 		1-09983-159-0 07 1 0105-0211 ● ●
50 GROMMET; SCREW,CURTAIN RAIL
WINDOW CURTAIN ROUND<BW4> HIGH ROOF<S2F> (B) D=8X8 L=13 M5 		1-09983-159-0 07 1 0105-0211 ●
50 GROMMET; SCREW,CURTAIN RAIL
LOW ROOF<6XQ> (B) D=8X8 L=13 M5 		1-09983-159-0 07 1 0105-0211 ●
50 GROMMET; SCREW,CURTAIN RAIL
(B) D=8X8 L=13 M5 		1-09983-159-0 15 1 0212-0212 ● ●
50 GROMMET; SCREW,CURTAIN RAIL
HIGH ROOF<S2F> EXC. WINDOW CURTAIN ROUND<BW4> (B) D=8X8 L=13 M5 		1-09983-159-0 15 1 0212-0212 ●
50 GROMMET; SCREW,CURTAIN RAIL
LOW ROOF<6XQ> (B) D=8X8 L=13 M5 		1-09983-159-0 15 1 0212-0212 ●
50 GROMMET; SCREW,CURTAIN RAIL
(B) D=8X8 L=13 M5 		1-09983-159-0 07 1 0212- ● ●
50 GROMMET; SCREW,CURTAIN RAIL
WINDOW CURTAIN ROUND<BW4> HIGH ROOF<S2F> (B) D=8X8 L=13 M5 		1-09983-159-0 07 1 0212- ●
50 GROMMET; SCREW,CURTAIN RAIL
LOW ROOF<6XQ> (B) D=8X8 L=13 M5 		1-09983-159-0 07 1 0212- ●
50 GROMMET; SCREW,CURTAIN RAIL
HIGH ROOF<S2F> (A) D=8X8 L=7.5 M5 YELLOW 		8-94279-740-0 21 1 9604-9708 ● ●
50 GROMMET; SCREW,CURTAIN RAIL
HIGH ROOF<S2F> (A) D=8.6X7.7 L=7.5 		8-94279-078-0 21 1 9709-9803 ● ●
50 GROMMET; SCREW,CURTAIN RAIL
WINDOW CURTAIN ROUND<BW4> HIGH ROOF<S2F> (A) D=8.6X7.7 L=7.5 		8-94279-078-0 25 1 9804-0004 ● ●
50 GROMMET; SCREW,CURTAIN RAIL
WINDOW CURTAIN ROUND<BW4> HIGH ROOF<S2F> (A) D=8.6X7.7 L=7.5 		8-94279-078-0 25 1 0005- ●
50 GROMMET; SCREW,CURTAIN RAIL
HIGH ROOF<S2F> EXC. WINDOW CURTAIN ROUND<BW4> (A) D=8.6X7.7 L=7.5 		8-94279-078-0 11 1 9804-0004 ● ●
50 GROMMET; SCREW,CURTAIN RAIL
HIGH ROOF<S2F> EXC. WINDOW CURTAIN ROUND<BW4> (A) D=8.6X7.7 L=7.5 		8-94279-078-0 11 1 0005- ●
50 GROMMET; SCREW,CURTAIN RAIL
LOW ROOF<6XQ> (B) D=8X8 L=13 M5 		1-09983-159-0 07 1 9604-9803 ● ●
50 GROMMET; SCREW,CURTAIN RAIL
(B) D=8X8 L=13 M5 		1-09983-159-0 07 1 9604-9803 ●
50 GROMMET; SCREW,CURTAIN RAIL
HIGH ROOF<S2F> EXC. WINDOW CURTAIN ROUND<BW4> (B) D=8X8 L=13 M5 		1-09983-159-0 15 1 9804-0004 ● ●
50 GROMMET; SCREW,CURTAIN RAIL
HIGH ROOF<S2F> EXC. WINDOW CURTAIN ROUND<BW4> (B) D=8X8 L=13 M5 		1-09983-159-0 15 1 0005-0211 ●
50 GROMMET; SCREW,CURTAIN RAIL
WINDOW CURTAIN ROUND<BW4> HIGH ROOF<S2F> (B) D=8X8 L=13 M5 		1-09983-159-0 07 1 0212-0212 ●
50 GROMMET; SCREW,CURTAIN RAIL
HIGH ROOF<S2F> EXC. WINDOW CURTAIN ROUND<BW4> (B) D=8X8 L=13 M5 		1-09983-159-0 15 1 0212- ●
50 GROMMET; SCREW,CURTAIN RAIL
LOW ROOF<6XQ> (A) D=8X8 L=7.5 M5 YELLOW 		8-94279-740-0 17 1 9604-9708 ● ●
50 GROMMET; SCREW,CURTAIN RAIL
(A) D=8X8 L=7.5 M5 YELLOW 		8-94279-740-0 17 1 9604-9708 ●
50 GROMMET; SCREW,CURTAIN RAIL
LOW ROOF<6XQ> (A) D=8.6X7.7 L=7.5 		8-94279-078-0 17 1 9709-0104 ● ●
50 GROMMET; SCREW,CURTAIN RAIL
(A) D=8.6X7.7 L=7.5 		8-94279-078-0 17 1 9709-0104 ●
50 GROMMET; SCREW,CURTAIN RAIL
(A) D=8.6X7.7 L=7.5 		8-94279-078-0 17 1 0105- ● ●
50 GROMMET; SCREW,CURTAIN RAIL
LOW ROOF<6XQ> (A) D=8.6X7.7 L=7.5 		8-94279-078-0 17 1 0105- ●
50 GROMMET; SCREW,CURTAIN RAIL
(A) D=8X8 L=7.5 M5 YELLOW 		8-94279-740-0 10 1 9604-9708 ● ●
50 GROMMET; SCREW,CURTAIN RAIL
(A) D=8.6X7.7 L=7.5 		8-94279-078-0 10 1 9709-9803 ● ●
50 GROMMET; SCREW,CURTAIN RAIL
(A) D=8.6X7.7 L=7.5 		8-94279-078-0 09 1 9804-0004 ● ●
50 GROMMET; SCREW,CURTAIN RAIL
(B) D=8X8 L=13 M5 		1-09983-159-0 04 1 9804-0004 ● ●
58 BED; MAT
MATTRESS SLEEPER CAB<E40> 		1-75116-294-1 01 1 9604-0003 ● ● ●
58 BED; MAT
MATTRESS SLEEPER CAB<E40> 		1-75116-519-0 01 1 0004-0004 ● ● ●
58 BED; MAT
MATTRESS SLEEPER CAB<E40> 		1-75116-531-1 01 1 0005- ● ● ●
59 COVER ASM; TRIM,BED MAT
MATTRESS SLEEPER CAB<E40> 		1-75116-316-0 01 1 9604-0003 ● ● ●
59 COVER ASM; TRIM,BED MAT
MATTRESS SLEEPER CAB<E40> 		1-75116-666-0 01 1 0004-0004 ● ● ●
59 COVER ASM; TRIM,BED MAT
MATTRESS SLEEPER CAB<E40> 		1-75116-700-1 01 1 0005- ● ● ●
84 BRACKET; CURTAIN RAIL
(A) 		1-73998-986-2 02 1 9604- ● ● ●
84 BRACKET; CURTAIN RAIL
HIGH ROOF<S2F> (B) 		1-73998-987-4 02 1 9604-9803 ● ●
84 BRACKET; CURTAIN RAIL
SPEAKER SYSTEM RR 2 SPEAKERS<TLS> (B) 		1-73998-987-4 03 1 9804-0004 ● ●
84 BRACKET; CURTAIN RAIL
(B) 		1-73998-987-4 07 1 0005- ● ● ●
84 BRACKET; CURTAIN RAIL
LOW ROOF<6XQ> (B) 		1-73998-987-4 07 1 9604-9803 ● ●
84 BRACKET; CURTAIN RAIL
(B) 		1-73998-987-4 07 1 9604-9803 ●
84 BRACKET; CURTAIN RAIL
EXC. SPEAKER SYSTEM RR 2 SPEAKERS<TLS> (B) 		1-73998-987-4 07 1 9804-0004 ● ●
84 BRACKET; CURTAIN RAIL
(B) 		1-73998-987-4 07 1 9804-0004 ●
85 SCREW; BRKT
HIGH ROOF<S2F> M5X20 		5-09981-059-0 04 1 9604-9803 ● ●
85 SCREW; BRKT
SPEAKER SYSTEM RR 2 SPEAKERS<TLS> M5X20 		5-09981-059-0 03 1 9804-0004 ● ●
85 SCREW; BRKT
M5X20 		5-09981-059-0 07 1 0005-0405 ● ● ●
85 SCREW; BRKT
M5X20 		5-09981-059-0 02 1 0406- ● ● ●
85 SCREW; BRKT
LOW ROOF<6XQ> M5X20 		5-09981-059-0 09 1 9604-9803 ● ●
85 SCREW; BRKT
M5X20 		5-09981-059-0 09 1 9604-9803 ●
85 SCREW; BRKT
M5X20 		5-09981-059-0 02 1 9804-0405 ● ● ●
85 SCREW; BRKT
M5X20 		5-09981-059-0 07 1 0406- ● ● ●
85 SCREW; BRKT
EXC. SPEAKER SYSTEM RR 2 SPEAKERS<TLS> M5X20 		5-09981-059-0 07 1 9804-0004 ● ●
85 SCREW; BRKT
M5X20 		5-09981-059-0 07 1 9804-0004 ●
86 GROMMET; SCREW,BRKT
HIGH ROOF<S2F> D=8X8 L=7.5 M5 YELLOW 		8-94279-740-0 04 1 9604-9708 ● ●
86 GROMMET; SCREW,BRKT
HIGH ROOF<S2F> D=8.6X7.7 L=7.5 		8-94279-078-0 04 1 9709-9803 ● ●
86 GROMMET; SCREW,BRKT
SPEAKER SYSTEM RR 2 SPEAKERS<TLS> D=8.6X7.7 L=7.5 		8-94279-078-0 03 1 9804-0004 ● ●
86 GROMMET; SCREW,BRKT
LOW ROOF<6XQ> D=8X8 L=7.5 M5 YELLOW 		8-94279-740-0 09 1 9604-9708 ● ●
86 GROMMET; SCREW,BRKT
D=8X8 L=7.5 M5 YELLOW 		8-94279-740-0 09 1 9604-9708 ●
86 GROMMET; SCREW,BRKT
LOW ROOF<6XQ> D=8.6X7.7 L=7.5 		8-94279-078-0 09 1 9709-9803 ● ●
86 GROMMET; SCREW,BRKT
D=8.6X7.7 L=7.5 		8-94279-078-0 09 1 9709-9803 ●
86 GROMMET; SCREW,BRKT
D=8.6X7.7 L=7.5 		8-94279-078-0 02 1 9804- ● ● ●
86 GROMMET; SCREW,BRKT
EXC. SPEAKER SYSTEM RR 2 SPEAKERS<TLS> D=8.6X7.7 L=7.5 		8-94279-078-0 07 1 9804-0004 ● ●
86 GROMMET; SCREW,BRKT
D=8.6X7.7 L=7.5 		8-94279-078-0 07 1 9804-0004 ●
86 GROMMET; SCREW,BRKT
D=8.6X7.7 L=7.5 		8-94279-078-0 07 1 0005- ● ● ●
101 SCREW; STOPPER
LOW ROOF<6XQ> 		1-73907-400-0 02 1 0005-0104 ● ●
101 SCREW; STOPPER 1-73907-400-0 02 1 0005-0104 ●
101 SCREW; STOPPER 1-73907-400-0 02 1 0105- ● ●
101 SCREW; STOPPER
LOW ROOF<6XQ> 		1-73907-400-0 02 1 0105- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
