◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FSS ▶ 10716 - FSS/FTS-RHD ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-50 - FRONT SEAT ▶
7-50 — FRONT SEAT (#34474) — 1088 parça

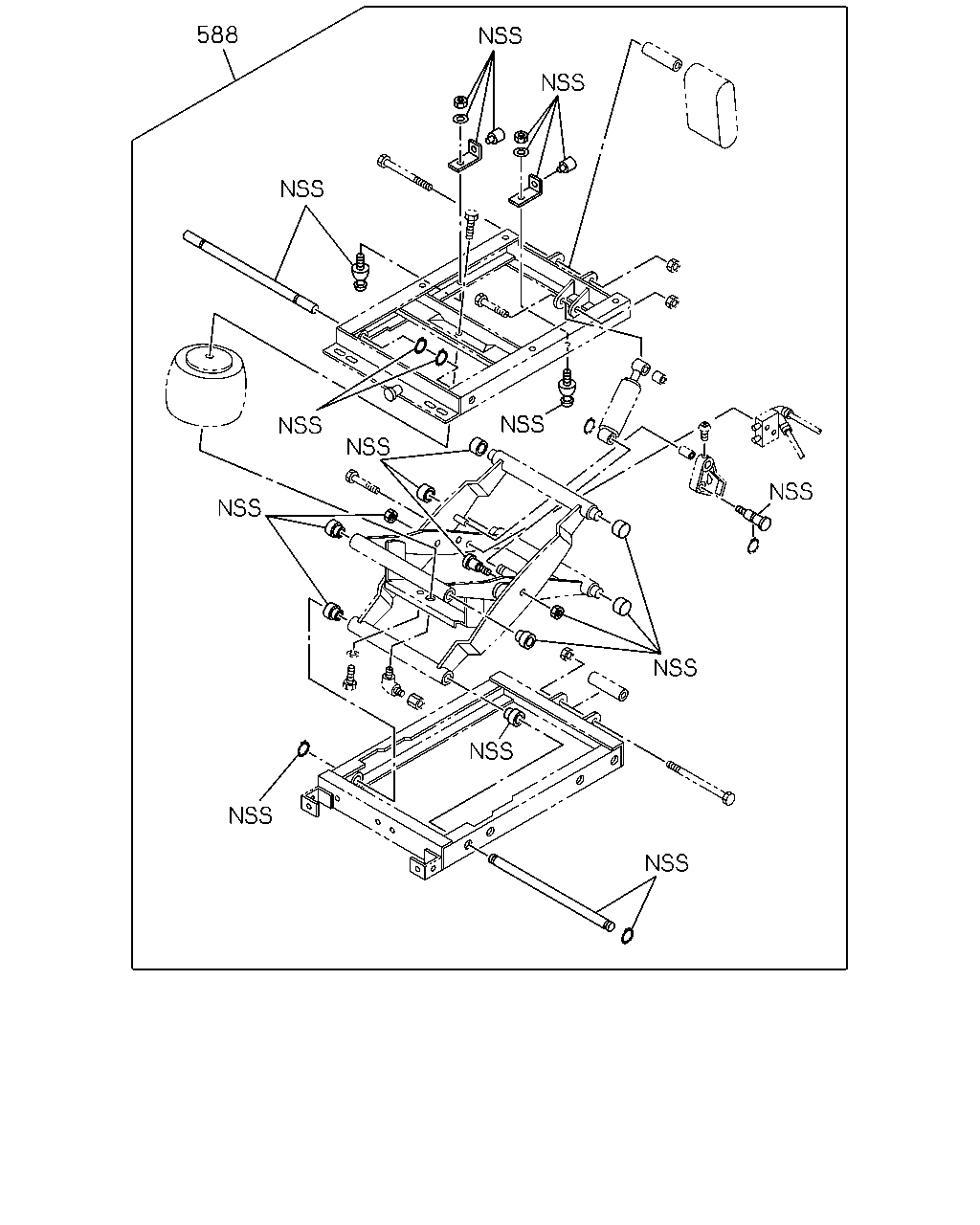

çizim 152957
588
BalonParca AdiParca NoAdetTipApplied Date A B C D E
588 REPAIR KIT; SUSPENSION
DRIVER ISRINGHAUSEN SEAT<SJA> 		1-75538-202-0 01 1 9811-0004 ● ● ● ●
588 REPAIR KIT; SUSPENSION
DRIVER ISRINGHAUSEN SEAT<SJA> 		1-75538-202-0 01 1 0005- ●

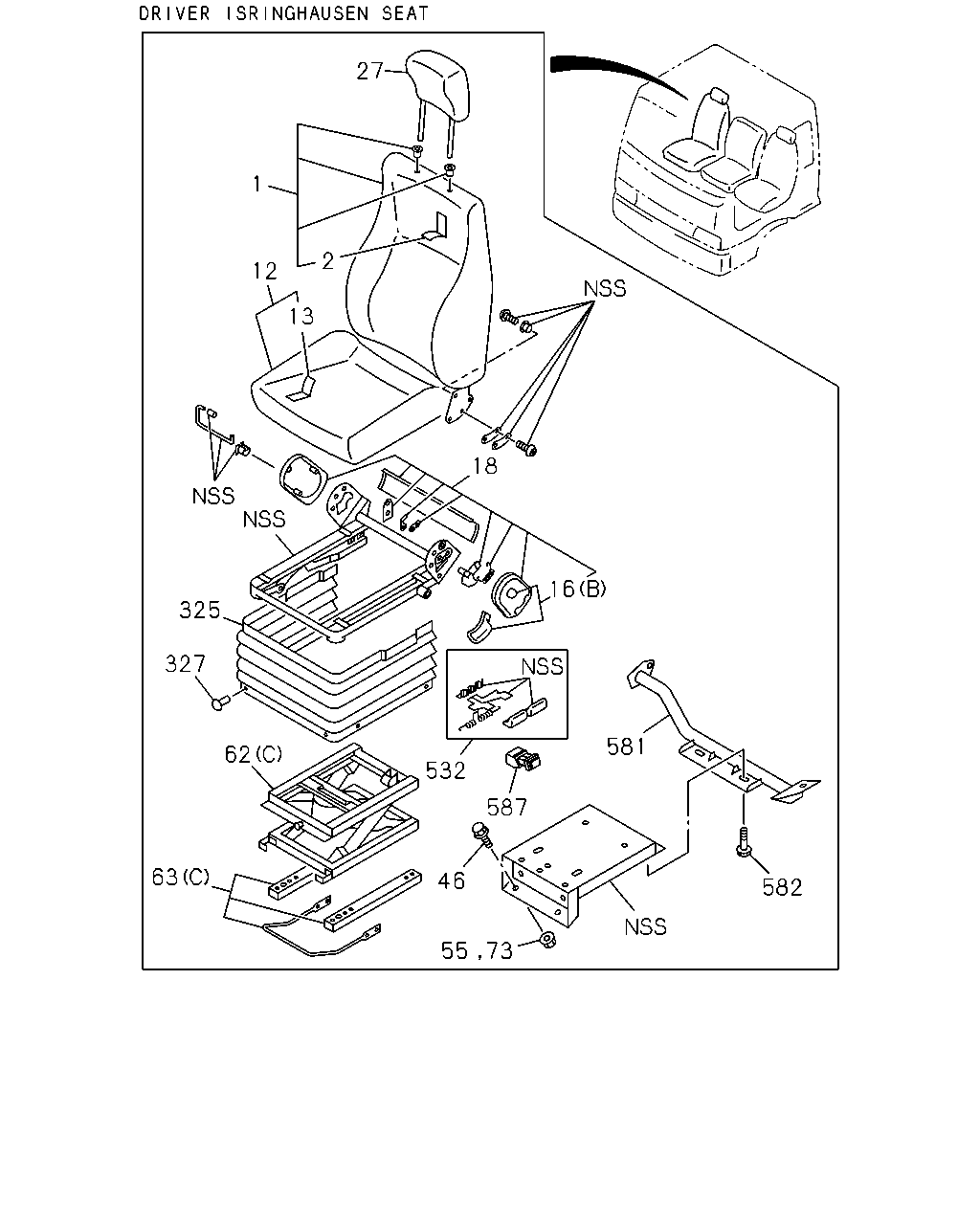

çizim 152960
27 1 2 12 13 18 16 325 327 581 62 532 587 63 46 582 55 73
BalonParca AdiParca NoAdetTipApplied Date A B C D E
1 BACK ASM; SEAT
DRIVER ISRINGHAUSEN SEAT<SJA> 		1-75026-267-0 01 1 9811-0004 ● ● ● ●
1 BACK ASM; SEAT
DRIVER ISRINGHAUSEN SEAT<SJA> 		1-75026-267-0 01 1 0005- ●
1 BACK ASM; SEAT
RIGID SEAT WO/ARM REST<TAZ> 		1-75028-618-2 01 1 9604-9803 ● ● ●
1 BACK ASM; SEAT
RIGID SEAT WO/ARM REST<TAZ> LOW ROOF<6XQ> 		1-75028-618-2 01 1 9804-0003 ● ● ●
1 BACK ASM; SEAT
RIGID SEAT WO/ARM REST<TAZ> LOW ROOF<6XQ> 		1-75026-721-0 01 1 0004-0004 ● ● ●
1 BACK ASM; SEAT
RIGID SEAT WO/ARM REST<TAZ> LOW ROOF<6XQ> 		1-75026-728-0 01 1 0005-0104 ● ● ●
1 BACK ASM; SEAT 1-75026-728-0 01 1 0105-0105 ● ●
1 BACK ASM; SEAT
RIGID SEAT WO/ARM REST<TAZ> LOW ROOF<6XQ> 		1-75026-728-0 01 1 0105-0105 ●
1 BACK ASM; SEAT 1-75208-067-3 01 1 0106- ● ●
1 BACK ASM; SEAT
RIGID SEAT WO/ARM REST<TAZ> LOW ROOF<6XQ> 		1-75208-067-3 01 1 0106- ●
1 BACK ASM; SEAT
AIR CONT SEAT<A60> 		1-75028-864-2 01 1 9804-0003 ● ●
1 BACK ASM; SEAT
AIR CONT SEAT<A60> 		1-75026-711-0 01 1 0004-0004 ● ●
1 BACK ASM; SEAT
SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> 		1-75028-760-1 01 1 9604-9803 ● ●
1 BACK ASM; SEAT
HIGH ROOF<S2F> RIGID SEAT WO/ARM REST<TAZ> 		1-75028-590-2 01 1 9804-0003 ● ●
1 BACK ASM; SEAT
HIGH ROOF<S2F> RIGID SEAT WO/ARM REST<TAZ> 		1-75026-710-0 01 1 0004-0004 ● ●
1 BACK ASM; SEAT
HIGH ROOF<S2F> RIGID SEAT WO/ARM REST<TAZ> 		1-75026-730-0 01 1 0005-0105 ●
1 BACK ASM; SEAT
HIGH ROOF<S2F> RIGID SEAT WO/ARM REST<TAZ> 		1-75208-069-2 01 1 0106-0901 ●
1 BACK ASM; SEAT
HIGH ROOF<S2F> RIGID SEAT WO/ARM REST<TAZ> 		8-98135-615-0 01 1 0902- ●
1 BACK ASM; SEAT
SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> 		1-75027-512-2 01 1 9604-9803 ● ●
1 BACK ASM; SEAT
AIR CONT SEAT<A60> 		1-75026-032-0 01 1 9804-9810 ● ●
1 BACK ASM; SEAT
AIR CONT SEAT<A60>,SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> 		1-75026-032-0 01 1 9811-0003 ● ●
1 BACK ASM; SEAT
AIR CONT SEAT<A60>,SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> 		1-75026-715-0 01 1 0004-0004 ● ●
1 BACK ASM; SEAT
AIR SUSP DRIVER SEAT<A56> 		1-75027-392-1 01 1 9604-9803 ●
1 BACK ASM; SEAT
AIR SUSP DRIVER SEAT<A56> HIGH ROOF<S2F> 		1-75026-025-0 01 1 9804-0003 ●
1 BACK ASM; SEAT
AIR SUSP DRIVER SEAT<A56> HIGH ROOF<S2F> 		1-75026-716-0 01 1 0004-0004 ●
1 BACK ASM; SEAT
AIR SUSP DRIVER SEAT<A56> LOW ROOF<6XQ> 		1-75028-998-0 01 1 9804-0003 ●
1 BACK ASM; SEAT
AIR SUSP DRIVER SEAT<A56> LOW ROOF<6XQ> 		1-75026-712-0 01 1 0004-0004 ●
1 BACK ASM; SEAT
AIR SUSP DRIVER SEAT<A56> DRIVING POSITION WIDE LEG SPACE<PR2> HIGH ROOF<S2F> 		1-75026-729-0 01 1 0005-0105 ●
1 BACK ASM; SEAT
AIR SUSP DRIVER SEAT<A56> DRIVING POSITION WIDE LEG SPACE<PR2> HIGH ROOF<S2F> 		1-75208-068-2 01 1 0106-0901 ●
1 BACK ASM; SEAT
AIR SUSP DRIVER SEAT<A56> 		8-98135-612-0 01 1 0902- ●
2 COVER; TRIM,FRT SEAT,BACK
SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> 		1-75116-296-1 01 1 9604-9803 ●
2 COVER; TRIM,FRT SEAT,BACK
AIR SUSP DRIVER SEAT<A56>,SUSP SEAT W/SEAT BELTANCHORAGE<WN5> 		1-75116-296-1 01 1 9604-9803 ●
2 COVER; TRIM,FRT SEAT,BACK
AIR CONT SEAT<A60> 		1-75116-346-1 01 1 9804-0003 ● ●
2 COVER; TRIM,FRT SEAT,BACK
AIR CONT SEAT<A60> 		1-75116-586-0 01 1 0004-0004 ● ●
2 COVER; TRIM,FRT SEAT,BACK
AIR SUSP DRIVER SEAT<A56> 		1-75116-703-1 01 1 0005- ●
2 COVER; TRIM,FRT SEAT,BACK
RIGID SEAT WO/ARM REST<TAZ> 		1-75116-274-1 01 1 9604-9803 ● ● ●
2 COVER; TRIM,FRT SEAT,BACK
RIGID SEAT WO/ARM REST<TAZ> LOW ROOF<6XQ> 		1-75116-274-1 01 1 9804-0003 ● ● ●
2 COVER; TRIM,FRT SEAT,BACK
RIGID SEAT WO/ARM REST<TAZ> LOW ROOF<6XQ> 		1-75116-600-0 01 1 0004-0004 ● ● ●
2 COVER; TRIM,FRT SEAT,BACK
RIGID SEAT WO/ARM REST<TAZ> LOW ROOF<6XQ> 		1-75116-702-1 01 1 0005-0104 ● ● ●
2 COVER; TRIM,FRT SEAT,BACK 1-75116-702-1 01 1 0105- ● ●
2 COVER; TRIM,FRT SEAT,BACK
RIGID SEAT WO/ARM REST<TAZ> LOW ROOF<6XQ> 		1-75116-702-1 01 1 0105- ●
2 COVER; TRIM,FRT SEAT,BACK
AIR CONT SEAT<A60> 		1-75116-389-0 01 1 9804-9810 ● ●
2 COVER; TRIM,FRT SEAT,BACK
AIR CONT SEAT<A60>,SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> 		1-75116-389-0 01 1 9811-0003 ● ●
2 COVER; TRIM,FRT SEAT,BACK
AIR CONT SEAT<A60>,SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> 		1-75116-593-0 01 1 0004-0004 ● ●
2 COVER; TRIM,FRT SEAT,BACK
SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> 		1-75116-277-2 01 1 9604-9803 ● ●
2 COVER; TRIM,FRT SEAT,BACK
HIGH ROOF<S2F> RIGID SEAT WO/ARM REST<TAZ> 		1-75116-277-2 01 1 9804-0003 ● ●
2 COVER; TRIM,FRT SEAT,BACK
HIGH ROOF<S2F> RIGID SEAT WO/ARM REST<TAZ> 		1-75127-036-0 01 1 0004-0004 ● ●
2 COVER; TRIM,FRT SEAT,BACK
HIGH ROOF<S2F> RIGID SEAT WO/ARM REST<TAZ> 		1-75116-704-1 01 1 0005- ●
2 COVER; TRIM,FRT SEAT,BACK
AIR SUSP DRIVER SEAT<A56> HIGH ROOF<S2F> 		1-75116-377-0 01 1 9804-0003 ●
2 COVER; TRIM,FRT SEAT,BACK
AIR SUSP DRIVER SEAT<A56> HIGH ROOF<S2F> 		1-75116-595-0 01 1 0004-0004 ●
2 COVER; TRIM,FRT SEAT,BACK
AIR SUSP DRIVER SEAT<A56> LOW ROOF<6XQ> 		1-75116-373-0 01 1 9804-0003 ●
2 COVER; TRIM,FRT SEAT,BACK
AIR SUSP DRIVER SEAT<A56> LOW ROOF<6XQ> 		1-75116-587-0 01 1 0004-0004 ●
2 COVER; TRIM,FRT SEAT,BACK
DRIVER ISRINGHAUSEN SEAT<SJA> 		1-75116-464-0 01 1 9811-0004 ● ● ● ●
2 COVER; TRIM,FRT SEAT,BACK
DRIVER ISRINGHAUSEN SEAT<SJA> 		1-75116-464-0 01 1 0005- ●
12 CUSHION; SEAT,FRT
DRIVER ISRINGHAUSEN SEAT<SJA> 		1-75026-268-0 01 1 9811-0004 ● ● ● ●
12 CUSHION; SEAT,FRT
DRIVER ISRINGHAUSEN SEAT<SJA> 		1-75026-268-0 01 1 0005- ●
12 CUSHION; SEAT,FRT
RIGID SEAT WO/ARM REST<TAZ> 		1-75028-799-2 01 1 9604-9803 ● ● ●
12 CUSHION; SEAT,FRT
RIGID SEAT WO/ARM REST<TAZ> LOW ROOF<6XQ> 		1-75028-799-2 01 1 9804-0003 ● ● ●
12 CUSHION; SEAT,FRT
RIGID SEAT WO/ARM REST<TAZ> LOW ROOF<6XQ> 		1-75026-686-0 01 1 0004-0004 ● ● ●
12 CUSHION; SEAT,FRT
RIGID SEAT WO/ARM REST<TAZ> LOW ROOF<6XQ> 		1-75026-692-1 01 1 0005-0104 ● ● ●
12 CUSHION; SEAT,FRT 1-75026-692-1 01 1 0105- ● ●
12 CUSHION; SEAT,FRT
RIGID SEAT WO/ARM REST<TAZ> LOW ROOF<6XQ> 		1-75026-692-1 01 1 0105- ●
12 CUSHION; SEAT,FRT
AIR CONT SEAT<A60> 		1-75026-033-0 01 1 9804-0003 ● ●
12 CUSHION; SEAT,FRT
AIR CONT SEAT<A60> 		1-75026-681-0 01 1 0004-0004 ● ●
12 CUSHION; SEAT,FRT
SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> 		1-75028-870-1 01 1 9604-9803 ● ●
12 CUSHION; SEAT,FRT
HIGH ROOF<S2F> RIGID SEAT WO/ARM REST<TAZ> 		1-75028-764-2 01 1 9804-0003 ● ●
12 CUSHION; SEAT,FRT
HIGH ROOF<S2F> RIGID SEAT WO/ARM REST<TAZ> 		1-75207-147-0 01 1 0004-0004 ● ●
12 CUSHION; SEAT,FRT
HIGH ROOF<S2F> RIGID SEAT WO/ARM REST<TAZ> 		1-75026-695-3 01 1 0005- ●
12 CUSHION; SEAT,FRT
SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> 		1-75028-871-1 01 1 9604-9803 ● ●
12 CUSHION; SEAT,FRT
AIR CONT SEAT<A60> 		1-75028-871-1 01 1 9804-9810 ● ●
12 CUSHION; SEAT,FRT
AIR CONT SEAT<A60>,SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> 		1-75028-871-1 01 1 9811-0003 ● ●
12 CUSHION; SEAT,FRT
AIR CONT SEAT<A60>,SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> 		1-75026-676-0 01 1 0004-0004 ● ●
12 CUSHION; SEAT,FRT
AIR SUSP DRIVER SEAT<A56> 		1-75028-763-1 01 1 9604-9803 ●
12 CUSHION; SEAT,FRT
AIR SUSP DRIVER SEAT<A56> HIGH ROOF<S2F> 		1-75028-838-1 01 1 9804-0003 ●
12 CUSHION; SEAT,FRT
AIR SUSP DRIVER SEAT<A56> HIGH ROOF<S2F> 		1-75026-677-0 01 1 0004-0004 ●
12 CUSHION; SEAT,FRT
AIR SUSP DRIVER SEAT<A56> LOW ROOF<6XQ> 		1-75026-024-0 01 1 9804-0003 ●
12 CUSHION; SEAT,FRT
AIR SUSP DRIVER SEAT<A56> LOW ROOF<6XQ> 		1-75026-682-0 01 1 0004-0004 ●
12 CUSHION; SEAT,FRT
AIR SUSP DRIVER SEAT<A56> 		1-75026-693-3 01 1 0005- ●
13 COVER; TRIM,FRT SEAT,CUSHION
DRIVER ISRINGHAUSEN SEAT<SJA> 		1-75116-465-0 01 1 9811-0004 ● ● ● ●
13 COVER; TRIM,FRT SEAT,CUSHION
DRIVER ISRINGHAUSEN SEAT<SJA> 		1-75116-465-0 01 1 0005- ●
13 COVER; TRIM,FRT SEAT,CUSHION
RIGID SEAT WO/ARM REST<TAZ> 		1-75116-318-1 01 1 9604-9803 ● ● ●
13 COVER; TRIM,FRT SEAT,CUSHION
RIGID SEAT WO/ARM REST<TAZ> LOW ROOF<6XQ> 		1-75116-318-1 01 1 9804-0003 ● ● ●
13 COVER; TRIM,FRT SEAT,CUSHION
RIGID SEAT WO/ARM REST<TAZ> LOW ROOF<6XQ> 		1-75116-554-0 01 1 0004-0004 ● ● ●
13 COVER; TRIM,FRT SEAT,CUSHION
RIGID SEAT WO/ARM REST<TAZ> LOW ROOF<6XQ> 		1-75116-680-1 01 1 0005-0104 ● ● ●
13 COVER; TRIM,FRT SEAT,CUSHION 1-75116-680-1 01 1 0105- ● ●
13 COVER; TRIM,FRT SEAT,CUSHION
RIGID SEAT WO/ARM REST<TAZ> LOW ROOF<6XQ> 		1-75116-680-1 01 1 0105- ●
13 COVER; TRIM,FRT SEAT,CUSHION
AIR CONT SEAT<A60> 		1-75116-390-0 01 1 9804-0003 ● ●
13 COVER; TRIM,FRT SEAT,CUSHION
AIR CONT SEAT<A60> 		1-75116-548-0 01 1 0004-0004 ● ●
13 COVER; TRIM,FRT SEAT,CUSHION
SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> 		1-75117-901-0 01 1 9604-9803 ● ●
13 COVER; TRIM,FRT SEAT,CUSHION
HIGH ROOF<S2F> RIGID SEAT WO/ARM REST<TAZ> 		1-75116-301-1 01 1 9804-0003 ● ●
13 COVER; TRIM,FRT SEAT,CUSHION
HIGH ROOF<S2F> RIGID SEAT WO/ARM REST<TAZ> 		1-75116-539-0 01 1 0004-0004 ● ●
13 COVER; TRIM,FRT SEAT,CUSHION
HIGH ROOF<S2F> RIGID SEAT WO/ARM REST<TAZ> 		1-75116-683-1 01 1 0005- ●
13 COVER; TRIM,FRT SEAT,CUSHION
SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> 		1-75116-359-0 01 1 9604-9803 ● ●
13 COVER; TRIM,FRT SEAT,CUSHION
AIR CONT SEAT<A60> 		1-75116-359-0 01 1 9804-9810 ● ●
13 COVER; TRIM,FRT SEAT,CUSHION
AIR CONT SEAT<A60>,SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> 		1-75116-359-0 01 1 9811-0003 ● ●
13 COVER; TRIM,FRT SEAT,CUSHION
AIR CONT SEAT<A60>,SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> 		1-75116-545-0 01 1 0004-0004 ● ●
13 COVER; TRIM,FRT SEAT,CUSHION
AIR SUSP DRIVER SEAT<A56> 		1-75117-835-0 01 1 9604-9803 ●
13 COVER; TRIM,FRT SEAT,CUSHION
AIR SUSP DRIVER SEAT<A56> HIGH ROOF<S2F> 		1-75116-349-0 01 1 9804-0003 ●
13 COVER; TRIM,FRT SEAT,CUSHION
AIR SUSP DRIVER SEAT<A56> HIGH ROOF<S2F> 		1-75116-549-0 01 1 0004-0004 ●
13 COVER; TRIM,FRT SEAT,CUSHION
AIR SUSP DRIVER SEAT<A56> LOW ROOF<6XQ> 		1-75116-378-0 01 1 9804-0003 ●
13 COVER; TRIM,FRT SEAT,CUSHION
AIR SUSP DRIVER SEAT<A56> LOW ROOF<6XQ> 		1-75116-550-0 01 1 0004-0004 ●
13 COVER; TRIM,FRT SEAT,CUSHION
AIR SUSP DRIVER SEAT<A56> 		1-75116-681-1 01 1 0005- ●
16 ADJUSTER ASM; RECLINING
EXC. CENTER SEAT DELETE 2 CREWS<SP9> (A) 		1-75418-057-1 01 1 9604-9811 ● ● ● ● ●
16 ADJUSTER ASM; RECLINING
VINYL SEAT<A83> EXC. CENTER SEAT DELETE 2 CREWS<SP9> (A) 		1-75418-057-1 01 1 9812-0003 ● ● ●
16 ADJUSTER ASM; RECLINING
(A) 		1-75418-057-1 01 1 9812-0003 ● ●
16 ADJUSTER ASM; RECLINING
FABRIC SEAT W/RECLINING<SFQ> EXC. CENTER SEAT DELETE 2 CREWS<SP9> (A) 		1-75418-062-0 01 1 9812-0003 ● ●
16 ADJUSTER ASM; RECLINING
EXC. CENTER SEAT DELETE 2 CREWS<SP9> (A) 		1-75418-062-0 01 1 0004-0004 ● ● ● ● ●
16 ADJUSTER ASM; RECLINING
EXC. CENTER SEAT DELETE 2 CREWS<SP9> (A) 		1-75418-062-1 01 1 0005- ● ● ●
16 ADJUSTER ASM; RECLINING
DRIVER ISRINGHAUSEN SEAT<SJA> (B) 		1-75418-064-0 01 1 9811-0004 ● ● ● ●
16 ADJUSTER ASM; RECLINING
DRIVER ISRINGHAUSEN SEAT<SJA> (B) 		1-75418-064-0 01 1 0005- ●
18 COVER; RECLINING 1-75418-050-0 01 1 9604-9810 ● ● ● ● ●
18 COVER; RECLINING
EXC. DRIVER ISRINGHAUSEN SEAT<SJA> 		1-75418-050-0 01 1 9811-0004 ● ● ● ●
18 COVER; RECLINING 1-75418-050-0 01 1 9811-0004 ●
18 COVER; RECLINING
DARK GRAY 		8-97867-020-0 01 1 0005- ● ●
18 COVER; RECLINING
EXC. DRIVER ISRINGHAUSEN SEAT<SJA> DARK GRAY 		8-97867-020-0 01 1 0005- ●
18 COVER; RECLINING
DRIVER ISRINGHAUSEN SEAT<SJA> 		1-75418-063-0 01 1 9811-0004 ● ● ● ●
18 COVER; RECLINING
DRIVER ISRINGHAUSEN SEAT<SJA> 		1-75418-063-0 01 1 0005- ●
27 REST; HD,FRT SEAT
DRIVER ISRINGHAUSEN SEAT<SJA> 		1-75658-052-0 01 1 9811-0004 ● ● ● ●
27 REST; HD,FRT SEAT
DRIVER ISRINGHAUSEN SEAT<SJA> 		1-75658-052-0 01 1 0005- ●
46 BOLT; STAND TO FLOOR
M10X20 W/LK&PL WASHER 		8-94279-211-0 02 1 9604-0004 ● ● ● ● ●
46 BOLT; STAND TO FLOOR
M10X20 W/LK&PL WASHER 		8-94279-211-0 02 1 0005-0703 ● ● ●
46 BOLT; STAND TO FLOOR
M10X20 FLANGE 		0-28451-020-0 02 1 0704- ● ● ●
55 NUT; DRIVER SEAT STAND TO FLOOR PANEL
M10 FLANGE 		1-09984-153-0 02 1 9604-0004 ● ● ● ● ●
55 NUT; DRIVER SEAT STAND TO FLOOR PANEL
M10 FLANGE 		1-09984-153-0 02 1 0005-0703 ● ● ●
55 NUT; DRIVER SEAT STAND TO FLOOR PANEL
M10 FLANGE 		0-91180-110-0 02 1 0704- ● ● ●
62 DAMPER ASM; SEAT SUSP
DRIVER ISRINGHAUSEN SEAT<SJA> (C) 		1-75538-198-0 01 1 9811-0004 ● ● ● ●
62 DAMPER ASM; SEAT SUSP
DRIVER ISRINGHAUSEN SEAT<SJA> (C) 		1-75538-198-0 01 1 0005- ●
62 DAMPER ASM; SEAT SUSP
SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> (A) 		1-75538-142-2 01 1 9604-9604 ● ●
62 DAMPER ASM; SEAT SUSP
SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> (A) 		1-75538-164-0 01 1 9605-9803 ● ●
62 DAMPER ASM; SEAT SUSP
AIR CONT SEAT<A60> (A) 		1-75538-164-0 01 1 9804-0004 ● ●
62 DAMPER ASM; SEAT SUSP
SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> (A) 		1-75538-160-0 01 1 9604-9604 ● ●
62 DAMPER ASM; SEAT SUSP
SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> (A) 		1-75538-165-0 01 1 9605-9803 ● ●
62 DAMPER ASM; SEAT SUSP
AIR CONT SEAT<A60> (A) 		1-75538-165-0 01 1 9804-9810 ● ●
62 DAMPER ASM; SEAT SUSP
AIR CONT SEAT<A60>,SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> (A) 		1-75538-165-0 01 1 9811-0004 ● ●
62 DAMPER ASM; SEAT SUSP
AIR SUSP DRIVER SEAT<A56> (B) 		1-75538-156-0 01 1 9604-9712 ●
62 DAMPER ASM; SEAT SUSP
AIR SUSP DRIVER SEAT<A56> (B) 		1-75538-167-0 01 1 9801-9804 ●
62 DAMPER ASM; SEAT SUSP
AIR SUSP DRIVER SEAT<A56> (B) 		1-75538-180-0 01 1 9805-9811 ●
62 DAMPER ASM; SEAT SUSP
AIR SUSP DRIVER SEAT<A56> (B) 		1-75538-183-8 01 1 9812-1403 ●
62 DAMPER ASM; SEAT SUSP
AIR SUSP DRIVER SEAT<A56> (B) 		8-98261-448-0 01 1 1404- ●
63 ADJUSTER; SEAT SLIDE
(B) 		1-75518-199-0 01 1 9604-9810 ● ● ● ● ●
63 ADJUSTER; SEAT SLIDE
EXC. DRIVER ISRINGHAUSEN SEAT<SJA> (B) 		1-75518-199-0 01 1 9811-0004 ● ● ● ● ●
63 ADJUSTER; SEAT SLIDE
(B) 		1-75518-199-1 01 1 0005- ● ●
63 ADJUSTER; SEAT SLIDE
EXC. DRIVER ISRINGHAUSEN SEAT<SJA> (B) 		1-75518-199-1 01 1 0005- ●
63 ADJUSTER; SEAT SLIDE
(A) 		1-75518-198-0 01 1 9604-9705 ● ● ● ● ●
63 ADJUSTER; SEAT SLIDE
(A) 		1-75518-294-0 01 1 9706-9810 ● ● ● ● ●
63 ADJUSTER; SEAT SLIDE
EXC. DRIVER ISRINGHAUSEN SEAT<SJA> (A) 		1-75518-294-1 01 1 9811-0004 ● ● ● ● ●
63 ADJUSTER; SEAT SLIDE
(A) 		1-75518-294-1 01 1 0005- ● ●
63 ADJUSTER; SEAT SLIDE
EXC. DRIVER ISRINGHAUSEN SEAT<SJA> (A) 		1-75518-294-1 01 1 0005- ●
63 ADJUSTER; SEAT SLIDE
DRIVER ISRINGHAUSEN SEAT<SJA> (C) 		1-75518-315-0 01 1 9811-0004 ● ● ● ●
63 ADJUSTER; SEAT SLIDE
DRIVER ISRINGHAUSEN SEAT<SJA> (C) 		1-75518-315-0 01 1 0005- ●
73 NUT; ADJ,HEIGHT CONT
M8 FLANGE 		8-94279-518-0 08 1 9604-0003 ● ● ● ● ●
73 NUT; ADJ,HEIGHT CONT
M8 FLANGE 		1-75538-207-0 08 1 0004-0004 ● ● ● ● ●
73 NUT; ADJ,HEIGHT CONT
M8 FLANGE 		1-75538-207-0 04 1 0005- ● ● ●
73 NUT; ADJ,HEIGHT CONT
M8 FLANGE 		8-94279-518-0 04 1 9604-0003 ● ● ● ● ●
73 NUT; ADJ,HEIGHT CONT
M8 FLANGE 		1-75538-207-0 04 1 0004-0004 ● ● ● ● ●
73 NUT; ADJ,HEIGHT CONT
M8 FLANGE 		1-75538-207-0 08 1 0005- ● ● ●
325 COVER; SUSPENSION DEVICE
DRIVER ISRINGHAUSEN SEAT<SJA> 		1-75538-196-0 01 1 9811-0004 ● ● ● ●
325 COVER; SUSPENSION DEVICE
DRIVER ISRINGHAUSEN SEAT<SJA> 		1-75538-196-0 01 1 0005- ●
327 CLIP; COVER
DRIVER ISRINGHAUSEN SEAT<SJA> 		1-75538-197-0 01 1 9811-0004 ● ● ● ●
327 CLIP; COVER
DRIVER ISRINGHAUSEN SEAT<SJA> 		1-75538-197-0 01 1 0005- ●
327 CLIP; COVER
DRIVER ISRINGHAUSEN SEAT<SJA> EXC. ELEC OUTLET 12V<TAW> 		1-09987-273-0 02 1 0011-0012 ●
327 CLIP; COVER
DRIVER ISRINGHAUSEN SEAT<SJA> EXC. NEW ZEALAND EQUIPMENT(PK5),ELEC OUTLET 12V<TAW> 		1-09987-273-0 02 1 0101- ●
532 LEVER ASM; TILT
DRIVER ISRINGHAUSEN SEAT<SJA> 		1-75518-314-0 01 1 9811-0004 ● ● ● ●
532 LEVER ASM; TILT
DRIVER ISRINGHAUSEN SEAT<SJA> 		1-75518-314-0 01 1 0005- ●
581 PIPE; SEAT
DRIVER ISRINGHAUSEN SEAT<SJA> 		1-73907-573-3 01 1 9811-0004 ● ● ● ●
581 PIPE; SEAT
DRIVER ISRINGHAUSEN SEAT<SJA> 		1-73907-573-3 01 1 0005- ●
582 BOLT; PIPE,SEAT
DRIVER ISRINGHAUSEN SEAT<SJA> 		1-09980-619-1 02 1 9811-0004 ● ● ● ●
582 BOLT; PIPE,SEAT
DRIVER ISRINGHAUSEN SEAT<SJA> 		1-09980-619-1 02 1 0005- ●
587 VALVE; LUMBAR SUPPORT
DRIVER ISRINGHAUSEN SEAT<SJA> 		1-75418-065-0 01 1 9811-0004 ● ● ● ●
587 VALVE; LUMBAR SUPPORT
DRIVER ISRINGHAUSEN SEAT<SJA> 		1-75418-065-0 01 1 0005- ●

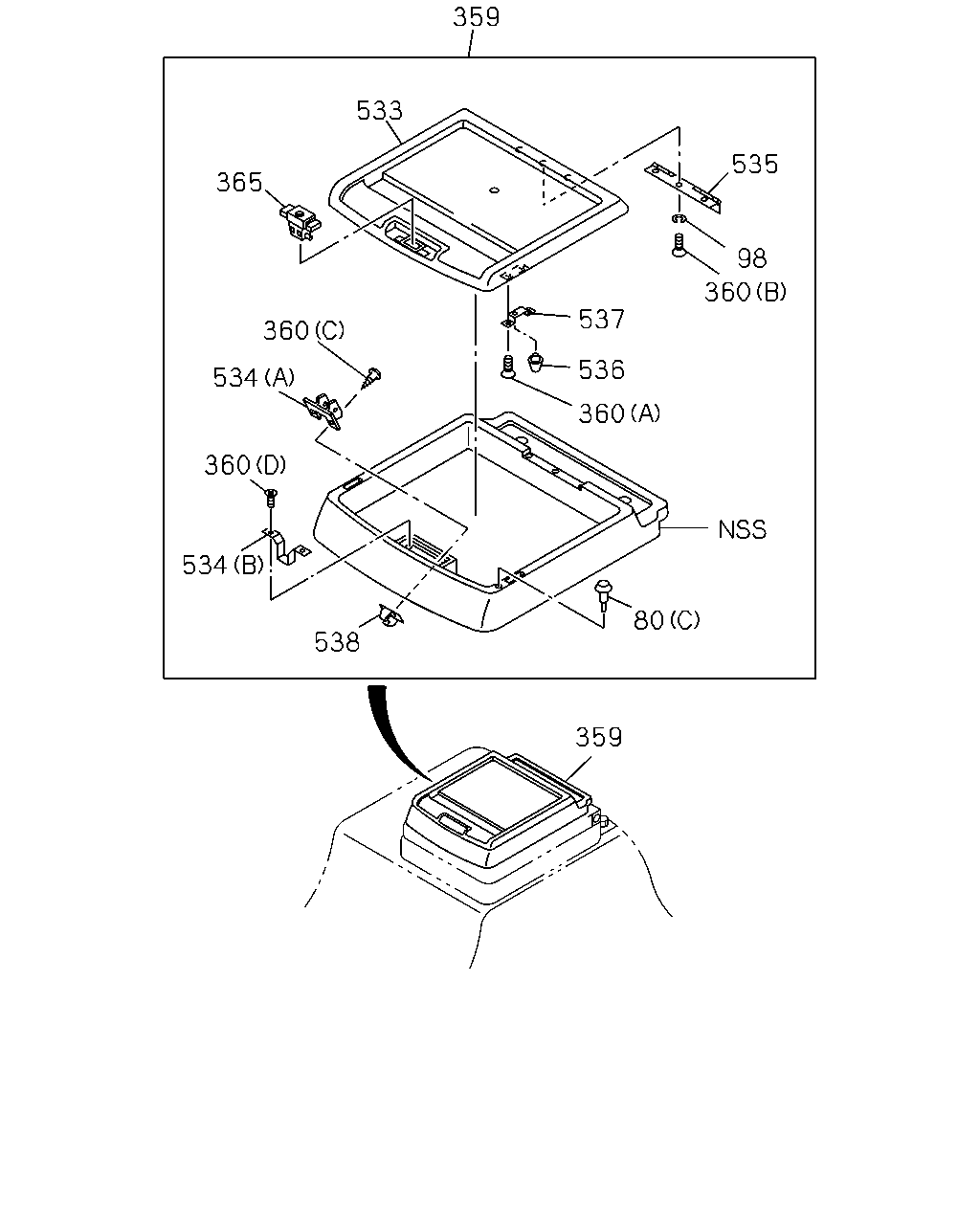

çizim 152963
359 533 535 365 98 360 537 360 536 534 360 360 534 80 538 359
BalonParca AdiParca NoAdetTipApplied Date A B C D E
80 RUBBER; STOPPER
EXC. CENTER SEAT DELETE 2 CREWS<SP9> (C) 		1-72538-187-0 02 1 1007- ● ● ●
80 RUBBER; STOPPER
SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> (A) 		1-75530-062-0 02 1 9604-9803 ● ● ● ●
80 RUBBER; STOPPER
AIR CONT SEAT<A60> (A) 		1-75530-062-0 02 1 9804-9810 ● ● ● ●
80 RUBBER; STOPPER
AIR CONT SEAT<A60> (A) 		1-75530-062-0 02 1 9811-0004 ● ●
80 RUBBER; STOPPER
AIR CONT SEAT<A60>,SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> (A) 		1-75530-062-0 02 1 9811-0004 ● ●
80 RUBBER; STOPPER
AIR SUSP DRIVER SEAT<A56> (B) 		1-09987-123-0 01 1 9604- ●
98 WASHER; HINGE
EXC. CENTER SEAT DELETE 2 CREWS<SP9> ID=4.3 TOOTH LK COUNTERSUNK 		9-09152-704-0 06 1 9604-0004 ● ● ● ● ●
98 WASHER; HINGE
EXC. CENTER SEAT DELETE 2 CREWS<SP9> ID=4.3 TOOTH LK COUNTERSUNK 		9-09152-704-0 06 1 0005- ● ● ●
359 BOX; PARCEL
EXC. CENTER SEAT DELETE 2 CREWS<SP9> 		1-72538-157-2 01 1 9604-0004 ● ● ● ● ●
359 BOX; PARCEL
EXC. CENTER SEAT DELETE 2 CREWS<SP9> 		1-72538-275-4 01 1 0005-1006 ● ● ●
359 BOX; PARCEL
EXC. CENTER SEAT DELETE 2 CREWS<SP9> 		8-98145-114-0 01 1 1007- ● ● ●
360 SCREW; PARCEL
EXC. CENTER SEAT DELETE 2 CREWS<SP9> (A) M3X10 TAPPING CK-HEAD 		0-70080-310-0 04 1 9604-0004 ● ● ● ● ●
360 SCREW; PARCEL
EXC. CENTER SEAT DELETE 2 CREWS<SP9> (A) M3X10 TAPPING CK-HEAD 		0-70080-310-0 04 1 0005-0612 ● ● ●
360 SCREW; PARCEL
EXC. CENTER SEAT DELETE 2 CREWS<SP9> (A) M3X10 TAPPING CK-HEAD 		0-70040-310-0 04 1 0701-1006 ● ● ●
360 SCREW; PARCEL
EXC. CENTER SEAT DELETE 2 CREWS<SP9> (D) M5X14 TAPPING CK-HEAD 		0-70040-514-0 02 1 1007- ● ● ●
360 SCREW; PARCEL
EXC. CENTER SEAT DELETE 2 CREWS<SP9> (B) M4X16 		0-70080-416-0 06 1 9604-0004 ● ● ● ● ●
360 SCREW; PARCEL
EXC. CENTER SEAT DELETE 2 CREWS<SP9> (B) M4X16 		0-70080-416-0 06 1 0005-0612 ● ● ●
360 SCREW; PARCEL
EXC. CENTER SEAT DELETE 2 CREWS<SP9> (B) M4X16 		0-70040-416-0 06 1 0701-1104 ● ● ●
360 SCREW; PARCEL
EXC. CENTER SEAT DELETE 2 CREWS<SP9> (B) M4X16 		0-70080-416-0 06 1 1105- ● ● ●
360 SCREW; PARCEL
EXC. CENTER SEAT DELETE 2 CREWS<SP9> (C) M5X16 TAPPING W/PL WASHER 		0-74310-516-0 06 1 9604-0004 ● ● ● ● ●
360 SCREW; PARCEL
EXC. CENTER SEAT DELETE 2 CREWS<SP9> (C) M5X16 TAPPING W/PL WASHER 		0-74310-516-0 06 1 0005-1006 ● ● ●
360 SCREW; PARCEL
EXC. CENTER SEAT DELETE 2 CREWS<SP9> (C) M5X16 TAPPING W/PL WASHER 		0-74310-516-0 04 1 1007- ● ● ●
365 LOCK ASM; SEAT
EXC. CENTER SEAT DELETE 2 CREWS<SP9> 		1-72538-180-0 01 1 9604-0004 ● ● ● ● ●
365 LOCK ASM; SEAT
EXC. CENTER SEAT DELETE 2 CREWS<SP9> 		1-72538-180-0 01 1 0005- ● ● ●
533 LID; PARCEL BOX
EXC. CENTER SEAT DELETE 2 CREWS<SP9> 		1-72538-194-2 01 1 9604-0004 ● ● ● ● ●
533 LID; PARCEL BOX
EXC. CENTER SEAT DELETE 2 CREWS<SP9> 		1-72538-277-1 01 1 0005-1006 ● ● ●
533 LID; PARCEL BOX
EXC. CENTER SEAT DELETE 2 CREWS<SP9> 		8-98145-118-0 01 1 1007- ● ● ●
534 STRIKER; PARCEL BOX
EXC. CENTER SEAT DELETE 2 CREWS<SP9> (A) 		1-72538-181-0 01 1 9604-0004 ● ● ● ● ●
534 STRIKER; PARCEL BOX
EXC. CENTER SEAT DELETE 2 CREWS<SP9> (A) 		1-72538-181-0 01 1 0005-1006 ● ● ●
534 STRIKER; PARCEL BOX
EXC. CENTER SEAT DELETE 2 CREWS<SP9> (B) 		1-72538-190-0 01 1 1007- ● ● ●
535 HINGE; PARCEL BOX
EXC. CENTER SEAT DELETE 2 CREWS<SP9> 		1-72447-391-1 01 1 9604-0004 ● ● ● ● ●
535 HINGE; PARCEL BOX
EXC. CENTER SEAT DELETE 2 CREWS<SP9> 		1-72447-391-1 01 1 0005- ● ● ●
536 RUBBER; CUSHION
EXC. CENTER SEAT DELETE 2 CREWS<SP9> 		5-09983-002-1 02 1 9604-0004 ● ● ● ● ●
536 RUBBER; CUSHION
EXC. CENTER SEAT DELETE 2 CREWS<SP9> 		5-09983-002-1 02 1 0005-1006 ● ● ●
537 BRACKET; RUBBER
EXC. CENTER SEAT DELETE 2 CREWS<SP9> 		1-72548-057-1 02 1 9604-0004 ● ● ● ● ●
537 BRACKET; RUBBER
EXC. CENTER SEAT DELETE 2 CREWS<SP9> 		1-72548-057-1 02 1 0005-1006 ● ● ●
538 GROMMET; SCREW
EXC. CENTER SEAT DELETE 2 CREWS<SP9> 		1-09983-165-0 02 1 0005-1006 ● ● ●
538 GROMMET; SCREW
EXC. CENTER SEAT DELETE 2 CREWS<SP9> 		1-09983-165-0 02 1 9604-0004 ● ● ● ● ●

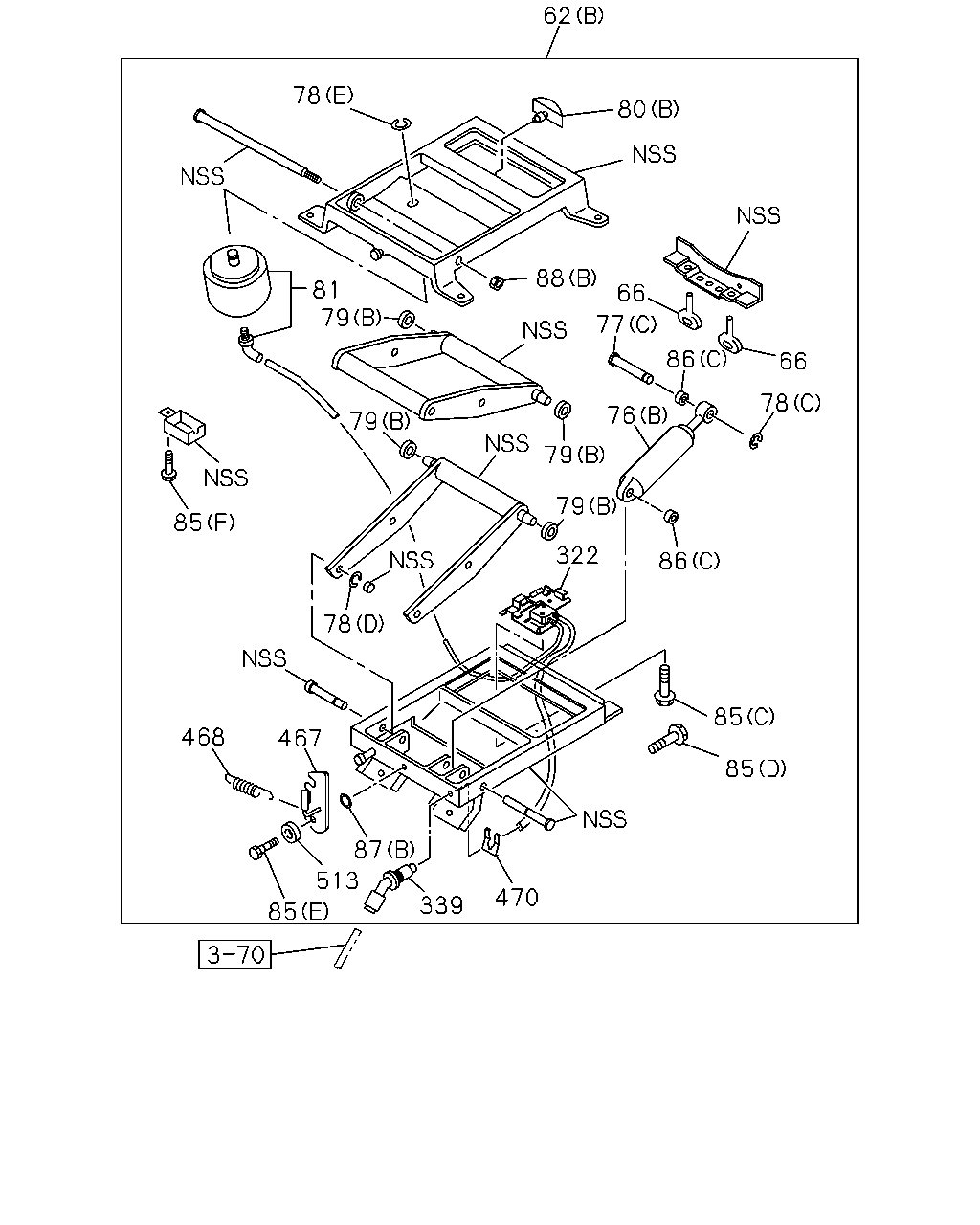

çizim 152964
62 80 78 81 79 79 66 88 66 77 86 78 76 79 79 86 322 85 85 470 339 87 513 85 468 467 78 85
BalonParca AdiParca NoAdetTipApplied Date A B C D E
62 DAMPER ASM; SEAT SUSP
DRIVER ISRINGHAUSEN SEAT<SJA> (C) 		1-75538-198-0 01 1 9811-0004 ● ● ● ●
62 DAMPER ASM; SEAT SUSP
DRIVER ISRINGHAUSEN SEAT<SJA> (C) 		1-75538-198-0 01 1 0005- ●
62 DAMPER ASM; SEAT SUSP
SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> (A) 		1-75538-142-2 01 1 9604-9604 ● ●
62 DAMPER ASM; SEAT SUSP
SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> (A) 		1-75538-164-0 01 1 9605-9803 ● ●
62 DAMPER ASM; SEAT SUSP
AIR CONT SEAT<A60> (A) 		1-75538-164-0 01 1 9804-0004 ● ●
62 DAMPER ASM; SEAT SUSP
SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> (A) 		1-75538-160-0 01 1 9604-9604 ● ●
62 DAMPER ASM; SEAT SUSP
SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> (A) 		1-75538-165-0 01 1 9605-9803 ● ●
62 DAMPER ASM; SEAT SUSP
AIR CONT SEAT<A60> (A) 		1-75538-165-0 01 1 9804-9810 ● ●
62 DAMPER ASM; SEAT SUSP
AIR CONT SEAT<A60>,SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> (A) 		1-75538-165-0 01 1 9811-0004 ● ●
62 DAMPER ASM; SEAT SUSP
AIR SUSP DRIVER SEAT<A56> (B) 		1-75538-156-0 01 1 9604-9712 ●
62 DAMPER ASM; SEAT SUSP
AIR SUSP DRIVER SEAT<A56> (B) 		1-75538-167-0 01 1 9801-9804 ●
62 DAMPER ASM; SEAT SUSP
AIR SUSP DRIVER SEAT<A56> (B) 		1-75538-180-0 01 1 9805-9811 ●
62 DAMPER ASM; SEAT SUSP
AIR SUSP DRIVER SEAT<A56> (B) 		1-75538-183-8 01 1 9812-1403 ●
62 DAMPER ASM; SEAT SUSP
AIR SUSP DRIVER SEAT<A56> (B) 		8-98261-448-0 01 1 1404- ●
66 RUBBER; LWR STOPPER
AIR SUSP DRIVER SEAT<A56> 		1-75538-145-0 02 1 9604- ●
76 DAMPER; AIR SUSP
SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> (A) 		1-75530-073-0 01 1 9604-9604 ● ● ● ●
76 DAMPER; AIR SUSP
SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> (A) 		1-75538-166-0 01 1 9605-9803 ● ● ● ●
76 DAMPER; AIR SUSP
AIR CONT SEAT<A60> (A) 		1-75538-166-0 01 1 9804-9810 ● ● ● ●
76 DAMPER; AIR SUSP
AIR CONT SEAT<A60> (A) 		1-75538-166-0 01 1 9811-0004 ● ●
76 DAMPER; AIR SUSP
AIR CONT SEAT<A60>,SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> (A) 		1-75538-166-0 01 1 9811-0004 ● ●
76 DAMPER; AIR SUSP
AIR SUSP DRIVER SEAT<A56> (B) 		1-75538-139-0 01 1 9604- ●
76 DAMPER; AIR SUSP
DRIVER ISRINGHAUSEN SEAT<SJA> (C) 		1-75538-201-0 01 1 9811-0004 ● ● ● ●
76 DAMPER; AIR SUSP
DRIVER ISRINGHAUSEN SEAT<SJA> (C) 		1-75538-201-0 01 1 0005- ●
77 PIN; DAMPER
SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> (A) 		1-75530-040-0 02 1 9604-9803 ● ● ● ●
77 PIN; DAMPER
AIR CONT SEAT<A60> (A) 		1-75530-040-0 02 1 9804-9810 ● ● ● ●
77 PIN; DAMPER
AIR CONT SEAT<A60> (A) 		1-75530-040-0 02 1 9811-0004 ● ●
77 PIN; DAMPER
AIR CONT SEAT<A60>,SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> (A) 		1-75530-040-0 02 1 9811-0004 ● ●
77 PIN; DAMPER
SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> (B) 		1-75530-065-0 01 1 9604-9803 ● ● ● ●
77 PIN; DAMPER
AIR CONT SEAT<A60> (B) 		1-75530-065-0 01 1 9804-9810 ● ● ● ●
77 PIN; DAMPER
AIR CONT SEAT<A60> (B) 		1-75530-065-0 01 1 9811-0004 ● ●
77 PIN; DAMPER
AIR CONT SEAT<A60>,SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> (B) 		1-75530-065-0 01 1 9811-0004 ● ●
77 PIN; DAMPER
AIR SUSP DRIVER SEAT<A56> (C) 		1-75538-138-2 01 1 9604- ●
78 RING; SNAP
SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> (B) 		1-75530-069-0 02 1 9604-9803 ● ● ● ●
78 RING; SNAP
AIR CONT SEAT<A60> (B) 		1-75530-069-0 02 1 9804-9810 ● ● ● ●
78 RING; SNAP
AIR CONT SEAT<A60> (B) 		1-75530-069-0 02 1 9811-0004 ● ●
78 RING; SNAP
AIR CONT SEAT<A60>,SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> (B) 		1-75530-069-0 02 1 9811-0004 ● ●
78 RING; SNAP
SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> (A) 		1-75530-066-0 04 1 9604-9803 ● ●
78 RING; SNAP
AIR CONT SEAT<A60> (A) 		1-75530-066-0 04 1 9804-9810 ● ● ● ●
78 RING; SNAP
AIR CONT SEAT<A60> (A) 		1-75530-066-0 04 1 9811-0004 ● ●
78 RING; SNAP
AIR CONT SEAT<A60>,SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> (A) 		1-75530-066-0 04 1 9811-0004 ● ●
78 RING; SNAP
SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> (A) 		1-75530-066-0 03 1 9604-9803 ● ●
78 RING; SNAP
AIR SUSP DRIVER SEAT<A56> (C) ID=8 		9-09185-408-0 01 1 9604- ●
78 RING; SNAP
AIR SUSP DRIVER SEAT<A56> (D) ID=10 		9-09185-410-0 02 1 9604-0406 ●
78 RING; SNAP
AIR SUSP DRIVER SEAT<A56> (E) ID=15 		9-09185-415-0 01 1 9604- ●
79 ROLLER ASM; AIR SUSP
SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> (A) 		1-75530-043-0 04 1 9604-9803 ● ● ● ●
79 ROLLER ASM; AIR SUSP
AIR CONT SEAT<A60> (A) 		1-75530-043-0 04 1 9804-9810 ● ● ● ●
79 ROLLER ASM; AIR SUSP
AIR CONT SEAT<A60> (A) 		1-75530-043-0 04 1 9811-0004 ● ●
79 ROLLER ASM; AIR SUSP
AIR CONT SEAT<A60>,SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> (A) 		1-75530-043-0 04 1 9811-0004 ● ●
79 ROLLER ASM; AIR SUSP
AIR SUSP DRIVER SEAT<A56> (B) 		1-75538-159-0 04 1 9604-1403 ●
79 ROLLER ASM; AIR SUSP
AIR SUSP DRIVER SEAT<A56> (B) 		8-98261-489-0 04 1 1404- ●
80 RUBBER; STOPPER
EXC. CENTER SEAT DELETE 2 CREWS<SP9> (C) 		1-72538-187-0 02 1 1007- ● ● ●
80 RUBBER; STOPPER
SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> (A) 		1-75530-062-0 02 1 9604-9803 ● ● ● ●
80 RUBBER; STOPPER
AIR CONT SEAT<A60> (A) 		1-75530-062-0 02 1 9804-9810 ● ● ● ●
80 RUBBER; STOPPER
AIR CONT SEAT<A60> (A) 		1-75530-062-0 02 1 9811-0004 ● ●
80 RUBBER; STOPPER
AIR CONT SEAT<A60>,SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> (A) 		1-75530-062-0 02 1 9811-0004 ● ●
80 RUBBER; STOPPER
AIR SUSP DRIVER SEAT<A56> (B) 		1-09987-123-0 01 1 9604- ●
81 SPRING; AIR
AIR SUSP DRIVER SEAT<A56> 		1-75538-151-2 01 1 9604-1312 ●
81 SPRING; AIR
AIR SUSP DRIVER SEAT<A56> 		8-98242-816-0 01 1 1401- ●
81 SPRING; AIR
DRIVER ISRINGHAUSEN SEAT<SJA> 		1-75538-199-0 01 1 9811-0004 ● ● ● ●
81 SPRING; AIR
DRIVER ISRINGHAUSEN SEAT<SJA> 		1-75538-199-0 01 1 0005- ●
85 BOLT; AIR SUSP
AIR SUSP DRIVER SEAT<A56> (F) M8X25 W/LK&PL WASHER 		8-98243-394-0 01 1 1401- ●
85 BOLT; AIR SUSP
SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> (A) 		1-75530-048-0 02 1 9604-9803 ● ● ● ●
85 BOLT; AIR SUSP
AIR CONT SEAT<A60> (A) 		1-75530-048-0 02 1 9804-9810 ● ● ● ●
85 BOLT; AIR SUSP
AIR CONT SEAT<A60> (A) 		1-75530-048-0 02 1 9811-0004 ● ●
85 BOLT; AIR SUSP
AIR CONT SEAT<A60>,SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> (A) 		1-75530-048-0 02 1 9811-0004 ● ●
85 BOLT; AIR SUSP
SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> (B) 		1-75530-068-0 02 1 9604-9803 ● ● ● ●
85 BOLT; AIR SUSP
AIR CONT SEAT<A60> (B) 		1-75530-068-0 02 1 9804-9810 ● ● ● ●
85 BOLT; AIR SUSP
AIR CONT SEAT<A60> (B) 		1-75530-068-0 02 1 9811-0004 ● ●
85 BOLT; AIR SUSP
AIR CONT SEAT<A60>,SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> (B) 		1-75530-068-0 02 1 9811-0004 ● ●
85 BOLT; AIR SUSP
AIR SUSP DRIVER SEAT<A56> (C) M6X12 W/LK WASHER 		0-50040-612-0 02 1 9604-0004 ●
85 BOLT; AIR SUSP
AIR SUSP DRIVER SEAT<A56> (C) M6X12 		1-75538-208-1 02 1 0005- ●
85 BOLT; AIR SUSP
AIR SUSP DRIVER SEAT<A56> (D) M8X20 W/LK&PL WASHER 		0-50140-820-0 03 1 9604-0003 ●
85 BOLT; AIR SUSP
AIR SUSP DRIVER SEAT<A56> (D) M8X22 W/LK&PL WASHER 		1-75538-209-0 03 1 0004-1312 ●
85 BOLT; AIR SUSP
AIR SUSP DRIVER SEAT<A56> (D) M8X22 W/LK&PL WASHER 		1-75538-209-0 02 1 1401- ●
85 BOLT; AIR SUSP
AIR SUSP DRIVER SEAT<A56> (E) 		1-09980-577-1 01 1 9604- ●
86 BUSHING; GUIDE
SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> (A) 		1-75530-041-0 02 1 9604-9803 ● ● ● ●
86 BUSHING; GUIDE
AIR CONT SEAT<A60> (A) 		1-75530-041-0 02 1 9804-9810 ● ● ● ●
86 BUSHING; GUIDE
AIR CONT SEAT<A60> (A) 		1-75530-041-0 02 1 9811-0004 ● ●
86 BUSHING; GUIDE
AIR CONT SEAT<A60>,SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> (A) 		1-75530-041-0 02 1 9811-0004 ● ●
86 BUSHING; GUIDE
SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> (B) 		1-75530-071-0 01 1 9604-9803 ● ● ● ●
86 BUSHING; GUIDE
AIR CONT SEAT<A60> (B) 		1-75530-071-0 01 1 9804-9810 ● ● ● ●
86 BUSHING; GUIDE
AIR CONT SEAT<A60> (B) 		1-75530-071-0 01 1 9811-0004 ● ●
86 BUSHING; GUIDE
AIR CONT SEAT<A60>,SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> (B) 		1-75530-071-0 01 1 9811-0004 ● ●
86 BUSHING; GUIDE
AIR SUSP DRIVER SEAT<A56> (C) OD=6.2 LIGHT GRAY 		1-09983-173-1 02 1 9604- ●
87 WASHER; AIR SUSP
SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> (A) 		1-75530-036-0 02 1 9604-9803 ● ● ● ●
87 WASHER; AIR SUSP
AIR CONT SEAT<A60> (A) 		1-75530-036-0 02 1 9804-9810 ● ● ● ●
87 WASHER; AIR SUSP
AIR CONT SEAT<A60> (A) 		1-75530-036-0 02 1 9811-0004 ● ●
87 WASHER; AIR SUSP
AIR CONT SEAT<A60>,SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> (A) 		1-75530-036-0 02 1 9811-0004 ● ●
87 WASHER; AIR SUSP
AIR SUSP DRIVER SEAT<A56> (B) ID=8.2 		9-09150-508-0 01 1 9604-0710 ●
87 WASHER; AIR SUSP
AIR SUSP DRIVER SEAT<A56> (B) ID=8.2 		0-91510-508-0 01 1 0711- ●
88 NUT; AIR SUSP
SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> (A) 		1-75530-039-0 04 1 9604-9803 ● ● ● ●
88 NUT; AIR SUSP
AIR CONT SEAT<A60> (A) 		1-75530-039-0 04 1 9804-9810 ● ● ● ●
88 NUT; AIR SUSP
AIR CONT SEAT<A60> (A) 		1-75530-039-0 04 1 9811-0004 ● ●
88 NUT; AIR SUSP
AIR CONT SEAT<A60>,SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> (A) 		1-75530-039-0 04 1 9811-0004 ● ●
88 NUT; AIR SUSP
AIR SUSP DRIVER SEAT<A56> (B) M10 		8-94279-519-0 01 1 9604-0003 ●
88 NUT; AIR SUSP
AIR SUSP DRIVER SEAT<A56> HIGH ROOF<S2F> (B) M10 		1-75537-273-1 01 1 0004-0004 ●
88 NUT; AIR SUSP
AIR SUSP DRIVER SEAT<A56> (B) M10 		1-75537-273-1 01 1 0005- ●
88 NUT; AIR SUSP
AIR SUSP DRIVER SEAT<A56> LOW ROOF<6XQ> (B) 		1-75537-209-0 01 1 0004-0004 ●
322 VALVE; AIR SPRING
DRIVER ISRINGHAUSEN SEAT<SJA> 		1-75538-200-0 01 1 9811-0004 ● ● ● ●
322 VALVE; AIR SPRING
DRIVER ISRINGHAUSEN SEAT<SJA> 		1-75538-200-0 01 1 0005- ●
322 VALVE; AIR SPRING
AIR SUSP DRIVER SEAT<A56> 		1-75538-154-0 01 1 9604-9804 ●
322 VALVE; AIR SPRING
AIR SUSP DRIVER SEAT<A56> 		1-75538-186-3 01 1 9805- ●
339 UNION; DRIVER SEAT
AIR SUSP DRIVER SEAT<A56> 		1-75538-131-3 01 1 9604- ●
467 LEVER; LOCK
AIR SUSP DRIVER SEAT<A56> 		1-75538-134-0 01 1 9604- ●
468 SPRING; RETURN
AIR SUSP DRIVER SEAT<A56> 		1-75538-132-0 01 1 9604- ●
470 CLIP; HOSE
AIR SUSP DRIVER SEAT<A56> 		1-75538-137-0 01 1 9604- ●
513 SPACER; LEVER
AIR SUSP DRIVER SEAT<A56> 		1-75538-133-0 01 1 9604- ●

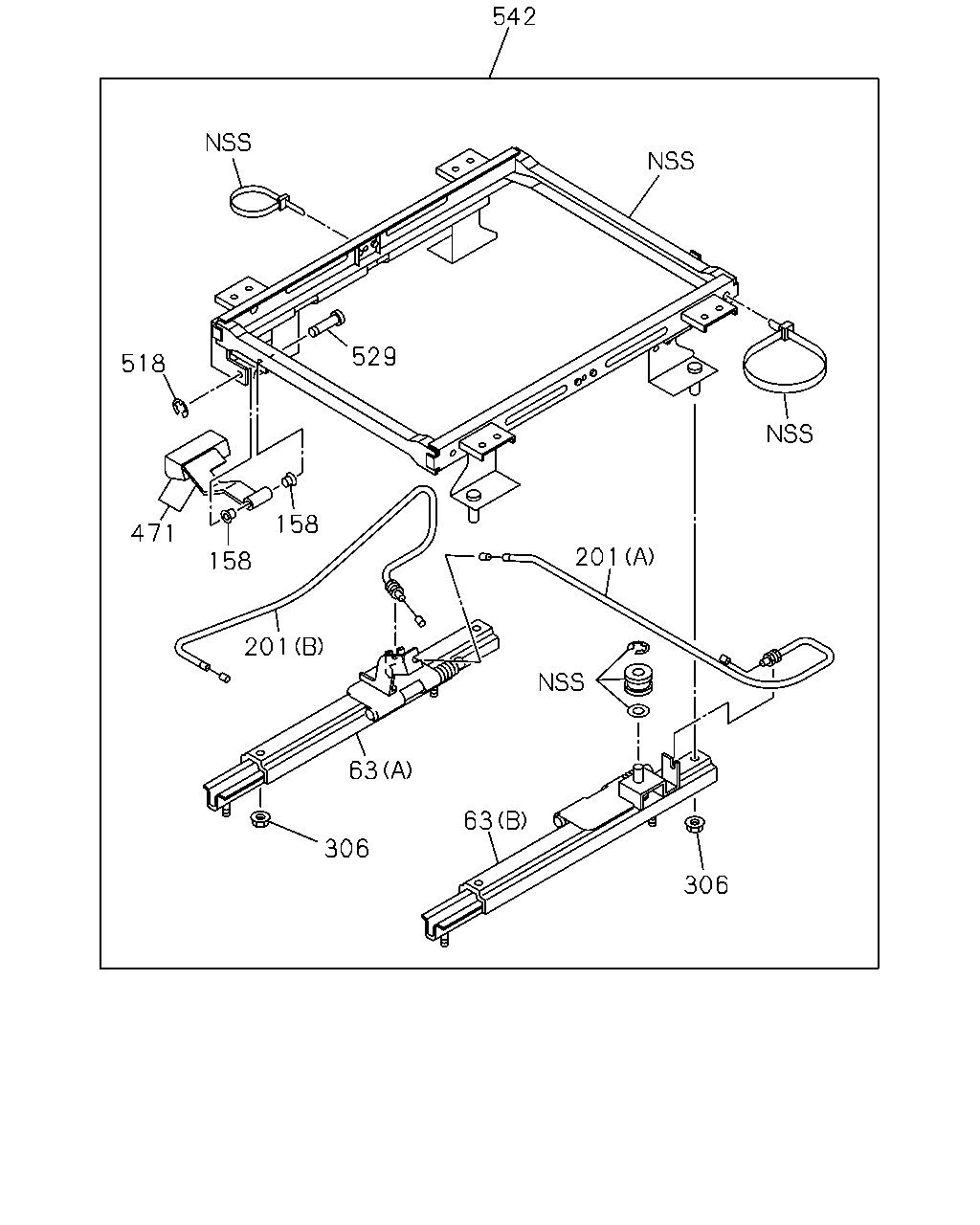

çizim 152966
542 529 518 158 471 201 158 201 63 63 306 306
BalonParca AdiParca NoAdetTipApplied Date A B C D E
63 ADJUSTER; SEAT SLIDE
(B) 		1-75518-199-0 01 1 9604-9810 ● ● ● ● ●
63 ADJUSTER; SEAT SLIDE
EXC. DRIVER ISRINGHAUSEN SEAT<SJA> (B) 		1-75518-199-0 01 1 9811-0004 ● ● ● ● ●
63 ADJUSTER; SEAT SLIDE
(B) 		1-75518-199-1 01 1 0005- ● ●
63 ADJUSTER; SEAT SLIDE
EXC. DRIVER ISRINGHAUSEN SEAT<SJA> (B) 		1-75518-199-1 01 1 0005- ●
63 ADJUSTER; SEAT SLIDE
(A) 		1-75518-198-0 01 1 9604-9705 ● ● ● ● ●
63 ADJUSTER; SEAT SLIDE
(A) 		1-75518-294-0 01 1 9706-9810 ● ● ● ● ●
63 ADJUSTER; SEAT SLIDE
EXC. DRIVER ISRINGHAUSEN SEAT<SJA> (A) 		1-75518-294-1 01 1 9811-0004 ● ● ● ● ●
63 ADJUSTER; SEAT SLIDE
(A) 		1-75518-294-1 01 1 0005- ● ●
63 ADJUSTER; SEAT SLIDE
EXC. DRIVER ISRINGHAUSEN SEAT<SJA> (A) 		1-75518-294-1 01 1 0005- ●
63 ADJUSTER; SEAT SLIDE
DRIVER ISRINGHAUSEN SEAT<SJA> (C) 		1-75518-315-0 01 1 9811-0004 ● ● ● ●
63 ADJUSTER; SEAT SLIDE
DRIVER ISRINGHAUSEN SEAT<SJA> (C) 		1-75518-315-0 01 1 0005- ●
158 BUSHING; LINK ARM 1-75518-209-0 02 1 9604-0004 ● ● ● ● ●
158 BUSHING; LINK ARM 1-75518-209-0 02 1 0005- ● ● ●
201 CABLE; ADJ
(B) L=667 		1-75518-201-0 01 1 9604-9705 ● ● ● ● ●
201 CABLE; ADJ
(B) L=667 		1-75518-288-0 01 1 9706-0004 ● ● ● ● ●
201 CABLE; ADJ
(B) L=667 		1-75518-288-0 01 1 0005- ● ● ●
201 CABLE; ADJ
(A) L=605 		1-75518-202-1 01 1 9604-9705 ● ● ● ● ●
201 CABLE; ADJ
(A) L=605 		1-75518-289-1 01 1 9706-0004 ● ● ● ● ●
201 CABLE; ADJ
(A) L=605 		1-75518-289-1 01 1 0005- ● ● ●
306 NUT; SEAT ADJ
AIR SUSP DRIVER SEAT<A56> M8 FLANGE 		1-75538-207-0 12 1 0502- ●
306 NUT; SEAT ADJ
M8 FLANGE 		8-94279-518-0 04 1 9604-0003 ● ● ● ● ●
306 NUT; SEAT ADJ
M8 FLANGE 		1-75538-207-0 04 1 0004-0004 ● ● ● ● ●
306 NUT; SEAT ADJ
M8 FLANGE 		1-75538-207-0 04 1 0005- ● ● ●
471 LEVER; SEAT ADJ 1-75518-205-1 01 1 9604-9705 ● ● ● ● ●
471 LEVER; SEAT ADJ
RIGID SEAT WO/ARM REST<TAZ> 		1-75518-205-1 01 1 9706-9803 ● ● ●
471 LEVER; SEAT ADJ
SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> 		1-75518-291-0 01 1 9706-9803 ● ● ● ●
471 LEVER; SEAT ADJ 1-75518-291-0 01 1 9804-0004 ● ● ● ● ●
471 LEVER; SEAT ADJ 1-75518-291-0 01 1 0005-0710 ● ● ●
471 LEVER; SEAT ADJ 8-98107-869-0 01 1 0711- ● ● ●
518 NUT; TILT ADJ 1-75518-263-0 01 1 9706-0004 ● ● ● ● ●
518 NUT; TILT ADJ 1-75518-263-0 01 1 0005- ● ● ●
529 PIN; LINK 1-75518-262-0 01 1 9706-0004 ● ● ● ● ●
529 PIN; LINK 1-75518-262-0 01 1 0005- ● ● ●
542 ADJUSTER ASM; SEAT SLIDE
SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> 		1-75518-231-2 01 1 9604-9705 ● ● ● ●
542 ADJUSTER ASM; SEAT SLIDE
SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> 		1-75518-285-0 01 1 9706-9803 ● ● ● ●
542 ADJUSTER ASM; SEAT SLIDE
AIR CONT SEAT<A60> 		1-75518-285-0 01 1 9804-9810 ● ● ● ●
542 ADJUSTER ASM; SEAT SLIDE
AIR CONT SEAT<A60> 		1-75518-285-1 01 1 9811-0004 ● ●
542 ADJUSTER ASM; SEAT SLIDE
AIR CONT SEAT<A60>,SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> 		1-75518-285-1 01 1 9811-0004 ● ●
542 ADJUSTER ASM; SEAT SLIDE
RIGID SEAT WO/ARM REST<TAZ> 		1-75518-218-2 01 1 9604-9705 ● ● ●
542 ADJUSTER ASM; SEAT SLIDE
RIGID SEAT WO/ARM REST<TAZ> 		1-75518-286-0 01 1 9706-9803 ● ● ●
542 ADJUSTER ASM; SEAT SLIDE
DRIVING POSITION WIDE LEG SPACE<PR2> RIGID SEAT WO/ARM REST<TAZ> LOW ROOF<6XQ> 		1-75518-286-1 01 1 9804-0004 ● ● ●
542 ADJUSTER ASM; SEAT SLIDE
RIGID SEAT WO/ARM REST<TAZ> LOW ROOF<6XQ> 		1-75518-286-3 01 1 0005-0104 ● ● ●
542 ADJUSTER ASM; SEAT SLIDE 1-75518-286-3 01 1 0105-1502 ● ●
542 ADJUSTER ASM; SEAT SLIDE
RIGID SEAT WO/ARM REST<TAZ> LOW ROOF<6XQ> 		1-75518-286-3 01 1 0105-1502 ●
542 ADJUSTER ASM; SEAT SLIDE 8-98291-659-0 01 1 1503- ● ●
542 ADJUSTER ASM; SEAT SLIDE
RIGID SEAT WO/ARM REST<TAZ> LOW ROOF<6XQ> 		8-98291-659-0 01 1 1503- ●
542 ADJUSTER ASM; SEAT SLIDE
RIGID SEAT WO/ARM REST<TAZ> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> 		1-75518-192-2 01 1 9604-9705 ● ● ●
542 ADJUSTER ASM; SEAT SLIDE
RIGID SEAT WO/ARM REST<TAZ> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> 		1-75518-282-0 01 1 9706-9803 ● ● ●
542 ADJUSTER ASM; SEAT SLIDE
RIGID SEAT WO/ARM REST<TAZ> HIGH ROOF<S2F>,LOW ROOF<6XQ> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> 		1-75518-282-1 01 1 9804-0004 ●
542 ADJUSTER ASM; SEAT SLIDE
RIGID SEAT WO/ARM REST<TAZ> LOW ROOF<6XQ> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> 		1-75518-282-1 01 1 9804-0004 ●
542 ADJUSTER ASM; SEAT SLIDE
AIR SUSP DRIVER SEAT<A56>,RIGID SEAT WO/ARM REST<TAZ> LOW ROOF<6XQ> HIGH ROOF<S2F> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> 		1-75518-282-1 01 1 9804-0004 ●
542 ADJUSTER ASM; SEAT SLIDE
HIGH ROOF<S2F> RIGID SEAT WO/ARM REST<TAZ> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> 		1-75518-282-3 01 1 0005-1502 ●
542 ADJUSTER ASM; SEAT SLIDE
HIGH ROOF<S2F> RIGID SEAT WO/ARM REST<TAZ> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> 		8-98291-655-0 01 1 1503- ●
542 ADJUSTER ASM; SEAT SLIDE
AIR SUSP DRIVER SEAT<A56> 		1-75518-191-2 01 1 9604-9705 ●
542 ADJUSTER ASM; SEAT SLIDE
AIR SUSP DRIVER SEAT<A56> 		1-75518-284-0 01 1 9706-9803 ●
542 ADJUSTER ASM; SEAT SLIDE
DRIVING POSITION WIDE LEG SPACE<PR2> HIGH ROOF<S2F> RIGID SEAT WO/ARM REST<TAZ> 		1-75518-284-1 01 1 9804-0004 ●
542 ADJUSTER ASM; SEAT SLIDE
DRIVING POSITION WIDE LEG SPACE<PR2> HIGH ROOF<S2F> AIR SUSP DRIVER SEAT<A56>,RIGID SEAT WO/ARM REST<TAZ> 		1-75518-284-1 01 1 9804-0004 ●
542 ADJUSTER ASM; SEAT SLIDE
DRIVING POSITION WIDE LEG SPACE<PR2> HIGH ROOF<S2F> AIR SUSP DRIVER SEAT<A56>,RIGID SEAT WO/ARM REST<TAZ> 		1-75518-284-3 01 1 0005-1502 ●
542 ADJUSTER ASM; SEAT SLIDE
DRIVING POSITION WIDE LEG SPACE<PR2> HIGH ROOF<S2F> AIR SUSP DRIVER SEAT<A56>,RIGID SEAT WO/ARM REST<TAZ> 		8-98291-657-0 01 1 1503- ●

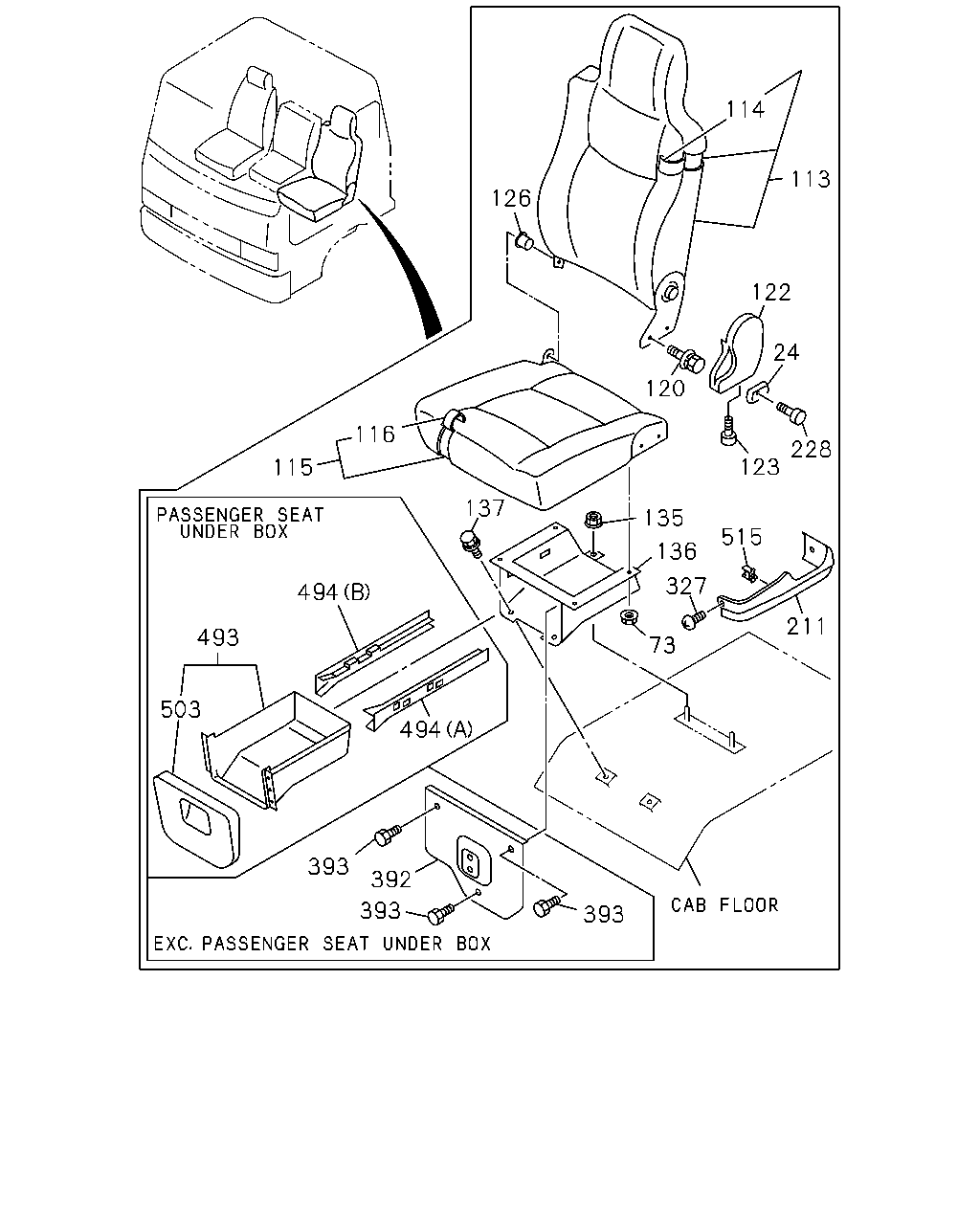

çizim 152969
114 113 126 122 24 120 116 228 123 115 137 135 515 136 327 494 211 493 73 494 503 393 392 393 393
BalonParca AdiParca NoAdetTipApplied Date A B C D E
24 KNOB; RECLINING,FRT,SEAT
PASSENGER 		1-75418-056-0 01 1 9604-0004 ● ● ● ● ●
24 KNOB; RECLINING,FRT,SEAT
PASSENGER DARK GRAY 		8-97859-019-0 01 1 0005- ● ● ●
24 KNOB; RECLINING,FRT,SEAT
DRIVER 		1-75418-059-0 01 1 9604-9810 ● ● ● ● ●

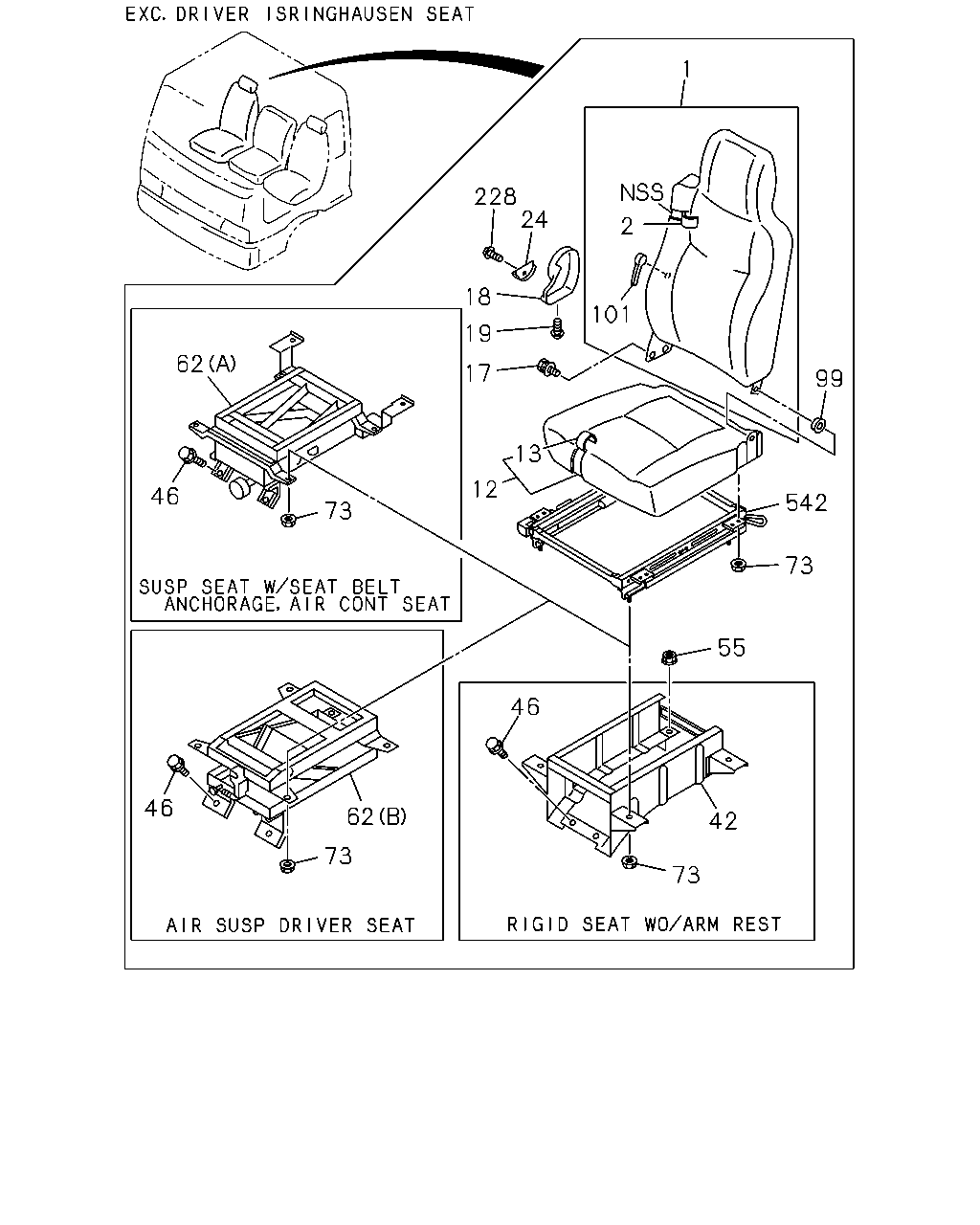

24 KNOB; RECLINING,FRT,SEAT
EXC. DRIVER ISRINGHAUSEN SEAT<SJA> DRIVER 		1-75418-059-0 01 1 9811-0004 ● ● ● ●
24 KNOB; RECLINING,FRT,SEAT
DRIVER 		1-75418-059-0 01 1 9811-0004 ●
24 KNOB; RECLINING,FRT,SEAT
DRIVER DARK GRAY 		8-97867-021-0 01 1 0005-0710 ● ●
24 KNOB; RECLINING,FRT,SEAT
EXC. DRIVER ISRINGHAUSEN SEAT<SJA> DRIVER DARK GRAY 		8-97867-021-0 01 1 0005-0710 ●
24 KNOB; RECLINING,FRT,SEAT
DRIVER 		1-75418-066-0 01 1 0711- ● ●
24 KNOB; RECLINING,FRT,SEAT
EXC. DRIVER ISRINGHAUSEN SEAT<SJA> DRIVER 		1-75418-066-0 01 1 0711- ●
73 NUT; ADJ,HEIGHT CONT
M8 FLANGE 		8-94279-518-0 08 1 9604-0003 ● ● ● ● ●
73 NUT; ADJ,HEIGHT CONT
M8 FLANGE 		1-75538-207-0 08 1 0004-0004 ● ● ● ● ●
73 NUT; ADJ,HEIGHT CONT
M8 FLANGE 		1-75538-207-0 04 1 0005- ● ● ●
73 NUT; ADJ,HEIGHT CONT
M8 FLANGE 		8-94279-518-0 04 1 9604-0003 ● ● ● ● ●
73 NUT; ADJ,HEIGHT CONT
M8 FLANGE 		1-75538-207-0 04 1 0004-0004 ● ● ● ● ●
73 NUT; ADJ,HEIGHT CONT
M8 FLANGE 		1-75538-207-0 08 1 0005- ● ● ●
113 BACK ASM; SEAT
VINYL SEAT<A83> 		1-75028-615-2 01 1 9604-9810 ● ● ● ● ●
113 BACK ASM; SEAT
VINYL SEAT<A83> 		1-75028-615-2 01 1 9811-0003 ● ● ●
113 BACK ASM; SEAT 1-75028-615-2 01 1 9811-0003 ● ●
113 BACK ASM; SEAT
VINYL SEAT<A83> 		1-75026-720-0 01 1 0004-0004 ● ● ●
113 BACK ASM; SEAT 1-75026-720-0 01 1 0004-0004 ● ●
113 BACK ASM; SEAT 1-75026-723-0 01 1 0005-0105 ● ●
113 BACK ASM; SEAT
VINYL SEAT<A83> EXC. ELEC OUTLET 12V<TAW>,PASSENGER SEAT UNDER BOX<TDN> 		1-75026-723-0 01 1 0005-0105 ●
113 BACK ASM; SEAT 1-75208-074-3 01 1 0106-0405 ● ●
113 BACK ASM; SEAT
VINYL SEAT<A83> EXC. ELEC OUTLET 12V<TAW>,PASSENGER SEAT UNDER BOX<TDN> 		1-75208-074-3 01 1 0106-0405 ●
113 BACK ASM; SEAT 1-75208-074-3 01 1 0406- ● ●
113 BACK ASM; SEAT
VINYL SEAT<A83> 		1-75208-074-3 01 1 0406- ●
113 BACK ASM; SEAT
FABRIC SEAT W/RECLINING<SFQ> 		1-75028-761-1 01 1 9604-9803 ● ●
113 BACK ASM; SEAT
FABRIC SEAT W/RECLINING<SFQ> 		1-75028-861-1 01 1 9804-9805 ● ●
113 BACK ASM; SEAT
FABRIC SEAT W/RECLINING<SFQ> 		1-75028-861-1 01 1 9806-9810 ● ● ● ●
113 BACK ASM; SEAT
FABRIC SEAT W/RECLINING<SFQ> 		1-75028-861-1 01 1 9811-0003 ● ●
113 BACK ASM; SEAT
FABRIC SEAT W/RECLINING<SFQ> 		1-75026-719-0 01 1 0004-0004 ● ●
113 BACK ASM; SEAT
AIR SUSP DRIVER SEAT<A56> FABRIC SEAT W/RECLINING<SFQ> 		1-75026-733-0 01 1 0005-0012 ●
113 BACK ASM; SEAT
FABRIC SEAT W/RECLINING<SFQ> 		1-75026-733-0 01 1 0101-0105 ●
113 BACK ASM; SEAT
DRIVER ISRINGHAUSEN SEAT<SJA> NEW ZEALAND EQUIPMENT(PK5) 		1-75026-733-0 01 1 0101-0105 ●
113 BACK ASM; SEAT
FABRIC SEAT W/RECLINING<SFQ> 		1-75208-072-3 01 1 0106- ●
113 BACK ASM; SEAT
DRIVER ISRINGHAUSEN SEAT<SJA> NEW ZEALAND EQUIPMENT(PK5) 		1-75208-072-3 01 1 0106- ●
113 BACK ASM; SEAT
DRIVER ISRINGHAUSEN SEAT<SJA> 		1-75026-796-0 01 1 0011-0012 ●
113 BACK ASM; SEAT
DRIVER ISRINGHAUSEN SEAT<SJA> EXC. NEW ZEALAND EQUIPMENT(PK5) 		1-75026-796-0 01 1 0101-0105 ●
113 BACK ASM; SEAT
DRIVER ISRINGHAUSEN SEAT<SJA> EXC. NEW ZEALAND EQUIPMENT(PK5) 		1-75208-191-4 01 1 0106- ●
113 BACK ASM; SEAT
VINYL SEAT<A83> ELEC OUTLET 12V<TAW> 		1-75026-735-0 01 1 0005-0105 ●
113 BACK ASM; SEAT
VINYL SEAT<A83> PASSENGER SEAT UNDER BOX<TDN> 		1-75026-735-0 01 1 0005-0105 ●
114 COVER; TRIM,PASSENGER SEAT,BACK
VINYL SEAT<A83> 		1-75116-273-1 01 1 9604-9810 ● ● ● ● ●
114 COVER; TRIM,PASSENGER SEAT,BACK
VINYL SEAT<A83> 		1-75116-273-1 01 1 9811-0003 ● ● ●
114 COVER; TRIM,PASSENGER SEAT,BACK 1-75116-273-1 01 1 9811-0003 ● ●
114 COVER; TRIM,PASSENGER SEAT,BACK
VINYL SEAT<A83> 		1-75116-599-0 01 1 0004-0004 ● ● ●
114 COVER; TRIM,PASSENGER SEAT,BACK 1-75116-599-0 01 1 0004-0004 ● ●
114 COVER; TRIM,PASSENGER SEAT,BACK 1-75116-602-0 01 1 0005-0105 ● ●
114 COVER; TRIM,PASSENGER SEAT,BACK
VINYL SEAT<A83> EXC. ELEC OUTLET 12V<TAW>,PASSENGER SEAT UNDER BOX<TDN> 		1-75116-602-0 01 1 0005-0105 ●
114 COVER; TRIM,PASSENGER SEAT,BACK
FABRIC SEAT W/RECLINING<SFQ> 		1-75116-297-1 01 1 9604-9803 ● ●
114 COVER; TRIM,PASSENGER SEAT,BACK
FABRIC SEAT W/RECLINING<SFQ> 		1-75116-343-0 01 1 9804-9805 ● ●
114 COVER; TRIM,PASSENGER SEAT,BACK
FABRIC SEAT W/RECLINING<SFQ> 		1-75116-343-0 01 1 9806-9810 ● ● ● ●
114 COVER; TRIM,PASSENGER SEAT,BACK
FABRIC SEAT W/RECLINING<SFQ> 		1-75116-343-0 01 1 9811-0003 ● ●
114 COVER; TRIM,PASSENGER SEAT,BACK
FABRIC SEAT W/RECLINING<SFQ> 		1-75116-598-0 01 1 0004-0004 ● ●
114 COVER; TRIM,PASSENGER SEAT,BACK
AIR SUSP DRIVER SEAT<A56> FABRIC SEAT W/RECLINING<SFQ> 		1-75116-707-0 01 1 0005-0012 ●
114 COVER; TRIM,PASSENGER SEAT,BACK
FABRIC SEAT W/RECLINING<SFQ> 		1-75116-707-1 01 1 0101- ●
114 COVER; TRIM,PASSENGER SEAT,BACK
DRIVER ISRINGHAUSEN SEAT<SJA> NEW ZEALAND EQUIPMENT(PK5) 		1-75116-707-1 01 1 0101- ●
114 COVER; TRIM,PASSENGER SEAT,BACK
DRIVER ISRINGHAUSEN SEAT<SJA> 		1-75116-709-0 01 1 0011-0012 ●
114 COVER; TRIM,PASSENGER SEAT,BACK
DRIVER ISRINGHAUSEN SEAT<SJA> EXC. NEW ZEALAND EQUIPMENT(PK5) 		1-75116-709-2 01 1 0101- ●
114 COVER; TRIM,PASSENGER SEAT,BACK
VINYL SEAT<A83> ELEC OUTLET 12V<TAW> 		1-75116-592-1 01 1 0005-0405 ●
114 COVER; TRIM,PASSENGER SEAT,BACK
VINYL SEAT<A83> PASSENGER SEAT UNDER BOX<TDN> 		1-75116-592-1 01 1 0005-0405 ●
114 COVER; TRIM,PASSENGER SEAT,BACK 1-75116-592-1 01 1 0406- ● ●
114 COVER; TRIM,PASSENGER SEAT,BACK
VINYL SEAT<A83> 		1-75116-592-1 01 1 0406- ●
115 CUSHION ASM; PASSENGER SEAT
VINYL SEAT<A83> 		1-75028-800-2 01 1 9604-9810 ● ● ● ● ●
115 CUSHION ASM; PASSENGER SEAT
VINYL SEAT<A83> 		1-75028-800-2 01 1 9811-0003 ● ● ●
115 CUSHION ASM; PASSENGER SEAT 1-75028-800-2 01 1 9811-0003 ● ●
115 CUSHION ASM; PASSENGER SEAT
VINYL SEAT<A83> 		1-75026-773-0 01 1 0004-0004 ● ● ●
115 CUSHION ASM; PASSENGER SEAT 1-75026-773-0 01 1 0004-0004 ● ●
115 CUSHION ASM; PASSENGER SEAT 1-75026-698-0 01 1 0005-0105 ● ●
115 CUSHION ASM; PASSENGER SEAT
VINYL SEAT<A83> EXC. ELEC OUTLET 12V<TAW>,PASSENGER SEAT UNDER BOX<TDN> 		1-75026-698-0 01 1 0005-0105 ●
115 CUSHION ASM; PASSENGER SEAT
FABRIC SEAT W/RECLINING<SFQ> 		1-75028-765-1 01 1 9604-9803 ● ●
115 CUSHION ASM; PASSENGER SEAT
FABRIC SEAT W/RECLINING<SFQ> 		1-75028-996-0 01 1 9804-9805 ● ●
115 CUSHION ASM; PASSENGER SEAT
FABRIC SEAT W/RECLINING<SFQ> 		1-75028-996-0 01 1 9806-9810 ● ● ● ●
115 CUSHION ASM; PASSENGER SEAT
FABRIC SEAT W/RECLINING<SFQ> 		1-75028-996-0 01 1 9811-0003 ● ●
115 CUSHION ASM; PASSENGER SEAT
FABRIC SEAT W/RECLINING<SFQ> 		1-75026-684-0 01 1 0004-0004 ● ●
115 CUSHION ASM; PASSENGER SEAT
AIR SUSP DRIVER SEAT<A56> FABRIC SEAT W/RECLINING<SFQ> 		1-75026-700-0 01 1 0005-0012 ●
115 CUSHION ASM; PASSENGER SEAT
FABRIC SEAT W/RECLINING<SFQ> 		1-75026-700-1 01 1 0101- ●
115 CUSHION ASM; PASSENGER SEAT
DRIVER ISRINGHAUSEN SEAT<SJA> NEW ZEALAND EQUIPMENT(PK5) 		1-75026-700-1 01 1 0101- ●
115 CUSHION ASM; PASSENGER SEAT
DRIVER ISRINGHAUSEN SEAT<SJA> ELEC OUTLET 12V<TAW> 		1-75026-782-0 01 1 0011-0012 ●
115 CUSHION ASM; PASSENGER SEAT
DRIVER ISRINGHAUSEN SEAT<SJA> ELEC OUTLET 12V<TAW> EXC. NEW ZEALAND EQUIPMENT(PK5) 		1-75026-782-2 01 1 0101- ●
115 CUSHION ASM; PASSENGER SEAT
DRIVER ISRINGHAUSEN SEAT<SJA> EXC. ELEC OUTLET 12V<TAW> 		1-75026-784-0 01 1 0011-0012 ●
115 CUSHION ASM; PASSENGER SEAT
DRIVER ISRINGHAUSEN SEAT<SJA> EXC. NEW ZEALAND EQUIPMENT(PK5),ELEC OUTLET 12V<TAW> 		1-75026-784-2 01 1 0101- ●
115 CUSHION ASM; PASSENGER SEAT
VINYL SEAT<A83> ELEC OUTLET 12V<TAW> 		1-75026-701-1 01 1 0005-0405 ●
115 CUSHION ASM; PASSENGER SEAT
VINYL SEAT<A83> PASSENGER SEAT UNDER BOX<TDN> 		1-75026-701-1 01 1 0005-0405 ●
115 CUSHION ASM; PASSENGER SEAT 1-75026-701-1 01 1 0406- ● ●
115 CUSHION ASM; PASSENGER SEAT
VINYL SEAT<A83> 		1-75026-701-1 01 1 0406- ●
116 COVER; TRIM,PASSENGER SEAT,CUSHION
VINYL SEAT<A83> 		1-75116-319-1 01 1 9604-9810 ● ● ● ● ●
116 COVER; TRIM,PASSENGER SEAT,CUSHION
VINYL SEAT<A83> 		1-75116-319-1 01 1 9811-0003 ● ● ●
116 COVER; TRIM,PASSENGER SEAT,CUSHION 1-75116-319-1 01 1 9811-0003 ● ●
116 COVER; TRIM,PASSENGER SEAT,CUSHION
VINYL SEAT<A83> 		1-75116-577-0 01 1 0004-0004 ● ● ●
116 COVER; TRIM,PASSENGER SEAT,CUSHION 1-75116-577-0 01 1 0004-0004 ● ●
116 COVER; TRIM,PASSENGER SEAT,CUSHION 1-75116-686-0 01 1 0005-0105 ● ●
116 COVER; TRIM,PASSENGER SEAT,CUSHION
VINYL SEAT<A83> EXC. ELEC OUTLET 12V<TAW>,PASSENGER SEAT UNDER BOX<TDN> 		1-75116-686-0 01 1 0005-0105 ●
116 COVER; TRIM,PASSENGER SEAT,CUSHION
FABRIC SEAT W/RECLINING<SFQ> 		1-75116-298-0 01 1 9604-9803 ● ●
116 COVER; TRIM,PASSENGER SEAT,CUSHION
FABRIC SEAT W/RECLINING<SFQ> 		1-75116-371-0 01 1 9804-9805 ● ●
116 COVER; TRIM,PASSENGER SEAT,CUSHION
FABRIC SEAT W/RECLINING<SFQ> 		1-75116-371-0 01 1 9806-9810 ● ● ● ●
116 COVER; TRIM,PASSENGER SEAT,CUSHION
FABRIC SEAT W/RECLINING<SFQ> 		1-75116-371-0 01 1 9811-0003 ● ●
116 COVER; TRIM,PASSENGER SEAT,CUSHION
FABRIC SEAT W/RECLINING<SFQ> 		1-75116-552-0 01 1 0004-0004 ● ●
116 COVER; TRIM,PASSENGER SEAT,CUSHION
AIR SUSP DRIVER SEAT<A56> FABRIC SEAT W/RECLINING<SFQ> 		1-75116-688-0 01 1 0005-0012 ●
116 COVER; TRIM,PASSENGER SEAT,CUSHION
FABRIC SEAT W/RECLINING<SFQ> 		1-75116-688-1 01 1 0101- ●
116 COVER; TRIM,PASSENGER SEAT,CUSHION
DRIVER ISRINGHAUSEN SEAT<SJA> NEW ZEALAND EQUIPMENT(PK5) 		1-75116-688-1 01 1 0101- ●
116 COVER; TRIM,PASSENGER SEAT,CUSHION
DRIVER ISRINGHAUSEN SEAT<SJA> ELEC OUTLET 12V<TAW> 		1-75116-589-0 01 1 0011-0012 ●
116 COVER; TRIM,PASSENGER SEAT,CUSHION
DRIVER ISRINGHAUSEN SEAT<SJA> ELEC OUTLET 12V<TAW> EXC. NEW ZEALAND EQUIPMENT(PK5) 		1-75116-589-2 01 1 0101- ●
116 COVER; TRIM,PASSENGER SEAT,CUSHION
DRIVER ISRINGHAUSEN SEAT<SJA> EXC. ELEC OUTLET 12V<TAW> 		1-75116-691-0 01 1 0011-0012 ●
116 COVER; TRIM,PASSENGER SEAT,CUSHION
DRIVER ISRINGHAUSEN SEAT<SJA> EXC. NEW ZEALAND EQUIPMENT(PK5),ELEC OUTLET 12V<TAW> 		1-75116-691-2 01 1 0101- ●
116 COVER; TRIM,PASSENGER SEAT,CUSHION
VINYL SEAT<A83> ELEC OUTLET 12V<TAW> 		1-75116-689-1 01 1 0005-0405 ●
116 COVER; TRIM,PASSENGER SEAT,CUSHION
VINYL SEAT<A83> PASSENGER SEAT UNDER BOX<TDN> 		1-75116-689-1 01 1 0005-0405 ●
116 COVER; TRIM,PASSENGER SEAT,CUSHION 1-75116-689-1 01 1 0406- ● ●
116 COVER; TRIM,PASSENGER SEAT,CUSHION
VINYL SEAT<A83> 		1-75116-689-1 01 1 0406- ●
120 BOLT; RECLINING ADJ
M8X18 		8-94279-109-1 02 1 9604-0003 ● ● ● ● ●
120 BOLT; RECLINING ADJ
M8X20 		8-97255-906-0 02 1 0004-0004 ● ● ● ● ●
120 BOLT; RECLINING ADJ
M8X20 		8-97255-906-0 02 1 0005- ● ● ●
122 COVER; ADJ,RECLINING 1-75418-052-0 01 1 9604-0004 ● ● ● ● ●
122 COVER; ADJ,RECLINING
VINYL SEAT<A83> ELEC OUTLET 12V<TAW> DARK GRAY 		8-97859-018-0 01 1 0005-0105 ●
122 COVER; ADJ,RECLINING
VINYL SEAT<A83> PASSENGER SEAT UNDER BOX<TDN> DARK GRAY 		8-97859-018-0 01 1 0005-0105 ●
122 COVER; ADJ,RECLINING
FABRIC SEAT W/RECLINING<SFQ> DARK GRAY 		8-97859-018-0 01 1 0005-0105 ●
122 COVER; ADJ,RECLINING
DARK GRAY 		8-97859-018-0 01 1 0106- ● ● ●
122 COVER; ADJ,RECLINING
VINYL SEAT<A83> DARK GRAY 		8-97867-020-0 01 1 0005-0101 ● ●
122 COVER; ADJ,RECLINING
VINYL SEAT<A83> EXC. ELEC OUTLET 12V<TAW>,PASSENGER SEAT UNDER BOX<TDN> DARK GRAY 		8-97867-020-0 01 1 0005-0101 ●
122 COVER; ADJ,RECLINING
DARK GRAY 		8-97867-020-0 01 1 0102-0105 ● ●
122 COVER; ADJ,RECLINING
VINYL SEAT<A83> EXC. ELEC OUTLET 12V<TAW>,PASSENGER SEAT UNDER BOX<TDN> DARK GRAY 		8-97867-020-0 01 1 0102-0105 ●
123 SCREW; COVER,RECLINING
M5X16 TAPPING W/PL WASHER 		0-74310-516-0 01 1 9604-0004 ● ● ● ● ●
123 SCREW; COVER,RECLINING
M5X16 TAPPING W/PL WASHER 		0-74310-516-0 01 1 0005- ● ● ●
126 BUSHING; HINGE,RECLINING 8-97854-087-0 01 1 9604-0004 ● ● ● ● ●
126 BUSHING; HINGE,RECLINING 8-97854-087-0 01 1 0005- ● ● ●
135 NUT; SEAT STAND
M10 FLANGE 		1-09984-153-0 02 1 9604-0004 ● ● ● ● ●
135 NUT; SEAT STAND
M10 FLANGE 		1-09984-153-0 02 1 0005-0703 ● ● ●
135 NUT; SEAT STAND
M10 FLANGE 		0-91180-110-0 02 1 0704- ● ● ●
136 STAND; PASSENGER SEAT 1-75558-547-2 01 1 9604-9803 ● ● ● ● ●
136 STAND; PASSENGER SEAT
PASSENGER SEAT UNDER BOX<TDN> 		1-75558-547-2 01 1 9804-9810 ● ● ● ●
136 STAND; PASSENGER SEAT
PASSENGER SEAT UNDER BOX<TDN> EXC. ELEC OUTLET 12V<TAW> 		1-75558-547-3 01 1 9811-0004 ● ● ● ●
136 STAND; PASSENGER SEAT
EXC. PASSENGER SEAT UNDER BOX<TDN> 		1-75558-550-3 01 1 9804-9810 ● ● ● ●
136 STAND; PASSENGER SEAT 1-75558-550-3 01 1 9804-9810 ●
136 STAND; PASSENGER SEAT
EXC. ELEC OUTLET 12V<TAW>,PASSENGER SEAT UNDER BOX<TDN> 		1-75558-550-4 01 1 9811-0004 ● ● ● ●
136 STAND; PASSENGER SEAT 1-75558-550-4 01 1 9811-0004 ●
136 STAND; PASSENGER SEAT
VINYL SEAT<A83> 		1-75558-550-4 01 1 0005-0101 ● ●
136 STAND; PASSENGER SEAT
EXC. ELEC OUTLET 12V<TAW>,PASSENGER SEAT UNDER BOX<TDN> 		1-75558-550-4 01 1 0005-0101 ●
136 STAND; PASSENGER SEAT 1-75558-550-4 01 1 0102-0105 ● ●
136 STAND; PASSENGER SEAT
EURO2 SPECIFICATION<THN> EXC. ELEC OUTLET 12V<TAW> 		1-75558-550-4 01 1 0102-0105 ●
136 STAND; PASSENGER SEAT
FABRIC SEAT W/RECLINING<SFQ> EURO2 SPECIFICATION<THN> NEW ZEALAND EQUIPMENT(PK5) EXC. ELEC OUTLET 12V<TAW> 		1-75558-550-7 01 1 0106-1305 ●
136 STAND; PASSENGER SEAT
FABRIC SEAT W/RECLINING<SFQ> EURO2 SPECIFICATION<THN> NEW ZEALAND EQUIPMENT(PK5) EXC. ELEC OUTLET 12V<TAW> 		8-98242-292-0 01 1 1306- ●
136 STAND; PASSENGER SEAT
ELEC OUTLET 12V<TAW> EXC. PASSENGER SEAT UNDER BOX<TDN> 		1-75558-585-0 01 1 9811-0004 ● ● ● ●
136 STAND; PASSENGER SEAT
ELEC OUTLET 12V<TAW> EXC. PASSENGER SEAT UNDER BOX<TDN> 		1-75558-585-0 01 1 0005-0105 ●
136 STAND; PASSENGER SEAT 1-75558-602-3 01 1 0106-1305 ● ●
136 STAND; PASSENGER SEAT
VINYL SEAT<A83> EURO2 SPECIFICATION<THN> EXC. NEW ZEALAND EQUIPMENT(PK5),ELEC OUTLET 12V<TAW> 		1-75558-602-3 01 1 0106-1305 ●
136 STAND; PASSENGER SEAT 8-98242-299-0 01 1 1306- ● ●
136 STAND; PASSENGER SEAT
VINYL SEAT<A83> EURO2 SPECIFICATION<THN> EXC. NEW ZEALAND EQUIPMENT(PK5),ELEC OUTLET 12V<TAW> 		8-98242-299-0 01 1 1306- ●
136 STAND; PASSENGER SEAT
ELEC OUTLET 12V<TAW> PASSENGER SEAT UNDER BOX<TDN> 		1-75558-584-0 01 1 9811-0004 ● ● ● ●
136 STAND; PASSENGER SEAT
PASSENGER SEAT UNDER BOX<TDN> ELEC OUTLET 12V<TAW> 		1-75558-584-0 01 1 0005-0105 ●
136 STAND; PASSENGER SEAT
PASSENGER SEAT UNDER BOX<TDN> EXC. ELEC OUTLET 12V<TAW> 		1-75558-547-6 01 1 0005-1305 ●
136 STAND; PASSENGER SEAT
PASSENGER SEAT UNDER BOX<TDN> EXC. ELEC OUTLET 12V<TAW> 		8-98242-291-0 01 1 1306- ●
136 STAND; PASSENGER SEAT
ELEC OUTLET 12V<TAW> EXC. EURO2 SPECIFICATION<THN> 		1-75558-603-0 01 1 0102-0105 ●
136 STAND; PASSENGER SEAT
PASSENGER SEAT UNDER BOX<TDN> ELEC OUTLET 12V<TAW> 		1-75558-603-3 01 1 0106-1305 ●
136 STAND; PASSENGER SEAT
PASSENGER SEAT UNDER BOX<TDN> ELEC OUTLET 12V<TAW> 		8-98242-300-0 01 1 1306- ●
136 STAND; PASSENGER SEAT
ELEC OUTLET 12V<TAW> EURO2 SPECIFICATION<THN> 		1-75558-601-3 01 1 0005-1305 ●
136 STAND; PASSENGER SEAT
ELEC OUTLET 12V<TAW> EURO2 SPECIFICATION<THN> 		8-98242-298-0 01 1 1306- ●
137 BOLT; STAND
M10X20 W/LK&PL WASHER 		8-94279-211-0 02 1 9604-0004 ● ● ● ● ●
137 BOLT; STAND
M10X20 W/LK&PL WASHER 		8-94279-211-0 02 1 0005-0703 ● ● ●
137 BOLT; STAND
M10X20 FLANGE 		0-28451-020-0 02 1 0704- ● ● ●
211 COVER; FRT SEAT
DRIVER ISRINGHAUSEN SEAT<SJA> EXC. ELEC OUTLET 12V<TAW> 		1-72538-274-0 01 1 0011-0012 ●
211 COVER; FRT SEAT
DRIVER ISRINGHAUSEN SEAT<SJA> EXC. NEW ZEALAND EQUIPMENT(PK5),ELEC OUTLET 12V<TAW> 		1-72538-274-0 01 1 0101- ●
228 SCREW; KNOB
DRIVER SIDE M4 		8-98062-662-0 01 1 0711- ● ●
228 SCREW; KNOB
EXC. DRIVER ISRINGHAUSEN SEAT<SJA> DRIVER SIDE M4 		8-98062-662-0 01 1 0711- ●
228 SCREW; KNOB
M4X6 		8-97042-273-0 02 1 9604-9805 ● ● ● ● ●
228 SCREW; KNOB
M4X6 		8-97042-273-0 01 1 9806-0004 ● ● ● ● ●
228 SCREW; KNOB
'07/11- PASSENGER SIDE M4X6 		8-97042-273-0 01 1 0005- ● ● ●
327 CLIP; COVER
DRIVER ISRINGHAUSEN SEAT<SJA> 		1-75538-197-0 01 1 9811-0004 ● ● ● ●
327 CLIP; COVER
DRIVER ISRINGHAUSEN SEAT<SJA> 		1-75538-197-0 01 1 0005- ●
327 CLIP; COVER
DRIVER ISRINGHAUSEN SEAT<SJA> EXC. ELEC OUTLET 12V<TAW> 		1-09987-273-0 02 1 0011-0012 ●
327 CLIP; COVER
DRIVER ISRINGHAUSEN SEAT<SJA> EXC. NEW ZEALAND EQUIPMENT(PK5),ELEC OUTLET 12V<TAW> 		1-09987-273-0 02 1 0101- ●
392 COVER; STAND,PASSENGER SEAT
EXC. PASSENGER SEAT UNDER BOX<TDN> 		1-75558-523-4 01 1 9804-0004 ● ● ● ●
392 COVER; STAND,PASSENGER SEAT 1-75558-523-4 01 1 9804-0004 ●
392 COVER; STAND,PASSENGER SEAT 1-75558-523-4 01 1 0005-0111 ● ●
392 COVER; STAND,PASSENGER SEAT
EXC. PASSENGER SEAT UNDER BOX<TDN> 		1-75558-523-4 01 1 0005-0111 ●
392 COVER; STAND,PASSENGER SEAT 1-75558-556-1 01 1 0112- ● ●
392 COVER; STAND,PASSENGER SEAT
EXC. PASSENGER SEAT UNDER BOX<TDN> 		1-75558-556-1 01 1 0112- ●
393 BOLT; COVER,SEAT STAND
EXC. PASSENGER SEAT UNDER BOX<TDN> M6X19.5 W/LK&PL WASHER 		8-94279-201-0 01 1 9804-0004 ● ● ● ●
393 BOLT; COVER,SEAT STAND
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 01 1 9804-0004 ●
393 BOLT; COVER,SEAT STAND
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 01 1 0005-0602 ● ●
393 BOLT; COVER,SEAT STAND
EXC. PASSENGER SEAT UNDER BOX<TDN> M6X19.5 W/LK&PL WASHER 		8-94279-201-0 01 1 0005-0602 ●
393 BOLT; COVER,SEAT STAND
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 03 1 0603-0703 ● ●
393 BOLT; COVER,SEAT STAND
EXC. PASSENGER SEAT UNDER BOX<TDN> M6X19.5 W/LK&PL WASHER 		8-94279-201-0 03 1 0603-0703 ●
393 BOLT; COVER,SEAT STAND
M6X16 		0-52000-616-0 03 1 0704- ● ●
393 BOLT; COVER,SEAT STAND
EXC. PASSENGER SEAT UNDER BOX<TDN> M6X16 		0-52000-616-0 03 1 0704- ●
493 BOX; SEAT STAND
PASSENGER SEAT UNDER BOX<TDN> 		1-72537-130-1 01 1 9604-9803 ● ● ● ●
493 BOX; SEAT STAND
PASSENGER SEAT UNDER BOX<TDN> 		1-72537-130-1 01 1 9804- ●
494 RAIL; GUIDE
PASSENGER SEAT UNDER BOX<TDN> (A) 		1-72537-149-0 01 1 9604-0004 ● ● ● ●
494 RAIL; GUIDE
PASSENGER SEAT UNDER BOX<TDN> (A) 		1-72537-149-0 01 1 0005- ●
494 RAIL; GUIDE
PASSENGER SEAT UNDER BOX<TDN> (B) 		1-72537-150-0 01 1 9604-0004 ● ● ● ●
494 RAIL; GUIDE
PASSENGER SEAT UNDER BOX<TDN> (B) 		1-72537-150-0 01 1 0005- ●
503 COVER; BOX
PASSENGER SEAT UNDER BOX<TDN> 		1-72537-136-0 01 1 9604-9803 ● ● ● ●
503 COVER; BOX
PASSENGER SEAT UNDER BOX<TDN> 		1-72537-136-0 01 1 9804- ●
515 CLIP; PIPE
DRIVER ISRINGHAUSEN SEAT<SJA> EXC. ELEC OUTLET 12V<TAW> BLACK 		8-94227-248-1 01 1 0011-0012 ●
515 CLIP; PIPE
DRIVER ISRINGHAUSEN SEAT<SJA> EXC. NEW ZEALAND EQUIPMENT(PK5),ELEC OUTLET 12V<TAW> BLACK 		8-94227-248-1 01 1 0101- ●
çizim 152973
506 360 175 176 188 16 189 188 359 403 179 182
BalonParca AdiParca NoAdetTipApplied Date A B C D E
16 ADJUSTER ASM; RECLINING
EXC. CENTER SEAT DELETE 2 CREWS<SP9> (A) 		1-75418-057-1 01 1 9604-9811 ● ● ● ● ●
16 ADJUSTER ASM; RECLINING
VINYL SEAT<A83> EXC. CENTER SEAT DELETE 2 CREWS<SP9> (A) 		1-75418-057-1 01 1 9812-0003 ● ● ●
16 ADJUSTER ASM; RECLINING
(A) 		1-75418-057-1 01 1 9812-0003 ● ●
16 ADJUSTER ASM; RECLINING
FABRIC SEAT W/RECLINING<SFQ> EXC. CENTER SEAT DELETE 2 CREWS<SP9> (A) 		1-75418-062-0 01 1 9812-0003 ● ●
16 ADJUSTER ASM; RECLINING
EXC. CENTER SEAT DELETE 2 CREWS<SP9> (A) 		1-75418-062-0 01 1 0004-0004 ● ● ● ● ●
16 ADJUSTER ASM; RECLINING
EXC. CENTER SEAT DELETE 2 CREWS<SP9> (A) 		1-75418-062-1 01 1 0005- ● ● ●
16 ADJUSTER ASM; RECLINING
DRIVER ISRINGHAUSEN SEAT<SJA> (B) 		1-75418-064-0 01 1 9811-0004 ● ● ● ●
16 ADJUSTER ASM; RECLINING
DRIVER ISRINGHAUSEN SEAT<SJA> (B) 		1-75418-064-0 01 1 0005- ●
175 BACK ASM; PASSENGER CENTER SEAT
VINYL SEAT<A83> EXC. CENTER SEAT DELETE 2 CREWS<SP9> 		1-75028-587-1 01 1 9604-9605 ● ● ●
175 BACK ASM; PASSENGER CENTER SEAT
VINYL SEAT<A83> 		1-75028-587-1 01 1 9604-9605 ● ●
175 BACK ASM; PASSENGER CENTER SEAT
VINYL SEAT<A83> EXC. CENTER SEAT DELETE 2 CREWS<SP9> 		1-75028-925-0 01 1 9606-9811 ● ● ●
175 BACK ASM; PASSENGER CENTER SEAT
VINYL SEAT<A83> 		1-75028-925-0 01 1 9606-9811 ● ●
175 BACK ASM; PASSENGER CENTER SEAT
VINYL SEAT<A83> EXC. CENTER SEAT DELETE 2 CREWS<SP9> 		1-75028-925-0 01 1 9812-0003 ● ● ●
175 BACK ASM; PASSENGER CENTER SEAT 1-75028-925-0 01 1 9812-0003 ● ●
175 BACK ASM; PASSENGER CENTER SEAT
VINYL SEAT<A83> EXC. CENTER SEAT DELETE 2 CREWS<SP9> 		1-75207-253-0 01 1 0004-0004 ● ● ●
175 BACK ASM; PASSENGER CENTER SEAT 1-75207-253-0 01 1 0004-0004 ● ●
175 BACK ASM; PASSENGER CENTER SEAT
VINYL SEAT<A83> EXC. CENTER SEAT DELETE 2 CREWS<SP9> 		1-75026-855-0 01 1 0005-0104 ● ● ●
175 BACK ASM; PASSENGER CENTER SEAT
EXC. CENTER SEAT DELETE 2 CREWS<SP9> 		1-75026-855-0 01 1 0105-0406 ● ●
175 BACK ASM; PASSENGER CENTER SEAT
VINYL SEAT<A83> EXC. CENTER SEAT DELETE 2 CREWS<SP9> 		1-75026-855-0 01 1 0105-0406 ●
175 BACK ASM; PASSENGER CENTER SEAT
EXC. CENTER SEAT DELETE 2 CREWS<SP9> 		1-75026-856-3 01 1 0407- ● ●
175 BACK ASM; PASSENGER CENTER SEAT
VINYL SEAT<A83> EXC. CENTER SEAT DELETE 2 CREWS<SP9> 		1-75026-856-3 01 1 0407- ●
175 BACK ASM; PASSENGER CENTER SEAT
FABRIC SEAT W/RECLINING<SFQ> EXC. CENTER SEAT DELETE 2 CREWS<SP9> 		1-75028-592-0 01 1 9604-9605 ● ●
175 BACK ASM; PASSENGER CENTER SEAT
FABRIC SEAT W/RECLINING<SFQ> EXC. CENTER SEAT DELETE 2 CREWS<SP9> 		1-75028-924-0 01 1 9606-9805 ● ●
175 BACK ASM; PASSENGER CENTER SEAT
FABRIC SEAT W/RECLINING<SFQ> EXC. CENTER SEAT DELETE 2 CREWS<SP9> 		1-75028-924-0 01 1 9806-9806 ● ●
175 BACK ASM; PASSENGER CENTER SEAT
FABRIC SEAT W/RECLINING<SFQ> 		1-75028-924-0 01 1 9806-9806 ● ●
175 BACK ASM; PASSENGER CENTER SEAT
FABRIC SEAT W/RECLINING<SFQ> EXC. CENTER SEAT DELETE 2 CREWS<SP9> 		1-75028-867-1 01 1 9807-9811 ● ●
175 BACK ASM; PASSENGER CENTER SEAT
FABRIC SEAT W/RECLINING<SFQ> 		1-75028-867-1 01 1 9807-9811 ● ●
175 BACK ASM; PASSENGER CENTER SEAT
FABRIC SEAT W/RECLINING<SFQ> EXC. CENTER SEAT DELETE 2 CREWS<SP9> 		1-75028-867-1 01 1 9812-0003 ● ●
175 BACK ASM; PASSENGER CENTER SEAT
FABRIC SEAT W/RECLINING<SFQ> EXC. CENTER SEAT DELETE 2 CREWS<SP9> 		1-75026-850-0 01 1 0004-0004 ● ●
175 BACK ASM; PASSENGER CENTER SEAT
FABRIC SEAT W/RECLINING<SFQ> EXC. CENTER SEAT DELETE 2 CREWS<SP9> 		1-75026-854-0 01 1 0005-0010 ●
175 BACK ASM; PASSENGER CENTER SEAT
FABRIC SEAT W/RECLINING<SFQ> EXC. DRIVER ISRINGHAUSEN SEAT<SJA>,CENTER SEAT DELETE 2 CREWS<SP9> 		1-75026-854-0 01 1 0011-0012 ●
175 BACK ASM; PASSENGER CENTER SEAT
NEW ZEALAND EQUIPMENT(PK5) DRIVER ISRINGHAUSEN SEAT<SJA> EXC. CENTER SEAT DELETE 2 CREWS<SP9> 		1-75026-854-3 01 1 0101- ●
175 BACK ASM; PASSENGER CENTER SEAT
FABRIC SEAT W/RECLINING<SFQ> EXC. DRIVER ISRINGHAUSEN SEAT<SJA>,CENTER SEAT DELETE 2 CREWS<SP9> 		1-75026-854-3 01 1 0101- ●
175 BACK ASM; PASSENGER CENTER SEAT
DRIVER ISRINGHAUSEN SEAT<SJA> EXC. CENTER SEAT DELETE 2 CREWS<SP9> 		1-75026-857-0 01 1 0011-0012 ●
175 BACK ASM; PASSENGER CENTER SEAT
DRIVER ISRINGHAUSEN SEAT<SJA> EXC. NEW ZEALAND EQUIPMENT(PK5),CENTER SEAT DELETE 2 CREWS<SP9> 		1-75026-857-4 01 1 0101- ●
176 COVER; TRIM,PASSENGER SEAT CENTER,BACK
VINYL SEAT<A83> EXC. CENTER SEAT DELETE 2 CREWS<SP9> 		1-75116-258-1 01 1 9604-9803 ● ● ●
176 COVER; TRIM,PASSENGER SEAT CENTER,BACK
VINYL SEAT<A83> 		1-75116-258-1 01 1 9604-9803 ● ●
176 COVER; TRIM,PASSENGER SEAT CENTER,BACK
EXC. CENTER SEAT DELETE 2 CREWS<SP9> 		1-75116-258-1 01 1 9804-9811 ● ● ● ● ●
176 COVER; TRIM,PASSENGER SEAT CENTER,BACK
VINYL SEAT<A83> EXC. CENTER SEAT DELETE 2 CREWS<SP9> 		1-75116-258-1 01 1 9812-0003 ● ● ●
176 COVER; TRIM,PASSENGER SEAT CENTER,BACK 1-75116-258-1 01 1 9812-0003 ● ●
176 COVER; TRIM,PASSENGER SEAT CENTER,BACK
VINYL SEAT<A83> EXC. CENTER SEAT DELETE 2 CREWS<SP9> 		1-75116-641-0 01 1 0004-0004 ● ● ●
176 COVER; TRIM,PASSENGER SEAT CENTER,BACK 1-75116-641-0 01 1 0004-0004 ● ●
176 COVER; TRIM,PASSENGER SEAT CENTER,BACK
VINYL SEAT<A83> EXC. CENTER SEAT DELETE 2 CREWS<SP9> 		1-75116-651-0 01 1 0005-0104 ● ● ●
176 COVER; TRIM,PASSENGER SEAT CENTER,BACK
EXC. CENTER SEAT DELETE 2 CREWS<SP9> 		1-75116-651-0 01 1 0105-0406 ● ●
176 COVER; TRIM,PASSENGER SEAT CENTER,BACK
VINYL SEAT<A83> EXC. CENTER SEAT DELETE 2 CREWS<SP9> 		1-75116-651-0 01 1 0105-0406 ●
176 COVER; TRIM,PASSENGER SEAT CENTER,BACK
EXC. CENTER SEAT DELETE 2 CREWS<SP9> 		1-75116-710-1 01 1 0407- ● ●
176 COVER; TRIM,PASSENGER SEAT CENTER,BACK
VINYL SEAT<A83> EXC. CENTER SEAT DELETE 2 CREWS<SP9> 		1-75116-710-1 01 1 0407- ●
176 COVER; TRIM,PASSENGER SEAT CENTER,BACK
FABRIC SEAT W/RECLINING<SFQ> EXC. CENTER SEAT DELETE 2 CREWS<SP9> 		1-75116-257-0 01 1 9604-9805 ● ●
176 COVER; TRIM,PASSENGER SEAT CENTER,BACK
FABRIC SEAT W/RECLINING<SFQ> EXC. CENTER SEAT DELETE 2 CREWS<SP9> 		1-75116-257-0 01 1 9806-9806 ● ●
176 COVER; TRIM,PASSENGER SEAT CENTER,BACK
FABRIC SEAT W/RECLINING<SFQ> 		1-75116-257-0 01 1 9806-9806 ● ●
176 COVER; TRIM,PASSENGER SEAT CENTER,BACK
FABRIC SEAT W/RECLINING<SFQ> EXC. CENTER SEAT DELETE 2 CREWS<SP9> 		1-75116-351-0 01 1 9807-9811 ● ●
176 COVER; TRIM,PASSENGER SEAT CENTER,BACK
FABRIC SEAT W/RECLINING<SFQ> 		1-75116-351-0 01 1 9807-9811 ● ●
176 COVER; TRIM,PASSENGER SEAT CENTER,BACK
FABRIC SEAT W/RECLINING<SFQ> EXC. CENTER SEAT DELETE 2 CREWS<SP9> 		1-75116-351-0 01 1 9812-0003 ● ●
176 COVER; TRIM,PASSENGER SEAT CENTER,BACK
FABRIC SEAT W/RECLINING<SFQ> EXC. CENTER SEAT DELETE 2 CREWS<SP9> 		1-75116-646-0 01 1 0004-0004 ● ●
176 COVER; TRIM,PASSENGER SEAT CENTER,BACK
FABRIC SEAT W/RECLINING<SFQ> EXC. CENTER SEAT DELETE 2 CREWS<SP9> 		1-75116-650-0 01 1 0005-0010 ●
176 COVER; TRIM,PASSENGER SEAT CENTER,BACK
FABRIC SEAT W/RECLINING<SFQ> EXC. DRIVER ISRINGHAUSEN SEAT<SJA>,CENTER SEAT DELETE 2 CREWS<SP9> 		1-75116-650-0 01 1 0011-0012 ●
176 COVER; TRIM,PASSENGER SEAT CENTER,BACK
NEW ZEALAND EQUIPMENT(PK5) DRIVER ISRINGHAUSEN SEAT<SJA> EXC. CENTER SEAT DELETE 2 CREWS<SP9> 		1-75116-650-1 01 1 0101- ●
176 COVER; TRIM,PASSENGER SEAT CENTER,BACK
FABRIC SEAT W/RECLINING<SFQ> EXC. DRIVER ISRINGHAUSEN SEAT<SJA>,CENTER SEAT DELETE 2 CREWS<SP9> 		1-75116-650-1 01 1 0101- ●
176 COVER; TRIM,PASSENGER SEAT CENTER,BACK
DRIVER ISRINGHAUSEN SEAT<SJA> EXC. CENTER SEAT DELETE 2 CREWS<SP9> 		1-75116-711-0 01 1 0011-0012 ●
176 COVER; TRIM,PASSENGER SEAT CENTER,BACK
DRIVER ISRINGHAUSEN SEAT<SJA> EXC. NEW ZEALAND EQUIPMENT(PK5),CENTER SEAT DELETE 2 CREWS<SP9> 		1-75116-711-2 01 1 0101- ●
179 COVER; TRIM,PASSENGER SEAT CENTER,CUSH
AUSTRALIA EQUIPMENT(RR3) FABRIC SEAT W/RECLINING<SFQ> EXC. CENTER SEAT DELETE 2 CREWS<SP9> 		1-75116-328-0 01 1 9604-9803 ● ●
179 COVER; TRIM,PASSENGER SEAT CENTER,CUSH
FABRIC SEAT W/RECLINING<SFQ> EXC. CENTER SEAT DELETE 2 CREWS<SP9> 		1-75116-328-0 01 1 9804-9805 ● ●
179 COVER; TRIM,PASSENGER SEAT CENTER,CUSH
FABRIC SEAT W/RECLINING<SFQ> EXC. CENTER SEAT DELETE 2 CREWS<SP9> 		1-75116-328-0 01 1 9806-9806 ● ●
179 COVER; TRIM,PASSENGER SEAT CENTER,CUSH
FABRIC SEAT W/RECLINING<SFQ> 		1-75116-328-0 01 1 9806-9806 ● ●
179 COVER; TRIM,PASSENGER SEAT CENTER,CUSH
FABRIC SEAT W/RECLINING<SFQ> EXC. CENTER SEAT DELETE 2 CREWS<SP9> 		1-75116-434-0 01 1 9807-9811 ● ●
179 COVER; TRIM,PASSENGER SEAT CENTER,CUSH
FABRIC SEAT W/RECLINING<SFQ> 		1-75116-434-0 01 1 9807-9811 ● ●
179 COVER; TRIM,PASSENGER SEAT CENTER,CUSH
FABRIC SEAT W/RECLINING<SFQ> EXC. CENTER SEAT DELETE 2 CREWS<SP9> 		1-75116-434-0 01 1 9812-0003 ● ●
179 COVER; TRIM,PASSENGER SEAT CENTER,CUSH
FABRIC SEAT W/RECLINING<SFQ> EXC. CENTER SEAT DELETE 2 CREWS<SP9> 		1-75116-634-0 01 1 0004-0004 ● ●
179 COVER; TRIM,PASSENGER SEAT CENTER,CUSH
FABRIC SEAT W/RECLINING<SFQ> EXC. CENTER SEAT DELETE 2 CREWS<SP9> 		1-75116-637-0 01 1 0005-0010 ●
179 COVER; TRIM,PASSENGER SEAT CENTER,CUSH
FABRIC SEAT W/RECLINING<SFQ> EXC. DRIVER ISRINGHAUSEN SEAT<SJA>,CENTER SEAT DELETE 2 CREWS<SP9> 		1-75116-637-0 01 1 0011-0012 ●
179 COVER; TRIM,PASSENGER SEAT CENTER,CUSH
NEW ZEALAND EQUIPMENT(PK5) DRIVER ISRINGHAUSEN SEAT<SJA> EXC. CENTER SEAT DELETE 2 CREWS<SP9> 		1-75116-637-1 01 1 0101- ●
179 COVER; TRIM,PASSENGER SEAT CENTER,CUSH
FABRIC SEAT W/RECLINING<SFQ> EXC. DRIVER ISRINGHAUSEN SEAT<SJA>,CENTER SEAT DELETE 2 CREWS<SP9> 		1-75116-637-1 01 1 0101- ●
179 COVER; TRIM,PASSENGER SEAT CENTER,CUSH
FABRIC SEAT W/RECLINING<SFQ> EXC. AUSTRALIA EQUIPMENT(RR3),CENTER SEAT DELETE 2 CREWS<SP9> 		1-75116-310-0 01 1 9604-9803 ● ●
179 COVER; TRIM,PASSENGER SEAT CENTER,CUSH
VINYL SEAT<A83> AUSTRALIA EQUIPMENT(RR3) EXC. CENTER SEAT DELETE 2 CREWS<SP9> 		1-75116-327-0 01 1 9604-9803 ● ●
179 COVER; TRIM,PASSENGER SEAT CENTER,CUSH
VINYL SEAT<A83> AUSTRALIA EQUIPMENT(RR3) 		1-75116-327-0 01 1 9604-9803 ● ●
179 COVER; TRIM,PASSENGER SEAT CENTER,CUSH
EXC. CENTER SEAT DELETE 2 CREWS<SP9> 		1-75116-327-0 01 1 9804-9811 ● ● ● ● ●
179 COVER; TRIM,PASSENGER SEAT CENTER,CUSH
VINYL SEAT<A83> EXC. CENTER SEAT DELETE 2 CREWS<SP9> 		1-75116-327-0 01 1 9812-0003 ● ● ●
179 COVER; TRIM,PASSENGER SEAT CENTER,CUSH 1-75116-327-0 01 1 9812-0003 ● ●
179 COVER; TRIM,PASSENGER SEAT CENTER,CUSH
VINYL SEAT<A83> EXC. CENTER SEAT DELETE 2 CREWS<SP9> 		1-75116-627-0 01 1 0004-0004 ● ● ●
179 COVER; TRIM,PASSENGER SEAT CENTER,CUSH 1-75116-627-0 01 1 0004-0004 ● ●
179 COVER; TRIM,PASSENGER SEAT CENTER,CUSH
VINYL SEAT<A83> EXC. CENTER SEAT DELETE 2 CREWS<SP9> 		1-75116-696-1 01 1 0005-0104 ● ● ●
179 COVER; TRIM,PASSENGER SEAT CENTER,CUSH
EXC. CENTER SEAT DELETE 2 CREWS<SP9> 		1-75116-696-1 01 1 0105- ● ●
179 COVER; TRIM,PASSENGER SEAT CENTER,CUSH
VINYL SEAT<A83> EXC. CENTER SEAT DELETE 2 CREWS<SP9> 		1-75116-696-1 01 1 0105- ●
179 COVER; TRIM,PASSENGER SEAT CENTER,CUSH
VINYL SEAT<A83> EXC. AUSTRALIA EQUIPMENT(RR3),CENTER SEAT DELETE 2 CREWS<SP9> 		1-75116-309-1 01 1 9604-9803 ● ●
179 COVER; TRIM,PASSENGER SEAT CENTER,CUSH
VINYL SEAT<A83> EXC. AUSTRALIA EQUIPMENT(RR3) 		1-75116-309-1 01 1 9604-9803 ● ●
179 COVER; TRIM,PASSENGER SEAT CENTER,CUSH
VINYL SEAT<A83> EXC. CENTER SEAT DELETE 2 CREWS<SP9> 		1-75116-309-1 01 1 9604-9803 ●
179 COVER; TRIM,PASSENGER SEAT CENTER,CUSH
DRIVER ISRINGHAUSEN SEAT<SJA> EXC. CENTER SEAT DELETE 2 CREWS<SP9> 		1-75116-694-0 01 1 0011-0012 ●
179 COVER; TRIM,PASSENGER SEAT CENTER,CUSH
DRIVER ISRINGHAUSEN SEAT<SJA> EXC. NEW ZEALAND EQUIPMENT(PK5),CENTER SEAT DELETE 2 CREWS<SP9> 		1-75116-694-2 01 1 0101- ●
182 CUSHION ASM; CENTER SEAT
AUSTRALIA EQUIPMENT(RR3) FABRIC SEAT W/RECLINING<SFQ> EXC. CENTER SEAT DELETE 2 CREWS<SP9> 		1-75028-825-0 01 1 9604-9803 ● ●
182 CUSHION ASM; CENTER SEAT
FABRIC SEAT W/RECLINING<SFQ> EXC. CENTER SEAT DELETE 2 CREWS<SP9> 		1-75028-825-0 01 1 9804-9805 ● ●
182 CUSHION ASM; CENTER SEAT
FABRIC SEAT W/RECLINING<SFQ> EXC. CENTER SEAT DELETE 2 CREWS<SP9> 		1-75028-825-0 01 1 9806-9806 ● ●
182 CUSHION ASM; CENTER SEAT
FABRIC SEAT W/RECLINING<SFQ> 		1-75028-825-0 01 1 9806-9806 ● ●
182 CUSHION ASM; CENTER SEAT
FABRIC SEAT W/RECLINING<SFQ> EXC. CENTER SEAT DELETE 2 CREWS<SP9> 		1-75026-185-0 01 1 9807-9811 ● ●
182 CUSHION ASM; CENTER SEAT
FABRIC SEAT W/RECLINING<SFQ> 		1-75026-185-0 01 1 9807-9811 ● ●
182 CUSHION ASM; CENTER SEAT
FABRIC SEAT W/RECLINING<SFQ> EXC. CENTER SEAT DELETE 2 CREWS<SP9> 		1-75026-185-0 01 1 9812-0003 ● ●
182 CUSHION ASM; CENTER SEAT
FABRIC SEAT W/RECLINING<SFQ> EXC. CENTER SEAT DELETE 2 CREWS<SP9> 		1-75026-836-0 01 1 0004-0004 ● ●
182 CUSHION ASM; CENTER SEAT
FABRIC SEAT W/RECLINING<SFQ> EXC. CENTER SEAT DELETE 2 CREWS<SP9> 		1-75026-839-0 01 1 0005-0010 ●
182 CUSHION ASM; CENTER SEAT
FABRIC SEAT W/RECLINING<SFQ> EXC. DRIVER ISRINGHAUSEN SEAT<SJA>,CENTER SEAT DELETE 2 CREWS<SP9> 		1-75026-839-0 01 1 0011-0012 ●
182 CUSHION ASM; CENTER SEAT
NEW ZEALAND EQUIPMENT(PK5) DRIVER ISRINGHAUSEN SEAT<SJA> EXC. CENTER SEAT DELETE 2 CREWS<SP9> 		1-75026-839-4 01 1 0101- ●
182 CUSHION ASM; CENTER SEAT
FABRIC SEAT W/RECLINING<SFQ> EXC. DRIVER ISRINGHAUSEN SEAT<SJA>,CENTER SEAT DELETE 2 CREWS<SP9> 		1-75026-839-4 01 1 0101- ●
182 CUSHION ASM; CENTER SEAT
FABRIC SEAT W/RECLINING<SFQ> EXC. AUSTRALIA EQUIPMENT(RR3),CENTER SEAT DELETE 2 CREWS<SP9> 		1-75028-766-1 01 1 9604-9803 ● ●
182 CUSHION ASM; CENTER SEAT
VINYL SEAT<A83> AUSTRALIA EQUIPMENT(RR3) EXC. CENTER SEAT DELETE 2 CREWS<SP9> 		1-75028-821-0 01 1 9604-9803 ● ●
182 CUSHION ASM; CENTER SEAT
VINYL SEAT<A83> AUSTRALIA EQUIPMENT(RR3) 		1-75028-821-0 01 1 9604-9803 ● ●
182 CUSHION ASM; CENTER SEAT
EXC. CENTER SEAT DELETE 2 CREWS<SP9> 		1-75028-821-0 01 1 9804-9811 ● ● ● ● ●
182 CUSHION ASM; CENTER SEAT
VINYL SEAT<A83> EXC. CENTER SEAT DELETE 2 CREWS<SP9> 		1-75028-821-0 01 1 9812-0003 ● ● ●
182 CUSHION ASM; CENTER SEAT 1-75028-821-0 01 1 9812-0003 ● ●
182 CUSHION ASM; CENTER SEAT
VINYL SEAT<A83> EXC. CENTER SEAT DELETE 2 CREWS<SP9> 		1-75026-829-0 01 1 0004-0004 ● ● ●
182 CUSHION ASM; CENTER SEAT 1-75026-829-0 01 1 0004-0004 ● ●
182 CUSHION ASM; CENTER SEAT
VINYL SEAT<A83> EXC. CENTER SEAT DELETE 2 CREWS<SP9> 		1-75026-845-4 01 1 0005-0104 ● ● ●
182 CUSHION ASM; CENTER SEAT
EXC. CENTER SEAT DELETE 2 CREWS<SP9> 		1-75026-845-4 01 1 0105- ● ●
182 CUSHION ASM; CENTER SEAT
VINYL SEAT<A83> EXC. CENTER SEAT DELETE 2 CREWS<SP9> 		1-75026-845-4 01 1 0105- ●
182 CUSHION ASM; CENTER SEAT
VINYL SEAT<A83> EXC. AUSTRALIA EQUIPMENT(RR3),CENTER SEAT DELETE 2 CREWS<SP9> 		1-75028-767-2 01 1 9604-9803 ● ●
182 CUSHION ASM; CENTER SEAT
VINYL SEAT<A83> EXC. AUSTRALIA EQUIPMENT(RR3) 		1-75028-767-2 01 1 9604-9803 ● ●
182 CUSHION ASM; CENTER SEAT
VINYL SEAT<A83> EXC. CENTER SEAT DELETE 2 CREWS<SP9> 		1-75028-767-2 01 1 9604-9803 ●
182 CUSHION ASM; CENTER SEAT
DRIVER ISRINGHAUSEN SEAT<SJA> EXC. CENTER SEAT DELETE 2 CREWS<SP9> 		1-75026-843-0 01 1 0011-0012 ●
182 CUSHION ASM; CENTER SEAT
DRIVER ISRINGHAUSEN SEAT<SJA> EXC. NEW ZEALAND EQUIPMENT(PK5),CENTER SEAT DELETE 2 CREWS<SP9> 		1-75026-843-4 01 1 0101- ●
188 BOLT; BACK TO CUSHION
EXC. CENTER SEAT DELETE 2 CREWS<SP9> M10X16 FLANGE 		1-75198-053-0 04 1 9604-0004 ● ● ● ● ●
188 BOLT; BACK TO CUSHION
EXC. CENTER SEAT DELETE 2 CREWS<SP9> M10X16 FLANGE 		1-75198-053-0 04 1 0005- ● ● ●
189 BUSHING; HINGE,CENTER SEAT BACK
EXC. CENTER SEAT DELETE 2 CREWS<SP9> 		8-97854-900-0 01 1 9604-0004 ● ● ● ● ●
189 BUSHING; HINGE,CENTER SEAT BACK
EXC. CENTER SEAT DELETE 2 CREWS<SP9> 		8-97854-900-0 01 1 0005- ● ● ●
359 BOX; PARCEL
EXC. CENTER SEAT DELETE 2 CREWS<SP9> 		1-72538-157-2 01 1 9604-0004 ● ● ● ● ●
359 BOX; PARCEL
EXC. CENTER SEAT DELETE 2 CREWS<SP9> 		1-72538-275-4 01 1 0005-1006 ● ● ●
359 BOX; PARCEL
EXC. CENTER SEAT DELETE 2 CREWS<SP9> 		8-98145-114-0 01 1 1007- ● ● ●
360 SCREW; PARCEL
EXC. CENTER SEAT DELETE 2 CREWS<SP9> (A) M3X10 TAPPING CK-HEAD 		0-70080-310-0 04 1 9604-0004 ● ● ● ● ●
360 SCREW; PARCEL
EXC. CENTER SEAT DELETE 2 CREWS<SP9> (A) M3X10 TAPPING CK-HEAD 		0-70080-310-0 04 1 0005-0612 ● ● ●
360 SCREW; PARCEL
EXC. CENTER SEAT DELETE 2 CREWS<SP9> (A) M3X10 TAPPING CK-HEAD 		0-70040-310-0 04 1 0701-1006 ● ● ●
360 SCREW; PARCEL
EXC. CENTER SEAT DELETE 2 CREWS<SP9> (D) M5X14 TAPPING CK-HEAD 		0-70040-514-0 02 1 1007- ● ● ●
360 SCREW; PARCEL
EXC. CENTER SEAT DELETE 2 CREWS<SP9> (B) M4X16 		0-70080-416-0 06 1 9604-0004 ● ● ● ● ●
360 SCREW; PARCEL
EXC. CENTER SEAT DELETE 2 CREWS<SP9> (B) M4X16 		0-70080-416-0 06 1 0005-0612 ● ● ●
360 SCREW; PARCEL
EXC. CENTER SEAT DELETE 2 CREWS<SP9> (B) M4X16 		0-70040-416-0 06 1 0701-1104 ● ● ●
360 SCREW; PARCEL
EXC. CENTER SEAT DELETE 2 CREWS<SP9> (B) M4X16 		0-70080-416-0 06 1 1105- ● ● ●
360 SCREW; PARCEL
EXC. CENTER SEAT DELETE 2 CREWS<SP9> (C) M5X16 TAPPING W/PL WASHER 		0-74310-516-0 06 1 9604-0004 ● ● ● ● ●
360 SCREW; PARCEL
EXC. CENTER SEAT DELETE 2 CREWS<SP9> (C) M5X16 TAPPING W/PL WASHER 		0-74310-516-0 06 1 0005-1006 ● ● ●
360 SCREW; PARCEL
EXC. CENTER SEAT DELETE 2 CREWS<SP9> (C) M5X16 TAPPING W/PL WASHER 		0-74310-516-0 04 1 1007- ● ● ●
403 NUT; CENTER SEAT
EXC. CENTER SEAT DELETE 2 CREWS<SP9> M8 FLANGE 		8-94279-504-1 04 1 9604-9803 ● ● ● ● ●
403 NUT; CENTER SEAT
EXC. CENTER SEAT DELETE 2 CREWS<SP9> M8 FLANGE 		8-94279-518-0 04 1 9804-0004 ● ● ● ● ●
403 NUT; CENTER SEAT
EXC. CENTER SEAT DELETE 2 CREWS<SP9> M8 FLANGE 		8-94279-518-0 04 1 0005-0312 ● ● ●
403 NUT; CENTER SEAT
EXC. CENTER SEAT DELETE 2 CREWS<SP9> M8 FLANGE 		1-75538-207-0 04 1 0401-0703 ● ● ●
403 NUT; CENTER SEAT
EXC. CENTER SEAT DELETE 2 CREWS<SP9> M8 FLANGE 		0-91180-108-0 04 1 0704- ● ● ●
506 CAP; PARCEL BOX
EXC. CENTER SEAT DELETE 2 CREWS<SP9> 		1-09983-164-0 04 1 9604-0004 ● ● ● ● ●
506 CAP; PARCEL BOX
EXC. CENTER SEAT DELETE 2 CREWS<SP9> 		1-09983-180-3 04 1 0005-1006 ● ● ●
506 CAP; PARCEL BOX
EXC. CENTER SEAT DELETE 2 CREWS<SP9> 		1-09983-180-3 02 1 1007- ● ● ●
çizim 152974
62 76 322 81
BalonParca AdiParca NoAdetTipApplied Date A B C D E
62 DAMPER ASM; SEAT SUSP
DRIVER ISRINGHAUSEN SEAT<SJA> (C) 		1-75538-198-0 01 1 9811-0004 ● ● ● ●
62 DAMPER ASM; SEAT SUSP
DRIVER ISRINGHAUSEN SEAT<SJA> (C) 		1-75538-198-0 01 1 0005- ●
62 DAMPER ASM; SEAT SUSP
SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> (A) 		1-75538-142-2 01 1 9604-9604 ● ●
62 DAMPER ASM; SEAT SUSP
SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> (A) 		1-75538-164-0 01 1 9605-9803 ● ●
62 DAMPER ASM; SEAT SUSP
AIR CONT SEAT<A60> (A) 		1-75538-164-0 01 1 9804-0004 ● ●
62 DAMPER ASM; SEAT SUSP
SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> (A) 		1-75538-160-0 01 1 9604-9604 ● ●
62 DAMPER ASM; SEAT SUSP
SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> (A) 		1-75538-165-0 01 1 9605-9803 ● ●
62 DAMPER ASM; SEAT SUSP
AIR CONT SEAT<A60> (A) 		1-75538-165-0 01 1 9804-9810 ● ●
62 DAMPER ASM; SEAT SUSP
AIR CONT SEAT<A60>,SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> (A) 		1-75538-165-0 01 1 9811-0004 ● ●
62 DAMPER ASM; SEAT SUSP
AIR SUSP DRIVER SEAT<A56> (B) 		1-75538-156-0 01 1 9604-9712 ●
62 DAMPER ASM; SEAT SUSP
AIR SUSP DRIVER SEAT<A56> (B) 		1-75538-167-0 01 1 9801-9804 ●
62 DAMPER ASM; SEAT SUSP
AIR SUSP DRIVER SEAT<A56> (B) 		1-75538-180-0 01 1 9805-9811 ●
62 DAMPER ASM; SEAT SUSP
AIR SUSP DRIVER SEAT<A56> (B) 		1-75538-183-8 01 1 9812-1403 ●
62 DAMPER ASM; SEAT SUSP
AIR SUSP DRIVER SEAT<A56> (B) 		8-98261-448-0 01 1 1404- ●
76 DAMPER; AIR SUSP
SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> (A) 		1-75530-073-0 01 1 9604-9604 ● ● ● ●
76 DAMPER; AIR SUSP
SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> (A) 		1-75538-166-0 01 1 9605-9803 ● ● ● ●
76 DAMPER; AIR SUSP
AIR CONT SEAT<A60> (A) 		1-75538-166-0 01 1 9804-9810 ● ● ● ●
76 DAMPER; AIR SUSP
AIR CONT SEAT<A60> (A) 		1-75538-166-0 01 1 9811-0004 ● ●
76 DAMPER; AIR SUSP
AIR CONT SEAT<A60>,SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> (A) 		1-75538-166-0 01 1 9811-0004 ● ●
76 DAMPER; AIR SUSP
AIR SUSP DRIVER SEAT<A56> (B) 		1-75538-139-0 01 1 9604- ●
76 DAMPER; AIR SUSP
DRIVER ISRINGHAUSEN SEAT<SJA> (C) 		1-75538-201-0 01 1 9811-0004 ● ● ● ●
76 DAMPER; AIR SUSP
DRIVER ISRINGHAUSEN SEAT<SJA> (C) 		1-75538-201-0 01 1 0005- ●
81 SPRING; AIR
AIR SUSP DRIVER SEAT<A56> 		1-75538-151-2 01 1 9604-1312 ●
81 SPRING; AIR
AIR SUSP DRIVER SEAT<A56> 		8-98242-816-0 01 1 1401- ●
81 SPRING; AIR
DRIVER ISRINGHAUSEN SEAT<SJA> 		1-75538-199-0 01 1 9811-0004 ● ● ● ●
81 SPRING; AIR
DRIVER ISRINGHAUSEN SEAT<SJA> 		1-75538-199-0 01 1 0005- ●
322 VALVE; AIR SPRING
DRIVER ISRINGHAUSEN SEAT<SJA> 		1-75538-200-0 01 1 9811-0004 ● ● ● ●
322 VALVE; AIR SPRING
DRIVER ISRINGHAUSEN SEAT<SJA> 		1-75538-200-0 01 1 0005- ●
322 VALVE; AIR SPRING
AIR SUSP DRIVER SEAT<A56> 		1-75538-154-0 01 1 9604-9804 ●
322 VALVE; AIR SPRING
AIR SUSP DRIVER SEAT<A56> 		1-75538-186-3 01 1 9805- ●
çizim 152978
78 84 62 80 423 84 78 80 88 85 79 85 84 87 76 86 87 84 88 77 419 86 77 79 85 88 78 79 83 88 85 419 79 472 86 472 78 91 420 425 64 423 78 77 78 419
BalonParca AdiParca NoAdetTipApplied Date A B C D E
62 DAMPER ASM; SEAT SUSP
DRIVER ISRINGHAUSEN SEAT<SJA> (C) 		1-75538-198-0 01 1 9811-0004 ● ● ● ●
62 DAMPER ASM; SEAT SUSP
DRIVER ISRINGHAUSEN SEAT<SJA> (C) 		1-75538-198-0 01 1 0005- ●
62 DAMPER ASM; SEAT SUSP
SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> (A) 		1-75538-142-2 01 1 9604-9604 ● ●
62 DAMPER ASM; SEAT SUSP
SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> (A) 		1-75538-164-0 01 1 9605-9803 ● ●
62 DAMPER ASM; SEAT SUSP
AIR CONT SEAT<A60> (A) 		1-75538-164-0 01 1 9804-0004 ● ●
62 DAMPER ASM; SEAT SUSP
SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> (A) 		1-75538-160-0 01 1 9604-9604 ● ●
62 DAMPER ASM; SEAT SUSP
SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> (A) 		1-75538-165-0 01 1 9605-9803 ● ●
62 DAMPER ASM; SEAT SUSP
AIR CONT SEAT<A60> (A) 		1-75538-165-0 01 1 9804-9810 ● ●
62 DAMPER ASM; SEAT SUSP
AIR CONT SEAT<A60>,SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> (A) 		1-75538-165-0 01 1 9811-0004 ● ●
62 DAMPER ASM; SEAT SUSP
AIR SUSP DRIVER SEAT<A56> (B) 		1-75538-156-0 01 1 9604-9712 ●
62 DAMPER ASM; SEAT SUSP
AIR SUSP DRIVER SEAT<A56> (B) 		1-75538-167-0 01 1 9801-9804 ●
62 DAMPER ASM; SEAT SUSP
AIR SUSP DRIVER SEAT<A56> (B) 		1-75538-180-0 01 1 9805-9811 ●
62 DAMPER ASM; SEAT SUSP
AIR SUSP DRIVER SEAT<A56> (B) 		1-75538-183-8 01 1 9812-1403 ●
62 DAMPER ASM; SEAT SUSP
AIR SUSP DRIVER SEAT<A56> (B) 		8-98261-448-0 01 1 1404- ●
64 STOPPER; LWR,SUSPENSION DEVICE
SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> 		1-75530-080-0 01 1 9604-9803 ● ● ● ●
64 STOPPER; LWR,SUSPENSION DEVICE
AIR CONT SEAT<A60> 		1-75530-080-0 01 1 9804-9810 ● ● ● ●
64 STOPPER; LWR,SUSPENSION DEVICE
AIR CONT SEAT<A60> 		1-75530-080-0 01 1 9811-0004 ● ●
64 STOPPER; LWR,SUSPENSION DEVICE
AIR CONT SEAT<A60>,SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> 		1-75530-080-0 01 1 9811-0004 ● ●
76 DAMPER; AIR SUSP
SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> (A) 		1-75530-073-0 01 1 9604-9604 ● ● ● ●
76 DAMPER; AIR SUSP
SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> (A) 		1-75538-166-0 01 1 9605-9803 ● ● ● ●
76 DAMPER; AIR SUSP
AIR CONT SEAT<A60> (A) 		1-75538-166-0 01 1 9804-9810 ● ● ● ●
76 DAMPER; AIR SUSP
AIR CONT SEAT<A60> (A) 		1-75538-166-0 01 1 9811-0004 ● ●
76 DAMPER; AIR SUSP
AIR CONT SEAT<A60>,SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> (A) 		1-75538-166-0 01 1 9811-0004 ● ●
76 DAMPER; AIR SUSP
AIR SUSP DRIVER SEAT<A56> (B) 		1-75538-139-0 01 1 9604- ●
76 DAMPER; AIR SUSP
DRIVER ISRINGHAUSEN SEAT<SJA> (C) 		1-75538-201-0 01 1 9811-0004 ● ● ● ●
76 DAMPER; AIR SUSP
DRIVER ISRINGHAUSEN SEAT<SJA> (C) 		1-75538-201-0 01 1 0005- ●
77 PIN; DAMPER
SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> (A) 		1-75530-040-0 02 1 9604-9803 ● ● ● ●
77 PIN; DAMPER
AIR CONT SEAT<A60> (A) 		1-75530-040-0 02 1 9804-9810 ● ● ● ●
77 PIN; DAMPER
AIR CONT SEAT<A60> (A) 		1-75530-040-0 02 1 9811-0004 ● ●
77 PIN; DAMPER
AIR CONT SEAT<A60>,SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> (A) 		1-75530-040-0 02 1 9811-0004 ● ●
77 PIN; DAMPER
SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> (B) 		1-75530-065-0 01 1 9604-9803 ● ● ● ●
77 PIN; DAMPER
AIR CONT SEAT<A60> (B) 		1-75530-065-0 01 1 9804-9810 ● ● ● ●
77 PIN; DAMPER
AIR CONT SEAT<A60> (B) 		1-75530-065-0 01 1 9811-0004 ● ●
77 PIN; DAMPER
AIR CONT SEAT<A60>,SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> (B) 		1-75530-065-0 01 1 9811-0004 ● ●
77 PIN; DAMPER
AIR SUSP DRIVER SEAT<A56> (C) 		1-75538-138-2 01 1 9604- ●
78 RING; SNAP
SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> (B) 		1-75530-069-0 02 1 9604-9803 ● ● ● ●
78 RING; SNAP
AIR CONT SEAT<A60> (B) 		1-75530-069-0 02 1 9804-9810 ● ● ● ●
78 RING; SNAP
AIR CONT SEAT<A60> (B) 		1-75530-069-0 02 1 9811-0004 ● ●
78 RING; SNAP
AIR CONT SEAT<A60>,SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> (B) 		1-75530-069-0 02 1 9811-0004 ● ●
78 RING; SNAP
SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> (A) 		1-75530-066-0 04 1 9604-9803 ● ●
78 RING; SNAP
AIR CONT SEAT<A60> (A) 		1-75530-066-0 04 1 9804-9810 ● ● ● ●
78 RING; SNAP
AIR CONT SEAT<A60> (A) 		1-75530-066-0 04 1 9811-0004 ● ●
78 RING; SNAP
AIR CONT SEAT<A60>,SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> (A) 		1-75530-066-0 04 1 9811-0004 ● ●
78 RING; SNAP
SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> (A) 		1-75530-066-0 03 1 9604-9803 ● ●
78 RING; SNAP
AIR SUSP DRIVER SEAT<A56> (C) ID=8 		9-09185-408-0 01 1 9604- ●
78 RING; SNAP
AIR SUSP DRIVER SEAT<A56> (D) ID=10 		9-09185-410-0 02 1 9604-0406 ●
78 RING; SNAP
AIR SUSP DRIVER SEAT<A56> (E) ID=15 		9-09185-415-0 01 1 9604- ●
79 ROLLER ASM; AIR SUSP
SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> (A) 		1-75530-043-0 04 1 9604-9803 ● ● ● ●
79 ROLLER ASM; AIR SUSP
AIR CONT SEAT<A60> (A) 		1-75530-043-0 04 1 9804-9810 ● ● ● ●
79 ROLLER ASM; AIR SUSP
AIR CONT SEAT<A60> (A) 		1-75530-043-0 04 1 9811-0004 ● ●
79 ROLLER ASM; AIR SUSP
AIR CONT SEAT<A60>,SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> (A) 		1-75530-043-0 04 1 9811-0004 ● ●
79 ROLLER ASM; AIR SUSP
AIR SUSP DRIVER SEAT<A56> (B) 		1-75538-159-0 04 1 9604-1403 ●
79 ROLLER ASM; AIR SUSP
AIR SUSP DRIVER SEAT<A56> (B) 		8-98261-489-0 04 1 1404- ●
80 RUBBER; STOPPER
EXC. CENTER SEAT DELETE 2 CREWS<SP9> (C) 		1-72538-187-0 02 1 1007- ● ● ●
80 RUBBER; STOPPER
SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> (A) 		1-75530-062-0 02 1 9604-9803 ● ● ● ●
80 RUBBER; STOPPER
AIR CONT SEAT<A60> (A) 		1-75530-062-0 02 1 9804-9810 ● ● ● ●
80 RUBBER; STOPPER
AIR CONT SEAT<A60> (A) 		1-75530-062-0 02 1 9811-0004 ● ●
80 RUBBER; STOPPER
AIR CONT SEAT<A60>,SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> (A) 		1-75530-062-0 02 1 9811-0004 ● ●
80 RUBBER; STOPPER
AIR SUSP DRIVER SEAT<A56> (B) 		1-09987-123-0 01 1 9604- ●
83 PIN; LOW & UPR
SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> 		1-75530-070-0 01 1 9604-9803 ● ● ● ●
83 PIN; LOW & UPR
AIR CONT SEAT<A60> 		1-75530-070-0 01 1 9804-9810 ● ● ● ●
83 PIN; LOW & UPR
AIR CONT SEAT<A60> 		1-75530-070-0 01 1 9811-0004 ● ●
83 PIN; LOW & UPR
AIR CONT SEAT<A60>,SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> 		1-75530-070-0 01 1 9811-0004 ● ●
84 NUT; AIR SUSP
SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> (A) 		1-75530-042-0 02 1 9604-9803 ● ● ● ●
84 NUT; AIR SUSP
AIR CONT SEAT<A60> (A) 		1-75530-042-0 02 1 9804-9810 ● ● ● ●
84 NUT; AIR SUSP
AIR CONT SEAT<A60> (A) 		1-75530-042-0 02 1 9811-0004 ● ●
84 NUT; AIR SUSP
AIR CONT SEAT<A60>,SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> (A) 		1-75530-042-0 02 1 9811-0004 ● ●
84 NUT; AIR SUSP
SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> (B) 		1-75530-063-0 02 1 9604-9803 ● ● ● ●
84 NUT; AIR SUSP
AIR CONT SEAT<A60> (B) 		1-75530-063-0 02 1 9804-9810 ● ● ● ●
84 NUT; AIR SUSP
AIR CONT SEAT<A60> (B) 		1-75530-063-0 02 1 9811-0004 ● ●
84 NUT; AIR SUSP
AIR CONT SEAT<A60>,SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> (B) 		1-75530-063-0 02 1 9811-0004 ● ●
85 BOLT; AIR SUSP
AIR SUSP DRIVER SEAT<A56> (F) M8X25 W/LK&PL WASHER 		8-98243-394-0 01 1 1401- ●
85 BOLT; AIR SUSP
SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> (A) 		1-75530-048-0 02 1 9604-9803 ● ● ● ●
85 BOLT; AIR SUSP
AIR CONT SEAT<A60> (A) 		1-75530-048-0 02 1 9804-9810 ● ● ● ●
85 BOLT; AIR SUSP
AIR CONT SEAT<A60> (A) 		1-75530-048-0 02 1 9811-0004 ● ●
85 BOLT; AIR SUSP
AIR CONT SEAT<A60>,SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> (A) 		1-75530-048-0 02 1 9811-0004 ● ●
85 BOLT; AIR SUSP
SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> (B) 		1-75530-068-0 02 1 9604-9803 ● ● ● ●
85 BOLT; AIR SUSP
AIR CONT SEAT<A60> (B) 		1-75530-068-0 02 1 9804-9810 ● ● ● ●
85 BOLT; AIR SUSP
AIR CONT SEAT<A60> (B) 		1-75530-068-0 02 1 9811-0004 ● ●
85 BOLT; AIR SUSP
AIR CONT SEAT<A60>,SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> (B) 		1-75530-068-0 02 1 9811-0004 ● ●
85 BOLT; AIR SUSP
AIR SUSP DRIVER SEAT<A56> (C) M6X12 W/LK WASHER 		0-50040-612-0 02 1 9604-0004 ●
85 BOLT; AIR SUSP
AIR SUSP DRIVER SEAT<A56> (C) M6X12 		1-75538-208-1 02 1 0005- ●
85 BOLT; AIR SUSP
AIR SUSP DRIVER SEAT<A56> (D) M8X20 W/LK&PL WASHER 		0-50140-820-0 03 1 9604-0003 ●
85 BOLT; AIR SUSP
AIR SUSP DRIVER SEAT<A56> (D) M8X22 W/LK&PL WASHER 		1-75538-209-0 03 1 0004-1312 ●
85 BOLT; AIR SUSP
AIR SUSP DRIVER SEAT<A56> (D) M8X22 W/LK&PL WASHER 		1-75538-209-0 02 1 1401- ●
85 BOLT; AIR SUSP
AIR SUSP DRIVER SEAT<A56> (E) 		1-09980-577-1 01 1 9604- ●
86 BUSHING; GUIDE
SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> (A) 		1-75530-041-0 02 1 9604-9803 ● ● ● ●
86 BUSHING; GUIDE
AIR CONT SEAT<A60> (A) 		1-75530-041-0 02 1 9804-9810 ● ● ● ●
86 BUSHING; GUIDE
AIR CONT SEAT<A60> (A) 		1-75530-041-0 02 1 9811-0004 ● ●
86 BUSHING; GUIDE
AIR CONT SEAT<A60>,SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> (A) 		1-75530-041-0 02 1 9811-0004 ● ●
86 BUSHING; GUIDE
SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> (B) 		1-75530-071-0 01 1 9604-9803 ● ● ● ●
86 BUSHING; GUIDE
AIR CONT SEAT<A60> (B) 		1-75530-071-0 01 1 9804-9810 ● ● ● ●
86 BUSHING; GUIDE
AIR CONT SEAT<A60> (B) 		1-75530-071-0 01 1 9811-0004 ● ●
86 BUSHING; GUIDE
AIR CONT SEAT<A60>,SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> (B) 		1-75530-071-0 01 1 9811-0004 ● ●
86 BUSHING; GUIDE
AIR SUSP DRIVER SEAT<A56> (C) OD=6.2 LIGHT GRAY 		1-09983-173-1 02 1 9604- ●
87 WASHER; AIR SUSP
SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> (A) 		1-75530-036-0 02 1 9604-9803 ● ● ● ●
87 WASHER; AIR SUSP
AIR CONT SEAT<A60> (A) 		1-75530-036-0 02 1 9804-9810 ● ● ● ●
87 WASHER; AIR SUSP
AIR CONT SEAT<A60> (A) 		1-75530-036-0 02 1 9811-0004 ● ●
87 WASHER; AIR SUSP
AIR CONT SEAT<A60>,SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> (A) 		1-75530-036-0 02 1 9811-0004 ● ●
87 WASHER; AIR SUSP
AIR SUSP DRIVER SEAT<A56> (B) ID=8.2 		9-09150-508-0 01 1 9604-0710 ●
87 WASHER; AIR SUSP
AIR SUSP DRIVER SEAT<A56> (B) ID=8.2 		0-91510-508-0 01 1 0711- ●
88 NUT; AIR SUSP
SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> (A) 		1-75530-039-0 04 1 9604-9803 ● ● ● ●
88 NUT; AIR SUSP
AIR CONT SEAT<A60> (A) 		1-75530-039-0 04 1 9804-9810 ● ● ● ●
88 NUT; AIR SUSP
AIR CONT SEAT<A60> (A) 		1-75530-039-0 04 1 9811-0004 ● ●
88 NUT; AIR SUSP
AIR CONT SEAT<A60>,SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> (A) 		1-75530-039-0 04 1 9811-0004 ● ●
88 NUT; AIR SUSP
AIR SUSP DRIVER SEAT<A56> (B) M10 		8-94279-519-0 01 1 9604-0003 ●
88 NUT; AIR SUSP
AIR SUSP DRIVER SEAT<A56> HIGH ROOF<S2F> (B) M10 		1-75537-273-1 01 1 0004-0004 ●
88 NUT; AIR SUSP
AIR SUSP DRIVER SEAT<A56> (B) M10 		1-75537-273-1 01 1 0005- ●
88 NUT; AIR SUSP
AIR SUSP DRIVER SEAT<A56> LOW ROOF<6XQ> (B) 		1-75537-209-0 01 1 0004-0004 ●
91 SCREW; SEAT ADJ COVER
SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> 		1-75530-081-0 01 1 9604-9803 ● ● ● ●
91 SCREW; SEAT ADJ COVER
AIR CONT SEAT<A60> 		1-75530-081-0 01 1 9804-9810 ● ● ● ●
91 SCREW; SEAT ADJ COVER
AIR CONT SEAT<A60> 		1-75530-081-0 01 1 9811-0004 ● ●
91 SCREW; SEAT ADJ COVER
AIR CONT SEAT<A60>,SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> 		1-75530-081-0 01 1 9811-0004 ● ●
419 LINK ASM; SUSPENSION DEVICE
SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> (A) 		1-75530-085-0 01 1 9604-9803 ● ● ● ●
419 LINK ASM; SUSPENSION DEVICE
AIR CONT SEAT<A60> (A) 		1-75530-085-0 01 1 9804-9810 ● ● ● ●
419 LINK ASM; SUSPENSION DEVICE
AIR CONT SEAT<A60> (A) 		1-75530-085-0 01 1 9811-0004 ● ●
419 LINK ASM; SUSPENSION DEVICE
AIR CONT SEAT<A60>,SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> (A) 		1-75530-085-0 01 1 9811-0004 ● ●
419 LINK ASM; SUSPENSION DEVICE
SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> (B) 		1-75530-086-0 01 1 9604-9803 ● ● ● ●
419 LINK ASM; SUSPENSION DEVICE
AIR CONT SEAT<A60> (B) 		1-75530-086-0 01 1 9804-9810 ● ● ● ●
419 LINK ASM; SUSPENSION DEVICE
AIR CONT SEAT<A60> (B) 		1-75530-086-0 01 1 9811-0004 ● ●
419 LINK ASM; SUSPENSION DEVICE
AIR CONT SEAT<A60>,SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> (B) 		1-75530-086-0 01 1 9811-0004 ● ●
419 LINK ASM; SUSPENSION DEVICE
SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> (C) 		1-75530-087-0 01 1 9604-9803 ● ● ● ●
419 LINK ASM; SUSPENSION DEVICE
AIR CONT SEAT<A60> (C) 		1-75530-087-0 01 1 9804-9810 ● ● ● ●
419 LINK ASM; SUSPENSION DEVICE
AIR CONT SEAT<A60> (C) 		1-75530-087-0 01 1 9811-0004 ● ●
419 LINK ASM; SUSPENSION DEVICE
AIR CONT SEAT<A60>,SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> (C) 		1-75530-087-0 01 1 9811-0004 ● ●
420 KNOB; ADJ,SEAT SUSP
SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> 		1-75530-067-0 01 1 9604-9803 ● ● ● ●
420 KNOB; ADJ,SEAT SUSP
AIR CONT SEAT<A60> 		1-75530-067-0 01 1 9804-9810 ● ● ● ●
420 KNOB; ADJ,SEAT SUSP
AIR CONT SEAT<A60> 		1-75530-067-0 01 1 9811-0004 ● ●
420 KNOB; ADJ,SEAT SUSP
AIR CONT SEAT<A60>,SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> 		1-75530-067-0 01 1 9811-0004 ● ●
423 SHAFT; SEAT DAMPER
SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> (A) 		1-75530-064-0 01 1 9604-9803 ● ● ● ●
423 SHAFT; SEAT DAMPER
AIR CONT SEAT<A60> (A) 		1-75530-064-0 01 1 9804-9810 ● ● ● ●
423 SHAFT; SEAT DAMPER
AIR CONT SEAT<A60> (A) 		1-75530-064-0 01 1 9811-0004 ● ●
423 SHAFT; SEAT DAMPER
AIR CONT SEAT<A60>,SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> (A) 		1-75530-064-0 01 1 9811-0004 ● ●
423 SHAFT; SEAT DAMPER
SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> (B) 		1-75530-082-0 01 1 9604-9803 ● ● ● ●
423 SHAFT; SEAT DAMPER
AIR CONT SEAT<A60> (B) 		1-75530-082-0 01 1 9804-9810 ● ● ● ●
423 SHAFT; SEAT DAMPER
AIR CONT SEAT<A60> (B) 		1-75530-082-0 01 1 9811-0004 ● ●
423 SHAFT; SEAT DAMPER
AIR CONT SEAT<A60>,SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> (B) 		1-75530-082-0 01 1 9811-0004 ● ●
425 BEARING; THRUST,KNOB
SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> 		1-75530-074-0 01 1 9604-9803 ● ● ● ●
425 BEARING; THRUST,KNOB
AIR CONT SEAT<A60> 		1-75530-074-0 01 1 9804-9810 ● ● ● ●
425 BEARING; THRUST,KNOB
AIR CONT SEAT<A60> 		1-75530-074-0 01 1 9811-0004 ● ●
425 BEARING; THRUST,KNOB
AIR CONT SEAT<A60>,SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> 		1-75530-074-0 01 1 9811-0004 ● ●
472 PIN; SPRING
SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> (A) 		1-75530-072-0 01 1 9604-9803 ● ● ● ●
472 PIN; SPRING
AIR CONT SEAT<A60> (A) 		1-75530-072-0 01 1 9804-9810 ● ● ● ●
472 PIN; SPRING
AIR CONT SEAT<A60> (A) 		1-75530-072-0 01 1 9811-0004 ● ●
472 PIN; SPRING
AIR CONT SEAT<A60>,SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> (A) 		1-75530-072-0 01 1 9811-0004 ● ●
472 PIN; SPRING
SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> (B) 		1-75530-075-0 01 1 9604-9803 ● ● ● ●
472 PIN; SPRING
AIR CONT SEAT<A60> (B) 		1-75530-075-0 01 1 9804-9810 ● ● ● ●
472 PIN; SPRING
AIR CONT SEAT<A60> (B) 		1-75530-075-0 01 1 9811-0004 ● ●
472 PIN; SPRING
AIR CONT SEAT<A60>,SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> (B) 		1-75530-075-0 01 1 9811-0004 ● ●
çizim 153007
1 228 24 2 18 101 19 62 17 99 13 12 46 542 73 73 55 46 46 62 42 73 73
BalonParca AdiParca NoAdetTipApplied Date A B C D E
1 BACK ASM; SEAT
DRIVER ISRINGHAUSEN SEAT<SJA> 		1-75026-267-0 01 1 9811-0004 ● ● ● ●
1 BACK ASM; SEAT
DRIVER ISRINGHAUSEN SEAT<SJA> 		1-75026-267-0 01 1 0005- ●
1 BACK ASM; SEAT
RIGID SEAT WO/ARM REST<TAZ> 		1-75028-618-2 01 1 9604-9803 ● ● ●
1 BACK ASM; SEAT
RIGID SEAT WO/ARM REST<TAZ> LOW ROOF<6XQ> 		1-75028-618-2 01 1 9804-0003 ● ● ●
1 BACK ASM; SEAT
RIGID SEAT WO/ARM REST<TAZ> LOW ROOF<6XQ> 		1-75026-721-0 01 1 0004-0004 ● ● ●
1 BACK ASM; SEAT
RIGID SEAT WO/ARM REST<TAZ> LOW ROOF<6XQ> 		1-75026-728-0 01 1 0005-0104 ● ● ●
1 BACK ASM; SEAT 1-75026-728-0 01 1 0105-0105 ● ●
1 BACK ASM; SEAT
RIGID SEAT WO/ARM REST<TAZ> LOW ROOF<6XQ> 		1-75026-728-0 01 1 0105-0105 ●
1 BACK ASM; SEAT 1-75208-067-3 01 1 0106- ● ●
1 BACK ASM; SEAT
RIGID SEAT WO/ARM REST<TAZ> LOW ROOF<6XQ> 		1-75208-067-3 01 1 0106- ●
1 BACK ASM; SEAT
AIR CONT SEAT<A60> 		1-75028-864-2 01 1 9804-0003 ● ●
1 BACK ASM; SEAT
AIR CONT SEAT<A60> 		1-75026-711-0 01 1 0004-0004 ● ●
1 BACK ASM; SEAT
SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> 		1-75028-760-1 01 1 9604-9803 ● ●
1 BACK ASM; SEAT
HIGH ROOF<S2F> RIGID SEAT WO/ARM REST<TAZ> 		1-75028-590-2 01 1 9804-0003 ● ●
1 BACK ASM; SEAT
HIGH ROOF<S2F> RIGID SEAT WO/ARM REST<TAZ> 		1-75026-710-0 01 1 0004-0004 ● ●
1 BACK ASM; SEAT
HIGH ROOF<S2F> RIGID SEAT WO/ARM REST<TAZ> 		1-75026-730-0 01 1 0005-0105 ●
1 BACK ASM; SEAT
HIGH ROOF<S2F> RIGID SEAT WO/ARM REST<TAZ> 		1-75208-069-2 01 1 0106-0901 ●
1 BACK ASM; SEAT
HIGH ROOF<S2F> RIGID SEAT WO/ARM REST<TAZ> 		8-98135-615-0 01 1 0902- ●
1 BACK ASM; SEAT
SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> 		1-75027-512-2 01 1 9604-9803 ● ●
1 BACK ASM; SEAT
AIR CONT SEAT<A60> 		1-75026-032-0 01 1 9804-9810 ● ●
1 BACK ASM; SEAT
AIR CONT SEAT<A60>,SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> 		1-75026-032-0 01 1 9811-0003 ● ●
1 BACK ASM; SEAT
AIR CONT SEAT<A60>,SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> 		1-75026-715-0 01 1 0004-0004 ● ●
1 BACK ASM; SEAT
AIR SUSP DRIVER SEAT<A56> 		1-75027-392-1 01 1 9604-9803 ●
1 BACK ASM; SEAT
AIR SUSP DRIVER SEAT<A56> HIGH ROOF<S2F> 		1-75026-025-0 01 1 9804-0003 ●
1 BACK ASM; SEAT
AIR SUSP DRIVER SEAT<A56> HIGH ROOF<S2F> 		1-75026-716-0 01 1 0004-0004 ●
1 BACK ASM; SEAT
AIR SUSP DRIVER SEAT<A56> LOW ROOF<6XQ> 		1-75028-998-0 01 1 9804-0003 ●
1 BACK ASM; SEAT
AIR SUSP DRIVER SEAT<A56> LOW ROOF<6XQ> 		1-75026-712-0 01 1 0004-0004 ●
1 BACK ASM; SEAT
AIR SUSP DRIVER SEAT<A56> DRIVING POSITION WIDE LEG SPACE<PR2> HIGH ROOF<S2F> 		1-75026-729-0 01 1 0005-0105 ●
1 BACK ASM; SEAT
AIR SUSP DRIVER SEAT<A56> DRIVING POSITION WIDE LEG SPACE<PR2> HIGH ROOF<S2F> 		1-75208-068-2 01 1 0106-0901 ●
1 BACK ASM; SEAT
AIR SUSP DRIVER SEAT<A56> 		8-98135-612-0 01 1 0902- ●
2 COVER; TRIM,FRT SEAT,BACK
SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> 		1-75116-296-1 01 1 9604-9803 ●
2 COVER; TRIM,FRT SEAT,BACK
AIR SUSP DRIVER SEAT<A56>,SUSP SEAT W/SEAT BELTANCHORAGE<WN5> 		1-75116-296-1 01 1 9604-9803 ●
2 COVER; TRIM,FRT SEAT,BACK
AIR CONT SEAT<A60> 		1-75116-346-1 01 1 9804-0003 ● ●
2 COVER; TRIM,FRT SEAT,BACK
AIR CONT SEAT<A60> 		1-75116-586-0 01 1 0004-0004 ● ●
2 COVER; TRIM,FRT SEAT,BACK
AIR SUSP DRIVER SEAT<A56> 		1-75116-703-1 01 1 0005- ●
2 COVER; TRIM,FRT SEAT,BACK
RIGID SEAT WO/ARM REST<TAZ> 		1-75116-274-1 01 1 9604-9803 ● ● ●
2 COVER; TRIM,FRT SEAT,BACK
RIGID SEAT WO/ARM REST<TAZ> LOW ROOF<6XQ> 		1-75116-274-1 01 1 9804-0003 ● ● ●
2 COVER; TRIM,FRT SEAT,BACK
RIGID SEAT WO/ARM REST<TAZ> LOW ROOF<6XQ> 		1-75116-600-0 01 1 0004-0004 ● ● ●
2 COVER; TRIM,FRT SEAT,BACK
RIGID SEAT WO/ARM REST<TAZ> LOW ROOF<6XQ> 		1-75116-702-1 01 1 0005-0104 ● ● ●
2 COVER; TRIM,FRT SEAT,BACK 1-75116-702-1 01 1 0105- ● ●
2 COVER; TRIM,FRT SEAT,BACK
RIGID SEAT WO/ARM REST<TAZ> LOW ROOF<6XQ> 		1-75116-702-1 01 1 0105- ●
2 COVER; TRIM,FRT SEAT,BACK
AIR CONT SEAT<A60> 		1-75116-389-0 01 1 9804-9810 ● ●
2 COVER; TRIM,FRT SEAT,BACK
AIR CONT SEAT<A60>,SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> 		1-75116-389-0 01 1 9811-0003 ● ●
2 COVER; TRIM,FRT SEAT,BACK
AIR CONT SEAT<A60>,SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> 		1-75116-593-0 01 1 0004-0004 ● ●
2 COVER; TRIM,FRT SEAT,BACK
SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> 		1-75116-277-2 01 1 9604-9803 ● ●
2 COVER; TRIM,FRT SEAT,BACK
HIGH ROOF<S2F> RIGID SEAT WO/ARM REST<TAZ> 		1-75116-277-2 01 1 9804-0003 ● ●
2 COVER; TRIM,FRT SEAT,BACK
HIGH ROOF<S2F> RIGID SEAT WO/ARM REST<TAZ> 		1-75127-036-0 01 1 0004-0004 ● ●
2 COVER; TRIM,FRT SEAT,BACK
HIGH ROOF<S2F> RIGID SEAT WO/ARM REST<TAZ> 		1-75116-704-1 01 1 0005- ●
2 COVER; TRIM,FRT SEAT,BACK
AIR SUSP DRIVER SEAT<A56> HIGH ROOF<S2F> 		1-75116-377-0 01 1 9804-0003 ●
2 COVER; TRIM,FRT SEAT,BACK
AIR SUSP DRIVER SEAT<A56> HIGH ROOF<S2F> 		1-75116-595-0 01 1 0004-0004 ●
2 COVER; TRIM,FRT SEAT,BACK
AIR SUSP DRIVER SEAT<A56> LOW ROOF<6XQ> 		1-75116-373-0 01 1 9804-0003 ●
2 COVER; TRIM,FRT SEAT,BACK
AIR SUSP DRIVER SEAT<A56> LOW ROOF<6XQ> 		1-75116-587-0 01 1 0004-0004 ●
2 COVER; TRIM,FRT SEAT,BACK
DRIVER ISRINGHAUSEN SEAT<SJA> 		1-75116-464-0 01 1 9811-0004 ● ● ● ●
2 COVER; TRIM,FRT SEAT,BACK
DRIVER ISRINGHAUSEN SEAT<SJA> 		1-75116-464-0 01 1 0005- ●
12 CUSHION; SEAT,FRT
DRIVER ISRINGHAUSEN SEAT<SJA> 		1-75026-268-0 01 1 9811-0004 ● ● ● ●
12 CUSHION; SEAT,FRT
DRIVER ISRINGHAUSEN SEAT<SJA> 		1-75026-268-0 01 1 0005- ●
12 CUSHION; SEAT,FRT
RIGID SEAT WO/ARM REST<TAZ> 		1-75028-799-2 01 1 9604-9803 ● ● ●
12 CUSHION; SEAT,FRT
RIGID SEAT WO/ARM REST<TAZ> LOW ROOF<6XQ> 		1-75028-799-2 01 1 9804-0003 ● ● ●
12 CUSHION; SEAT,FRT
RIGID SEAT WO/ARM REST<TAZ> LOW ROOF<6XQ> 		1-75026-686-0 01 1 0004-0004 ● ● ●
12 CUSHION; SEAT,FRT
RIGID SEAT WO/ARM REST<TAZ> LOW ROOF<6XQ> 		1-75026-692-1 01 1 0005-0104 ● ● ●
12 CUSHION; SEAT,FRT 1-75026-692-1 01 1 0105- ● ●
12 CUSHION; SEAT,FRT
RIGID SEAT WO/ARM REST<TAZ> LOW ROOF<6XQ> 		1-75026-692-1 01 1 0105- ●
12 CUSHION; SEAT,FRT
AIR CONT SEAT<A60> 		1-75026-033-0 01 1 9804-0003 ● ●
12 CUSHION; SEAT,FRT
AIR CONT SEAT<A60> 		1-75026-681-0 01 1 0004-0004 ● ●
12 CUSHION; SEAT,FRT
SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> 		1-75028-870-1 01 1 9604-9803 ● ●
12 CUSHION; SEAT,FRT
HIGH ROOF<S2F> RIGID SEAT WO/ARM REST<TAZ> 		1-75028-764-2 01 1 9804-0003 ● ●
12 CUSHION; SEAT,FRT
HIGH ROOF<S2F> RIGID SEAT WO/ARM REST<TAZ> 		1-75207-147-0 01 1 0004-0004 ● ●
12 CUSHION; SEAT,FRT
HIGH ROOF<S2F> RIGID SEAT WO/ARM REST<TAZ> 		1-75026-695-3 01 1 0005- ●
12 CUSHION; SEAT,FRT
SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> 		1-75028-871-1 01 1 9604-9803 ● ●
12 CUSHION; SEAT,FRT
AIR CONT SEAT<A60> 		1-75028-871-1 01 1 9804-9810 ● ●
12 CUSHION; SEAT,FRT
AIR CONT SEAT<A60>,SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> 		1-75028-871-1 01 1 9811-0003 ● ●
12 CUSHION; SEAT,FRT
AIR CONT SEAT<A60>,SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> 		1-75026-676-0 01 1 0004-0004 ● ●
12 CUSHION; SEAT,FRT
AIR SUSP DRIVER SEAT<A56> 		1-75028-763-1 01 1 9604-9803 ●
12 CUSHION; SEAT,FRT
AIR SUSP DRIVER SEAT<A56> HIGH ROOF<S2F> 		1-75028-838-1 01 1 9804-0003 ●
12 CUSHION; SEAT,FRT
AIR SUSP DRIVER SEAT<A56> HIGH ROOF<S2F> 		1-75026-677-0 01 1 0004-0004 ●
12 CUSHION; SEAT,FRT
AIR SUSP DRIVER SEAT<A56> LOW ROOF<6XQ> 		1-75026-024-0 01 1 9804-0003 ●
12 CUSHION; SEAT,FRT
AIR SUSP DRIVER SEAT<A56> LOW ROOF<6XQ> 		1-75026-682-0 01 1 0004-0004 ●
12 CUSHION; SEAT,FRT
AIR SUSP DRIVER SEAT<A56> 		1-75026-693-3 01 1 0005- ●
13 COVER; TRIM,FRT SEAT,CUSHION
DRIVER ISRINGHAUSEN SEAT<SJA> 		1-75116-465-0 01 1 9811-0004 ● ● ● ●
13 COVER; TRIM,FRT SEAT,CUSHION
DRIVER ISRINGHAUSEN SEAT<SJA> 		1-75116-465-0 01 1 0005- ●
13 COVER; TRIM,FRT SEAT,CUSHION
RIGID SEAT WO/ARM REST<TAZ> 		1-75116-318-1 01 1 9604-9803 ● ● ●
13 COVER; TRIM,FRT SEAT,CUSHION
RIGID SEAT WO/ARM REST<TAZ> LOW ROOF<6XQ> 		1-75116-318-1 01 1 9804-0003 ● ● ●
13 COVER; TRIM,FRT SEAT,CUSHION
RIGID SEAT WO/ARM REST<TAZ> LOW ROOF<6XQ> 		1-75116-554-0 01 1 0004-0004 ● ● ●
13 COVER; TRIM,FRT SEAT,CUSHION
RIGID SEAT WO/ARM REST<TAZ> LOW ROOF<6XQ> 		1-75116-680-1 01 1 0005-0104 ● ● ●
13 COVER; TRIM,FRT SEAT,CUSHION 1-75116-680-1 01 1 0105- ● ●
13 COVER; TRIM,FRT SEAT,CUSHION
RIGID SEAT WO/ARM REST<TAZ> LOW ROOF<6XQ> 		1-75116-680-1 01 1 0105- ●
13 COVER; TRIM,FRT SEAT,CUSHION
AIR CONT SEAT<A60> 		1-75116-390-0 01 1 9804-0003 ● ●
13 COVER; TRIM,FRT SEAT,CUSHION
AIR CONT SEAT<A60> 		1-75116-548-0 01 1 0004-0004 ● ●
13 COVER; TRIM,FRT SEAT,CUSHION
SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> 		1-75117-901-0 01 1 9604-9803 ● ●
13 COVER; TRIM,FRT SEAT,CUSHION
HIGH ROOF<S2F> RIGID SEAT WO/ARM REST<TAZ> 		1-75116-301-1 01 1 9804-0003 ● ●
13 COVER; TRIM,FRT SEAT,CUSHION
HIGH ROOF<S2F> RIGID SEAT WO/ARM REST<TAZ> 		1-75116-539-0 01 1 0004-0004 ● ●
13 COVER; TRIM,FRT SEAT,CUSHION
HIGH ROOF<S2F> RIGID SEAT WO/ARM REST<TAZ> 		1-75116-683-1 01 1 0005- ●
13 COVER; TRIM,FRT SEAT,CUSHION
SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> 		1-75116-359-0 01 1 9604-9803 ● ●
13 COVER; TRIM,FRT SEAT,CUSHION
AIR CONT SEAT<A60> 		1-75116-359-0 01 1 9804-9810 ● ●
13 COVER; TRIM,FRT SEAT,CUSHION
AIR CONT SEAT<A60>,SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> 		1-75116-359-0 01 1 9811-0003 ● ●
13 COVER; TRIM,FRT SEAT,CUSHION
AIR CONT SEAT<A60>,SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> 		1-75116-545-0 01 1 0004-0004 ● ●
13 COVER; TRIM,FRT SEAT,CUSHION
AIR SUSP DRIVER SEAT<A56> 		1-75117-835-0 01 1 9604-9803 ●
13 COVER; TRIM,FRT SEAT,CUSHION
AIR SUSP DRIVER SEAT<A56> HIGH ROOF<S2F> 		1-75116-349-0 01 1 9804-0003 ●
13 COVER; TRIM,FRT SEAT,CUSHION
AIR SUSP DRIVER SEAT<A56> HIGH ROOF<S2F> 		1-75116-549-0 01 1 0004-0004 ●
13 COVER; TRIM,FRT SEAT,CUSHION
AIR SUSP DRIVER SEAT<A56> LOW ROOF<6XQ> 		1-75116-378-0 01 1 9804-0003 ●
13 COVER; TRIM,FRT SEAT,CUSHION
AIR SUSP DRIVER SEAT<A56> LOW ROOF<6XQ> 		1-75116-550-0 01 1 0004-0004 ●
13 COVER; TRIM,FRT SEAT,CUSHION
AIR SUSP DRIVER SEAT<A56> 		1-75116-681-1 01 1 0005- ●
17 BOLT; RECLINING
M8X18 		8-94279-109-1 02 1 9604-9810 ● ● ● ● ●
17 BOLT; RECLINING
EXC. DRIVER ISRINGHAUSEN SEAT<SJA> M8X18 		8-94279-109-1 02 1 9811-0003 ● ● ● ●
17 BOLT; RECLINING
EXC. DRIVER ISRINGHAUSEN SEAT<SJA> M8X20 		8-97255-906-0 02 1 0004-0004 ● ● ● ●
17 BOLT; RECLINING
M8X20 		8-97255-906-0 02 1 0004-0004 ●
17 BOLT; RECLINING
M8X20 		8-97255-906-0 02 1 0005- ● ●
17 BOLT; RECLINING
EXC. DRIVER ISRINGHAUSEN SEAT<SJA> M8X20 		8-97255-906-0 02 1 0005- ●
18 COVER; RECLINING 1-75418-050-0 01 1 9604-9810 ● ● ● ● ●
18 COVER; RECLINING
EXC. DRIVER ISRINGHAUSEN SEAT<SJA> 		1-75418-050-0 01 1 9811-0004 ● ● ● ●
18 COVER; RECLINING 1-75418-050-0 01 1 9811-0004 ●
18 COVER; RECLINING
DARK GRAY 		8-97867-020-0 01 1 0005- ● ●
18 COVER; RECLINING
EXC. DRIVER ISRINGHAUSEN SEAT<SJA> DARK GRAY 		8-97867-020-0 01 1 0005- ●
18 COVER; RECLINING
DRIVER ISRINGHAUSEN SEAT<SJA> 		1-75418-063-0 01 1 9811-0004 ● ● ● ●
18 COVER; RECLINING
DRIVER ISRINGHAUSEN SEAT<SJA> 		1-75418-063-0 01 1 0005- ●
19 SCREW; COVER
M5X16 TAPPING W/PL WASHER 		0-74310-516-0 01 1 9604-9810 ● ● ● ● ●
19 SCREW; COVER
EXC. DRIVER ISRINGHAUSEN SEAT<SJA> M5X16 TAPPING W/PL WASHER 		0-74310-516-0 01 1 9811-0004 ● ● ● ●
19 SCREW; COVER
M5X16 TAPPING W/PL WASHER 		0-74310-516-0 01 1 9811-0004 ●
19 SCREW; COVER
M5X16 TAPPING W/PL WASHER 		0-74310-516-0 01 1 0005- ● ●
19 SCREW; COVER
EXC. DRIVER ISRINGHAUSEN SEAT<SJA> M5X16 TAPPING W/PL WASHER 		0-74310-516-0 01 1 0005- ●
24 KNOB; RECLINING,FRT,SEAT
PASSENGER 		1-75418-056-0 01 1 9604-0004 ● ● ● ● ●
24 KNOB; RECLINING,FRT,SEAT
PASSENGER DARK GRAY 		8-97859-019-0 01 1 0005- ● ● ●
24 KNOB; RECLINING,FRT,SEAT
DRIVER 		1-75418-059-0 01 1 9604-9810 ● ● ● ● ●
24 KNOB; RECLINING,FRT,SEAT
EXC. DRIVER ISRINGHAUSEN SEAT<SJA> DRIVER 		1-75418-059-0 01 1 9811-0004 ● ● ● ●
24 KNOB; RECLINING,FRT,SEAT
DRIVER 		1-75418-059-0 01 1 9811-0004 ●
24 KNOB; RECLINING,FRT,SEAT
DRIVER DARK GRAY 		8-97867-021-0 01 1 0005-0710 ● ●
24 KNOB; RECLINING,FRT,SEAT
EXC. DRIVER ISRINGHAUSEN SEAT<SJA> DRIVER DARK GRAY 		8-97867-021-0 01 1 0005-0710 ●
24 KNOB; RECLINING,FRT,SEAT
DRIVER 		1-75418-066-0 01 1 0711- ● ●
24 KNOB; RECLINING,FRT,SEAT
EXC. DRIVER ISRINGHAUSEN SEAT<SJA> DRIVER 		1-75418-066-0 01 1 0711- ●
42 STAND; DRIVER SEAT
RIGID SEAT WO/ARM REST<TAZ> 		1-75558-491-4 01 1 9604-0003 ● ● ●
42 STAND; DRIVER SEAT
RIGID SEAT WO/ARM REST<TAZ> 		1-75558-604-2 01 1 0004-0104 ● ● ●
42 STAND; DRIVER SEAT 1-75558-604-2 01 1 0105- ● ●
42 STAND; DRIVER SEAT
RIGID SEAT WO/ARM REST<TAZ> HIGH ROOF<S2F>,LOW ROOF<6XQ> 		1-75558-604-2 01 1 0105- ●
42 STAND; DRIVER SEAT
DRIVING POSITION WIDE LEG SPACE<PR2> HIGH ROOF<S2F> RIGID SEAT WO/ARM REST<TAZ> 		1-75558-607-0 01 1 0103-0103 ●
46 BOLT; STAND TO FLOOR
M10X20 W/LK&PL WASHER 		8-94279-211-0 02 1 9604-0004 ● ● ● ● ●
46 BOLT; STAND TO FLOOR
M10X20 W/LK&PL WASHER 		8-94279-211-0 02 1 0005-0703 ● ● ●
46 BOLT; STAND TO FLOOR
M10X20 FLANGE 		0-28451-020-0 02 1 0704- ● ● ●
55 NUT; DRIVER SEAT STAND TO FLOOR PANEL
M10 FLANGE 		1-09984-153-0 02 1 9604-0004 ● ● ● ● ●
55 NUT; DRIVER SEAT STAND TO FLOOR PANEL
M10 FLANGE 		1-09984-153-0 02 1 0005-0703 ● ● ●
55 NUT; DRIVER SEAT STAND TO FLOOR PANEL
M10 FLANGE 		0-91180-110-0 02 1 0704- ● ● ●
62 DAMPER ASM; SEAT SUSP
DRIVER ISRINGHAUSEN SEAT<SJA> (C) 		1-75538-198-0 01 1 9811-0004 ● ● ● ●
62 DAMPER ASM; SEAT SUSP
DRIVER ISRINGHAUSEN SEAT<SJA> (C) 		1-75538-198-0 01 1 0005- ●
62 DAMPER ASM; SEAT SUSP
SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> (A) 		1-75538-142-2 01 1 9604-9604 ● ●
62 DAMPER ASM; SEAT SUSP
SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> (A) 		1-75538-164-0 01 1 9605-9803 ● ●
62 DAMPER ASM; SEAT SUSP
AIR CONT SEAT<A60> (A) 		1-75538-164-0 01 1 9804-0004 ● ●
62 DAMPER ASM; SEAT SUSP
SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> (A) 		1-75538-160-0 01 1 9604-9604 ● ●
62 DAMPER ASM; SEAT SUSP
SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> (A) 		1-75538-165-0 01 1 9605-9803 ● ●
62 DAMPER ASM; SEAT SUSP
AIR CONT SEAT<A60> (A) 		1-75538-165-0 01 1 9804-9810 ● ●
62 DAMPER ASM; SEAT SUSP
AIR CONT SEAT<A60>,SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> (A) 		1-75538-165-0 01 1 9811-0004 ● ●
62 DAMPER ASM; SEAT SUSP
AIR SUSP DRIVER SEAT<A56> (B) 		1-75538-156-0 01 1 9604-9712 ●
62 DAMPER ASM; SEAT SUSP
AIR SUSP DRIVER SEAT<A56> (B) 		1-75538-167-0 01 1 9801-9804 ●
62 DAMPER ASM; SEAT SUSP
AIR SUSP DRIVER SEAT<A56> (B) 		1-75538-180-0 01 1 9805-9811 ●
62 DAMPER ASM; SEAT SUSP
AIR SUSP DRIVER SEAT<A56> (B) 		1-75538-183-8 01 1 9812-1403 ●
62 DAMPER ASM; SEAT SUSP
AIR SUSP DRIVER SEAT<A56> (B) 		8-98261-448-0 01 1 1404- ●
73 NUT; ADJ,HEIGHT CONT
M8 FLANGE 		8-94279-518-0 08 1 9604-0003 ● ● ● ● ●
73 NUT; ADJ,HEIGHT CONT
M8 FLANGE 		1-75538-207-0 08 1 0004-0004 ● ● ● ● ●
73 NUT; ADJ,HEIGHT CONT
M8 FLANGE 		1-75538-207-0 04 1 0005- ● ● ●
73 NUT; ADJ,HEIGHT CONT
M8 FLANGE 		8-94279-518-0 04 1 9604-0003 ● ● ● ● ●
73 NUT; ADJ,HEIGHT CONT
M8 FLANGE 		1-75538-207-0 04 1 0004-0004 ● ● ● ● ●
73 NUT; ADJ,HEIGHT CONT
M8 FLANGE 		1-75538-207-0 08 1 0005- ● ● ●
99 BUSHING; SEAT BACK 8-97854-087-0 01 1 9604-0004 ● ● ● ● ●
99 BUSHING; SEAT BACK 8-97854-087-0 01 1 0005- ● ● ●
101 LEVER ASM; LUMBAR
SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> 		5-75190-138-0 01 1 9604-9803 ● ● ● ●
101 LEVER ASM; LUMBAR
AIR CONT SEAT<A60> 		5-75190-138-0 01 1 9804-9810 ● ● ● ●
101 LEVER ASM; LUMBAR
AIR CONT SEAT<A60> 		5-75190-138-0 01 1 9811-0004 ● ●
101 LEVER ASM; LUMBAR
AIR CONT SEAT<A60>,SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> 		5-75190-138-0 01 1 9811-0004 ● ●
101 LEVER ASM; LUMBAR
AIR SUSP DRIVER SEAT<A56> 		5-75190-138-0 01 1 0005- ●
228 SCREW; KNOB
DRIVER SIDE M4 		8-98062-662-0 01 1 0711- ● ●
228 SCREW; KNOB
EXC. DRIVER ISRINGHAUSEN SEAT<SJA> DRIVER SIDE M4 		8-98062-662-0 01 1 0711- ●
228 SCREW; KNOB
M4X6 		8-97042-273-0 02 1 9604-9805 ● ● ● ● ●
228 SCREW; KNOB
M4X6 		8-97042-273-0 01 1 9806-0004 ● ● ● ● ●
228 SCREW; KNOB
'07/11- PASSENGER SIDE M4X6 		8-97042-273-0 01 1 0005- ● ● ●
542 ADJUSTER ASM; SEAT SLIDE
SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> 		1-75518-231-2 01 1 9604-9705 ● ● ● ●
542 ADJUSTER ASM; SEAT SLIDE
SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> 		1-75518-285-0 01 1 9706-9803 ● ● ● ●
542 ADJUSTER ASM; SEAT SLIDE
AIR CONT SEAT<A60> 		1-75518-285-0 01 1 9804-9810 ● ● ● ●
542 ADJUSTER ASM; SEAT SLIDE
AIR CONT SEAT<A60> 		1-75518-285-1 01 1 9811-0004 ● ●
542 ADJUSTER ASM; SEAT SLIDE
AIR CONT SEAT<A60>,SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> 		1-75518-285-1 01 1 9811-0004 ● ●
542 ADJUSTER ASM; SEAT SLIDE
RIGID SEAT WO/ARM REST<TAZ> 		1-75518-218-2 01 1 9604-9705 ● ● ●
542 ADJUSTER ASM; SEAT SLIDE
RIGID SEAT WO/ARM REST<TAZ> 		1-75518-286-0 01 1 9706-9803 ● ● ●
542 ADJUSTER ASM; SEAT SLIDE
DRIVING POSITION WIDE LEG SPACE<PR2> RIGID SEAT WO/ARM REST<TAZ> LOW ROOF<6XQ> 		1-75518-286-1 01 1 9804-0004 ● ● ●
542 ADJUSTER ASM; SEAT SLIDE
RIGID SEAT WO/ARM REST<TAZ> LOW ROOF<6XQ> 		1-75518-286-3 01 1 0005-0104 ● ● ●
542 ADJUSTER ASM; SEAT SLIDE 1-75518-286-3 01 1 0105-1502 ● ●
542 ADJUSTER ASM; SEAT SLIDE
RIGID SEAT WO/ARM REST<TAZ> LOW ROOF<6XQ> 		1-75518-286-3 01 1 0105-1502 ●
542 ADJUSTER ASM; SEAT SLIDE 8-98291-659-0 01 1 1503- ● ●
542 ADJUSTER ASM; SEAT SLIDE
RIGID SEAT WO/ARM REST<TAZ> LOW ROOF<6XQ> 		8-98291-659-0 01 1 1503- ●
542 ADJUSTER ASM; SEAT SLIDE
RIGID SEAT WO/ARM REST<TAZ> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> 		1-75518-192-2 01 1 9604-9705 ● ● ●
542 ADJUSTER ASM; SEAT SLIDE
RIGID SEAT WO/ARM REST<TAZ> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> 		1-75518-282-0 01 1 9706-9803 ● ● ●
542 ADJUSTER ASM; SEAT SLIDE
RIGID SEAT WO/ARM REST<TAZ> HIGH ROOF<S2F>,LOW ROOF<6XQ> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> 		1-75518-282-1 01 1 9804-0004 ●
542 ADJUSTER ASM; SEAT SLIDE
RIGID SEAT WO/ARM REST<TAZ> LOW ROOF<6XQ> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> 		1-75518-282-1 01 1 9804-0004 ●
542 ADJUSTER ASM; SEAT SLIDE
AIR SUSP DRIVER SEAT<A56>,RIGID SEAT WO/ARM REST<TAZ> LOW ROOF<6XQ> HIGH ROOF<S2F> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> 		1-75518-282-1 01 1 9804-0004 ●
542 ADJUSTER ASM; SEAT SLIDE
HIGH ROOF<S2F> RIGID SEAT WO/ARM REST<TAZ> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> 		1-75518-282-3 01 1 0005-1502 ●
542 ADJUSTER ASM; SEAT SLIDE
HIGH ROOF<S2F> RIGID SEAT WO/ARM REST<TAZ> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> 		8-98291-655-0 01 1 1503- ●
542 ADJUSTER ASM; SEAT SLIDE
AIR SUSP DRIVER SEAT<A56> 		1-75518-191-2 01 1 9604-9705 ●
542 ADJUSTER ASM; SEAT SLIDE
AIR SUSP DRIVER SEAT<A56> 		1-75518-284-0 01 1 9706-9803 ●
542 ADJUSTER ASM; SEAT SLIDE
DRIVING POSITION WIDE LEG SPACE<PR2> HIGH ROOF<S2F> RIGID SEAT WO/ARM REST<TAZ> 		1-75518-284-1 01 1 9804-0004 ●
542 ADJUSTER ASM; SEAT SLIDE
DRIVING POSITION WIDE LEG SPACE<PR2> HIGH ROOF<S2F> AIR SUSP DRIVER SEAT<A56>,RIGID SEAT WO/ARM REST<TAZ> 		1-75518-284-1 01 1 9804-0004 ●
542 ADJUSTER ASM; SEAT SLIDE
DRIVING POSITION WIDE LEG SPACE<PR2> HIGH ROOF<S2F> AIR SUSP DRIVER SEAT<A56>,RIGID SEAT WO/ARM REST<TAZ> 		1-75518-284-3 01 1 0005-1502 ●
542 ADJUSTER ASM; SEAT SLIDE
DRIVING POSITION WIDE LEG SPACE<PR2> HIGH ROOF<S2F> AIR SUSP DRIVER SEAT<A56>,RIGID SEAT WO/ARM REST<TAZ> 		8-98291-657-0 01 1 1503- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
