◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FSS ▶ 10716 - FSS/FTS-RHD ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-45 - CONSOLE BOX ▶
7-45 — CONSOLE BOX (#34473) — 89 parça

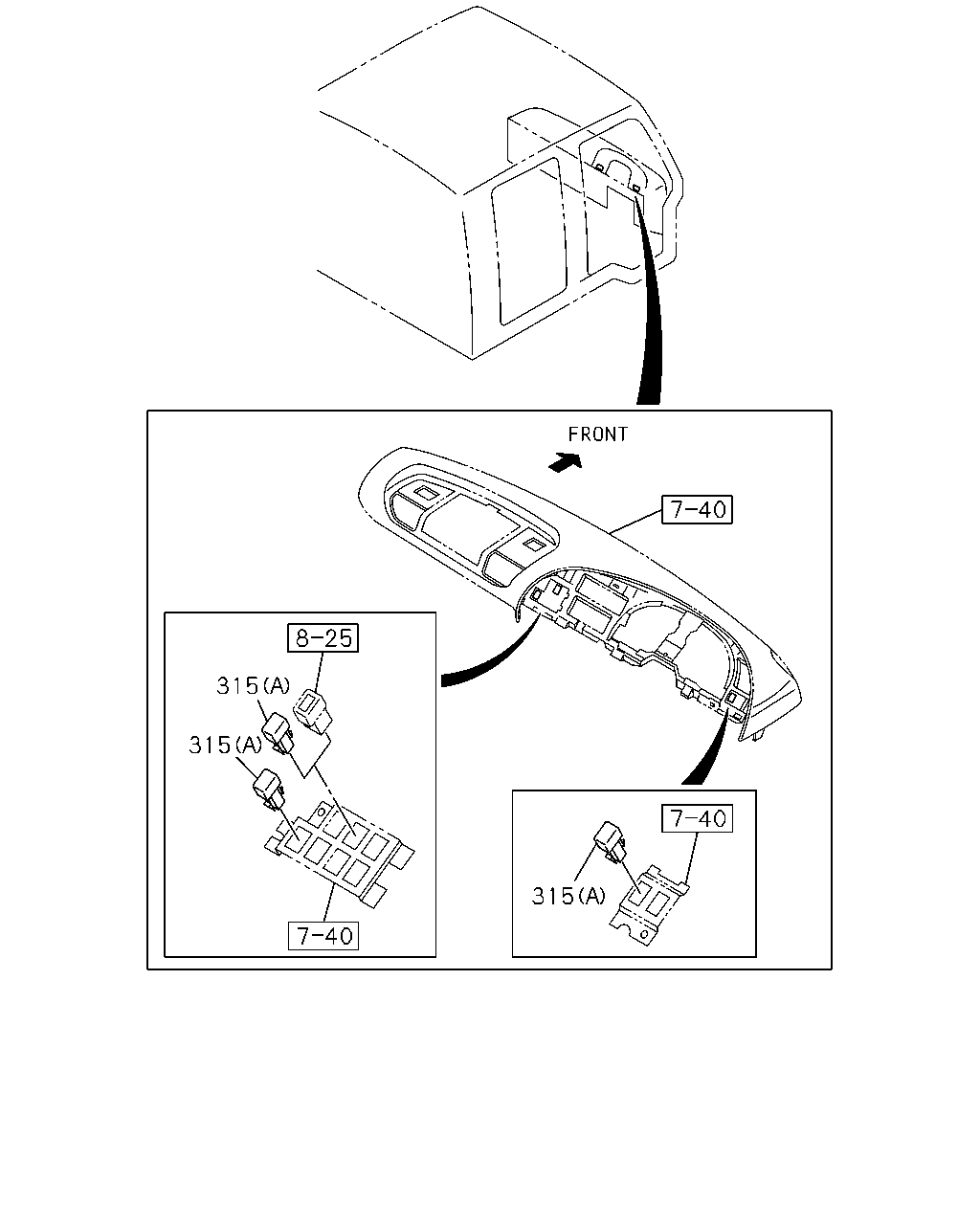

çizim 152939
315 315 315
BalonParca AdiParca NoAdetTipApplied Date A B C D E
315 COVER; HOLE,SW
(A) 		1-82359-069-2 AR 1 9604-0004 ● ● ● ● ●
315 COVER; HOLE,SW
(A) 		1-82359-069-2 AR 1 0005- ● ● ●
315 COVER; HOLE,SW
(B) 		8-97043-732-1 AR 1 9604-0004 ● ● ● ● ●
315 COVER; HOLE,SW
(B) 		8-97043-732-1 AR 1 0005- ● ● ●

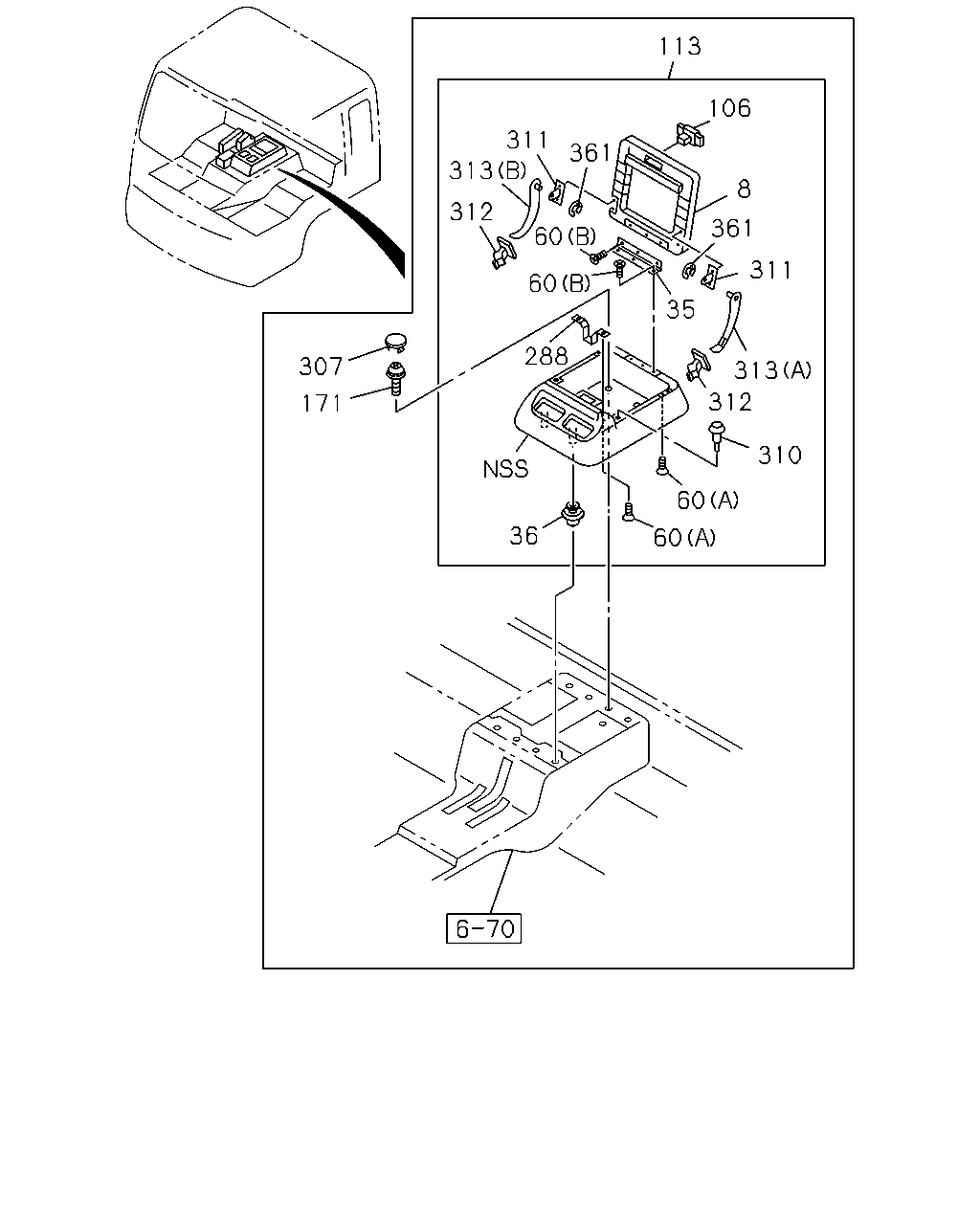

çizim 152953
113 106 311 361 313 8 312 361 60 60 311 35 288 307 313 312 171 310 60 36 60
BalonParca AdiParca NoAdetTipApplied Date A B C D E
8 LID; CENTER CONSOLE
CENTER SEAT DELETE 2 CREWS<SP9> HIGH ROOF<S2F> 		1-72538-179-3 01 1 9604-0004 ● ●
8 LID; CENTER CONSOLE
CENTER SEAT DELETE 2 CREWS<SP9> HIGH ROOF<S2F> 		1-72538-260-1 01 1 0005-0703 ●
8 LID; CENTER CONSOLE
CENTER SEAT DELETE 2 CREWS<SP9> HIGH ROOF<S2F> 		1-72538-321-0 01 1 0704- ●
35 HINGE; CENTER CONSOLE
CENTER SEAT DELETE 2 CREWS<SP9> HIGH ROOF<S2F> 		1-72538-182-1 01 1 9604-0004 ● ●
35 HINGE; CENTER CONSOLE
CENTER SEAT DELETE 2 CREWS<SP9> HIGH ROOF<S2F> 		1-72538-182-1 01 1 0005- ●
36 FASTENER; CENTER CONSOLE
CENTER SEAT DELETE 2 CREWS<SP9> HIGH ROOF<S2F> 		1-09984-190-0 02 1 9604-0004 ● ●
36 FASTENER; CENTER CONSOLE
CENTER SEAT DELETE 2 CREWS<SP9> HIGH ROOF<S2F> 		1-09984-190-0 02 1 0005- ●
60 SCREW; BOX
CENTER SEAT DELETE 2 CREWS<SP9> HIGH ROOF<S2F> (A) M5X14 TAPPING CK-HEAD 		0-70080-514-0 06 1 0610-0703 ●
60 SCREW; BOX
CENTER SEAT DELETE 2 CREWS<SP9> HIGH ROOF<S2F> (A) M5X14 TAPPING CK-HEAD 		0-70080-514-0 06 1 0210-0603 ●
60 SCREW; BOX
CENTER SEAT DELETE 2 CREWS<SP9> HIGH ROOF<S2F> (A) M5X14 TAPPING CK-HEAD 		0-70040-514-0 06 1 0604- ●
60 SCREW; BOX
CENTER SEAT DELETE 2 CREWS<SP9> HIGH ROOF<S2F> (B) M5X14 		8-94279-325-0 04 1 0210- ●
106 LOCK; CONSOLE LID
CENTER SEAT DELETE 2 CREWS<SP9> HIGH ROOF<S2F> 		1-72538-180-0 01 1 9604-0004 ● ●
106 LOCK; CONSOLE LID
CENTER SEAT DELETE 2 CREWS<SP9> HIGH ROOF<S2F> 		1-72538-180-0 01 1 0005- ●
113 BOX; CONSOLE
CENTER SEAT DELETE 2 CREWS<SP9> HIGH ROOF<S2F> 		1-72538-225-0 01 1 9604-0004 ● ●
113 BOX; CONSOLE
CENTER SEAT DELETE 2 CREWS<SP9> HIGH ROOF<S2F> 		1-72538-258-0 01 1 0005-0209 ●
113 BOX; CONSOLE
CENTER SEAT DELETE 2 CREWS<SP9> HIGH ROOF<S2F> 		1-72538-297-2 01 1 0210-0609 ●
113 BOX; CONSOLE
CENTER SEAT DELETE 2 CREWS<SP9> HIGH ROOF<S2F> 		1-72538-315-1 01 1 0610- ●
171 SCREW; CONSOLE BOX
CENTER SEAT DELETE 2 CREWS<SP9> HIGH ROOF<S2F> M6X24 W/LK&PL WASHER 		8-94279-404-0 02 1 9604-0004 ● ●
171 SCREW; CONSOLE BOX
CENTER SEAT DELETE 2 CREWS<SP9> HIGH ROOF<S2F> M6X24 W/LK&PL WASHER 		8-94279-404-0 02 1 0005- ●
288 STOPPER; LID,CONSOLE
CENTER SEAT DELETE 2 CREWS<SP9> HIGH ROOF<S2F> 		1-72538-190-0 01 1 9604-0004 ● ●
288 STOPPER; LID,CONSOLE
CENTER SEAT DELETE 2 CREWS<SP9> HIGH ROOF<S2F> 		1-72538-190-0 01 1 0005- ●
307 COVER; HOLE,CTR CONSOLE
CENTER SEAT DELETE 2 CREWS<SP9> HIGH ROOF<S2F> 		1-72538-166-0 02 1 9604-0004 ● ●
307 COVER; HOLE,CTR CONSOLE
CENTER SEAT DELETE 2 CREWS<SP9> HIGH ROOF<S2F> 		1-76337-461-0 02 1 0005- ●
307 COVER; HOLE,CTR CONSOLE
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-72538-166-0 04 1 9604-0004 ● ●
307 COVER; HOLE,CTR CONSOLE 1-72538-166-0 04 1 9604-0004 ●
307 COVER; HOLE,CTR CONSOLE 1-76337-461-0 04 1 0005- ● ●
307 COVER; HOLE,CTR CONSOLE
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-76337-461-0 04 1 0005- ●
310 CUSHION; CTR CONSOLE
CENTER SEAT DELETE 2 CREWS<SP9> HIGH ROOF<S2F> 		1-72538-187-0 02 1 9604-0004 ● ●
310 CUSHION; CTR CONSOLE
CENTER SEAT DELETE 2 CREWS<SP9> HIGH ROOF<S2F> 		1-72538-187-0 02 1 0005- ●
311 HOLDER; CONSOLE
CENTER SEAT DELETE 2 CREWS<SP9> HIGH ROOF<S2F> 		1-72538-188-2 02 1 9604-0004 ● ●
311 HOLDER; CONSOLE
CENTER SEAT DELETE 2 CREWS<SP9> HIGH ROOF<S2F> 		1-72538-188-2 02 1 0005- ●
312 STOPPER; CONSOLE
CENTER SEAT DELETE 2 CREWS<SP9> HIGH ROOF<S2F> 		1-72538-186-1 02 1 9604-0004 ● ●
312 STOPPER; CONSOLE
CENTER SEAT DELETE 2 CREWS<SP9> HIGH ROOF<S2F> 		1-72538-186-1 02 1 0005- ●
313 ARM; CTR CONSOLE
CENTER SEAT DELETE 2 CREWS<SP9> HIGH ROOF<S2F> (B) 		1-72538-185-3 01 1 9604-0004 ● ●
313 ARM; CTR CONSOLE
CENTER SEAT DELETE 2 CREWS<SP9> HIGH ROOF<S2F> (B) 		1-72538-185-3 01 1 0005- ●
313 ARM; CTR CONSOLE
CENTER SEAT DELETE 2 CREWS<SP9> HIGH ROOF<S2F> (A) 		1-72538-184-3 01 1 9604-0004 ● ●
313 ARM; CTR CONSOLE
CENTER SEAT DELETE 2 CREWS<SP9> HIGH ROOF<S2F> (A) 		1-72538-184-3 01 1 0005- ●
361 RING; SNAP
CENTER SEAT DELETE 2 CREWS<SP9> HIGH ROOF<S2F> ID=5 		9-09185-405-0 02 1 0210- ●

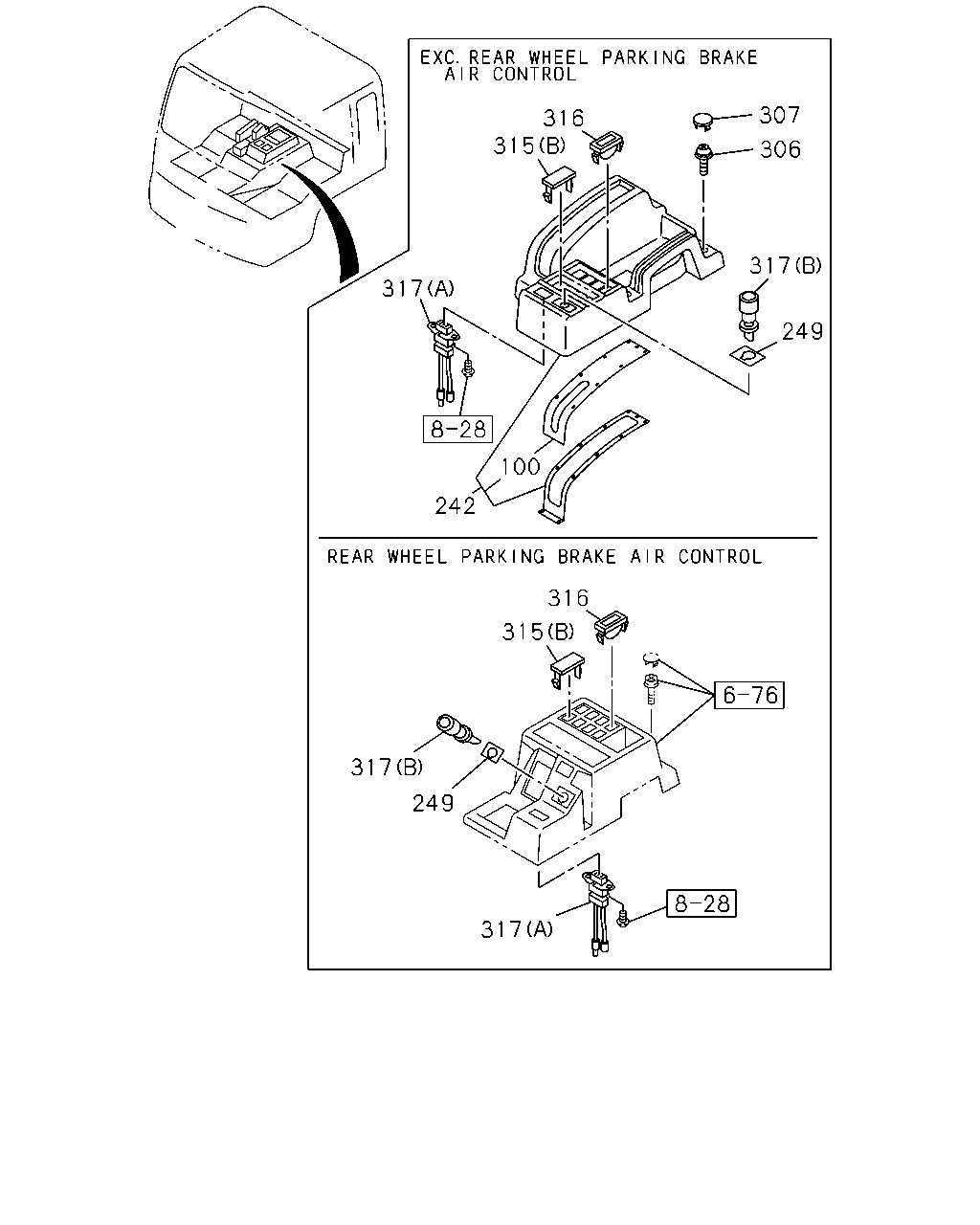

çizim 152955
307 316 315 306 317 317 249 100 242 316 315 317 249 317
BalonParca AdiParca NoAdetTipApplied Date A B C D E
100 RUBBER; CONSOLE,FRT
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-72538-161-3 01 1 9604-0004 ● ●
100 RUBBER; CONSOLE,FRT 1-72538-161-3 01 1 9604-0004 ●
100 RUBBER; CONSOLE,FRT 1-72538-161-3 01 1 0005- ● ●
100 RUBBER; CONSOLE,FRT
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-72538-161-3 01 1 0005- ●
242 TRAY ASM; CTR CONSOLE
WEST MALAYSIA EQUIPMENT(SEQ) 		1-72538-229-0 01 1 9804-9911 ●
242 TRAY ASM; CTR CONSOLE
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-72538-164-4 01 1 9604-0004 ● ●
242 TRAY ASM; CTR CONSOLE 1-72538-164-4 01 1 9604-0004 ●
242 TRAY ASM; CTR CONSOLE 1-72538-245-0 01 1 0005- ● ●
242 TRAY ASM; CTR CONSOLE
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-72538-245-0 01 1 0005- ●
249 COVER
ELEC OUTLET 12V<TAW> 		1-82529-001-0 01 1 9807-0004 ● ● ● ●
249 COVER
ELEC OUTLET 12V<TAW> 		1-82529-001-0 01 1 0005- ●
306 SCREW; TRAY
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M6X24 W/LK&PL WASHER 		8-94279-404-0 04 1 9604-0004 ● ●
306 SCREW; TRAY
M6X24 W/LK&PL WASHER 		8-94279-404-0 04 1 9604-0004 ●
306 SCREW; TRAY
M6X24 W/LK&PL WASHER 		8-94279-404-0 04 1 0005-0202 ● ●
306 SCREW; TRAY
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M6X24 W/LK&PL WASHER 		8-94279-404-0 04 1 0005-0202 ●
306 SCREW; TRAY
M6X20 W/LK&PL WASHER 		8-94279-403-0 04 1 0203- ● ●
306 SCREW; TRAY
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M6X20 W/LK&PL WASHER 		8-94279-403-0 04 1 0203- ●
307 COVER; HOLE,CTR CONSOLE
CENTER SEAT DELETE 2 CREWS<SP9> HIGH ROOF<S2F> 		1-72538-166-0 02 1 9604-0004 ● ●
307 COVER; HOLE,CTR CONSOLE
CENTER SEAT DELETE 2 CREWS<SP9> HIGH ROOF<S2F> 		1-76337-461-0 02 1 0005- ●
307 COVER; HOLE,CTR CONSOLE
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-72538-166-0 04 1 9604-0004 ● ●
307 COVER; HOLE,CTR CONSOLE 1-72538-166-0 04 1 9604-0004 ●
307 COVER; HOLE,CTR CONSOLE 1-76337-461-0 04 1 0005- ● ●
307 COVER; HOLE,CTR CONSOLE
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-76337-461-0 04 1 0005- ●
315 COVER; HOLE,SW
(A) 		1-82359-069-2 AR 1 9604-0004 ● ● ● ● ●
315 COVER; HOLE,SW
(A) 		1-82359-069-2 AR 1 0005- ● ● ●
315 COVER; HOLE,SW
(B) 		8-97043-732-1 AR 1 9604-0004 ● ● ● ● ●
315 COVER; HOLE,SW
(B) 		8-97043-732-1 AR 1 0005- ● ● ●
316 BOX; COIN 8-94482-280-2 02 1 9803-0004 ● ● ● ● ●
316 BOX; COIN 8-94482-280-2 02 1 0005- ● ● ●
317 CONSENT
(A) 		1-82523-020-2 01 1 9604-0004 ● ● ● ● ●
317 CONSENT
(A) 		1-82523-020-2 01 1 0005- ● ● ●
317 CONSENT
ELEC OUTLET 12V<TAW> (B) 		8-94382-451-1 01 1 9807-0004 ● ● ● ●
317 CONSENT
ELEC OUTLET 12V<TAW> (B) 		8-94382-451-1 01 1 0005- ●

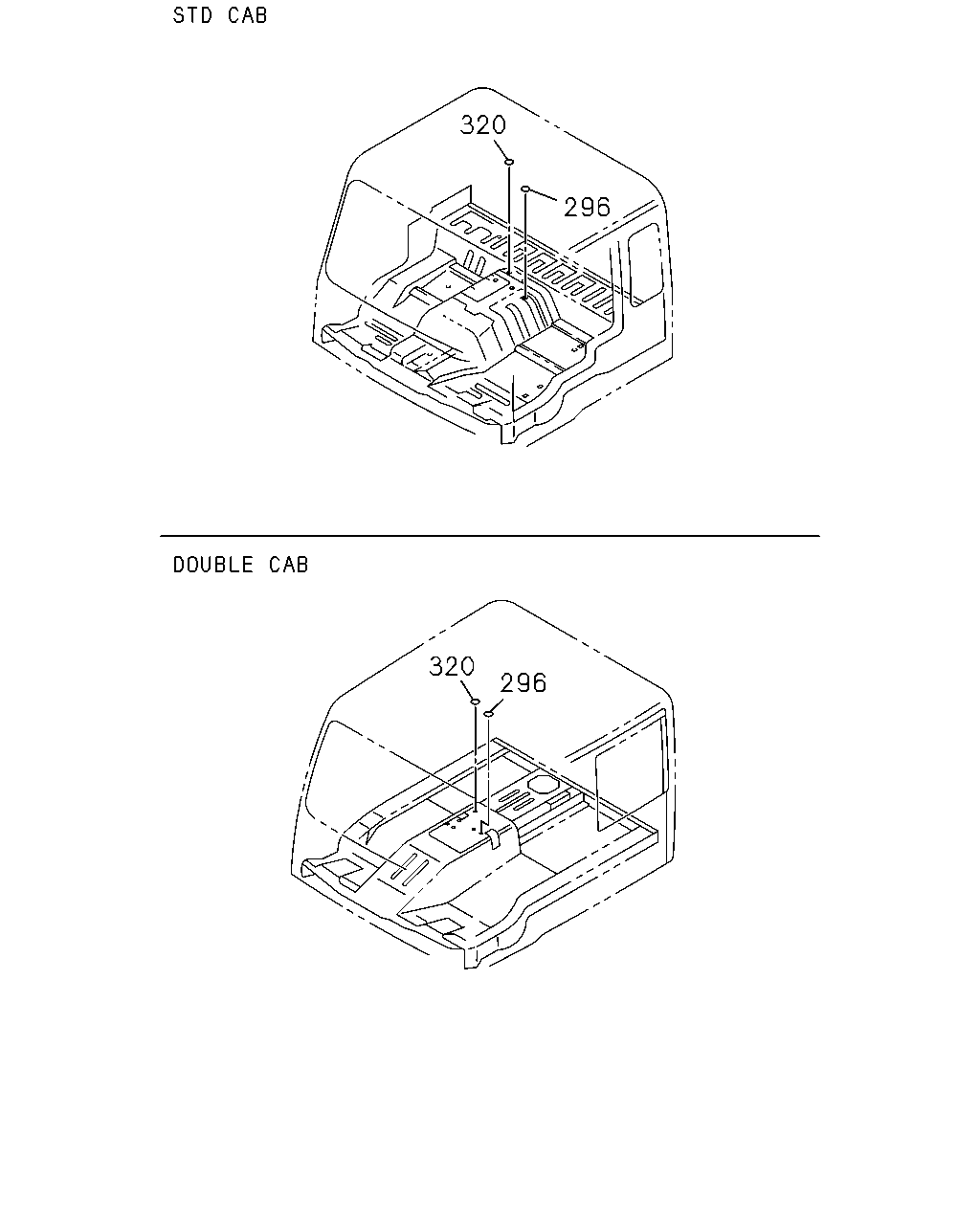

çizim 152985
320 296 320 296
BalonParca AdiParca NoAdetTipApplied Date A B C D E
296 SEAL
CENTER SEAT 3 CREWS<SA1> OD=25 BLACK 		1-76798-019-0 02 1 9604-0004 ● ●
296 SEAL
CENTER SEAT DELETE 2 CREWS<SP9> EXC. HIGH ROOF<S2F> OD=25 BLACK 		1-76798-019-0 02 1 9604-0004 ● ●
296 SEAL
OD=25 BLACK 		1-76798-019-0 02 1 9604-0004 ● ●
296 SEAL
CENTER SEAT 3 CREWS<SA1>,CENTER SEAT DELETE 2 CREWS<SP9> OD=25 BLACK 		1-76798-019-0 02 1 9604-0004 ●
296 SEAL
CENTER SEAT 3 CREWS<SA1>,CENTER SEAT DELETE 2 CREWS<SP9> OD=25 BLACK 		1-76798-019-0 02 1 0005- ● ●
296 SEAL
CENTER SEAT 3 CREWS<SA1> OD=25 BLACK 		1-76798-019-0 02 1 0005- ●
296 SEAL
CENTER SEAT DELETE 2 CREWS<SP9> EXC. HIGH ROOF<S2F> OD=25 BLACK 		1-76798-019-0 02 1 0005- ●
320 SEAL; HOLE,TRAY
DUAL AIR GAUGE<UG2> OD=25 BLACK 		1-76798-019-0 05 1 9604-0004 ● ●
320 SEAL; HOLE,TRAY
DUAL AIR GAUGE<UG2> OD=25 BLACK 		1-76798-019-0 05 1 0005- ●
320 SEAL; HOLE,TRAY
EXC. DUAL AIR GAUGE<UG2> OD=25 BLACK 		1-76798-019-0 02 1 9604-0004 ● ●
320 SEAL; HOLE,TRAY
OD=25 BLACK 		1-76798-019-0 02 1 9604-0004 ●
320 SEAL; HOLE,TRAY
OD=25 BLACK 		1-76798-019-0 02 1 0005- ● ●
320 SEAL; HOLE,TRAY
EXC. DUAL AIR GAUGE<UG2> OD=25 BLACK 		1-76798-019-0 02 1 0005- ●
320 SEAL; HOLE,TRAY
OD=25 BLACK 		1-76798-019-0 04 1 9604-0004 ● ●
