◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FSS ▶ 10716 - FSS/FTS-RHD ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-43 - SUN VISOR AND ASSIST GRIP ▶
7-43 — SUN VISOR AND ASSIST GRIP (#34472) — 664 parça

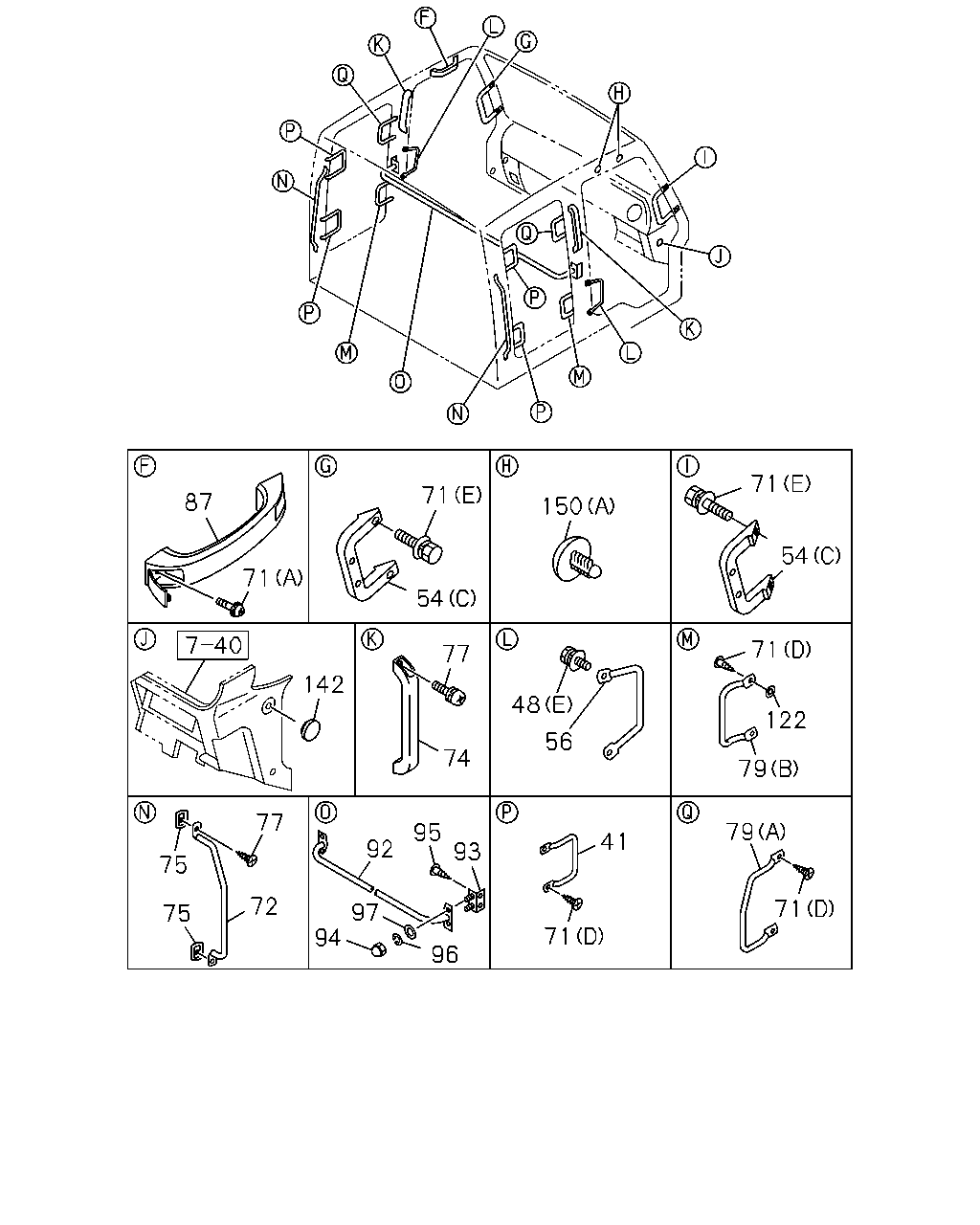

çizim 152934
71 71 87 150 54 71 54 71 77 142 48 122 56 74 79 77 79 95 41 92 93 75 72 71 97 94 75 71 96
BalonParca AdiParca NoAdetTipApplied Date A B C D E
41 GRIP; ASSIST,BACK SIDE 1-71998-467-0 04 1 9604-0004 ● ●
48 BOLT; ASSIST GRIP
(B) M6X16 W/LK&PL WASHER 		1-09980-492-0 04 1 9604-0004 ● ● ● ● ●
48 BOLT; ASSIST GRIP
(B) M6X16 W/LK&PL WASHER 		1-09980-492-0 04 1 0005-0411 ● ● ●
48 BOLT; ASSIST GRIP
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANTSQUARE W/FOG LAMP<TEB> (B) M6X16 W/LK&PL WASHER 		1-09980-492-0 04 1 0412- ● ● ●
48 BOLT; ASSIST GRIP
(E) M6X12 W/LK&PL WASHER 		1-09980-611-0 04 1 9604-0004 ● ● ● ● ●
48 BOLT; ASSIST GRIP
(E) M6X12 W/LK&PL WASHER 		1-09980-611-0 04 1 0005- ● ● ●
48 BOLT; ASSIST GRIP
(C) M8X30 W/LK&PL WASHER 		8-94279-210-0 04 1 9604-0004 ● ● ● ● ●
48 BOLT; ASSIST GRIP
(C) M8X30 W/LK&PL WASHER 		8-94279-210-0 04 1 0005- ● ● ●
48 BOLT; ASSIST GRIP
HIGH ROOF<S2F> (A) M6X33.5 W/LK&PL WASHER 		1-09980-613-1 04 1 9604-0004 ● ●
48 BOLT; ASSIST GRIP
(A) M6X33.5 W/LK&PL WASHER 		1-09980-613-1 04 1 9604-0004 ● ●
48 BOLT; ASSIST GRIP
HIGH ROOF<S2F> (A) M6X33.5 W/LK&PL WASHER 		1-09980-613-1 04 1 0005- ●
48 BOLT; ASSIST GRIP
(D) M8X24.5 W/LK&PL WASHER 		8-94279-208-0 01 1 9604-0004 ● ● ●
48 BOLT; ASSIST GRIP
(D) M8X24.5 W/LK&PL WASHER 		8-94279-208-0 01 1 0005-0904 ● ●
48 BOLT; ASSIST GRIP
(D) M8X24.5 W/LK&PL WASHER 		8-98059-720-0 01 1 0905- ● ●
54 GRIP; ASSIST,QUARTER SIDE
(C) 		1-73618-158-2 02 1 9604-9708 ● ●
54 GRIP; ASSIST,QUARTER SIDE
(C) 		1-73618-158-2 02 1 9709-0004 ● ●
54 GRIP; ASSIST,QUARTER SIDE
NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) (C) 		1-73618-158-2 02 1 9709-0004 ● ●
54 GRIP; ASSIST,QUARTER SIDE
(C) 		1-73618-158-2 02 1 0005-0211 ●
54 GRIP; ASSIST,QUARTER SIDE
NEW ZEALAND EQUIPMENT(PK5) (C) 		1-73618-158-2 02 1 0005-0211 ●
54 GRIP; ASSIST,QUARTER SIDE
(C) 		1-73618-185-1 02 1 0212- ●
54 GRIP; ASSIST,QUARTER SIDE
NEW ZEALAND EQUIPMENT(PK5) (C) 		1-73618-185-1 02 1 0212- ●
54 GRIP; ASSIST,QUARTER SIDE
(A) 		1-73617-067-0 01 1 9604-0004 ● ● ●
54 GRIP; ASSIST,QUARTER SIDE
(A) 		1-73617-564-1 01 1 0005- ● ●
54 GRIP; ASSIST,QUARTER SIDE
(B) 		1-73617-066-0 01 1 9604-0004 ● ● ●
54 GRIP; ASSIST,QUARTER SIDE
(B) 		1-73617-563-1 01 1 0005- ● ●
56 GRIP; ASSIST,SIDE SILL 1-73617-062-4 02 1 9604-0004 ● ● ● ● ●
56 GRIP; ASSIST,SIDE SILL 1-73617-062-5 02 1 0005-0402 ● ● ●
56 GRIP; ASSIST,SIDE SILL 1-73617-570-0 02 1 0403-0804 ● ● ●
56 GRIP; ASSIST,SIDE SILL 8-98081-700-0 02 1 0805- ● ● ●
71 SCREW
(E) M6X20 W/LK&PL WASHER 		1-09981-509-0 04 1 9604-9708 ● ●
71 SCREW
(E) M6X20 W/LK&PL WASHER 		1-09981-509-0 04 1 9709-0004 ● ●
71 SCREW
NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) (E) M6X20 W/LK&PL WASHER 		1-09981-509-0 04 1 9709-0004 ● ●
71 SCREW
(E) M6X20 W/LK&PL WASHER 		1-09981-509-0 04 1 0005-0211 ●
71 SCREW
NEW ZEALAND EQUIPMENT(PK5) (E) M6X20 W/LK&PL WASHER 		1-09981-509-0 04 1 0005-0211 ●
71 SCREW
(E) M6X34 W/LK&PL WASHER 		8-94279-411-0 04 1 0212- ●
71 SCREW
NEW ZEALAND EQUIPMENT(PK5) (E) M6X34 W/LK&PL WASHER 		8-94279-411-0 04 1 0212- ●
71 SCREW
HIGH ROOF<S2F> (A) M6X37 W/PL WASHER 		1-09981-423-0 02 1 9604-9702 ● ●
71 SCREW
(A) M6X37 W/PL WASHER 		1-09981-423-0 02 1 9604-9702 ● ●
71 SCREW
HIGH ROOF<S2F> (A) M6X35 W/PL WASHER 		1-09981-422-0 02 1 9703-0004 ● ●
71 SCREW
(A) M6X35 W/PL WASHER 		1-09981-422-0 02 1 9703-0004 ● ●
71 SCREW
HIGH ROOF<S2F> (A) M6X35 W/PL WASHER 		1-09981-422-0 02 1 0005-0212 ●
71 SCREW
ASSIST GRIP<EG5> HIGH ROOF<S2F> (A) M6X35 W/PL WASHER 		1-09981-422-0 02 1 0301-0310 ●
71 SCREW
ASSIST GRIP<EG5> HIGH ROOF<S2F> (A) M6X30 W/LK WASHER 		5-09981-064-0 02 1 0311- ●
71 SCREW
HIGH ROOF<S2F> (C) M5X14 W/PL WASHER 		5-09981-050-0 06 1 9604-9803 ● ●
71 SCREW
(C) M5X14 W/PL WASHER 		5-09981-050-0 06 1 9604-9803 ● ●
71 SCREW
HIGH ROOF<S2F> (C) M5X14 W/PL WASHER 		5-09981-050-0 06 1 9804-0004 ● ● ● ●
71 SCREW
HIGH ROOF<S2F> (C) M5X14 W/PL WASHER 		5-09981-050-0 06 1 0005- ●
71 SCREW
(D) M6X24 W/LK&PL WASHER 		8-94279-404-0 16 1 9604-0004 ● ●
71 SCREW
(B) M6X20 W/LK&PL WASHER 		1-09981-073-0 03 1 9604-0004 ● ● ●
71 SCREW
(B) M6X20 W/LK&PL WASHER 		1-09981-073-0 03 1 0005- ● ●
72 GRIP; ASSIST,CAB ENTRY,BACK
WHITE 		1-71998-278-0 02 1 9604-0004 ● ●
74 GRIP; ASSIST,CAB ENTRY,BACK CENTER 1-71998-944-2 02 1 9604-0004 ●
75 SHEET; ASSIST GRIP,CAB ENTRY 1-71997-478-1 04 1 9604-0004 ● ●
77 SCREW; ASSIST GRIP 8-94279-407-0 08 1 9604-0004 ●
77 SCREW; ASSIST GRIP 8-94279-407-0 04 1 9604-0004 ●
79 GRIP; ASSIST
(A) 		1-71996-134-0 02 1 9604-0004 ● ●
79 GRIP; ASSIST
(B) 		1-71998-467-0 02 1 9604-0004 ● ●
87 GRIP; ASSIST,CANT RAIL SIDE
HIGH ROOF<S2F> 		1-73618-170-0 01 1 9604-0004 ● ●
87 GRIP; ASSIST,CANT RAIL SIDE 1-73618-170-0 01 1 9604-0004 ● ●
87 GRIP; ASSIST,CANT RAIL SIDE
HIGH ROOF<S2F> DARK GRAY 		8-97098-476-2 01 1 0005-0212 ●
87 GRIP; ASSIST,CANT RAIL SIDE
ASSIST GRIP<EG5> HIGH ROOF<S2F> DARK GRAY 		8-97098-476-2 01 1 0301- ●
92 BAR; ASSIST 1-73618-123-2 01 1 9604-0004 ● ●
93 BRACKET; ASSIST BAR 1-73618-126-1 02 1 9604-0004 ● ●
94 NUT; CAP,ASSIST BAR
M8 FLANGE 		1-09984-126-0 04 1 9604-0004 ● ●
95 SCREW; ASSIST BAR BRKT
M8X24.5 W/LK&PL WASHER 		8-94279-208-0 04 1 9604-0004 ● ●
96 WASHER; LK,ASSIST BAR
ID=8.2 		1-09985-177-0 04 1 9604-0004 ● ●
97 WASHER; PL,ASSIST BAR
ID=8.4 OD=16 		1-09985-174-0 04 1 9604-0004 ● ●
122 WASHER; PL,ASSIST GRIP
ID=10.2 OD=22 T=6 		1-09989-009-1 02 1 9604-0004 ● ●
142 SEAL; ASSIST GRIP
OD=25 BLACK 		1-76798-019-0 02 1 9604-0004 ● ●
142 SEAL; ASSIST GRIP
OD=25 BLACK 		1-76798-019-0 02 1 0005- ●
150 CLIP; ASSIST GRIP HOLE
HIGH ROOF<S2F> (A) OD=6 L=17 DARK GRAY 		1-73996-128-1 02 1 9604-0004 ● ●
150 CLIP; ASSIST GRIP HOLE
(A) OD=6 L=17 DARK GRAY 		1-73996-128-1 02 1 9604-0004 ● ●
150 CLIP; ASSIST GRIP HOLE
HIGH ROOF<S2F> (A) OD=6 L=17 LIGHT GRAY 		1-73996-301-0 02 1 0005-0212 ●
150 CLIP; ASSIST GRIP HOLE
ASSIST GRIP<EG5> HIGH ROOF<S2F> (A) OD=6 L=17 LIGHT GRAY 		1-73996-301-0 02 1 0301- ●
150 CLIP; ASSIST GRIP HOLE
LOW ROOF<6XQ> (A) OD=6 L=17 LIGHT GRAY 		1-73996-301-0 04 1 9604-0104 ● ●
150 CLIP; ASSIST GRIP HOLE
(A) OD=6 L=17 LIGHT GRAY 		1-73996-301-0 04 1 9604-0104 ●
150 CLIP; ASSIST GRIP HOLE
(A) OD=6 L=17 LIGHT GRAY 		1-73996-301-0 04 1 0105-0212 ● ●
150 CLIP; ASSIST GRIP HOLE
LOW ROOF<6XQ> (A) OD=6 L=17 LIGHT GRAY 		1-73996-301-0 04 1 0105-0212 ●
150 CLIP; ASSIST GRIP HOLE
(A) OD=6 L=17 LIGHT GRAY 		1-73996-301-0 04 1 0301- ● ●
150 CLIP; ASSIST GRIP HOLE
HIGH ROOF<S2F> EXC. ASSIST GRIP<EG5> (A) OD=6 L=17 LIGHT GRAY 		1-73996-301-0 04 1 0301- ●
150 CLIP; ASSIST GRIP HOLE
LOW ROOF<6XQ> (A) OD=6 L=17 LIGHT GRAY 		1-73996-301-0 04 1 0301- ●
150 CLIP; ASSIST GRIP HOLE
(B) OD=6 L=17 DARK GRAY 		1-73996-128-1 04 1 9604-9708 ● ● ●
150 CLIP; ASSIST GRIP HOLE
(B) OD=6 L=17 DARK GRAY 		1-73996-128-1 04 1 9709-0004 ●
150 CLIP; ASSIST GRIP HOLE
EXC. NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) (B) OD=6 L=17 DARK GRAY 		1-73996-128-1 04 1 9709-0004 ●
150 CLIP; ASSIST GRIP HOLE
(B) OD=6 L=17 DARK GRAY 		1-73996-364-0 04 1 0005- ●
150 CLIP; ASSIST GRIP HOLE
EXC. NEW ZEALAND EQUIPMENT(PK5) (B) OD=6 L=17 DARK GRAY 		1-73996-364-0 04 1 0005- ●

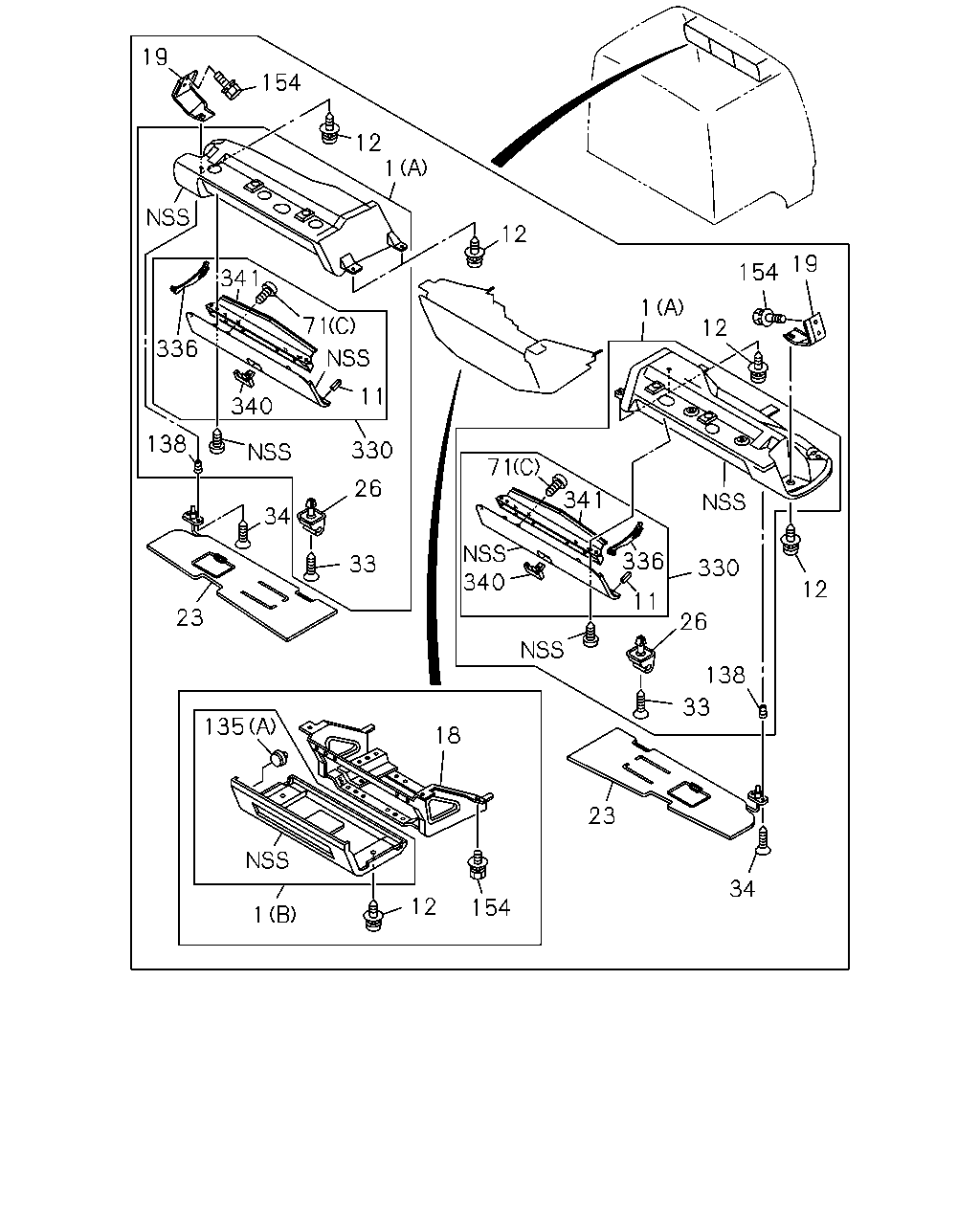

çizim 152937
19 154 12 1 12 19 154 341 1 71 12 336 11 340 138 330 71 26 341 34 340 336 33 330 12 11 23 26 138 33 135 18 23 34 12 154 1
BalonParca AdiParca NoAdetTipApplied Date A B C D E
1 BOARD; HEADER SHELF
HIGH ROOF<S2F> (B) CENTER 		1-72448-568-1 01 1 9604-9803 ● ●
1 BOARD; HEADER SHELF
(B) CENTER 		1-72448-568-1 01 1 9604-9803 ● ●
1 BOARD; HEADER SHELF
HIGH ROOF<S2F> (B) CENTER 		1-72448-568-1 01 1 9804-0004 ● ● ● ●
1 BOARD; HEADER SHELF
HIGH ROOF<S2F> (B) CENTER 		1-72448-663-0 01 1 0005-0212 ●
1 BOARD; HEADER SHELF
HIGH ROOF<S2F> EXC. MAP LAMP<C85> (B) CENTER 		1-72448-663-0 01 1 0301- ●
1 BOARD; HEADER SHELF
MAP LAMP<C85> HIGH ROOF<S2F> (D) CENTER 		1-72448-667-0 01 1 0301- ●
1 BOARD; HEADER SHELF
HIGH ROOF<S2F> (A) 		1-72448-597-2 01 1 9604-9803 ● ●
1 BOARD; HEADER SHELF
(A) 		1-72448-597-2 01 1 9604-9803 ● ●
1 BOARD; HEADER SHELF
HIGH ROOF<S2F> (C) 		1-73318-616-1 01 1 9804-0003 ● ● ● ●
1 BOARD; HEADER SHELF
HIGH ROOF<S2F> (C) 		1-73318-689-0 01 1 0004-0004 ● ● ● ●
1 BOARD; HEADER SHELF
HIGH ROOF<S2F> (C) 		1-73318-691-0 01 1 0005- ●
1 BOARD; HEADER SHELF
HIGH ROOF<S2F> (A) 		1-72448-596-2 01 1 9604-9803 ● ●
1 BOARD; HEADER SHELF
(A) 		1-72448-596-2 01 1 9604-9803 ● ●
1 BOARD; HEADER SHELF
HIGH ROOF<S2F> (C) 		1-73317-362-1 01 1 9804-0003 ● ● ● ●
1 BOARD; HEADER SHELF
HIGH ROOF<S2F> (C) 		1-73318-687-0 01 1 0004-0004 ● ● ● ●
1 BOARD; HEADER SHELF
HIGH ROOF<S2F> (C) 		1-73318-690-0 01 1 0005- ●
11 CAP; HEADER SHELF
HIGH ROOF<S2F> 		8-94270-538-0 04 1 9604-9803 ● ●
11 CAP; HEADER SHELF 8-94270-538-0 04 1 9604-9803 ● ●
11 CAP; HEADER SHELF
HIGH ROOF<S2F> 		8-94270-538-0 04 1 9804-0004 ● ● ● ●
11 CAP; HEADER SHELF
HIGH ROOF<S2F> 		8-94270-538-0 04 1 0005- ●
12 SCREW; HEADER SHELF
HIGH ROOF<S2F> M6X24 W/LK&PL WASHER 		8-94279-404-0 12 1 9604-9803 ● ●
12 SCREW; HEADER SHELF
M6X24 W/LK&PL WASHER 		8-94279-404-0 12 1 9604-9803 ● ●
12 SCREW; HEADER SHELF
HIGH ROOF<S2F> M6X24 W/LK&PL WASHER 		8-94279-404-0 12 1 9804-0004 ● ● ● ●
12 SCREW; HEADER SHELF
HIGH ROOF<S2F> M6X24 W/LK&PL WASHER 		8-94279-404-0 12 1 0005- ●
18 SUPPORT; HEADER SHELF CENTER
HIGH ROOF<S2F> 		1-72448-552-4 01 1 9604-9604 ● ●
18 SUPPORT; HEADER SHELF CENTER 1-72448-552-4 01 1 9604-9604 ● ●
18 SUPPORT; HEADER SHELF CENTER
HIGH ROOF<S2F> 		8-97865-124-0 01 1 9605-9803 ● ●
18 SUPPORT; HEADER SHELF CENTER 8-97865-124-0 01 1 9605-9803 ● ●
18 SUPPORT; HEADER SHELF CENTER
HIGH ROOF<S2F> 		8-97865-124-0 01 1 9804-0004 ● ● ● ●
18 SUPPORT; HEADER SHELF CENTER
HIGH ROOF<S2F> 		8-97865-124-0 01 1 0005-0212 ●
18 SUPPORT; HEADER SHELF CENTER
HIGH ROOF<S2F> EXC. MAP LAMP<C85> 		8-97865-124-1 01 1 0301- ●
18 SUPPORT; HEADER SHELF CENTER
MAP LAMP<C85> HIGH ROOF<S2F> 		1-72448-632-1 01 1 0301- ●
19 SUPPORT ASM; HEADER SHELF
HIGH ROOF<S2F> 		1-72448-324-1 01 1 9604-9803 ● ●
19 SUPPORT ASM; HEADER SHELF 1-72448-324-1 01 1 9604-9803 ● ●
19 SUPPORT ASM; HEADER SHELF
HIGH ROOF<S2F> 		1-72448-324-1 01 1 9804-0004 ● ● ● ●
19 SUPPORT ASM; HEADER SHELF
HIGH ROOF<S2F> 		1-72448-324-1 01 1 0005- ●
19 SUPPORT ASM; HEADER SHELF
HIGH ROOF<S2F> 		1-72448-323-1 01 1 9604-9803 ● ●
19 SUPPORT ASM; HEADER SHELF 1-72448-323-1 01 1 9604-9803 ● ●
19 SUPPORT ASM; HEADER SHELF
HIGH ROOF<S2F> 		1-72448-323-1 01 1 9804-0004 ● ● ● ●
19 SUPPORT ASM; HEADER SHELF
HIGH ROOF<S2F> 		1-72448-323-1 01 1 0005- ●
23 SUN VISOR 1-73138-148-1 01 1 9604-0004 ● ● ● ● ●
23 SUN VISOR 1-73138-156-1 01 1 0005- ● ● ●
23 SUN VISOR
SUN VISOR PASSENGER<D20> 		1-73138-150-1 01 1 9604-0004 ● ● ● ● ●
23 SUN VISOR
SUN VISOR PASSENGER<D20> 		1-73138-157-1 01 1 0005- ● ● ●
26 HOLDER; SUN VISOR 1-73138-142-0 02 1 9604-0004 ● ● ● ● ●
26 HOLDER; SUN VISOR
LOW ROOF<6XQ> 		1-73138-142-0 02 1 0005-0006 ● ●
26 HOLDER; SUN VISOR 1-73138-142-0 02 1 0005-0006 ●
26 HOLDER; SUN VISOR
HIGH ROOF<S2F> 		1-73137-175-0 02 1 0005-0006 ●
26 HOLDER; SUN VISOR
LOW ROOF<6XQ> 		1-73137-175-0 02 1 0007-0104 ● ●
26 HOLDER; SUN VISOR
HIGH ROOF<S2F>,LOW ROOF<6XQ> 		1-73137-175-0 02 1 0007-0104 ●
26 HOLDER; SUN VISOR 1-73137-175-0 02 1 0105- ● ●
26 HOLDER; SUN VISOR
HIGH ROOF<S2F>,LOW ROOF<6XQ> 		1-73137-175-0 02 1 0105- ●
33 SCREW; HOLDER,SUN VISOR
M4X16 TAPPING OVAL-HEAD 		0-70580-416-0 02 1 9604-0004 ● ● ● ● ●
33 SCREW; HOLDER,SUN VISOR
LOW ROOF<6XQ> M4X16 TAPPING OVAL-HEAD 		0-70580-416-0 02 1 0005-0101 ● ●
33 SCREW; HOLDER,SUN VISOR
HIGH ROOF<S2F>,LOW ROOF<6XQ> M4X16 TAPPING OVAL-HEAD 		0-70580-416-0 02 1 0005-0101 ●
33 SCREW; HOLDER,SUN VISOR
HIGH ROOF<S2F> M4X16 TAPPING OVAL-HEAD 		0-70580-416-0 02 1 0102-0603 ●
33 SCREW; HOLDER,SUN VISOR
HIGH ROOF<S2F> M4X16 TAPPING OVAL-HEAD 		0-70540-416-0 02 1 0604- ●
33 SCREW; HOLDER,SUN VISOR
M4X20 TAPPING OVAL-HEAD 		0-70580-420-0 02 1 0102-0603 ● ●
33 SCREW; HOLDER,SUN VISOR
LOW ROOF<6XQ> M4X20 TAPPING OVAL-HEAD 		0-70580-420-0 02 1 0102-0603 ●
33 SCREW; HOLDER,SUN VISOR
M4X20 TAPPING OVAL-HEAD 		0-70540-420-0 02 1 0604- ● ●
33 SCREW; HOLDER,SUN VISOR
LOW ROOF<6XQ> M4X20 TAPPING OVAL-HEAD 		0-70540-420-0 02 1 0604- ●
34 SCREW; SUN VISOR
LOW ROOF<6XQ> M6X25 		1-09981-441-0 02 1 9604-9704 ● ● ●
34 SCREW; SUN VISOR
SUN VISOR PASSENGER<D20> LOW ROOF<6XQ> M6X25 		1-09981-441-0 02 1 9604-9704 ● ● ●
34 SCREW; SUN VISOR
M6X25 		1-09981-441-0 02 1 9705-0004 ● ● ● ● ●
34 SCREW; SUN VISOR
SUN VISOR PASSENGER<D20> M6X25 		1-09981-441-0 02 1 9705-0004 ● ● ● ● ●
34 SCREW; SUN VISOR
M6X25 		1-09981-441-0 02 1 0005- ● ● ●
34 SCREW; SUN VISOR
SUN VISOR PASSENGER<D20> M6X25 		1-09981-441-0 02 1 0005- ● ● ●
34 SCREW; SUN VISOR
HIGH ROOF<S2F> M6X25 		1-09981-441-0 04 1 9604-9704 ● ●
34 SCREW; SUN VISOR
M6X25 		1-09981-441-0 04 1 9604-9704 ● ●
71 SCREW
(E) M6X20 W/LK&PL WASHER 		1-09981-509-0 04 1 9604-9708 ● ●
71 SCREW
(E) M6X20 W/LK&PL WASHER 		1-09981-509-0 04 1 9709-0004 ● ●
71 SCREW
NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) (E) M6X20 W/LK&PL WASHER 		1-09981-509-0 04 1 9709-0004 ● ●
71 SCREW
(E) M6X20 W/LK&PL WASHER 		1-09981-509-0 04 1 0005-0211 ●
71 SCREW
NEW ZEALAND EQUIPMENT(PK5) (E) M6X20 W/LK&PL WASHER 		1-09981-509-0 04 1 0005-0211 ●
71 SCREW
(E) M6X34 W/LK&PL WASHER 		8-94279-411-0 04 1 0212- ●
71 SCREW
NEW ZEALAND EQUIPMENT(PK5) (E) M6X34 W/LK&PL WASHER 		8-94279-411-0 04 1 0212- ●
71 SCREW
HIGH ROOF<S2F> (A) M6X37 W/PL WASHER 		1-09981-423-0 02 1 9604-9702 ● ●
71 SCREW
(A) M6X37 W/PL WASHER 		1-09981-423-0 02 1 9604-9702 ● ●
71 SCREW
HIGH ROOF<S2F> (A) M6X35 W/PL WASHER 		1-09981-422-0 02 1 9703-0004 ● ●
71 SCREW
(A) M6X35 W/PL WASHER 		1-09981-422-0 02 1 9703-0004 ● ●
71 SCREW
HIGH ROOF<S2F> (A) M6X35 W/PL WASHER 		1-09981-422-0 02 1 0005-0212 ●
71 SCREW
ASSIST GRIP<EG5> HIGH ROOF<S2F> (A) M6X35 W/PL WASHER 		1-09981-422-0 02 1 0301-0310 ●
71 SCREW
ASSIST GRIP<EG5> HIGH ROOF<S2F> (A) M6X30 W/LK WASHER 		5-09981-064-0 02 1 0311- ●
71 SCREW
HIGH ROOF<S2F> (C) M5X14 W/PL WASHER 		5-09981-050-0 06 1 9604-9803 ● ●
71 SCREW
(C) M5X14 W/PL WASHER 		5-09981-050-0 06 1 9604-9803 ● ●
71 SCREW
HIGH ROOF<S2F> (C) M5X14 W/PL WASHER 		5-09981-050-0 06 1 9804-0004 ● ● ● ●
71 SCREW
HIGH ROOF<S2F> (C) M5X14 W/PL WASHER 		5-09981-050-0 06 1 0005- ●
71 SCREW
(D) M6X24 W/LK&PL WASHER 		8-94279-404-0 16 1 9604-0004 ● ●
71 SCREW
(B) M6X20 W/LK&PL WASHER 		1-09981-073-0 03 1 9604-0004 ● ● ●
71 SCREW
(B) M6X20 W/LK&PL WASHER 		1-09981-073-0 03 1 0005- ● ●
135 CLIP; HEADER SHELF
HIGH ROOF<S2F> (B) D6X23 DARK GRAY 		1-09987-238-0 02 1 9804-0004 ● ● ● ●
135 CLIP; HEADER SHELF
HIGH ROOF<S2F> (B) D6X23 DARK GRAY 		1-09987-238-0 02 1 0005-0209 ●
135 CLIP; HEADER SHELF
HIGH ROOF<S2F> (B) D6X23 BLACK 		1-09987-114-0 02 1 0210- ●
135 CLIP; HEADER SHELF
HIGH ROOF<S2F> (A) OD=7.9 BLACK 		8-94279-974-1 03 1 9604-9803 ● ●
135 CLIP; HEADER SHELF
(A) OD=7.9 BLACK 		8-94279-974-1 03 1 9604-9803 ● ●
135 CLIP; HEADER SHELF
HIGH ROOF<S2F> (A) OD=7.9 BLACK 		8-94279-974-1 03 1 9804-0004 ● ● ● ●
135 CLIP; HEADER SHELF
HIGH ROOF<S2F> (A) OD=7.9 BLACK 		8-94279-974-1 03 1 0005-0005 ●
135 CLIP; HEADER SHELF
HIGH ROOF<S2F> (A) OD=7.9 BLACK 		8-94279-974-1 06 1 0006-0212 ●
135 CLIP; HEADER SHELF
MAP LAMP<C85> HIGH ROOF<S2F> (A) OD=7.9 BLACK 		8-94279-974-1 03 1 0301- ●
135 CLIP; HEADER SHELF
HIGH ROOF<S2F> EXC. MAP LAMP<C85> (A) OD=7.9 BLACK 		8-94279-974-1 06 1 0301- ●
138 NUT; BRKT,HEADER SHELF
HIGH ROOF<S2F> 		1-09984-166-0 04 1 9604-9803 ● ●
138 NUT; BRKT,HEADER SHELF 1-09984-166-0 04 1 9604-9803 ● ●
154 BOLT; SUPPORT
HIGH ROOF<S2F> M6X19.5 W/LK&PL WASHER 		8-94279-201-0 08 1 9604-9803 ● ●
154 BOLT; SUPPORT
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 08 1 9604-9803 ● ●
154 BOLT; SUPPORT
HIGH ROOF<S2F> M6X19.5 W/LK&PL WASHER 		8-94279-201-0 08 1 9804-0004 ● ● ● ●
154 BOLT; SUPPORT
HIGH ROOF<S2F> M6X19.5 W/LK&PL WASHER 		8-94279-201-0 08 1 0005- ●
330 LID; HEADER SHELF
HIGH ROOF<S2F> 		1-72448-360-3 02 1 9604-9803 ● ●
330 LID; HEADER SHELF 1-72448-360-3 02 1 9604-9803 ● ●
330 LID; HEADER SHELF
HIGH ROOF<S2F> 		1-72448-360-3 02 1 9804-0004 ● ● ● ●
330 LID; HEADER SHELF
HIGH ROOF<S2F> 		1-72448-679-0 02 1 0005- ●
336 STAY; LID
HIGH ROOF<S2F> 		1-72448-379-3 04 1 9604-9803 ● ●
336 STAY; LID 1-72448-379-3 04 1 9604-9803 ● ●
336 STAY; LID
HIGH ROOF<S2F> 		1-72448-379-3 04 1 9804-0004 ● ● ● ●
336 STAY; LID
HIGH ROOF<S2F> 		1-72448-379-3 04 1 0005- ●
340 LOCK; HEADER SHELF
HIGH ROOF<S2F> 		1-72448-376-0 02 1 9604-9803 ● ●
340 LOCK; HEADER SHELF 1-72448-376-0 02 1 9604-9803 ● ●
340 LOCK; HEADER SHELF
HIGH ROOF<S2F> 		1-72448-376-0 02 1 9804-0004 ● ● ● ●
340 LOCK; HEADER SHELF
HIGH ROOF<S2F> 		1-72448-376-0 02 1 0005- ●
341 HINGE; LID,HEADER SHELF
HIGH ROOF<S2F> 		1-72448-403-1 02 1 9604-9803 ● ●
341 HINGE; LID,HEADER SHELF 1-72448-403-1 02 1 9604-9803 ● ●
341 HINGE; LID,HEADER SHELF
HIGH ROOF<S2F> 		1-72448-403-1 02 1 9804-0004 ● ● ● ●
341 HINGE; LID,HEADER SHELF
HIGH ROOF<S2F> 		1-72448-403-1 02 1 0005- ●

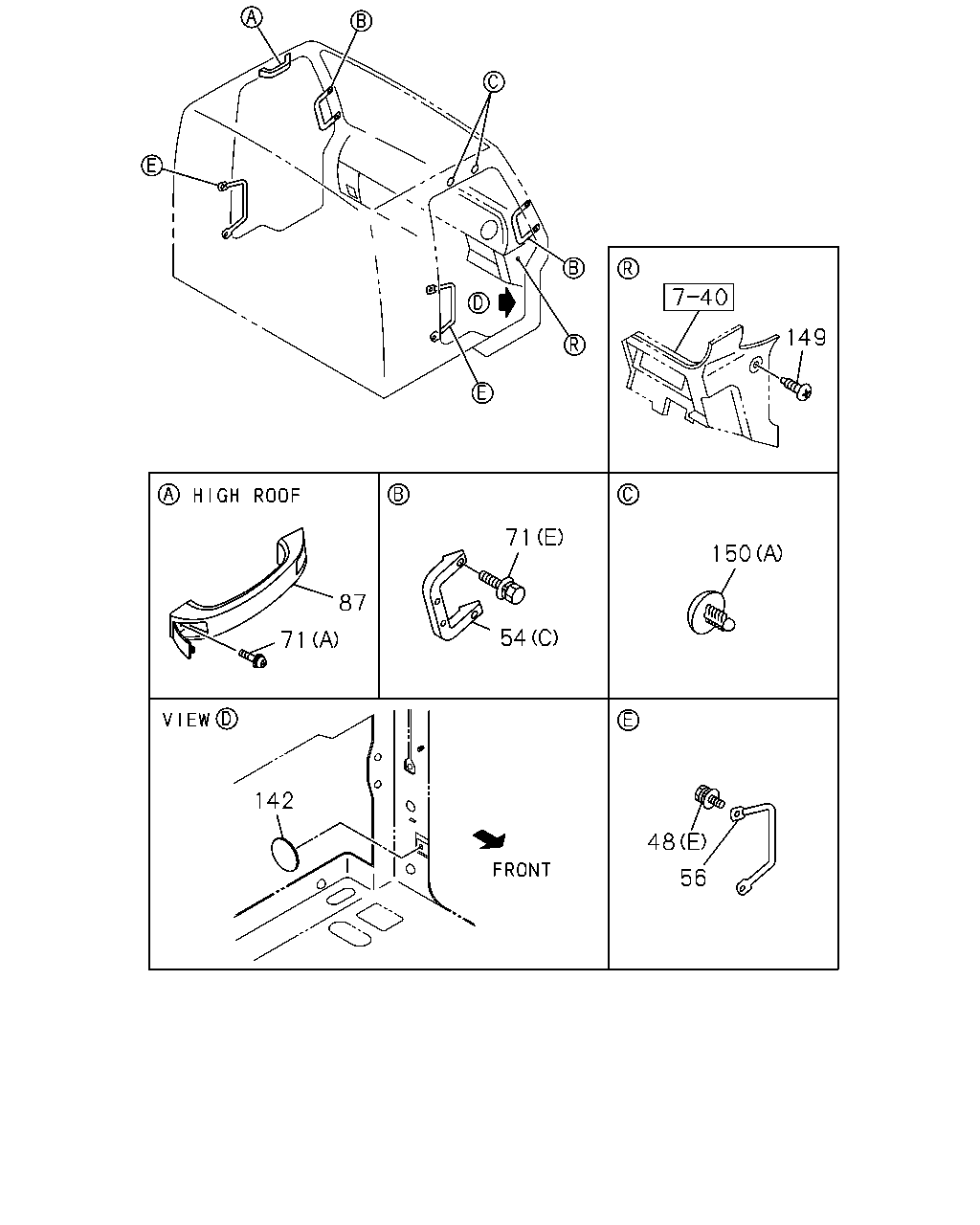

çizim 152946
71 150 87 54 71 142 48 56 149
BalonParca AdiParca NoAdetTipApplied Date A B C D E
48 BOLT; ASSIST GRIP
(B) M6X16 W/LK&PL WASHER 		1-09980-492-0 04 1 9604-0004 ● ● ● ● ●
48 BOLT; ASSIST GRIP
(B) M6X16 W/LK&PL WASHER 		1-09980-492-0 04 1 0005-0411 ● ● ●
48 BOLT; ASSIST GRIP
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANTSQUARE W/FOG LAMP<TEB> (B) M6X16 W/LK&PL WASHER 		1-09980-492-0 04 1 0412- ● ● ●
48 BOLT; ASSIST GRIP
(E) M6X12 W/LK&PL WASHER 		1-09980-611-0 04 1 9604-0004 ● ● ● ● ●
48 BOLT; ASSIST GRIP
(E) M6X12 W/LK&PL WASHER 		1-09980-611-0 04 1 0005- ● ● ●
48 BOLT; ASSIST GRIP
(C) M8X30 W/LK&PL WASHER 		8-94279-210-0 04 1 9604-0004 ● ● ● ● ●
48 BOLT; ASSIST GRIP
(C) M8X30 W/LK&PL WASHER 		8-94279-210-0 04 1 0005- ● ● ●
48 BOLT; ASSIST GRIP
HIGH ROOF<S2F> (A) M6X33.5 W/LK&PL WASHER 		1-09980-613-1 04 1 9604-0004 ● ●
48 BOLT; ASSIST GRIP
(A) M6X33.5 W/LK&PL WASHER 		1-09980-613-1 04 1 9604-0004 ● ●
48 BOLT; ASSIST GRIP
HIGH ROOF<S2F> (A) M6X33.5 W/LK&PL WASHER 		1-09980-613-1 04 1 0005- ●
48 BOLT; ASSIST GRIP
(D) M8X24.5 W/LK&PL WASHER 		8-94279-208-0 01 1 9604-0004 ● ● ●
48 BOLT; ASSIST GRIP
(D) M8X24.5 W/LK&PL WASHER 		8-94279-208-0 01 1 0005-0904 ● ●
48 BOLT; ASSIST GRIP
(D) M8X24.5 W/LK&PL WASHER 		8-98059-720-0 01 1 0905- ● ●
54 GRIP; ASSIST,QUARTER SIDE
(C) 		1-73618-158-2 02 1 9604-9708 ● ●
54 GRIP; ASSIST,QUARTER SIDE
(C) 		1-73618-158-2 02 1 9709-0004 ● ●
54 GRIP; ASSIST,QUARTER SIDE
NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) (C) 		1-73618-158-2 02 1 9709-0004 ● ●
54 GRIP; ASSIST,QUARTER SIDE
(C) 		1-73618-158-2 02 1 0005-0211 ●
54 GRIP; ASSIST,QUARTER SIDE
NEW ZEALAND EQUIPMENT(PK5) (C) 		1-73618-158-2 02 1 0005-0211 ●
54 GRIP; ASSIST,QUARTER SIDE
(C) 		1-73618-185-1 02 1 0212- ●
54 GRIP; ASSIST,QUARTER SIDE
NEW ZEALAND EQUIPMENT(PK5) (C) 		1-73618-185-1 02 1 0212- ●
54 GRIP; ASSIST,QUARTER SIDE
(A) 		1-73617-067-0 01 1 9604-0004 ● ● ●
54 GRIP; ASSIST,QUARTER SIDE
(A) 		1-73617-564-1 01 1 0005- ● ●
54 GRIP; ASSIST,QUARTER SIDE
(B) 		1-73617-066-0 01 1 9604-0004 ● ● ●
54 GRIP; ASSIST,QUARTER SIDE
(B) 		1-73617-563-1 01 1 0005- ● ●
56 GRIP; ASSIST,SIDE SILL 1-73617-062-4 02 1 9604-0004 ● ● ● ● ●
56 GRIP; ASSIST,SIDE SILL 1-73617-062-5 02 1 0005-0402 ● ● ●
56 GRIP; ASSIST,SIDE SILL 1-73617-570-0 02 1 0403-0804 ● ● ●
56 GRIP; ASSIST,SIDE SILL 8-98081-700-0 02 1 0805- ● ● ●
71 SCREW
(E) M6X20 W/LK&PL WASHER 		1-09981-509-0 04 1 9604-9708 ● ●
71 SCREW
(E) M6X20 W/LK&PL WASHER 		1-09981-509-0 04 1 9709-0004 ● ●
71 SCREW
NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) (E) M6X20 W/LK&PL WASHER 		1-09981-509-0 04 1 9709-0004 ● ●
71 SCREW
(E) M6X20 W/LK&PL WASHER 		1-09981-509-0 04 1 0005-0211 ●
71 SCREW
NEW ZEALAND EQUIPMENT(PK5) (E) M6X20 W/LK&PL WASHER 		1-09981-509-0 04 1 0005-0211 ●
71 SCREW
(E) M6X34 W/LK&PL WASHER 		8-94279-411-0 04 1 0212- ●
71 SCREW
NEW ZEALAND EQUIPMENT(PK5) (E) M6X34 W/LK&PL WASHER 		8-94279-411-0 04 1 0212- ●
71 SCREW
HIGH ROOF<S2F> (A) M6X37 W/PL WASHER 		1-09981-423-0 02 1 9604-9702 ● ●
71 SCREW
(A) M6X37 W/PL WASHER 		1-09981-423-0 02 1 9604-9702 ● ●
71 SCREW
HIGH ROOF<S2F> (A) M6X35 W/PL WASHER 		1-09981-422-0 02 1 9703-0004 ● ●
71 SCREW
(A) M6X35 W/PL WASHER 		1-09981-422-0 02 1 9703-0004 ● ●
71 SCREW
HIGH ROOF<S2F> (A) M6X35 W/PL WASHER 		1-09981-422-0 02 1 0005-0212 ●
71 SCREW
ASSIST GRIP<EG5> HIGH ROOF<S2F> (A) M6X35 W/PL WASHER 		1-09981-422-0 02 1 0301-0310 ●
71 SCREW
ASSIST GRIP<EG5> HIGH ROOF<S2F> (A) M6X30 W/LK WASHER 		5-09981-064-0 02 1 0311- ●
71 SCREW
HIGH ROOF<S2F> (C) M5X14 W/PL WASHER 		5-09981-050-0 06 1 9604-9803 ● ●
71 SCREW
(C) M5X14 W/PL WASHER 		5-09981-050-0 06 1 9604-9803 ● ●
71 SCREW
HIGH ROOF<S2F> (C) M5X14 W/PL WASHER 		5-09981-050-0 06 1 9804-0004 ● ● ● ●
71 SCREW
HIGH ROOF<S2F> (C) M5X14 W/PL WASHER 		5-09981-050-0 06 1 0005- ●
71 SCREW
(D) M6X24 W/LK&PL WASHER 		8-94279-404-0 16 1 9604-0004 ● ●
71 SCREW
(B) M6X20 W/LK&PL WASHER 		1-09981-073-0 03 1 9604-0004 ● ● ●
71 SCREW
(B) M6X20 W/LK&PL WASHER 		1-09981-073-0 03 1 0005- ● ●
87 GRIP; ASSIST,CANT RAIL SIDE
HIGH ROOF<S2F> 		1-73618-170-0 01 1 9604-0004 ● ●
87 GRIP; ASSIST,CANT RAIL SIDE 1-73618-170-0 01 1 9604-0004 ● ●
87 GRIP; ASSIST,CANT RAIL SIDE
HIGH ROOF<S2F> DARK GRAY 		8-97098-476-2 01 1 0005-0212 ●
87 GRIP; ASSIST,CANT RAIL SIDE
ASSIST GRIP<EG5> HIGH ROOF<S2F> DARK GRAY 		8-97098-476-2 01 1 0301- ●
142 SEAL; ASSIST GRIP
OD=25 BLACK 		1-76798-019-0 02 1 9604-0004 ● ●
142 SEAL; ASSIST GRIP
OD=25 BLACK 		1-76798-019-0 02 1 0005- ●
149 SCREW; ASSIST GRIP HOLE
M6X12 		8-97094-854-0 02 1 0404- ● ● ●
150 CLIP; ASSIST GRIP HOLE
HIGH ROOF<S2F> (A) OD=6 L=17 DARK GRAY 		1-73996-128-1 02 1 9604-0004 ● ●
150 CLIP; ASSIST GRIP HOLE
(A) OD=6 L=17 DARK GRAY 		1-73996-128-1 02 1 9604-0004 ● ●
150 CLIP; ASSIST GRIP HOLE
HIGH ROOF<S2F> (A) OD=6 L=17 LIGHT GRAY 		1-73996-301-0 02 1 0005-0212 ●
150 CLIP; ASSIST GRIP HOLE
ASSIST GRIP<EG5> HIGH ROOF<S2F> (A) OD=6 L=17 LIGHT GRAY 		1-73996-301-0 02 1 0301- ●
150 CLIP; ASSIST GRIP HOLE
LOW ROOF<6XQ> (A) OD=6 L=17 LIGHT GRAY 		1-73996-301-0 04 1 9604-0104 ● ●
150 CLIP; ASSIST GRIP HOLE
(A) OD=6 L=17 LIGHT GRAY 		1-73996-301-0 04 1 9604-0104 ●
150 CLIP; ASSIST GRIP HOLE
(A) OD=6 L=17 LIGHT GRAY 		1-73996-301-0 04 1 0105-0212 ● ●
150 CLIP; ASSIST GRIP HOLE
LOW ROOF<6XQ> (A) OD=6 L=17 LIGHT GRAY 		1-73996-301-0 04 1 0105-0212 ●
150 CLIP; ASSIST GRIP HOLE
(A) OD=6 L=17 LIGHT GRAY 		1-73996-301-0 04 1 0301- ● ●
150 CLIP; ASSIST GRIP HOLE
HIGH ROOF<S2F> EXC. ASSIST GRIP<EG5> (A) OD=6 L=17 LIGHT GRAY 		1-73996-301-0 04 1 0301- ●
150 CLIP; ASSIST GRIP HOLE
LOW ROOF<6XQ> (A) OD=6 L=17 LIGHT GRAY 		1-73996-301-0 04 1 0301- ●
150 CLIP; ASSIST GRIP HOLE
(B) OD=6 L=17 DARK GRAY 		1-73996-128-1 04 1 9604-9708 ● ● ●
150 CLIP; ASSIST GRIP HOLE
(B) OD=6 L=17 DARK GRAY 		1-73996-128-1 04 1 9709-0004 ●
150 CLIP; ASSIST GRIP HOLE
EXC. NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) (B) OD=6 L=17 DARK GRAY 		1-73996-128-1 04 1 9709-0004 ●
150 CLIP; ASSIST GRIP HOLE
(B) OD=6 L=17 DARK GRAY 		1-73996-364-0 04 1 0005- ●
150 CLIP; ASSIST GRIP HOLE
EXC. NEW ZEALAND EQUIPMENT(PK5) (B) OD=6 L=17 DARK GRAY 		1-73996-364-0 04 1 0005- ●
çizim 152949
64 64 64 62 64 48 48 48 48 62 68 66 103 48 59 68 66 48 48 59 103 48 59 48 48 59
BalonParca AdiParca NoAdetTipApplied Date A B C D E
48 BOLT; ASSIST GRIP
(B) M6X16 W/LK&PL WASHER 		1-09980-492-0 04 1 9604-0004 ● ● ● ● ●
48 BOLT; ASSIST GRIP
(B) M6X16 W/LK&PL WASHER 		1-09980-492-0 04 1 0005-0411 ● ● ●
48 BOLT; ASSIST GRIP
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANTSQUARE W/FOG LAMP<TEB> (B) M6X16 W/LK&PL WASHER 		1-09980-492-0 04 1 0412- ● ● ●
48 BOLT; ASSIST GRIP
(E) M6X12 W/LK&PL WASHER 		1-09980-611-0 04 1 9604-0004 ● ● ● ● ●
48 BOLT; ASSIST GRIP
(E) M6X12 W/LK&PL WASHER 		1-09980-611-0 04 1 0005- ● ● ●
48 BOLT; ASSIST GRIP
(C) M8X30 W/LK&PL WASHER 		8-94279-210-0 04 1 9604-0004 ● ● ● ● ●
48 BOLT; ASSIST GRIP
(C) M8X30 W/LK&PL WASHER 		8-94279-210-0 04 1 0005- ● ● ●
48 BOLT; ASSIST GRIP
HIGH ROOF<S2F> (A) M6X33.5 W/LK&PL WASHER 		1-09980-613-1 04 1 9604-0004 ● ●
48 BOLT; ASSIST GRIP
(A) M6X33.5 W/LK&PL WASHER 		1-09980-613-1 04 1 9604-0004 ● ●
48 BOLT; ASSIST GRIP
HIGH ROOF<S2F> (A) M6X33.5 W/LK&PL WASHER 		1-09980-613-1 04 1 0005- ●
48 BOLT; ASSIST GRIP
(D) M8X24.5 W/LK&PL WASHER 		8-94279-208-0 01 1 9604-0004 ● ● ●
48 BOLT; ASSIST GRIP
(D) M8X24.5 W/LK&PL WASHER 		8-94279-208-0 01 1 0005-0904 ● ●
48 BOLT; ASSIST GRIP
(D) M8X24.5 W/LK&PL WASHER 		8-98059-720-0 01 1 0905- ● ●
59 COVER; ASSIST GRIP
(B) OUTER 		1-71998-789-2 02 1 9604-0004 ● ● ● ● ●
59 COVER; ASSIST GRIP
(B) OUTER 		1-71998-789-2 02 1 0005- ● ● ●
59 COVER; ASSIST GRIP
(A) INNER 		1-71998-790-2 02 1 9604-0004 ● ● ● ● ●
59 COVER; ASSIST GRIP
(A) INNER 		1-71998-790-2 02 1 0005- ● ● ●
59 COVER; ASSIST GRIP
(C) 		1-73617-069-0 02 1 9604-0004 ● ● ●
59 COVER; ASSIST GRIP
(C) 		1-73617-565-0 02 1 0005- ● ●
62 GRIP; ASSIST,ROOF PANEL
HIGH ROOF<S2F> 		1-71997-895-1 02 1 9604-9610 ● ●
62 GRIP; ASSIST,ROOF PANEL 1-71997-895-1 02 1 9604-9610 ● ●
62 GRIP; ASSIST,ROOF PANEL
HIGH ROOF<S2F> 		1-71907-492-0 02 1 9611-0004 ● ●
62 GRIP; ASSIST,ROOF PANEL 1-71907-492-0 02 1 9611-0004 ● ●
62 GRIP; ASSIST,ROOF PANEL
HIGH ROOF<S2F> 		1-71907-492-0 02 1 0005-0907 ●
62 GRIP; ASSIST,ROOF PANEL
HIGH ROOF<S2F> 		8-97630-819-0 02 1 0908- ●
64 SHEET; ASSIST GRIP
HIGH ROOF<S2F> 25X25 		8-94272-533-0 04 1 9604-0004 ● ●
64 SHEET; ASSIST GRIP
25X25 		8-94272-533-0 04 1 9604-0004 ● ●
64 SHEET; ASSIST GRIP
HIGH ROOF<S2F> 25X25 		8-94272-533-0 04 1 0005- ●
66 BOLT; ASSIST GRIP BRKT
M8X20.5 W/LK&PL WASHER 		8-94279-207-0 04 1 9604-0004 ● ● ● ● ●
66 BOLT; ASSIST GRIP BRKT
M8X20.5 W/LK&PL WASHER 		8-94279-207-0 04 1 0005- ● ● ●
68 BRACKET; ASSIST GRIP,FRT PANEL 1-65580-203-0 02 1 9604-0004 ● ● ● ● ●
68 BRACKET; ASSIST GRIP,FRT PANEL 1-65580-203-0 02 1 0005- ● ● ●
103 GRIP; ASSIST,FRT PNL 1-71998-792-2 01 1 9604-0004 ● ● ● ● ●
103 GRIP; ASSIST,FRT PNL 1-71998-792-2 01 1 0005-0411 ● ● ●
103 GRIP; ASSIST,FRT PNL
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANTSQUARE W/FOG LAMP<TEB> 		1-71998-792-2 01 1 0412- ● ● ●
103 GRIP; ASSIST,FRT PNL 1-71998-791-2 01 1 9604-0004 ● ● ● ● ●
103 GRIP; ASSIST,FRT PNL 1-71998-791-2 01 1 0005-0411 ● ● ●
103 GRIP; ASSIST,FRT PNL
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANTSQUARE W/FOG LAMP<TEB> 		1-71998-791-2 01 1 0412- ● ● ●

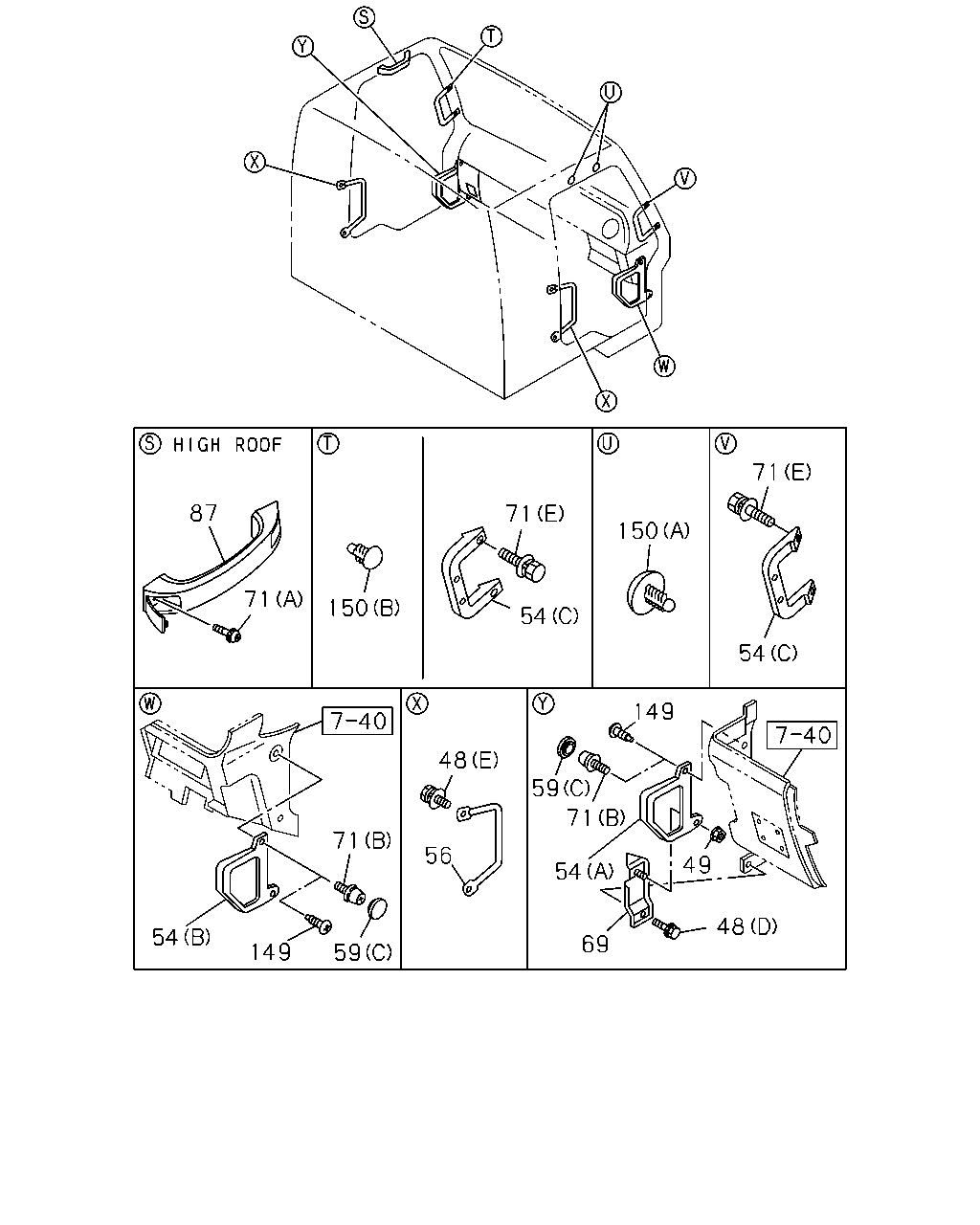

çizim 152954
71 87 71 150 71 150 54 54 149 48 59 71 71 49 56 54 48 54 69 149 59
BalonParca AdiParca NoAdetTipApplied Date A B C D E
48 BOLT; ASSIST GRIP
(B) M6X16 W/LK&PL WASHER 		1-09980-492-0 04 1 9604-0004 ● ● ● ● ●
48 BOLT; ASSIST GRIP
(B) M6X16 W/LK&PL WASHER 		1-09980-492-0 04 1 0005-0411 ● ● ●
48 BOLT; ASSIST GRIP
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANTSQUARE W/FOG LAMP<TEB> (B) M6X16 W/LK&PL WASHER 		1-09980-492-0 04 1 0412- ● ● ●
48 BOLT; ASSIST GRIP
(E) M6X12 W/LK&PL WASHER 		1-09980-611-0 04 1 9604-0004 ● ● ● ● ●
48 BOLT; ASSIST GRIP
(E) M6X12 W/LK&PL WASHER 		1-09980-611-0 04 1 0005- ● ● ●
48 BOLT; ASSIST GRIP
(C) M8X30 W/LK&PL WASHER 		8-94279-210-0 04 1 9604-0004 ● ● ● ● ●
48 BOLT; ASSIST GRIP
(C) M8X30 W/LK&PL WASHER 		8-94279-210-0 04 1 0005- ● ● ●
48 BOLT; ASSIST GRIP
HIGH ROOF<S2F> (A) M6X33.5 W/LK&PL WASHER 		1-09980-613-1 04 1 9604-0004 ● ●
48 BOLT; ASSIST GRIP
(A) M6X33.5 W/LK&PL WASHER 		1-09980-613-1 04 1 9604-0004 ● ●
48 BOLT; ASSIST GRIP
HIGH ROOF<S2F> (A) M6X33.5 W/LK&PL WASHER 		1-09980-613-1 04 1 0005- ●
48 BOLT; ASSIST GRIP
(D) M8X24.5 W/LK&PL WASHER 		8-94279-208-0 01 1 9604-0004 ● ● ●
48 BOLT; ASSIST GRIP
(D) M8X24.5 W/LK&PL WASHER 		8-94279-208-0 01 1 0005-0904 ● ●
48 BOLT; ASSIST GRIP
(D) M8X24.5 W/LK&PL WASHER 		8-98059-720-0 01 1 0905- ● ●
49 NUT; ASSIST GRIP
M6 FLANGE 		0-91150-106-0 01 1 9604-0004 ● ● ●
49 NUT; ASSIST GRIP
M6 FLANGE 		0-91150-106-0 01 1 0005-0602 ● ●
49 NUT; ASSIST GRIP
M6 FLANGE 		0-91180-106-0 01 1 0603- ● ●
54 GRIP; ASSIST,QUARTER SIDE
(C) 		1-73618-158-2 02 1 9604-9708 ● ●
54 GRIP; ASSIST,QUARTER SIDE
(C) 		1-73618-158-2 02 1 9709-0004 ● ●
54 GRIP; ASSIST,QUARTER SIDE
NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) (C) 		1-73618-158-2 02 1 9709-0004 ● ●
54 GRIP; ASSIST,QUARTER SIDE
(C) 		1-73618-158-2 02 1 0005-0211 ●
54 GRIP; ASSIST,QUARTER SIDE
NEW ZEALAND EQUIPMENT(PK5) (C) 		1-73618-158-2 02 1 0005-0211 ●
54 GRIP; ASSIST,QUARTER SIDE
(C) 		1-73618-185-1 02 1 0212- ●
54 GRIP; ASSIST,QUARTER SIDE
NEW ZEALAND EQUIPMENT(PK5) (C) 		1-73618-185-1 02 1 0212- ●
54 GRIP; ASSIST,QUARTER SIDE
(A) 		1-73617-067-0 01 1 9604-0004 ● ● ●
54 GRIP; ASSIST,QUARTER SIDE
(A) 		1-73617-564-1 01 1 0005- ● ●
54 GRIP; ASSIST,QUARTER SIDE
(B) 		1-73617-066-0 01 1 9604-0004 ● ● ●
54 GRIP; ASSIST,QUARTER SIDE
(B) 		1-73617-563-1 01 1 0005- ● ●
56 GRIP; ASSIST,SIDE SILL 1-73617-062-4 02 1 9604-0004 ● ● ● ● ●
56 GRIP; ASSIST,SIDE SILL 1-73617-062-5 02 1 0005-0402 ● ● ●
56 GRIP; ASSIST,SIDE SILL 1-73617-570-0 02 1 0403-0804 ● ● ●
56 GRIP; ASSIST,SIDE SILL 8-98081-700-0 02 1 0805- ● ● ●
59 COVER; ASSIST GRIP
(B) OUTER 		1-71998-789-2 02 1 9604-0004 ● ● ● ● ●
59 COVER; ASSIST GRIP
(B) OUTER 		1-71998-789-2 02 1 0005- ● ● ●
59 COVER; ASSIST GRIP
(A) INNER 		1-71998-790-2 02 1 9604-0004 ● ● ● ● ●
59 COVER; ASSIST GRIP
(A) INNER 		1-71998-790-2 02 1 0005- ● ● ●
59 COVER; ASSIST GRIP
(C) 		1-73617-069-0 02 1 9604-0004 ● ● ●
59 COVER; ASSIST GRIP
(C) 		1-73617-565-0 02 1 0005- ● ●
69 BRACKET; ASSIST GRIP 1-73618-178-2 01 1 9604-0004 ● ● ●
69 BRACKET; ASSIST GRIP 1-73618-178-2 01 1 0005- ● ●
71 SCREW
(E) M6X20 W/LK&PL WASHER 		1-09981-509-0 04 1 9604-9708 ● ●
71 SCREW
(E) M6X20 W/LK&PL WASHER 		1-09981-509-0 04 1 9709-0004 ● ●
71 SCREW
NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) (E) M6X20 W/LK&PL WASHER 		1-09981-509-0 04 1 9709-0004 ● ●
71 SCREW
(E) M6X20 W/LK&PL WASHER 		1-09981-509-0 04 1 0005-0211 ●
71 SCREW
NEW ZEALAND EQUIPMENT(PK5) (E) M6X20 W/LK&PL WASHER 		1-09981-509-0 04 1 0005-0211 ●
71 SCREW
(E) M6X34 W/LK&PL WASHER 		8-94279-411-0 04 1 0212- ●
71 SCREW
NEW ZEALAND EQUIPMENT(PK5) (E) M6X34 W/LK&PL WASHER 		8-94279-411-0 04 1 0212- ●
71 SCREW
HIGH ROOF<S2F> (A) M6X37 W/PL WASHER 		1-09981-423-0 02 1 9604-9702 ● ●
71 SCREW
(A) M6X37 W/PL WASHER 		1-09981-423-0 02 1 9604-9702 ● ●
71 SCREW
HIGH ROOF<S2F> (A) M6X35 W/PL WASHER 		1-09981-422-0 02 1 9703-0004 ● ●
71 SCREW
(A) M6X35 W/PL WASHER 		1-09981-422-0 02 1 9703-0004 ● ●
71 SCREW
HIGH ROOF<S2F> (A) M6X35 W/PL WASHER 		1-09981-422-0 02 1 0005-0212 ●
71 SCREW
ASSIST GRIP<EG5> HIGH ROOF<S2F> (A) M6X35 W/PL WASHER 		1-09981-422-0 02 1 0301-0310 ●
71 SCREW
ASSIST GRIP<EG5> HIGH ROOF<S2F> (A) M6X30 W/LK WASHER 		5-09981-064-0 02 1 0311- ●
71 SCREW
HIGH ROOF<S2F> (C) M5X14 W/PL WASHER 		5-09981-050-0 06 1 9604-9803 ● ●
71 SCREW
(C) M5X14 W/PL WASHER 		5-09981-050-0 06 1 9604-9803 ● ●
71 SCREW
HIGH ROOF<S2F> (C) M5X14 W/PL WASHER 		5-09981-050-0 06 1 9804-0004 ● ● ● ●
71 SCREW
HIGH ROOF<S2F> (C) M5X14 W/PL WASHER 		5-09981-050-0 06 1 0005- ●
71 SCREW
(D) M6X24 W/LK&PL WASHER 		8-94279-404-0 16 1 9604-0004 ● ●
71 SCREW
(B) M6X20 W/LK&PL WASHER 		1-09981-073-0 03 1 9604-0004 ● ● ●
71 SCREW
(B) M6X20 W/LK&PL WASHER 		1-09981-073-0 03 1 0005- ● ●
87 GRIP; ASSIST,CANT RAIL SIDE
HIGH ROOF<S2F> 		1-73618-170-0 01 1 9604-0004 ● ●
87 GRIP; ASSIST,CANT RAIL SIDE 1-73618-170-0 01 1 9604-0004 ● ●
87 GRIP; ASSIST,CANT RAIL SIDE
HIGH ROOF<S2F> DARK GRAY 		8-97098-476-2 01 1 0005-0212 ●
87 GRIP; ASSIST,CANT RAIL SIDE
ASSIST GRIP<EG5> HIGH ROOF<S2F> DARK GRAY 		8-97098-476-2 01 1 0301- ●
149 SCREW; ASSIST GRIP HOLE
M6X12 		8-97094-854-0 02 1 0404- ● ● ●
150 CLIP; ASSIST GRIP HOLE
HIGH ROOF<S2F> (A) OD=6 L=17 DARK GRAY 		1-73996-128-1 02 1 9604-0004 ● ●
150 CLIP; ASSIST GRIP HOLE
(A) OD=6 L=17 DARK GRAY 		1-73996-128-1 02 1 9604-0004 ● ●
150 CLIP; ASSIST GRIP HOLE
HIGH ROOF<S2F> (A) OD=6 L=17 LIGHT GRAY 		1-73996-301-0 02 1 0005-0212 ●
150 CLIP; ASSIST GRIP HOLE
ASSIST GRIP<EG5> HIGH ROOF<S2F> (A) OD=6 L=17 LIGHT GRAY 		1-73996-301-0 02 1 0301- ●
150 CLIP; ASSIST GRIP HOLE
LOW ROOF<6XQ> (A) OD=6 L=17 LIGHT GRAY 		1-73996-301-0 04 1 9604-0104 ● ●
150 CLIP; ASSIST GRIP HOLE
(A) OD=6 L=17 LIGHT GRAY 		1-73996-301-0 04 1 9604-0104 ●
150 CLIP; ASSIST GRIP HOLE
(A) OD=6 L=17 LIGHT GRAY 		1-73996-301-0 04 1 0105-0212 ● ●
150 CLIP; ASSIST GRIP HOLE
LOW ROOF<6XQ> (A) OD=6 L=17 LIGHT GRAY 		1-73996-301-0 04 1 0105-0212 ●
150 CLIP; ASSIST GRIP HOLE
(A) OD=6 L=17 LIGHT GRAY 		1-73996-301-0 04 1 0301- ● ●
150 CLIP; ASSIST GRIP HOLE
HIGH ROOF<S2F> EXC. ASSIST GRIP<EG5> (A) OD=6 L=17 LIGHT GRAY 		1-73996-301-0 04 1 0301- ●
150 CLIP; ASSIST GRIP HOLE
LOW ROOF<6XQ> (A) OD=6 L=17 LIGHT GRAY 		1-73996-301-0 04 1 0301- ●
150 CLIP; ASSIST GRIP HOLE
(B) OD=6 L=17 DARK GRAY 		1-73996-128-1 04 1 9604-9708 ● ● ●
150 CLIP; ASSIST GRIP HOLE
(B) OD=6 L=17 DARK GRAY 		1-73996-128-1 04 1 9709-0004 ●
150 CLIP; ASSIST GRIP HOLE
EXC. NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) (B) OD=6 L=17 DARK GRAY 		1-73996-128-1 04 1 9709-0004 ●
150 CLIP; ASSIST GRIP HOLE
(B) OD=6 L=17 DARK GRAY 		1-73996-364-0 04 1 0005- ●
150 CLIP; ASSIST GRIP HOLE
EXC. NEW ZEALAND EQUIPMENT(PK5) (B) OD=6 L=17 DARK GRAY 		1-73996-364-0 04 1 0005- ●
çizim 152956
24 26 14 24 24 33 121 26 14 33 24 121 34 23 23 34
BalonParca AdiParca NoAdetTipApplied Date A B C D E
14 SCREW; BRKT
LOW ROOF<6XQ> M6X24 W/LK&PL WASHER 		8-94279-404-0 02 1 9604-0104 ● ●
14 SCREW; BRKT
M6X24 W/LK&PL WASHER 		8-94279-404-0 02 1 9604-0104 ●
14 SCREW; BRKT
M6X24 W/LK&PL WASHER 		8-94279-404-0 02 1 0105- ● ●
14 SCREW; BRKT
LOW ROOF<6XQ> M6X24 W/LK&PL WASHER 		8-94279-404-0 02 1 0105- ●
23 SUN VISOR 1-73138-148-1 01 1 9604-0004 ● ● ● ● ●
23 SUN VISOR 1-73138-156-1 01 1 0005- ● ● ●
23 SUN VISOR
SUN VISOR PASSENGER<D20> 		1-73138-150-1 01 1 9604-0004 ● ● ● ● ●
23 SUN VISOR
SUN VISOR PASSENGER<D20> 		1-73138-157-1 01 1 0005- ● ● ●
24 BRACKET; SUN VISOR
LOW ROOF<6XQ> (B) 		1-73138-145-0 02 1 9604-0104 ● ●
24 BRACKET; SUN VISOR
(B) 		1-73138-145-0 02 1 9604-0104 ●
24 BRACKET; SUN VISOR
(B) 		1-73138-145-0 02 1 0105- ● ●
24 BRACKET; SUN VISOR
LOW ROOF<6XQ> (B) 		1-73138-145-0 02 1 0105- ●
24 BRACKET; SUN VISOR
LOW ROOF<6XQ> (A) 		1-73138-144-1 01 1 9604-0104 ● ●
24 BRACKET; SUN VISOR
(A) 		1-73138-144-1 01 1 9604-0104 ●
24 BRACKET; SUN VISOR
(A) 		1-73138-144-1 01 1 0105- ● ●
24 BRACKET; SUN VISOR
LOW ROOF<6XQ> (A) 		1-73138-144-1 01 1 0105- ●
24 BRACKET; SUN VISOR
LOW ROOF<6XQ> (A) 		1-73138-143-1 01 1 9604-0104 ● ●
24 BRACKET; SUN VISOR
(A) 		1-73138-143-1 01 1 9604-0104 ●
24 BRACKET; SUN VISOR
(A) 		1-73138-143-1 01 1 0105- ● ●
24 BRACKET; SUN VISOR
LOW ROOF<6XQ> (A) 		1-73138-143-1 01 1 0105- ●
26 HOLDER; SUN VISOR 1-73138-142-0 02 1 9604-0004 ● ● ● ● ●
26 HOLDER; SUN VISOR
LOW ROOF<6XQ> 		1-73138-142-0 02 1 0005-0006 ● ●
26 HOLDER; SUN VISOR 1-73138-142-0 02 1 0005-0006 ●
26 HOLDER; SUN VISOR
HIGH ROOF<S2F> 		1-73137-175-0 02 1 0005-0006 ●
26 HOLDER; SUN VISOR
LOW ROOF<6XQ> 		1-73137-175-0 02 1 0007-0104 ● ●
26 HOLDER; SUN VISOR
HIGH ROOF<S2F>,LOW ROOF<6XQ> 		1-73137-175-0 02 1 0007-0104 ●
26 HOLDER; SUN VISOR 1-73137-175-0 02 1 0105- ● ●
26 HOLDER; SUN VISOR
HIGH ROOF<S2F>,LOW ROOF<6XQ> 		1-73137-175-0 02 1 0105- ●
33 SCREW; HOLDER,SUN VISOR
M4X16 TAPPING OVAL-HEAD 		0-70580-416-0 02 1 9604-0004 ● ● ● ● ●
33 SCREW; HOLDER,SUN VISOR
LOW ROOF<6XQ> M4X16 TAPPING OVAL-HEAD 		0-70580-416-0 02 1 0005-0101 ● ●
33 SCREW; HOLDER,SUN VISOR
HIGH ROOF<S2F>,LOW ROOF<6XQ> M4X16 TAPPING OVAL-HEAD 		0-70580-416-0 02 1 0005-0101 ●
33 SCREW; HOLDER,SUN VISOR
HIGH ROOF<S2F> M4X16 TAPPING OVAL-HEAD 		0-70580-416-0 02 1 0102-0603 ●
33 SCREW; HOLDER,SUN VISOR
HIGH ROOF<S2F> M4X16 TAPPING OVAL-HEAD 		0-70540-416-0 02 1 0604- ●
33 SCREW; HOLDER,SUN VISOR
M4X20 TAPPING OVAL-HEAD 		0-70580-420-0 02 1 0102-0603 ● ●
33 SCREW; HOLDER,SUN VISOR
LOW ROOF<6XQ> M4X20 TAPPING OVAL-HEAD 		0-70580-420-0 02 1 0102-0603 ●
33 SCREW; HOLDER,SUN VISOR
M4X20 TAPPING OVAL-HEAD 		0-70540-420-0 02 1 0604- ● ●
33 SCREW; HOLDER,SUN VISOR
LOW ROOF<6XQ> M4X20 TAPPING OVAL-HEAD 		0-70540-420-0 02 1 0604- ●
34 SCREW; SUN VISOR
LOW ROOF<6XQ> M6X25 		1-09981-441-0 02 1 9604-9704 ● ● ●
34 SCREW; SUN VISOR
SUN VISOR PASSENGER<D20> LOW ROOF<6XQ> M6X25 		1-09981-441-0 02 1 9604-9704 ● ● ●
34 SCREW; SUN VISOR
M6X25 		1-09981-441-0 02 1 9705-0004 ● ● ● ● ●
34 SCREW; SUN VISOR
SUN VISOR PASSENGER<D20> M6X25 		1-09981-441-0 02 1 9705-0004 ● ● ● ● ●
34 SCREW; SUN VISOR
M6X25 		1-09981-441-0 02 1 0005- ● ● ●
34 SCREW; SUN VISOR
SUN VISOR PASSENGER<D20> M6X25 		1-09981-441-0 02 1 0005- ● ● ●
34 SCREW; SUN VISOR
HIGH ROOF<S2F> M6X25 		1-09981-441-0 04 1 9604-9704 ● ●
34 SCREW; SUN VISOR
M6X25 		1-09981-441-0 04 1 9604-9704 ● ●
121 SCREW; BRKT,SUN VISOR
LOW ROOF<6XQ> M6X24 W/LK&PL WASHER 		8-94279-404-0 02 1 9604-0104 ● ●
121 SCREW; BRKT,SUN VISOR
M6X24 W/LK&PL WASHER 		8-94279-404-0 02 1 9604-0104 ●
121 SCREW; BRKT,SUN VISOR
M6X24 W/LK&PL WASHER 		8-94279-404-0 02 1 0105- ● ●
121 SCREW; BRKT,SUN VISOR
LOW ROOF<6XQ> M6X24 W/LK&PL WASHER 		8-94279-404-0 02 1 0105- ●

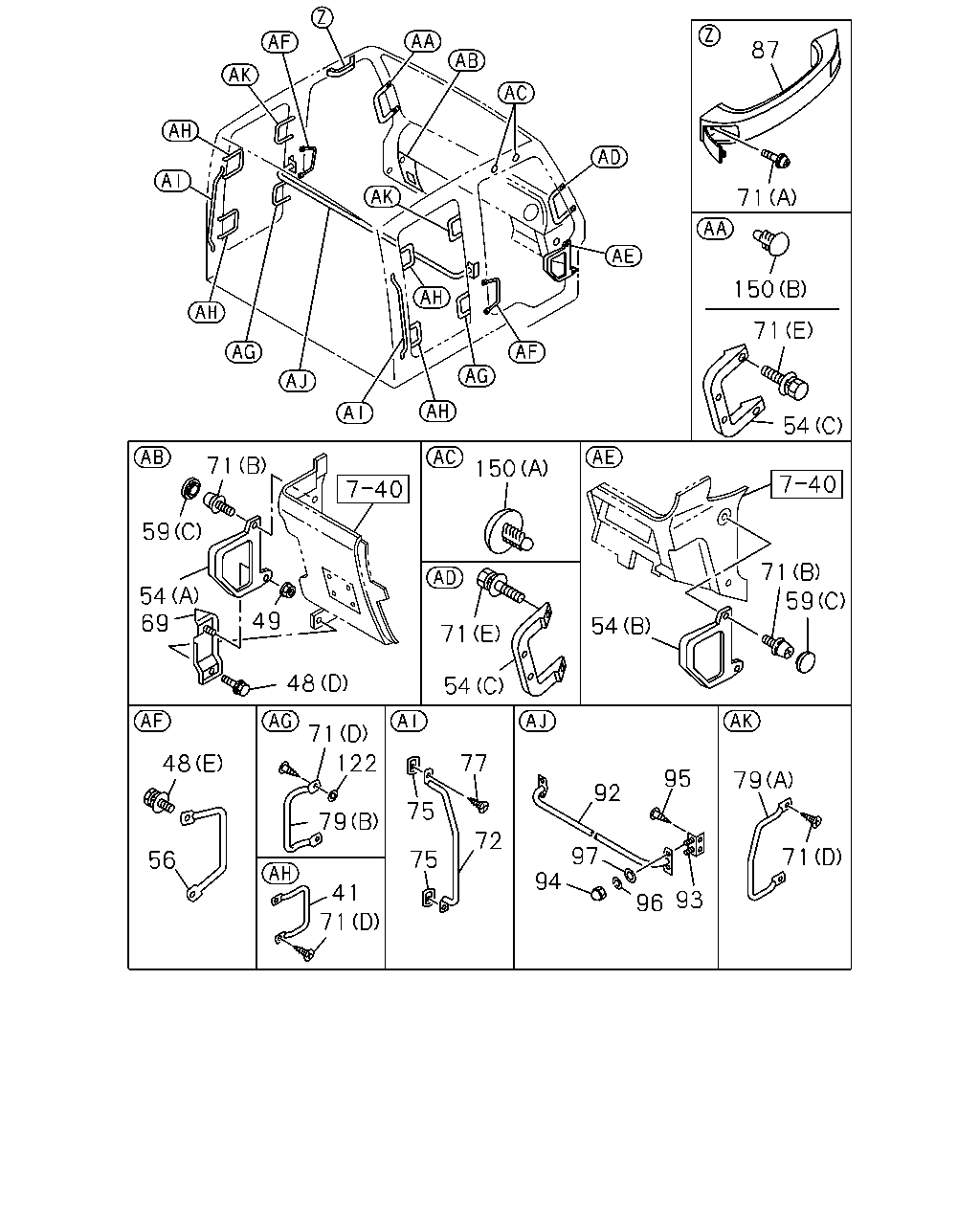

çizim 152959
87 71 150 71 54 71 150 59 71 59 54 69 49 54 71 48 54 71 122 77 48 95 79 92 75 79 72 97 71 75 56 94 41 93 96 71
BalonParca AdiParca NoAdetTipApplied Date A B C D E
41 GRIP; ASSIST,BACK SIDE 1-71998-467-0 04 1 9604-0004 ● ●
48 BOLT; ASSIST GRIP
(B) M6X16 W/LK&PL WASHER 		1-09980-492-0 04 1 9604-0004 ● ● ● ● ●
48 BOLT; ASSIST GRIP
(B) M6X16 W/LK&PL WASHER 		1-09980-492-0 04 1 0005-0411 ● ● ●
48 BOLT; ASSIST GRIP
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANTSQUARE W/FOG LAMP<TEB> (B) M6X16 W/LK&PL WASHER 		1-09980-492-0 04 1 0412- ● ● ●
48 BOLT; ASSIST GRIP
(E) M6X12 W/LK&PL WASHER 		1-09980-611-0 04 1 9604-0004 ● ● ● ● ●
48 BOLT; ASSIST GRIP
(E) M6X12 W/LK&PL WASHER 		1-09980-611-0 04 1 0005- ● ● ●
48 BOLT; ASSIST GRIP
(C) M8X30 W/LK&PL WASHER 		8-94279-210-0 04 1 9604-0004 ● ● ● ● ●
48 BOLT; ASSIST GRIP
(C) M8X30 W/LK&PL WASHER 		8-94279-210-0 04 1 0005- ● ● ●
48 BOLT; ASSIST GRIP
HIGH ROOF<S2F> (A) M6X33.5 W/LK&PL WASHER 		1-09980-613-1 04 1 9604-0004 ● ●
48 BOLT; ASSIST GRIP
(A) M6X33.5 W/LK&PL WASHER 		1-09980-613-1 04 1 9604-0004 ● ●
48 BOLT; ASSIST GRIP
HIGH ROOF<S2F> (A) M6X33.5 W/LK&PL WASHER 		1-09980-613-1 04 1 0005- ●
48 BOLT; ASSIST GRIP
(D) M8X24.5 W/LK&PL WASHER 		8-94279-208-0 01 1 9604-0004 ● ● ●
48 BOLT; ASSIST GRIP
(D) M8X24.5 W/LK&PL WASHER 		8-94279-208-0 01 1 0005-0904 ● ●
48 BOLT; ASSIST GRIP
(D) M8X24.5 W/LK&PL WASHER 		8-98059-720-0 01 1 0905- ● ●
49 NUT; ASSIST GRIP
M6 FLANGE 		0-91150-106-0 01 1 9604-0004 ● ● ●
49 NUT; ASSIST GRIP
M6 FLANGE 		0-91150-106-0 01 1 0005-0602 ● ●
49 NUT; ASSIST GRIP
M6 FLANGE 		0-91180-106-0 01 1 0603- ● ●
54 GRIP; ASSIST,QUARTER SIDE
(C) 		1-73618-158-2 02 1 9604-9708 ● ●
54 GRIP; ASSIST,QUARTER SIDE
(C) 		1-73618-158-2 02 1 9709-0004 ● ●
54 GRIP; ASSIST,QUARTER SIDE
NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) (C) 		1-73618-158-2 02 1 9709-0004 ● ●
54 GRIP; ASSIST,QUARTER SIDE
(C) 		1-73618-158-2 02 1 0005-0211 ●
54 GRIP; ASSIST,QUARTER SIDE
NEW ZEALAND EQUIPMENT(PK5) (C) 		1-73618-158-2 02 1 0005-0211 ●
54 GRIP; ASSIST,QUARTER SIDE
(C) 		1-73618-185-1 02 1 0212- ●
54 GRIP; ASSIST,QUARTER SIDE
NEW ZEALAND EQUIPMENT(PK5) (C) 		1-73618-185-1 02 1 0212- ●
54 GRIP; ASSIST,QUARTER SIDE
(A) 		1-73617-067-0 01 1 9604-0004 ● ● ●
54 GRIP; ASSIST,QUARTER SIDE
(A) 		1-73617-564-1 01 1 0005- ● ●
54 GRIP; ASSIST,QUARTER SIDE
(B) 		1-73617-066-0 01 1 9604-0004 ● ● ●
54 GRIP; ASSIST,QUARTER SIDE
(B) 		1-73617-563-1 01 1 0005- ● ●
56 GRIP; ASSIST,SIDE SILL 1-73617-062-4 02 1 9604-0004 ● ● ● ● ●
56 GRIP; ASSIST,SIDE SILL 1-73617-062-5 02 1 0005-0402 ● ● ●
56 GRIP; ASSIST,SIDE SILL 1-73617-570-0 02 1 0403-0804 ● ● ●
56 GRIP; ASSIST,SIDE SILL 8-98081-700-0 02 1 0805- ● ● ●
59 COVER; ASSIST GRIP
(B) OUTER 		1-71998-789-2 02 1 9604-0004 ● ● ● ● ●
59 COVER; ASSIST GRIP
(B) OUTER 		1-71998-789-2 02 1 0005- ● ● ●
59 COVER; ASSIST GRIP
(A) INNER 		1-71998-790-2 02 1 9604-0004 ● ● ● ● ●
59 COVER; ASSIST GRIP
(A) INNER 		1-71998-790-2 02 1 0005- ● ● ●
59 COVER; ASSIST GRIP
(C) 		1-73617-069-0 02 1 9604-0004 ● ● ●
59 COVER; ASSIST GRIP
(C) 		1-73617-565-0 02 1 0005- ● ●
69 BRACKET; ASSIST GRIP 1-73618-178-2 01 1 9604-0004 ● ● ●
69 BRACKET; ASSIST GRIP 1-73618-178-2 01 1 0005- ● ●
71 SCREW
(E) M6X20 W/LK&PL WASHER 		1-09981-509-0 04 1 9604-9708 ● ●
71 SCREW
(E) M6X20 W/LK&PL WASHER 		1-09981-509-0 04 1 9709-0004 ● ●
71 SCREW
NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) (E) M6X20 W/LK&PL WASHER 		1-09981-509-0 04 1 9709-0004 ● ●
71 SCREW
(E) M6X20 W/LK&PL WASHER 		1-09981-509-0 04 1 0005-0211 ●
71 SCREW
NEW ZEALAND EQUIPMENT(PK5) (E) M6X20 W/LK&PL WASHER 		1-09981-509-0 04 1 0005-0211 ●
71 SCREW
(E) M6X34 W/LK&PL WASHER 		8-94279-411-0 04 1 0212- ●
71 SCREW
NEW ZEALAND EQUIPMENT(PK5) (E) M6X34 W/LK&PL WASHER 		8-94279-411-0 04 1 0212- ●
71 SCREW
HIGH ROOF<S2F> (A) M6X37 W/PL WASHER 		1-09981-423-0 02 1 9604-9702 ● ●
71 SCREW
(A) M6X37 W/PL WASHER 		1-09981-423-0 02 1 9604-9702 ● ●
71 SCREW
HIGH ROOF<S2F> (A) M6X35 W/PL WASHER 		1-09981-422-0 02 1 9703-0004 ● ●
71 SCREW
(A) M6X35 W/PL WASHER 		1-09981-422-0 02 1 9703-0004 ● ●
71 SCREW
HIGH ROOF<S2F> (A) M6X35 W/PL WASHER 		1-09981-422-0 02 1 0005-0212 ●
71 SCREW
ASSIST GRIP<EG5> HIGH ROOF<S2F> (A) M6X35 W/PL WASHER 		1-09981-422-0 02 1 0301-0310 ●
71 SCREW
ASSIST GRIP<EG5> HIGH ROOF<S2F> (A) M6X30 W/LK WASHER 		5-09981-064-0 02 1 0311- ●
71 SCREW
HIGH ROOF<S2F> (C) M5X14 W/PL WASHER 		5-09981-050-0 06 1 9604-9803 ● ●
71 SCREW
(C) M5X14 W/PL WASHER 		5-09981-050-0 06 1 9604-9803 ● ●
71 SCREW
HIGH ROOF<S2F> (C) M5X14 W/PL WASHER 		5-09981-050-0 06 1 9804-0004 ● ● ● ●
71 SCREW
HIGH ROOF<S2F> (C) M5X14 W/PL WASHER 		5-09981-050-0 06 1 0005- ●
71 SCREW
(D) M6X24 W/LK&PL WASHER 		8-94279-404-0 16 1 9604-0004 ● ●
71 SCREW
(B) M6X20 W/LK&PL WASHER 		1-09981-073-0 03 1 9604-0004 ● ● ●
71 SCREW
(B) M6X20 W/LK&PL WASHER 		1-09981-073-0 03 1 0005- ● ●
72 GRIP; ASSIST,CAB ENTRY,BACK
WHITE 		1-71998-278-0 02 1 9604-0004 ● ●
75 SHEET; ASSIST GRIP,CAB ENTRY 1-71997-478-1 04 1 9604-0004 ● ●
77 SCREW; ASSIST GRIP 8-94279-407-0 08 1 9604-0004 ●
77 SCREW; ASSIST GRIP 8-94279-407-0 04 1 9604-0004 ●
79 GRIP; ASSIST
(A) 		1-71996-134-0 02 1 9604-0004 ● ●
79 GRIP; ASSIST
(B) 		1-71998-467-0 02 1 9604-0004 ● ●
87 GRIP; ASSIST,CANT RAIL SIDE
HIGH ROOF<S2F> 		1-73618-170-0 01 1 9604-0004 ● ●
87 GRIP; ASSIST,CANT RAIL SIDE 1-73618-170-0 01 1 9604-0004 ● ●
87 GRIP; ASSIST,CANT RAIL SIDE
HIGH ROOF<S2F> DARK GRAY 		8-97098-476-2 01 1 0005-0212 ●
87 GRIP; ASSIST,CANT RAIL SIDE
ASSIST GRIP<EG5> HIGH ROOF<S2F> DARK GRAY 		8-97098-476-2 01 1 0301- ●
92 BAR; ASSIST 1-73618-123-2 01 1 9604-0004 ● ●
93 BRACKET; ASSIST BAR 1-73618-126-1 02 1 9604-0004 ● ●
94 NUT; CAP,ASSIST BAR
M8 FLANGE 		1-09984-126-0 04 1 9604-0004 ● ●
95 SCREW; ASSIST BAR BRKT
M8X24.5 W/LK&PL WASHER 		8-94279-208-0 04 1 9604-0004 ● ●
96 WASHER; LK,ASSIST BAR
ID=8.2 		1-09985-177-0 04 1 9604-0004 ● ●
97 WASHER; PL,ASSIST BAR
ID=8.4 OD=16 		1-09985-174-0 04 1 9604-0004 ● ●
122 WASHER; PL,ASSIST GRIP
ID=10.2 OD=22 T=6 		1-09989-009-1 02 1 9604-0004 ● ●
150 CLIP; ASSIST GRIP HOLE
HIGH ROOF<S2F> (A) OD=6 L=17 DARK GRAY 		1-73996-128-1 02 1 9604-0004 ● ●
150 CLIP; ASSIST GRIP HOLE
(A) OD=6 L=17 DARK GRAY 		1-73996-128-1 02 1 9604-0004 ● ●
150 CLIP; ASSIST GRIP HOLE
HIGH ROOF<S2F> (A) OD=6 L=17 LIGHT GRAY 		1-73996-301-0 02 1 0005-0212 ●
150 CLIP; ASSIST GRIP HOLE
ASSIST GRIP<EG5> HIGH ROOF<S2F> (A) OD=6 L=17 LIGHT GRAY 		1-73996-301-0 02 1 0301- ●
150 CLIP; ASSIST GRIP HOLE
LOW ROOF<6XQ> (A) OD=6 L=17 LIGHT GRAY 		1-73996-301-0 04 1 9604-0104 ● ●
150 CLIP; ASSIST GRIP HOLE
(A) OD=6 L=17 LIGHT GRAY 		1-73996-301-0 04 1 9604-0104 ●
150 CLIP; ASSIST GRIP HOLE
(A) OD=6 L=17 LIGHT GRAY 		1-73996-301-0 04 1 0105-0212 ● ●
150 CLIP; ASSIST GRIP HOLE
LOW ROOF<6XQ> (A) OD=6 L=17 LIGHT GRAY 		1-73996-301-0 04 1 0105-0212 ●
150 CLIP; ASSIST GRIP HOLE
(A) OD=6 L=17 LIGHT GRAY 		1-73996-301-0 04 1 0301- ● ●
150 CLIP; ASSIST GRIP HOLE
HIGH ROOF<S2F> EXC. ASSIST GRIP<EG5> (A) OD=6 L=17 LIGHT GRAY 		1-73996-301-0 04 1 0301- ●
150 CLIP; ASSIST GRIP HOLE
LOW ROOF<6XQ> (A) OD=6 L=17 LIGHT GRAY 		1-73996-301-0 04 1 0301- ●
150 CLIP; ASSIST GRIP HOLE
(B) OD=6 L=17 DARK GRAY 		1-73996-128-1 04 1 9604-9708 ● ● ●
150 CLIP; ASSIST GRIP HOLE
(B) OD=6 L=17 DARK GRAY 		1-73996-128-1 04 1 9709-0004 ●
150 CLIP; ASSIST GRIP HOLE
EXC. NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) (B) OD=6 L=17 DARK GRAY 		1-73996-128-1 04 1 9709-0004 ●
150 CLIP; ASSIST GRIP HOLE
(B) OD=6 L=17 DARK GRAY 		1-73996-364-0 04 1 0005- ●
150 CLIP; ASSIST GRIP HOLE
EXC. NEW ZEALAND EQUIPMENT(PK5) (B) OD=6 L=17 DARK GRAY 		1-73996-364-0 04 1 0005- ●

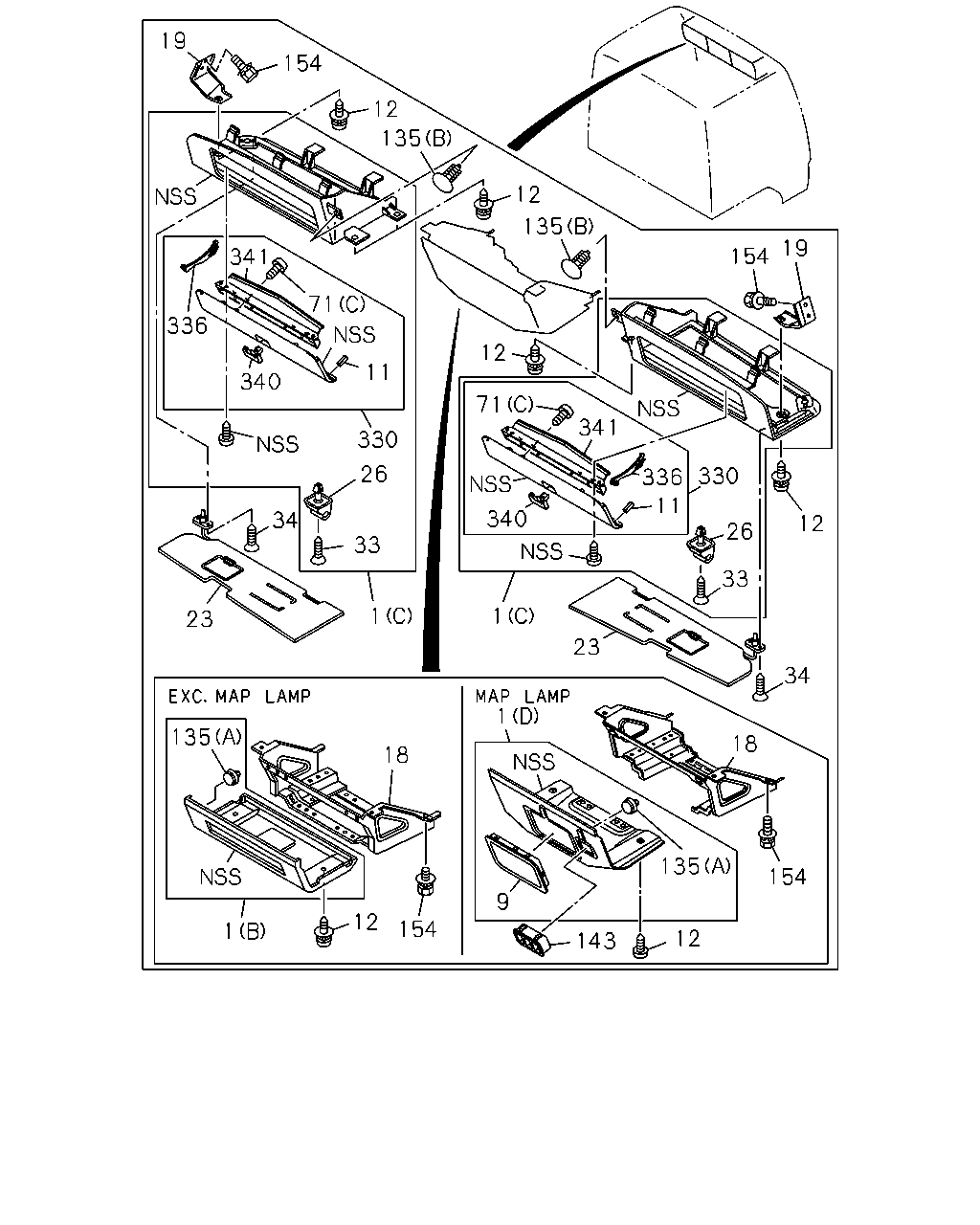

çizim 152962
19 154 12 135 12 135 19 154 341 71 336 12 11 340 71 341 330 26 330 336 11 340 34 12 26 33 33 1 1 23 23 34 1 135 18 18 135 154 9 12 154 1 12 143
BalonParca AdiParca NoAdetTipApplied Date A B C D E
1 BOARD; HEADER SHELF
HIGH ROOF<S2F> (B) CENTER 		1-72448-568-1 01 1 9604-9803 ● ●
1 BOARD; HEADER SHELF
(B) CENTER 		1-72448-568-1 01 1 9604-9803 ● ●
1 BOARD; HEADER SHELF
HIGH ROOF<S2F> (B) CENTER 		1-72448-568-1 01 1 9804-0004 ● ● ● ●
1 BOARD; HEADER SHELF
HIGH ROOF<S2F> (B) CENTER 		1-72448-663-0 01 1 0005-0212 ●
1 BOARD; HEADER SHELF
HIGH ROOF<S2F> EXC. MAP LAMP<C85> (B) CENTER 		1-72448-663-0 01 1 0301- ●
1 BOARD; HEADER SHELF
MAP LAMP<C85> HIGH ROOF<S2F> (D) CENTER 		1-72448-667-0 01 1 0301- ●
1 BOARD; HEADER SHELF
HIGH ROOF<S2F> (A) 		1-72448-597-2 01 1 9604-9803 ● ●
1 BOARD; HEADER SHELF
(A) 		1-72448-597-2 01 1 9604-9803 ● ●
1 BOARD; HEADER SHELF
HIGH ROOF<S2F> (C) 		1-73318-616-1 01 1 9804-0003 ● ● ● ●
1 BOARD; HEADER SHELF
HIGH ROOF<S2F> (C) 		1-73318-689-0 01 1 0004-0004 ● ● ● ●
1 BOARD; HEADER SHELF
HIGH ROOF<S2F> (C) 		1-73318-691-0 01 1 0005- ●
1 BOARD; HEADER SHELF
HIGH ROOF<S2F> (A) 		1-72448-596-2 01 1 9604-9803 ● ●
1 BOARD; HEADER SHELF
(A) 		1-72448-596-2 01 1 9604-9803 ● ●
1 BOARD; HEADER SHELF
HIGH ROOF<S2F> (C) 		1-73317-362-1 01 1 9804-0003 ● ● ● ●
1 BOARD; HEADER SHELF
HIGH ROOF<S2F> (C) 		1-73318-687-0 01 1 0004-0004 ● ● ● ●
1 BOARD; HEADER SHELF
HIGH ROOF<S2F> (C) 		1-73318-690-0 01 1 0005- ●
9 COVER; HOLE,HEADER SHELF CENTER
MAP LAMP<C85> HIGH ROOF<S2F> 		1-72448-547-2 01 1 0301- ●
11 CAP; HEADER SHELF
HIGH ROOF<S2F> 		8-94270-538-0 04 1 9604-9803 ● ●
11 CAP; HEADER SHELF 8-94270-538-0 04 1 9604-9803 ● ●
11 CAP; HEADER SHELF
HIGH ROOF<S2F> 		8-94270-538-0 04 1 9804-0004 ● ● ● ●
11 CAP; HEADER SHELF
HIGH ROOF<S2F> 		8-94270-538-0 04 1 0005- ●
12 SCREW; HEADER SHELF
HIGH ROOF<S2F> M6X24 W/LK&PL WASHER 		8-94279-404-0 12 1 9604-9803 ● ●
12 SCREW; HEADER SHELF
M6X24 W/LK&PL WASHER 		8-94279-404-0 12 1 9604-9803 ● ●
12 SCREW; HEADER SHELF
HIGH ROOF<S2F> M6X24 W/LK&PL WASHER 		8-94279-404-0 12 1 9804-0004 ● ● ● ●
12 SCREW; HEADER SHELF
HIGH ROOF<S2F> M6X24 W/LK&PL WASHER 		8-94279-404-0 12 1 0005- ●
18 SUPPORT; HEADER SHELF CENTER
HIGH ROOF<S2F> 		1-72448-552-4 01 1 9604-9604 ● ●
18 SUPPORT; HEADER SHELF CENTER 1-72448-552-4 01 1 9604-9604 ● ●
18 SUPPORT; HEADER SHELF CENTER
HIGH ROOF<S2F> 		8-97865-124-0 01 1 9605-9803 ● ●
18 SUPPORT; HEADER SHELF CENTER 8-97865-124-0 01 1 9605-9803 ● ●
18 SUPPORT; HEADER SHELF CENTER
HIGH ROOF<S2F> 		8-97865-124-0 01 1 9804-0004 ● ● ● ●
18 SUPPORT; HEADER SHELF CENTER
HIGH ROOF<S2F> 		8-97865-124-0 01 1 0005-0212 ●
18 SUPPORT; HEADER SHELF CENTER
HIGH ROOF<S2F> EXC. MAP LAMP<C85> 		8-97865-124-1 01 1 0301- ●
18 SUPPORT; HEADER SHELF CENTER
MAP LAMP<C85> HIGH ROOF<S2F> 		1-72448-632-1 01 1 0301- ●
19 SUPPORT ASM; HEADER SHELF
HIGH ROOF<S2F> 		1-72448-324-1 01 1 9604-9803 ● ●
19 SUPPORT ASM; HEADER SHELF 1-72448-324-1 01 1 9604-9803 ● ●
19 SUPPORT ASM; HEADER SHELF
HIGH ROOF<S2F> 		1-72448-324-1 01 1 9804-0004 ● ● ● ●
19 SUPPORT ASM; HEADER SHELF
HIGH ROOF<S2F> 		1-72448-324-1 01 1 0005- ●
19 SUPPORT ASM; HEADER SHELF
HIGH ROOF<S2F> 		1-72448-323-1 01 1 9604-9803 ● ●
19 SUPPORT ASM; HEADER SHELF 1-72448-323-1 01 1 9604-9803 ● ●
19 SUPPORT ASM; HEADER SHELF
HIGH ROOF<S2F> 		1-72448-323-1 01 1 9804-0004 ● ● ● ●
19 SUPPORT ASM; HEADER SHELF
HIGH ROOF<S2F> 		1-72448-323-1 01 1 0005- ●
23 SUN VISOR 1-73138-148-1 01 1 9604-0004 ● ● ● ● ●
23 SUN VISOR 1-73138-156-1 01 1 0005- ● ● ●
23 SUN VISOR
SUN VISOR PASSENGER<D20> 		1-73138-150-1 01 1 9604-0004 ● ● ● ● ●
23 SUN VISOR
SUN VISOR PASSENGER<D20> 		1-73138-157-1 01 1 0005- ● ● ●
26 HOLDER; SUN VISOR 1-73138-142-0 02 1 9604-0004 ● ● ● ● ●
26 HOLDER; SUN VISOR
LOW ROOF<6XQ> 		1-73138-142-0 02 1 0005-0006 ● ●
26 HOLDER; SUN VISOR 1-73138-142-0 02 1 0005-0006 ●
26 HOLDER; SUN VISOR
HIGH ROOF<S2F> 		1-73137-175-0 02 1 0005-0006 ●
26 HOLDER; SUN VISOR
LOW ROOF<6XQ> 		1-73137-175-0 02 1 0007-0104 ● ●
26 HOLDER; SUN VISOR
HIGH ROOF<S2F>,LOW ROOF<6XQ> 		1-73137-175-0 02 1 0007-0104 ●
26 HOLDER; SUN VISOR 1-73137-175-0 02 1 0105- ● ●
26 HOLDER; SUN VISOR
HIGH ROOF<S2F>,LOW ROOF<6XQ> 		1-73137-175-0 02 1 0105- ●
33 SCREW; HOLDER,SUN VISOR
M4X16 TAPPING OVAL-HEAD 		0-70580-416-0 02 1 9604-0004 ● ● ● ● ●
33 SCREW; HOLDER,SUN VISOR
LOW ROOF<6XQ> M4X16 TAPPING OVAL-HEAD 		0-70580-416-0 02 1 0005-0101 ● ●
33 SCREW; HOLDER,SUN VISOR
HIGH ROOF<S2F>,LOW ROOF<6XQ> M4X16 TAPPING OVAL-HEAD 		0-70580-416-0 02 1 0005-0101 ●
33 SCREW; HOLDER,SUN VISOR
HIGH ROOF<S2F> M4X16 TAPPING OVAL-HEAD 		0-70580-416-0 02 1 0102-0603 ●
33 SCREW; HOLDER,SUN VISOR
HIGH ROOF<S2F> M4X16 TAPPING OVAL-HEAD 		0-70540-416-0 02 1 0604- ●
33 SCREW; HOLDER,SUN VISOR
M4X20 TAPPING OVAL-HEAD 		0-70580-420-0 02 1 0102-0603 ● ●
33 SCREW; HOLDER,SUN VISOR
LOW ROOF<6XQ> M4X20 TAPPING OVAL-HEAD 		0-70580-420-0 02 1 0102-0603 ●
33 SCREW; HOLDER,SUN VISOR
M4X20 TAPPING OVAL-HEAD 		0-70540-420-0 02 1 0604- ● ●
33 SCREW; HOLDER,SUN VISOR
LOW ROOF<6XQ> M4X20 TAPPING OVAL-HEAD 		0-70540-420-0 02 1 0604- ●
34 SCREW; SUN VISOR
LOW ROOF<6XQ> M6X25 		1-09981-441-0 02 1 9604-9704 ● ● ●
34 SCREW; SUN VISOR
SUN VISOR PASSENGER<D20> LOW ROOF<6XQ> M6X25 		1-09981-441-0 02 1 9604-9704 ● ● ●
34 SCREW; SUN VISOR
M6X25 		1-09981-441-0 02 1 9705-0004 ● ● ● ● ●
34 SCREW; SUN VISOR
SUN VISOR PASSENGER<D20> M6X25 		1-09981-441-0 02 1 9705-0004 ● ● ● ● ●
34 SCREW; SUN VISOR
M6X25 		1-09981-441-0 02 1 0005- ● ● ●
34 SCREW; SUN VISOR
SUN VISOR PASSENGER<D20> M6X25 		1-09981-441-0 02 1 0005- ● ● ●
34 SCREW; SUN VISOR
HIGH ROOF<S2F> M6X25 		1-09981-441-0 04 1 9604-9704 ● ●
34 SCREW; SUN VISOR
M6X25 		1-09981-441-0 04 1 9604-9704 ● ●
71 SCREW
(E) M6X20 W/LK&PL WASHER 		1-09981-509-0 04 1 9604-9708 ● ●
71 SCREW
(E) M6X20 W/LK&PL WASHER 		1-09981-509-0 04 1 9709-0004 ● ●
71 SCREW
NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) (E) M6X20 W/LK&PL WASHER 		1-09981-509-0 04 1 9709-0004 ● ●
71 SCREW
(E) M6X20 W/LK&PL WASHER 		1-09981-509-0 04 1 0005-0211 ●
71 SCREW
NEW ZEALAND EQUIPMENT(PK5) (E) M6X20 W/LK&PL WASHER 		1-09981-509-0 04 1 0005-0211 ●
71 SCREW
(E) M6X34 W/LK&PL WASHER 		8-94279-411-0 04 1 0212- ●
71 SCREW
NEW ZEALAND EQUIPMENT(PK5) (E) M6X34 W/LK&PL WASHER 		8-94279-411-0 04 1 0212- ●
71 SCREW
HIGH ROOF<S2F> (A) M6X37 W/PL WASHER 		1-09981-423-0 02 1 9604-9702 ● ●
71 SCREW
(A) M6X37 W/PL WASHER 		1-09981-423-0 02 1 9604-9702 ● ●
71 SCREW
HIGH ROOF<S2F> (A) M6X35 W/PL WASHER 		1-09981-422-0 02 1 9703-0004 ● ●
71 SCREW
(A) M6X35 W/PL WASHER 		1-09981-422-0 02 1 9703-0004 ● ●
71 SCREW
HIGH ROOF<S2F> (A) M6X35 W/PL WASHER 		1-09981-422-0 02 1 0005-0212 ●
71 SCREW
ASSIST GRIP<EG5> HIGH ROOF<S2F> (A) M6X35 W/PL WASHER 		1-09981-422-0 02 1 0301-0310 ●
71 SCREW
ASSIST GRIP<EG5> HIGH ROOF<S2F> (A) M6X30 W/LK WASHER 		5-09981-064-0 02 1 0311- ●
71 SCREW
HIGH ROOF<S2F> (C) M5X14 W/PL WASHER 		5-09981-050-0 06 1 9604-9803 ● ●
71 SCREW
(C) M5X14 W/PL WASHER 		5-09981-050-0 06 1 9604-9803 ● ●
71 SCREW
HIGH ROOF<S2F> (C) M5X14 W/PL WASHER 		5-09981-050-0 06 1 9804-0004 ● ● ● ●
71 SCREW
HIGH ROOF<S2F> (C) M5X14 W/PL WASHER 		5-09981-050-0 06 1 0005- ●
71 SCREW
(D) M6X24 W/LK&PL WASHER 		8-94279-404-0 16 1 9604-0004 ● ●
71 SCREW
(B) M6X20 W/LK&PL WASHER 		1-09981-073-0 03 1 9604-0004 ● ● ●
71 SCREW
(B) M6X20 W/LK&PL WASHER 		1-09981-073-0 03 1 0005- ● ●
135 CLIP; HEADER SHELF
HIGH ROOF<S2F> (B) D6X23 DARK GRAY 		1-09987-238-0 02 1 9804-0004 ● ● ● ●
135 CLIP; HEADER SHELF
HIGH ROOF<S2F> (B) D6X23 DARK GRAY 		1-09987-238-0 02 1 0005-0209 ●
135 CLIP; HEADER SHELF
HIGH ROOF<S2F> (B) D6X23 BLACK 		1-09987-114-0 02 1 0210- ●
135 CLIP; HEADER SHELF
HIGH ROOF<S2F> (A) OD=7.9 BLACK 		8-94279-974-1 03 1 9604-9803 ● ●
135 CLIP; HEADER SHELF
(A) OD=7.9 BLACK 		8-94279-974-1 03 1 9604-9803 ● ●
135 CLIP; HEADER SHELF
HIGH ROOF<S2F> (A) OD=7.9 BLACK 		8-94279-974-1 03 1 9804-0004 ● ● ● ●
135 CLIP; HEADER SHELF
HIGH ROOF<S2F> (A) OD=7.9 BLACK 		8-94279-974-1 03 1 0005-0005 ●
135 CLIP; HEADER SHELF
HIGH ROOF<S2F> (A) OD=7.9 BLACK 		8-94279-974-1 06 1 0006-0212 ●
135 CLIP; HEADER SHELF
MAP LAMP<C85> HIGH ROOF<S2F> (A) OD=7.9 BLACK 		8-94279-974-1 03 1 0301- ●
135 CLIP; HEADER SHELF
HIGH ROOF<S2F> EXC. MAP LAMP<C85> (A) OD=7.9 BLACK 		8-94279-974-1 06 1 0301- ●
143 BEZEL
MAP LAMP<C85> 		1-72448-532-0 01 1 0408- ●
154 BOLT; SUPPORT
HIGH ROOF<S2F> M6X19.5 W/LK&PL WASHER 		8-94279-201-0 08 1 9604-9803 ● ●
154 BOLT; SUPPORT
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 08 1 9604-9803 ● ●
154 BOLT; SUPPORT
HIGH ROOF<S2F> M6X19.5 W/LK&PL WASHER 		8-94279-201-0 08 1 9804-0004 ● ● ● ●
154 BOLT; SUPPORT
HIGH ROOF<S2F> M6X19.5 W/LK&PL WASHER 		8-94279-201-0 08 1 0005- ●
330 LID; HEADER SHELF
HIGH ROOF<S2F> 		1-72448-360-3 02 1 9604-9803 ● ●
330 LID; HEADER SHELF 1-72448-360-3 02 1 9604-9803 ● ●
330 LID; HEADER SHELF
HIGH ROOF<S2F> 		1-72448-360-3 02 1 9804-0004 ● ● ● ●
330 LID; HEADER SHELF
HIGH ROOF<S2F> 		1-72448-679-0 02 1 0005- ●
336 STAY; LID
HIGH ROOF<S2F> 		1-72448-379-3 04 1 9604-9803 ● ●
336 STAY; LID 1-72448-379-3 04 1 9604-9803 ● ●
336 STAY; LID
HIGH ROOF<S2F> 		1-72448-379-3 04 1 9804-0004 ● ● ● ●
336 STAY; LID
HIGH ROOF<S2F> 		1-72448-379-3 04 1 0005- ●
340 LOCK; HEADER SHELF
HIGH ROOF<S2F> 		1-72448-376-0 02 1 9604-9803 ● ●
340 LOCK; HEADER SHELF 1-72448-376-0 02 1 9604-9803 ● ●
340 LOCK; HEADER SHELF
HIGH ROOF<S2F> 		1-72448-376-0 02 1 9804-0004 ● ● ● ●
340 LOCK; HEADER SHELF
HIGH ROOF<S2F> 		1-72448-376-0 02 1 0005- ●
341 HINGE; LID,HEADER SHELF
HIGH ROOF<S2F> 		1-72448-403-1 02 1 9604-9803 ● ●
341 HINGE; LID,HEADER SHELF 1-72448-403-1 02 1 9604-9803 ● ●
341 HINGE; LID,HEADER SHELF
HIGH ROOF<S2F> 		1-72448-403-1 02 1 9804-0004 ● ● ● ●
341 HINGE; LID,HEADER SHELF
HIGH ROOF<S2F> 		1-72448-403-1 02 1 0005- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
