◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CXM ▶ 10669 - CXM/CXZ LHD ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-70 - SEPARATER AND BED ▶
7-70 — SEPARATER AND BED (#3447) — 62 parça

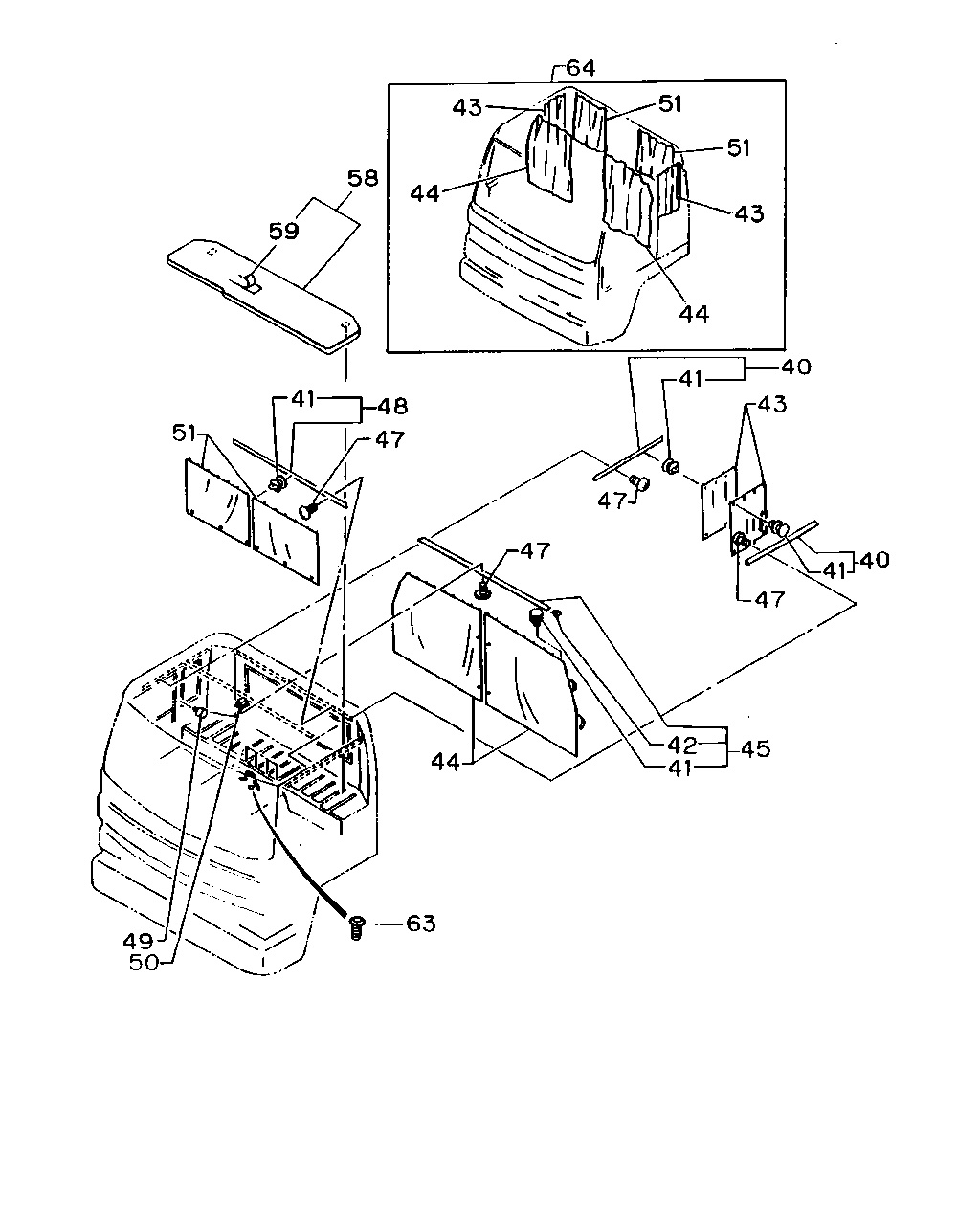

çizim 35284
58 59 44 43 64 51 51 43 44 41 40 40 41 43 47 47 45 42 41 47 47 48 41 51 44 63 49 50
BalonParca AdiParca NoAdetTipApplied Date A B C
40 RAIL; CURTAIN,SIDE 1-73997-940-0 02 1 9002-9306 ● ● ●
40 RAIL; CURTAIN,SIDE 1-73907-182-0 02 1 9307- ● ● ●
41 HOOK; CURTAIN RAIL
GRAY 		1-73907-245-0 14 1 9307- ●
41 HOOK; CURTAIN RAIL
EXC. TROPICAL ZONE KIT(WB6) GRAY 		1-73907-245-0 14 1 9307- ● ●
41 HOOK; CURTAIN RAIL
GRAY MATT FINISH 		1-73997-980-0 06 1 9002-9306 ● ● ●
41 HOOK; CURTAIN RAIL
GRAY MATT FINISH 		1-73997-980-0 12 1 9002-9306 ● ● ●
41 HOOK; CURTAIN RAIL
GRAY MATT FINISH 		1-73997-980-0 16 1 9002-9306 ● ● ●
41 HOOK; CURTAIN RAIL
GRAY 		1-73907-245-0 06 1 9307- ● ● ●
41 HOOK; CURTAIN RAIL
GRAY 		1-73907-245-0 12 1 9307- ● ● ●
41 HOOK; CURTAIN RAIL
TROPICAL ZONE KIT(WB6) GRAY 		1-73907-245-0 16 1 9307- ● ●
42 STOPPER; CURTAIN RAIL 1-73997-982-0 01 1 9002-9306 ● ● ●
42 STOPPER; CURTAIN RAIL 1-73997-981-0 01 1 9002-9306 ● ● ●
42 STOPPER; CURTAIN RAIL 1-73907-250-0 01 1 9307- ● ● ●
42 STOPPER; CURTAIN RAIL 1-73907-249-0 01 1 9307- ● ● ●
43 CURTAIN ASM; QUARTER WINDOW
MATTRESS SLEEPER CAB<E40> 		1-73907-254-0 01 1 9307- ● ● ●
43 CURTAIN ASM; QUARTER WINDOW
MATTRESS SLEEPER CAB<E40> 		1-73907-253-0 01 1 9307- ● ● ●
43 CURTAIN ASM; QUARTER WINDOW
MATTRESS SLEEPER CAB<E40> EXC. SAUDI ARABIA EQUIPMENT(WH1) 		1-73997-991-0 01 1 9002-9306 ● ● ●
43 CURTAIN ASM; QUARTER WINDOW
MATTRESS SLEEPER CAB<E40> EXC. SAUDI ARABIA EQUIPMENT(WH1) 		1-73997-990-0 01 1 9002-9306 ● ● ●
43 CURTAIN ASM; QUARTER WINDOW
MATTRESS SLEEPER CAB<E40> SAUDI ARABIA EQUIPMENT(WH1) 		1-73907-171-0 01 1 9212-9306 ● ●
43 CURTAIN ASM; QUARTER WINDOW
MATTRESS SLEEPER CAB<E40> SAUDI ARABIA EQUIPMENT(WH1) 		1-73907-170-0 01 1 9212-9306 ● ●
44 CURTAIN ASM; CABIN CENTER
MATTRESS SLEEPER CAB<E40> 		1-73907-242-2 01 1 9307- ● ● ●
44 CURTAIN ASM; CABIN CENTER
MATTRESS SLEEPER CAB<E40> 		1-73907-240-2 01 1 9307- ● ● ●
44 CURTAIN ASM; CABIN CENTER
MATTRESS SLEEPER CAB<E40> EXC. SAUDI ARABIA EQUIPMENT(WH1) 		1-73997-989-1 01 1 9002-9306 ● ● ●
44 CURTAIN ASM; CABIN CENTER
MATTRESS SLEEPER CAB<E40> EXC. SAUDI ARABIA EQUIPMENT(WH1) 		1-73997-988-1 01 1 9002-9306 ● ● ●
44 CURTAIN ASM; CABIN CENTER
MATTRESS SLEEPER CAB<E40> SAUDI ARABIA EQUIPMENT(WH1) 		1-73907-169-1 01 1 9212-9306 ● ●
44 CURTAIN ASM; CABIN CENTER
MATTRESS SLEEPER CAB<E40> SAUDI ARABIA EQUIPMENT(WH1) 		1-73907-168-1 01 1 9212-9306 ● ●
45 RAIL; CURTAIN,FRT 1-73997-939-0 01 1 9002-9306 ●
45 RAIL; CURTAIN,FRT
EXC. TROPICAL ZONE KIT(WB6) 		1-73997-939-0 01 1 9002-9306 ● ●
45 RAIL; CURTAIN,FRT 1-73907-180-1 01 1 9307- ●
45 RAIL; CURTAIN,FRT
EXC. TROPICAL ZONE KIT(WB6) 		1-73907-180-1 01 1 9307- ● ●
45 RAIL; CURTAIN,FRT
TROPICAL ZONE KIT(WB6) 		1-73907-152-0 01 1 9002-9306 ● ●
45 RAIL; CURTAIN,FRT
TROPICAL ZONE KIT(WB6) 		1-73907-337-0 01 1 9307- ● ●
47 SCREW; CURTAIN RAIL
M4X16 TAPPING 		1-09981-475-0 16 1 9002-9207 ● ● ●
47 SCREW; CURTAIN RAIL
M4X16 TAPPING 		1-09981-477-0 16 1 9208- ● ● ●
47 SCREW; CURTAIN RAIL
TROPICAL ZONE KIT(WB6) M4X16 TAPPING 		1-09981-475-0 04 1 9002-9207 ● ●
47 SCREW; CURTAIN RAIL
TROPICAL ZONE KIT(WB6) M4X16 TAPPING 		1-09981-477-0 04 1 9208- ● ●
48 RAIL; CURTAIN,BACK 1-73997-941-0 01 1 9002-9306 ● ● ●
48 RAIL; CURTAIN,BACK 1-73907-181-0 01 1 9307- ● ● ●
49 HOOK; CURTAIN
MATTRESS SLEEPER CAB<E40> 		1-09981-286-0 02 1 9002- ● ● ●
50 GROMMET; SCREW,CURTAIN RAIL
M4 		5-09470-002-0 01 1 9002- ● ● ●
51 CURTAIN; BACK
MATTRESS SLEEPER CAB<E40> EXC. SAUDI ARABIA EQUIPMENT(WH1) 		1-73997-993-0 01 1 9002-9306 ● ● ●
51 CURTAIN; BACK
MATTRESS SLEEPER CAB<E40> 		1-73907-256-0 01 1 9307- ● ● ●
51 CURTAIN; BACK
MATTRESS SLEEPER CAB<E40> EXC. SAUDI ARABIA EQUIPMENT(WH1) 		1-73997-992-0 01 1 9002-9306 ● ● ●
51 CURTAIN; BACK
MATTRESS SLEEPER CAB<E40> 		1-73907-255-0 01 1 9307- ● ● ●
51 CURTAIN; BACK
MATTRESS SLEEPER CAB<E40> SAUDI ARABIA EQUIPMENT(WH1) 		1-73907-173-0 01 1 9212-9306 ● ●
51 CURTAIN; BACK
MATTRESS SLEEPER CAB<E40> SAUDI ARABIA EQUIPMENT(WH1) 		1-73907-172-0 01 1 9212-9306 ● ●
58 BED; MAT
DELUXE CAB(W14) 		1-75117-743-0 01 1 9307- ● ● ●
58 BED; MAT
DELUXE CAB(W14) EXC. SAUDI ARABIA EQUIPMENT(WH1) 		1-75117-562-3 01 1 9002-9306 ● ● ●
58 BED; MAT
MATTRESS SLEEPER CAB<E40> EXC. DELUXE CAB(W14) 		1-75117-775-0 01 1 9307- ● ● ●
58 BED; MAT
MATTRESS SLEEPER CAB<E40> EXC. SAUDI ARABIA EQUIPMENT(WH1),DELUXE CAB(W14) 		1-75117-621-1 01 1 9002-9306 ● ● ●
58 BED; MAT
MATTRESS SLEEPER CAB<E40> SAUDI ARABIA EQUIPMENT(WH1) EXC. DELUXE CAB(W14) 		1-75117-616-1 01 1 9002-9306 ● ●
58 BED; MAT
SAUDI ARABIA EQUIPMENT(WH1) DELUXE CAB(W14) 		1-75117-555-3 01 1 9002-9306 ● ●
59 COVER ASM; TRIM,BED MAT
DELUXE CAB(W14) 		1-75117-748-0 01 1 9307- ● ● ●
59 COVER ASM; TRIM,BED MAT
DELUXE CAB(W14) EXC. SAUDI ARABIA EQUIPMENT(WH1) 		1-75117-566-0 01 1 9002-9306 ● ● ●
59 COVER ASM; TRIM,BED MAT
MATTRESS SLEEPER CAB<E40> EXC. DELUXE CAB(W14) 		1-75117-785-0 01 1 9307- ● ● ●
59 COVER ASM; TRIM,BED MAT
MATTRESS SLEEPER CAB<E40> EXC. SAUDI ARABIA EQUIPMENT(WH1),DELUXE CAB(W14) 		1-75117-665-0 01 1 9002-9306 ● ● ●
59 COVER ASM; TRIM,BED MAT
MATTRESS SLEEPER CAB<E40> SAUDI ARABIA EQUIPMENT(WH1) EXC. DELUXE CAB(W14) 		1-75117-666-0 01 1 9002-9306 ● ●
59 COVER ASM; TRIM,BED MAT
SAUDI ARABIA EQUIPMENT(WH1) DELUXE CAB(W14) 		1-75117-671-0 01 1 9002-9306 ● ●
63 PLUG; SUPPORT
D4.7X11 		1-76378-154-0 01 1 9002- ● ● ●
64 CURTAIN KIT
MATTRESS SLEEPER CAB<E40> 		1-73907-238-2 01 1 9307- ● ● ●
64 CURTAIN KIT
MATTRESS SLEEPER CAB<E40> EXC. SAUDI ARABIA EQUIPMENT(WH1) 		1-73997-987-1 01 1 9002-9306 ● ● ●
64 CURTAIN KIT
MATTRESS SLEEPER CAB<E40> SAUDI ARABIA EQUIPMENT(WH1) 		1-73907-151-1 01 1 9002-9306 ● ●
