◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CXM ▶ 10669 - CXM/CXZ LHD ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-60 - SEAT BELT ▶
7-60 — SEAT BELT (#3446) — 26 parça

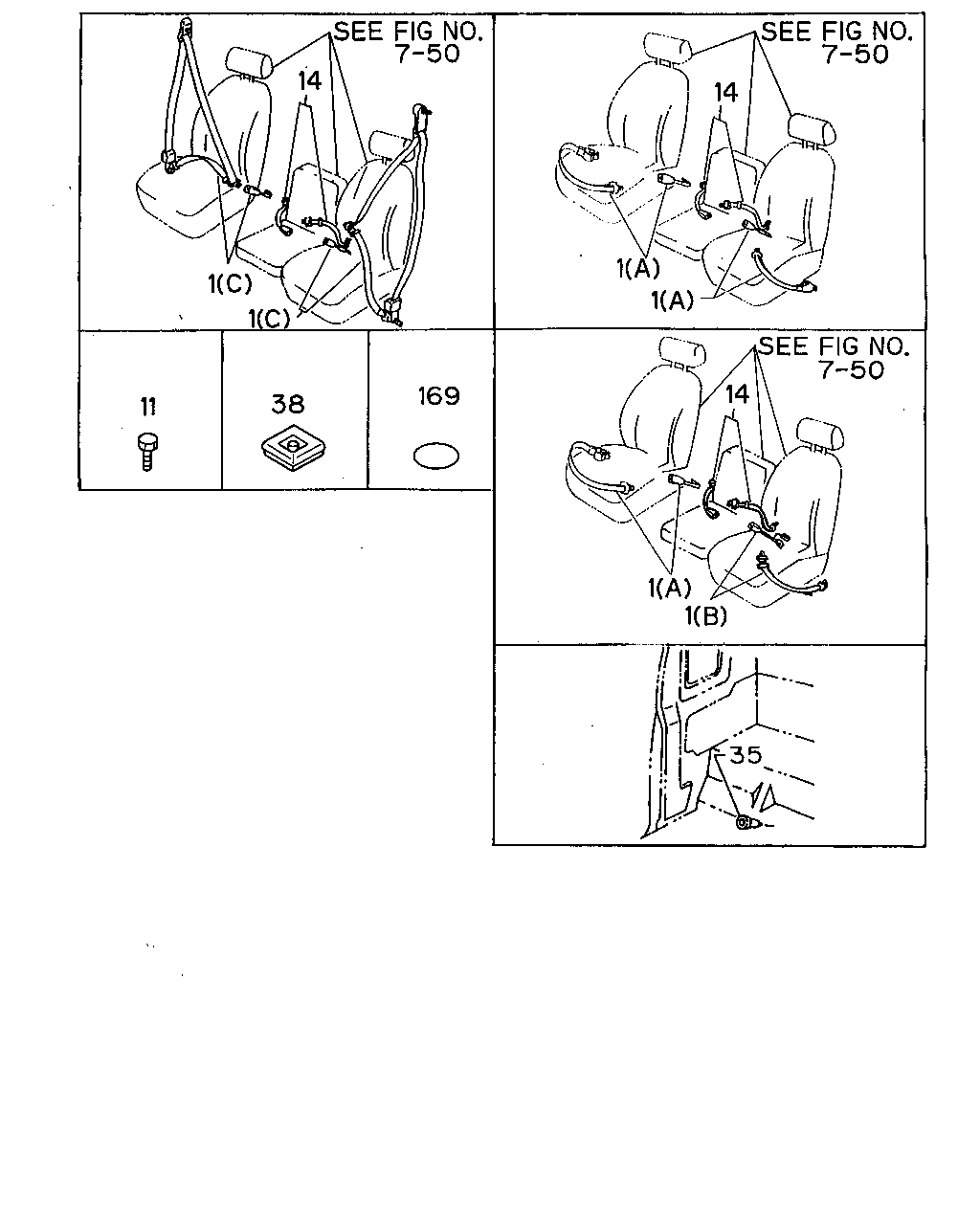

çizim 5548
14 1 11 1 38 169 1 1 14 14 1 1 35
BalonParca AdiParca NoAdetTipApplied Date A B C
1 BELT; SEAT
FRONT SEAT BELT WO/RETRACTOR 2 POINT(W25) EXC. SUSP SEAT W/SEAT BELT ANCHORAGE(WN5) (A) DRIVER,ASSIST 		1-75618-498-1 01 1 9307- ● ● ●
1 BELT; SEAT
FRONT SEAT BELT WO/RETRACTOR 2 POINT(W25) (A) DRIVER,ASSIST 		1-75618-498-1 01 1 9307- ● ● ●
1 BELT; SEAT
FRONT SEAT BELT WO/RETRACTOR(A37) SUSP SEAT W/SEAT BELT ANCHORAGE(WN5) (A) DRIVER 		1-75618-497-0 01 1 9002-9306 ● ● ●
1 BELT; SEAT
FRONT SEAT BELT WO/RETRACTOR(A37) EXC. SUSP SEAT W/SEAT BELT ANCHORAGE(WN5) (A) DRIVER,ASSIST 		1-75618-498-1 01 1 9002-9306 ● ● ●
1 BELT; SEAT
FRONT SEAT BELT WO/RETRACTOR(A37),FRONT SEAT BELTWO/RETRACTOR 2 POINT(W25) (A) DRIVER,ASSIST 		1-75618-498-1 01 1 9002-9306 ● ● ●
1 BELT; SEAT
FRONT SEAT&SHOULDER BELT W/RETRACTOR(AK3) (C) DRIVER 		1-75617-338-1 01 1 9307- ● ● ●
1 BELT; SEAT
FRONT SEAT&SHOULDER BELT W/RETRACTOR(AK3) (C) ASSIST 		1-75617-339-1 01 1 9307- ● ● ●
1 BELT; SEAT
FRONT SEAT&SHOULDER BELT W/RETRACTOR(AK3) DELUXE CAB(W14) (C) DRIVER 		1-75617-338-1 01 1 9002-9306 ● ● ●
1 BELT; SEAT
FRONT SEAT&SHOULDER BELT W/RETRACTOR(AK3) DELUXE CAB(W14) (C) ASSIST 		1-75617-339-1 01 1 9002-9306 ● ● ●
1 BELT; SEAT
FRONT SEAT&SHOULDER BELT W/RETRACTOR(AK3) EXC. DELUXE CAB(W14) (C) DRIVER 		1-75617-340-1 01 1 9002-9306 ● ● ●
1 BELT; SEAT
FRONT SEAT&SHOULDER BELT W/RETRACTOR(AK3) EXC. DELUXE CAB(W14) (C) ASSIST 		1-75617-341-1 01 1 9002-9306 ● ● ●
1 BELT; SEAT
SUSP SEAT W/SEAT BELT ANCHORAGE(WN5) FRONT SEAT BELT WO/RETRACTOR 2 POINT(W25) (A) DRIVER 		1-75618-497-0 01 1 9307- ● ● ●
1 BELT; SEAT
FRONT SEAT BELT WO/RETRACTOR 2 POINT(W25) (B) DRIVER 		1-75617-319-0 01 1 9002-9306 ● ●
11 SCREW; SEAT BELT
FRONT SEAT&SHOULDER BELT W/RETRACTOR(AK3) EXC. DELUXE CAB(W14) M6X20 W/LK&PL WASHER 		1-09981-304-0 02 1 9002-9306 ● ● ●
14 BELT; SEAT,CENTER
FRONT SEAT&SHOULDER BELT W/RETRACTOR(AK3),FRONT SEAT BELT WO/RETRACTOR 2 POINT(W25) EXC. CENTER SEAT DELETE(SP9) 		1-75618-498-1 01 1 9002- ● ● ●
35 GROMMET; SEAT BELT ANCHOR
FRONT SEAT BELT WO/RETRACTOR(A37) SUSP SEAT W/SEAT BELT ANCHORAGE(WN5) OD=22 		9-61168-535-0 04 1 9002-9306 ● ● ●
35 GROMMET; SEAT BELT ANCHOR
FRONT SEAT BELT WO/RETRACTOR(A37) EXC. SUSP SEAT W/SEAT BELT ANCHORAGE(WN5) OD=22 		9-61168-535-0 02 1 9002-9306 ● ● ●
35 GROMMET; SEAT BELT ANCHOR
EXC. FRONT SEAT&SHOULDER BELT W/RETRACTOR(AK3), FRONT SEAT BELT WO/RETRACTOR(A37),FRONT SEAT BELT WO/RETRACTOR 2 POINT(W25) OD=22 		9-61168-535-0 06 1 9002-9306 ● ● ●
35 GROMMET; SEAT BELT ANCHOR
EXC. FRONT SEAT&SHOULDER BELT W/RETRACTOR(AK3), FRONT SEAT BELT WO/RETRACTOR 2 POINT(W25) OD=22 		9-61168-535-0 06 1 9307- ● ● ●
38 GROMMET; SEAT BELT HOOK
EXC. INTERIOR FULL TRIM<WM3> BLACK 		8-94453-739-0 02 1 9002- ● ● ●
169 SEAL
FRONT SEAT BELT WO/RETRACTOR(A37),FRONT SEAT BELTWO/RETRACTOR 2 POINT(W25) DELUXE CAB(W14) OD=20 T=0.4 BLACK 		1-76798-020-0 01 1 9002-9306 ● ● ●
169 SEAL
EXC. FRONT SEAT&SHOULDER BELT W/RETRACTOR(AK3) OD=20 T=0.4 BLACK 		1-76798-020-0 02 1 9002-9306 ● ● ●
169 SEAL
EXC. FRONT SEAT&SHOULDER BELT W/RETRACTOR(AK3), FRONT SEAT BELT WO/RETRACTOR(A37),FRONT SEAT BELT WO/RETRACTOR 2 POINT(W25) OD=20 T=0.4 BLACK 		1-76798-020-0 02 1 9002-9306 ● ● ●
169 SEAL
SUSP SEAT W/SEAT BELT ANCHORAGE(WN5) FRONT SEAT BELT WO/RETRACTOR 2 POINT(W25) OD=20 T=0.4 BLACK 		1-76798-020-0 01 1 9307- ● ● ●
169 SEAL
EXC. FRONT SEAT&SHOULDER BELT W/RETRACTOR(AK3), FRONT SEAT BELT WO/RETRACTOR 2 POINT(W25) OD=20 T=0.4 BLACK 		1-76798-020-0 02 1 9307- ● ● ●
169 SEAL
EXC. FRONT SEAT&SHOULDER BELT W/RETRACTOR(AK3) OD=20 T=0.4 BLACK 		1-76798-020-0 02 1 9307- ● ● ●
