◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FSS ▶ 10716 - FSS/FTS-RHD ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-70 - FLOOR PANEL ▶
6-70 — FLOOR PANEL (#34459) — 155 parça

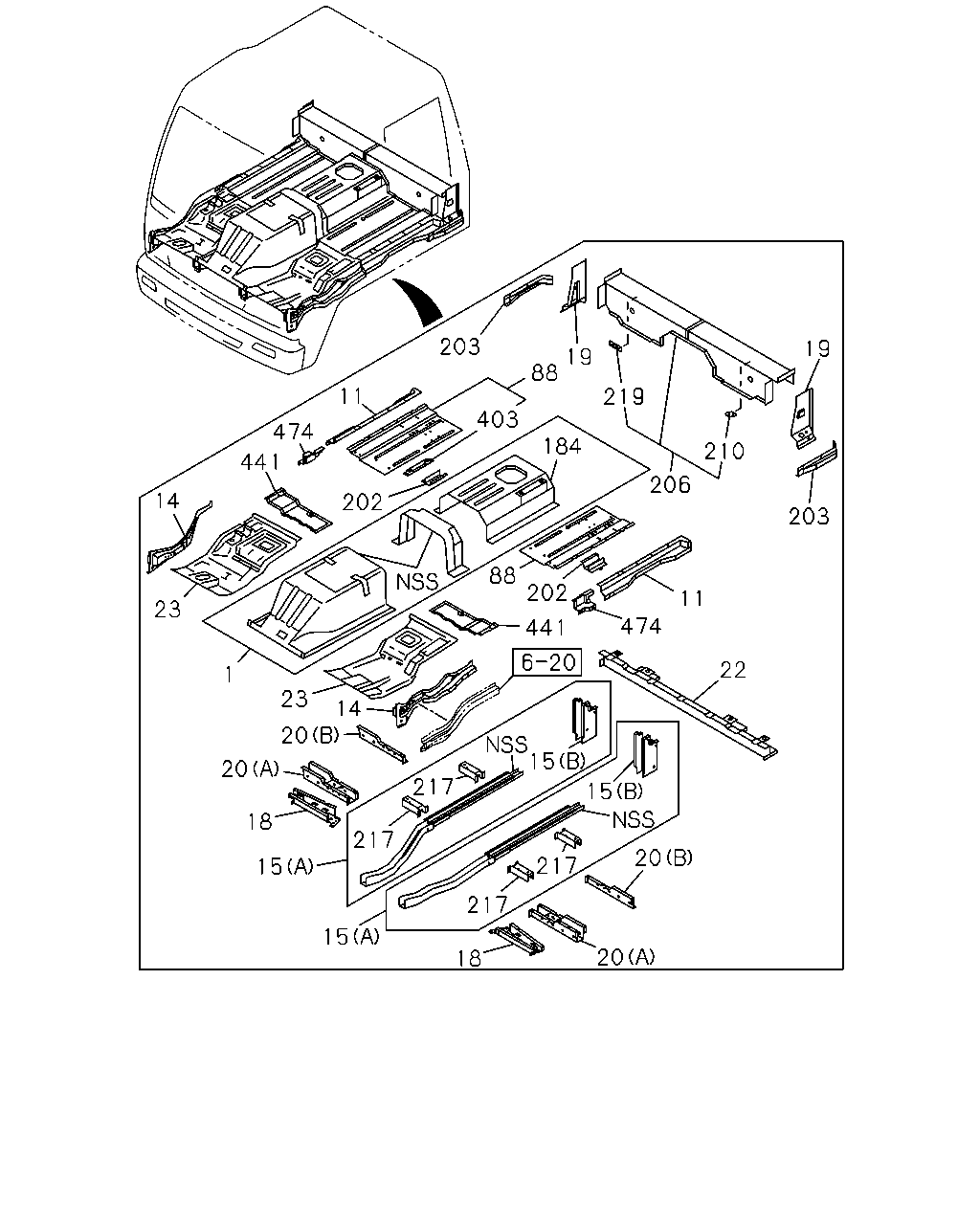

çizim 152915
203 19 19 88 219 11 403 474 184 210 441 206 14 202 203 88 202 11 23 474 441 22 1 23 14 20 15 20 217 15 18 217 20 217 15 217 15 20 18
BalonParca AdiParca NoAdetTipApplied Date A B C D E
1 PANEL; FLOOR
DUAL AIR GAUGE<UG2> 		1-62183-405-2 01 1 0005-0403 ●
1 PANEL; FLOOR
DUAL AIR GAUGE<UG2> EXC. HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> 		1-62183-405-2 01 1 0404-0405 ●
1 PANEL; FLOOR
6HH1 STD 4VALVE ENG(1A6),6HH1 STD ENG(65L) HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> DUAL AIR GAUGE<UG2> 		1-62183-405-2 01 1 0404-0405 ●
1 PANEL; FLOOR
DUAL AIR GAUGE<UG2> EXC. HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> 		1-62183-405-2 01 1 0406-0602 ●
1 PANEL; FLOOR
6HH1 STD ENG(65L) HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> DUAL AIR GAUGE<UG2> 		1-62183-405-2 01 1 0406-0602 ●
1 PANEL; FLOOR
6HH1 STD ENG(65L) DUAL AIR GAUGE<UG2> 		1-62183-405-2 01 1 0603- ●
1 PANEL; FLOOR 1-62183-334-4 01 1 0005- ● ●
1 PANEL; FLOOR
EXC. DUAL AIR GAUGE<UG2> 		1-62183-334-4 01 1 0005- ●
1 PANEL; FLOOR
6HK1 TCC ENG(81L) HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> DUAL AIR GAUGE<UG2> 		1-62183-668-0 01 1 0406-0601 ●
1 PANEL; FLOOR
6HK1 TCC ENG(81L) HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> DUAL AIR GAUGE<UG2> 		1-62183-668-0 01 1 0602-0602 ●
1 PANEL; FLOOR
6HK1 TCC ENG(81L) LIGHTING SYSTEM-JAPANESE STANDARDS<JBZ> EXC. HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> 		1-62183-668-0 01 1 0602-0602 ●
1 PANEL; FLOOR
6HK1 TCC ENG(81L) HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> DUAL AIR GAUGE<UG2> 		1-62183-668-0 01 1 0603- ●
1 PANEL; FLOOR
6HK1 TCC ENG(81L) LIGHTING SYSTEM-JAPANESE STANDARDS<JBZ> DUAL AIR GAUGE<UG2> EXC. HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> 		1-62183-668-0 01 1 0603- ●
1 PANEL; FLOOR
DUAL AIR GAUGE<UG2> 		1-62183-138-9 01 1 9604-9706 ● ●
1 PANEL; FLOOR
DUAL AIR GAUGE<UG2> 		1-62183-405-2 01 1 9707-0004 ● ●
1 PANEL; FLOOR
EXC. DUAL AIR GAUGE<UG2> 		1-62183-334-4 01 1 9604-0004 ● ●
1 PANEL; FLOOR 1-62183-334-4 01 1 9604-0004 ●
1 PANEL; FLOOR 1-62183-225-3 01 1 9604-0004 ● ●
11 PANEL; FLOOR SIDE RR 1-62483-047-0 01 1 9604-9708 ● ●
11 PANEL; FLOOR SIDE RR 1-62483-265-0 01 1 9709-0004 ● ●
11 PANEL; FLOOR SIDE RR 1-62483-046-0 01 1 9604-9708 ● ●
11 PANEL; FLOOR SIDE RR 1-62483-264-0 01 1 9709-0004 ● ●
14 PANEL; FLOOR SIDE,FRT 1-62482-918-6 01 1 9604-0004 ● ● ● ● ●
14 PANEL; FLOOR SIDE,FRT 1-62482-918-6 01 1 0005- ● ● ●
14 PANEL; FLOOR SIDE,FRT 1-62482-917-6 01 1 9604-0004 ● ● ● ● ●
14 PANEL; FLOOR SIDE,FRT 1-62482-917-6 01 1 0005- ● ● ●
15 FRAME; UNDER
(A) 		1-62482-931-9 01 1 9604-0401 ● ● ●
15 FRAME; UNDER
(A) 		8-97583-580-0 01 1 0402- ● ● ●
15 FRAME; UNDER
(B) 		1-62483-154-3 01 1 9604- ● ● ●
15 FRAME; UNDER
(A) 		1-62482-930-9 01 1 9604-0103 ● ● ●
15 FRAME; UNDER
(A) 		1-62483-333-1 01 1 0104- ● ● ●
15 FRAME; UNDER
(B) 		1-62483-153-3 01 1 9604- ● ● ●
15 FRAME; UNDER
(B) 		1-62482-568-2 02 1 9604-9803 ● ●
15 FRAME; UNDER
(A) 		1-62483-018-2 01 1 9604-0004 ● ●
15 FRAME; UNDER
(A) 		1-62483-017-2 01 1 9604-0004 ● ●
18 FRAME; FLOOR,CENTER SIDE 1-62482-958-6 01 1 9604- ● ● ●
18 FRAME; FLOOR,CENTER SIDE 1-62482-957-6 01 1 9604- ● ● ●
18 FRAME; FLOOR,CENTER SIDE 1-62482-997-5 01 1 9604-0004 ● ●
18 FRAME; FLOOR,CENTER SIDE 1-62483-023-5 01 1 9604-0004 ● ●
19 PANEL; FLOOR SIDE,REAR 1-62482-924-6 01 1 9604- ● ● ●
19 PANEL; FLOOR SIDE,REAR 1-62482-923-5 01 1 9604- ● ● ●
19 PANEL; FLOOR SIDE,REAR 1-62482-191-3 01 1 9604-0004 ● ●
19 PANEL; FLOOR SIDE,REAR 1-62482-192-2 01 1 9604-0004 ● ●
20 FRAME; FLOOR SIDE,REAR
(B) 		1-62482-303-3 01 1 9604-0004 ● ●
20 FRAME; FLOOR SIDE,REAR
(A) 		1-62482-778-1 01 1 9604-0004 ● ●
20 FRAME; FLOOR SIDE,REAR
(B) 		1-62482-302-3 01 1 9604-0004 ● ●
20 FRAME; FLOOR SIDE,REAR
(A) 		1-62482-315-3 01 1 9604-0004 ● ●
22 FRAME; FLOOR REAR 1-62482-066-5 01 1 9604-0004 ● ●
23 PANEL; FLOOR,SIDE 1-62183-273-4 01 1 9604-9904 ● ● ●
23 PANEL; FLOOR,SIDE 1-62172-799-0 01 1 9905- ● ● ●
23 PANEL; FLOOR,SIDE
DUAL AIR GAUGE<UG2> 		1-62183-270-4 01 1 9604-0004 ● ●
23 PANEL; FLOOR,SIDE
DUAL AIR GAUGE<UG2> 		1-62183-270-4 01 1 0005-0212 ●
23 PANEL; FLOOR,SIDE
DUAL AIR GAUGE<UG2> EXC. HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> 		1-62183-270-4 01 1 0301-0602 ● ●
23 PANEL; FLOOR,SIDE
6HK1 TCC ENG(81L) LIGHTING SYSTEM-JAPANESE STANDARDS<JBZ> DUAL AIR GAUGE<UG2> EXC. HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> 		1-62183-270-4 01 1 0603- ●
23 PANEL; FLOOR,SIDE
6HH1 STD ENG(65L) DUAL AIR GAUGE<UG2> EXC. HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> 		1-62183-270-4 01 1 0603- ●
23 PANEL; FLOOR,SIDE
EXC. DUAL AIR GAUGE<UG2> 		1-62183-271-4 01 1 9604-0004 ● ●
23 PANEL; FLOOR,SIDE 1-62183-271-4 01 1 9604-0004 ●
23 PANEL; FLOOR,SIDE 1-62183-271-4 01 1 0005-0212 ● ●
23 PANEL; FLOOR,SIDE
EXC. DUAL AIR GAUGE<UG2> 		1-62183-271-4 01 1 0005-0212 ●
23 PANEL; FLOOR,SIDE 1-62183-271-4 01 1 0301-0403 ● ●
23 PANEL; FLOOR,SIDE
HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> DUAL AIR GAUGE<UG2> 		1-62183-271-4 01 1 0301-0403 ●
23 PANEL; FLOOR,SIDE
EXC. DUAL AIR GAUGE<UG2> 		1-62183-271-4 01 1 0301-0403 ●
23 PANEL; FLOOR,SIDE 1-62183-271-4 01 1 0404- ● ●
23 PANEL; FLOOR,SIDE
HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> DUAL AIR GAUGE<UG2> 		1-62183-271-4 01 1 0404- ●
23 PANEL; FLOOR,SIDE
EXC. DUAL AIR GAUGE<UG2> 		1-62183-271-4 01 1 0404- ●
23 PANEL; FLOOR,SIDE 1-62183-311-0 01 1 9604-0004 ● ●
23 PANEL; FLOOR,SIDE 1-62183-310-0 01 1 9604-0004 ● ●
25 REINFORCEMENT; FRAME FLOOR,FRT 1-62182-926-4 01 1 9604- ● ● ●
88 BOARD ASM; FLOOR 1-62483-038-1 01 1 9604-0004 ● ●
88 BOARD ASM; FLOOR 1-62483-037-1 01 1 9604-0004 ● ●
184 HOOD ASM; ENG RR 1-62183-036-1 01 1 9604-0004 ● ●
202 PANEL; CENTER MTG REINF 1-62482-254-3 01 1 9604-0004 ● ●
202 PANEL; CENTER MTG REINF 1-62482-253-2 01 1 9604-0004 ● ●
203 PANEL; CLOSING,BACK CORNER,BACK PANEL 1-62482-313-0 01 1 9604-0004 ● ●
203 PANEL; CLOSING,BACK CORNER,BACK PANEL 1-62482-312-0 01 1 9604-0004 ● ●
206 PANEL; FLOOR BOARD RR 1-62182-689-0 01 1 9604-0004 ● ●
210 PANEL; HAND BRAKE LEVER BRKT 1-62182-085-0 01 1 9604-0004 ● ●
217 PANEL; SEAT STAND
WO/NUT 		1-62482-181-2 03 1 9604-0004 ● ●
217 PANEL; SEAT STAND
W/NUT 		1-62482-425-0 01 1 9604-0004 ● ●
219 PATCH; AIR DUCT LWR 1-62182-941-0 01 1 9604- ● ● ●
219 PATCH; AIR DUCT LWR 1-62182-197-0 01 1 9604-0004 ● ●
374 NUT; FLOOR
M6 		1-09984-110-0 01 1 9604- ● ● ●
403 PATCH; FIRE EXTINGUSHER 1-62183-077-1 01 1 9604-0004 ● ●
441 PANEL; EXTENSION,FLOOR SIDE 1-62483-031-4 01 1 9604-0004 ● ●
441 PANEL; EXTENSION,FLOOR SIDE 1-62483-030-5 01 1 9604-0004 ● ●
474 EXTENSION; FLOOR SIDE 1-62182-992-2 01 1 9604-0004 ● ●
474 EXTENSION; FLOOR SIDE 1-62182-991-2 01 1 9604-0004 ● ●
553 REINFORCEMENT; SEAT STAND RR 1-62172-795-0 01 1 9604- ● ● ●

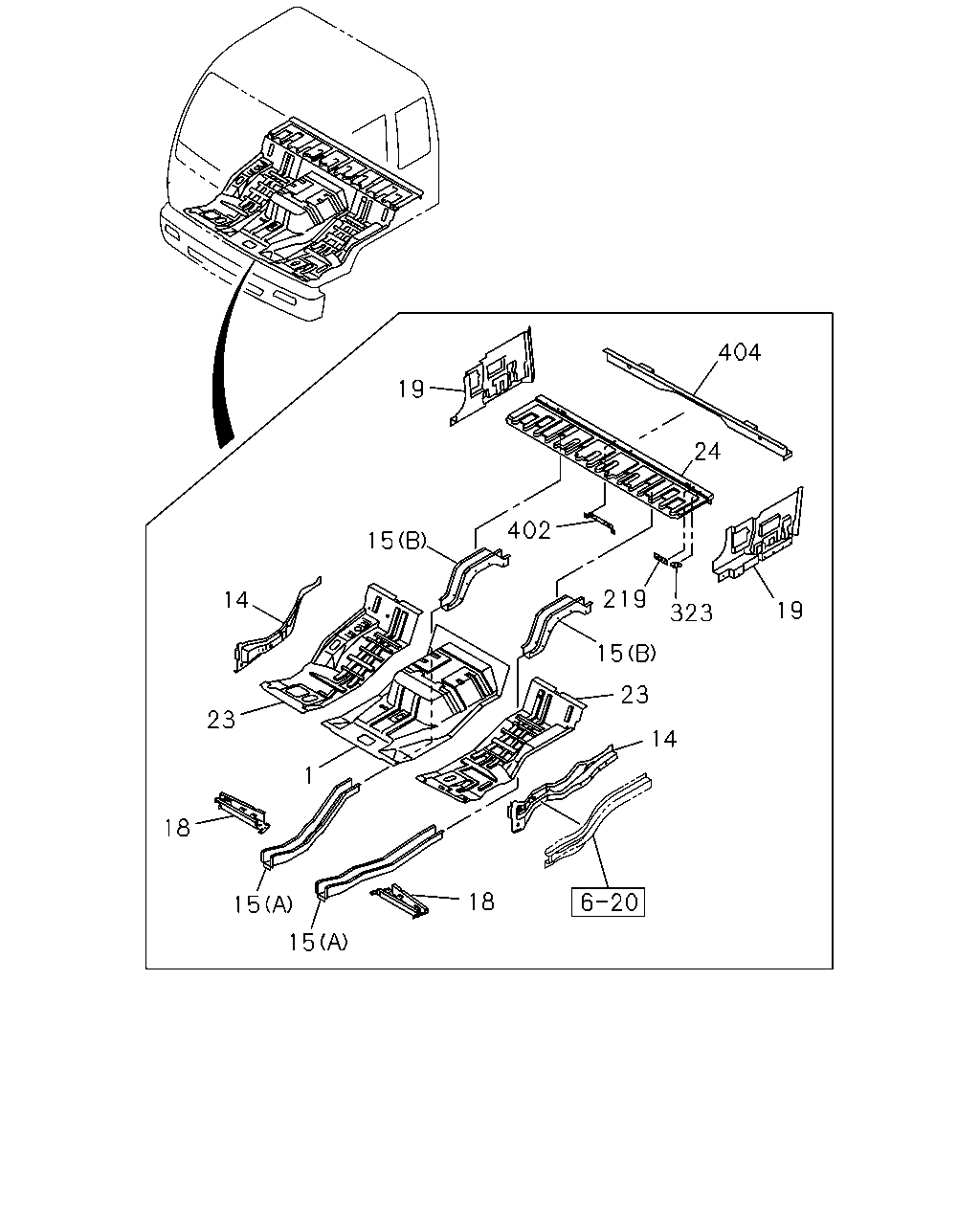

çizim 152932
404 19 24 402 15 219 14 19 323 15 23 23 14 1 18 18 15 15
BalonParca AdiParca NoAdetTipApplied Date A B C D E
1 PANEL; FLOOR
DUAL AIR GAUGE<UG2> 		1-62183-405-2 01 1 0005-0403 ●
1 PANEL; FLOOR
DUAL AIR GAUGE<UG2> EXC. HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> 		1-62183-405-2 01 1 0404-0405 ●
1 PANEL; FLOOR
6HH1 STD 4VALVE ENG(1A6),6HH1 STD ENG(65L) HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> DUAL AIR GAUGE<UG2> 		1-62183-405-2 01 1 0404-0405 ●
1 PANEL; FLOOR
DUAL AIR GAUGE<UG2> EXC. HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> 		1-62183-405-2 01 1 0406-0602 ●
1 PANEL; FLOOR
6HH1 STD ENG(65L) HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> DUAL AIR GAUGE<UG2> 		1-62183-405-2 01 1 0406-0602 ●
1 PANEL; FLOOR
6HH1 STD ENG(65L) DUAL AIR GAUGE<UG2> 		1-62183-405-2 01 1 0603- ●
1 PANEL; FLOOR 1-62183-334-4 01 1 0005- ● ●
1 PANEL; FLOOR
EXC. DUAL AIR GAUGE<UG2> 		1-62183-334-4 01 1 0005- ●
1 PANEL; FLOOR
6HK1 TCC ENG(81L) HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> DUAL AIR GAUGE<UG2> 		1-62183-668-0 01 1 0406-0601 ●
1 PANEL; FLOOR
6HK1 TCC ENG(81L) HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> DUAL AIR GAUGE<UG2> 		1-62183-668-0 01 1 0602-0602 ●
1 PANEL; FLOOR
6HK1 TCC ENG(81L) LIGHTING SYSTEM-JAPANESE STANDARDS<JBZ> EXC. HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> 		1-62183-668-0 01 1 0602-0602 ●
1 PANEL; FLOOR
6HK1 TCC ENG(81L) HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> DUAL AIR GAUGE<UG2> 		1-62183-668-0 01 1 0603- ●
1 PANEL; FLOOR
6HK1 TCC ENG(81L) LIGHTING SYSTEM-JAPANESE STANDARDS<JBZ> DUAL AIR GAUGE<UG2> EXC. HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> 		1-62183-668-0 01 1 0603- ●
1 PANEL; FLOOR
DUAL AIR GAUGE<UG2> 		1-62183-138-9 01 1 9604-9706 ● ●
1 PANEL; FLOOR
DUAL AIR GAUGE<UG2> 		1-62183-405-2 01 1 9707-0004 ● ●
1 PANEL; FLOOR
EXC. DUAL AIR GAUGE<UG2> 		1-62183-334-4 01 1 9604-0004 ● ●
1 PANEL; FLOOR 1-62183-334-4 01 1 9604-0004 ●
1 PANEL; FLOOR 1-62183-225-3 01 1 9604-0004 ● ●
14 PANEL; FLOOR SIDE,FRT 1-62482-918-6 01 1 9604-0004 ● ● ● ● ●
14 PANEL; FLOOR SIDE,FRT 1-62482-918-6 01 1 0005- ● ● ●
14 PANEL; FLOOR SIDE,FRT 1-62482-917-6 01 1 9604-0004 ● ● ● ● ●
14 PANEL; FLOOR SIDE,FRT 1-62482-917-6 01 1 0005- ● ● ●
15 FRAME; UNDER
(A) 		1-62482-931-9 01 1 9604-0401 ● ● ●
15 FRAME; UNDER
(A) 		8-97583-580-0 01 1 0402- ● ● ●
15 FRAME; UNDER
(B) 		1-62483-154-3 01 1 9604- ● ● ●
15 FRAME; UNDER
(A) 		1-62482-930-9 01 1 9604-0103 ● ● ●
15 FRAME; UNDER
(A) 		1-62483-333-1 01 1 0104- ● ● ●
15 FRAME; UNDER
(B) 		1-62483-153-3 01 1 9604- ● ● ●
15 FRAME; UNDER
(B) 		1-62482-568-2 02 1 9604-9803 ● ●
15 FRAME; UNDER
(A) 		1-62483-018-2 01 1 9604-0004 ● ●
15 FRAME; UNDER
(A) 		1-62483-017-2 01 1 9604-0004 ● ●
18 FRAME; FLOOR,CENTER SIDE 1-62482-958-6 01 1 9604- ● ● ●
18 FRAME; FLOOR,CENTER SIDE 1-62482-957-6 01 1 9604- ● ● ●
18 FRAME; FLOOR,CENTER SIDE 1-62482-997-5 01 1 9604-0004 ● ●
18 FRAME; FLOOR,CENTER SIDE 1-62483-023-5 01 1 9604-0004 ● ●
19 PANEL; FLOOR SIDE,REAR 1-62482-924-6 01 1 9604- ● ● ●
19 PANEL; FLOOR SIDE,REAR 1-62482-923-5 01 1 9604- ● ● ●
19 PANEL; FLOOR SIDE,REAR 1-62482-191-3 01 1 9604-0004 ● ●
19 PANEL; FLOOR SIDE,REAR 1-62482-192-2 01 1 9604-0004 ● ●
23 PANEL; FLOOR,SIDE 1-62183-273-4 01 1 9604-9904 ● ● ●
23 PANEL; FLOOR,SIDE 1-62172-799-0 01 1 9905- ● ● ●
23 PANEL; FLOOR,SIDE
DUAL AIR GAUGE<UG2> 		1-62183-270-4 01 1 9604-0004 ● ●
23 PANEL; FLOOR,SIDE
DUAL AIR GAUGE<UG2> 		1-62183-270-4 01 1 0005-0212 ●
23 PANEL; FLOOR,SIDE
DUAL AIR GAUGE<UG2> EXC. HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> 		1-62183-270-4 01 1 0301-0602 ● ●
23 PANEL; FLOOR,SIDE
6HK1 TCC ENG(81L) LIGHTING SYSTEM-JAPANESE STANDARDS<JBZ> DUAL AIR GAUGE<UG2> EXC. HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> 		1-62183-270-4 01 1 0603- ●
23 PANEL; FLOOR,SIDE
6HH1 STD ENG(65L) DUAL AIR GAUGE<UG2> EXC. HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> 		1-62183-270-4 01 1 0603- ●
23 PANEL; FLOOR,SIDE
EXC. DUAL AIR GAUGE<UG2> 		1-62183-271-4 01 1 9604-0004 ● ●
23 PANEL; FLOOR,SIDE 1-62183-271-4 01 1 9604-0004 ●
23 PANEL; FLOOR,SIDE 1-62183-271-4 01 1 0005-0212 ● ●
23 PANEL; FLOOR,SIDE
EXC. DUAL AIR GAUGE<UG2> 		1-62183-271-4 01 1 0005-0212 ●
23 PANEL; FLOOR,SIDE 1-62183-271-4 01 1 0301-0403 ● ●
23 PANEL; FLOOR,SIDE
HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> DUAL AIR GAUGE<UG2> 		1-62183-271-4 01 1 0301-0403 ●
23 PANEL; FLOOR,SIDE
EXC. DUAL AIR GAUGE<UG2> 		1-62183-271-4 01 1 0301-0403 ●
23 PANEL; FLOOR,SIDE 1-62183-271-4 01 1 0404- ● ●
23 PANEL; FLOOR,SIDE
HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> DUAL AIR GAUGE<UG2> 		1-62183-271-4 01 1 0404- ●
23 PANEL; FLOOR,SIDE
EXC. DUAL AIR GAUGE<UG2> 		1-62183-271-4 01 1 0404- ●
23 PANEL; FLOOR,SIDE 1-62183-311-0 01 1 9604-0004 ● ●
23 PANEL; FLOOR,SIDE 1-62183-310-0 01 1 9604-0004 ● ●
24 PANEL; BED PAN 1-62182-940-9 01 1 9604- ● ● ●
25 REINFORCEMENT; FRAME FLOOR,FRT 1-62182-926-4 01 1 9604- ● ● ●
219 PATCH; AIR DUCT LWR 1-62182-941-0 01 1 9604- ● ● ●
219 PATCH; AIR DUCT LWR 1-62182-197-0 01 1 9604-0004 ● ●
323 PATCH; HAND LEVER 1-62182-961-0 01 1 9604- ● ● ●
374 NUT; FLOOR
M6 		1-09984-110-0 01 1 9604- ● ● ●
402 PATCH; CAB LOCK 1-62182-947-2 01 1 9604- ● ● ●
404 RAIL ASM; MTG,RR 1-62483-123-1 01 1 9604- ● ● ●
553 REINFORCEMENT; SEAT STAND RR 1-62172-795-0 01 1 9604- ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
