◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FSS ▶ 10716 - FSS/FTS-RHD ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-55 - REAR DOOR TRIM ▶
6-55 — REAR DOOR TRIM (#34456) — 16 parça

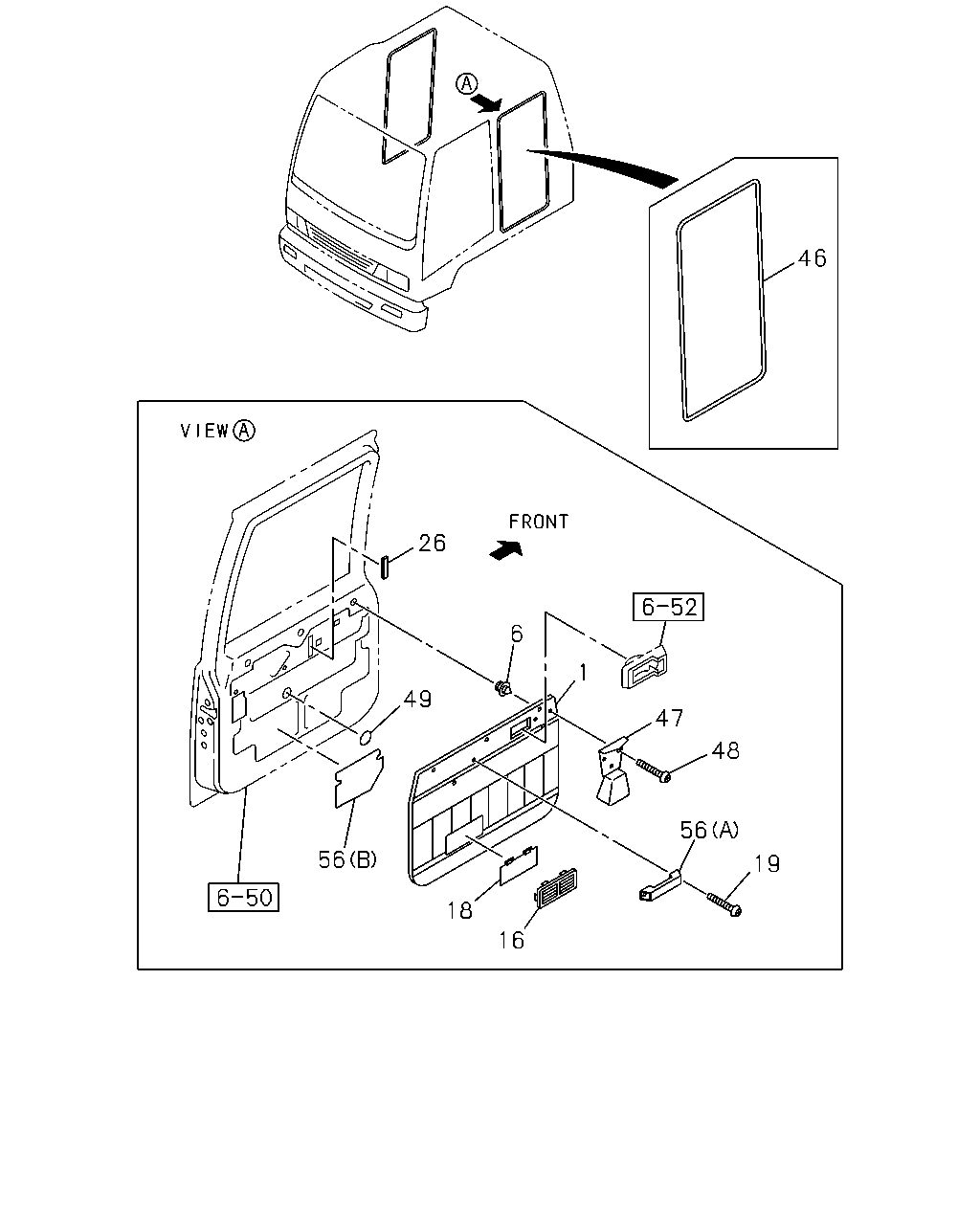

çizim 152935
46 26 6 1 49 47 48 56 56 19 18 16
BalonParca AdiParca NoAdetTipApplied Date A B
1 PAD; TRIM,RR DOOR 1-73338-490-0 01 1 9604-0004 ● ●
1 PAD; TRIM,RR DOOR 1-73338-489-0 01 1 9604-0004 ● ●
6 CLIP; DOOR PAD 1-09987-119-1 18 1 9604-0004 ● ●
16 GRILLE; OUTLET,RR DOOR 1-73338-491-0 02 1 9604-0004 ● ●
18 HANDLE; DOOR PULL
BLACK 		8-94142-589-2 02 1 9604-0004 ● ●
19 SCREW; DOOR PULL HANDLE
M6X30 		8-94279-327-0 04 1 9604-0004 ● ●
26 SEAL; WAIST,RR DOOR INNER 1-76777-051-2 02 1 9604-0004 ● ●
46 SEAL; DOOR,UPR,CAB SIDE 1-76718-124-5 02 1 9604-0004 ● ●
47 TRAY; ASH,RR 5-76457-001-0 02 1 9604-0004 ● ●
48 SCREW; RET,ASH TRAY
M4X12 TAPPING OVAL-HEAD 		9-07045-412-0 06 1 9604-9709 ● ●
48 SCREW; RET,ASH TRAY
M4X10 TAPPING OVAL-HEAD 		0-70680-410-0 06 1 9710-0004 ● ●
49 SEAL; DOOR 1-76798-018-0 02 1 9604-9803 ● ●
49 SEAL; DOOR 5-76777-035-0 02 1 9804-0004 ● ●
56 SHUTTER; DOOR TRIM
(A) 		1-76718-134-1 02 1 9604-0004 ● ●
56 SHUTTER; DOOR TRIM
(B) 		1-76718-147-3 01 1 9604-0004 ● ●
56 SHUTTER; DOOR TRIM
(B) 		1-76718-146-3 01 1 9604-0004 ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
